Petrol chipper shredder - Briggs&Stratton 6.5 Hp engine
Field test
DETAILS

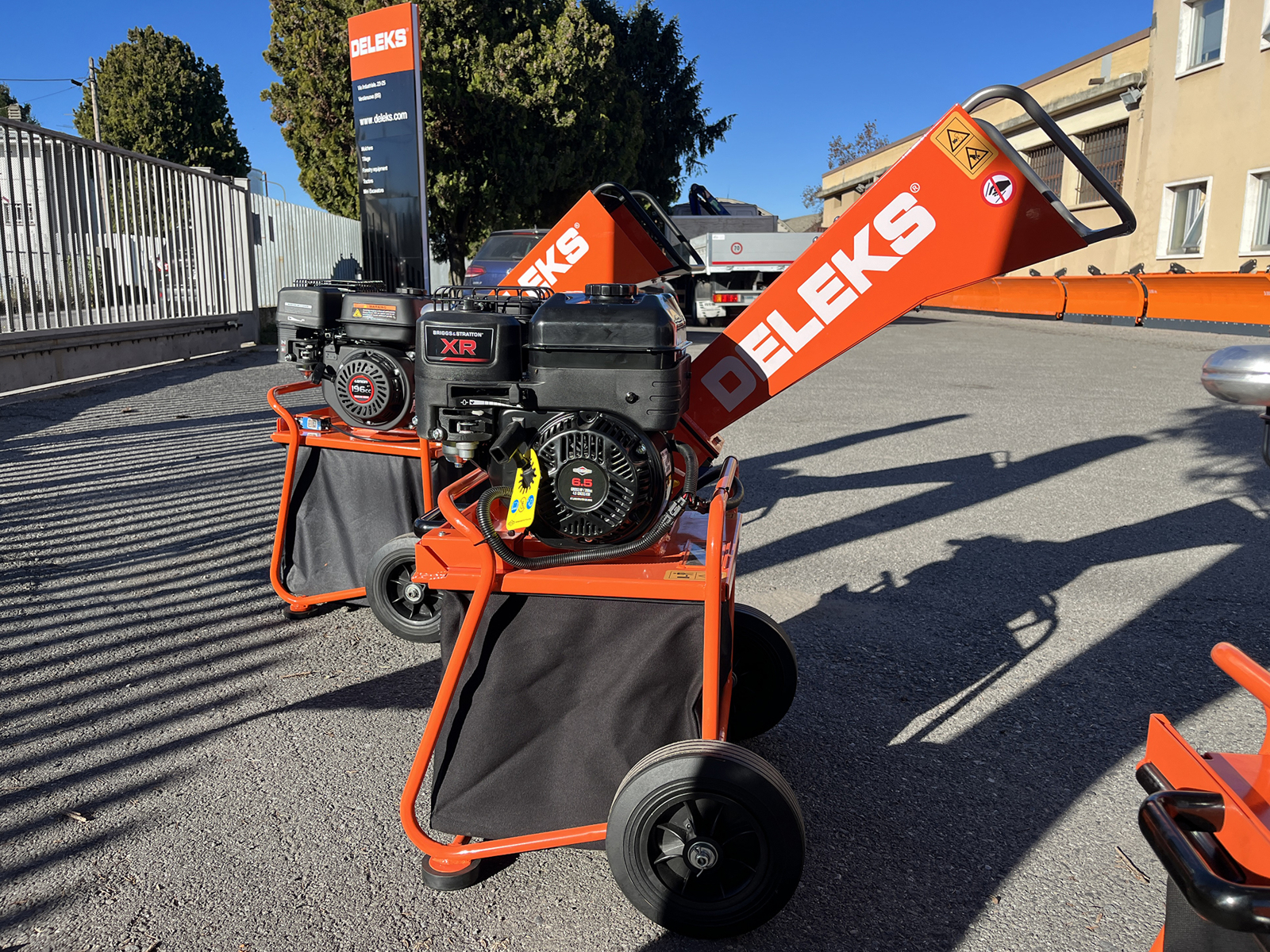

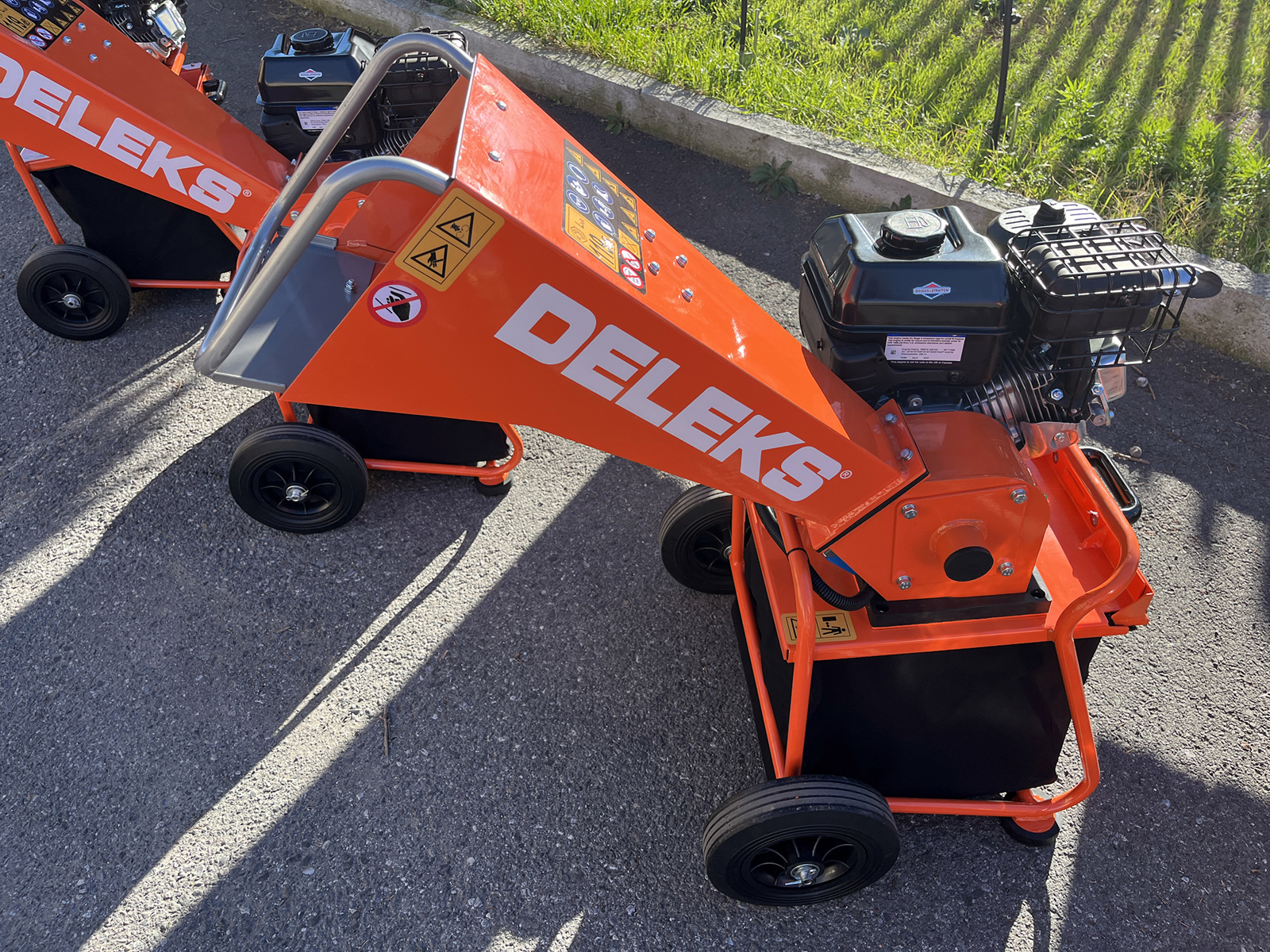

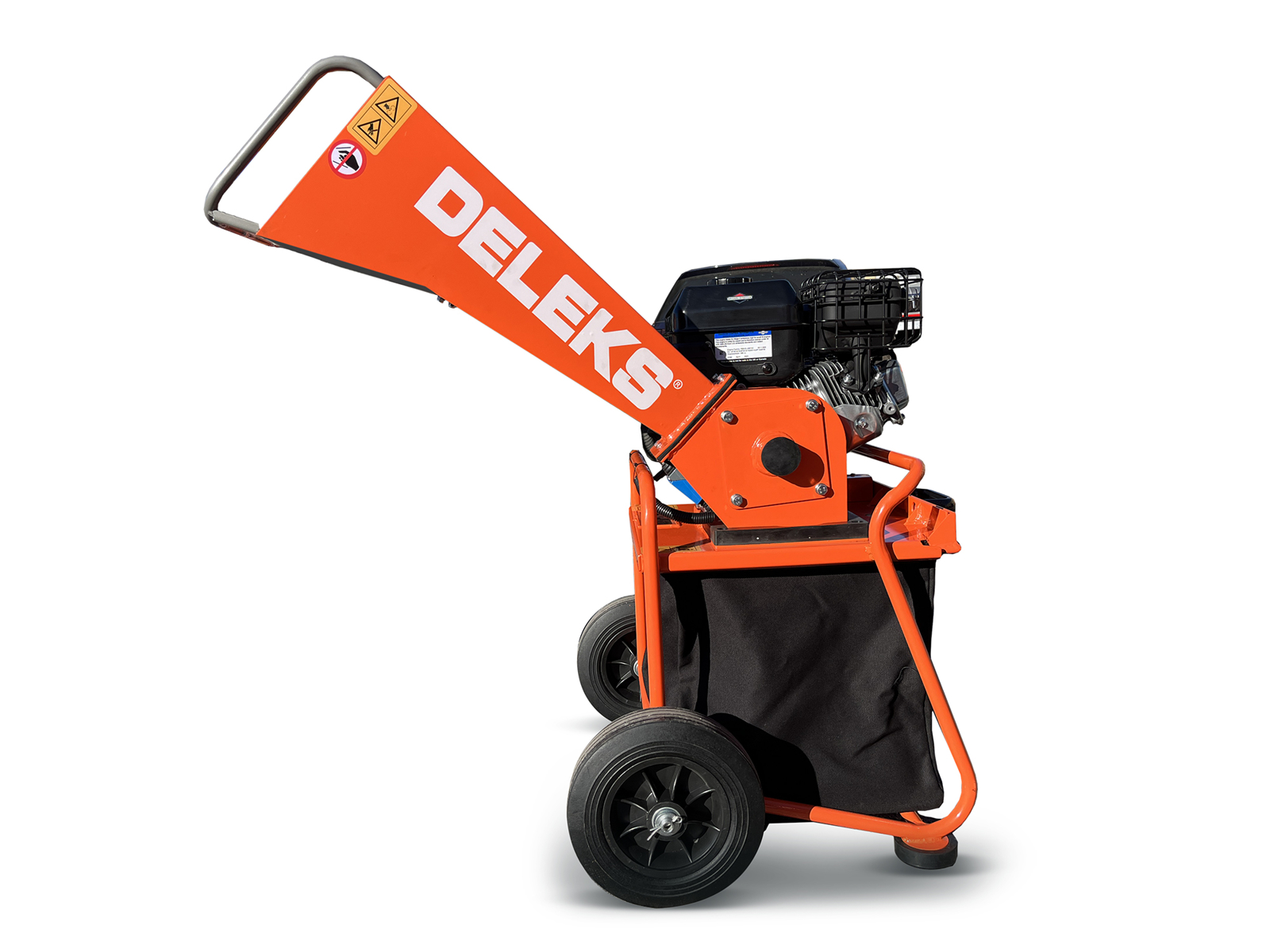

Wood Chipper DELEKS DK-300-BS with Briggs&Stratton 6.5 Hp engine, 4 stroke gasoline engine. 2 reversible knives of special steel.
OVERVIEW

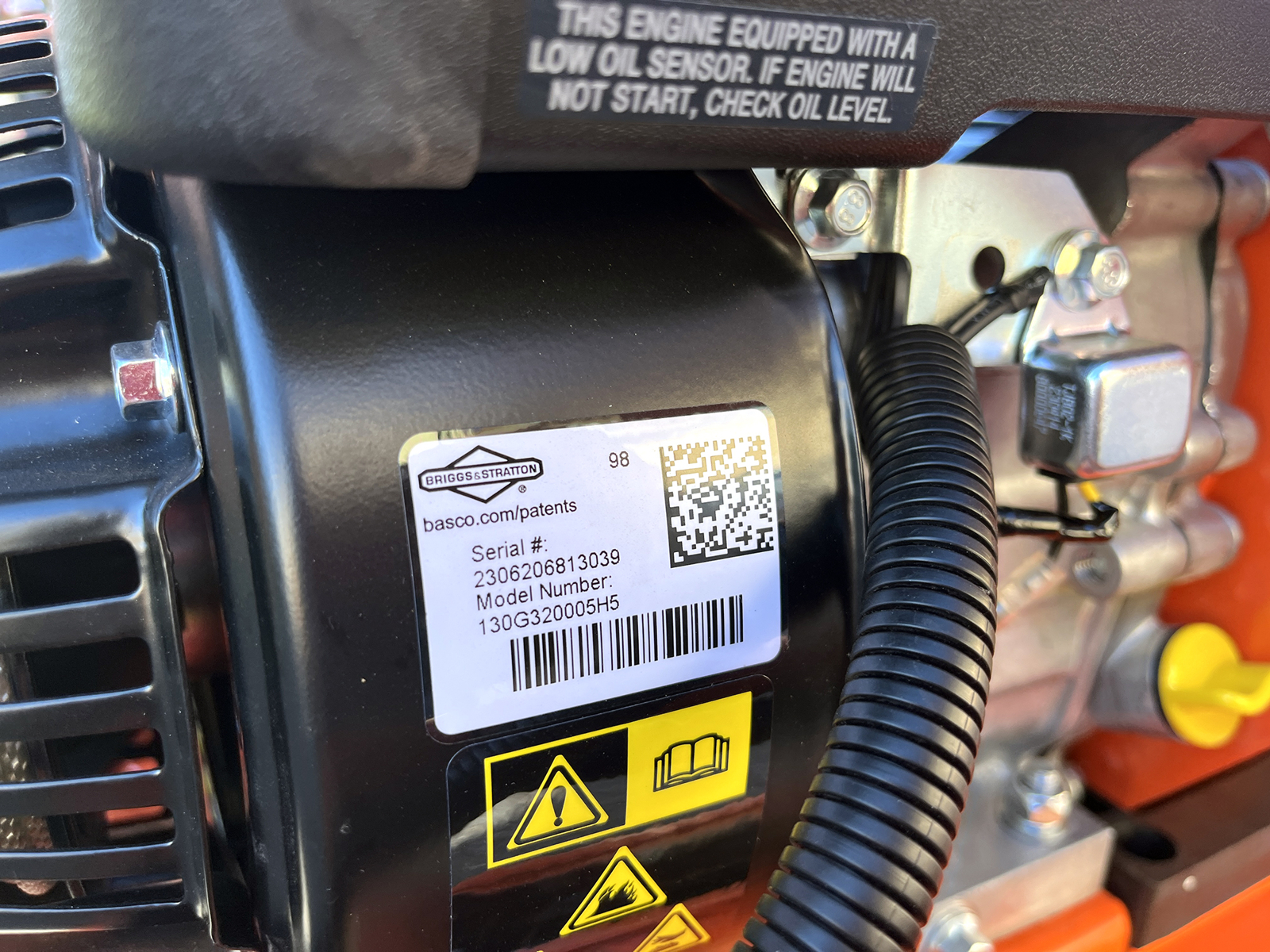

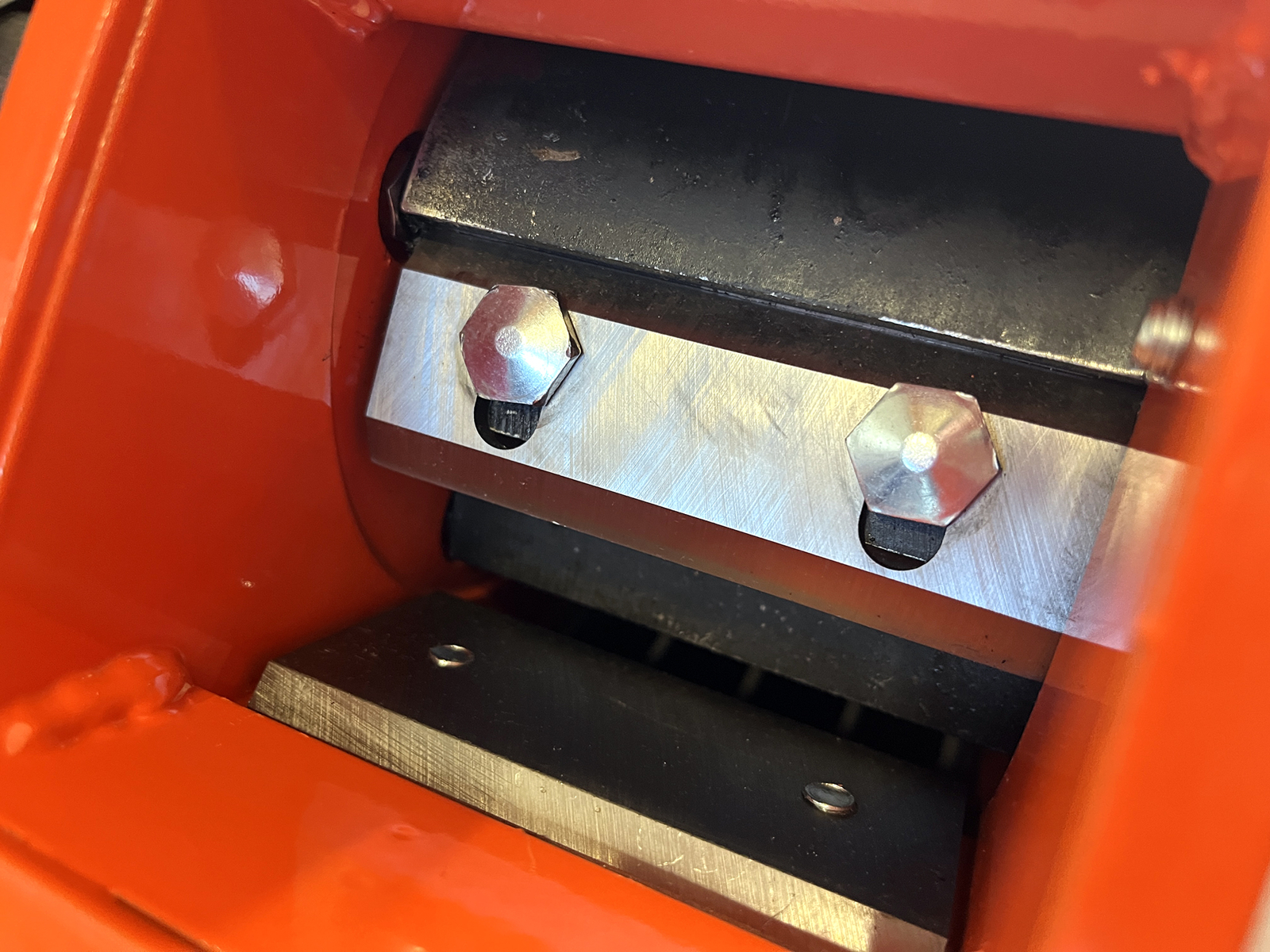

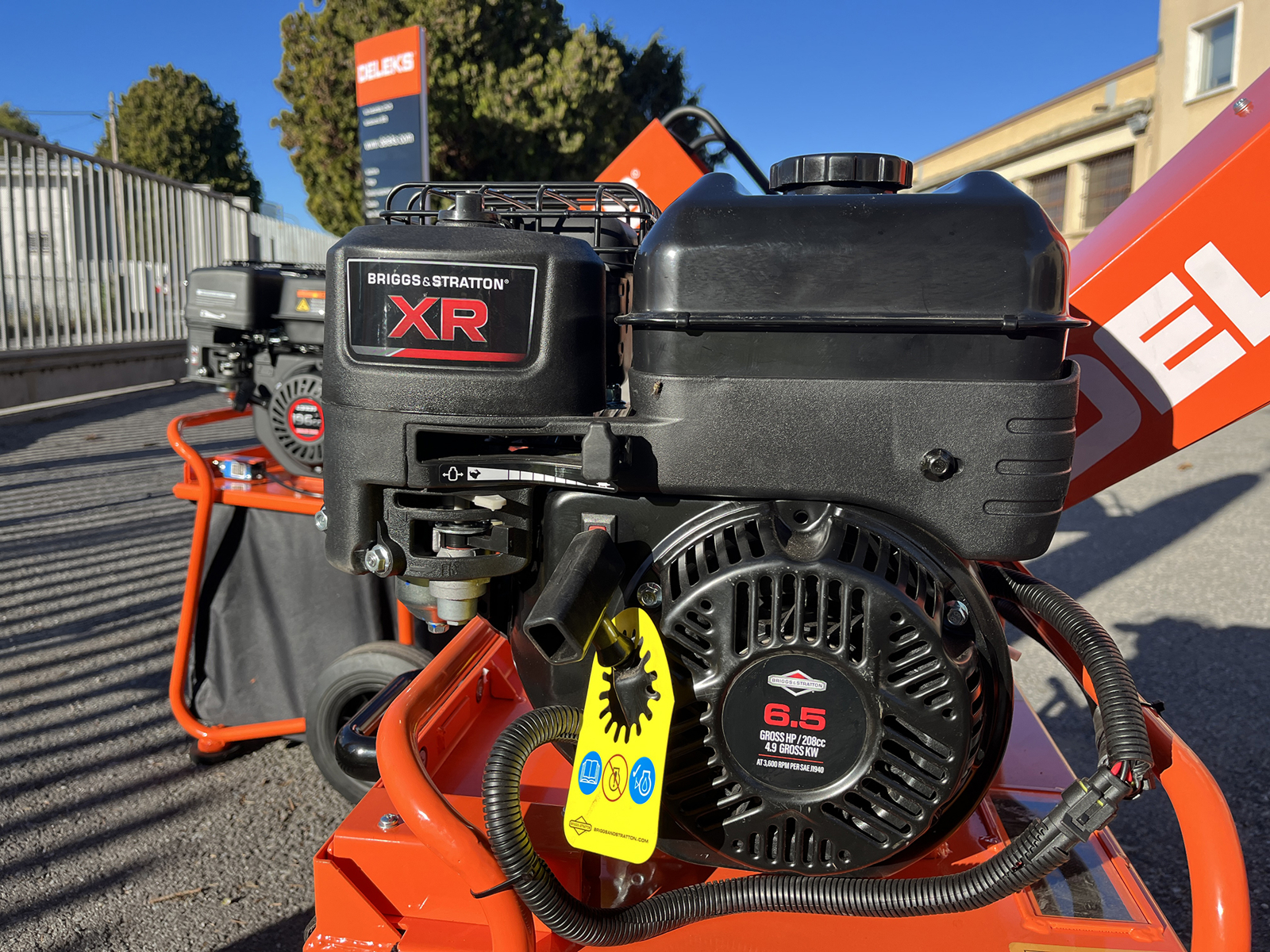

Chipping drum system shreds vegetation using 2 horizontal blades + 1 counter-fixed blade. Gasoline engine Briggs&Stratton XR950 - 208cc - 6.5 hp (3-Year warranty - Spare parts always available).
Suitable for the chipping of all types of dry and green wood, pruning residues, etc.
Maximum cutting diameter: 5 cm
Machine not suitable for shredding corn, straw, alfalfa, etc ..
Starter rope
Ergonomic design

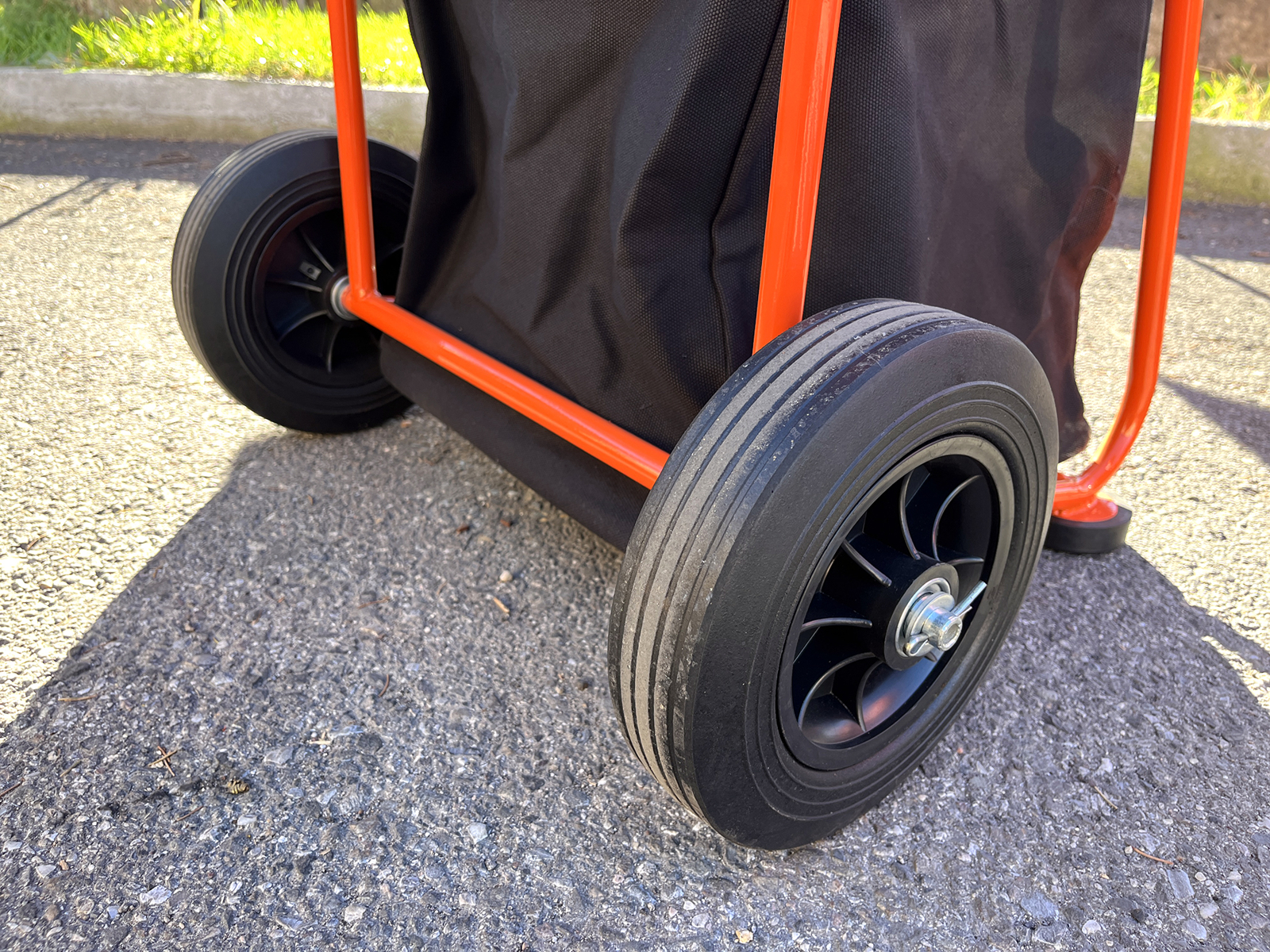

Excellent maneuverability thanks to its 2 wheels
Solid structure and stable with a low center of gravity

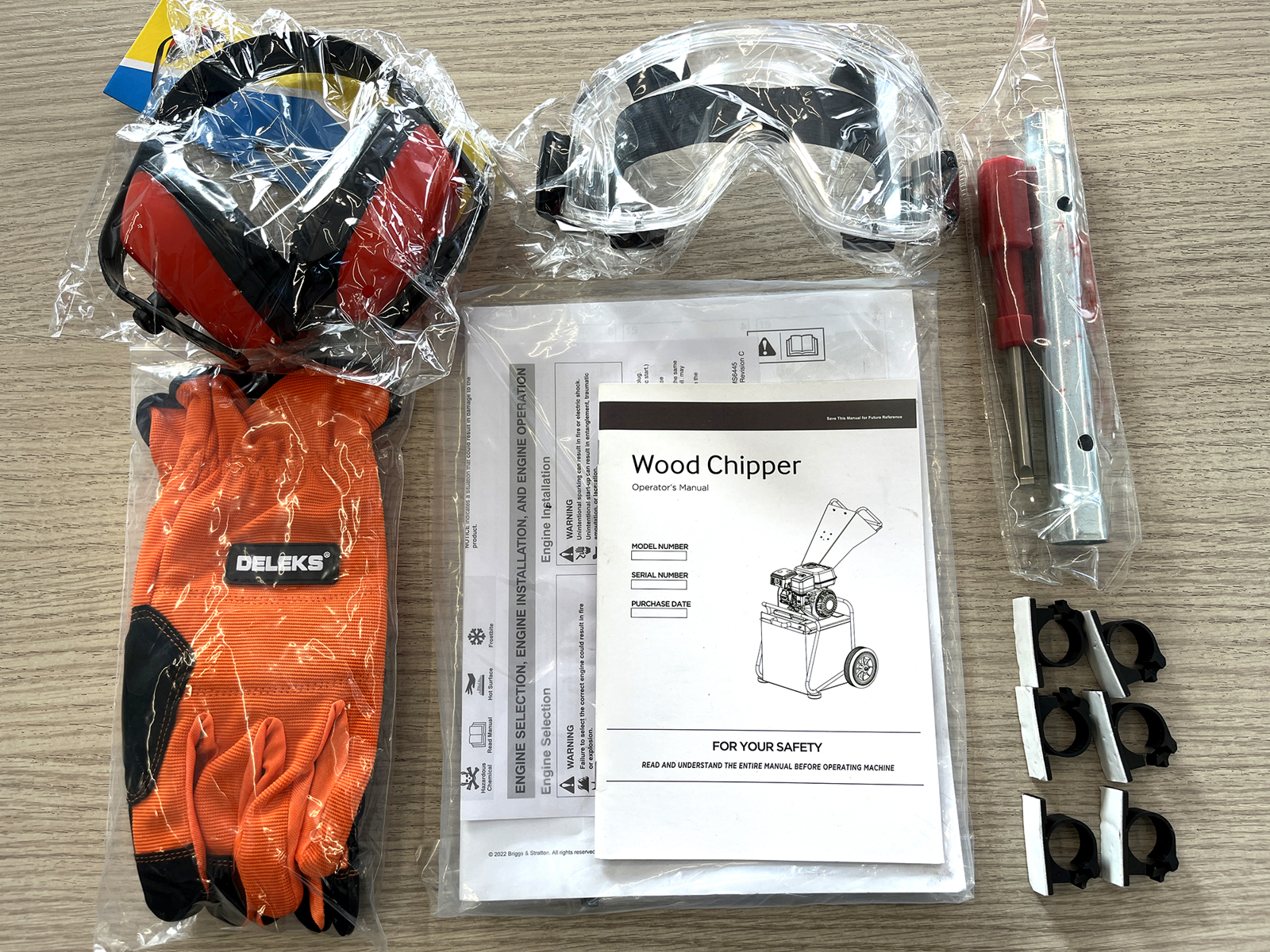

Headphones, goggles, Deleks gloves
Use and maintenance manual for the machine
Use and maintenance manual for the Briggs&Stratton XR950 engine
Set wrenches for maintenance
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 52.0 kg |
| Blades: Weight | 300.0 g |
| Transmission | Direct without belts |
| Working Efficiency | 2m3/h |
| Cutting System | Chipping drum with 2 blades + 1 fixed blade |

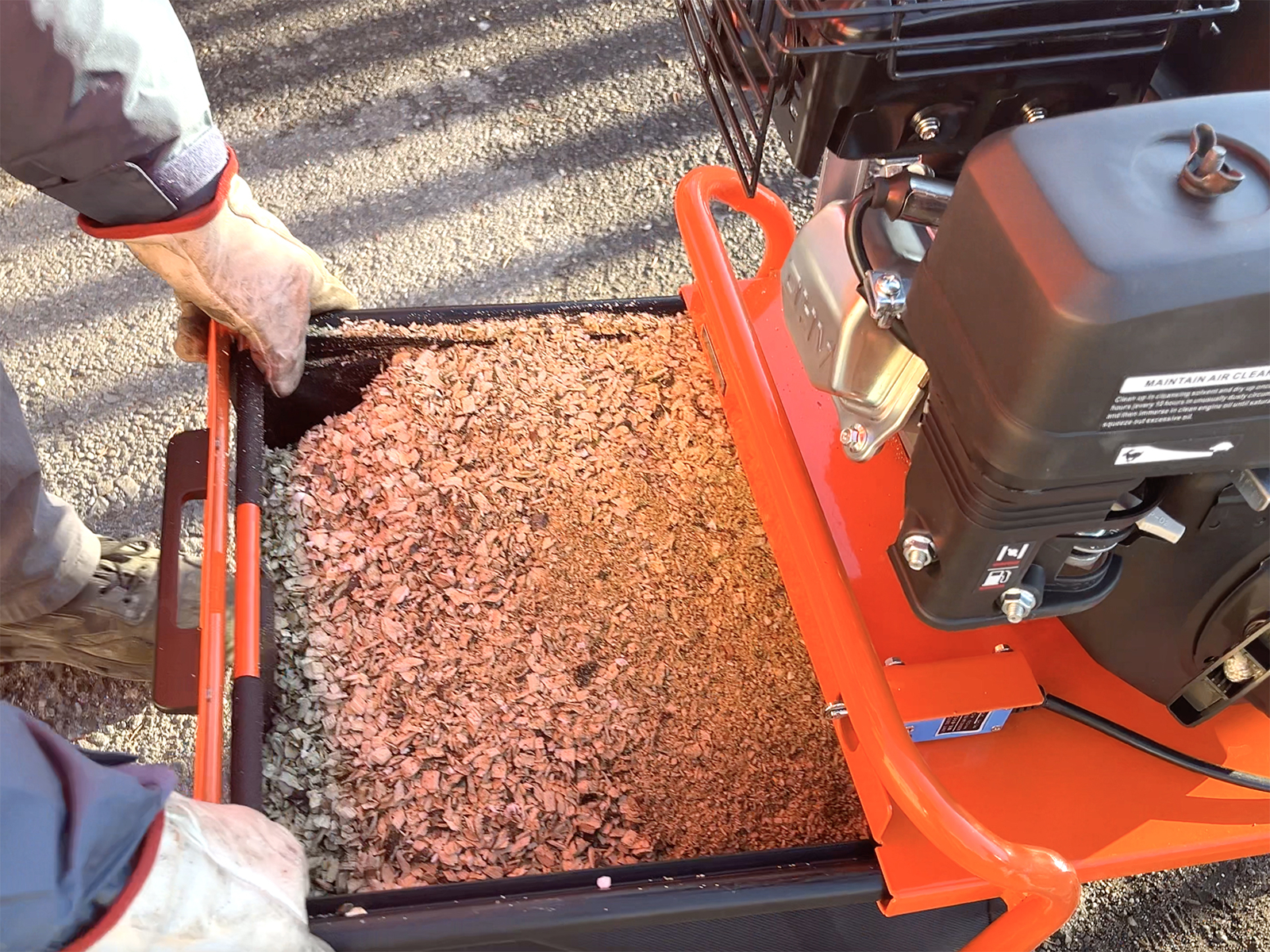

| Chipped material size range | 5.0 - 15.0 mm |

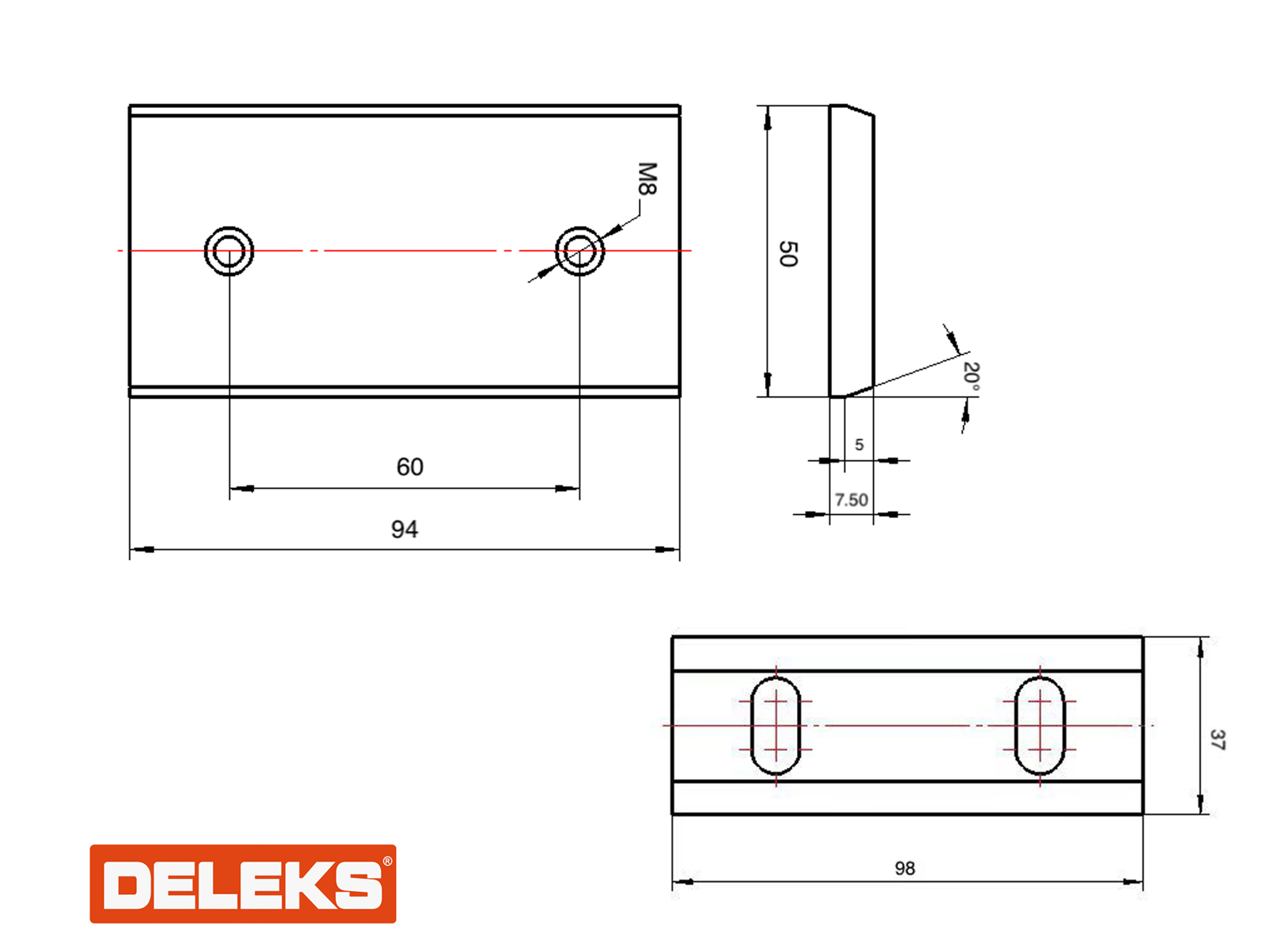

| Blades: Sizes | 100.0*35.0 mm |
| Maximum cutting diameter | 50.0 mm |
| Engine | Briggs&Stratton XR950 - 208cc - 6.5 Hp. |
| Starter | Pull cord |
| Fuel consumption | 0.8 l/h |
| Packing sizes | 640.0*530.0*600.0 mm |
DETAILS
CLOSEWood Chipper DELEKS DK-300-BS with Briggs&Stratton 6.5 Hp engine, 4 stroke gasoline engine. 2 reversible knives of special steel.
OVERVIEW
Chipping drum system shreds vegetation using 2 horizontal blades + 1 counter-fixed blade. Gasoline engine Briggs&Stratton XR950 - 208cc - 6.5 hp (3-Year warranty - Spare parts always available).
Suitable for the chipping of all types of dry and green wood, pruning residues, etc.
Maximum cutting diameter: 5 cm
Machine not suitable for shredding corn, straw, alfalfa, etc ..
Starter rope
Ergonomic design
Excellent maneuverability thanks to its 2 wheels
Solid structure and stable with a low center of gravity
Headphones, goggles, Deleks gloves
Use and maintenance manual for the machine
Use and maintenance manual for the Briggs&Stratton XR950 engine
Set wrenches for maintenance
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Weight | 52.0 kg |
| Blades: Weight | 300.0 g |
| Transmission | Direct without belts |
| Working Efficiency | 2m3/h |
| Cutting System | Chipping drum with 2 blades + 1 fixed blade |
| Chipped material size range | 5.0 - 15.0 mm |
| Blades: Sizes | 100.0*35.0 mm |
| Maximum cutting diameter | 50.0 mm |
| Engine | Briggs&Stratton XR950 - 208cc - 6.5 Hp. |
| Starter | Pull cord |
| Fuel consumption | 0.8 l/h |
| Packing sizes | 640.0*530.0*600.0 mm |
Technical charts
CLOSE| Advance 4T Ultra 10W-40 TDS | Download PDF |
