Heavy rotavator tiller for tractors - working width 180cm - for soil preparation - mod. DFH-180

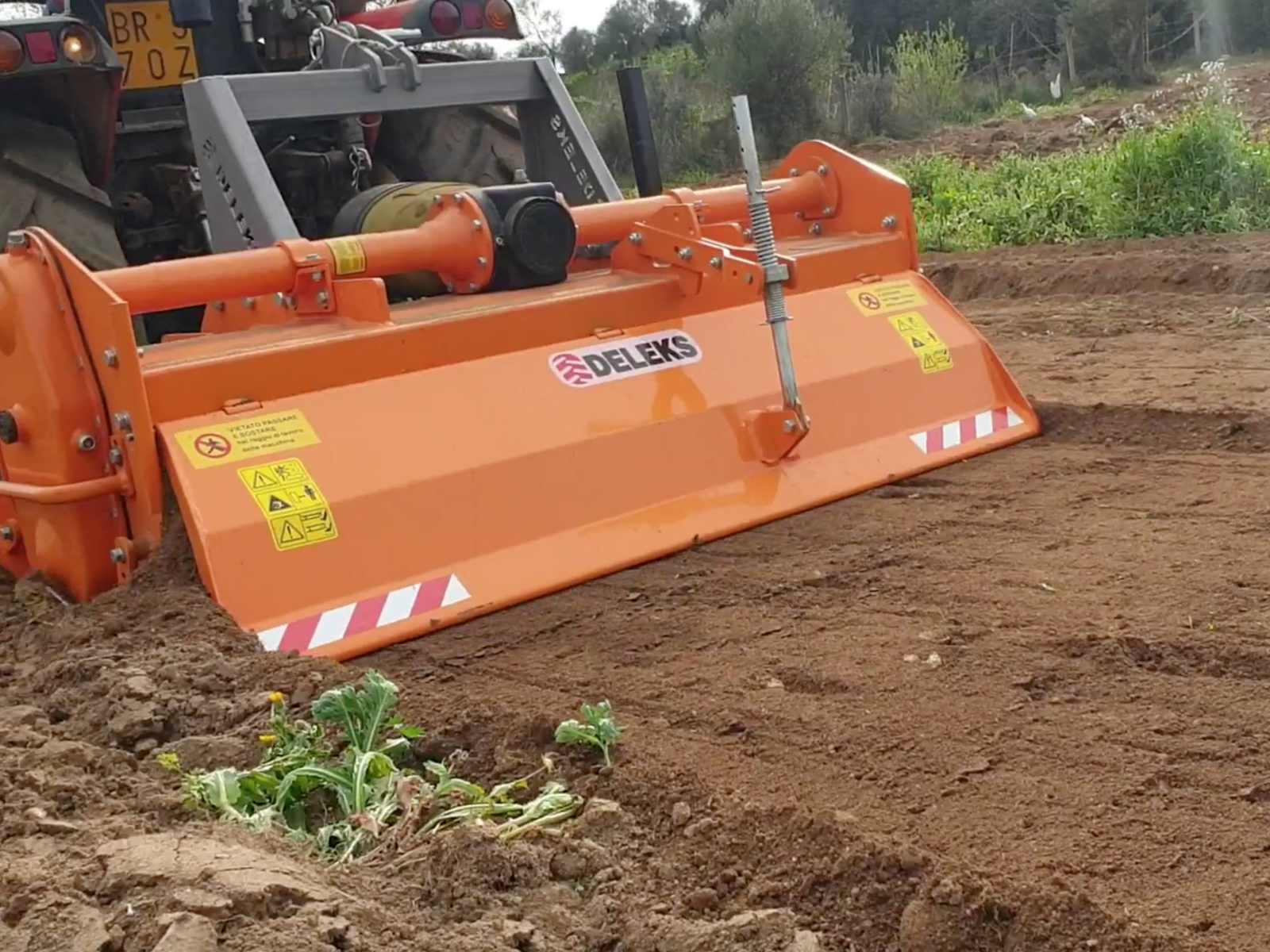

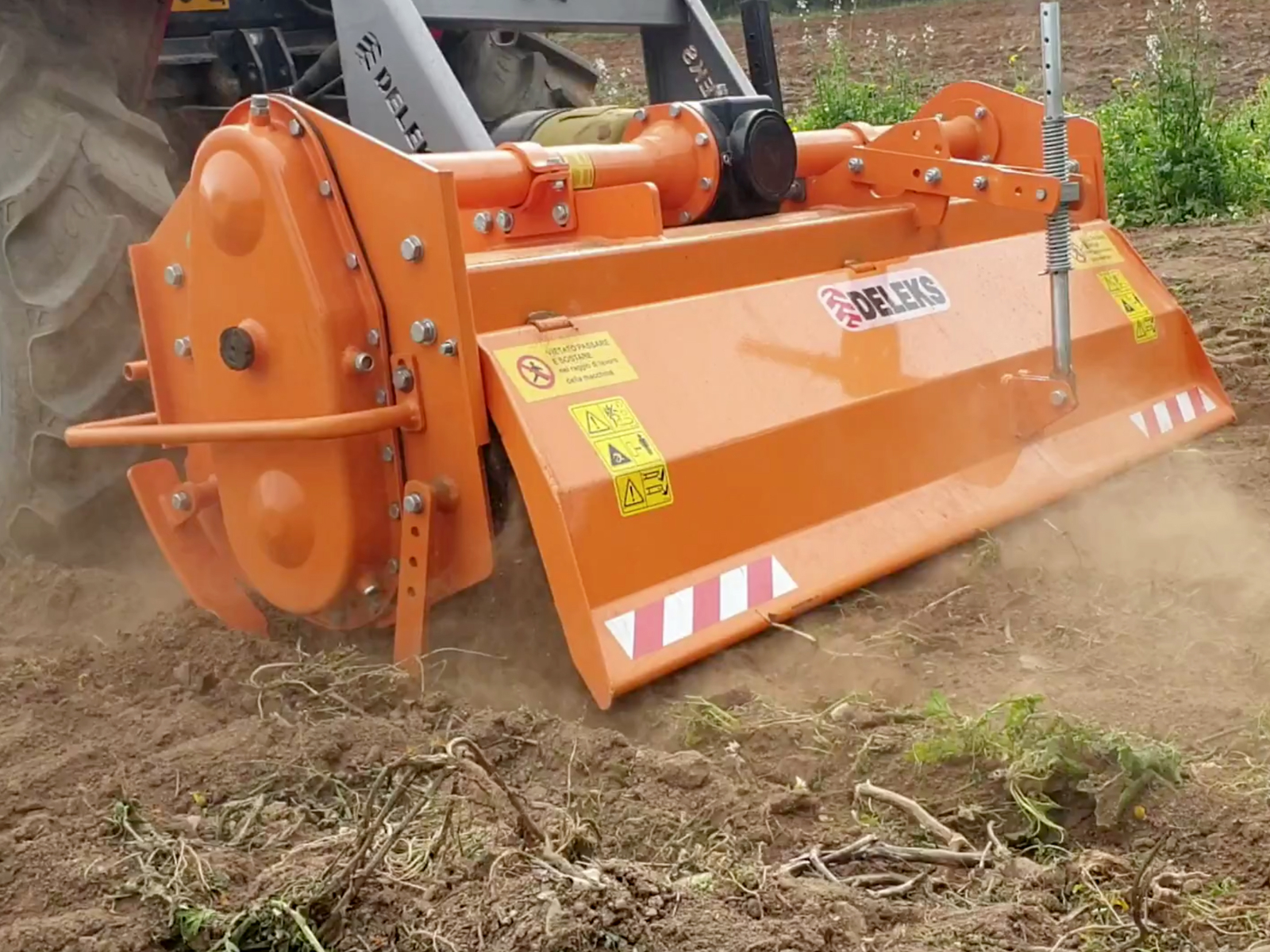

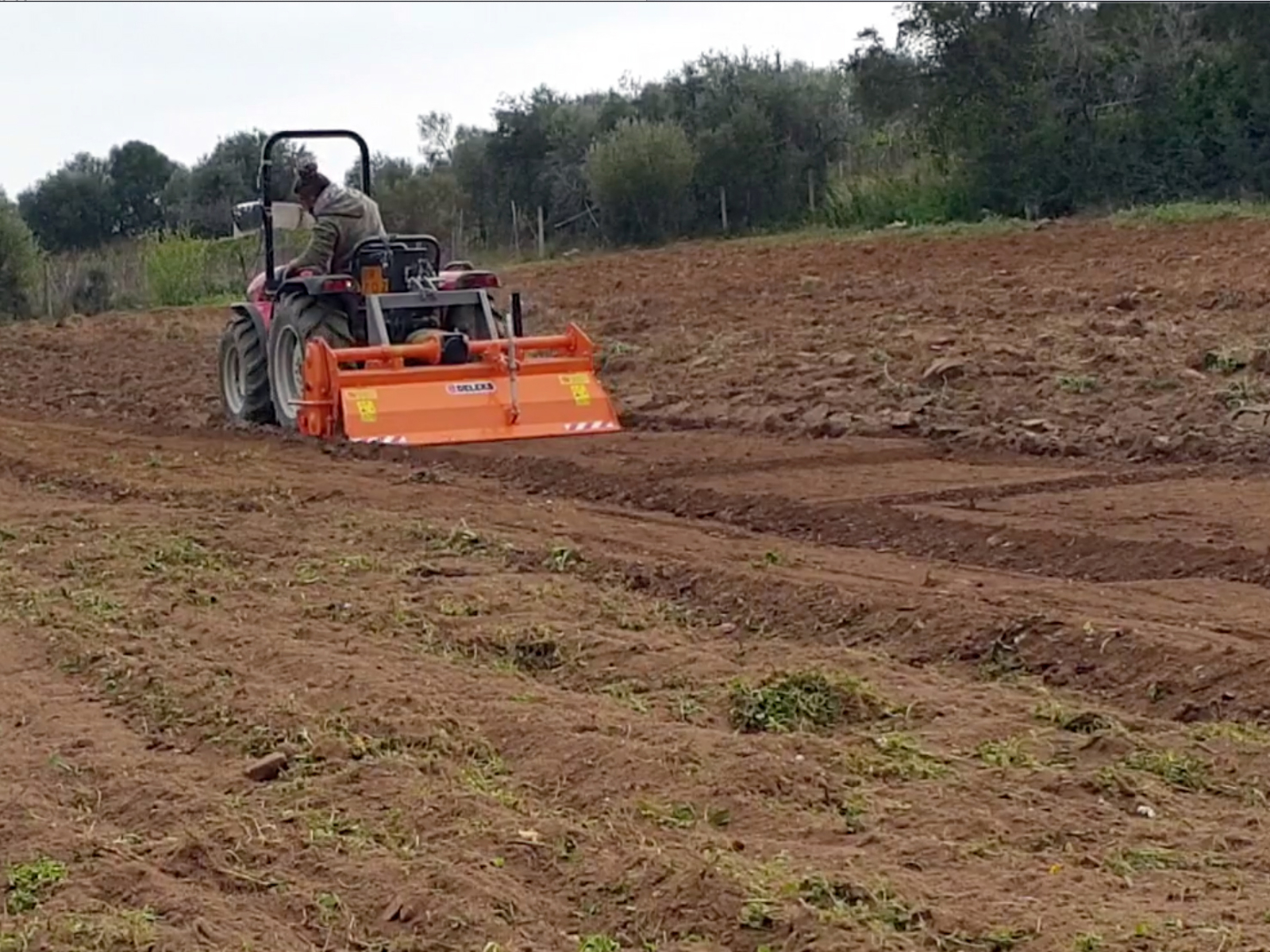

Field test
Field test
Field test
DETAILS

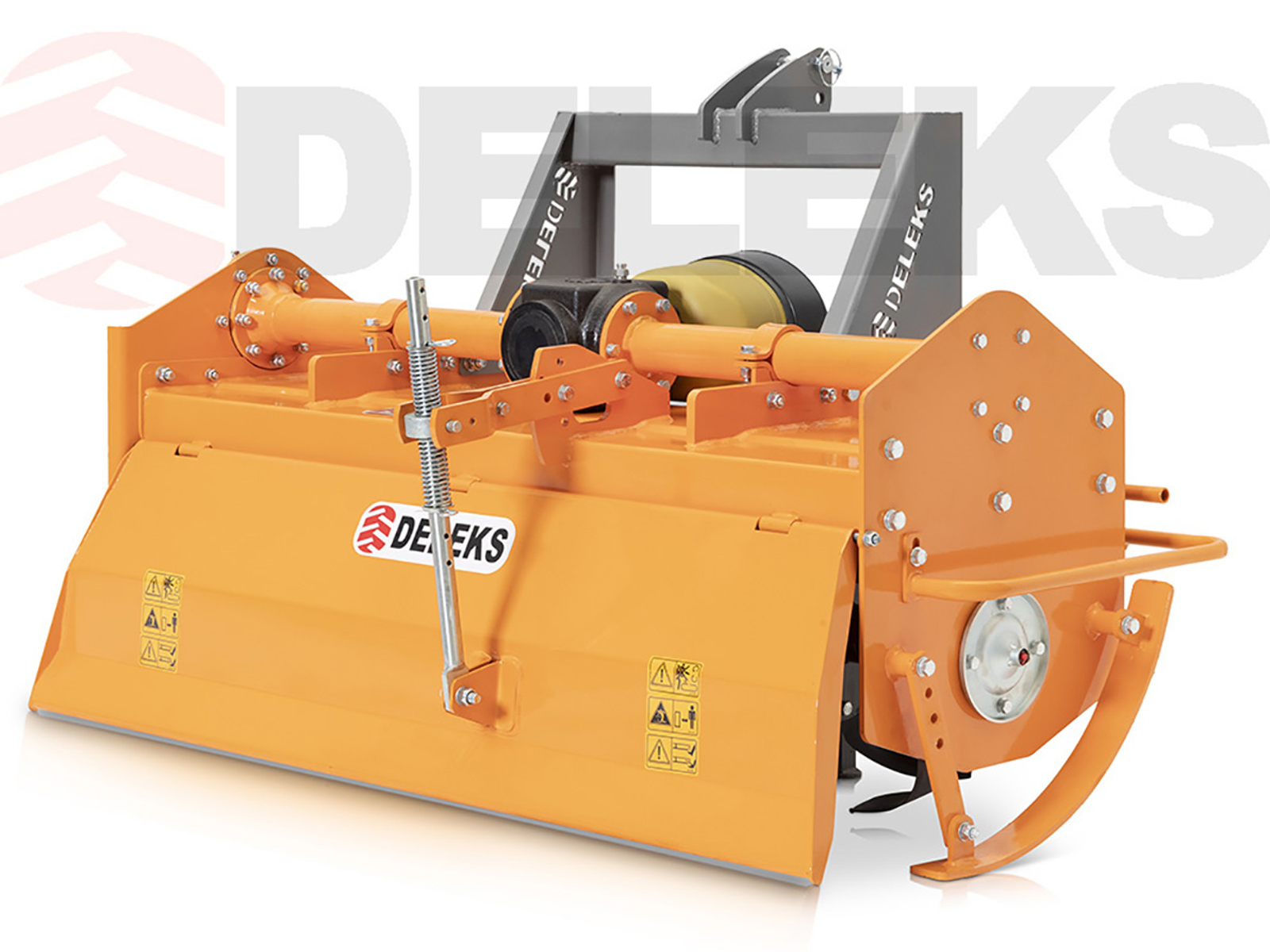

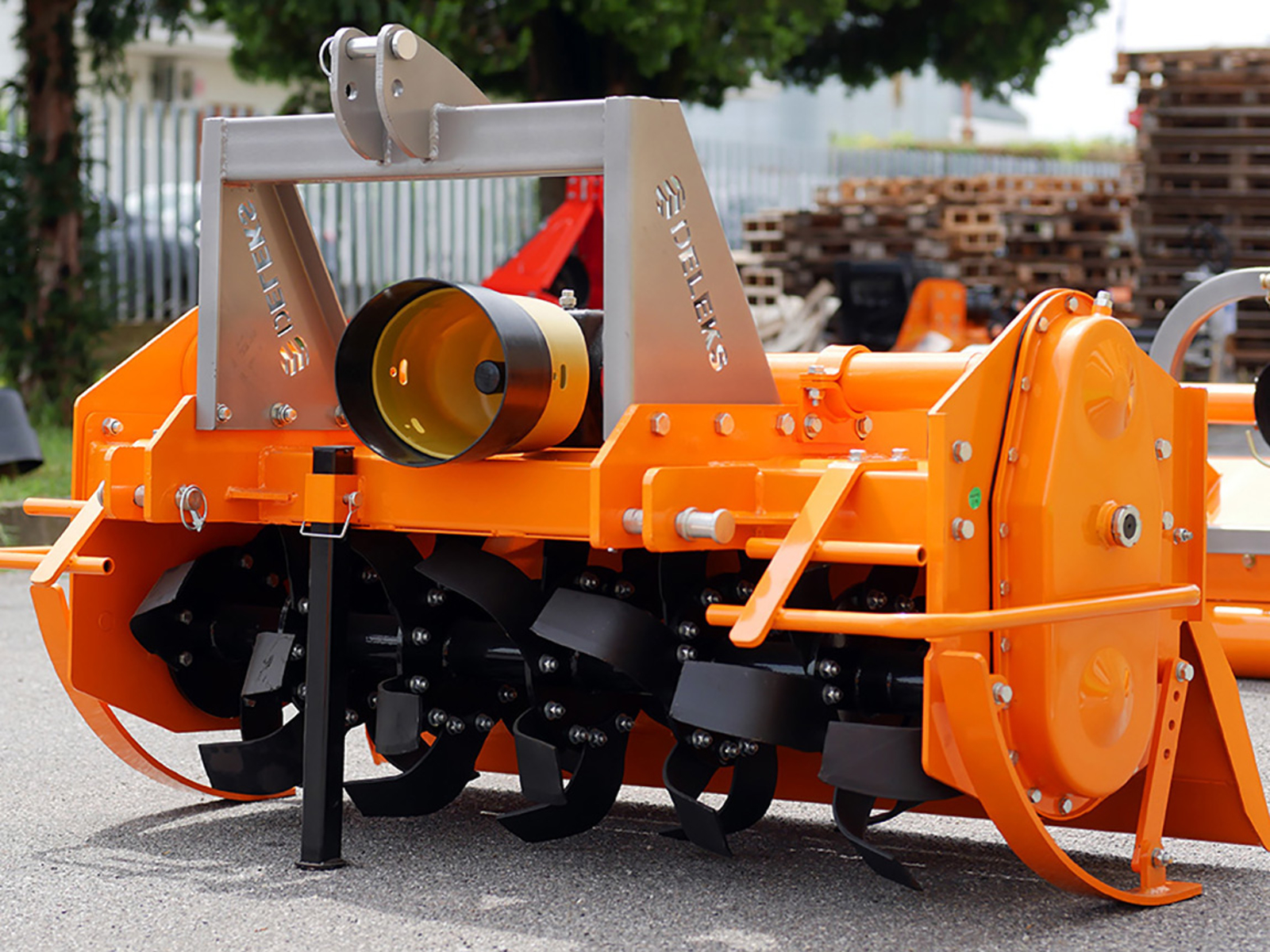

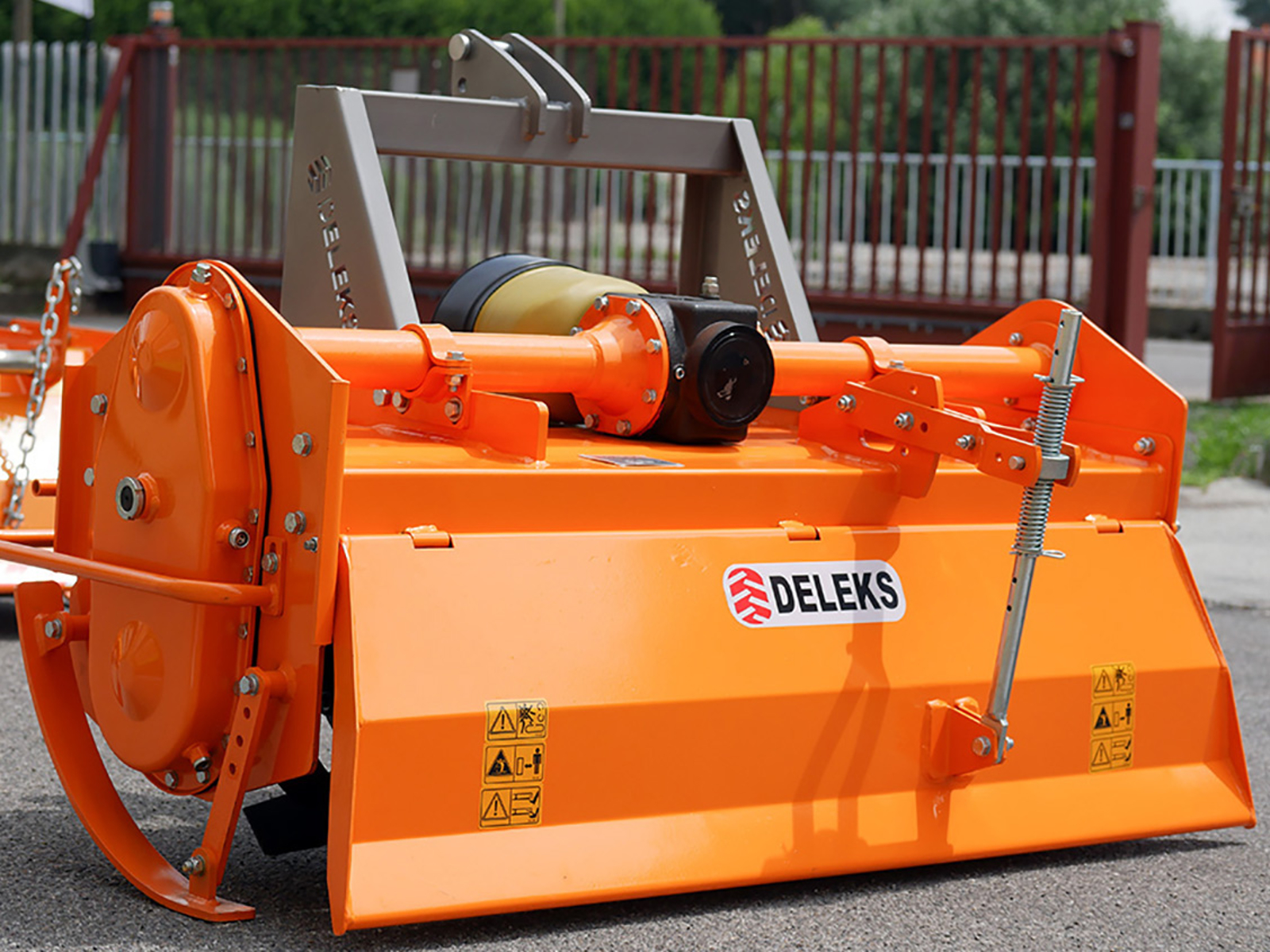

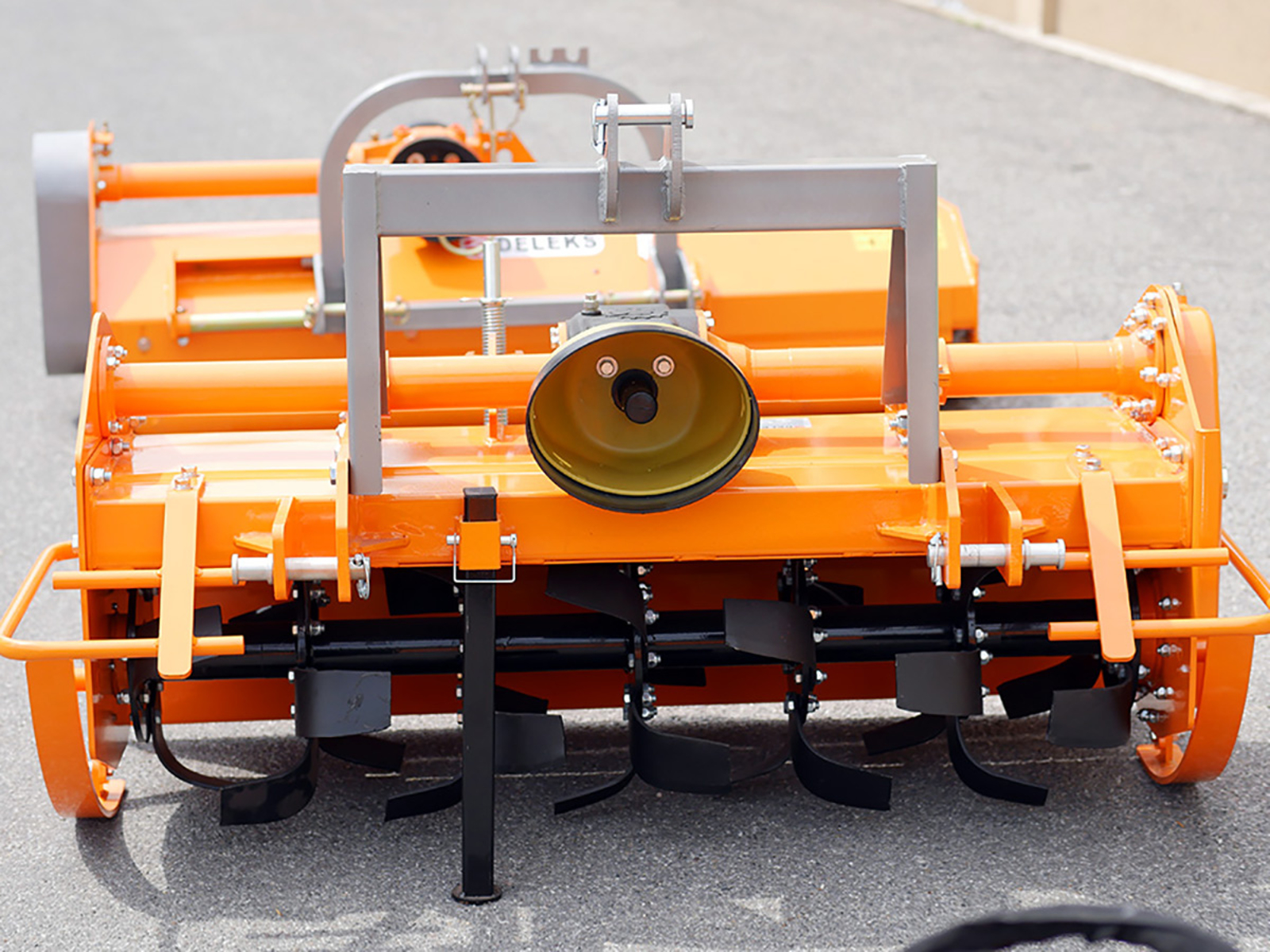

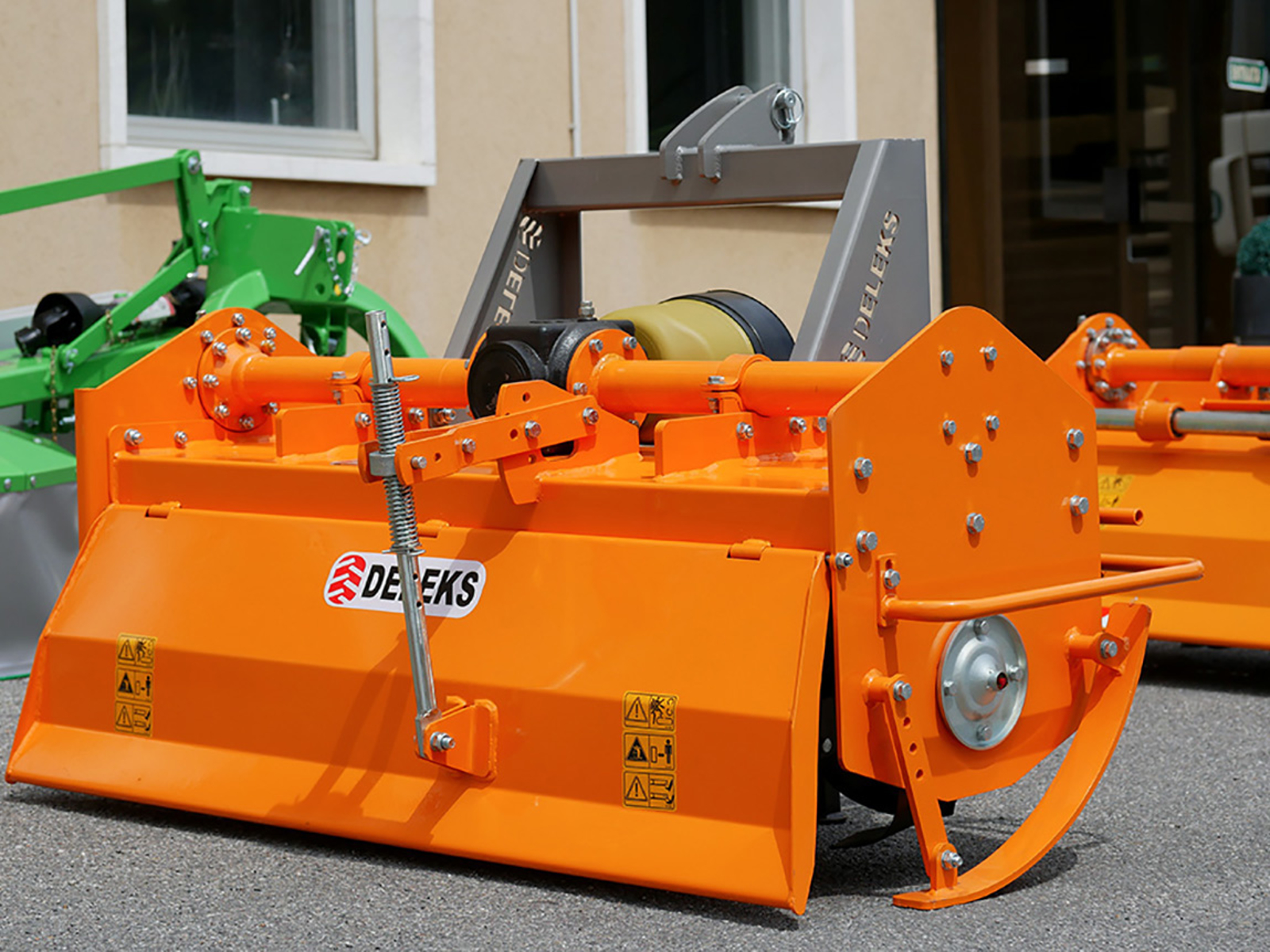

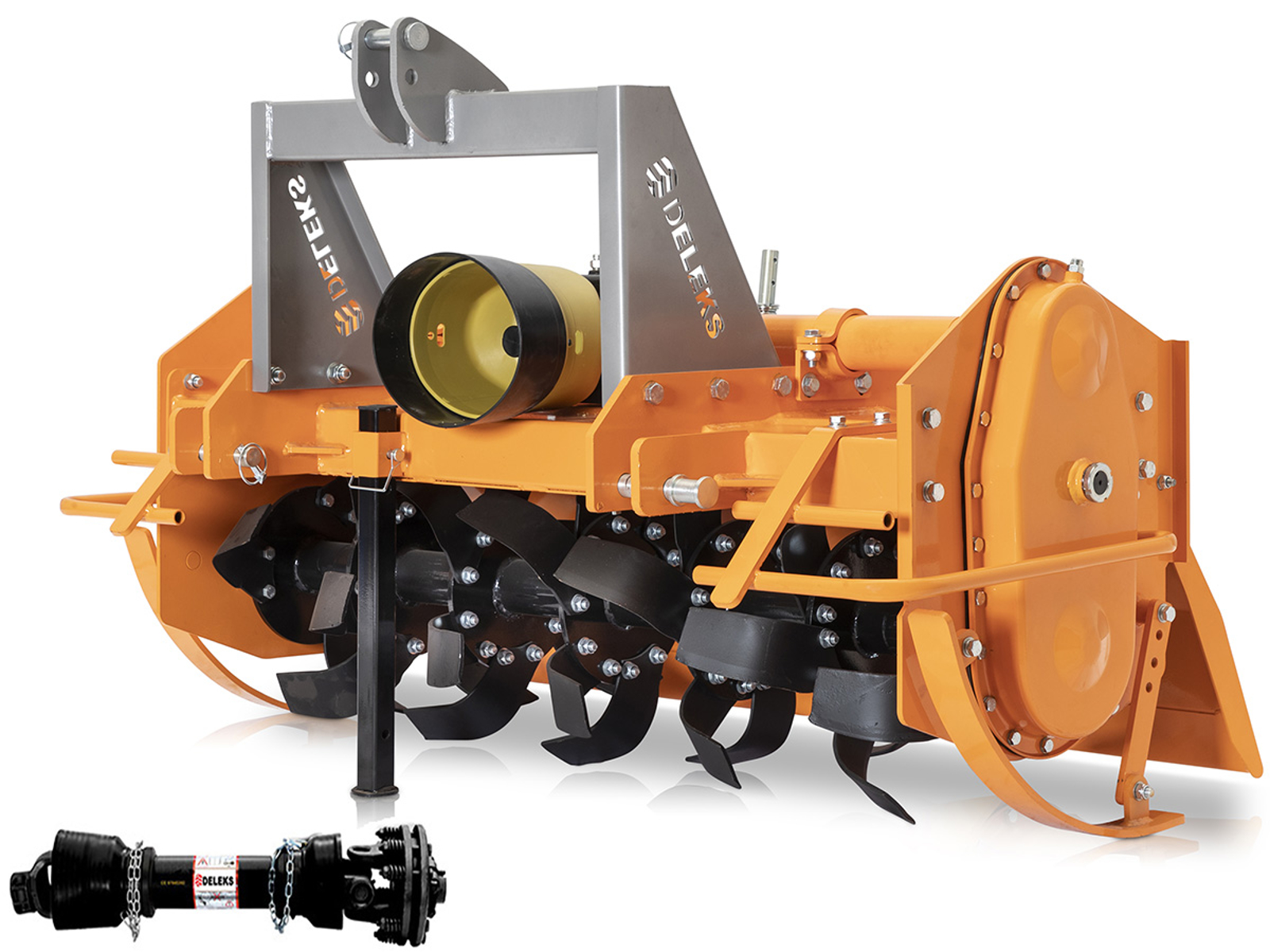

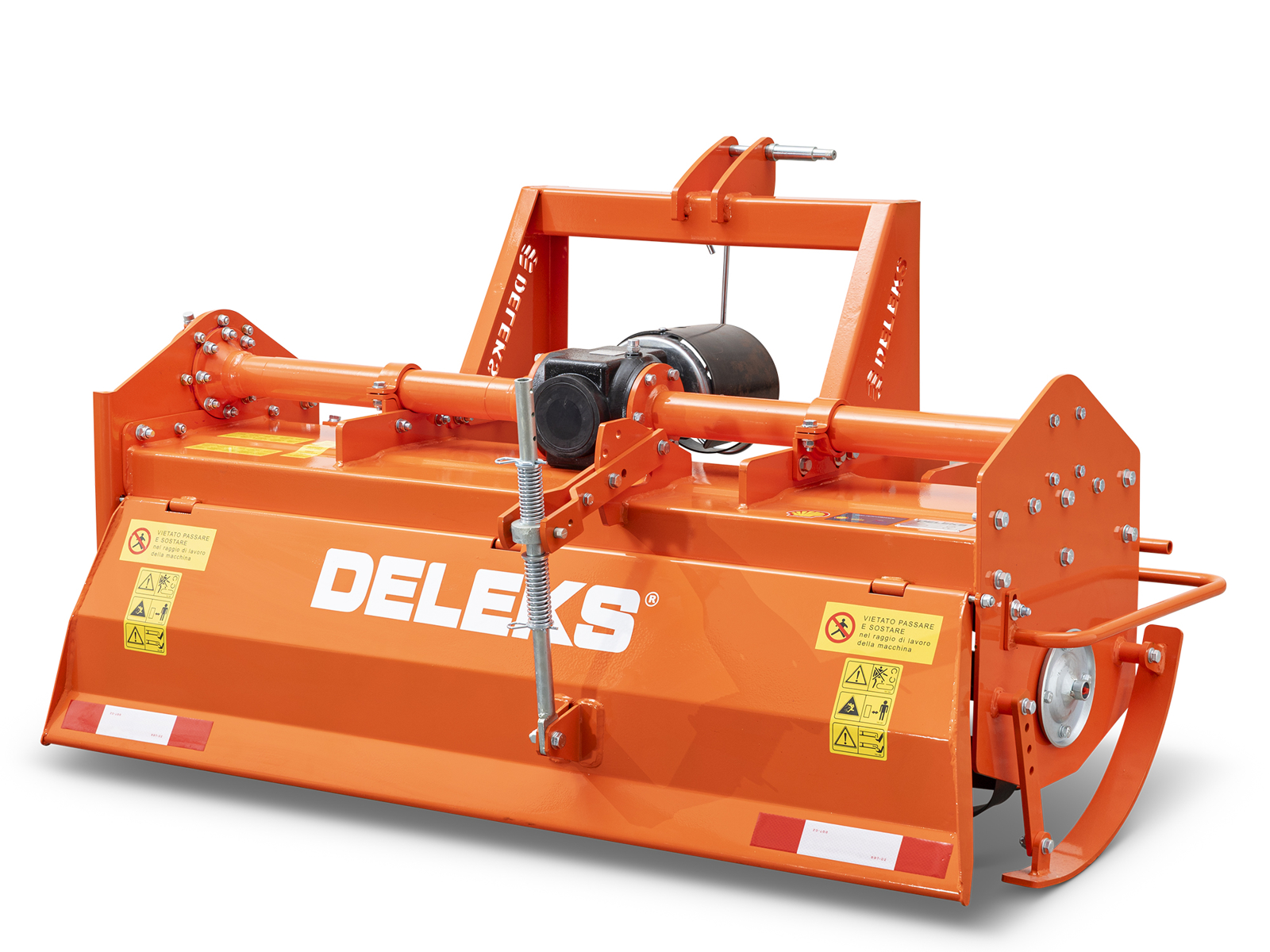

Rotary Tiller DELEKS® for 50-70 Hp Tractors, Rotovator 180cm / 392 kg - Side Gears Drive - Pto shaft CE included.
OVERVIEW

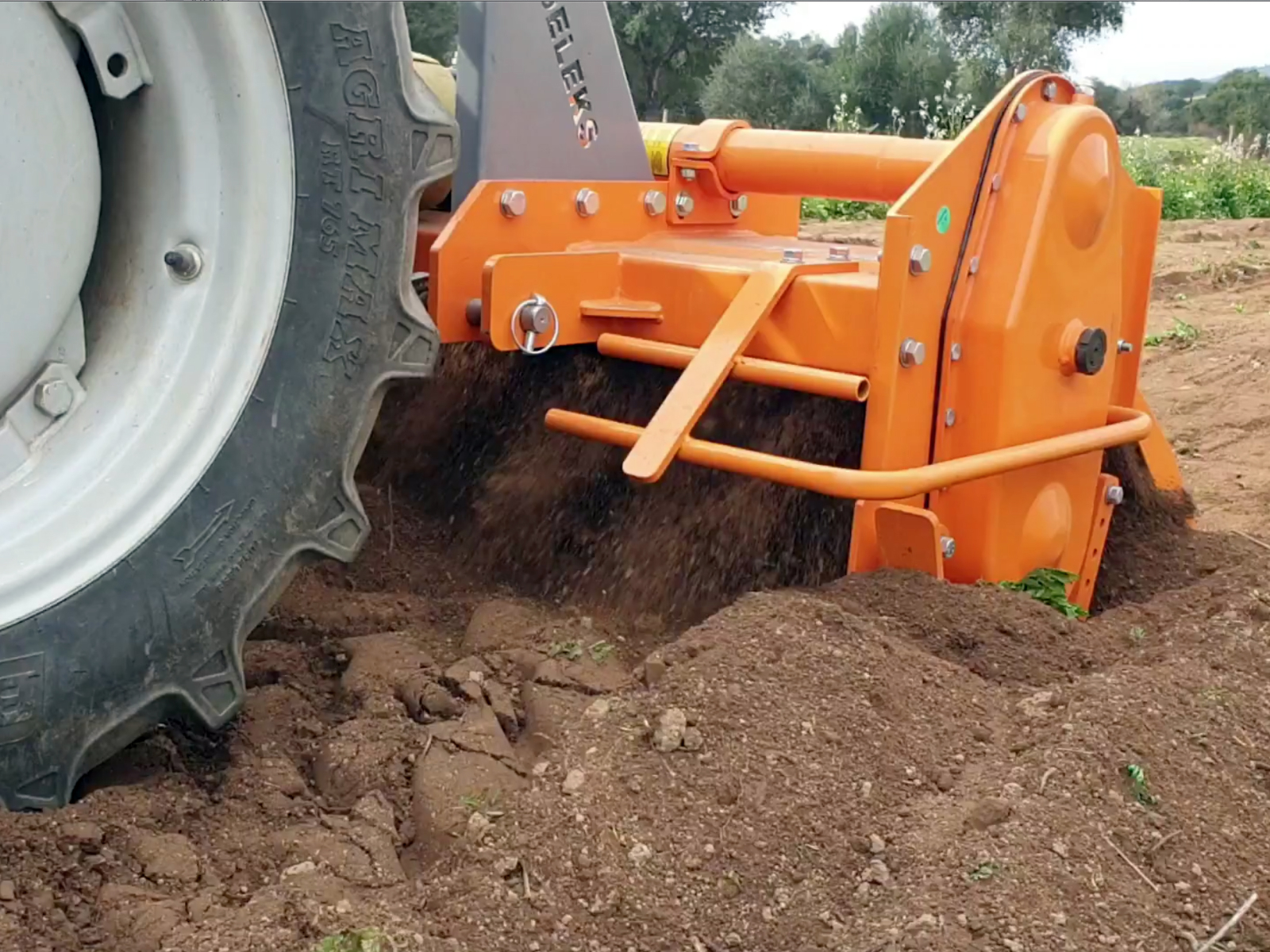

The DFH Rotary Tiller has been designed for soil preparation, in fields, nursery, orchards, allotments, and for gardening. Rotating blades break up the soil, on rough uncultivated ground. Can be also be used for weeding or working surface material into the soil.

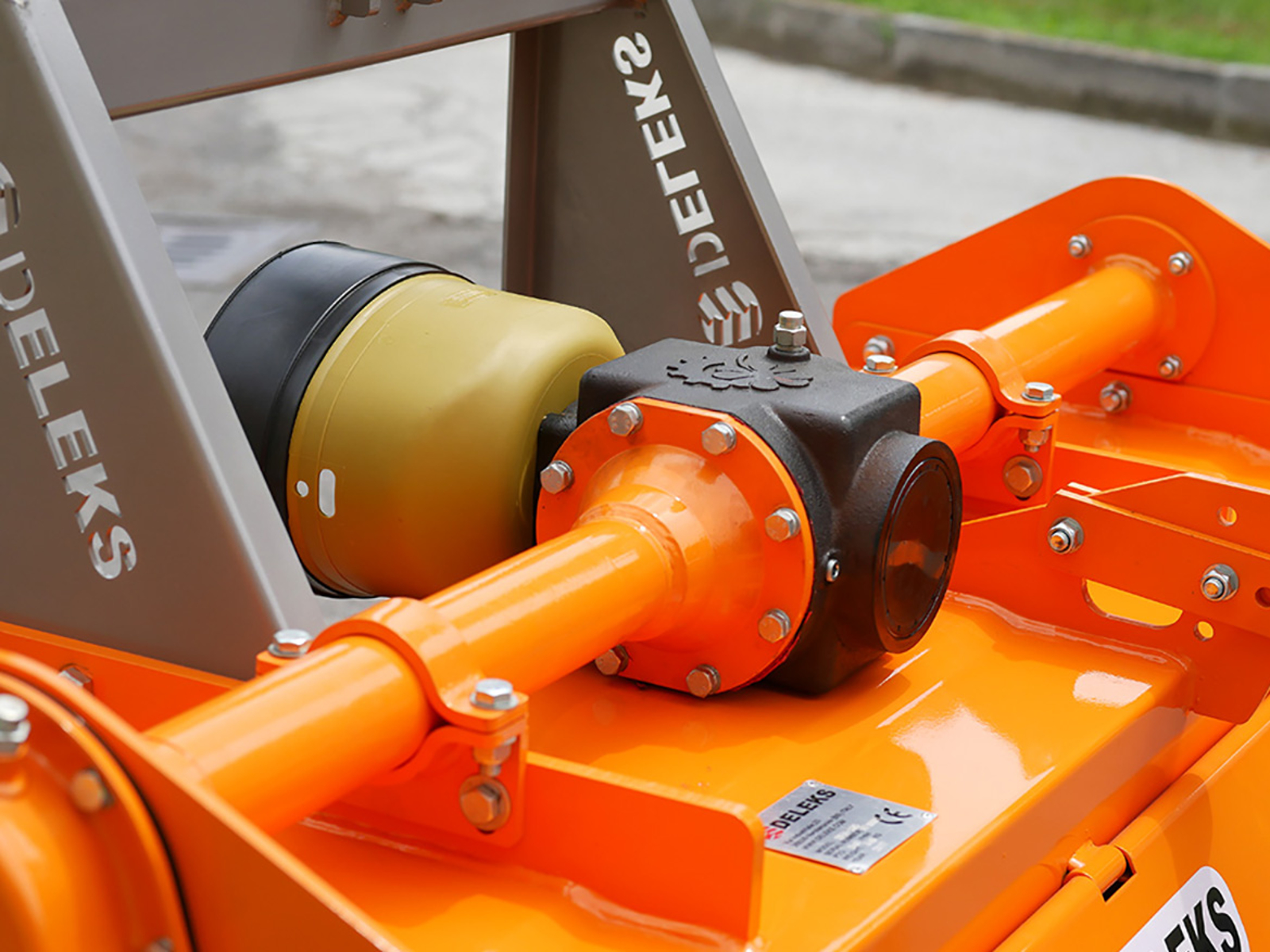

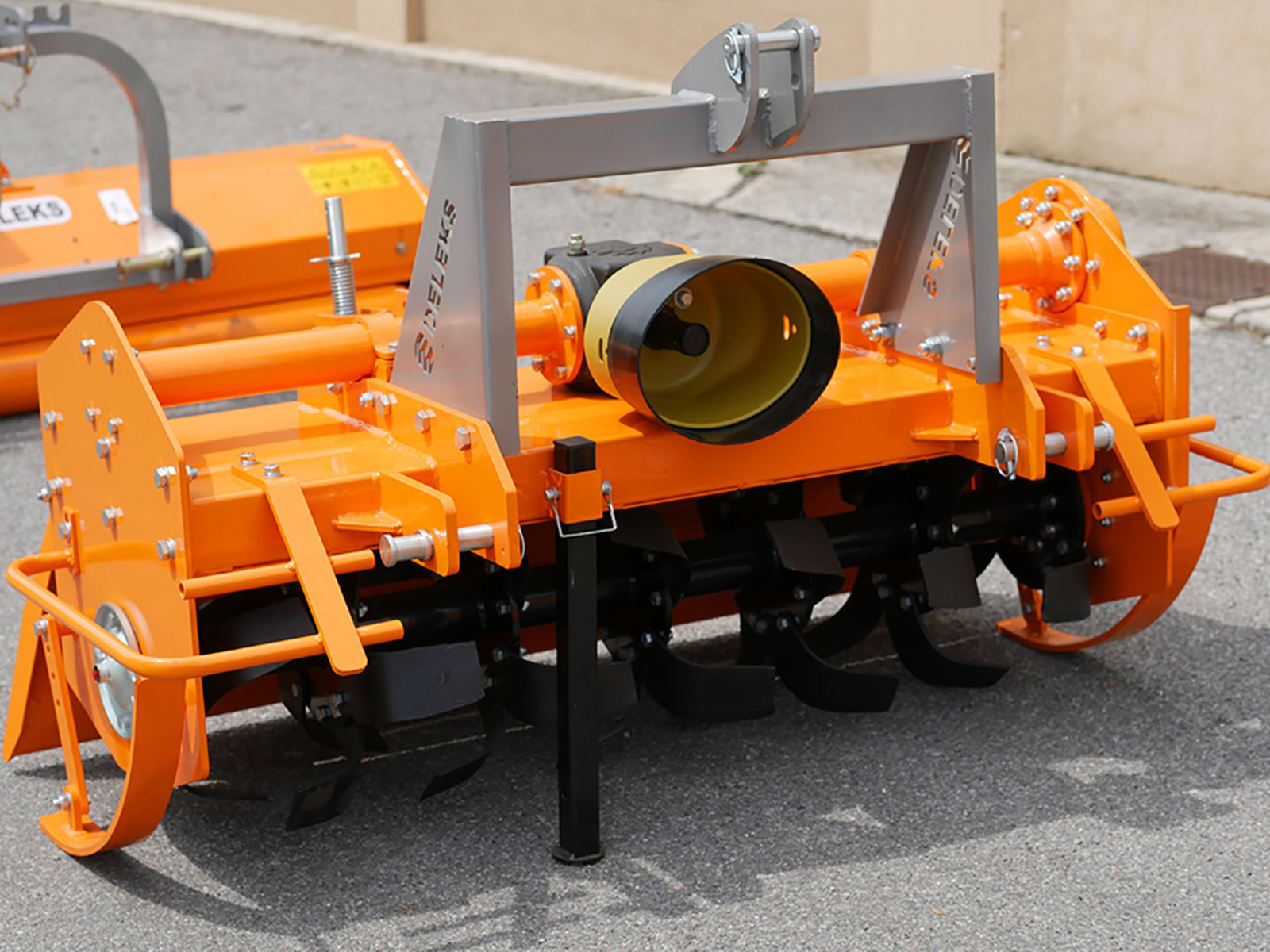

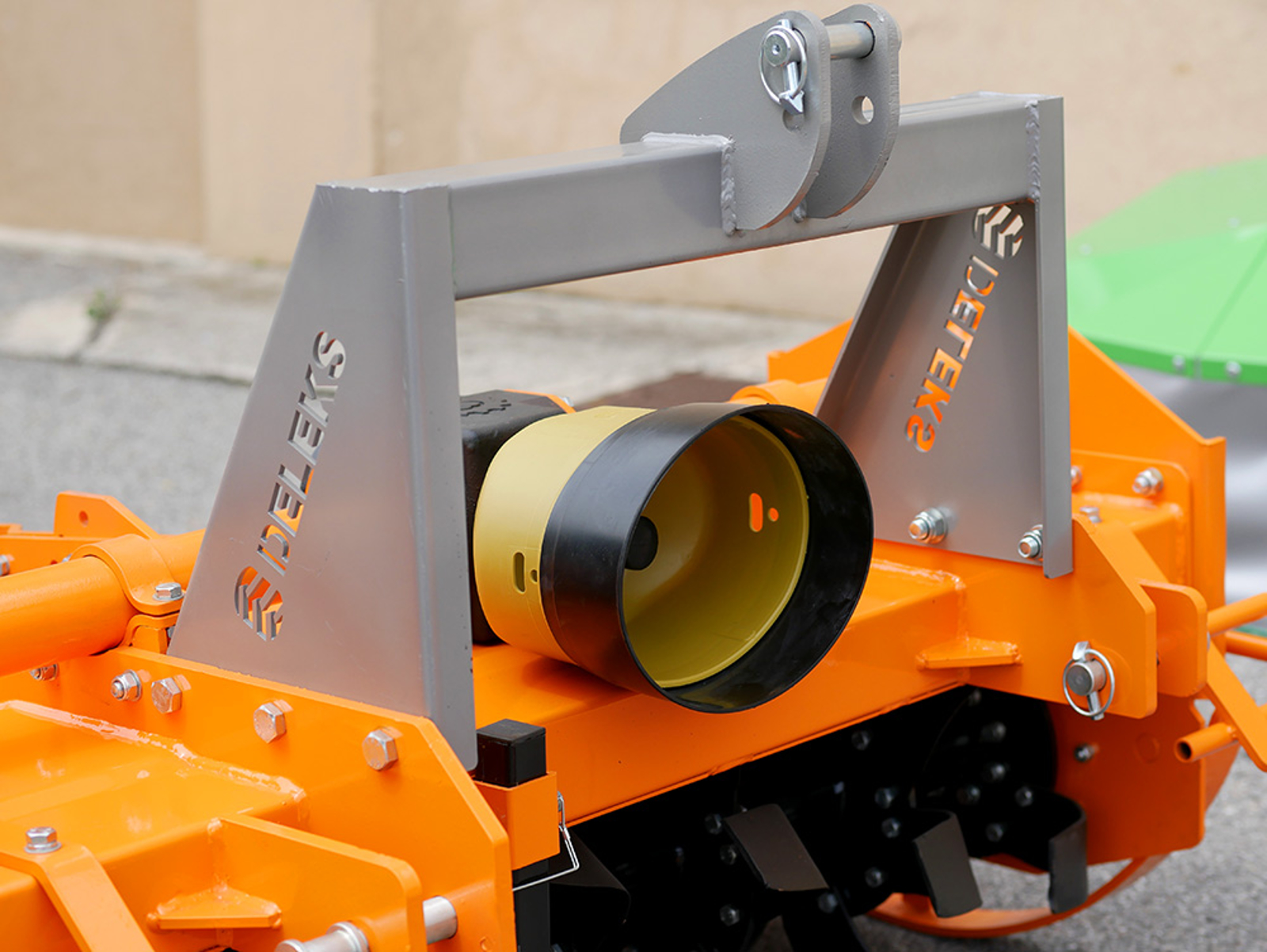

Designed to fit most compact 50-70HP tractors e.g Kubota L, Fiat, McCormick, Ford, New Holland T3, John Deere 3-4 Series, Massey Fergusson. Cat.2 universal three-point hitch, single-speed cast-iron gearbox. Delivered assembled (except 3 point linkage) and greased, Gearbox filled with oil.
BENEFITS & FEATURES
Side Gears Drive.

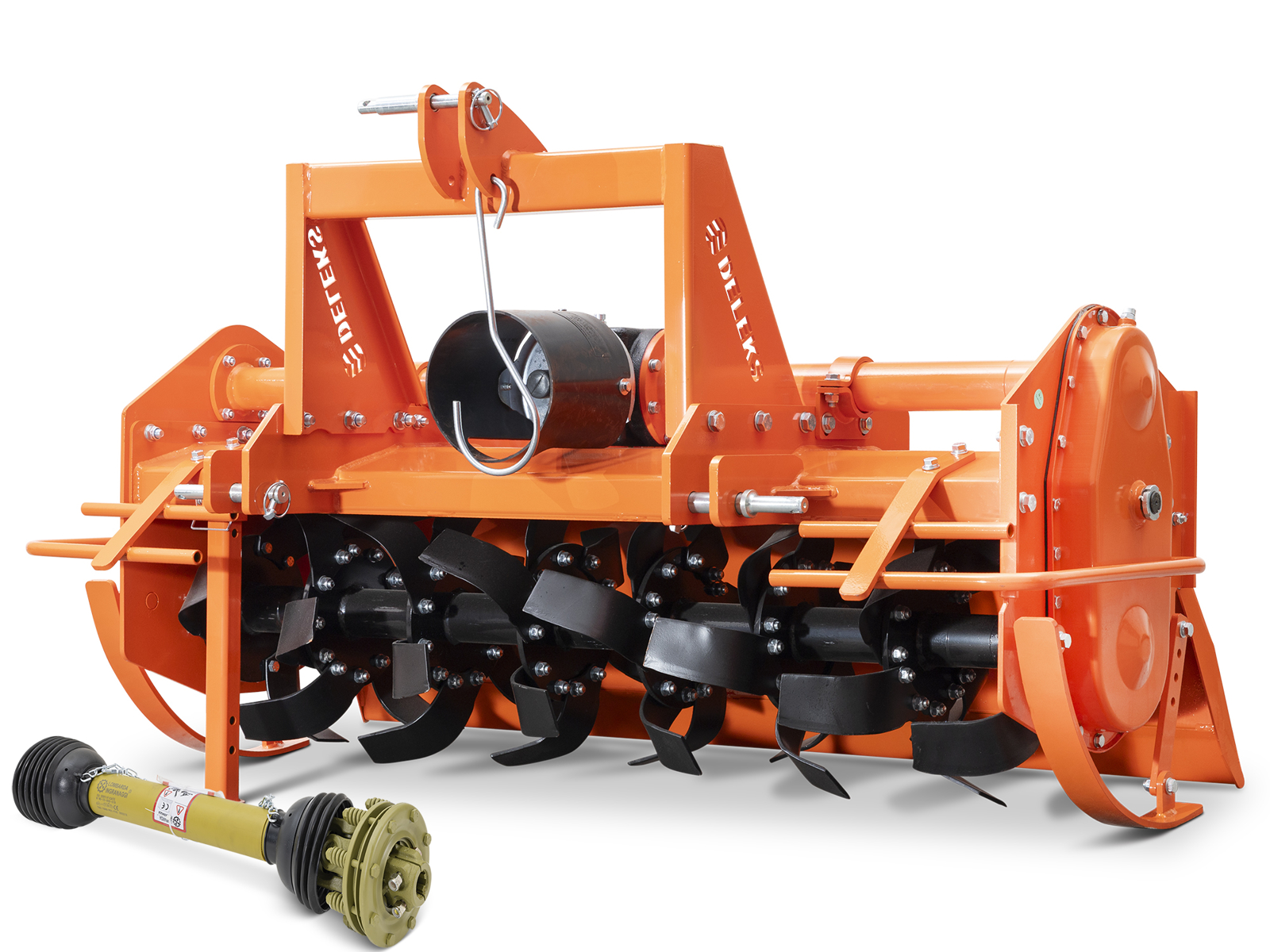

Pto shaft CE included.

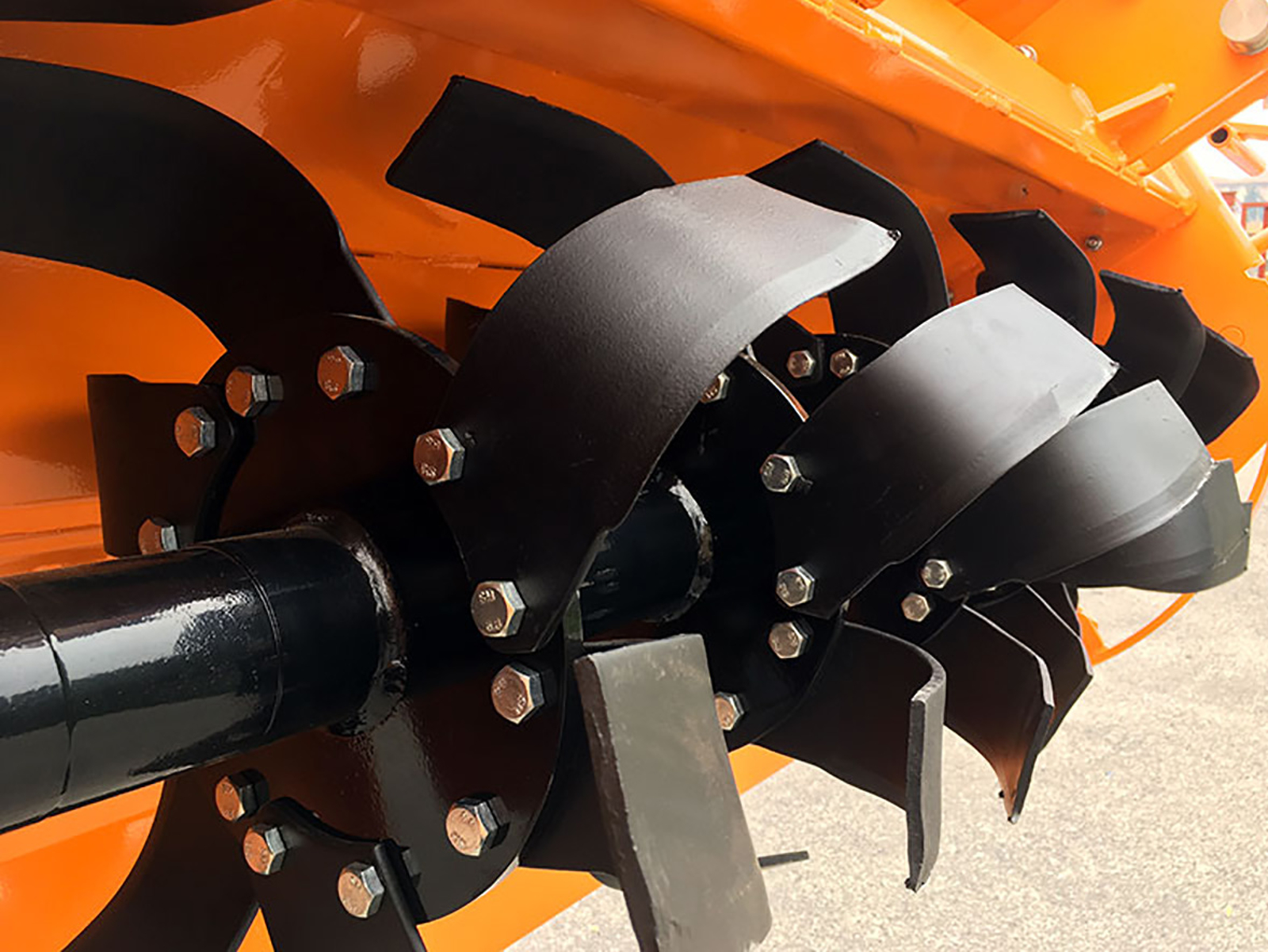

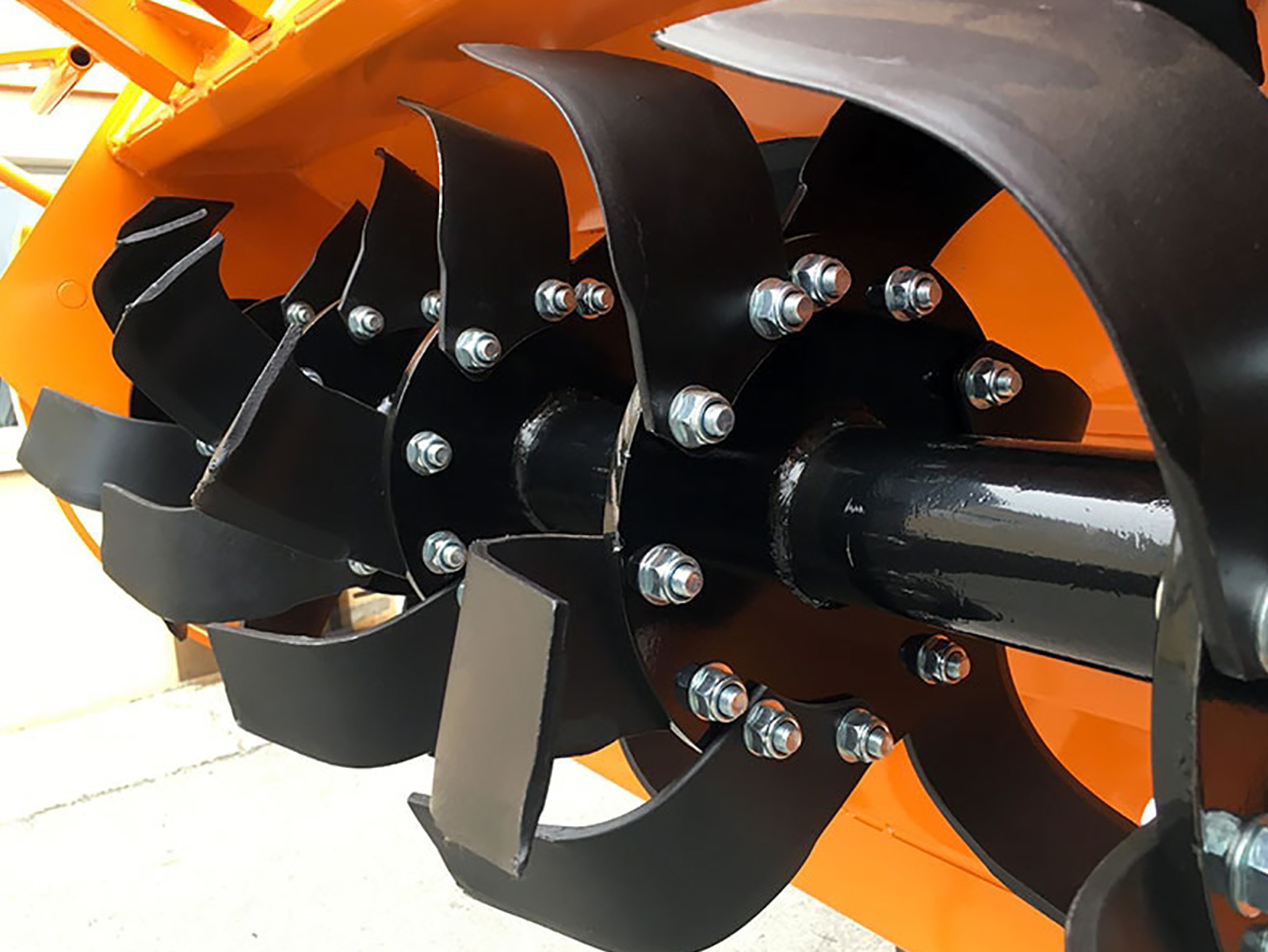

Six spiral blades per flange.

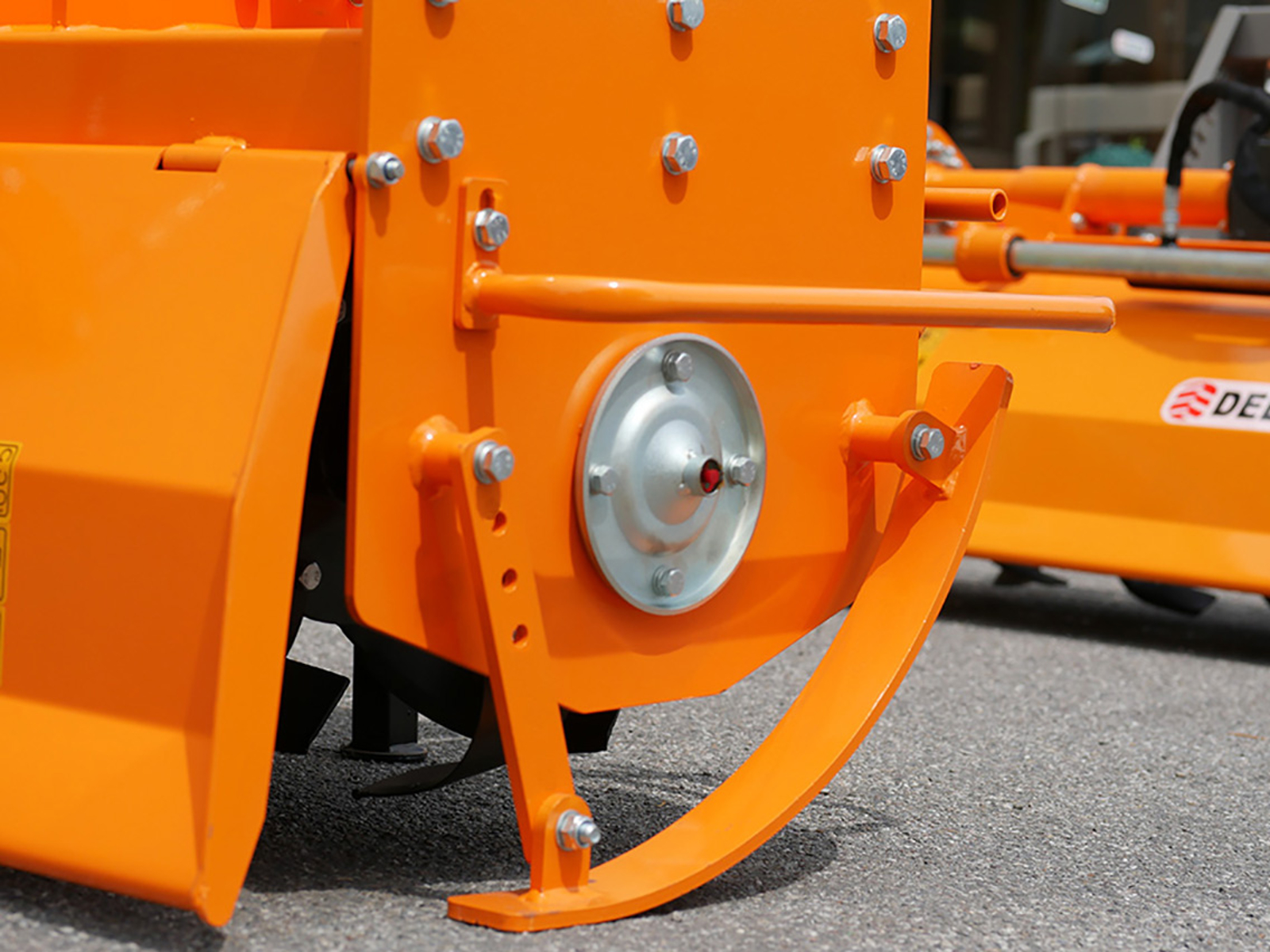

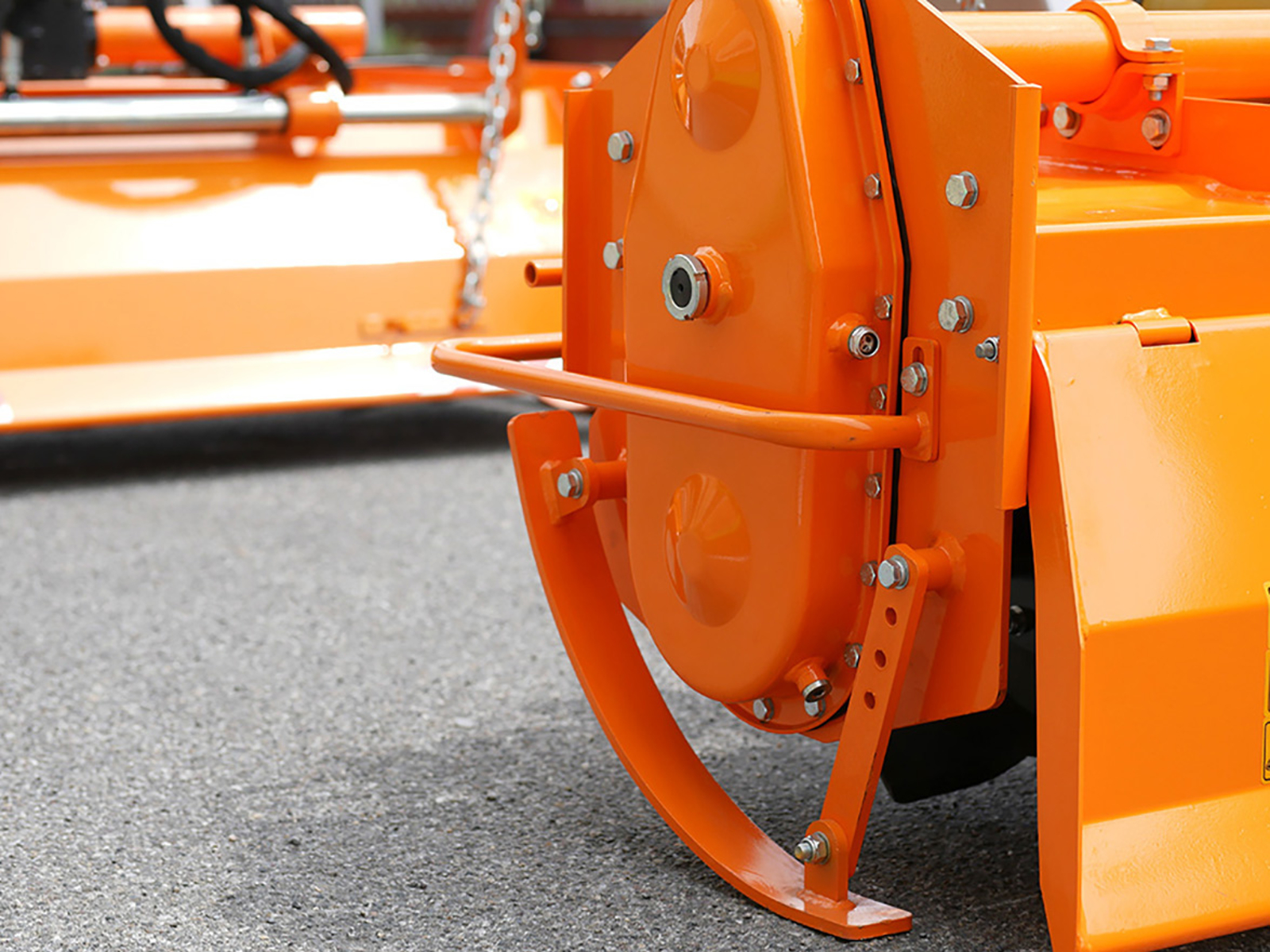

Adjustable side skids to obtain the desired working depth.

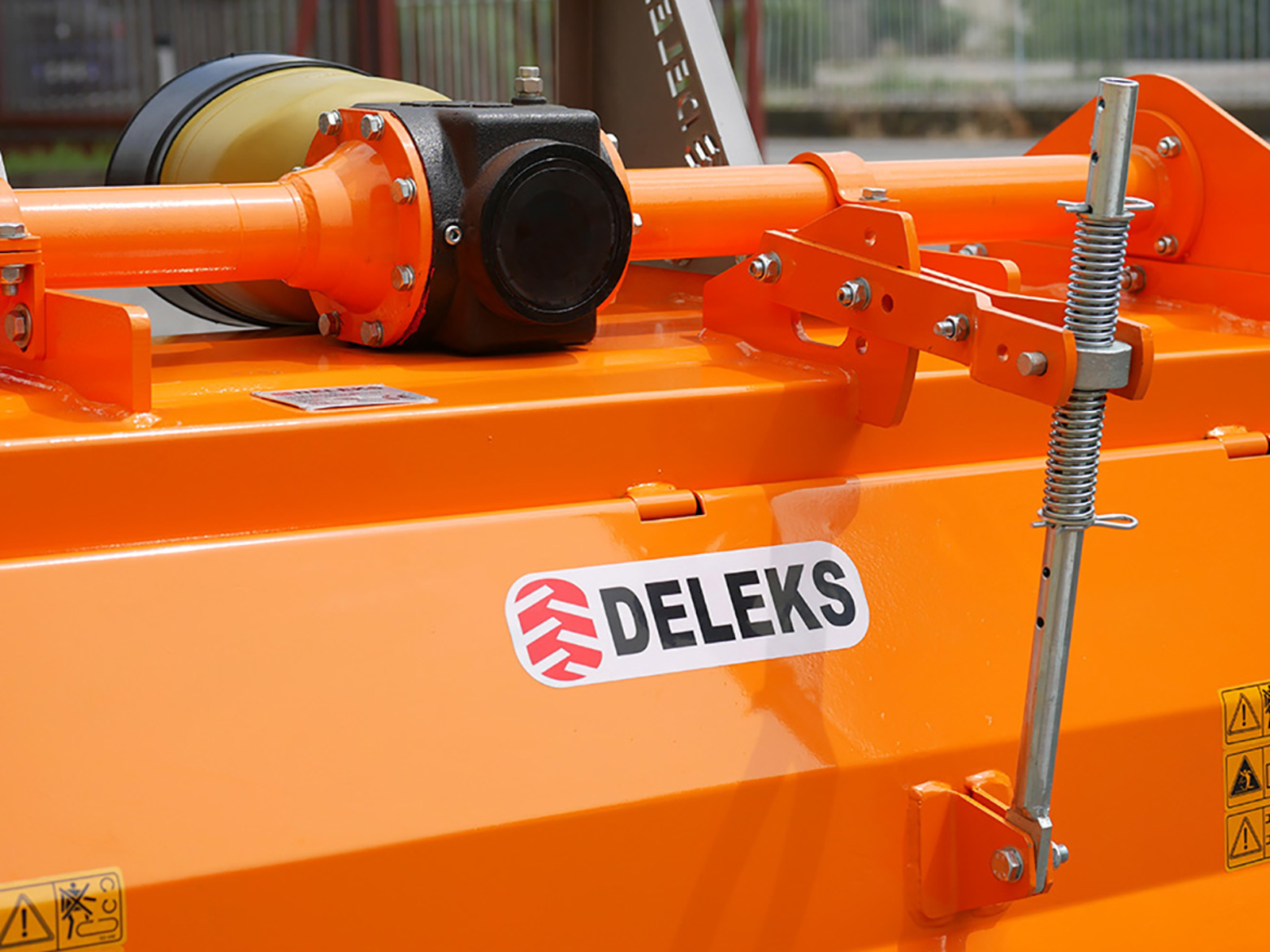

Adjustable rear shield.
CE Safety Guards.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 2000.0 mm |
| Weight | 392.0 kg |
| Overall height | 1030.0 mm |
| Tractor Power Range | 50 - 70 Hp |

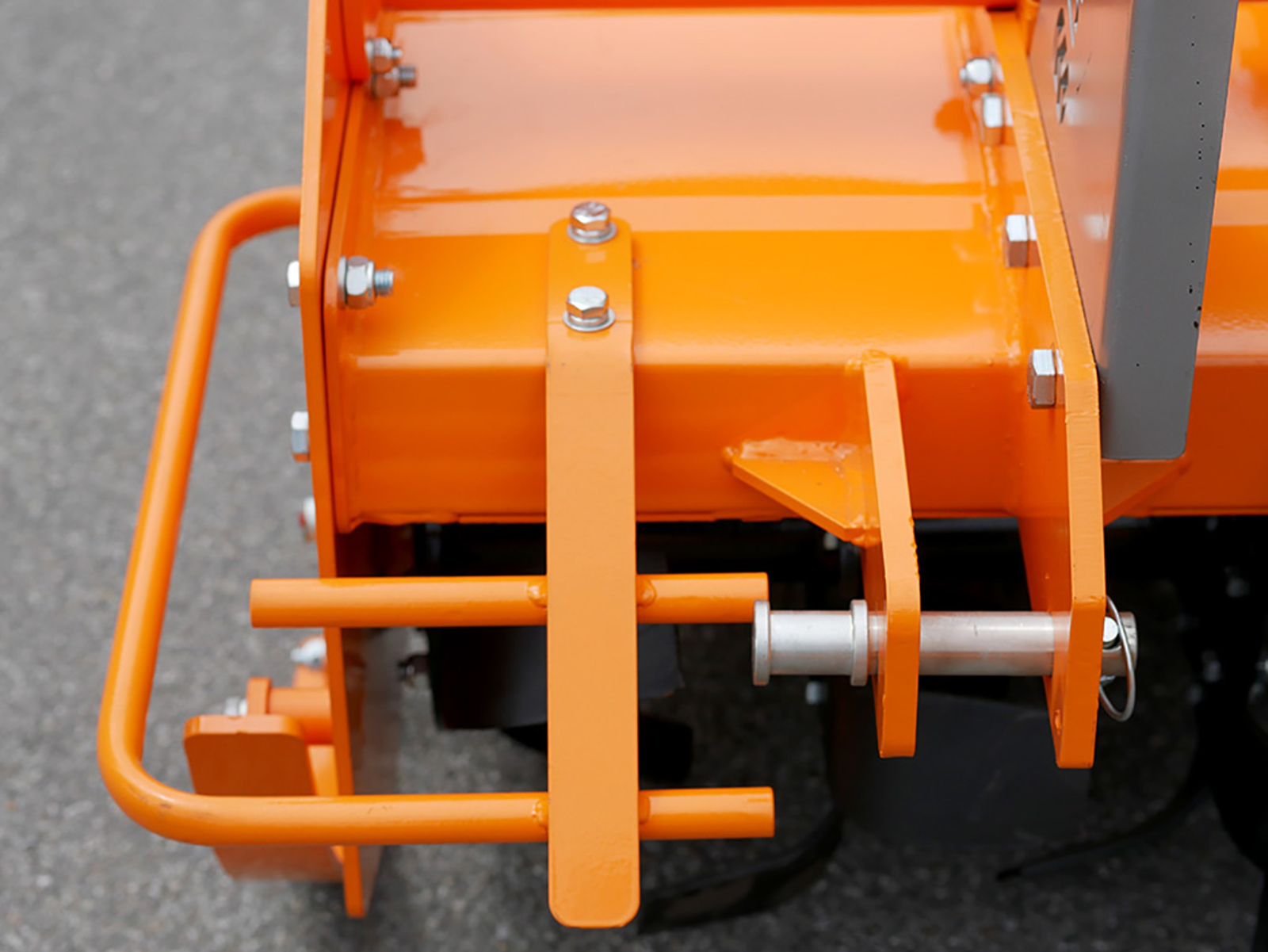

| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) |
| Position of the gearbox | Central |
| Spacing between the 2 lower points | 745.0 - 870.0 mm |
| Overall length | 720.0 mm |
| Rotor: diameter | 76.0 mm |
| Rotor: sheet thickness | 8.0 mm |
| Transmission | Gears |
| Effective Working width | 1795.0 mm |
| Working Depth Range | 160.0-200.0 mm |
| Distance between pto attachment and base | 590.0 mm |
| Pto shaft | 6x800 + Clutch ø180mm |
| Rotor: diameter with blades | 480.0 mm |
| Rotor: bearings type and sizes | "GB276-6306(R) GB276-6309(L)" |
| Rotor: flanges | 9 |
| Number of Blades per flange | 6 |
| Blades: quantity | 48 |
| Blades: height/width | 180.0 / 83.0 mm |
| Blades: curve length | 250.0 mm |
| Blades: distance between holes | 55.0 mm |
| Blades: diameter of the holes | 13.0 mm |
| Blades: thickness | 6.0 mm |
| Gearbox | Lombarda Ingranaggi 540 r/min (3 year warranty) |
| Rotation of gearbox | Right side |
| RPM Rotor speed | 210 rpm |
| Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Blades: weight | 810.0 g |
| Packing sizes | 800.0*2030.0*820.0 mm |
