Miniexcavator Mulcher Head - 60cm - hydraulic shredder
Review by Edd China (Wheeler Dealers)
DETAILS

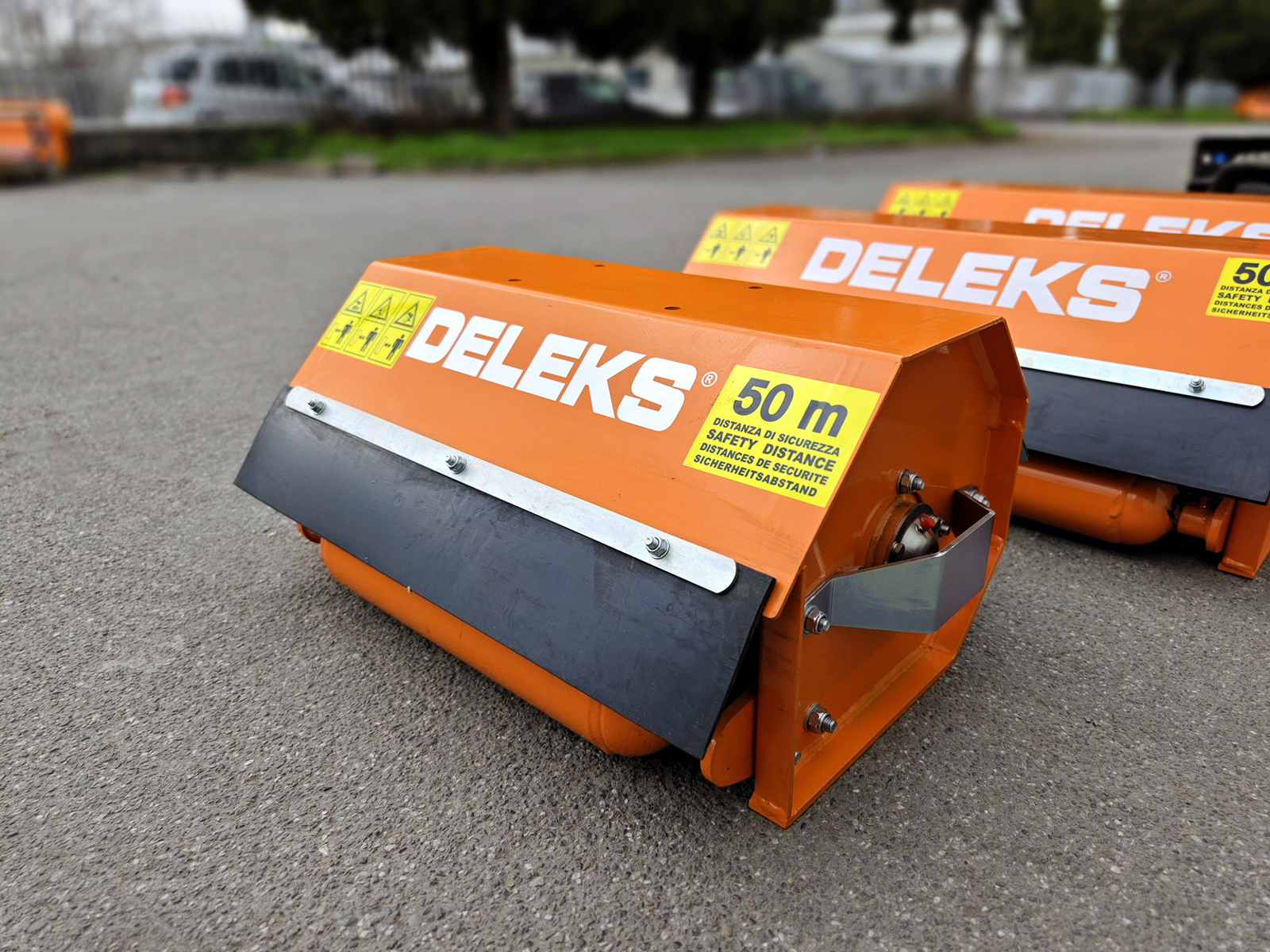

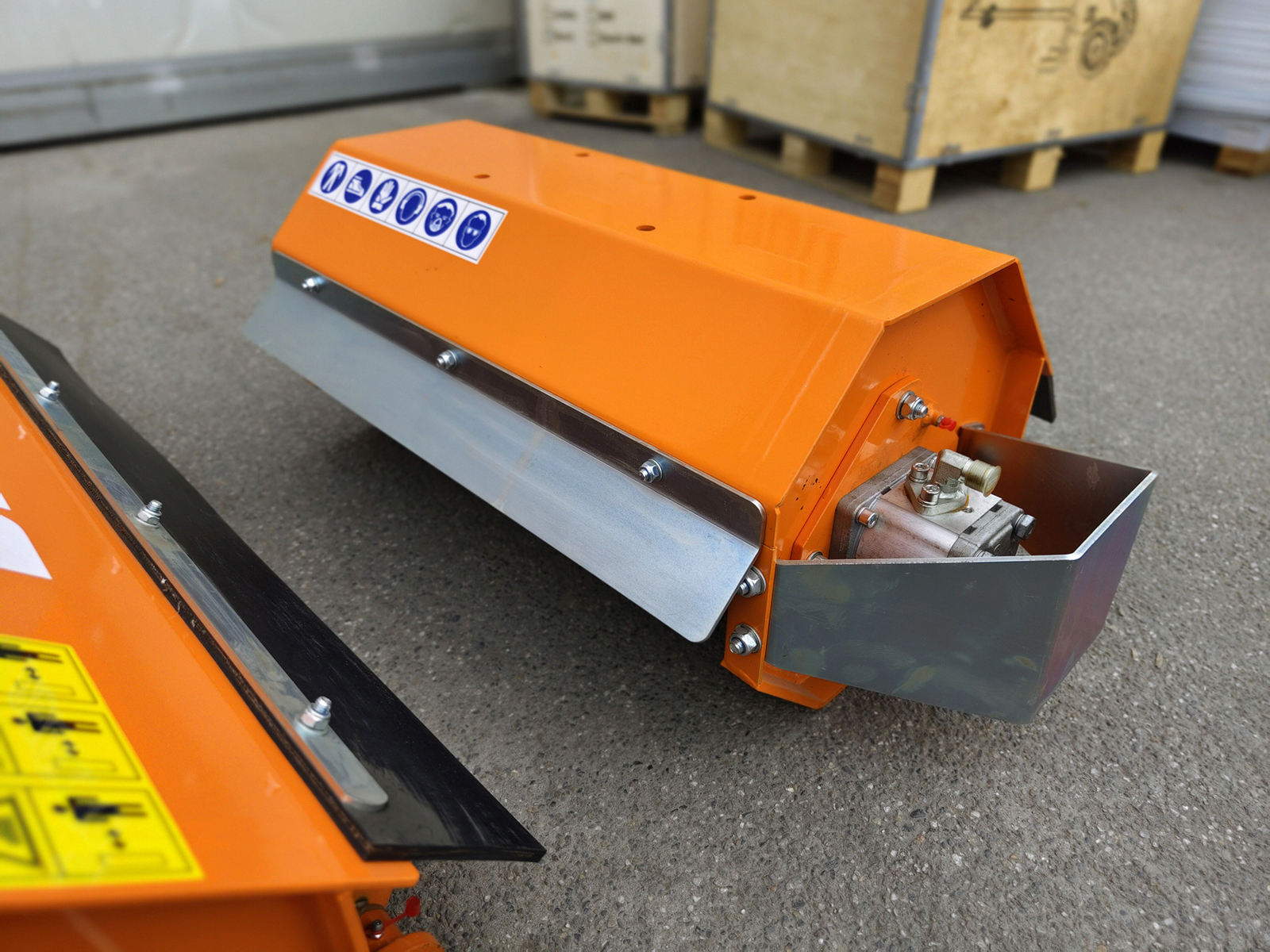

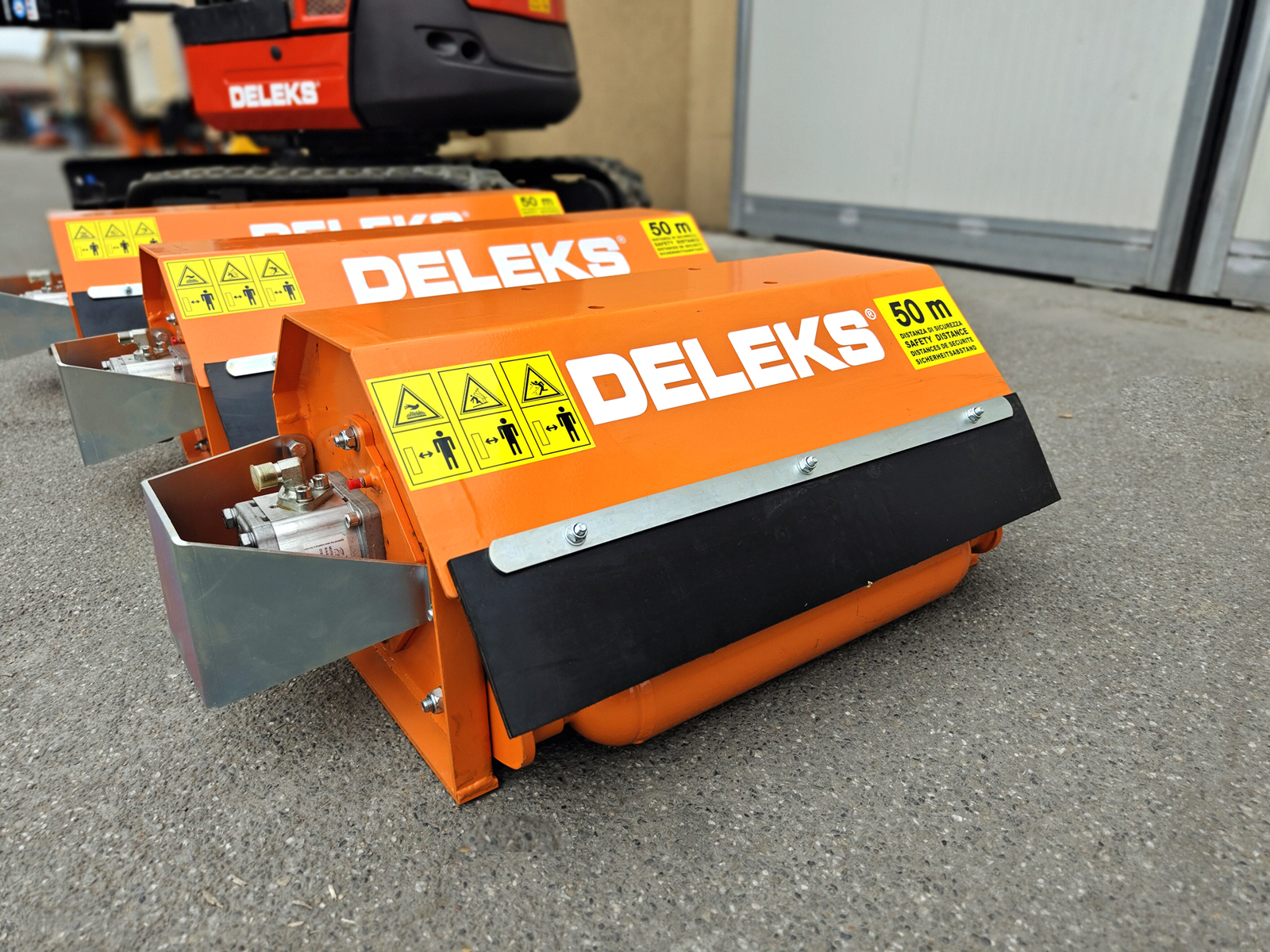

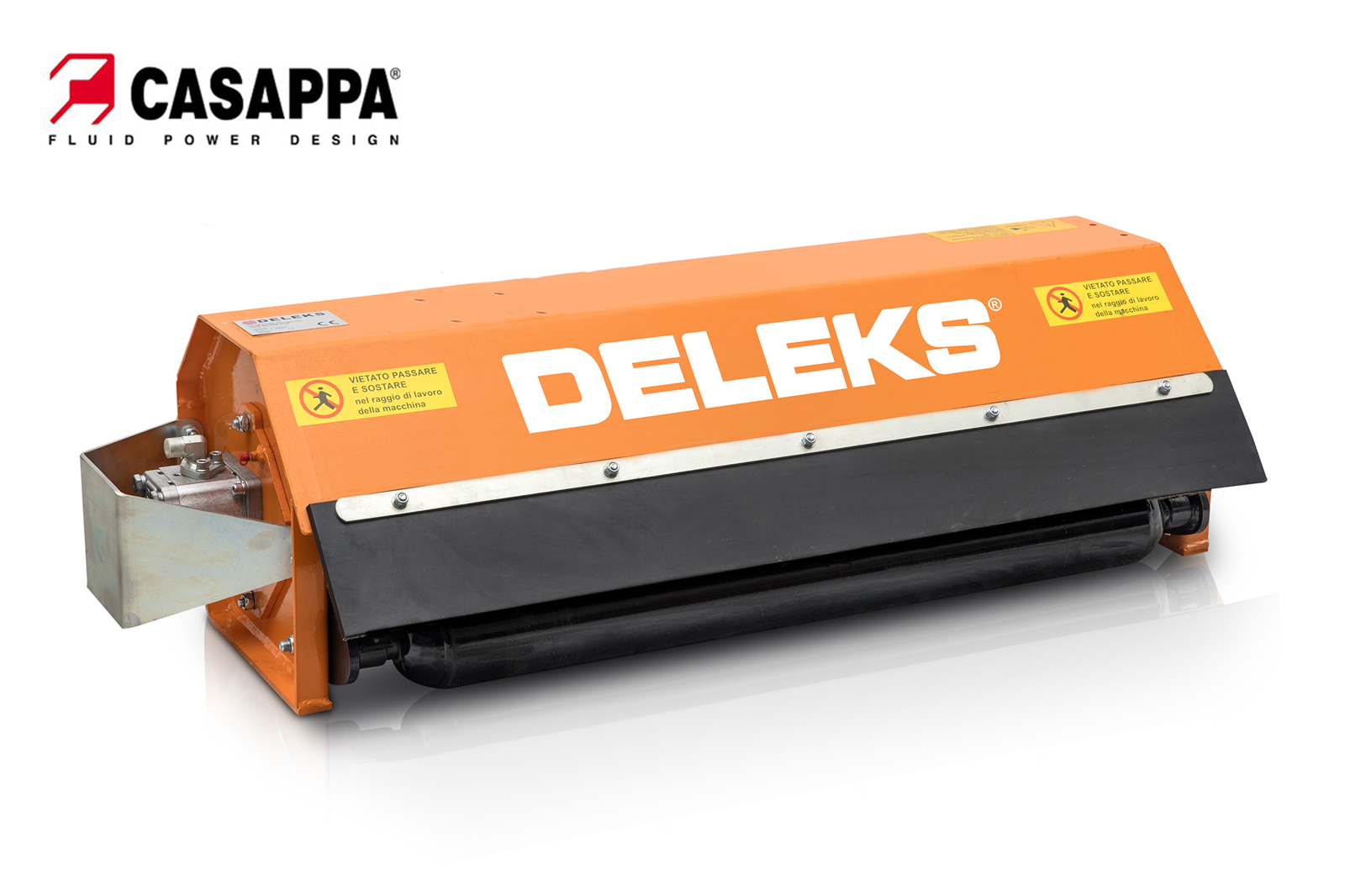

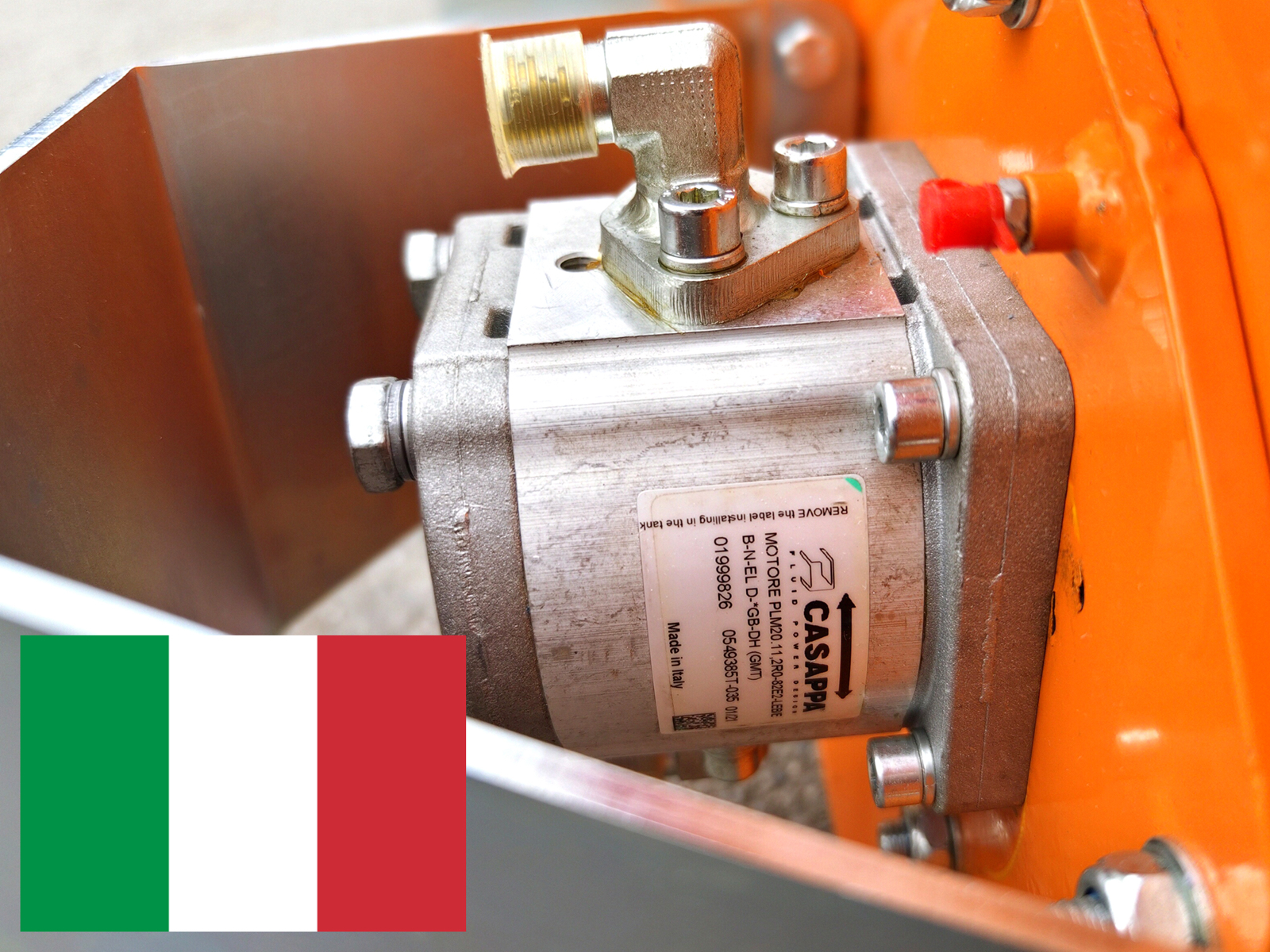

Digger Flail Shredder Head - DELEKS® - hydraulic brush cutter for mini excavator - 60cm - Hydraulic motor Made in Italy, 2 years warranty
Shredder for mini excavators of 0.8-1.8 tons.

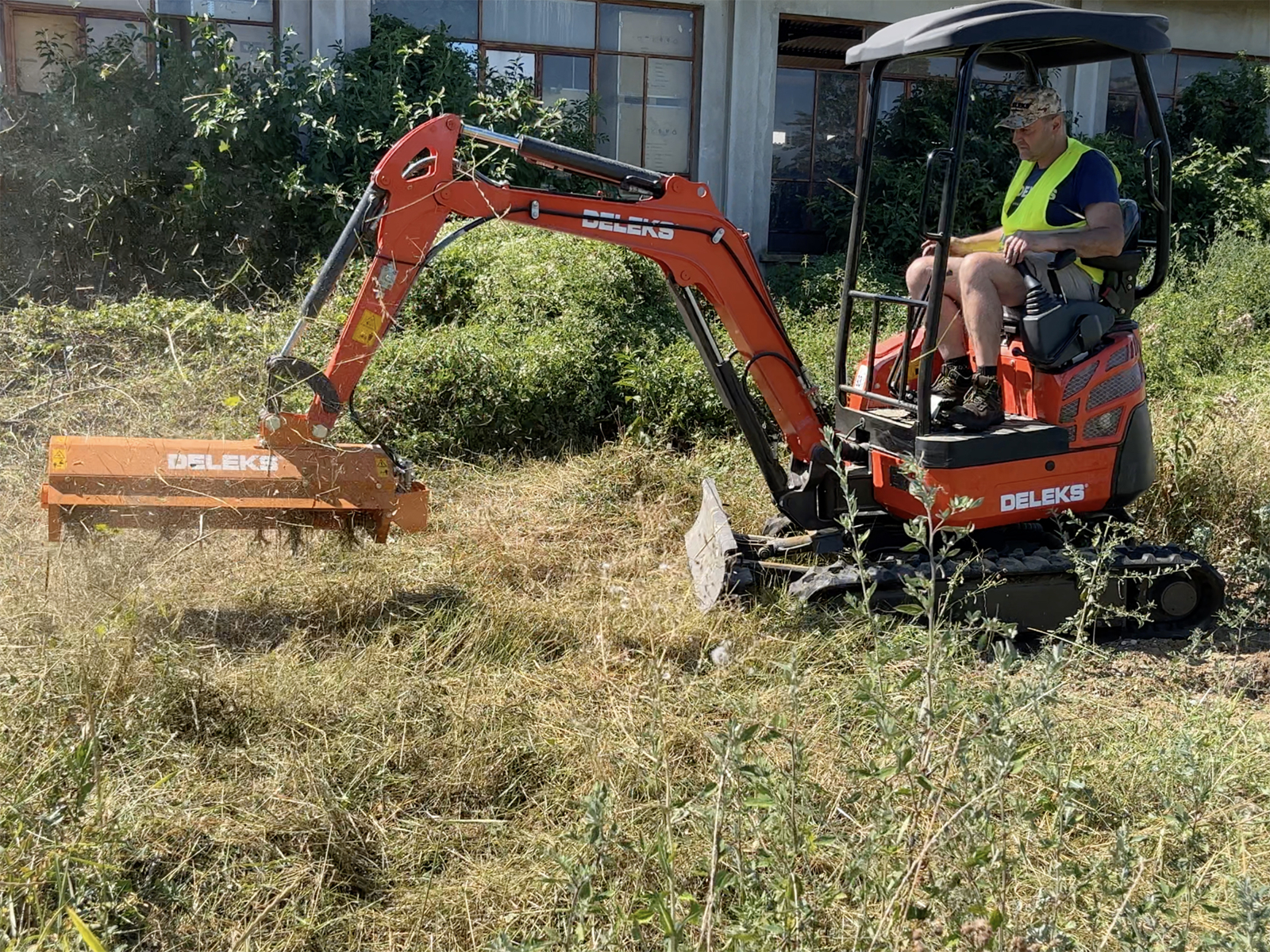

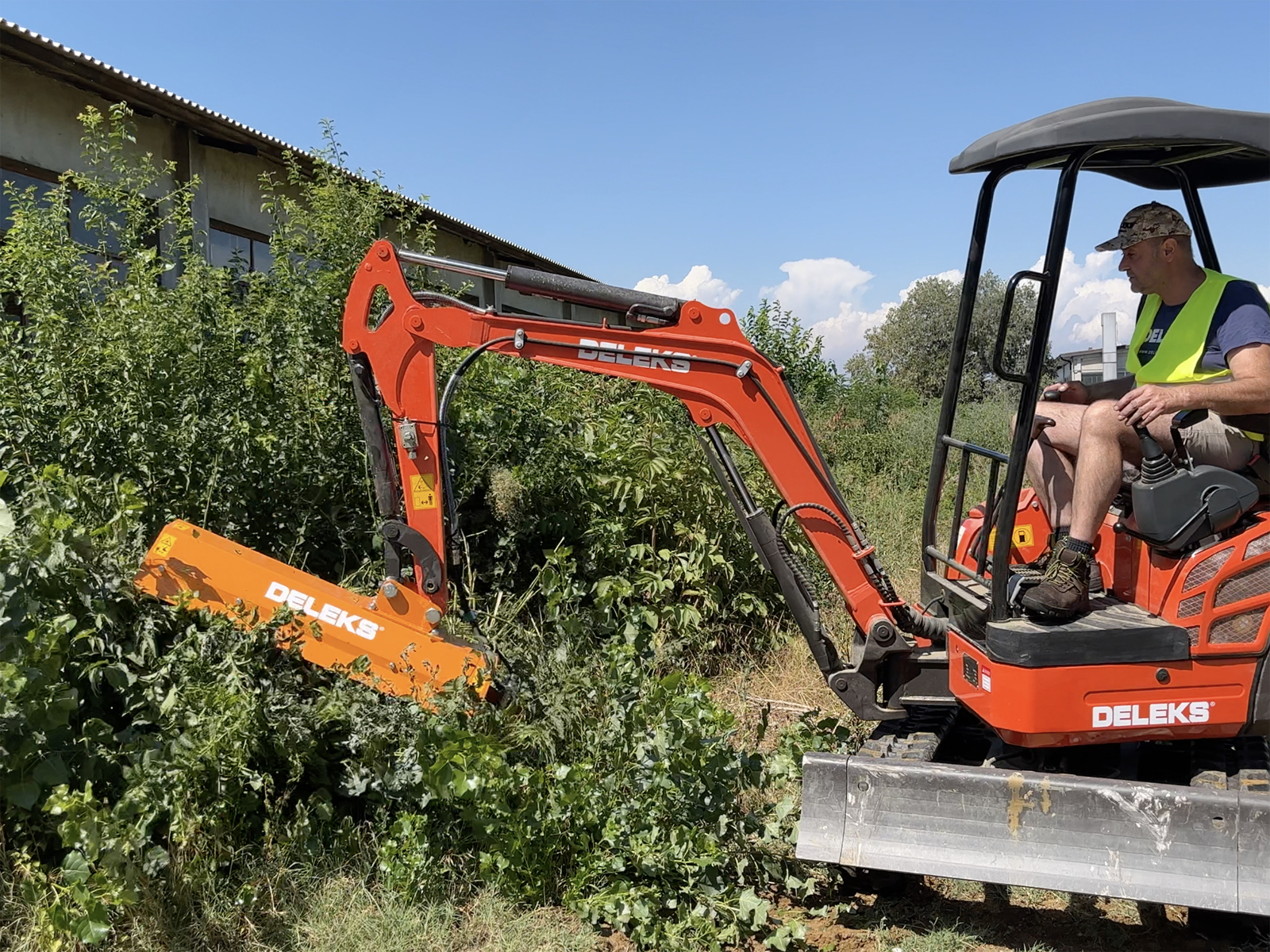

Hydraulic mulcher for brambles, bushes, ditches, banks, embankments, branches.
Suitable for Mini-excavator brands as Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, etc.

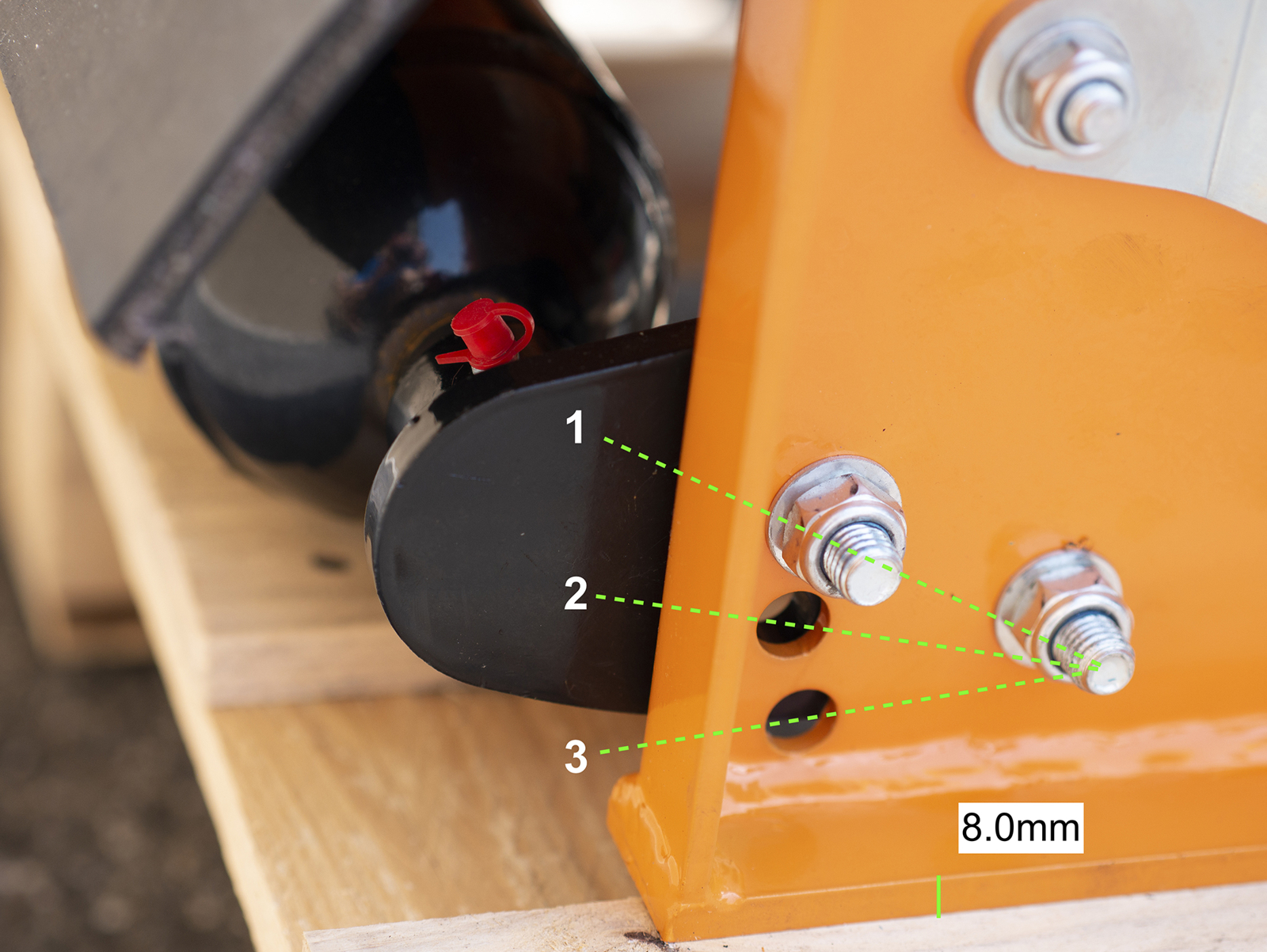

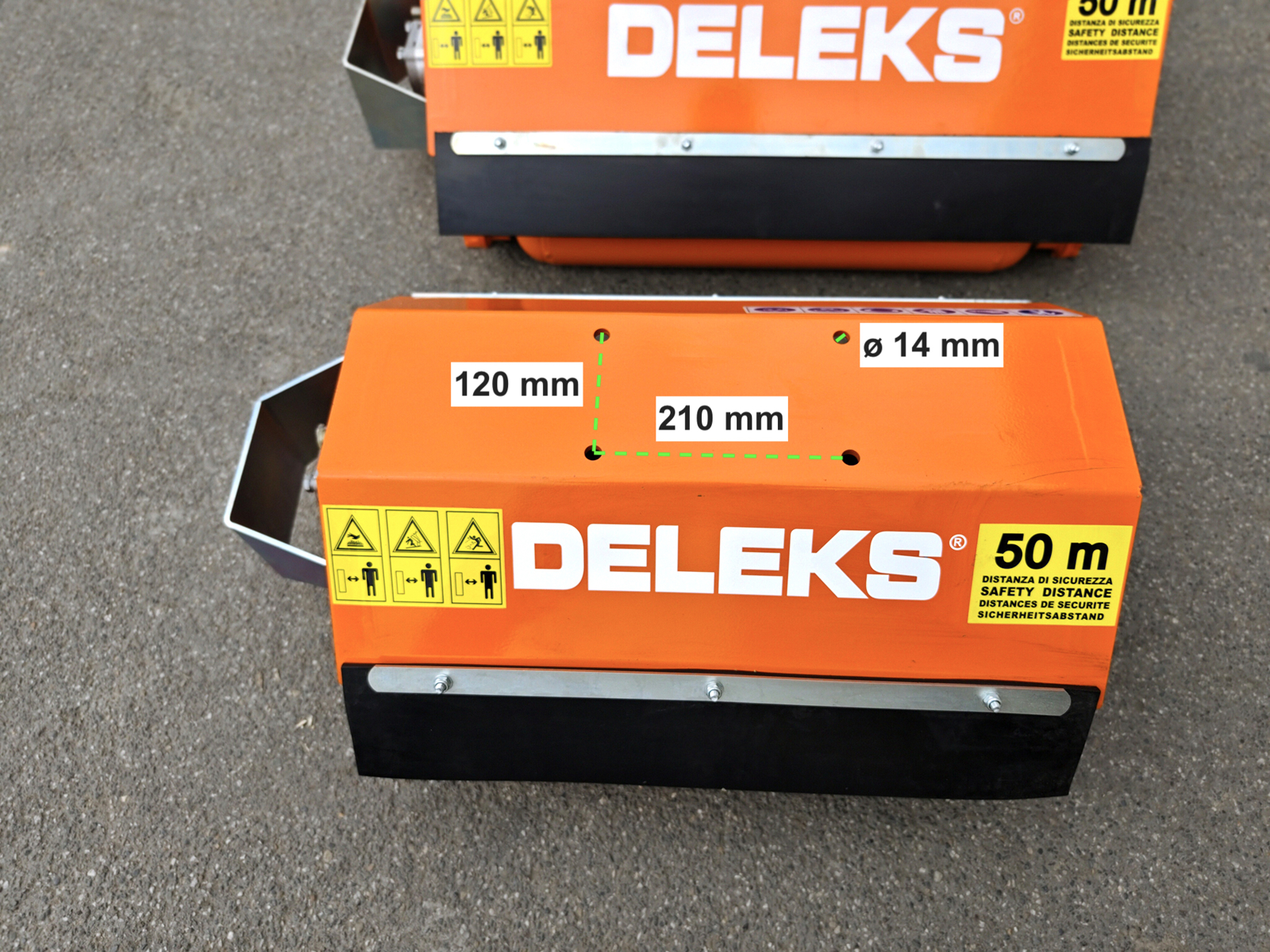

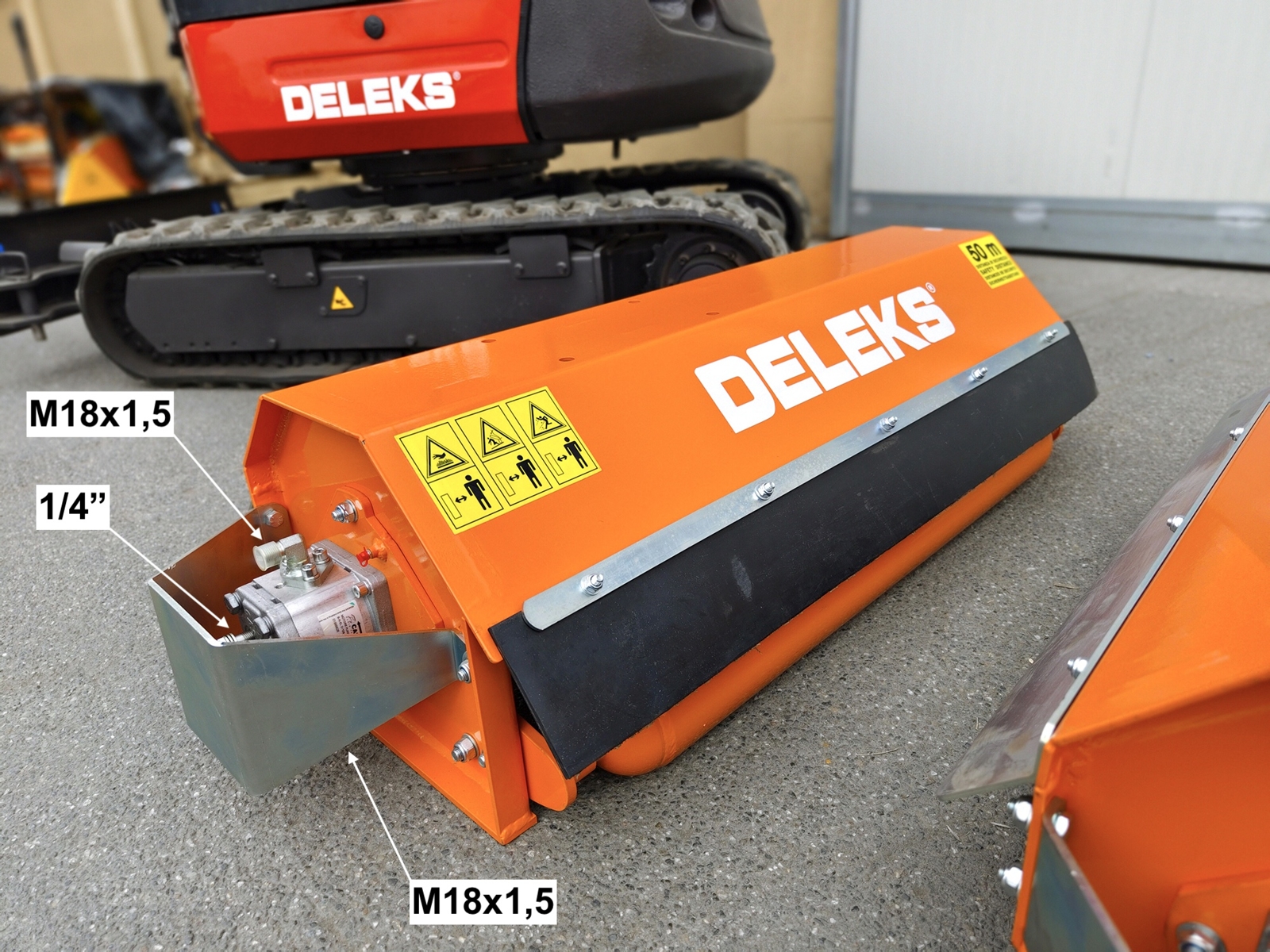

Attachment measures: see pictures. Alternatively we can make an ad-hoc linkage on design. An additional production cost will be applied).
Requirements for the operating machine:
a) Preferable with double pump:
1 for the crawler
1 for operation of the mulcher (pump capacity at least 25/30 l / min)
b) The rotation of the knives goes in both directions (a double-acting pedal is necessary).
c) The pump requires a third drainage pipe that goes into the tank.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 600.0 mm |
| Overall width | 820.0 mm |
| Min / Max cutting height | 20.0 - 80.0 mm |
| Weight | 66.0 kg |
| Hood height | 330.0 mm |
| Maximum cutting diameter | 20.0 mm |
| Main hood thickness | 4.0 mm |
| Transmission: RPM Rotor speed | 1500 r/min |

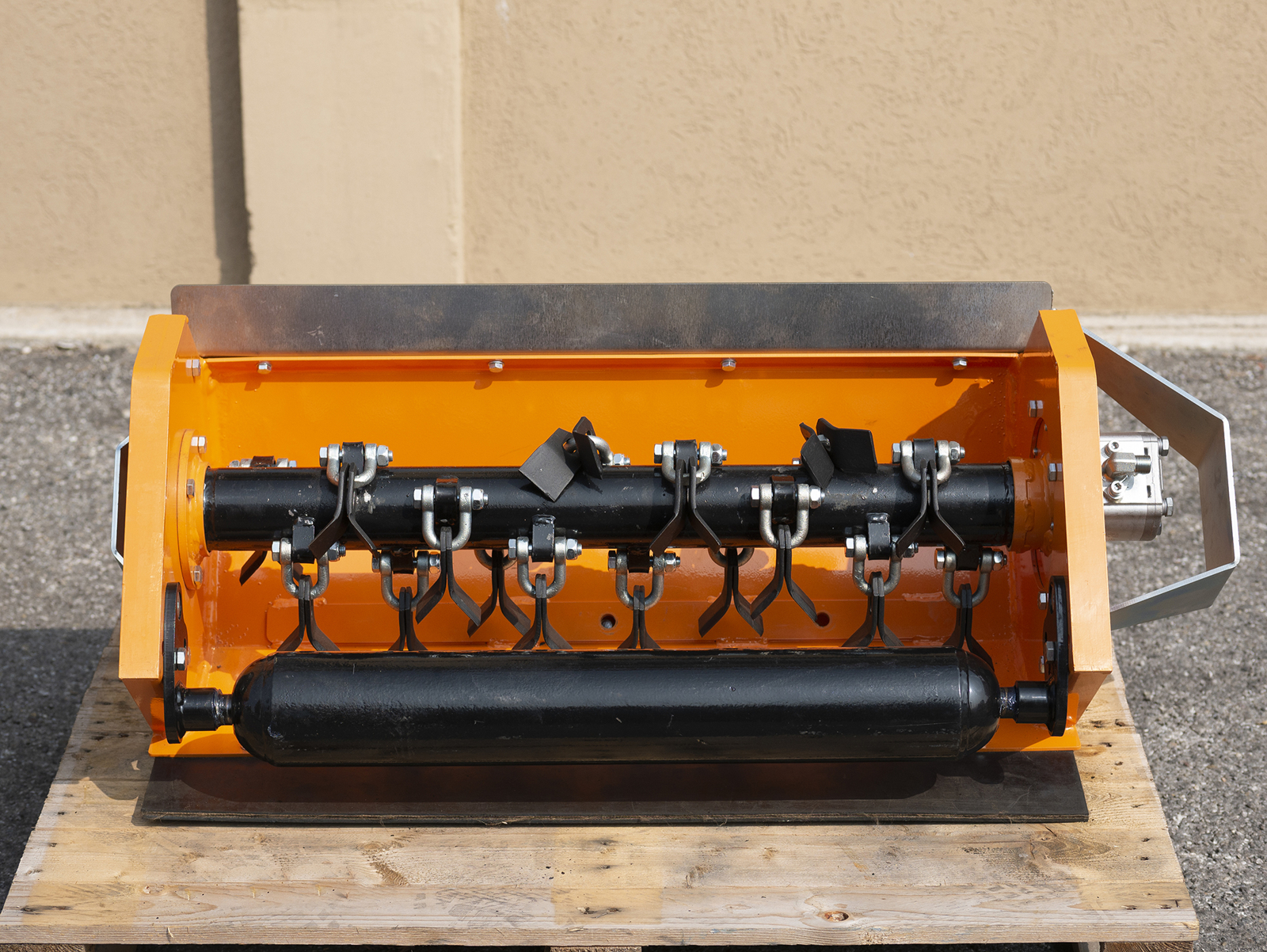

| Rotor: diameter | 78.0 mm |
| Rotor: bearings type and size | GB276-6007 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 10.0 mm |

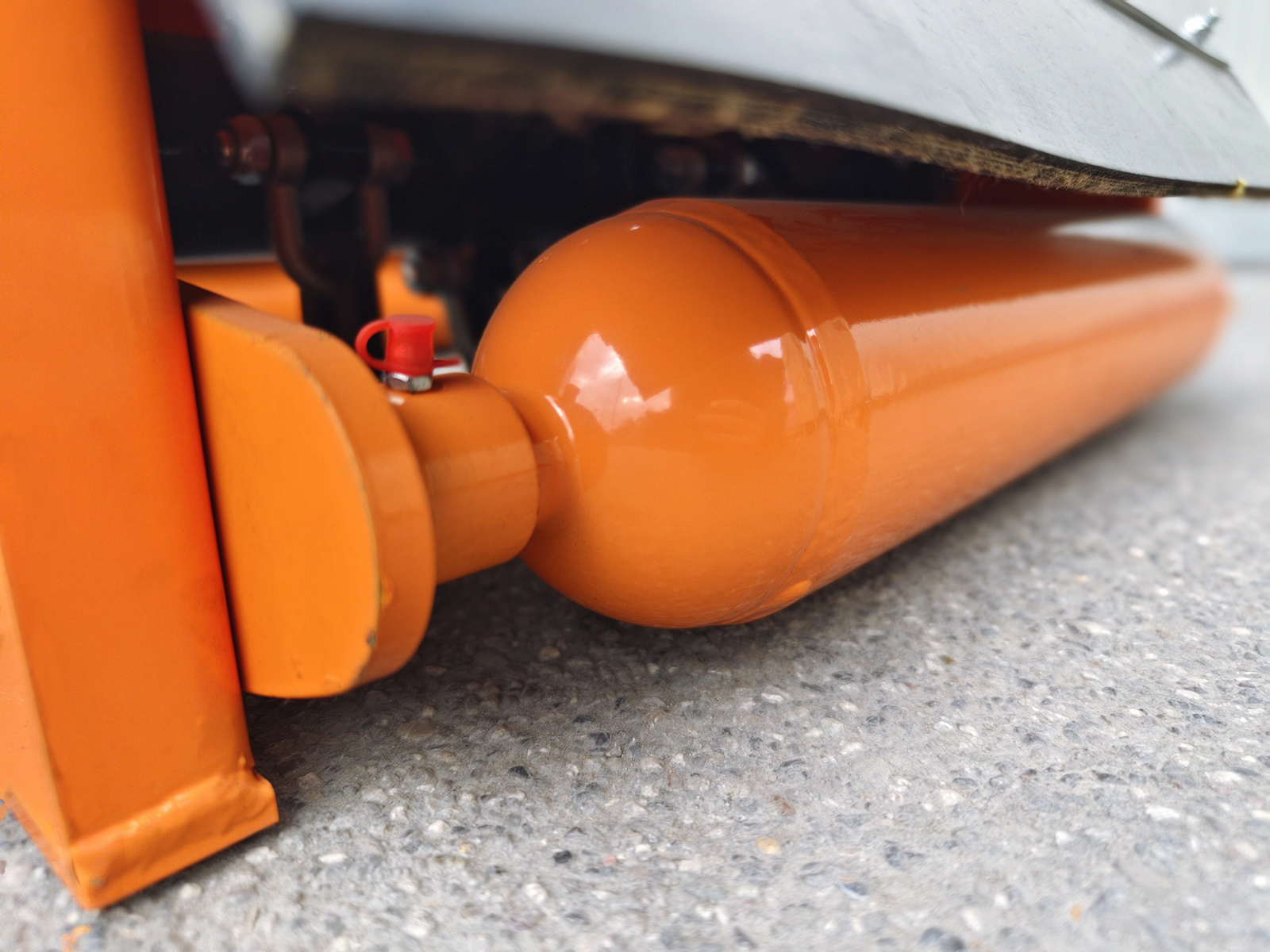

| Rear roller: diameter | 102.0 mm |
| Rear roller: sheet thickness | 4.0 mm |
| Rear roller: bearings type and size | φ25 |
| Min./Max. Relief Pressure | 120 - 150 bar |
| Min./Max. Flow | 25 - 30 l/min |
| Hood length | 650.0 mm |

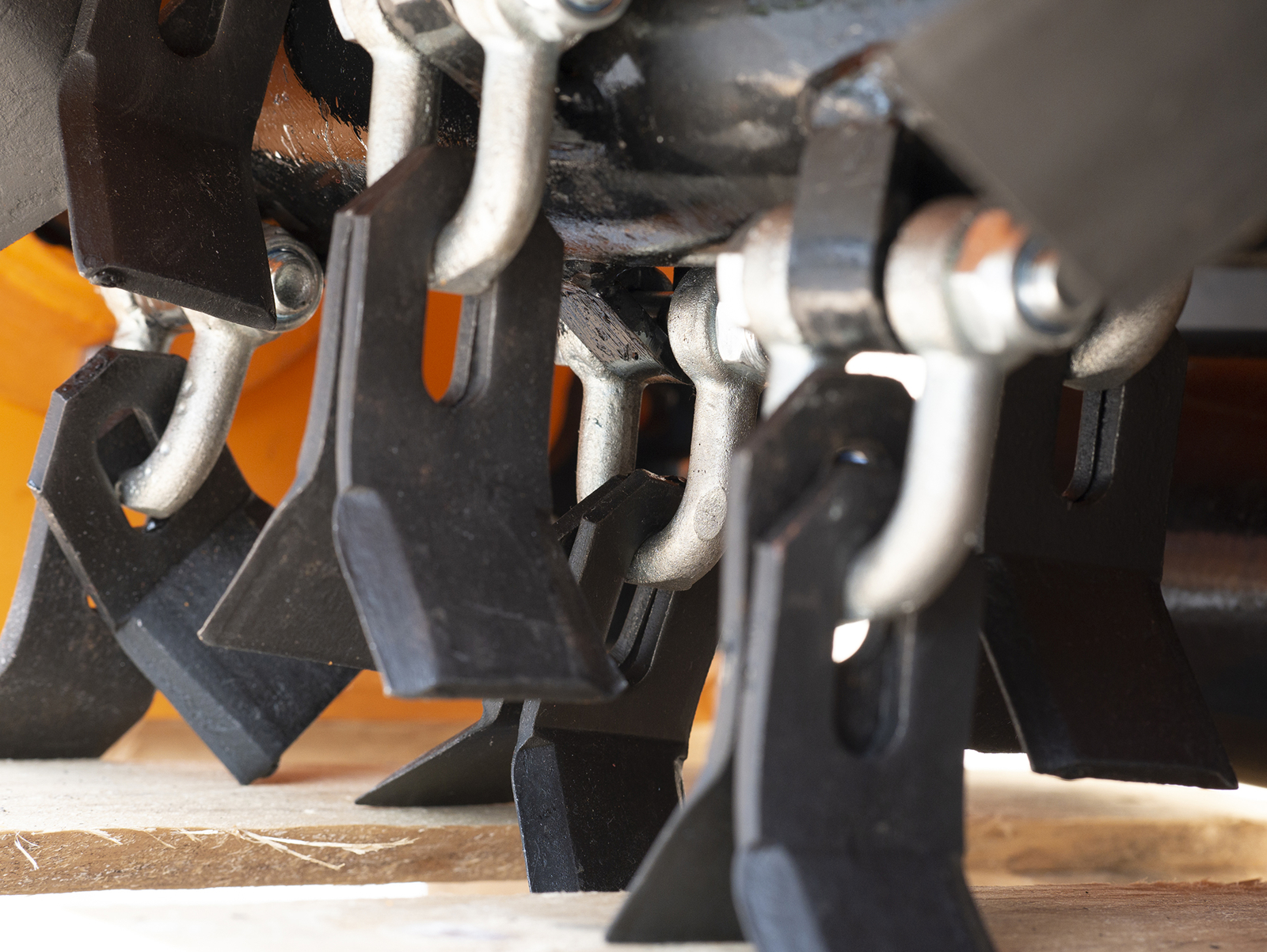

| Number of Blades | 24 |
| Blades: Weight | 130.0 g |
| Blades: Diameter of the hole | 13.0 mm |
| Blades: base width | 50.0 mm |
| Blades: Diagonal | 85.0 mm |
| Packing sizes | 820.0*600.0*500.0 mm |
