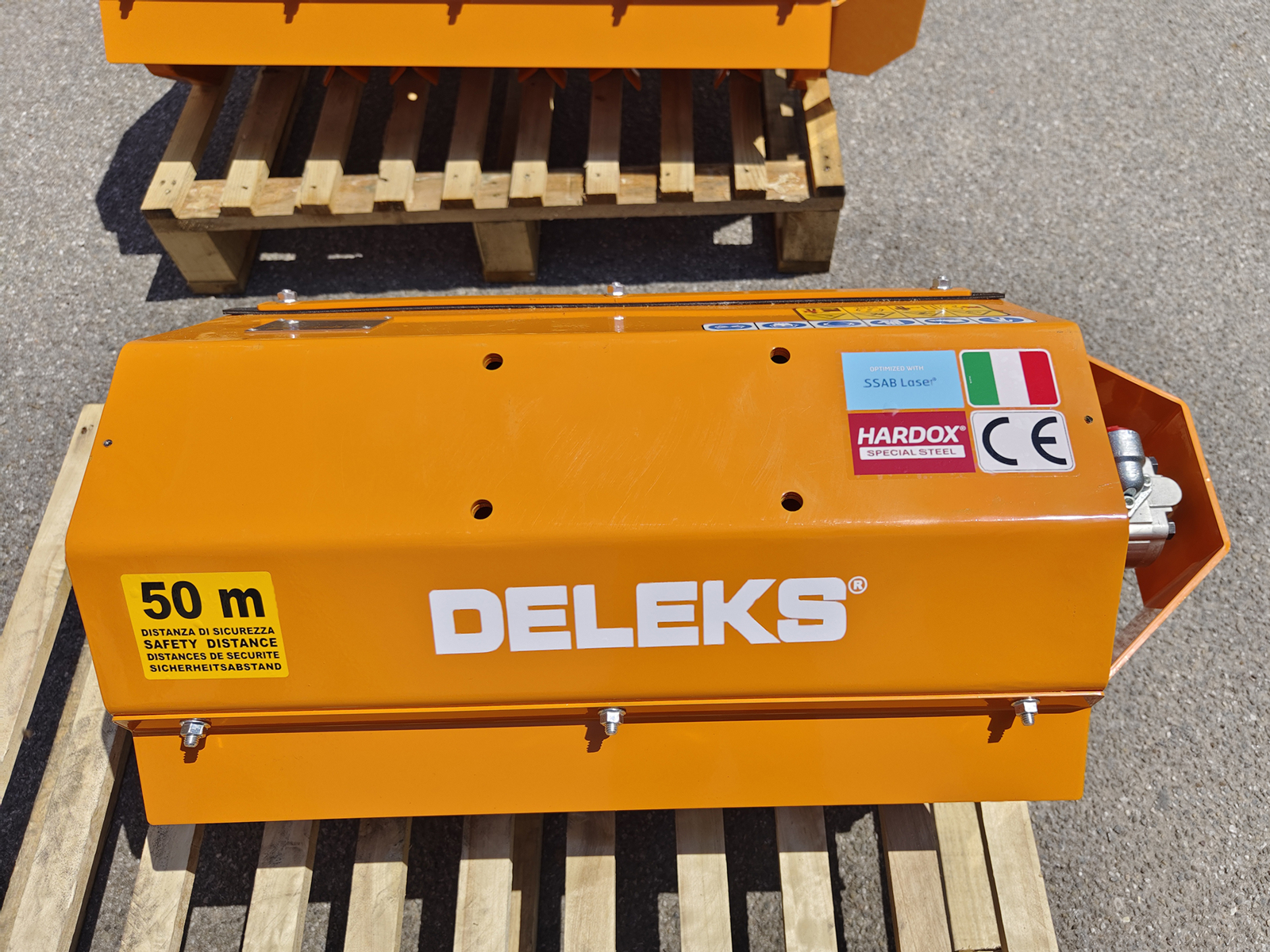

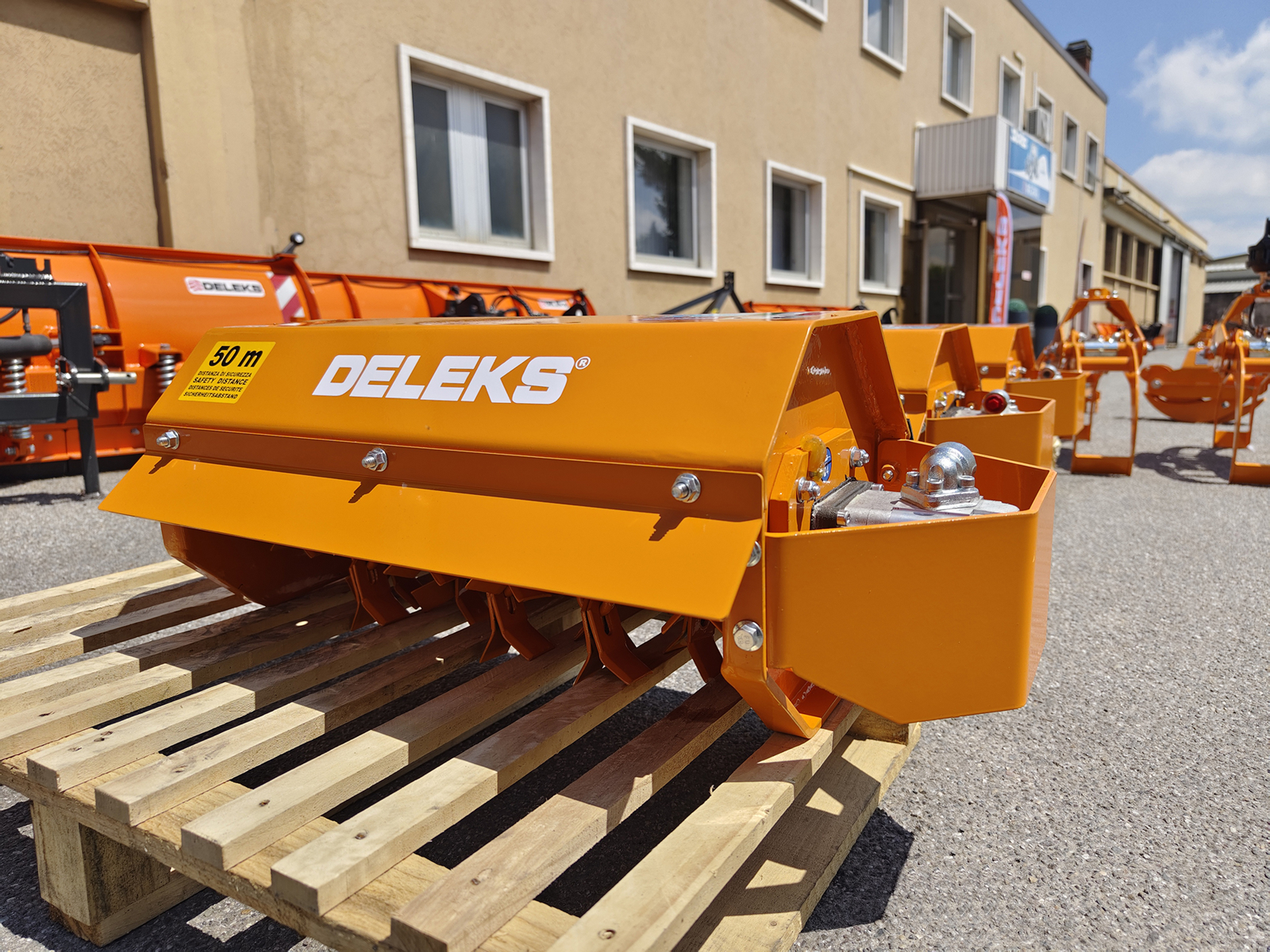

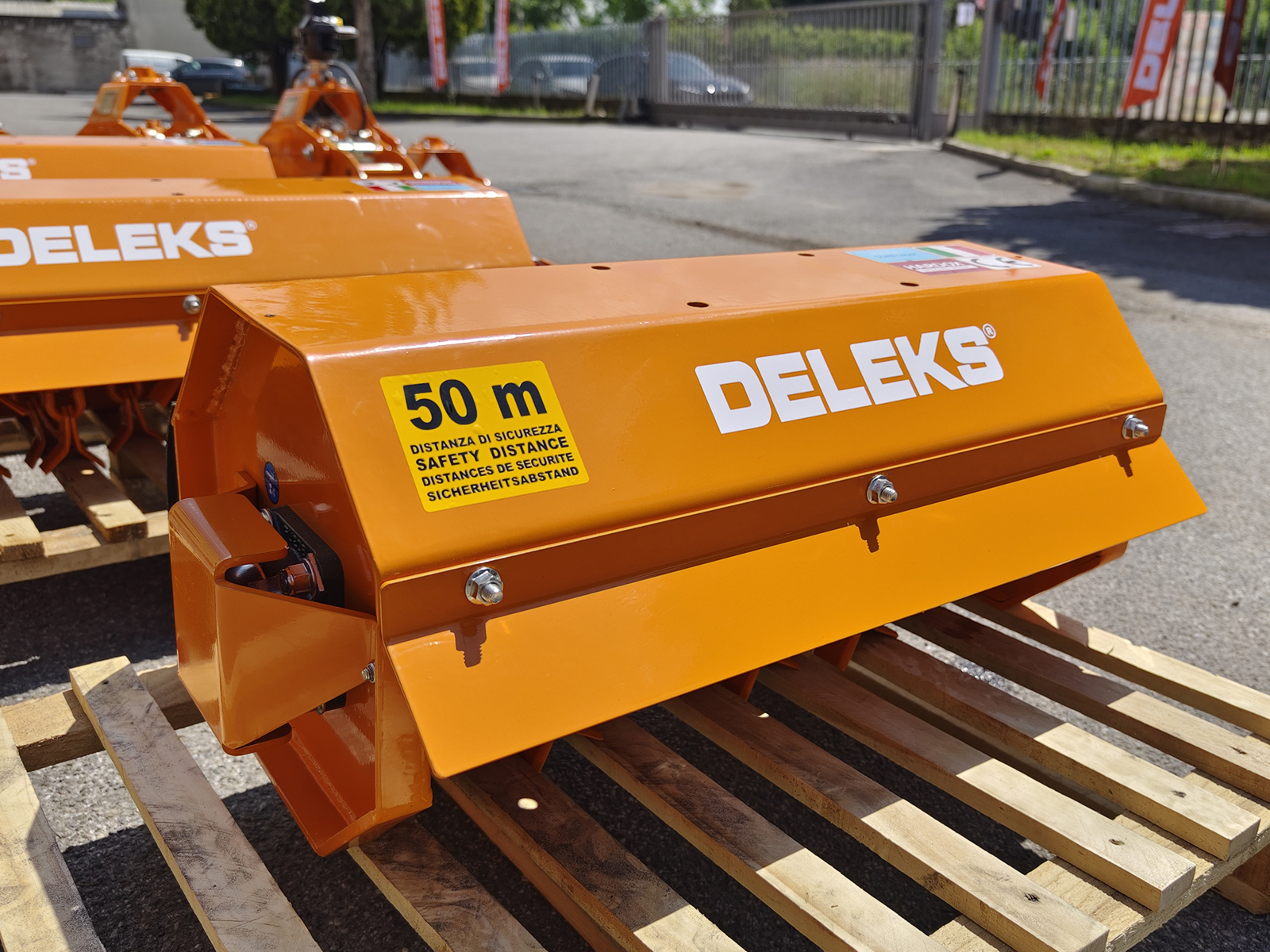

Miniexcavator Mulcher Head - 60cm - hydraulic shredder

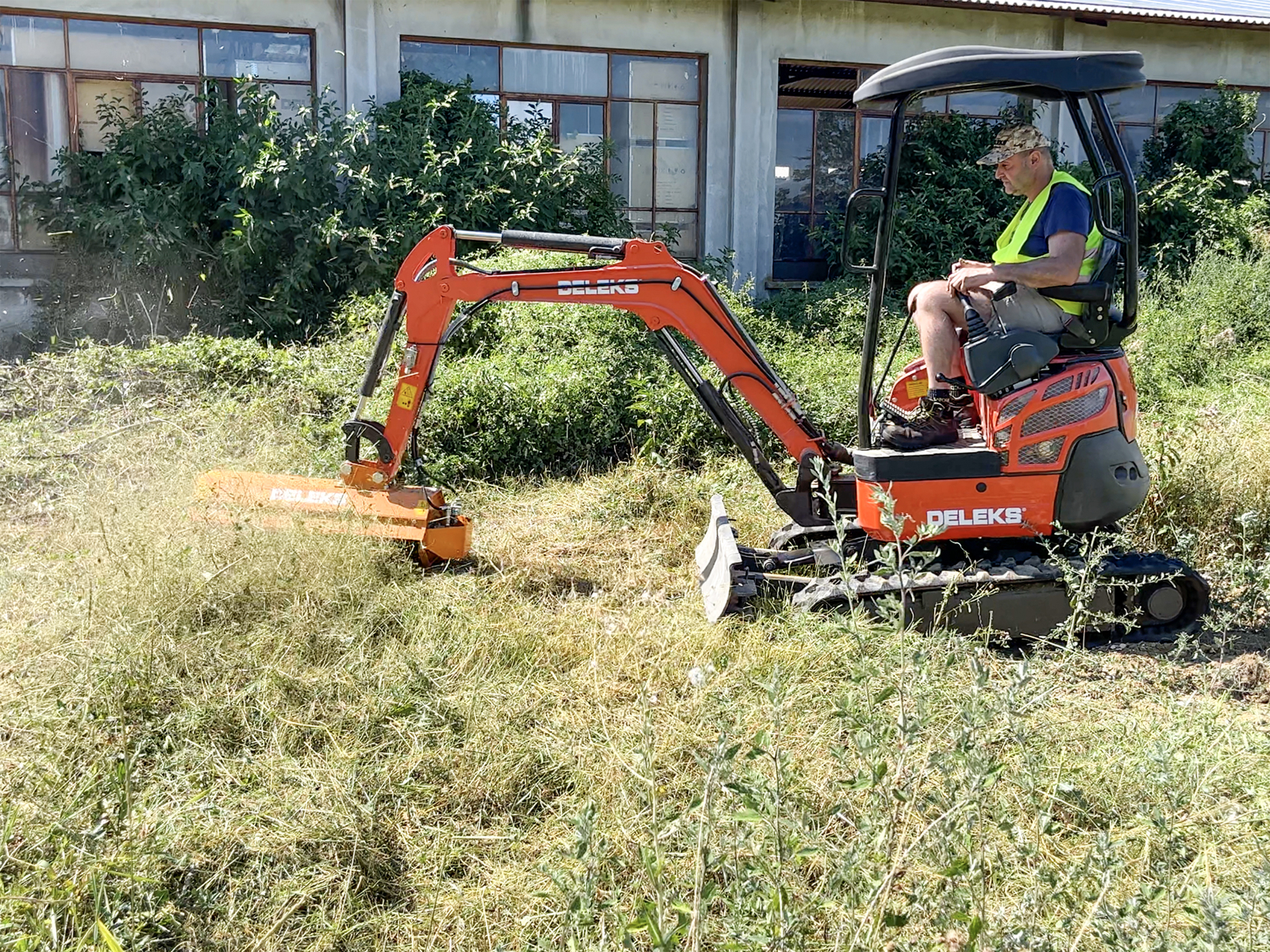

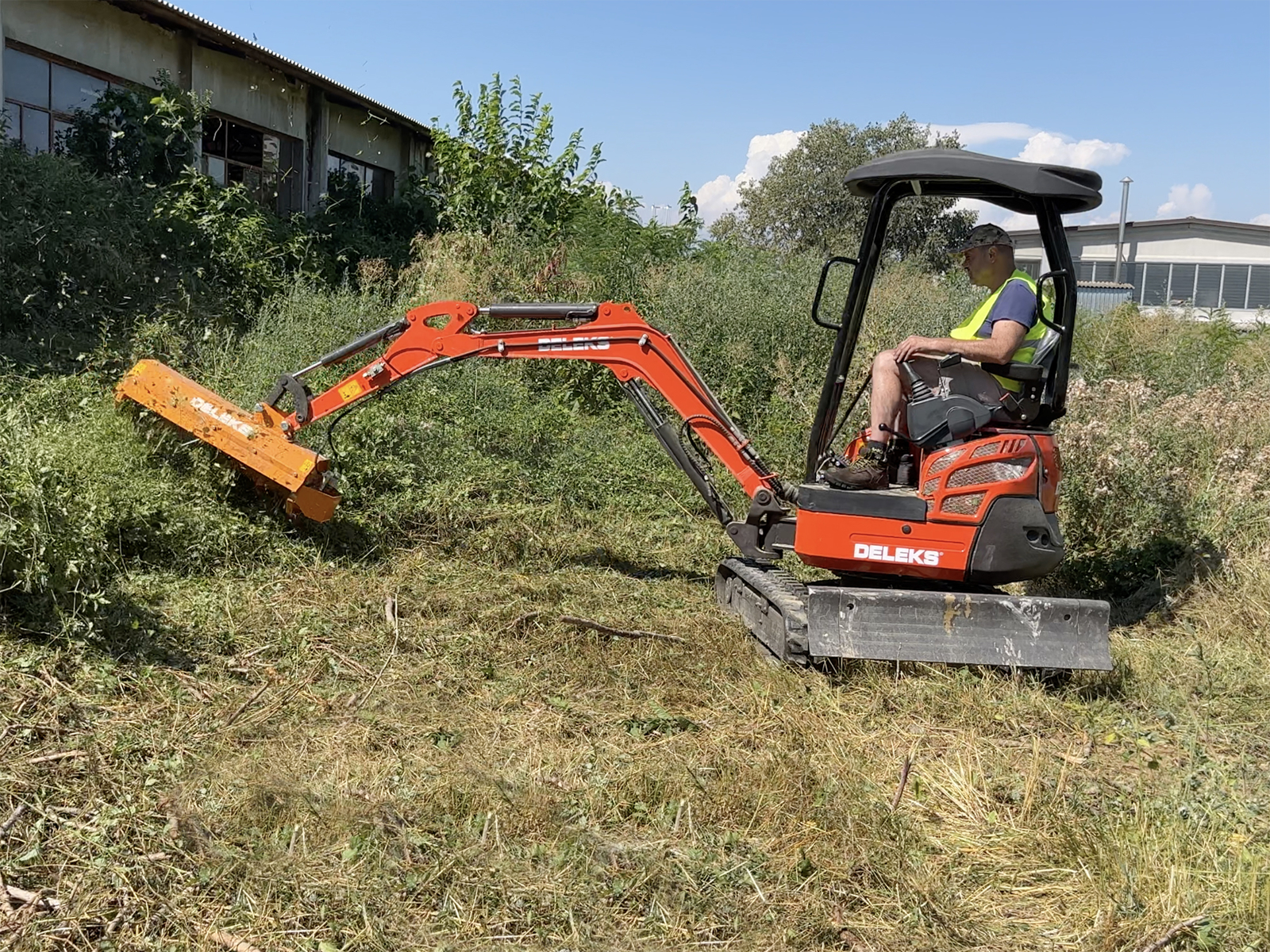

ARS mounted on Deleks M180 1.8 ton
DETAILS

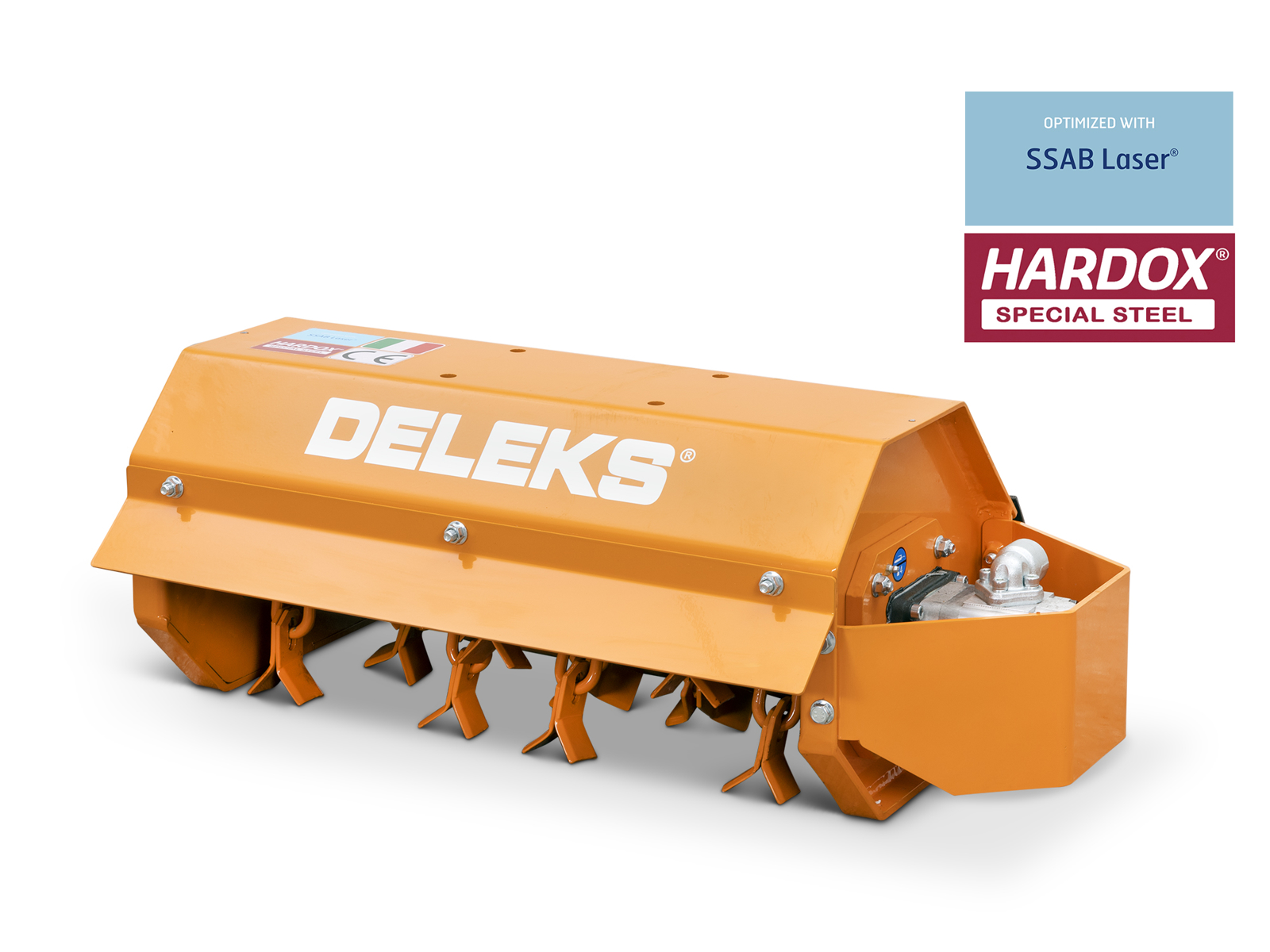

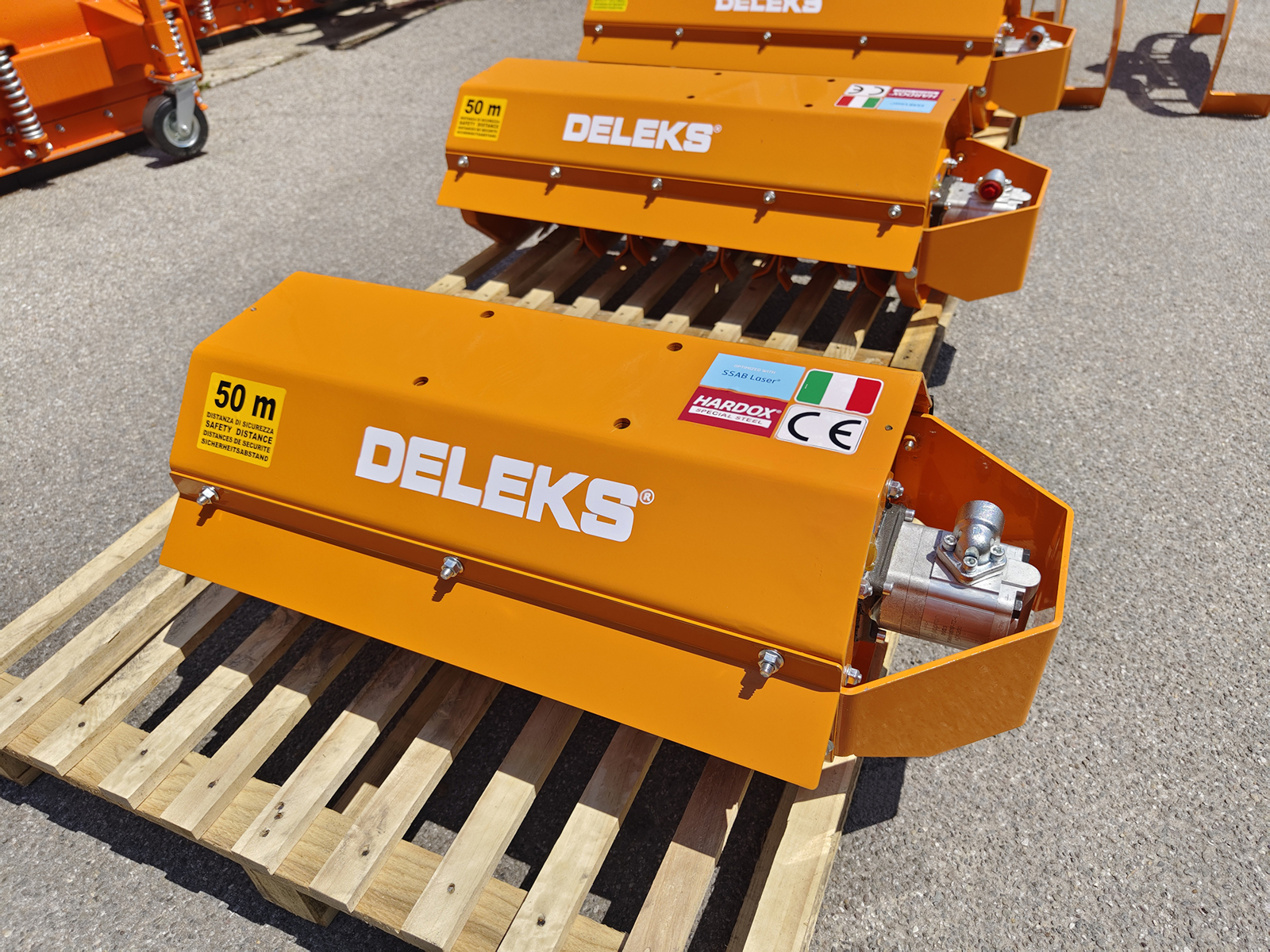

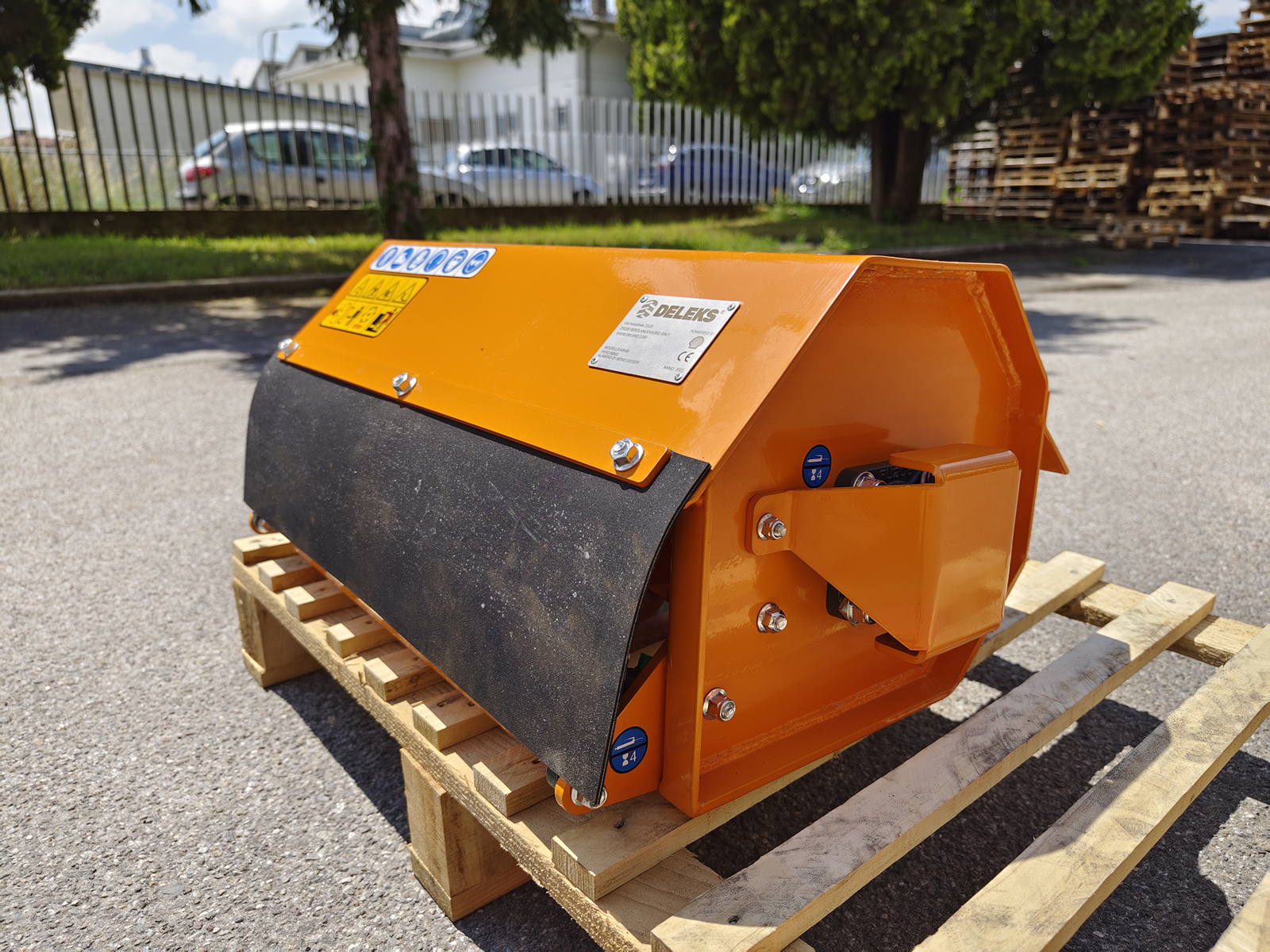

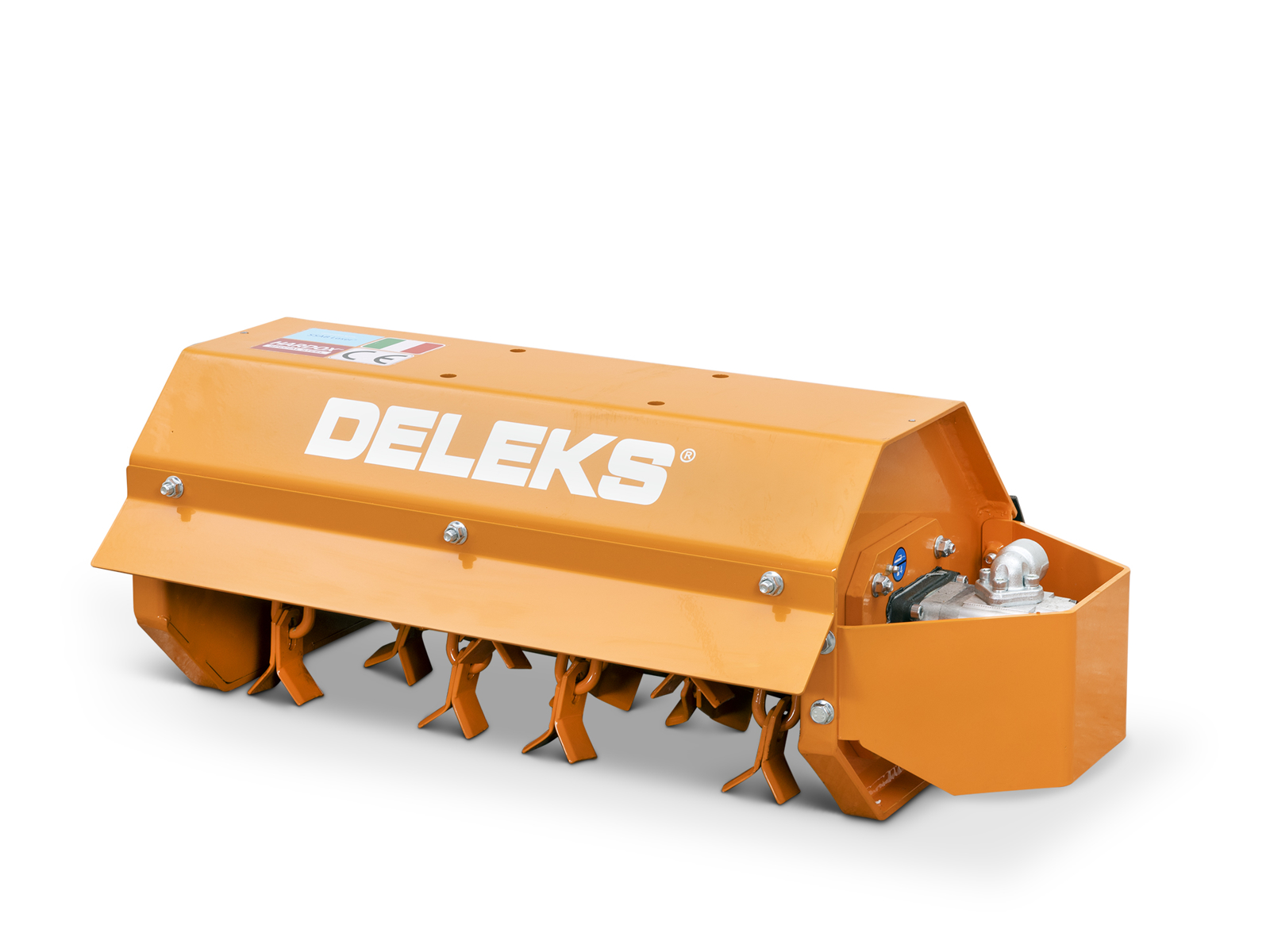

Digger Flail Shredder Head - DELEKS® - hydraulic brush cutter for mini excavator - 60cm - Made in Italy, 2 years warranty.
Shredder for mini excavators of 1.0 -2.0 tons.
Hydraulic mulcher for brambles, bushes, ditches, banks, embankments, branches.
Suitable for Mini-excavator brands as Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, etc.

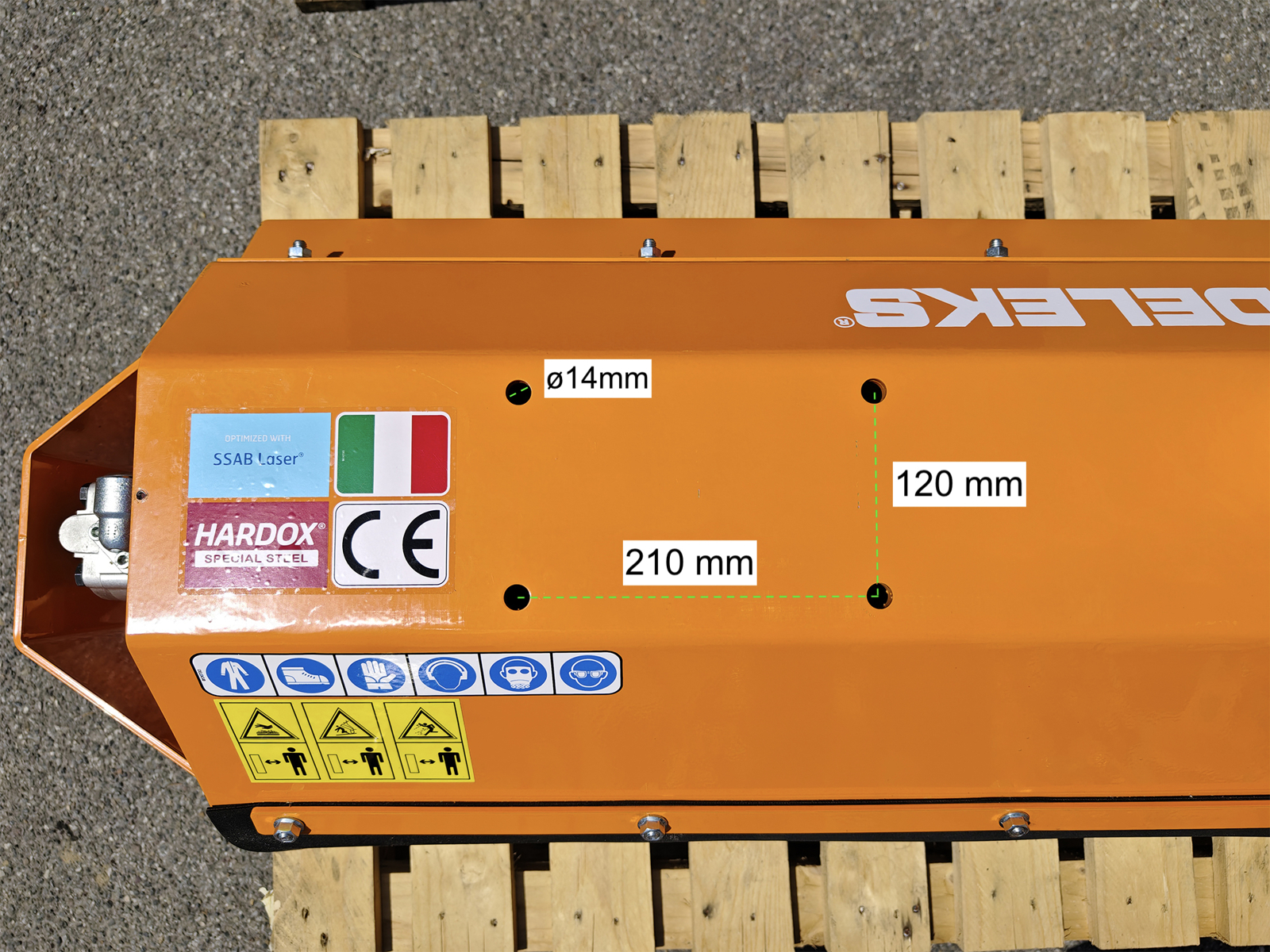

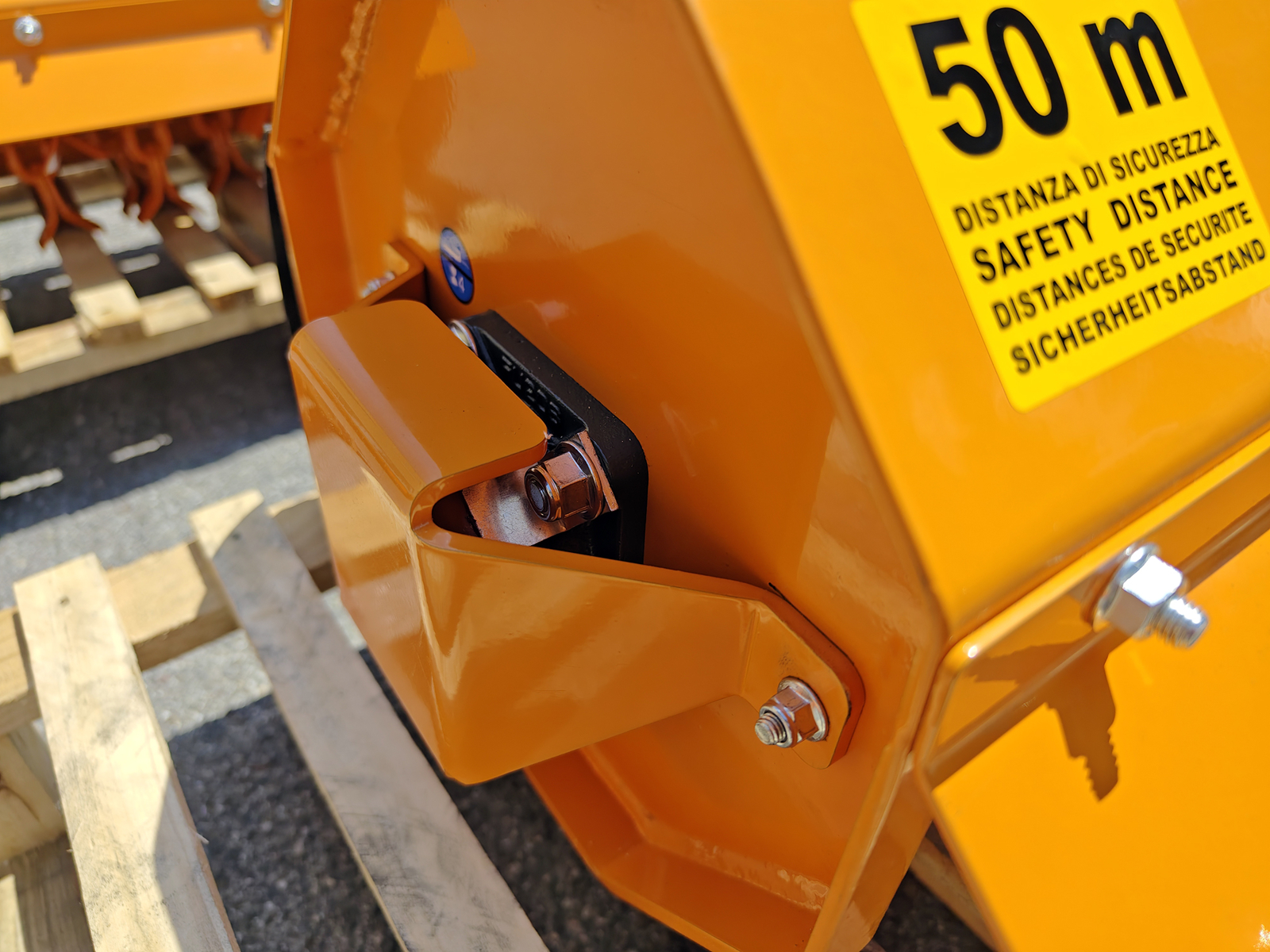

Attachment measures: see pictures. Alternatively we can make an ad-hoc linkage on design (an additional production cost will be applied).
BENEFITS & FEATURES
Frame entirely made with Swedish SSAB steel.

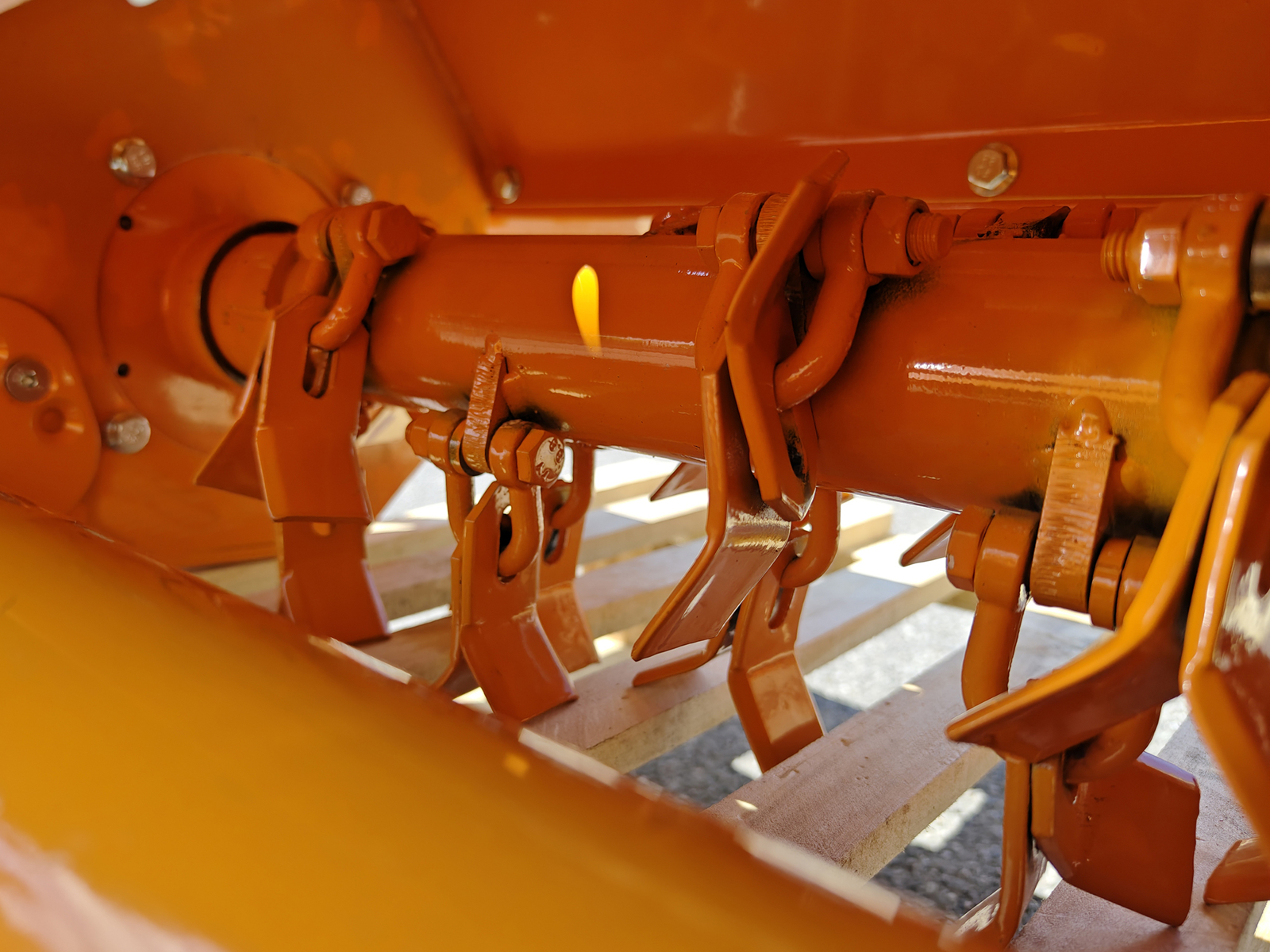

Rotor made with THYSSENKRUPP's tube, electronically balanced, 8mm thick S355 steel.
Rotor tube machined over the entire length to ensure maximum linearity.

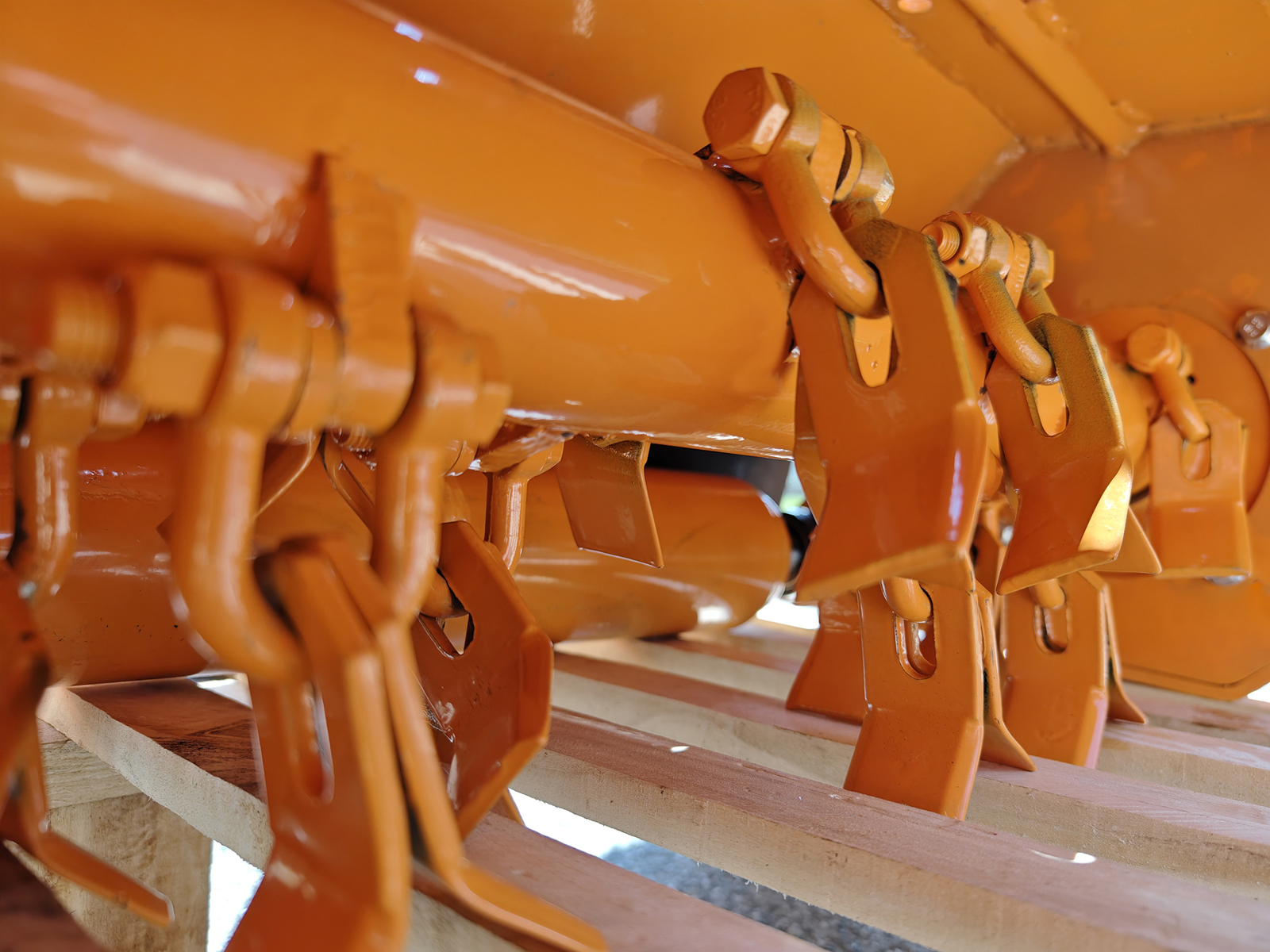

Hammers attachments HARDOX made.

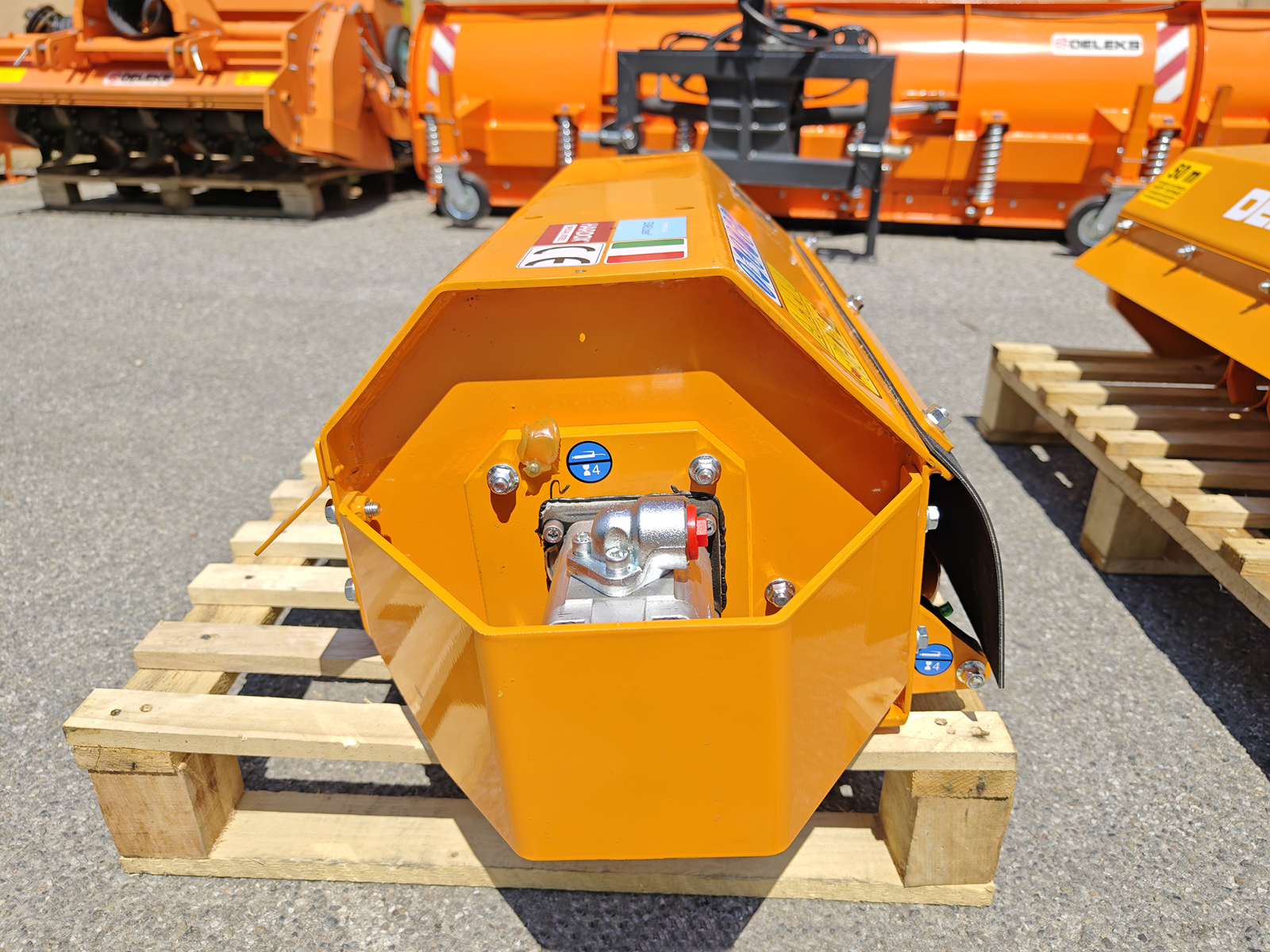

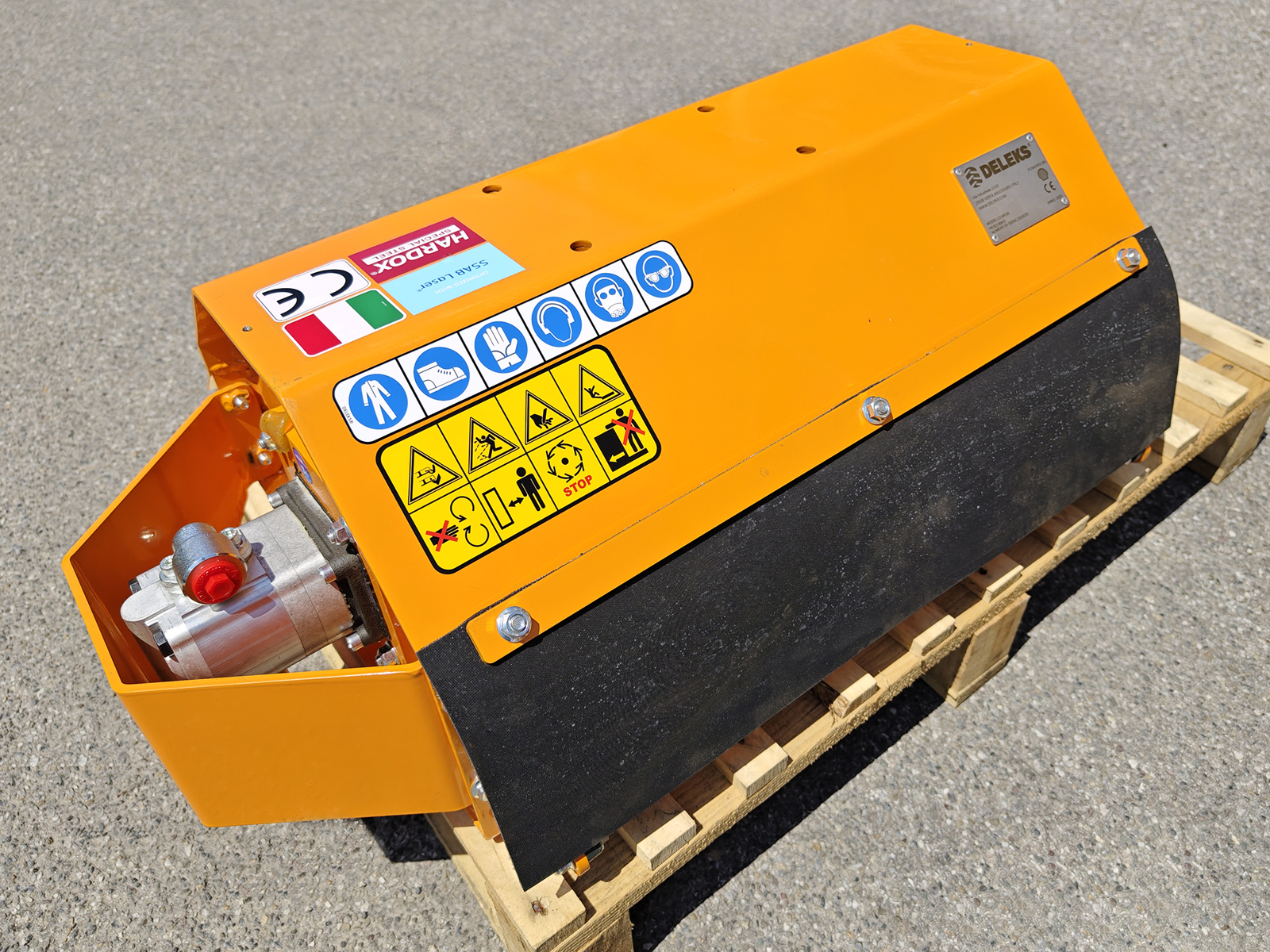

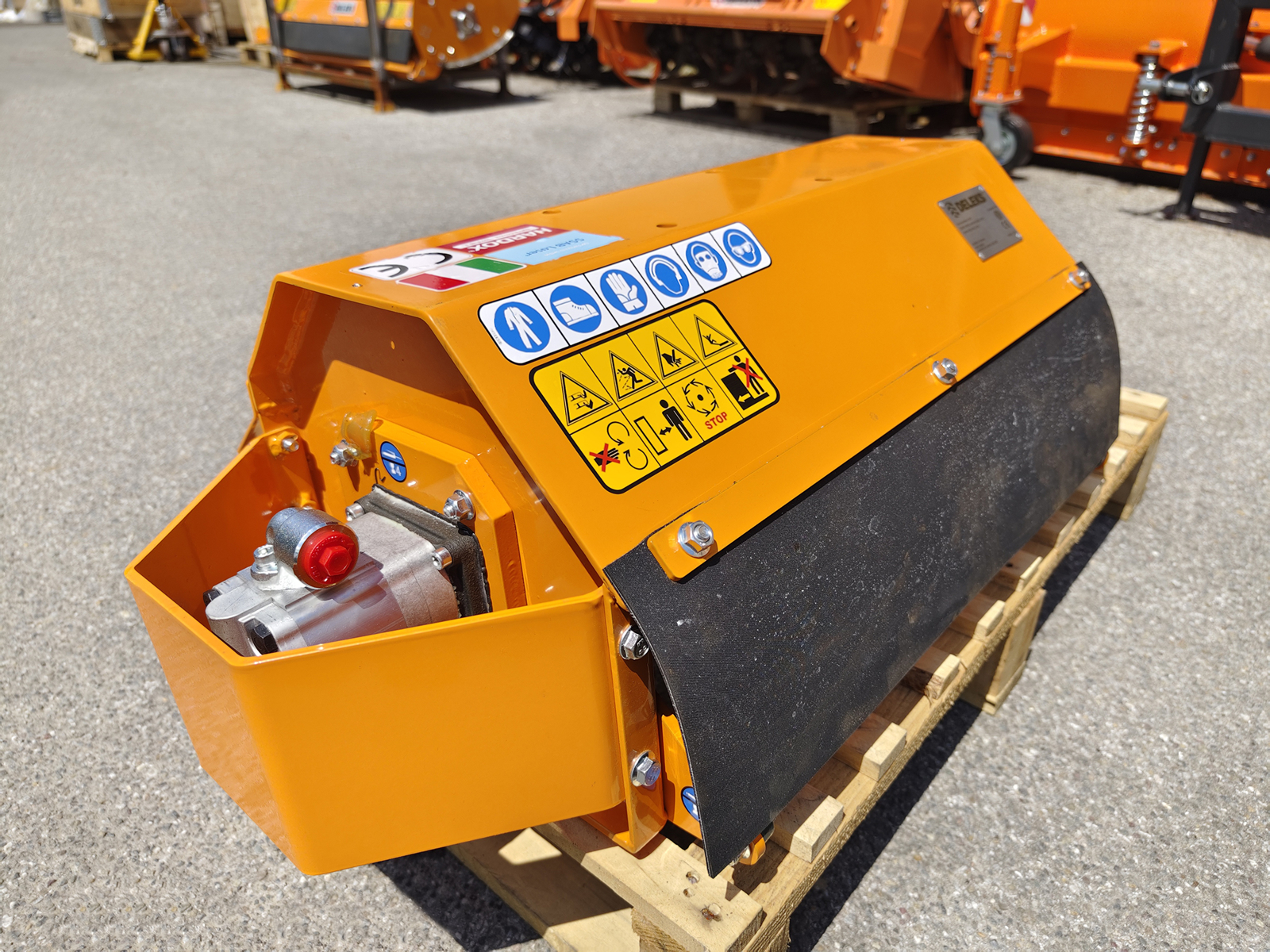

Caproni brand hydraulic gear motor, features and benefits:
Specially designed for Deleks flail heads.

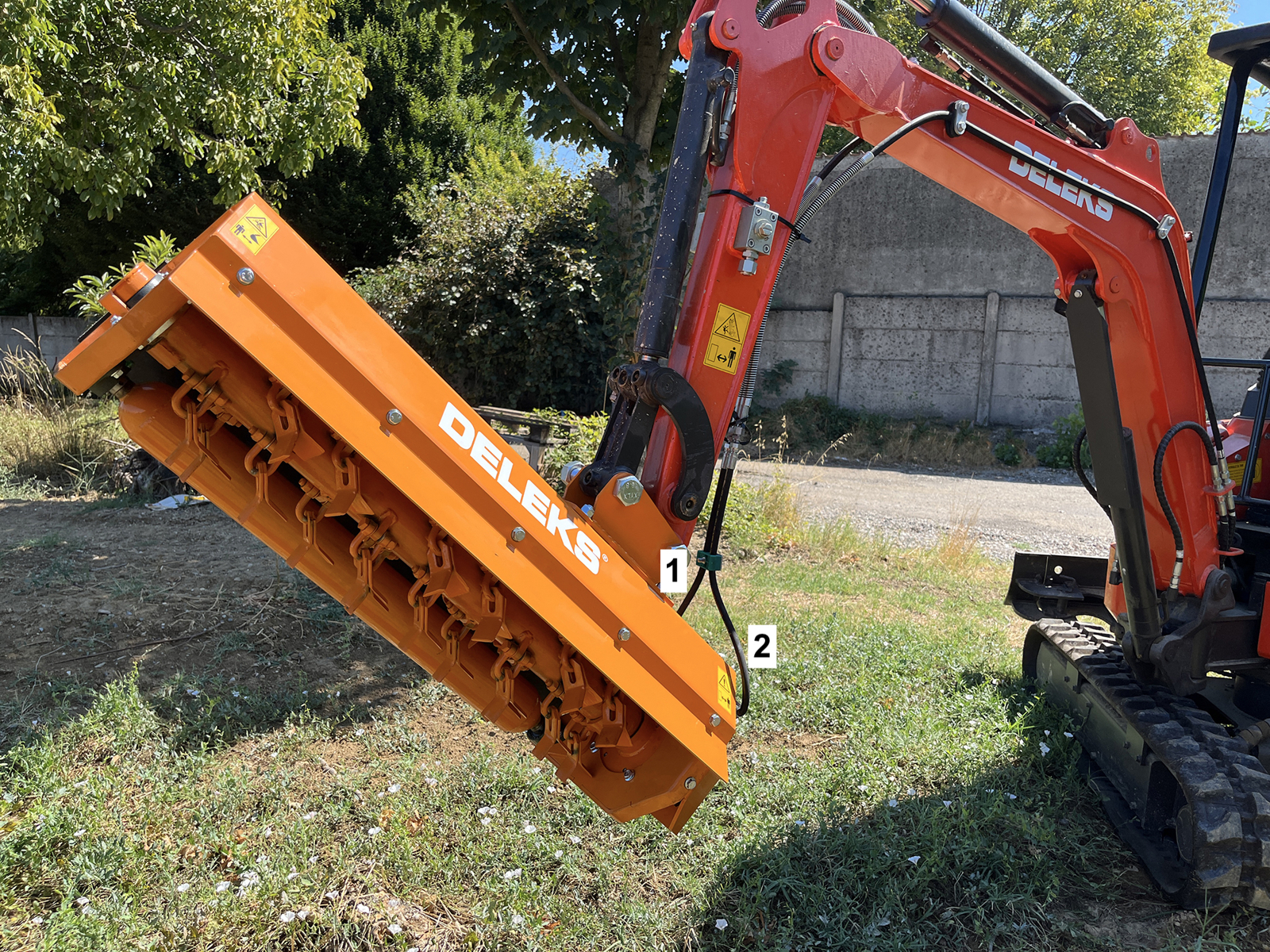

Unidirectional with 2 pipes (does not require the third drainage pipe).
Equipped with support bearing on the shaft.
Reinforced oil seal.
Integrated maximum pressure valve
Technical data and drawings attached.
Requirements for the operating machine:
Preferable with double pump:
1 for the crawler
1 for operation of the mulcher (pump capacity 20-22 l / min)
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 600.0 mm |
| Overall width | 900.0 mm |
| Min / Max cutting height | 20.0 - 80.0 mm |
| Weight | 76.0 kg |
| Hood height | 340.0 mm |
| Maximum cutting diameter | 20.0 mm |
| Main hood thickness | 5.0 mm |
| Transmission: RPM Rotor speed | 1500 r/min |
| Rotor: diameter | 76.0 mm |
| Rotor: bearings type and size | SKF 6207 + SKF UCF206 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |

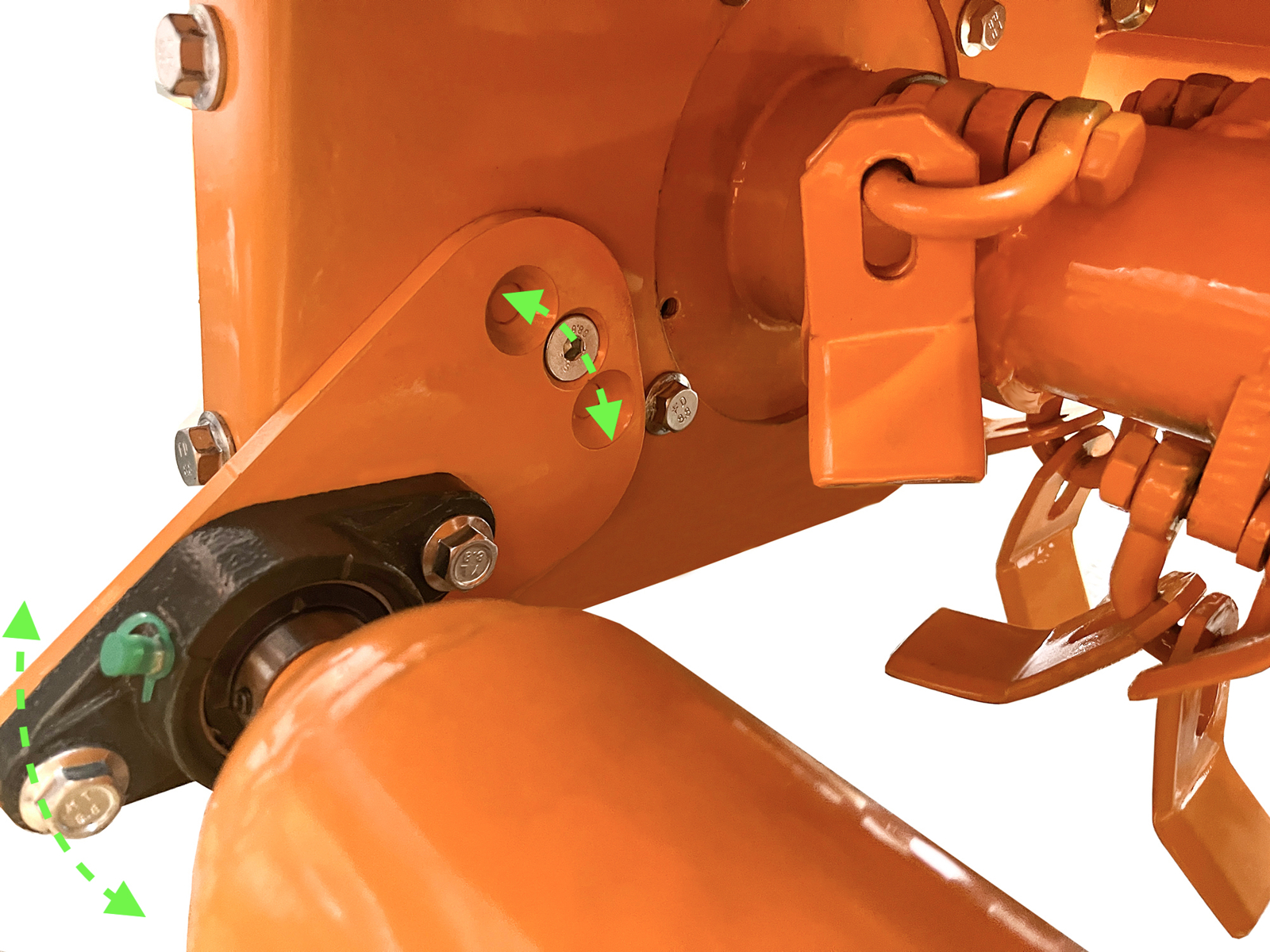

| Rear roller: diameter | 102.0 mm |
| Rear roller: sheet thickness | 5.0 mm |
| Rear roller: bearings type and size | UCFL205 |
| Min./Max. Relief Pressure | 5 - 8 bar |
| Min./Max. Flow | 20-22 l/min |
| Max Pressure | 200 bar |
| Hood length | 520.0 mm |
| Number of Blades | 36 |
| Blades: Weight | 130.0 g |
| Blades: Diameter of the hole | 13.0 mm |
| Blades: base width | 50.0 mm |
| Blades: Diagonal | 85.0 mm |
| Packing sizes | 900.0*600.0*500.0 mm |
