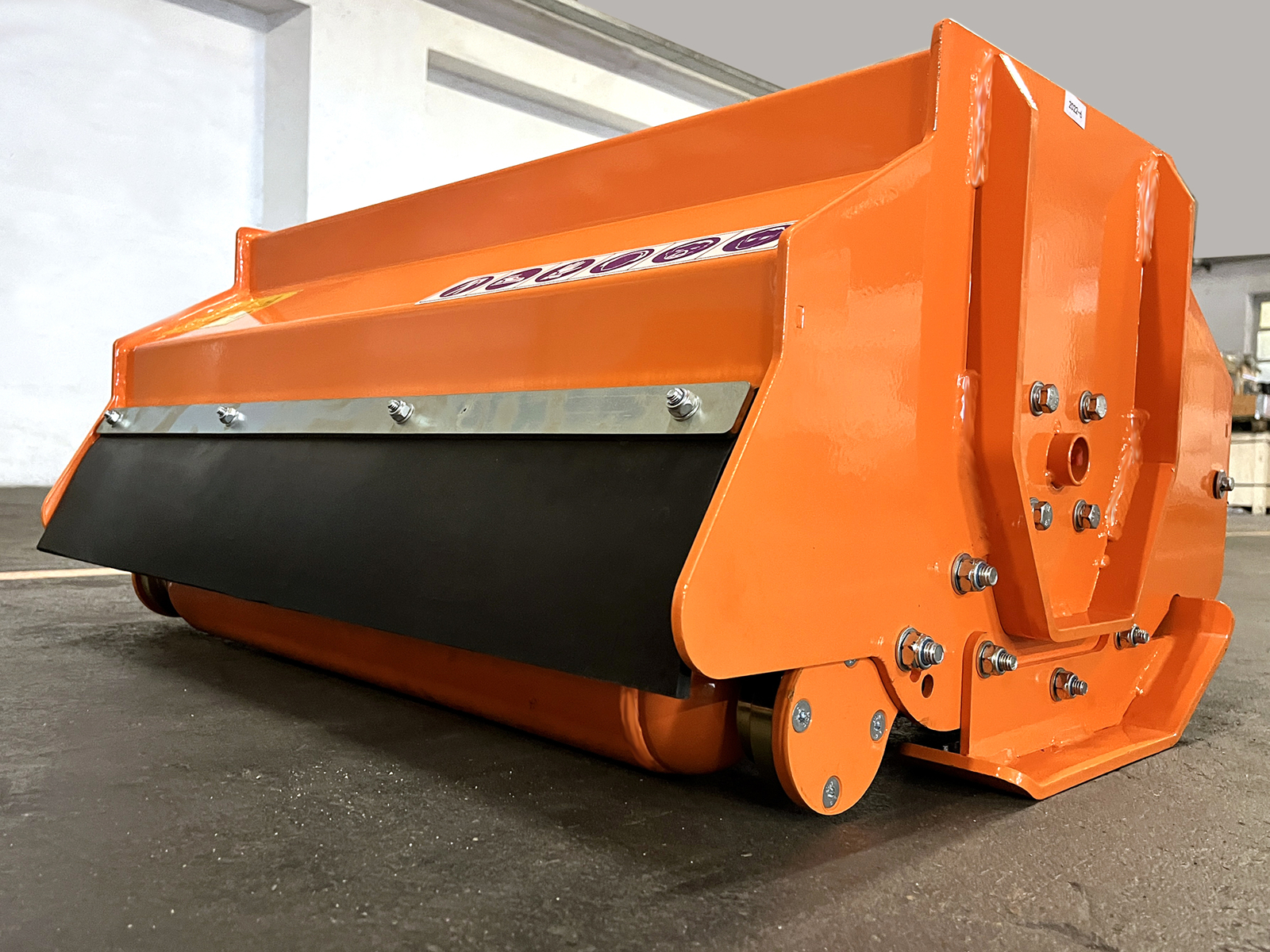

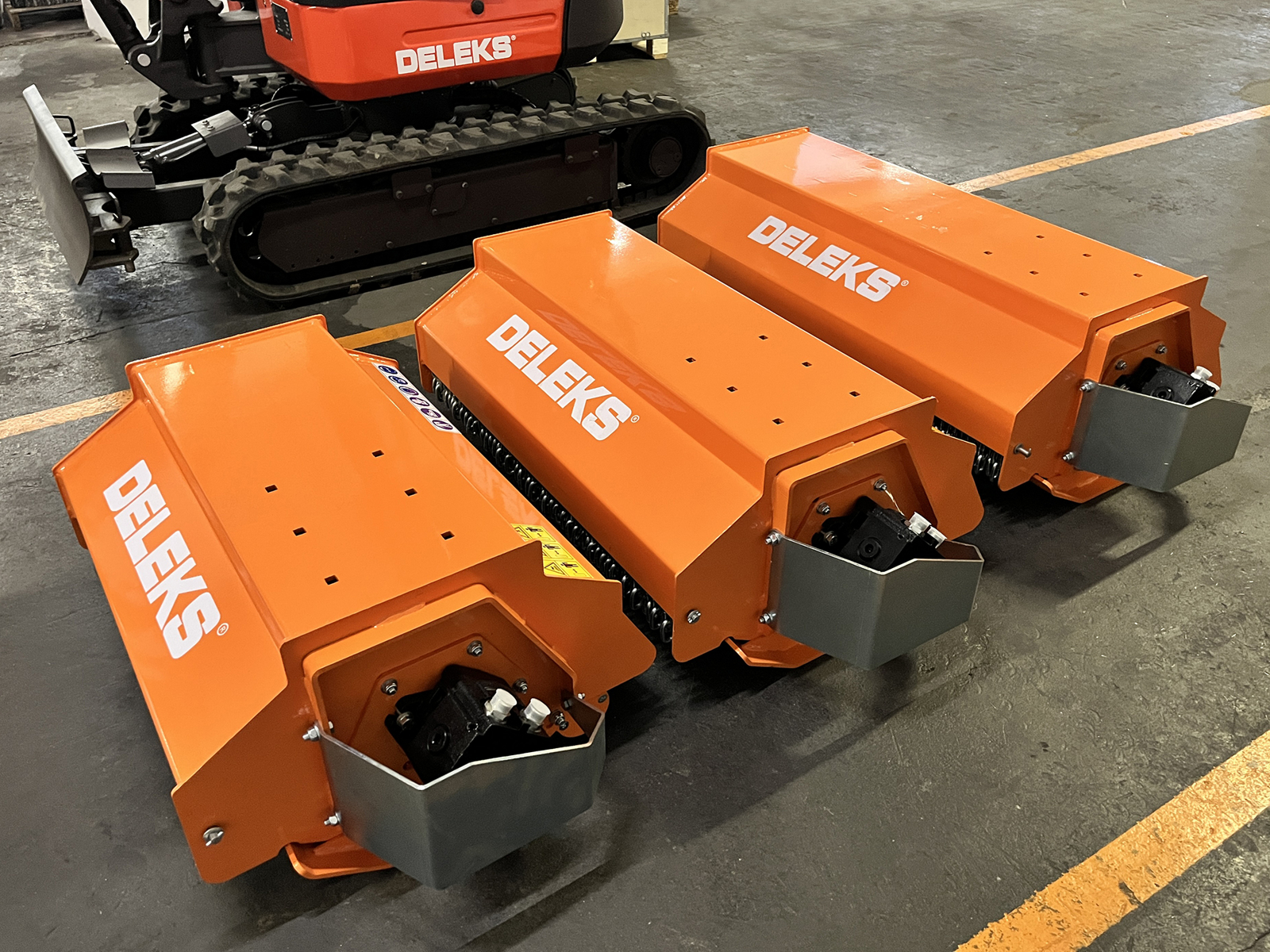

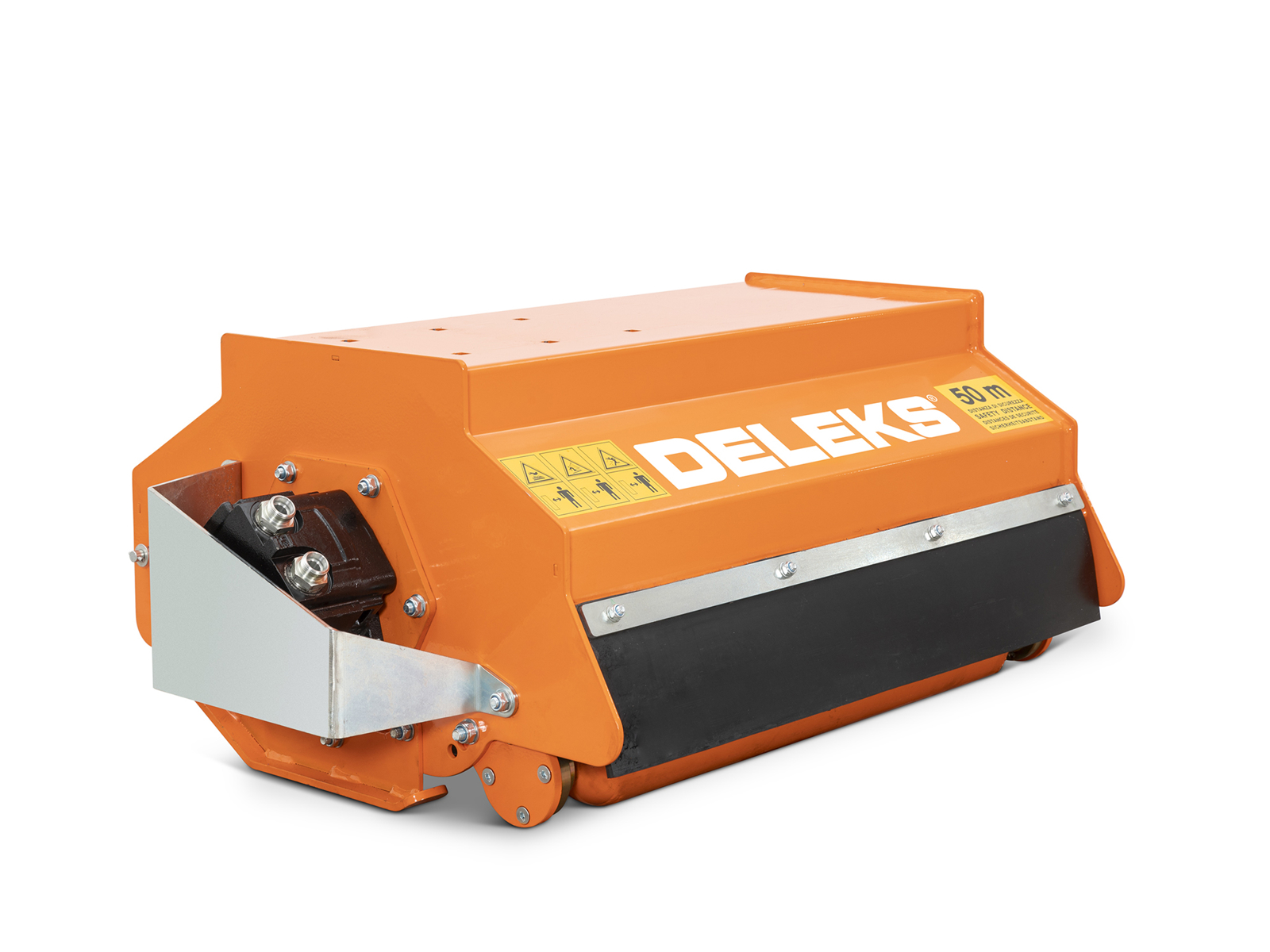

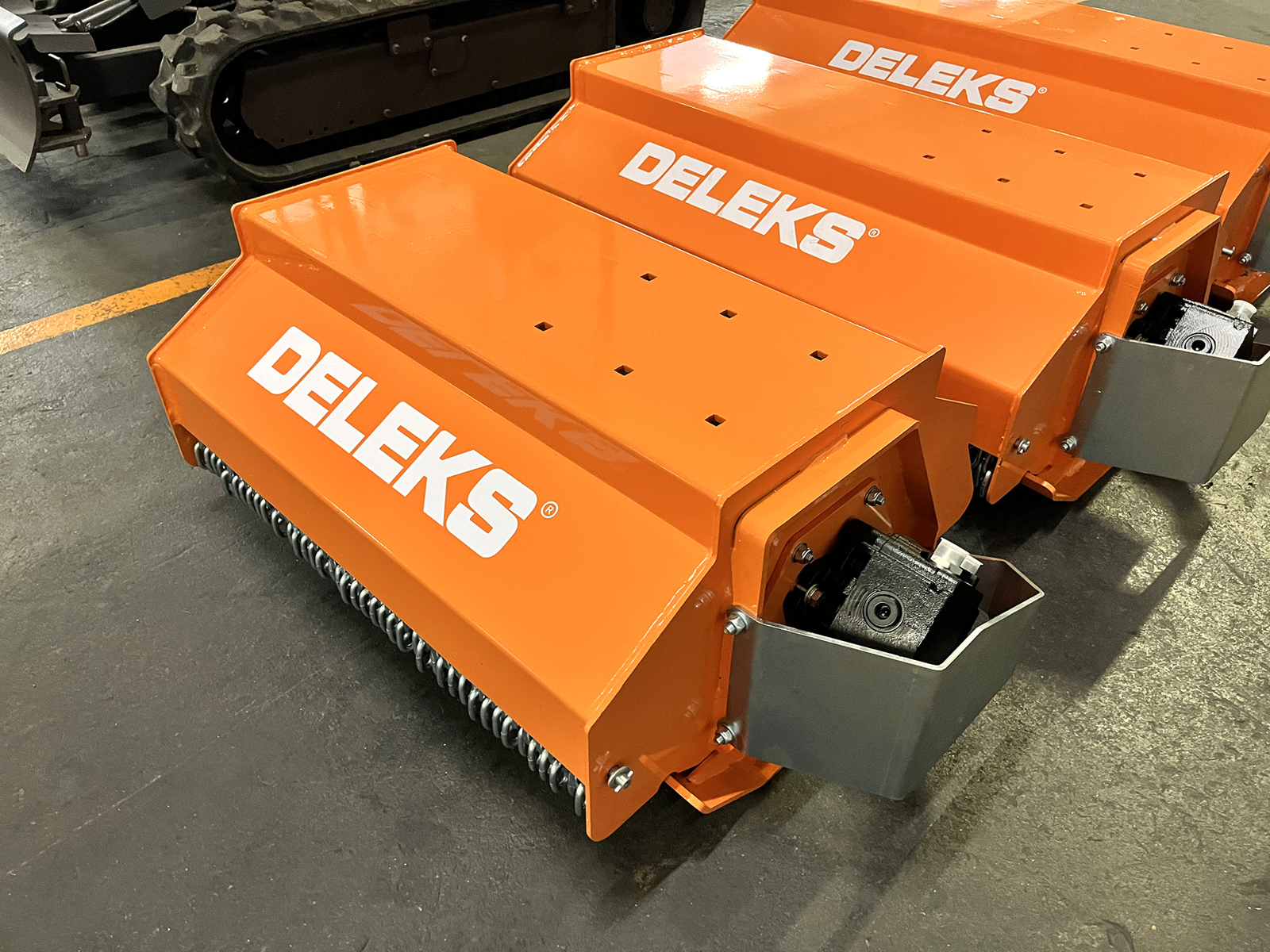

Excavator Mulcher Head - 80cm - hydraulic shredder
DETAILS
Digger Flail Shredder Head - DELEKS® - hydraulic brush cutter for excavator - 80cm / 150kg - Hydraulic motor Made in Italy, 2 years warranty.
OVERVIEW
Shredder for mini excavators of 2.0 - 5.0 tons.
Hydraulic threscher, brush-cutter for brambles, bushes, ditches, banks, embankments, branches. Suitable for cutting grass, trees and shrubs up to 4cm.
Suitable for Excavator brands as Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, etc.
16 hammers

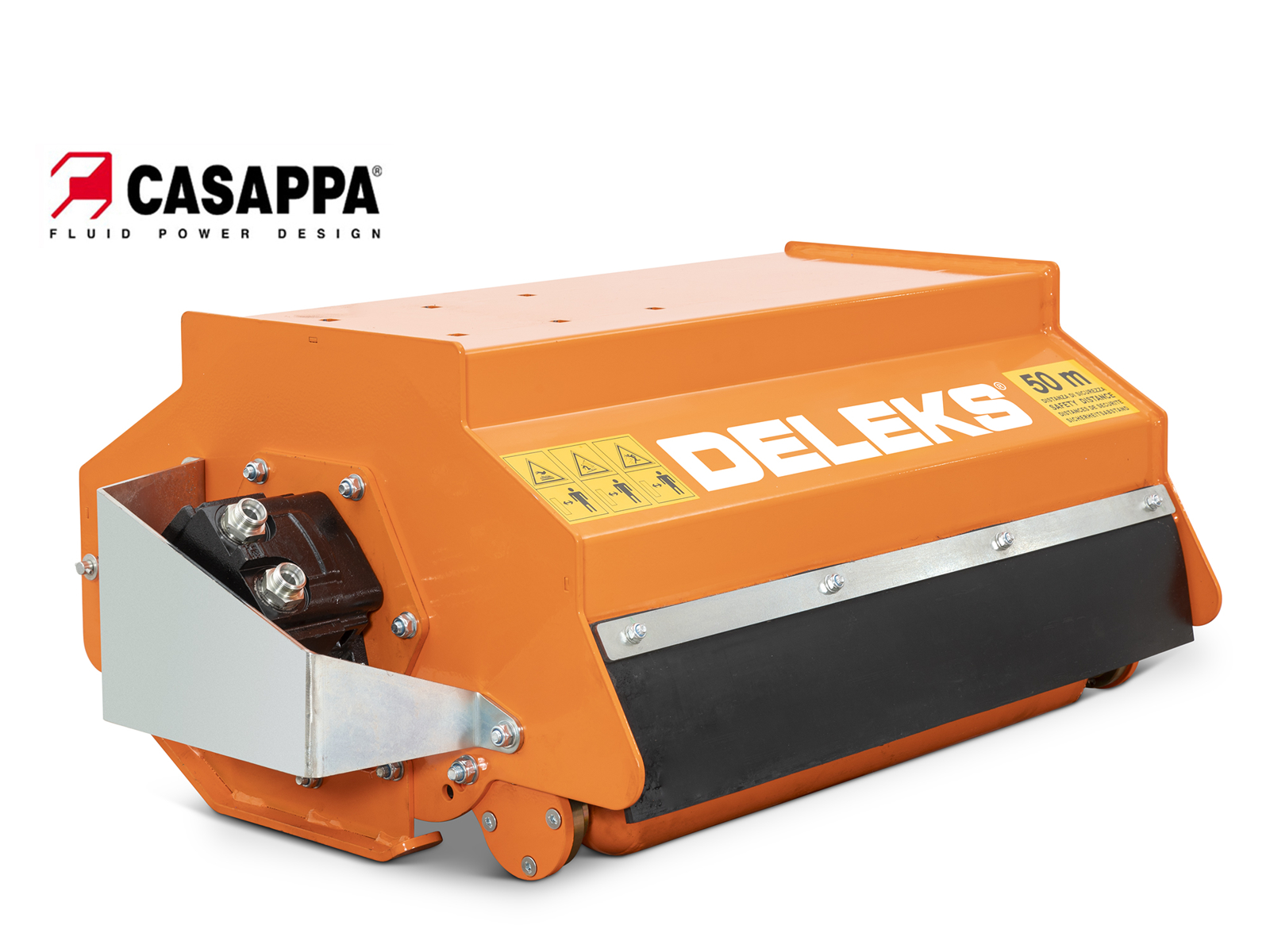

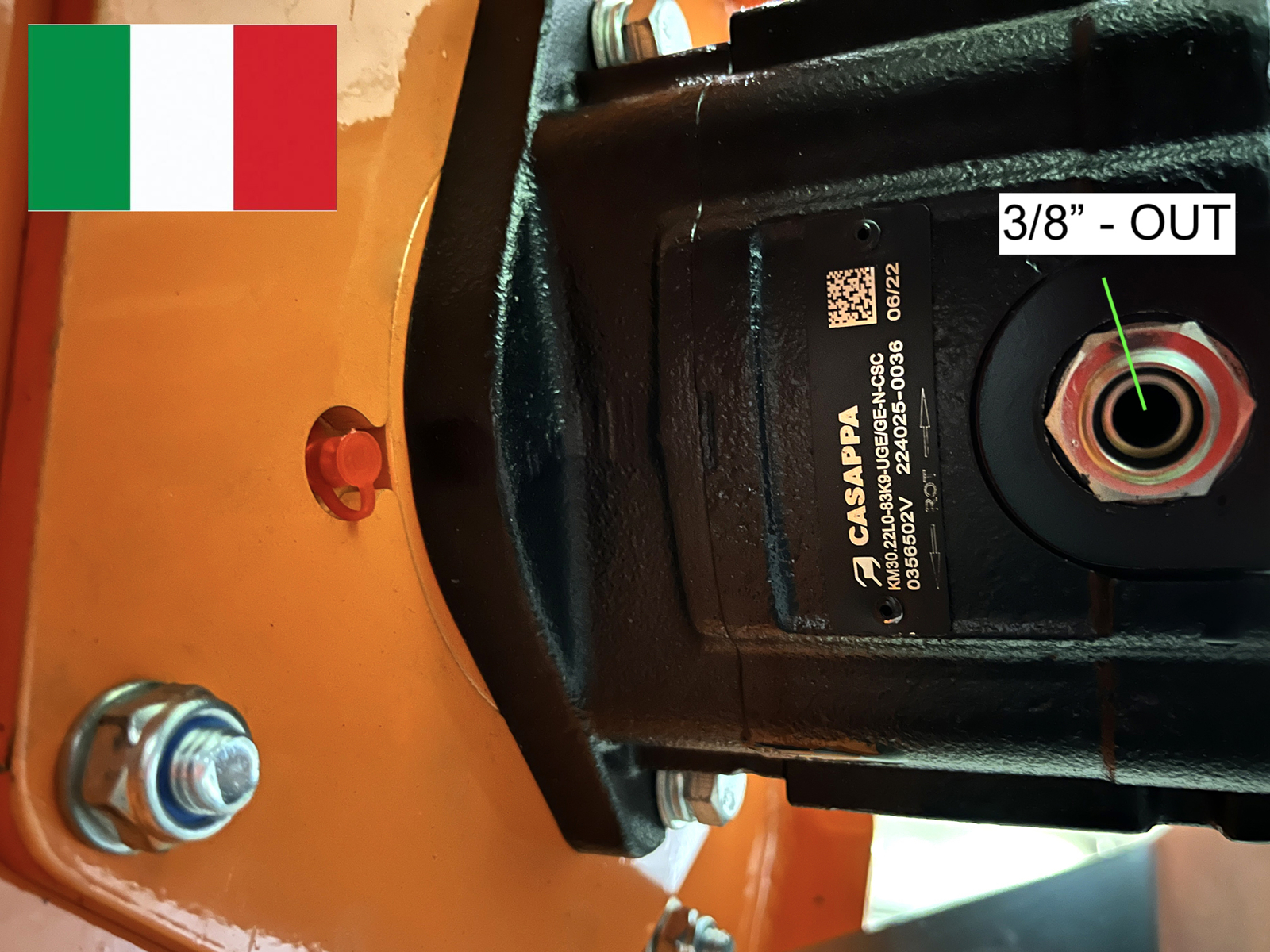

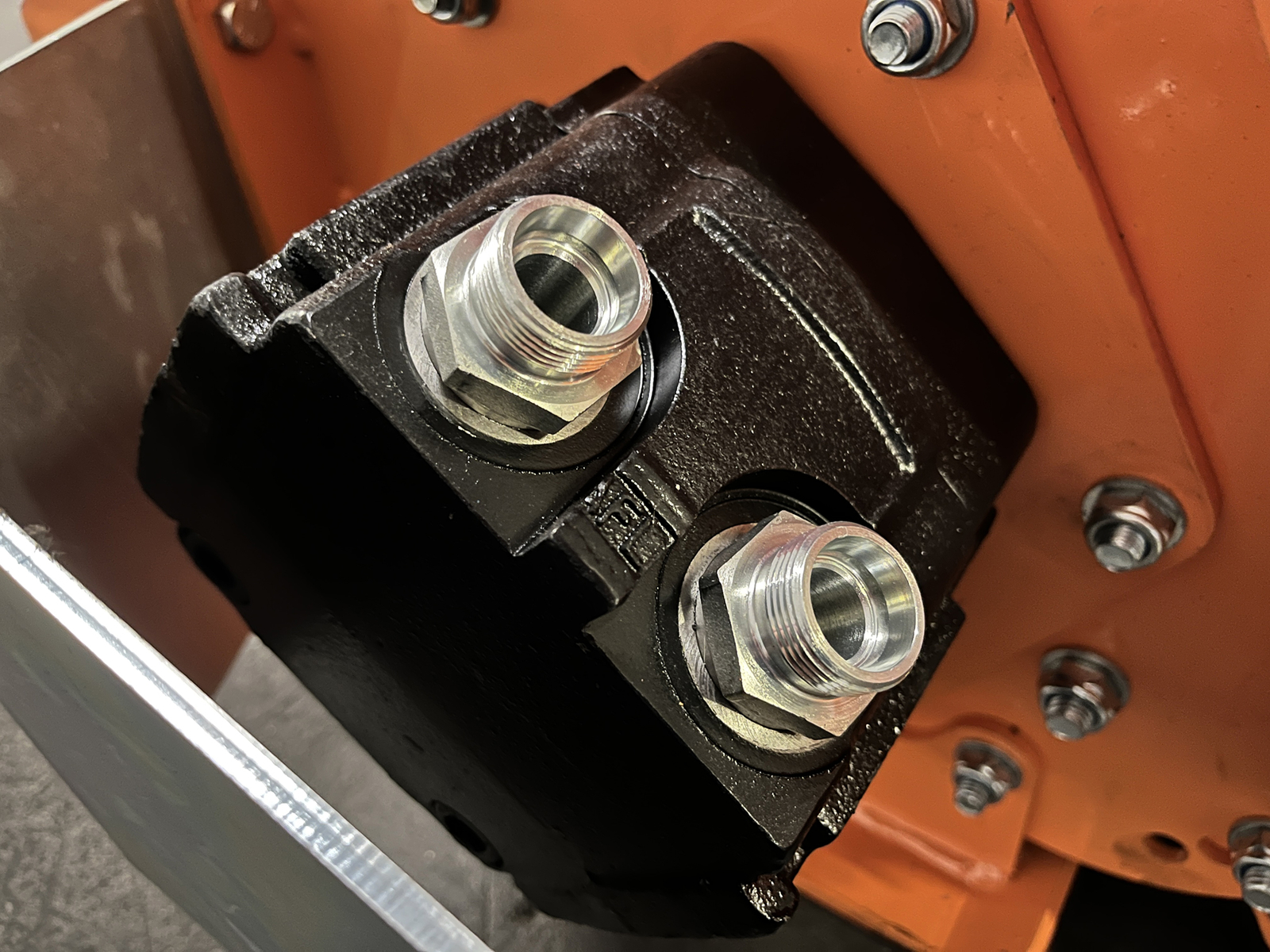

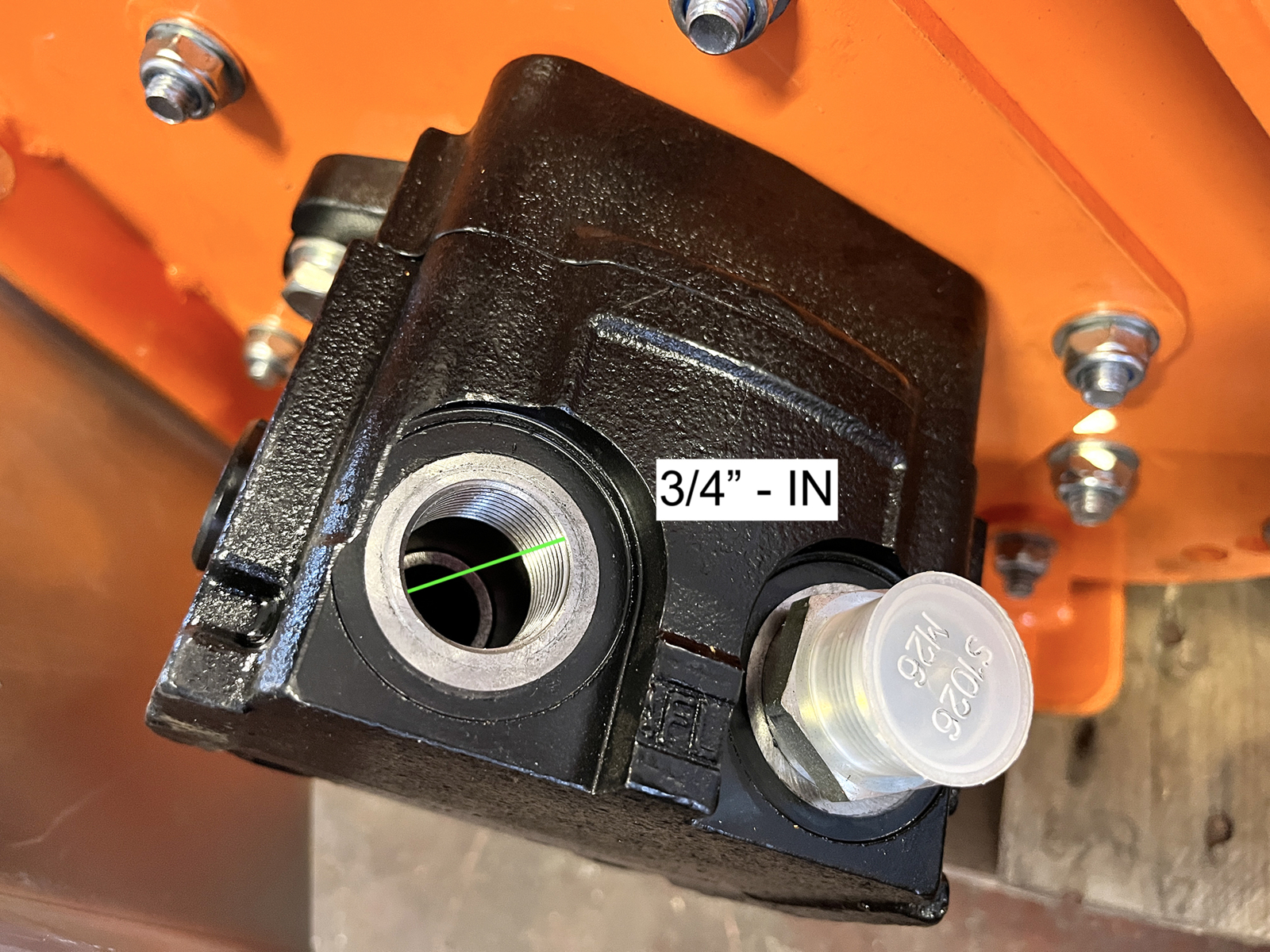

Hidraulic motor: Casappa (Made in Italy)
Roller and skids adjustable in height

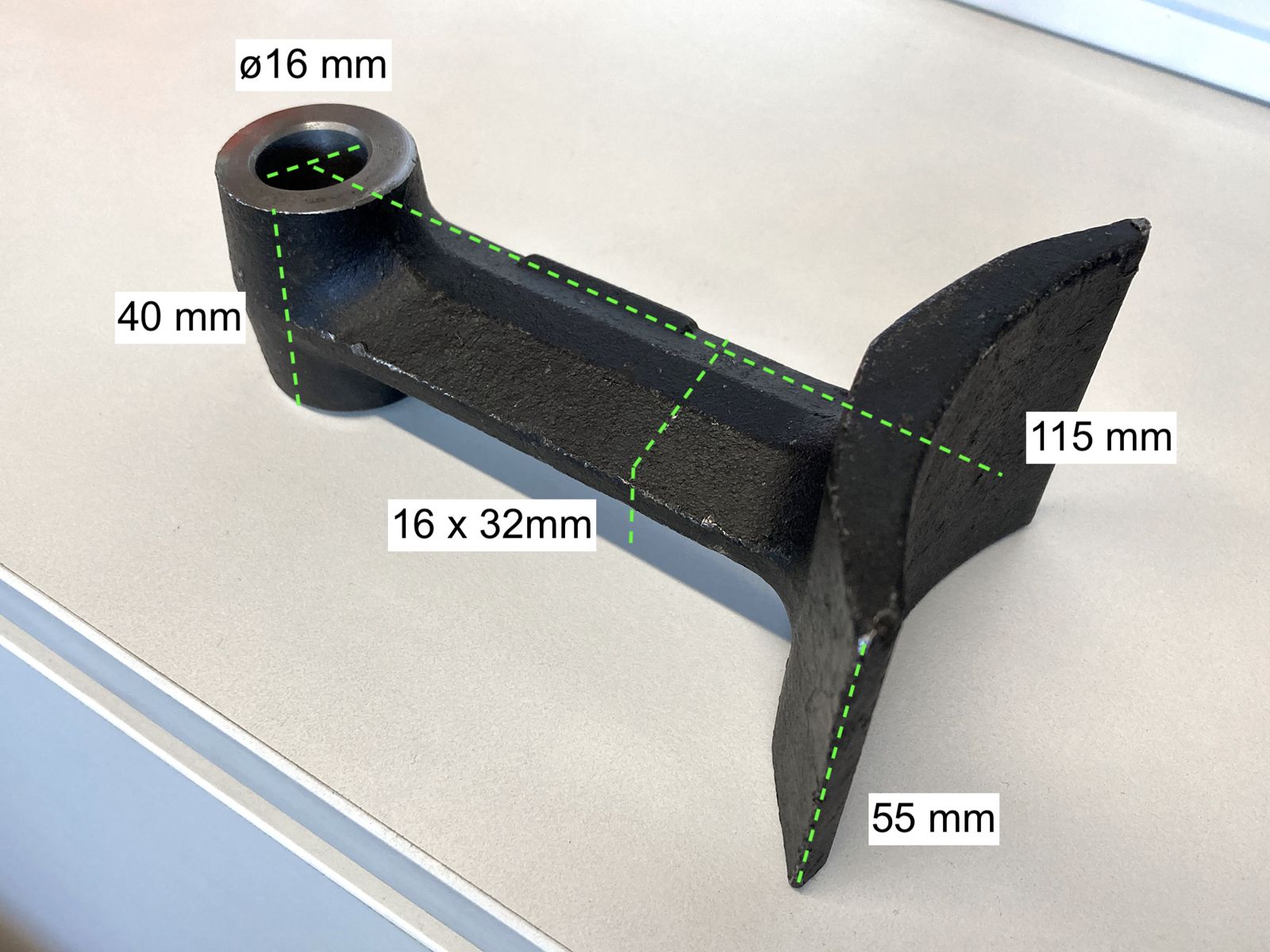

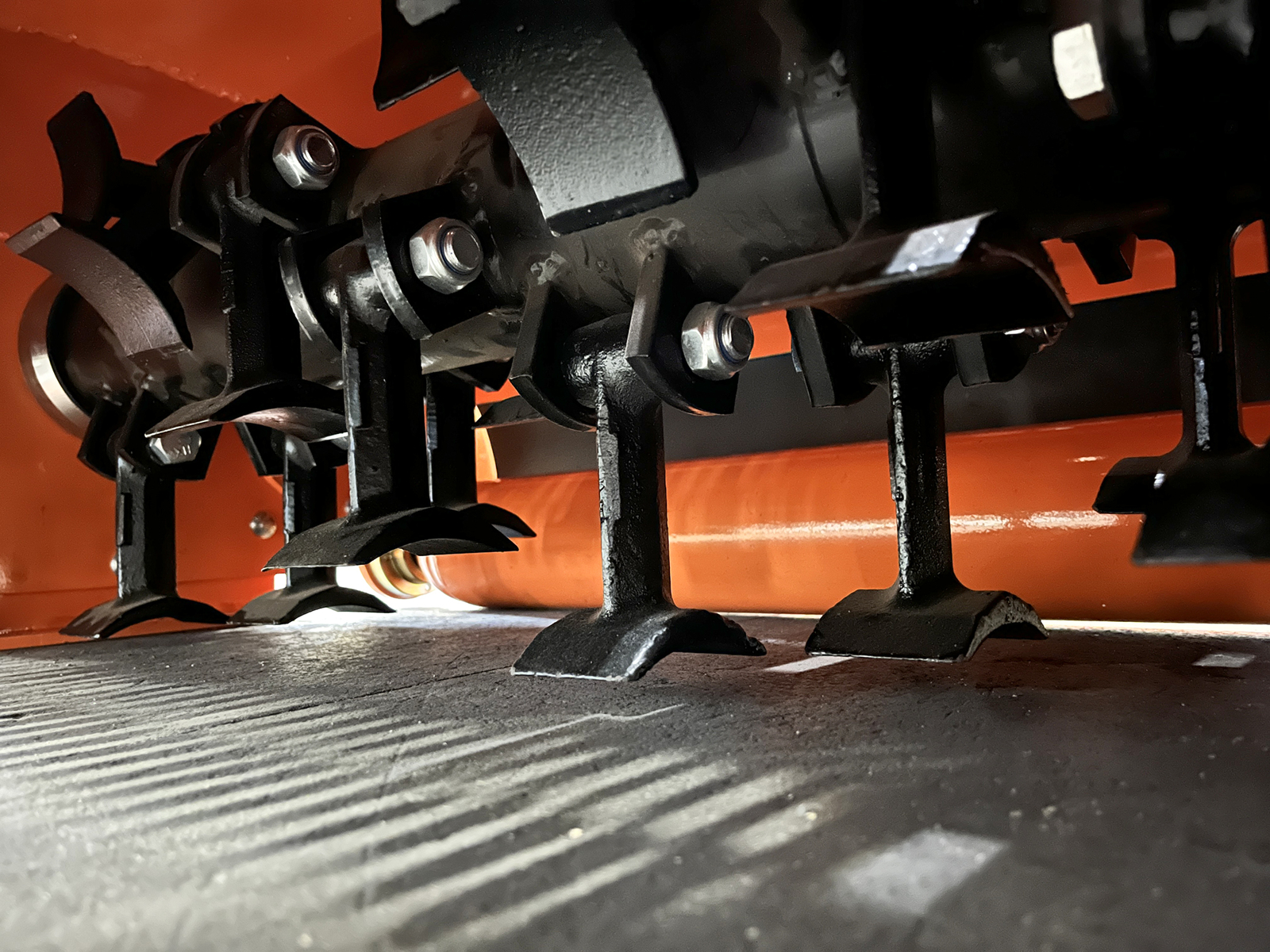

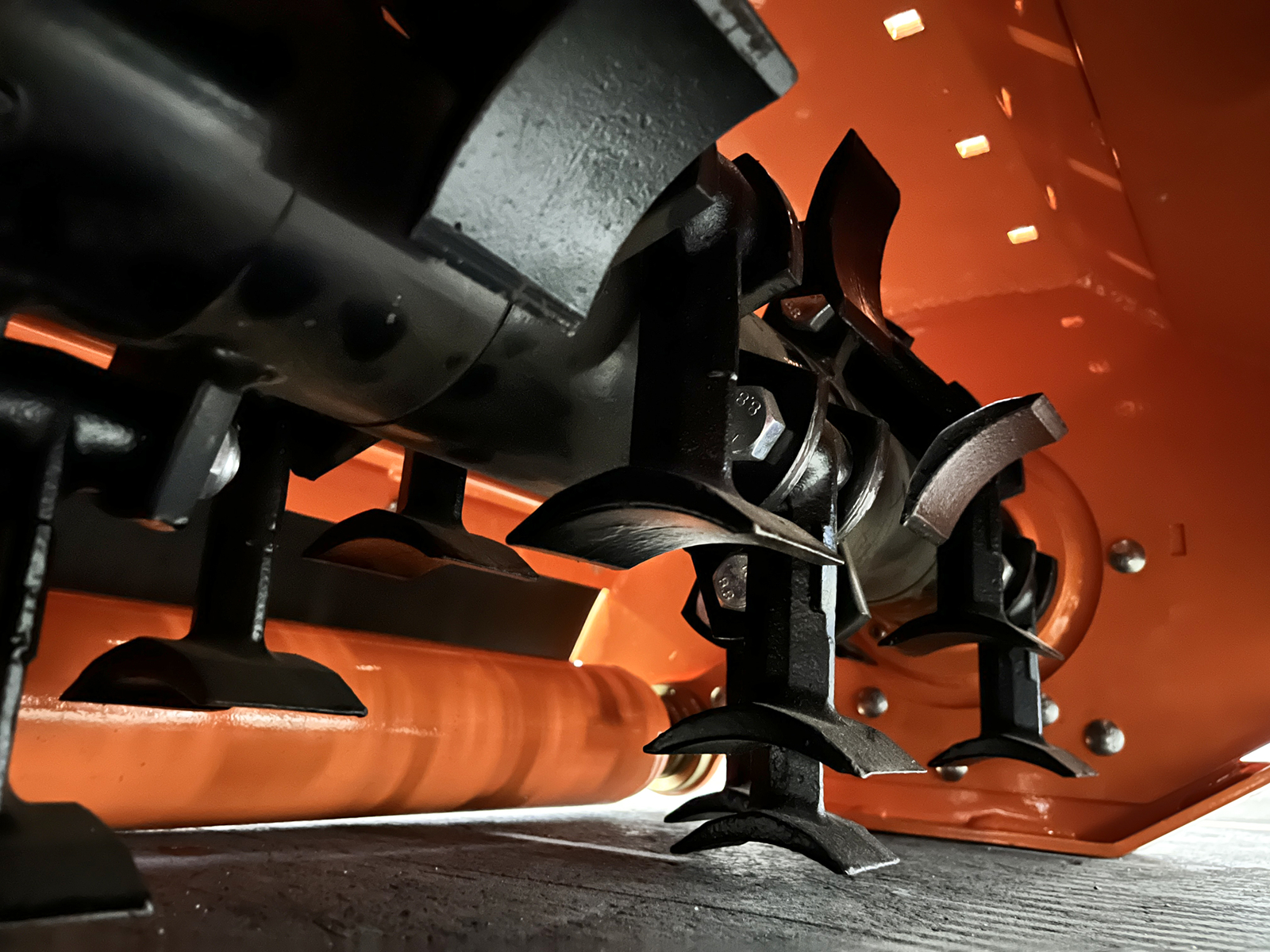

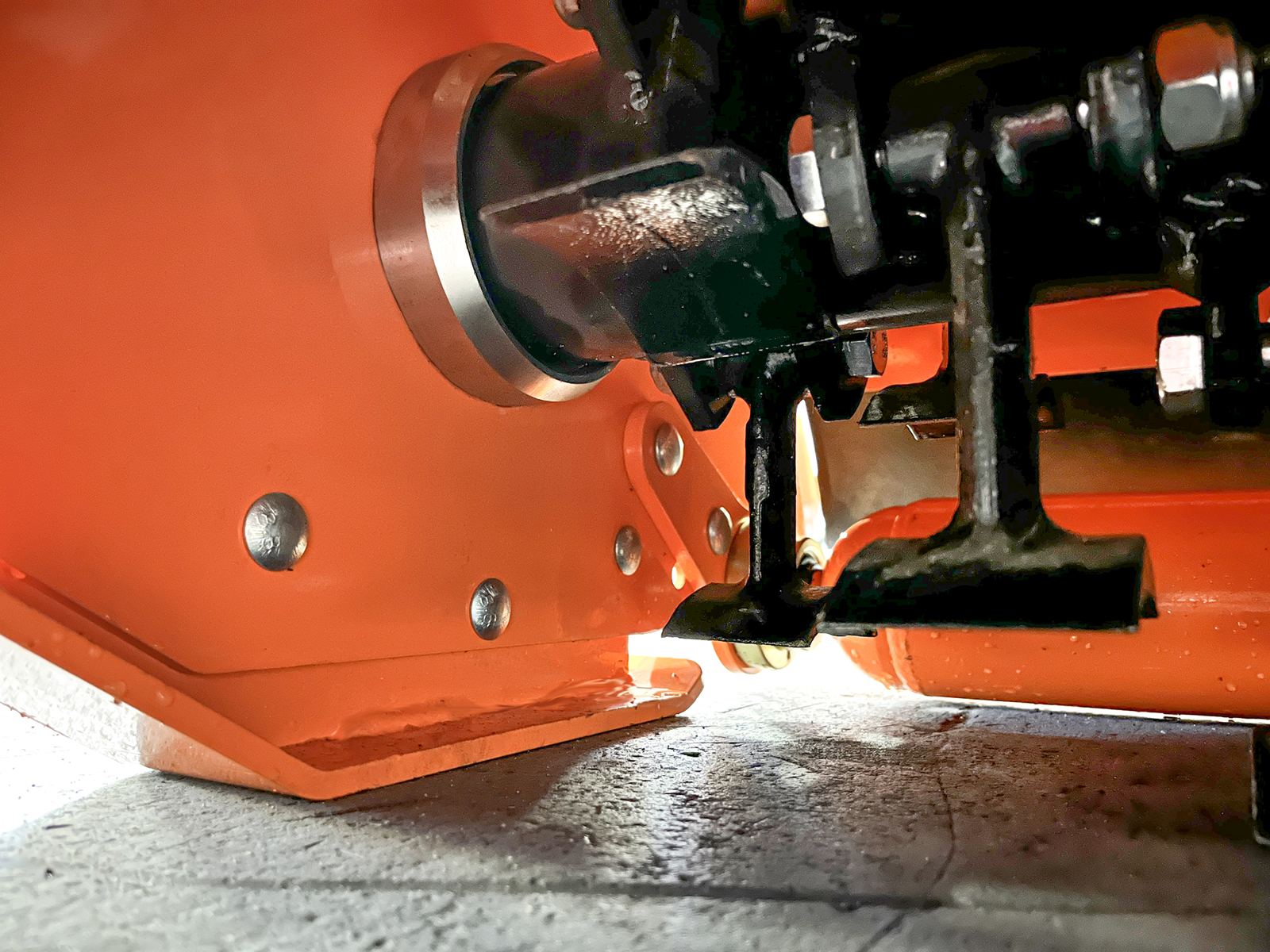

Rotor with bi-directional hammers ( you need to have the double effect pedal)
Requirements of the operating machine:
a) It is preferable to have a double pump:
1 for the cart
1 for services (pump at least 65/100 l/min)
b) The pump needs a third drainage pipe that goes directly into the tank.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|

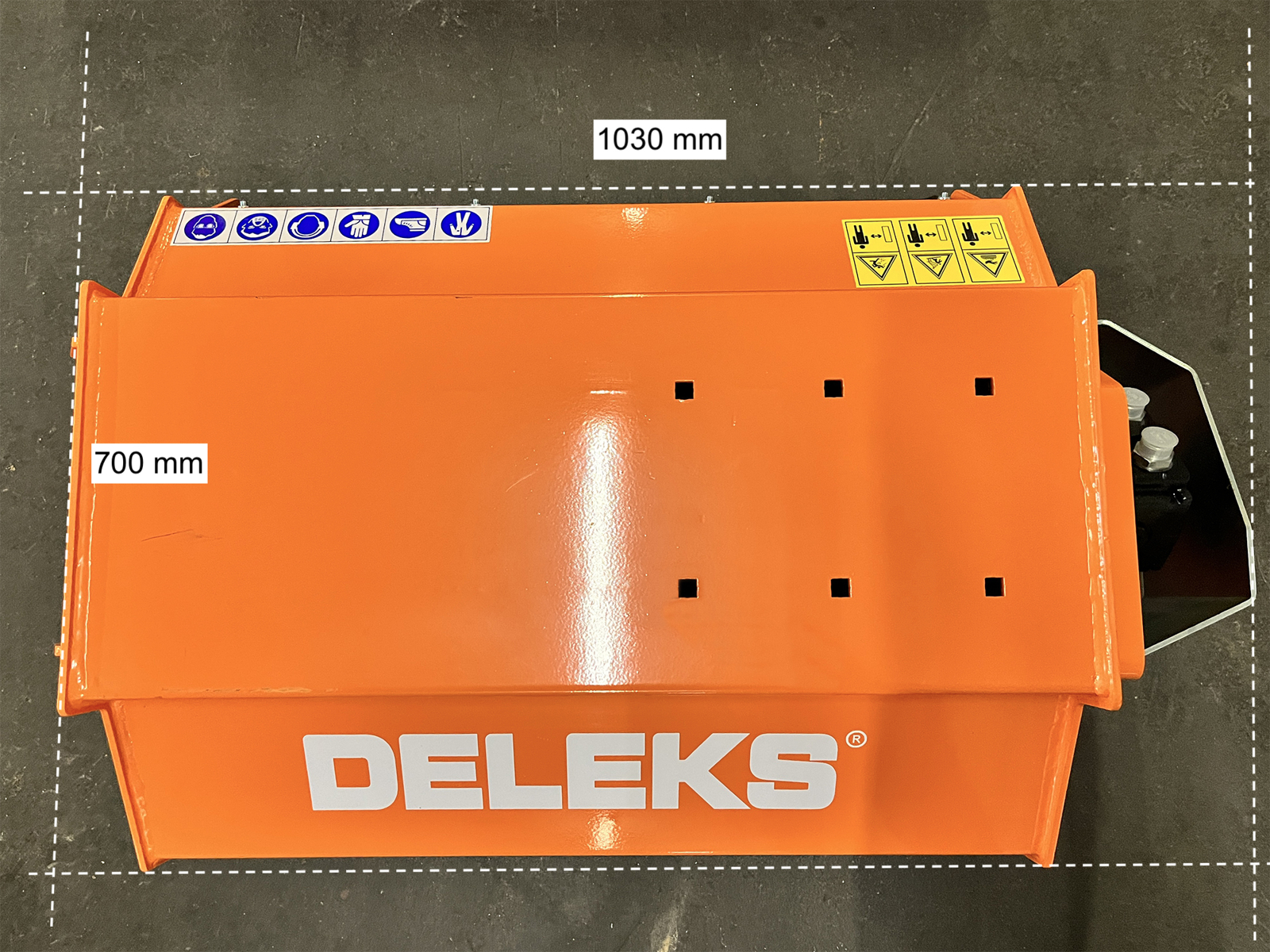

| Working width | 800.0 mm |
| Overall width | 1030.0 mm |
| Min / Max cutting height | 10.0 - 50.0 mm |
| Weight | 150.0 kg |

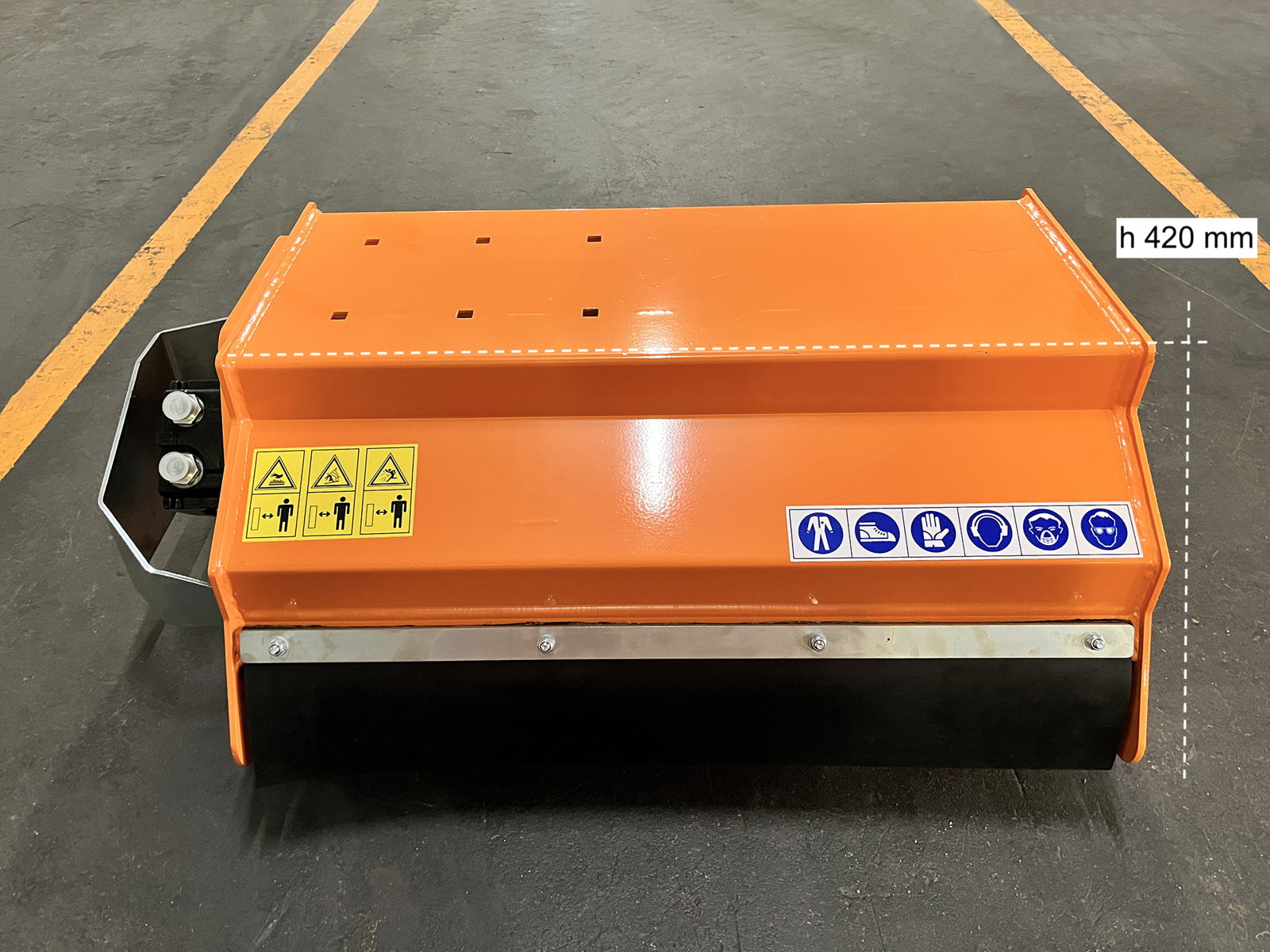

| Hood height | 420.0 mm |
| Number of Hammers | 16 |
| Maximum cutting diameter | 4.0 cm |
| Main hood thickness | 5.0 mm |
| Transmission: RPM Rotor speed | 2200 r/min |
| Rotor: diameter | 110.0 mm |
| Rotor: bearings type and size | 6008 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Rear roller: diameter | 100.0 mm |
| Rear roller: sheet thickness | 4.0 mm |
| Rear roller: bearings type and size | UC205 |
| Min./Max. Relief Pressure | 70 - 140 bar |
| Min./Max. Flow | 65 - 100 l/min |
| Hood length | 700.0 mm |
| Packing sizes | 1050.0*700.0*500.0 mm |
DETAILS
CLOSEDigger Flail Shredder Head - DELEKS® - hydraulic brush cutter for excavator - 80cm / 150kg - Hydraulic motor Made in Italy, 2 years warranty.
OVERVIEW
Shredder for mini excavators of 2.0 - 5.0 tons.
Hydraulic threscher, brush-cutter for brambles, bushes, ditches, banks, embankments, branches. Suitable for cutting grass, trees and shrubs up to 4cm.
Suitable for Excavator brands as Caterpillar, Takeuchi, Kubota, JCB, Case, Komatsu, Kubota, Yanmar, etc.
16 hammers
Hidraulic motor: Casappa (Made in Italy)
Roller and skids adjustable in height
Rotor with bi-directional hammers ( you need to have the double effect pedal)
Requirements of the operating machine:
a) It is preferable to have a double pump:
1 for the cart
1 for services (pump at least 65/100 l/min)
b) The pump needs a third drainage pipe that goes directly into the tank.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Working width | 800.0 mm |
| Overall width | 1030.0 mm |
| Min / Max cutting height | 10.0 - 50.0 mm |
| Weight | 150.0 kg |
| Hood height | 420.0 mm |
| Number of Hammers | 16 |
| Maximum cutting diameter | 4.0 cm |
| Main hood thickness | 5.0 mm |
| Transmission: RPM Rotor speed | 2200 r/min |
| Rotor: diameter | 110.0 mm |
| Rotor: bearings type and size | 6008 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Rear roller: diameter | 100.0 mm |
| Rear roller: sheet thickness | 4.0 mm |
| Rear roller: bearings type and size | UC205 |
| Min./Max. Relief Pressure | 70 - 140 bar |
| Min./Max. Flow | 65 - 100 l/min |
| Hood length | 700.0 mm |
| Packing sizes | 1050.0*700.0*500.0 mm |
Technical charts
CLOSE| CASAPPA - Hydraulic motor specifications (pdf) | Download PDF |
