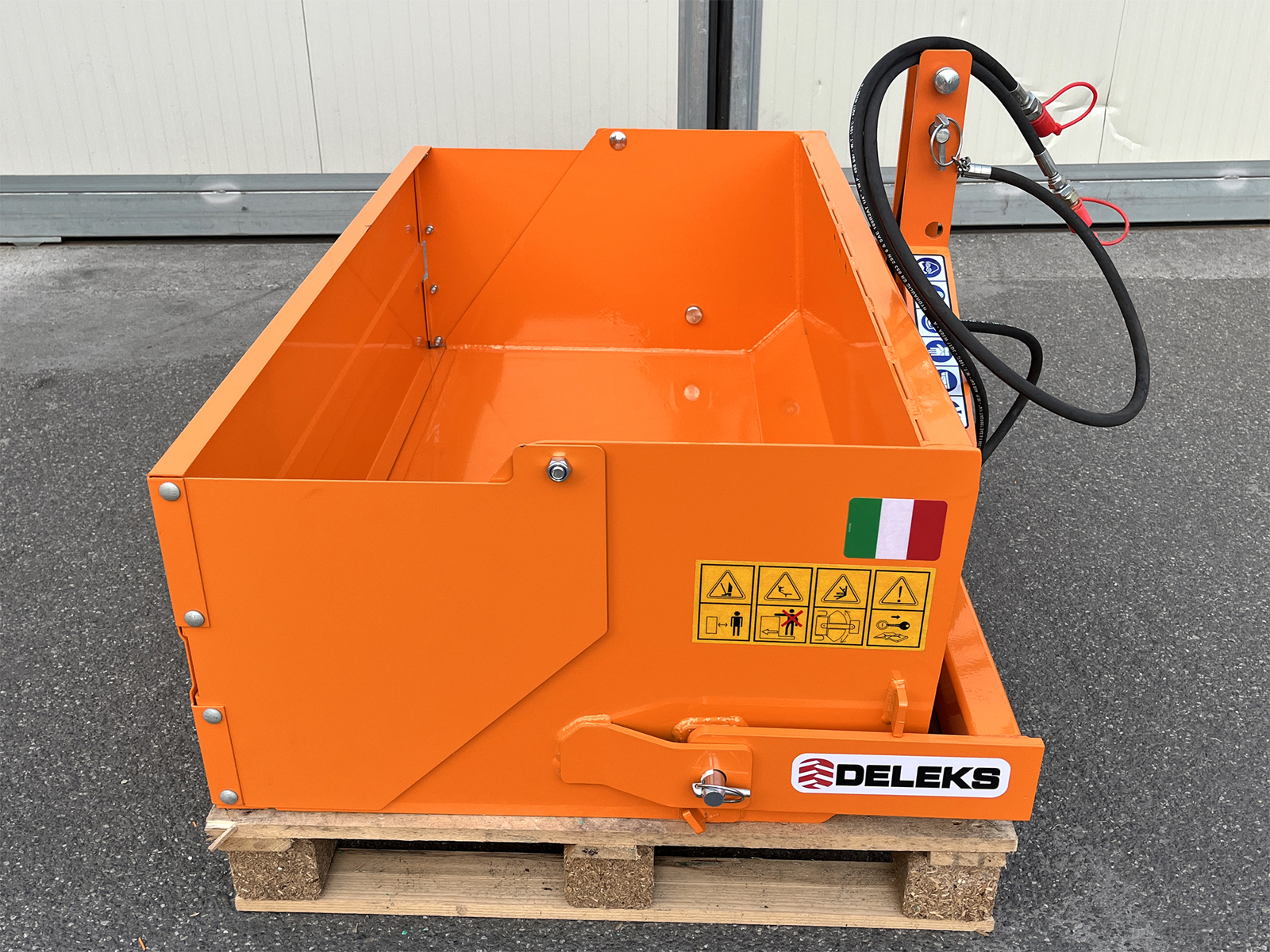

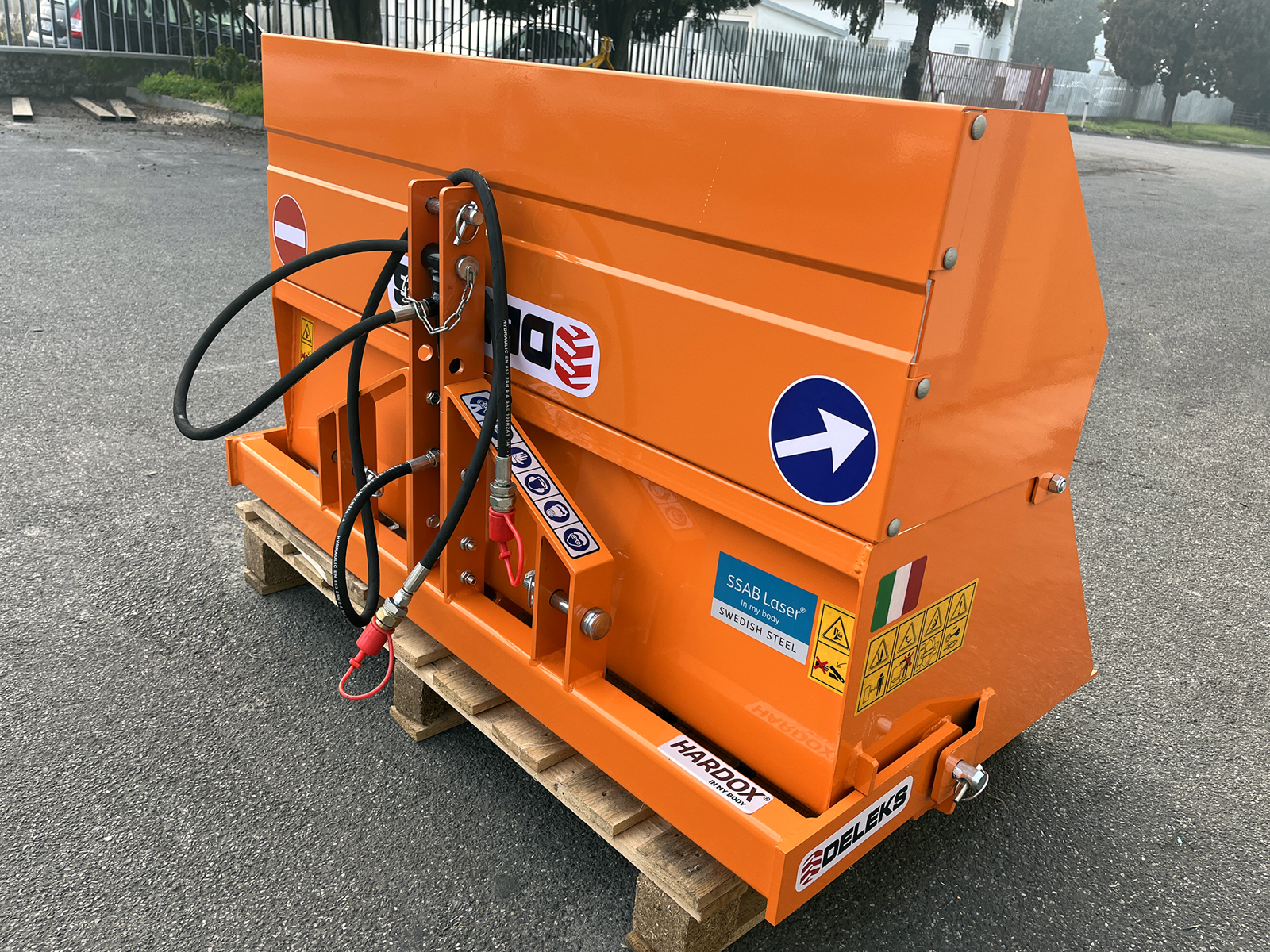

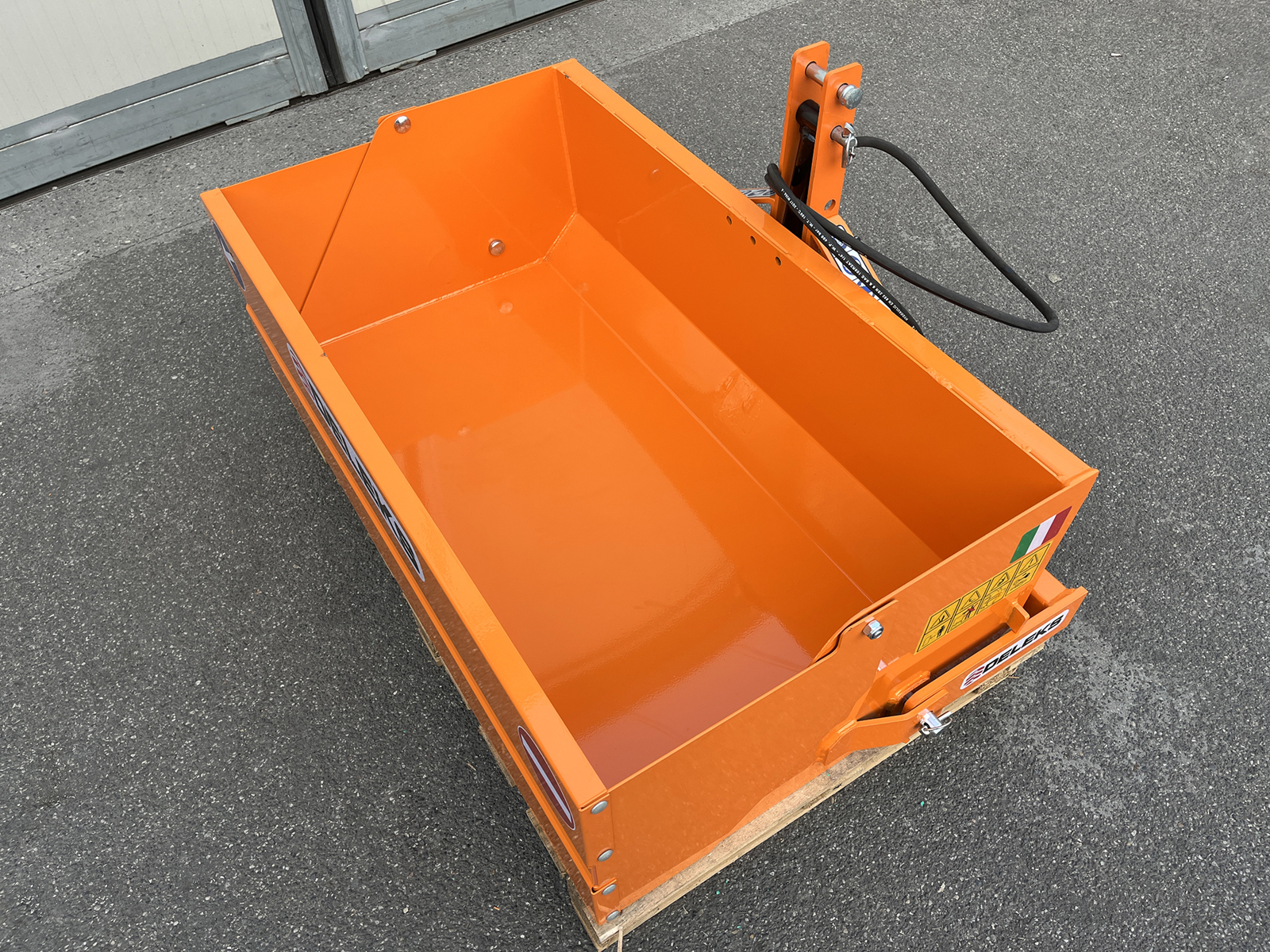

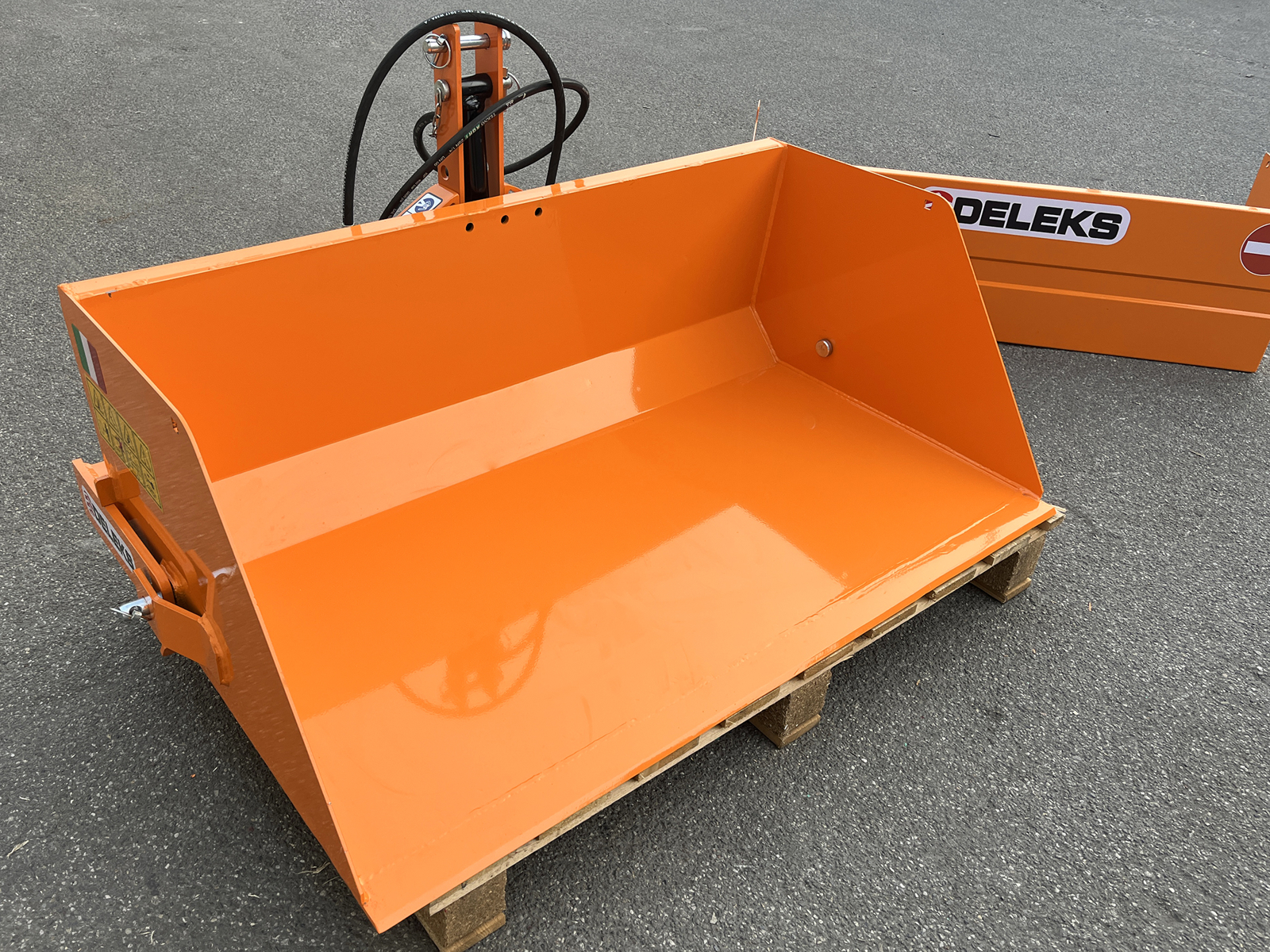

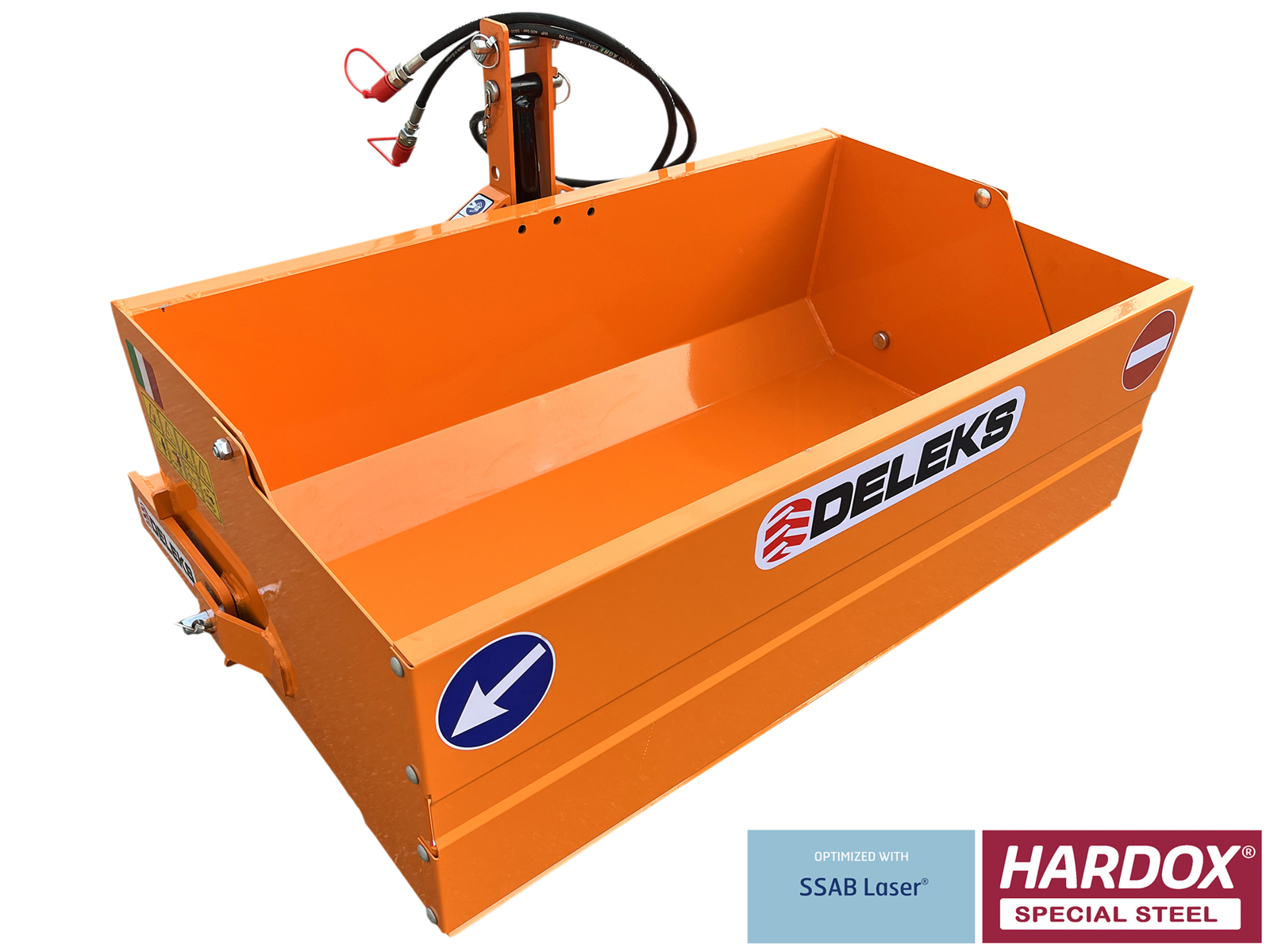

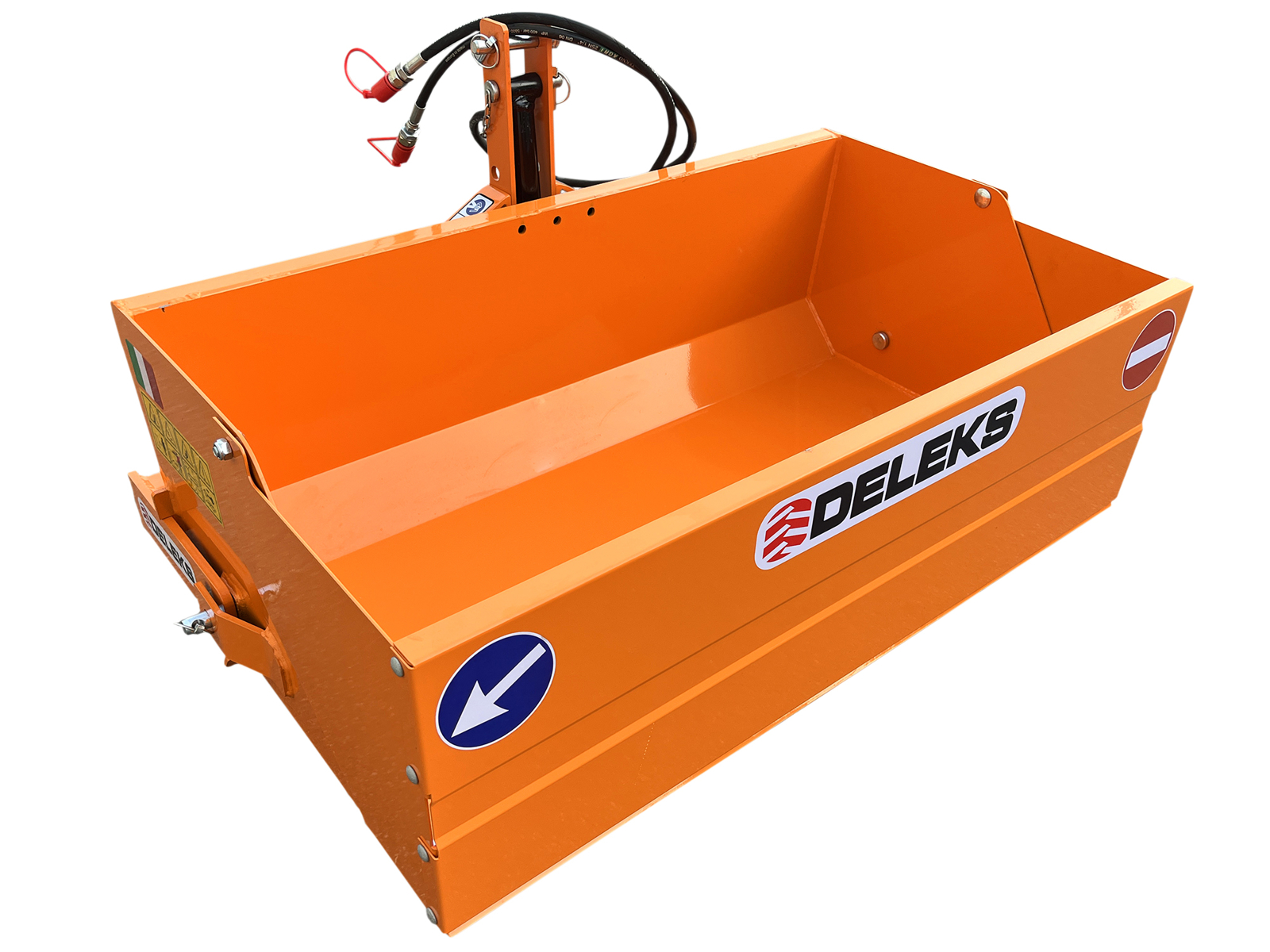

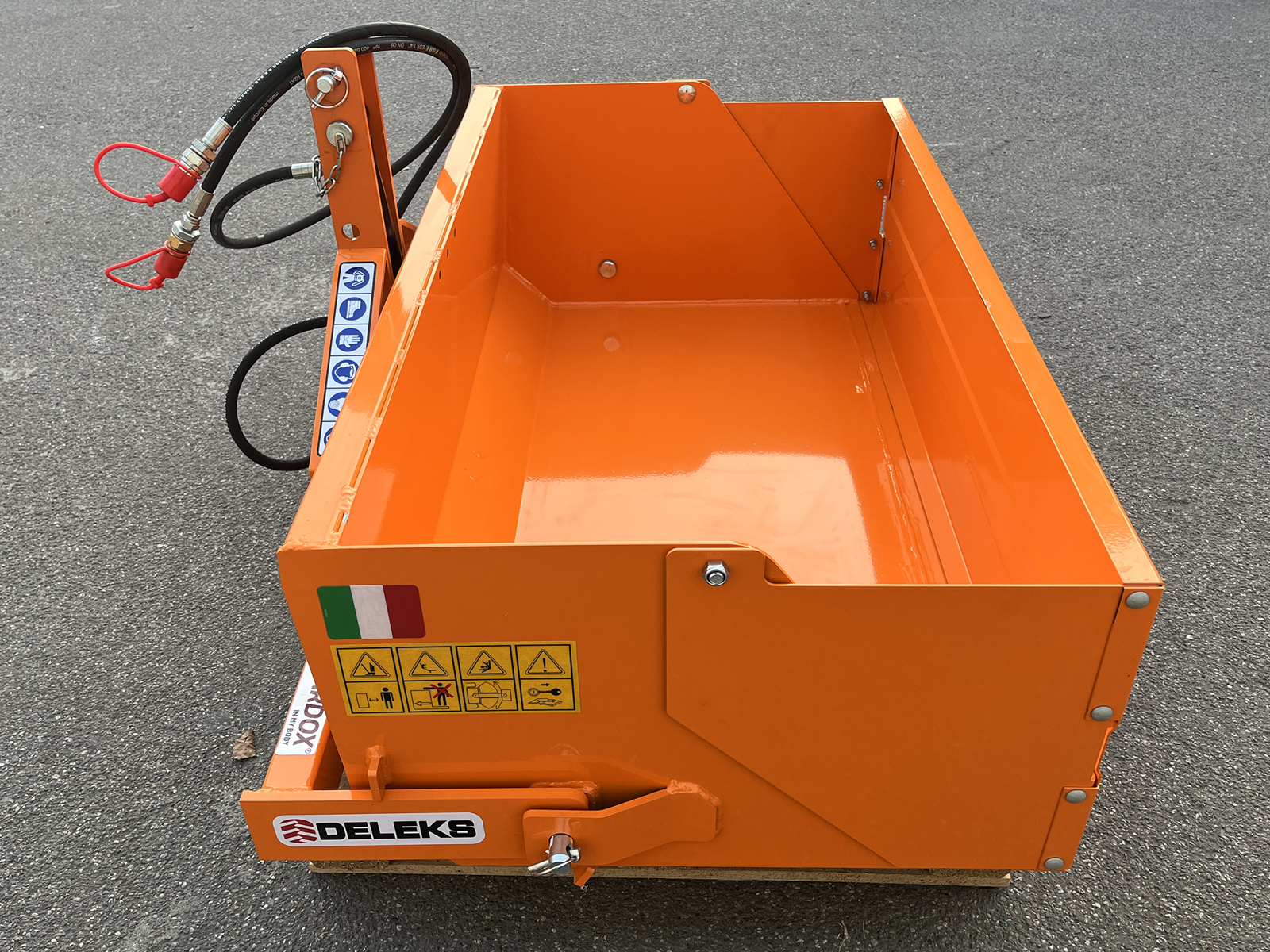

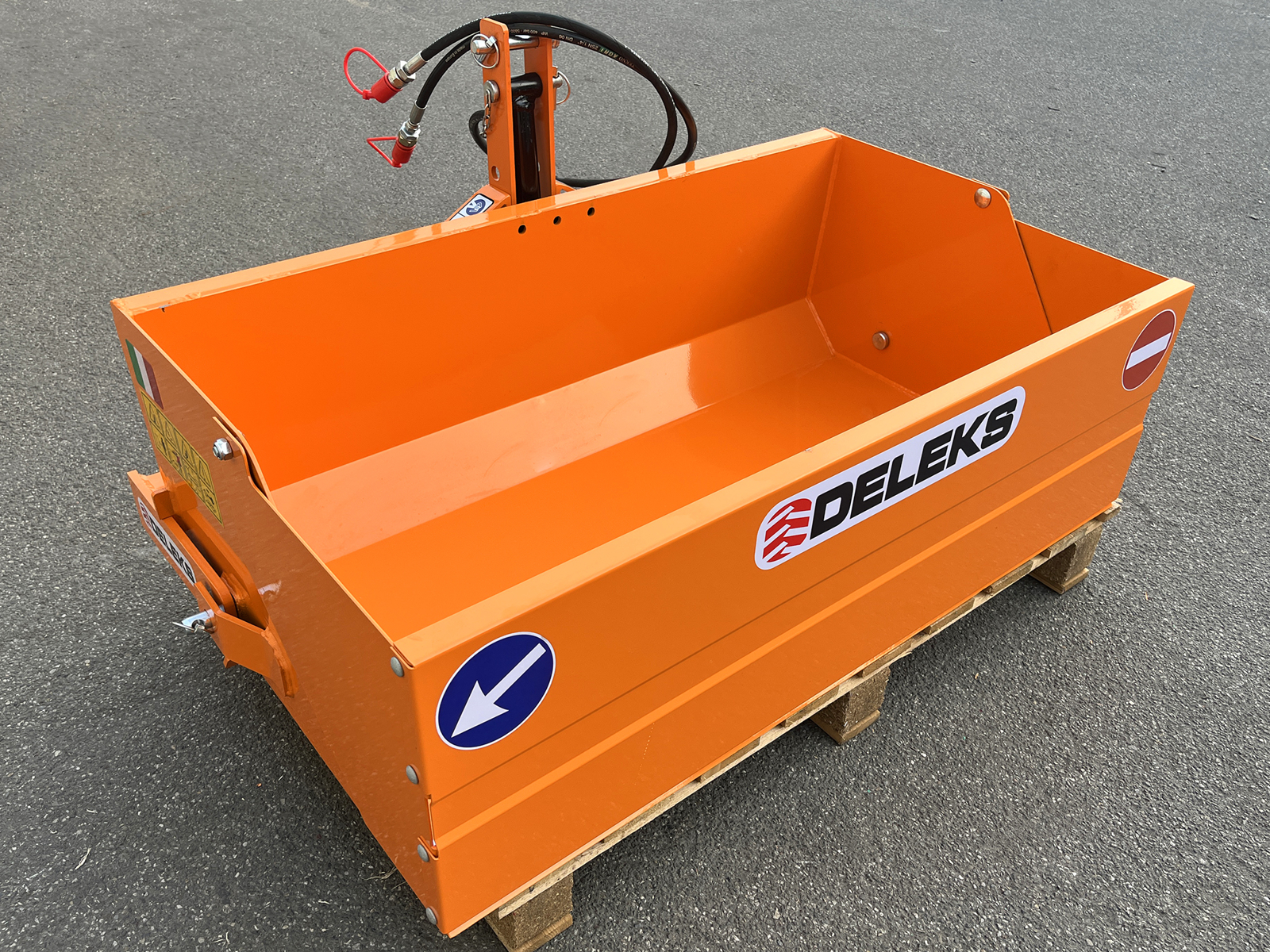

Hydraulic Transportbox 140cm in HARDOX & SSAB steel for tractor, with rear panel
DETAILS
Hydraulic Transportbox 140cm DELEKS® - max load 400kg, made by Hardox and SSAB steel, for compact tractors, hydraulic tipping system - 1.0 cm hardened steel base.
OVERVIEW

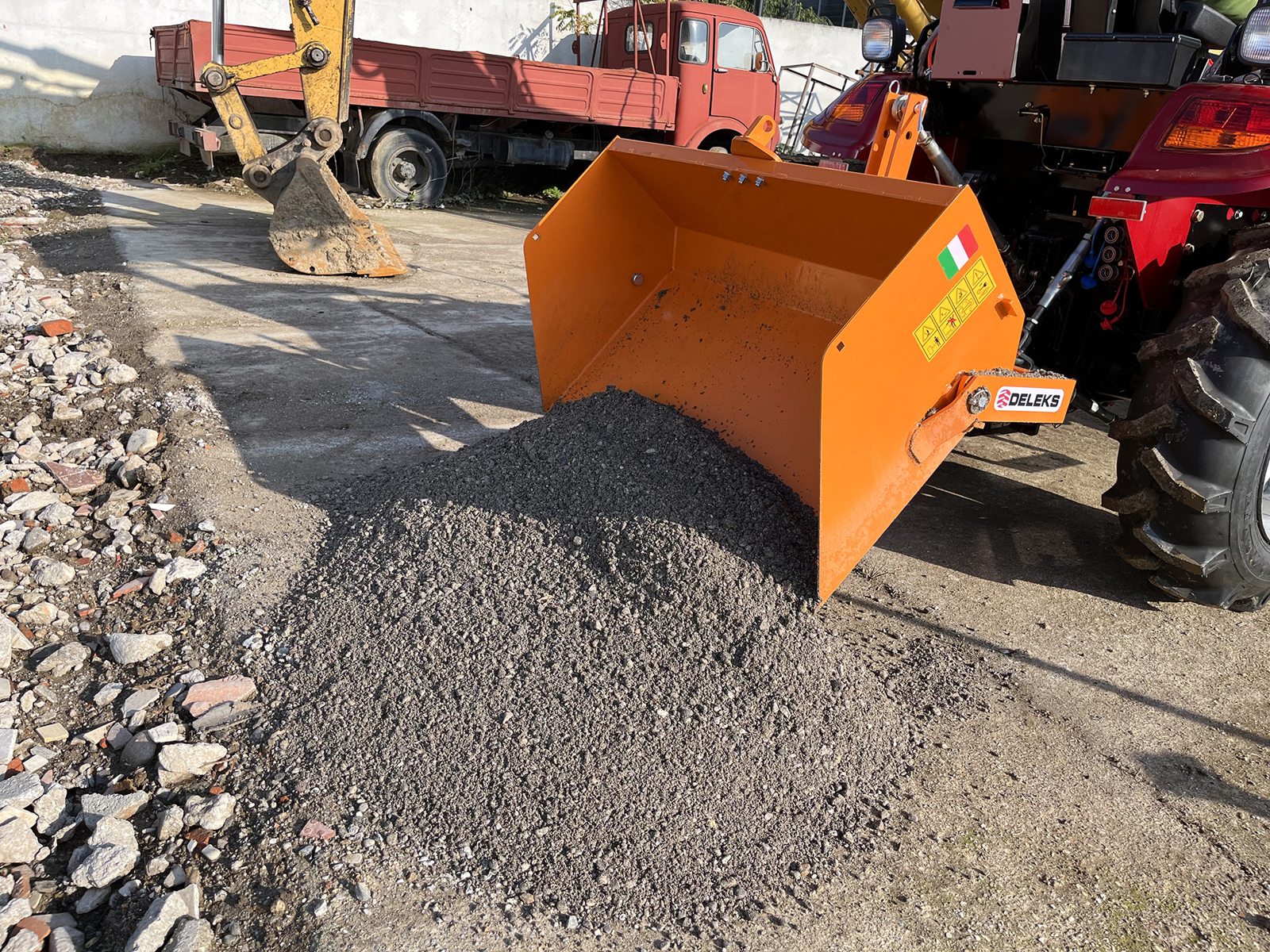

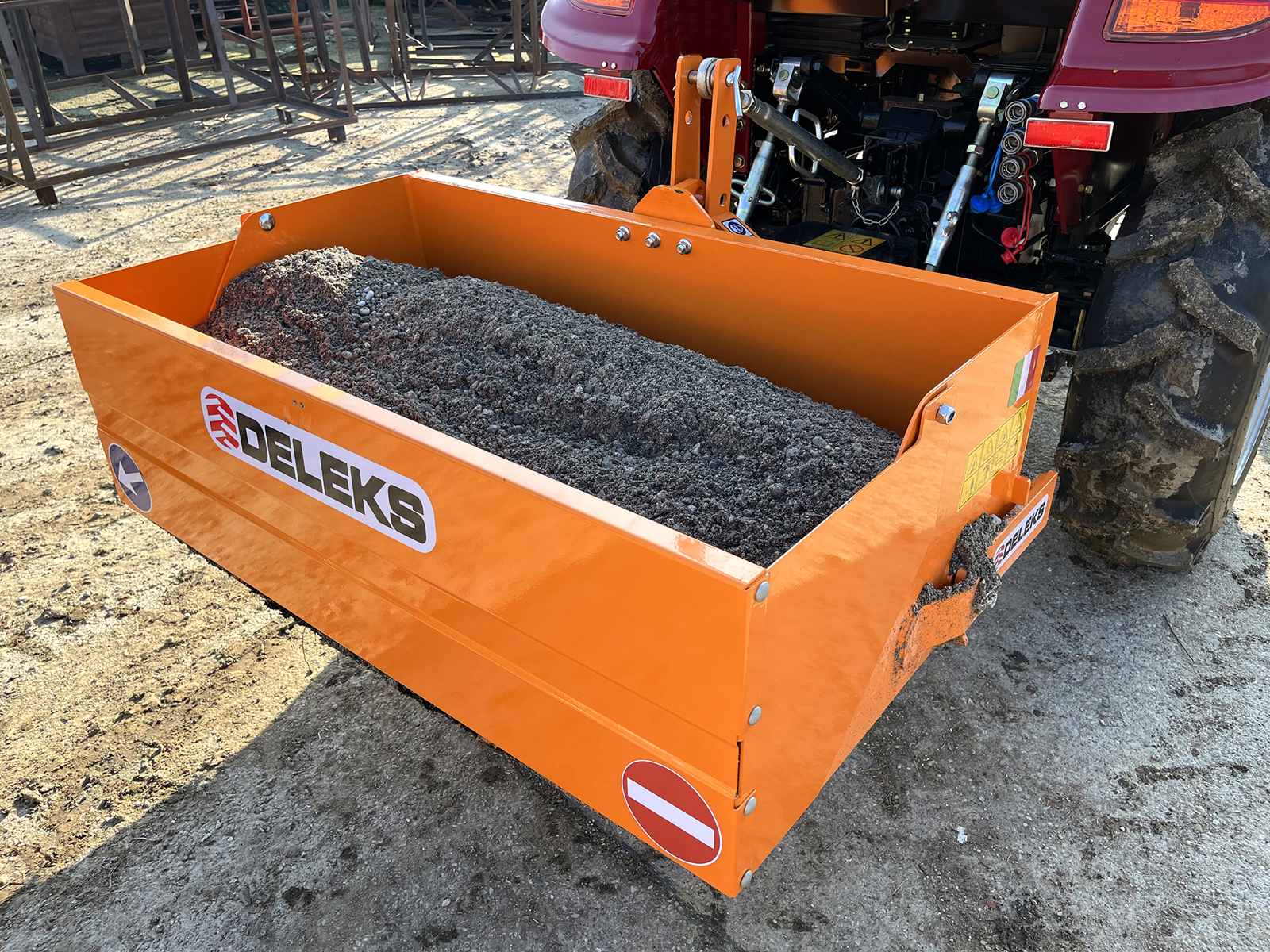

BUCKET-140H "Made in Italy" light multiple use transport box is made from reinforced steel so can handle loading and transporting everything from sand to snow and Ice. It can also be used for digging, leveling, grading and dumping a variety of applications and materials. Hydraulic tipping mechanism operated from the cabin of the tractor. Suitable for 18-40HP tractors e.g New Holland Boomer 25-30 or TI13, John Deere 1-2 Series, or Japanese tractors e.g. Kubota B and BX, Iseki TM–TH, Yanmar, etc. EC Conformity, 2 Year warranty.
BENEFITS & FEATURES

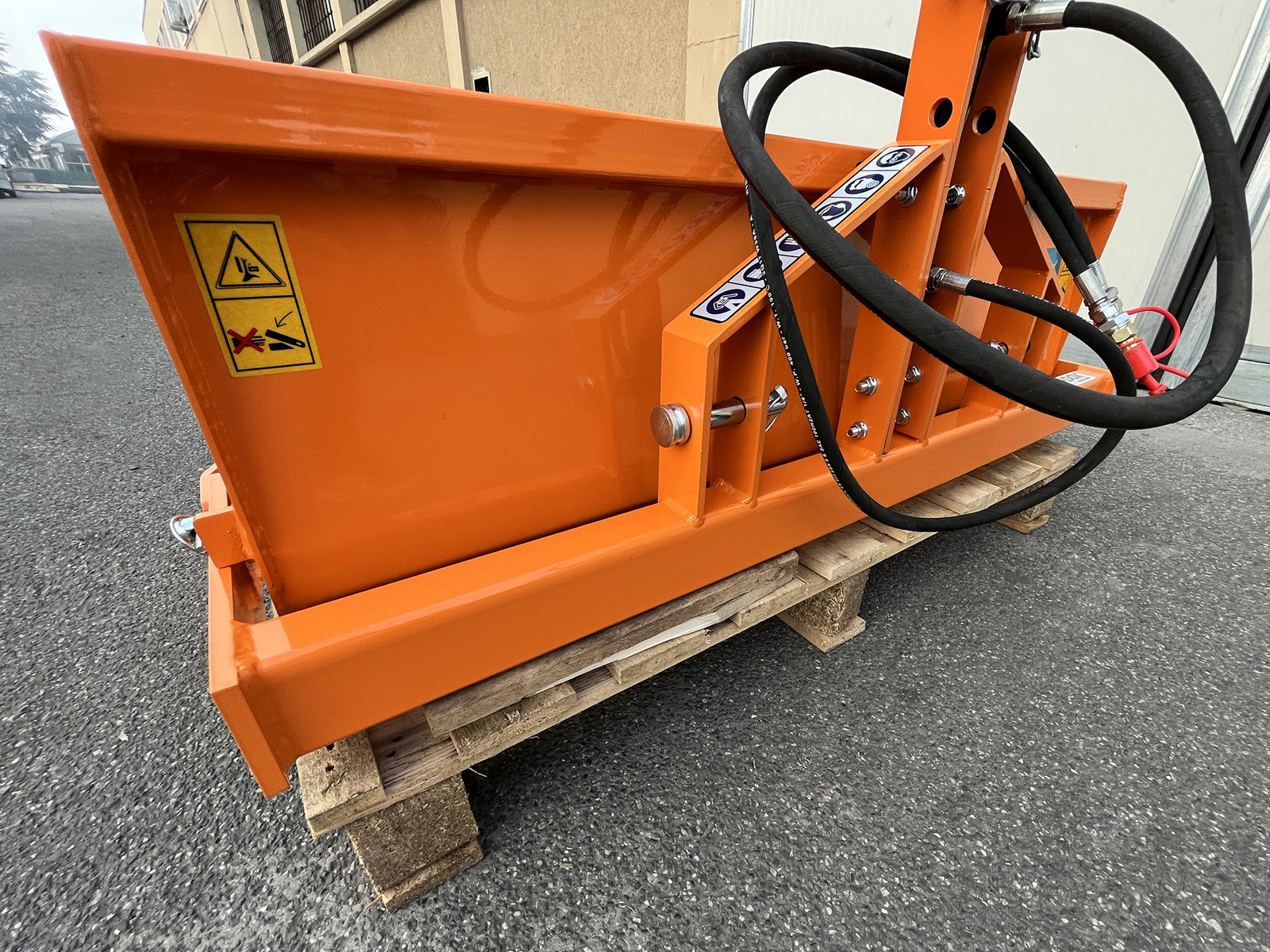

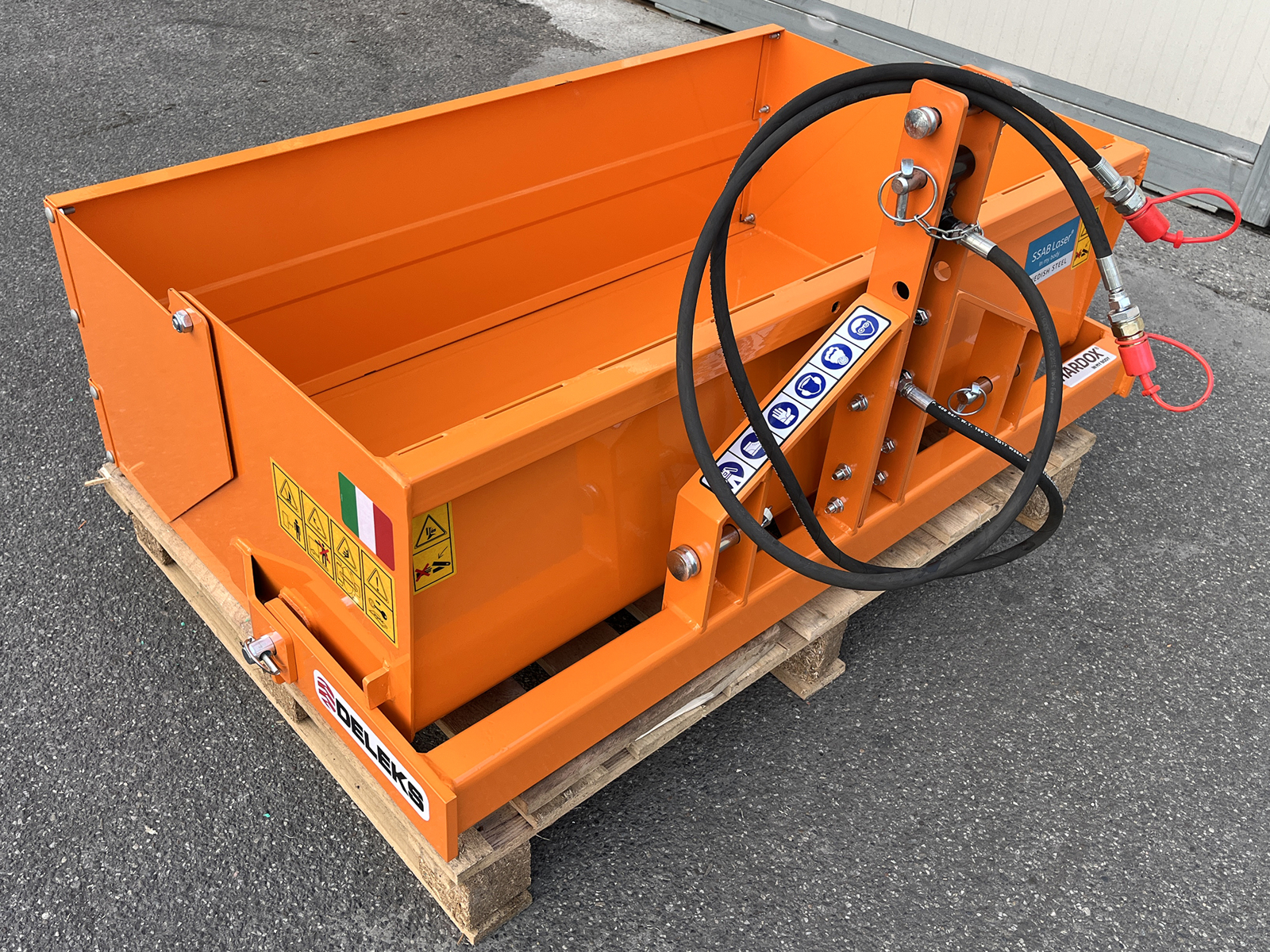

3 point linkage made by HARDOX
Bucket made by SSAB Swedish steel
Light but efficient design especially for small compact tractors.

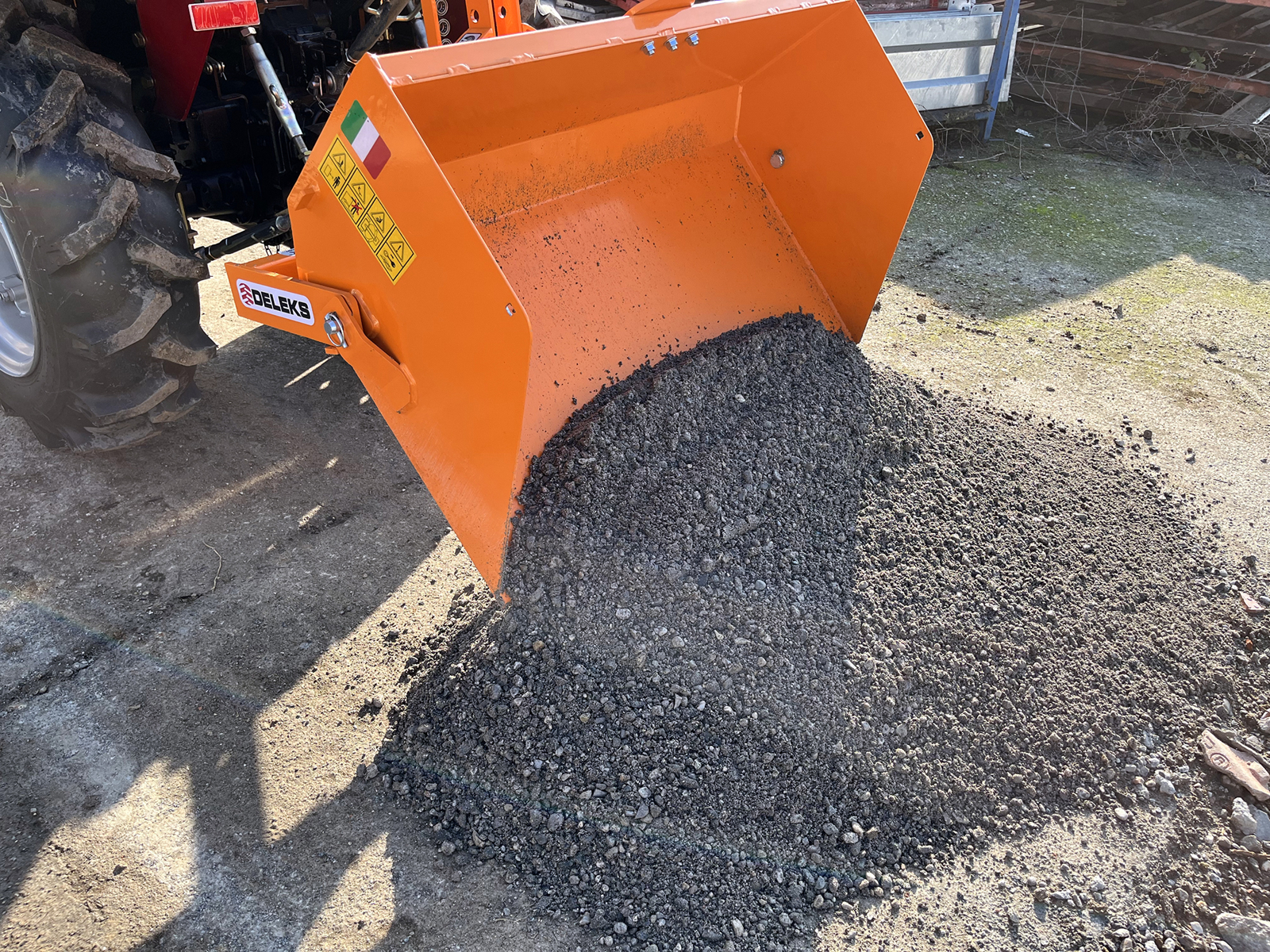

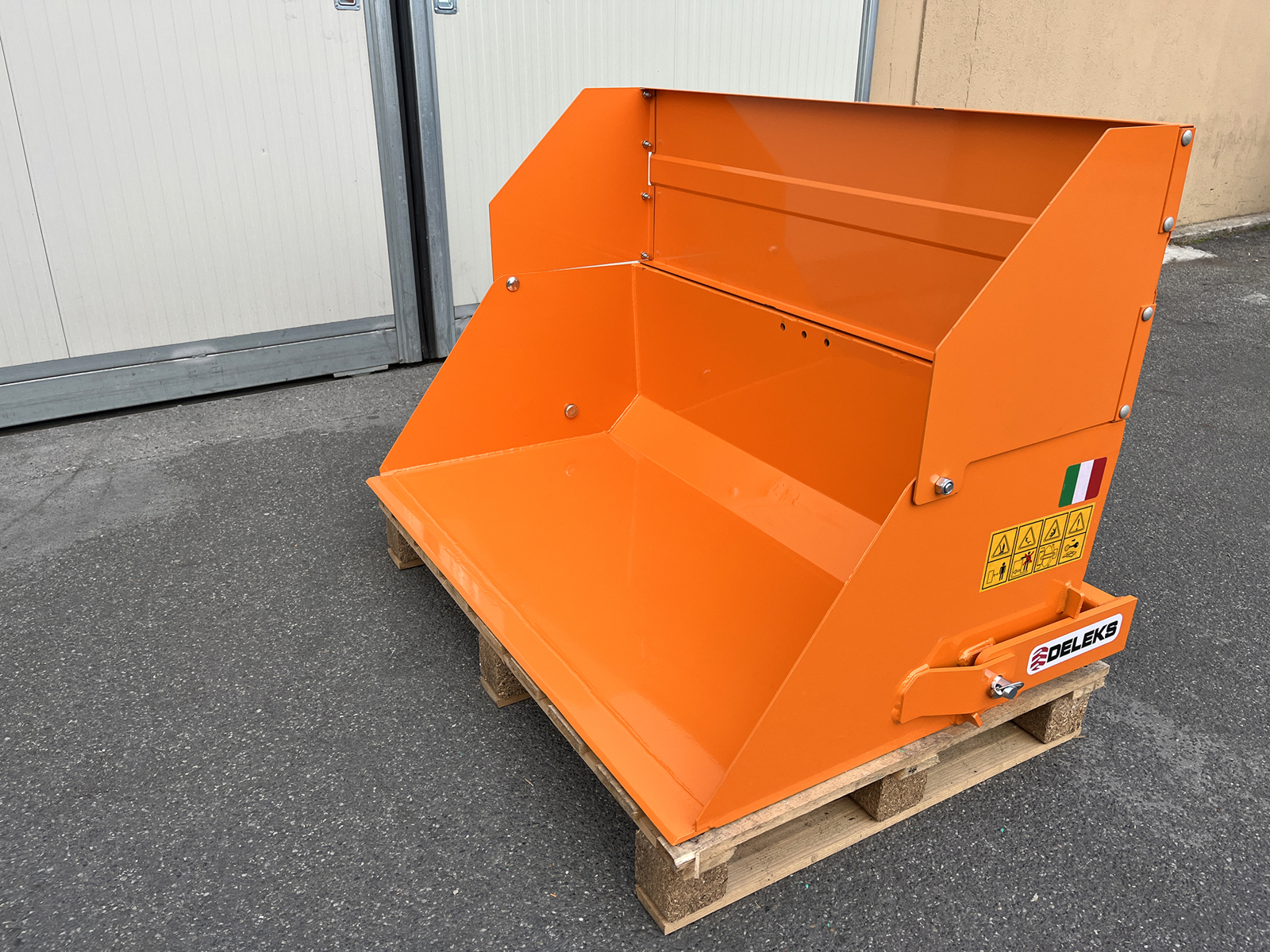

Thanks to the hydraulic tipping system, the box can be tilted to any angle, so it can be used as a shovel or for scattering material.
8 mm HARDOX steel base and side cutting edges provide excellent penetration and durability.
DELEKS® innovative weight distribution design lifts the box from the middle rather than the rear, meaning it does place unnecessary stress on the hydraulic cylinder.

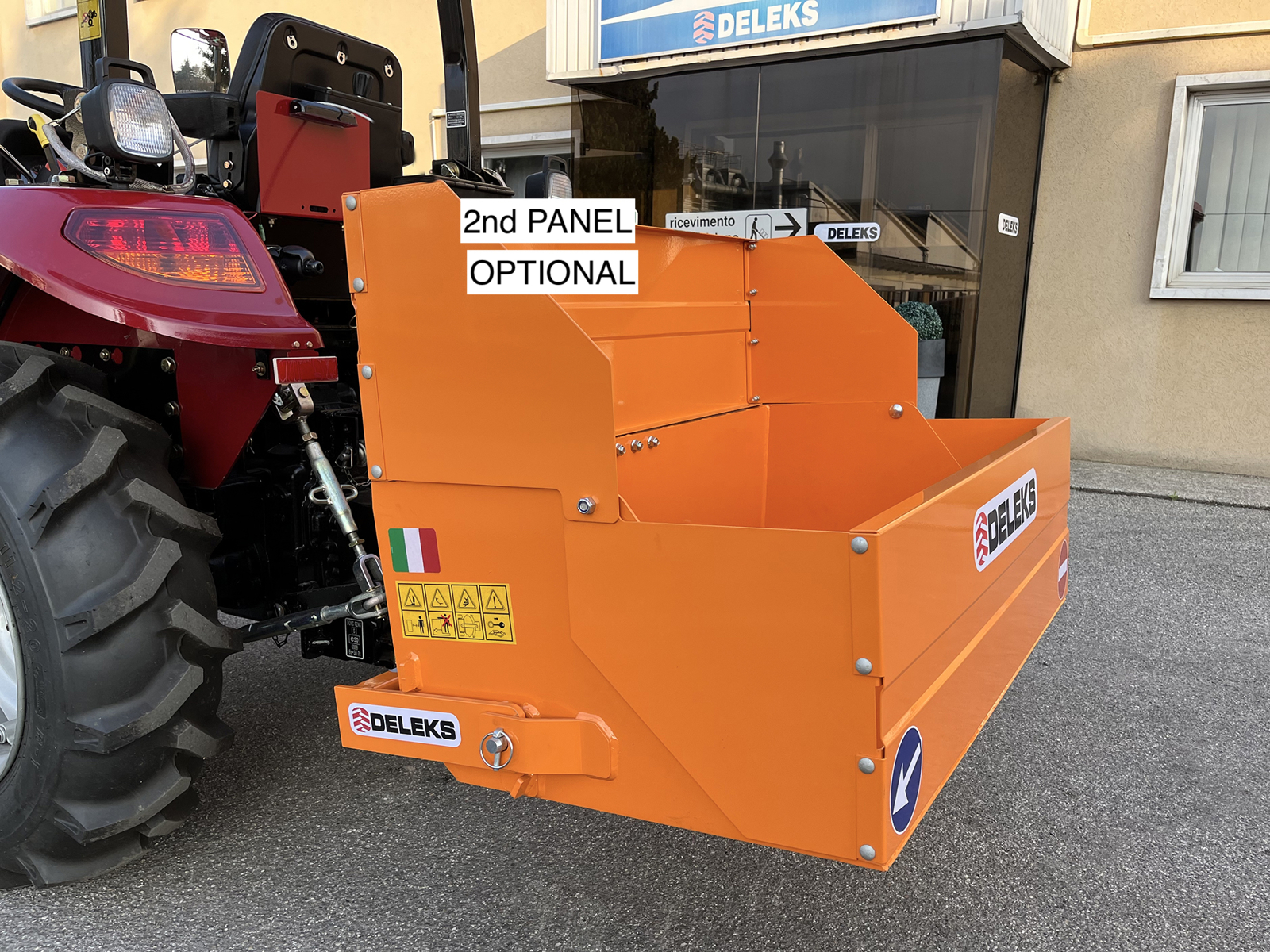

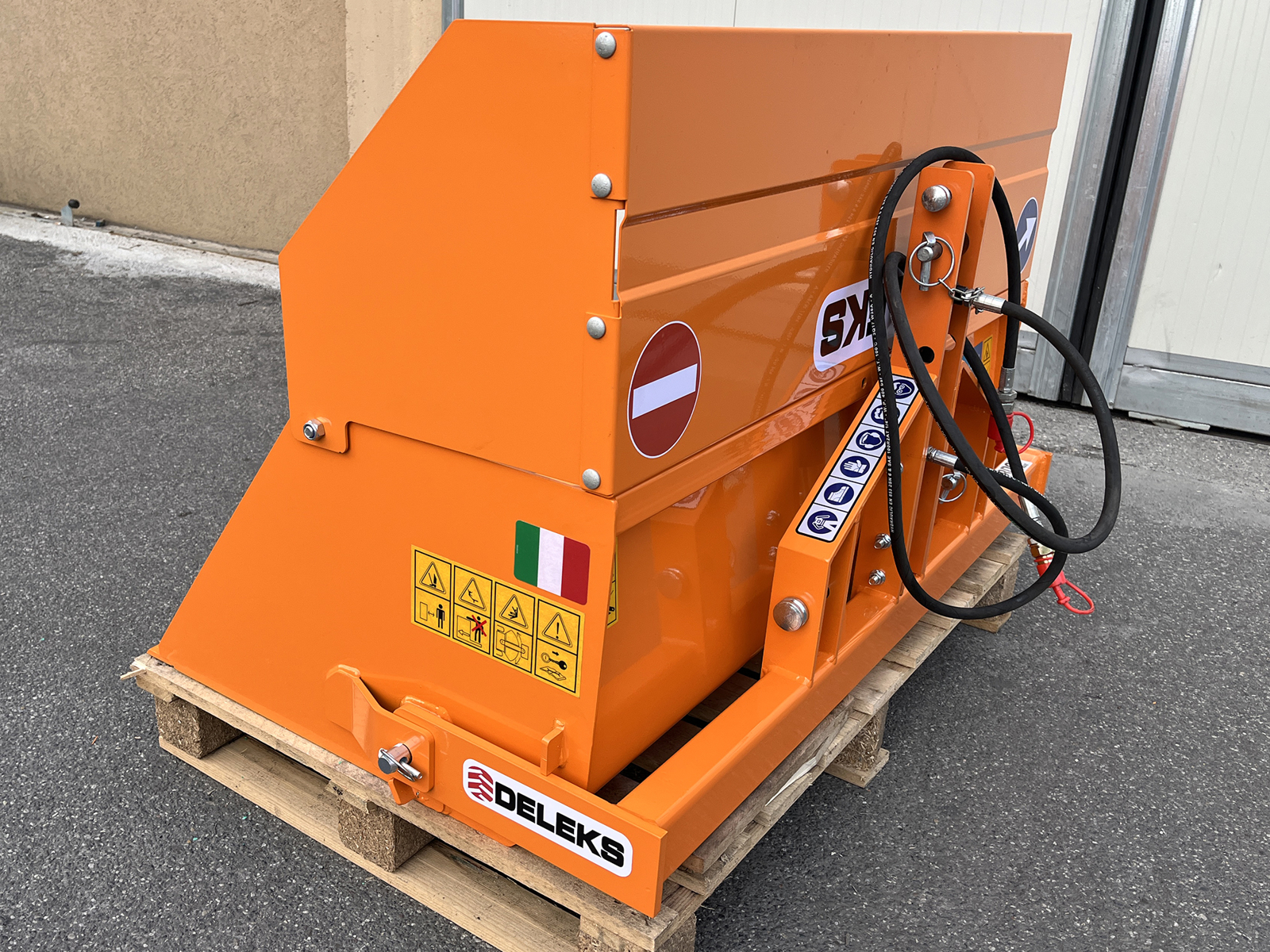

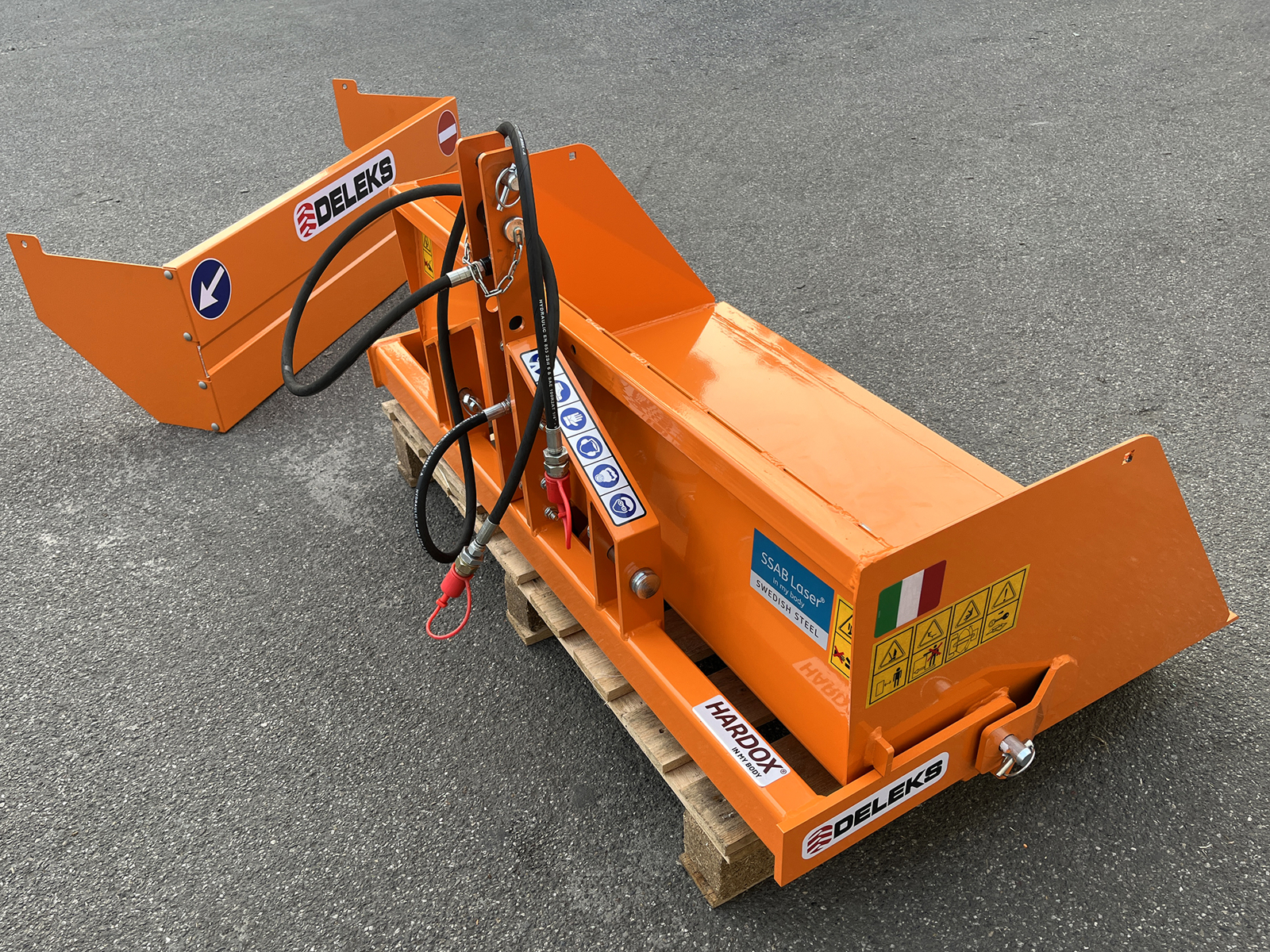

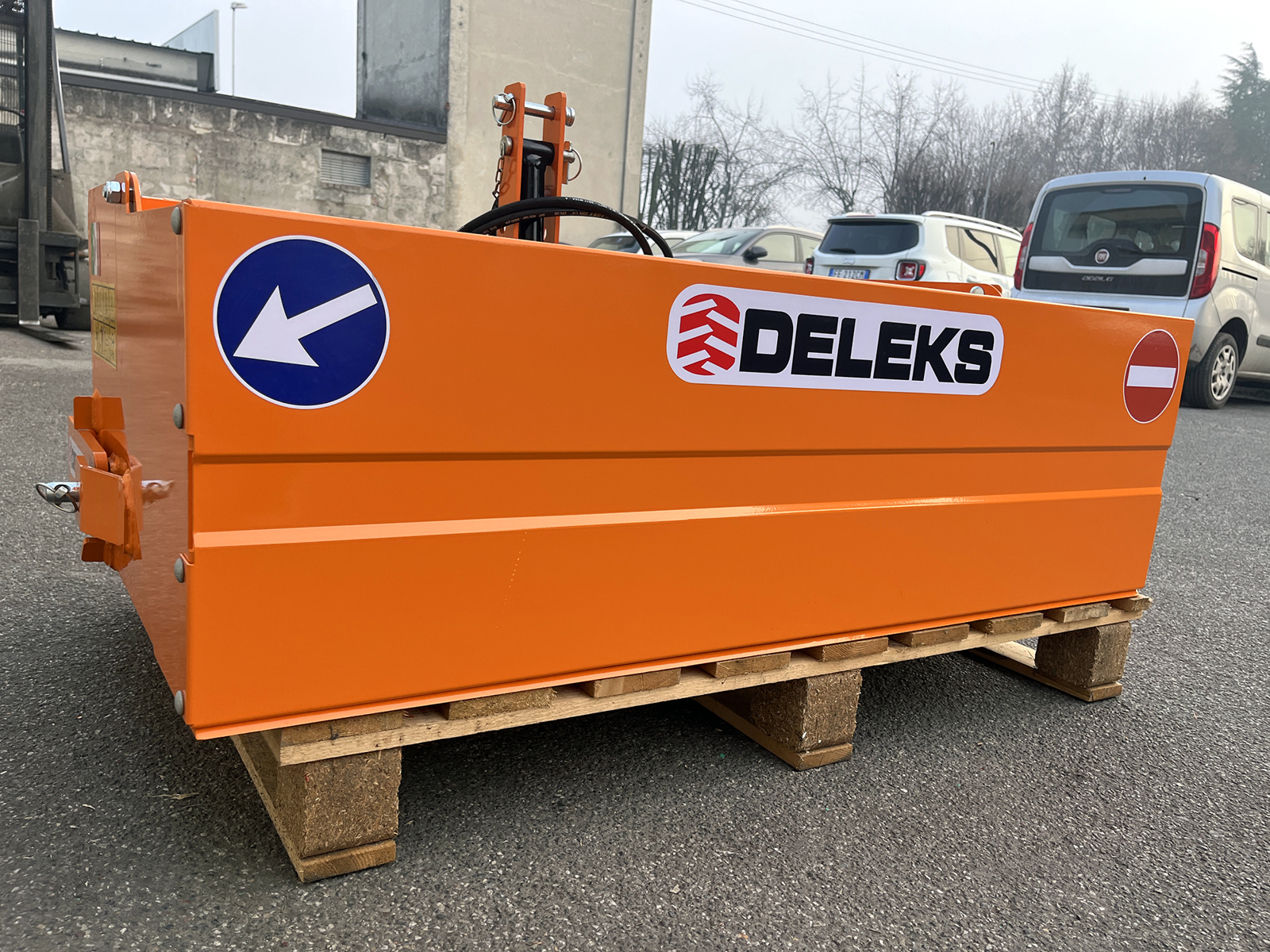

+ 30 to 50% increased load volume capacity with the rear panel.

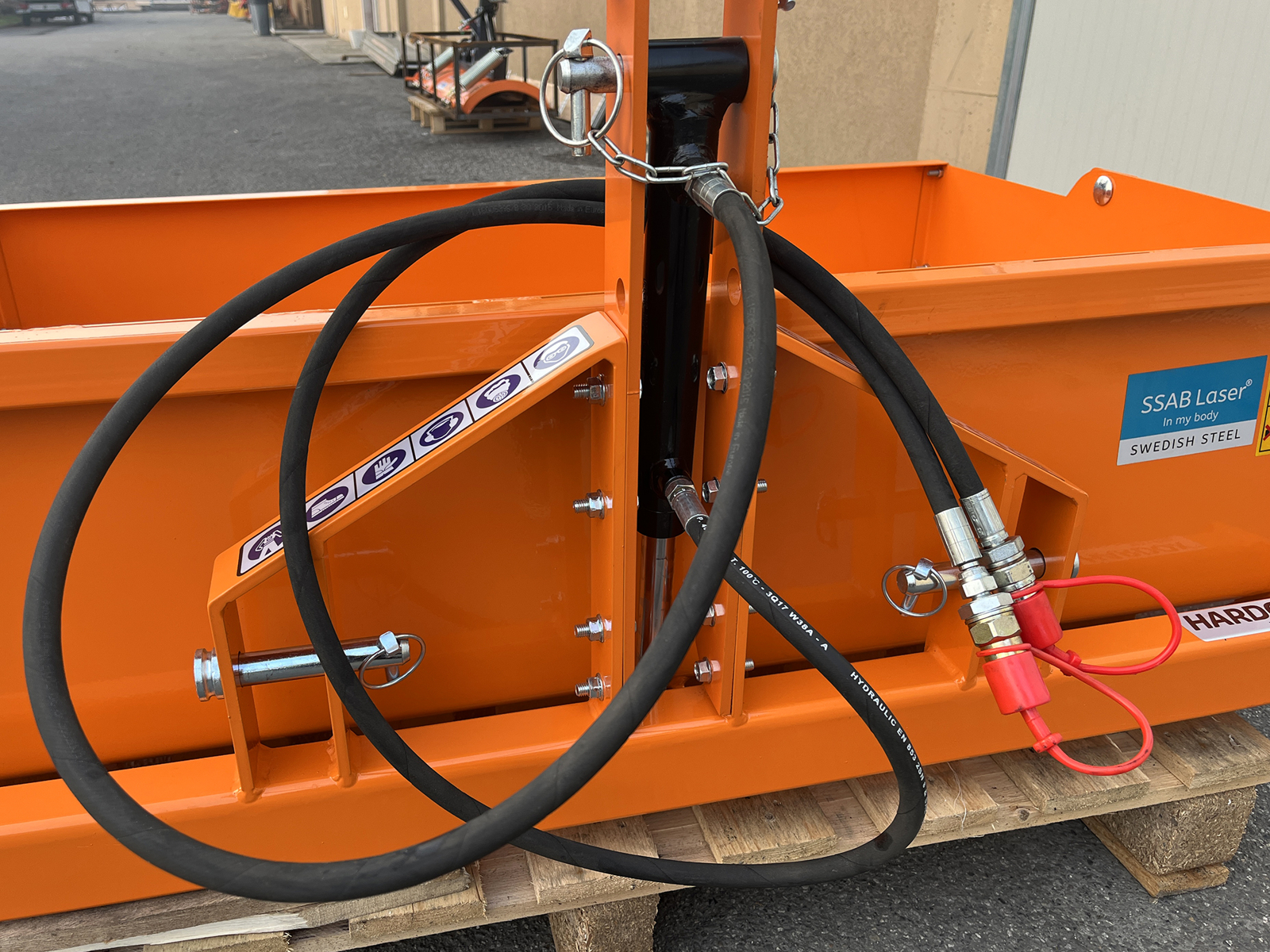

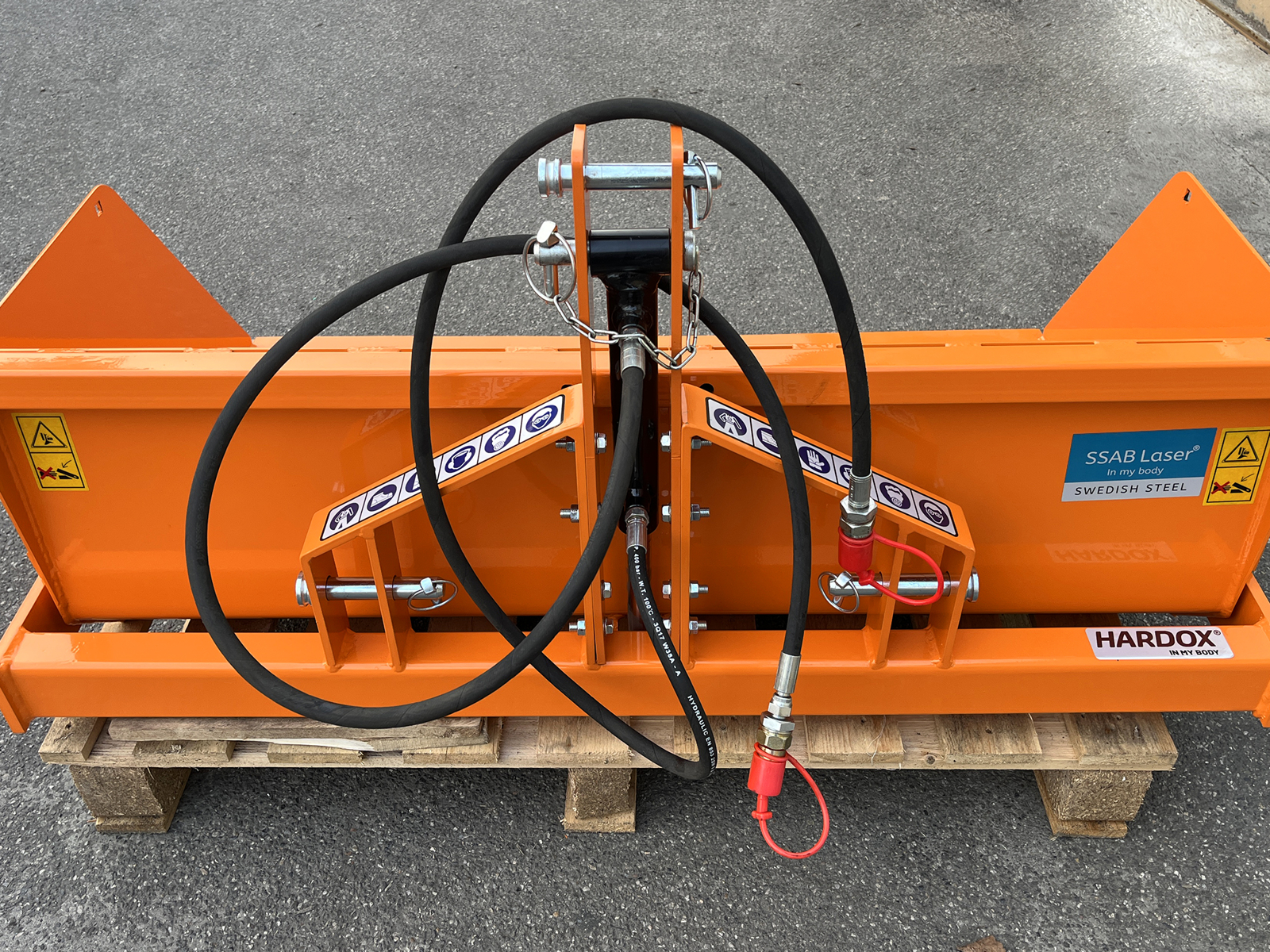

Standard hydraulic cylinder + 2 hydraulic pipes 1,50m with connections 1/2”.
CHARACTERISTICS

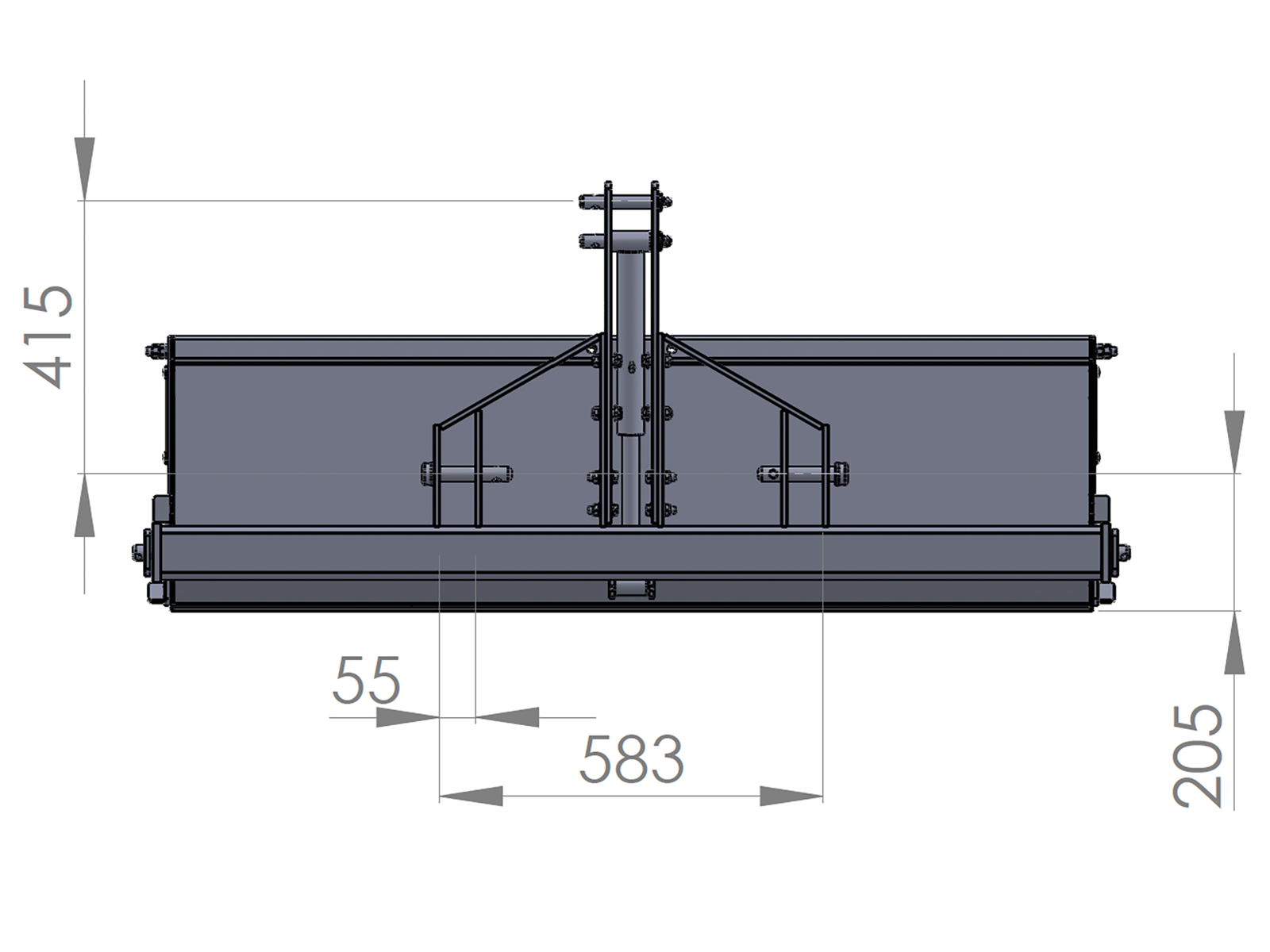

| Characteristic | Units metric |
|---|---|
| Overall width | 1480.0 mm |
| Weight | 125.0 kg |
| Overall height | 640.0 mm |
| Tractor Power Range | 18 - 40 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |

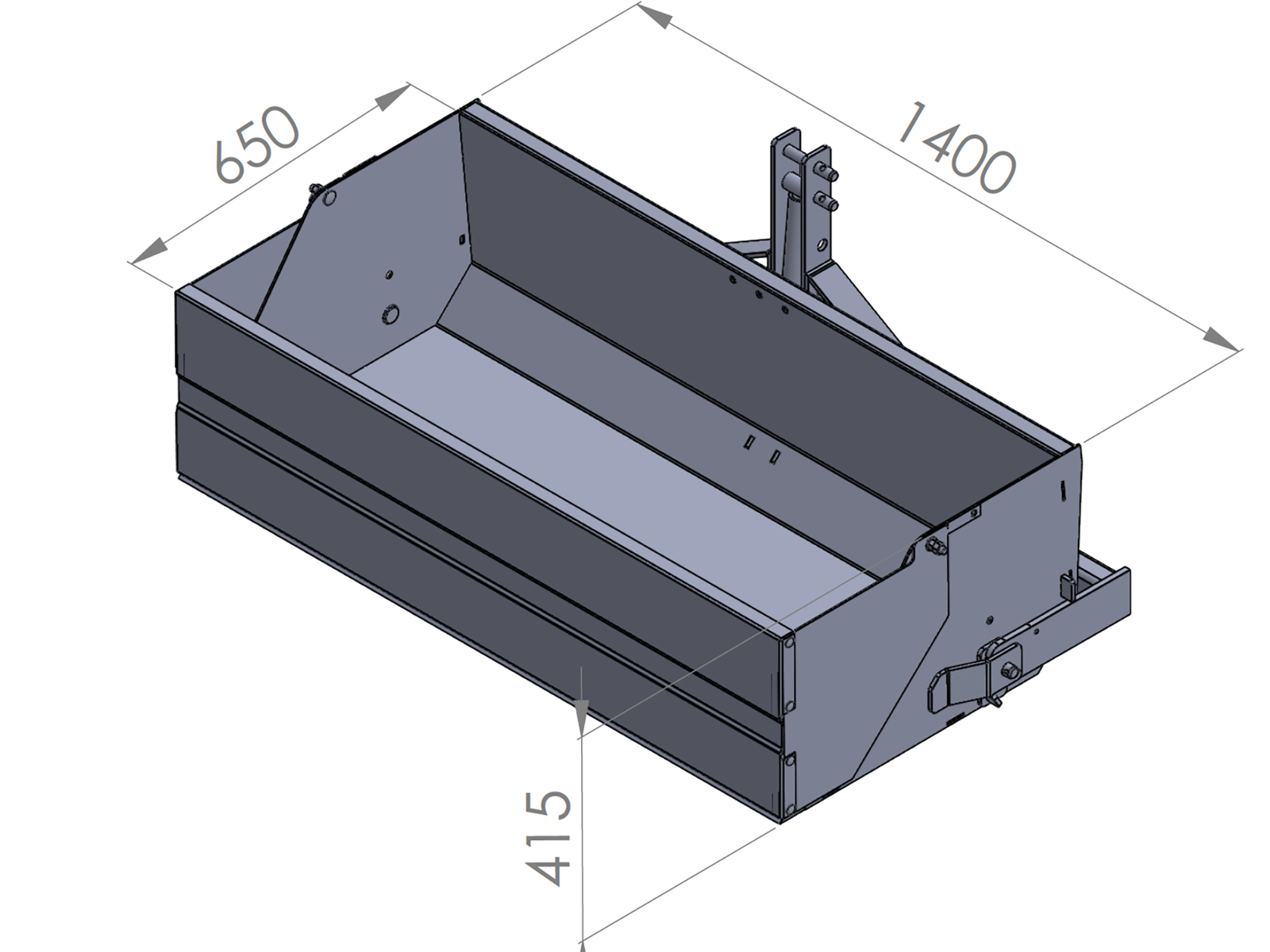

| Bucket Width | 1400.0 mm |
| Load capacity | 400.0 Kg |
| Rated bucket Capacity | 0.38 m3 |
| Cutting Edge Thickness | 8.0 mm (SSAB) |
| Base Edge Thickness | 4.0 mm (SSAB) |
| Bucket Height | 415.0 mm |
| Bucket Length | 650.0 mm |
| Overall Length | 950.0 mm |
| 3 point linkage Thickness | 8.0 mm (HARDOX) |
| Spacing between the 2 lower points | 470.0 - 580.0 mm |
| Dumping | Hydraulic |
| Tipping degrees | 80° |
| Packing sizes | 1500.0*800.0*550.0 mm |
