Double Plough for tractors like Carraro DDP-30
DELEKS® DDP-30: Unpacking by Alberto
DETAILS

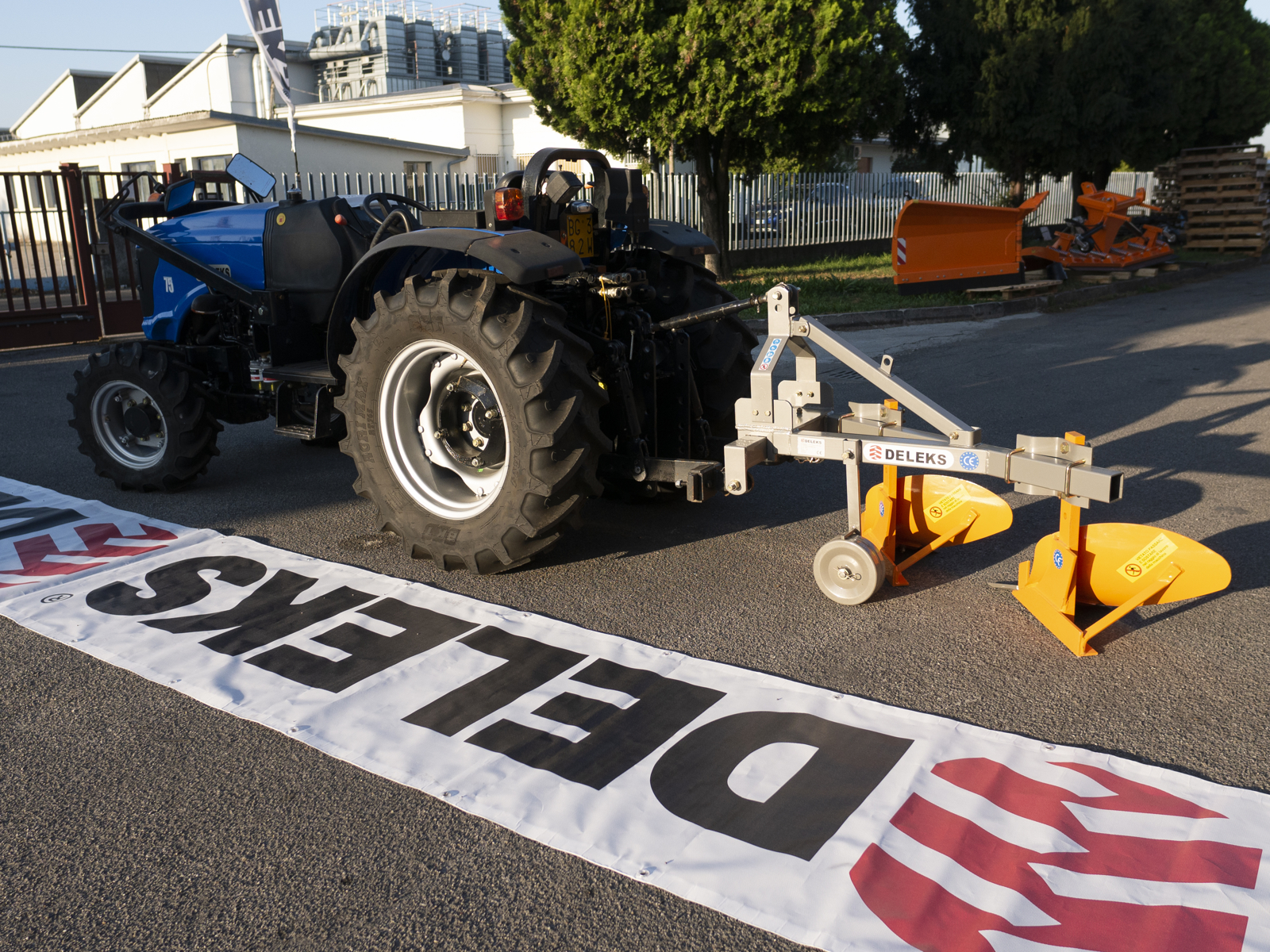

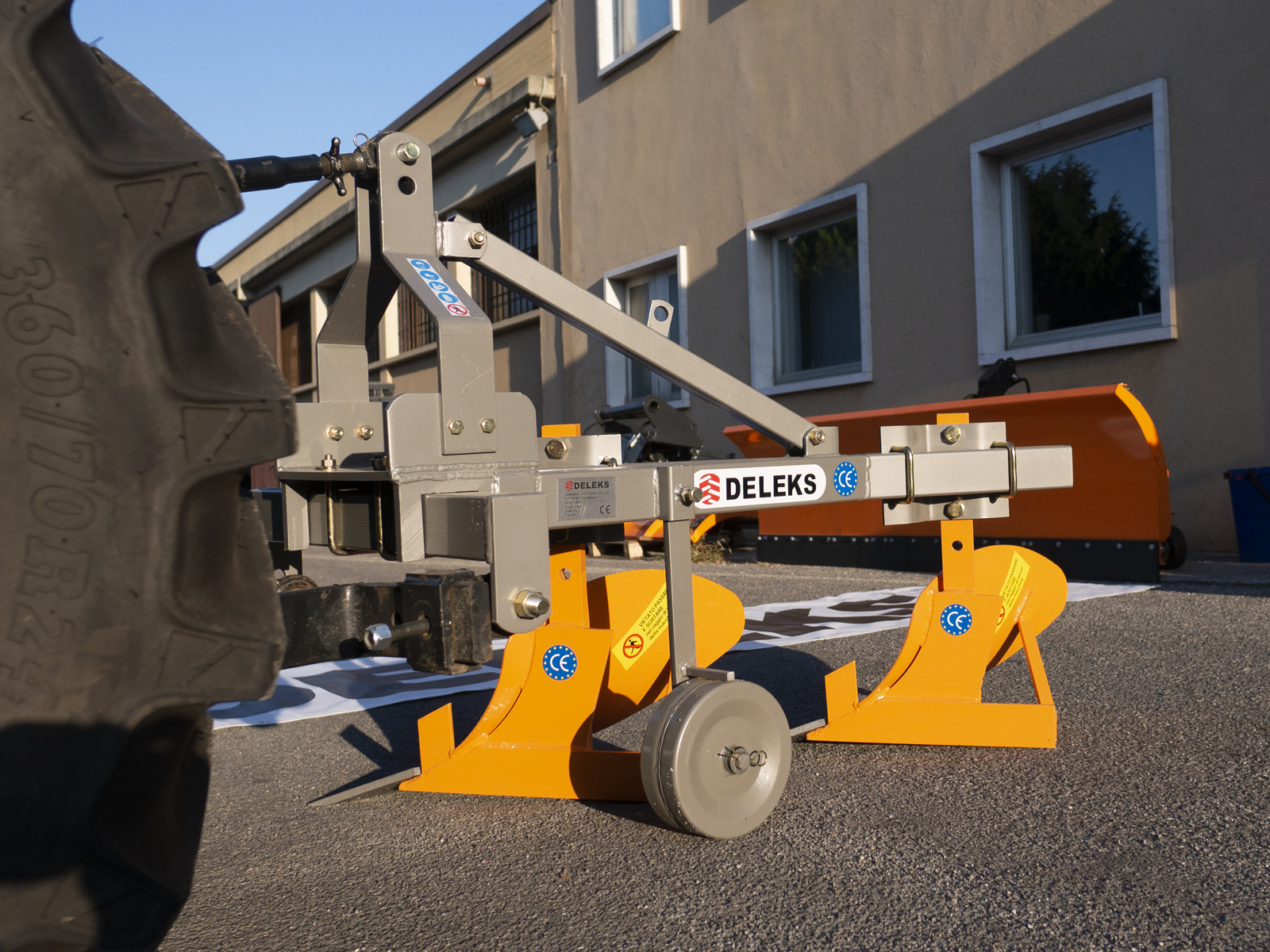

Double Plough For 25-40HP compact Tractors John Deere, and Japanese tractors | DELEKS® DDP-30
APPLICATION
DELEKS® double plough is designed to save you time and fuel due to it's two treated steel blades. Ideal for 25-40HP Japanese tractors Kubota, Kioti, Iseki, and compact tractors John Deere and New Holland. Universal 3 point linkage Cat. 1. EC Declaration of Conformity. Not suitable for crawler tractors.
BENEFITS & FEATURES
Doubles the ploughing capacity to save time and fuel.
Additional welded frame strengthening parts on the arm to reinforce stress points.
The plough's tilt and depth can be adjusted easily.
Detachable and replaceable blades.
Gauge wheel that allows you to adjust depth and maximize usage.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 850.0 mm |
| Weight | 116.0 kg |
| Overall height | 1030.0 mm |
| Tractor Power Range | 25 - 40 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 590.0 - 850.0 mm |
| Overall length | 1290.0 mm |
| Number of Furrow | 2 |
| Furrow diagonal | 850.0 mm |
| Width of cut | 310.0 mm |
| Other sizes | See pictures |
| Effective Displacement | 340.0 mm |
| Thickness of the arm | 60.0*80.0 mm |
| Cutting Edge Lenght | 400.0 mm |
| Cutting Edge Thickness | 12.0 mm |
| 3 point Linkage tube sizes | 80.0*80.0 mm |
| Depth adjustment Wheel sizes | ø 25.0 * 10.0 mm |
| Working Depth | 160.0 - 250.0 mm |
| Packing sizes | 1200.0*800.0*500.0 mm |
