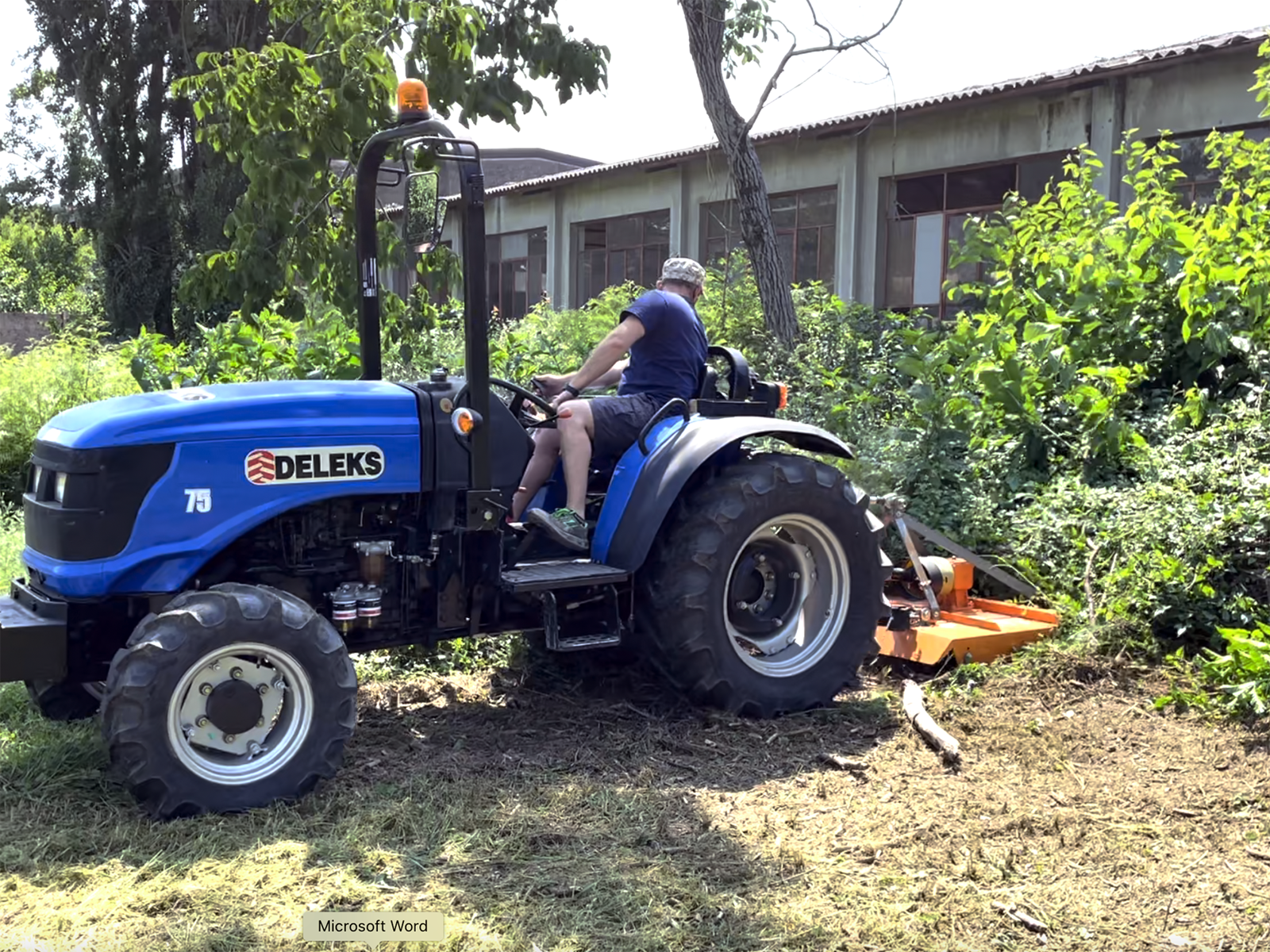

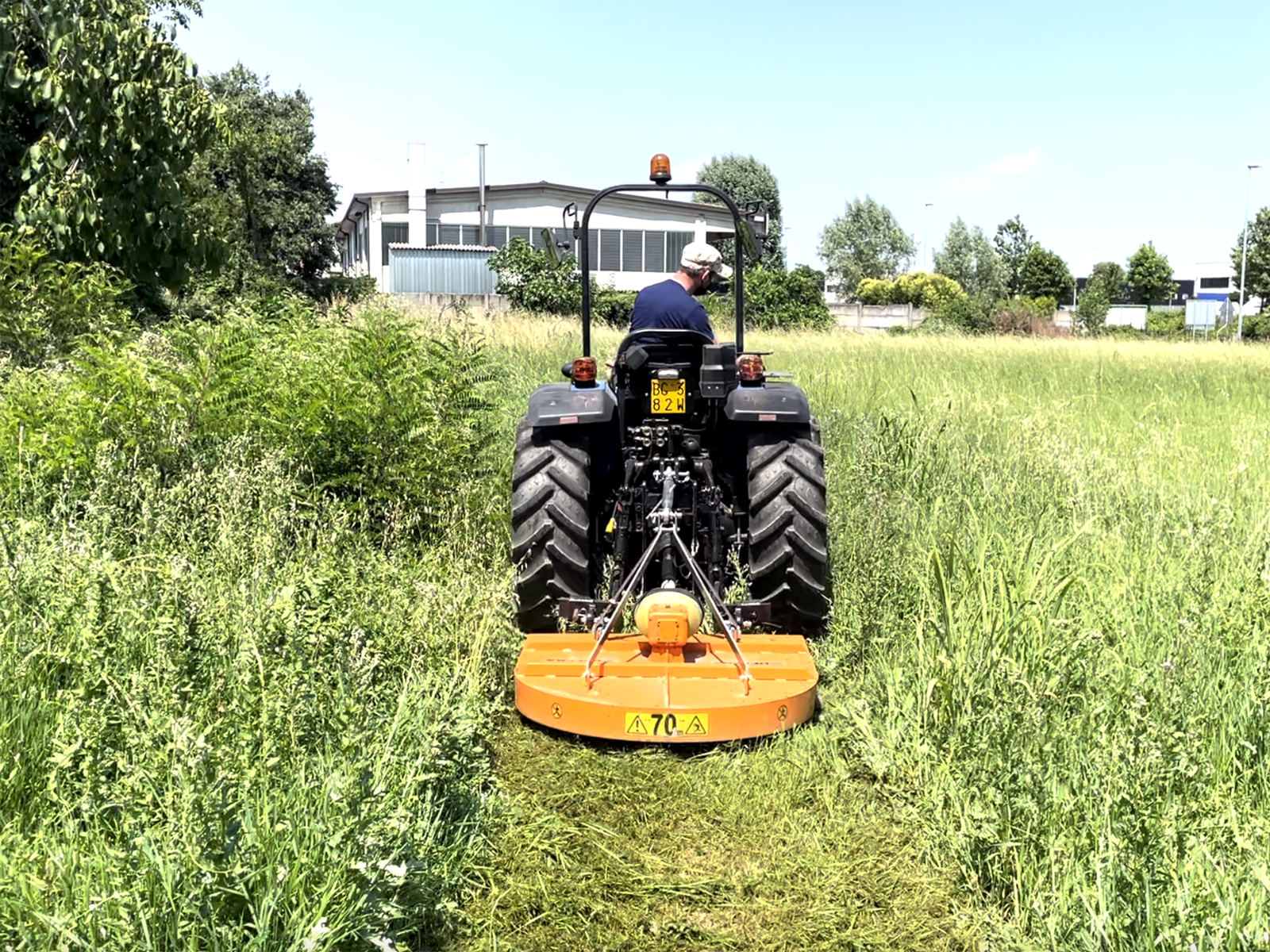

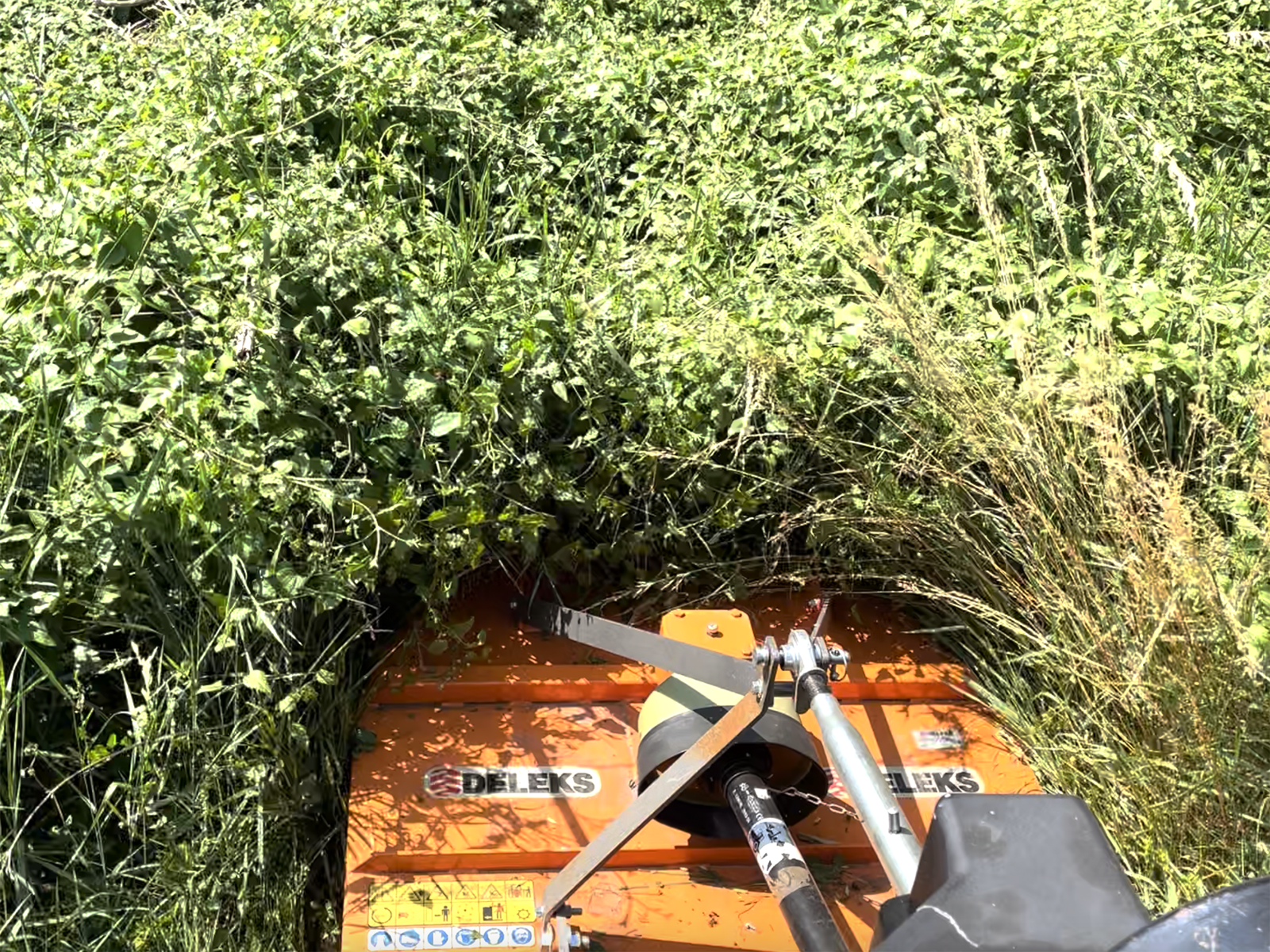

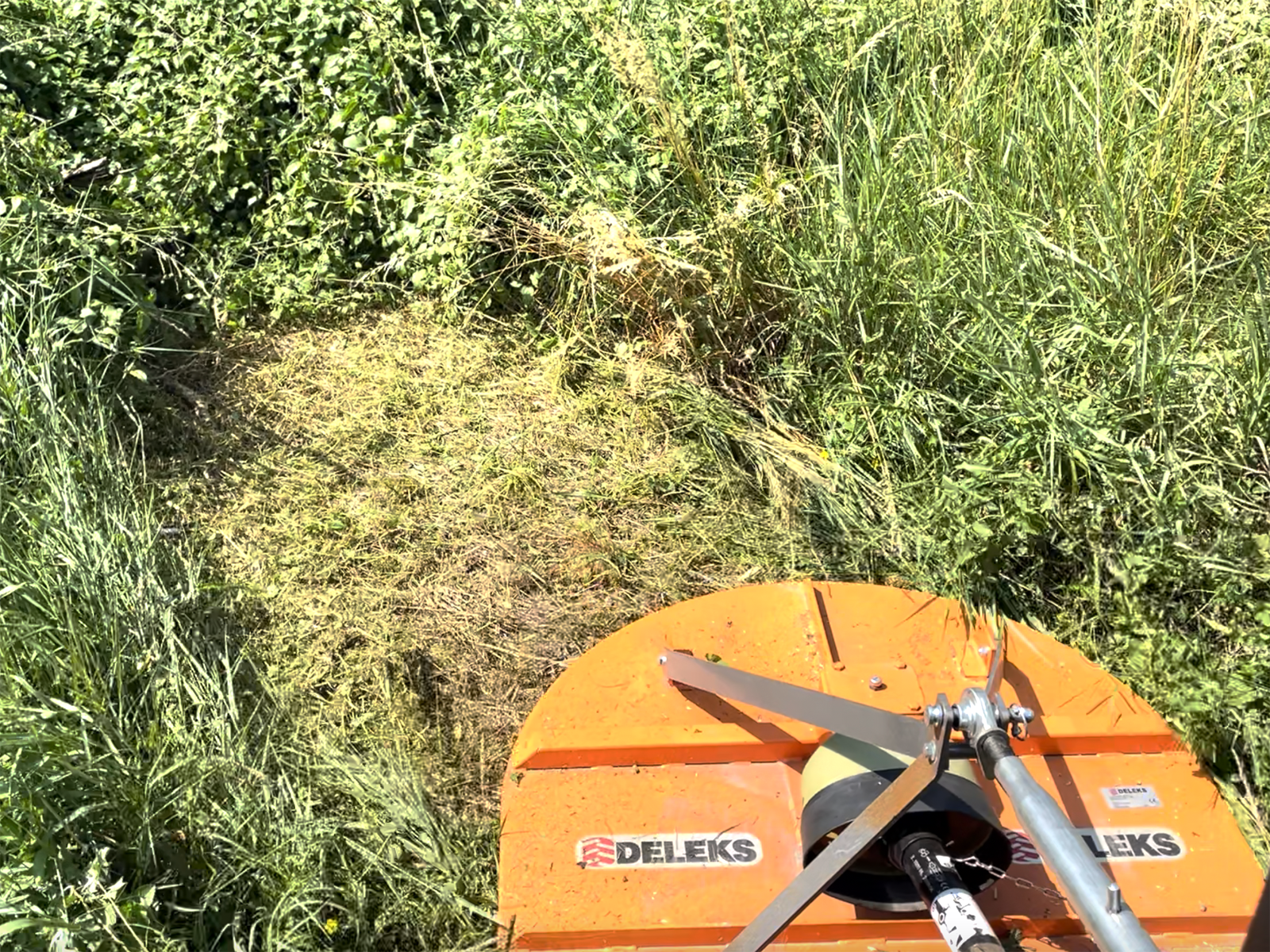

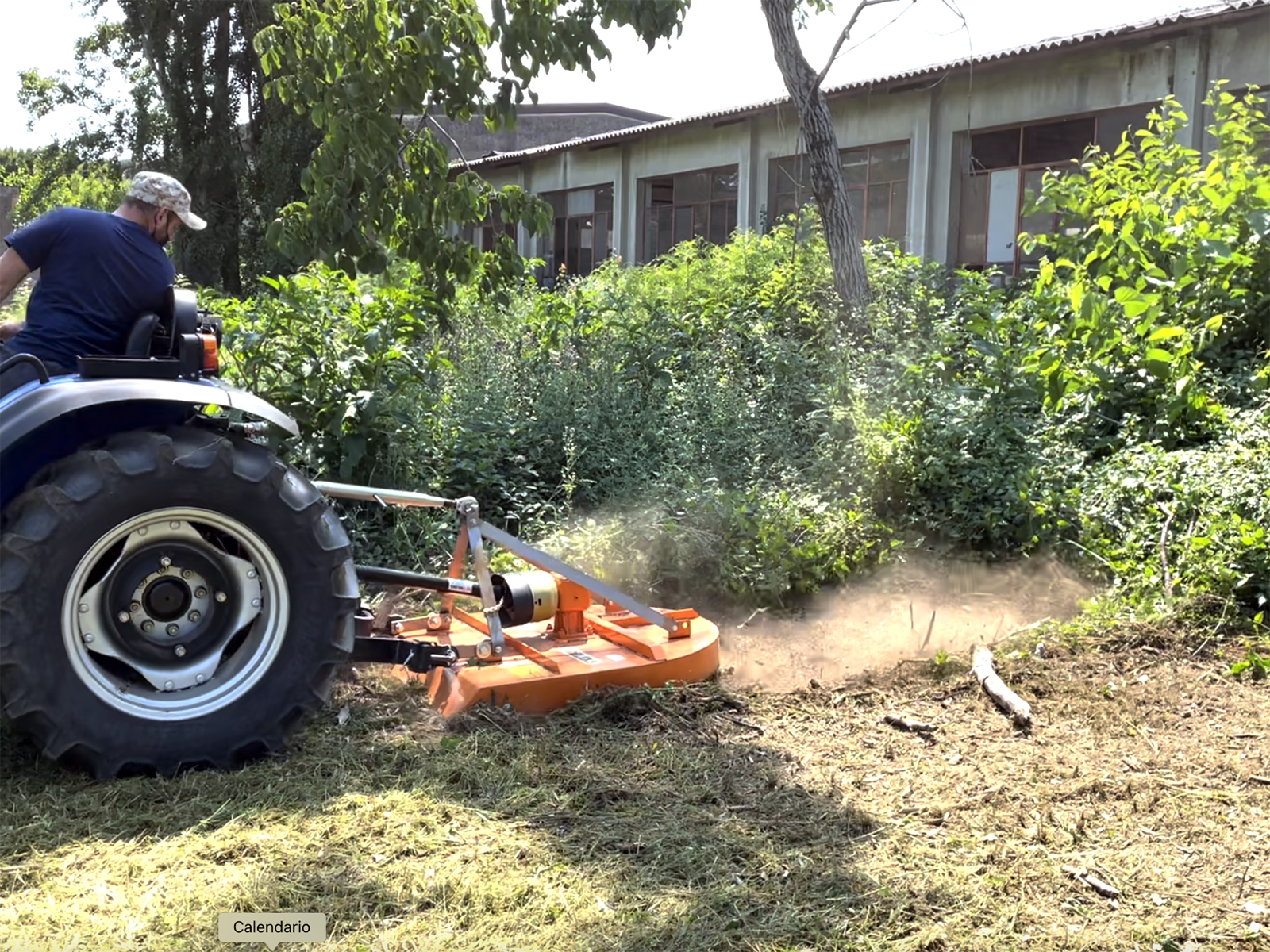

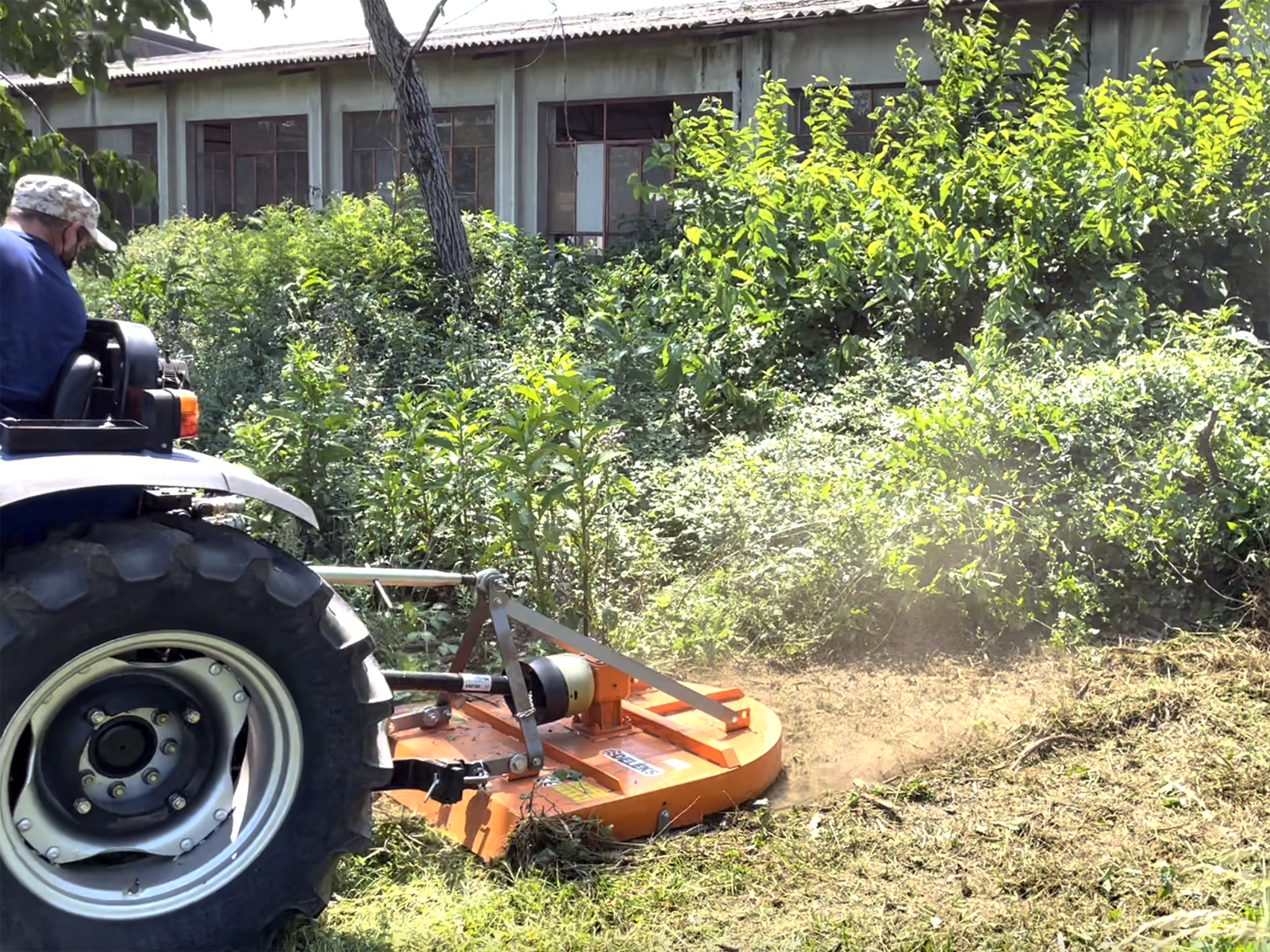

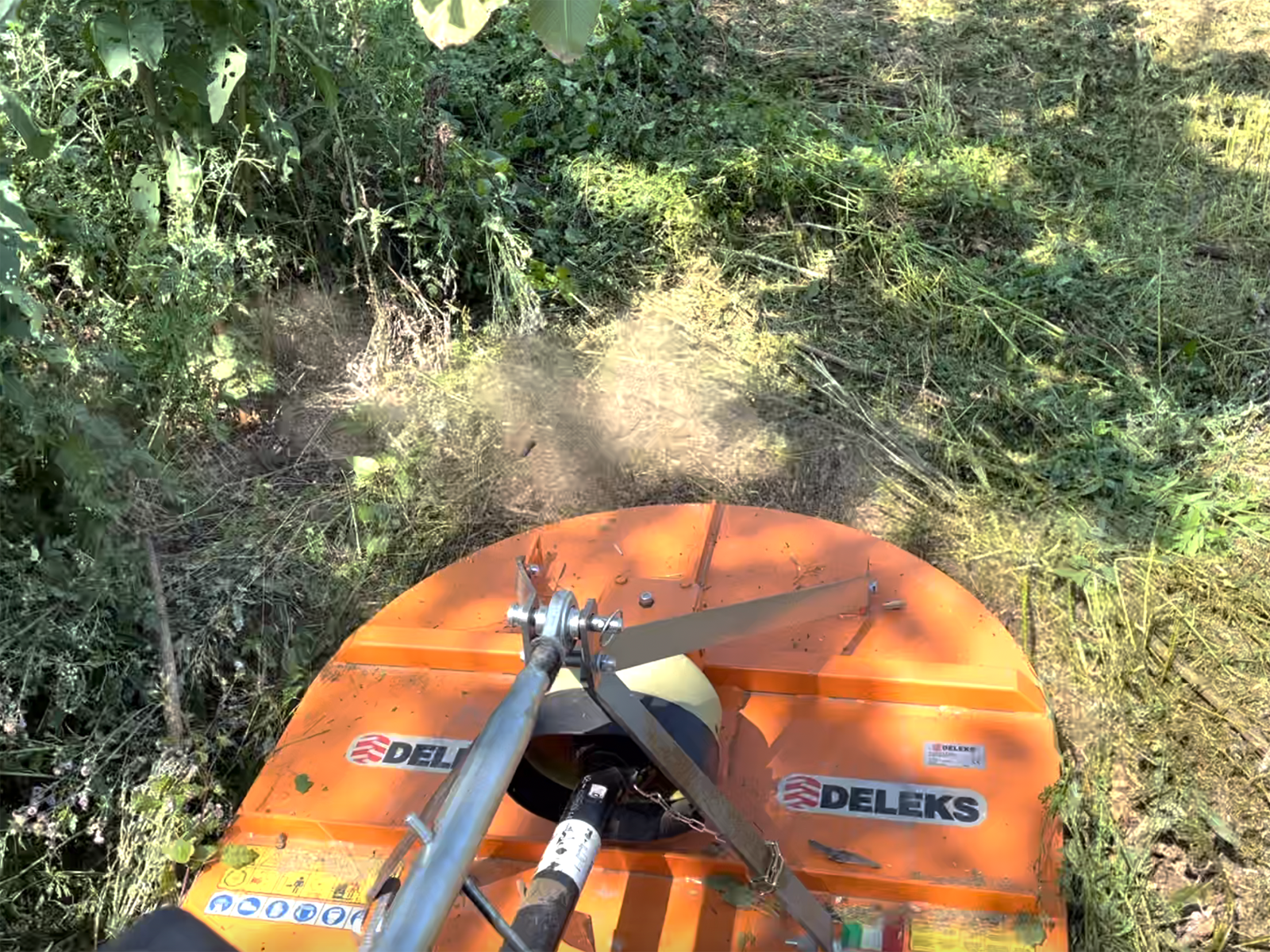

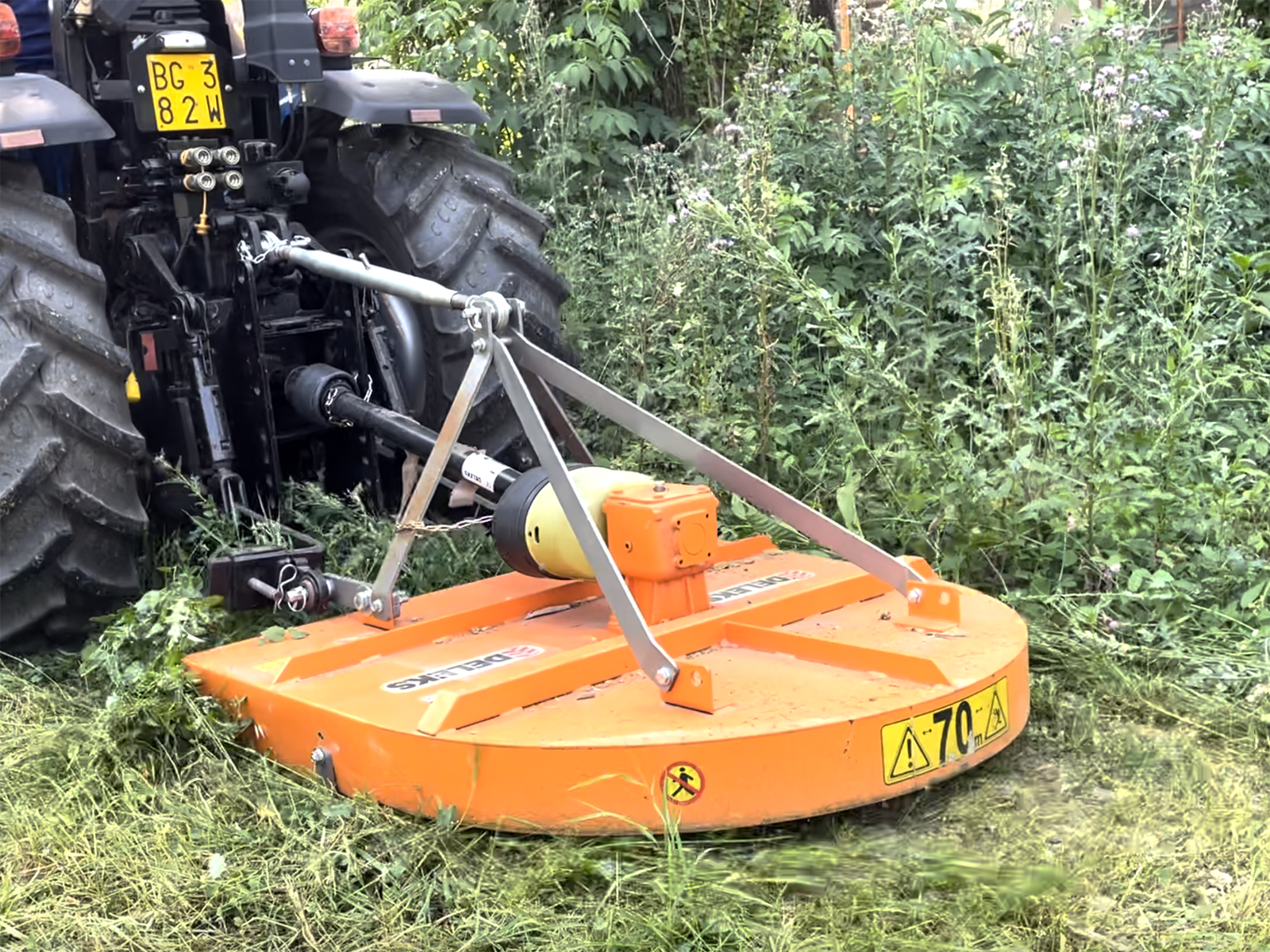

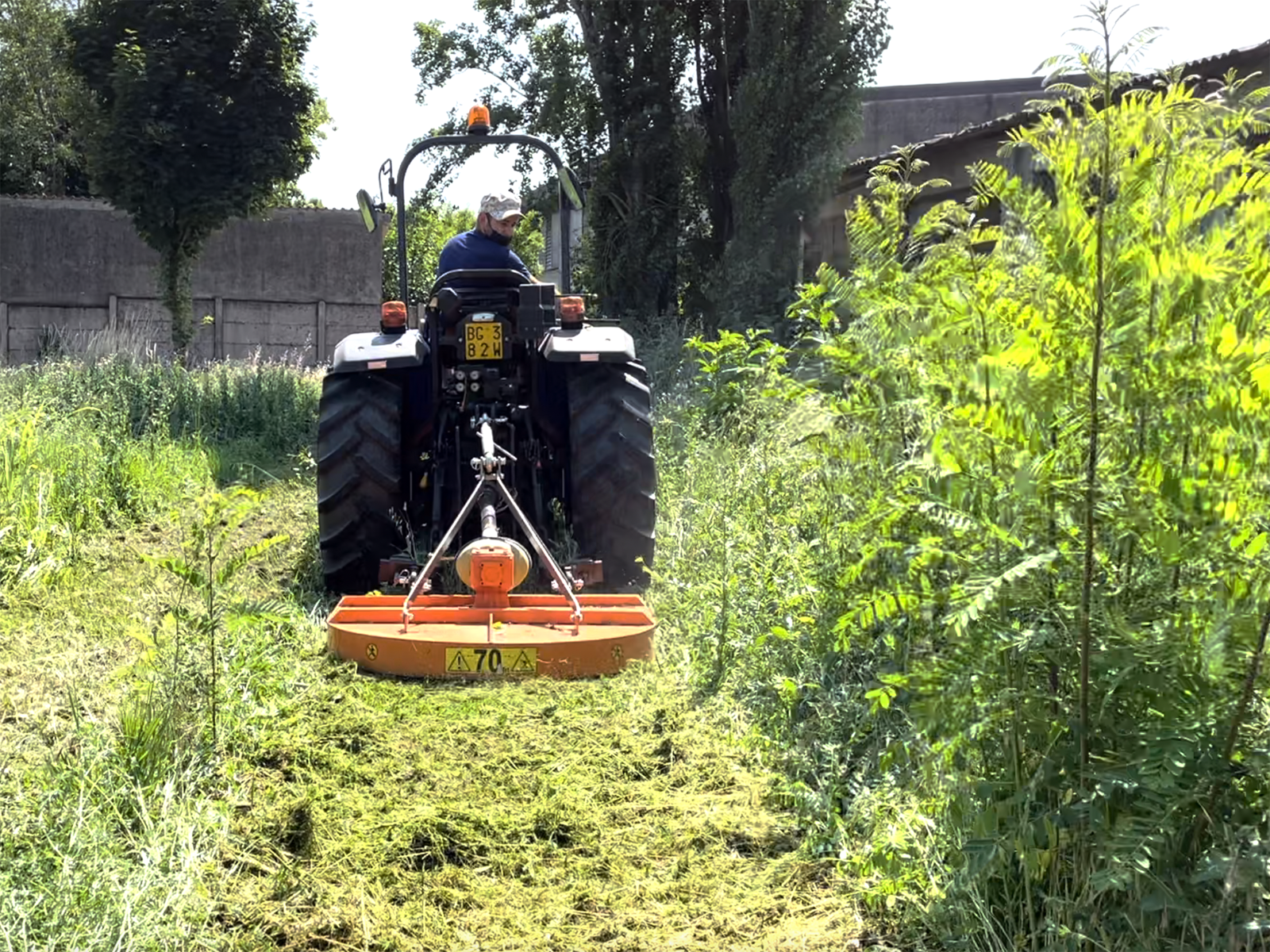

Field test
DETAILS

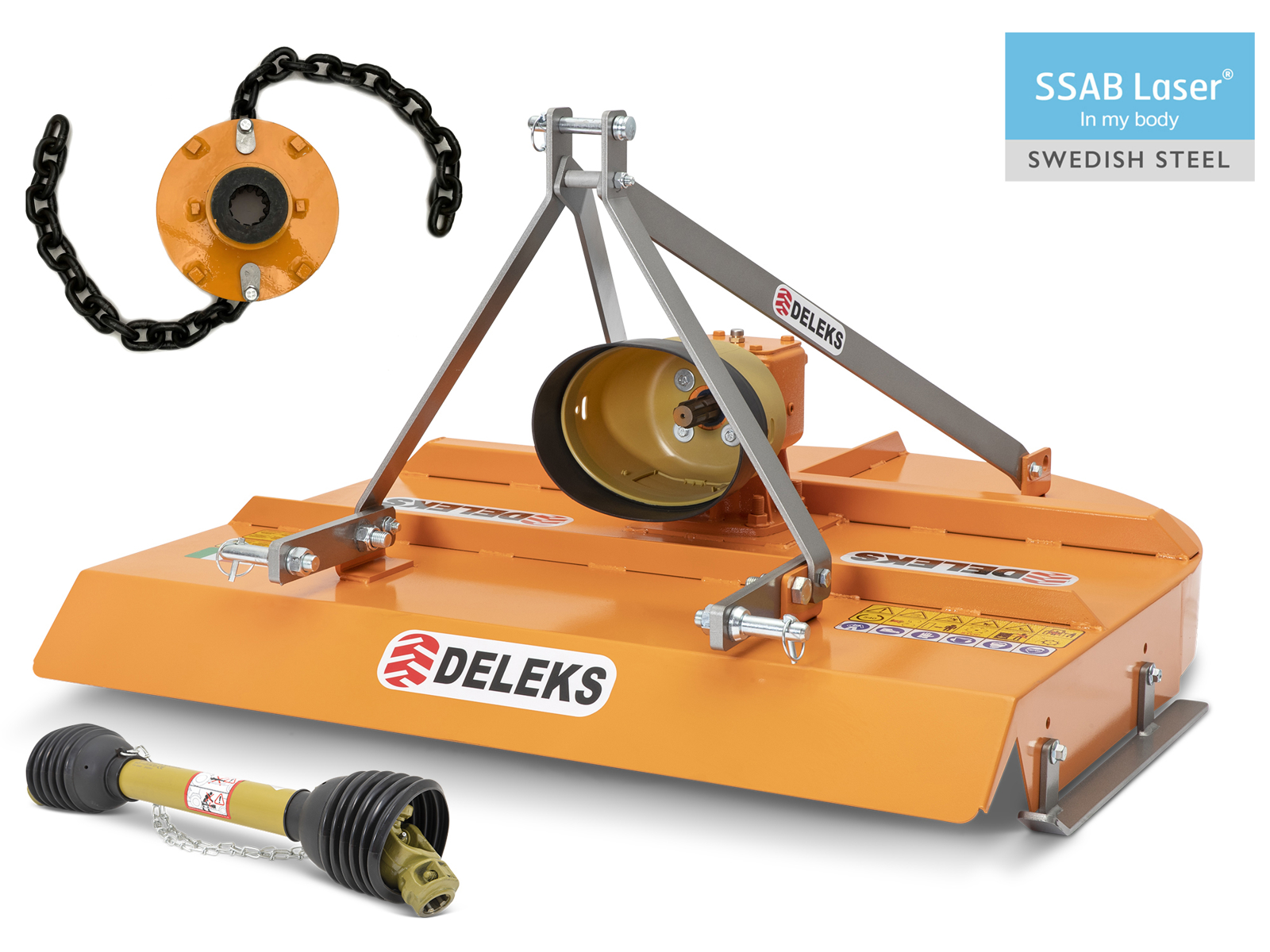

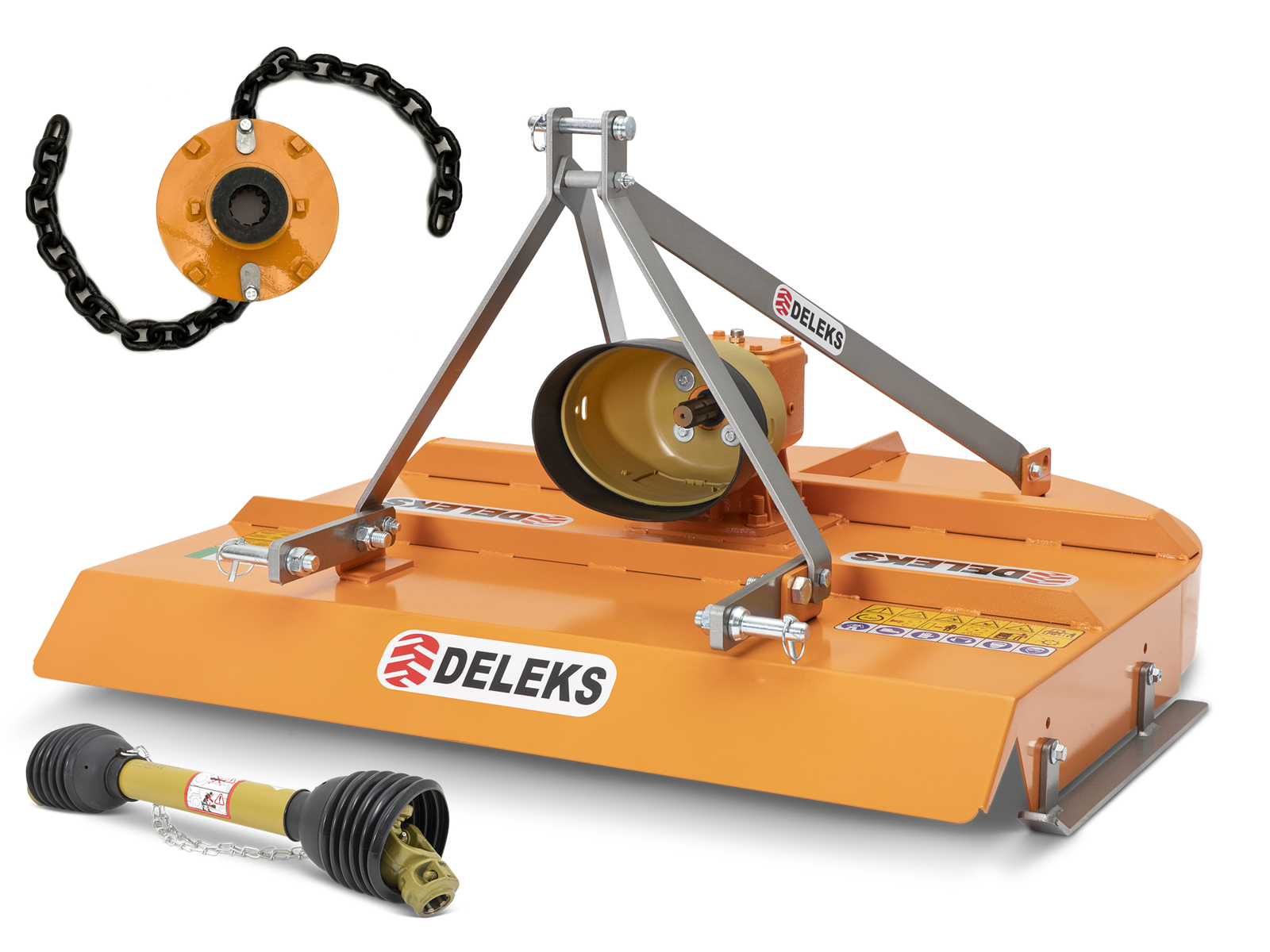

Chained Rotary Cutter, Lawnmower for tractor - DELEKS® BUGGY-120C - Cardan shaft CE.
OVERVIEW
BUGGY-120C Chained Rotary Cutters are a quick and easy solution for clearing grass, weeds and light brush. BUGGY fits all standard compact tractors 25-75 hp e.g Kubota, Ford, John Deere, etc. Ideal for uncultivated areas with branches and bushes; areas with stones and rough areas.
BENEFITS AND FEATURES

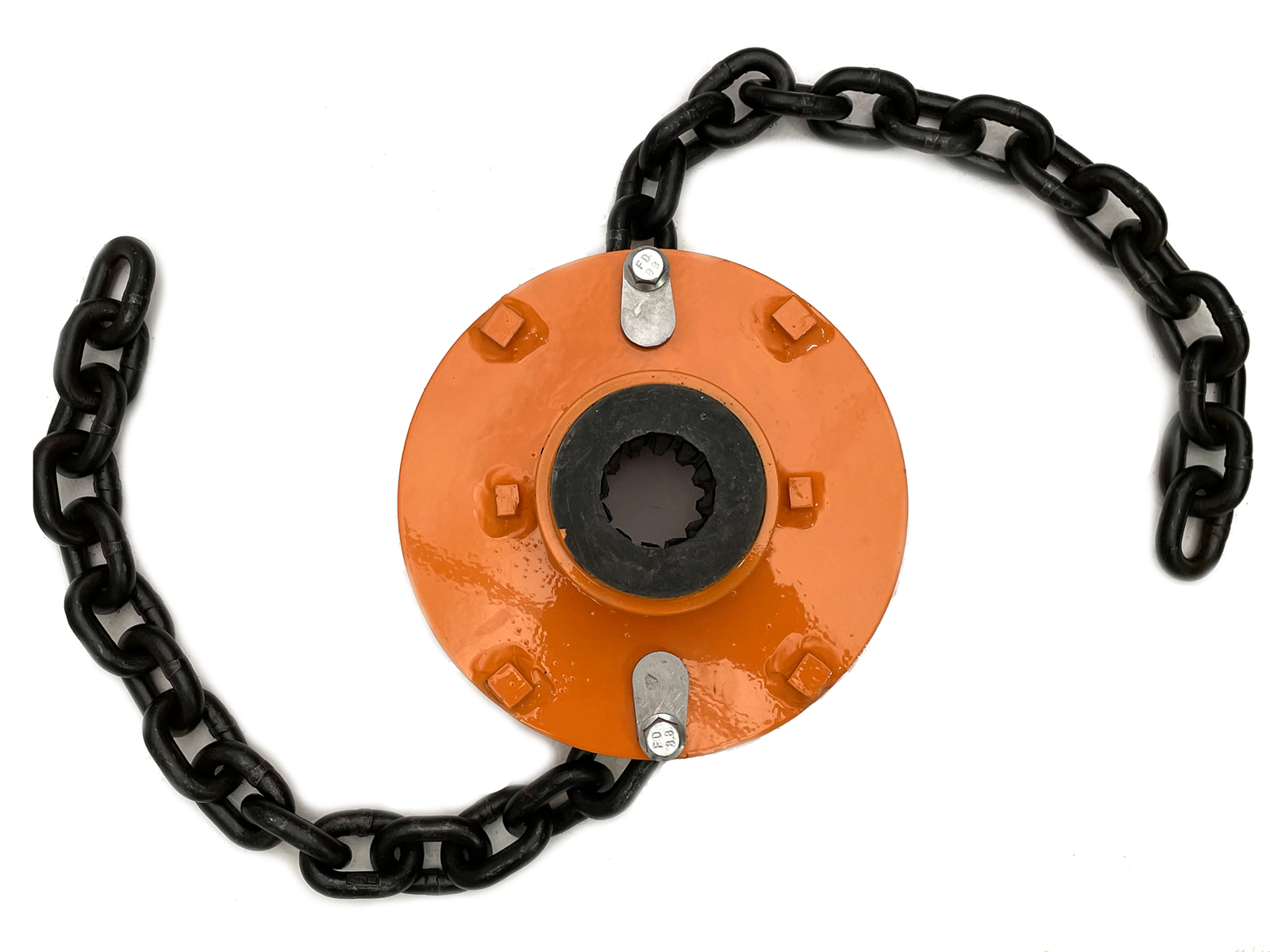

2 Chains: tempered steel grade 80 mm. 10X30
Cardan shaft CE.
Small footprint that allows cutting even near the edges.
Suitable also for reversible usage: by reversing the 3-point attachment and the multiplier, it is possible to mount it frontally.
Adjustable slides to adjust the cutting height.
Extremely robust frame.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1170.0 mm |
| Overall width | 1260.0 mm |
| Min / Max cutting height | 10.0 - 60.0 mm |
| Weight | 130.0 kg |
| Overall height | 650.0 mm |
| Tractor Power Range | 25-75 Hp |
| 3 point linkage | Cat.1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 450.0-720.0 mm |
| Overall length | 1300.0 mm |
| Distance between pto attachment and ground | 340.0 mm |
| Main hood thickness | 3.0 mm |
| Transmission: Drive method | Gear |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (Italy) (3 years warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Pto shaft | CE 2x1000 mm |
| Packing sizes | 1270.0*1300.0*600.0 mm |
DETAILS
