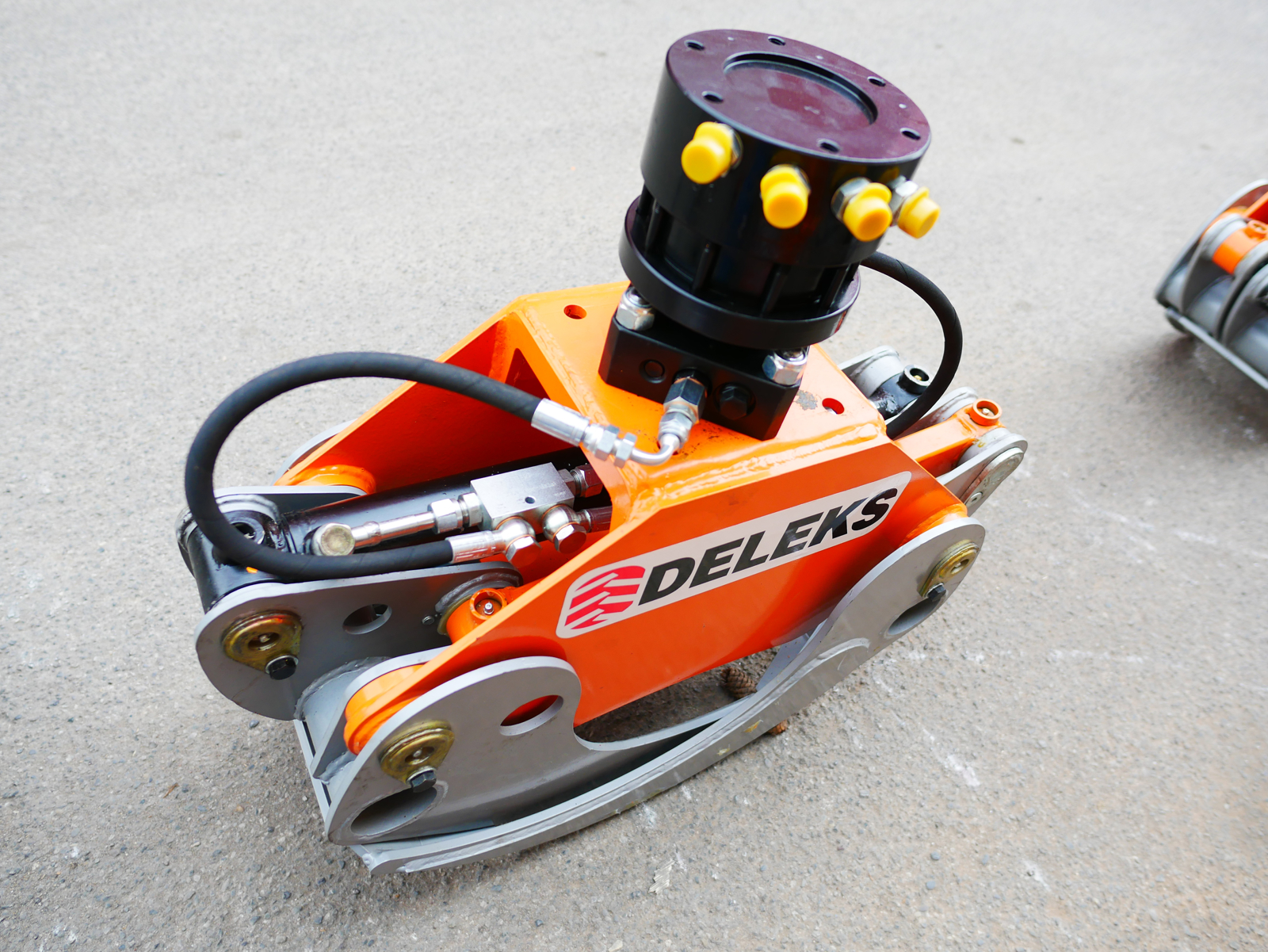

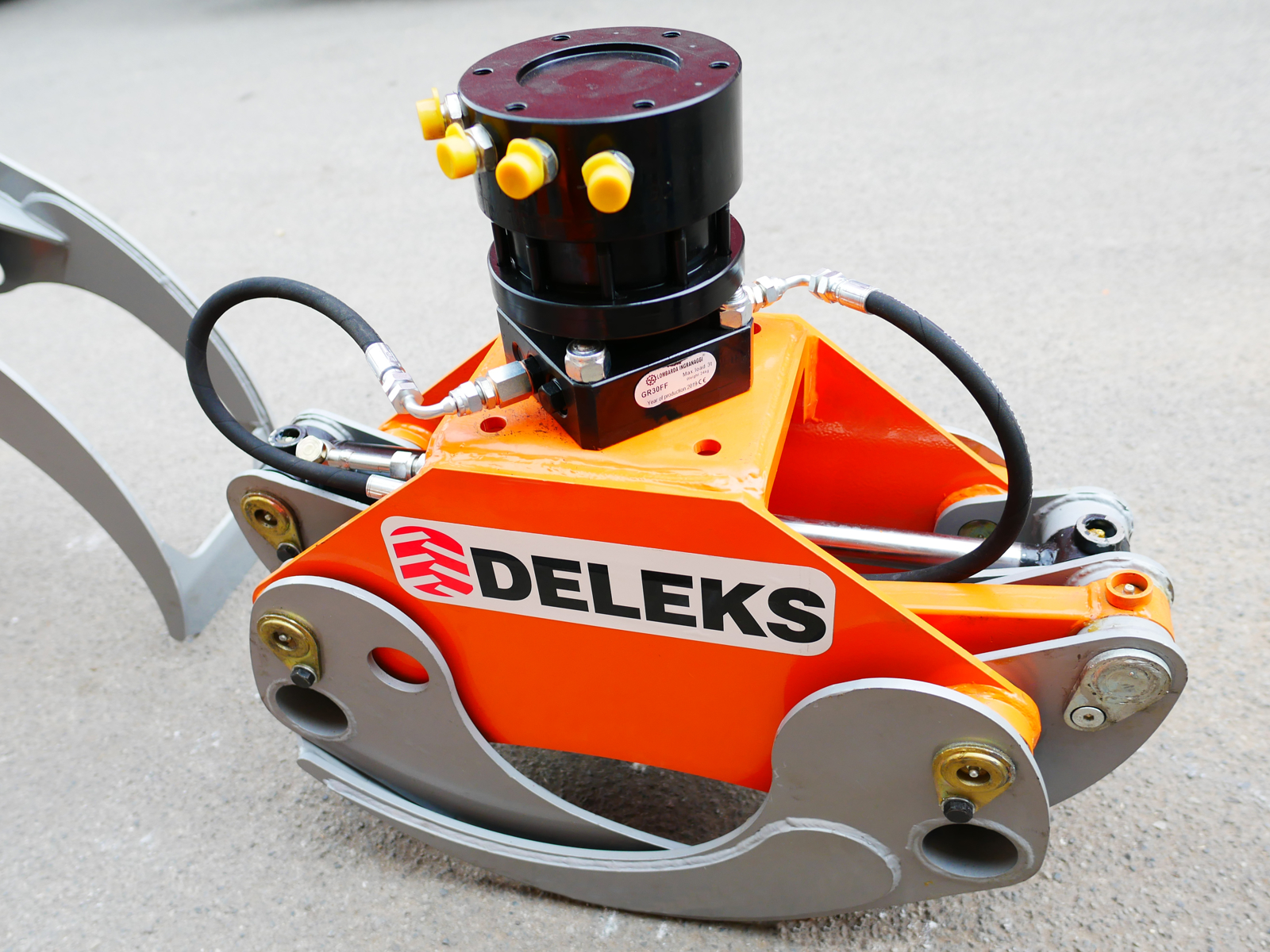

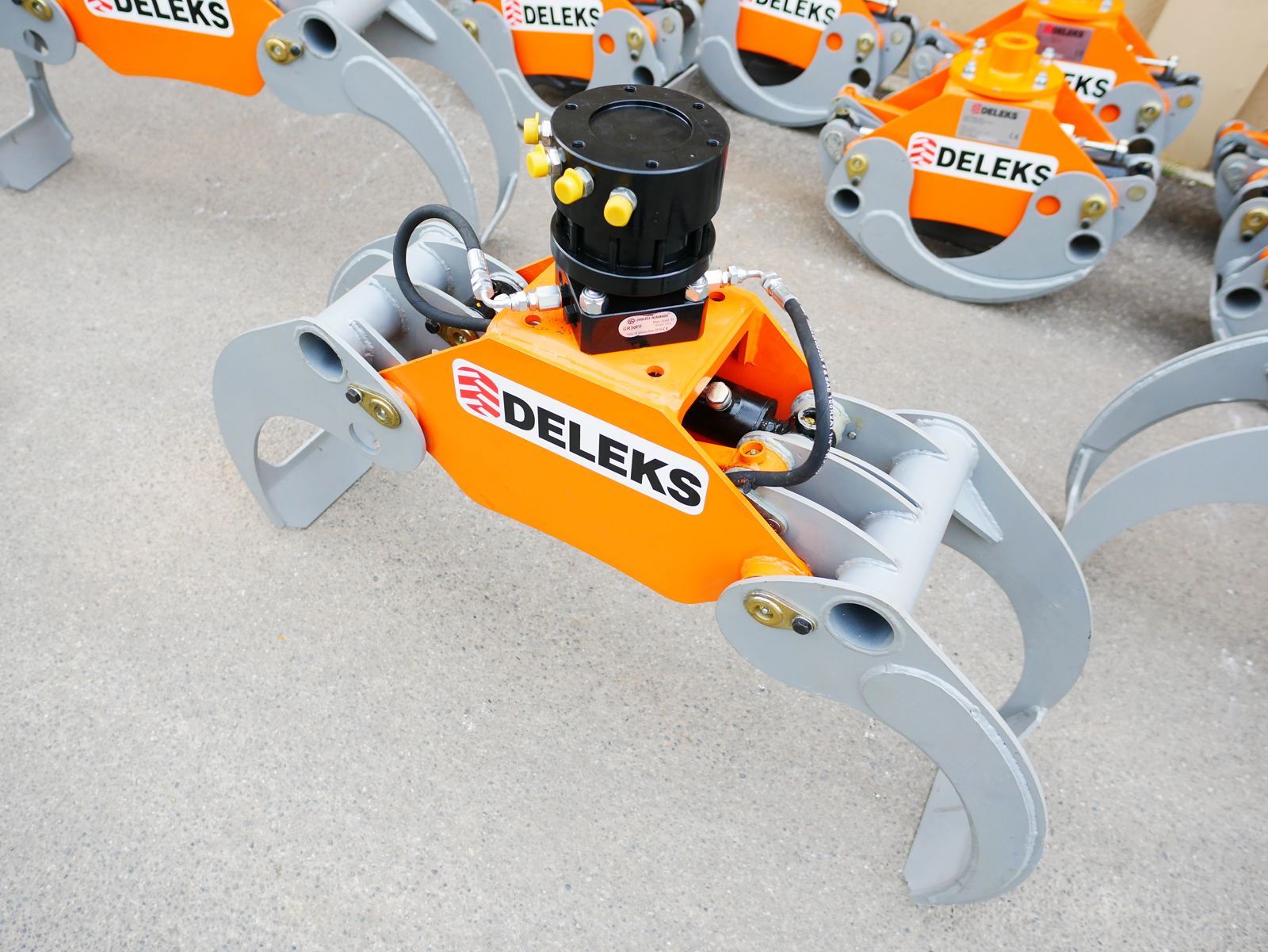

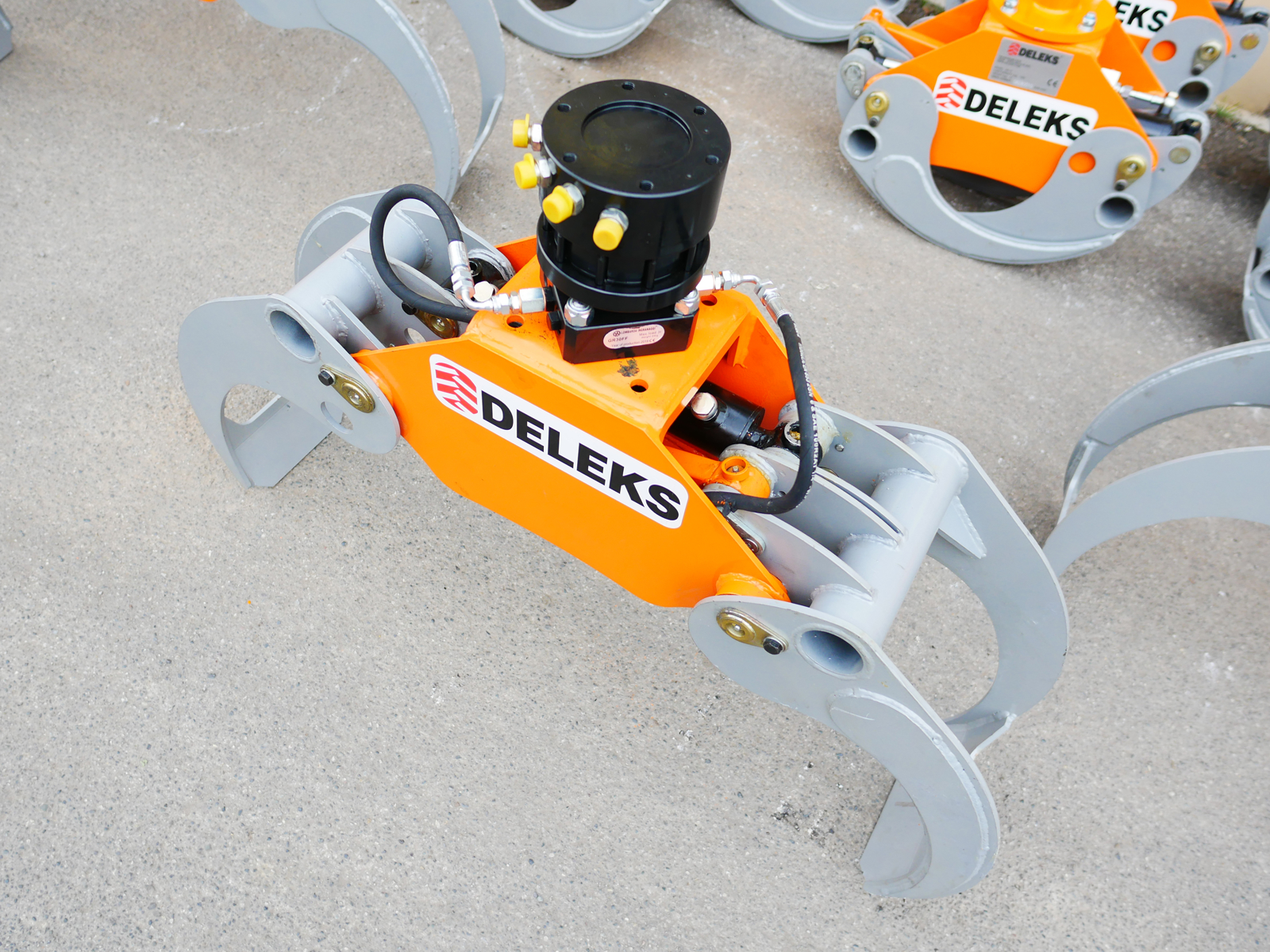

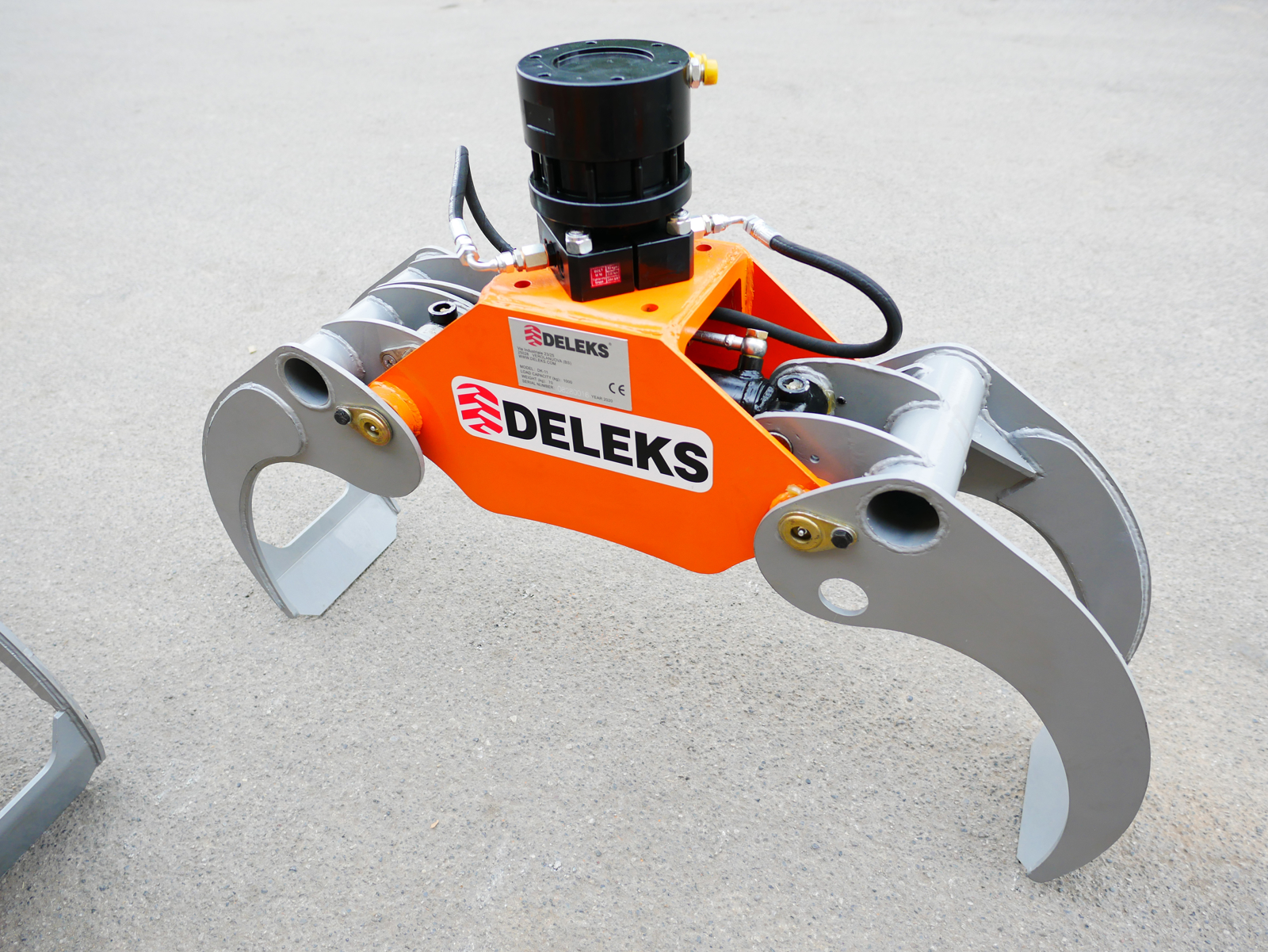

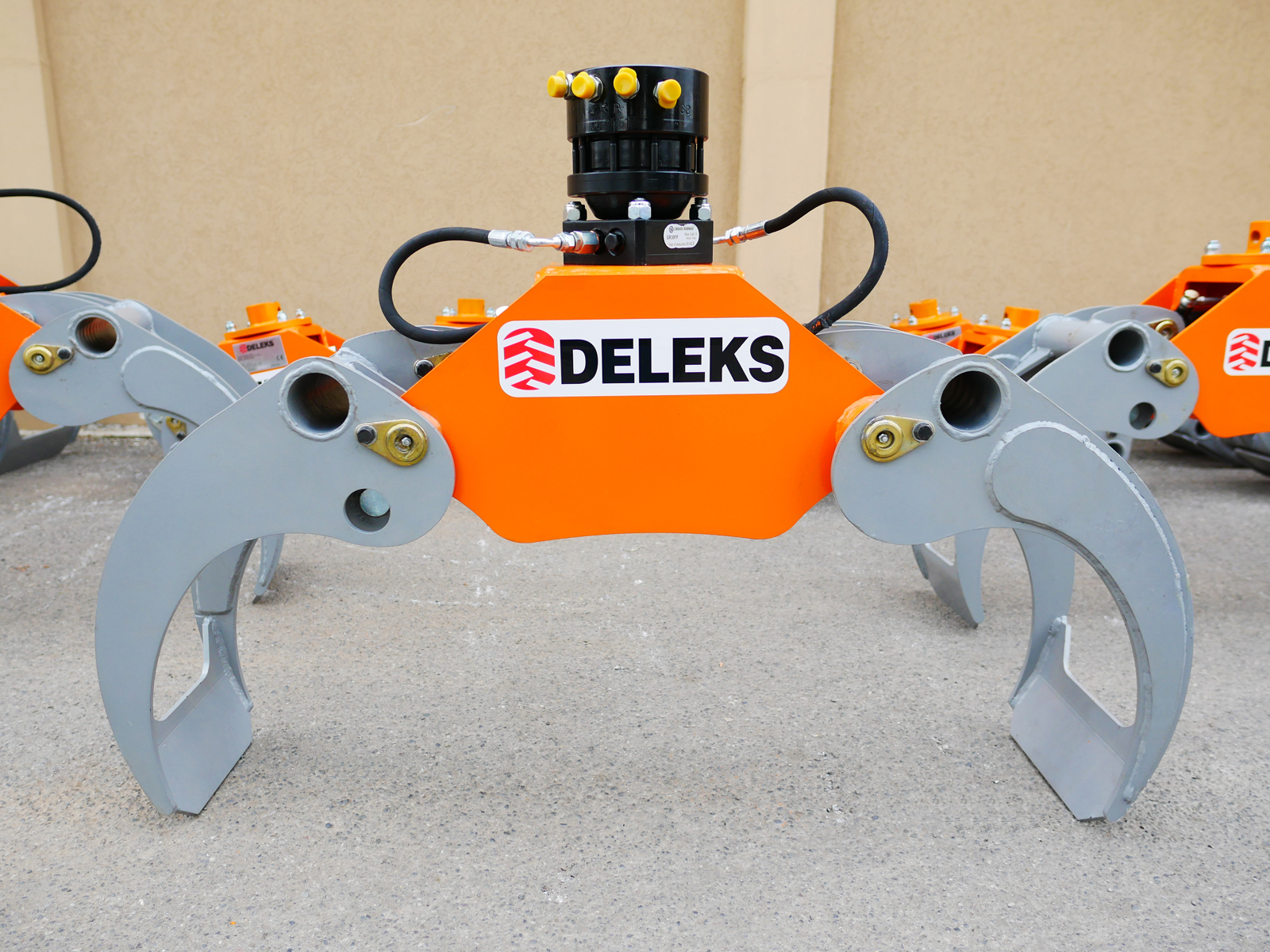

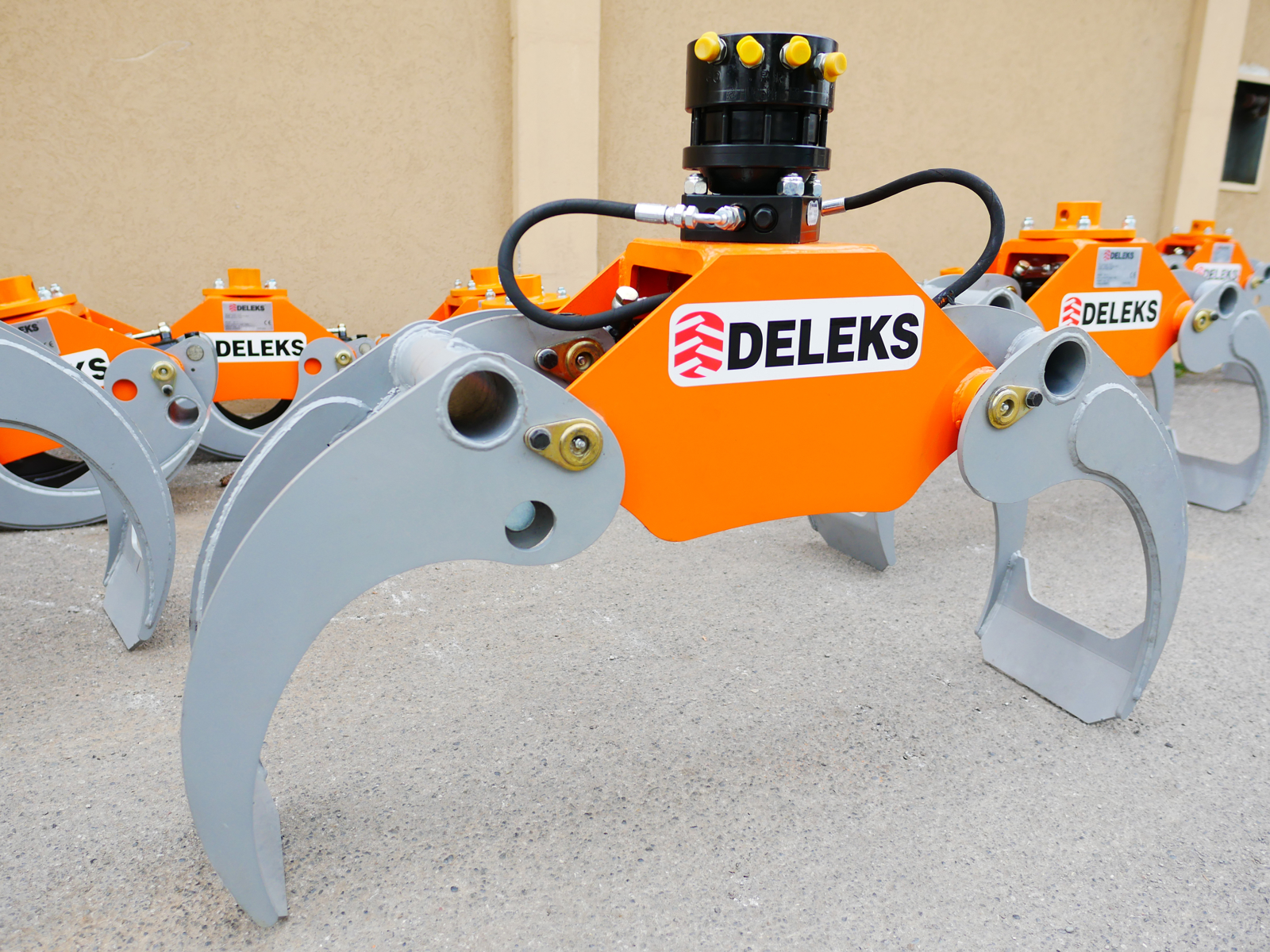

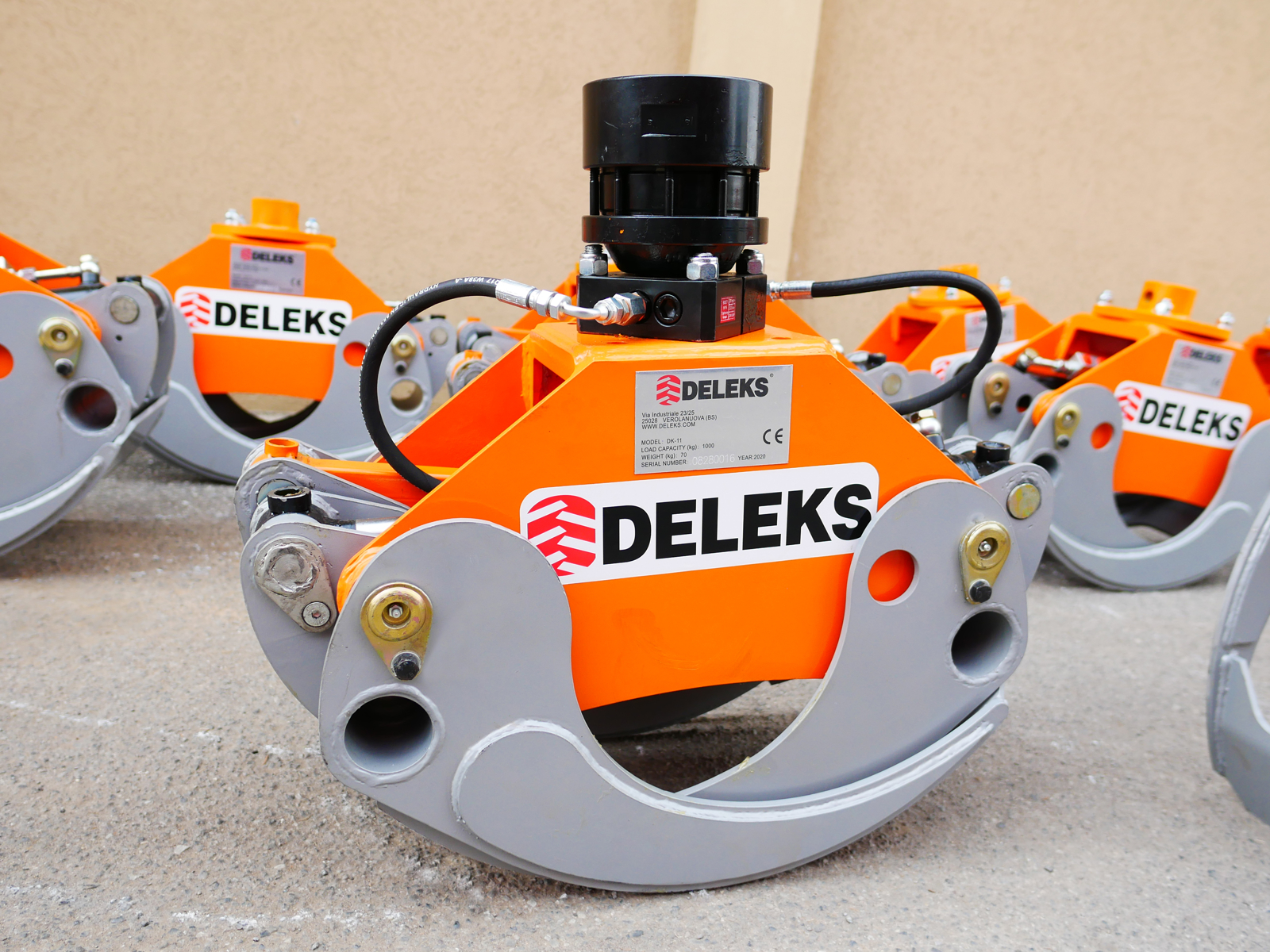

Log grapple for mini excavators with fixed rotator for quick linkage DK-11 + GR-30FF
DETAILS

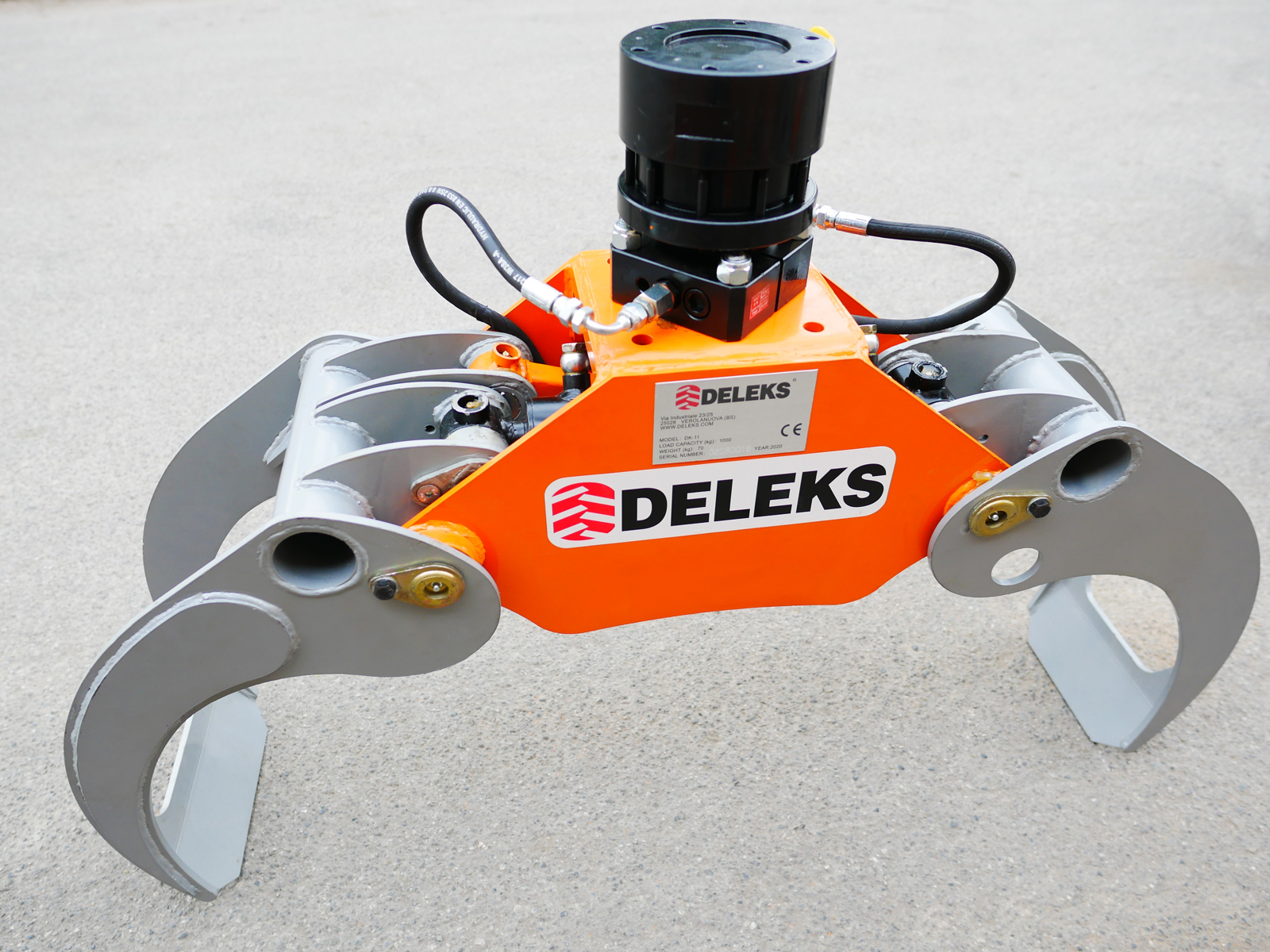

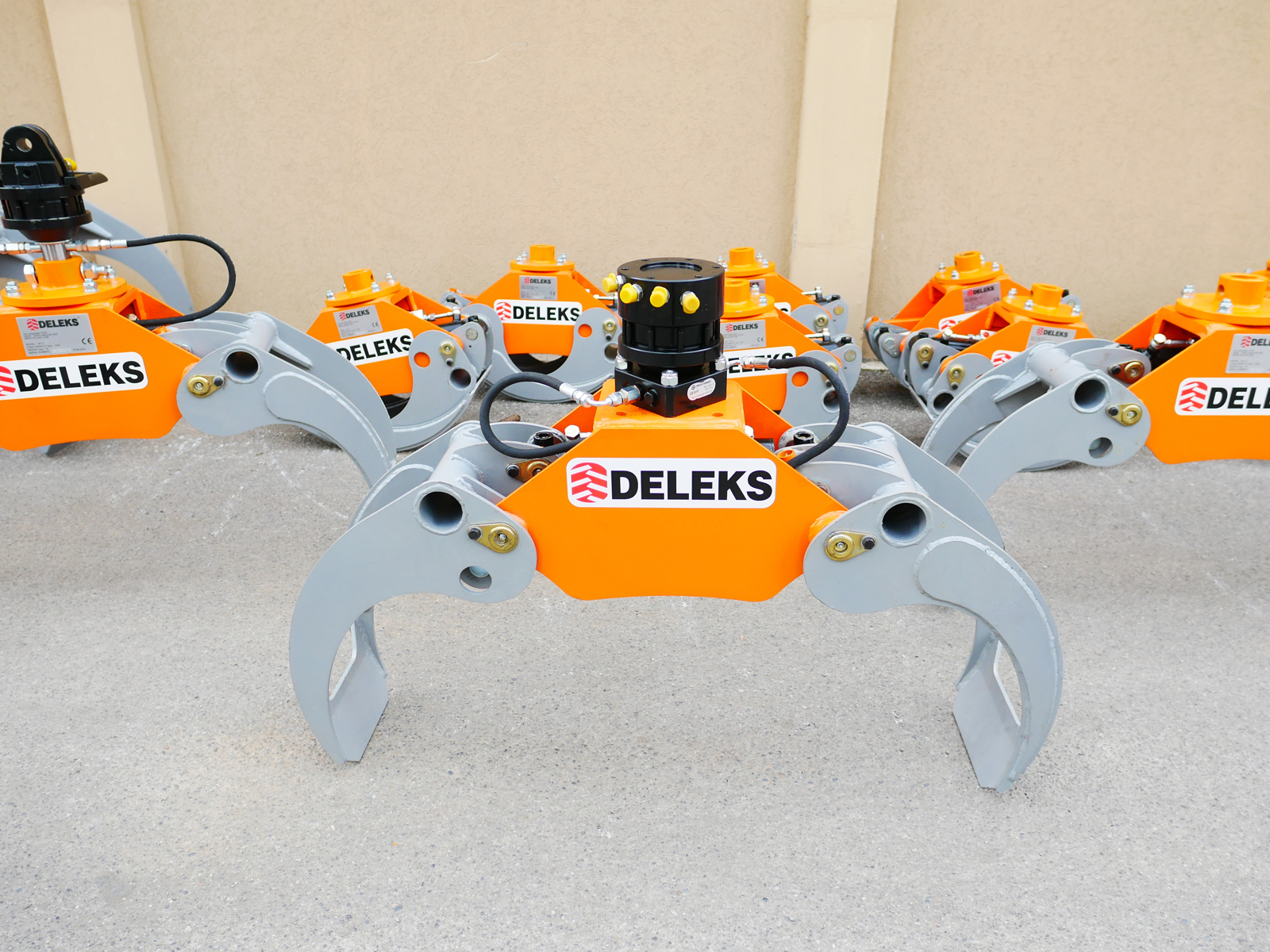

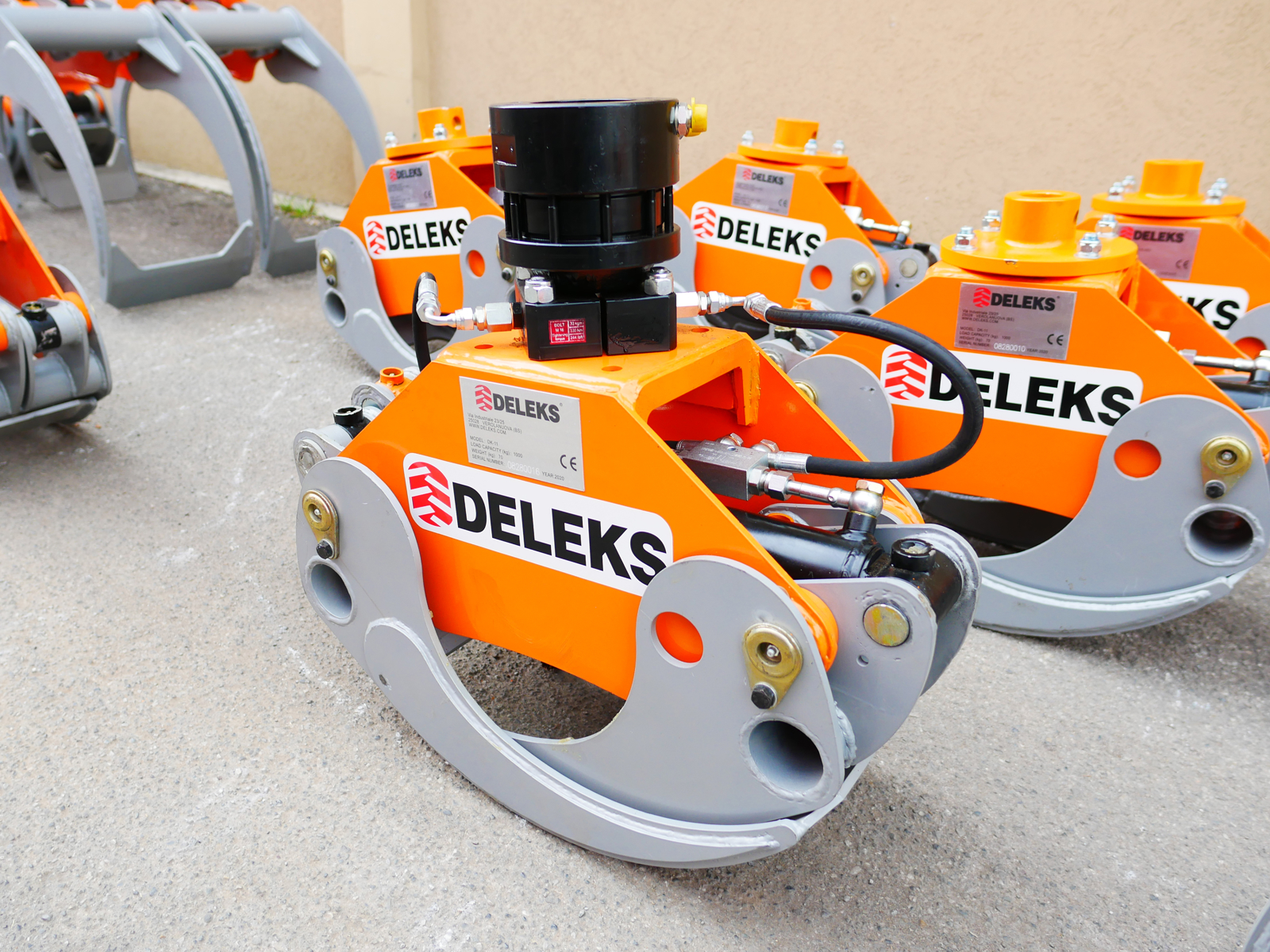

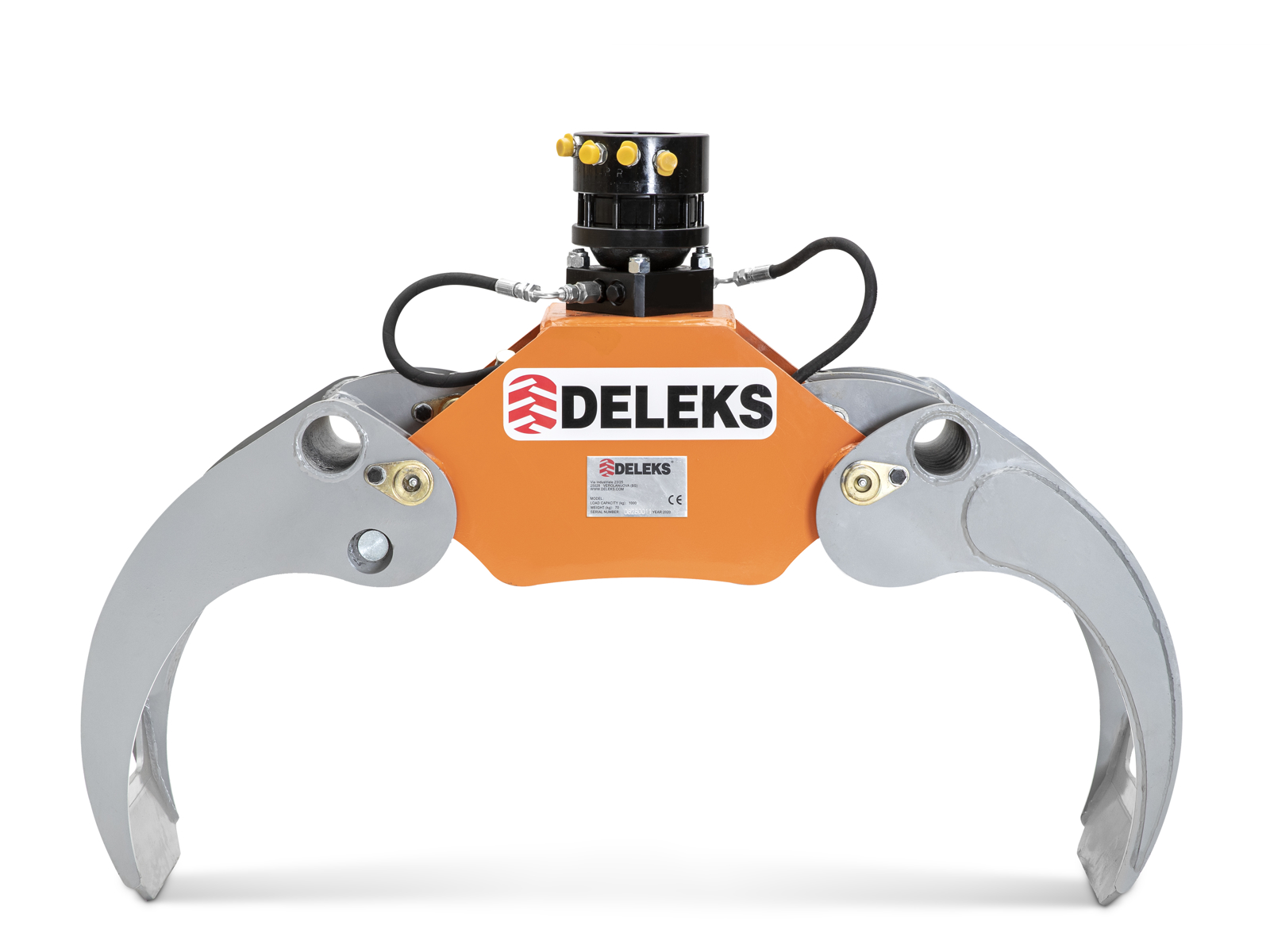

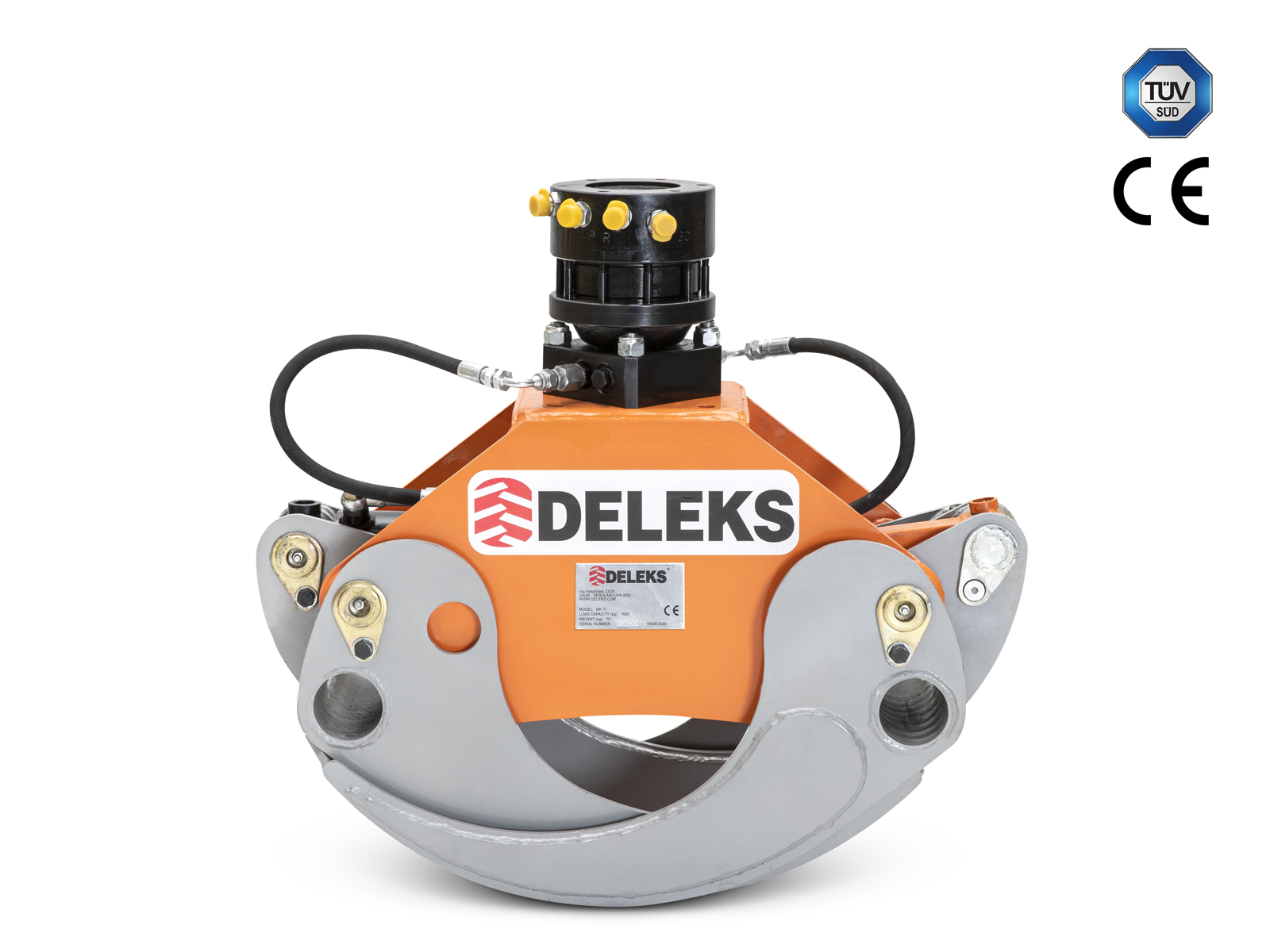

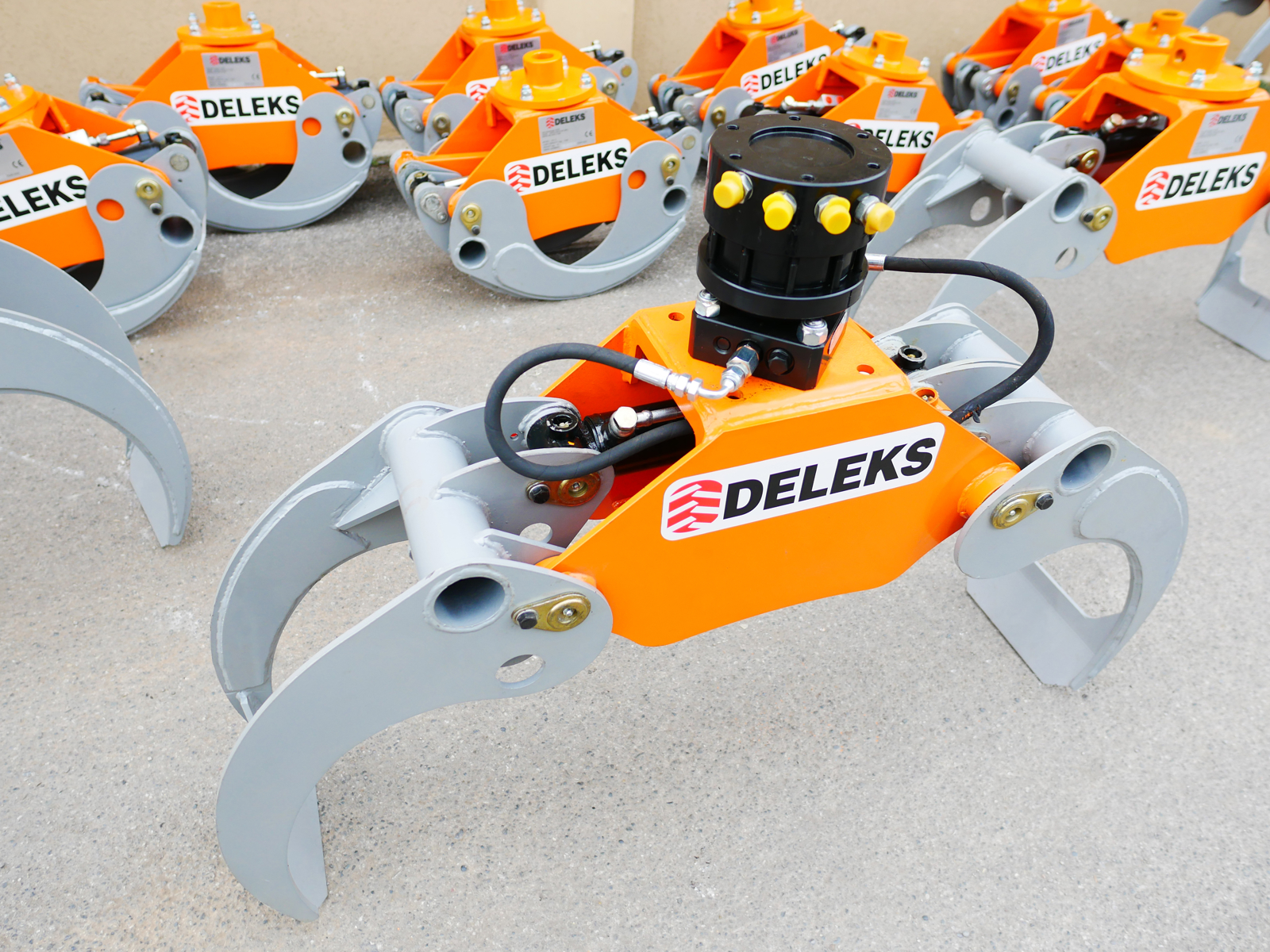

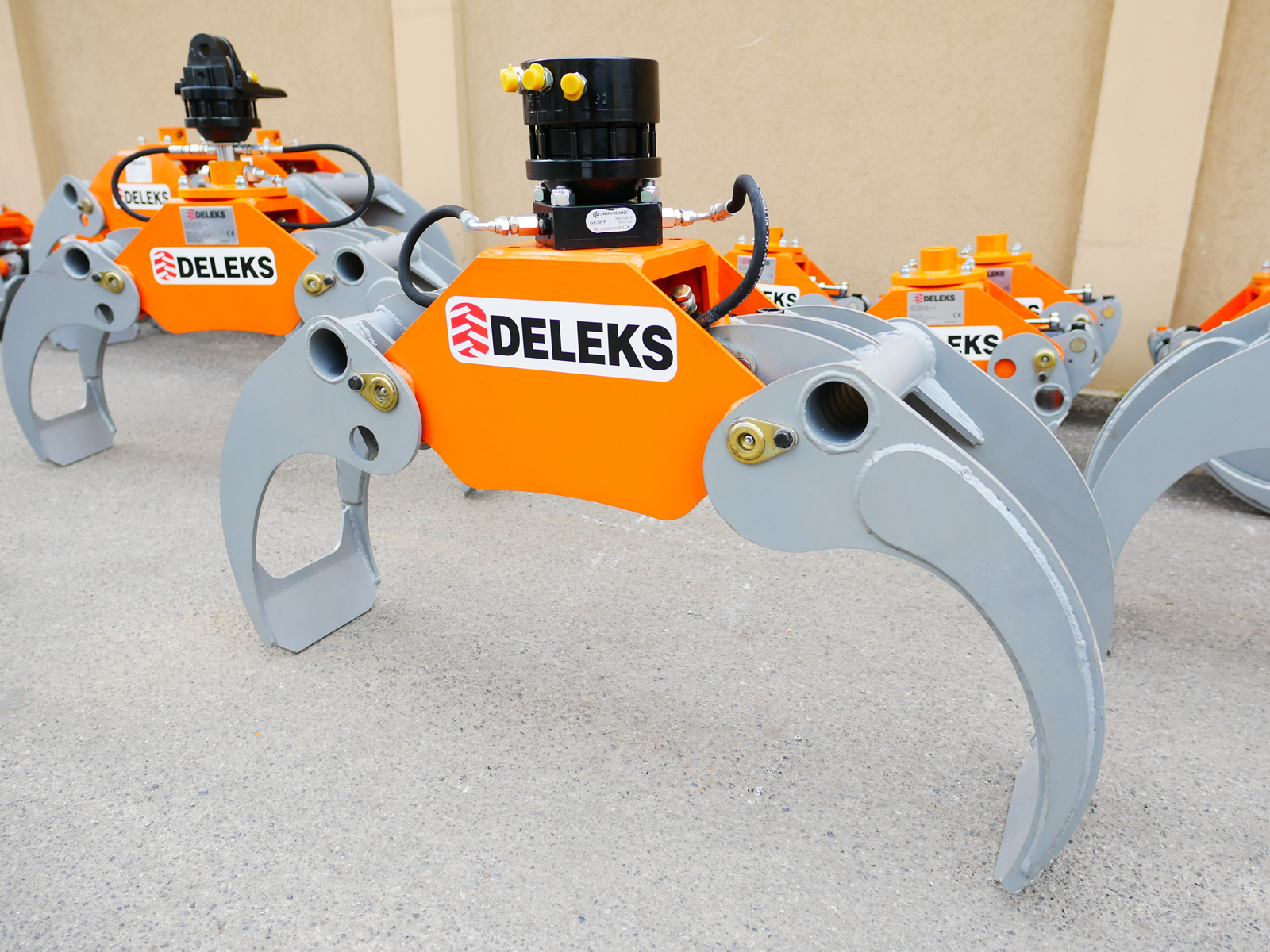

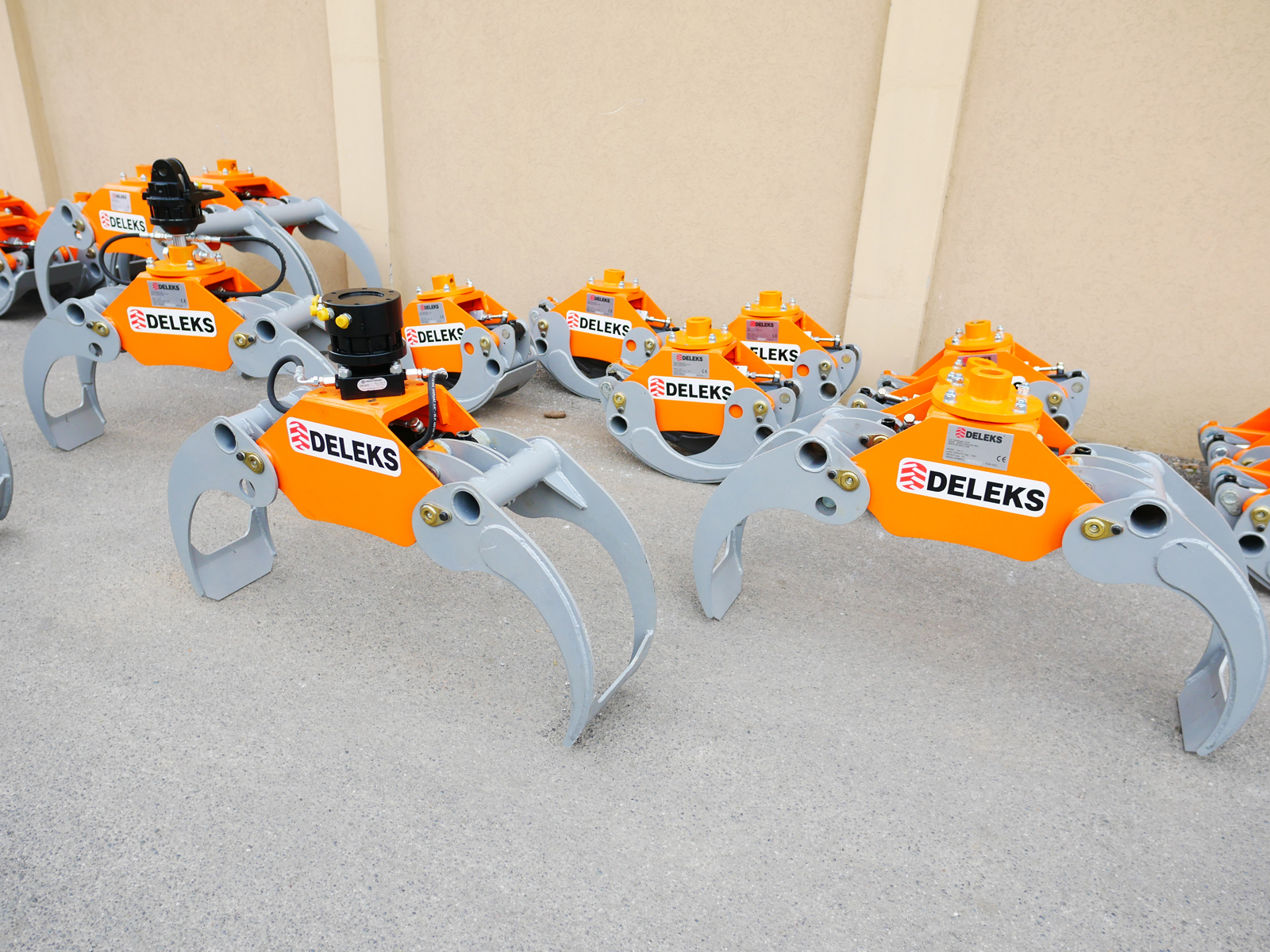

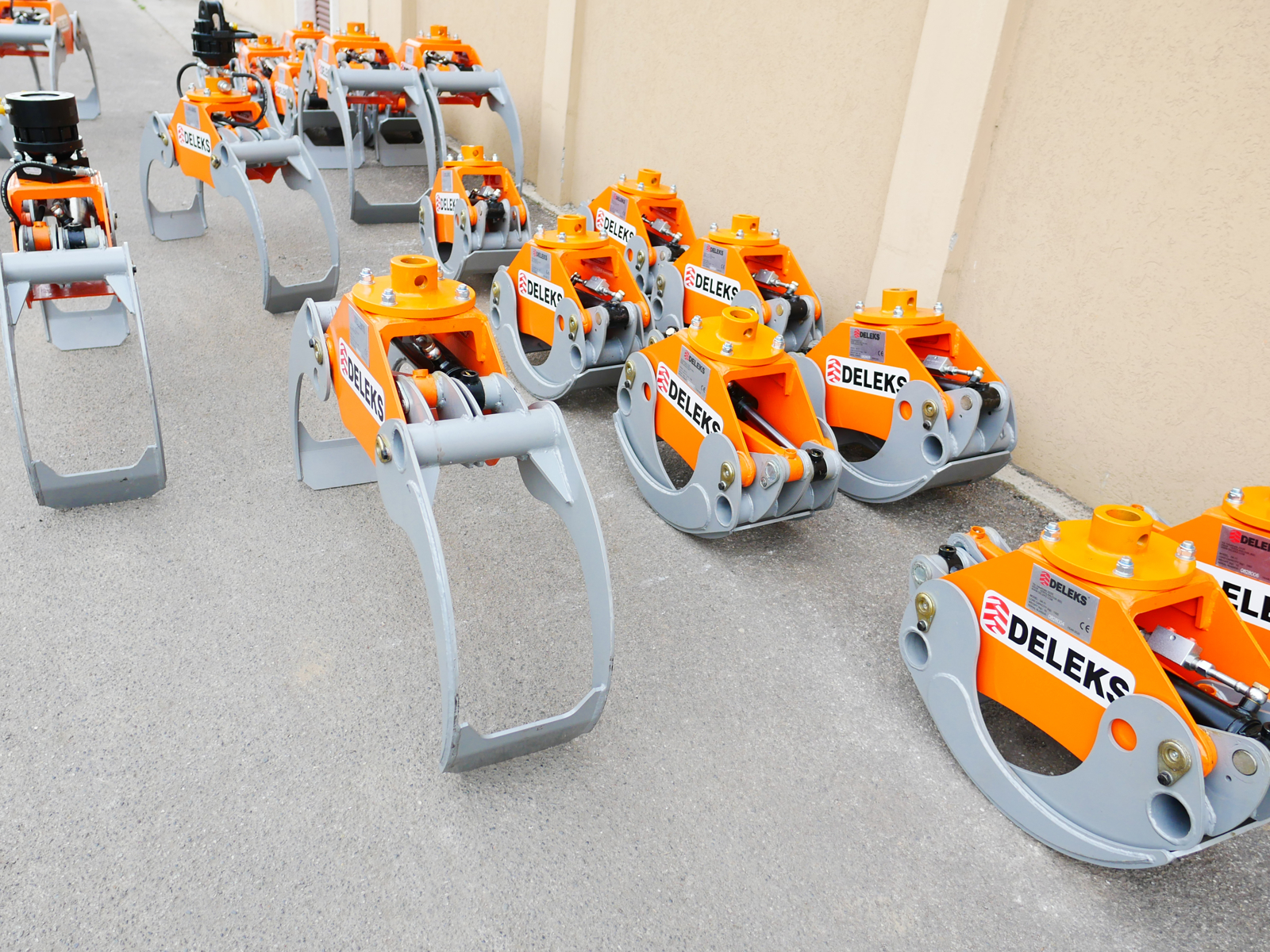

Log Grapple for Mini Diggers and Forest Cranes 1.8 – 3.5 Ton - DELEKS® DK-11C + Flanged Lombarda Ingranaggi Rotator.
OVERVIEW
Perfect for carrying logs and timber around your farm or park.
Maximum load 1000.0 kg.
Gripping area: 0.16m2
Gripping force: 6.2KN
Fits all mini diggers/excavators e.g Bobcat, Case, Caterpillar, Ihimer, JCB, Komatzu, Yanmar, Hitachi.....

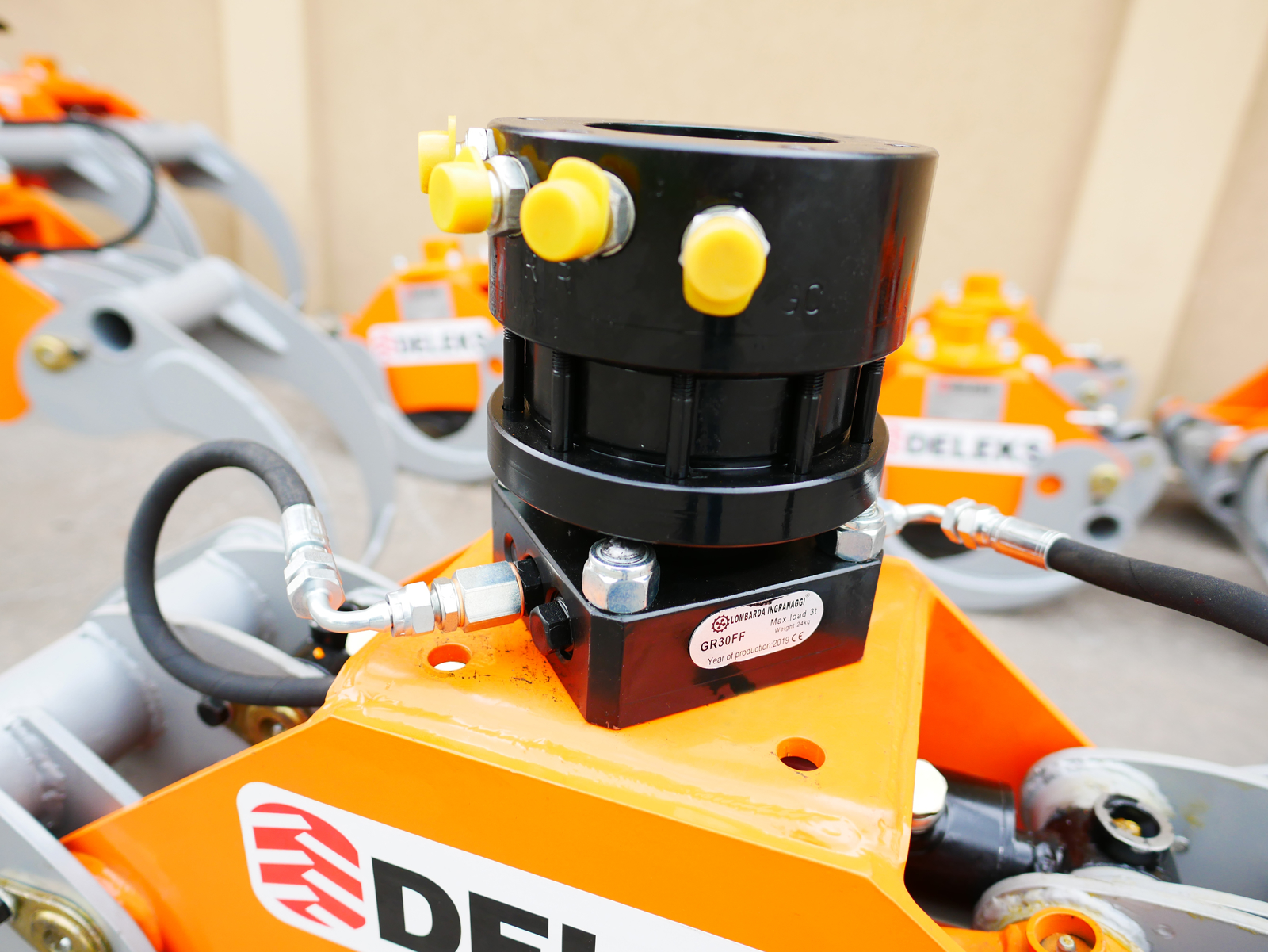

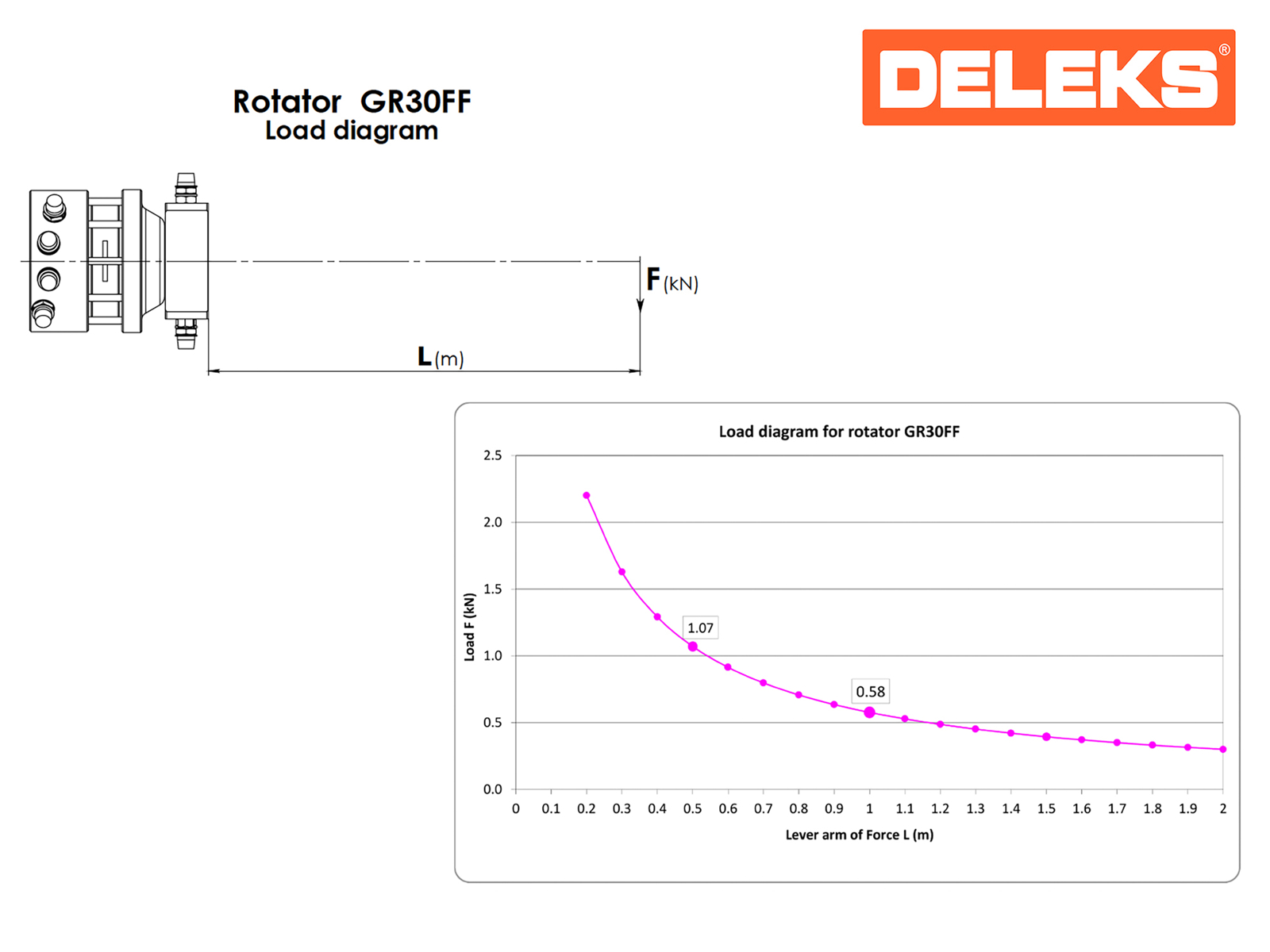

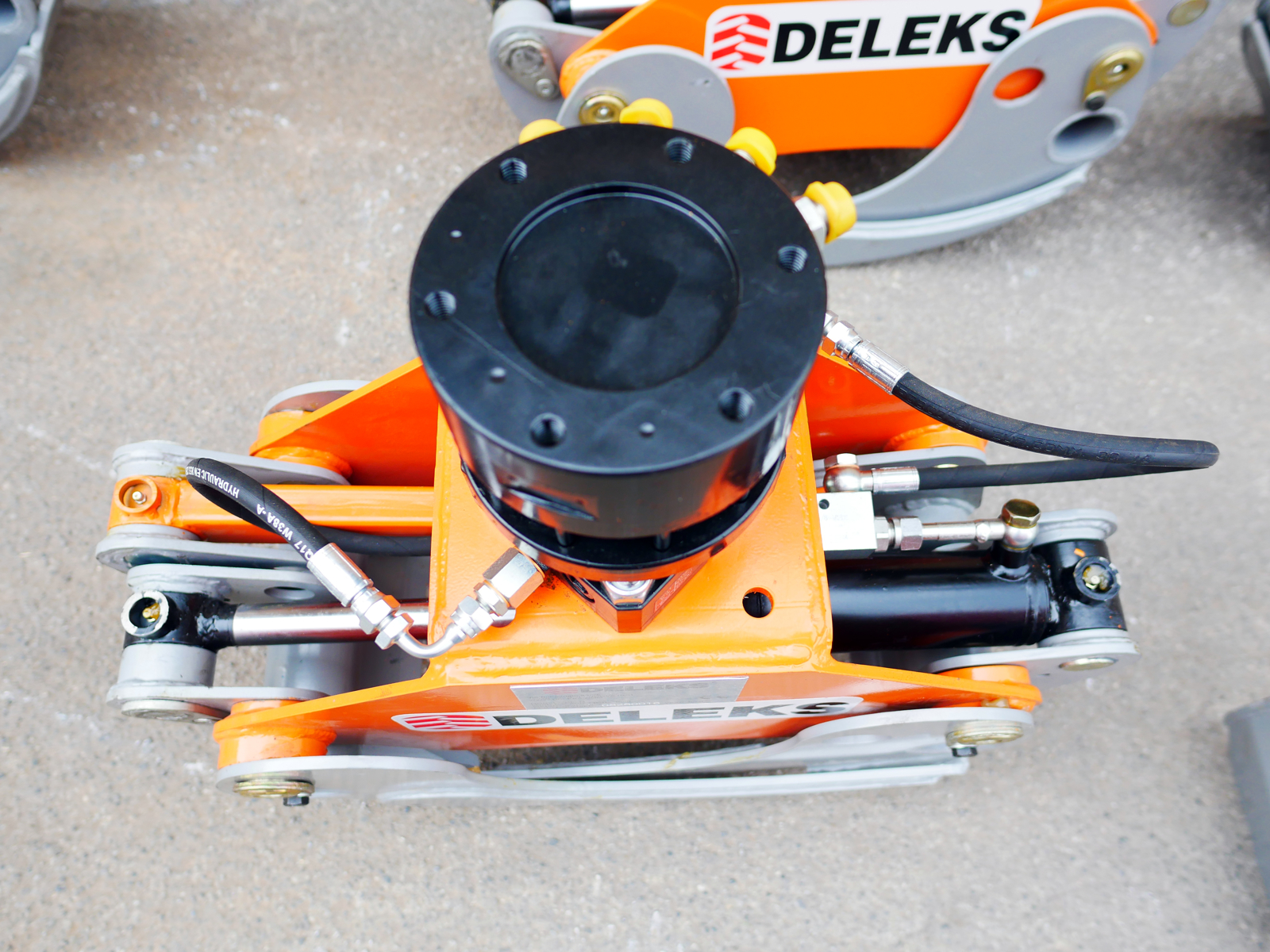

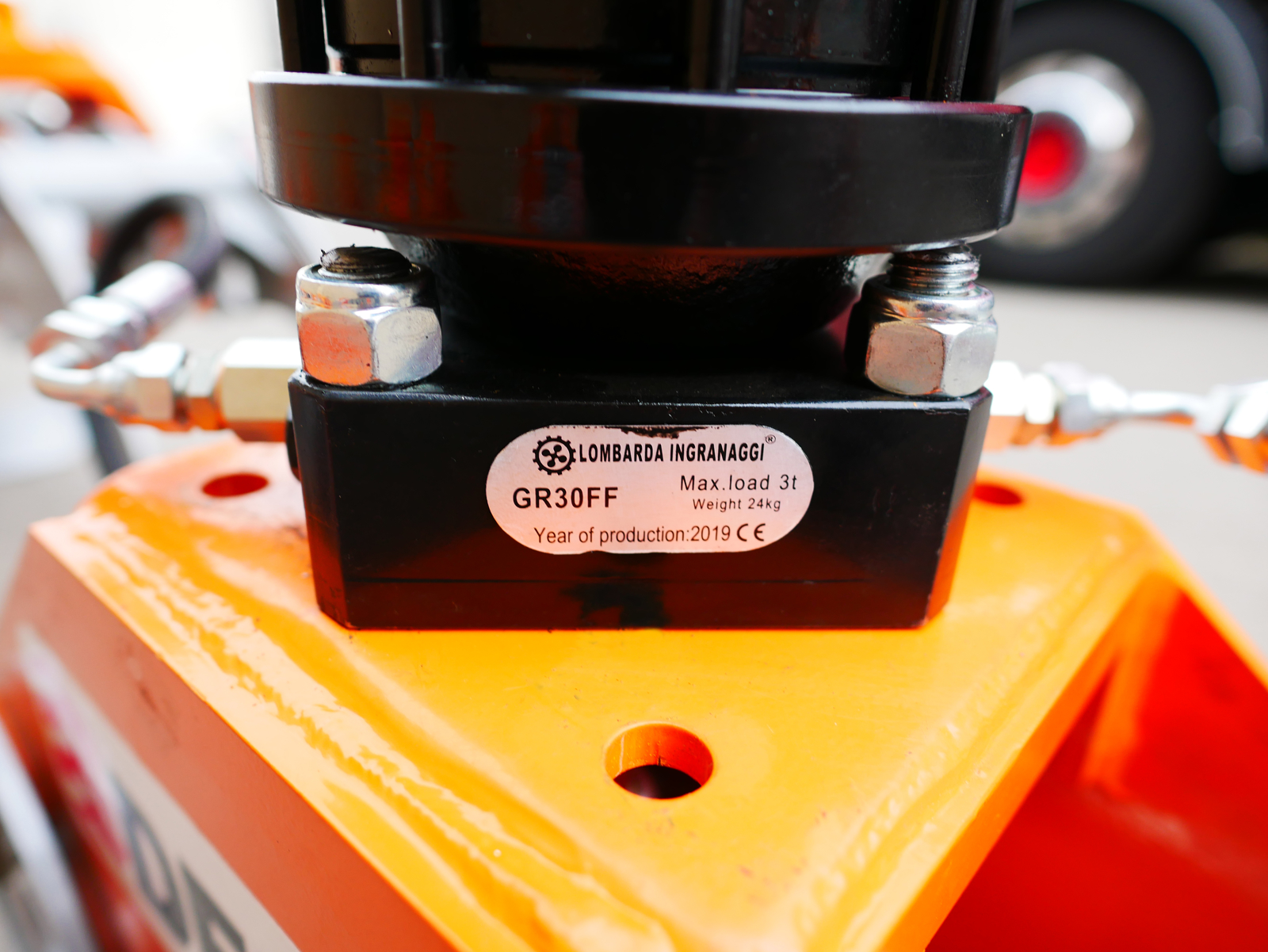

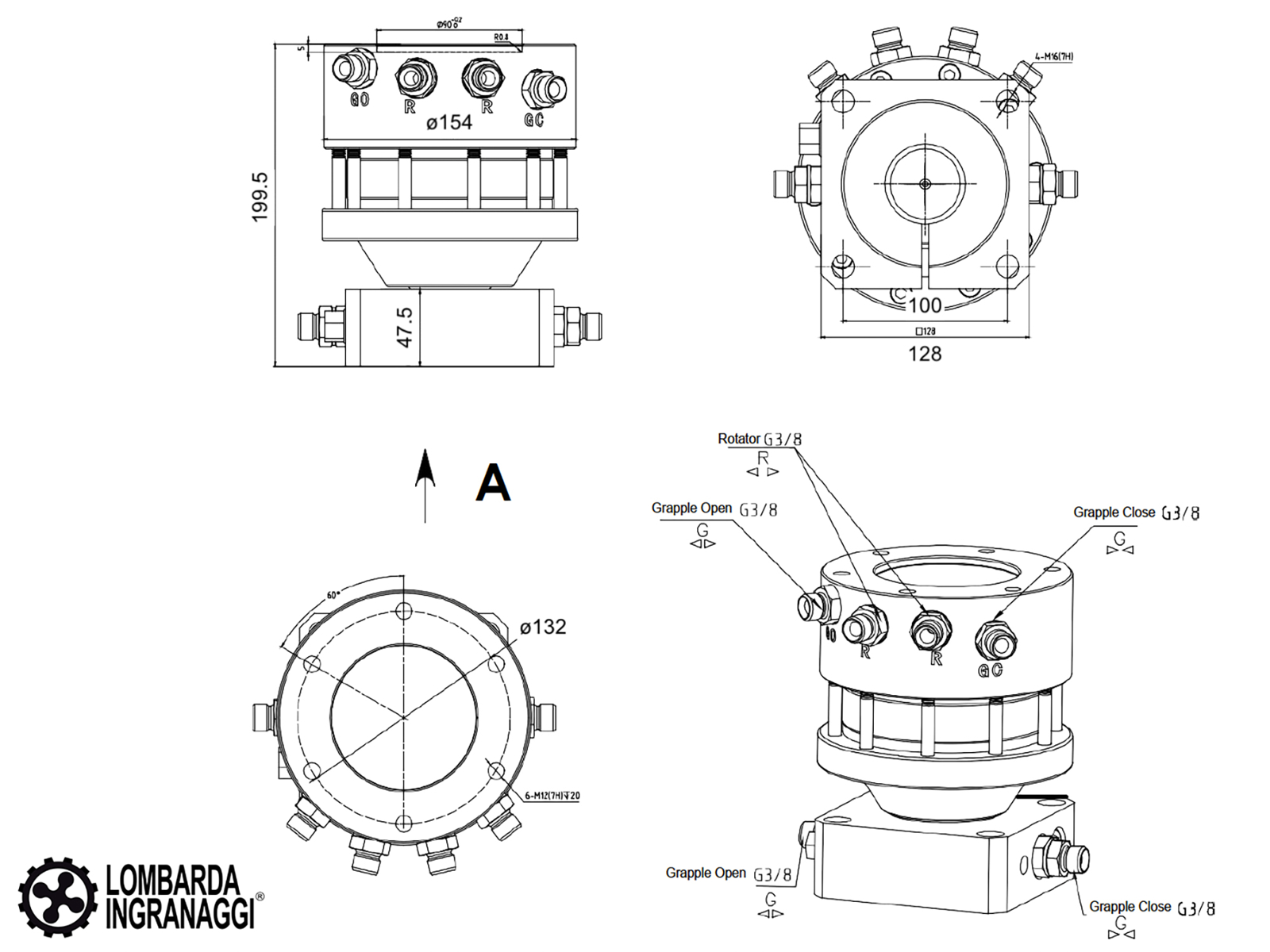

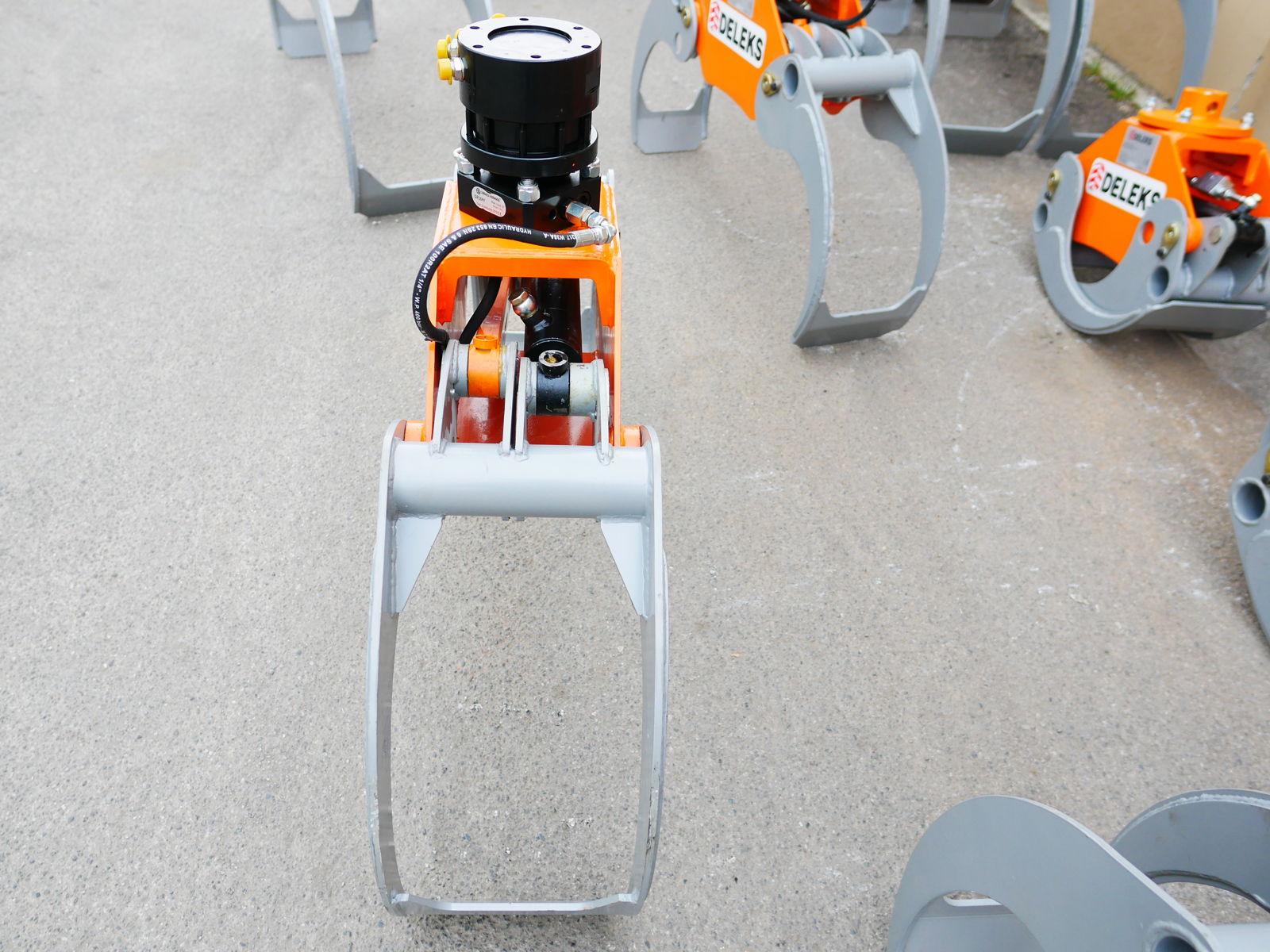

Rotator: Lombarda Ingranaggi's GR30FF rotators are powerful, reliable and robust. They are engineered to perform in heavy duty work environments with maximal efficiency and minimal unscheduled downtime as they have a loading capacity 3000kg. Grapple needs 4 hydraulic outlets to function or additionally, Rexroth Bosh electro-valve 6 ways (made in Germany), can be supplied to reduce the amount of outlets needed to two. EC Conformity, 2 Year Warranty.
BENEFITS & FEATURES
360º continuous rotation.
Flanged rotator.

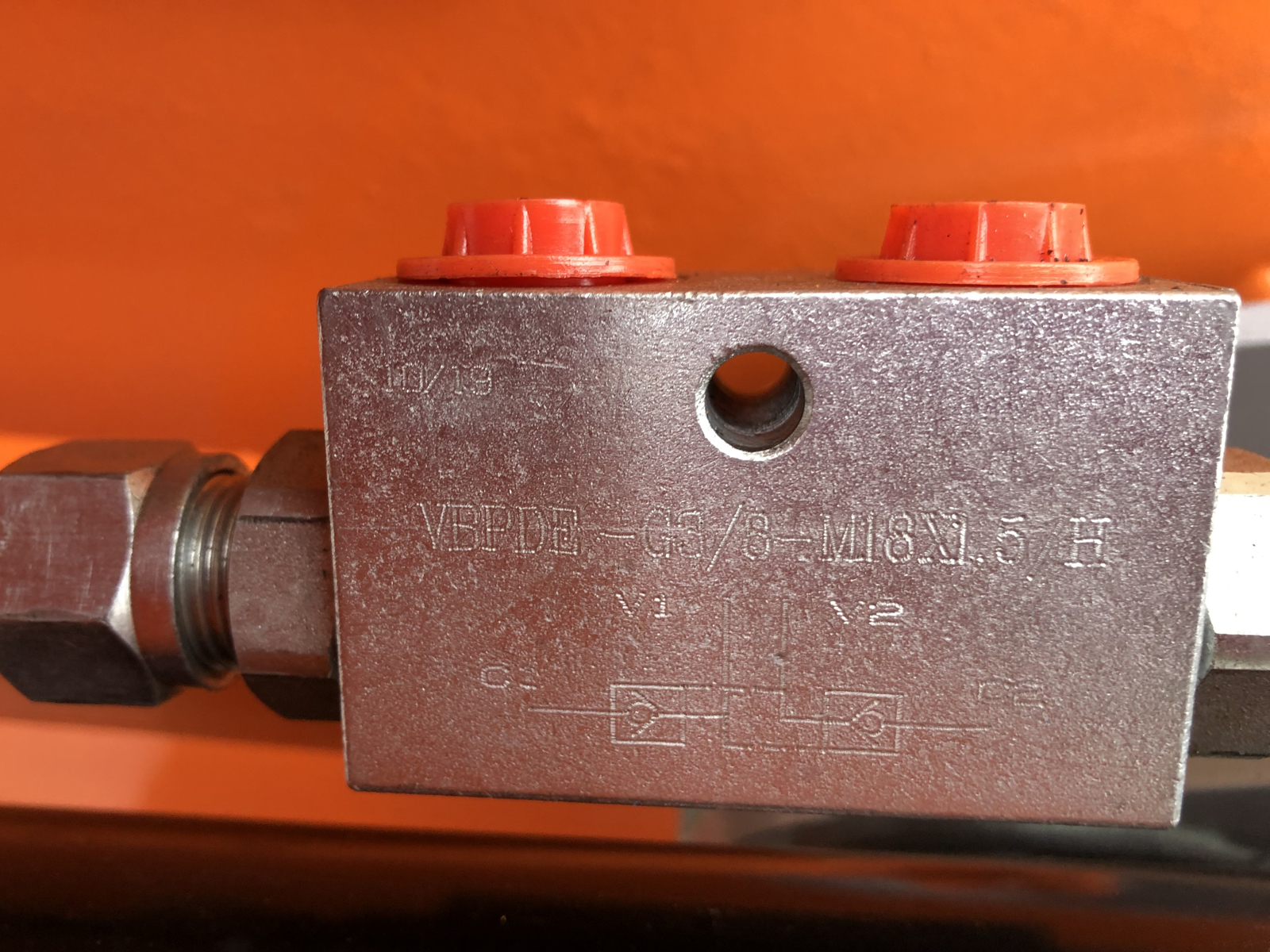

Shut-off valve on the hydraulic cylinder.
Solid steel bolts with bronze bushings.
Thanks to the DK11's unique design it grips timber, boulders or debris tightly.
Steel: code S355.
High tensile strength, reinforced grapple tines.
Optional: The Rexroth 6-ways electro-valve let the grapple work with only two outlets from the machine. By connecting the hydraulic pipes from the machine to the bucket cylinder you will get the four-way power required by the clamp rotor (rotating left and right - opening and closing). In order to function the valve must be connected i with a simple wire to a power source 12 volts, it is possible for example to connect to the horn and then use the key on the lever to select rotation or opening. Hydraulic pipes are not included.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 103.0 kg |
| Load capacity | 1000.0 kg |

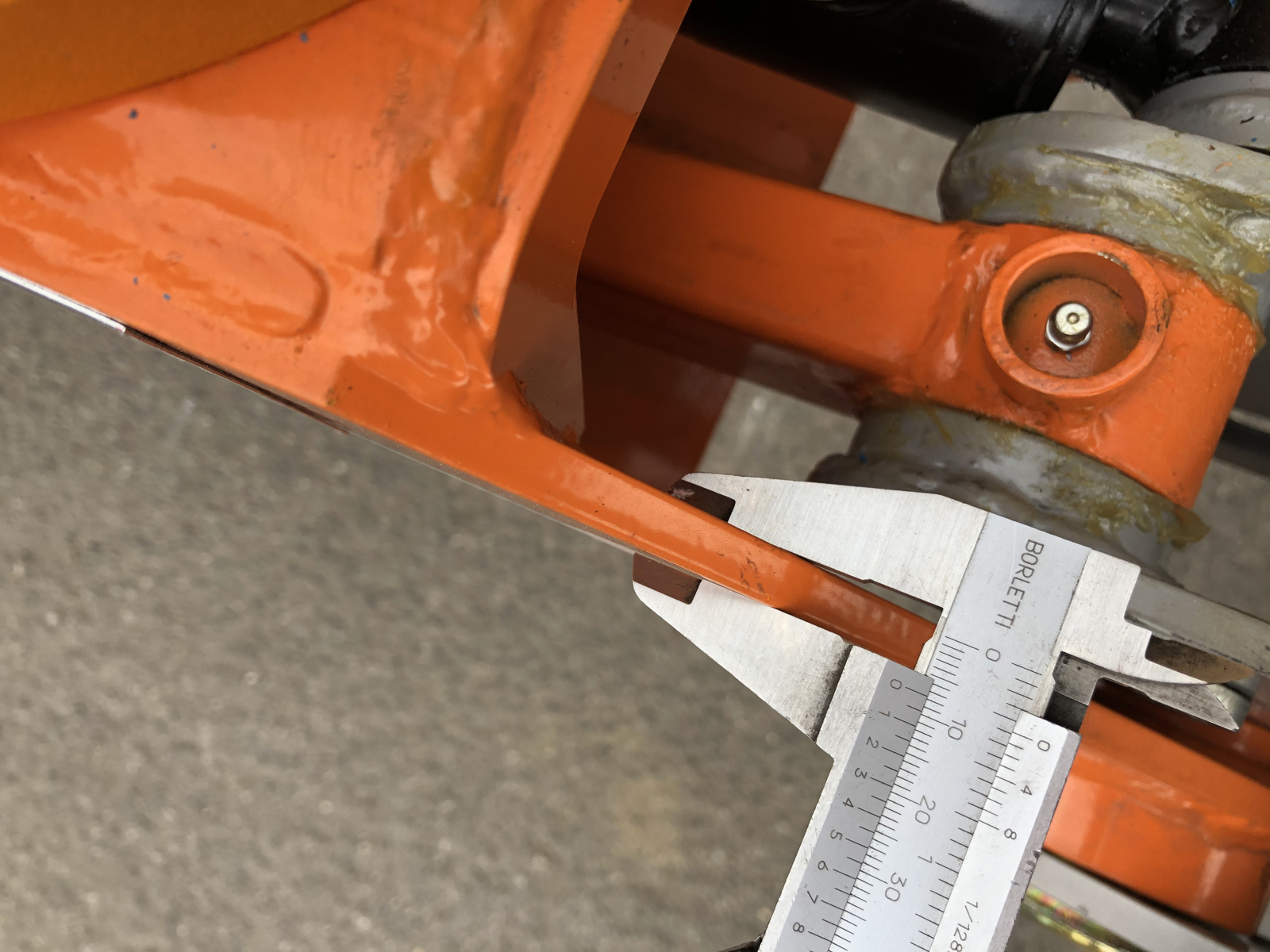

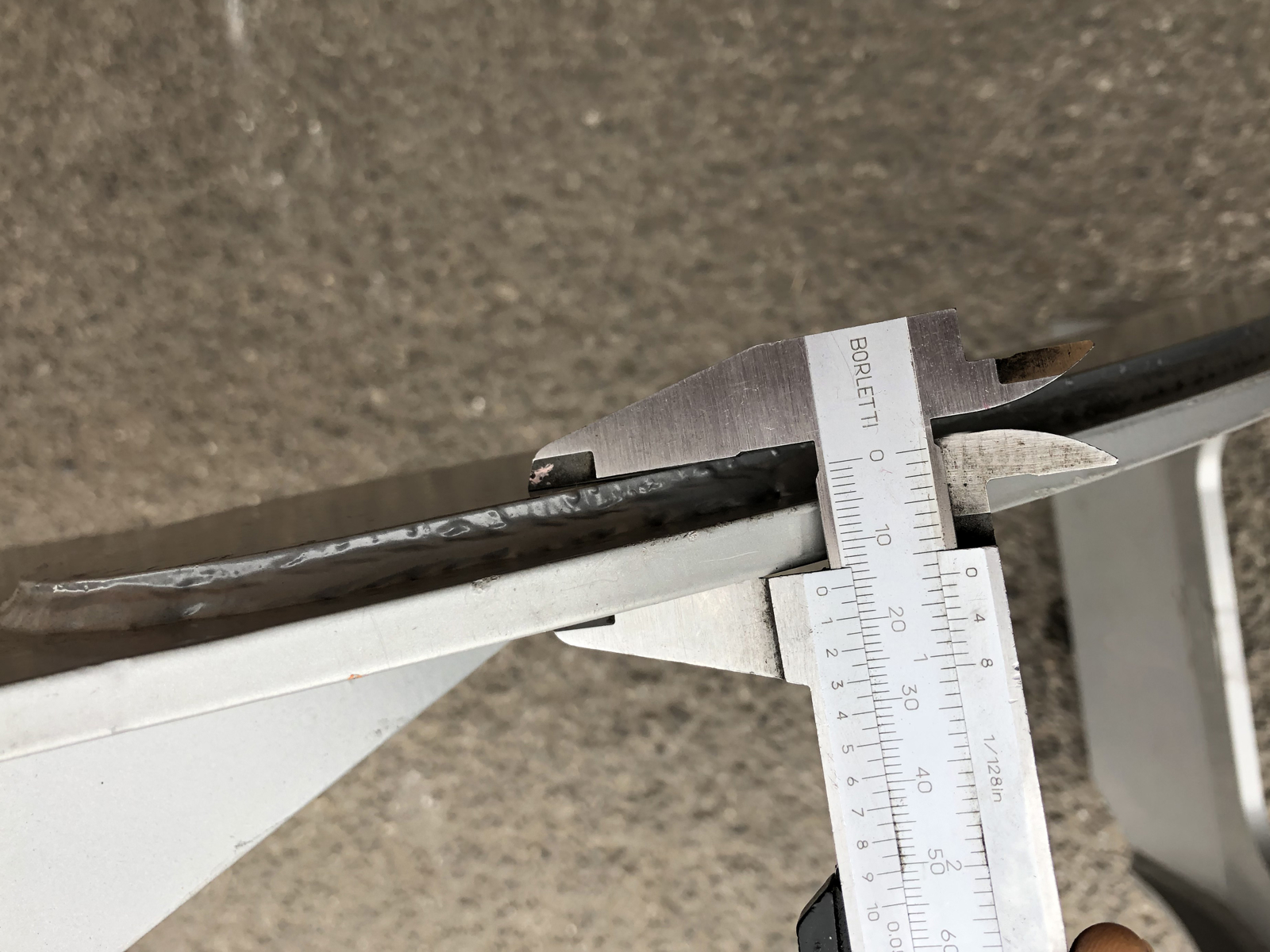

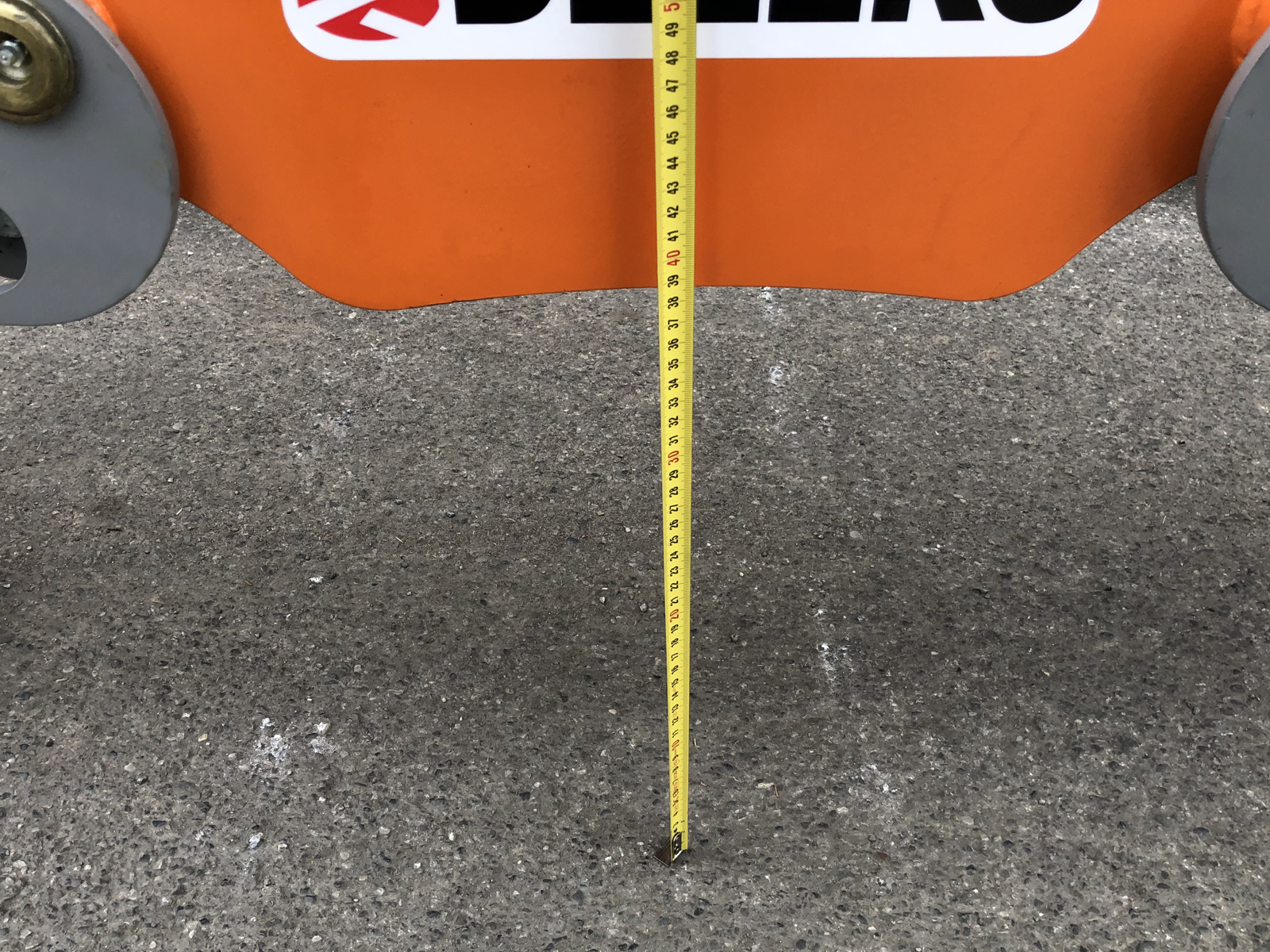

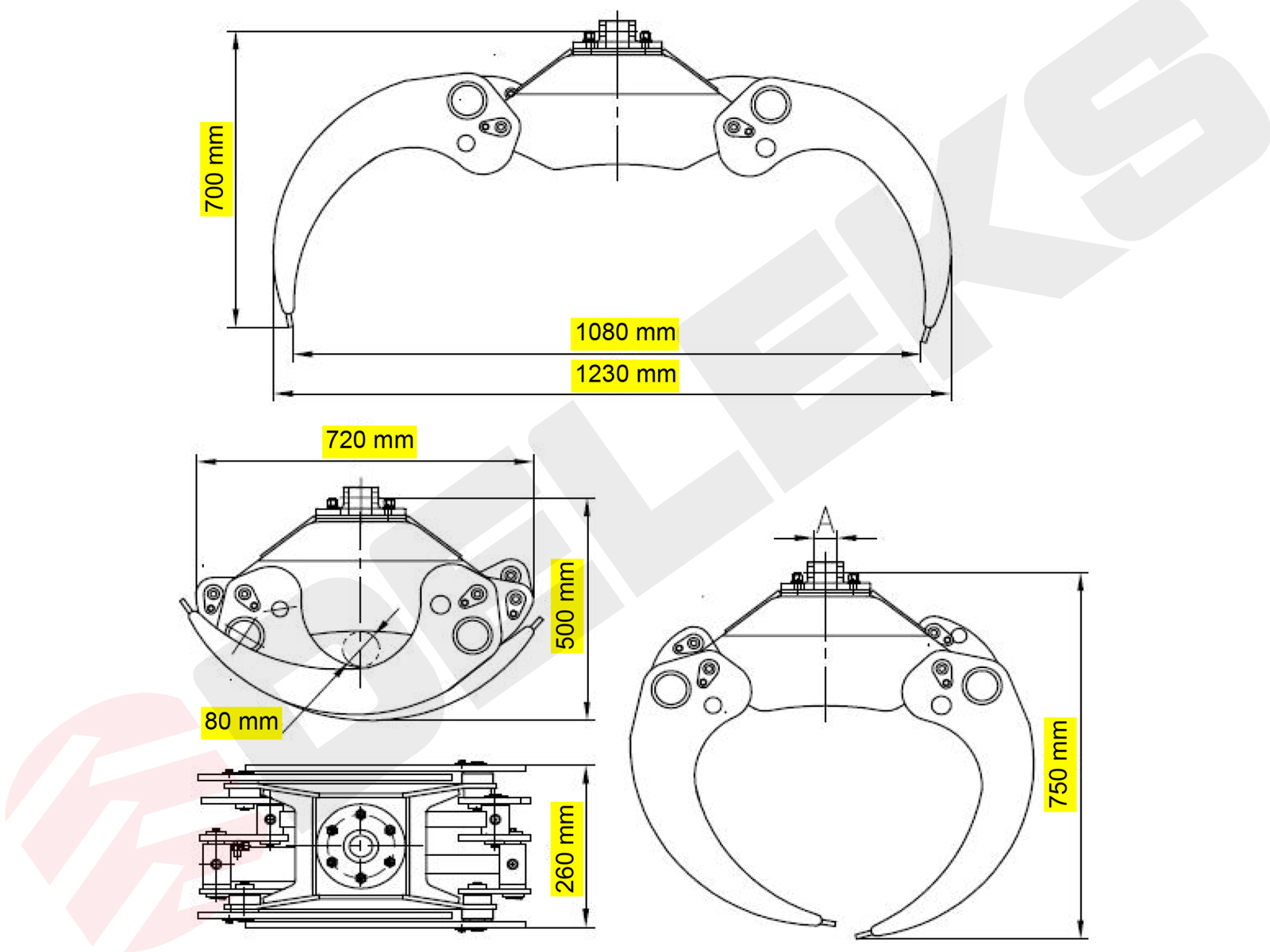

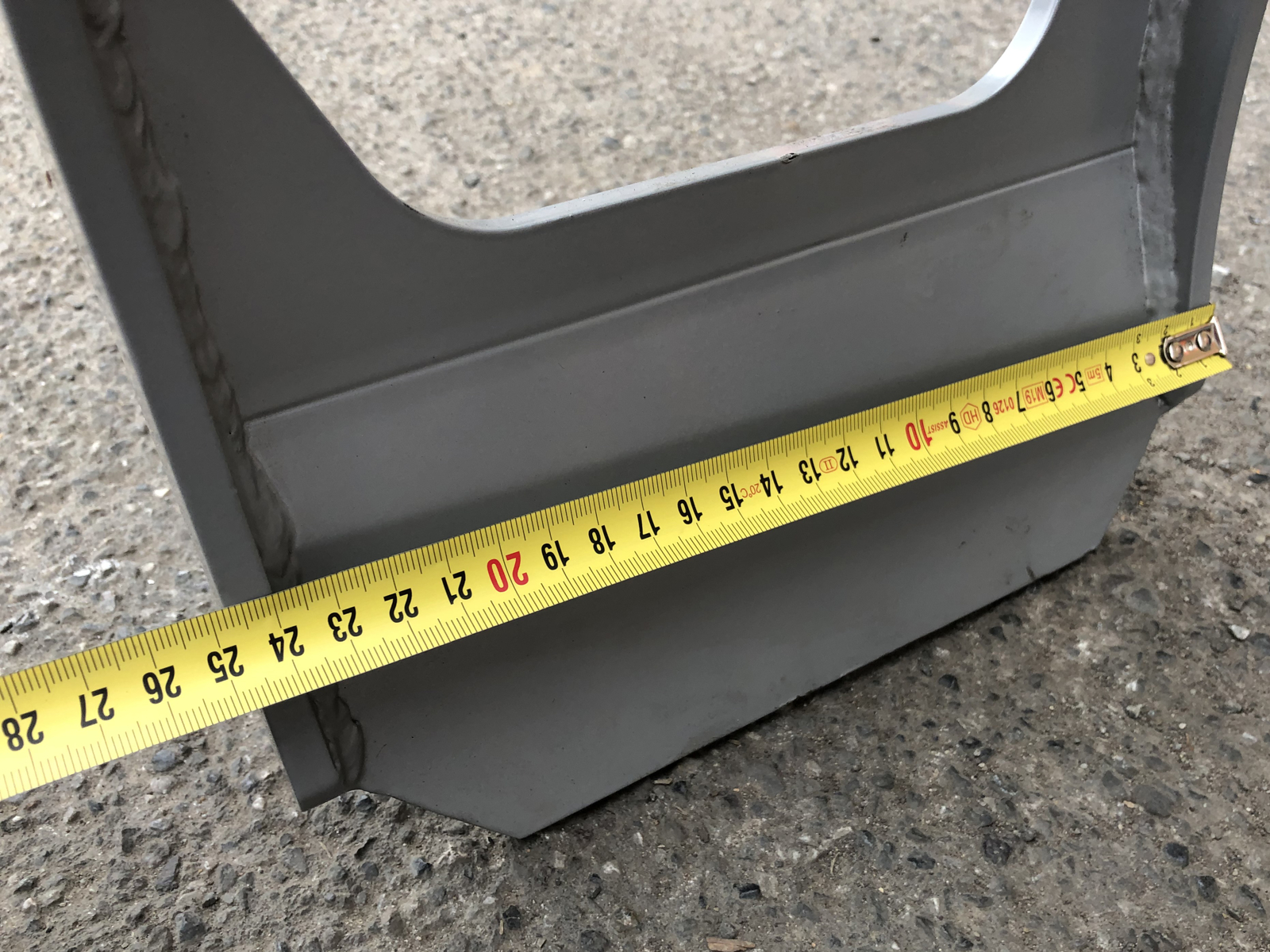

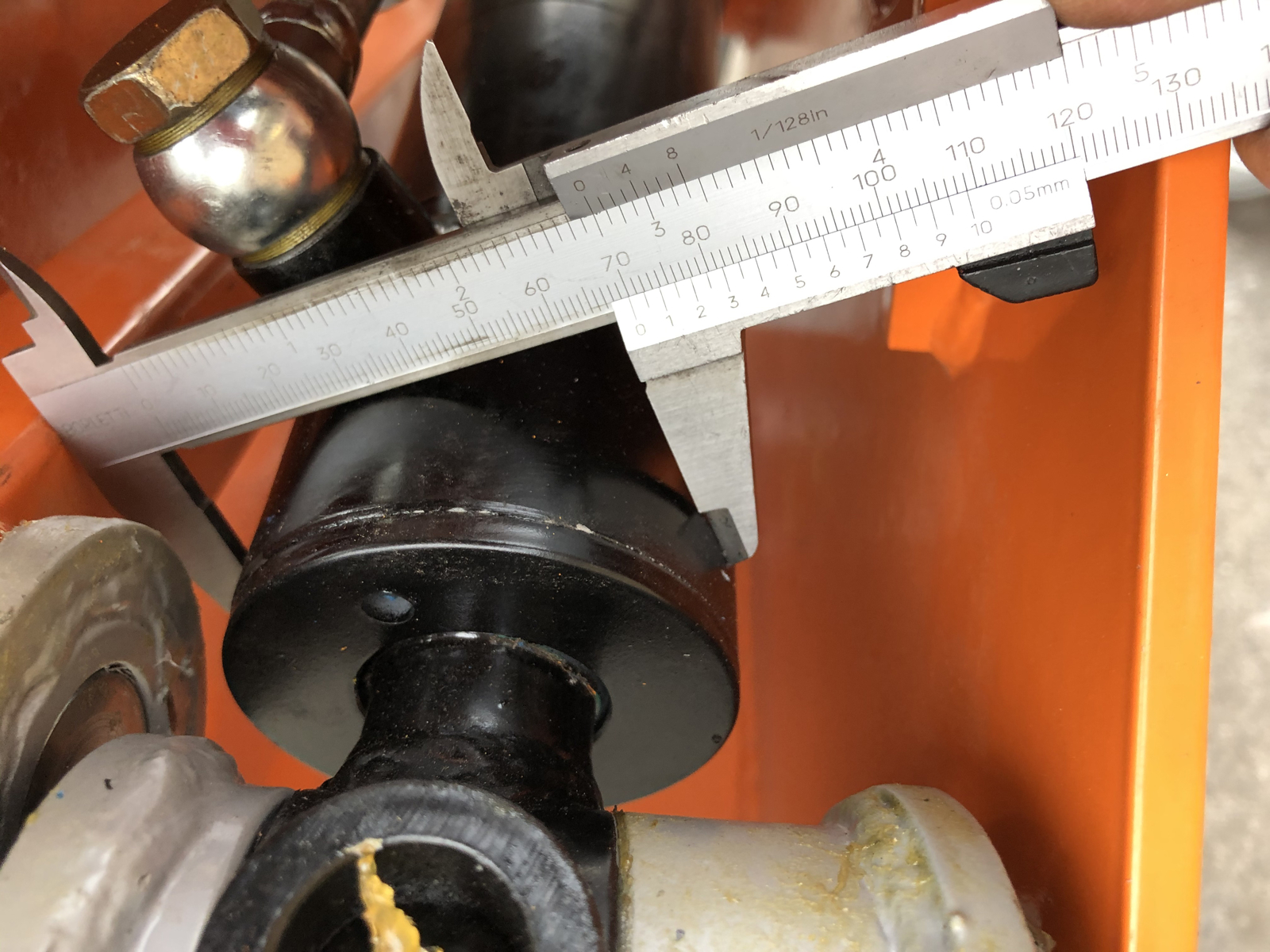

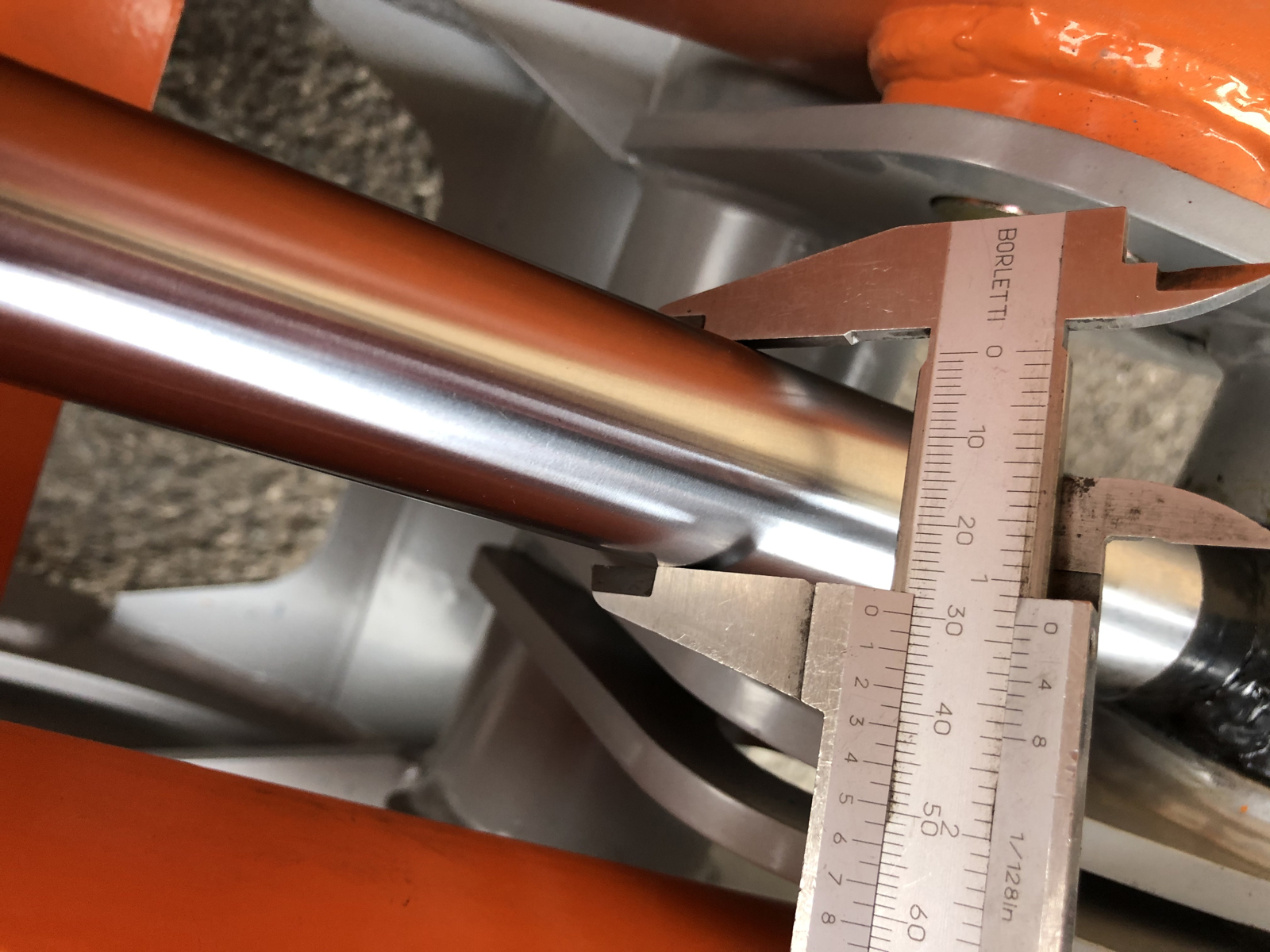

| Main hood thickness | 8.0 mm |
| Min./Max. Relief Pressure | 80 - 120 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Other sizes | See pictures |
| Hydraulic Hoses | 400 bar pressure |
| Max Opening | 1080.0 mm |
| Height, grapple open | 850.0 mm |
| Height, grapple closed | 680.0 mm |
| Width, grapple open | 1230.0 mm |
| Width, grapple closed | 720.0 mm |
| Overall depth | 260.0 mm |
| Minimum diameter of the log | 40.0 mm |
| Hydraulic cilinder diameter | 70.0 - 30.0 mm |
| Max Pressure | 200 Bar |
| Rotator | Lombarda Ingranaggi GR-30FF (3,0 ton) |
| Compact Excavators Range | 1.8 - 3.5 ton |
| Packing sizes | 600.0*800.0*450.0 mm |
