DETAILS

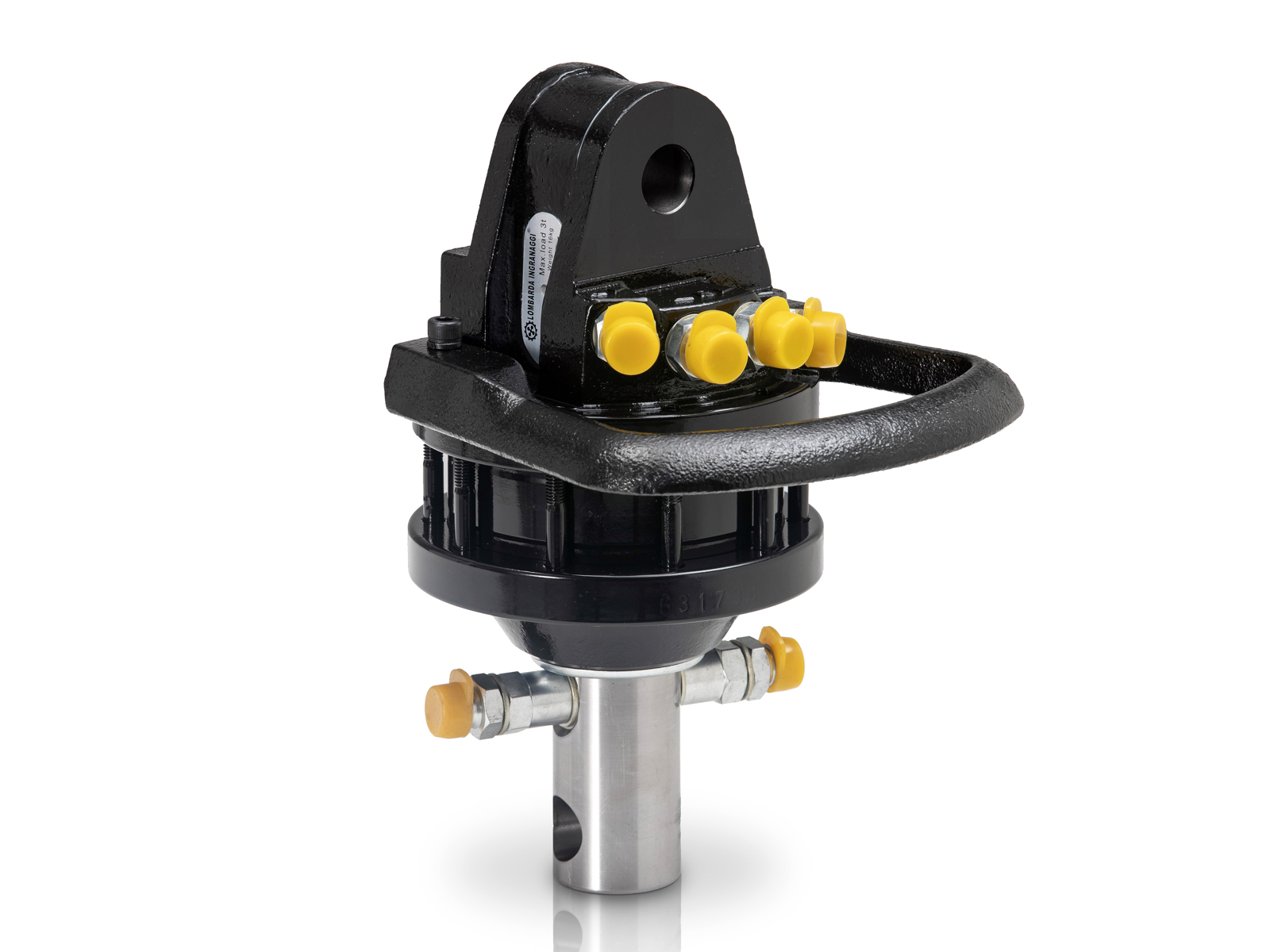

Lombarda Ingranaggi® GR-30 Hydraulic Rotator 3Ton.
Lightweight cost-effective solution suitable for ATV (All Terrain, small agricultural and forestry Vehicles).
ROTATION Unlimited
MAX. AXIAL LOAD STATIC 30 kN (6744 lbf)
MAX. AXIAL LOAD DYNAMIC 15 kN (2248 lbf)
TORQUE @__MPA 800 Nm (590 lb ft)
REC. OILFLOW 20 l/min (2.6 US gallons)
WEIGHT 15 kg (33 lb)

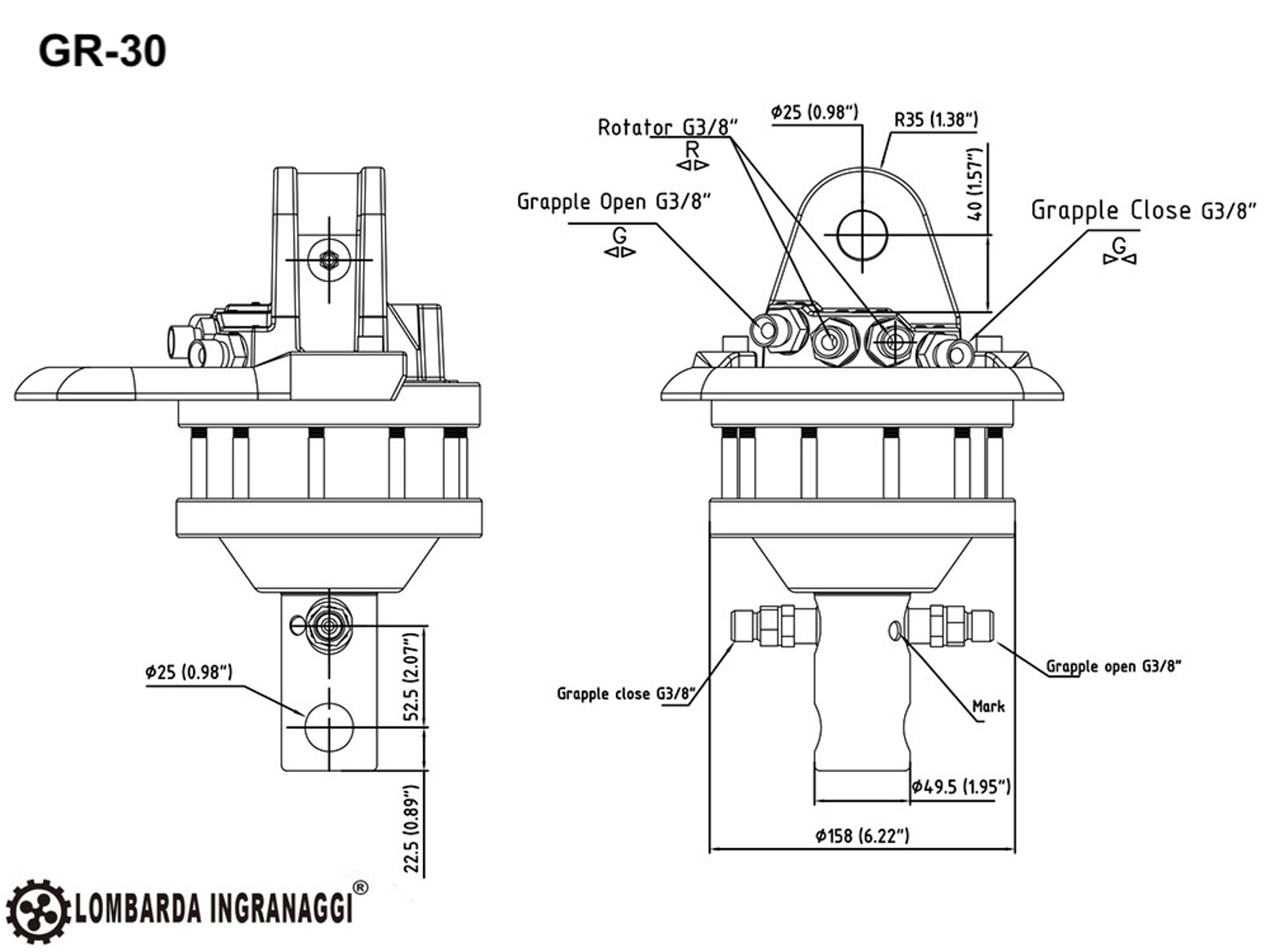

UPPER CONNECTION L 60 mm (2.36 in)
UPPER CONNECTION D 25 mm (0.98 in)
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 15 kg |
DETAILS
CLOSELombarda Ingranaggi® GR-30 Hydraulic Rotator 3Ton.
Lightweight cost-effective solution suitable for ATV (All Terrain, small agricultural and forestry Vehicles).
ROTATION Unlimited
MAX. AXIAL LOAD STATIC 30 kN (6744 lbf)
MAX. AXIAL LOAD DYNAMIC 15 kN (2248 lbf)
TORQUE @__MPA 800 Nm (590 lb ft)
REC. OILFLOW 20 l/min (2.6 US gallons)
WEIGHT 15 kg (33 lb)
UPPER CONNECTION L 60 mm (2.36 in)
UPPER CONNECTION D 25 mm (0.98 in)
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Weight | 15 kg |
