Snowplow for tractor front-end loaders, SSH-04-3.0-E
DETAILS

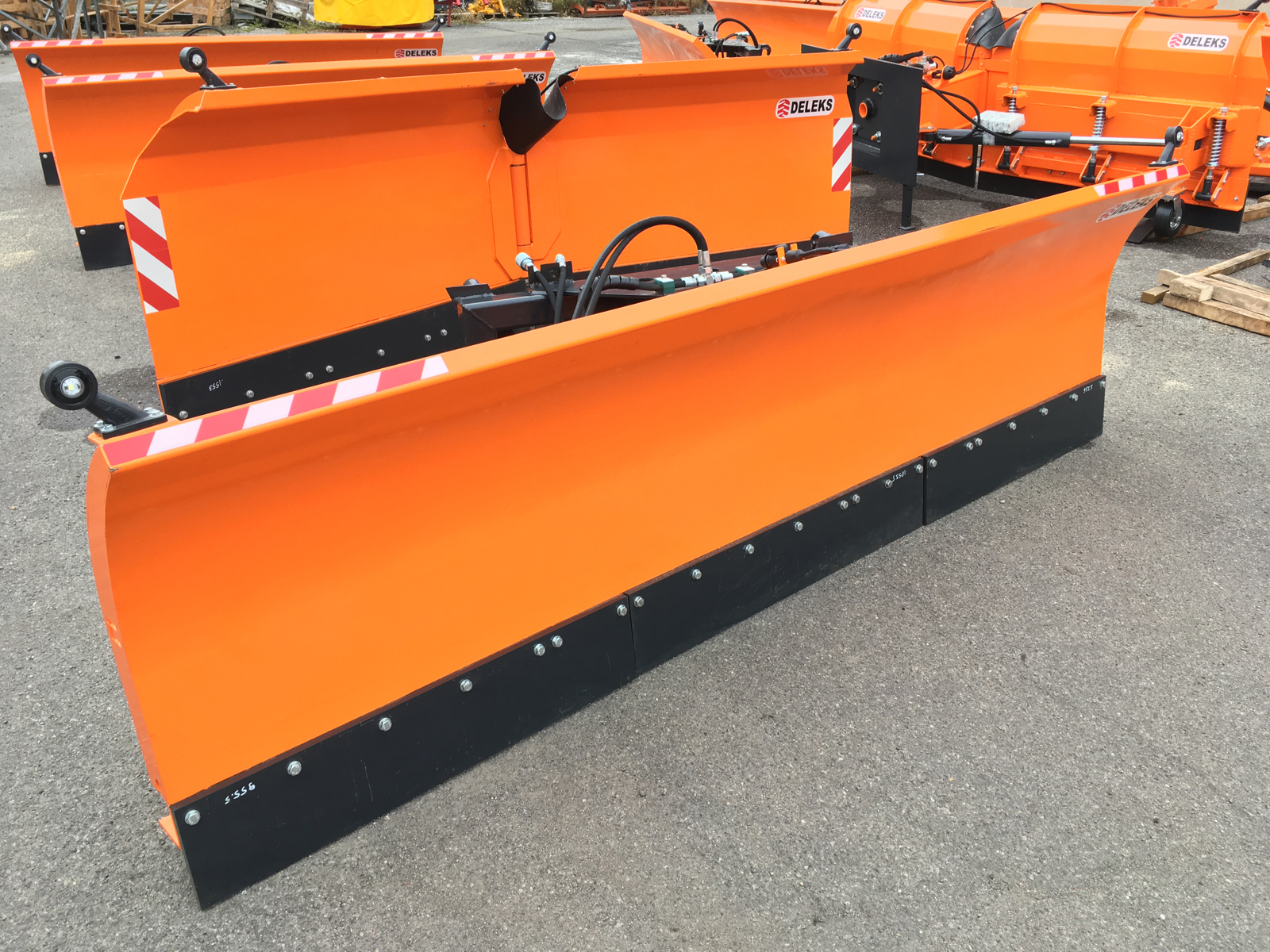

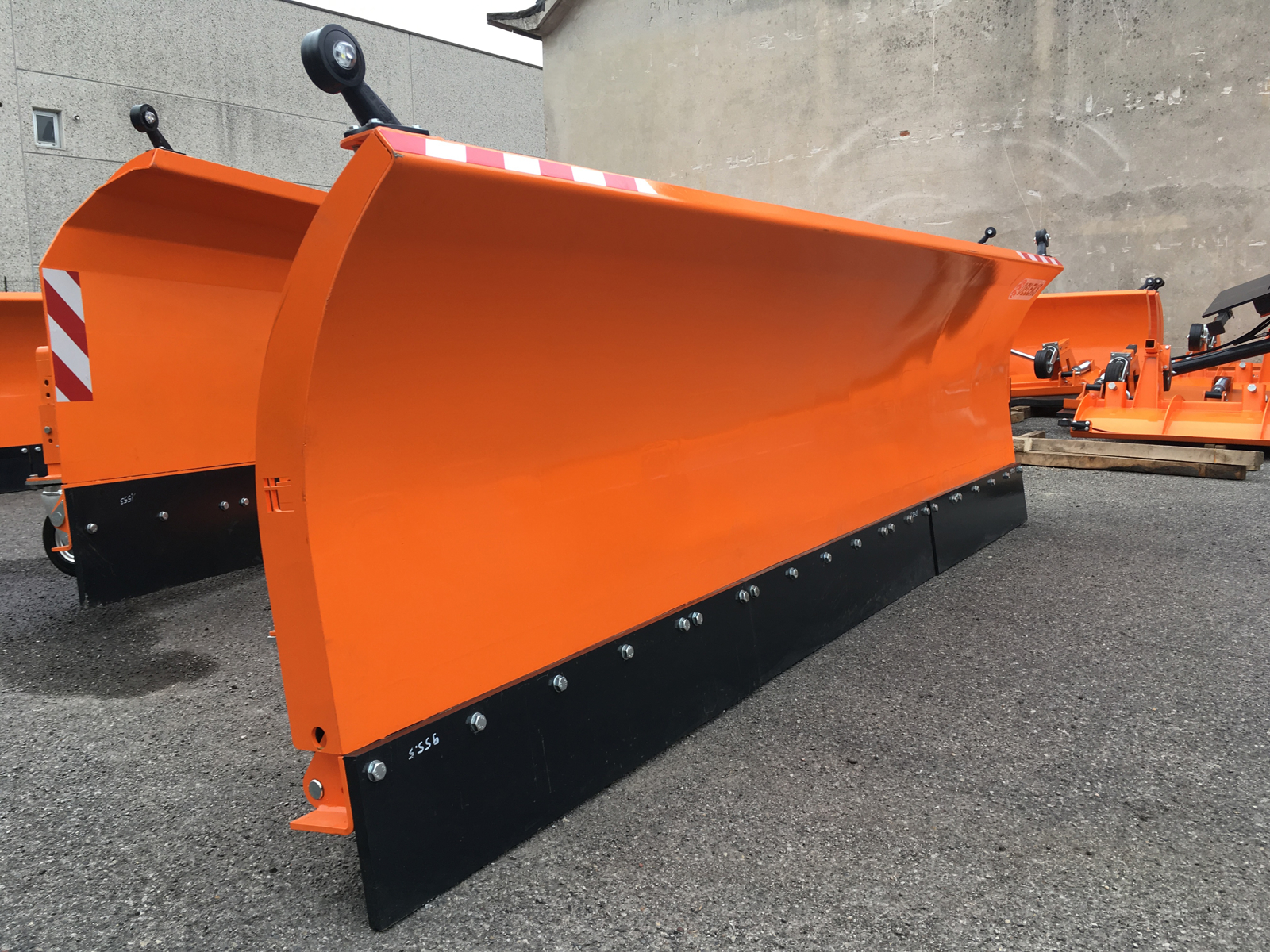

Snowplow for tractor front-end loaders 300cm / 510kg - DELEKS® Snow blade with euro attachment
OVERVIEW
SSH-04 3.0-E Heavy-duty snowplow has been designed for larger tractors front-end loaders, from 90 to 130hp. Euro Standard attachment included.

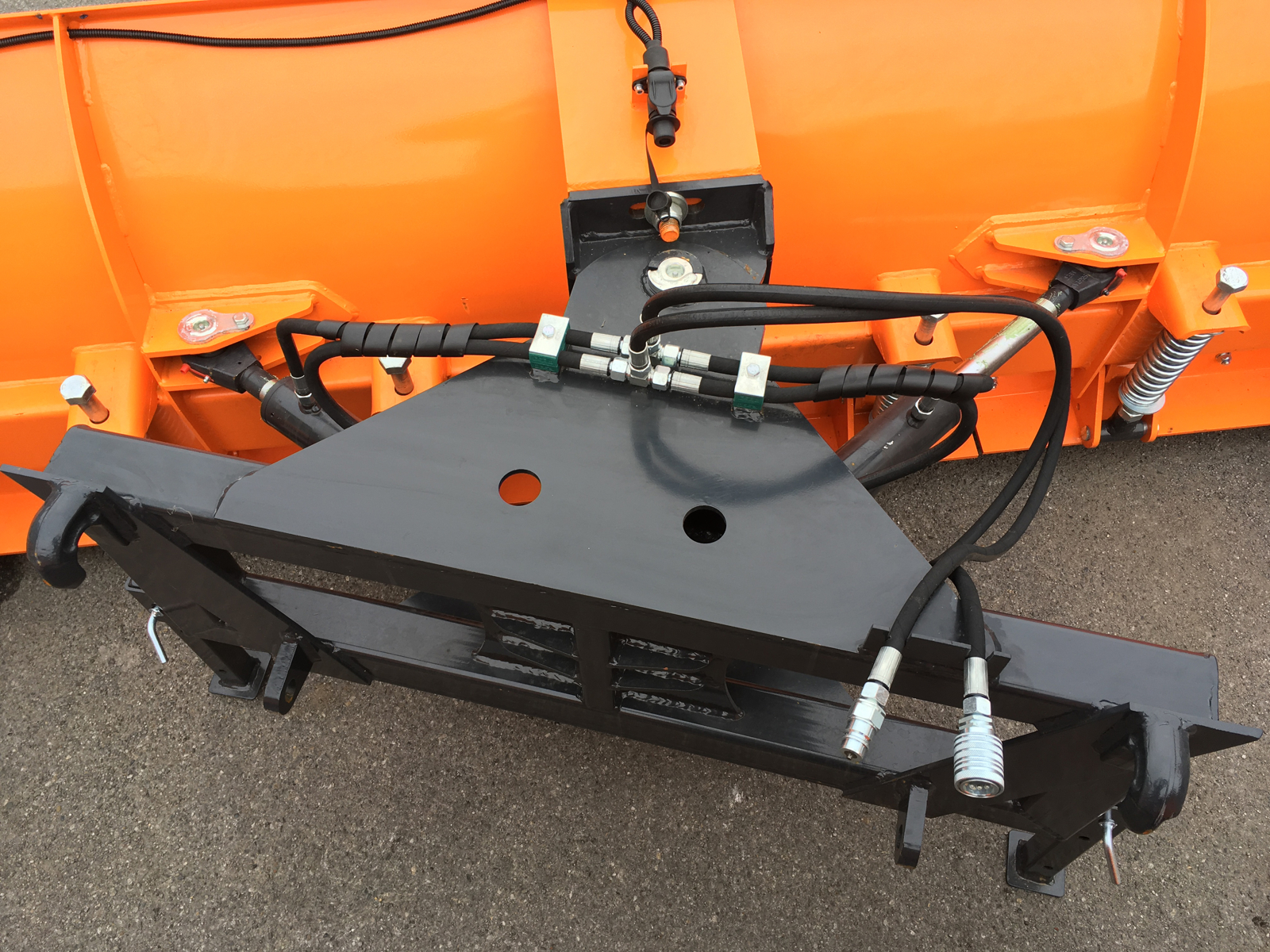

Angling of the plow is done hydraulically using two hydraulic cylinders and two hydraulic pipes 1.6m in length. Conforms to the EC Machinery Directive. 2 years Warranty.
BENEFITS AND FEATURES

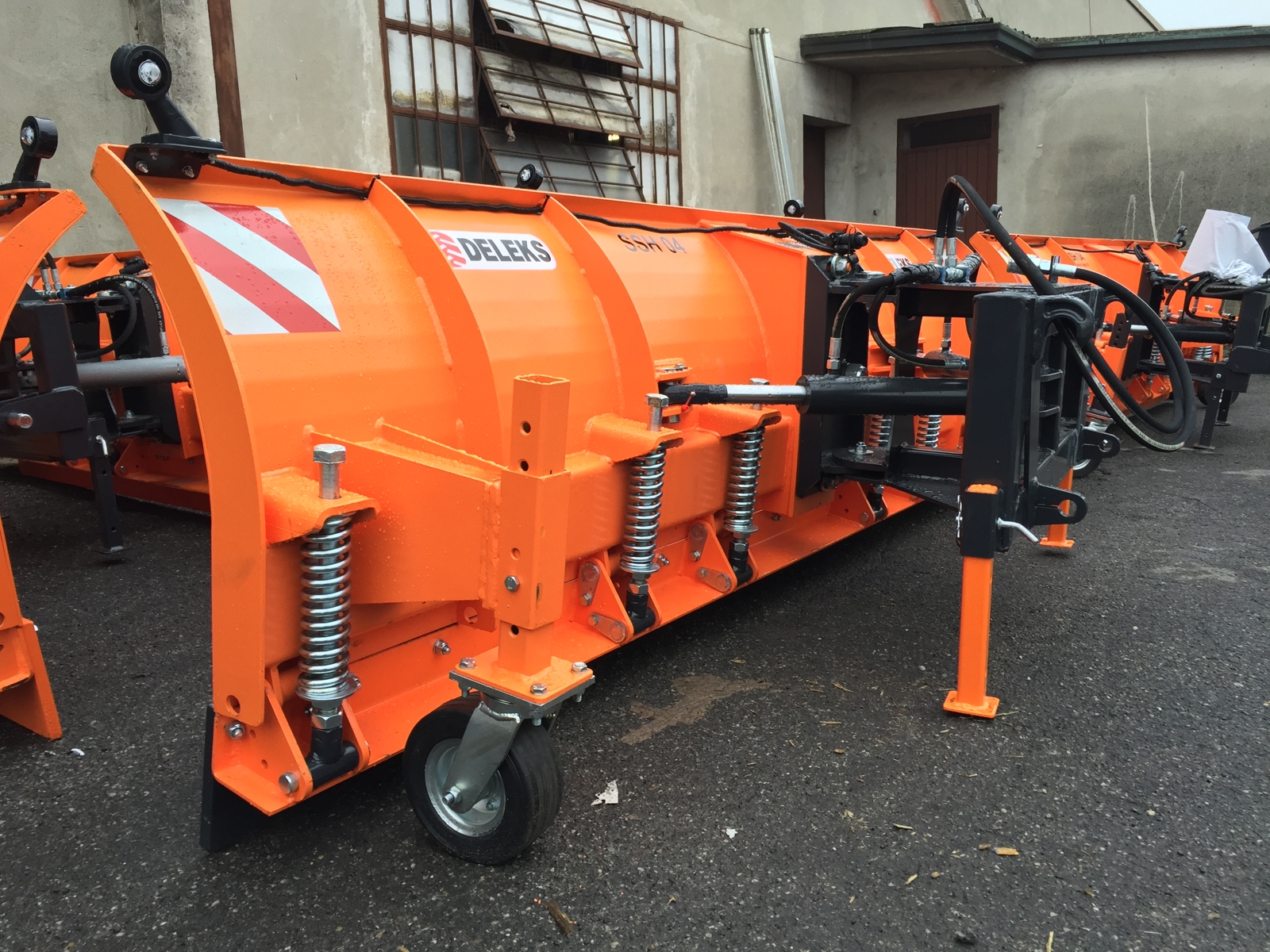

Shockproof system with 6 shock absorbing springs to operate in maximum safety.
3 independent steel or rubber scraping elements.
Extreme ease of assembly and use.
Side wheels allow the blade height to be adjusted to maintain a constant plowing depth.

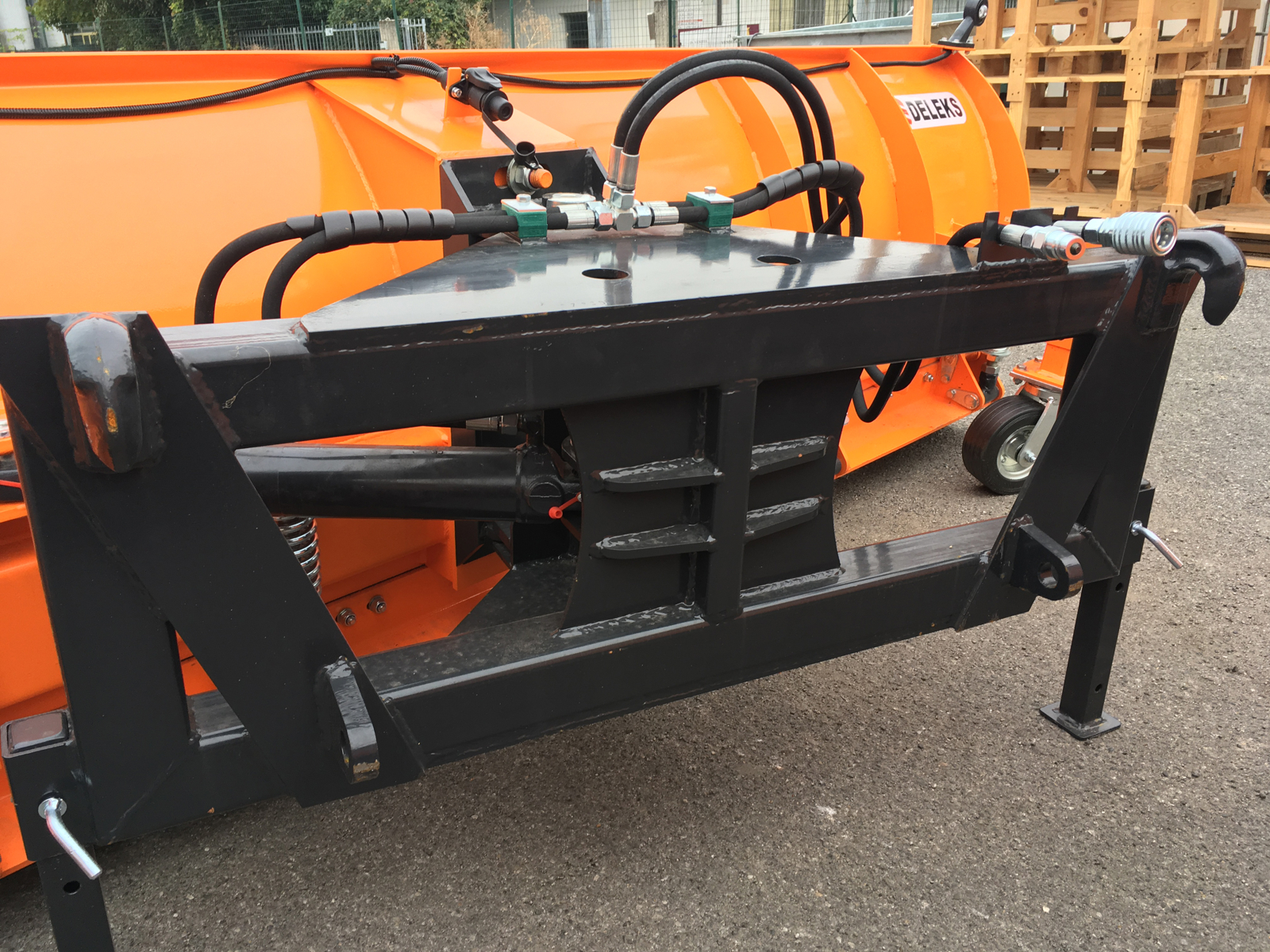

The EURO linkage is removable and replaceable with 3-point hitch, or Telescopic loaders linkage e.g MERLO, MANITOU, JCB, or Flat plate for after-sale customization.
Perfect adherence to the road surface and homologated for road use.
Note: the destination must be accessible to a truck (24Ton) . The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 500.0 kg |
| Overall height | 880.0 mm |
| Tractor Power Range | 90 - 130 Hp |
| Overall Length | 900.0 mm |
| Min./Max. Relief Pressure | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Interface | EURO |
| Angling (left/right) | 25° |
| Float | +/- 4° |
| Blade Height | 880.0 mm |
| Side edge thickness | 7.0 mm |
| Shock absorbers | 6 |
| Cutting Edge | Steel or Rubber |
| Cutting Edge Height | 200.0mm / 250.0mm |
| Cutting Edge Thickness | 20.0mm / 55.0mm |
| Trip Edge Quantity | 3 |
| Distance betweens the bolts of the Trip Edge | 175.0 mm |
| Lights | √ |
| Removable Skid Shoes | Wheels |
| Universal attachment sizes | See pictures |
| Working width (angled) | 2600.0 mm |
| Hydraulic Hoses | 2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar |
| Overall width | 3000.0 mm |
| Main frame thickness | 4.0 mm |
| Hydraulic cylinder/s ø | 60.0 / 35.0 mm |
| Packing sizes | 3000*1000*1000mm |
