3 point linkage snowplow for tractor, SSH-04-2.6-C
Field test
DETAILS

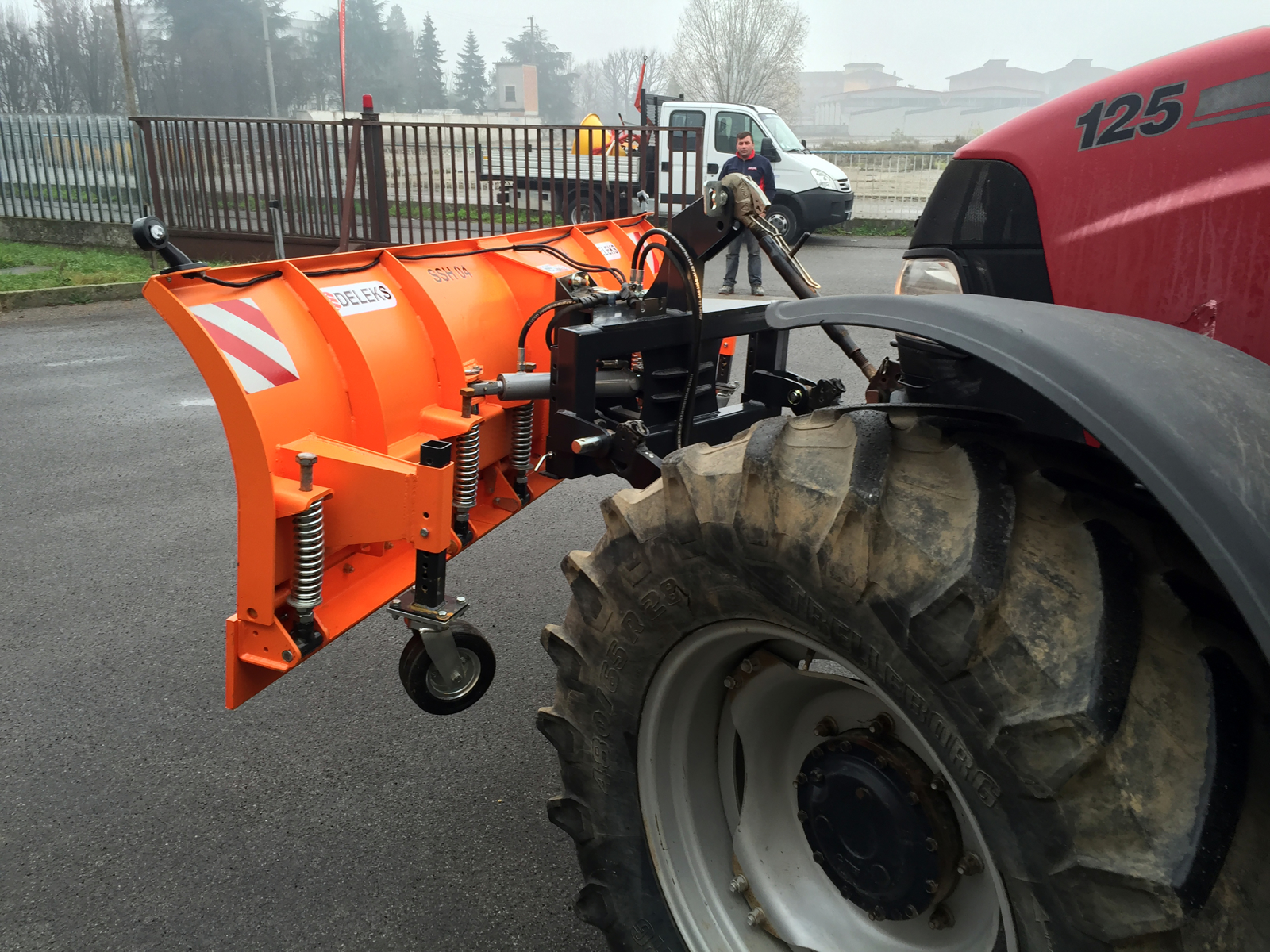

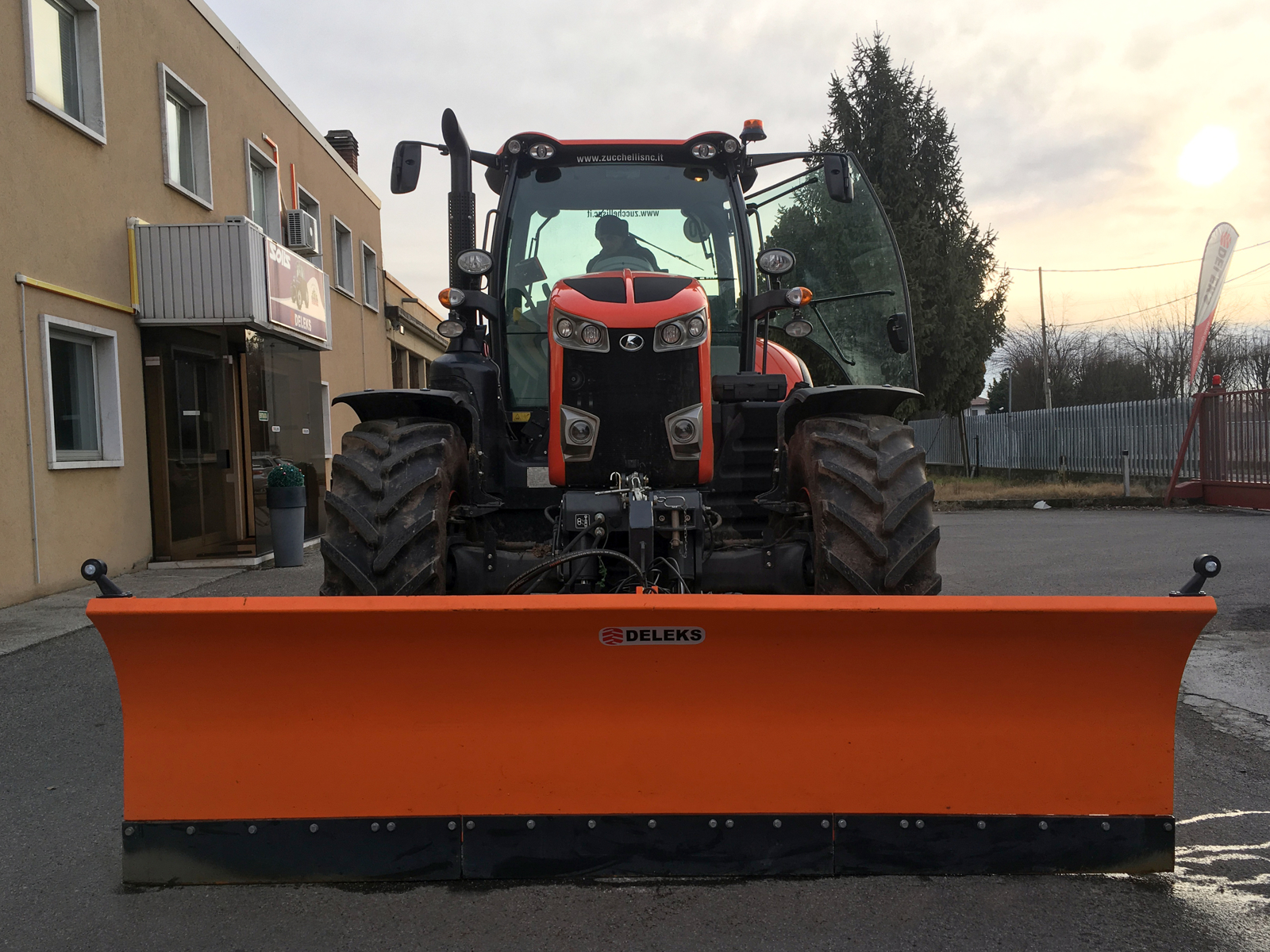

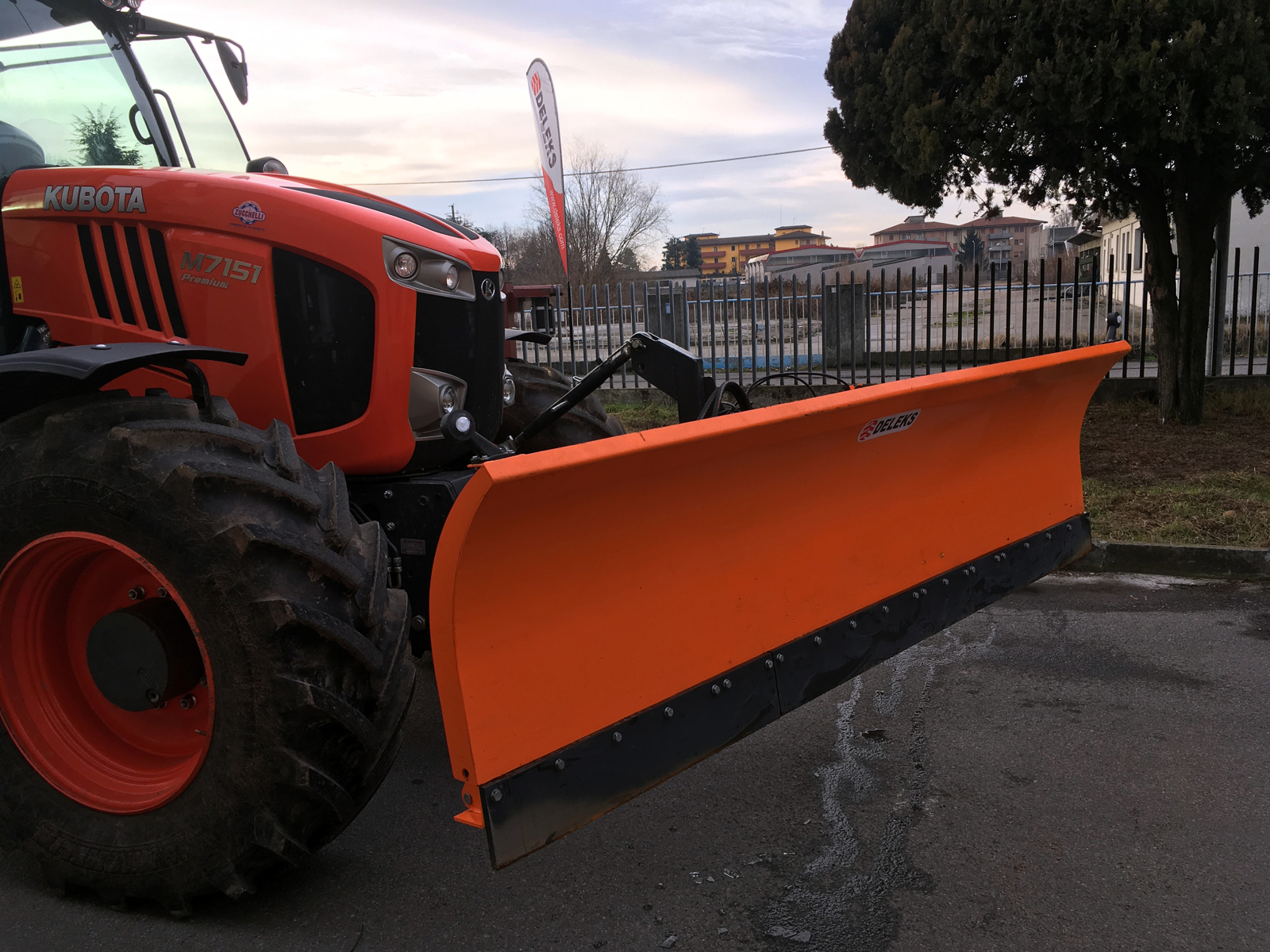

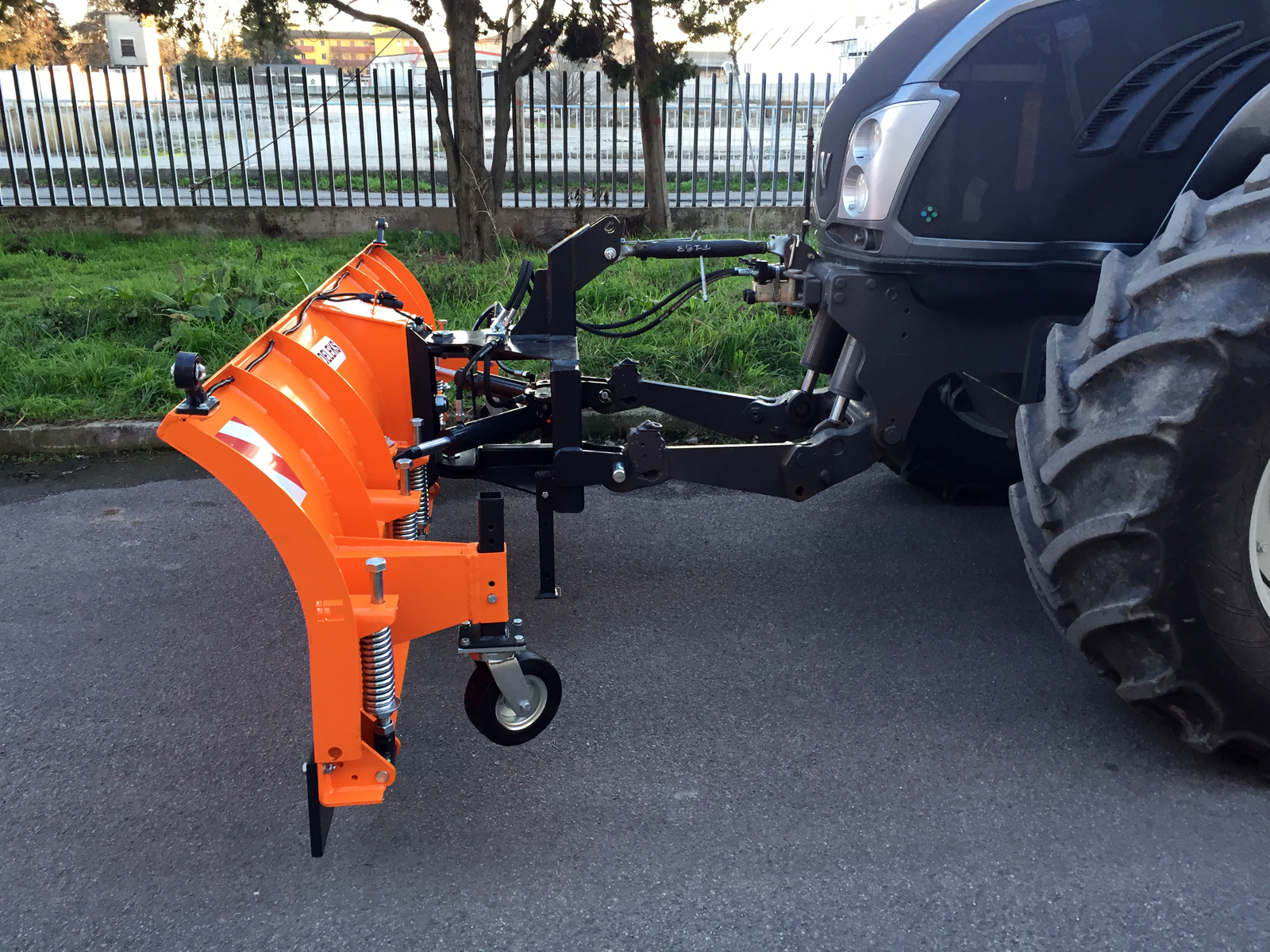

Three point linkage snowplow for tractor 260cm / 460kg - DELEKS® - Snow blade for frontal use
OVERVIEW
SSH-04 2.6-C Heavy-duty snowplow has been designed for larger tractors with 3-point hitch of Cat. 2-3, with power range from 90 to 130hp with rear or front linkage. Compatible with all tractors as Landini Power, M Kubota, Massey Ferguson, John Deere 5 Series, Same Explorer, Fiat, Case, Claas, Deutz-Fahr.
Angling of the plow is done hydraulically using two hydraulic cylinders and two hydraulic pipes 1.6m in length. Supplied with 2 support wheels and marker lights. Conforms to the EC Machinery Directive. 2 years Warranty.
BENEFITS AND FEATURES
Shockproof system with 6 shock absorbing springs to operate in maximum safety.
3 independent steel or rubber scraping elements.
Extreme ease of assembly and use.
Support wheels allow the blade height to be adjusted.
The 3-point hitch is removable and replaceable with EURO linkage for tractor front-end loaders, or Telescopic loaders linkage e.g. MERLO, MANITOU, JCB, or Flat plate for after-sale customization.
Perfect adherence to the road surface and homologated for road use.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 460.0 kg |
| Overall height | 880.0 mm |
| Tractor Power Range | 90 - 130 Hp |
| Overall Length | 900.0 mm |
| Spacing between the 2 lower points | 800.0-1040.0 mm |
| Distance between the 2 lower points and ground | 300.0 mm |
| Min./Max. Relief Pressure | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Interface | 3 point linkage cat. 2-3 |
| Angling (left/right) | 25° |
| Float | +/- 4° |
| Blade Height | 880.0 mm |
| Side edge thickness | 7.0 mm |
| Shock absorbers | 6 |
| Cutting Edge | Steel or Rubber |
| Cutting Edge Height | 200.0mm / 250.0mm |
| Cutting Edge Thickness | 20.0mm / 55.0mm |
| Trip Edge Quantity | 3 |
| Distance betweens the bolts of the Trip Edge | 175.0 mm |
| Lights | √ |
| Removable Skid Shoes | Wheels |
| Working width (angled) | 2400.0 mm |
| Hydraulic Hoses | 2 x 1600.0 mm / connections 1.2" AGRI, WP 400 bar |
| Overall width | 2600.0 mm |
| Main frame thickness | 4.0 mm |
| Hydraulic cylinder/s ø | 73.0/36.0 mm |
| Packing sizes | 2600*1000*1000 мм |
