Field test
DETAILS

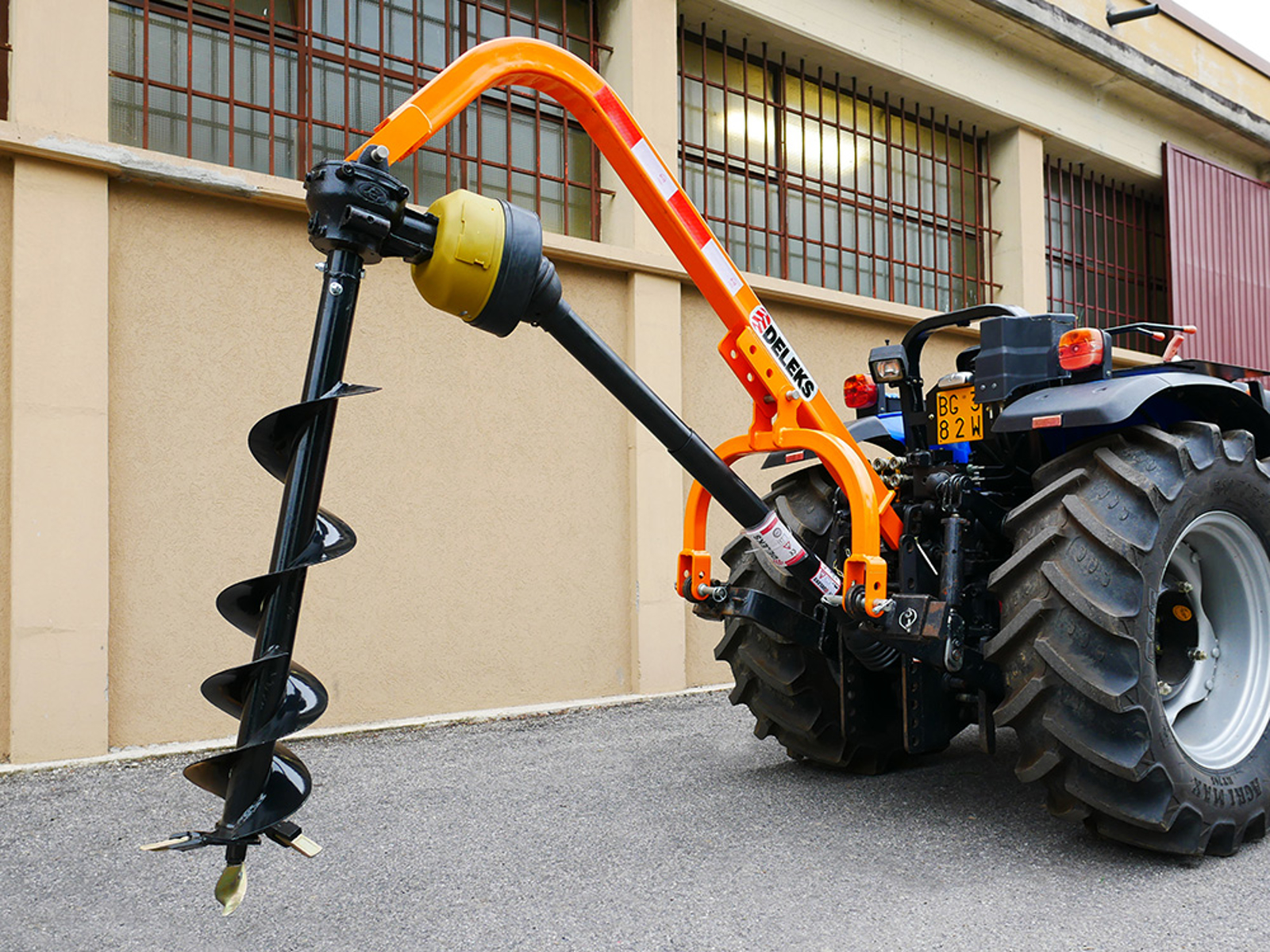

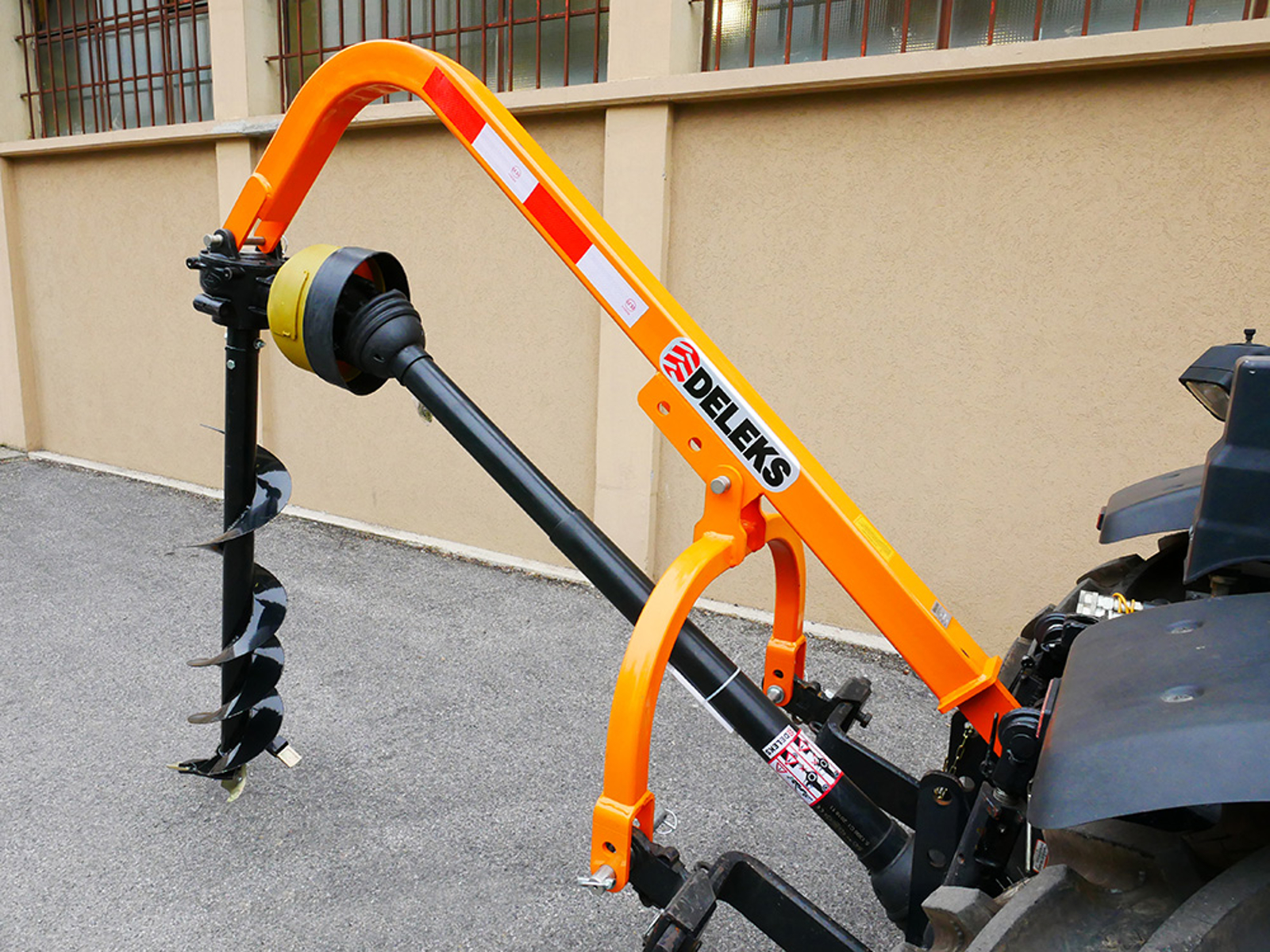

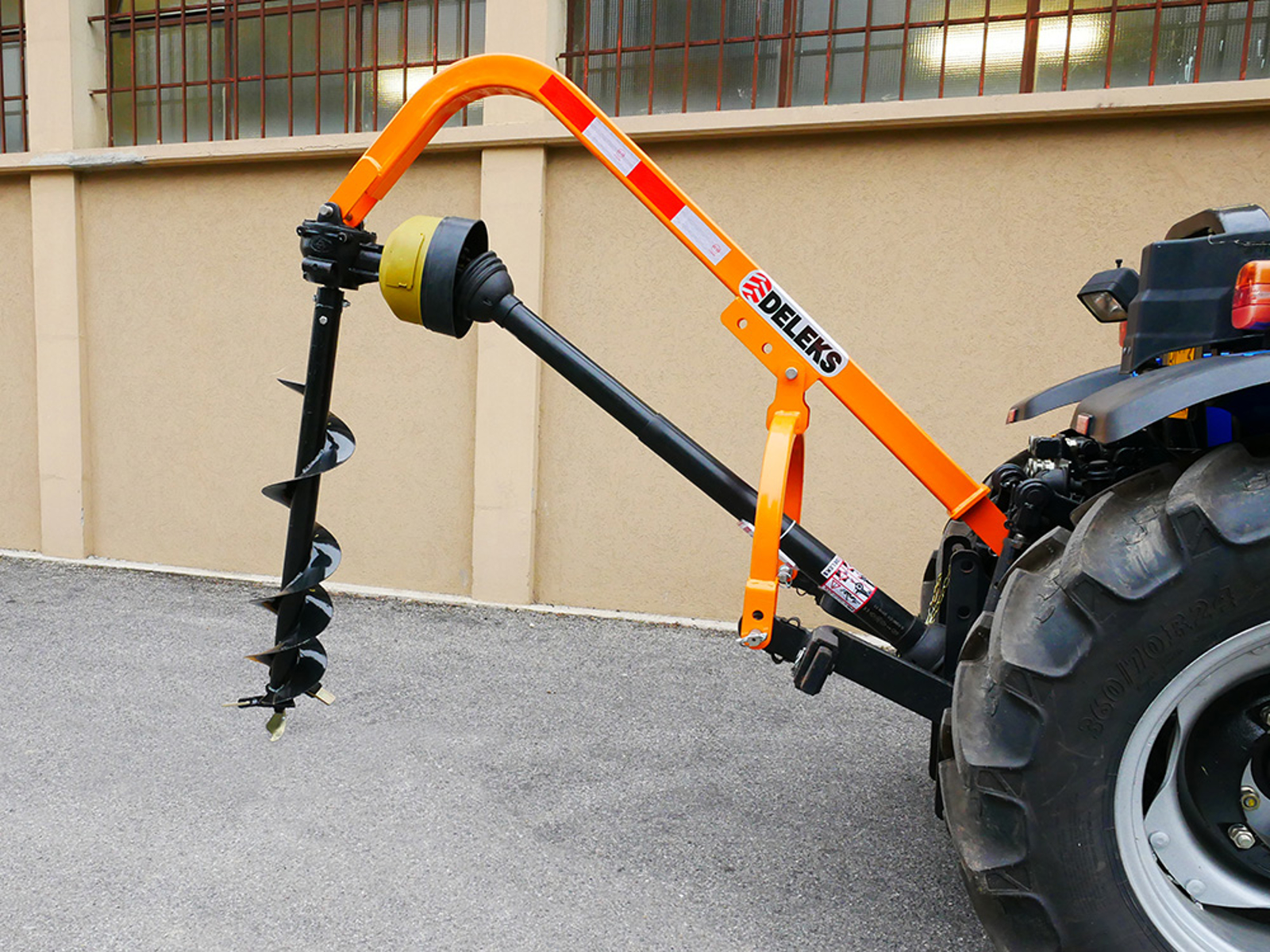

Post Hole Digger for tractor - DELEKS® - Universal 3-point hitch Cat. 1-2 - Gearbox PTO 540 r.p.m. increased
APPLICATION
Agricultural post hole digger with 3-point linkage, works applied to the tractors lifting arms.
To make vertical holes in the ground. Ideal for agriculture, gardening, for planting vineyards, trees, poles, fences, for digging holes on the beach at the bathing establishments.
Supplied as standard with:

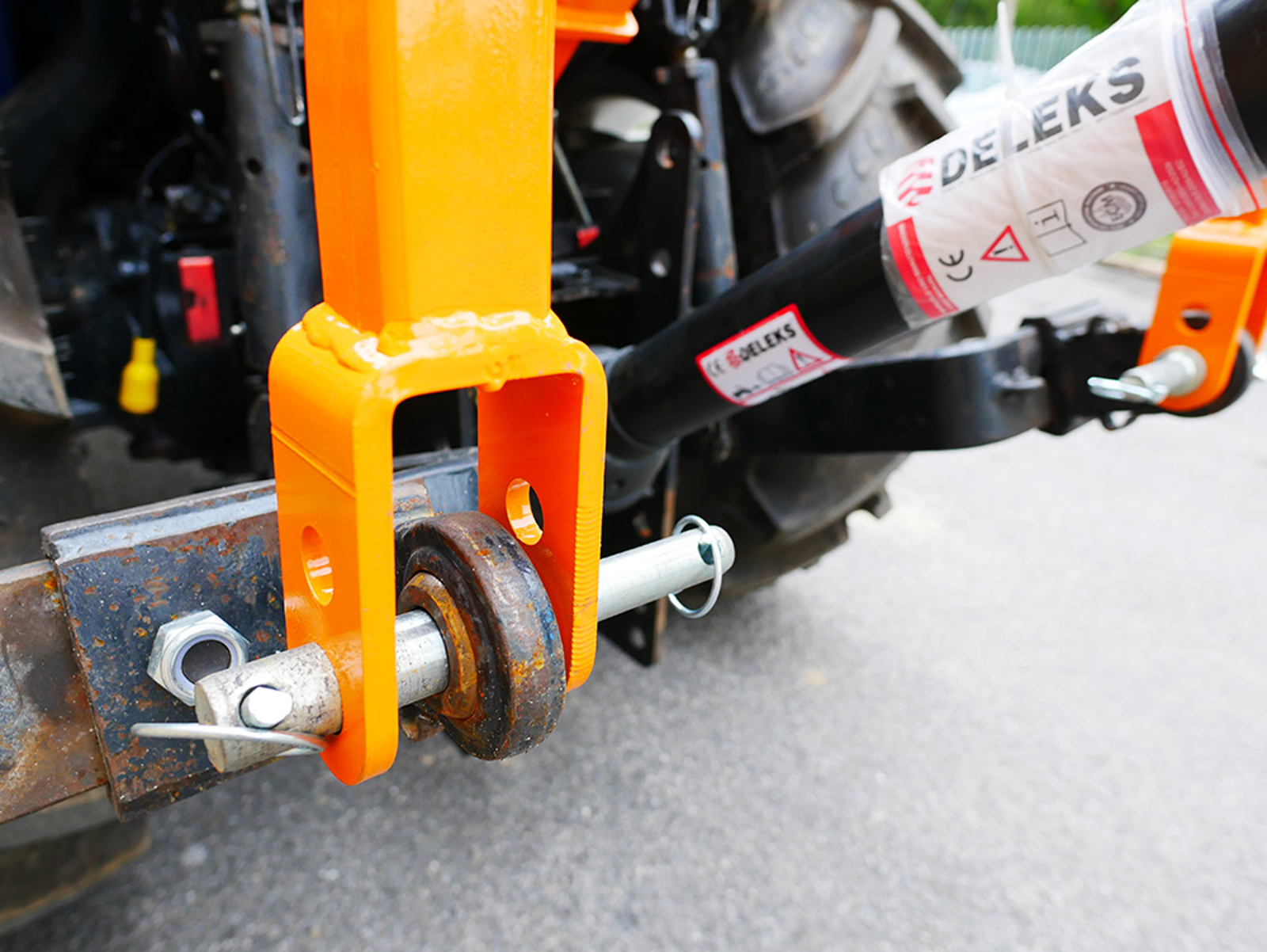

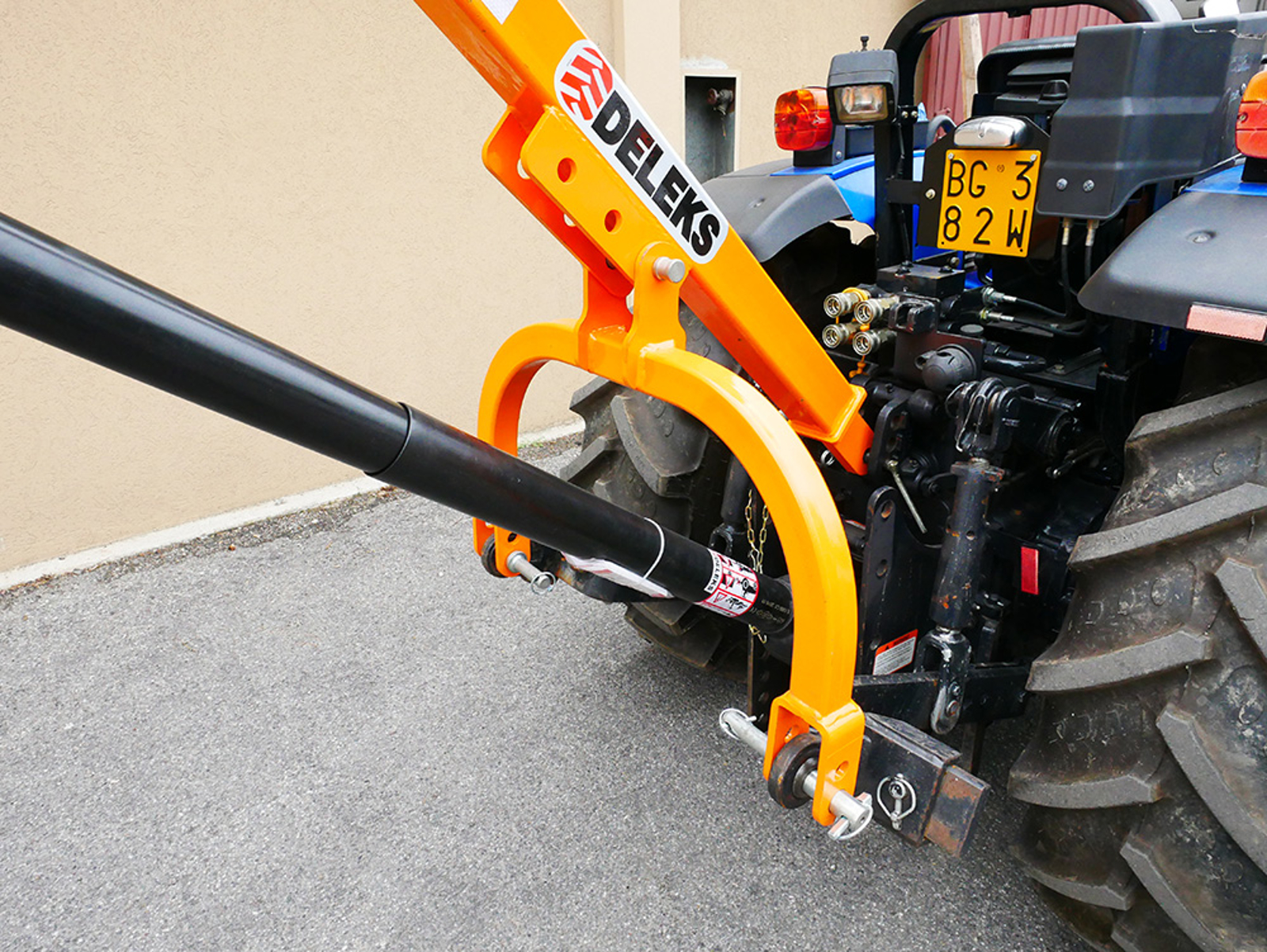

Universal 3-point hitch Cat. 1-2

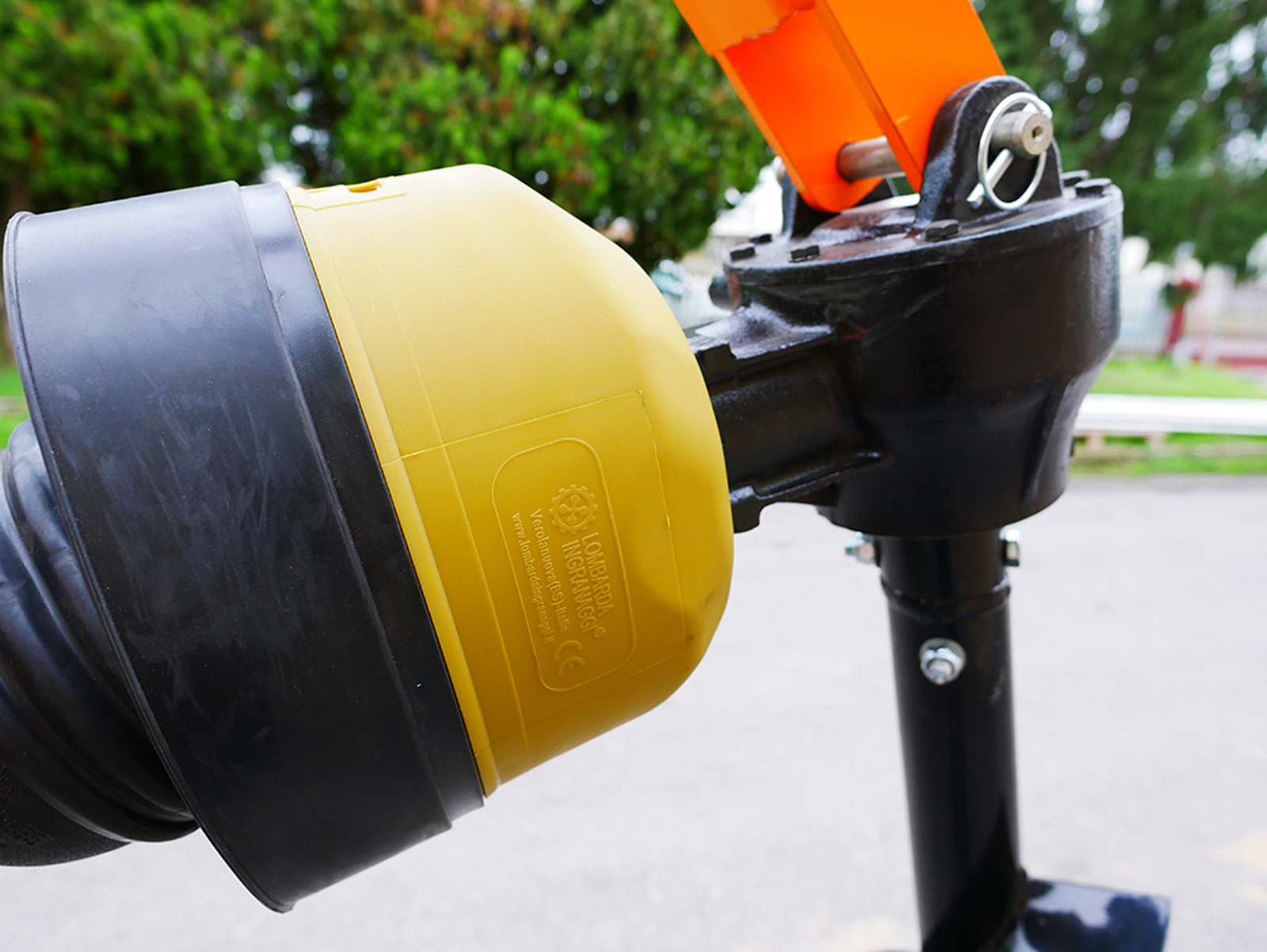

Gearbox PTO 540 r.p.m. increased
PTO 1300mm (CE approved)
Accordingly CE accident prevention protections
Optional:
Auger: 100.0 mm
Auger: 200.0 mm
Auger: 300.0 mm
ADVANTAGES
Extremely easy to use
Interchangeable tip and knives

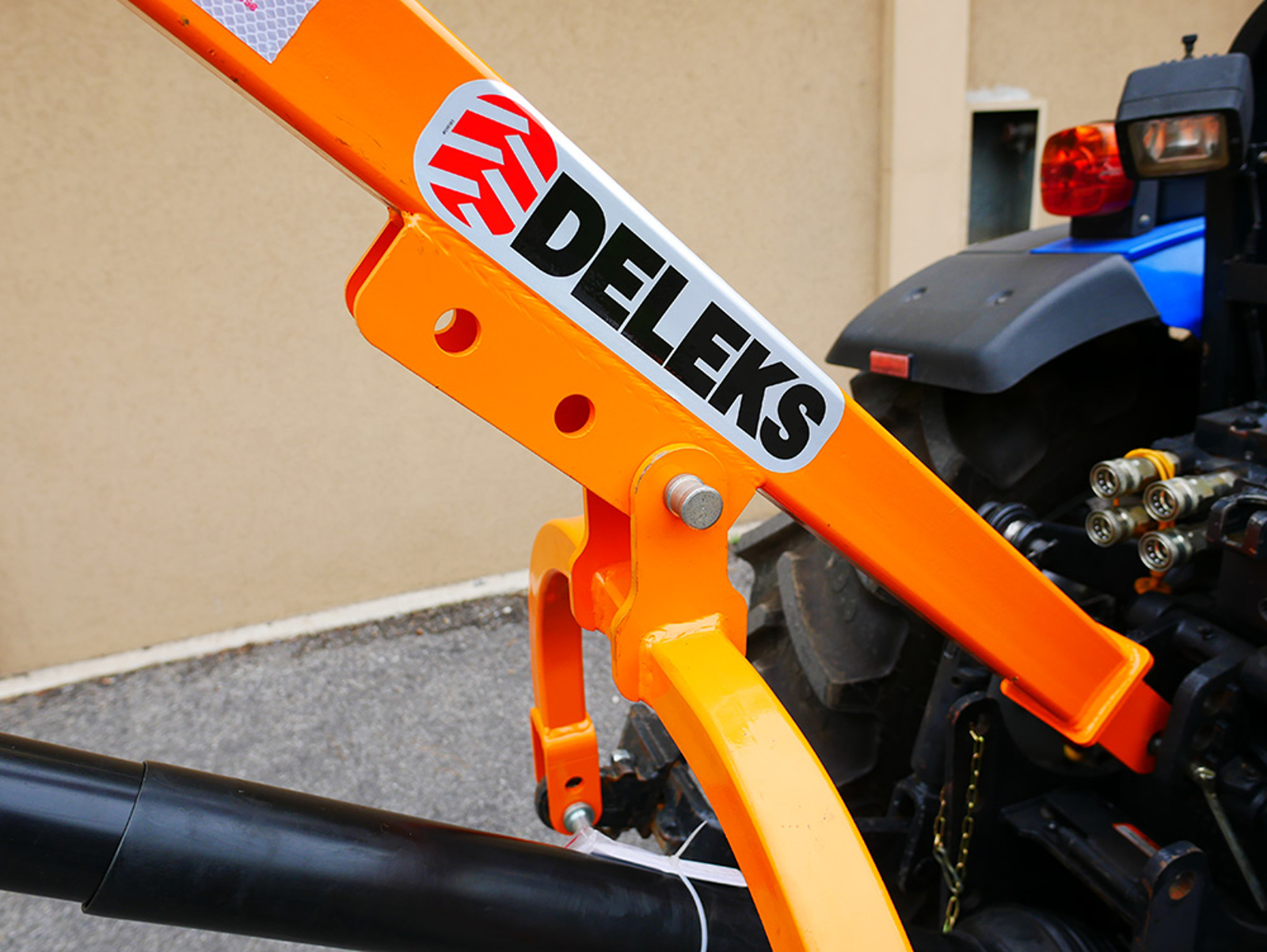

Inclination adjustment of the arm angle
Takes advantage of the tractor levers does not require a hydraulic system
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
EC Certification and Risk Analysis (Valid throughout Europe) edited by ECO Spa (Faenza - Italy).
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 82.0 kg |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Spacing between the 2 lower points | 450.0 - 730.0 mm |
| Arm tube thickness | 5.0 mm + reinforcements |
| Auger speed rotation | 180 r/min |
| Thickness of the arm | 5.0 mm + reinforcements |
| Pto shaft | CE 5x1300 mm |
| Reach (D) | 1770.0 mm |
| HP min | 35 Hp |
| Gearbox | Lombarda Ingranaggi 540 r/min (3 year warranty) |
| Rotation of gearbox | Right side |
| Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Packing sizes | 1700*800*500 mm |
