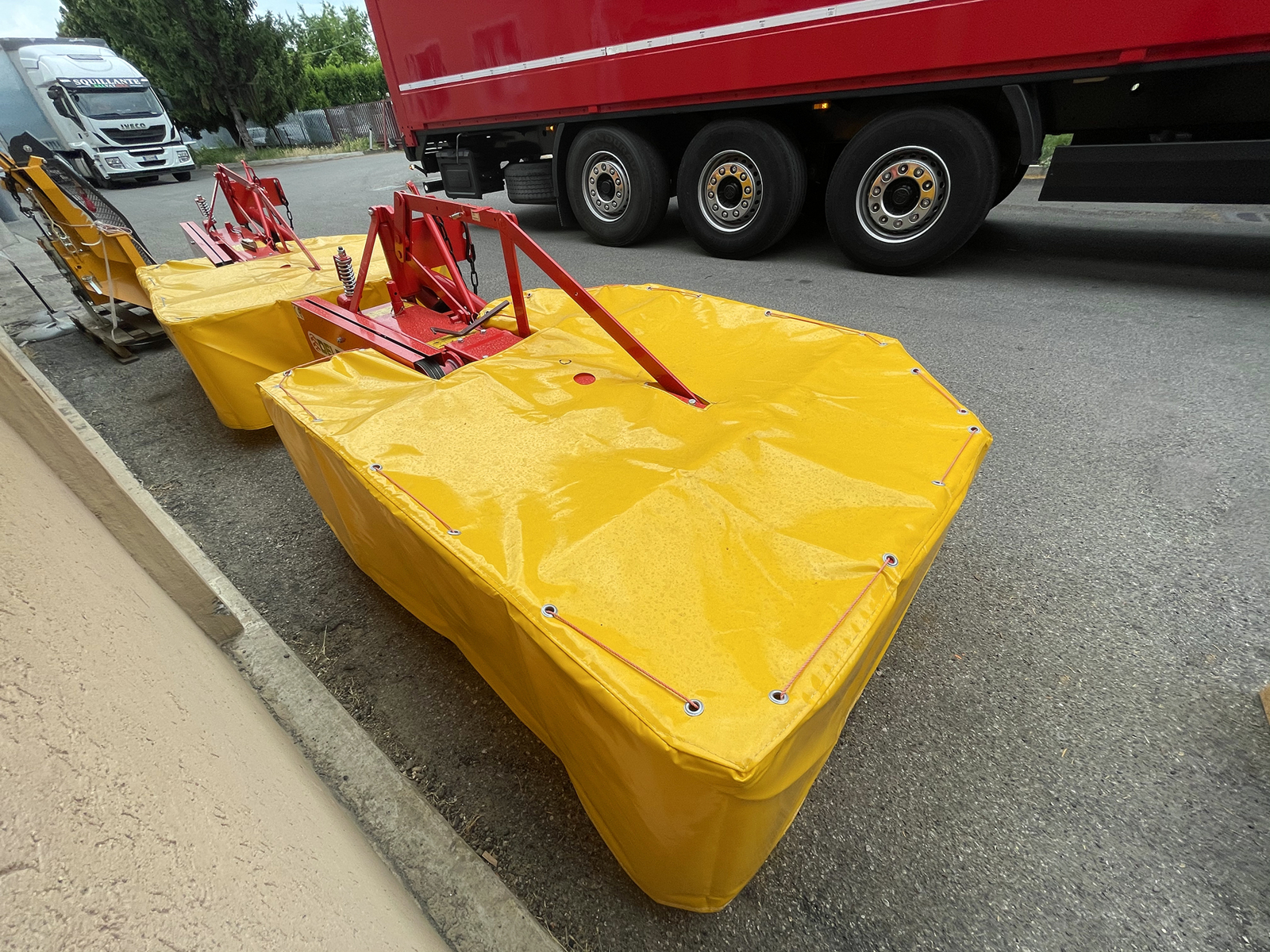

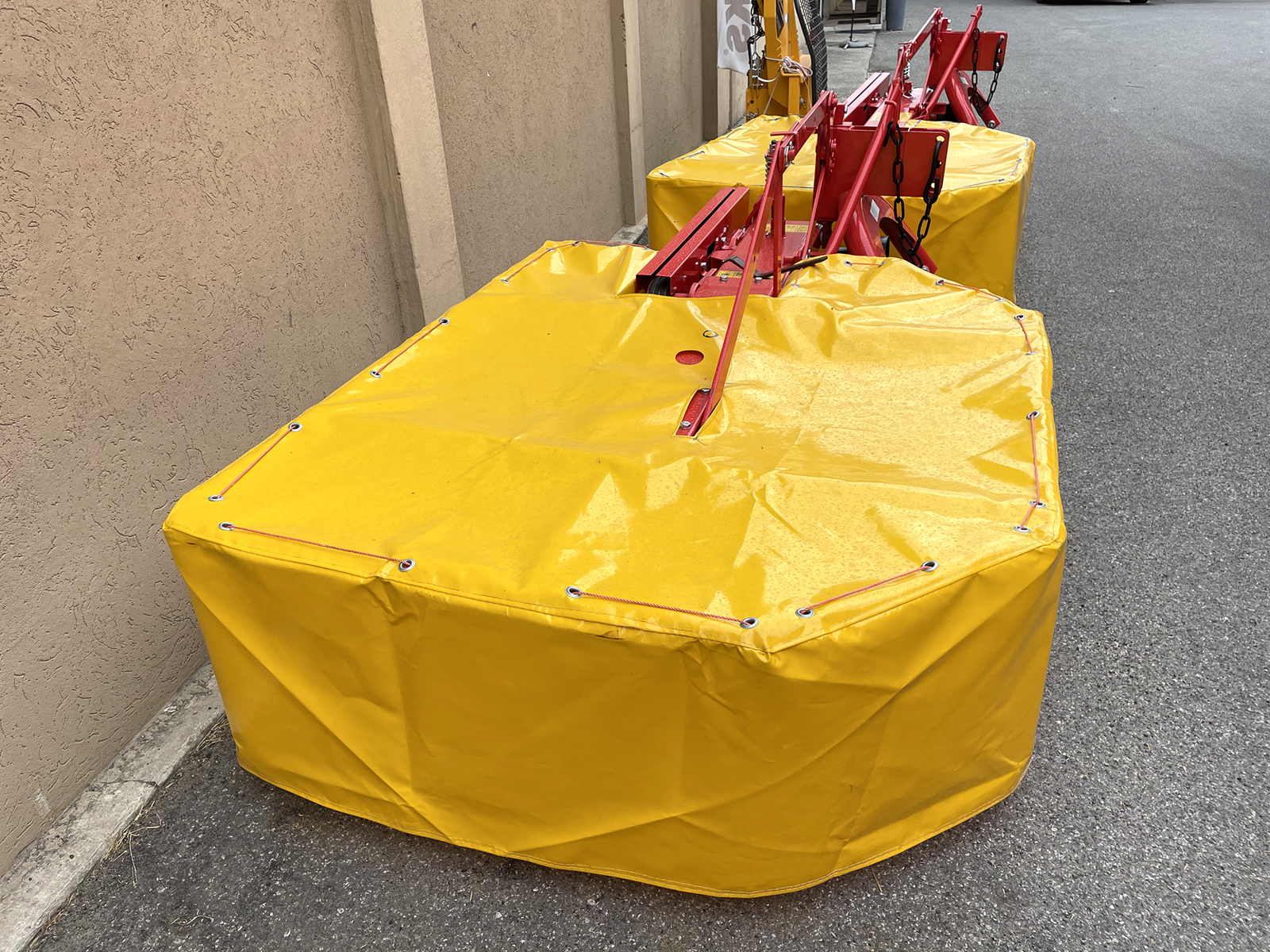

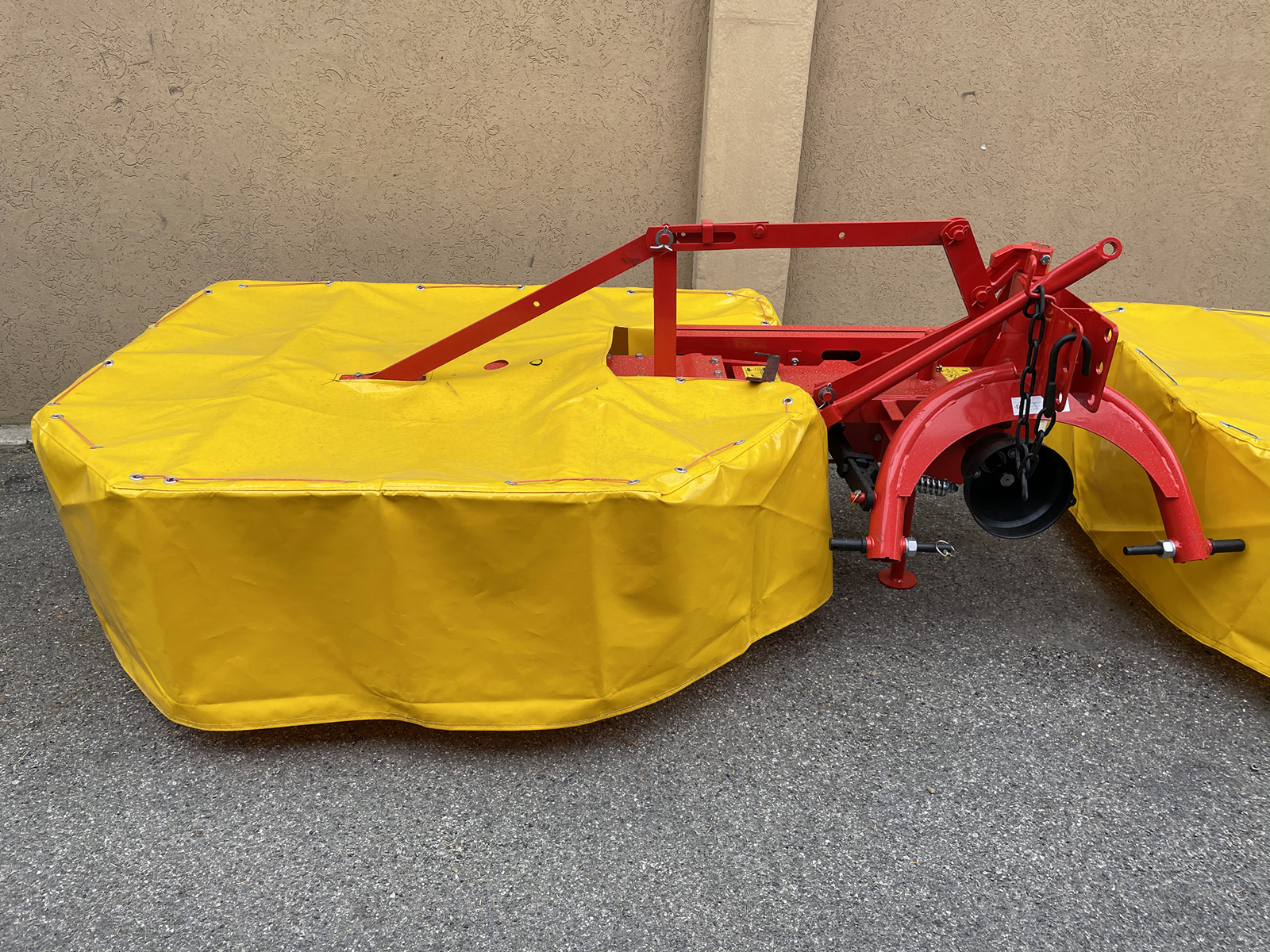

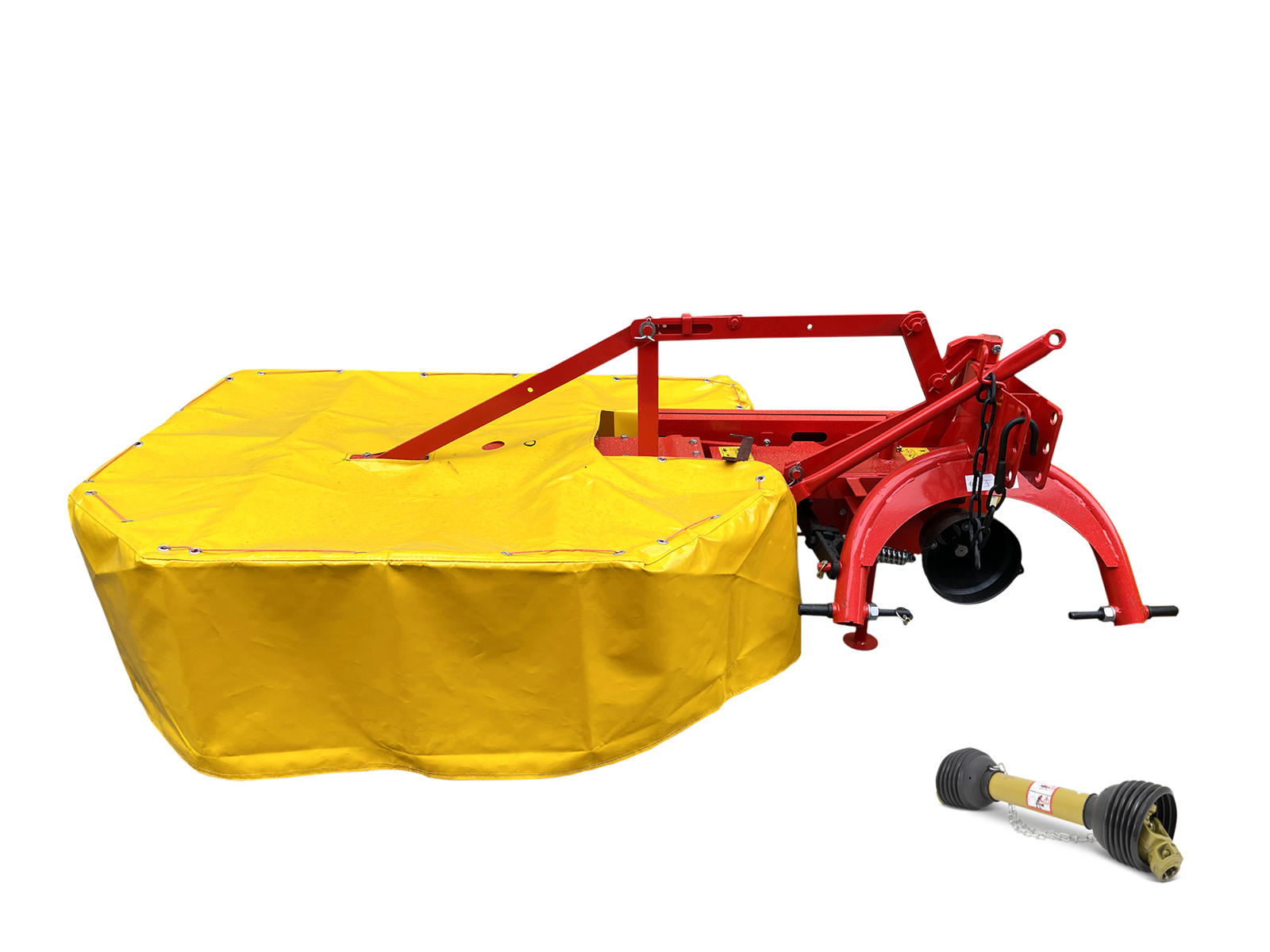

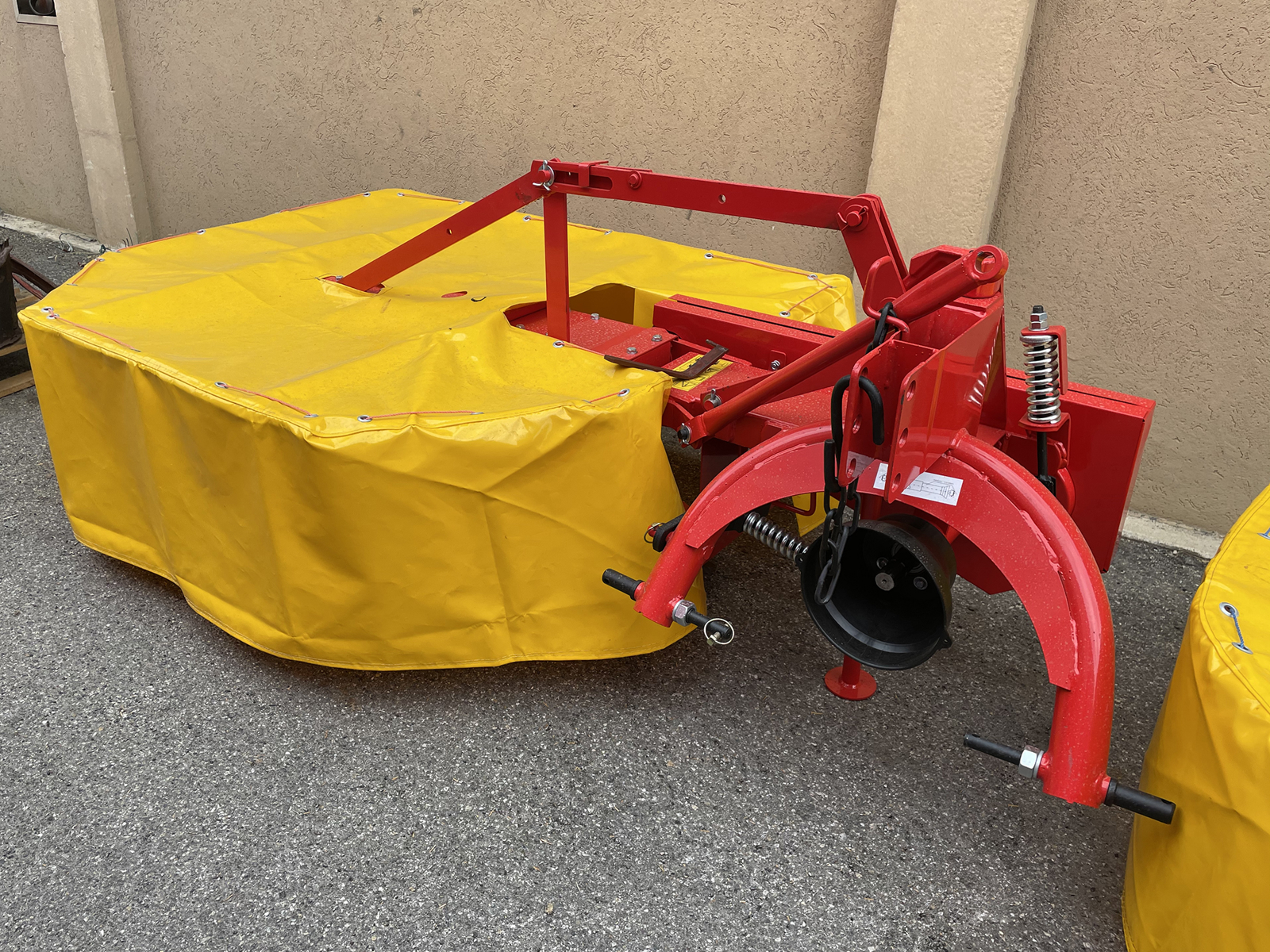

DFR-135 MINI DELEKS - Drum mower for tractor, short arm for narrow tractors, 8 blades, Spring locking system.
OVERVIEW

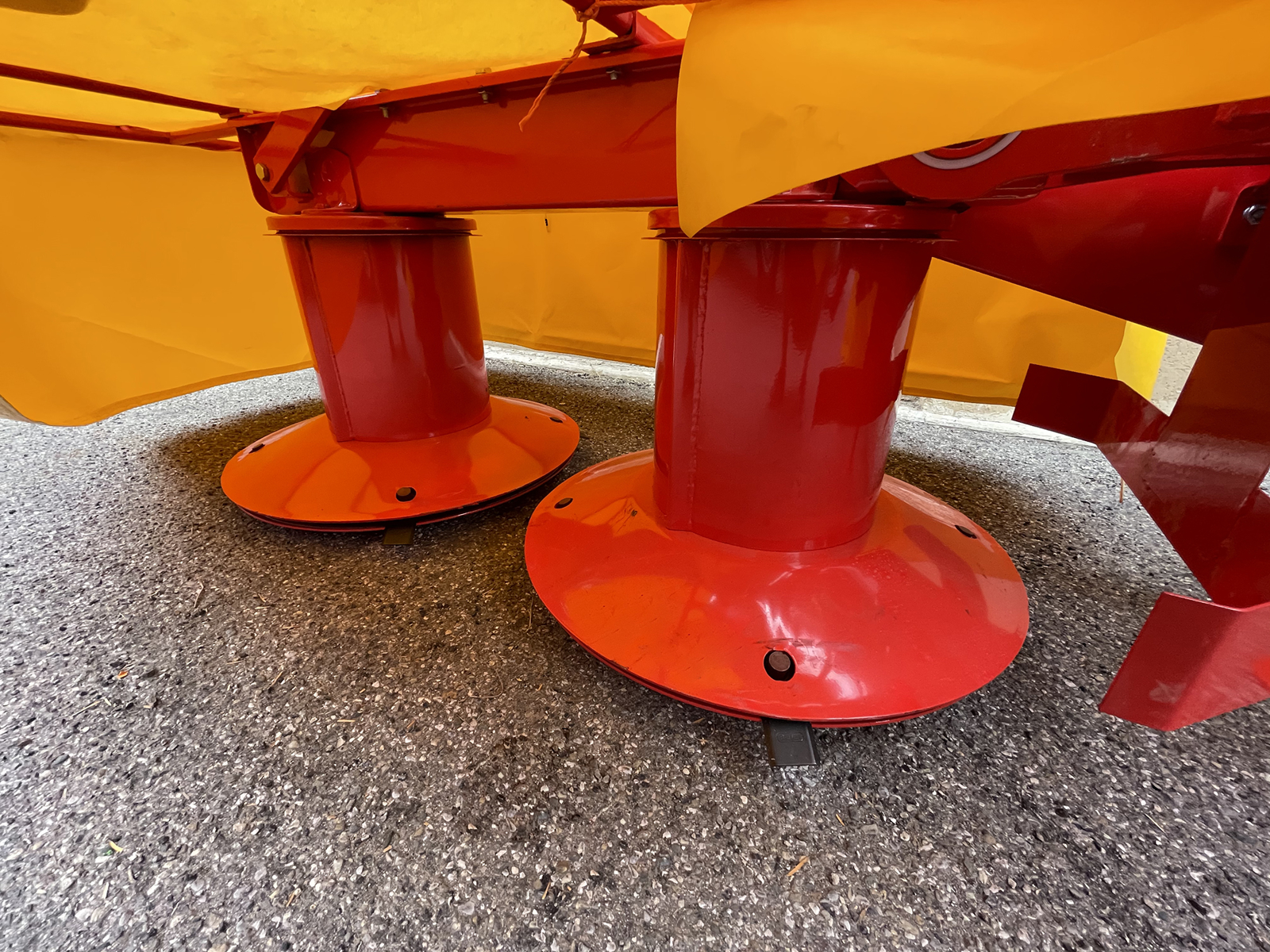

DELEKSI DFR-135 MINI Rotary Drum mower considerably reduces the hay making times with its simple but solid and sturdy construction, the drum has a fixed supporting axle and appropriately sized transmission assemblies. It uses two discs to operate. The lower disc, which rotates freely, prevents the cutting disc from sinking into the soils so can be used on flat ground and uneven terrain. It fits all standard compact tractors e.g Kubota, Ford, McCormick, Iseki, Yanmar, John Deere, Fiat.
BENEFITS AND FEATURES
Short arm for narrow tractors
The lightweight design allows its use with low-powered tractors, on flat ground or on verges.
Safety Release to prevent damage
Easily accessible discs for changing blades.
Can be used in any conditions to make hay year round.

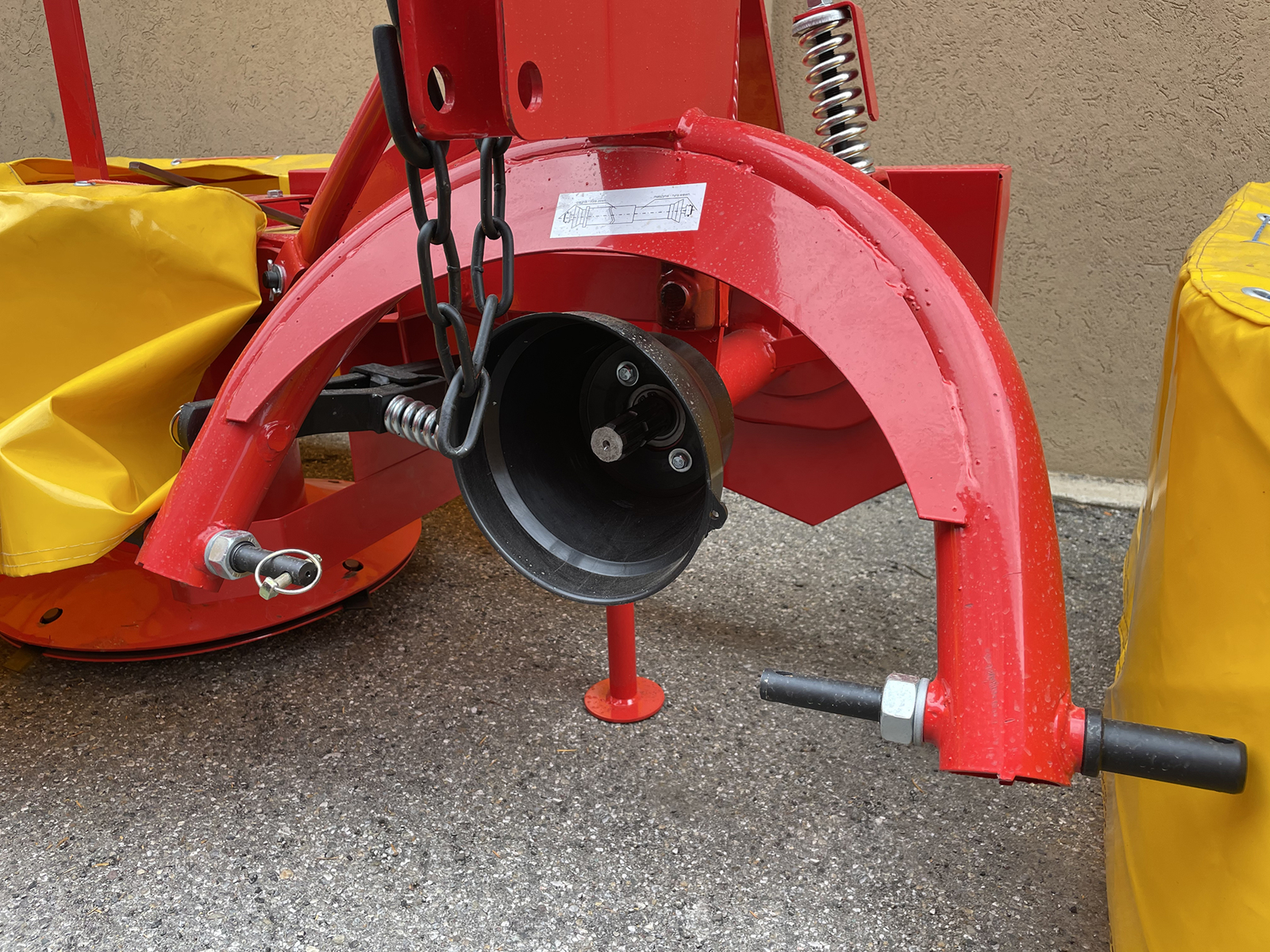

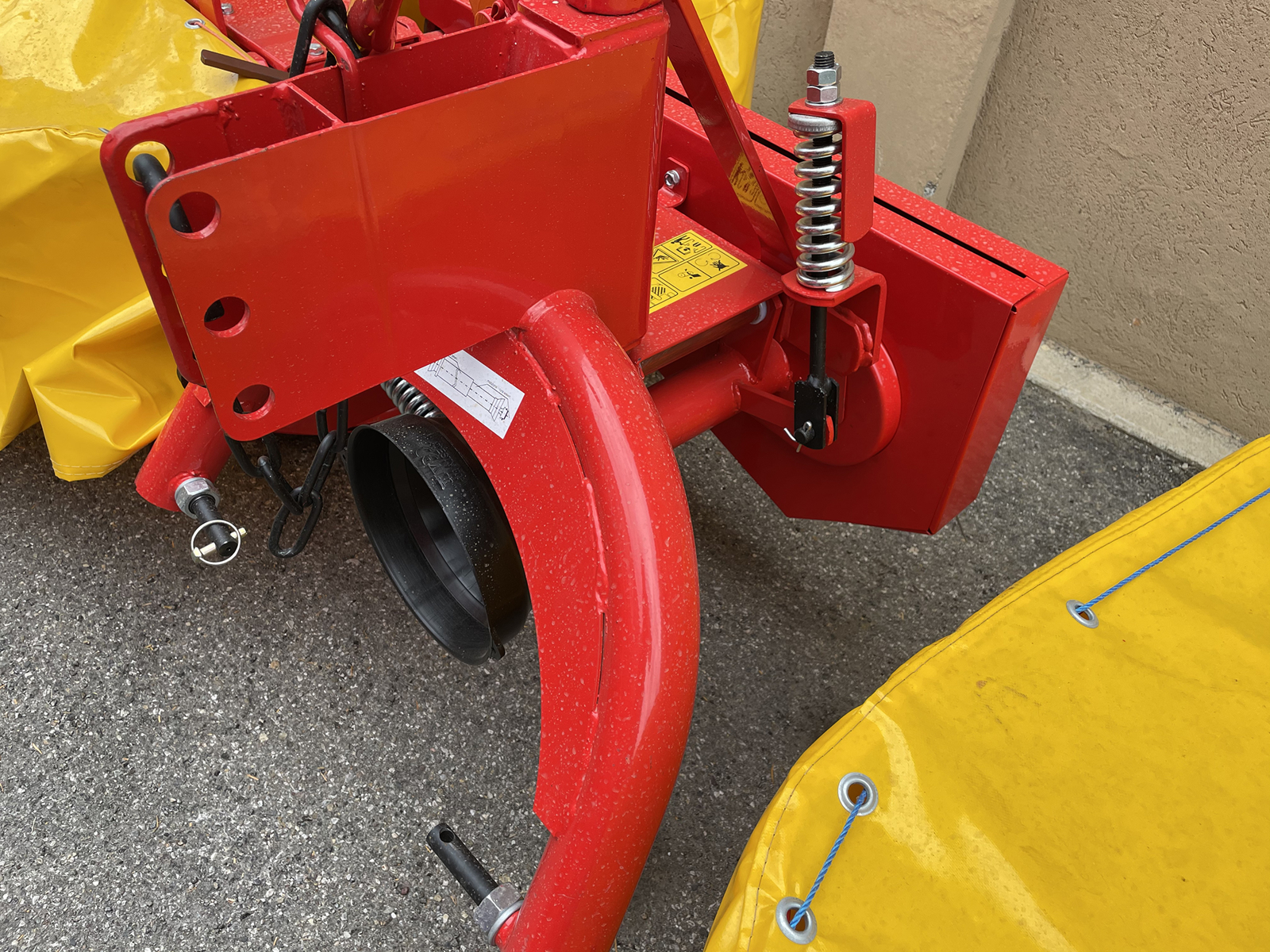

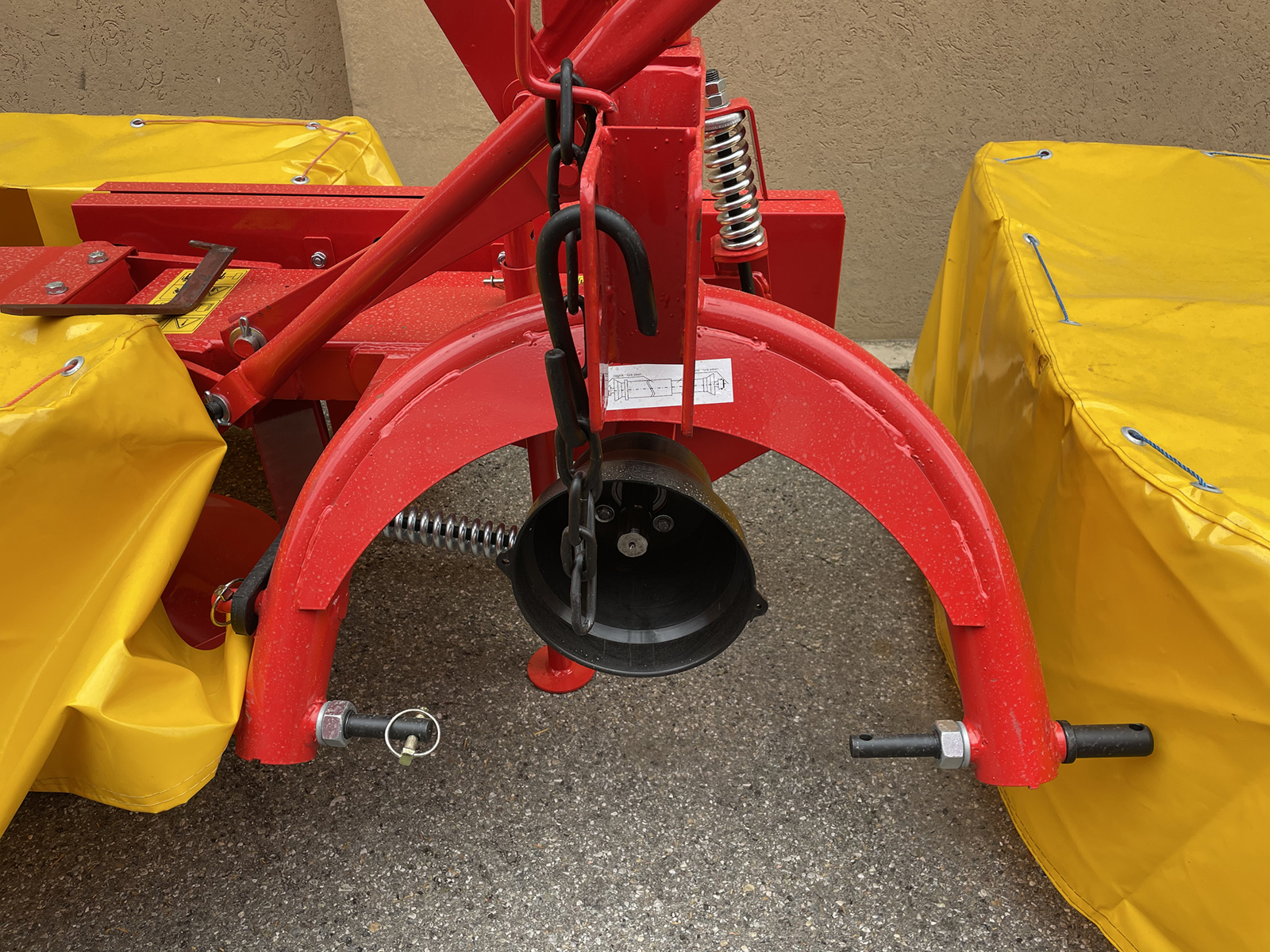

Spring locking system to allow for the mower to overcome obstacles and to keep the machine safe during transit.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1350.0 mm |
| Overall width | 2400.0 mm |
| Min / Max cutting height | 50.0 mm |
| Weight | 280.0 kg |
| Tractor Power Range | 18-45 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Spacing between the 2 lower points | 420.0-810.0 mm |
| Overall length | 1300.0 mm |
| Distance between pto attachment and ground | 430.0 mm |

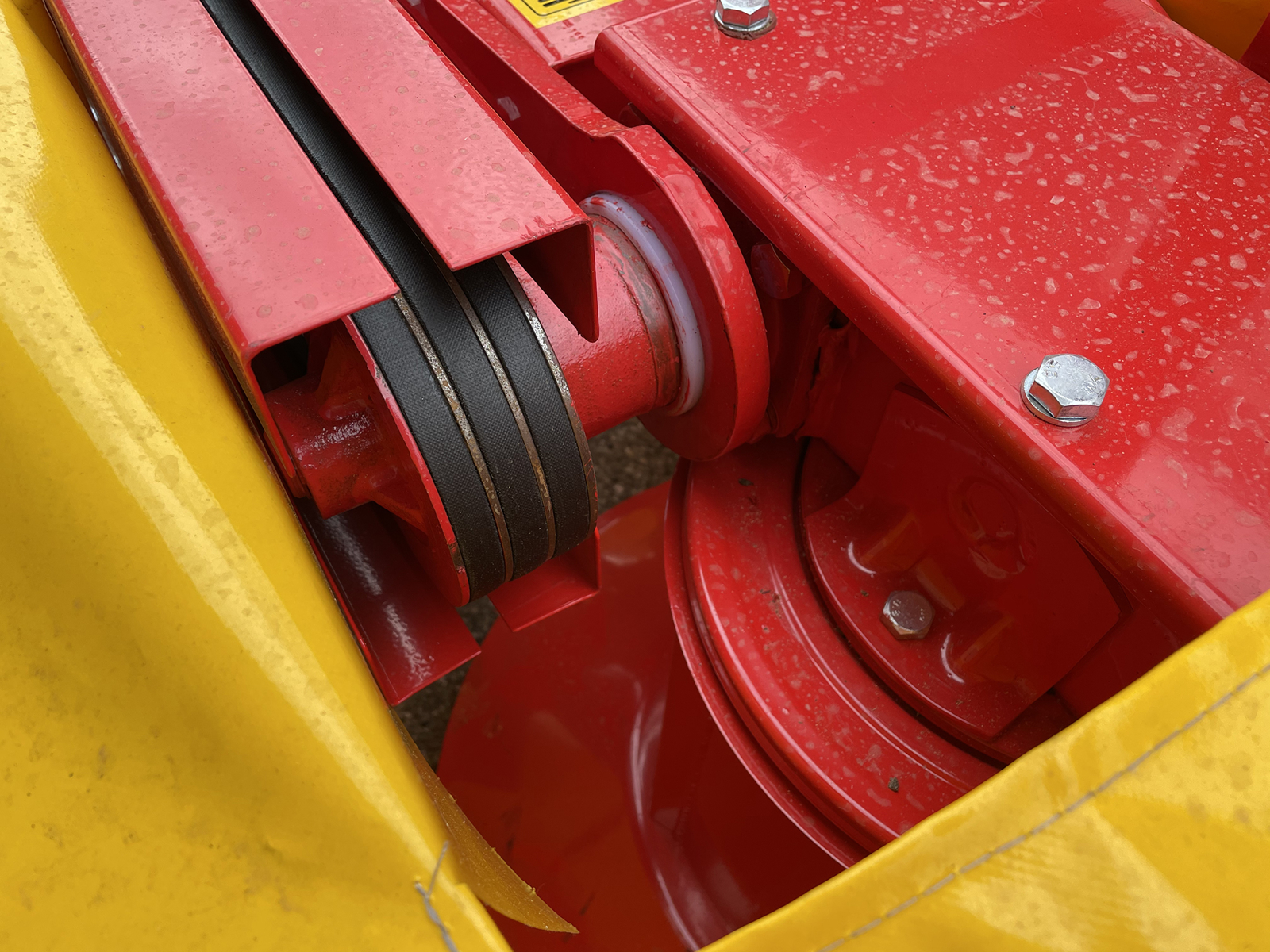

| Transmission: Drive method | V-Belts |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 3 |
| Arm length | 650.0 mm |
| Cover | Metal frame |
| Drums quantity | 2 |
| Height of the drums | 600.0 mm |
| Lift System | Manual |
| Transmission | Bevel gears |
| Pto shaft | CE 4x800 mm |
| Number of Blades | 8 |
| Blades: Weight | 150.0 g |
| Blades: Length/Width | 95.0 / 48.0 mm |
| Blades: Diameter of the hole | 18.0 mm |
| Packing sizes | 1350.0*800.0*1600.0 mm |
