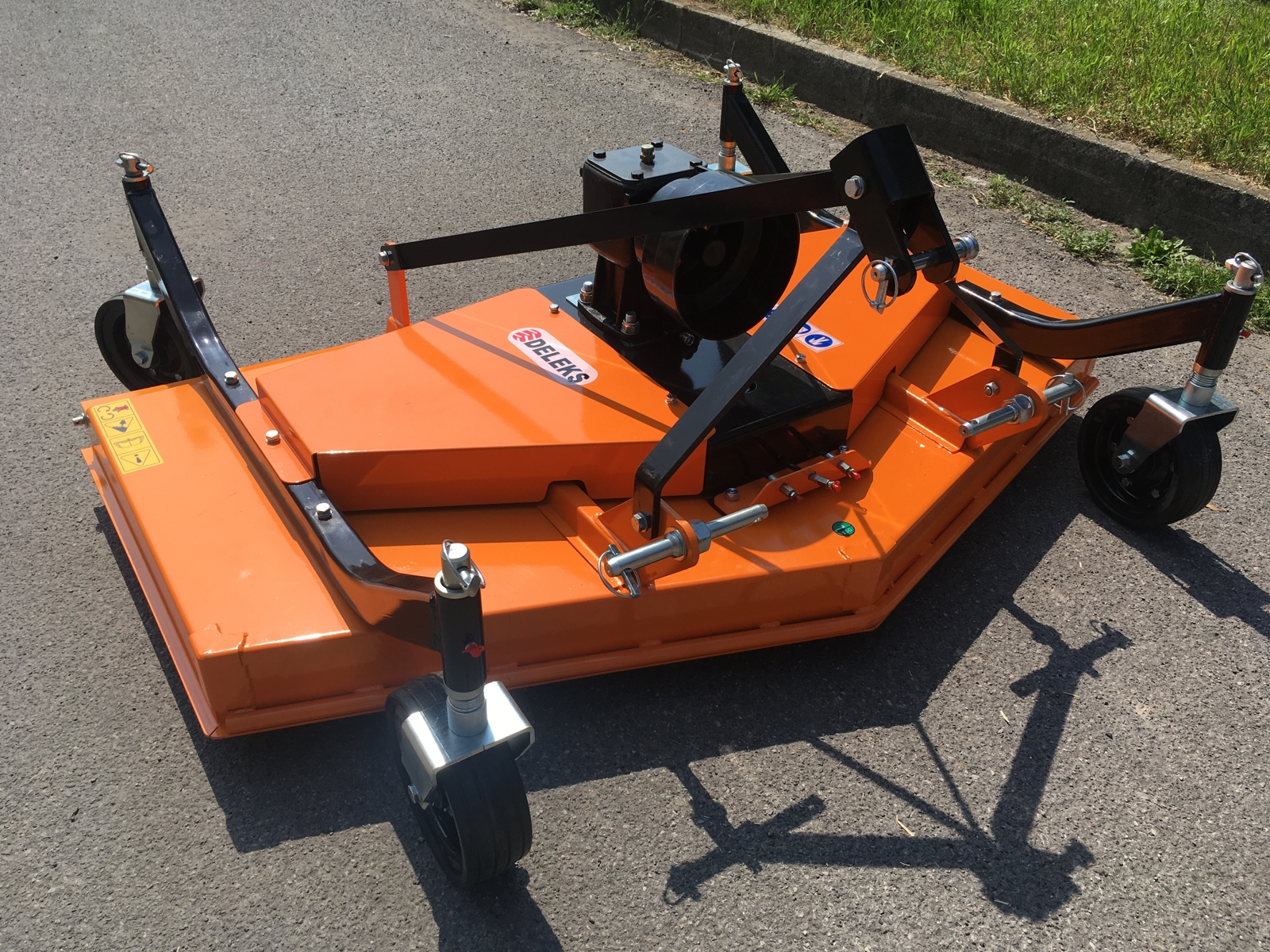

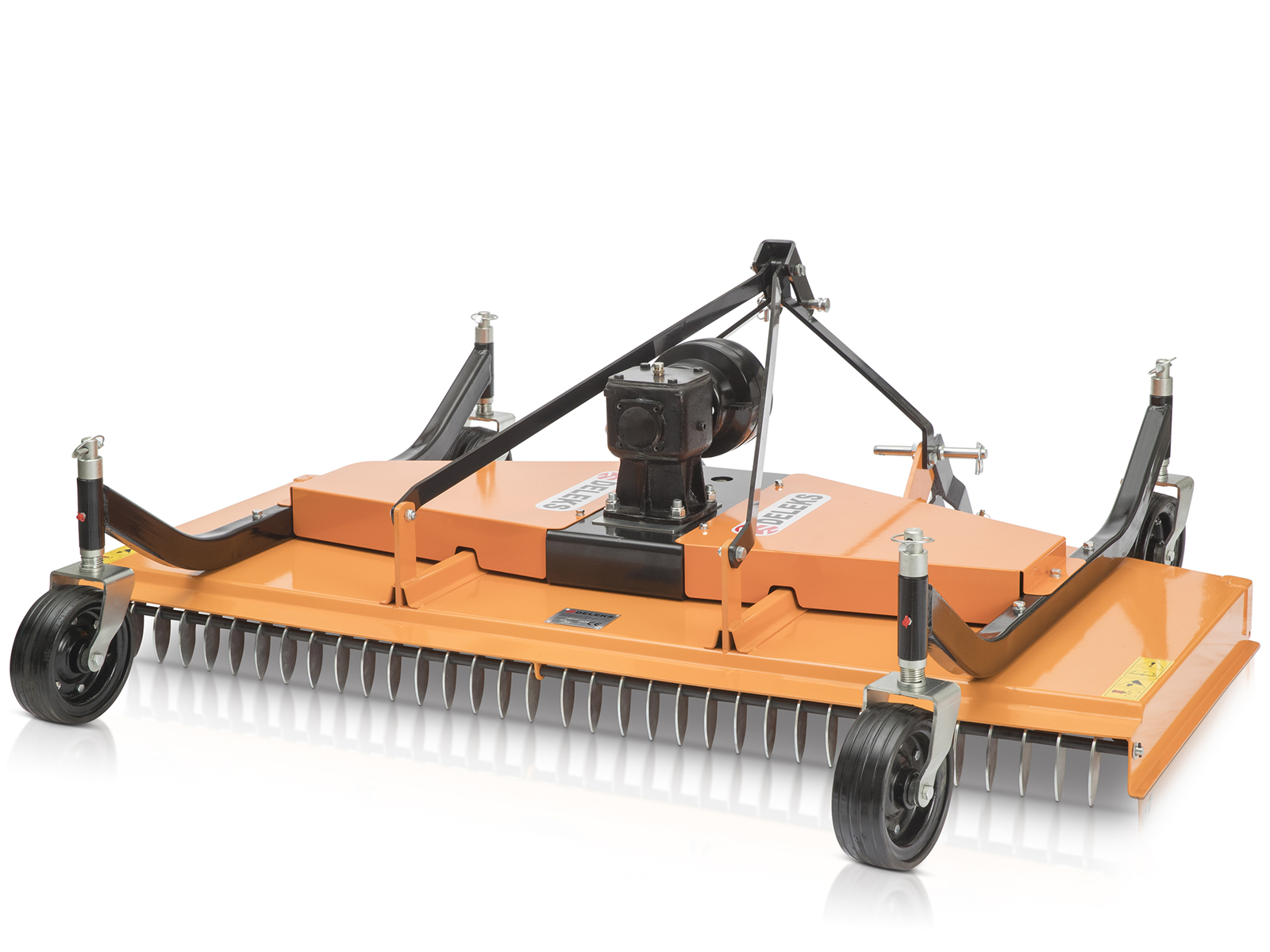

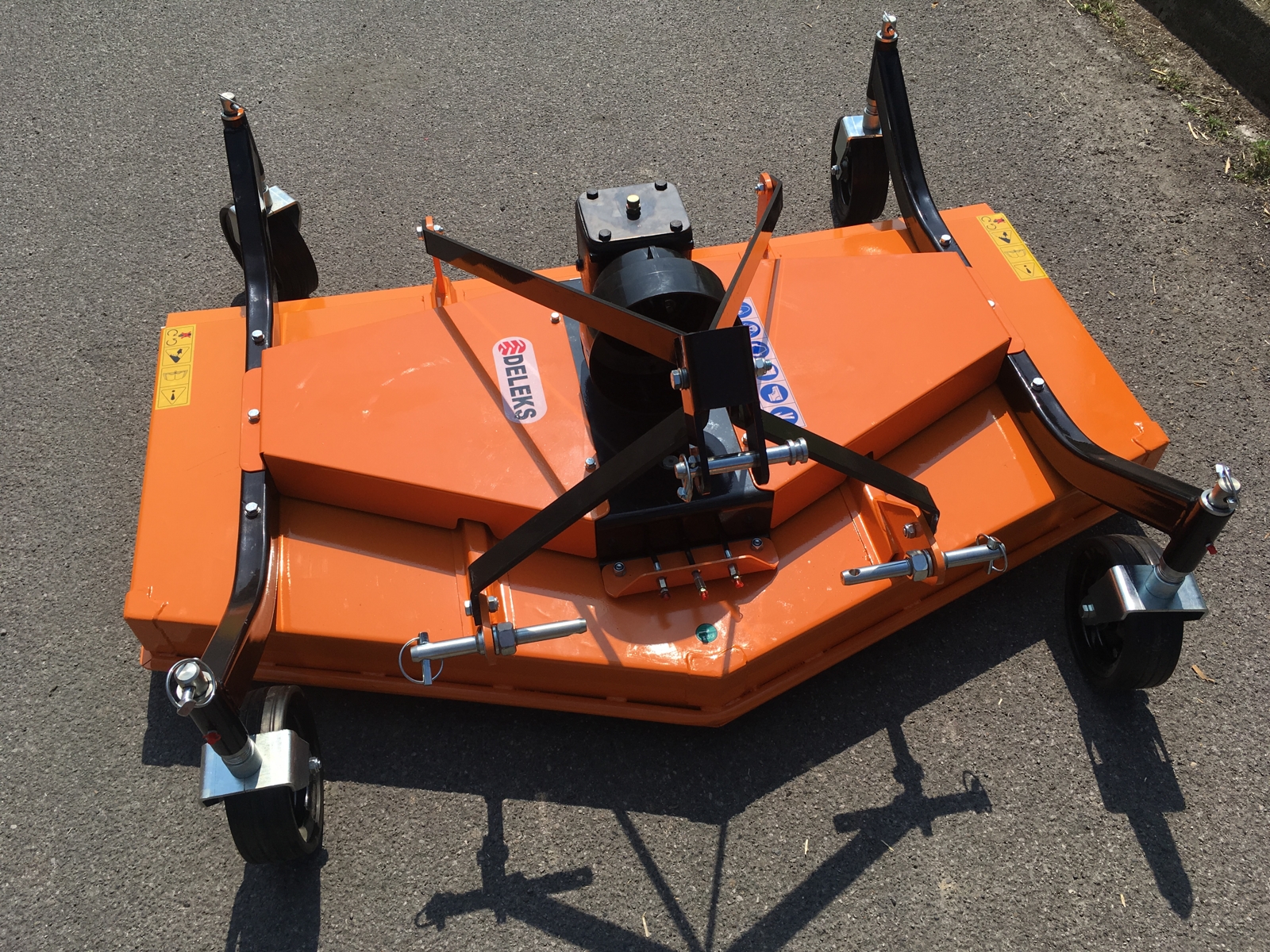

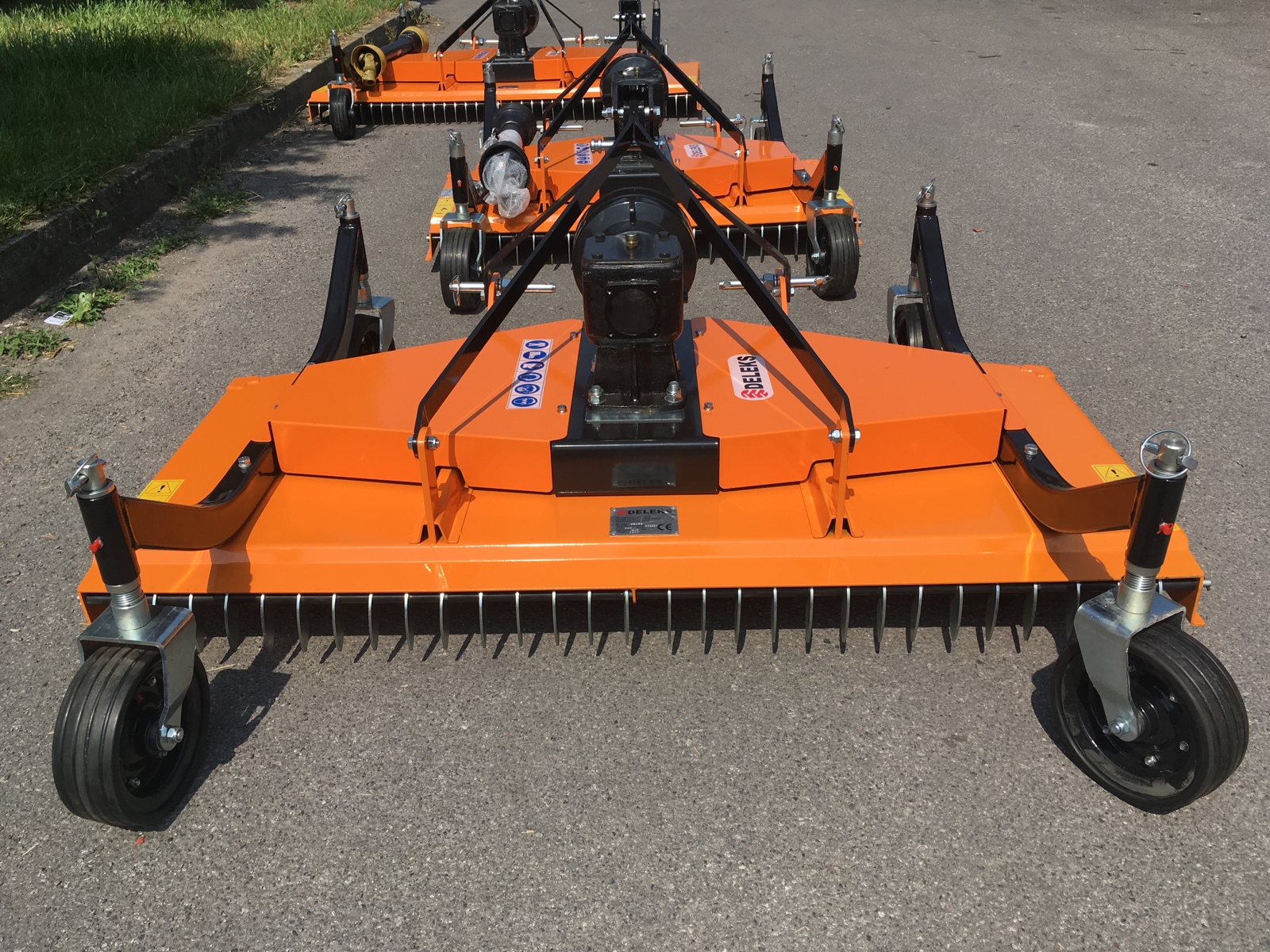

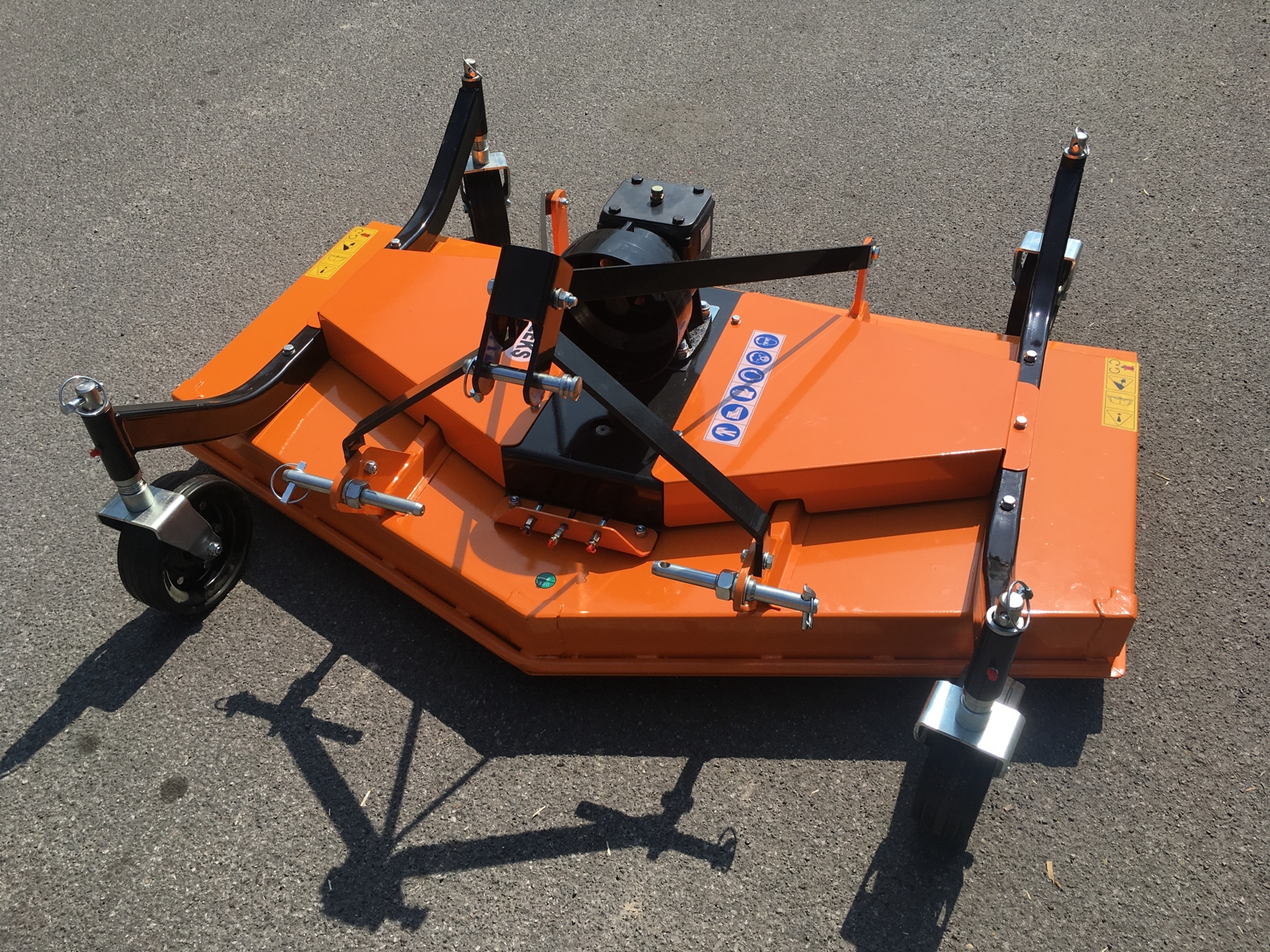

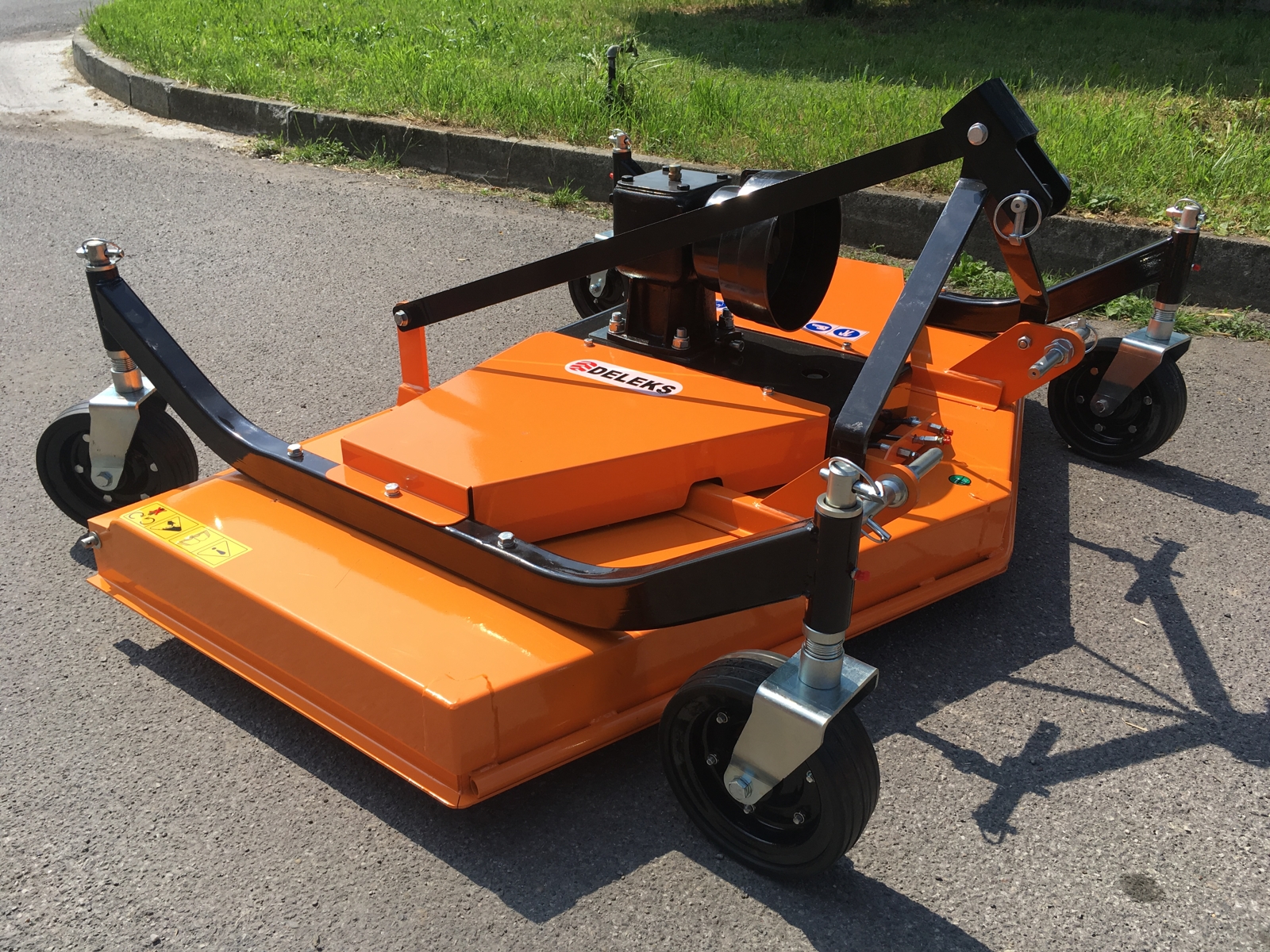

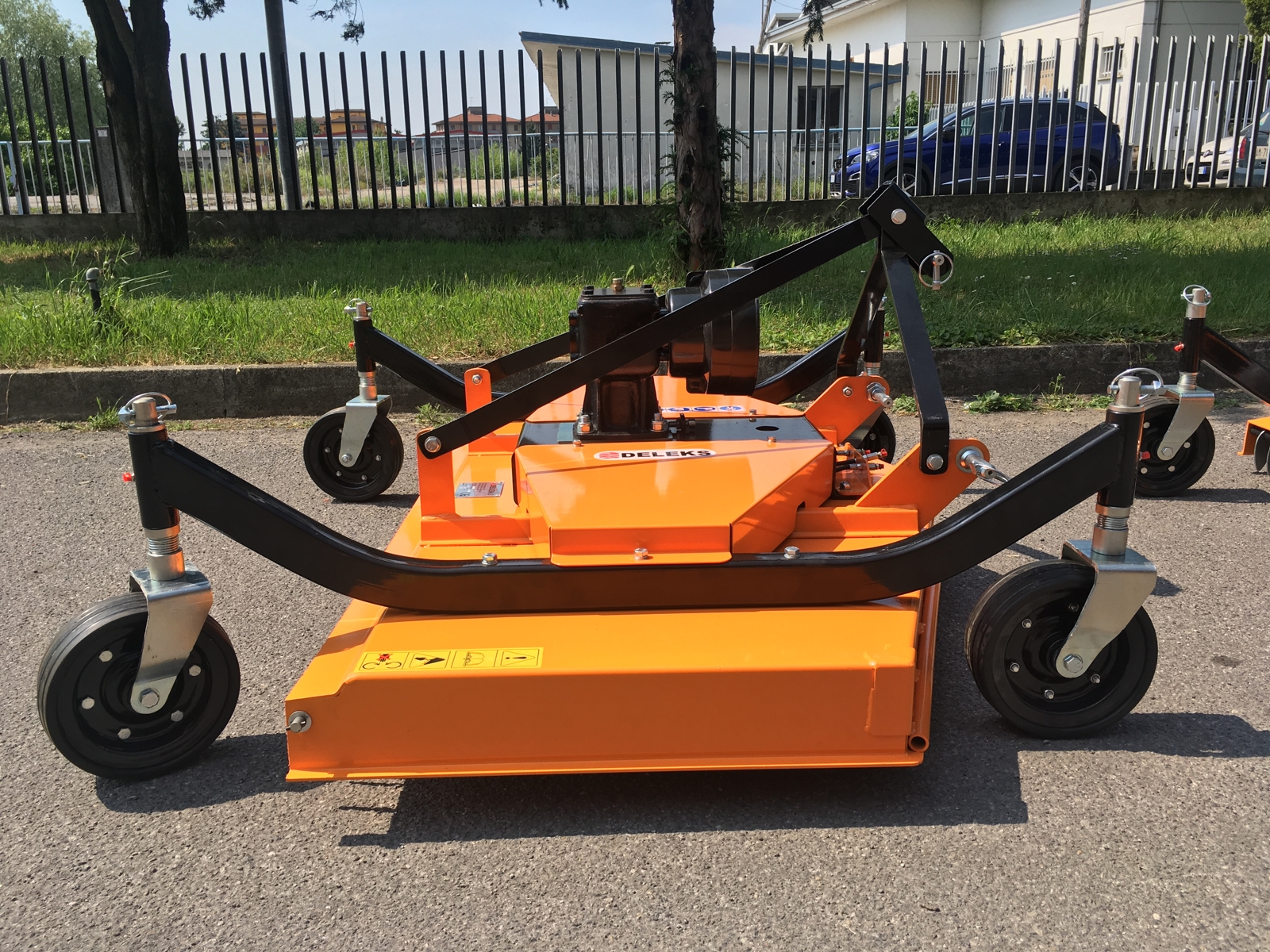

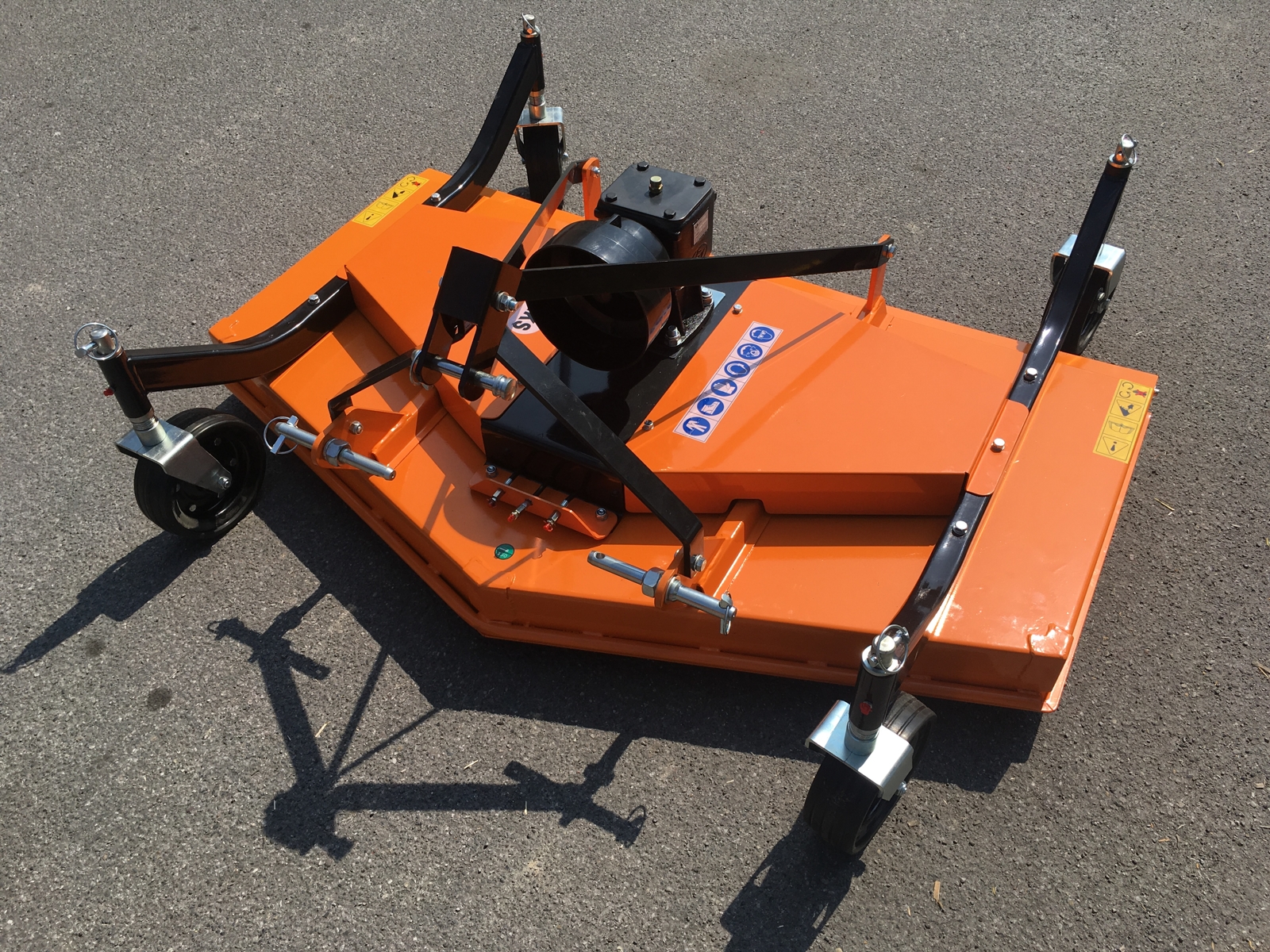

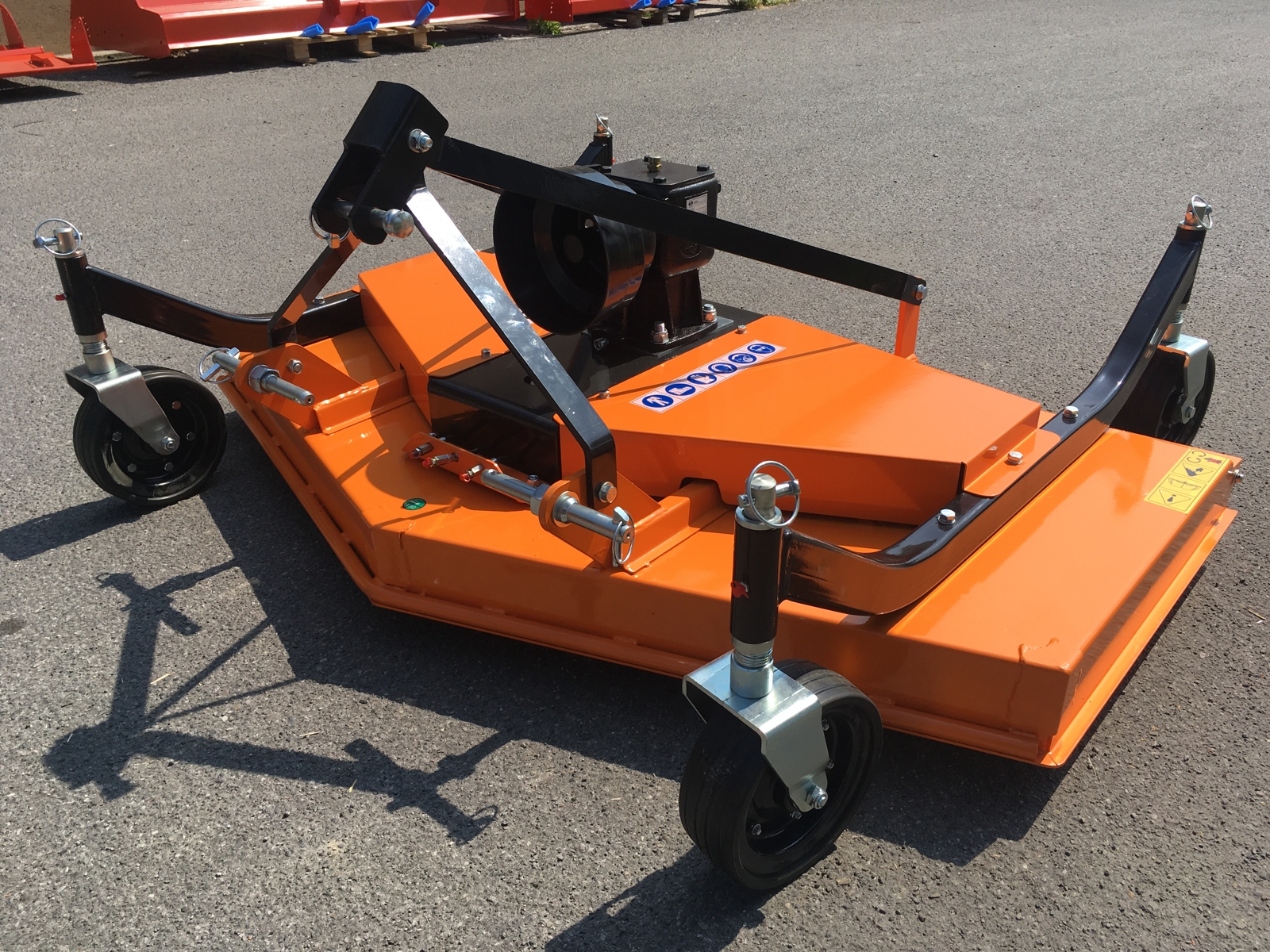

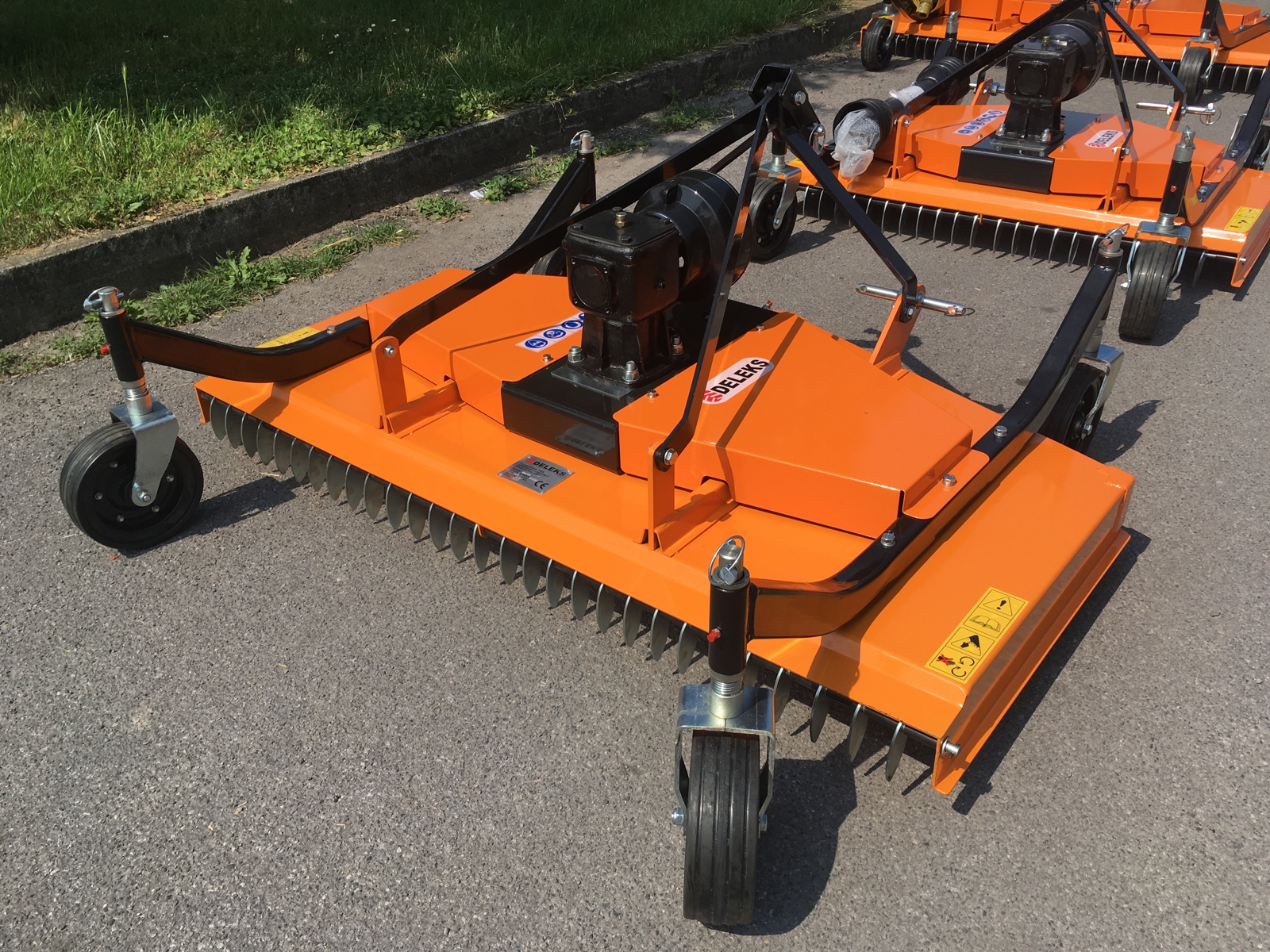

Finishing mower for tractor, DM-150
Field test
DETAILS
Finishing mower for tractor, 150cm / 180kg - DELEKS®- 3 blades - Cardan shaft with Free wheel integrated.
OVERVIEW
For customers looking for a professionally groomed lawn, the DM Series high-performance finish mowers ensure a clean, crisp, manicured appearance year round. Light weight yet durable, the DM-150 mower can be used on all 18-45HP tractors e.g Kubota BX-B, McCormick, Iseki, Yanmar. Ideal for lawns, gardens, sport areas and parks. Gearbox P.T.O. 540 r.p.m.
BENEFITS AND FEATURES

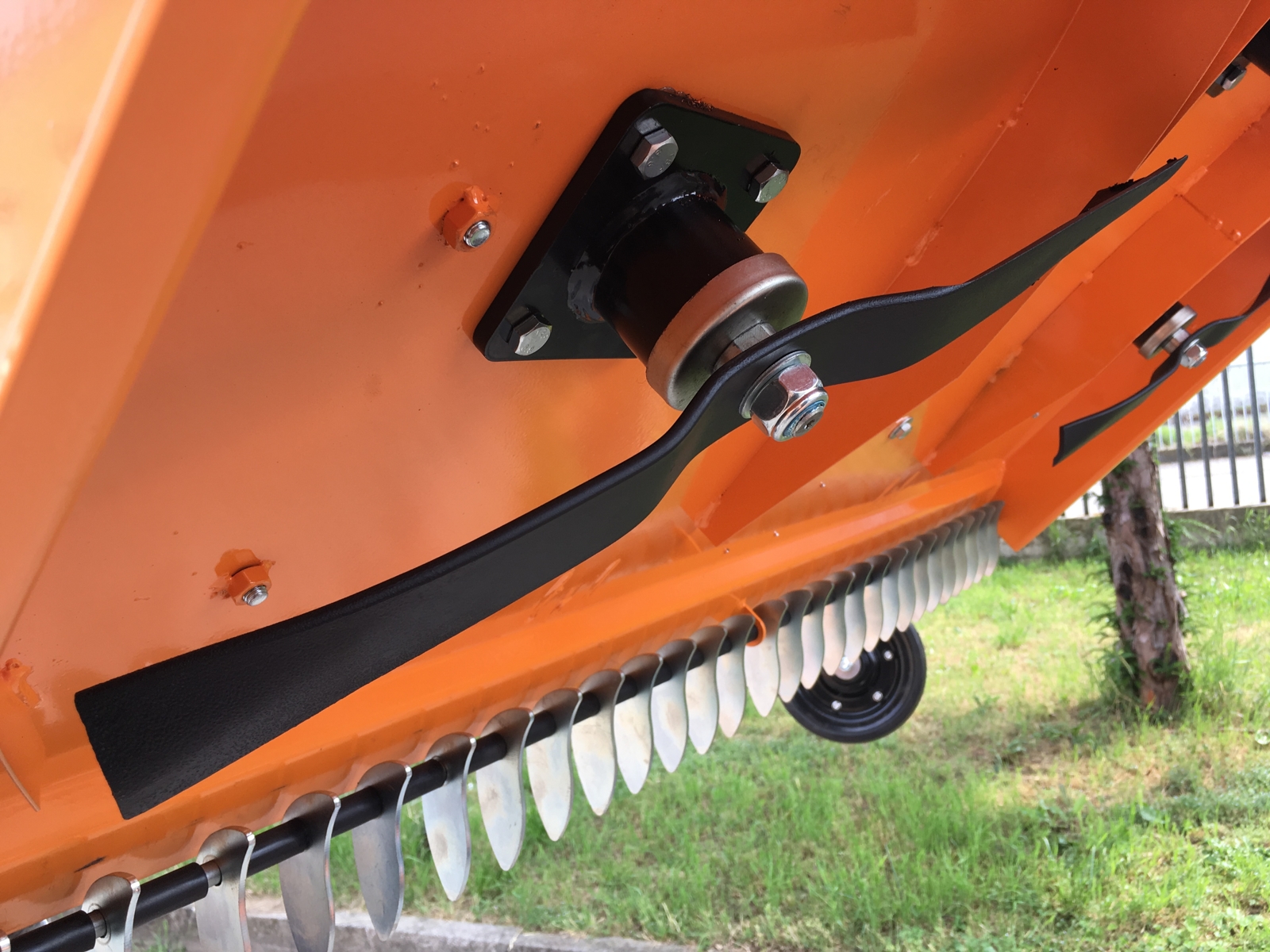

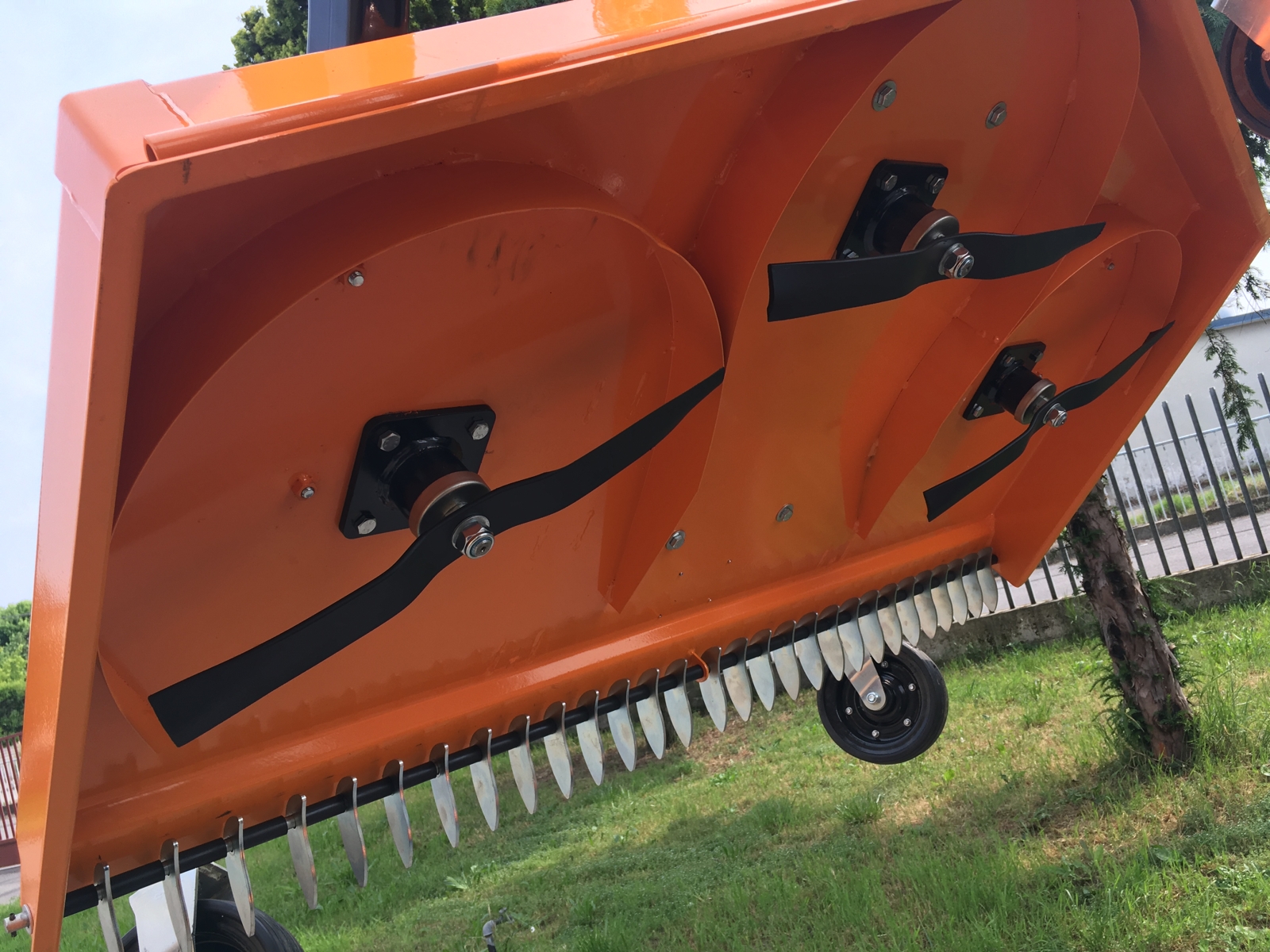

The 3 high speed blades pulverize grass clippings to ensures no tracks of grass are left behind.

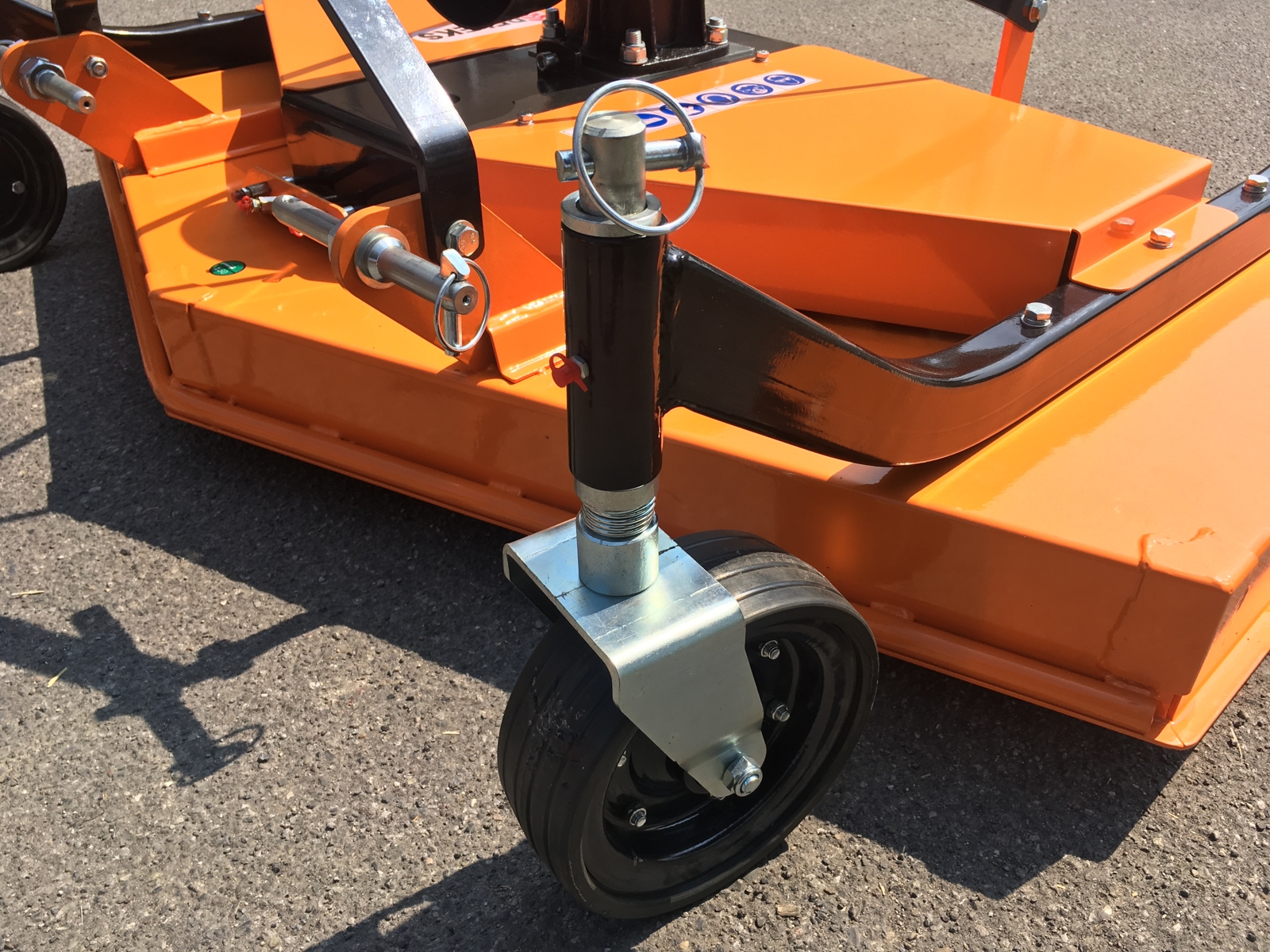

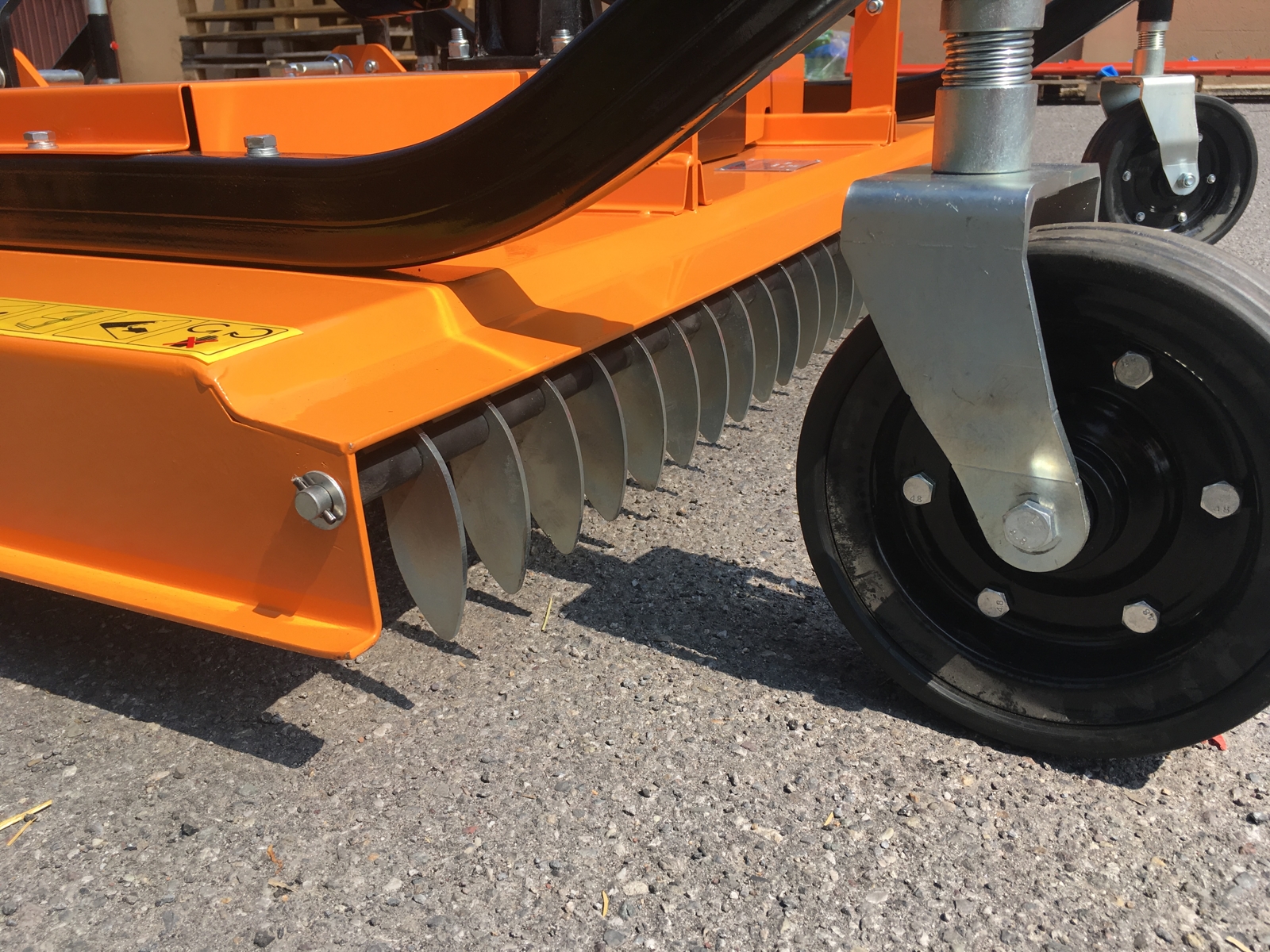

4 pivoting wheels maintain the horizontal cutting level and regulate the cutting height.
The lightweight design allows its use with low-powered tractors, on flat ground or on verges.
2 high resistance toothed belts, and external belt tensioner.

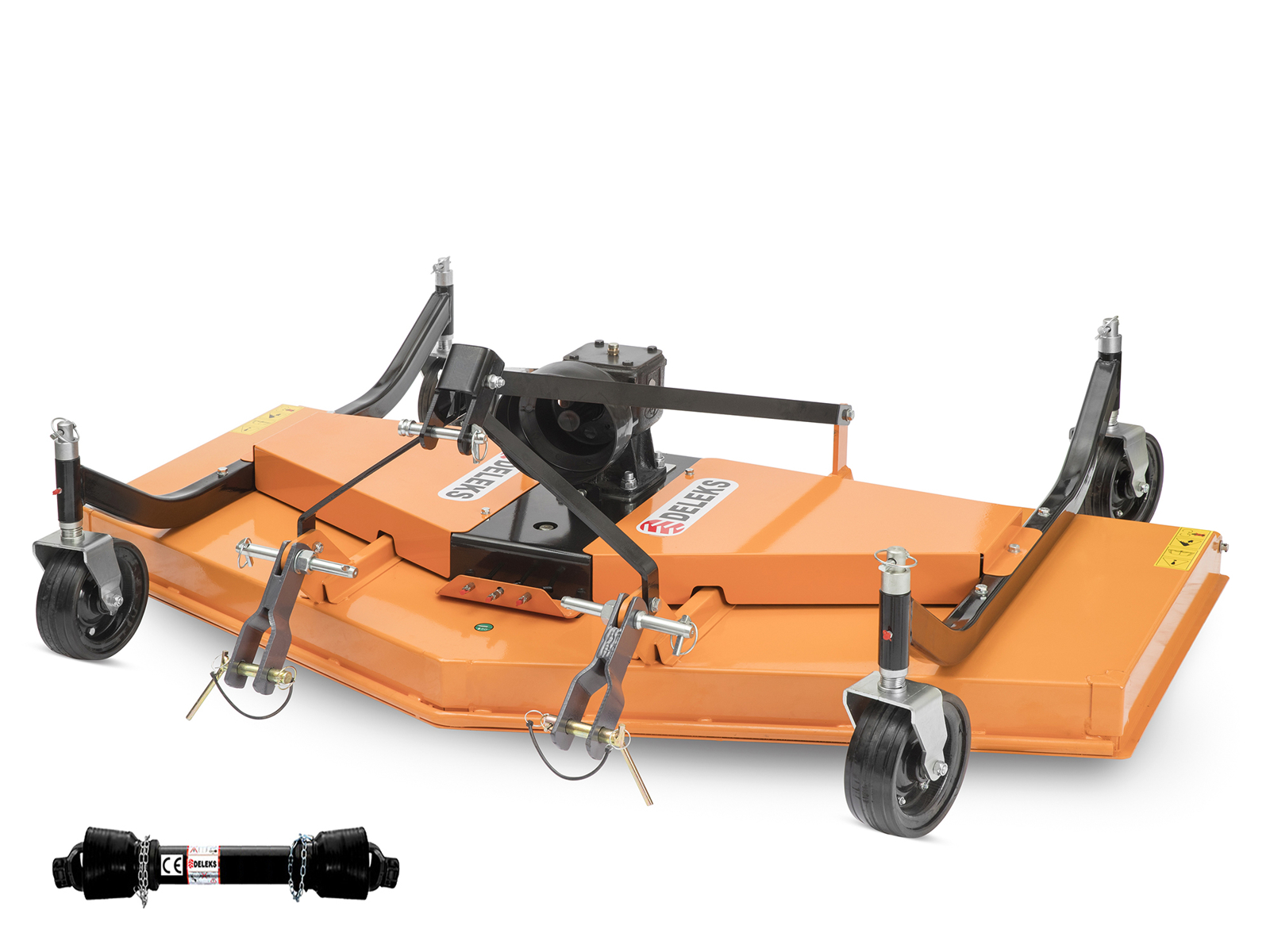

Cardan shaft with Free wheel integrated.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1500.0 mm |
| Overall width | 1580.0 mm |
| Min / Max cutting height | 5.0 - 50.0 mm |
| Weight | 180.0 kg |
| Overall height | 750.0 mm |
| Tractor Power Range | 18-45 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 375.0-715.0 mm |
| Overall length | 1250.0 mm |
| Distance between pto attachment and ground | 450.0 mm |
| Main hood thickness | 4.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (3 years warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 2 |
| Transmission: V-Belts size | 17x1753 |
| Number of Blades | 3 |
| Transmission: RPM Blade speed | 2600 r/min |
| Blades: Length/Width | 500.0/50.0 mm |
| Blades: Diameter of the hole | 20.0 mm |
| Wheels: Quantity | 4 |
| Wheels: Diameter / Width | 200.0/77.0 mm |
| Pto shaft | CE 4x1000 mm + free wheel |
| Transmission: Pulleys diameter | 245.0/14.0 mm |
| Blades: Weight | 1120.0 g |
| Packing sizes | 1600.0*900.0*500.0 mm |
