100% electric 4WD wheelbarrow with dumper body with hydraulic tipping

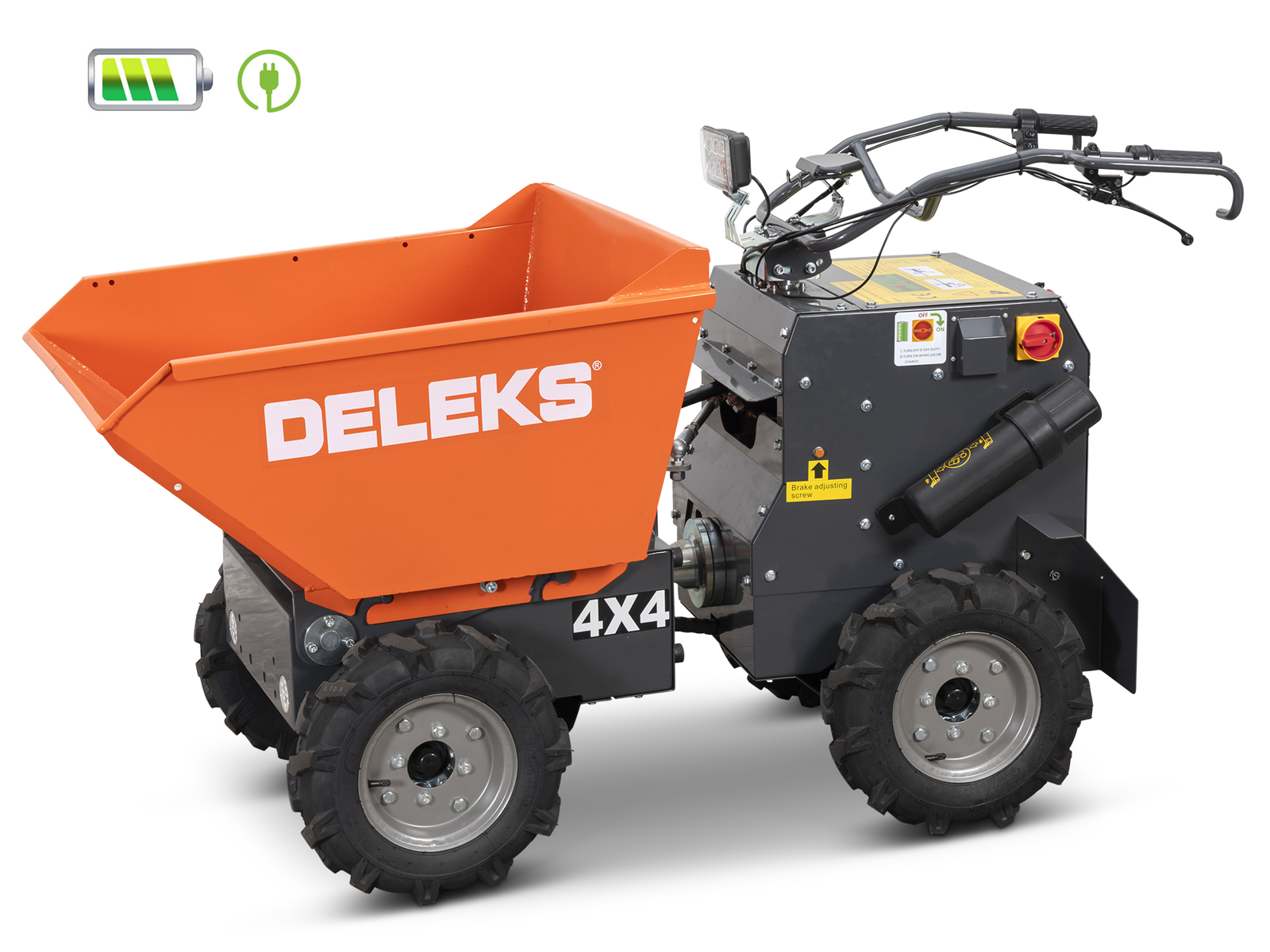

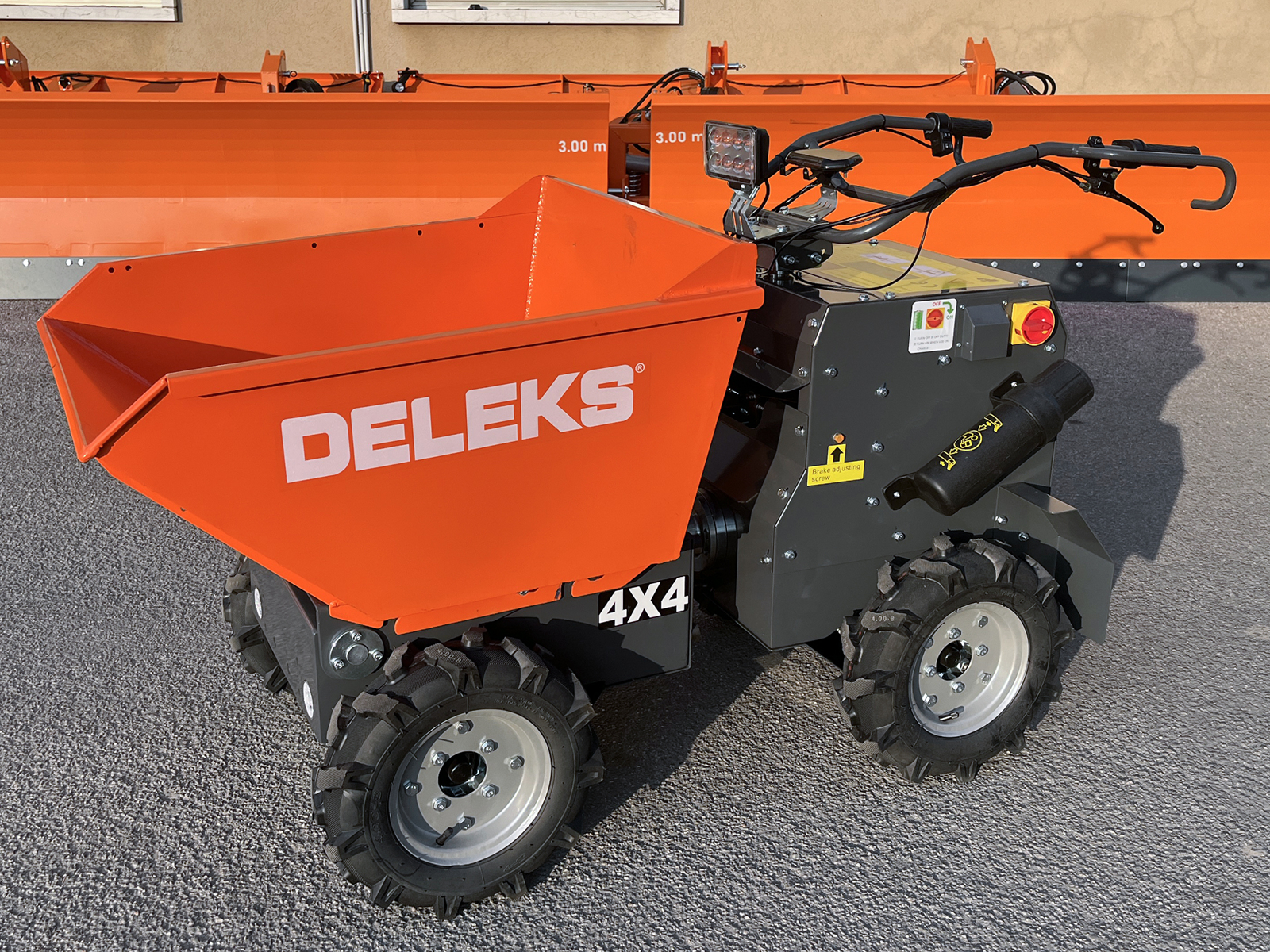

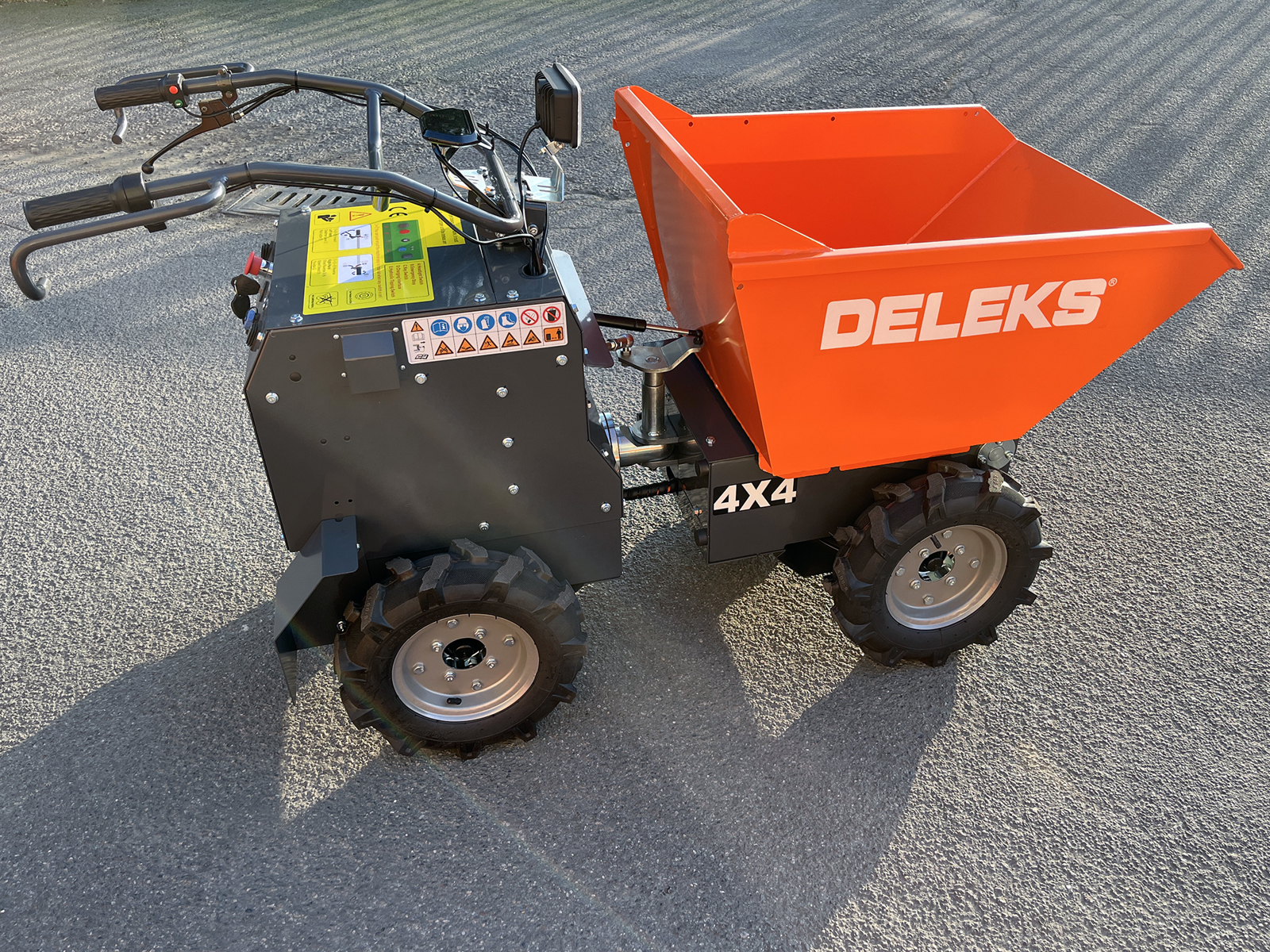

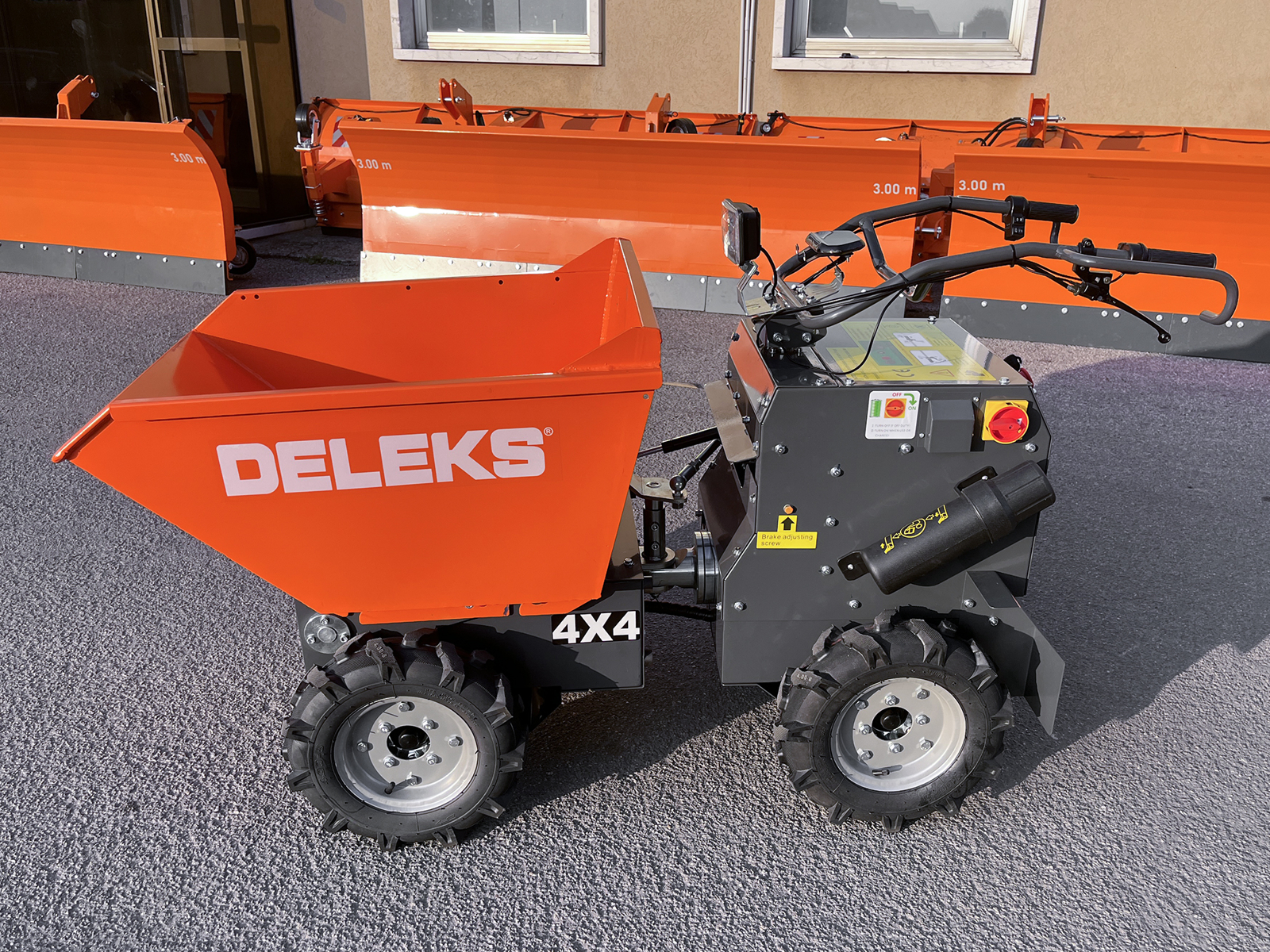

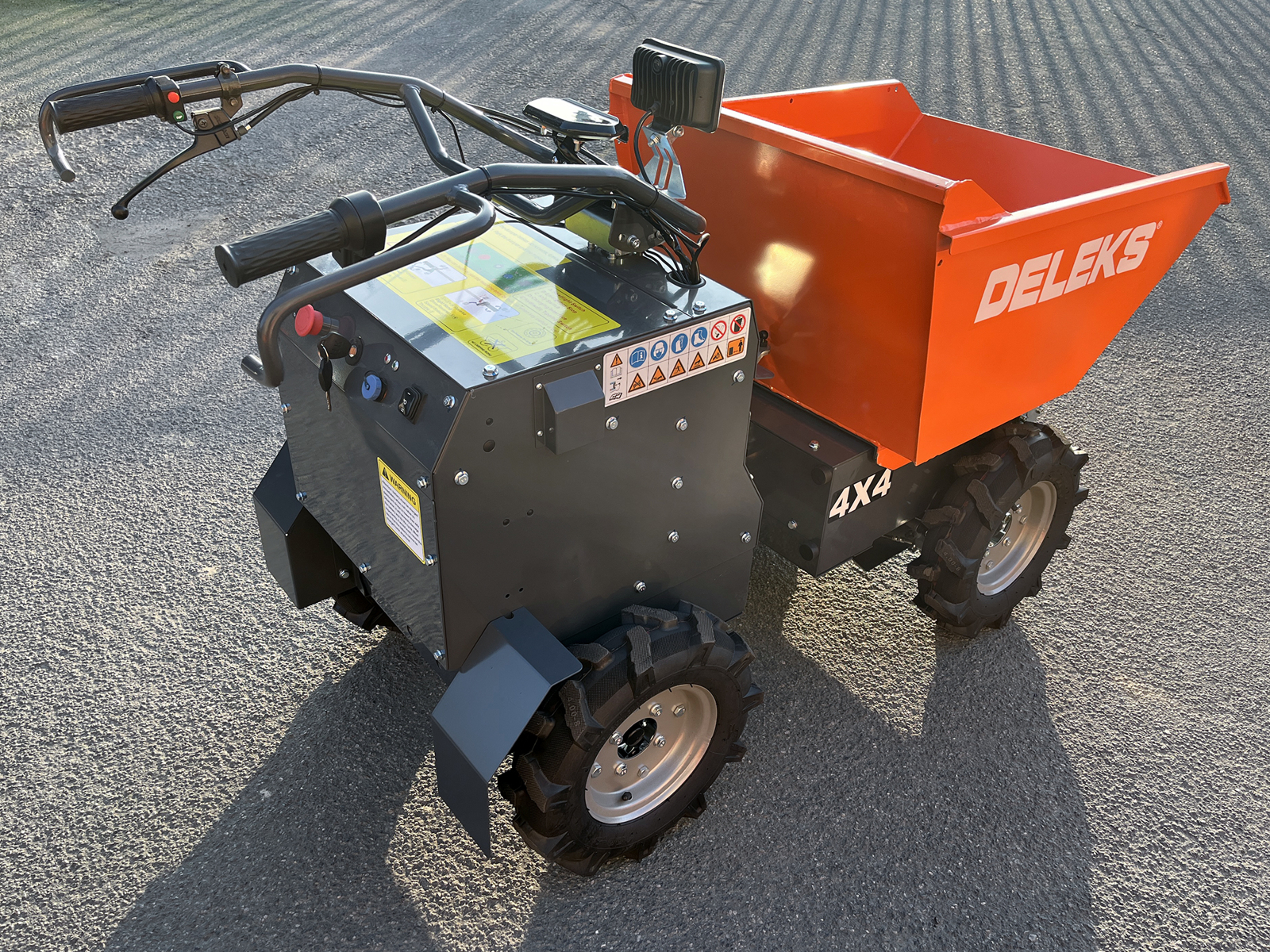

DELEKS^® XE-4WDH Electrified 4x4 Minidumper, 2 electric motors 800W/48V, hydraulic tipping, dumper body, load 400kg.

APPLICATION

This DELEKS^® electric wheelbarrow can carry a load of 400kg, makes no noise and is therefore ideal for use in landscaping, construction, riding stables, greenhouses or stables, for transporting rubbish, clods, sand, gravel, shrubs, wood, rocks, soil, etc.

A typical use is in combination with a DELEKS® mini-excavator for transporting gravel, earth, slush, sand, construction material, etc.

With 4-wheel drive, it can handle uphill routes with a maximum slope of 30° and sideways routes with a maximum slope of 15°.

The advantages of the XE-4WDH electric wheelbarrow are those of any 100% electrified vehicle: zero emissions, zero vibrations, zero noise, zero flooding problems, zero maintenance, low fuel consumption.

ADVANTAGES

4-wheel drive

Large working autonomy, up to 8 hours

Hydraulic skip tipping

Footprint of only 72cm allowing it to pass through doors

Disc brakes mounted on all 4 wheels

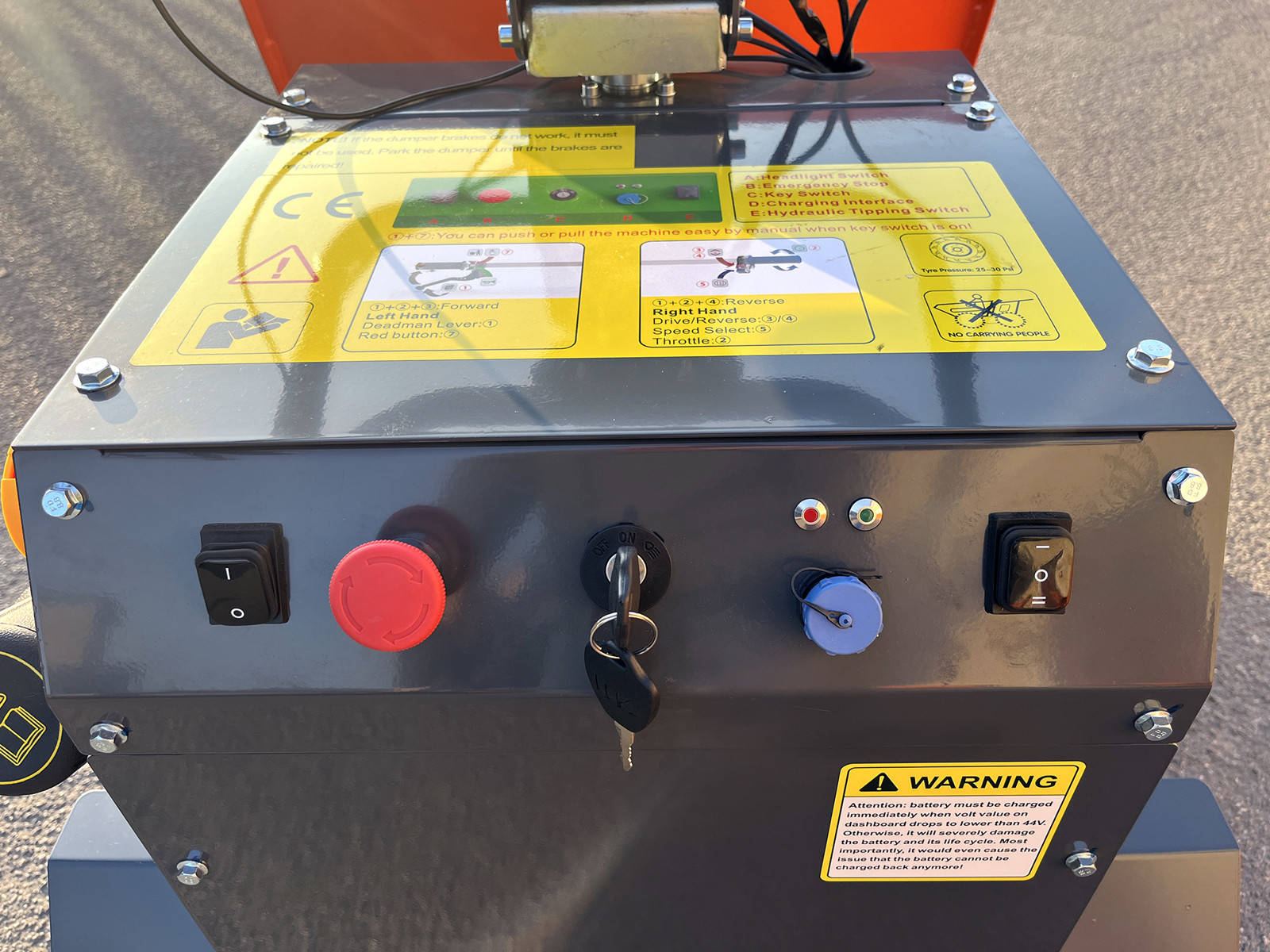

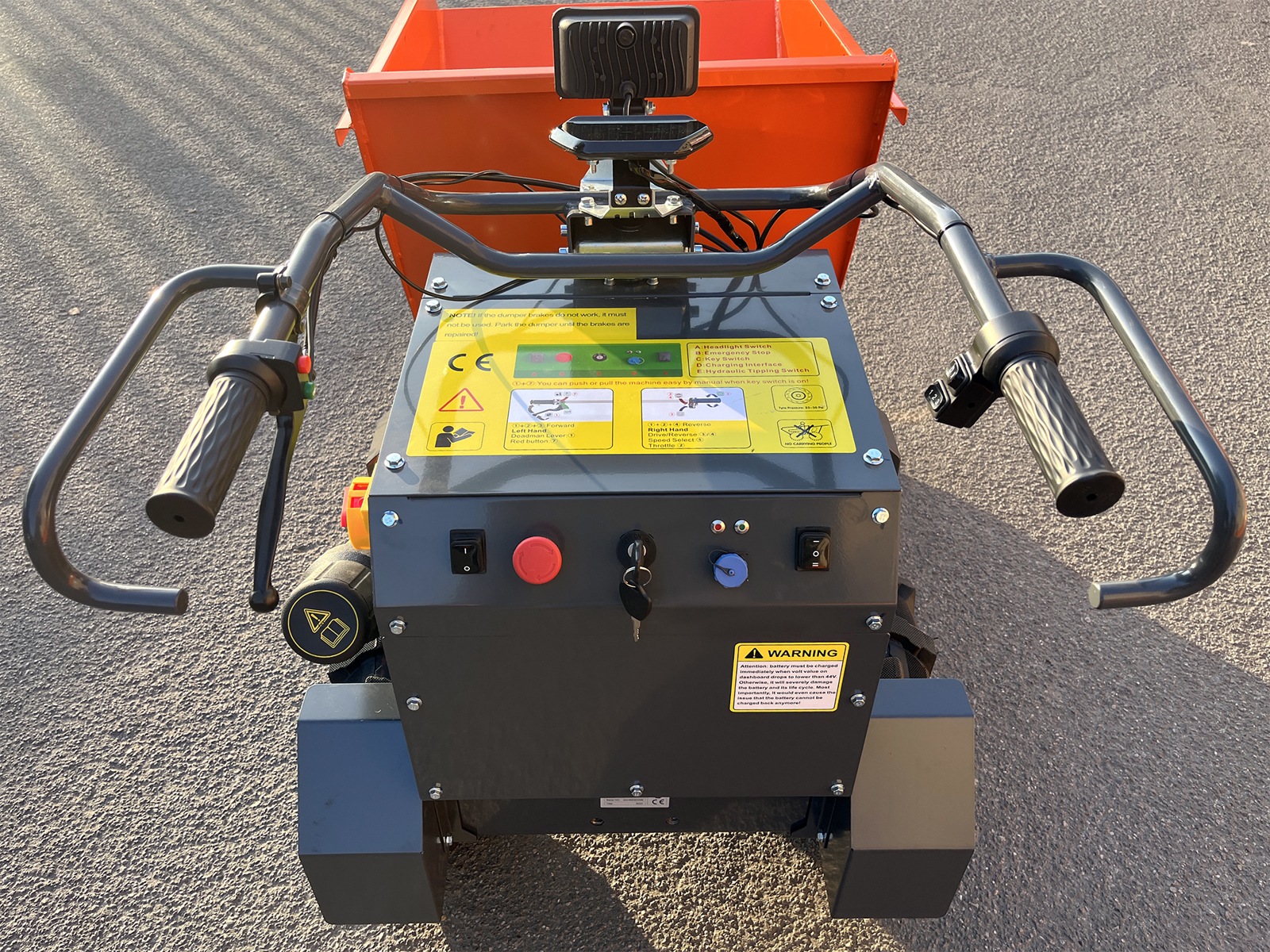

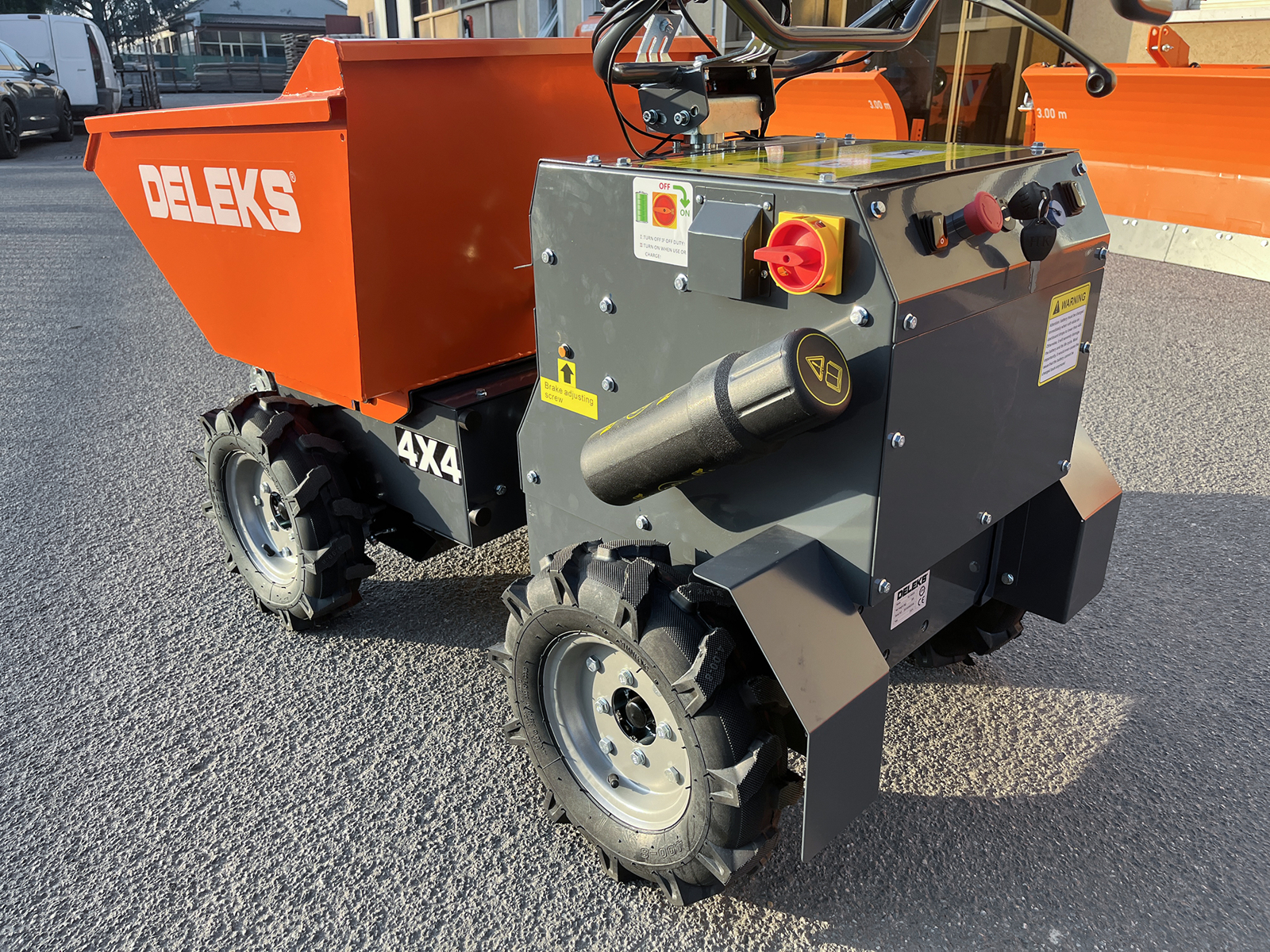

Simple and intuitive control panel

Dual batteries for great autonomy

The electric wheelbarrow is equipped with 4 lead batteries (48V) for an autonomy of approximately 8 hours, depending on the type of use.

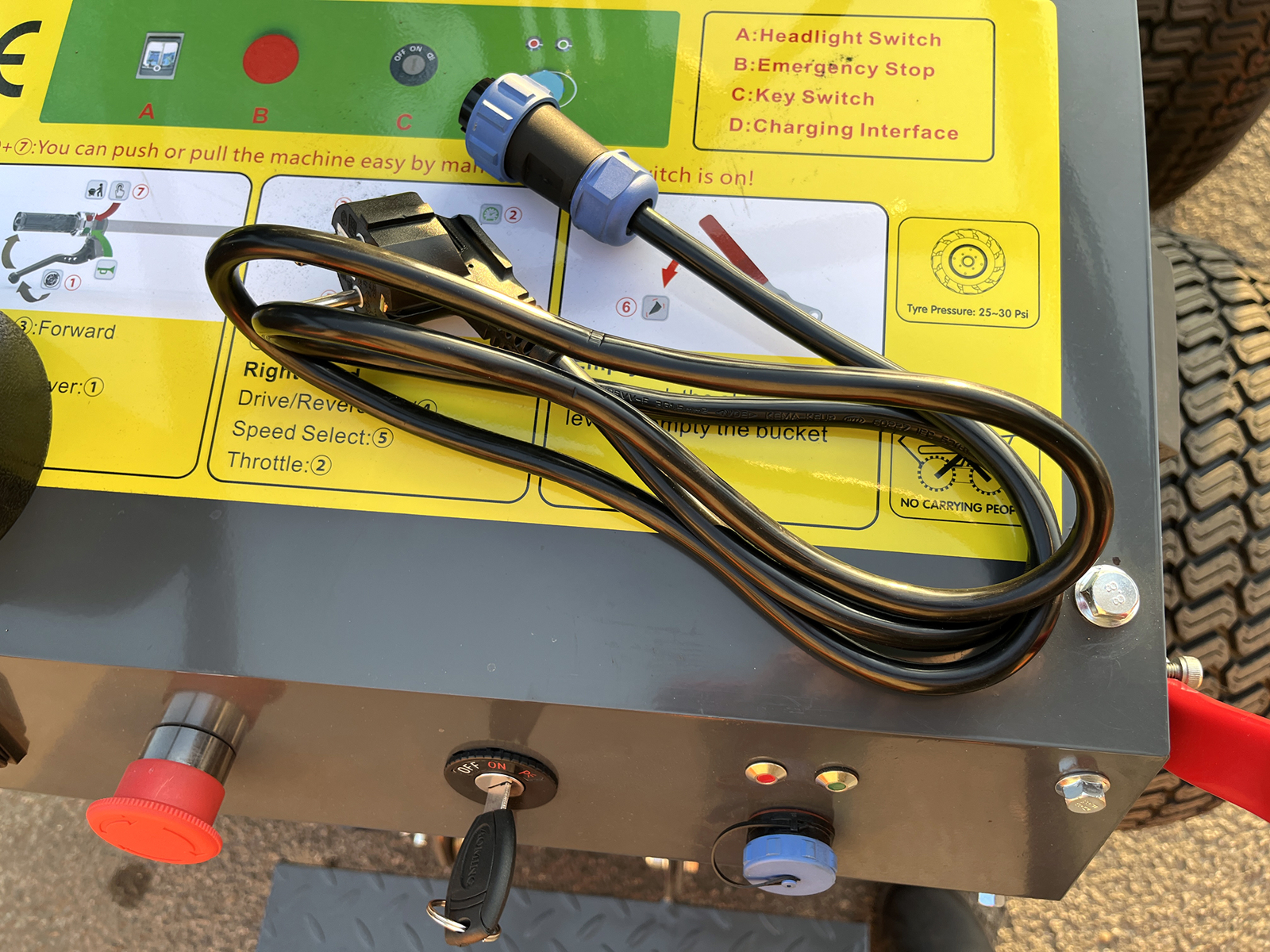

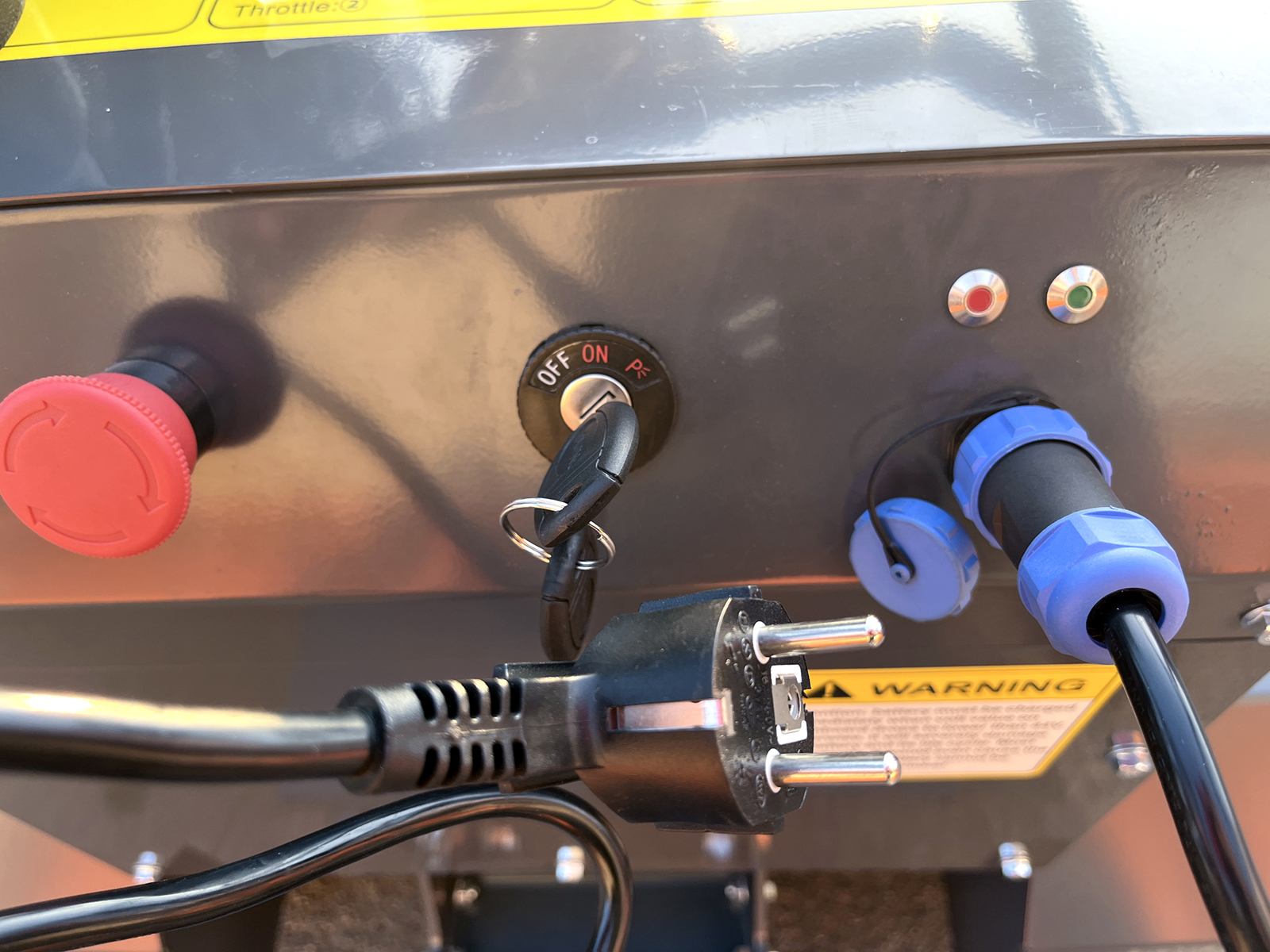

Recharging is done by plugging the charger into the household electrical outlet. Charging time is approximately 8 hours for 100%.

The wheelbarrow is recharged by simply plugging the charger cable into the 220V socket at home.

To start it, simply turn the key.

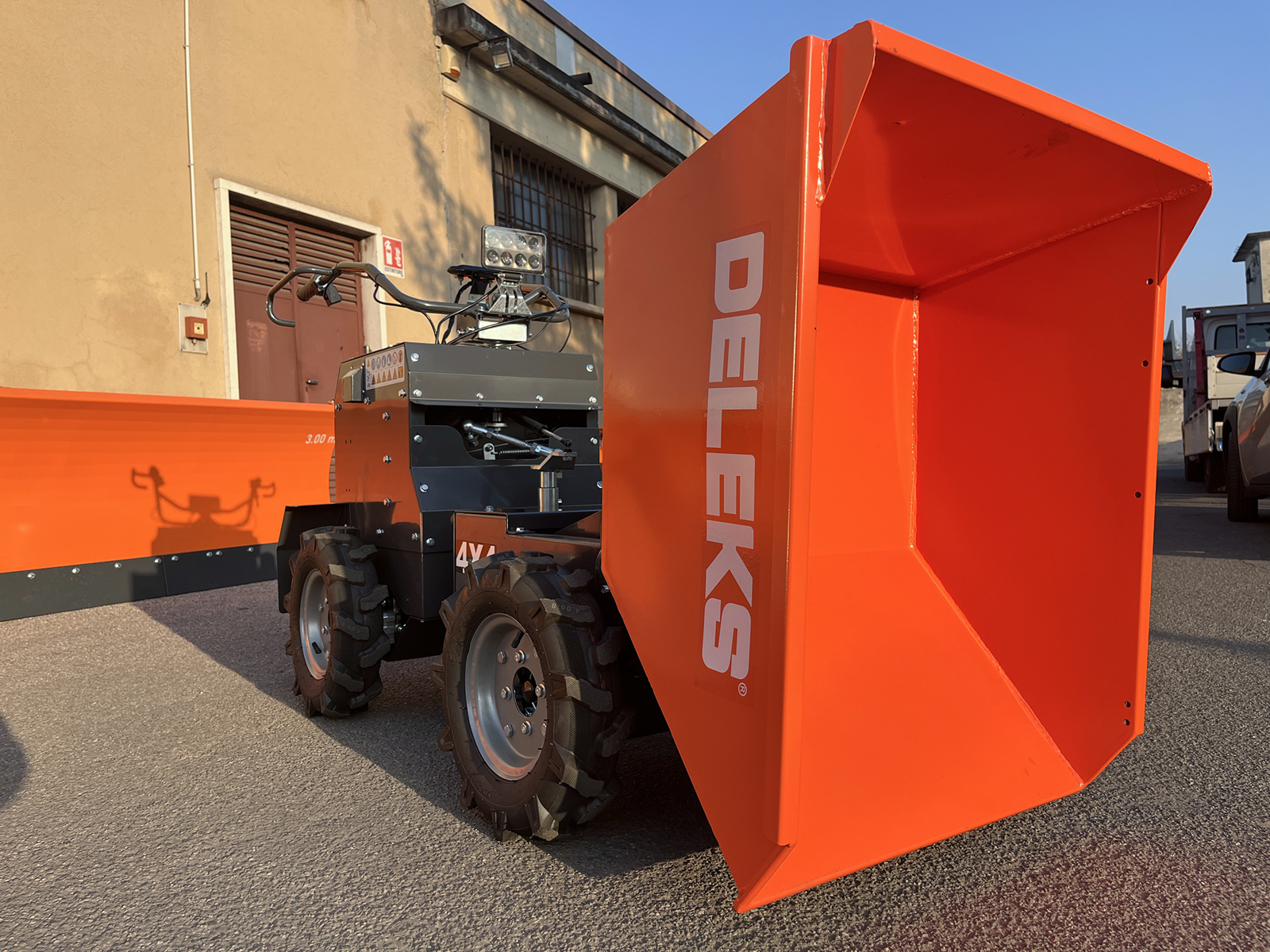

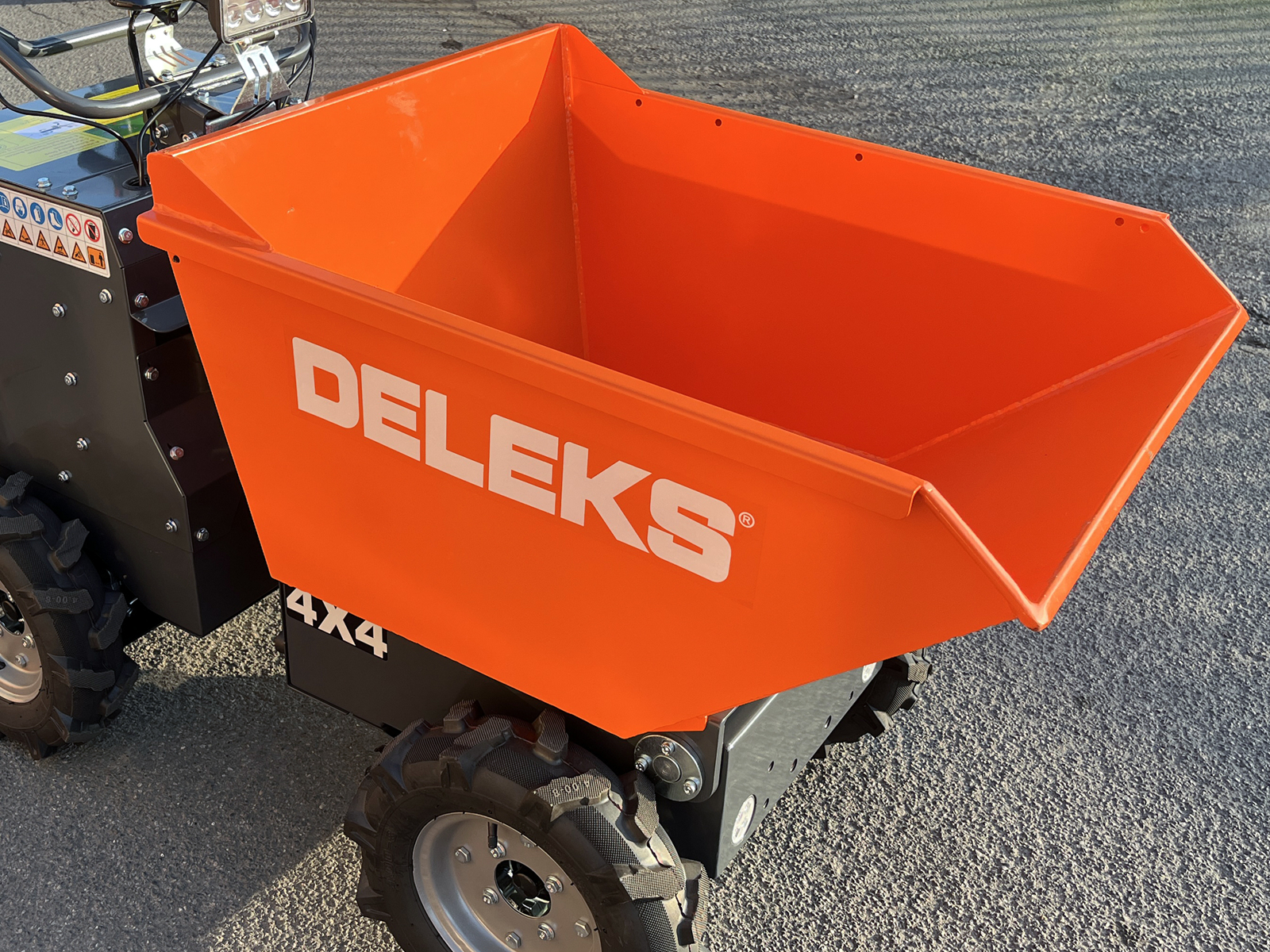

Steel dumper body that can be tipped at the touch of a button:

Very robust, with parallel reinforcements on the bottom.

Also allows loading of sandy materials or liquids without leakage.

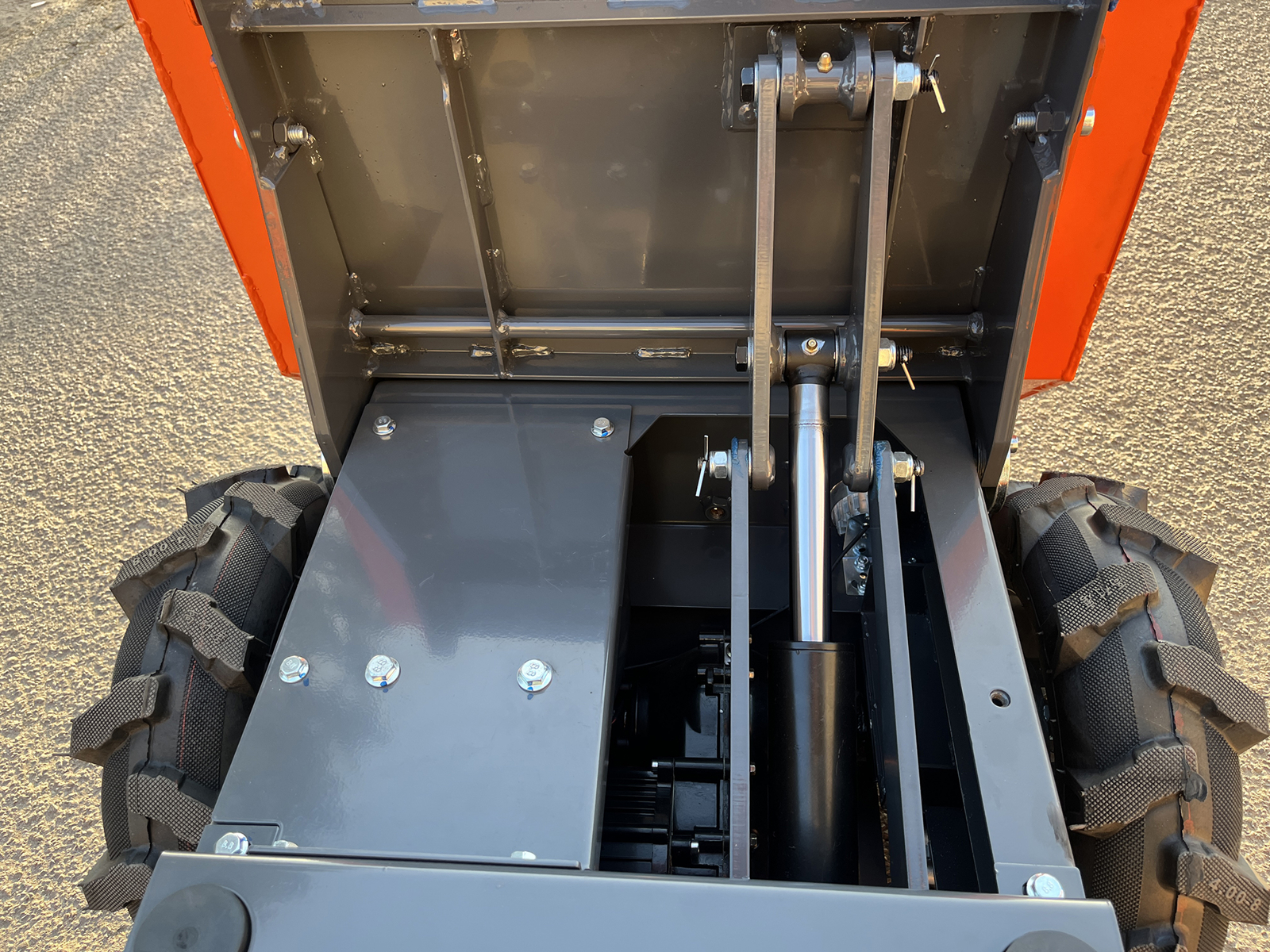

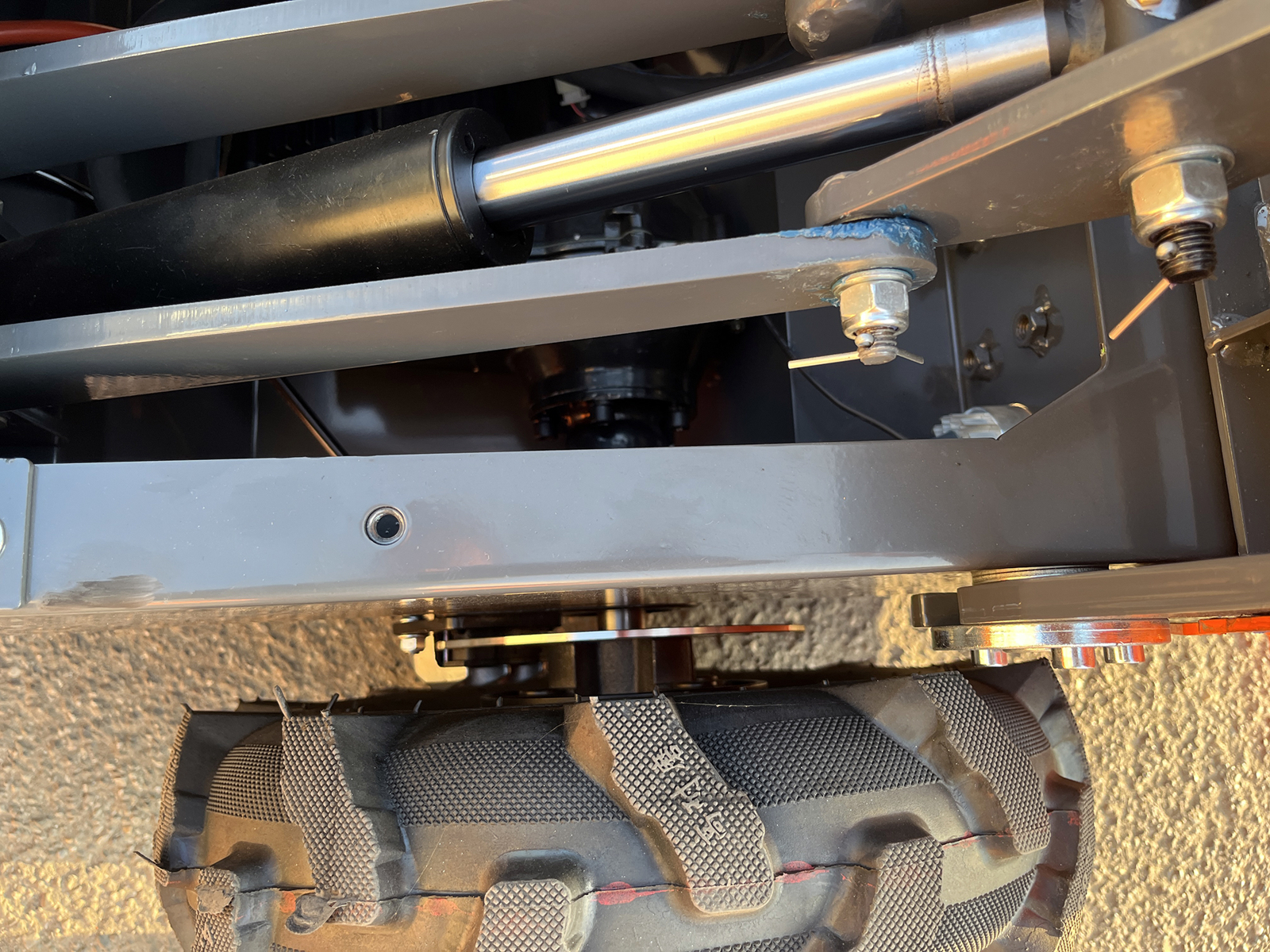

Lifting is by means of a hydraulic piston activated by the electric motor.

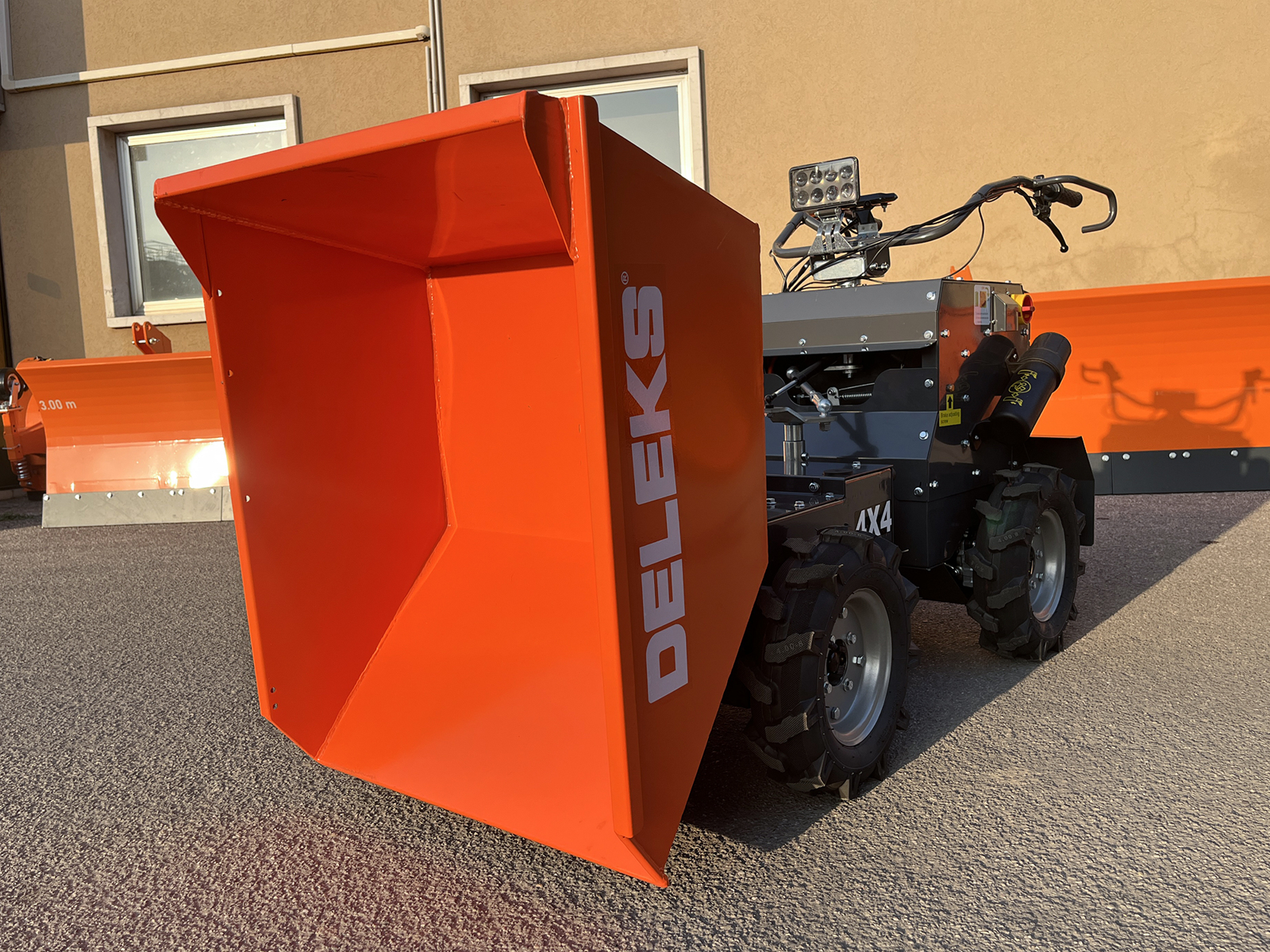

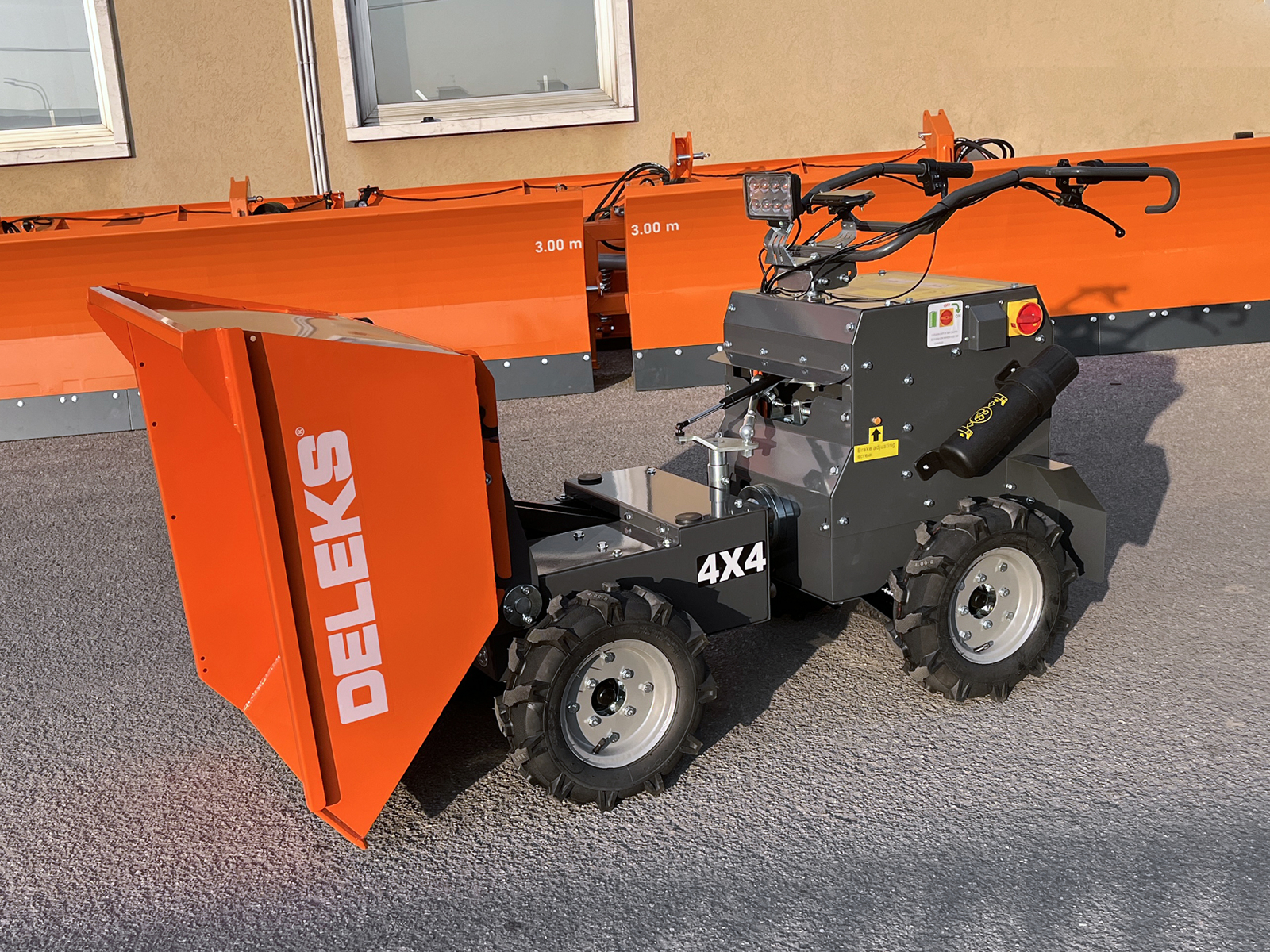

The skip can be tipped vertically through 90° allowing the total emptying of the transported material, or it can also be tipped only partially.

CERTIFICATIONS

ECM: Machinery Directive 42/2006/EC

ECM: Electrified Motors 30/2014/EU

ATTRIBUTES AND SPECIFICATIONS

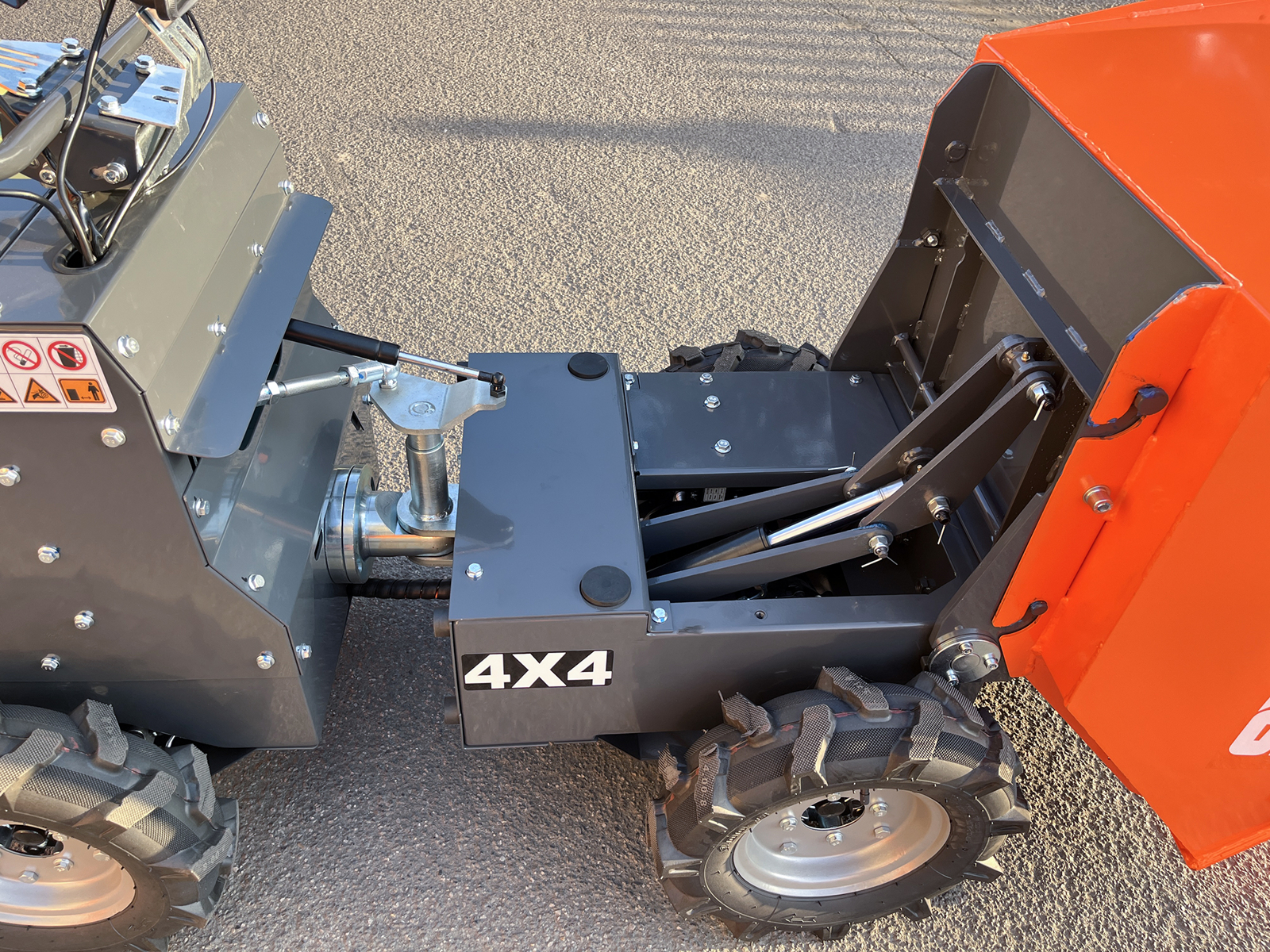

Articulated steering with swivel joint

Turning radius: 2.0 m (inside radius)

Electric motor: 2x 800W / 48V

Battery: 4 pieces (12V20Ah, AGM)

Load capacity: max. 400 kg

Bucket volume: approx. 165 L

Tipping skip: hydraulic

Speed (steplessly adjustable):

1st gear: 2 Km/h

2nd gear: 5 Km/h

3rd gear: 7 Km/h

Reverse: 2 Km/h

LED lighting

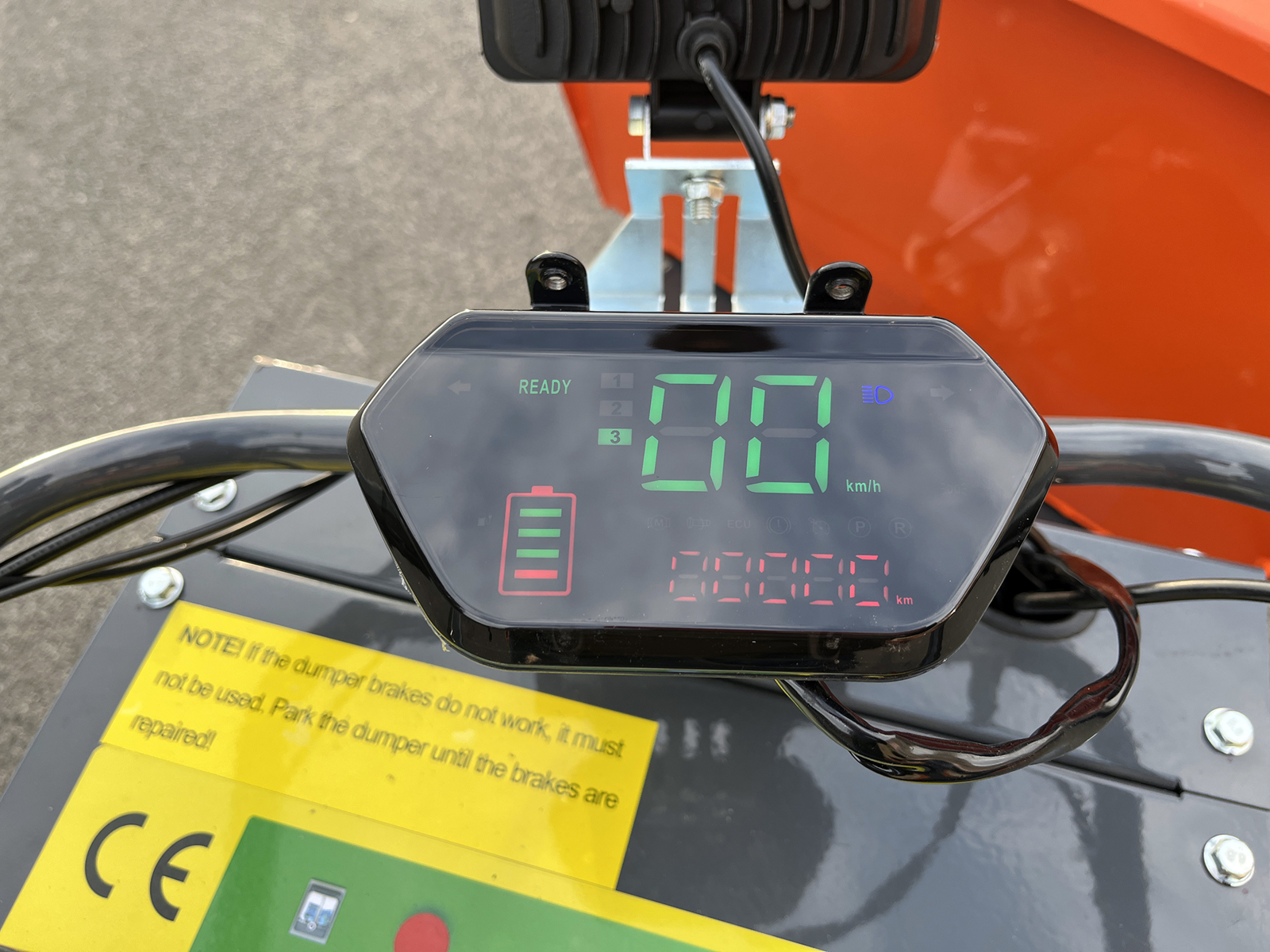

Digital display

Total weight (dry): 263 kg

Weight including packaging: approx. 274 kg

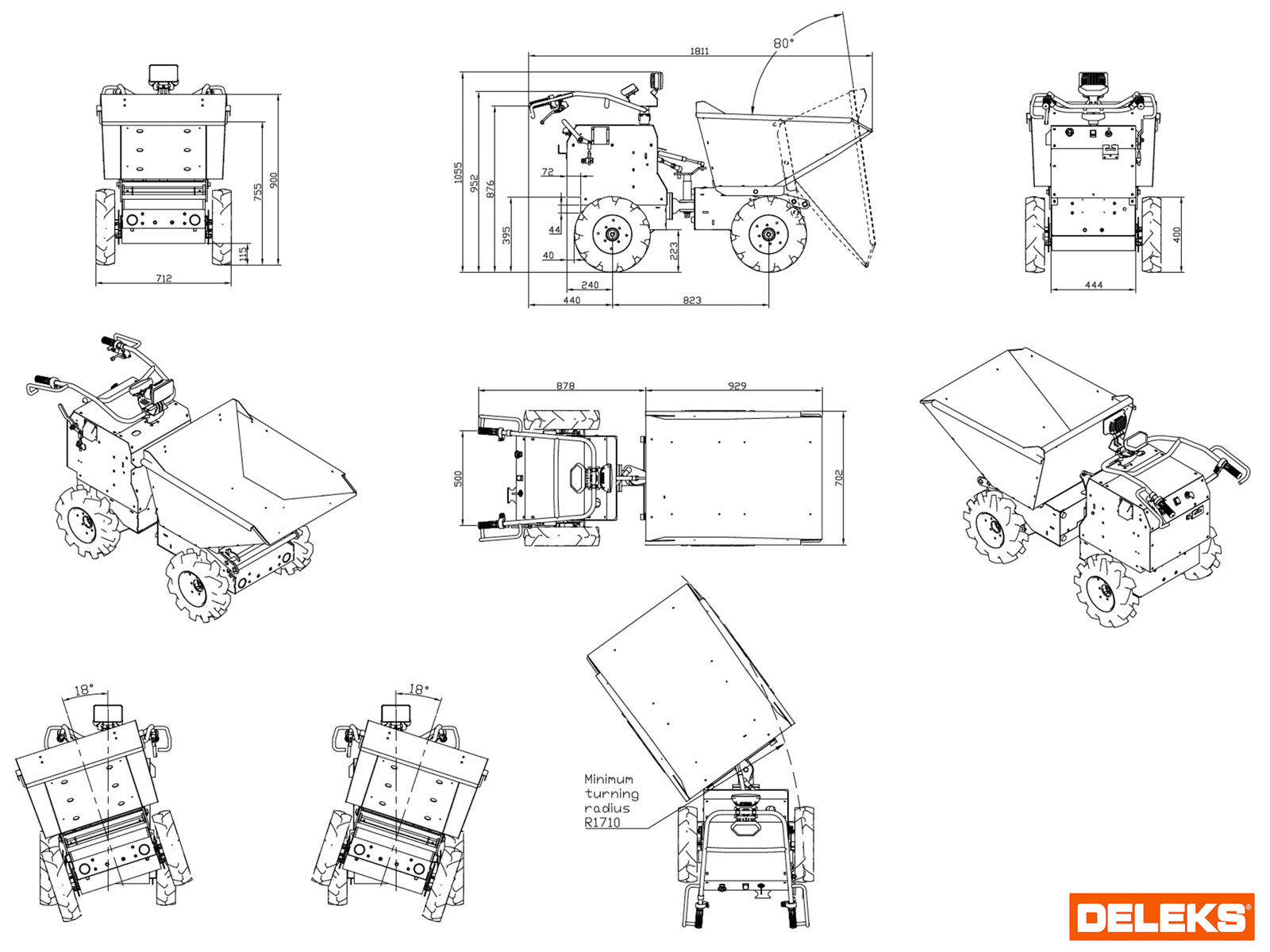

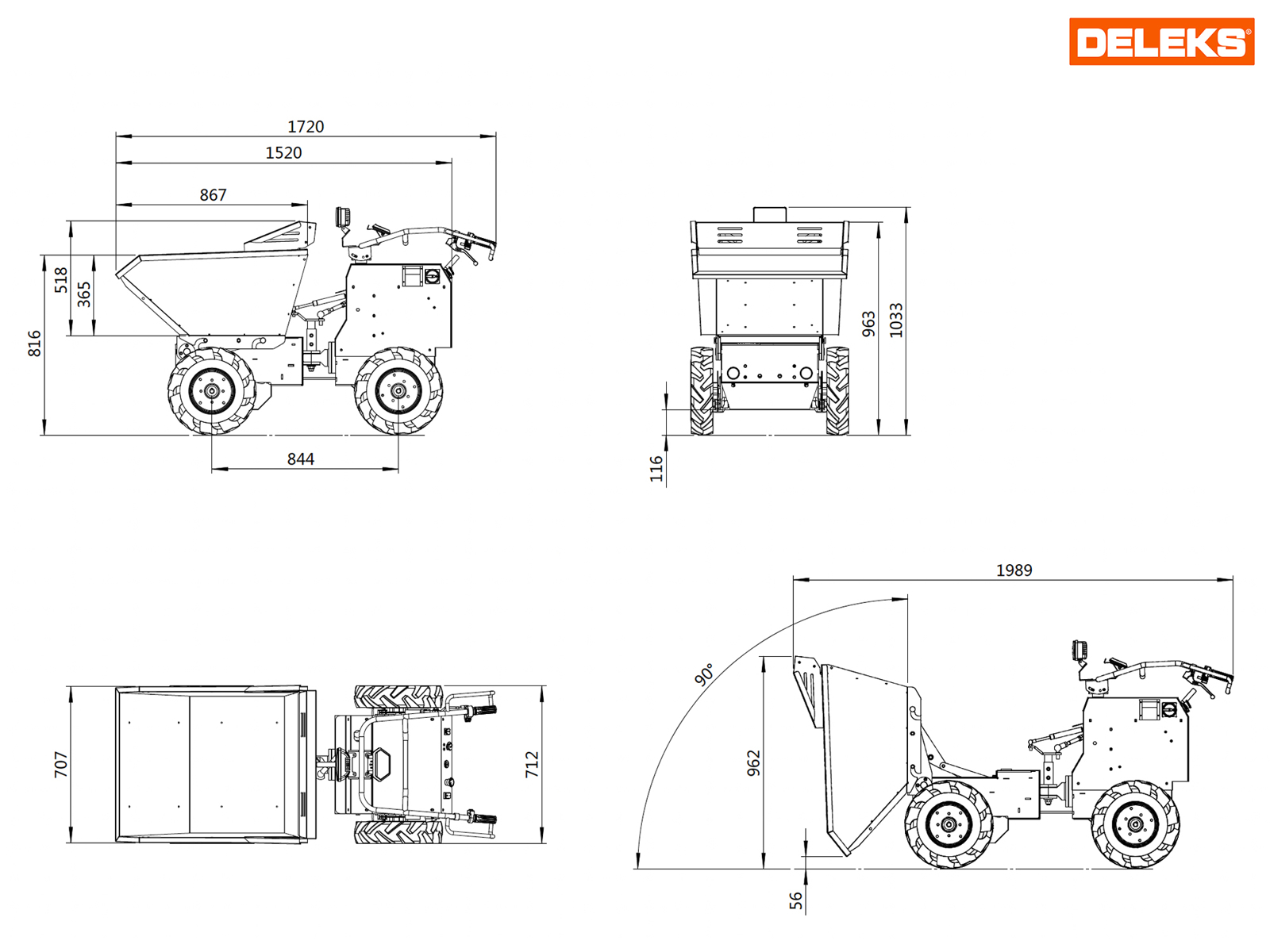

Dimensions: 188x72x105 cm (LxWxH)

Standard equipment:

Pair of starting keys

Battery charger

Documentation:

EC Declaration of Conformity

Invoice/tax receipt

Operation and Maintenance Manual
