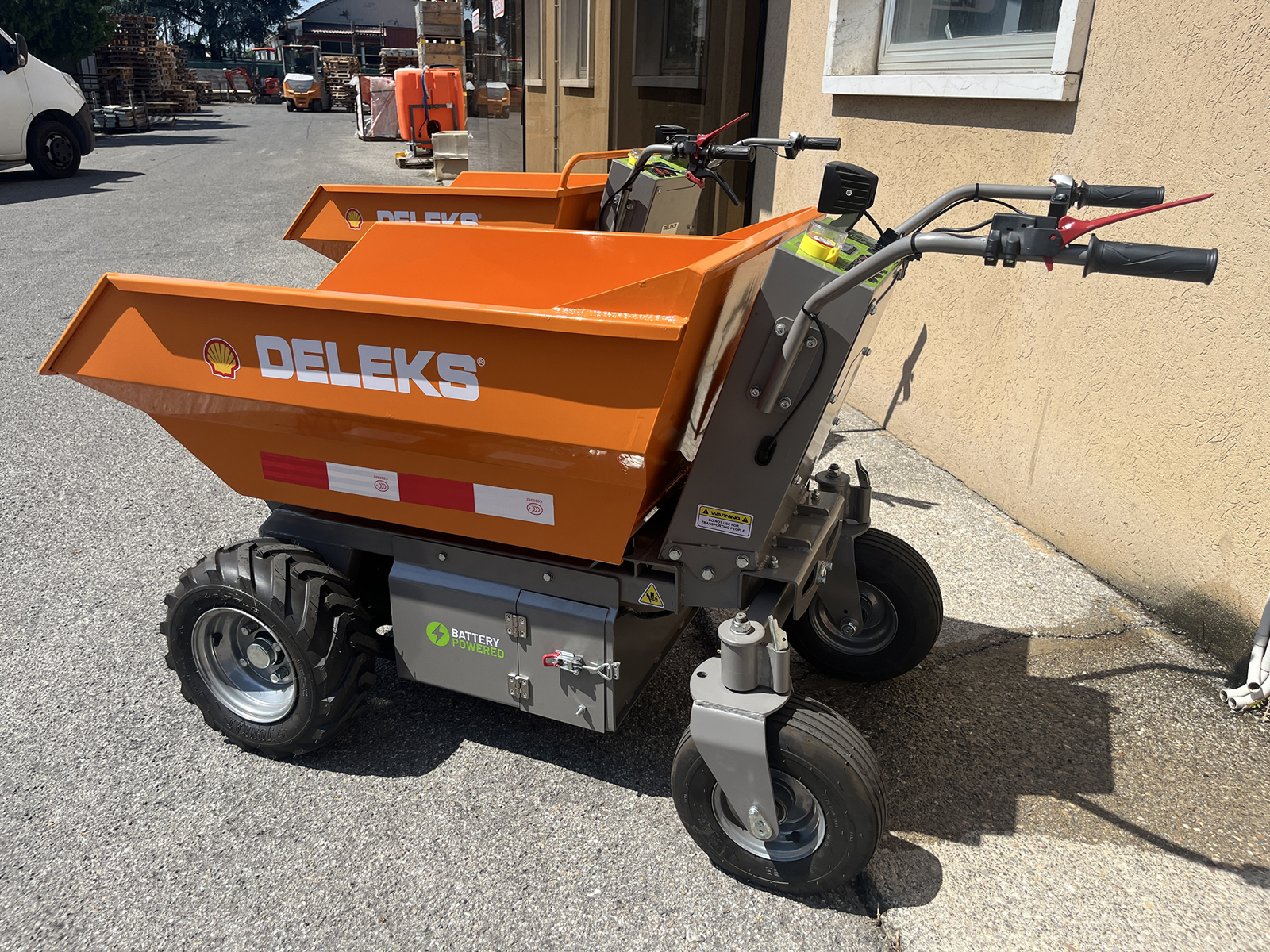

100% electric wheelbarrow, lithium battery, with dumper body with hydraulic tipping

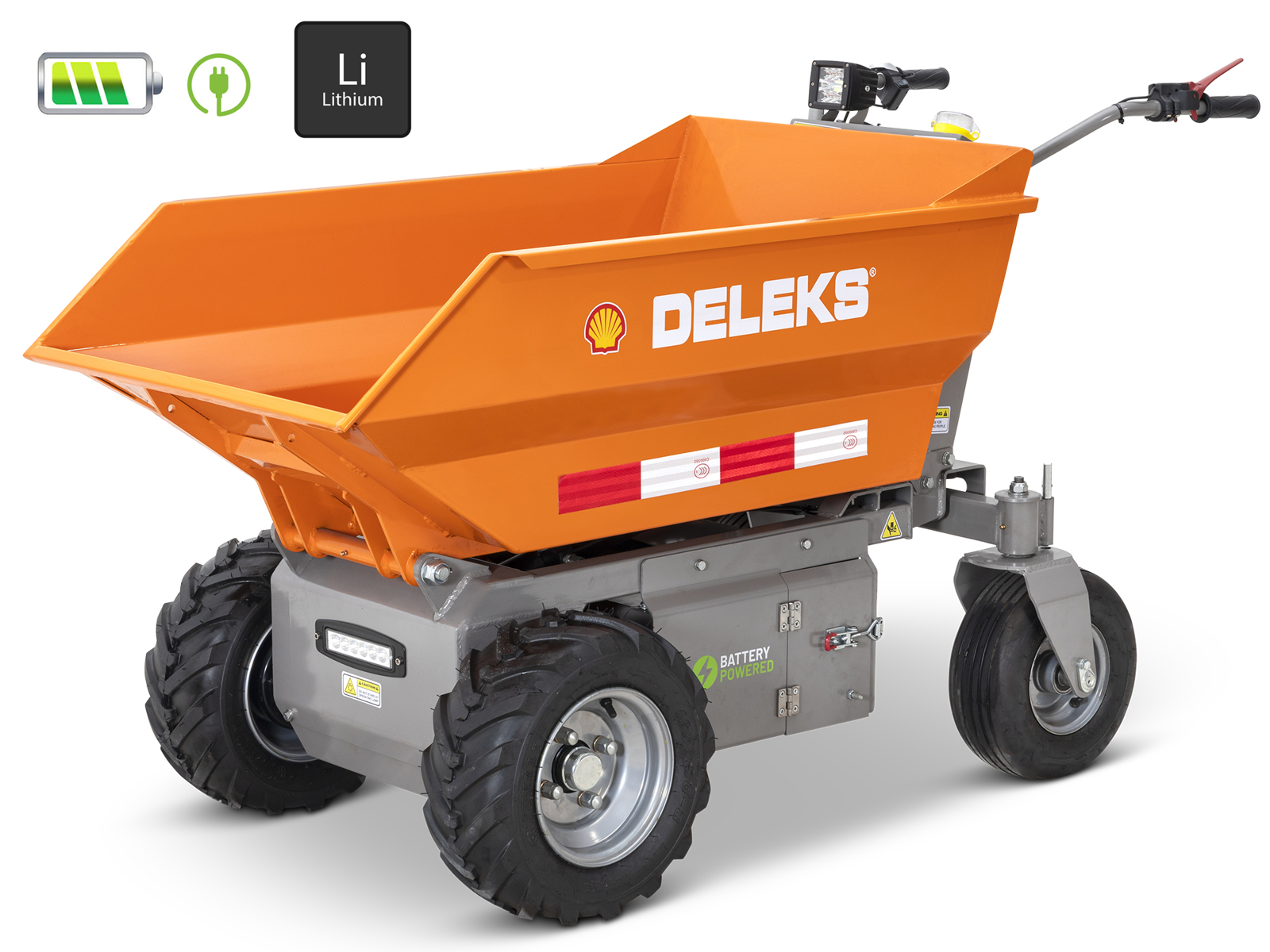

DELEKS^® XE-500He Lithium electrified wheelbarrow, removable lithium battery 48V 60Ah, Minidumper with electric motor, hydraulic tipping, dumper body, load 500kg.

OVERVIEW

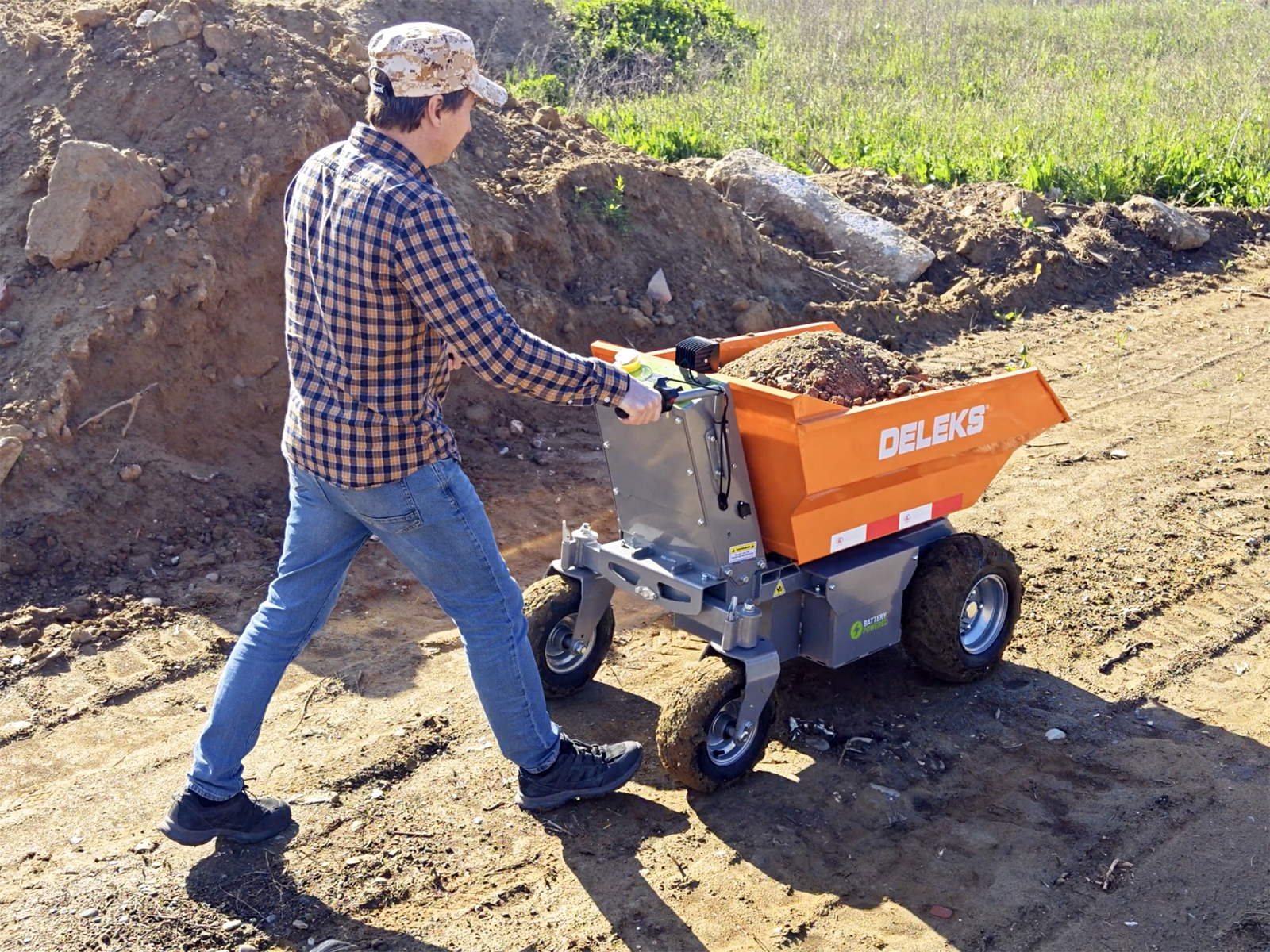

This DELEKS^® wheelbarrow with electrified motor can carry a load of 500 kg, it does not make any noise, it is therefore ideal in landscaping, construction, riding stables, greenhouses or stables, for transporting waste, clods, sand, gravel, shrubs, wood, rocks, earth, etc.

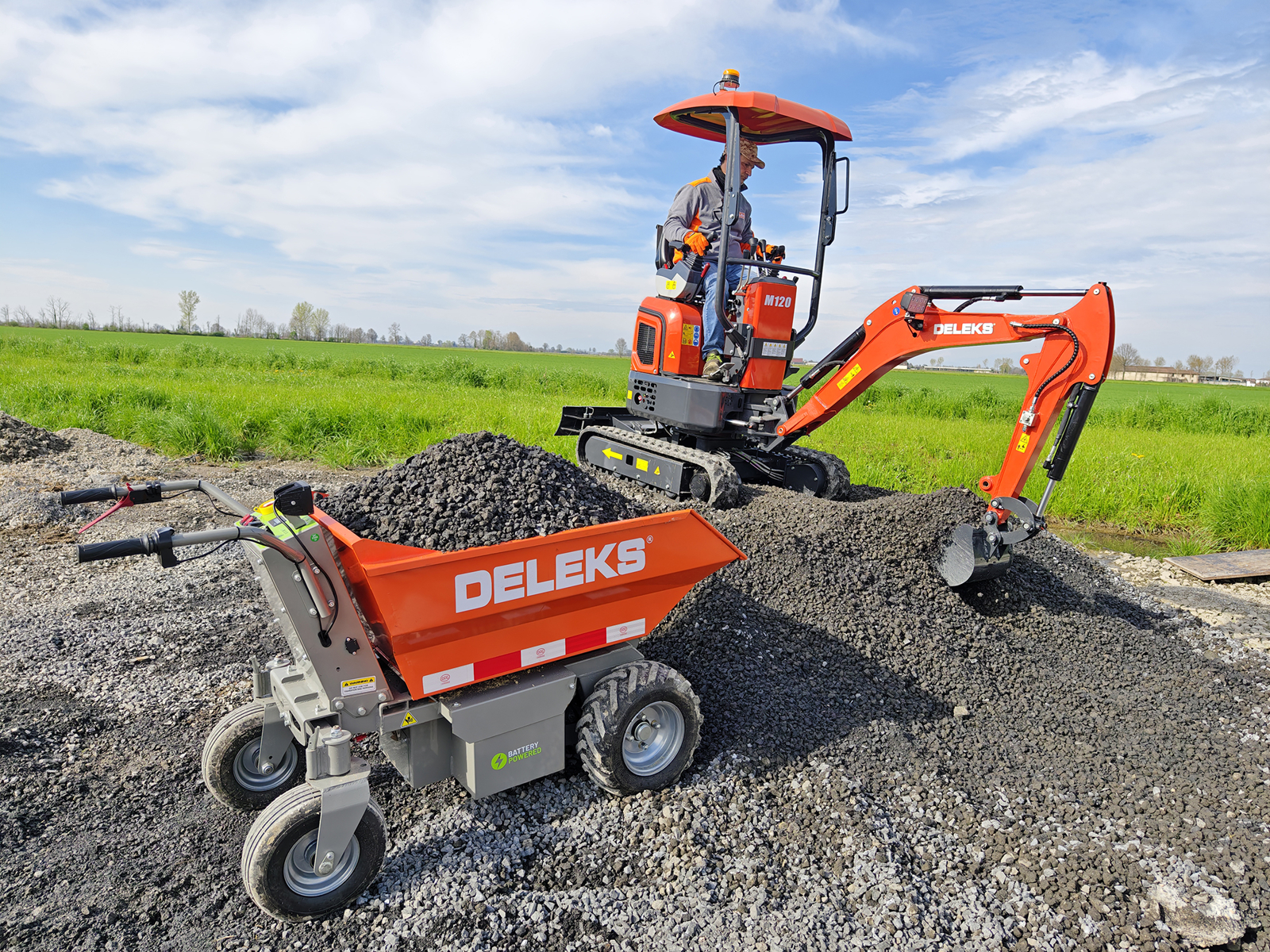

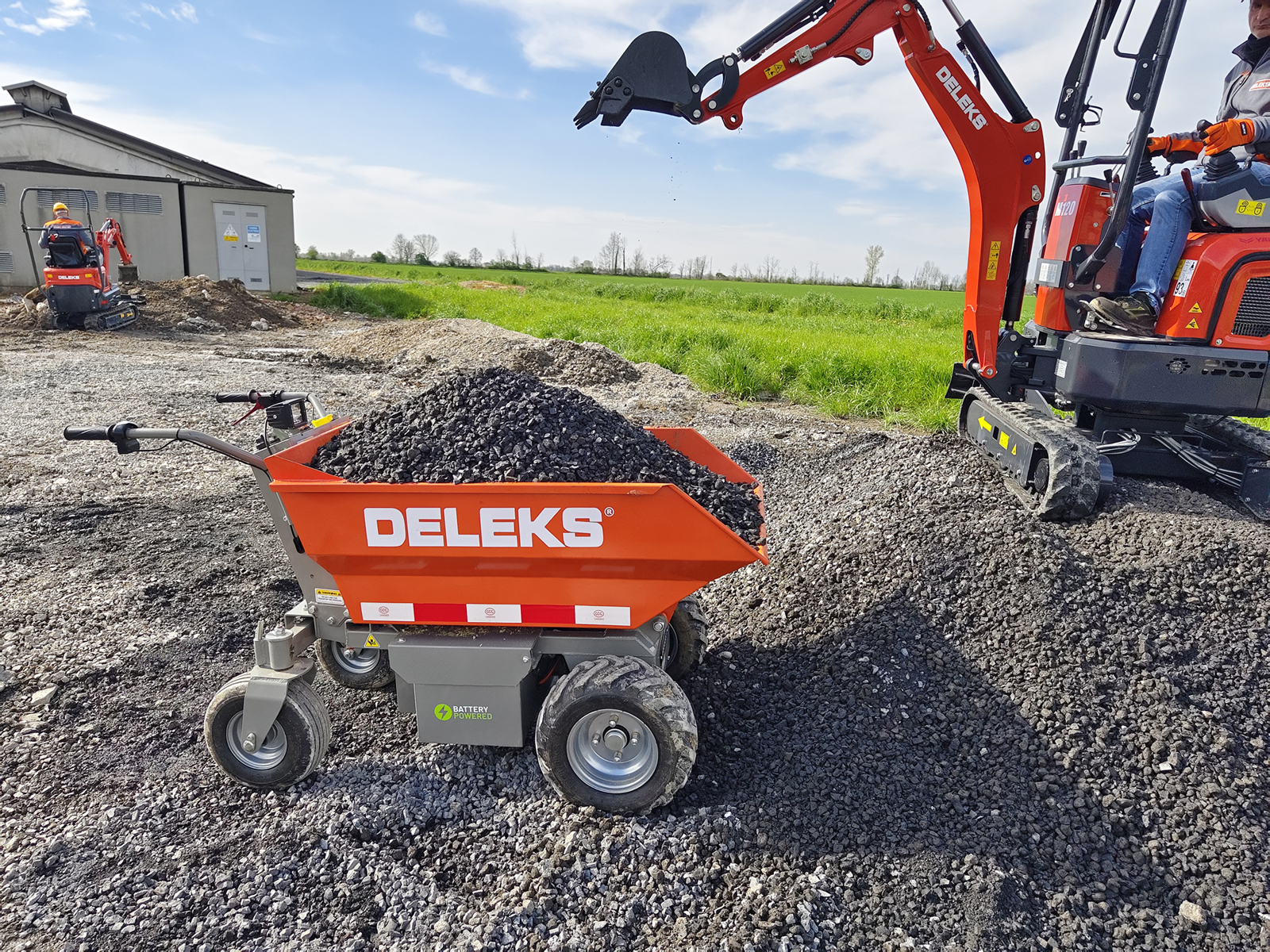

A typical use is combined with a DELEKS^® Mini Excavator, for transporting gravel, earth, mud, sand, building materials, etc…

It can face uphill routes with a maximum slope of 30°, lateral ones with a maximum slope of 15°.

The advantages of the XE-500He Lithium electric wheelbarrow are those of any 100% electrified vehicle: zero emissions, zero vibrations, zero noise, zero flooding problems, zero maintenance, reduced consumption.

ADVANTAGES

4 wide rubber wheels

2 Front wheels: Tubeless tyres: 16x6.5-8

2 Rear wheels: Tubeless tyres: 13x5.00-6

The front wheels are traction, while the 2 rear wheels are pivoting and guarantee stability and easy maneuvering in tight spaces. The rear wheels are equipped with a pin to lock them in the straight position. The width of their tread greatly reduces the possibility of creating ruts on the ground.

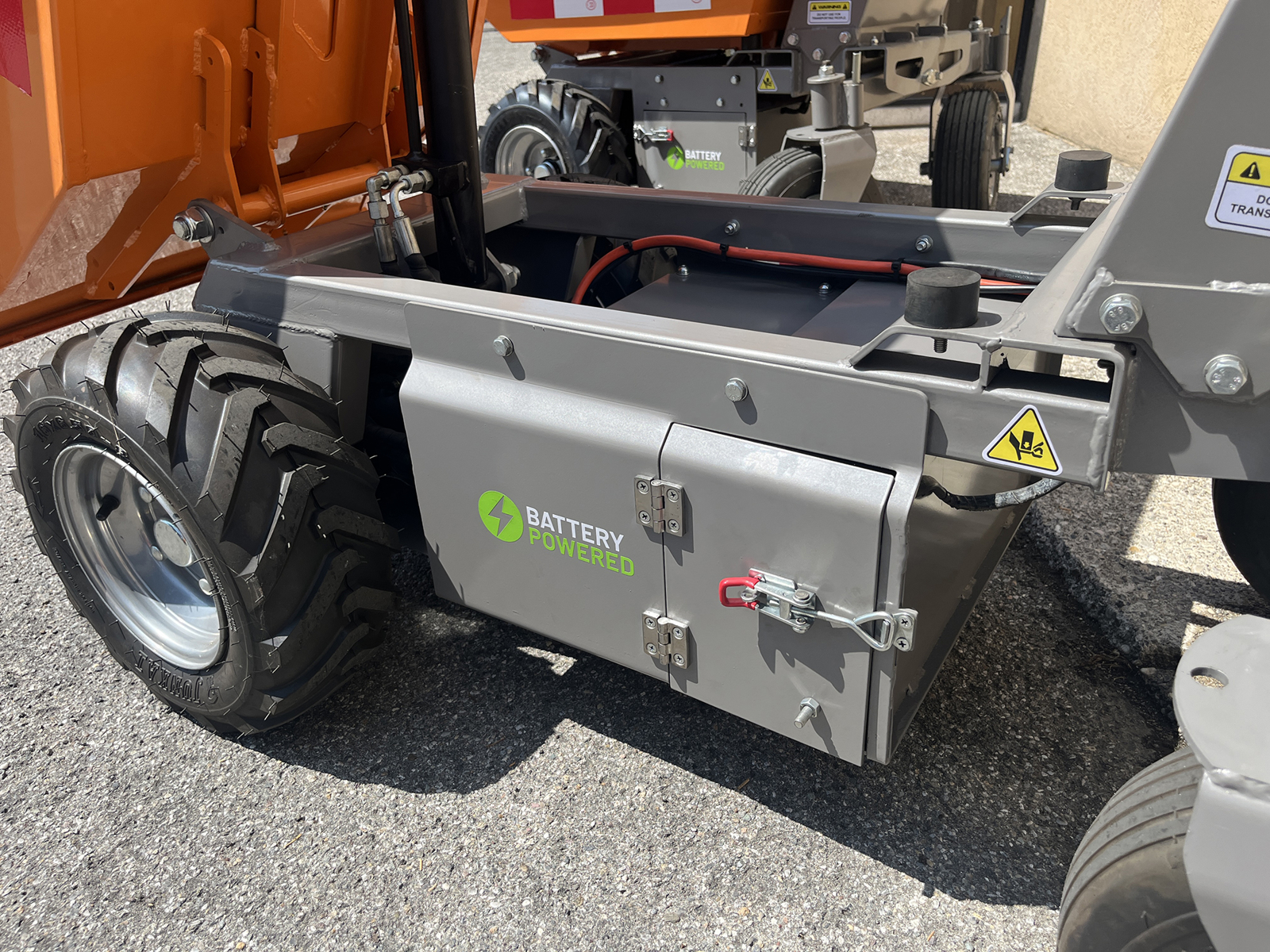

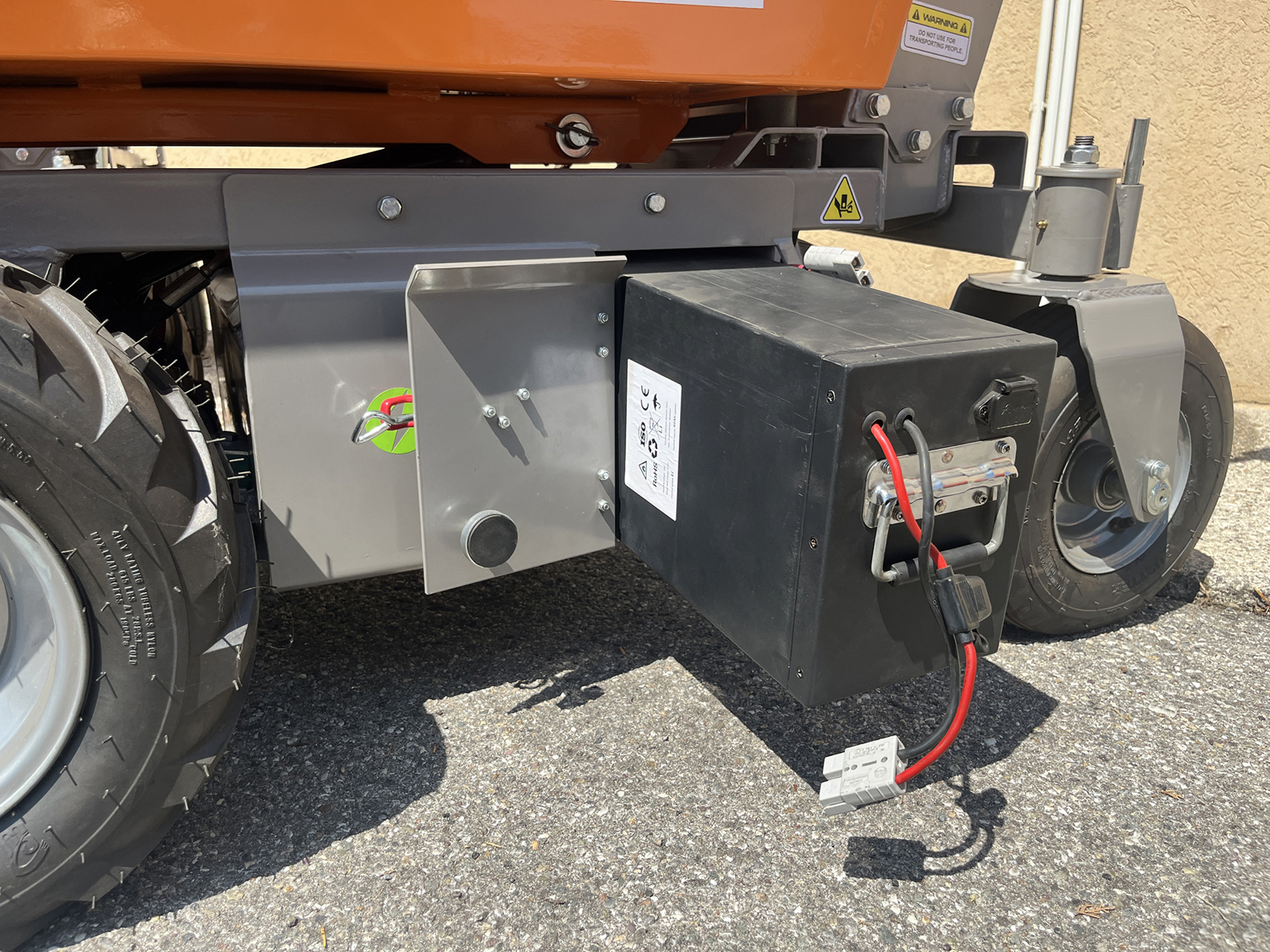

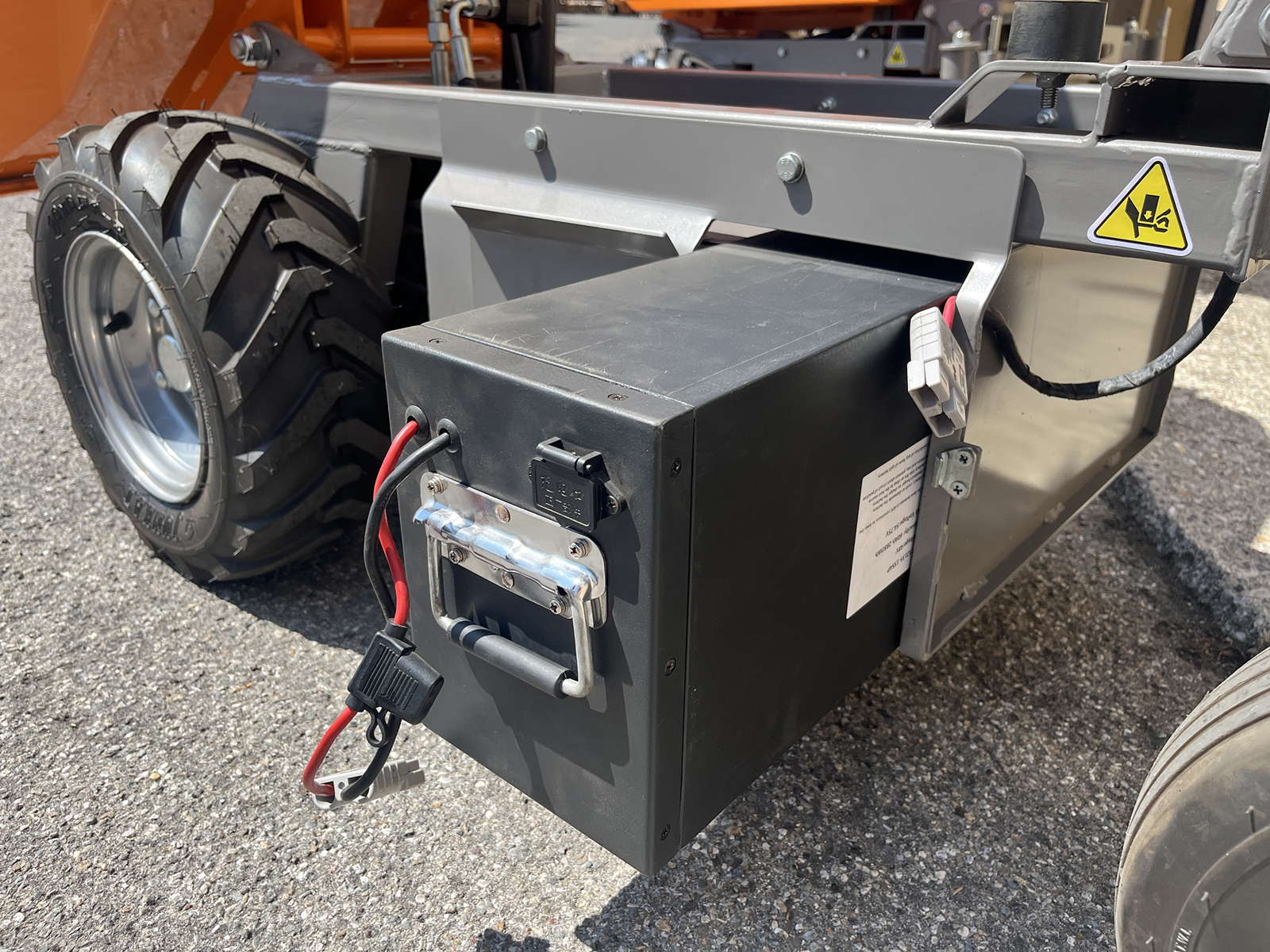

Double battery for great autonomy.

The electric wheelbarrow is supplied with 4*12V / 32Ah lead batteries for an autonomy of about 10-12 hours, depending on the type of use.

Recharging is done by connecting the charger to the electrical socket at home. Charging times are approximately 7 hours for 100%.

The wheelbarrow is recharged simply by connecting the charger cable to the 220V power outlet at home.

To start, just turn the key.

3 forward and 1 reverse speeds.

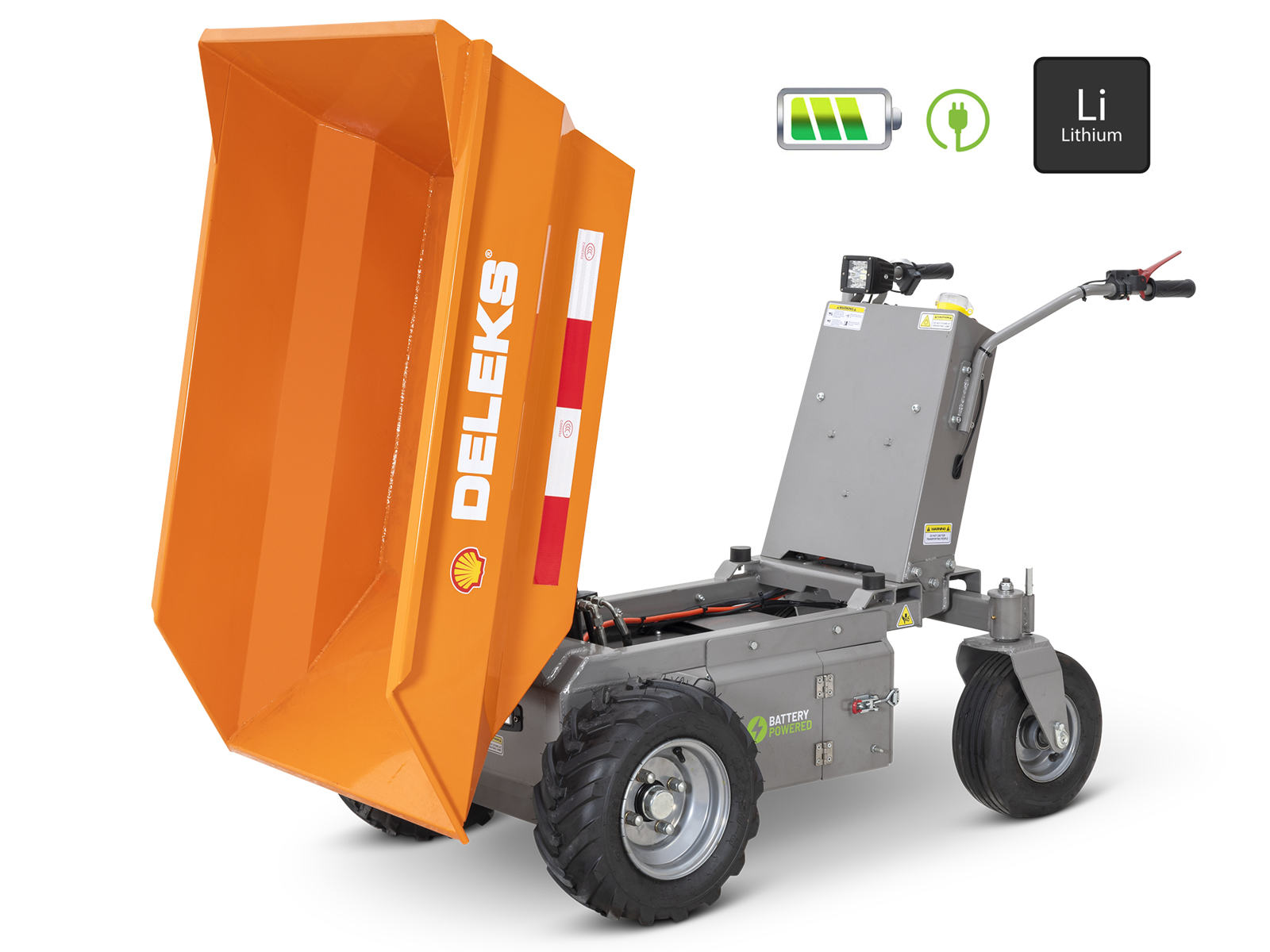

Tipping steel dumper body with a simple button:

Very robust, with parallel reinforcements on the bottom.

It also allows you to load sandy or liquid materials without losses.

Lifting is by means of a hydraulic piston activated by an electric motor.

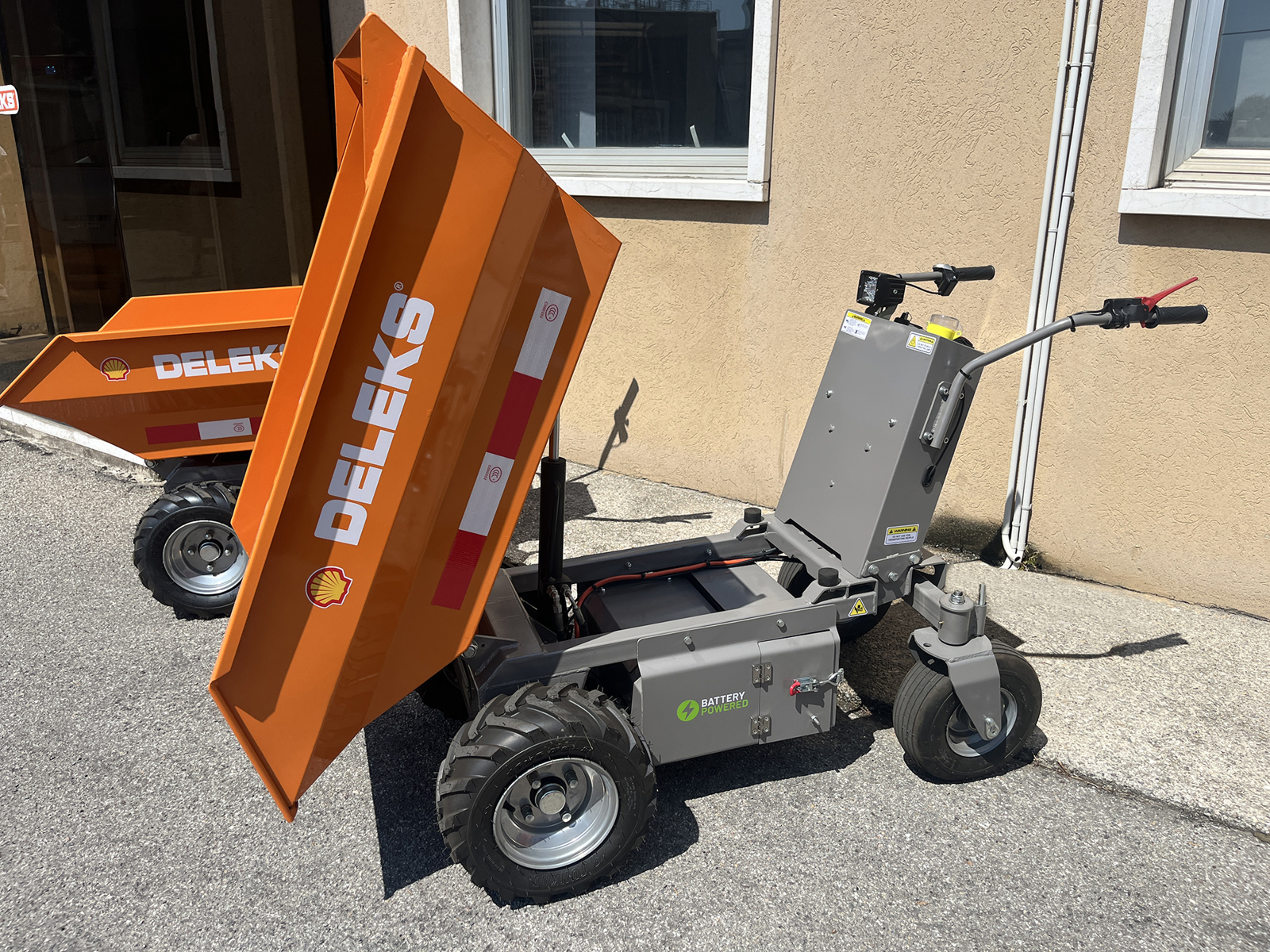

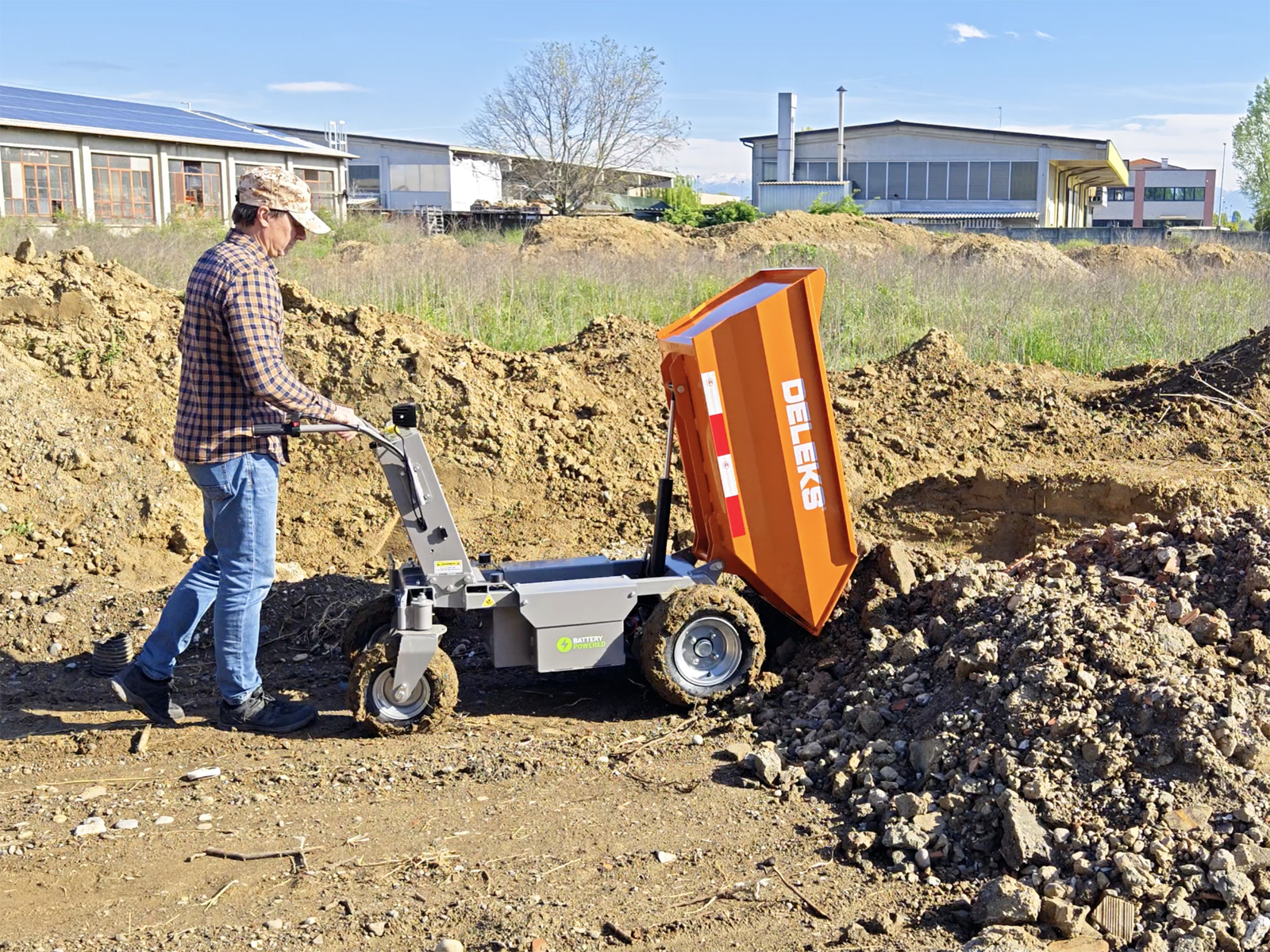

The container can be tilted vertically by 90° allowing the total emptying of the transported material, or it can also be tilted only partially.

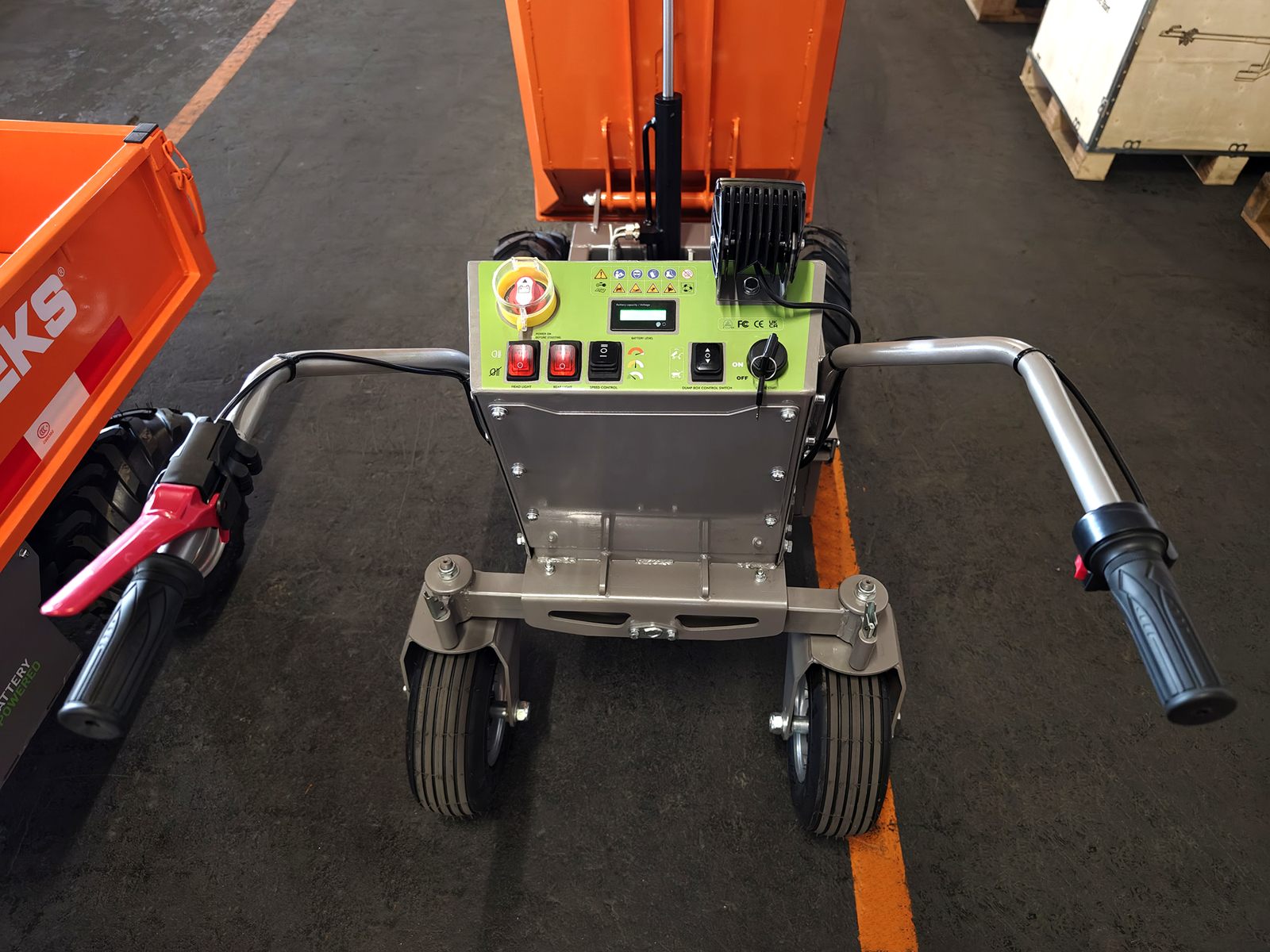

Simple and intuitive control panel:

Ignition key

Disconnect battery

Button for 3 forward speeds: low, medium, fast + 1 reverse speed

High led light button

Low led light button

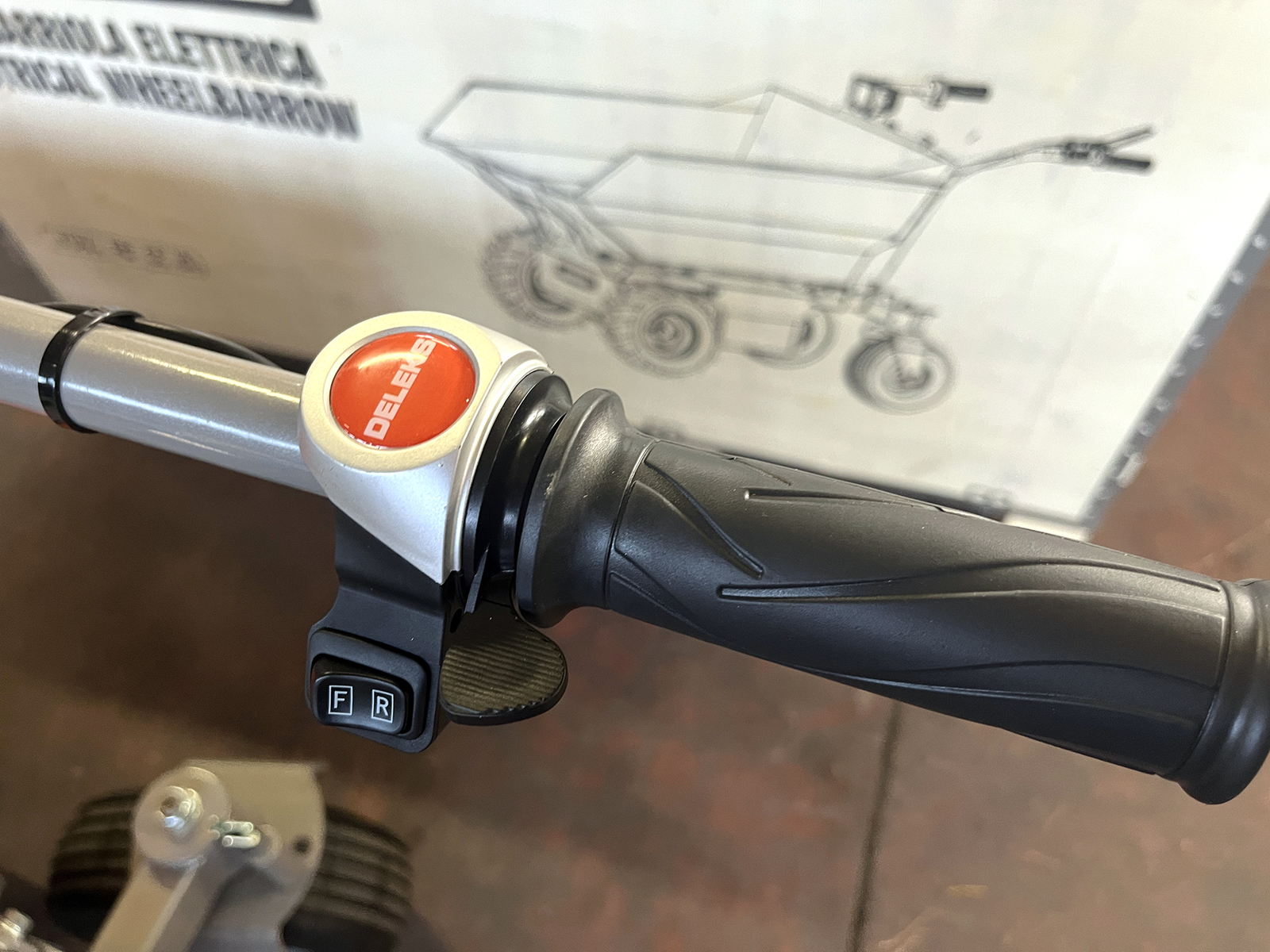

Forward / reverse key

Body hydraulic tipping button

LCD screen battery percentage indicator

ATTRIBUTES AND SPECIFICATIONS

Certifications: TUV Rheinland CE-MD; CE-EMC

Electric motor: 1000W, 48V

Braking system: Electromagnetic brake

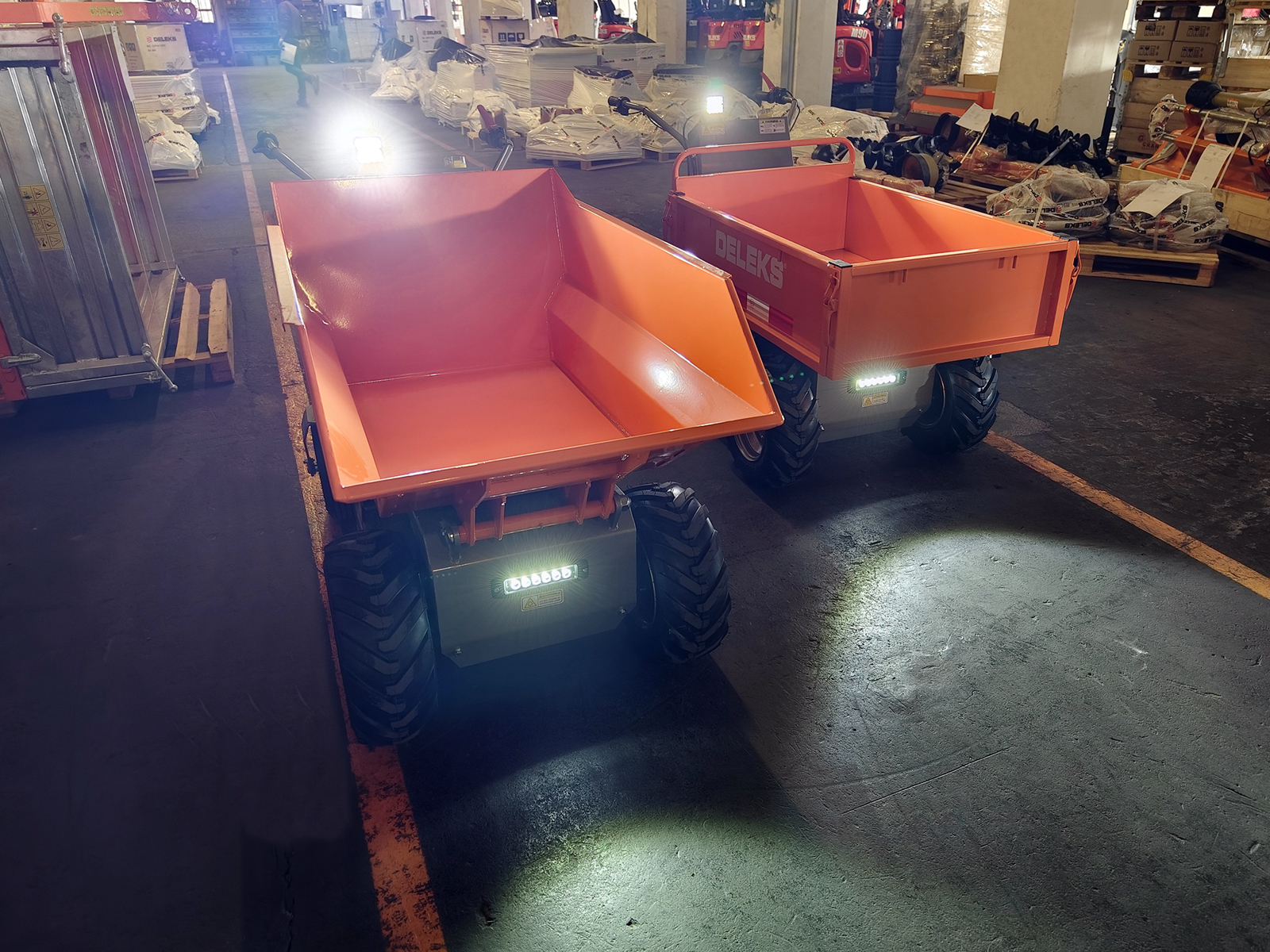

LED lights: 2 x 30W

Autonomy: 10-12 hours

Charging time: 6-7 hours for 100% charge

Forward speed: Fast 5.0 km/h - Medium: 4.2 km/h - Slow: 3.3 km/h

Reverse Speed: 2.5km/h

Net weight: 210kg

Weight with packaging: 238kg

Standard equipment:

A pair of starter keys

Charger

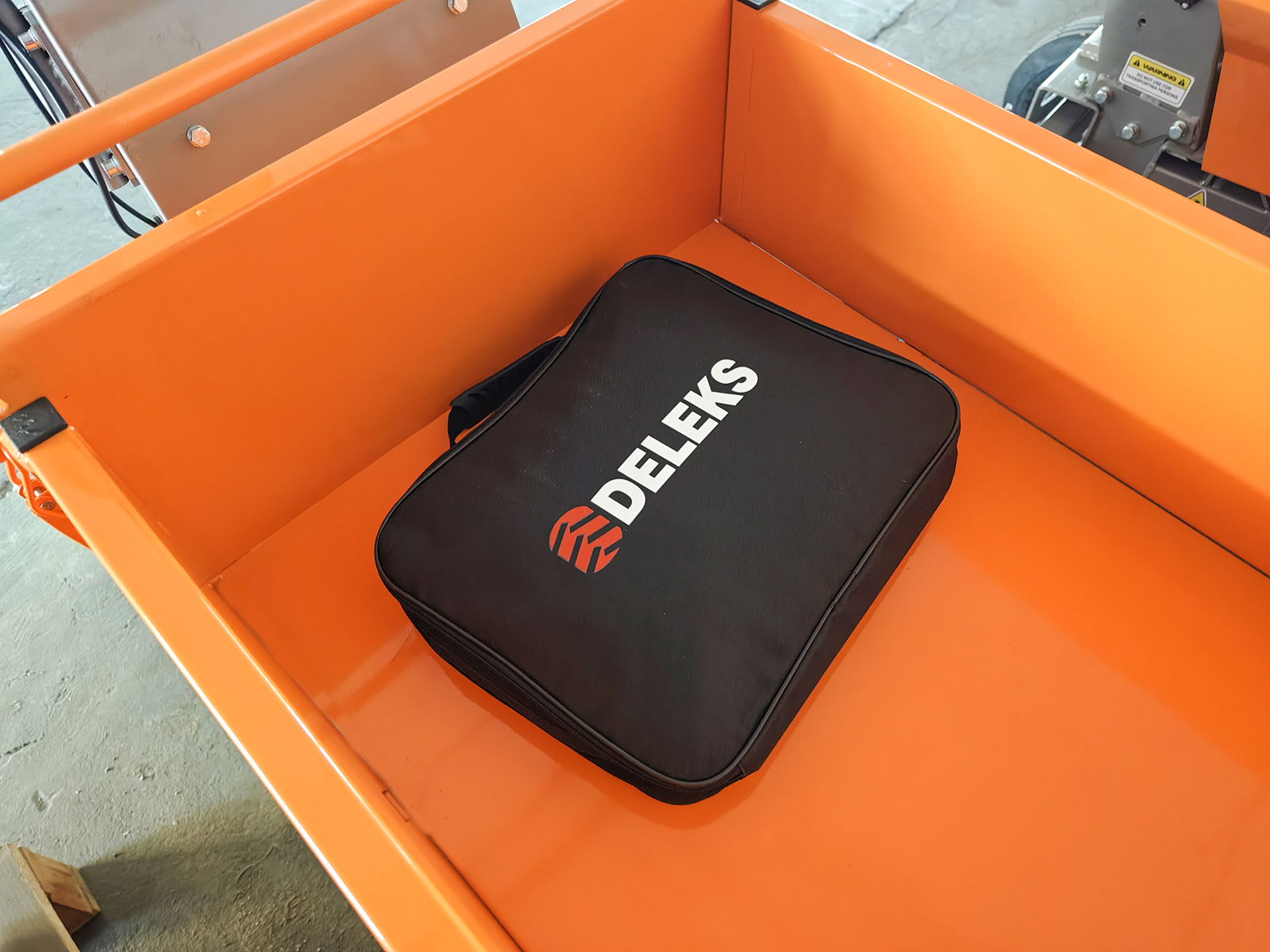

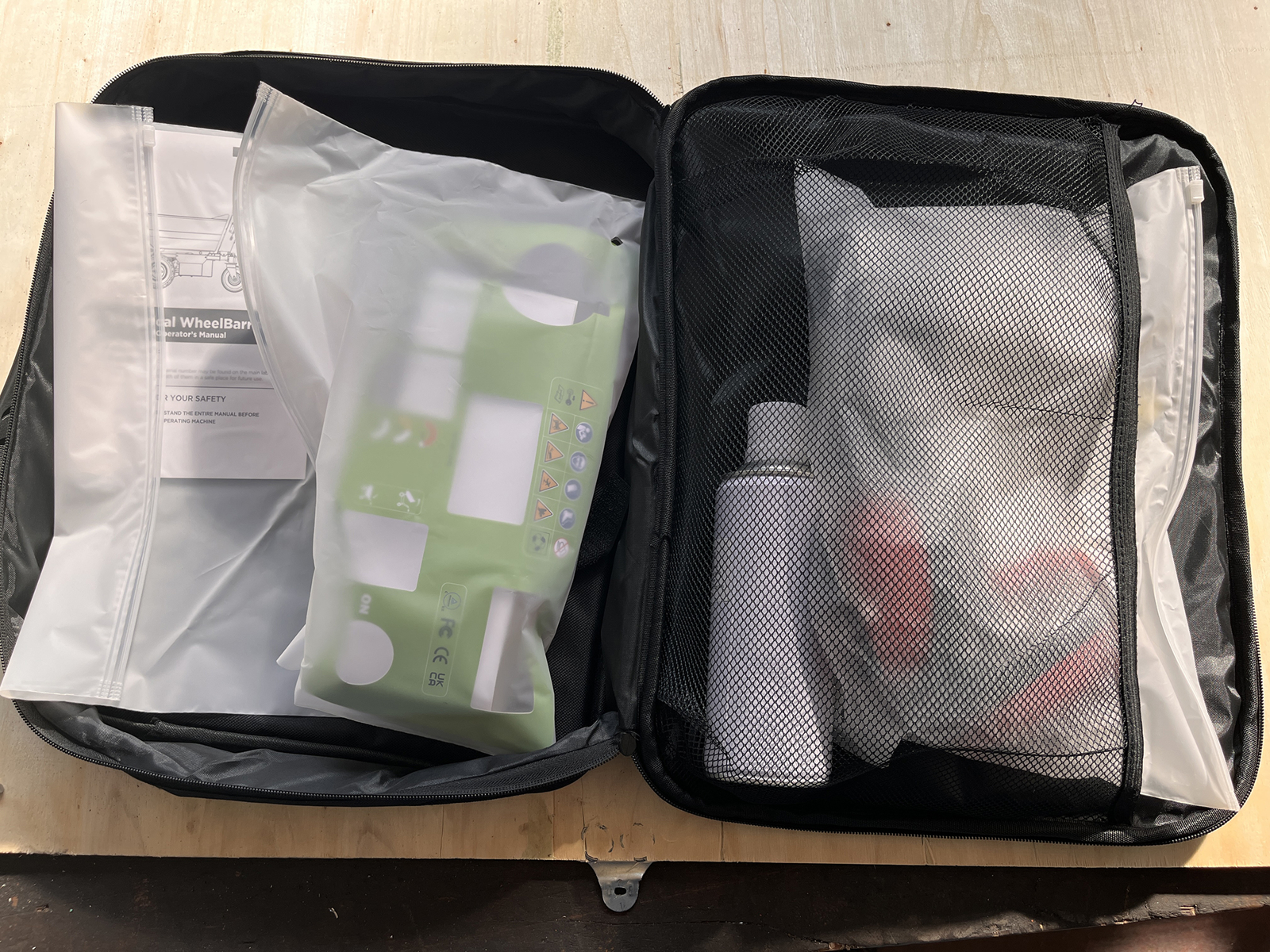

Bag with free gifts: spare stickers, spray paint, protective goggles, DELEKS^® work gloves.

EC Declaration of Conformity

Invoice/receipt

Use and Maintenance Manual
