Hydrostatic Crawler Mini Dumper, High dump, Kubota engine, E-start
Promo video
S180 + M8000
M8000 + S180
DETAILS

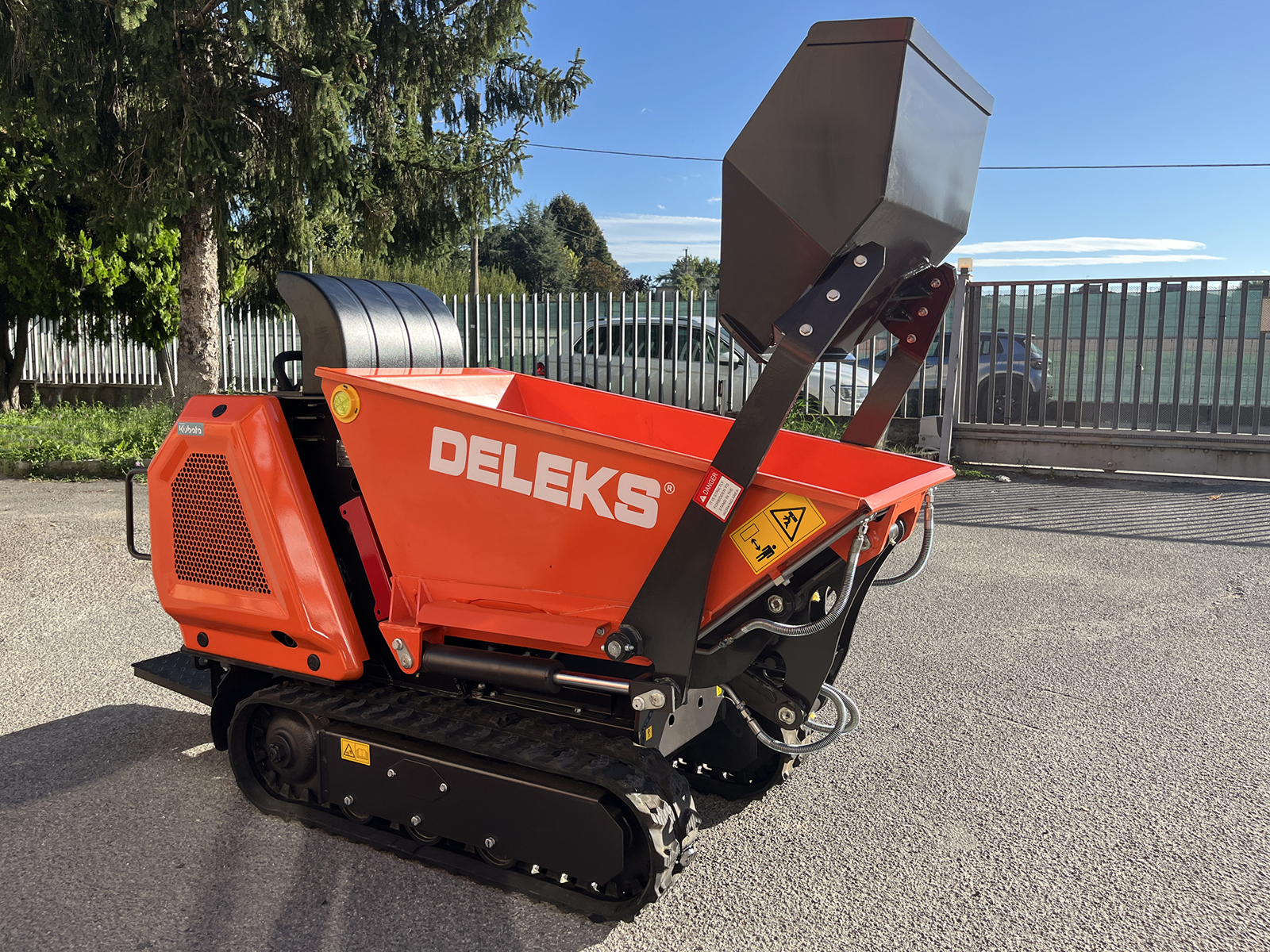

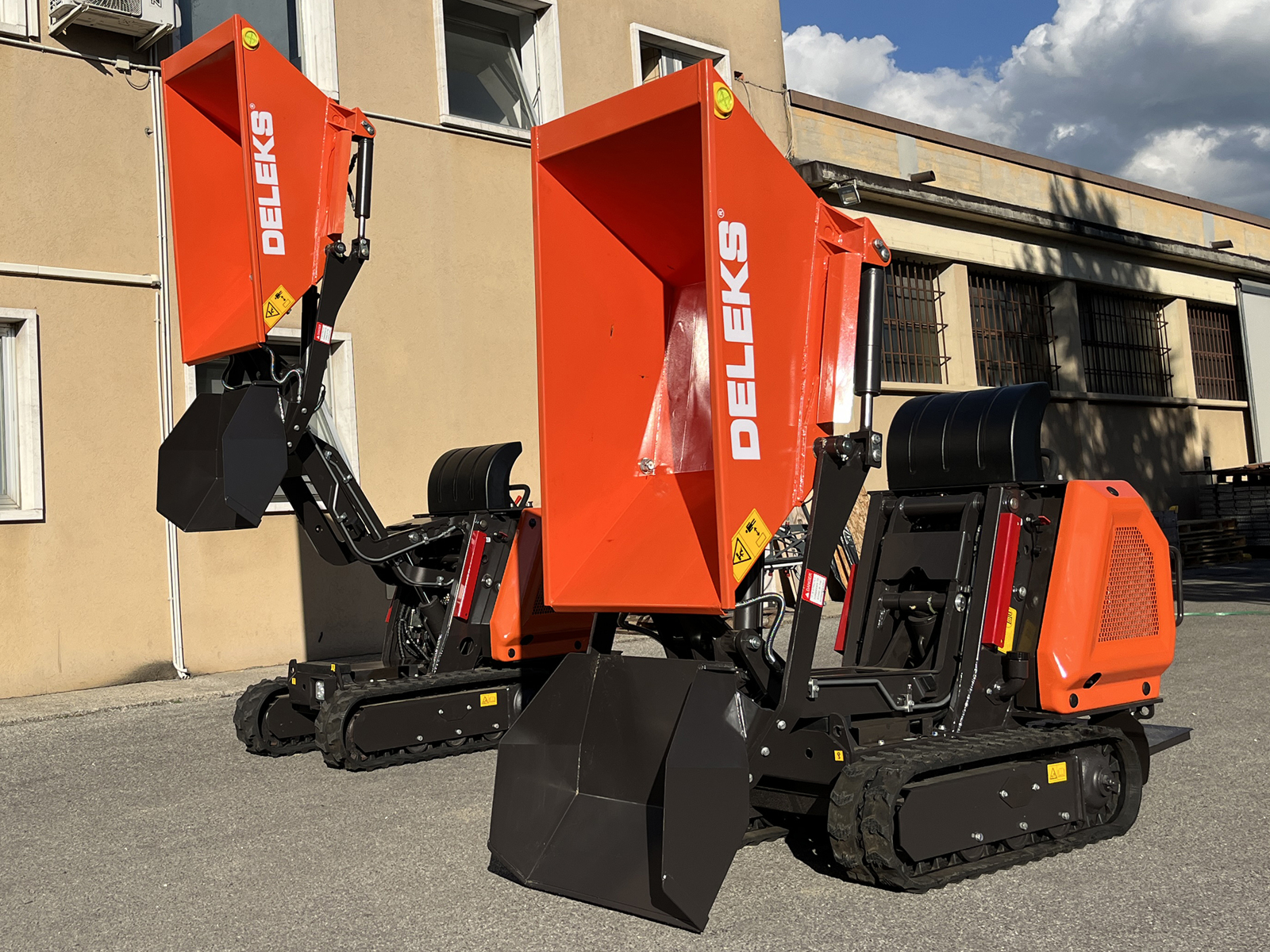

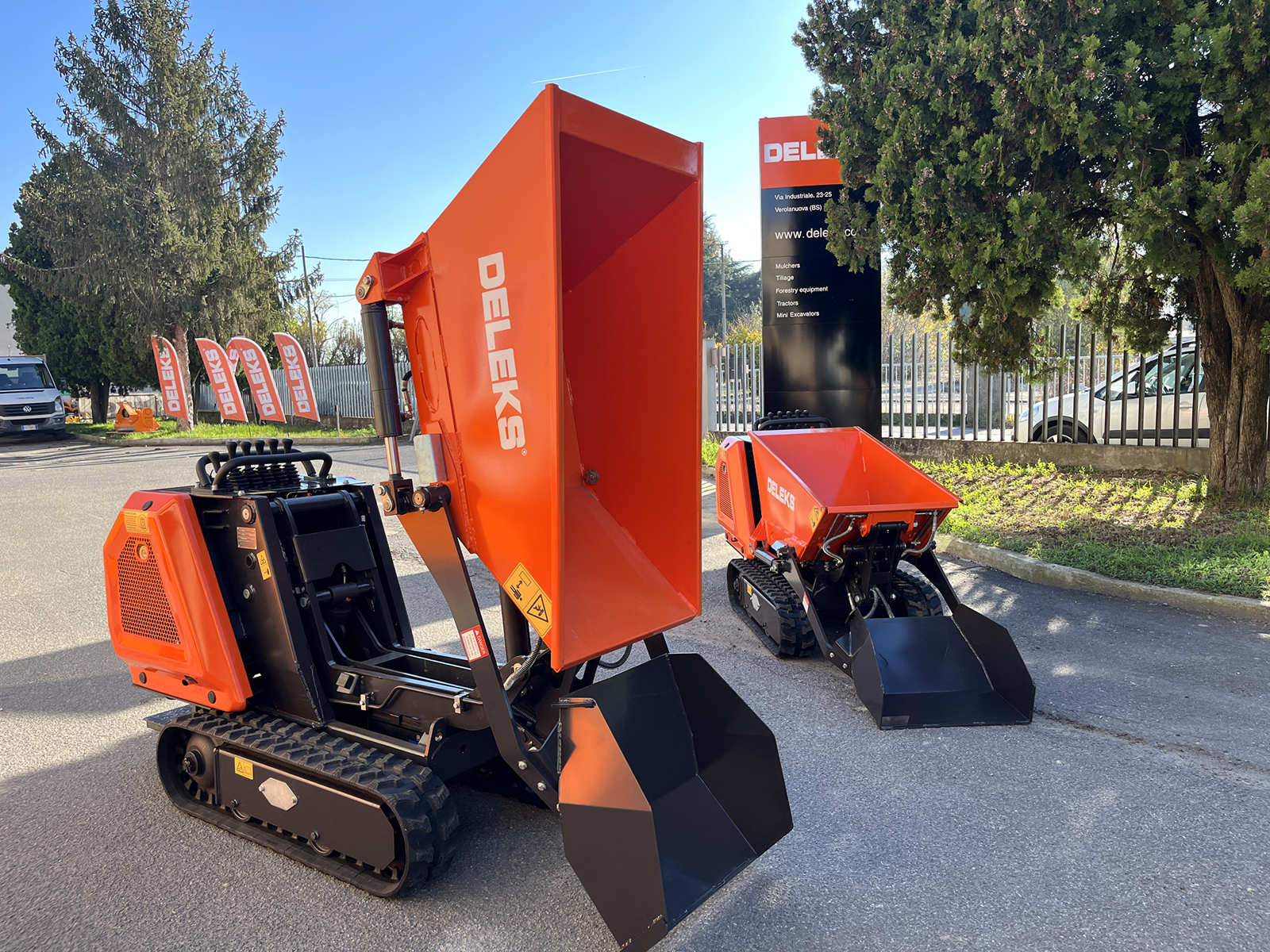

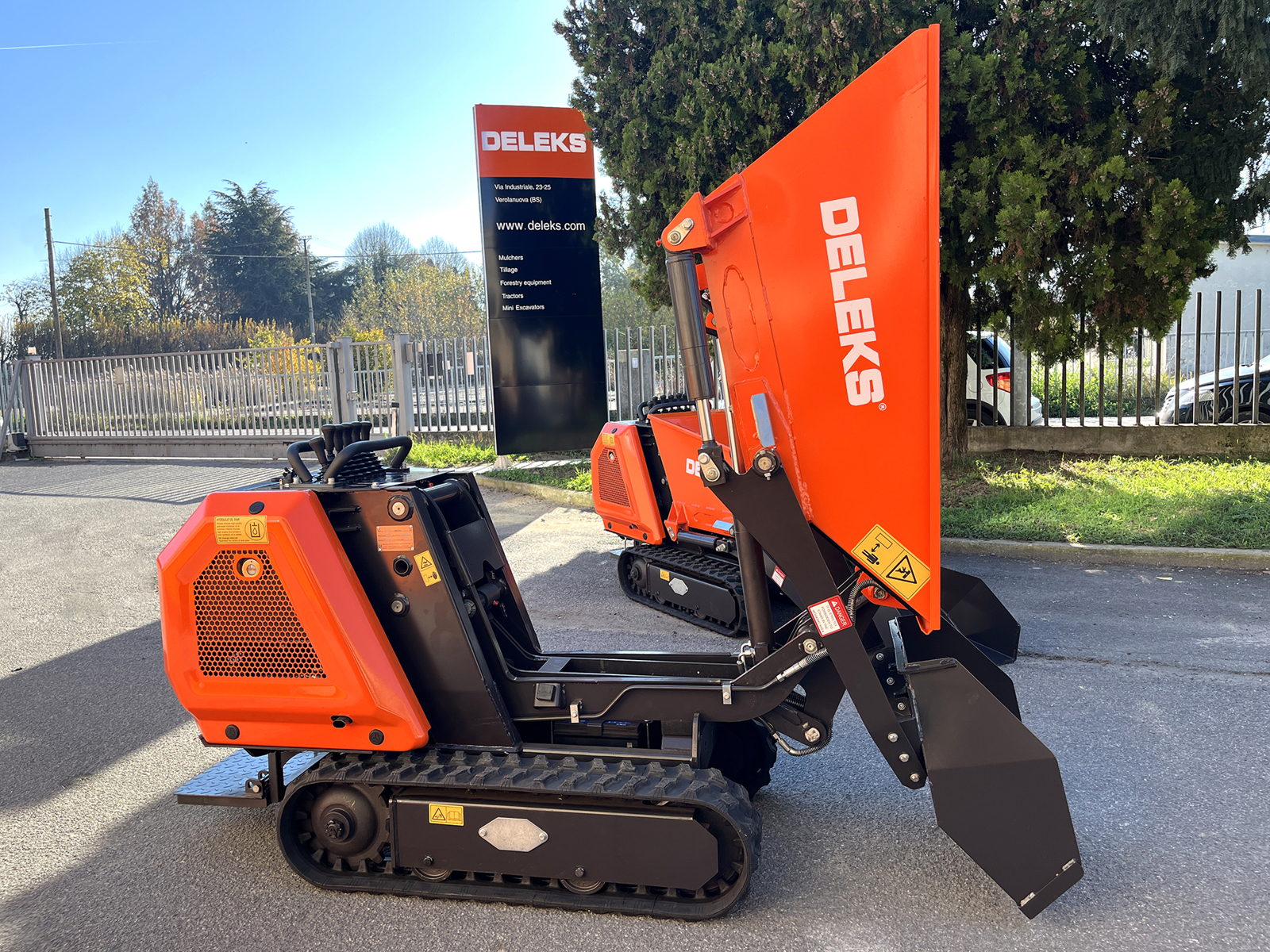

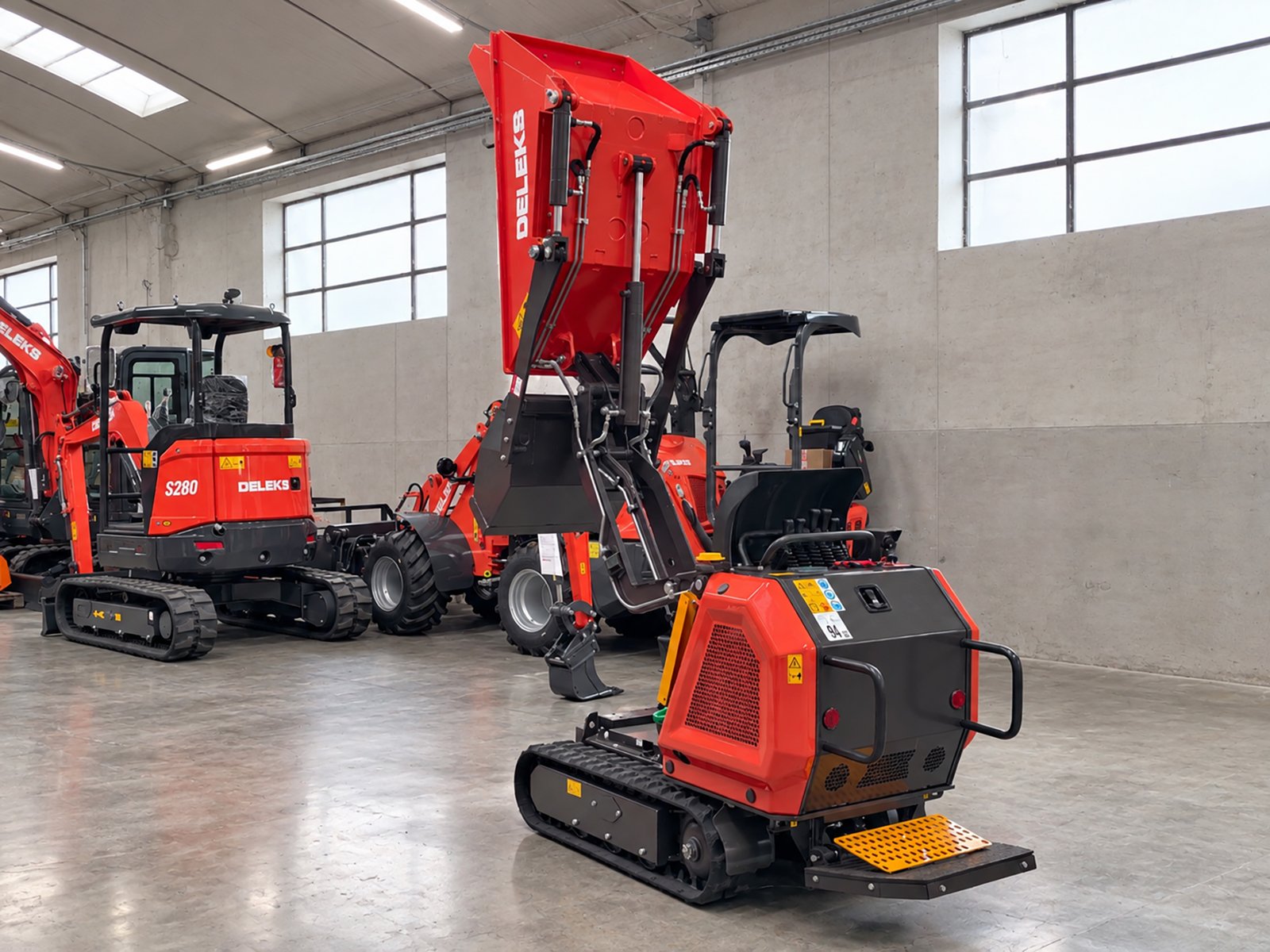

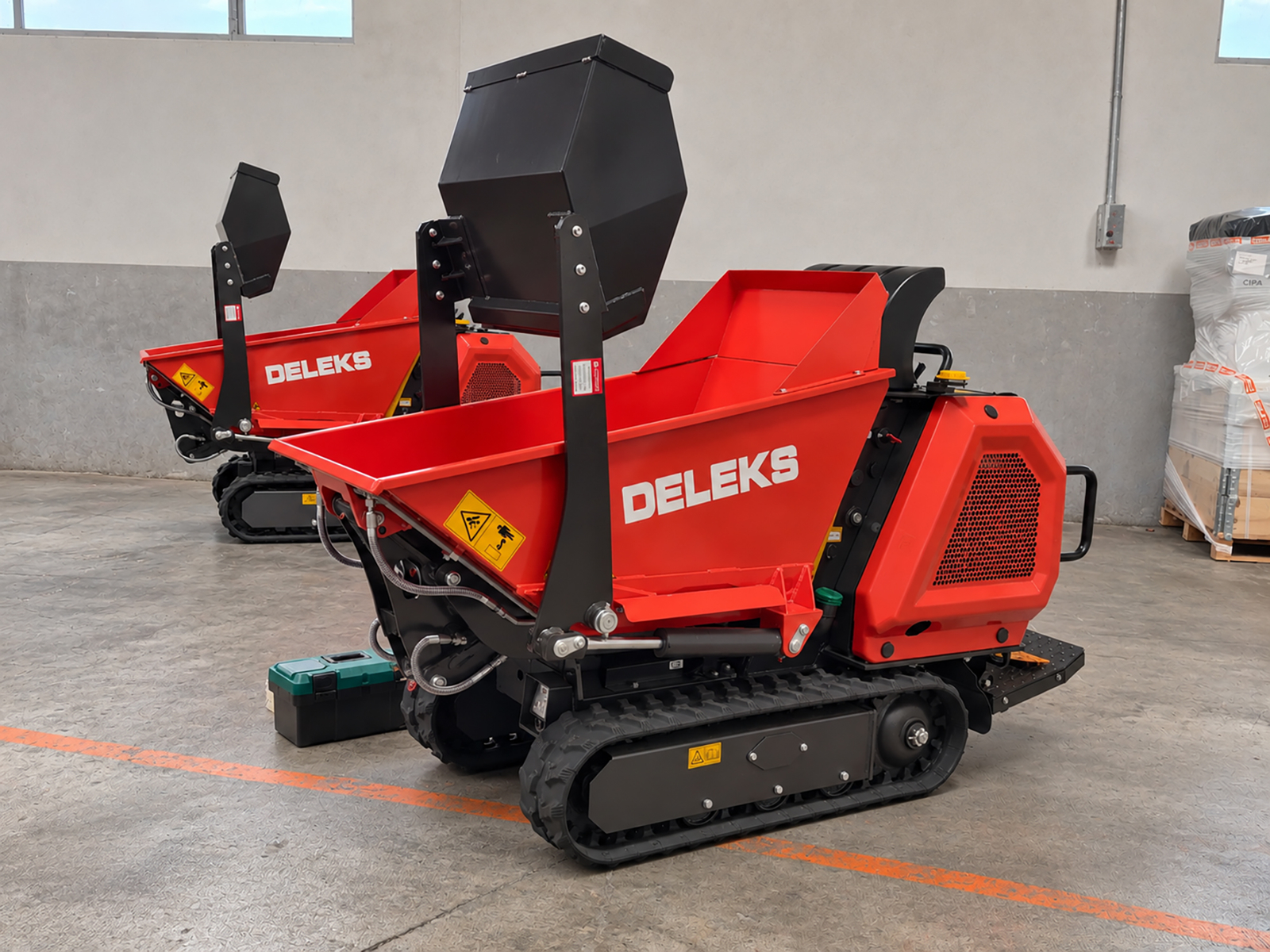

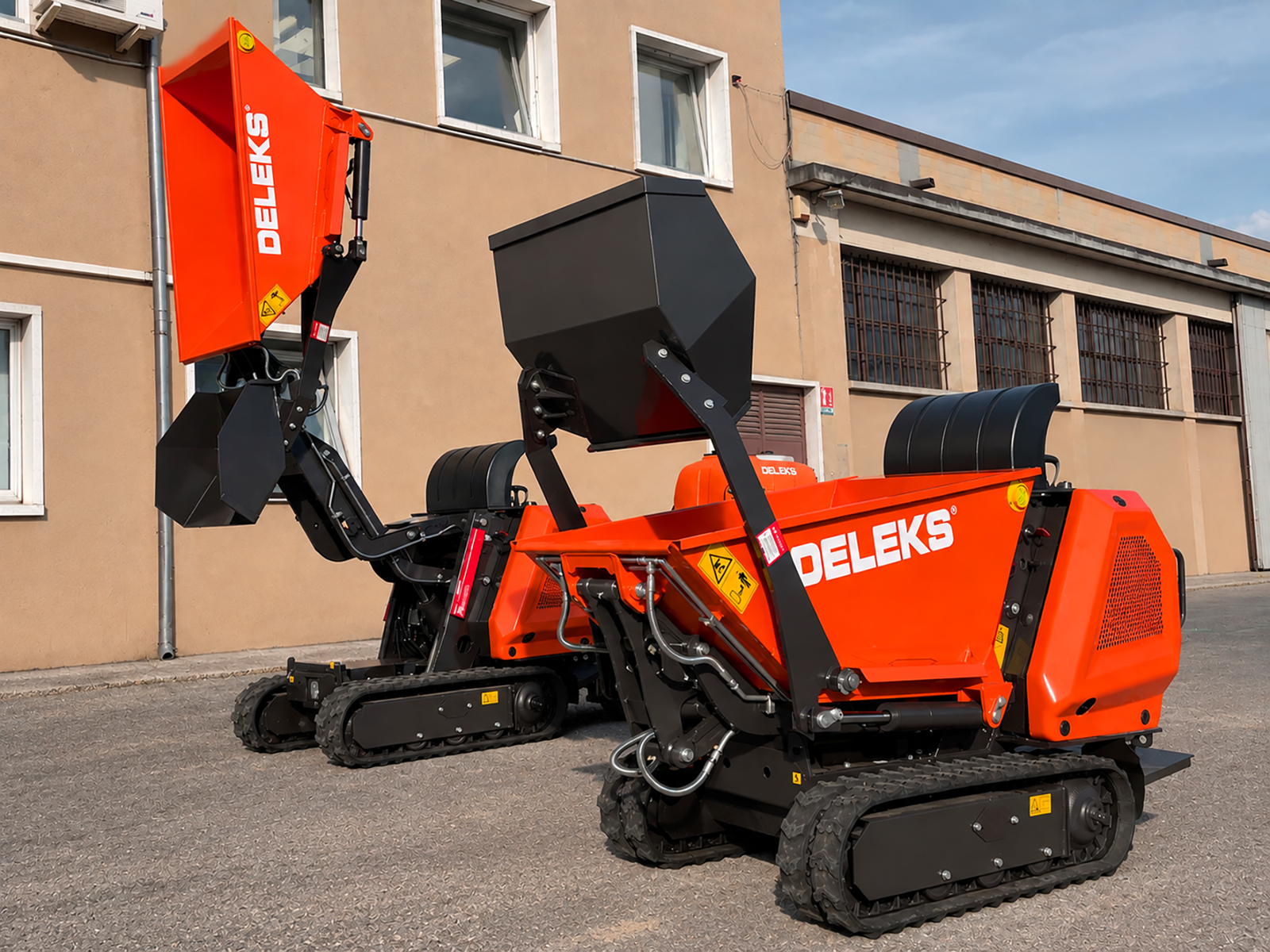

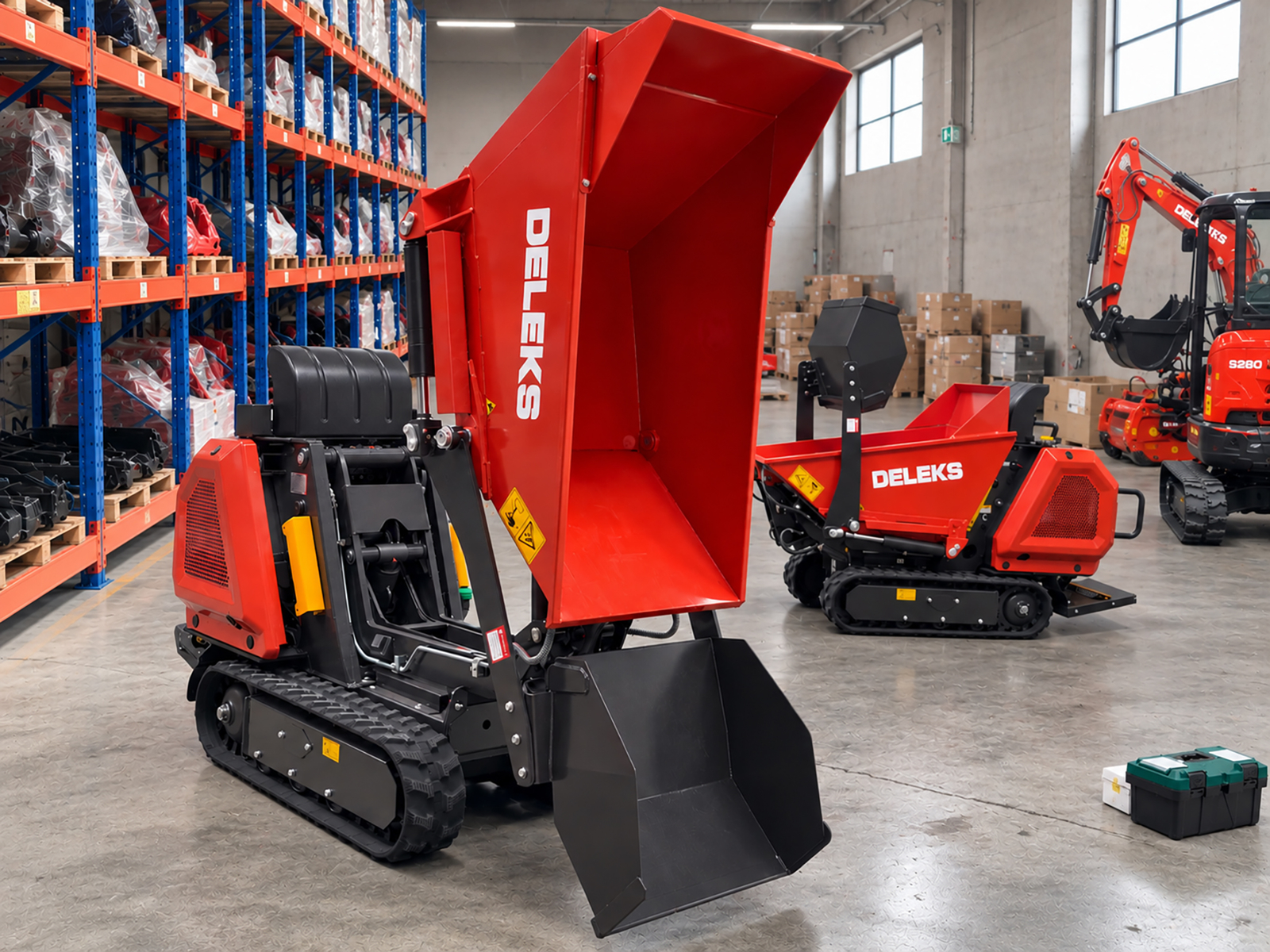

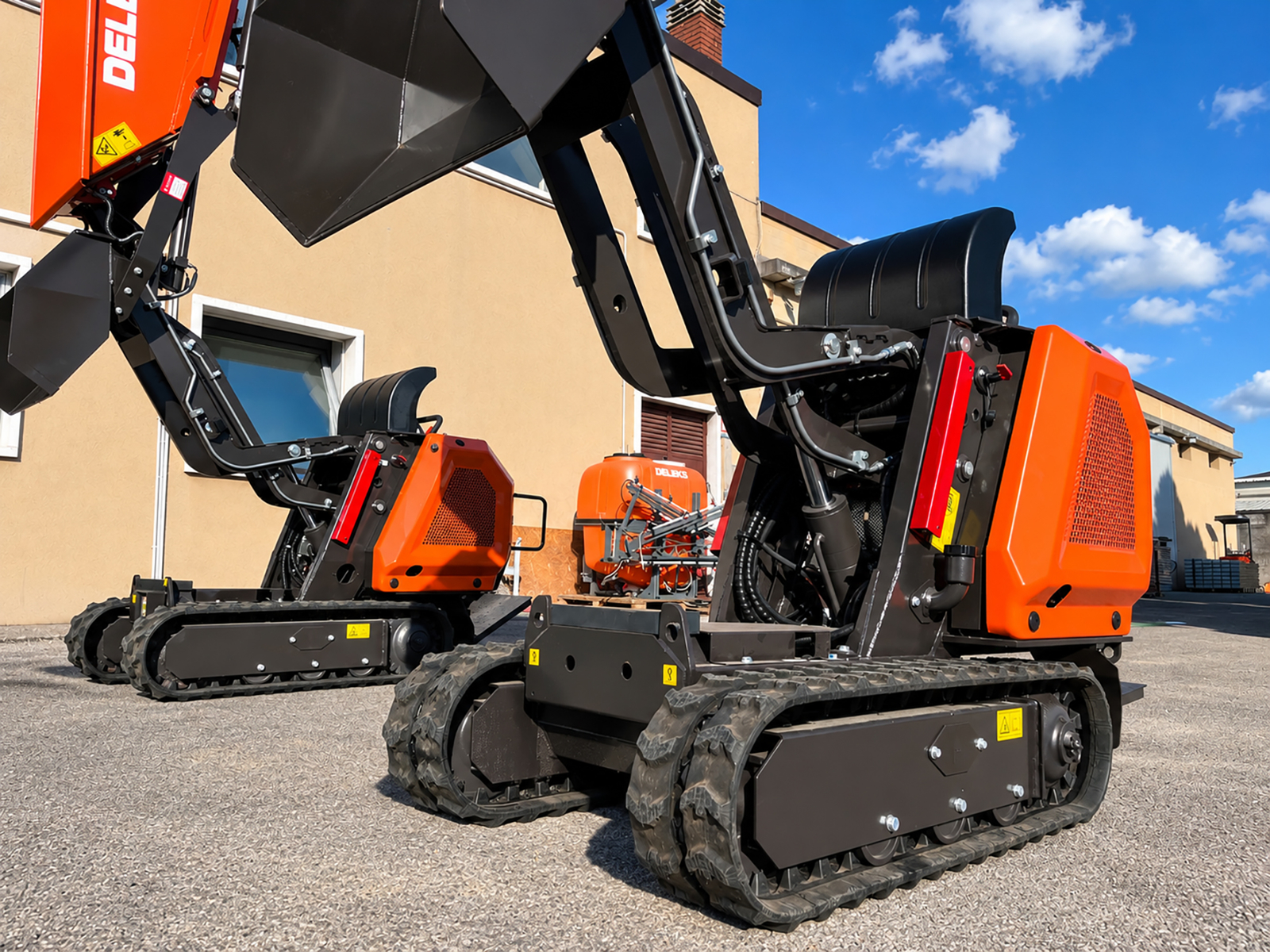

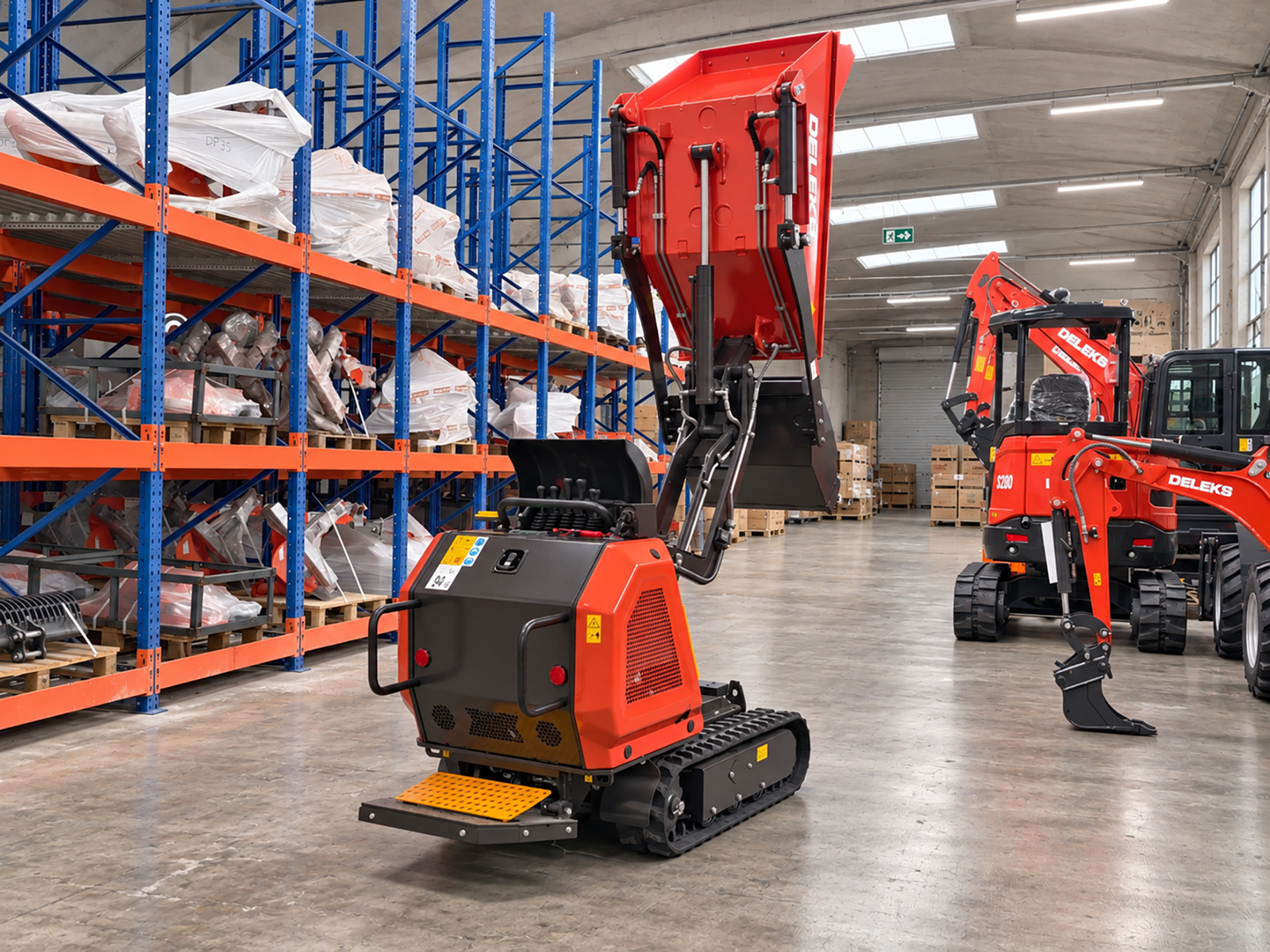

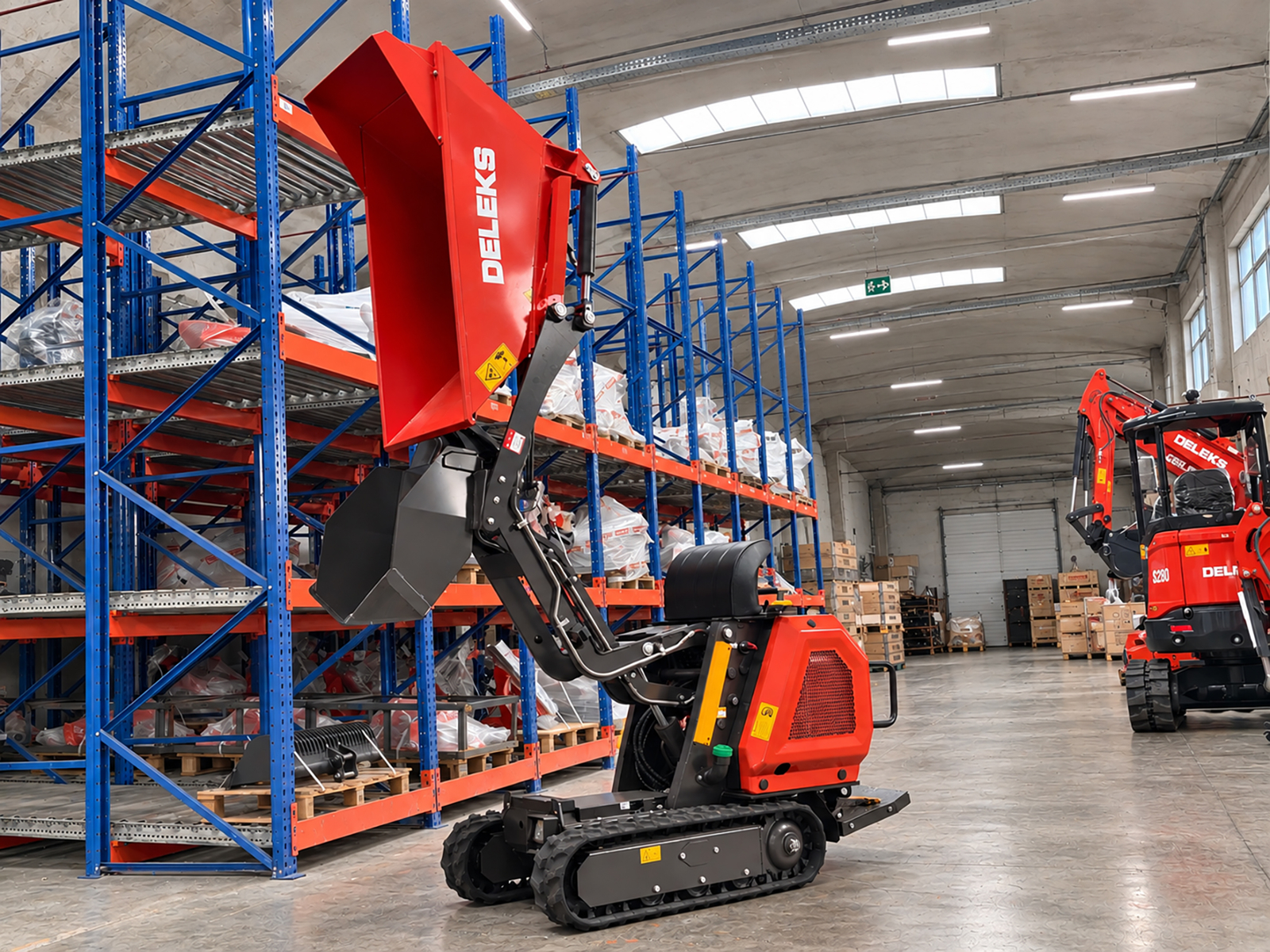

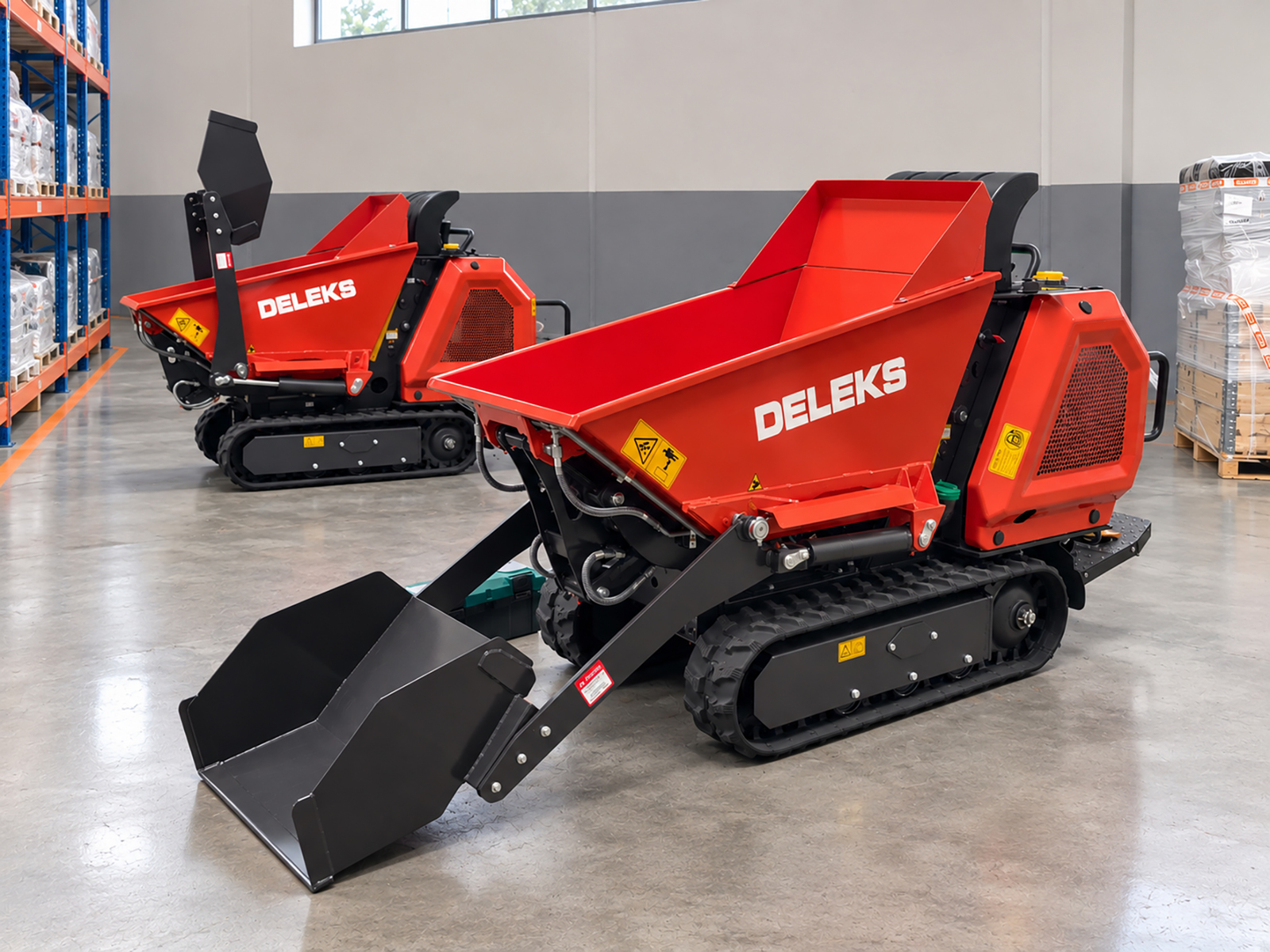

DELEKS® M8000-KUBOTA Self-loading tracked minidumper, high dump, hydrostatic transmission, operator platform, Kubota engine, electric start.
APPLICATION

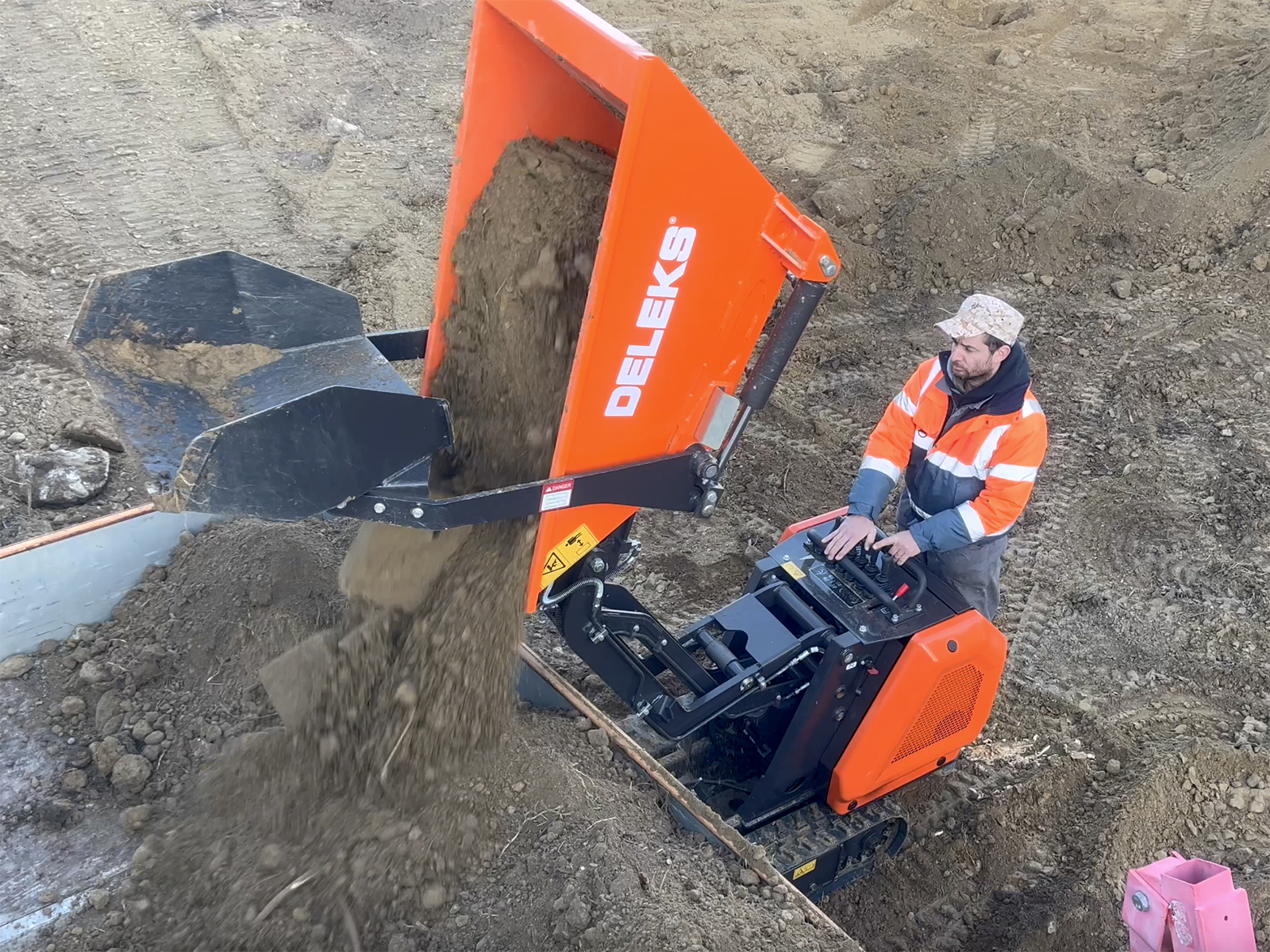

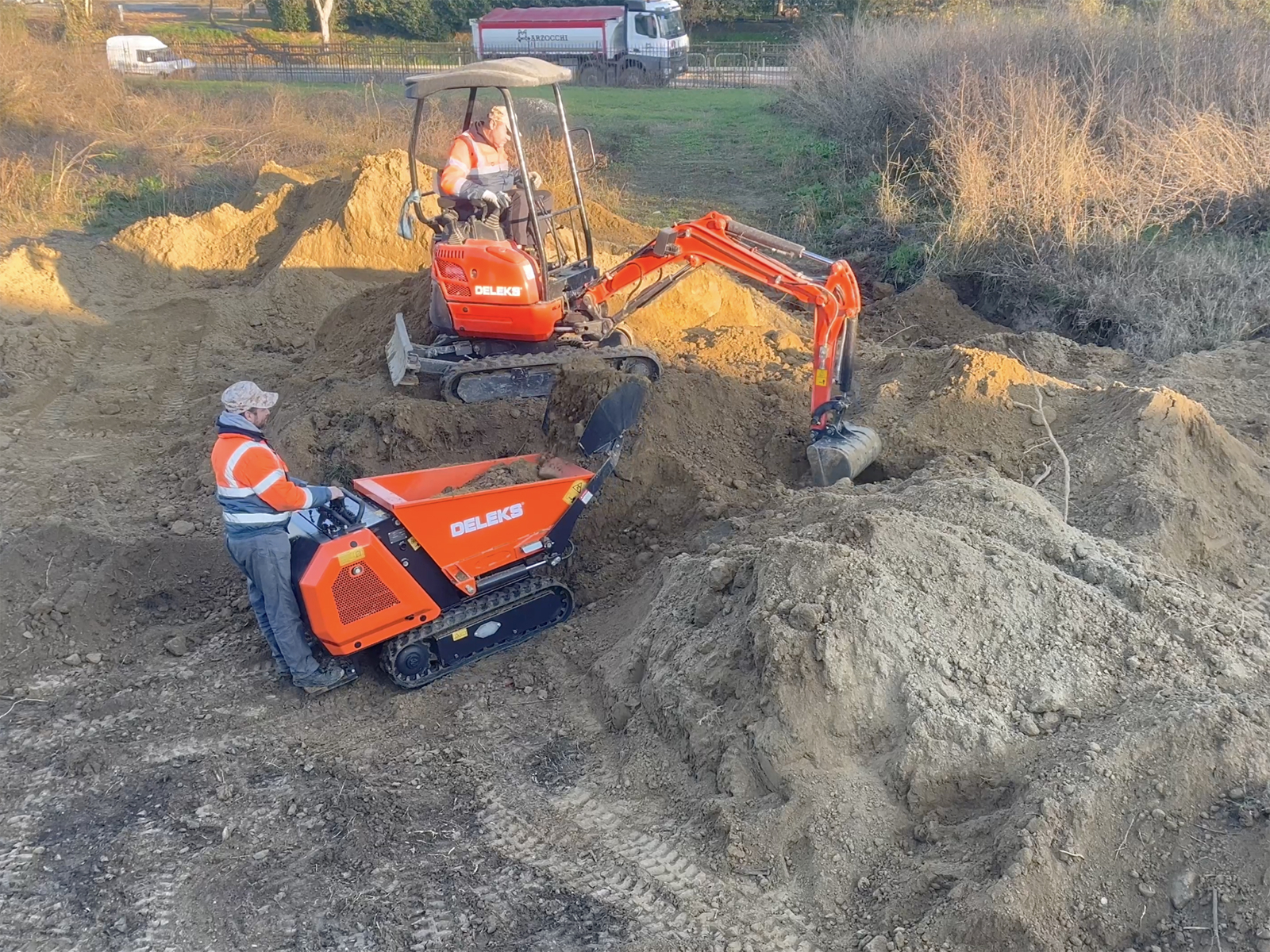

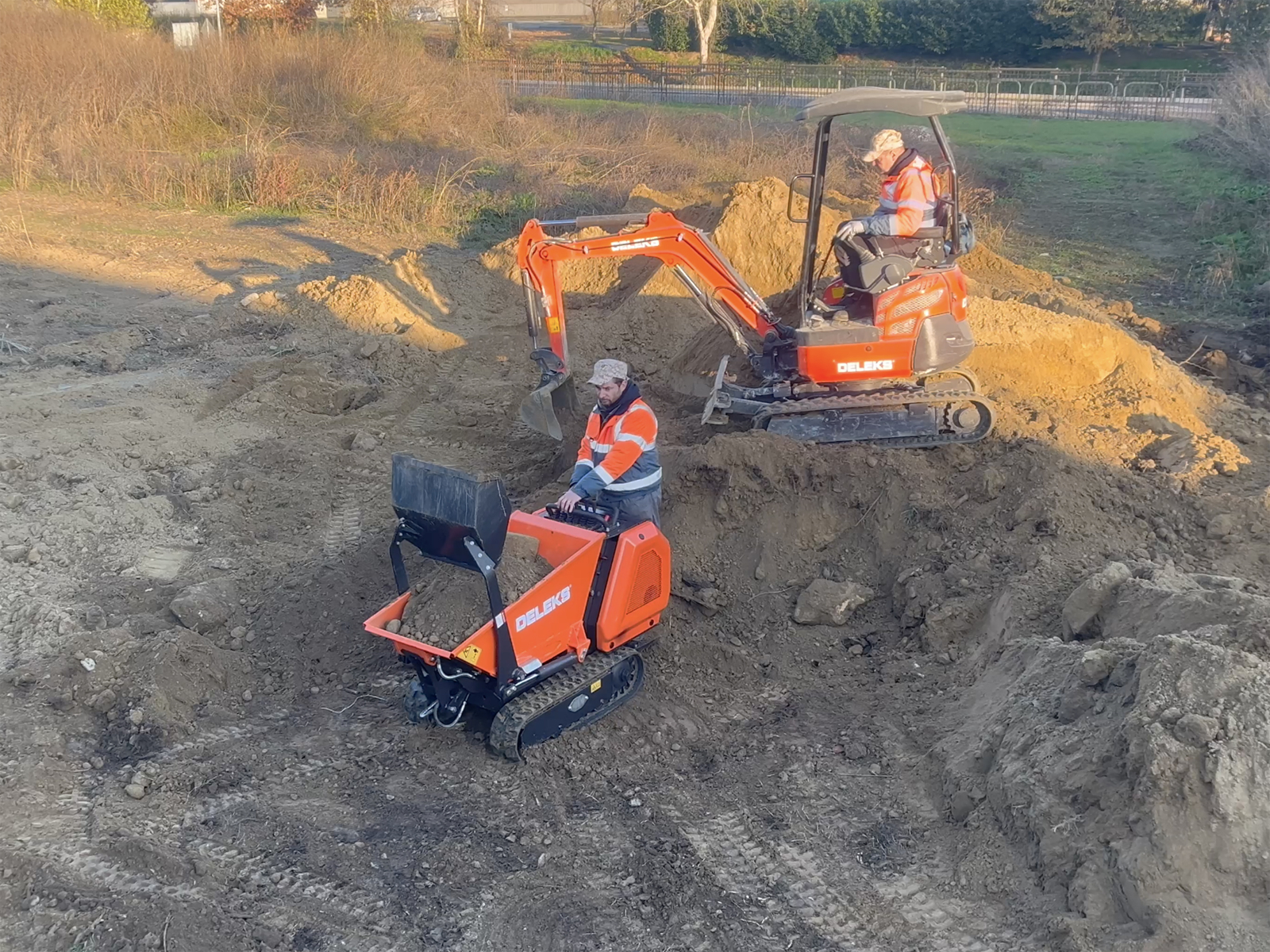

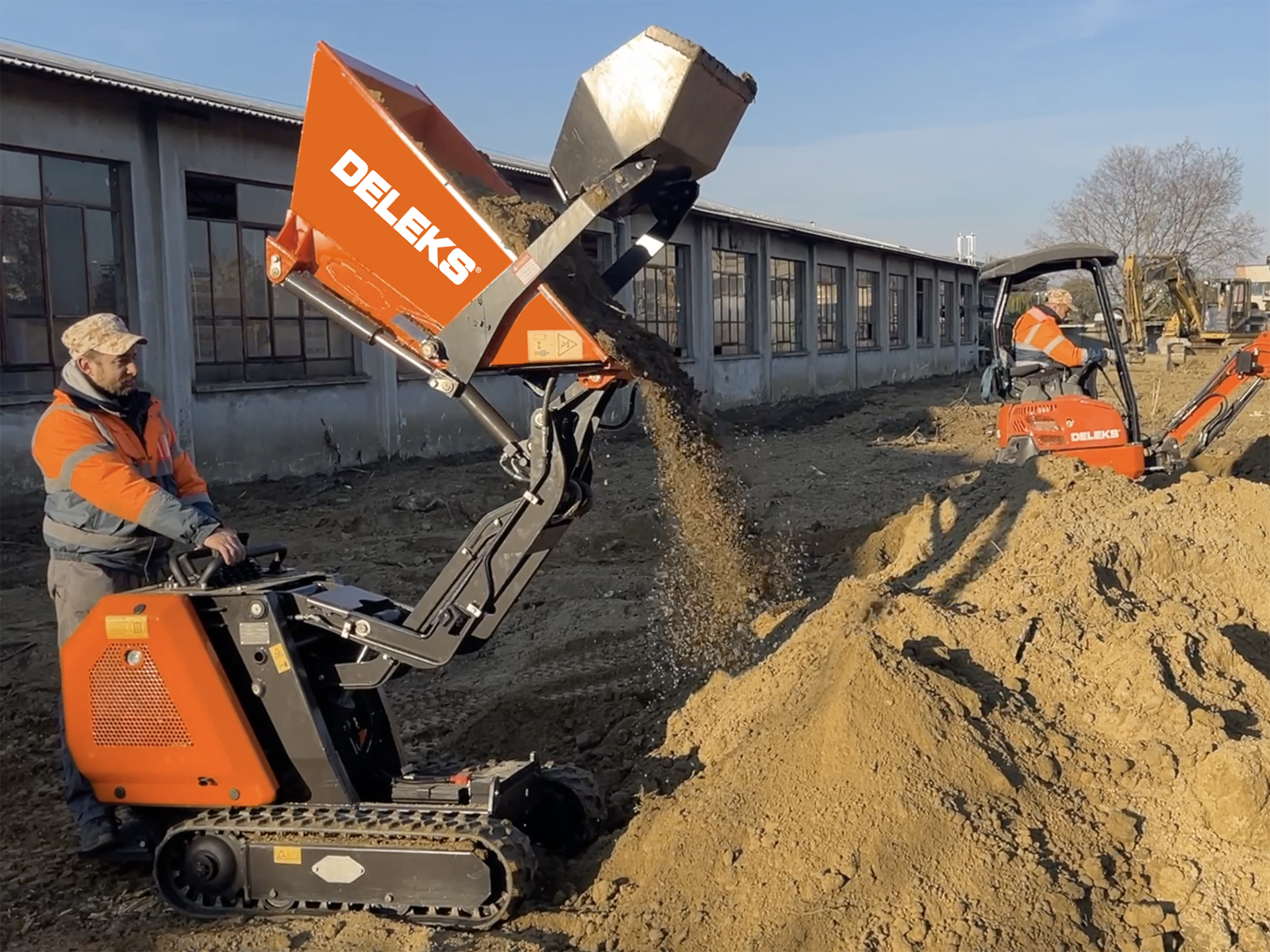

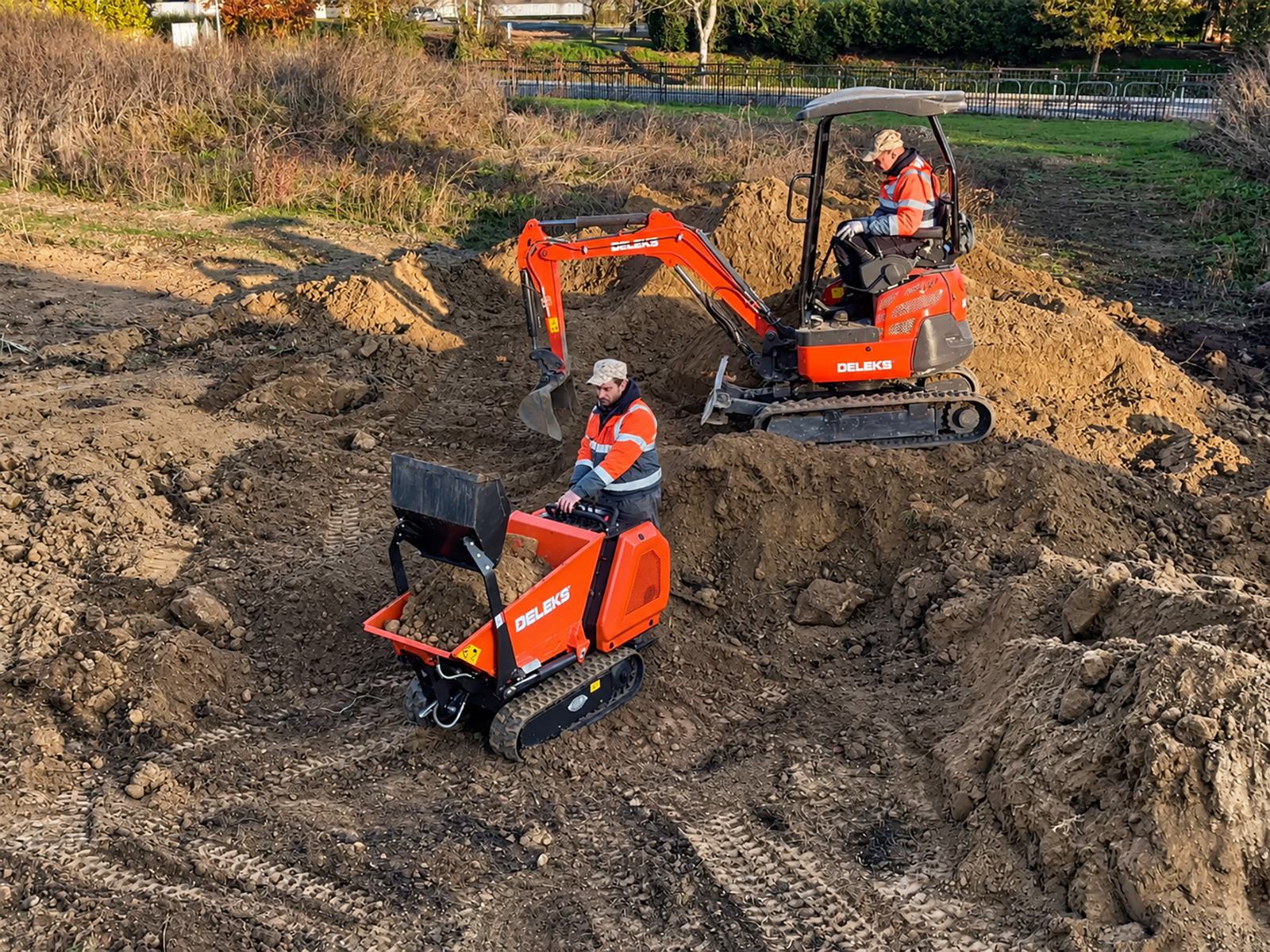

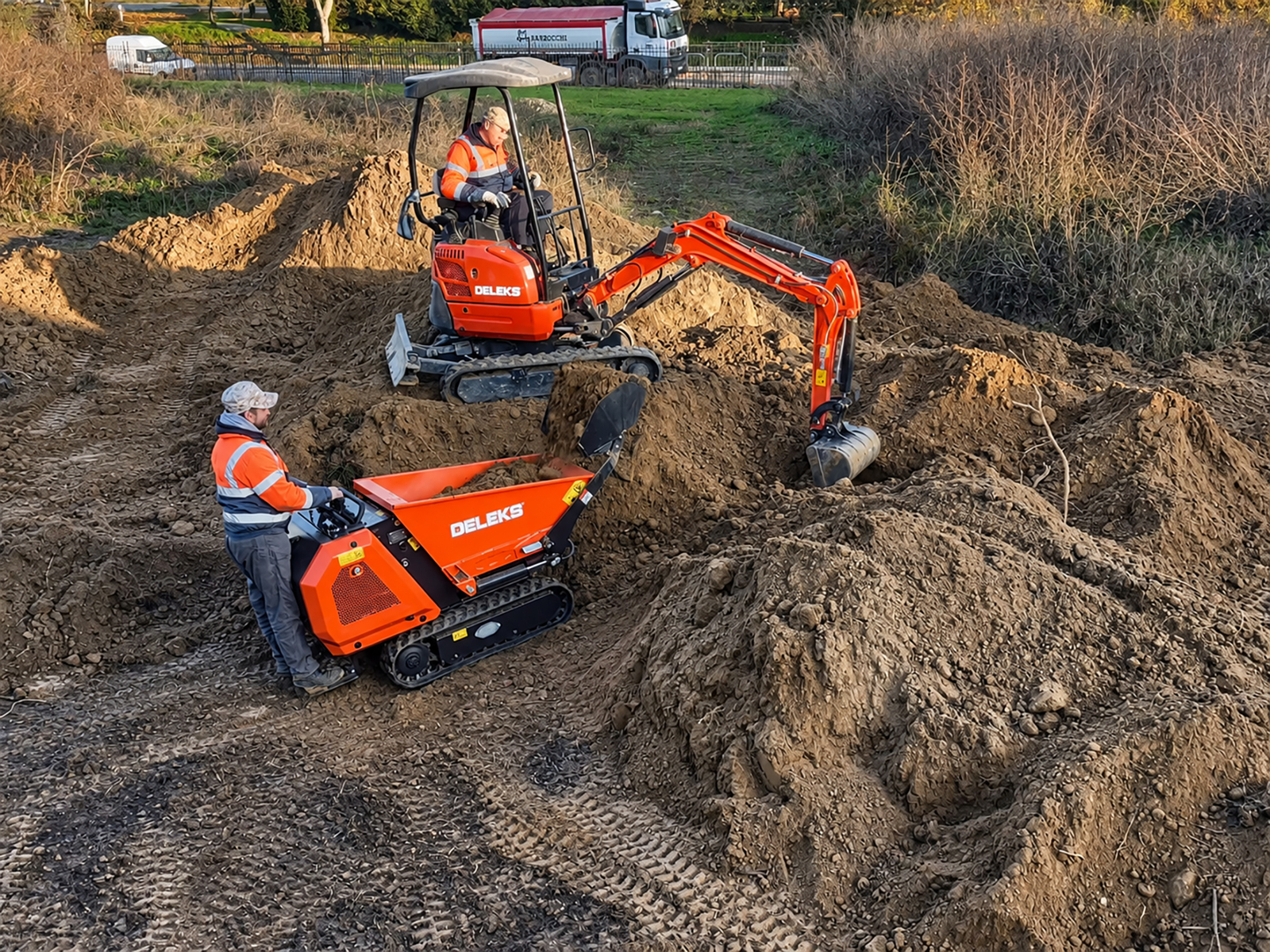

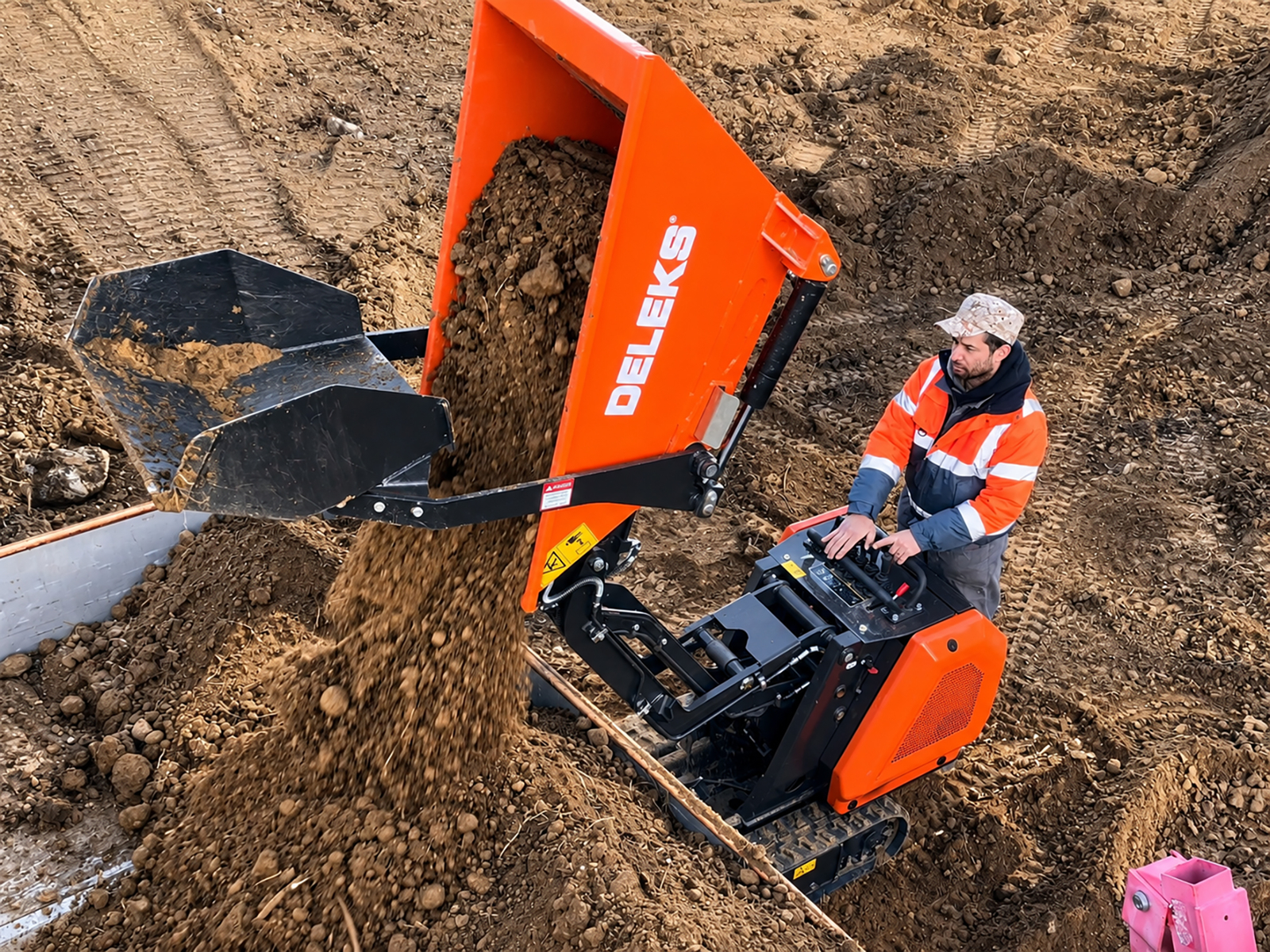

M8000-KUBOTA tracked minidumper suitable for loading and moving earth, sand, building material, waste, etc.

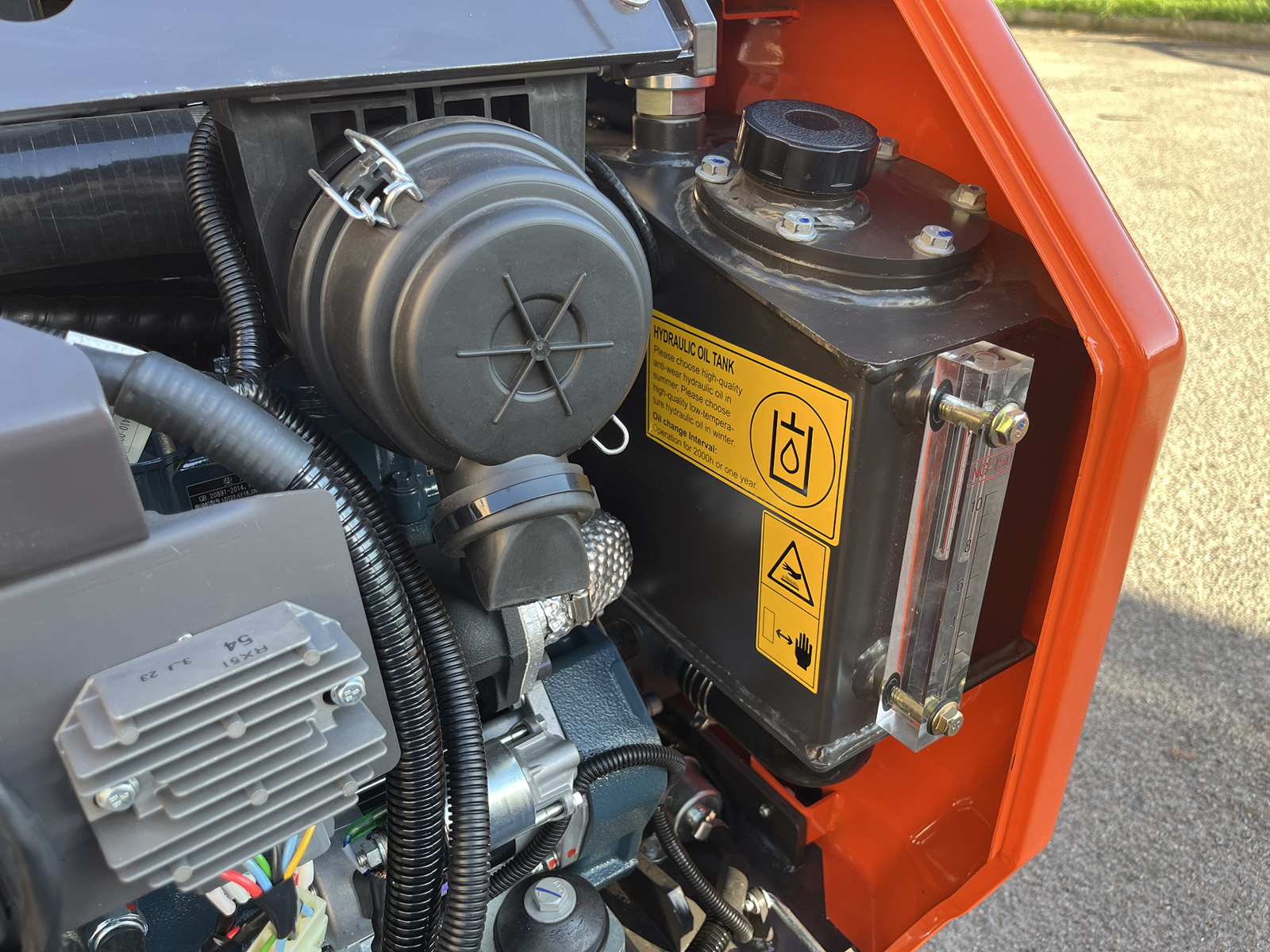

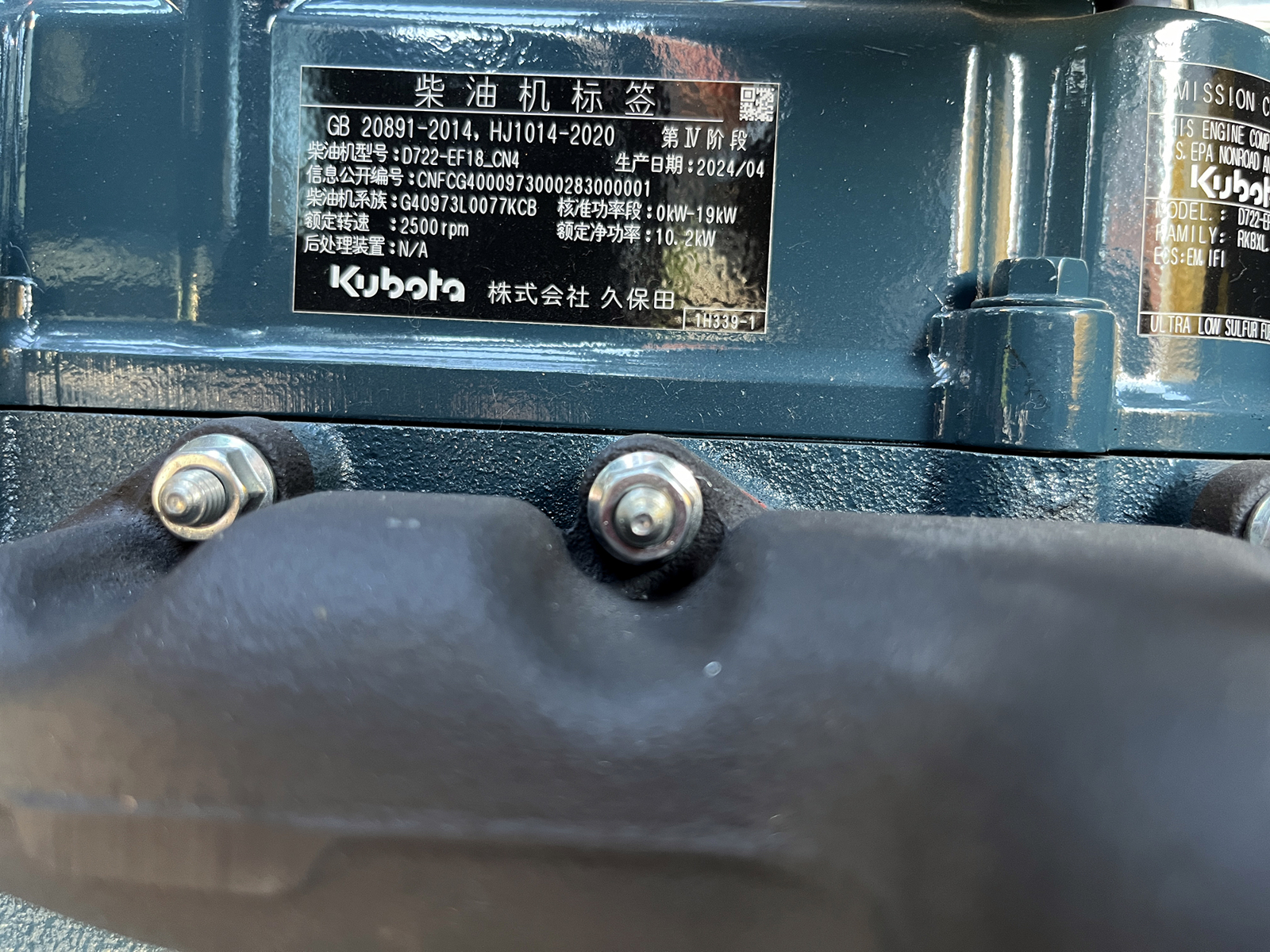

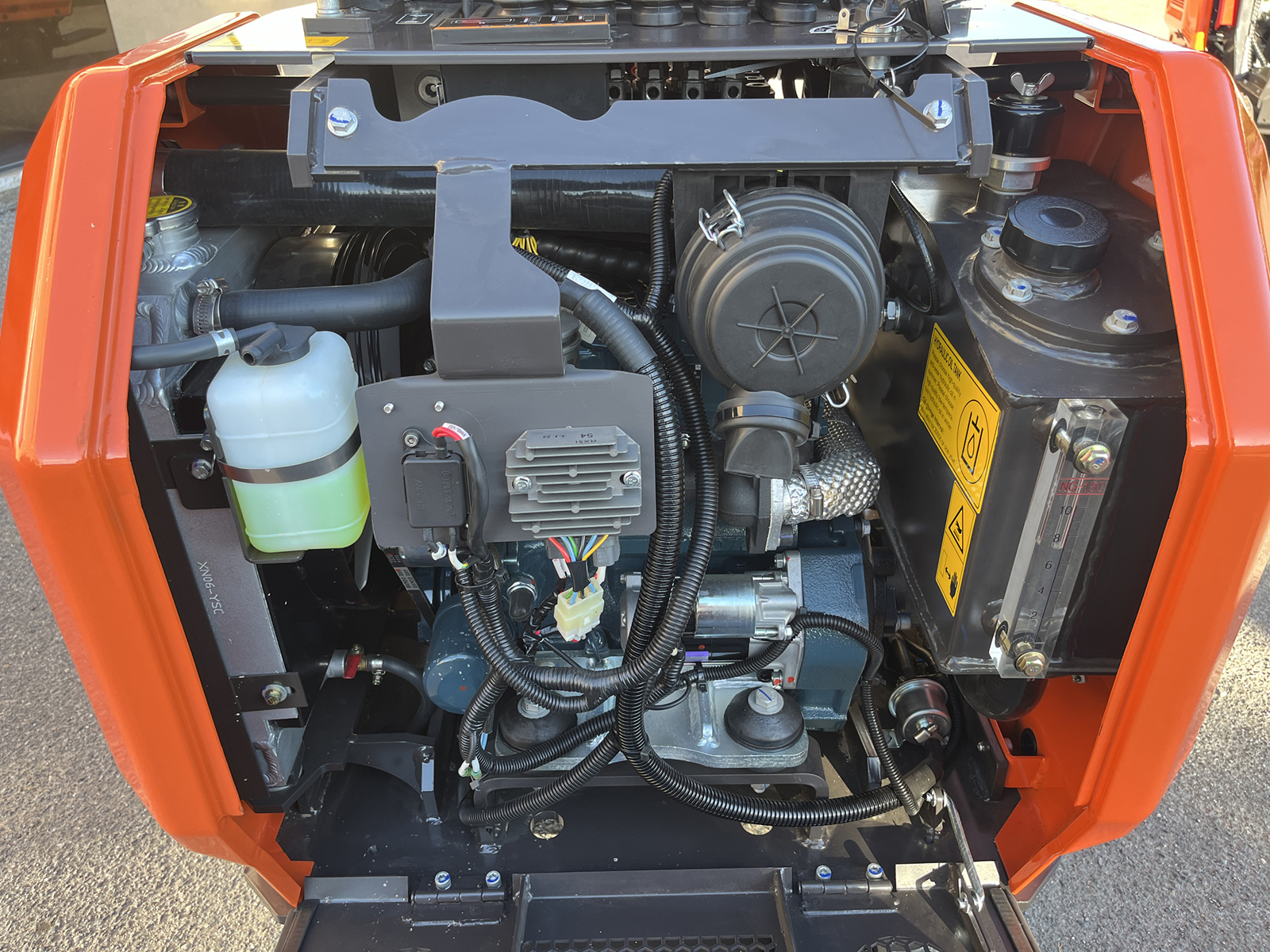

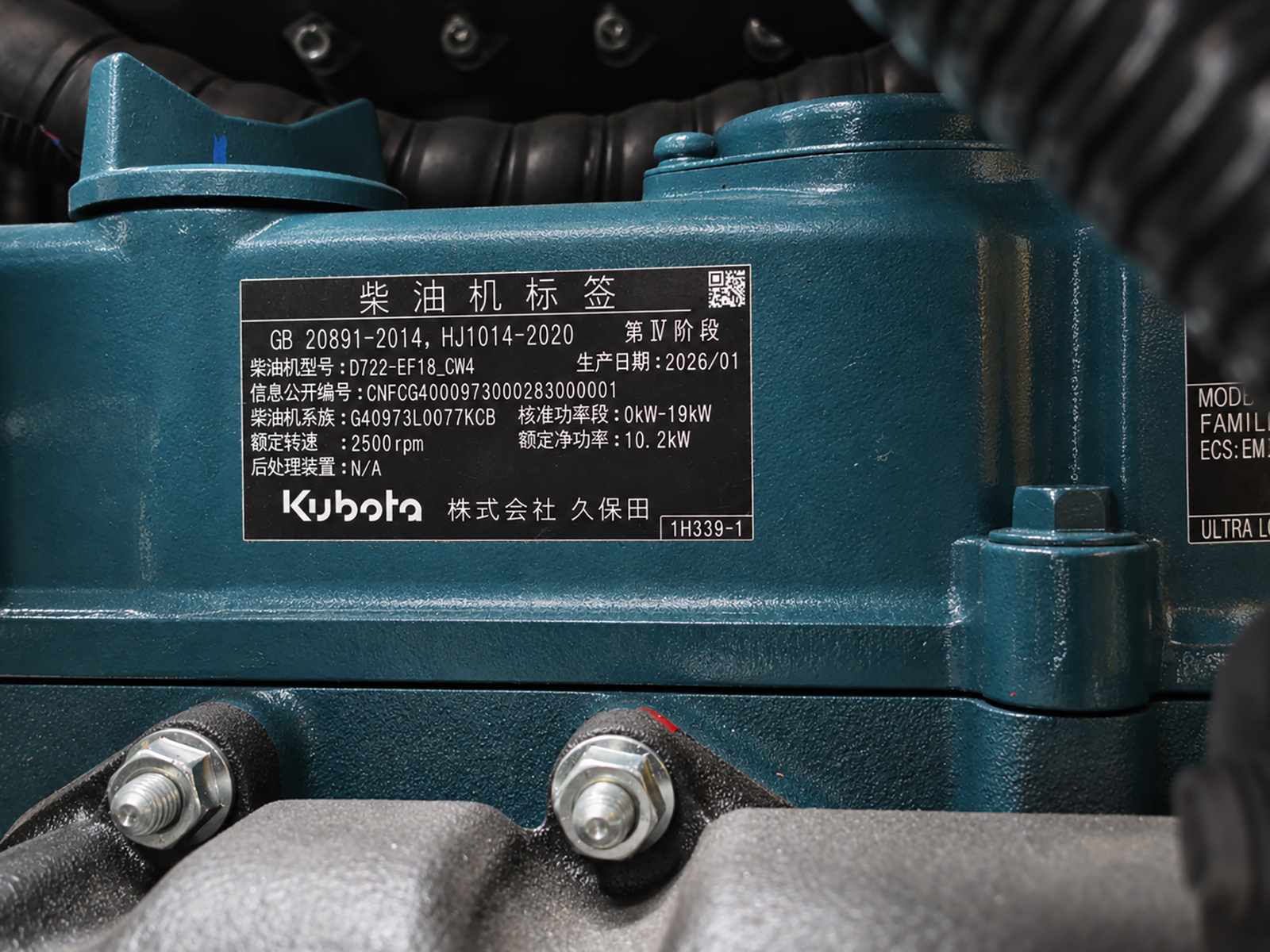

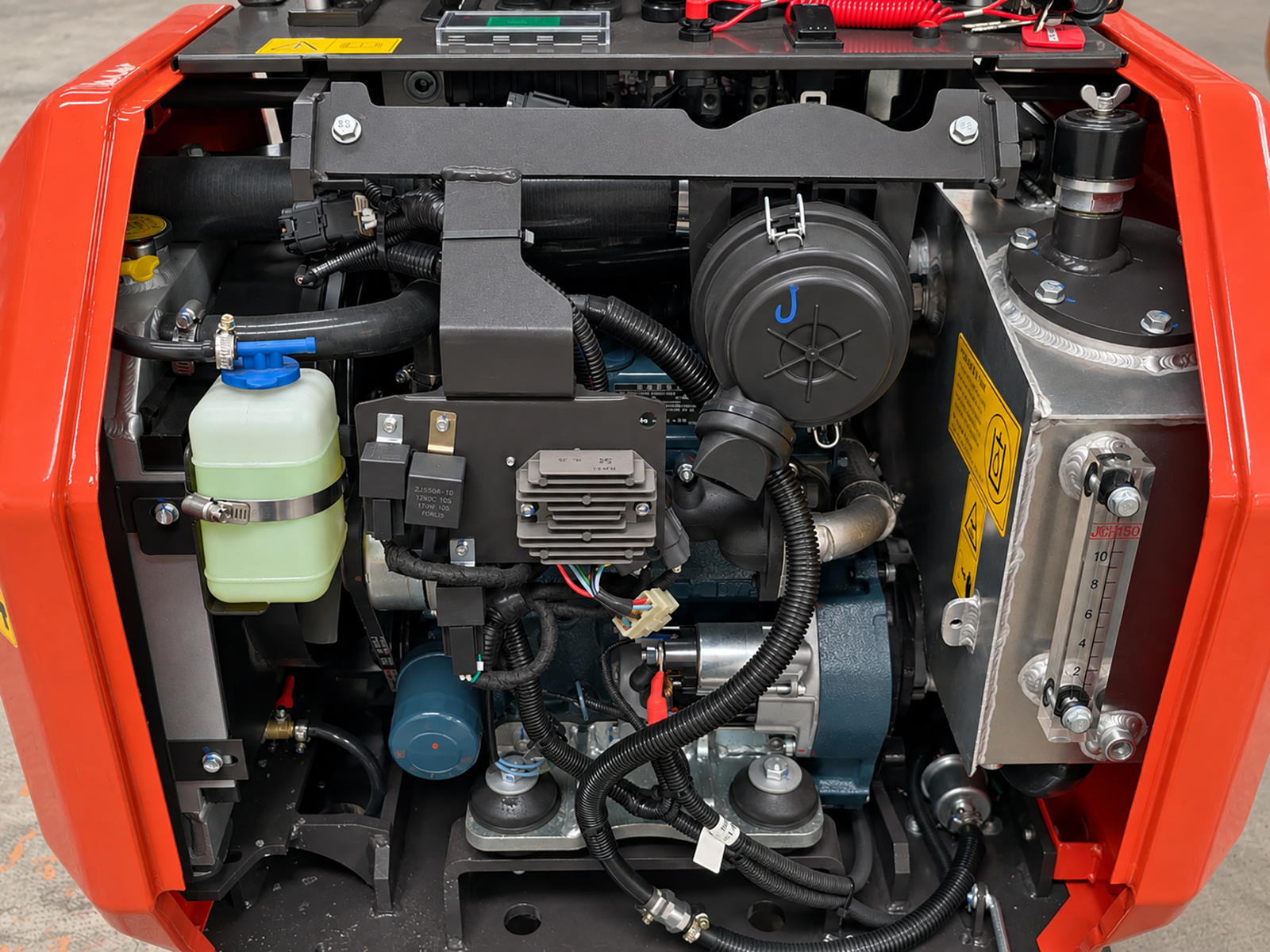

Kubota D722 engine, 13.7hp, 3 cylinders

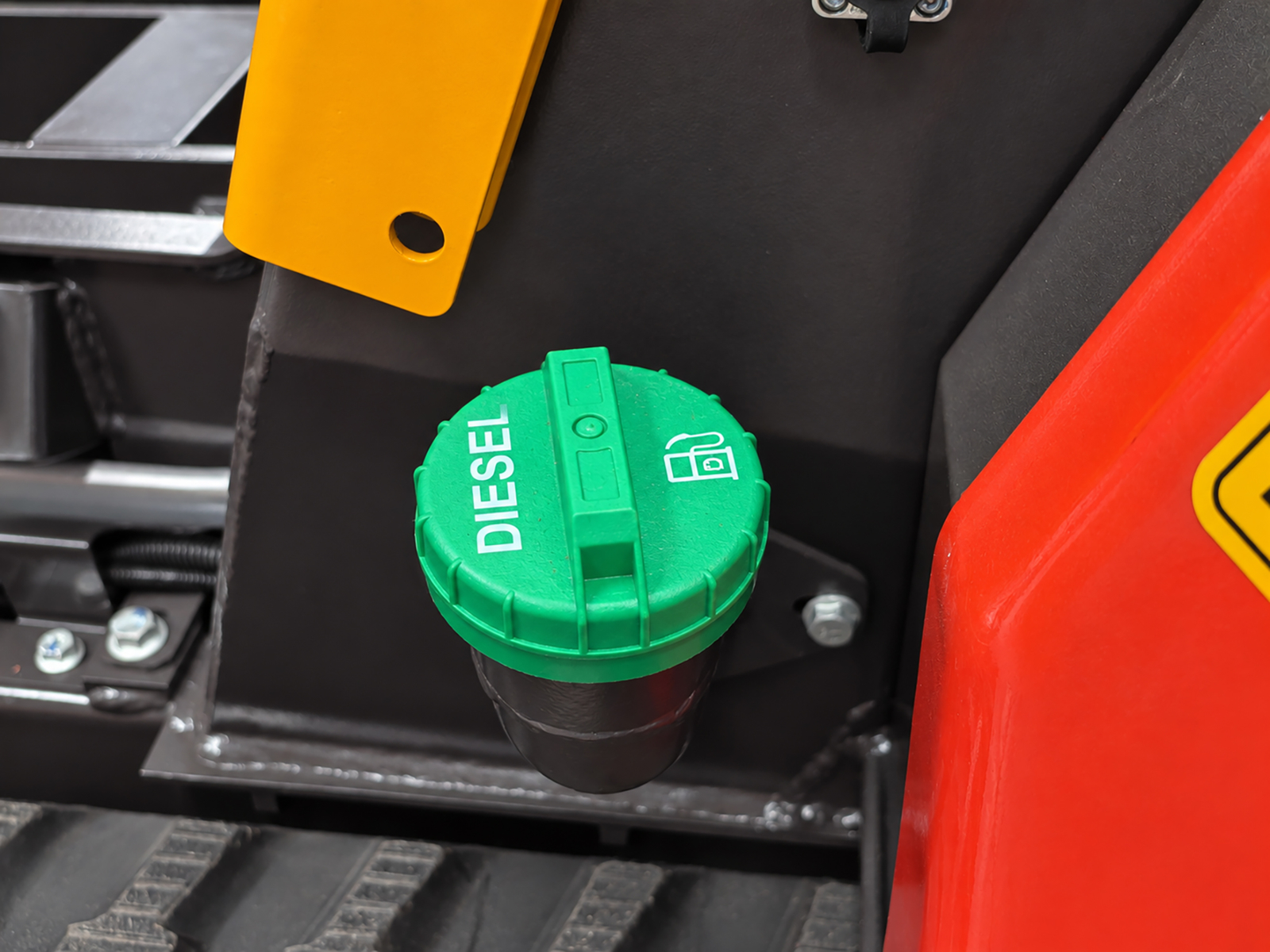

Fuel: Diesel
Body: dumper type with high tip
Capacity: 800 kg

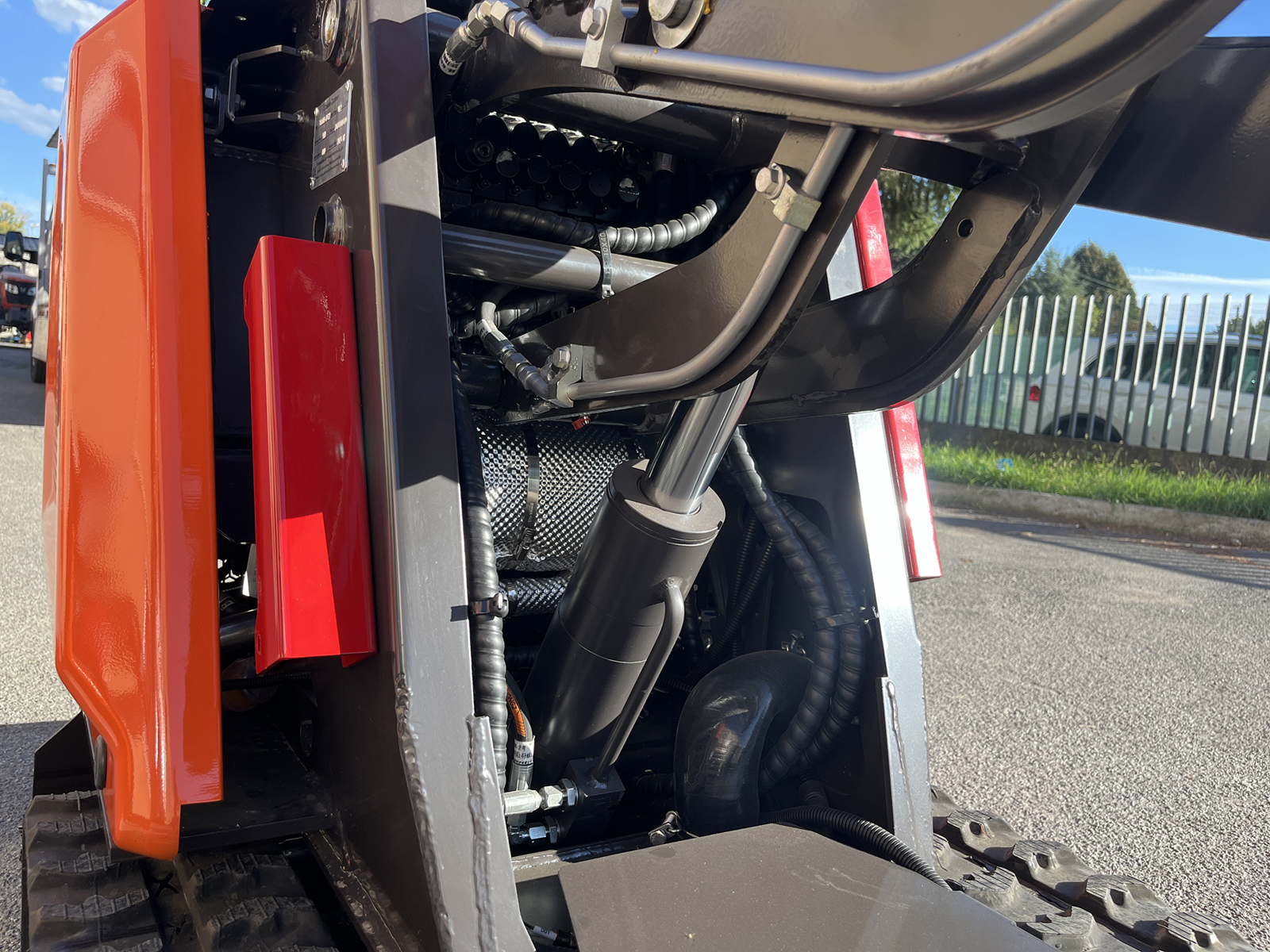

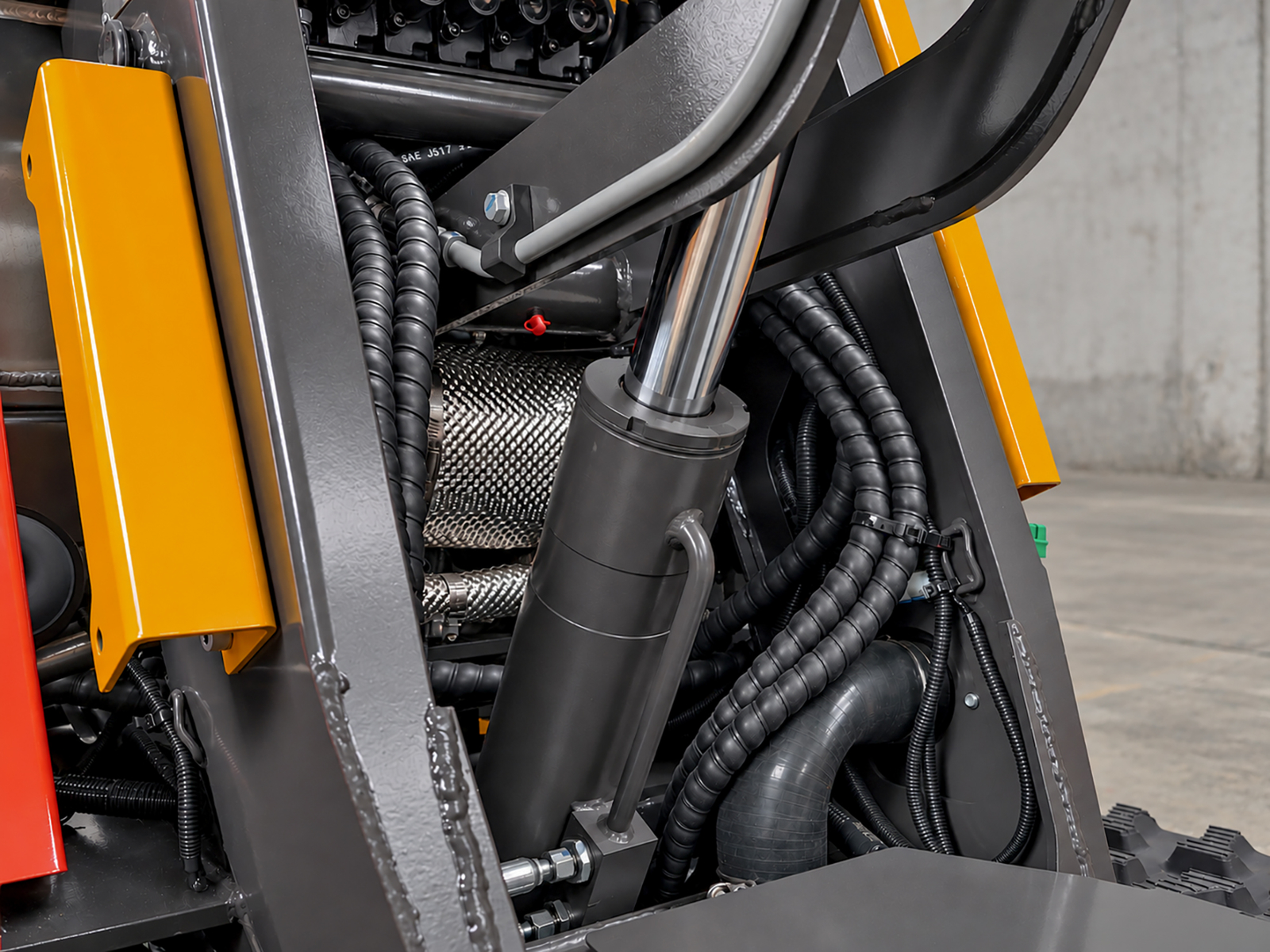

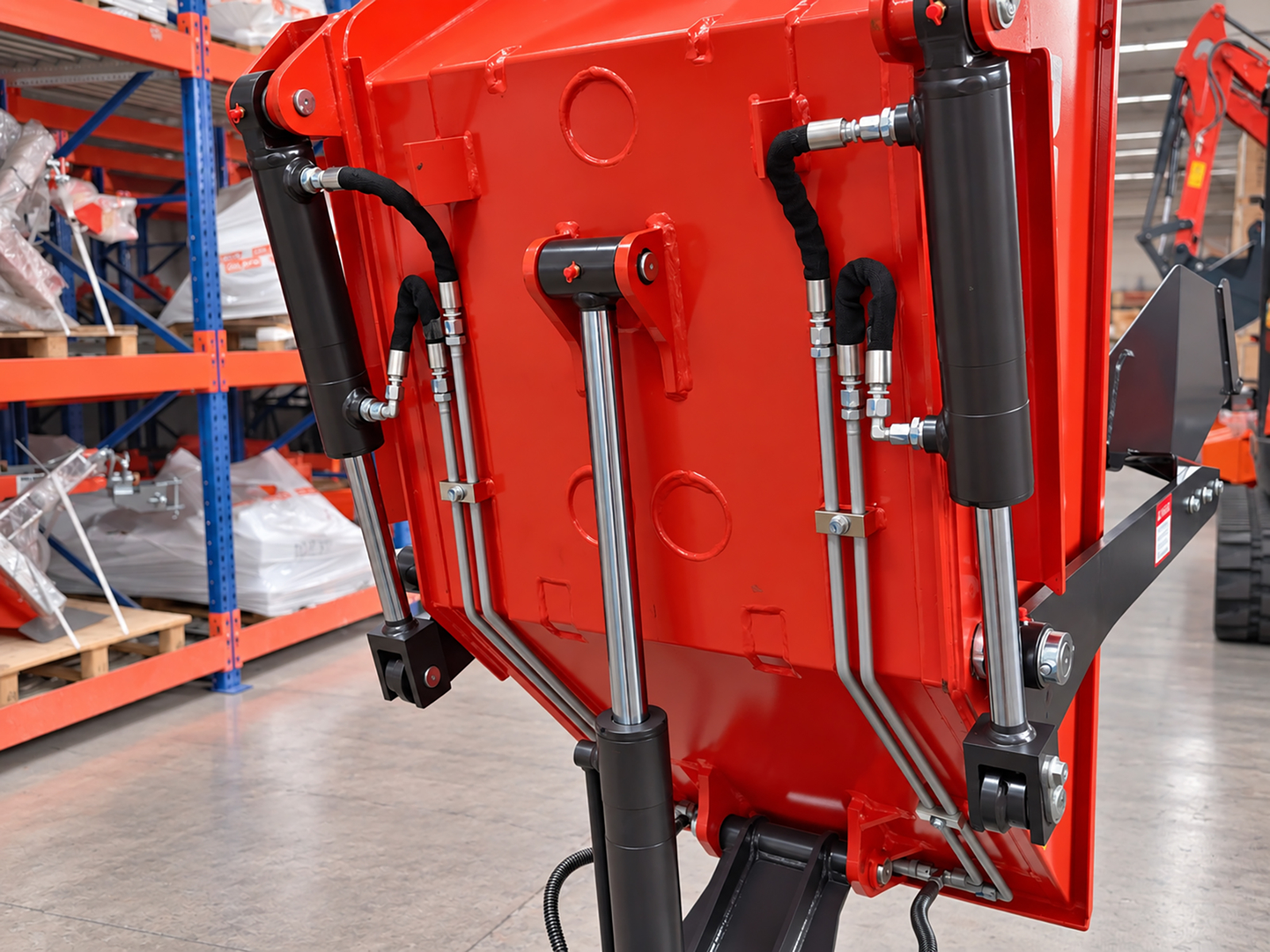

Tipping: hydraulic

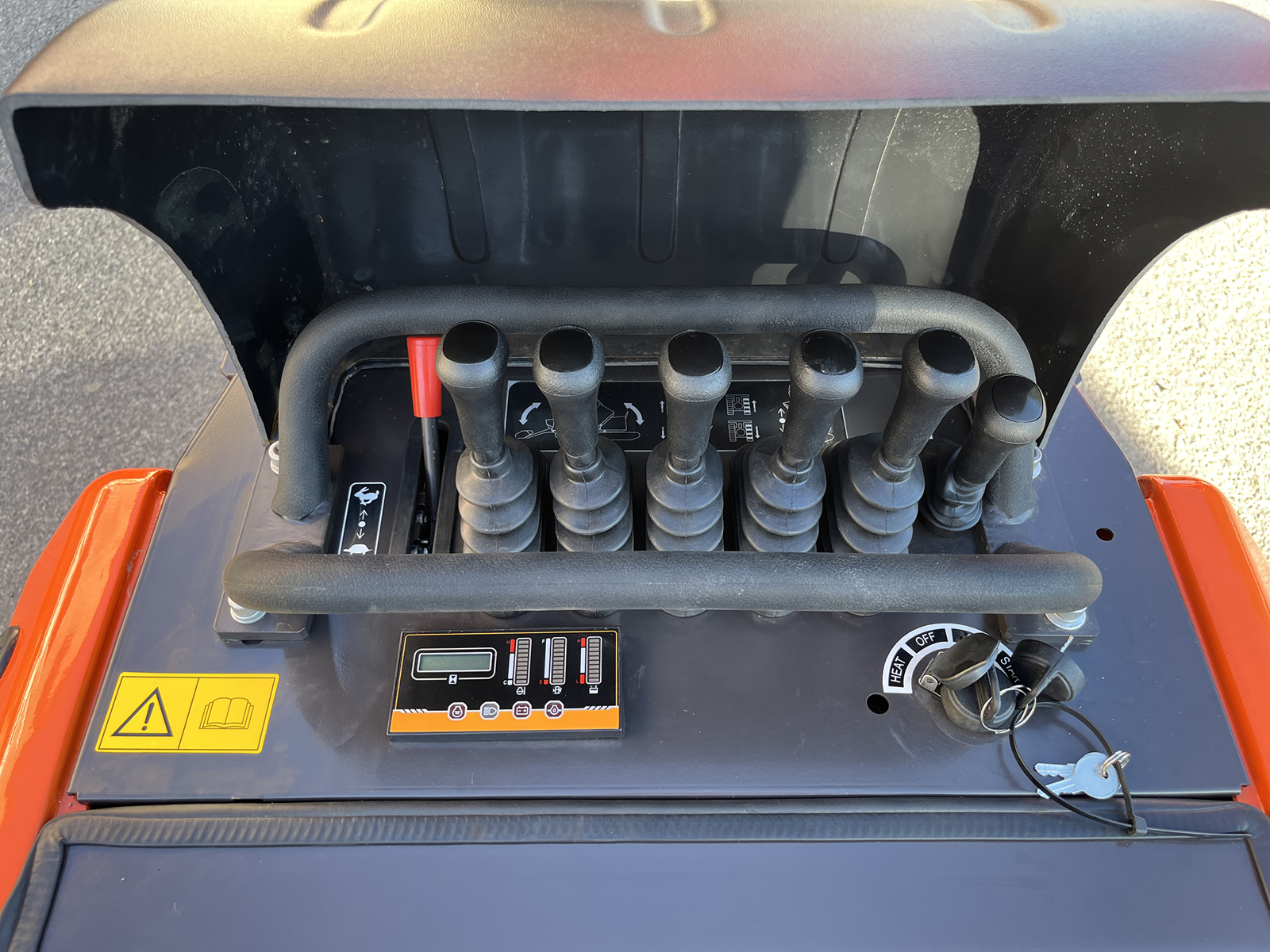

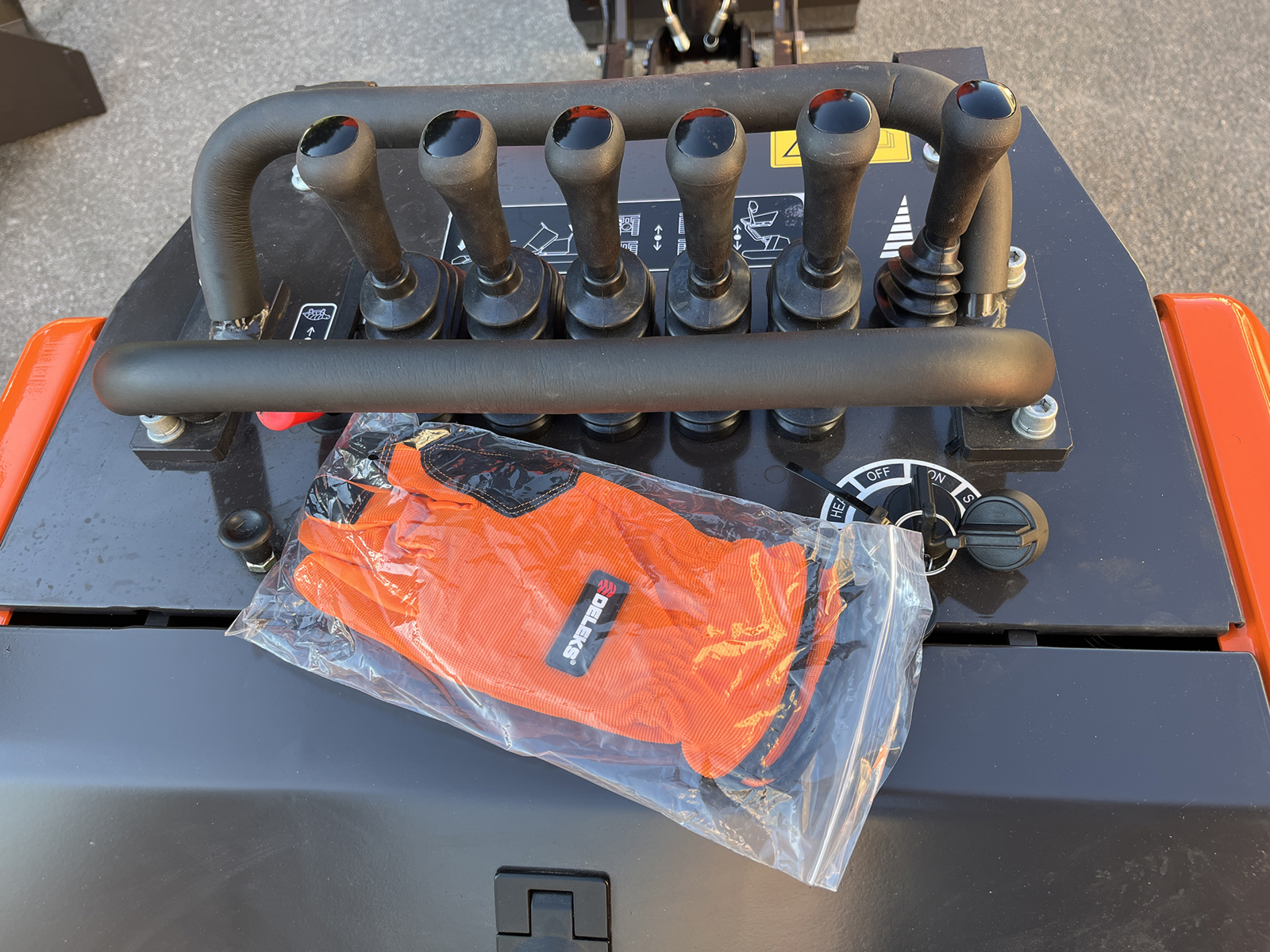

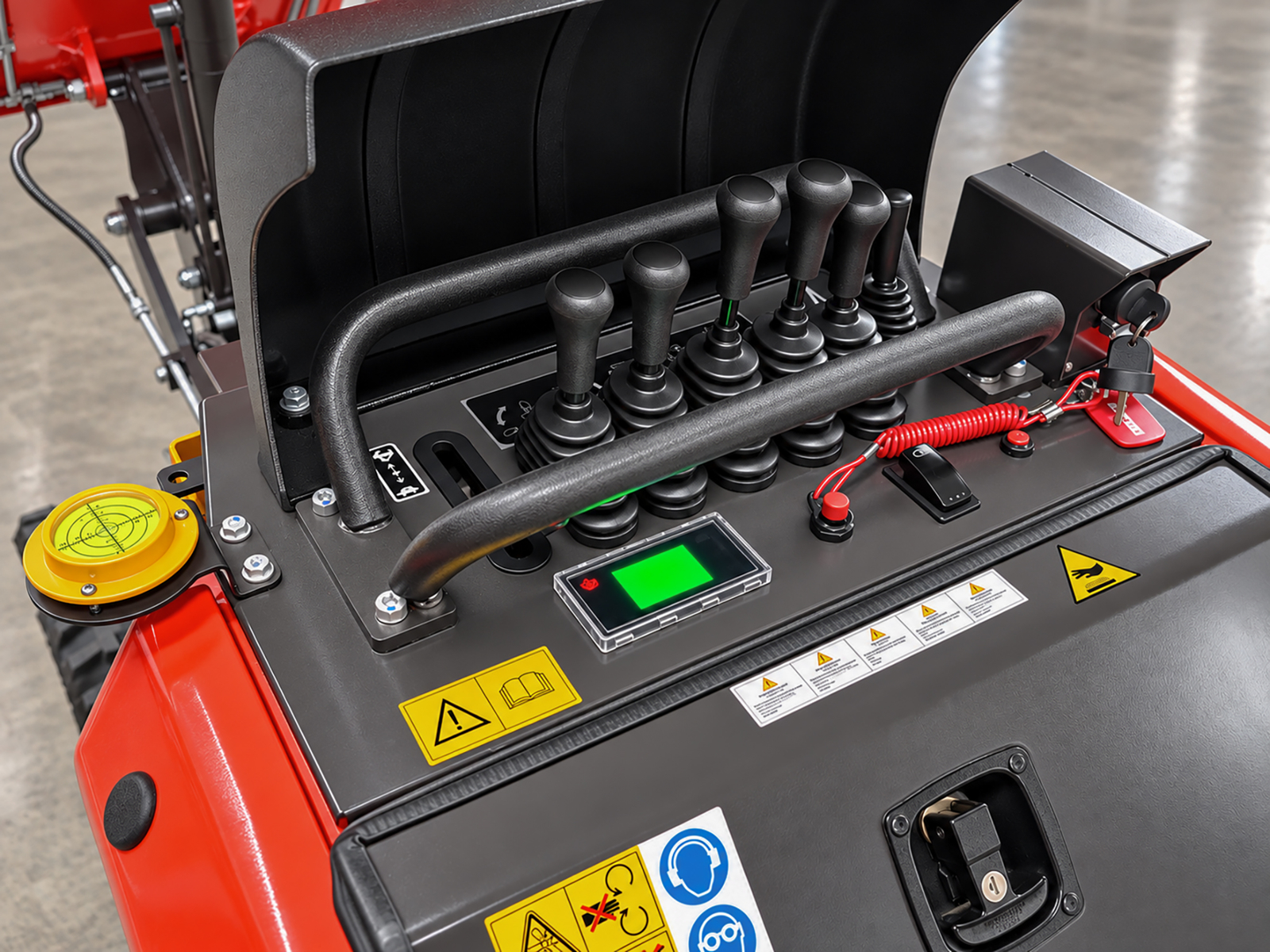

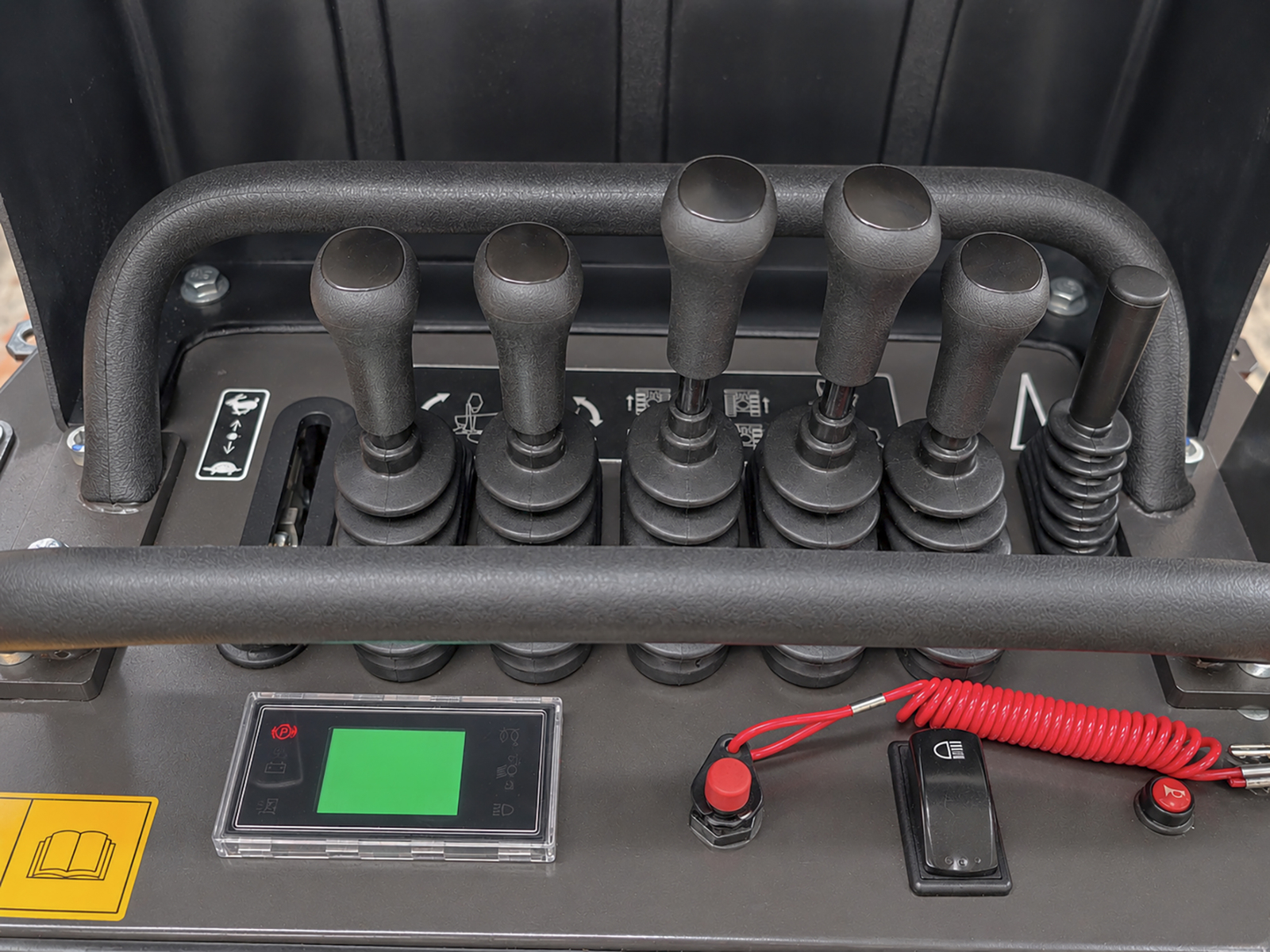

Driving system with lever controls

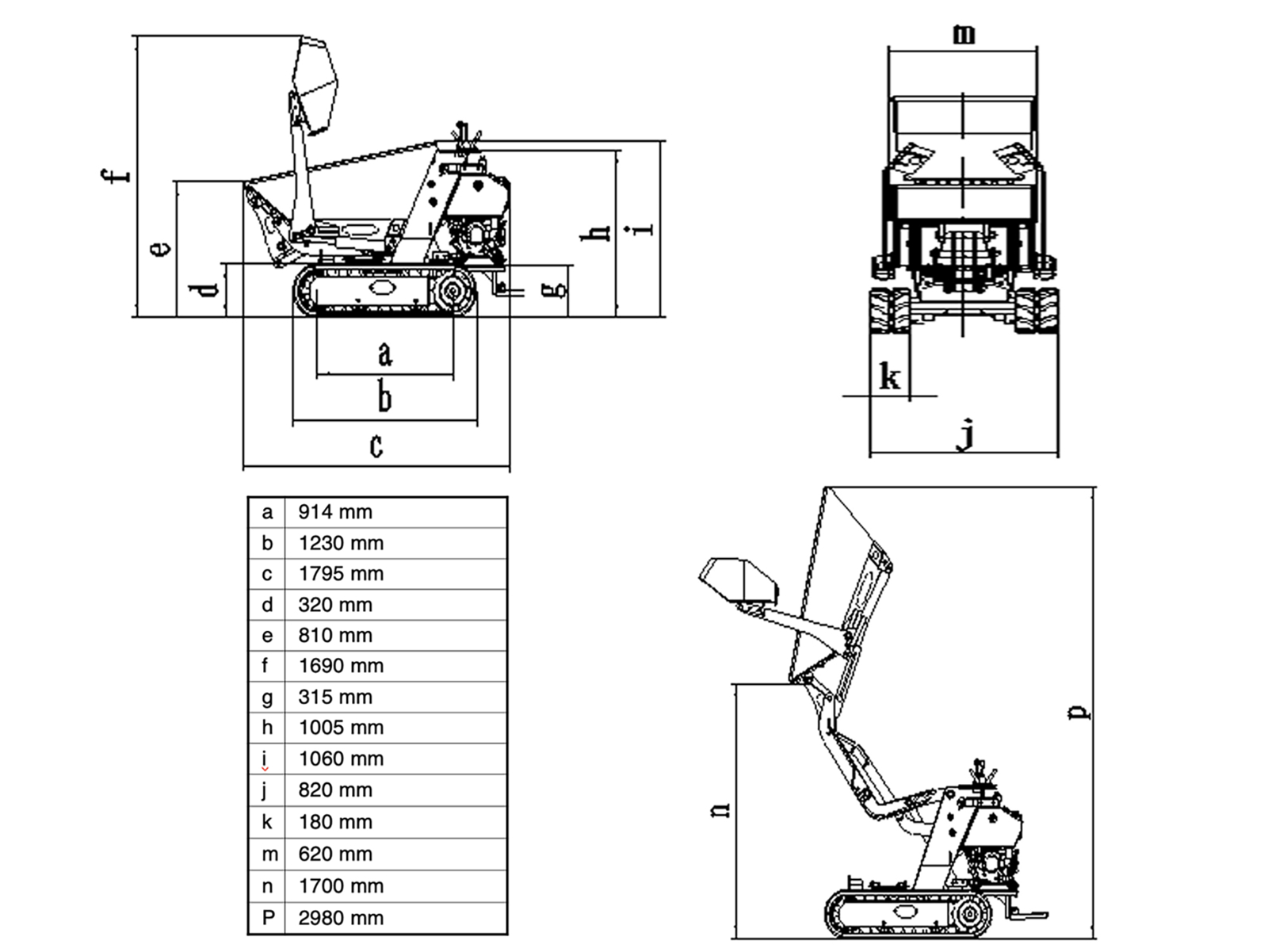

Measurements: see images

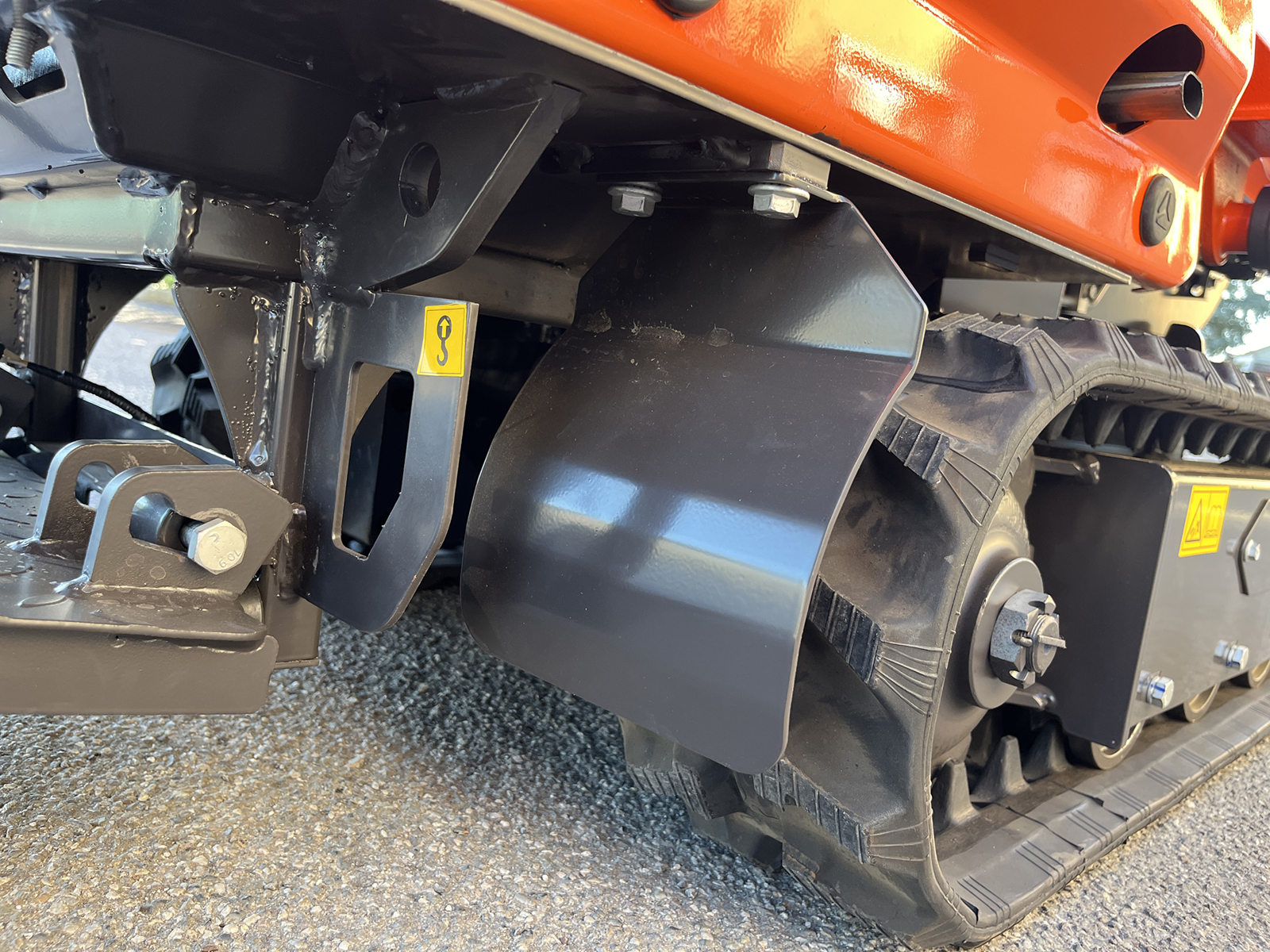

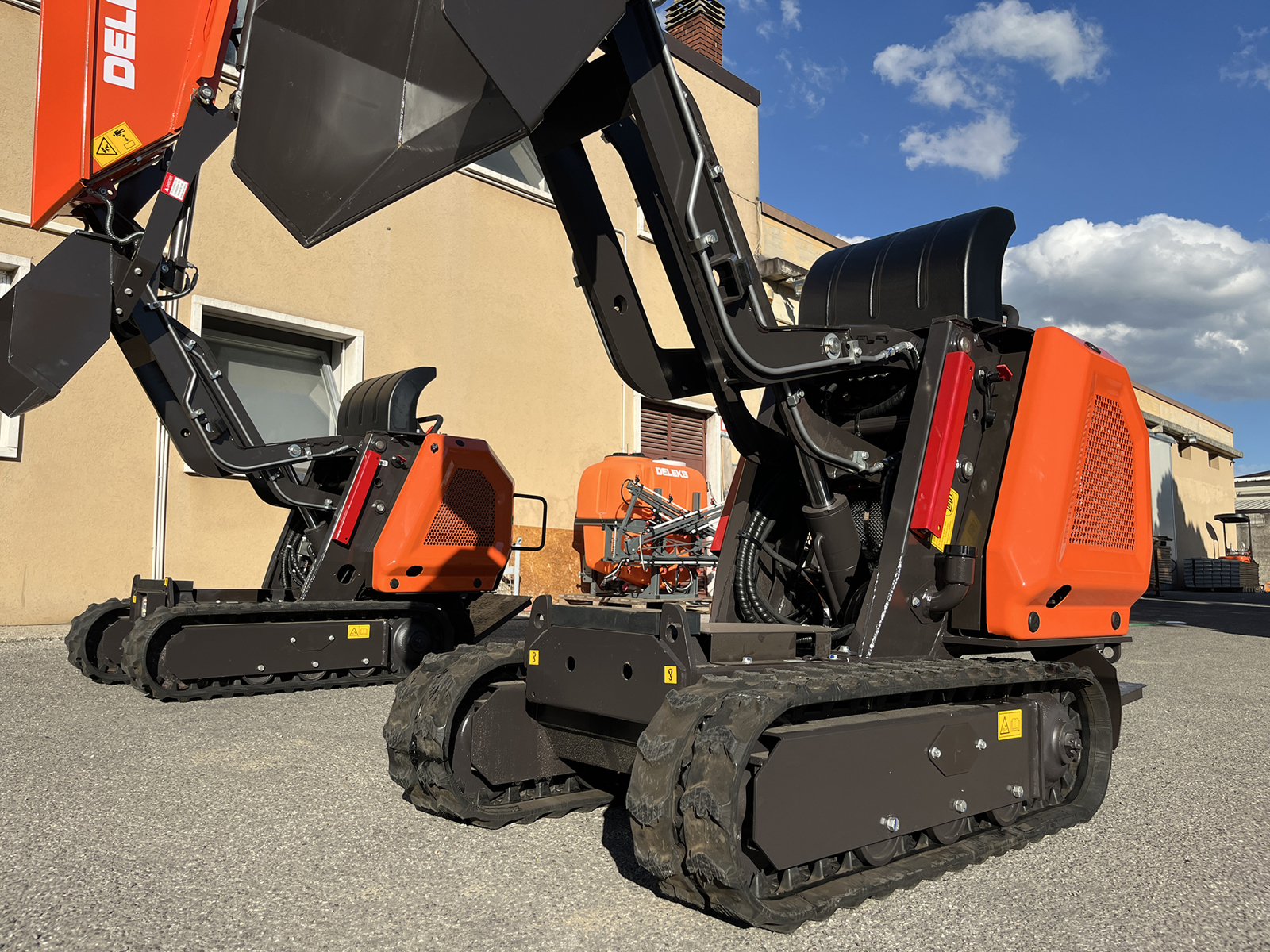

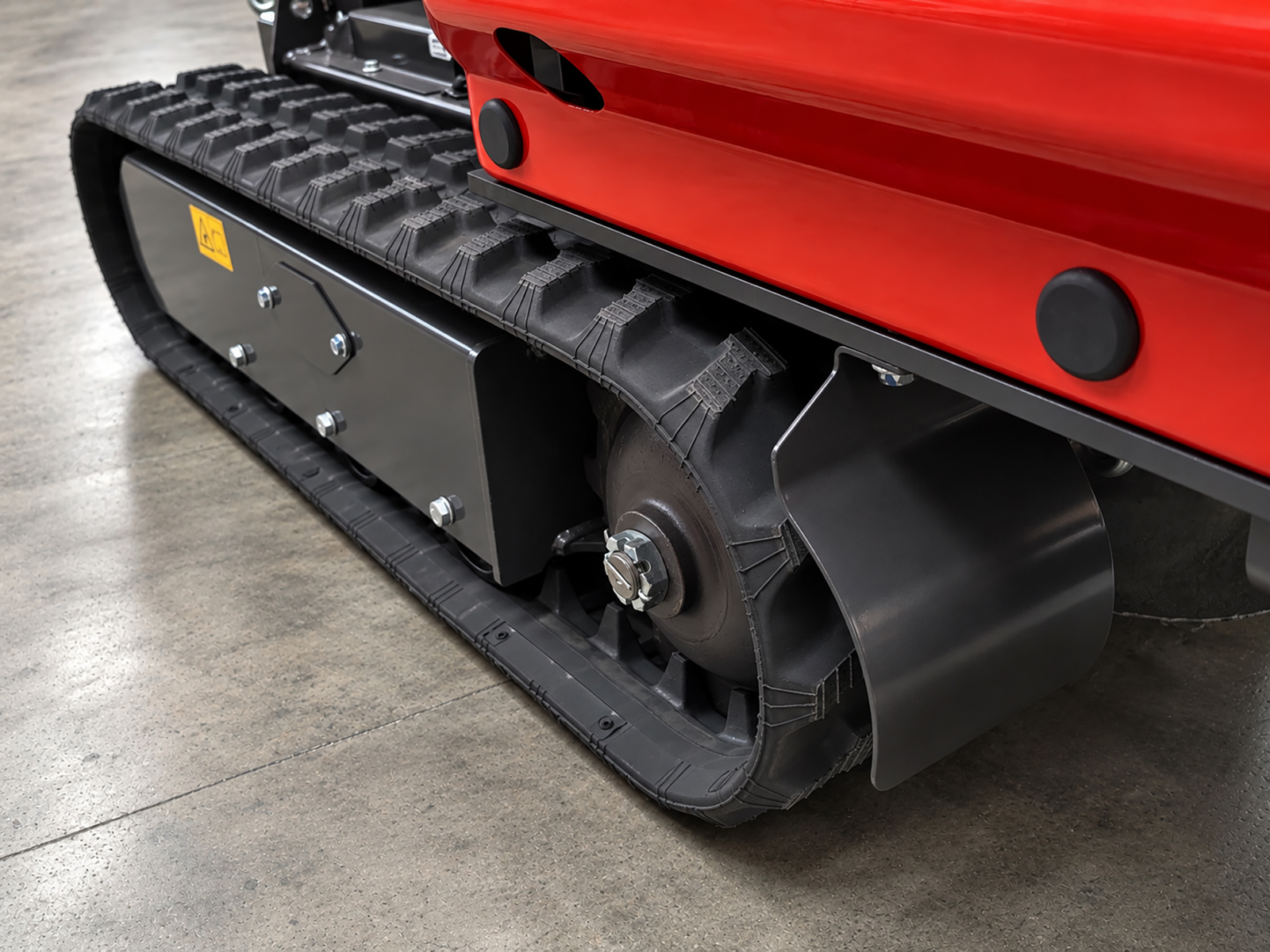

Track width/length: 180mm x 1200mm
ADVANTAGES

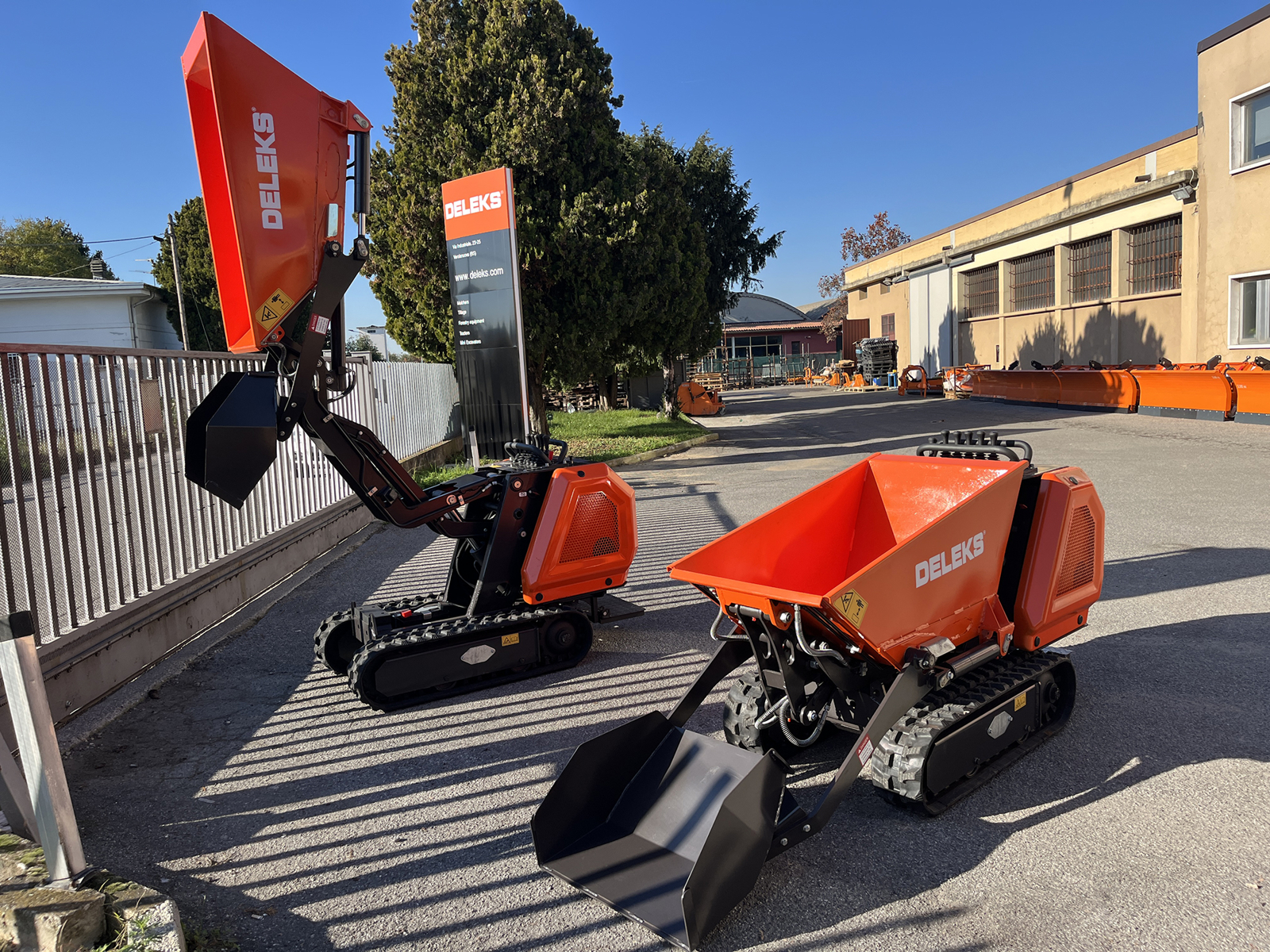

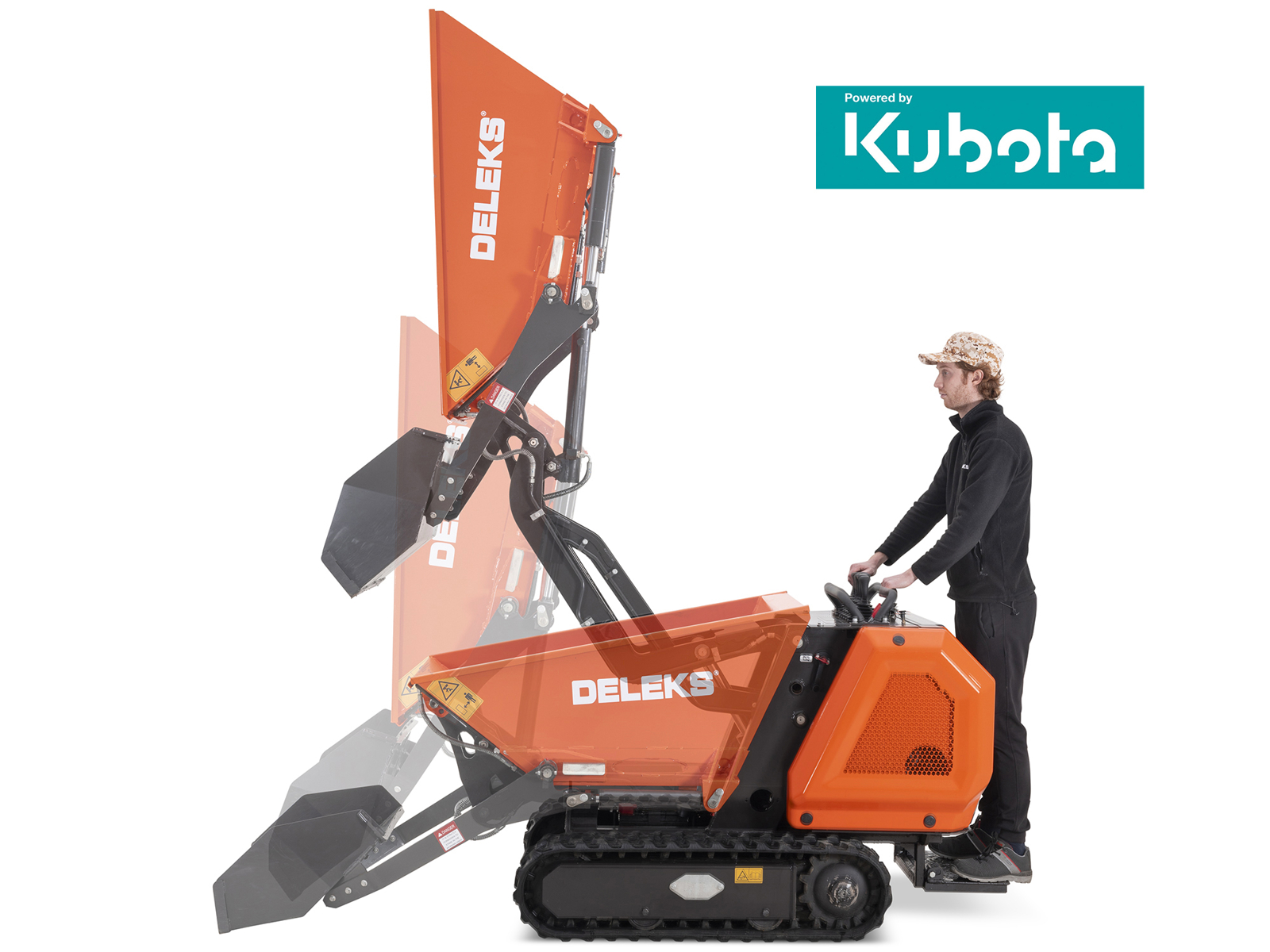

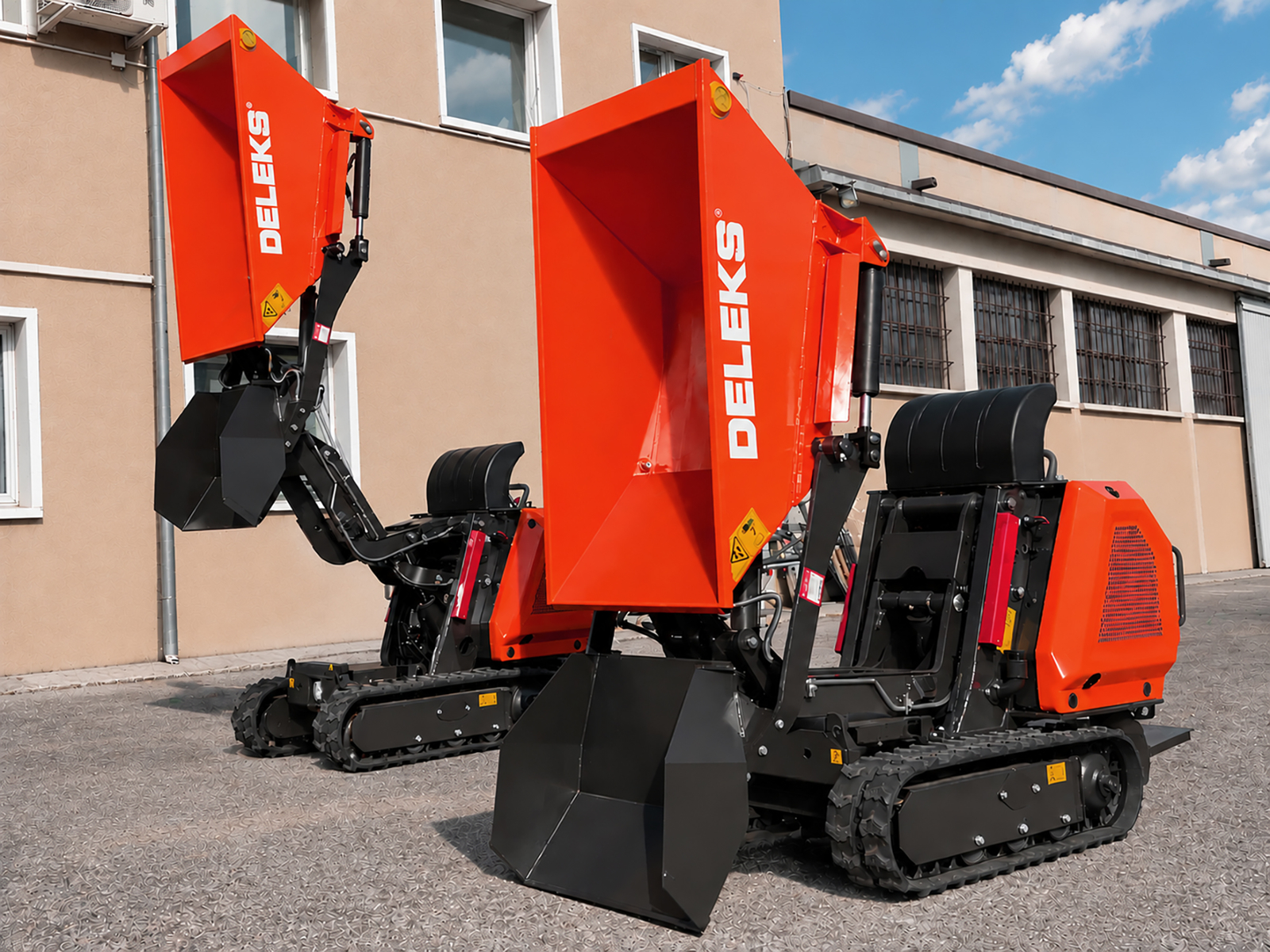

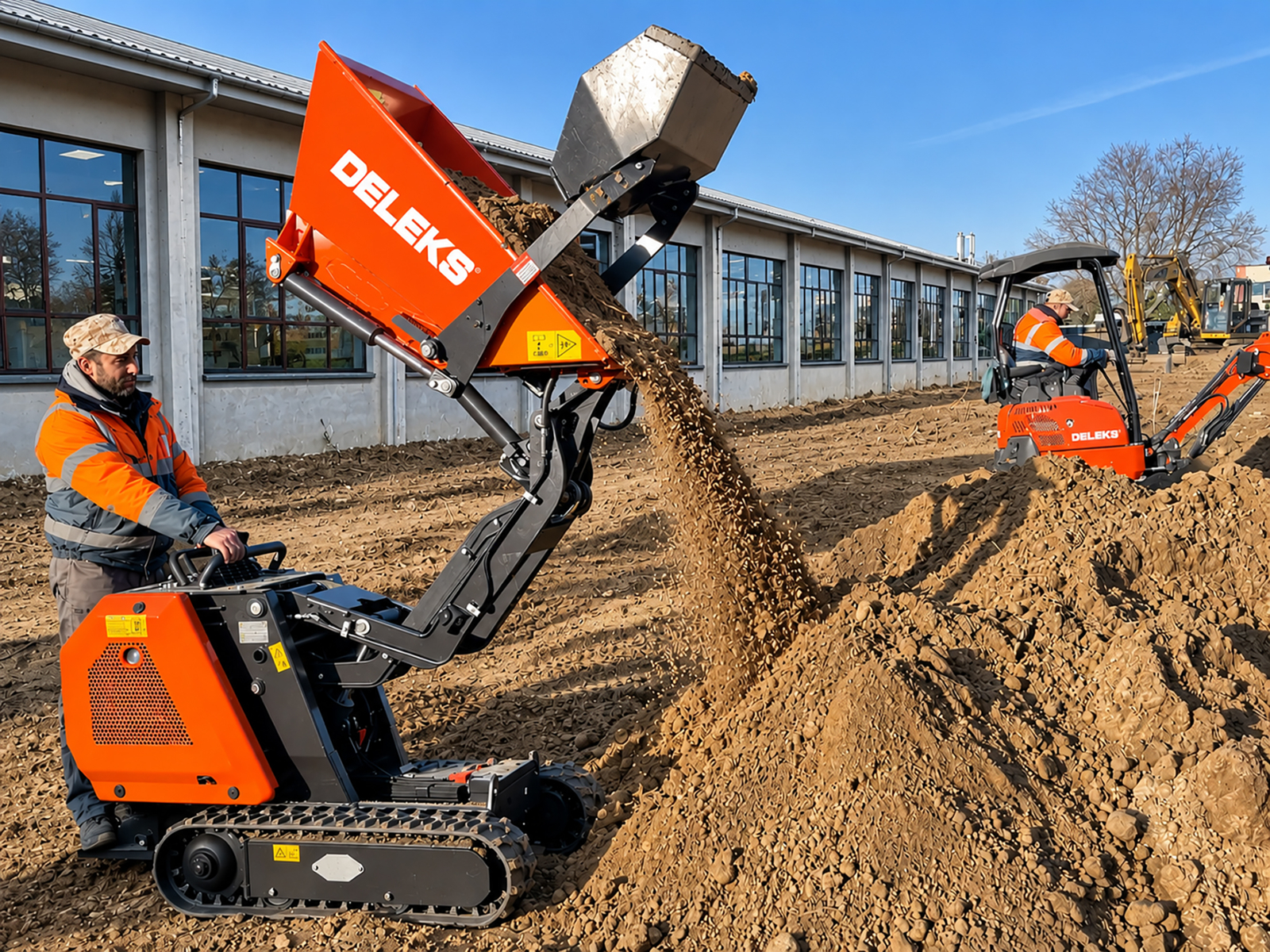

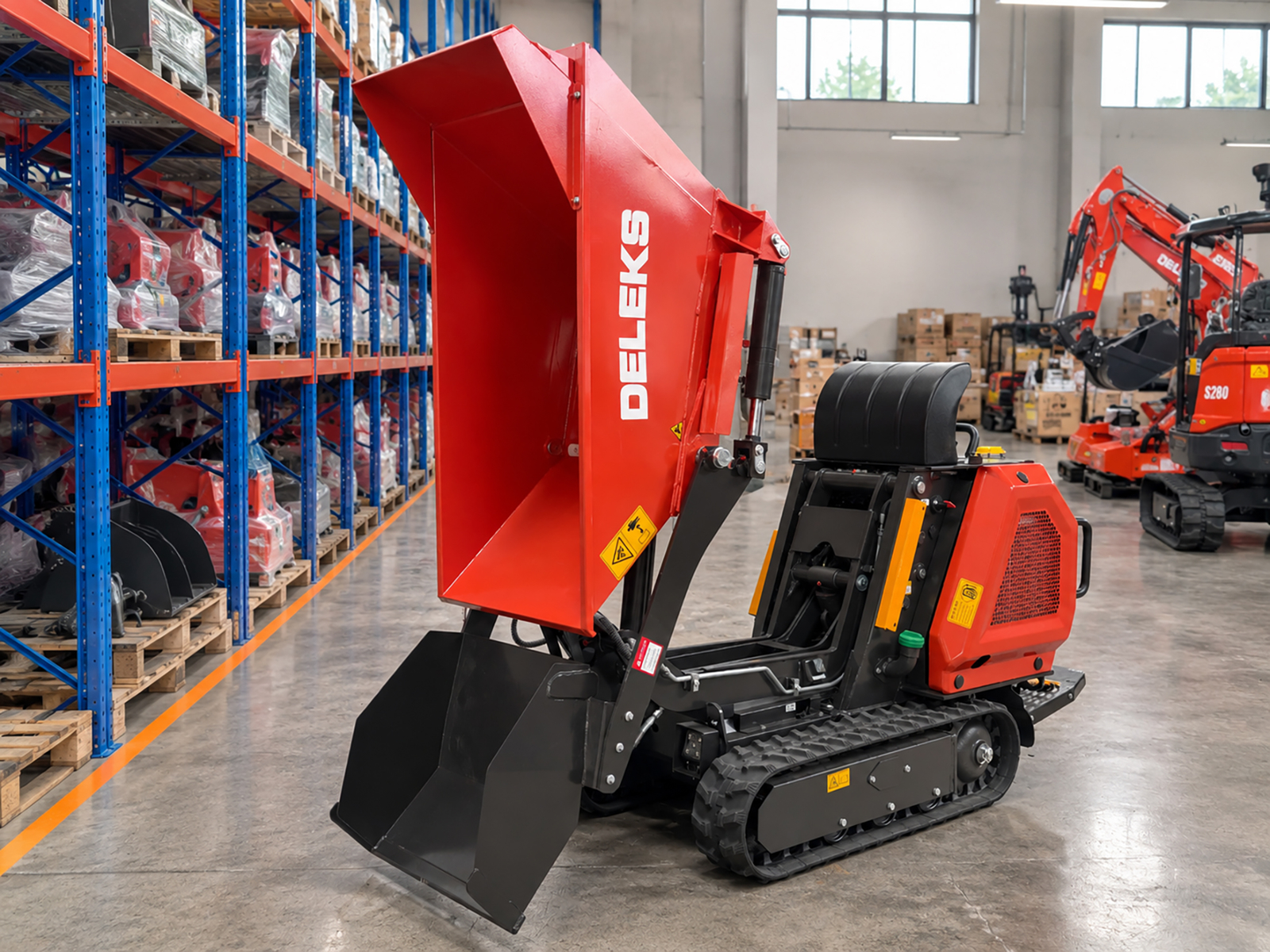

High dump for tipping onto the truck bed

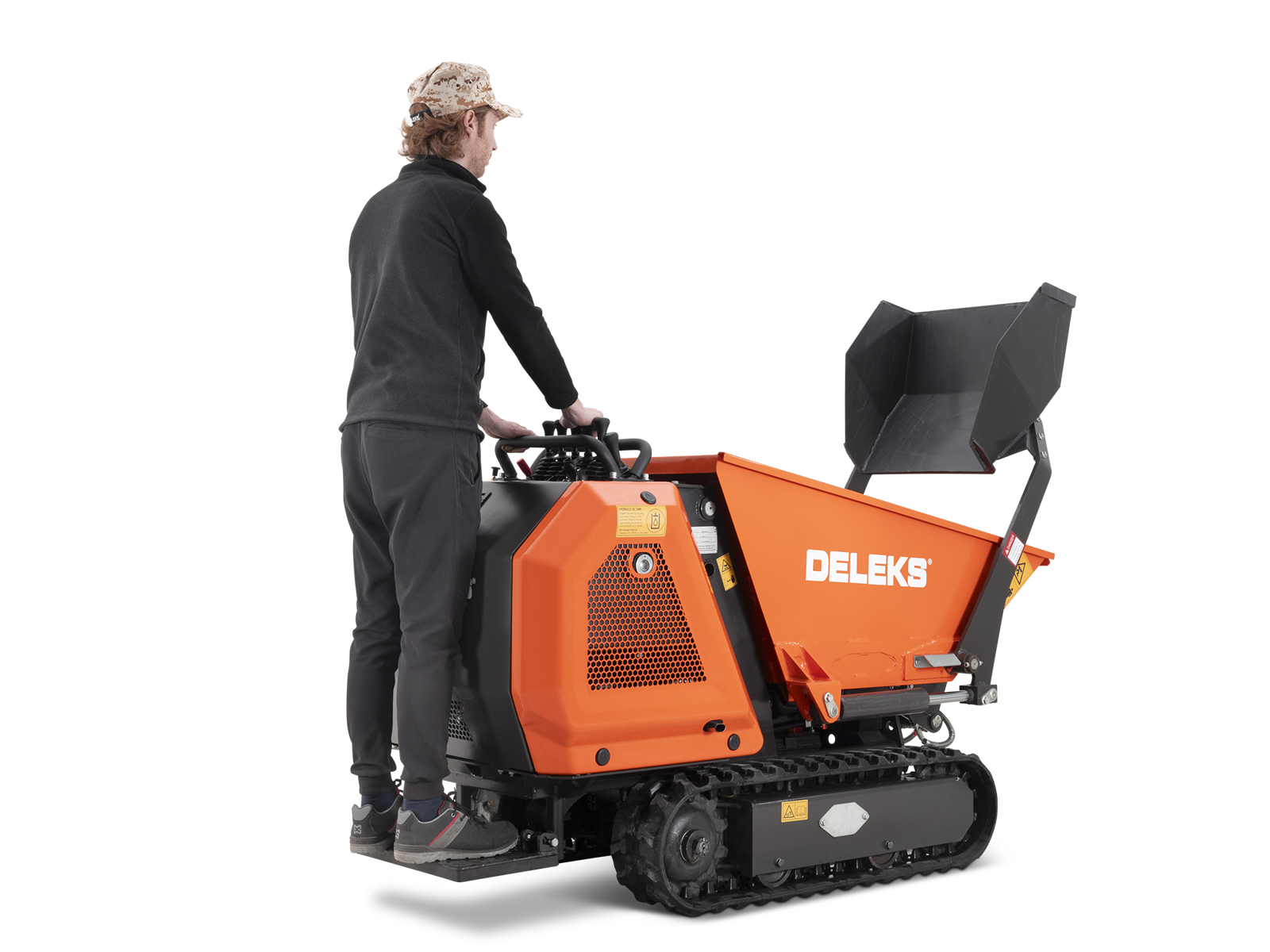

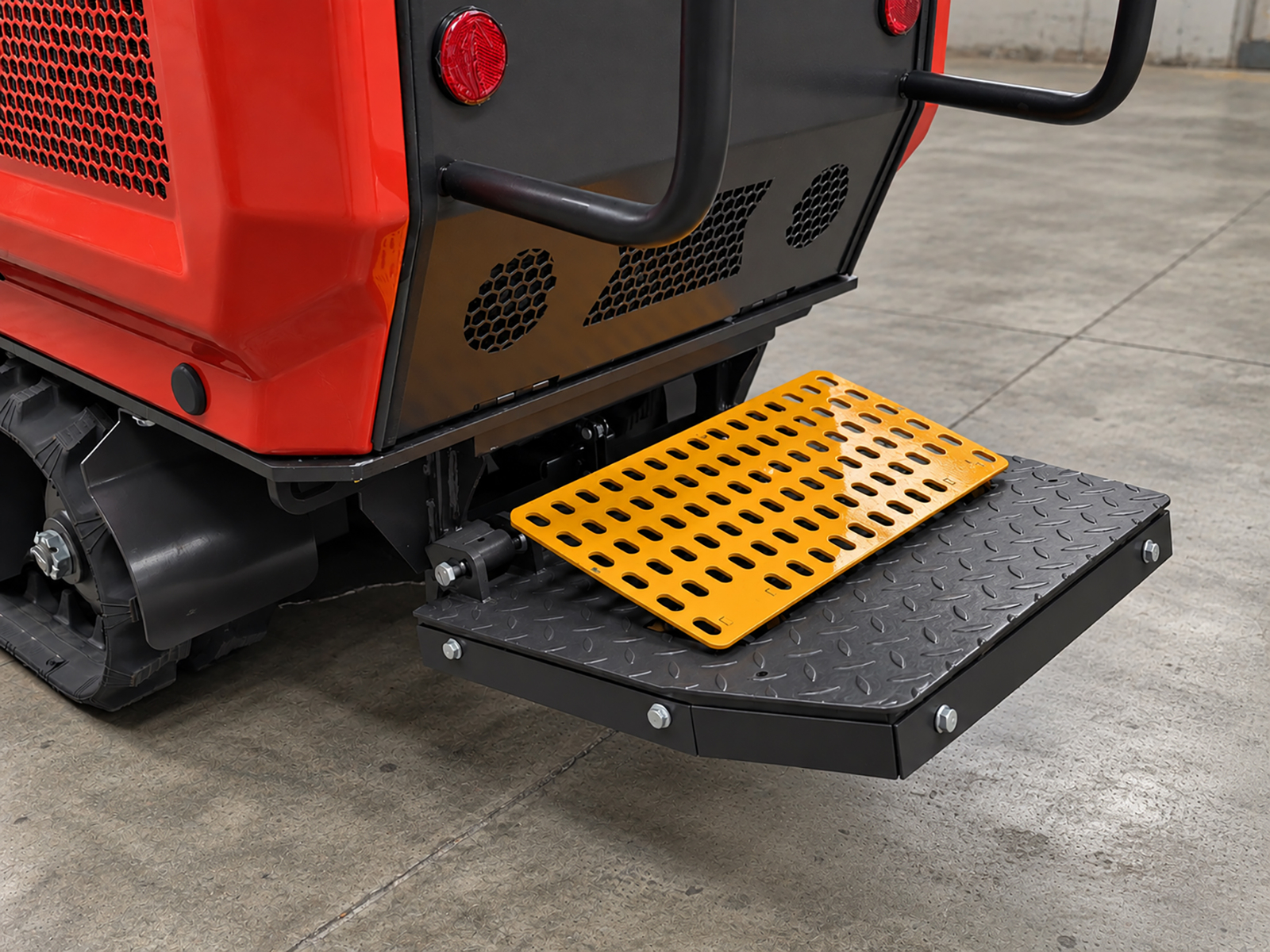

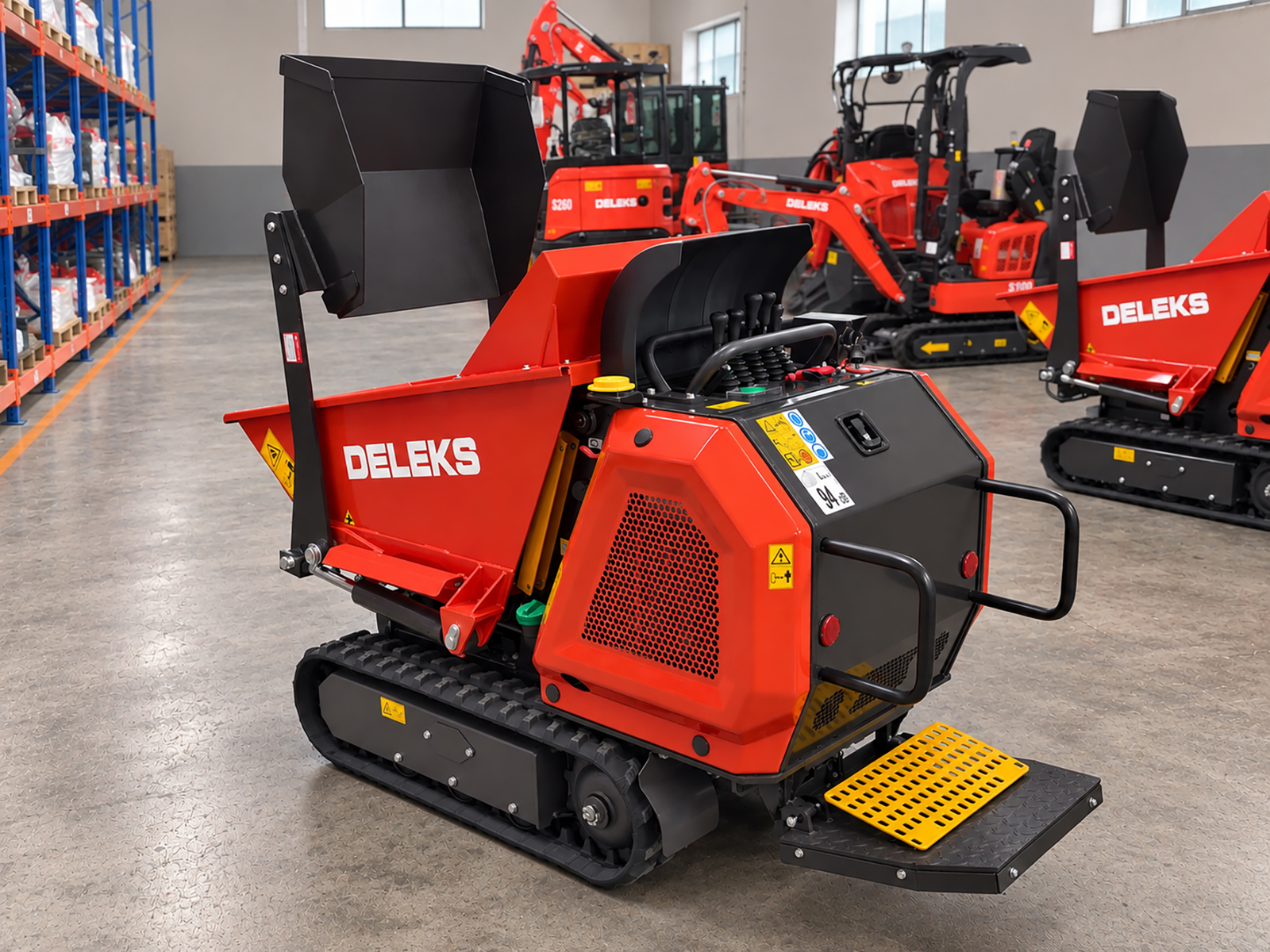

Operator platform
Hydrostatic transmission

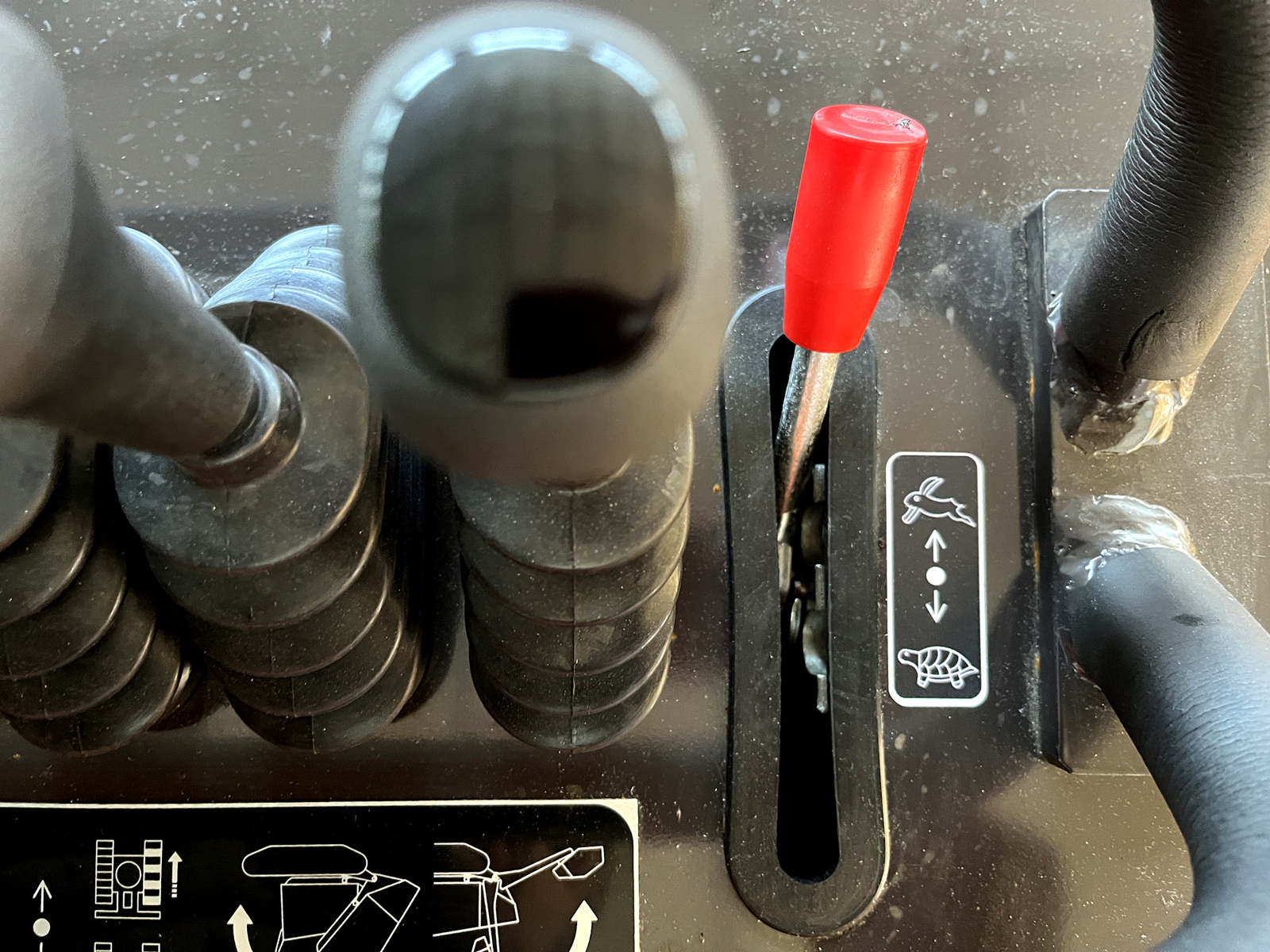

Double speed (2 - 4 km/h)

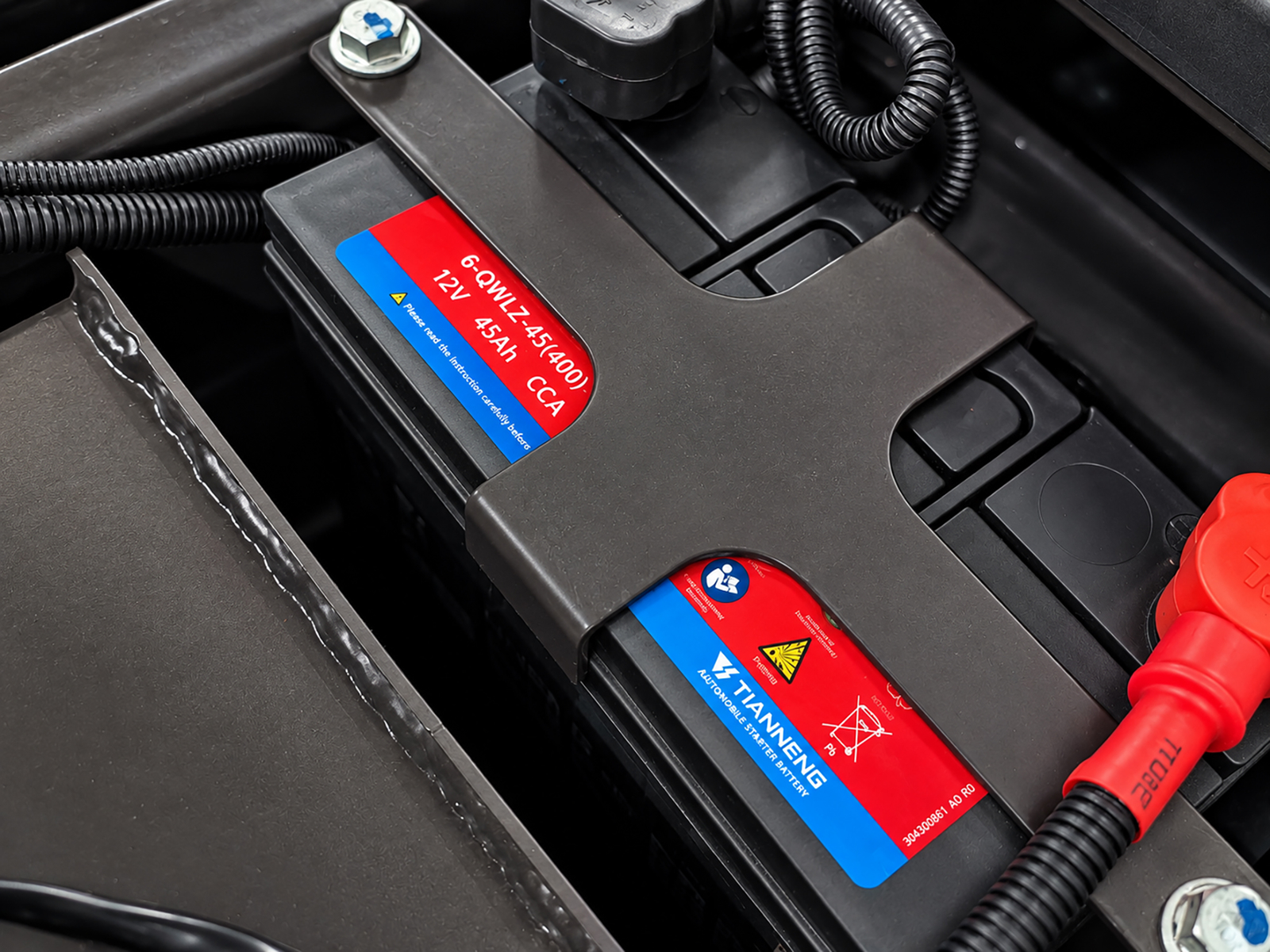

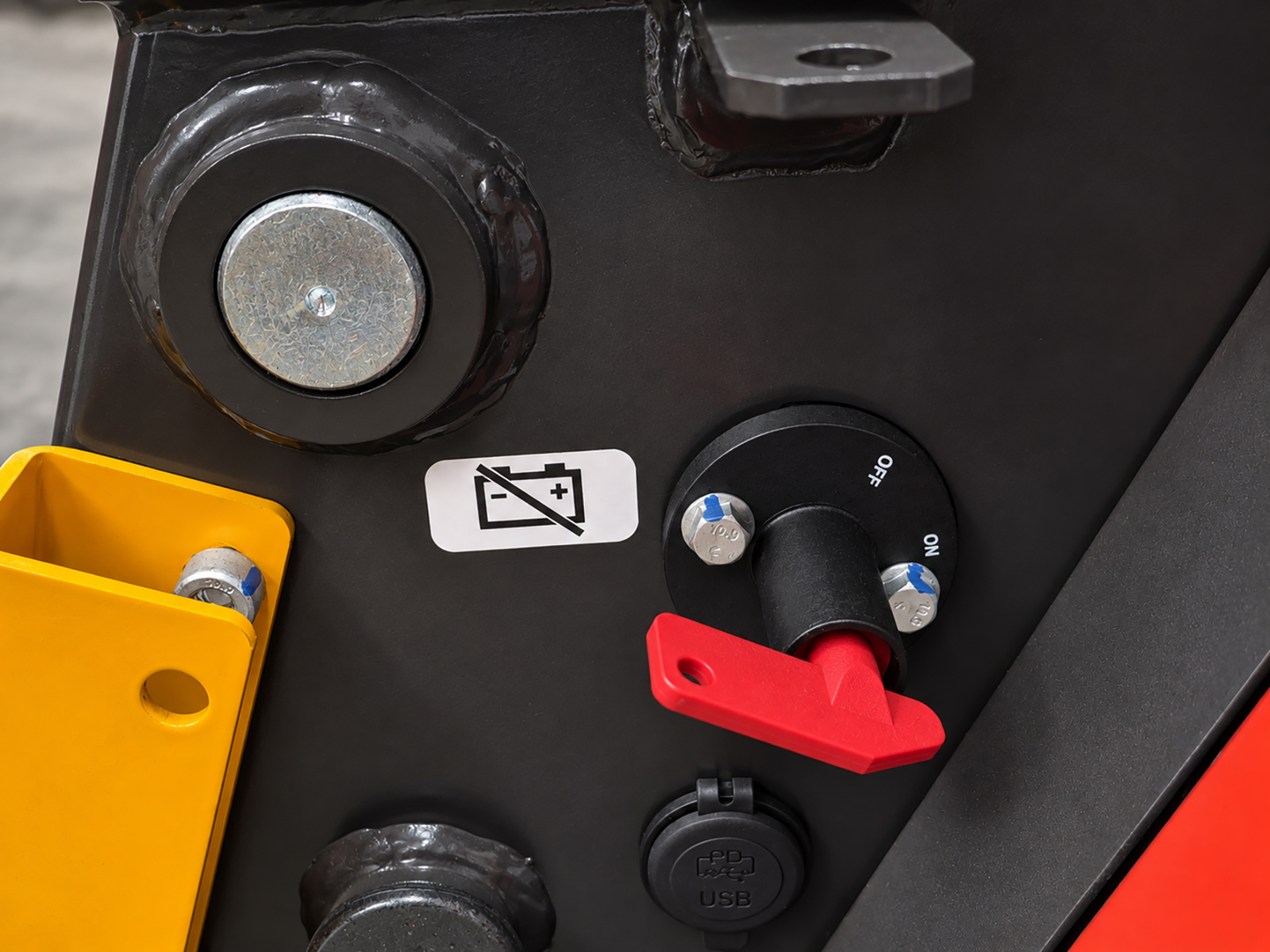

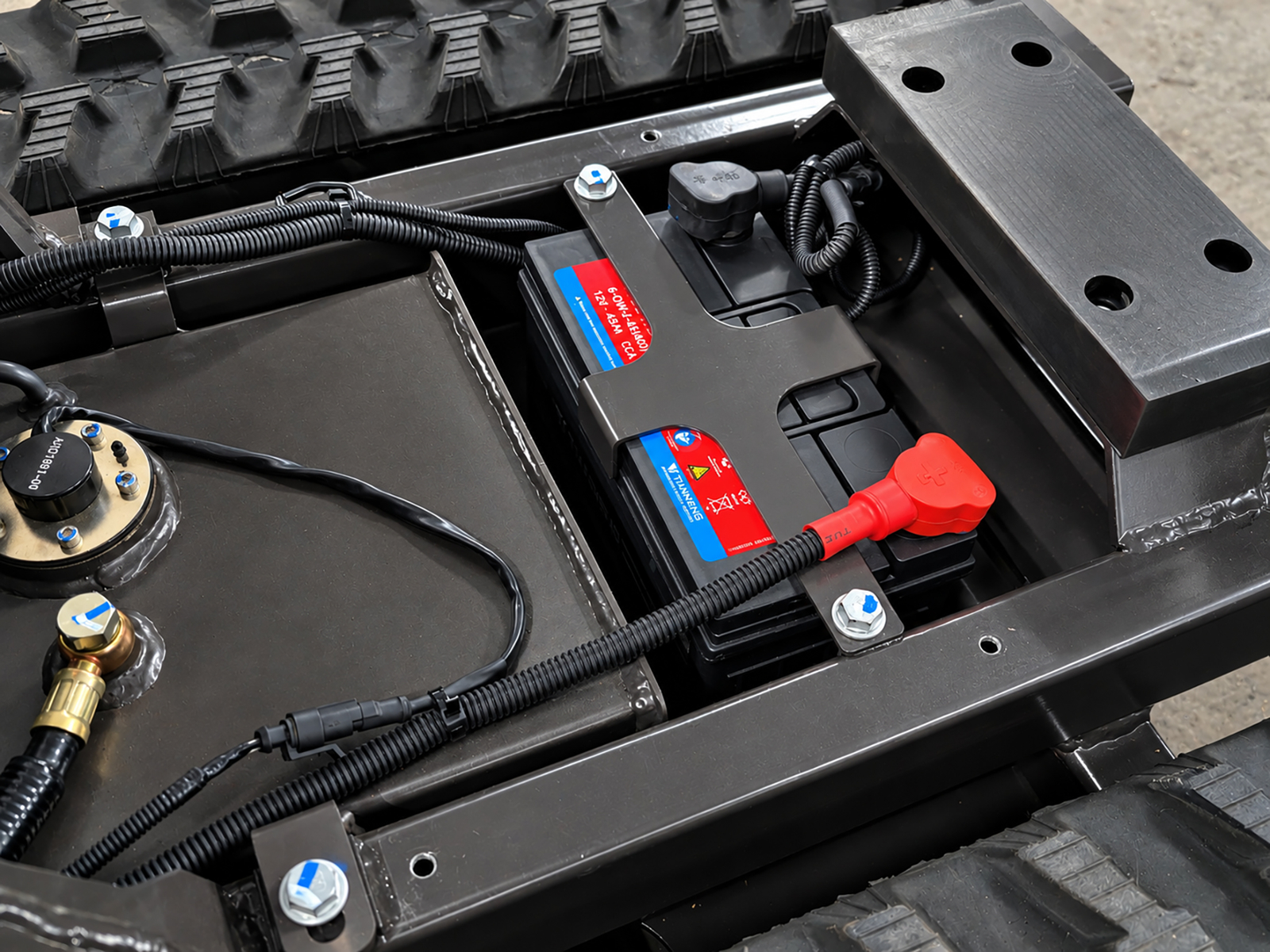

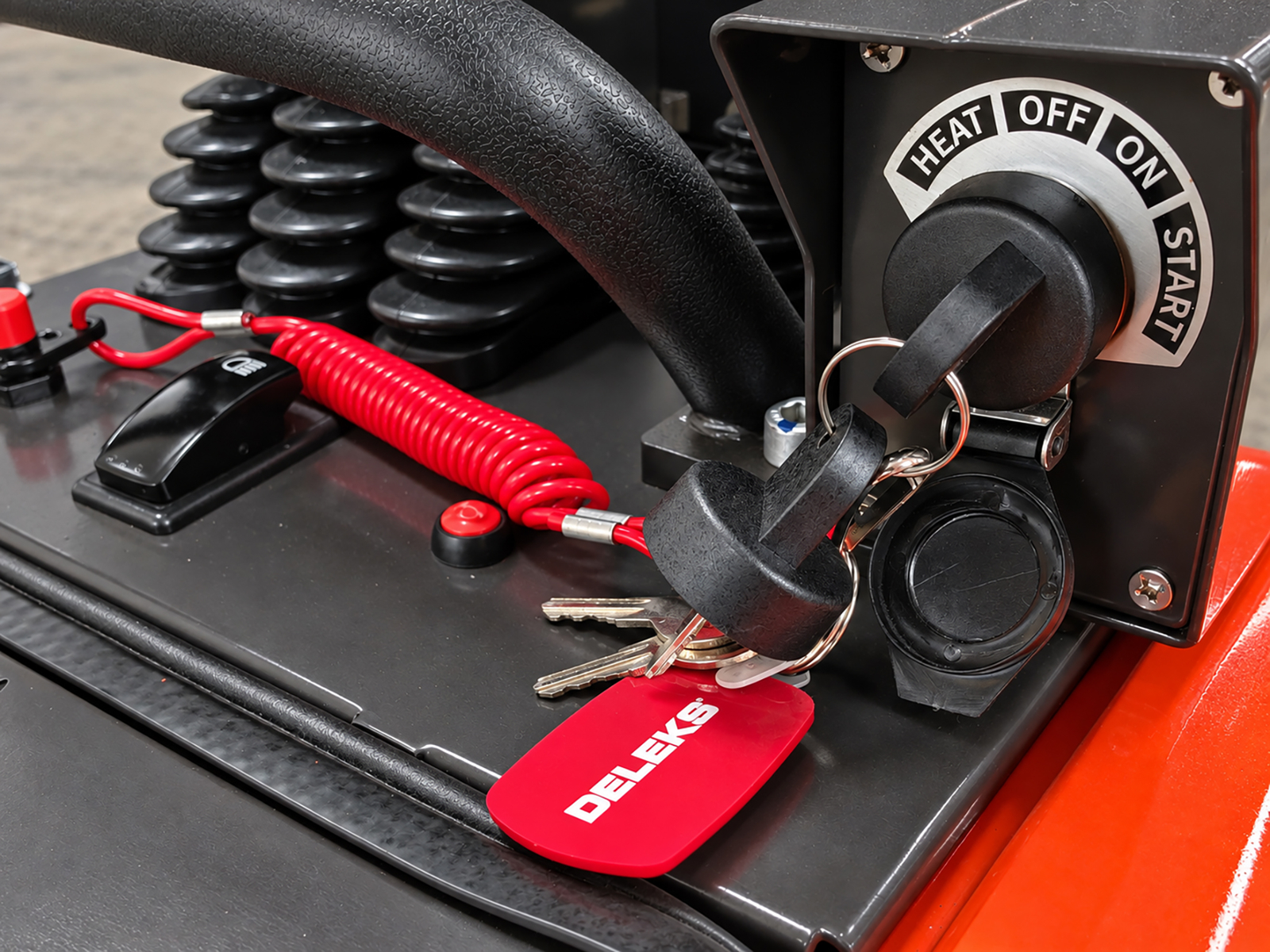

Electric start with key
Reinforced body for heavy-duty work
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 820.0 mm |
| Weight | 780.0 kg |
| Load capacity | 800.0 kg |
| Overall length | 1795.0 mm |
| Tipping Mechanism | Hydraulic |
| Engine | Kubota D722, 3 cylinders, 13.7 Hp |
| Starter | E-start |
| Fuel consumption | 1 l/h |
| Bucket capacity (m3) | 0.26 |
| Packing sizes | 1800.0*900.0*1200.0 mm |
DETAILS
CLOSEDELEKS® M8000-KUBOTA Self-loading tracked minidumper, high dump, hydrostatic transmission, operator platform, Kubota engine, electric start.
APPLICATION
M8000-KUBOTA tracked minidumper suitable for loading and moving earth, sand, building material, waste, etc.
Kubota D722 engine, 13.7hp, 3 cylinders
Fuel: Diesel
Body: dumper type with high tip
Capacity: 800 kg
Tipping: hydraulic
Driving system with lever controls
Measurements: see images
Track width/length: 180mm x 1200mm
ADVANTAGES
High dump for tipping onto the truck bed
Operator platform
Hydrostatic transmission
Double speed (2 - 4 km/h)
Electric start with key
Reinforced body for heavy-duty work
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Overall width | 820.0 mm |
| Weight | 780.0 kg |
| Load capacity | 800.0 kg |
| Overall length | 1795.0 mm |
| Tipping Mechanism | Hydraulic |
| Engine | Kubota D722, 3 cylinders, 13.7 Hp |
| Starter | E-start |
| Fuel consumption | 1 l/h |
| Bucket capacity (m3) | 0.26 |
| Packing sizes | 1800.0*900.0*1200.0 mm |
