Hydrostatic Crawler Mini Dumper, High dump, Briggs&Stratton engine, E-start
Promo video
S180 + M8000
M8000 + S180
DETAILS

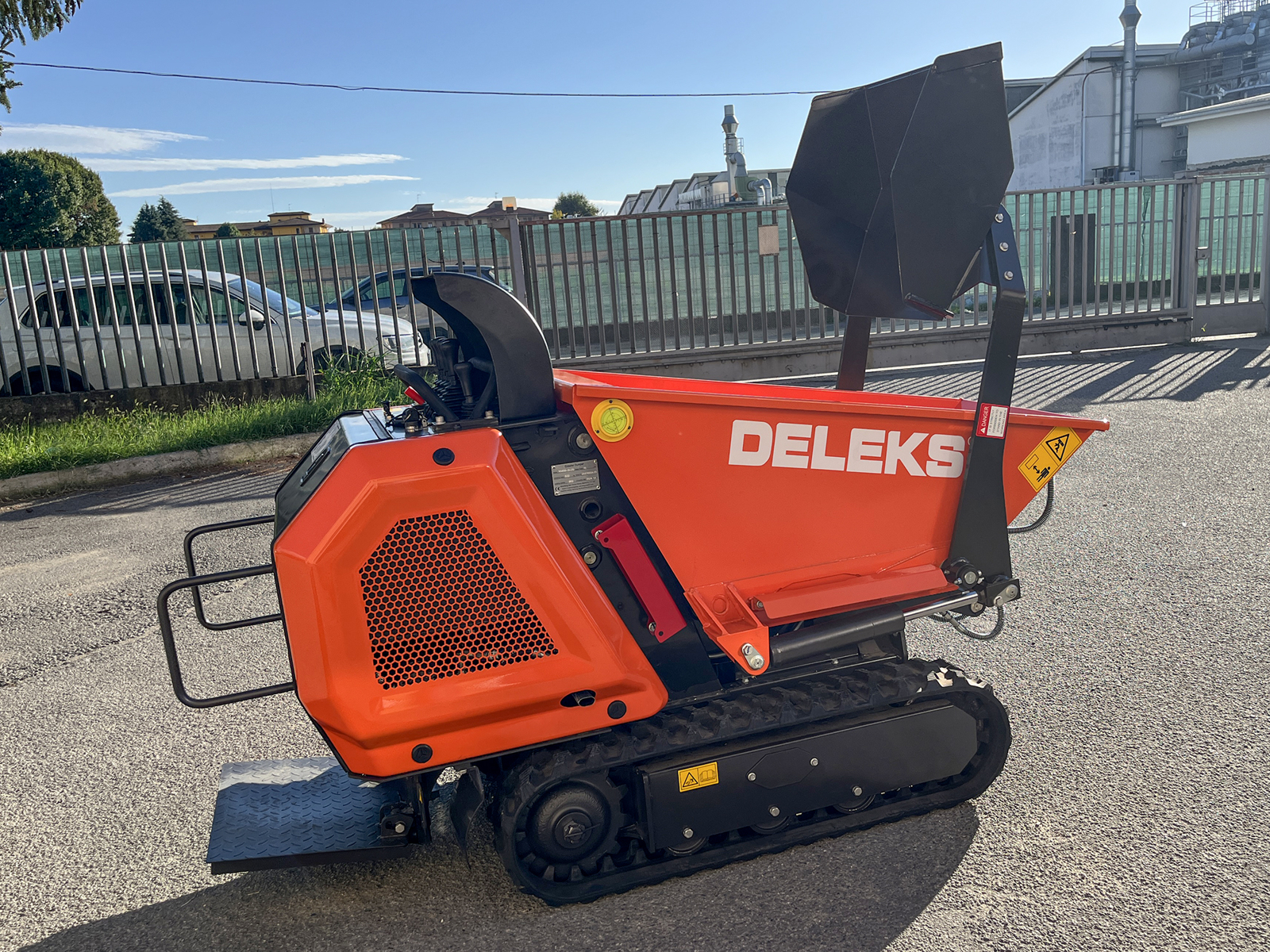

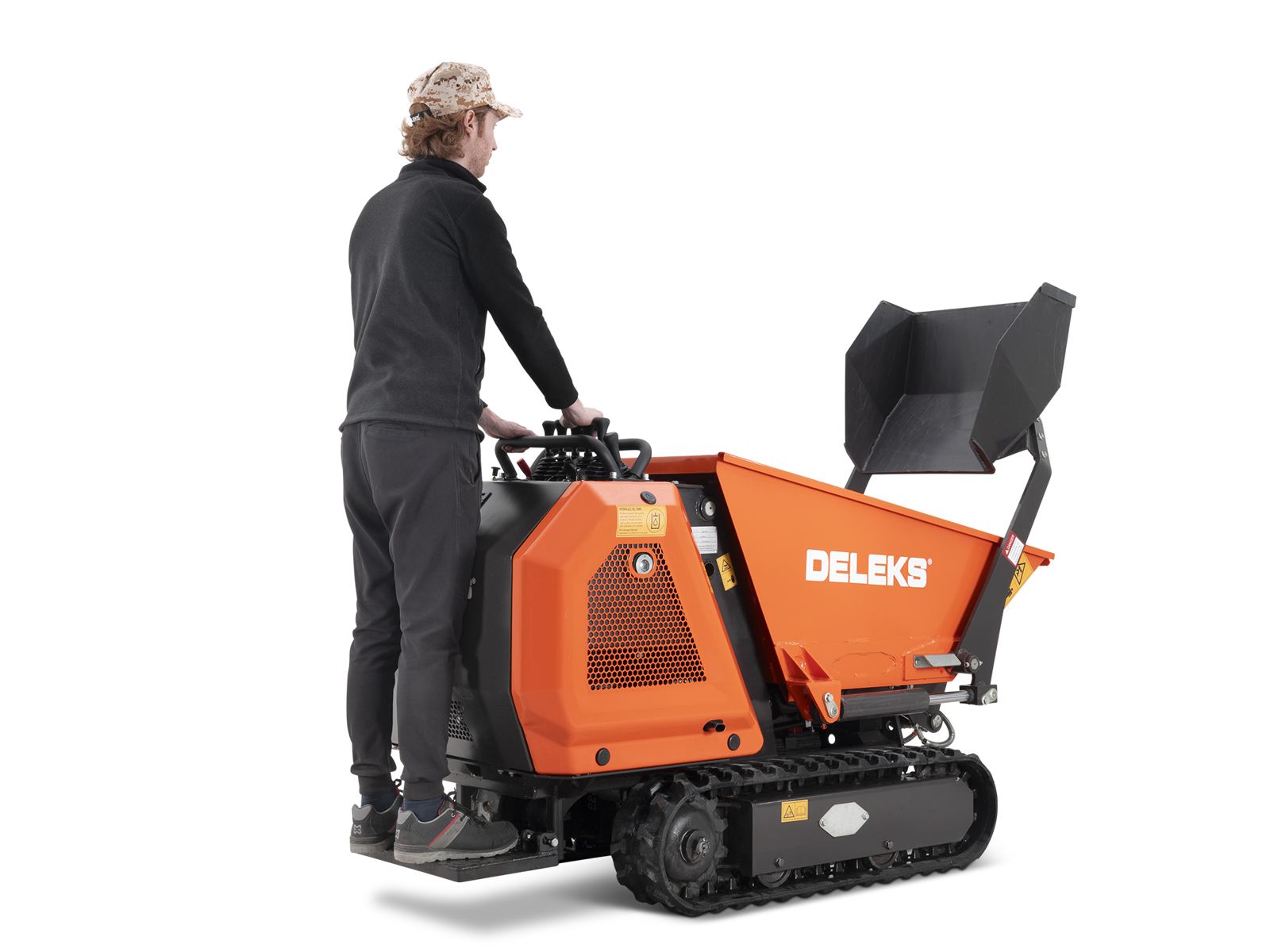

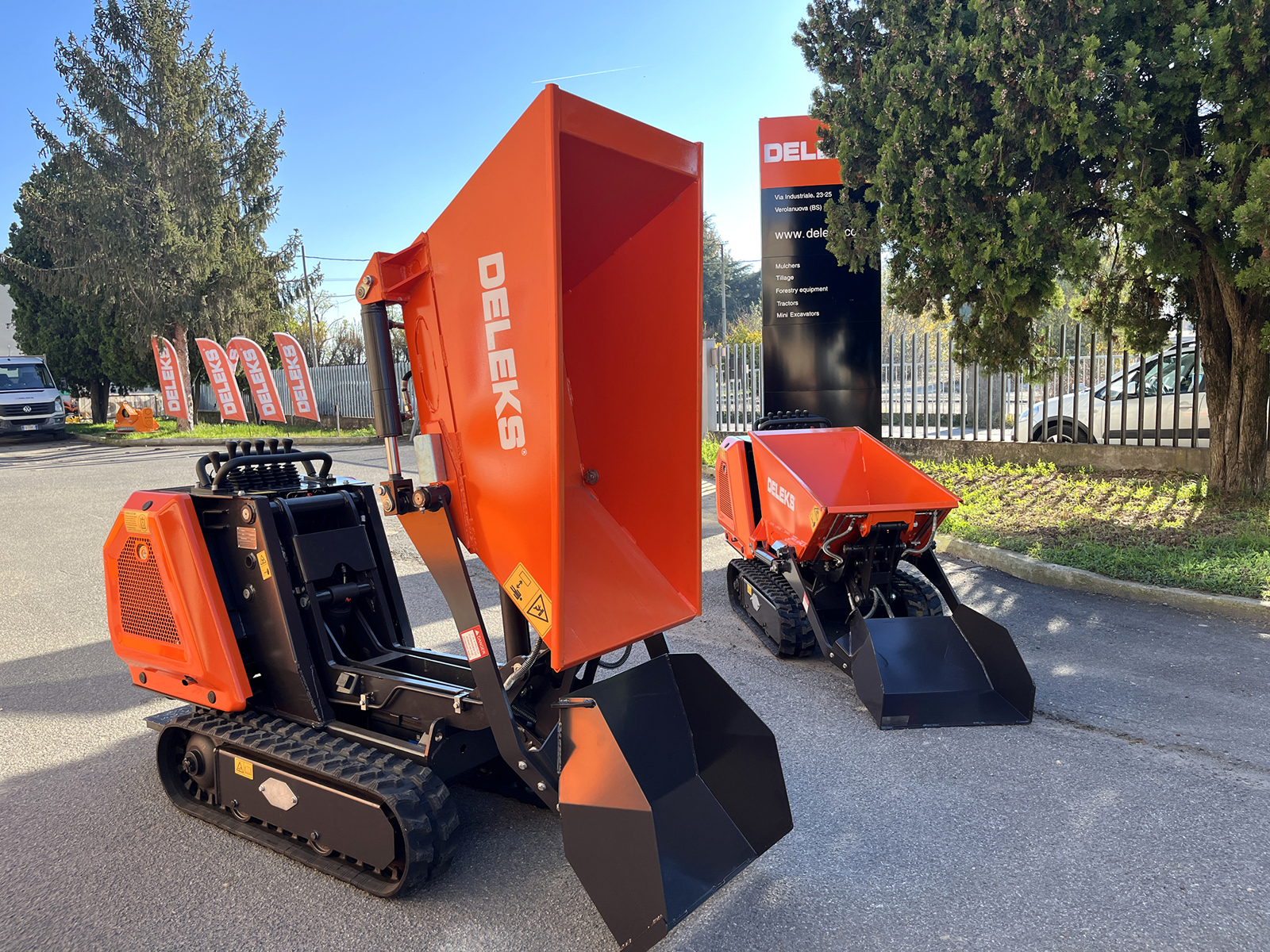

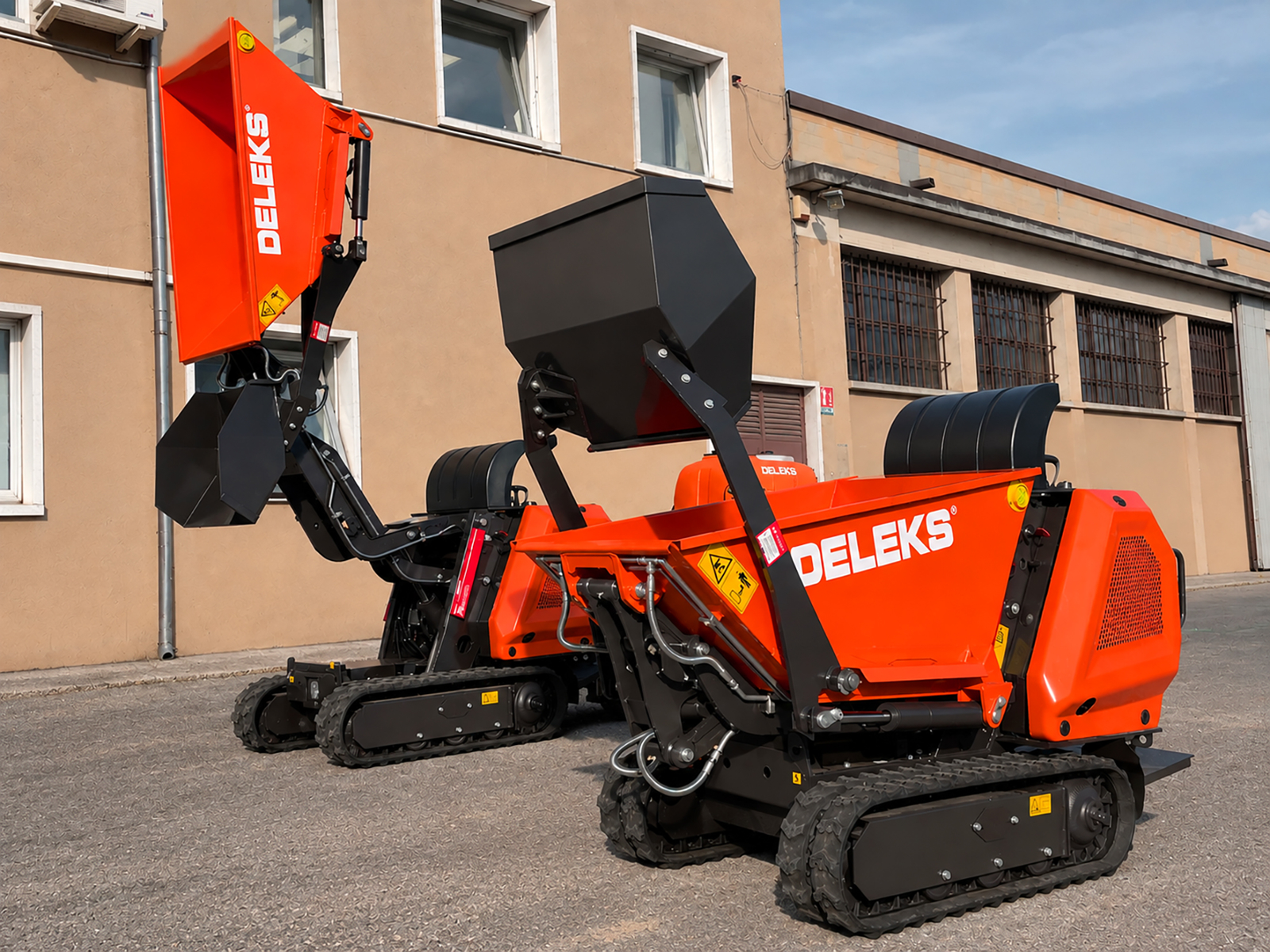

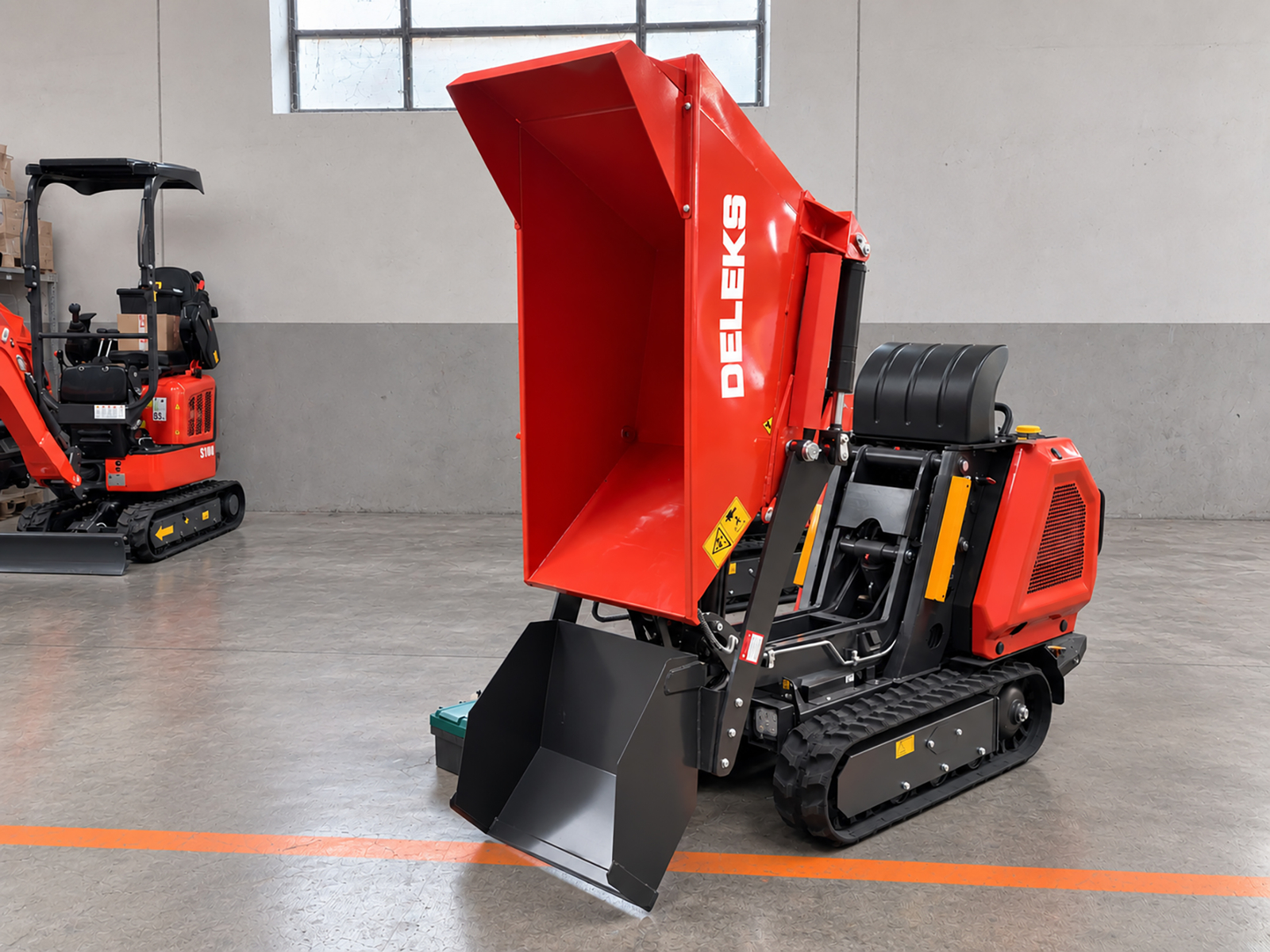

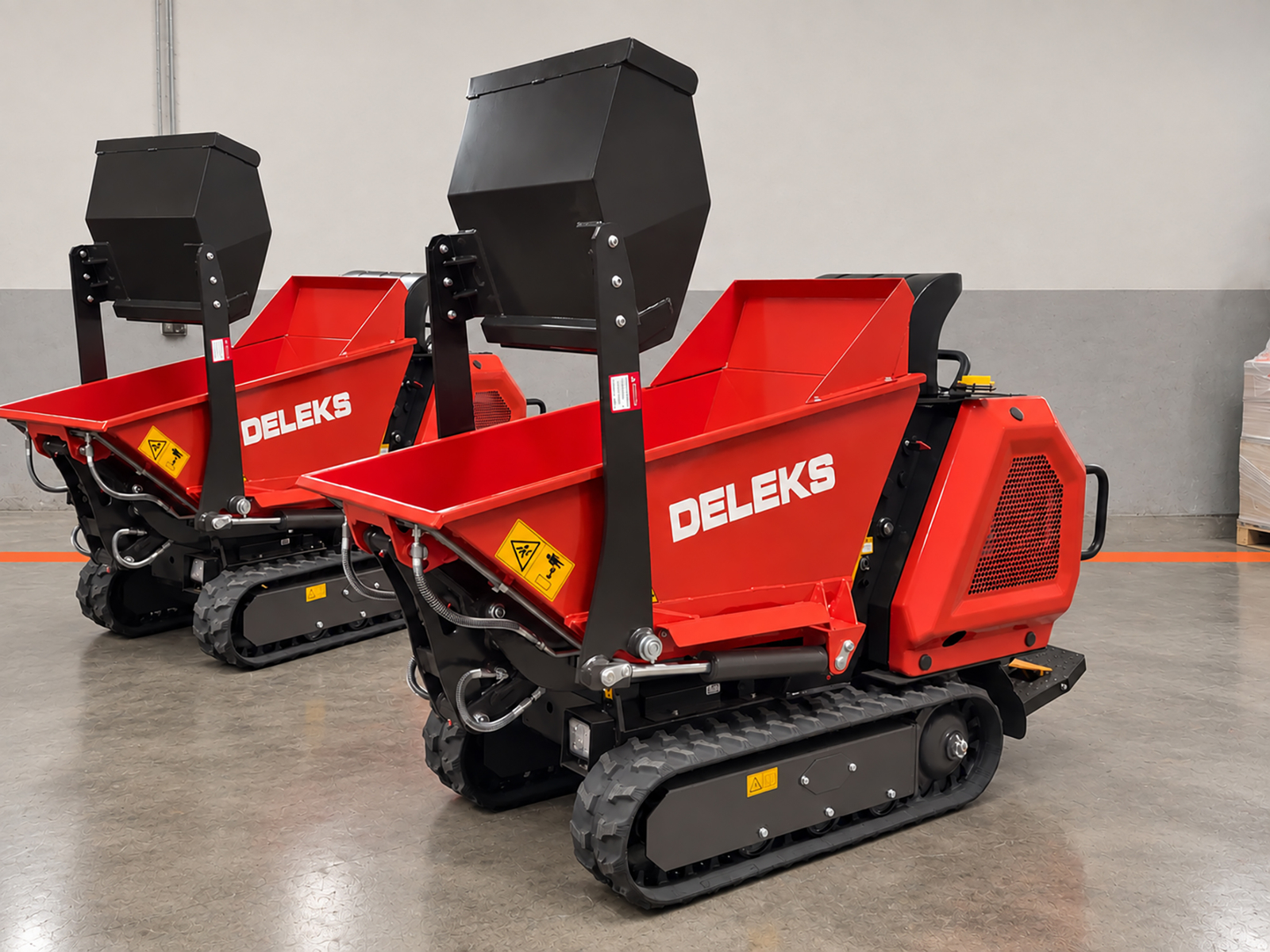

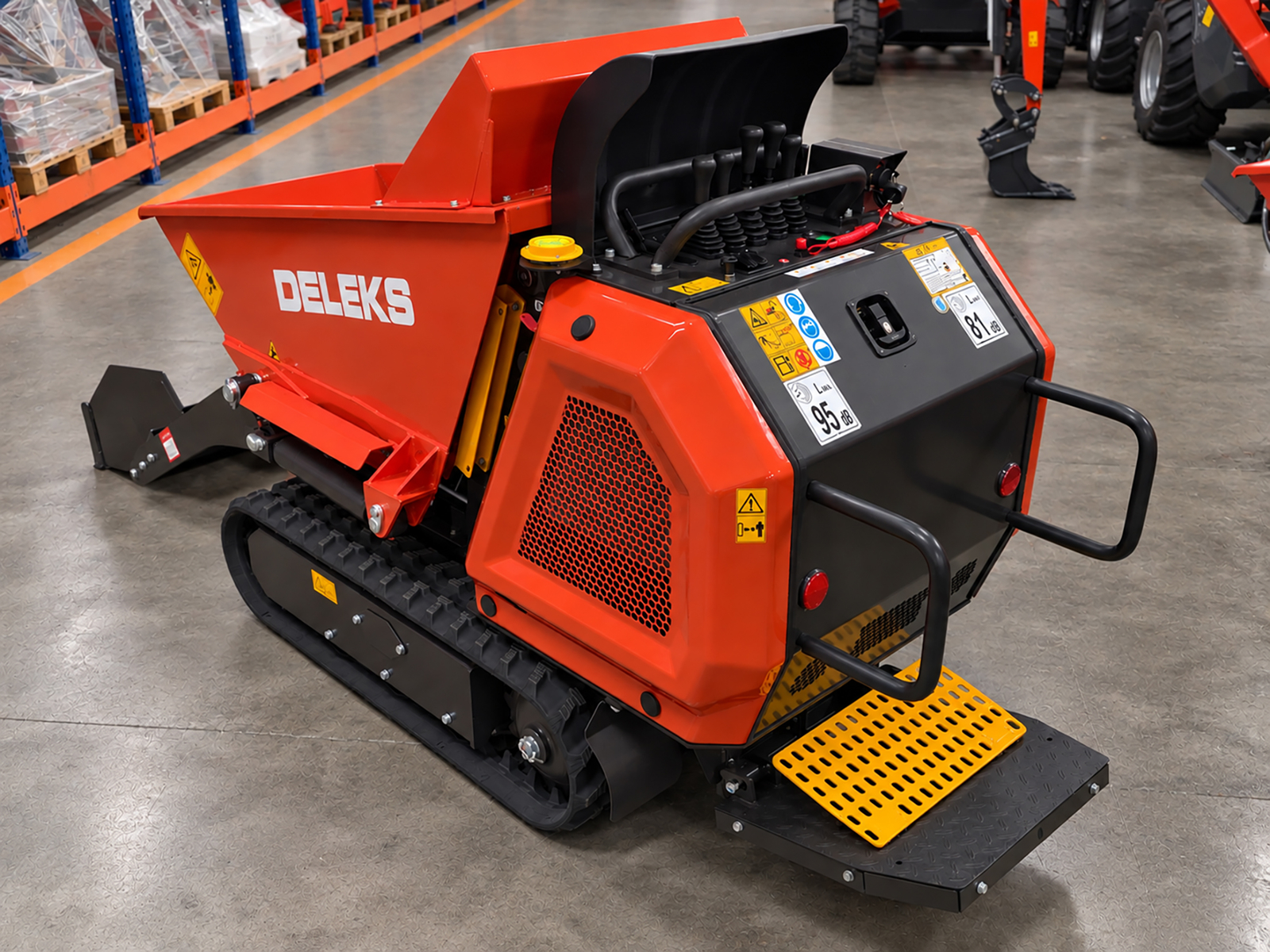

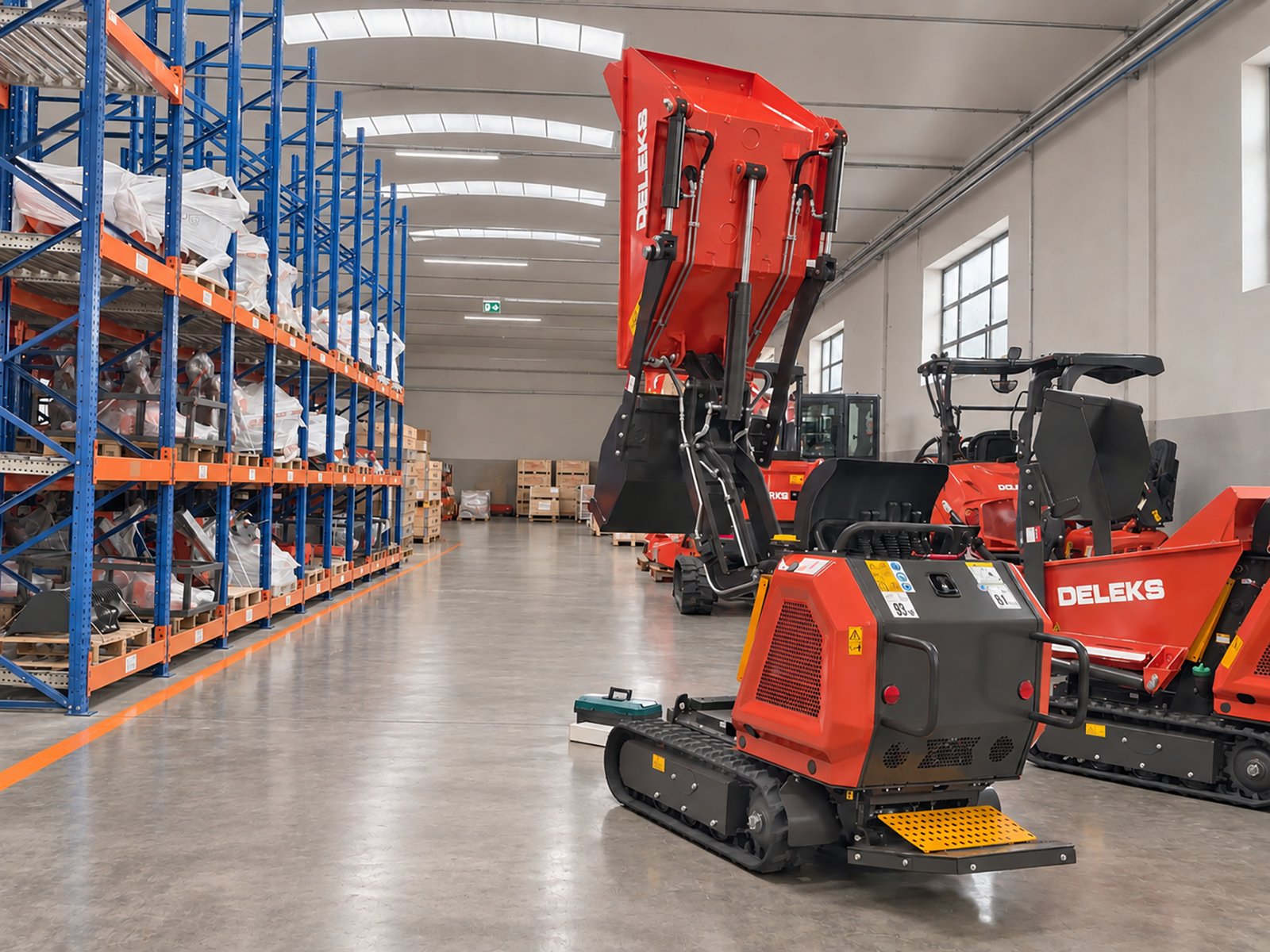

DELEKS® M8000-BS Self-loading tracked minidumper, high dump, hydrostatic transmission, operator platform, Briggs&Stratton engine, electric start.
APPLICATION

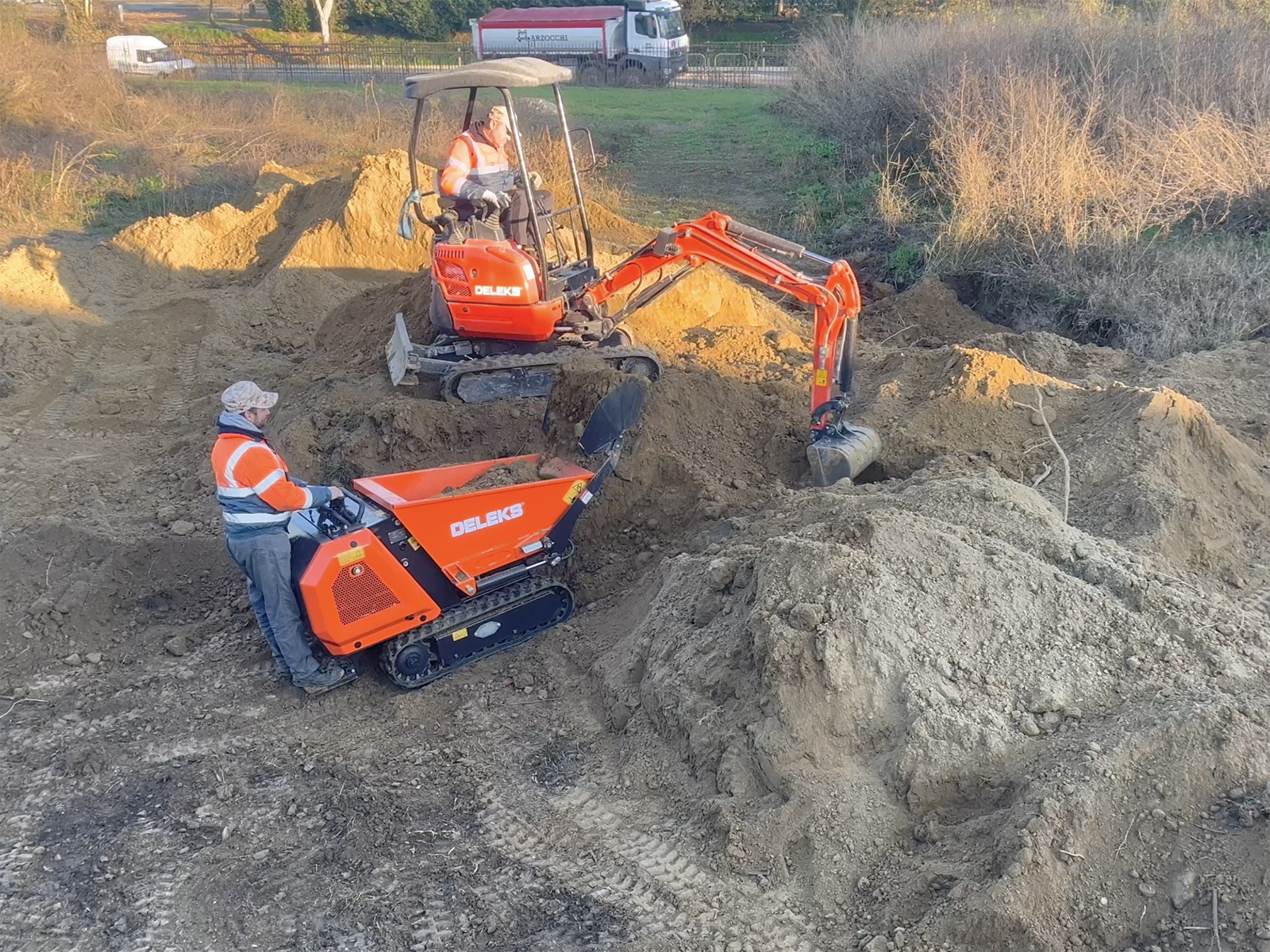

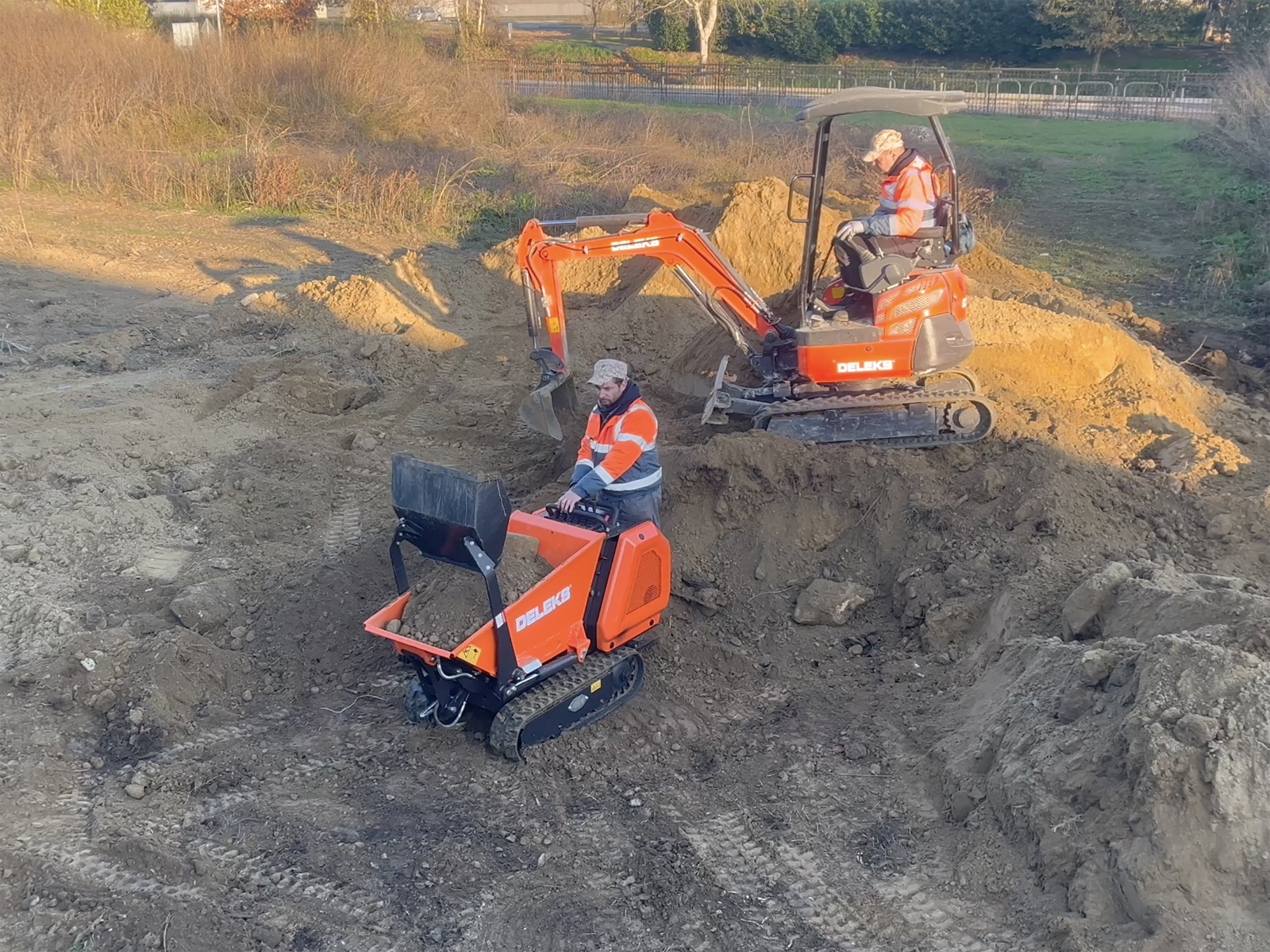

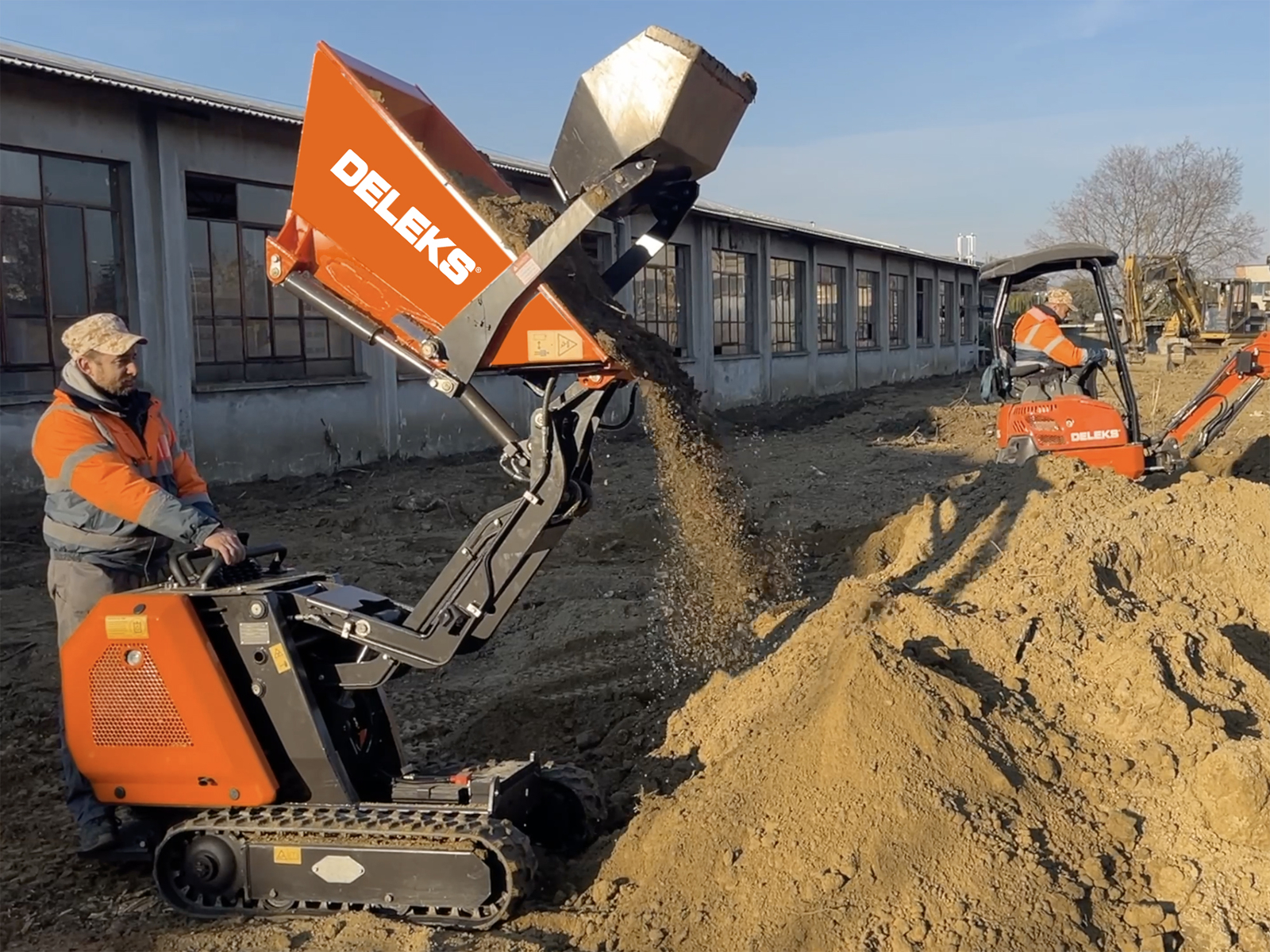

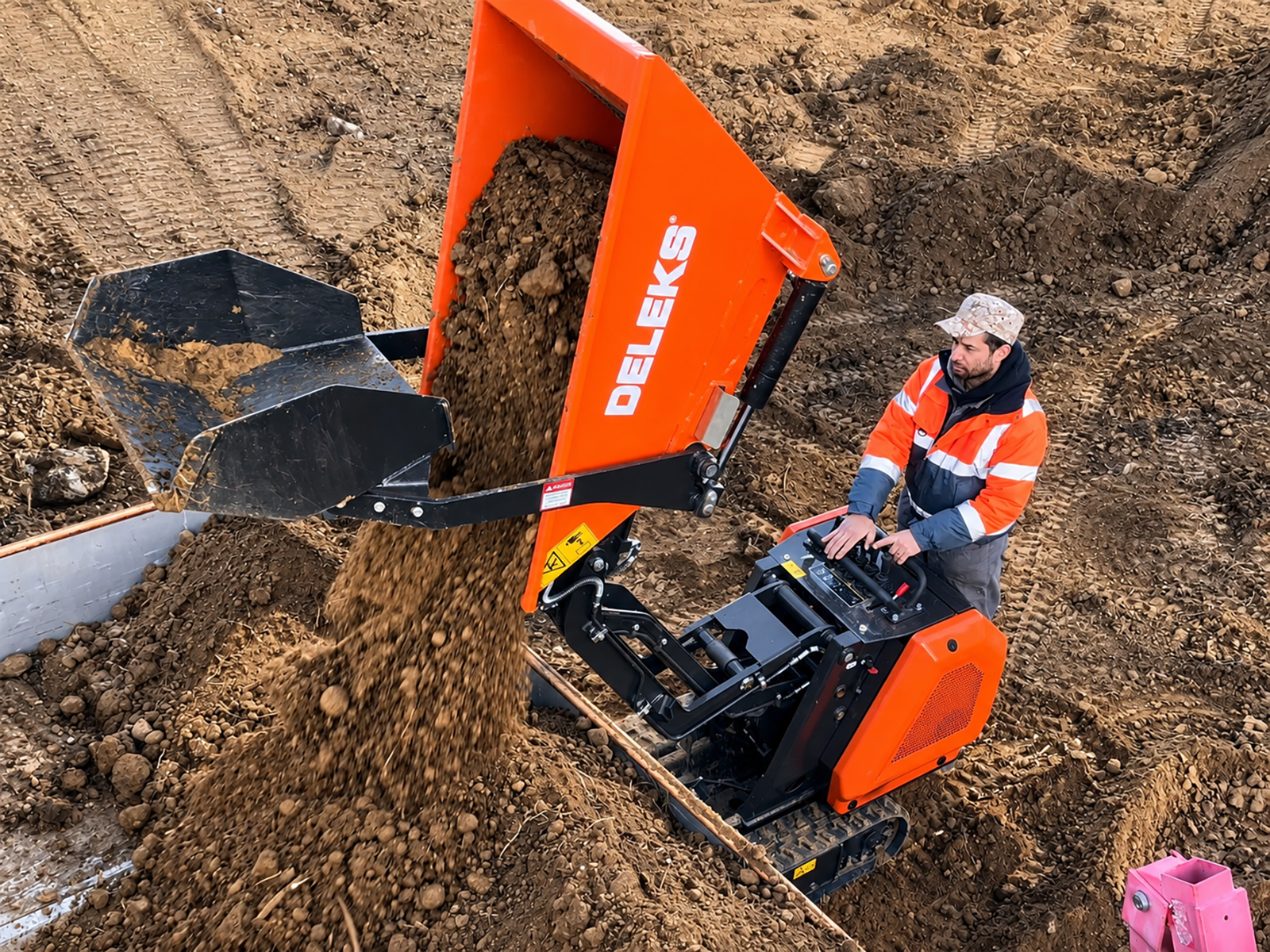

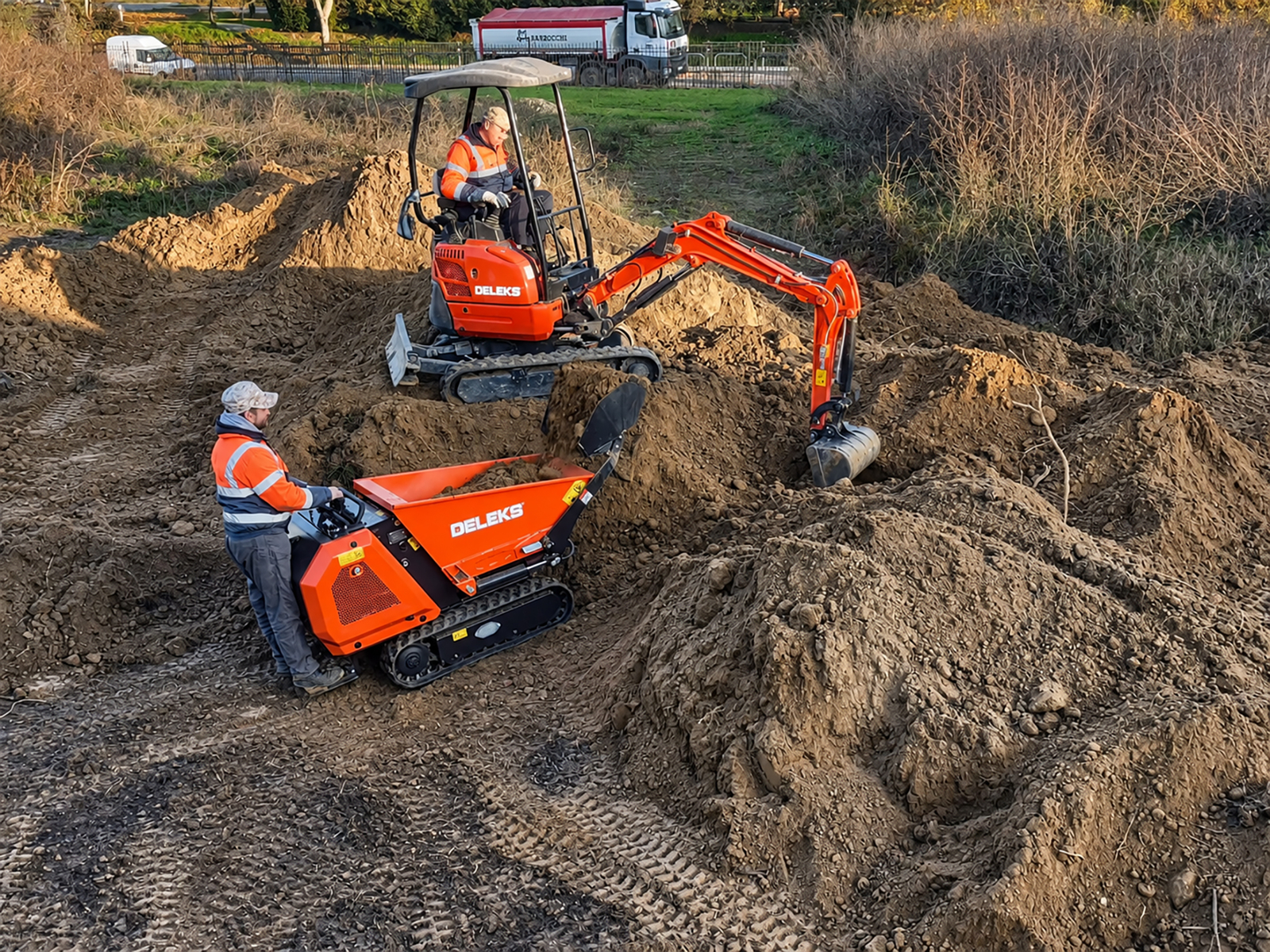

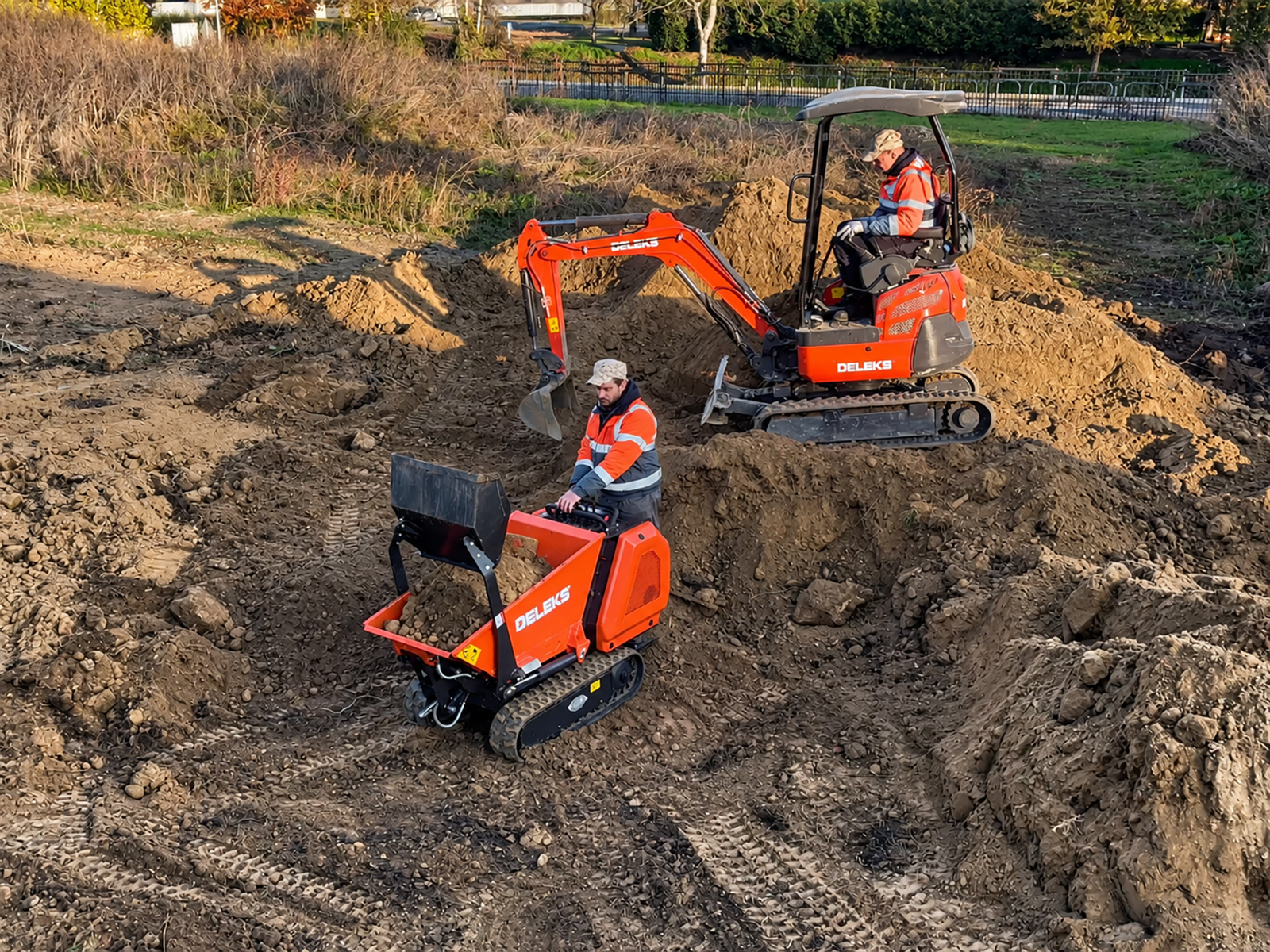

M8000-BS tracked minidumper suitable for loading and moving earth, sand, building material, waste, etc.

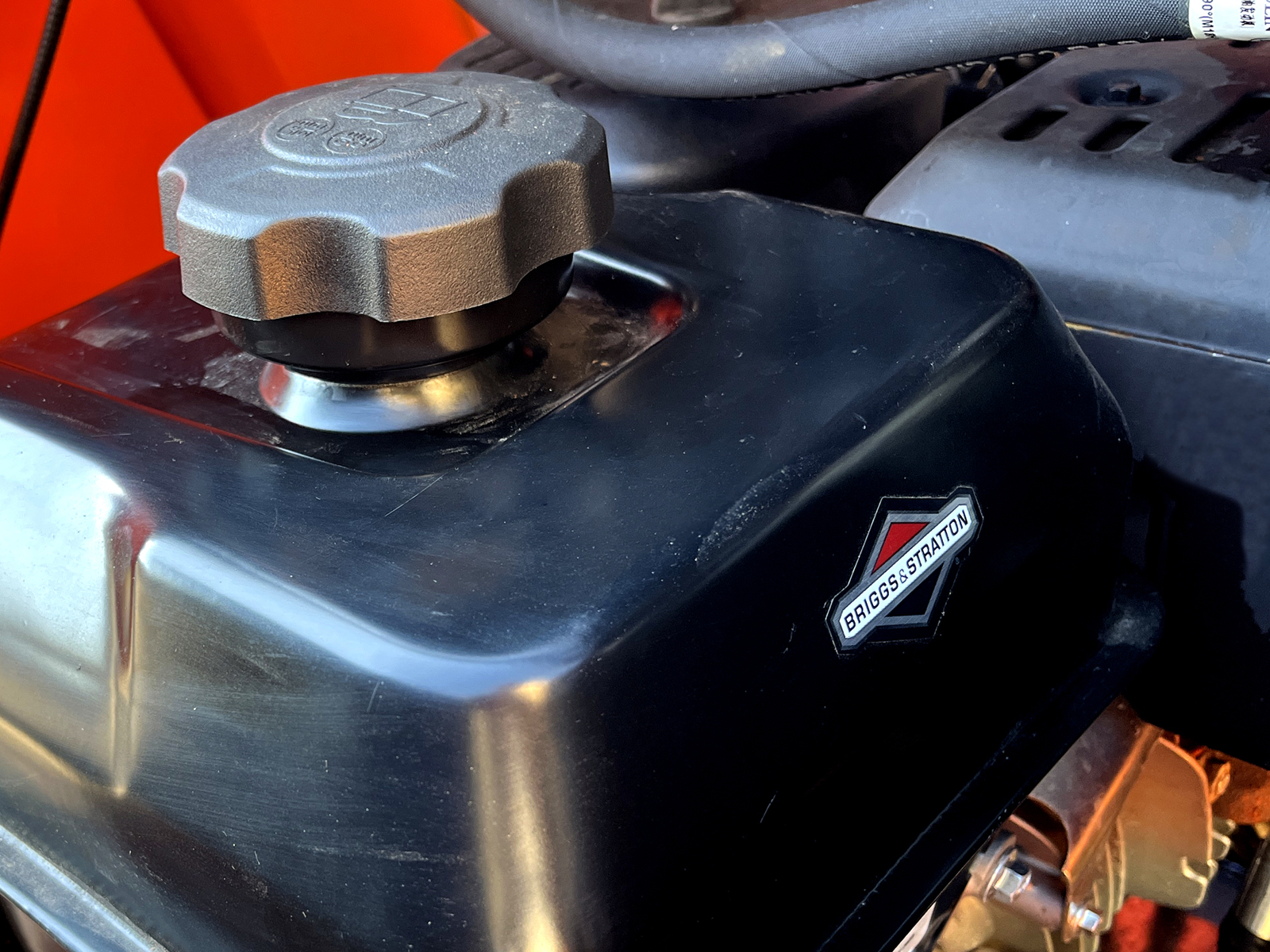

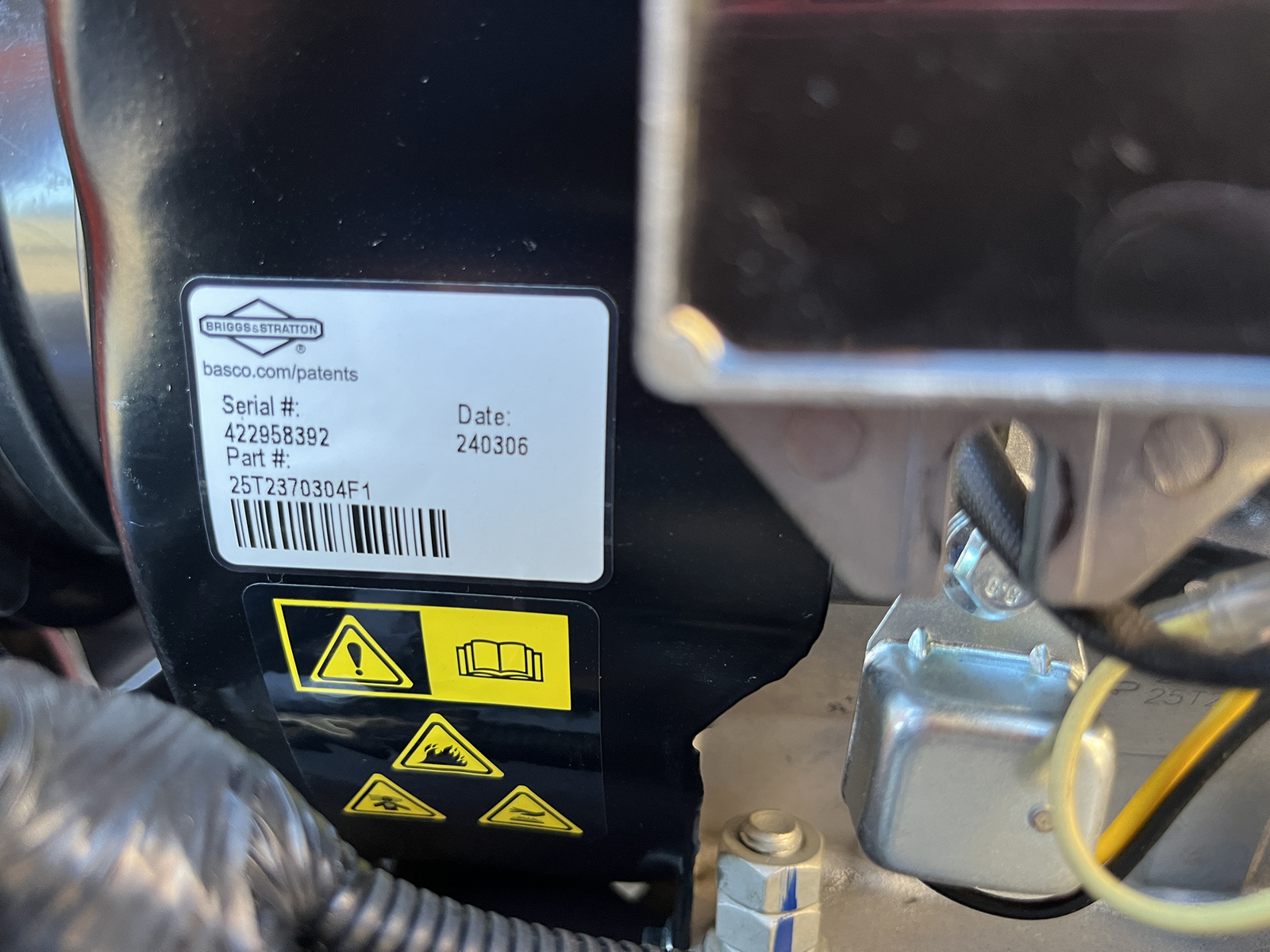

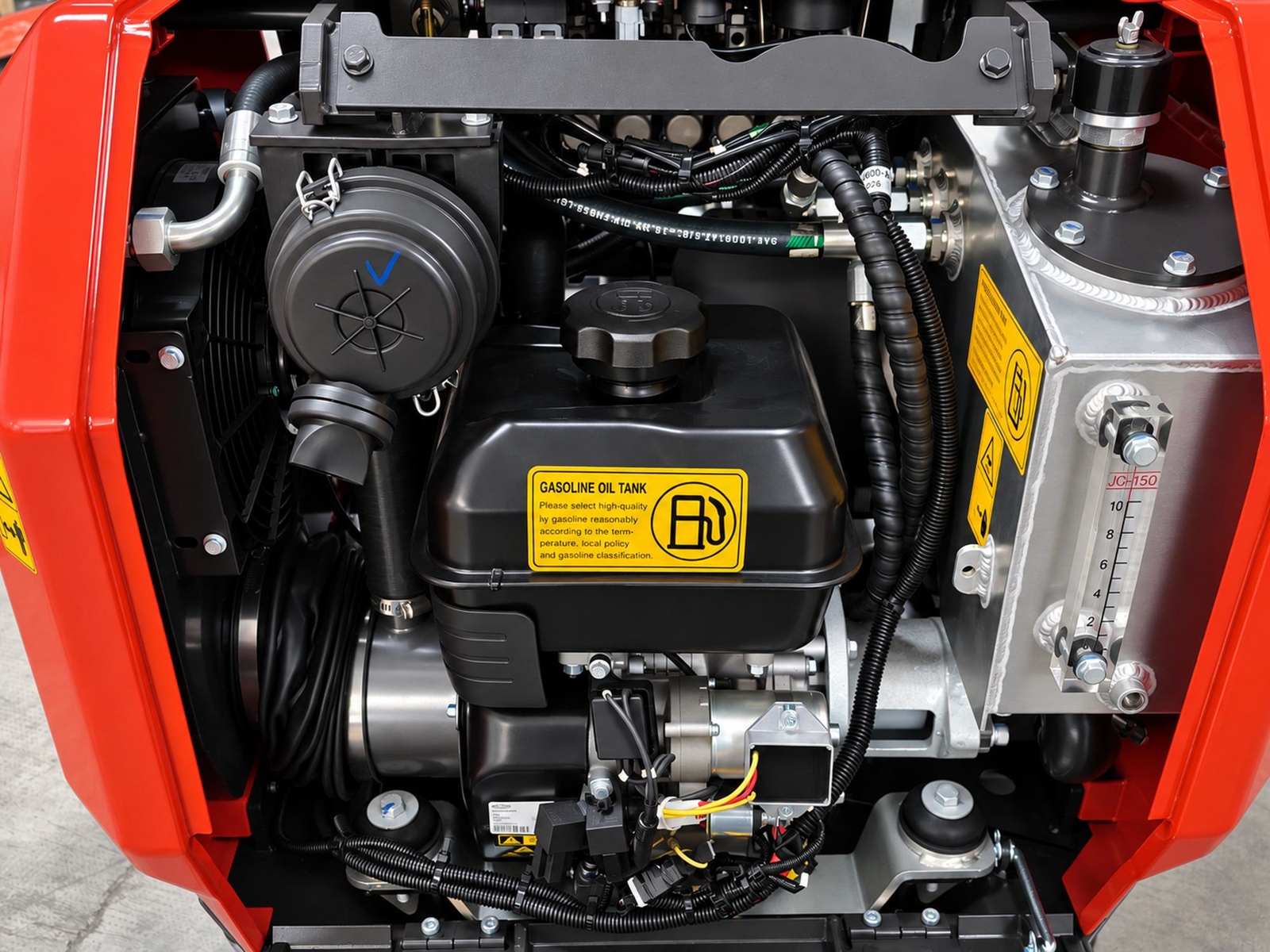

Briggs&Stratton XR2100 engine, 13.5hp/10Kw a 3600 r/min (7.6kw at 3000 r/min), 420cc
Fuel: petrol
Body: dumper type with high tip
Capacity: 800 kg

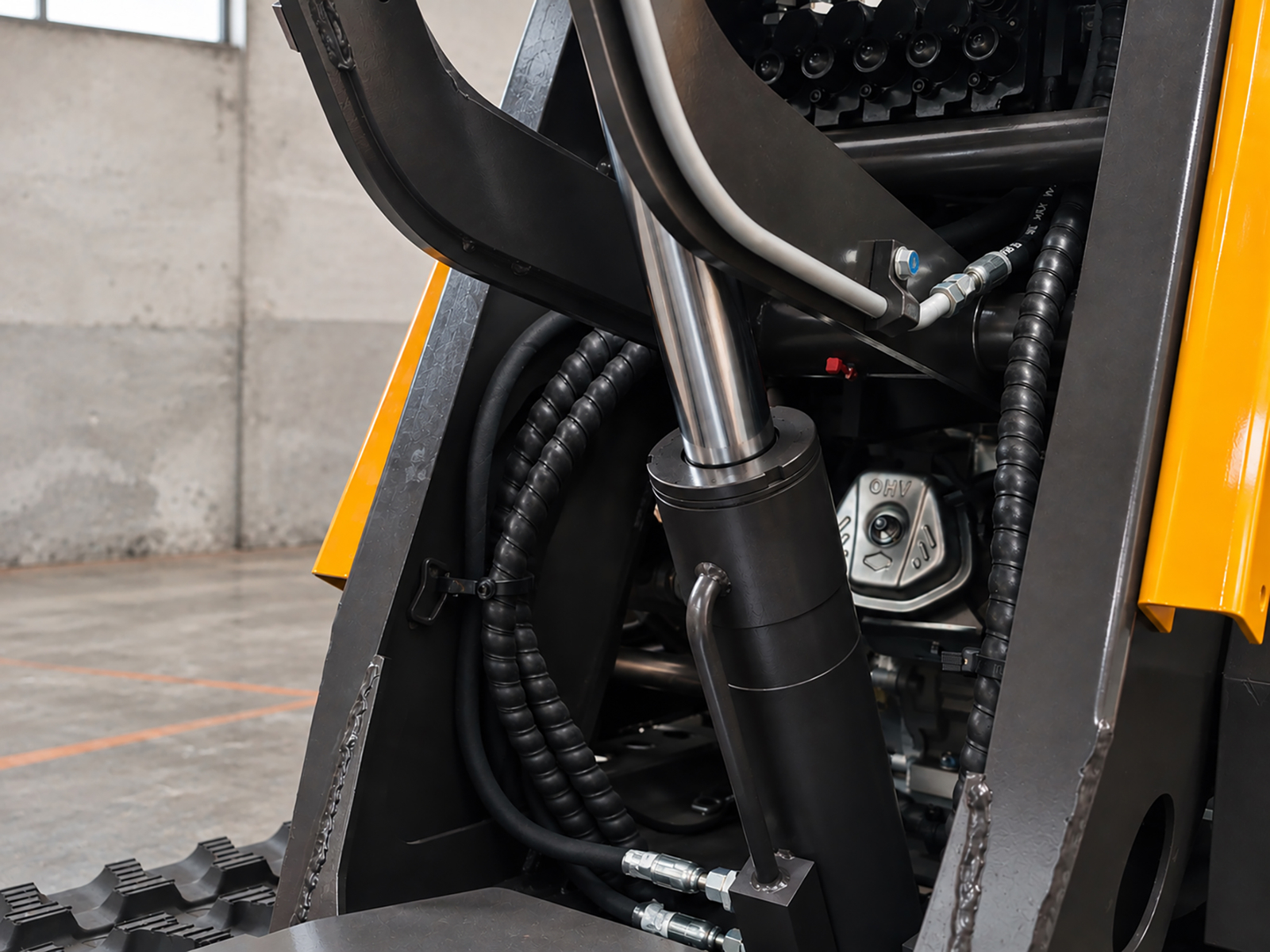

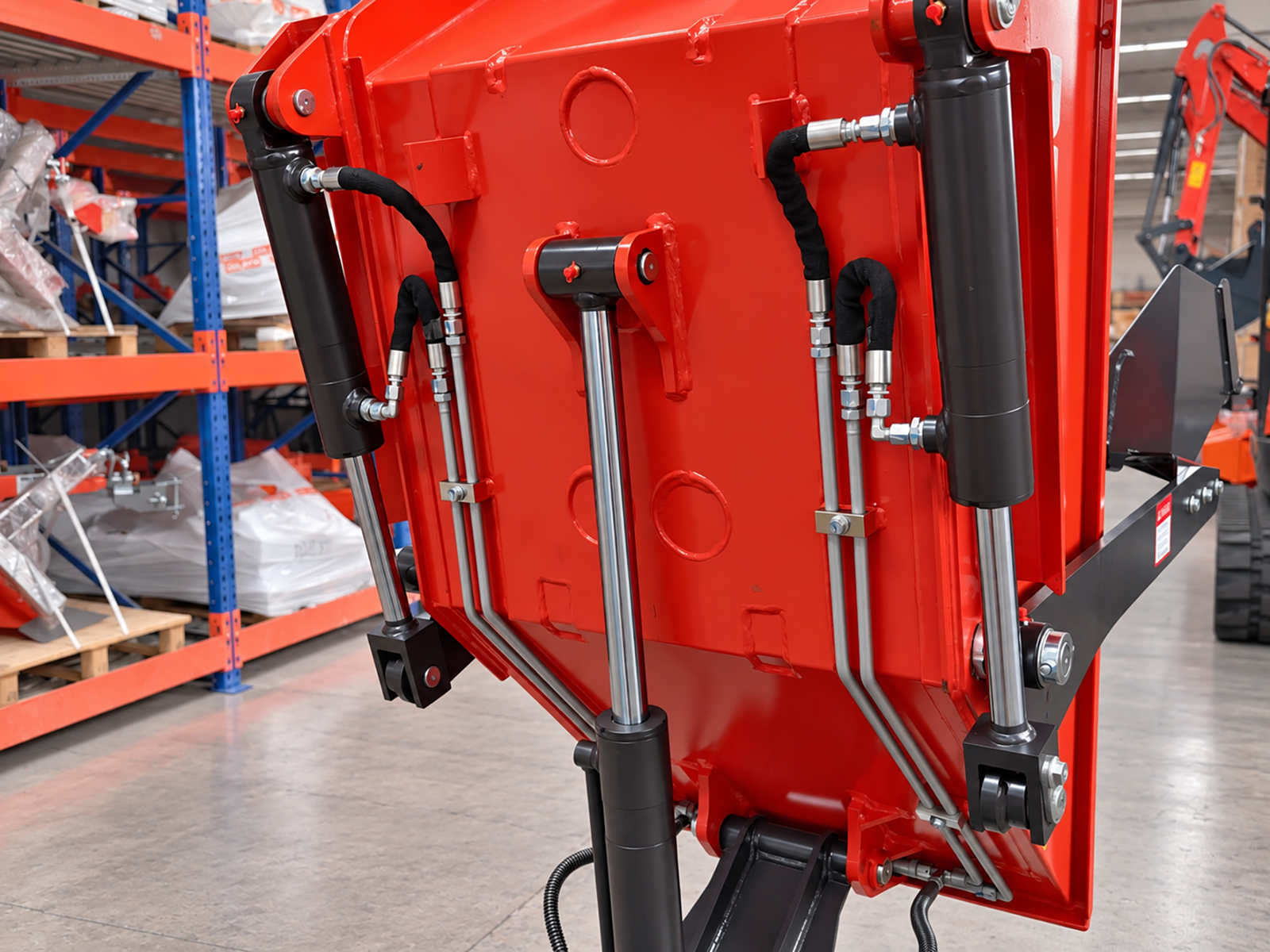

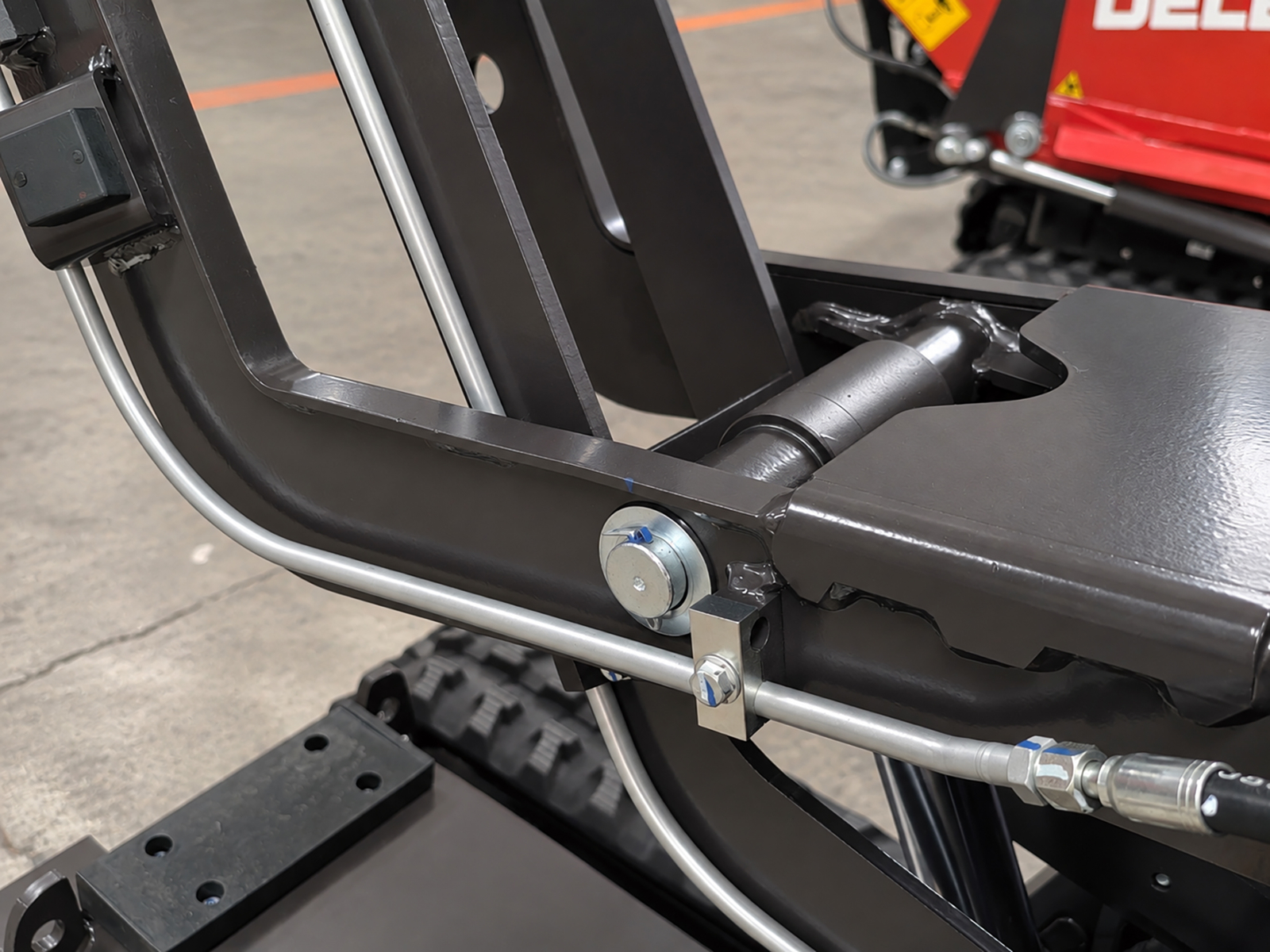

Tipping: hydraulic

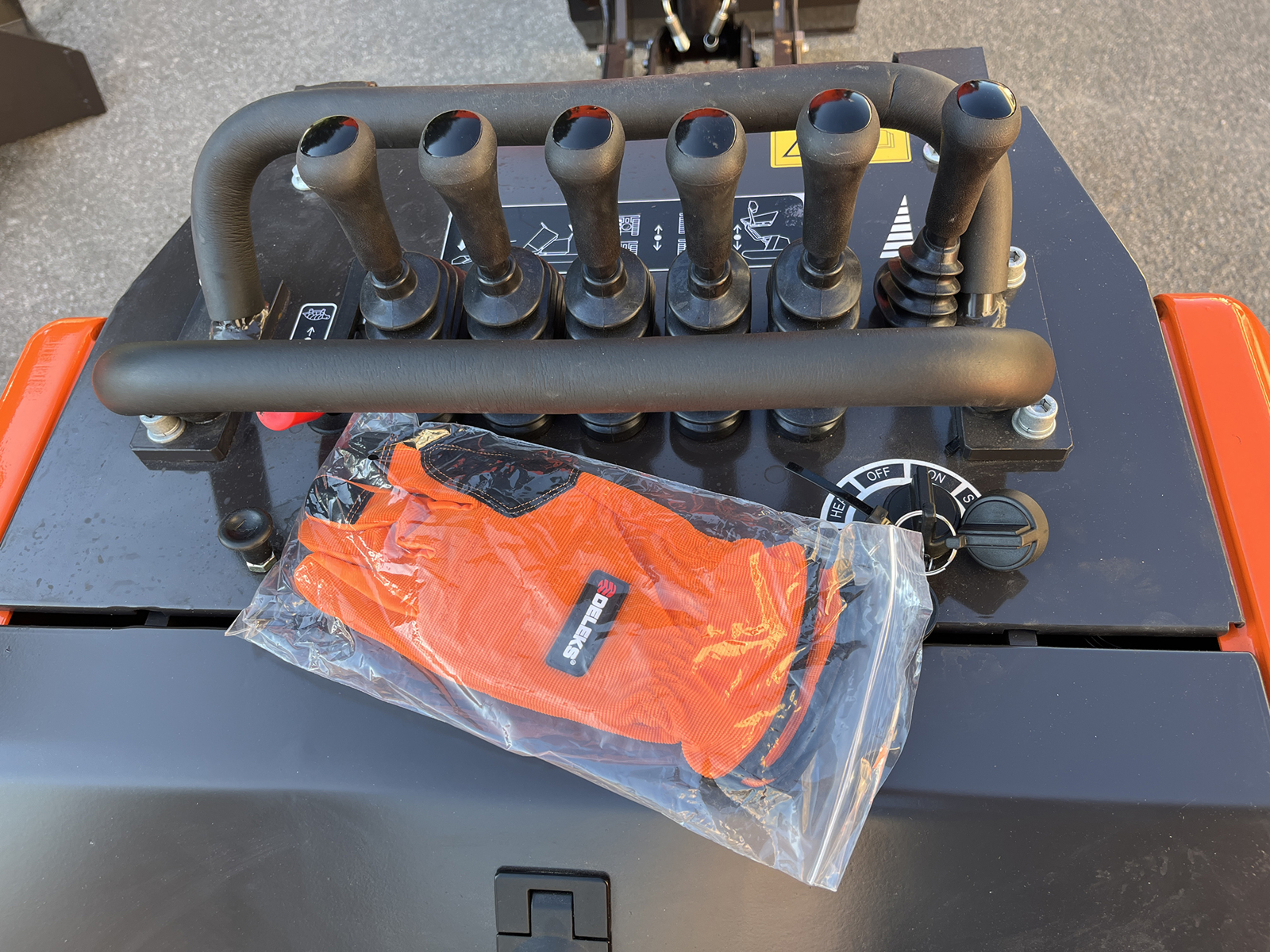

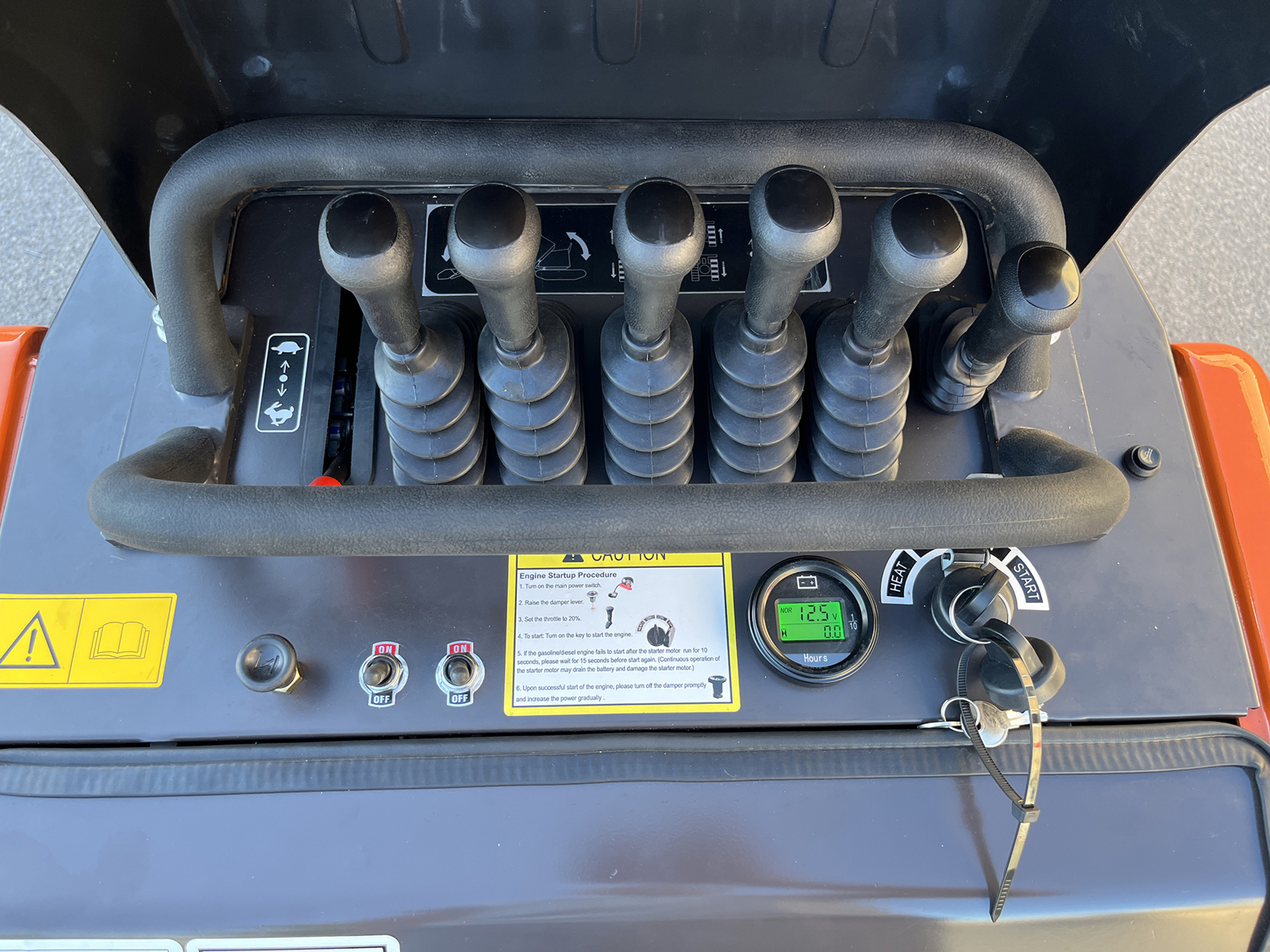

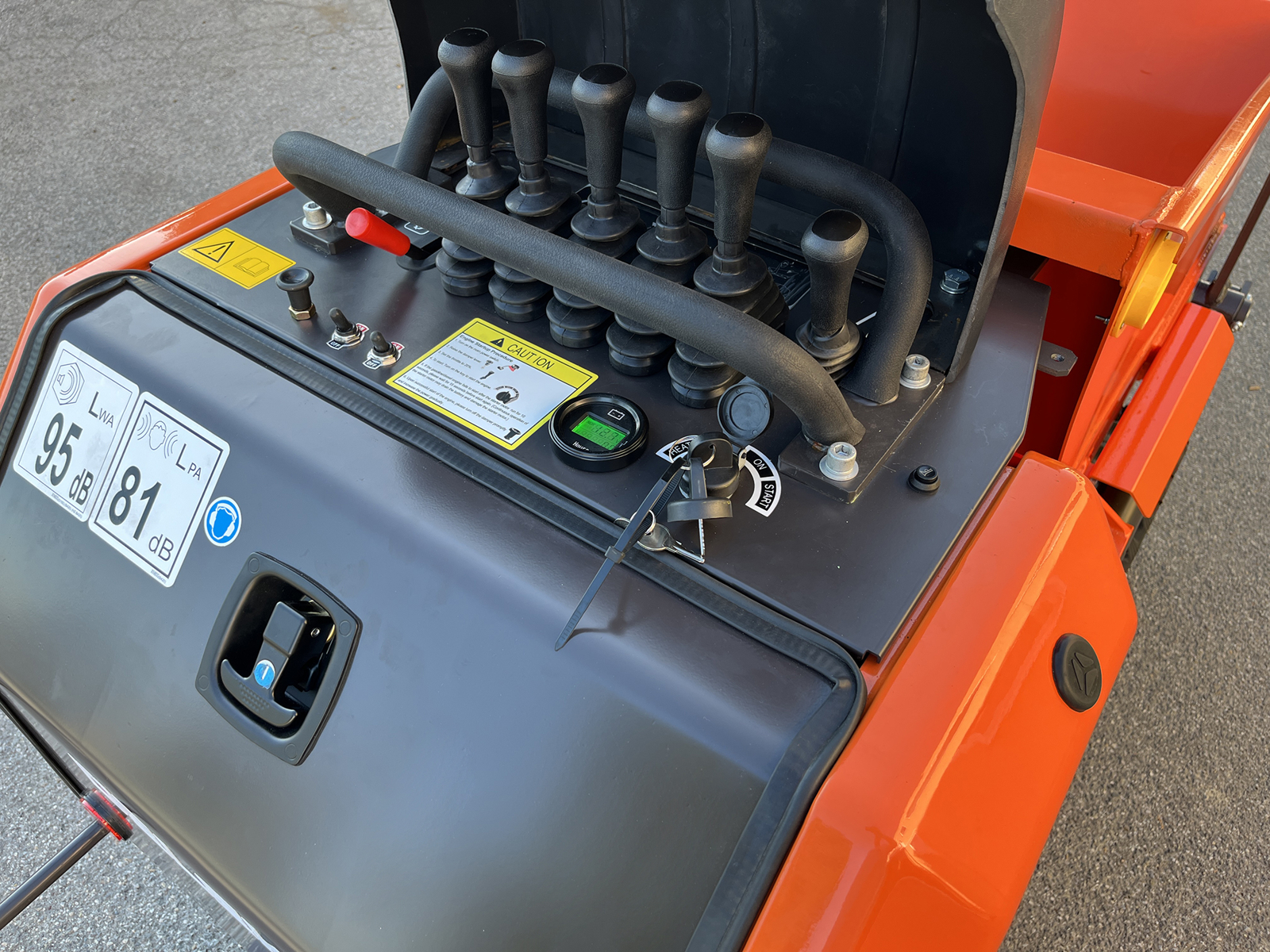

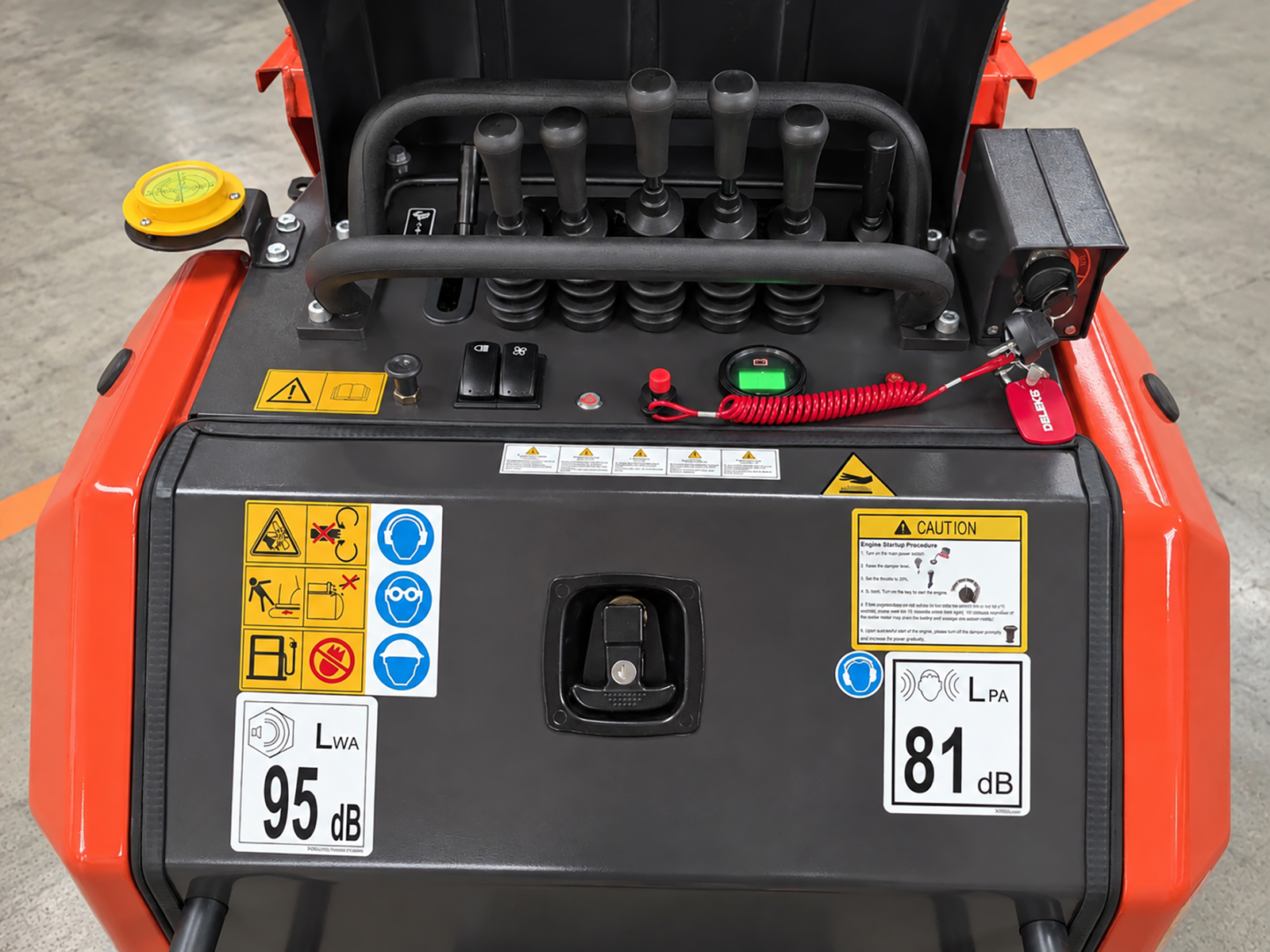

Driving system with lever controls

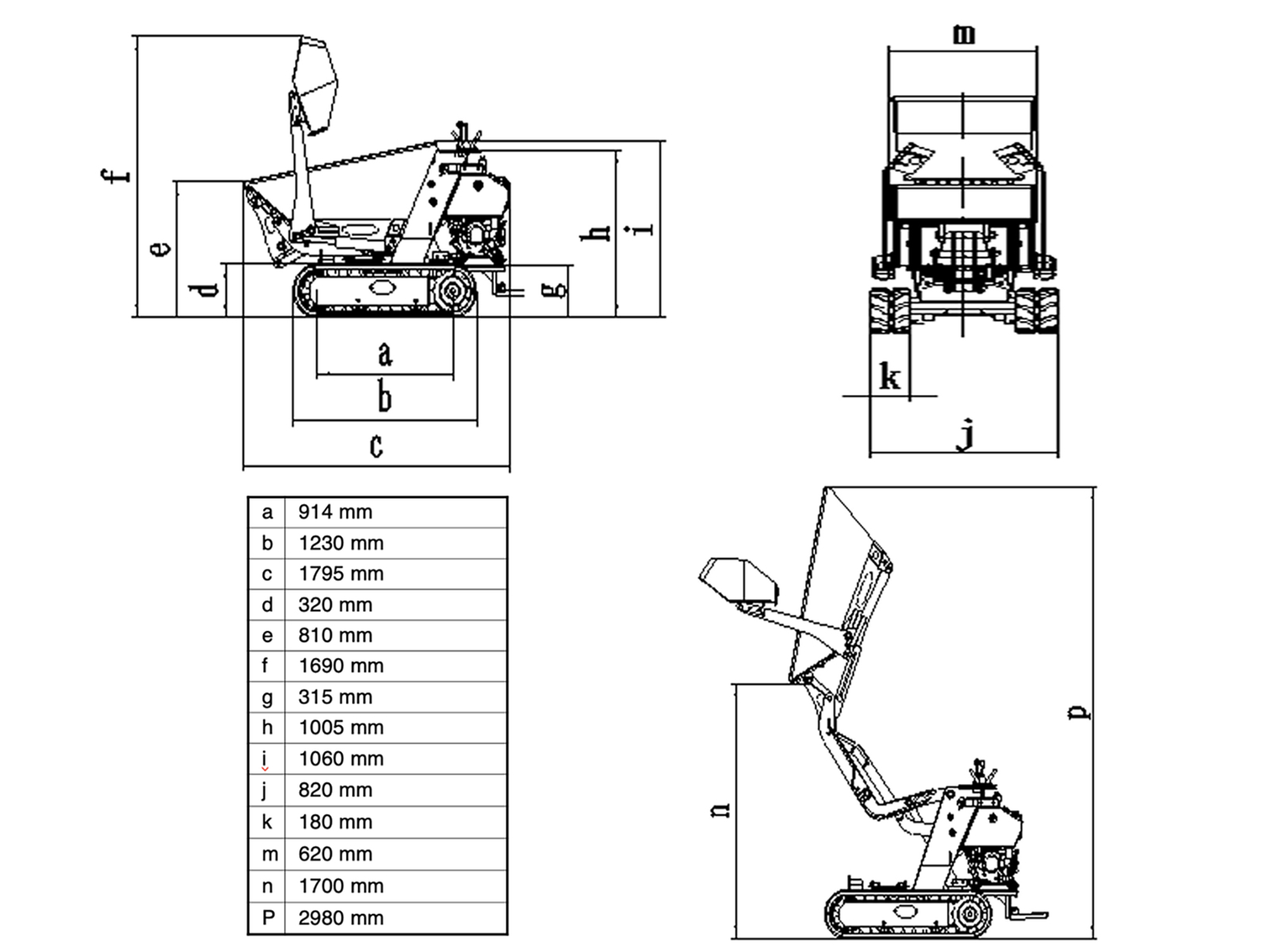

Measurements: see images

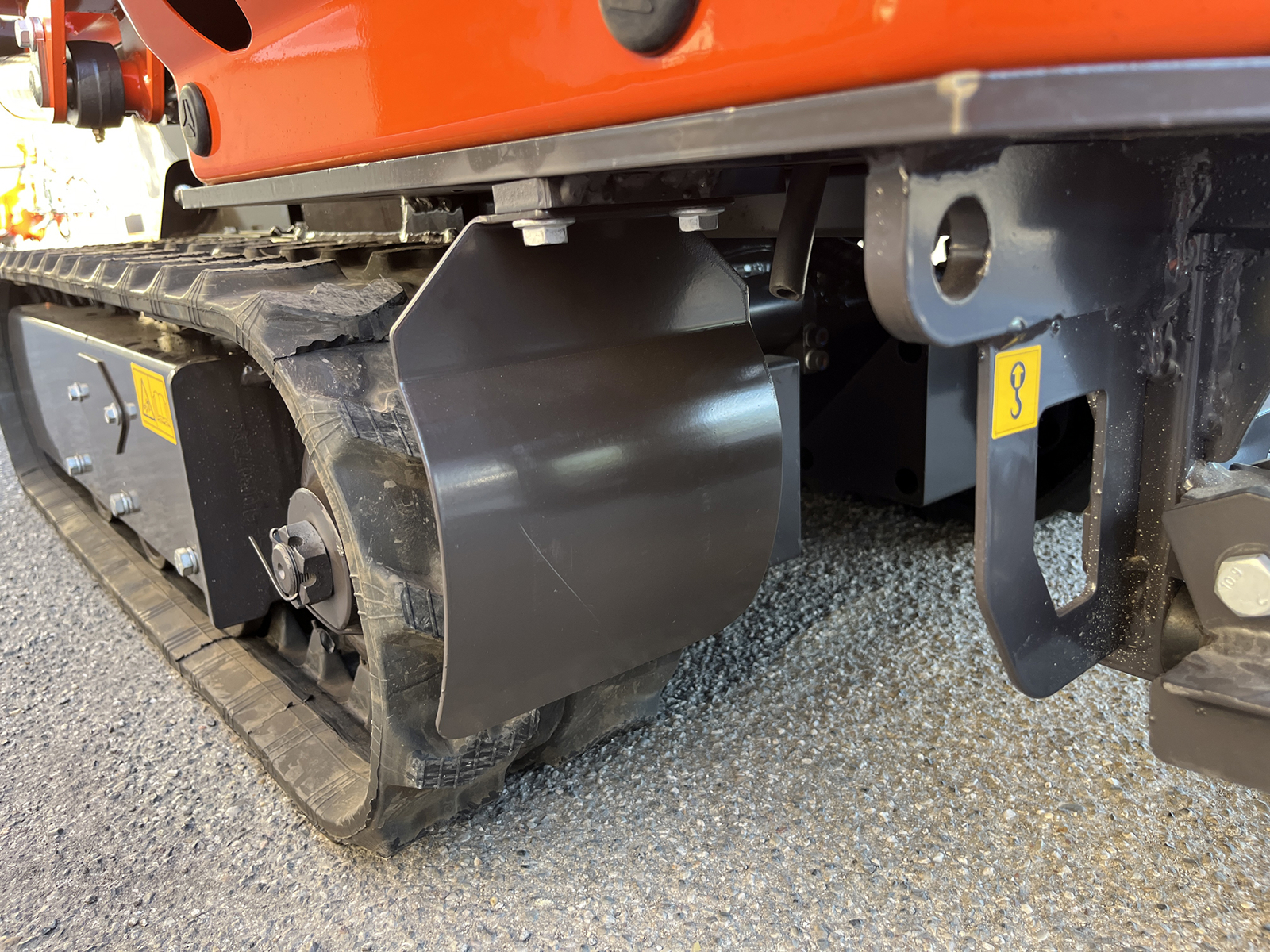

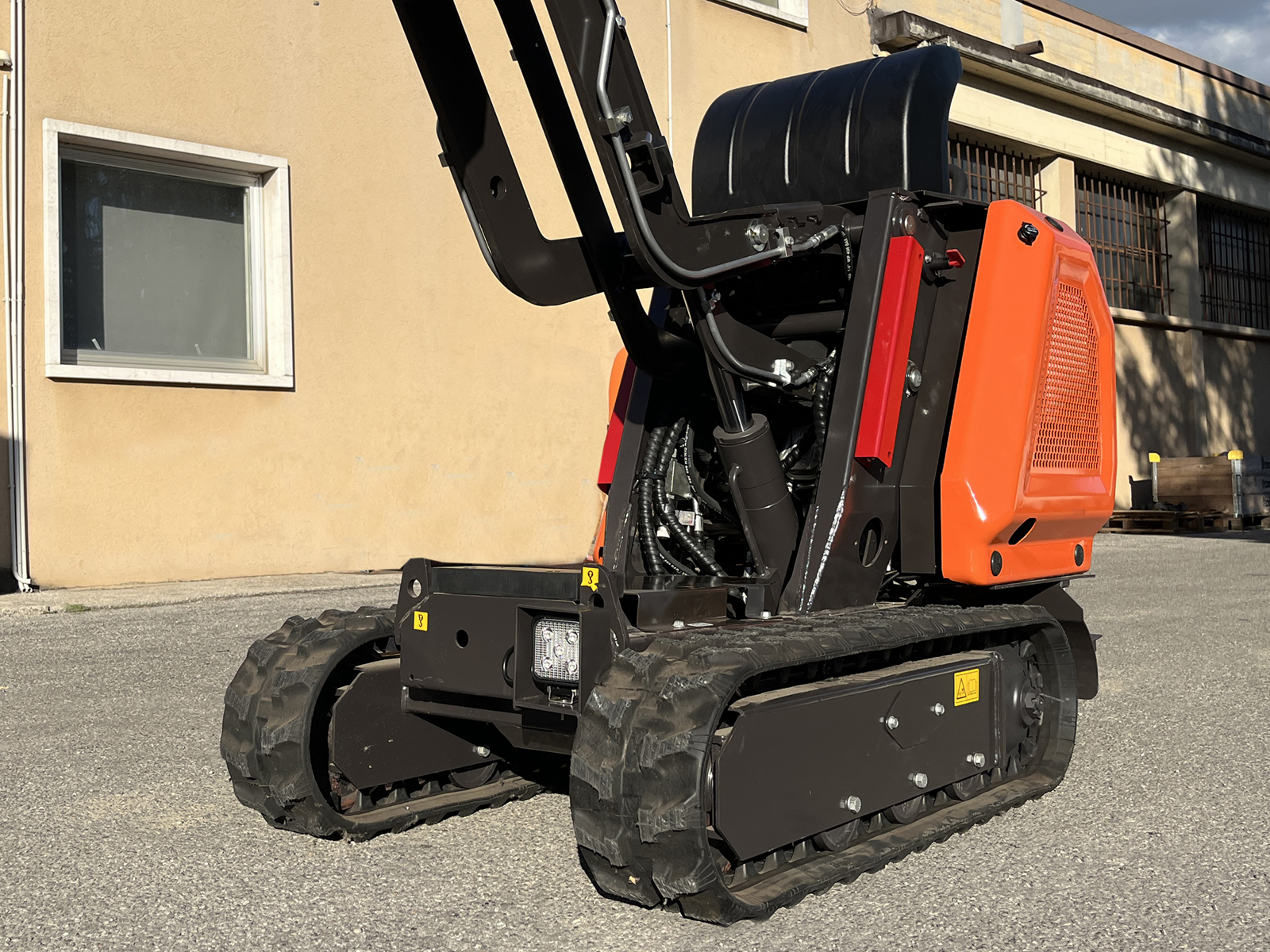

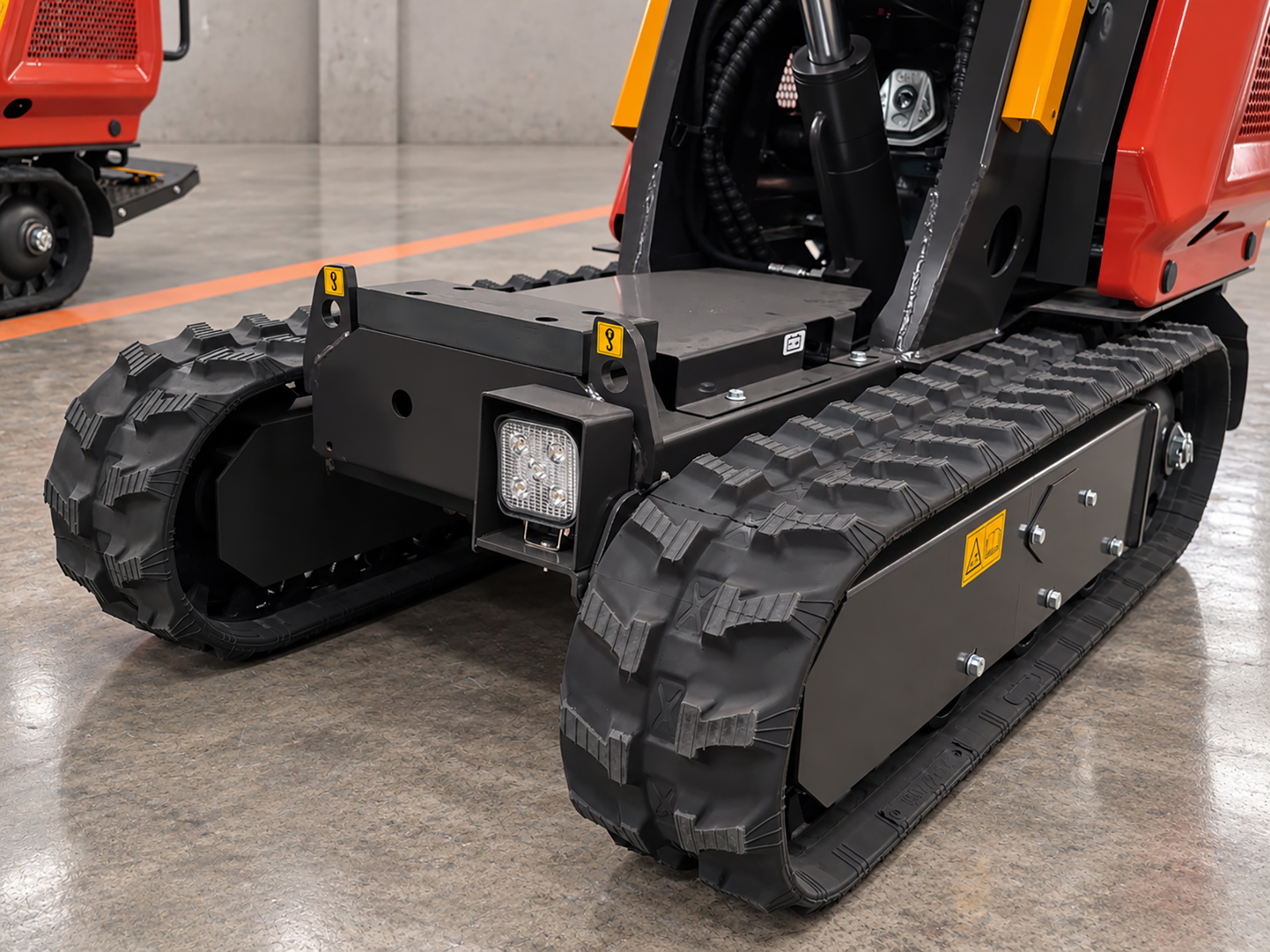

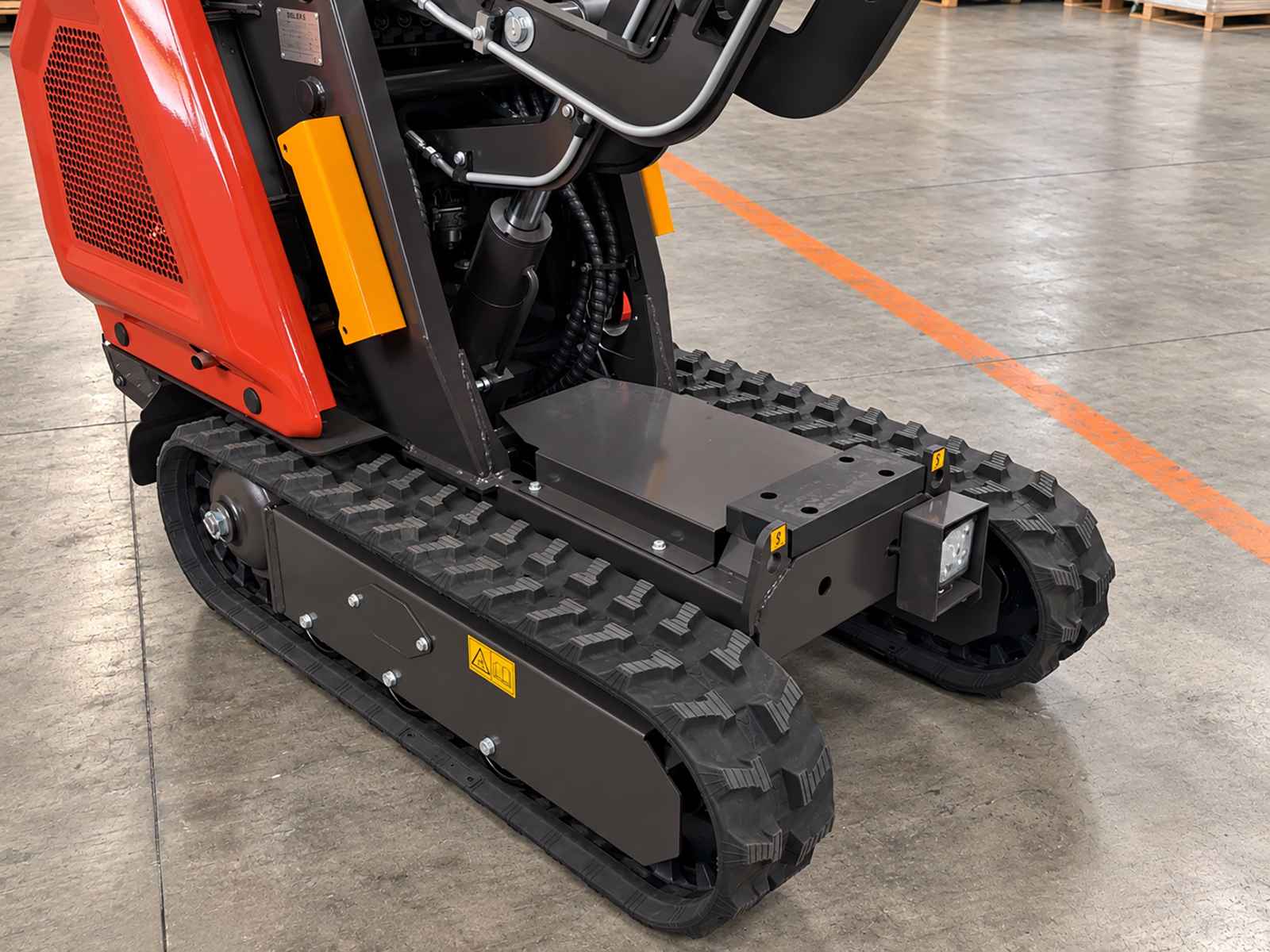

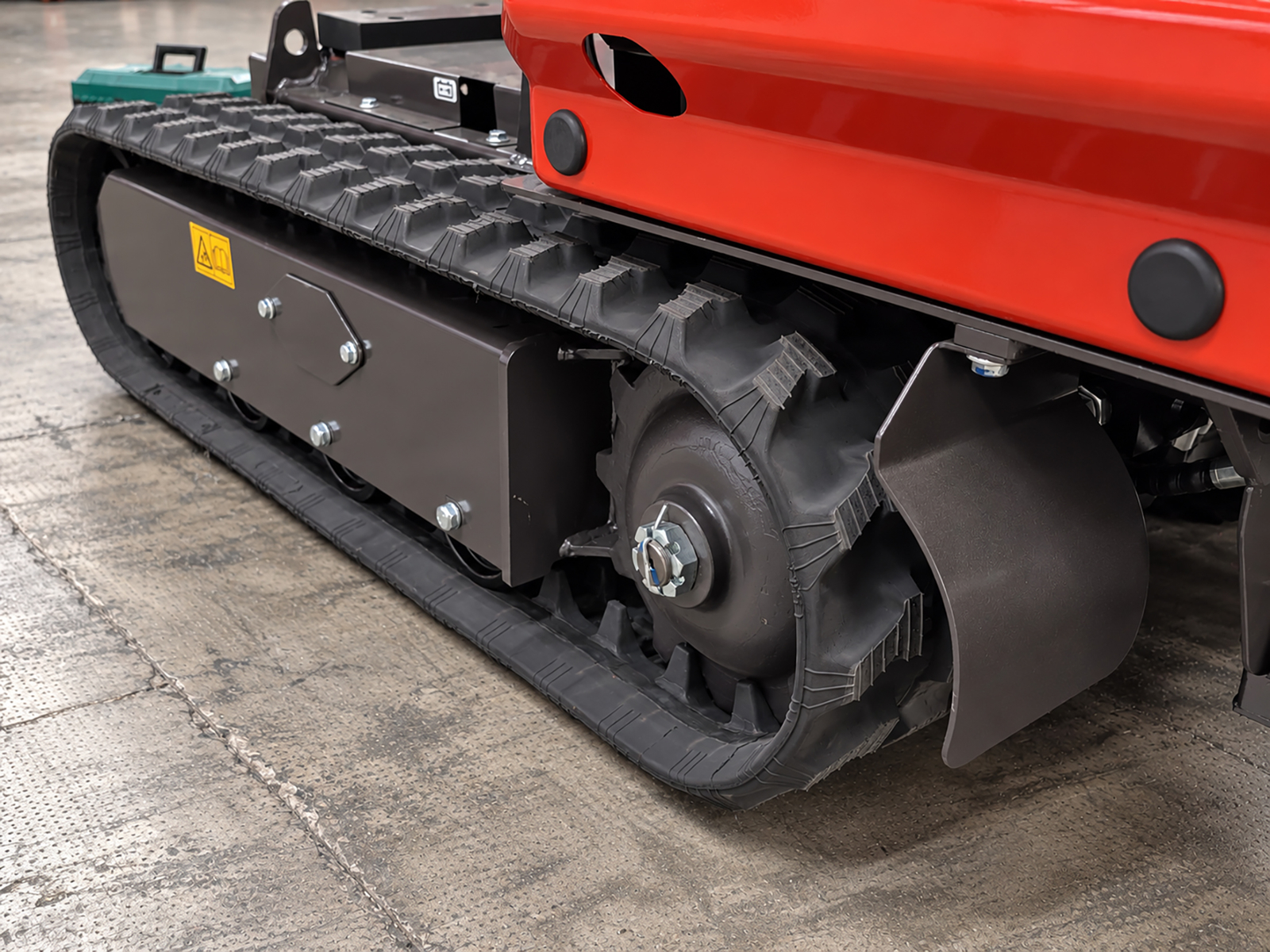

Track width/length: 180mm x 1200mm
ADVANTAGES

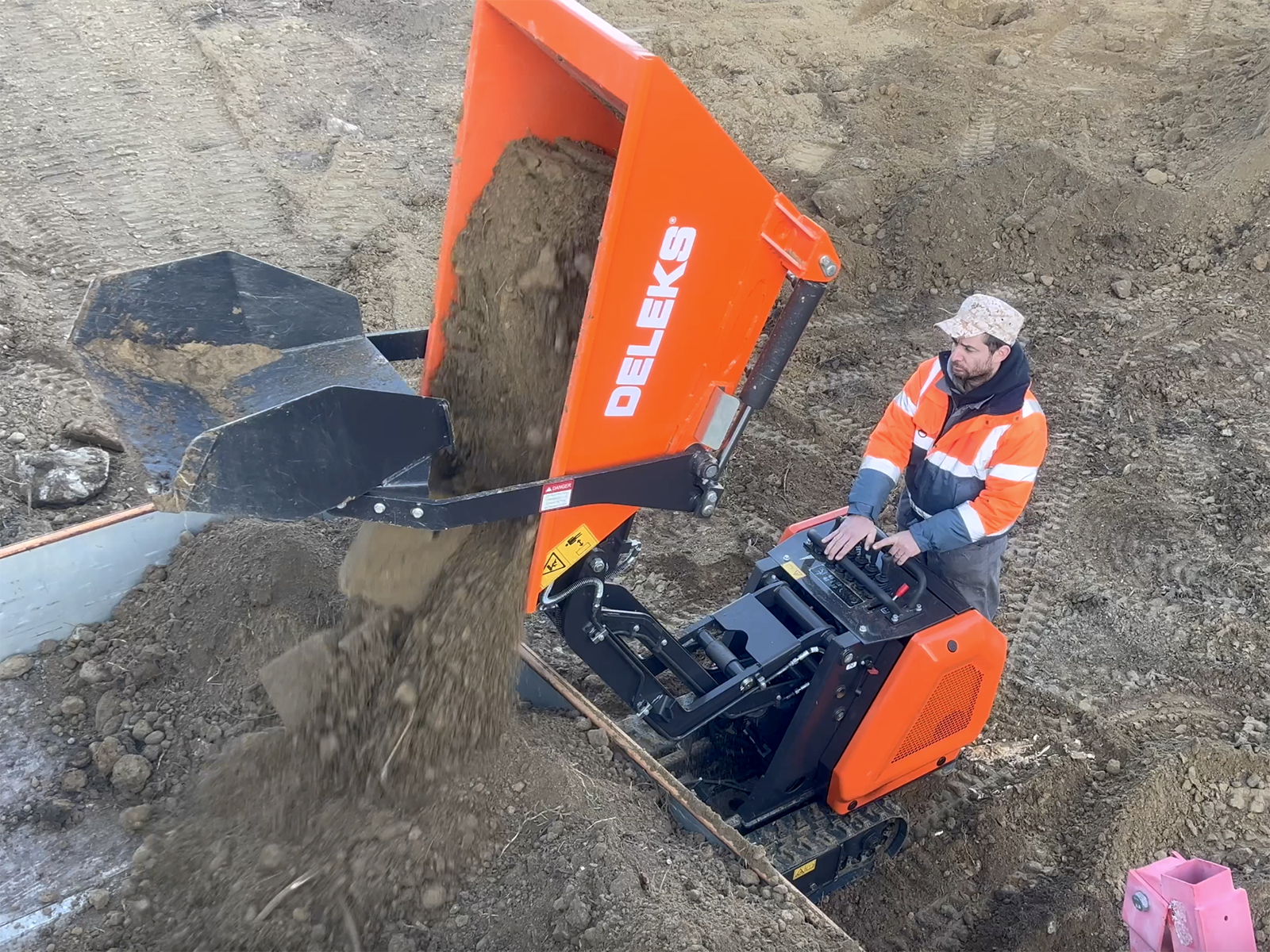

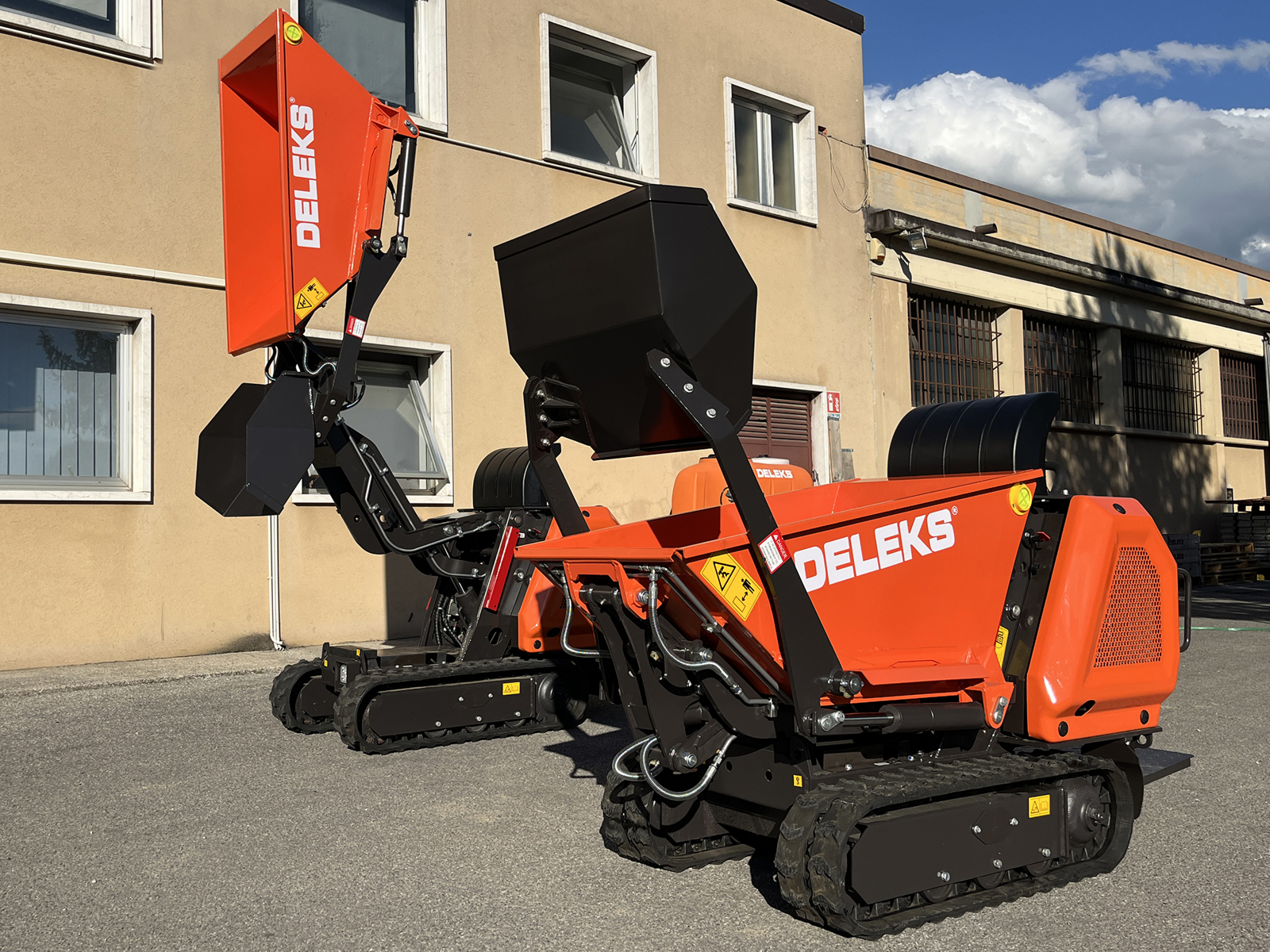

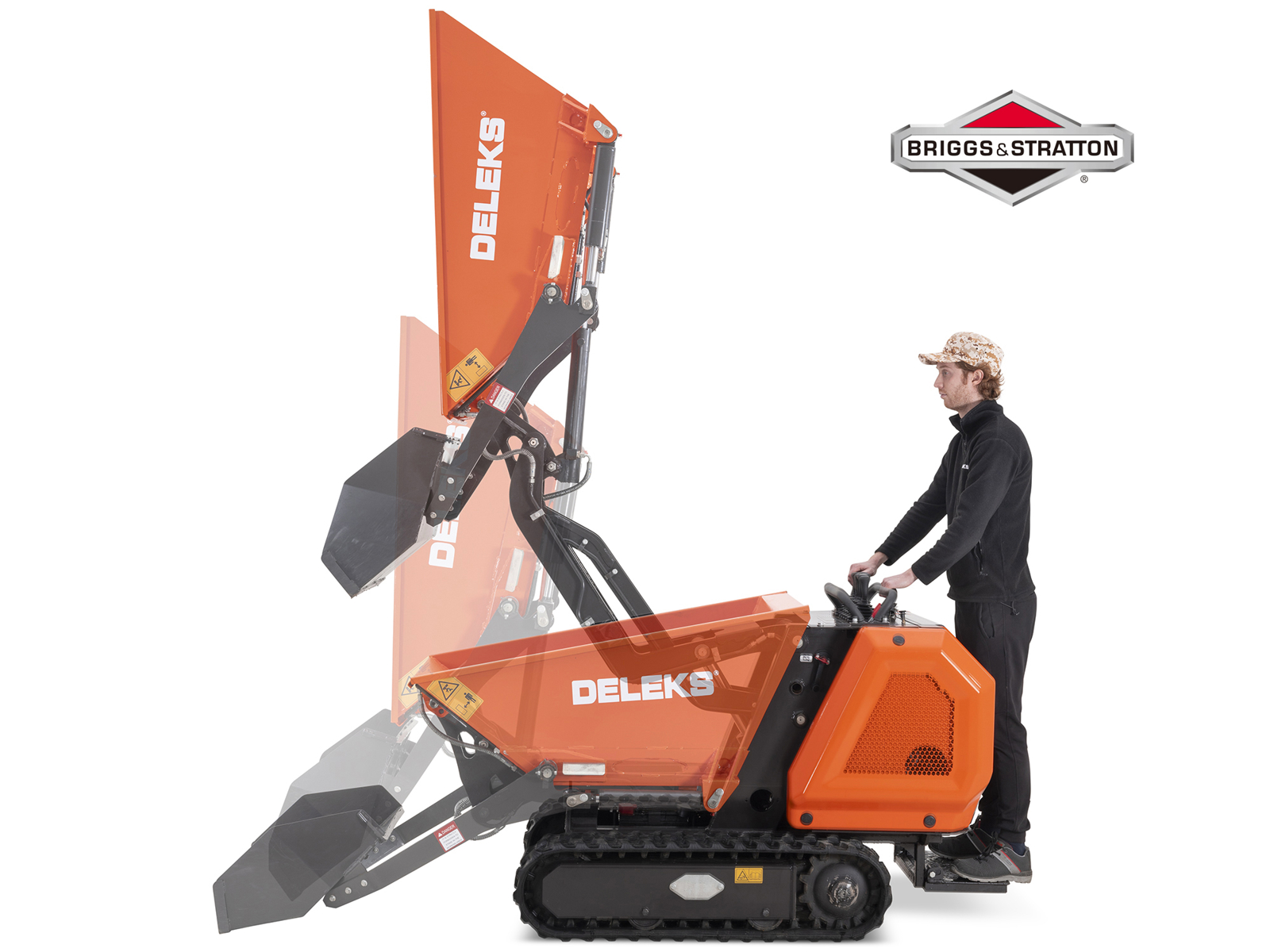

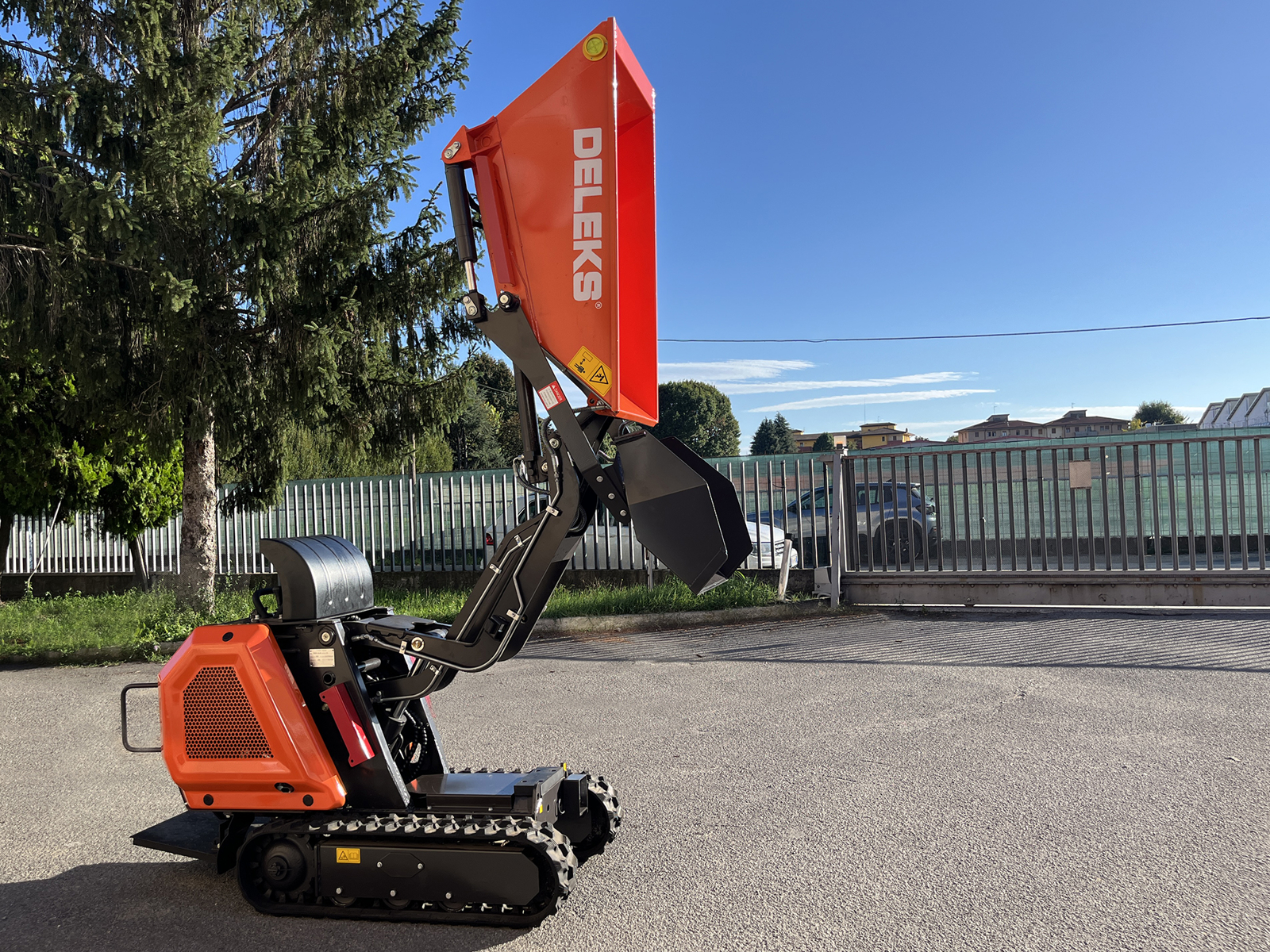

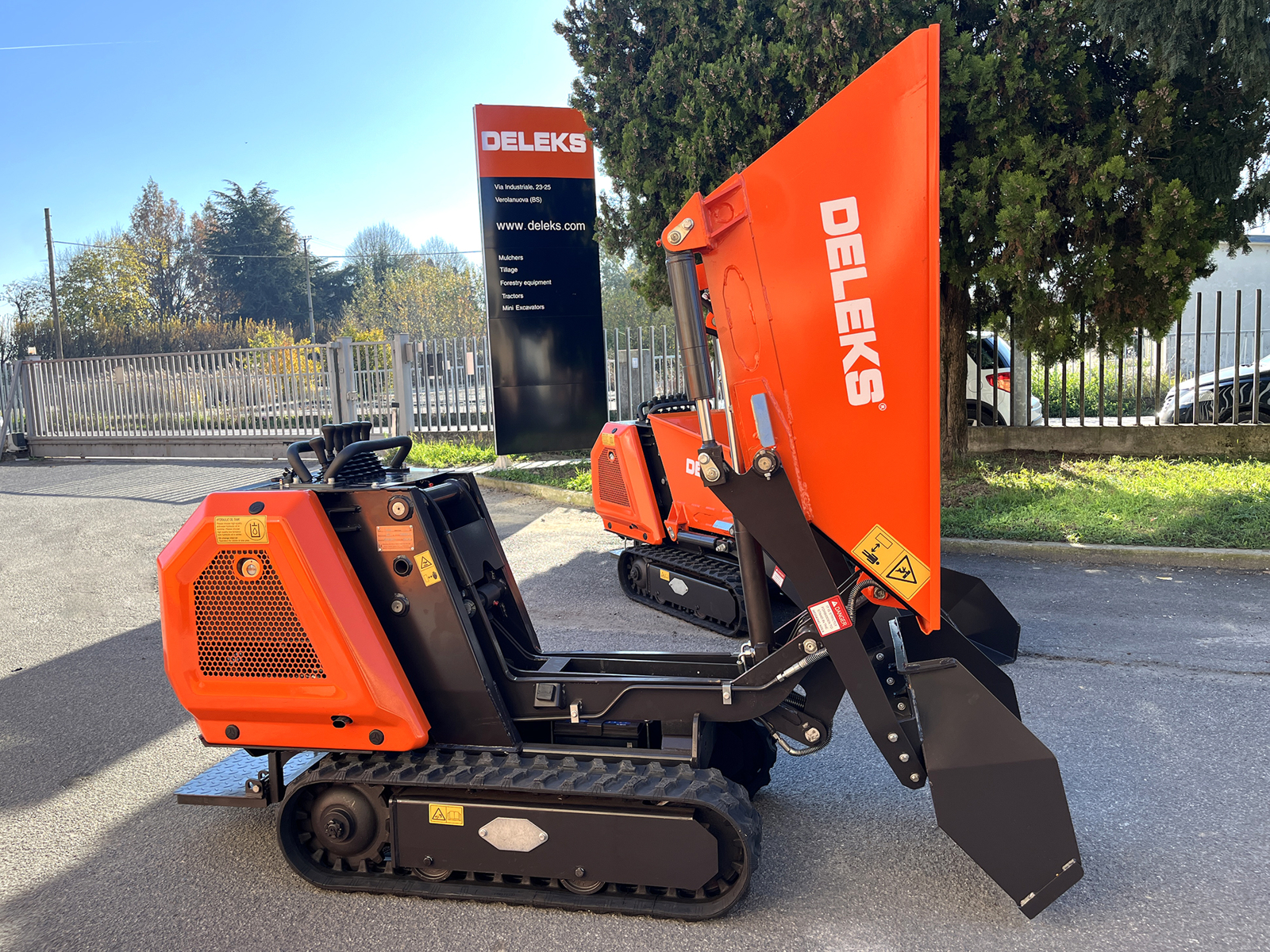

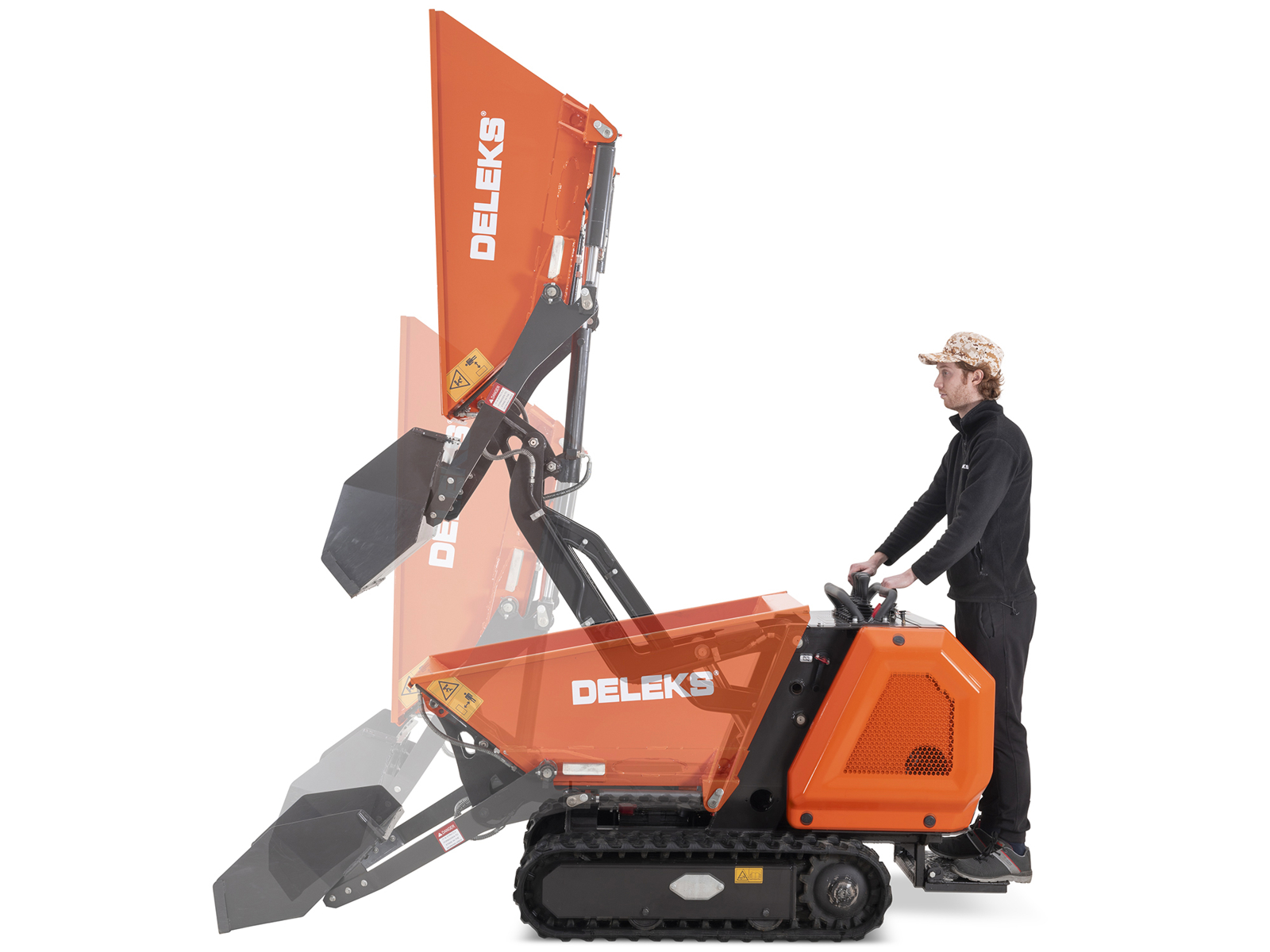

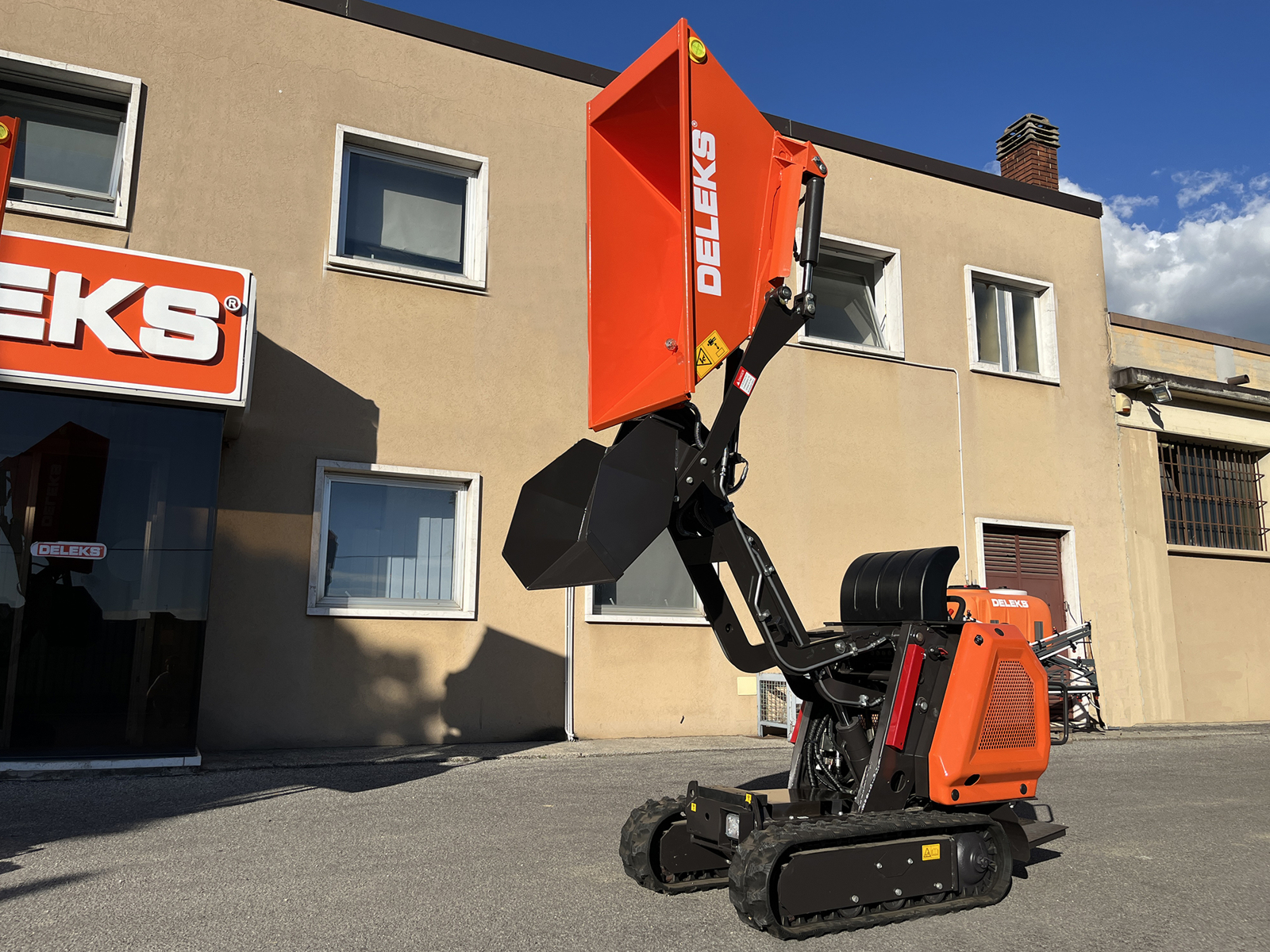

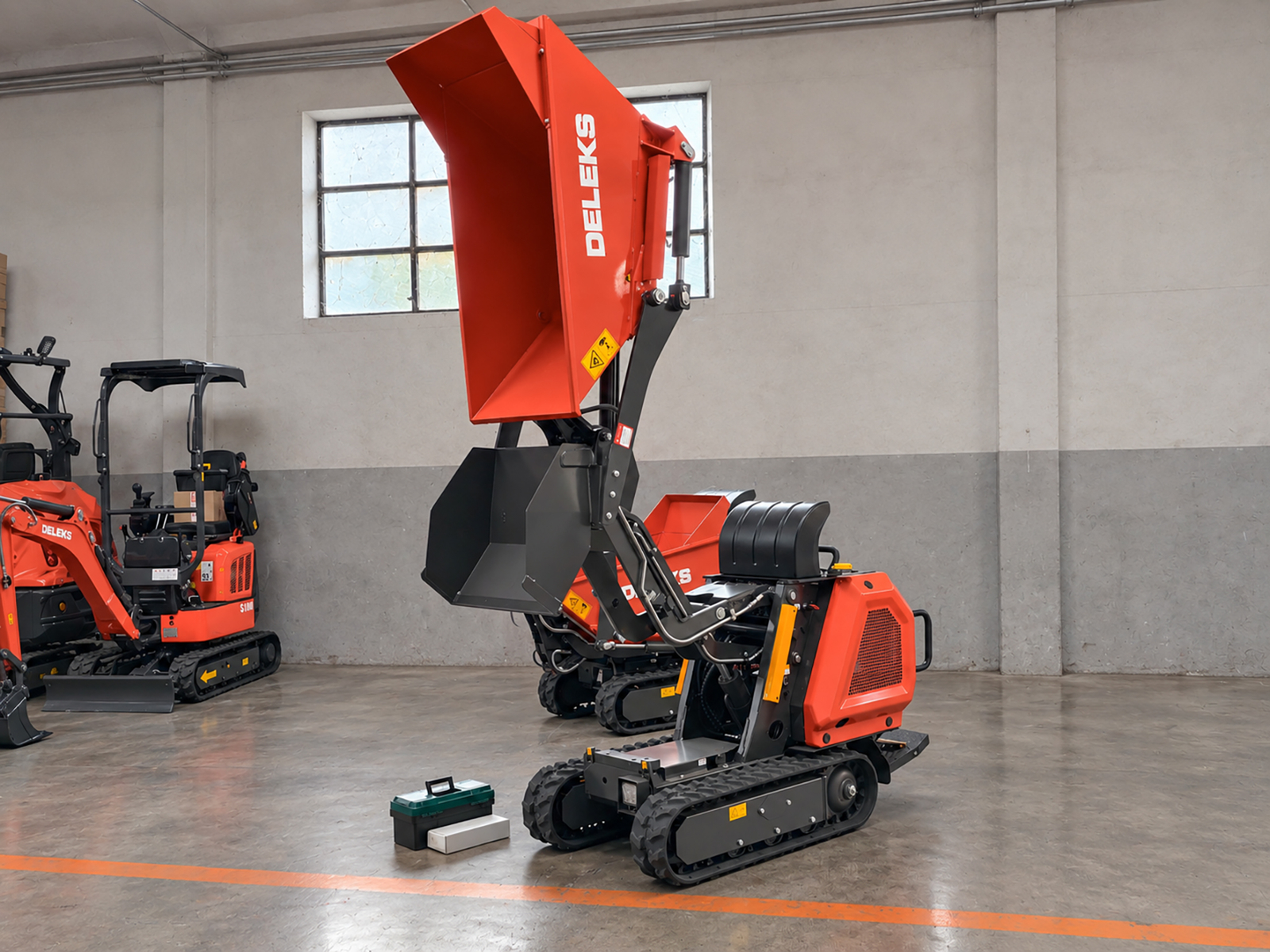

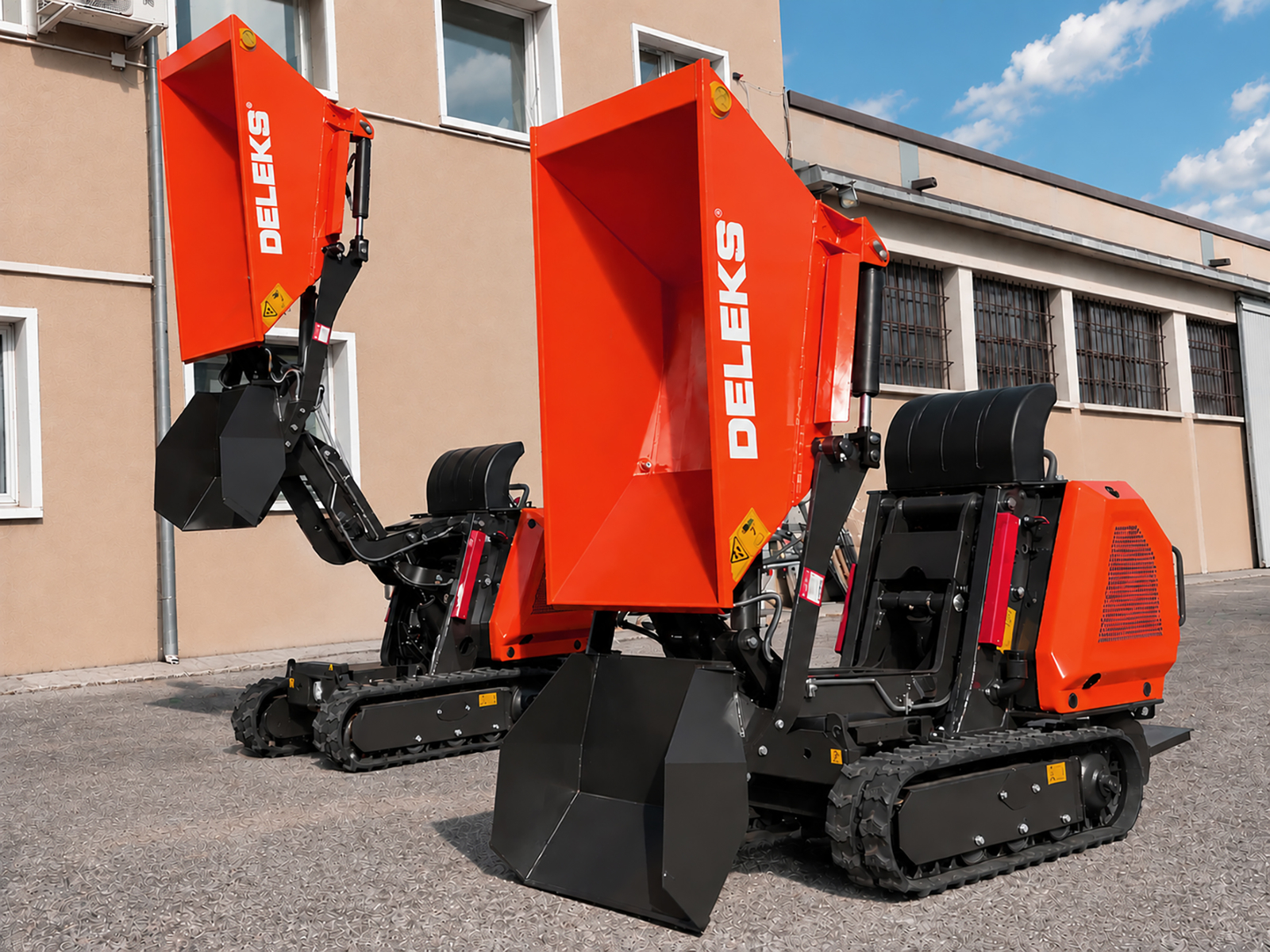

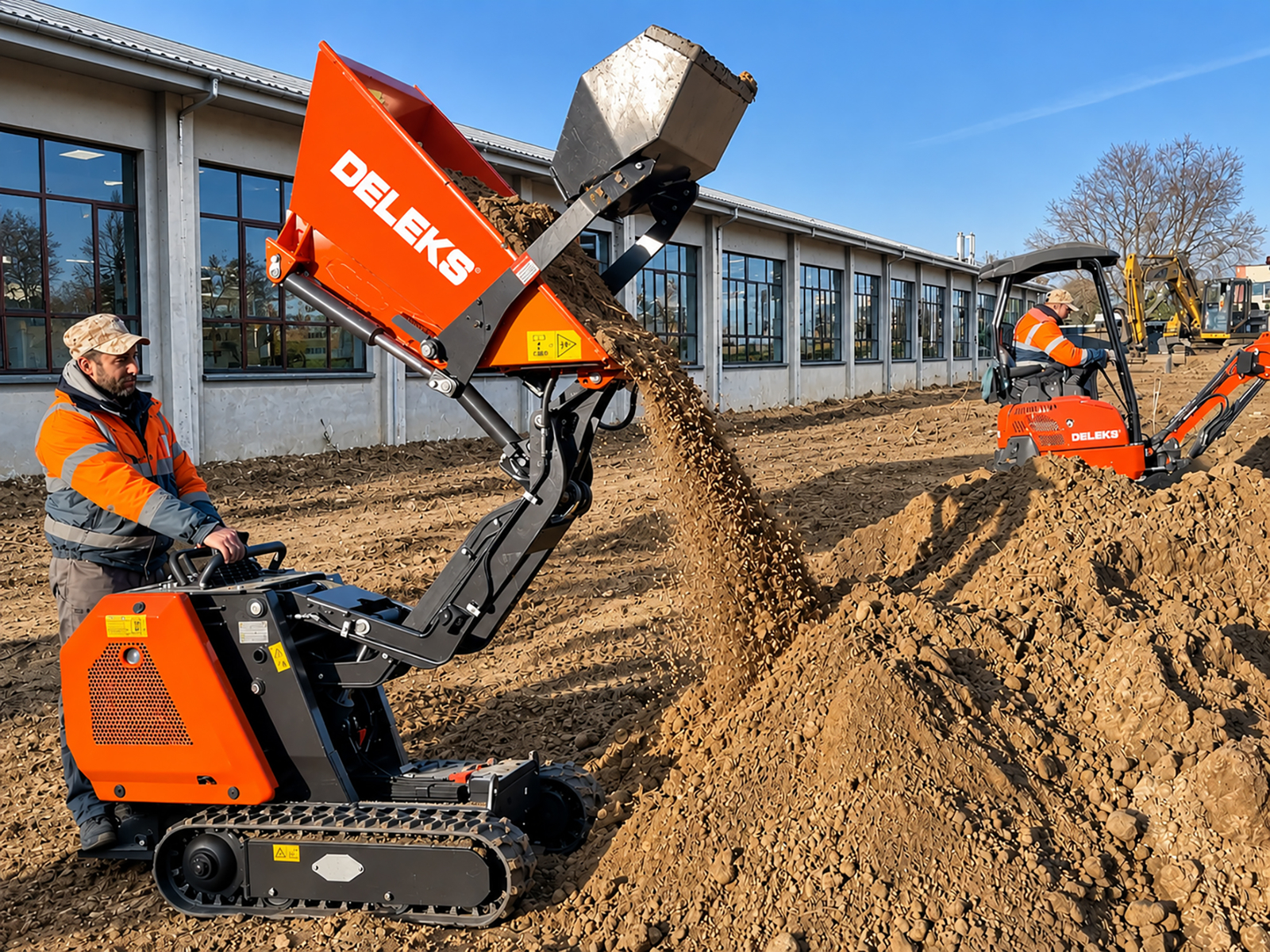

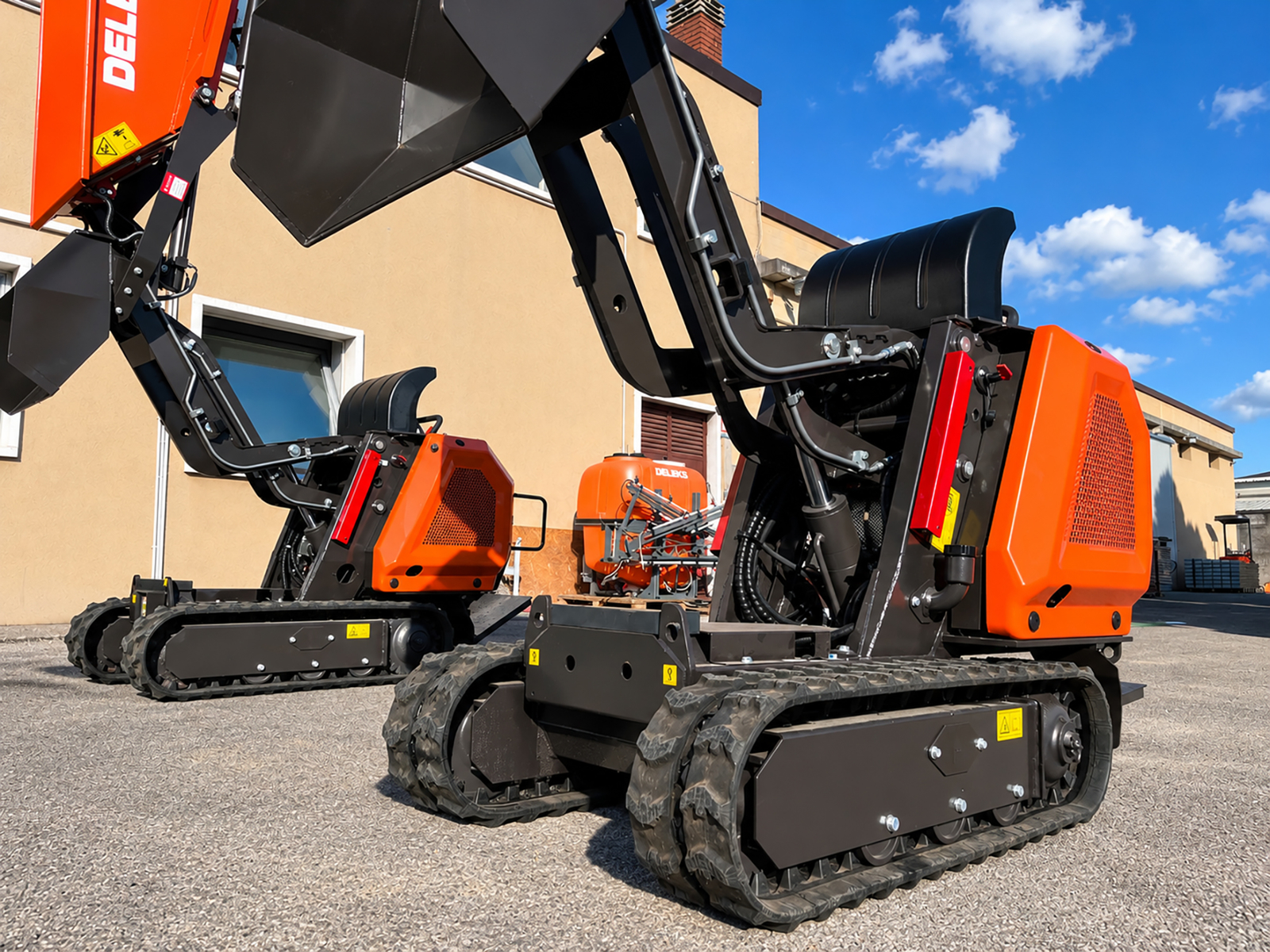

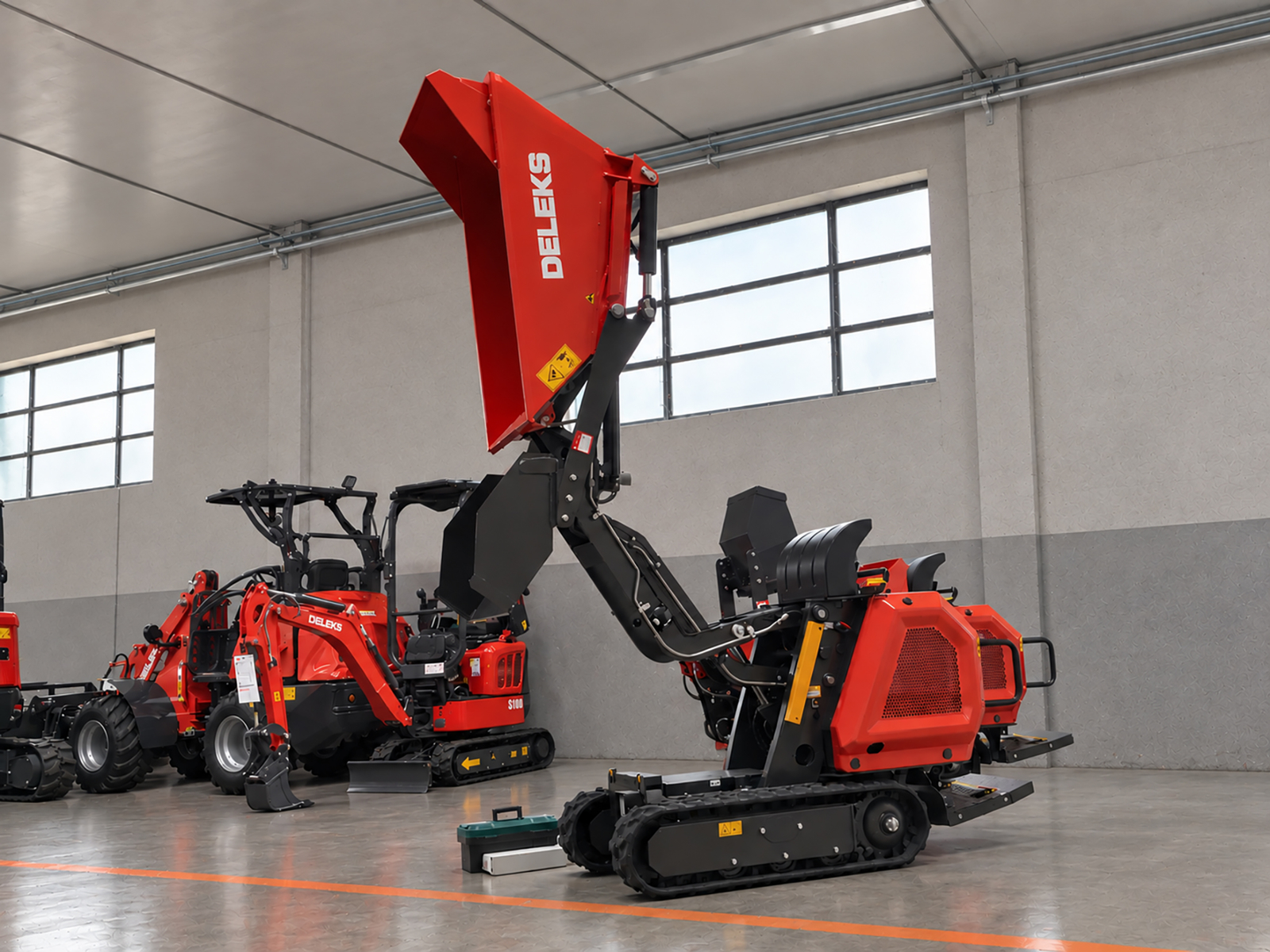

High dump for tipping onto the truck bed

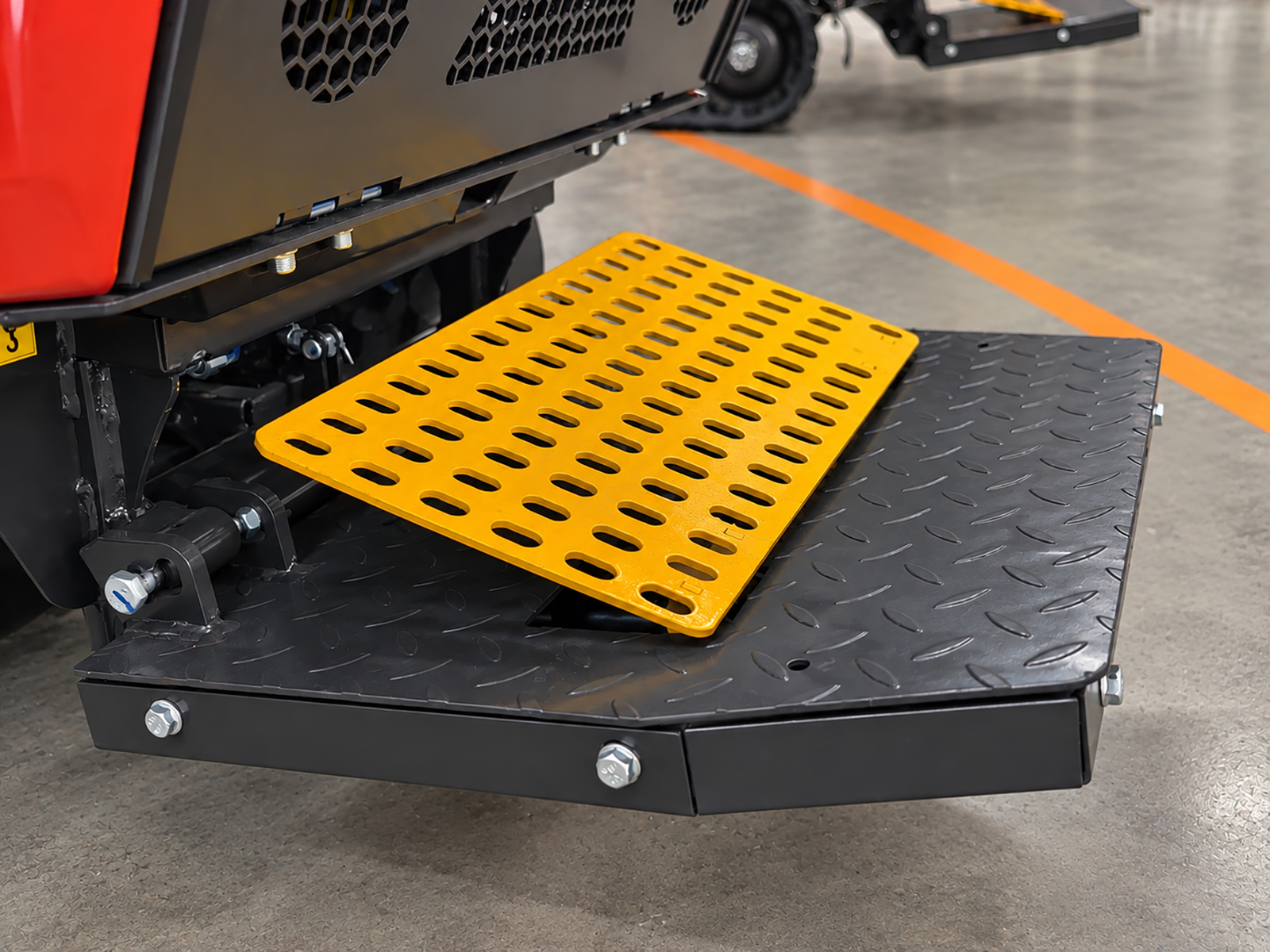

Operator platform
Hydrostatic transmission

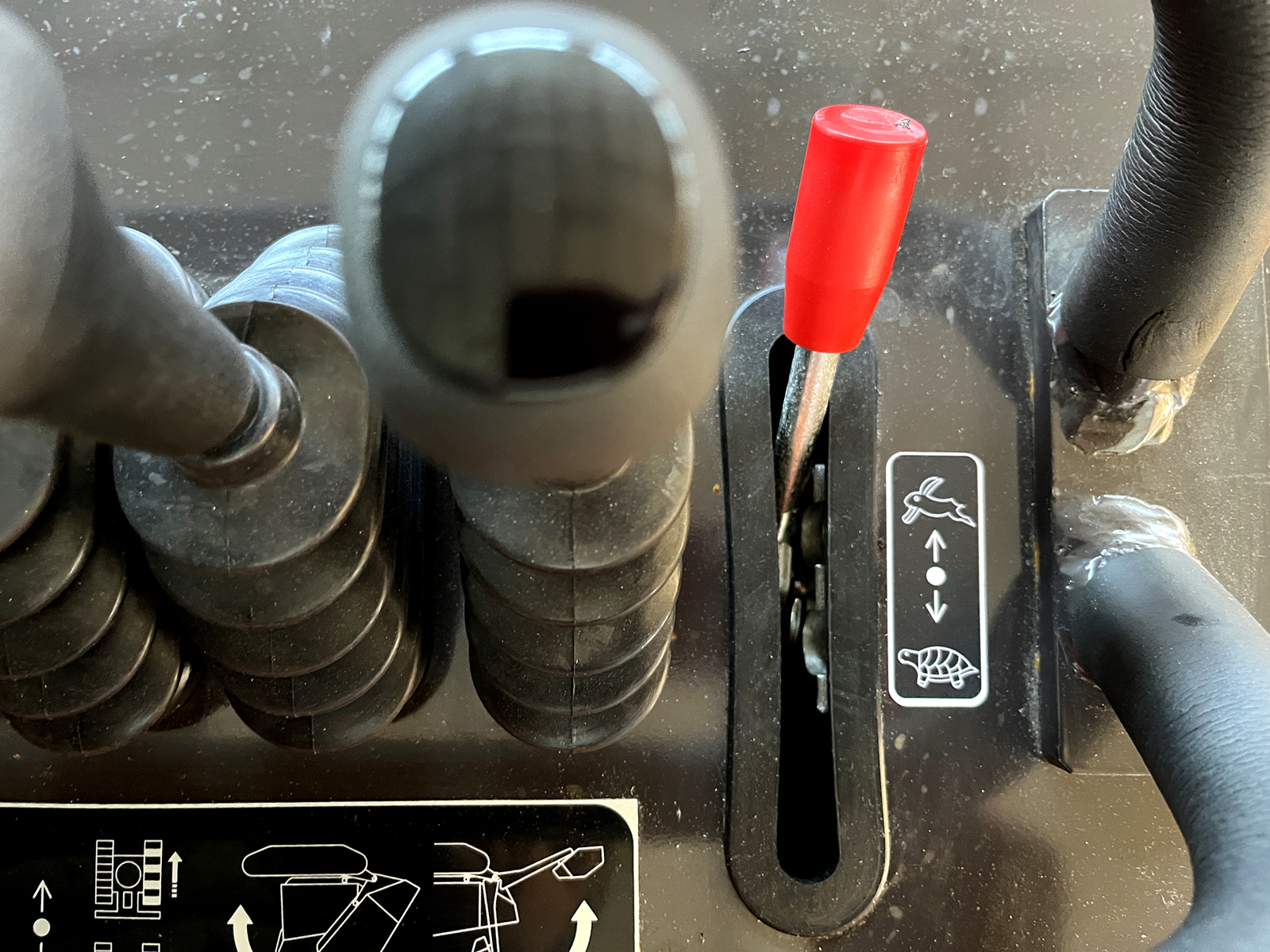

Double speed (2 - 4 km/h)

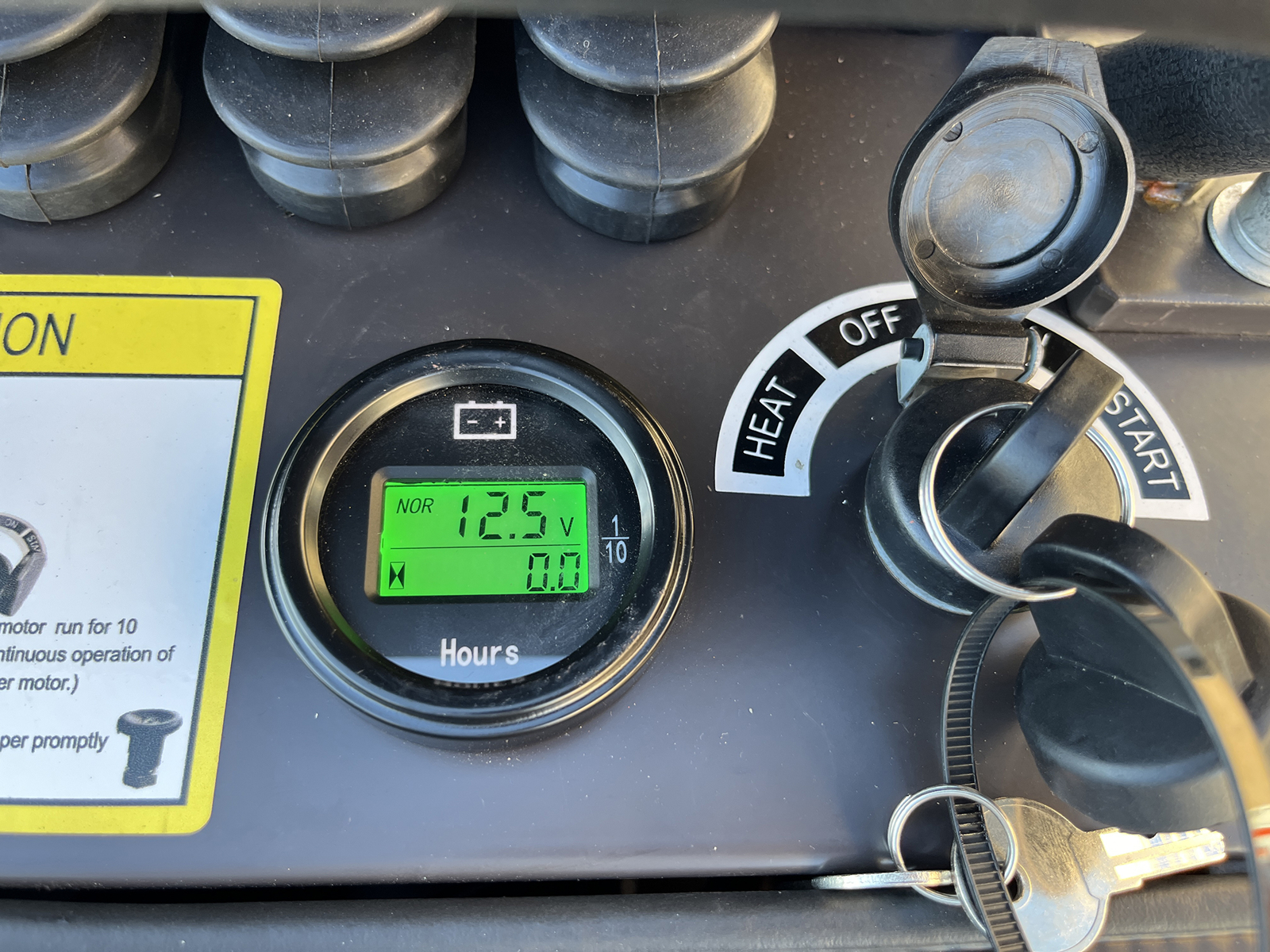

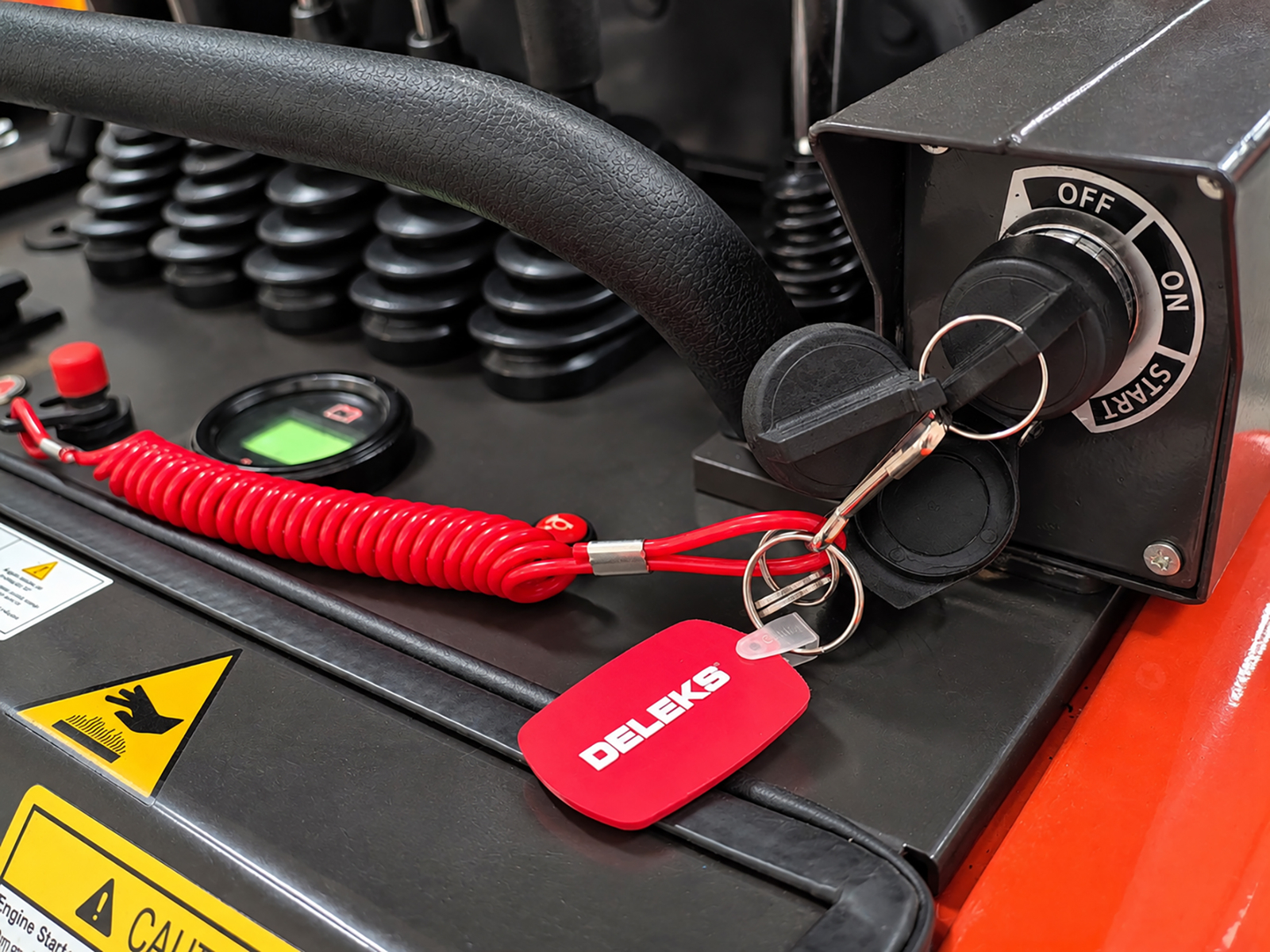

Electric start with key
Reinforced body for heavy-duty work
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 820.0 mm |
| Weight | 750.0 kg |
| Load capacity | 800.0 kg |
| Overall length | 1795.0 mm |
| Tipping Mechanism | Hydraulic |
| Engine | 13.5Hp Briggs&Stratton XR2100 420cc |
| Starter | E-start |
| Fuel consumption | 1 l/h |
| Bucket capacity (m3) | 0.26 |
| Packing sizes | 1800.0*900.0*1200.0 mm |
DETAILS
CLOSEDELEKS® M8000-BS Self-loading tracked minidumper, high dump, hydrostatic transmission, operator platform, Briggs&Stratton engine, electric start.
APPLICATION
M8000-BS tracked minidumper suitable for loading and moving earth, sand, building material, waste, etc.
Briggs&Stratton XR2100 engine, 13.5hp/10Kw a 3600 r/min (7.6kw at 3000 r/min), 420cc
Fuel: petrol
Body: dumper type with high tip
Capacity: 800 kg
Tipping: hydraulic
Driving system with lever controls
Measurements: see images
Track width/length: 180mm x 1200mm
ADVANTAGES
High dump for tipping onto the truck bed
Operator platform
Hydrostatic transmission
Double speed (2 - 4 km/h)
Electric start with key
Reinforced body for heavy-duty work
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Overall width | 820.0 mm |
| Weight | 750.0 kg |
| Load capacity | 800.0 kg |
| Overall length | 1795.0 mm |
| Tipping Mechanism | Hydraulic |
| Engine | 13.5Hp Briggs&Stratton XR2100 420cc |
| Starter | E-start |
| Fuel consumption | 1 l/h |
| Bucket capacity (m3) | 0.26 |
| Packing sizes | 1800.0*900.0*1200.0 mm |
