Snowplow with 3 point linkage for tractor, LNV-300-C
DETAILS
Product conditions:
Product in good condition, refurbished by the manufacturer, shows signs of use.

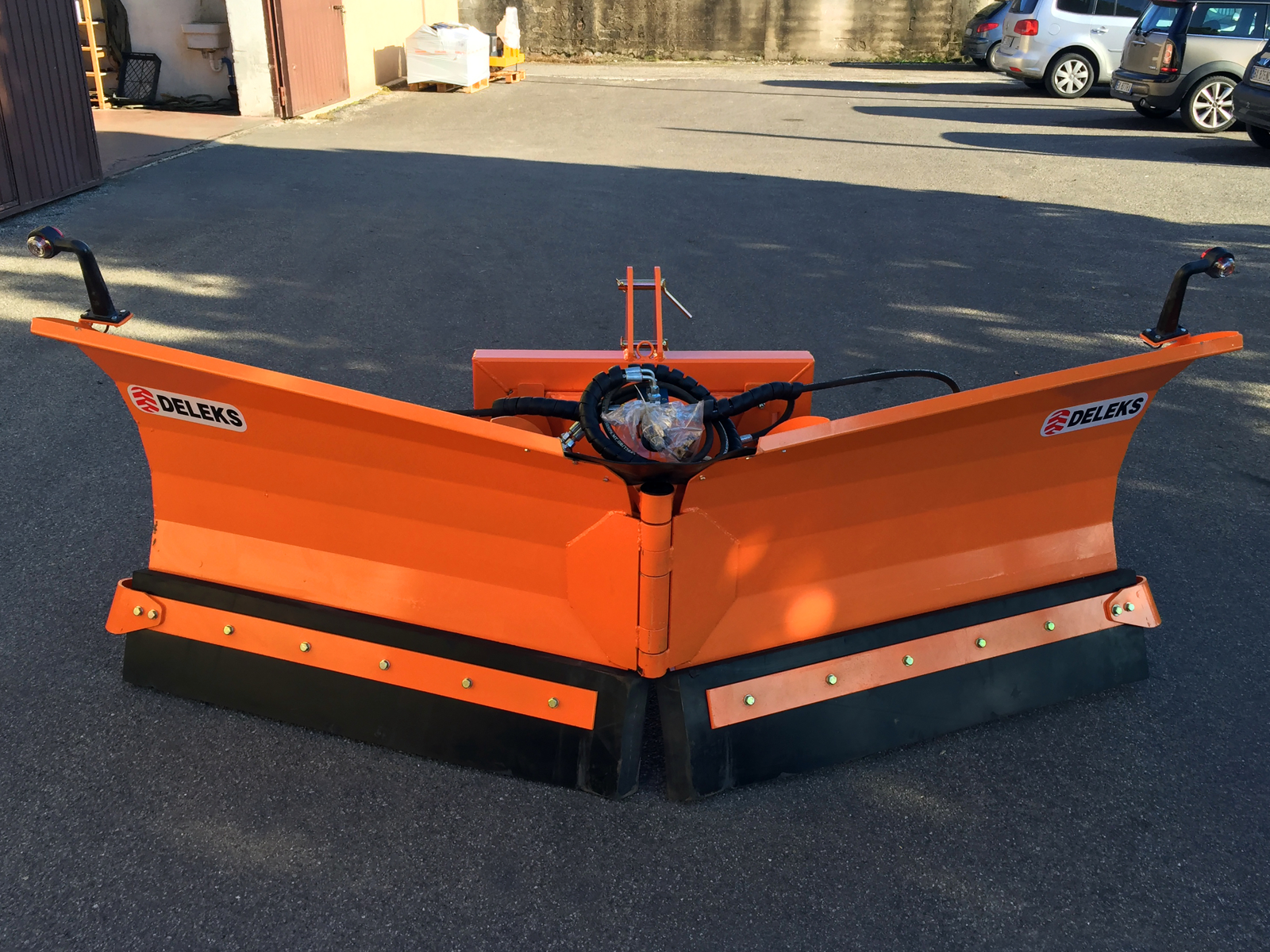

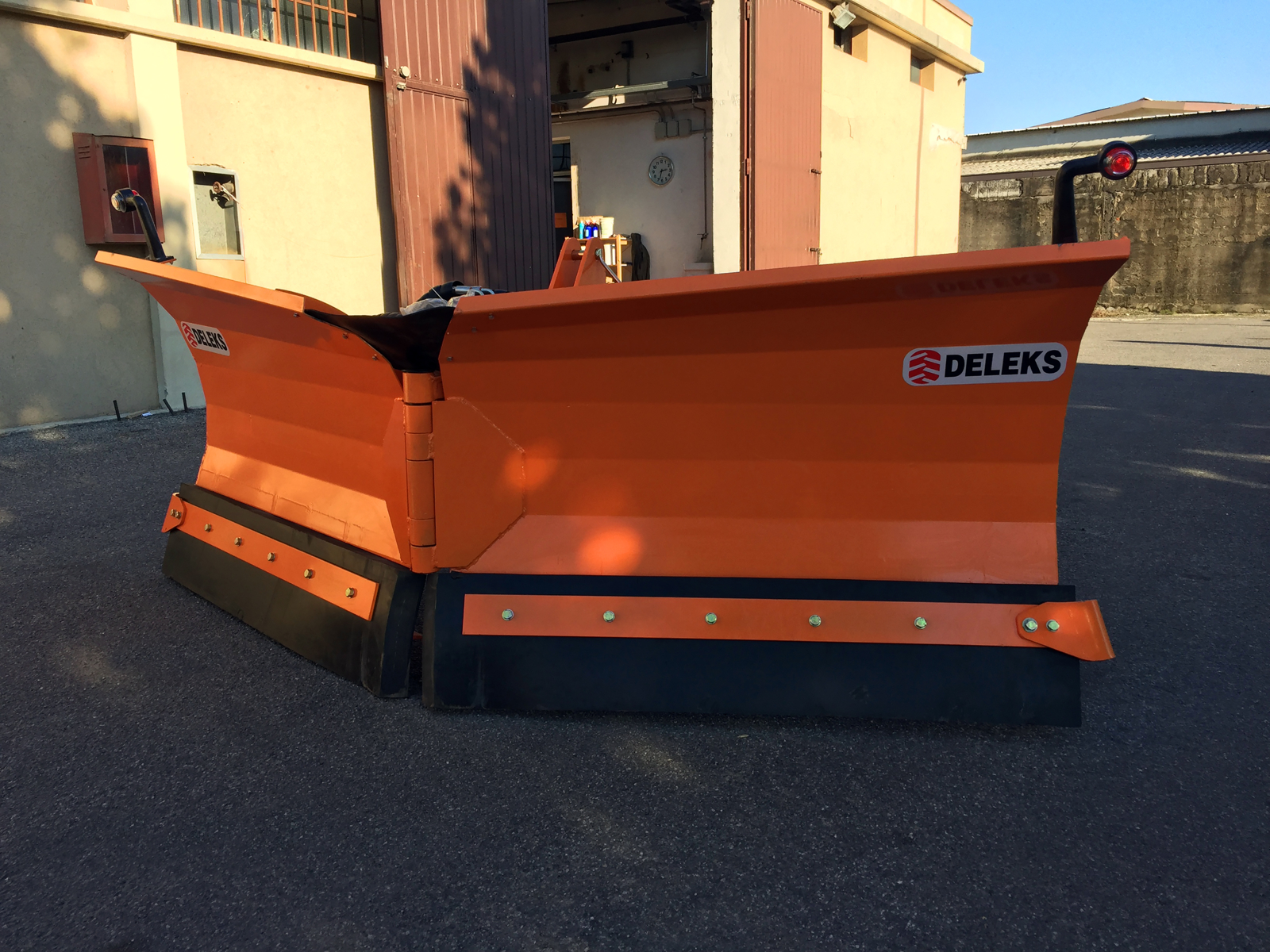

Snowplough 300cm - DELEKS® - Snowblade for tractor - 3 point linkage - Rubber blades - Homologated for road use.
OVERVIEW
The LNV-300-C has been designed for 60-90 hp tractors, e.g. Mistral Landini, Kubota L, Goldoni, John Deere, or reversible tractors like Ferrari, Antonio Carraro, BCS, Pasquali, Valpadana.

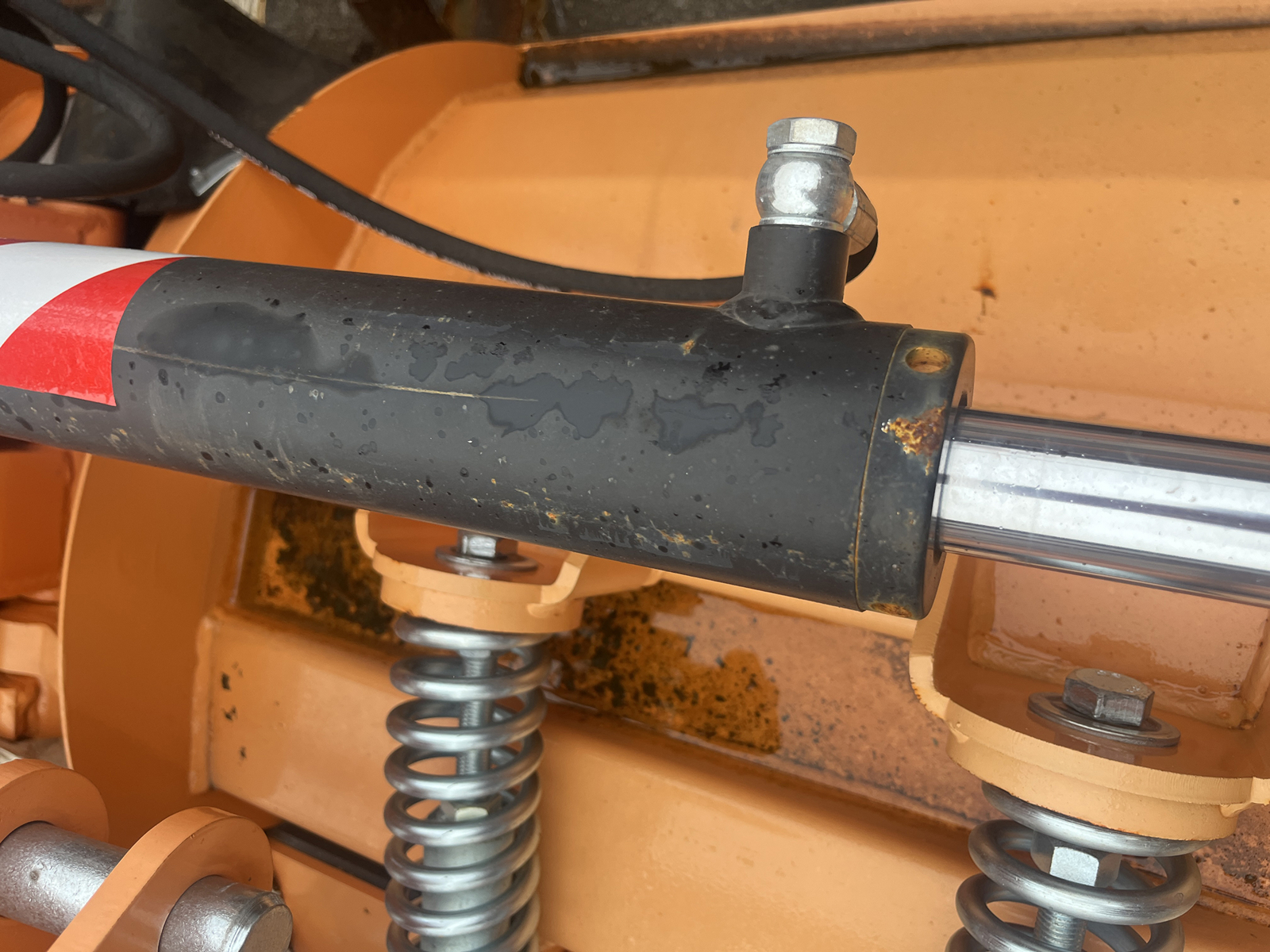

Angling of the plow is done hydraulically using two pistons, a 6-way solenoid valve and two hydraulic pipes (2.0m).

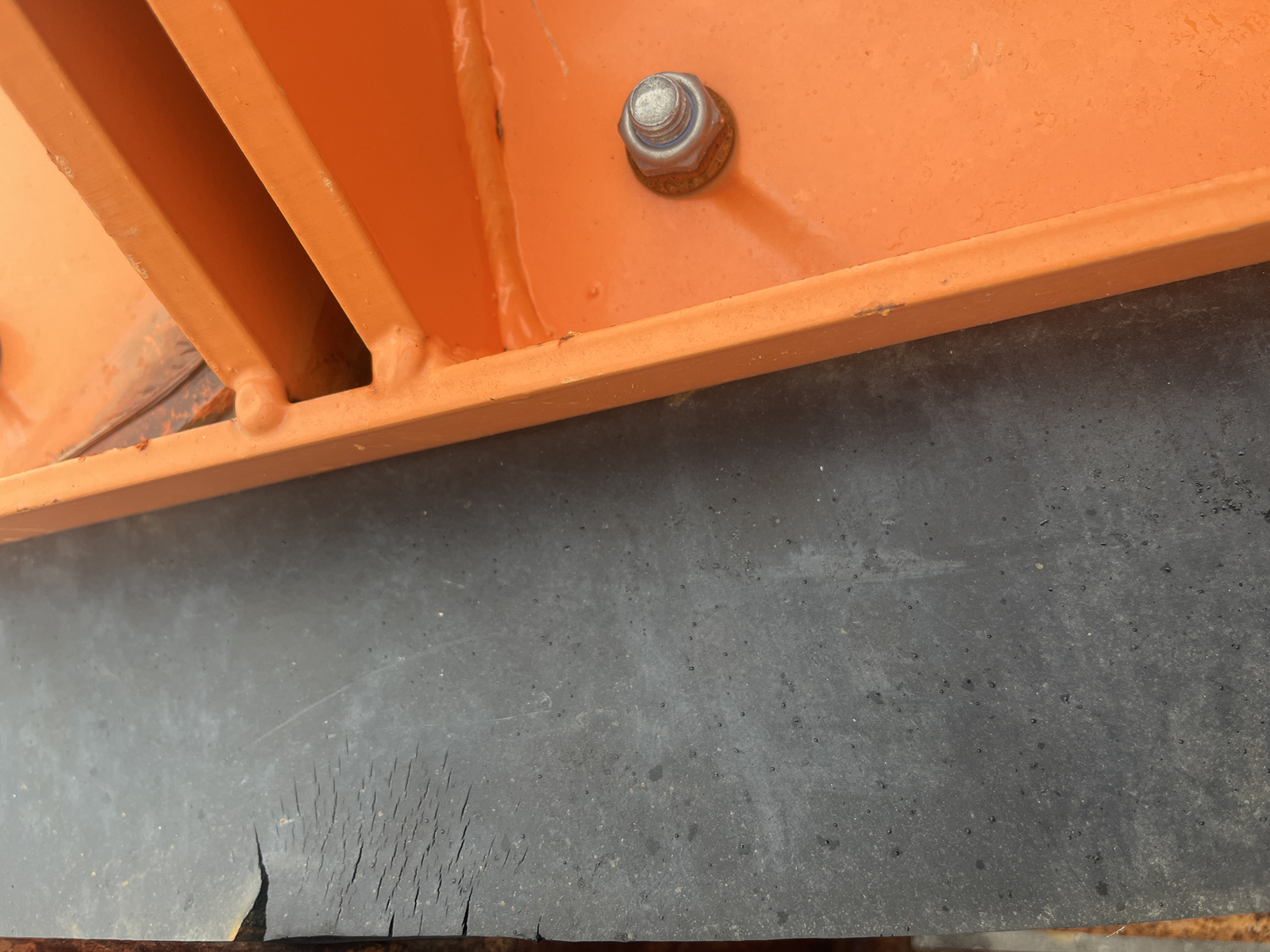

The plow has a replaceable rubber blade, spring swivel mount which makes the plow resistant to impact of obstacles. Supplied with marker lights. Conforms to the EC Machinery Directive. 2 years guarantee.
BENEFITS AND FEATURES
Hydraulically controlled plowshares allow for four different working positions (open, closed, left and right).

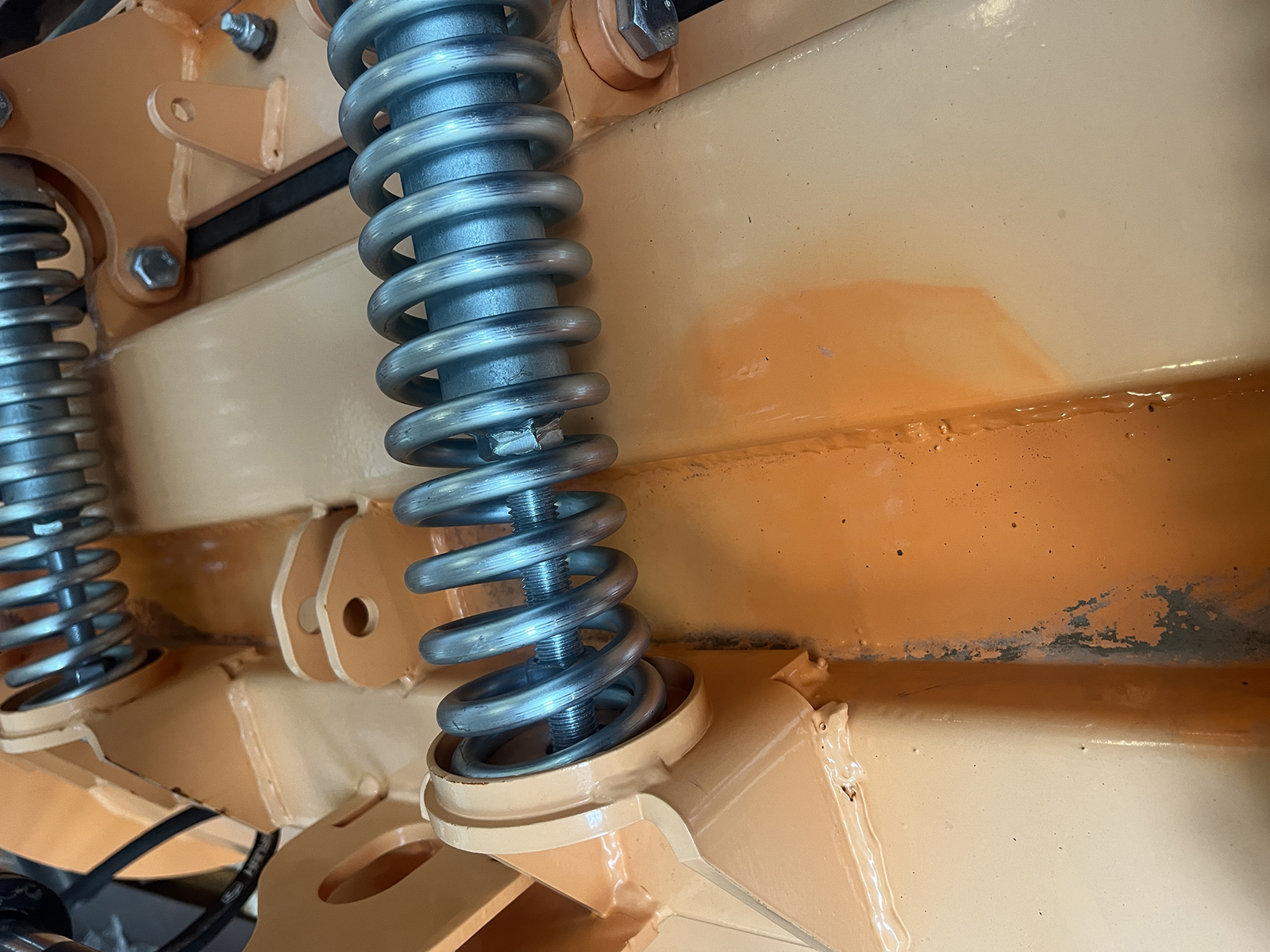

Anti-shock system with 4 shock absorbing springs to overcome obstacles safety.
2 independent plowing elements.
Lateral oscillation system which allows a perfect adherence to the road surface.
Extremely easy installation and usage.
The 3-point hitch is removable and replaceable with EURO or Skid steer attachment.
Perfect adherence to the road surface and homologated for road use.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.

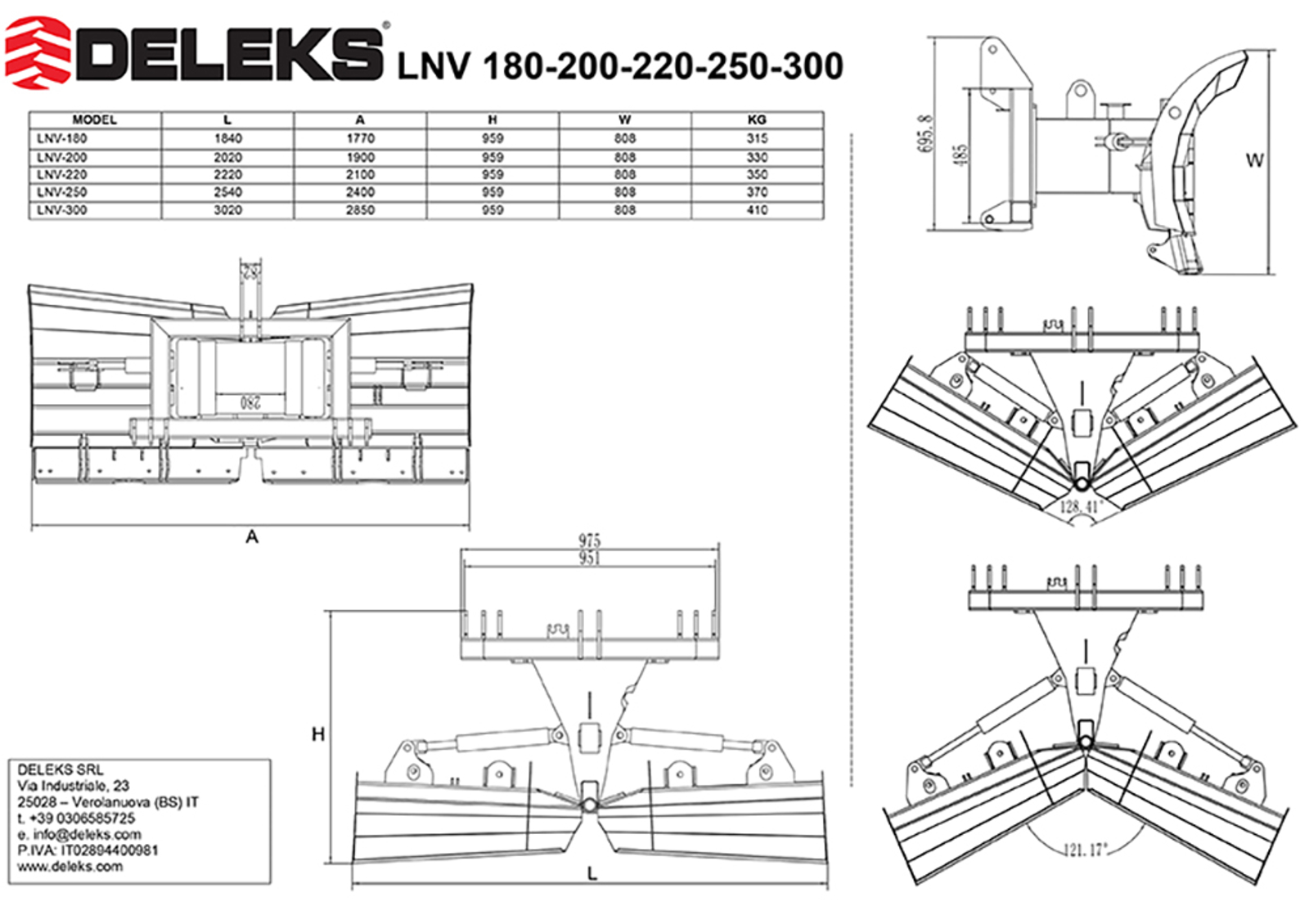

CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 410.0 kg |
| Overall height | 1020.0 mm |
| Tractor Power Range | 60 - 90 Hp |
| Overall Length | 870.0 mm |
| Spacing between the 2 lower points | 635.0 - 970.0 mm |
| Distance between the 2 lower points and ground | 180.0 mm |
| Min./Max. Relief Pressure | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Interface | 3 Point linkage cat. 1-2 (19.0-22.0 / 25.0-28.0 mm) |
| Angling (left/right) | 30° |
| Float | +/- 6° |
| Blade Height | 920.0 mm |
| Side edge thickness | 5.0 mm |
| Shock absorbers | 6 |
| Cutting Edge | Rubber |
| Cutting Edge Height | 265.0 mm |
| Cutting Edge Thickness | 50.0 mm |
| Trip Edge Quantity | 2 |
| Distance betweens the bolts of the Trip Edge | 200.0 mm |
| Lights | √ |
| Removable Skid Shoes | x |
| Working width (angled) | 2850.0 mm |
| Hydraulic Hoses | 2 x 2000.0 mm / connections 1.2" AGRI, WP 400 bar |
| Overall width | 3020.0 mm |
| Main frame thickness | 4.0 mm + reinforces |
| Hydraulic cylinder/s ø | 60.0/30.0 mm |
| Packing sizes | 3050.0*1000.0*800.0 mm |
