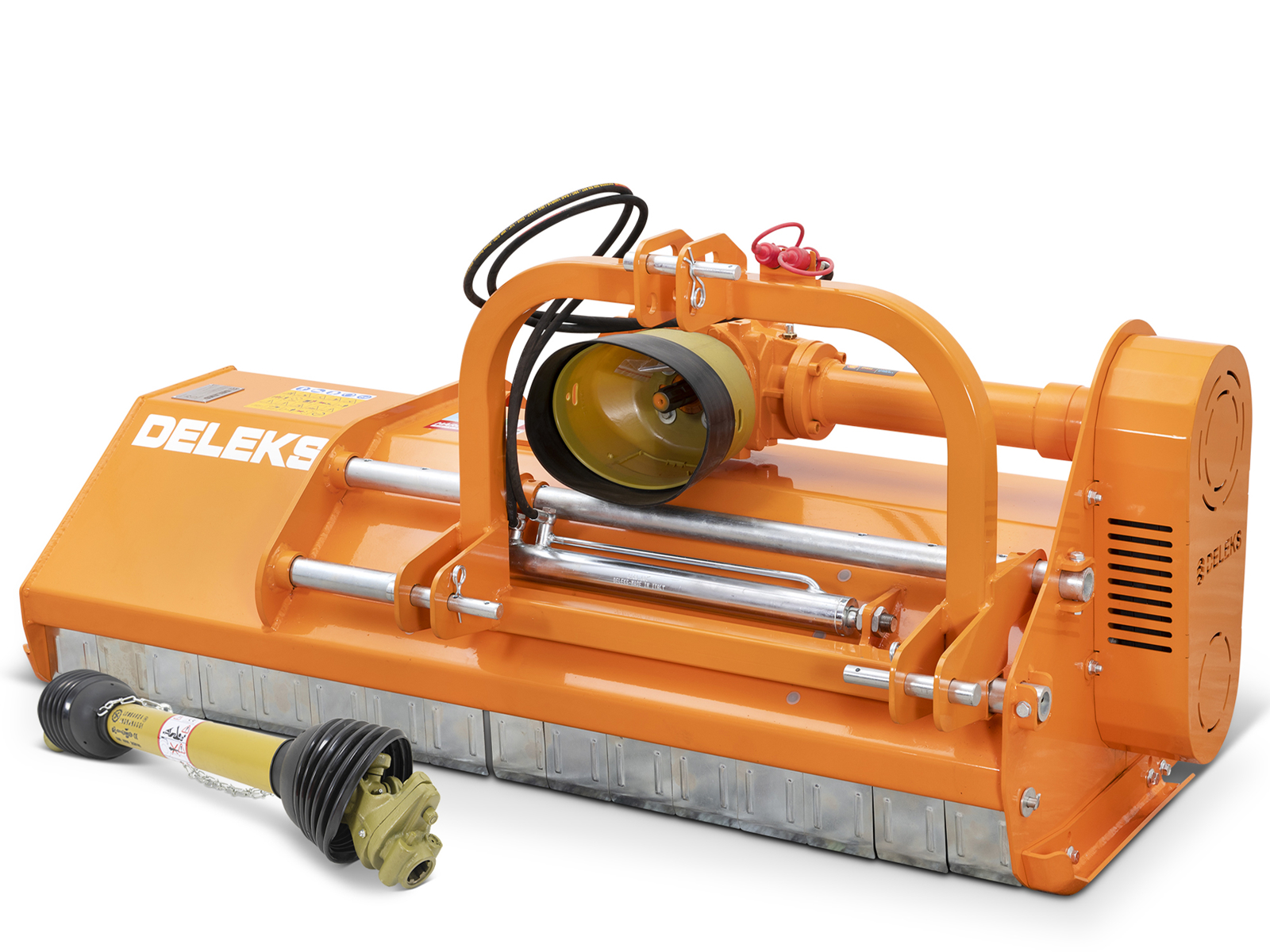

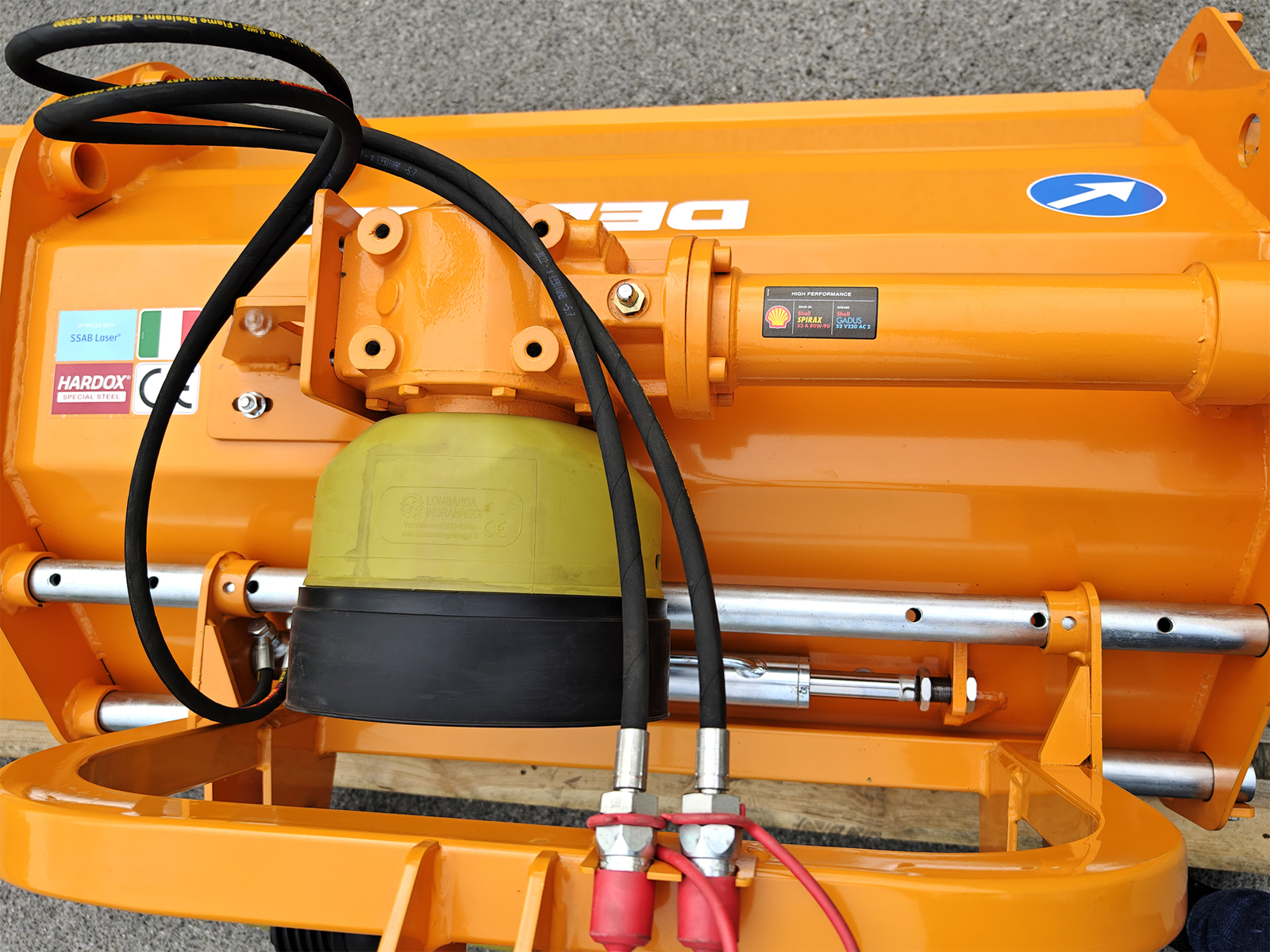

Flail Mower 140cm with hydraulic sideshift - for narrow 30-60HP Tractors, Shredder, Mulcher - LINCIONE-140-SPH

Shredder with hammers 140cm / 320kg for tractors - DELEKS^® LINCIONE-140-SPH - Hydraulic displacement 310.0 mm - Pto shaft included.

OVERVIEW

Shredder with hammers for orchard, vineyard, olive grove and uncultivated areas. Professional Flail Mower with hydraulic side shift.

Working width 140cm - Weight 320kg.

Suitable for working on grass, leaves, vineyard and olive groves, for tractors from 30 to 60 HP, like Goldoni, Kubota, Landini, Antonio Carraro, Same, Lamborghini...

The LINCIONE-140-SPH model is presented as a versatile shredder, suitable for cutting grass and thanks to its robust structure it is very useful for shredding prunings and pruning residues, up to 4-5 cm in diameter.

ADVANTAGES

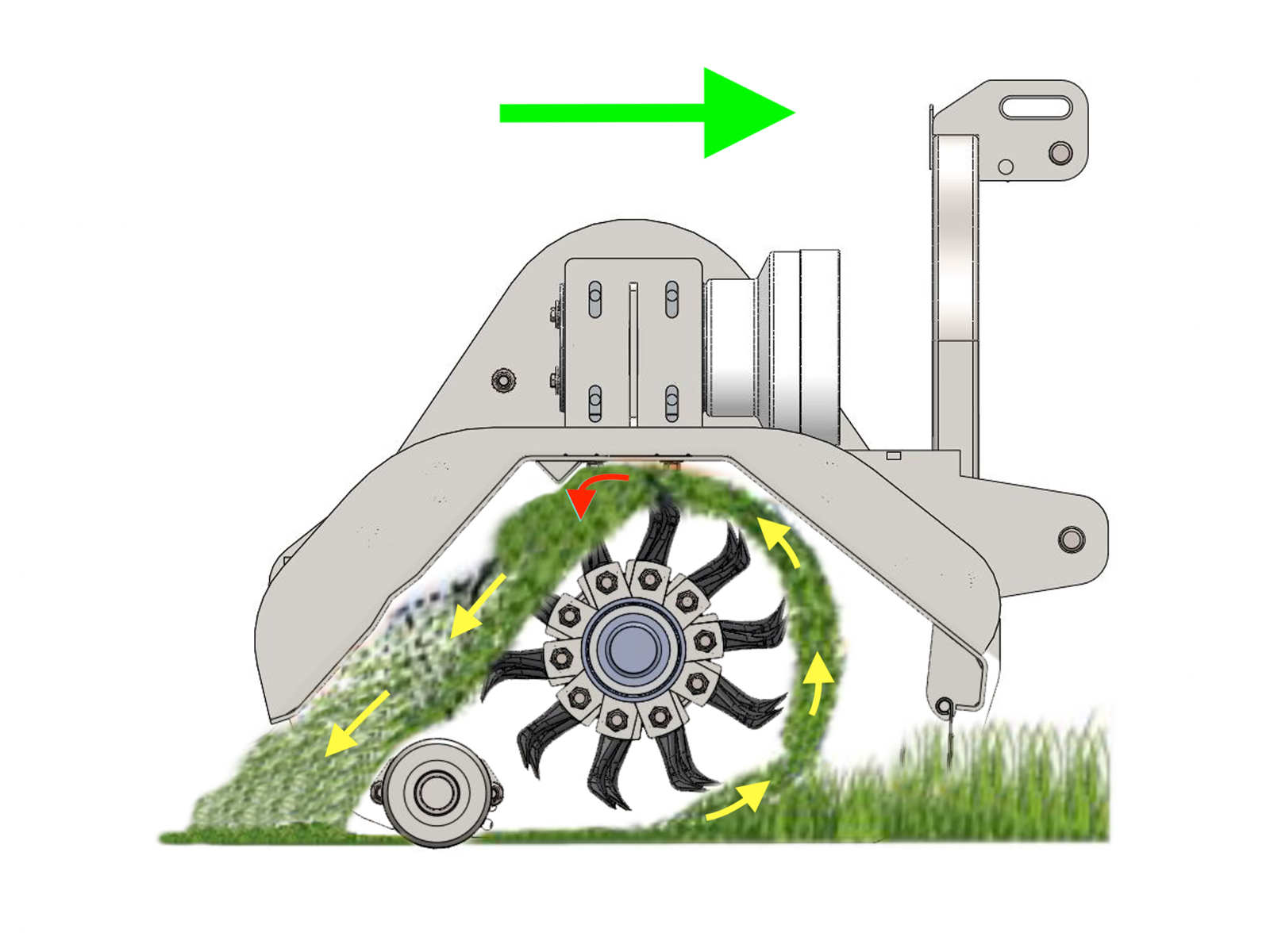

The special design of the shell allows perfect mulching of the grass and prevents clogging.

Sturdy structure suitable for professional use: frame casing thickness: 5.0mm, sides: 6.0mm, entirely made with Swedish SSAB steel.

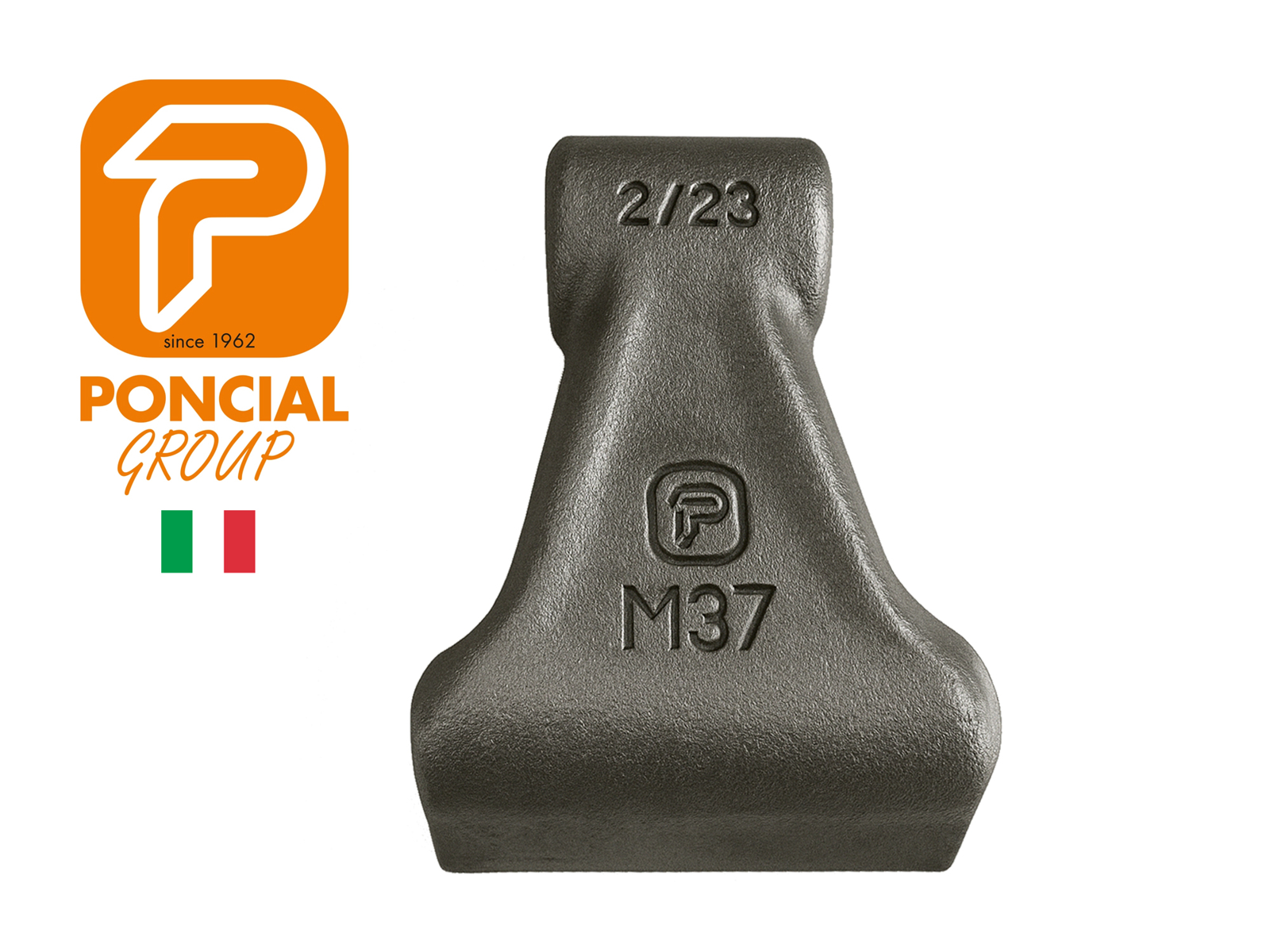

Forged hammers brand Poncial (Made in Italy).

Hammers attachments HARDOX made.

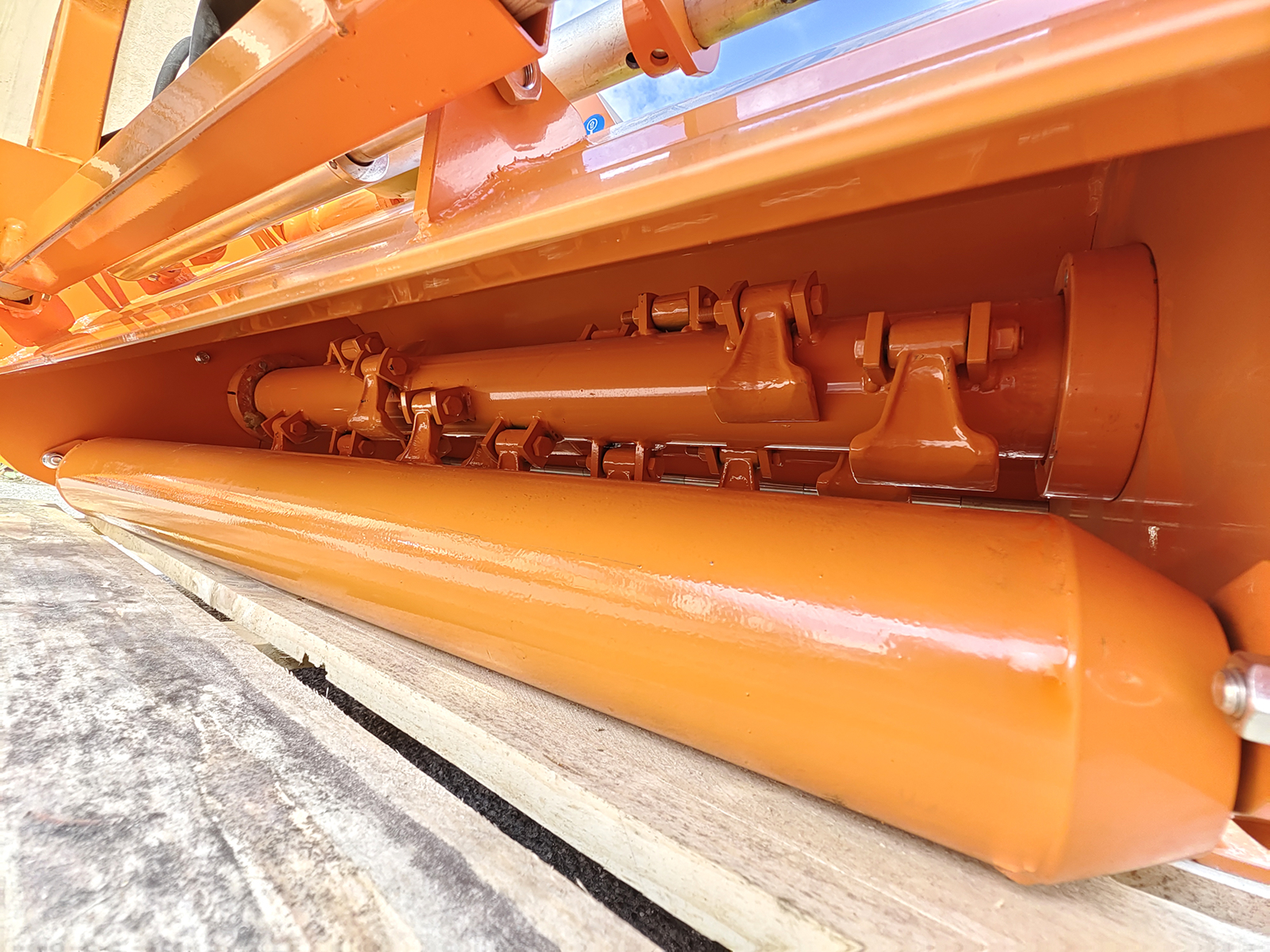

Rotor made with ARVEDI's tube, electronically balanced, 8mm thick S355 steel.

SKF self-aligning rotor bearings.

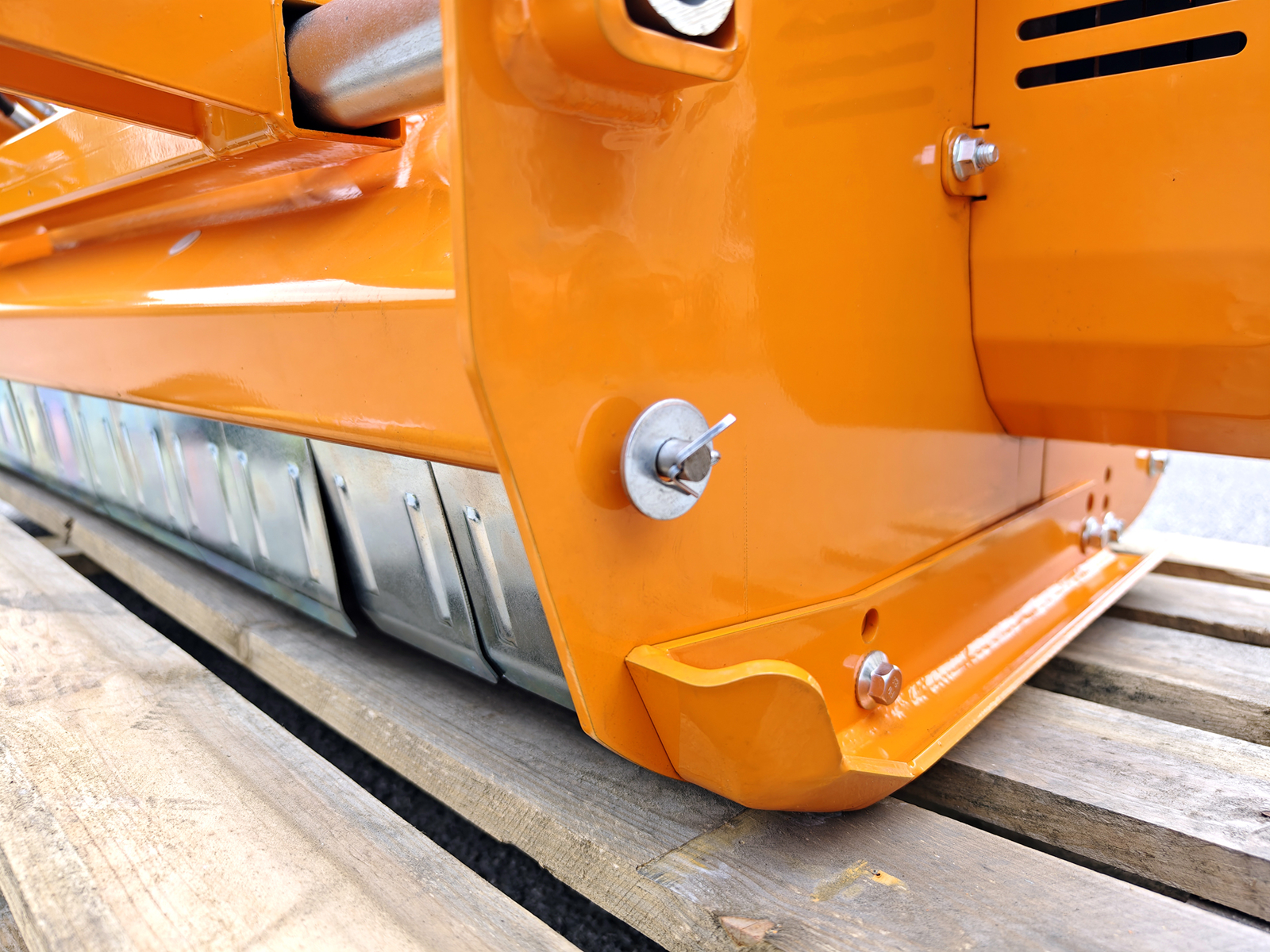

Lateral skids with double fold prevent the shredder from jamming in lateral movements.

Maximum application value on any type of residue, from the open field to the orchard.

EQUIPMENT

Universal 3-point hitch Cat. 1-2

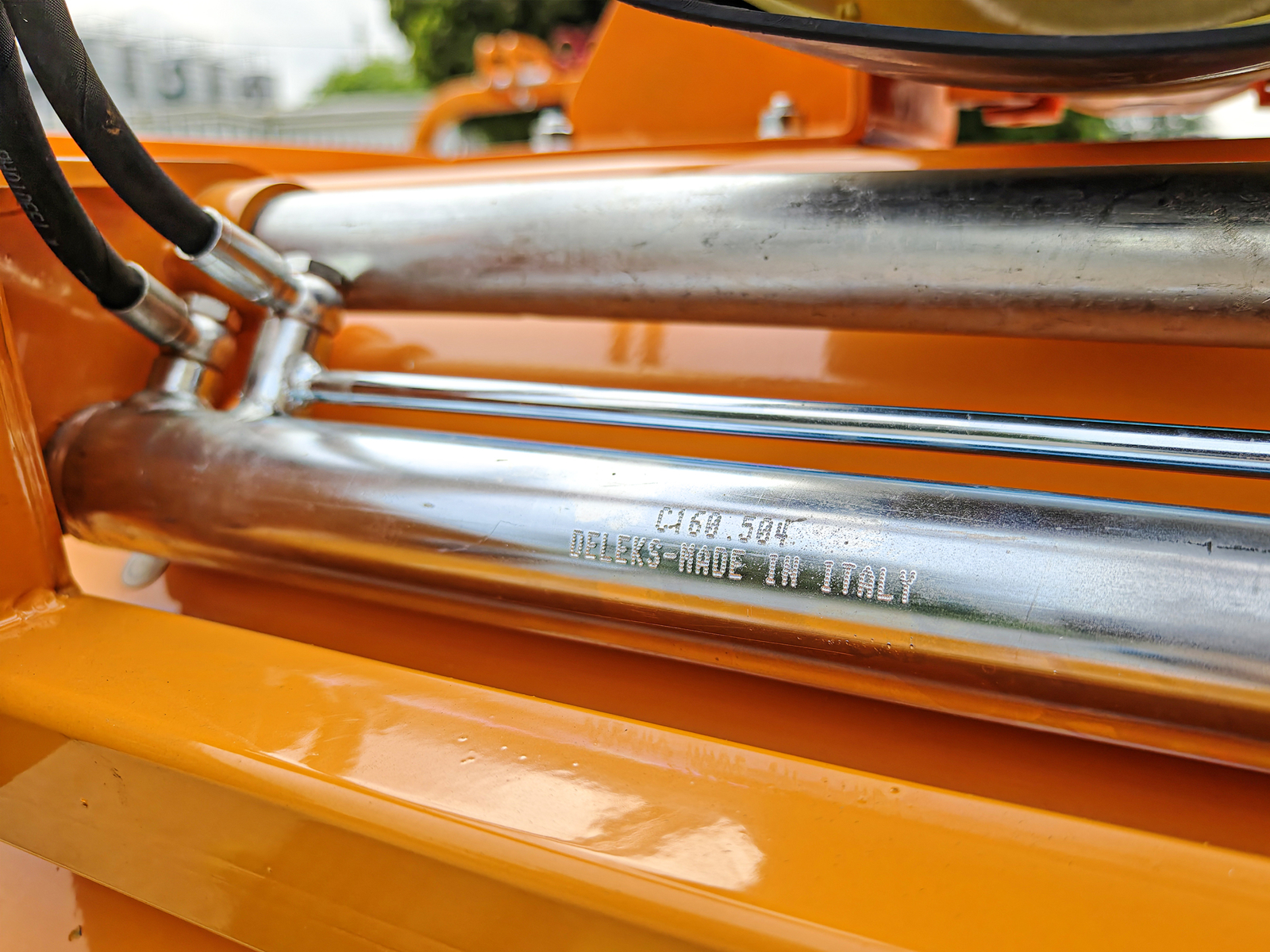

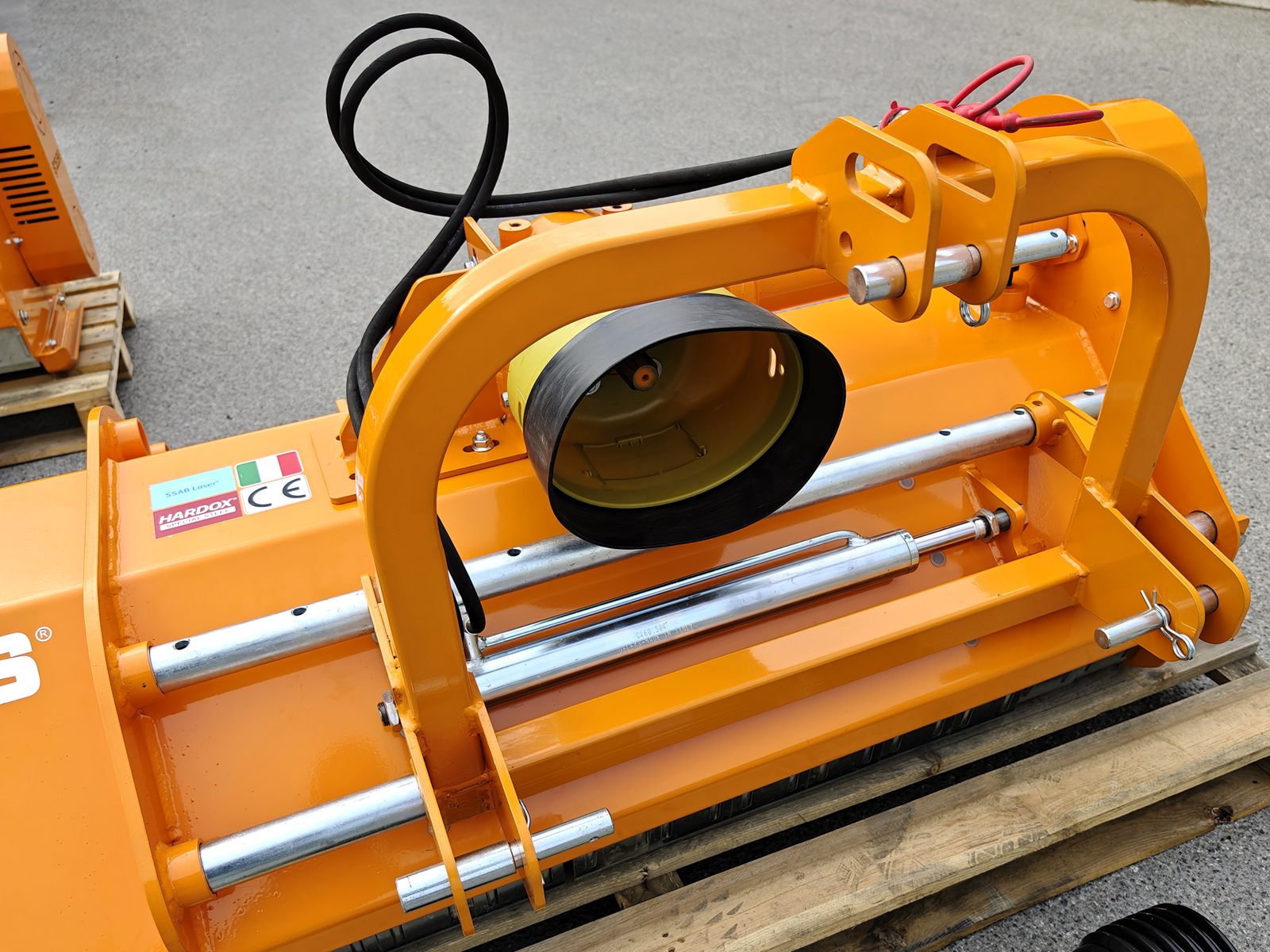

Hydraulic displacement 310.0 mm of the 3-point hitch

PTO 540 r / min with built-in freewheel, brand Lombarda Ingranaggi

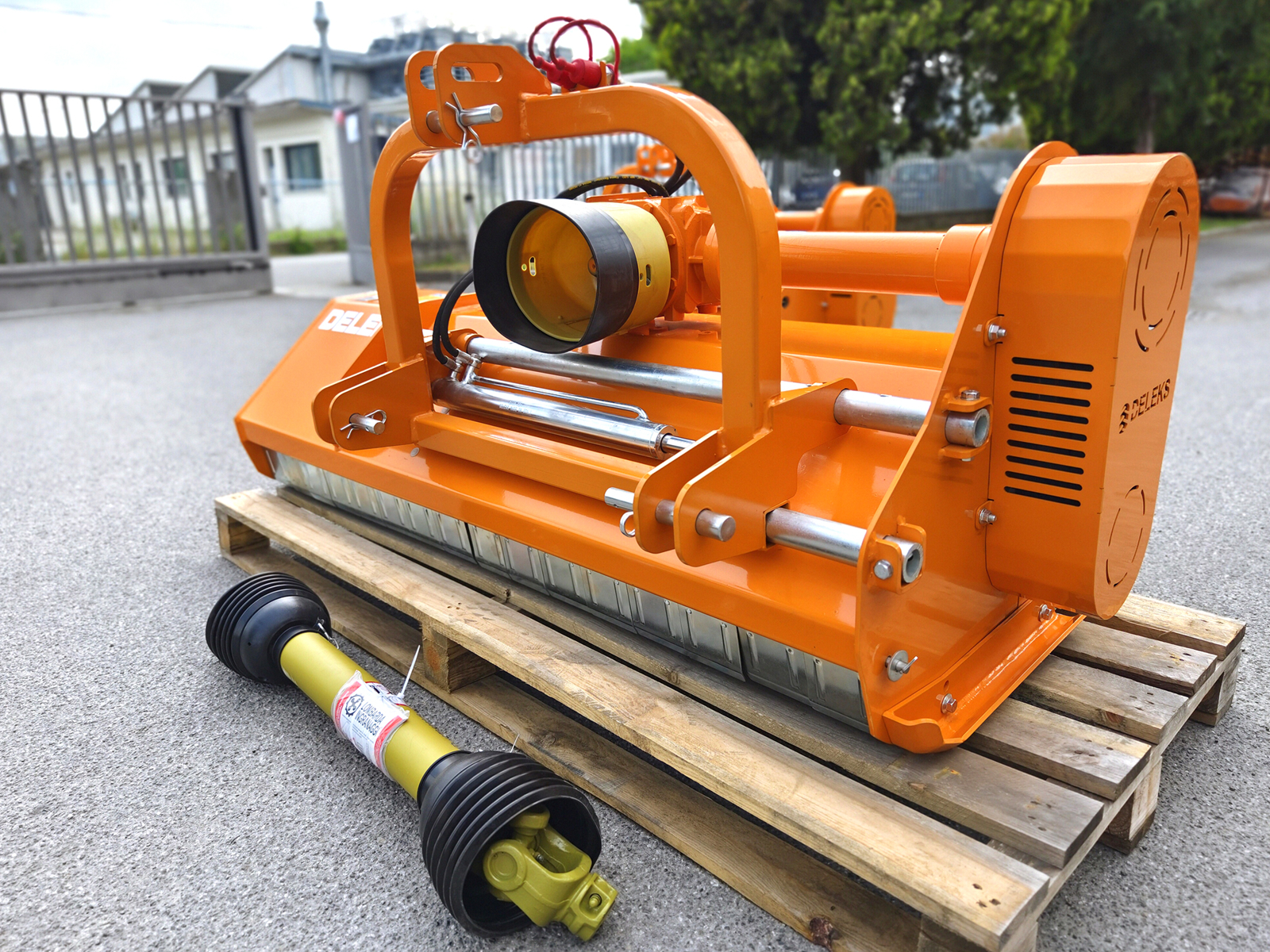

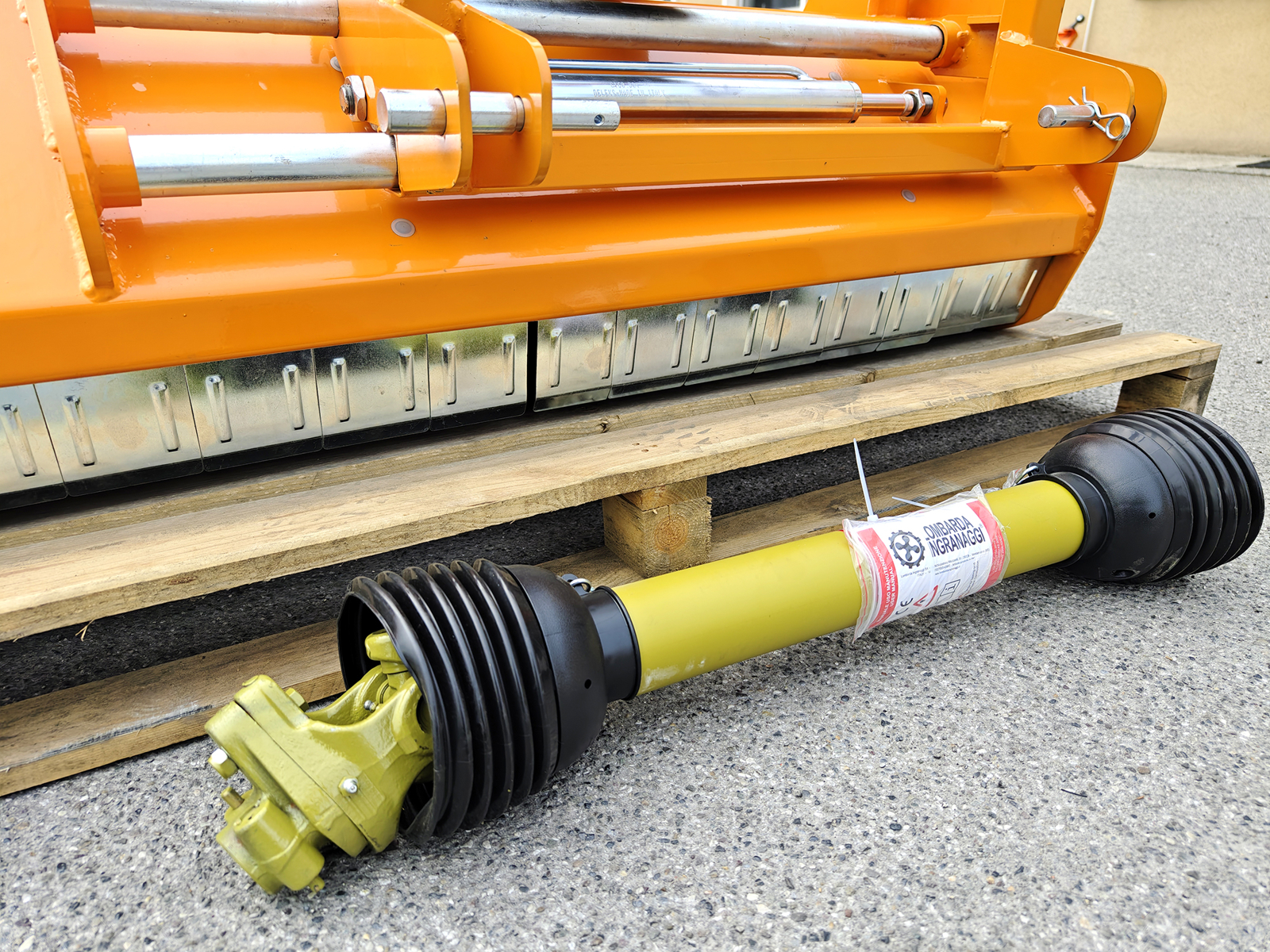

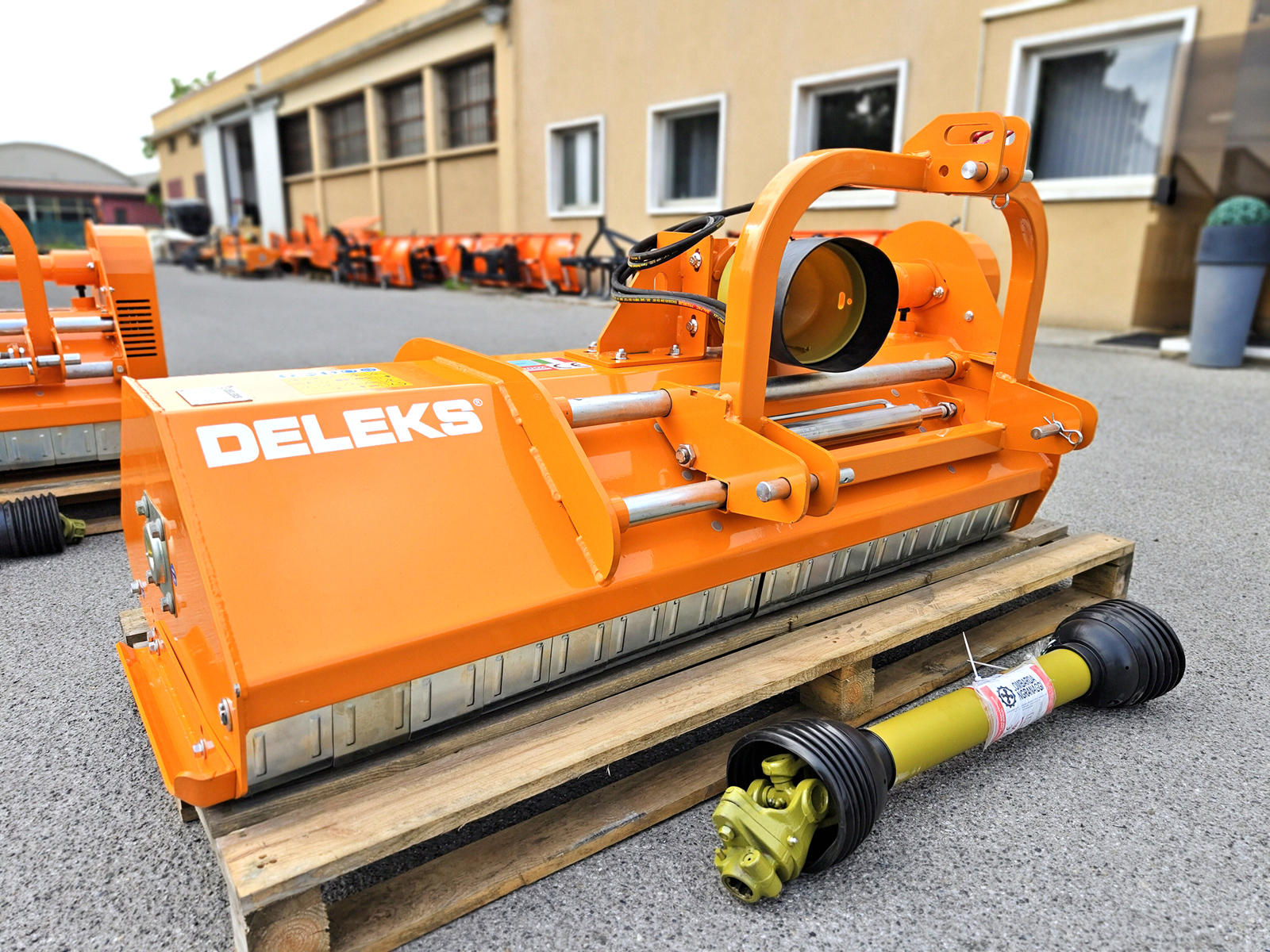

CE 6x1000 cardan shaft

4 transmission belts

Adjustable tensioner

Electronic balanced rotor

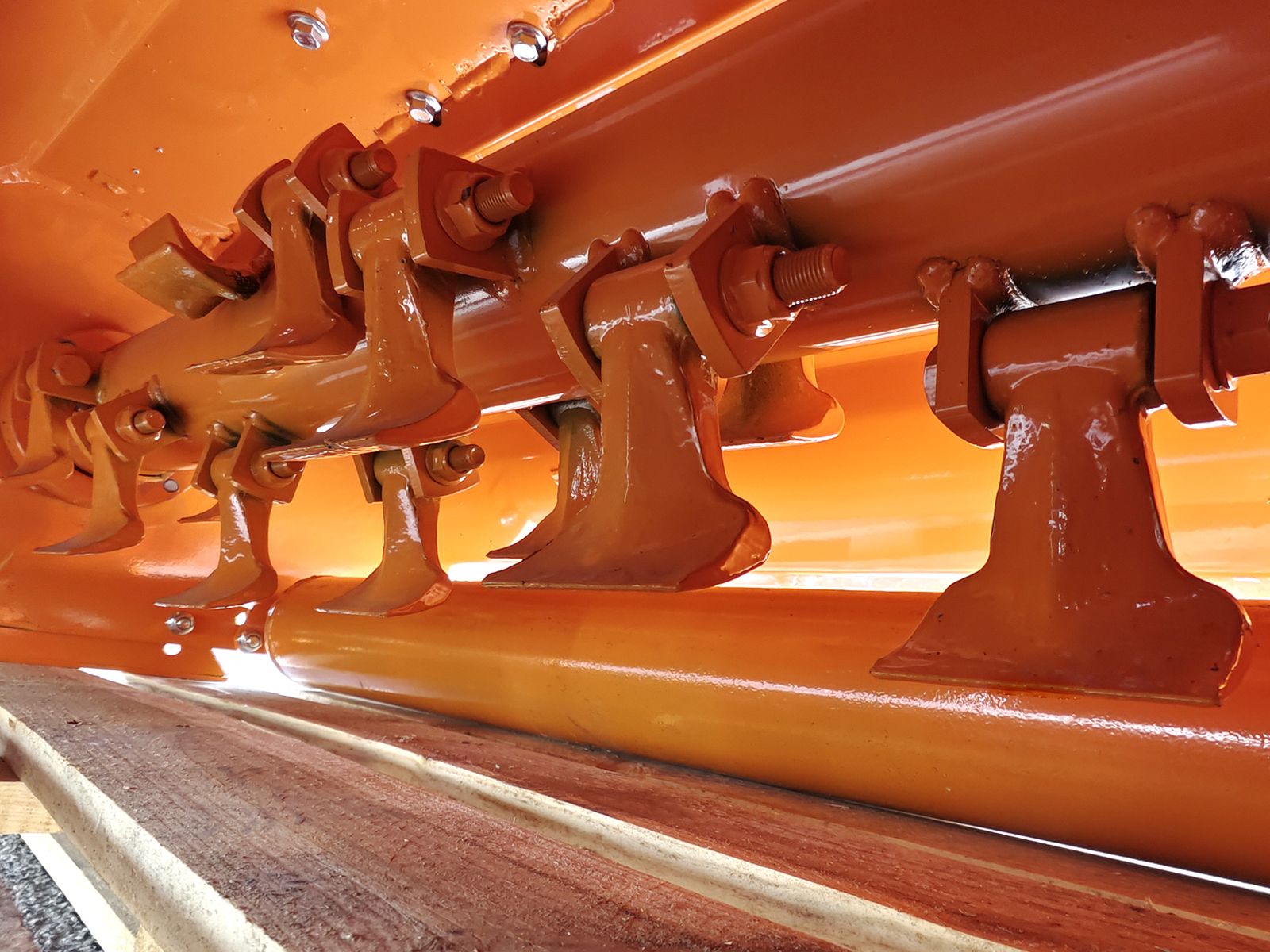

20 hammers, hot forged high strength 9cm base width

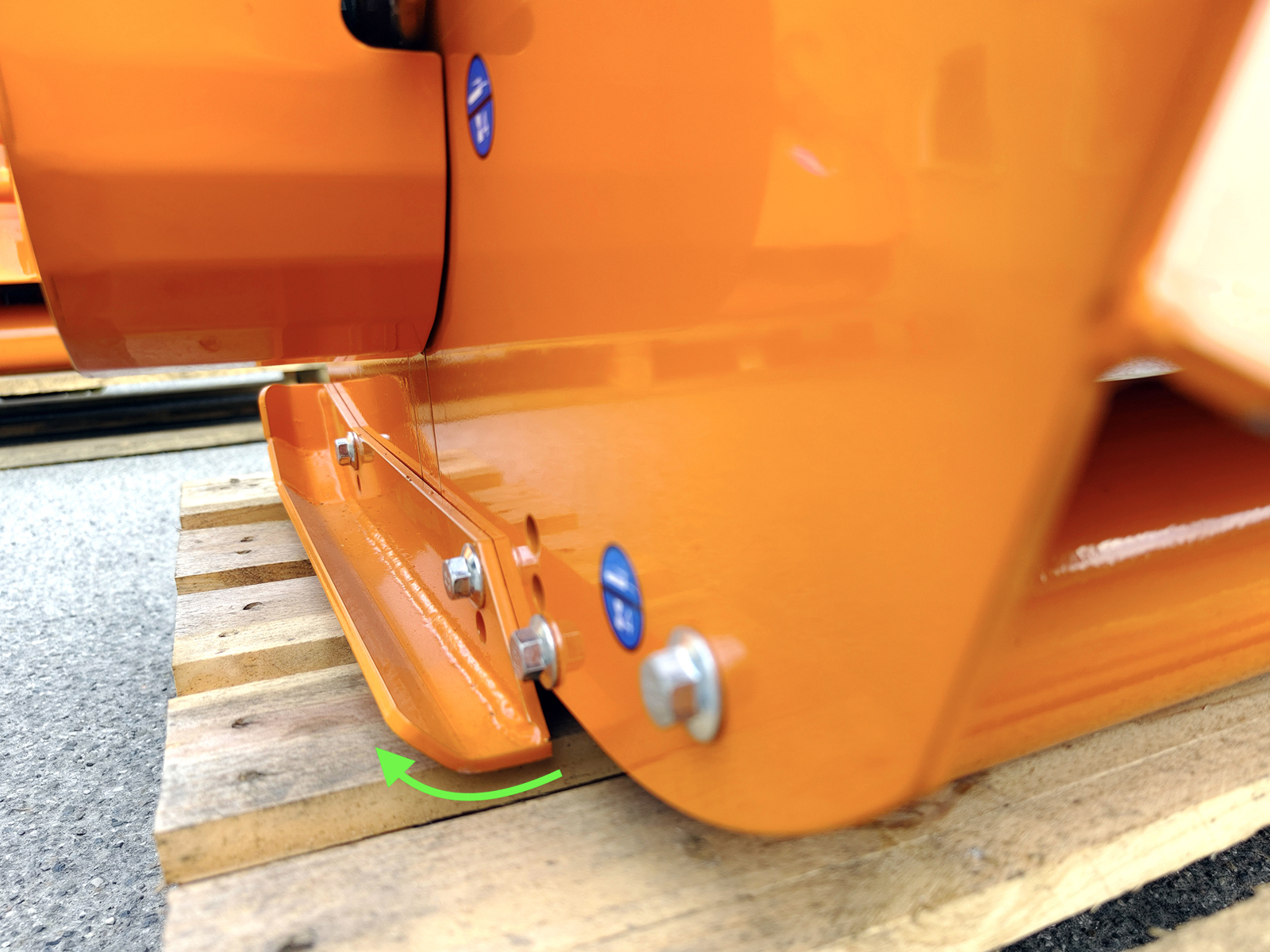

Pair of adjustable slides

Front guards

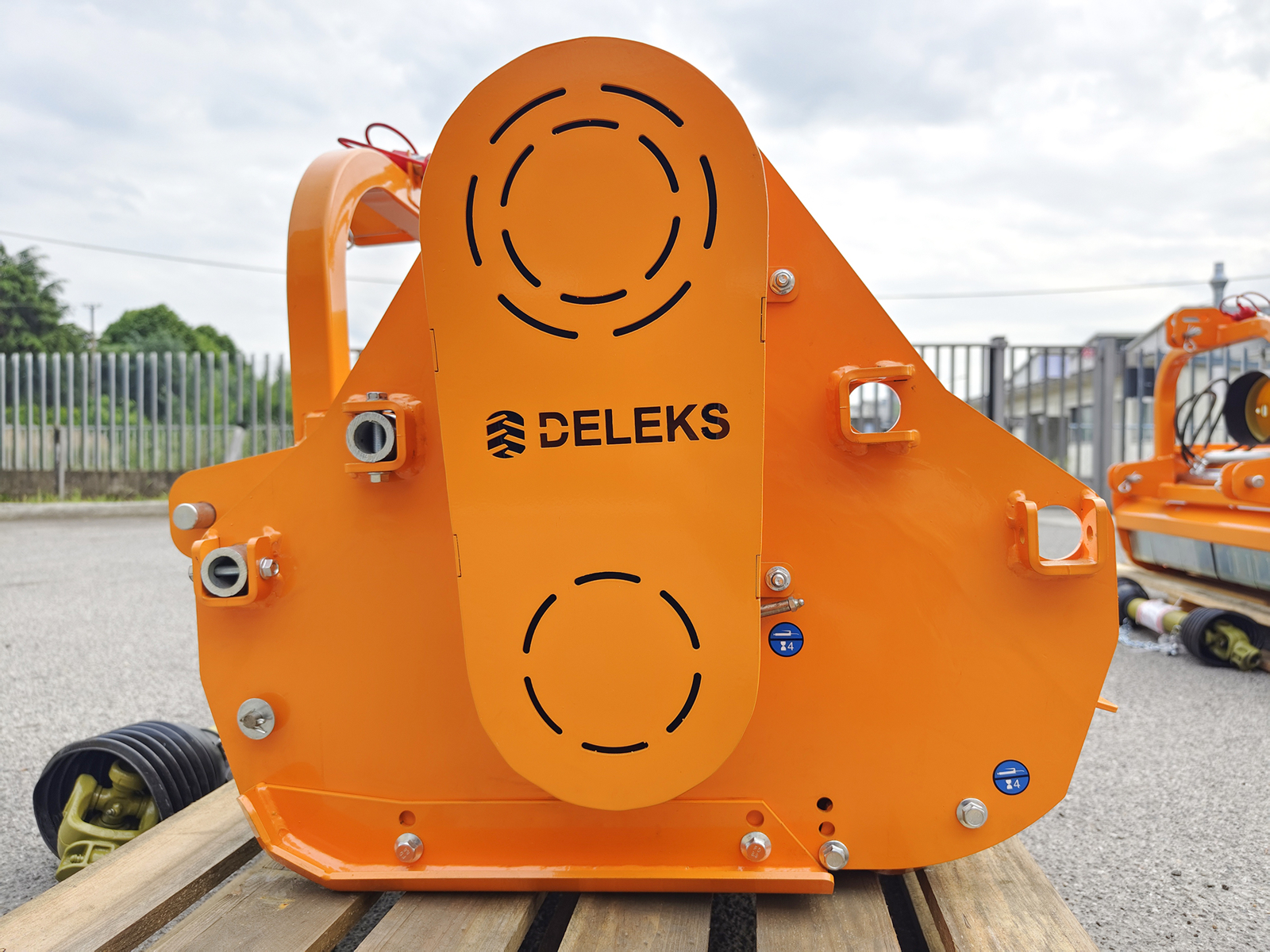

External adjustment of the belts

CE safety guard

Documentation supplied with this article:

Invoice or Receipt

CE Conformity

Maintenance Manual
