Flail Mower for compact tractors - 100cm - Reverse rotation gearbox
Field test
Unpacking by Alberto
DETAILS

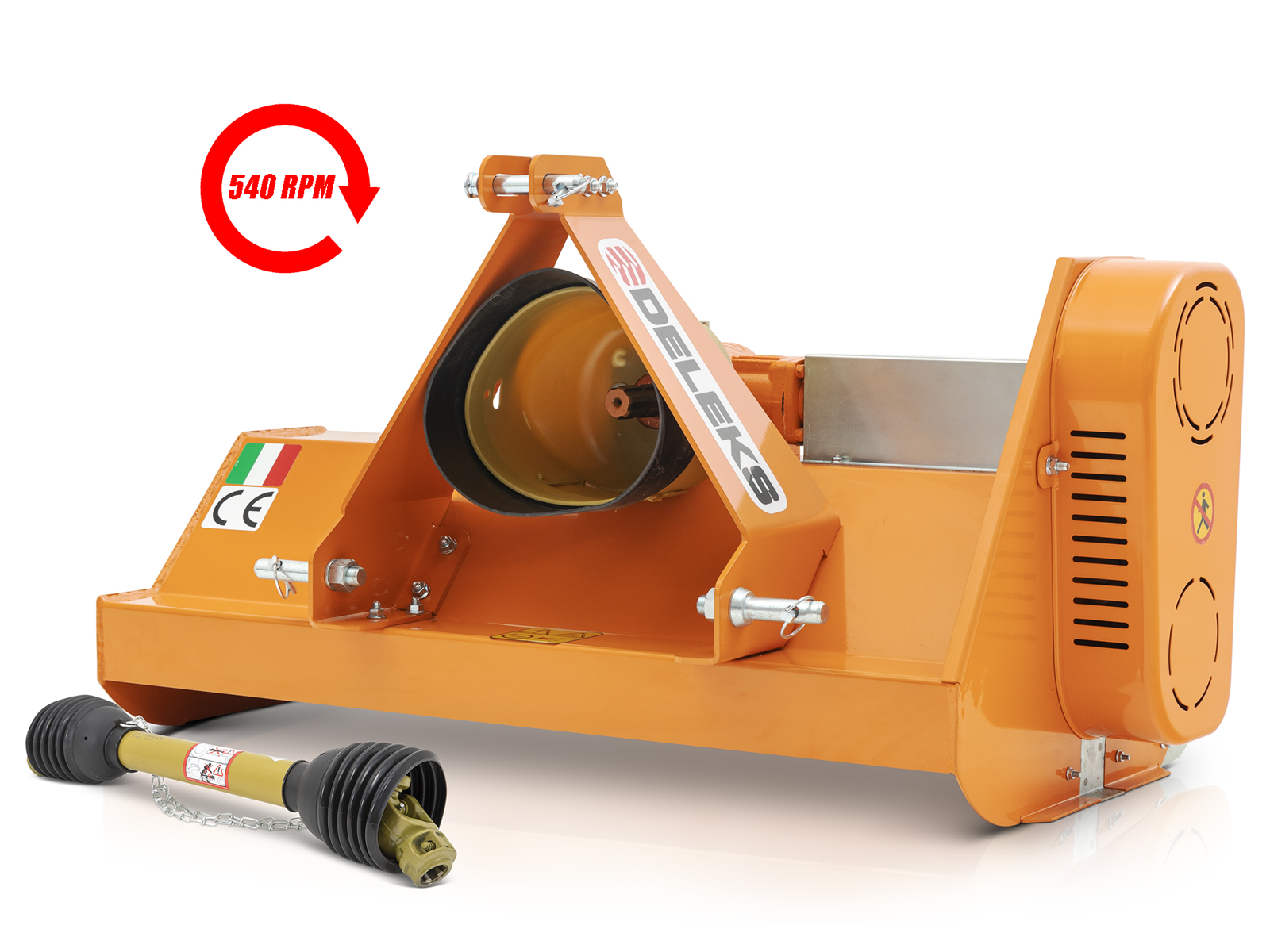

DELEKS® APE-100-SX Mower with reverse rotation gearbox - 100cm working width - hammers or blades | for small tractors 12-30Hp, Pto shaft included.
OVERVIEW

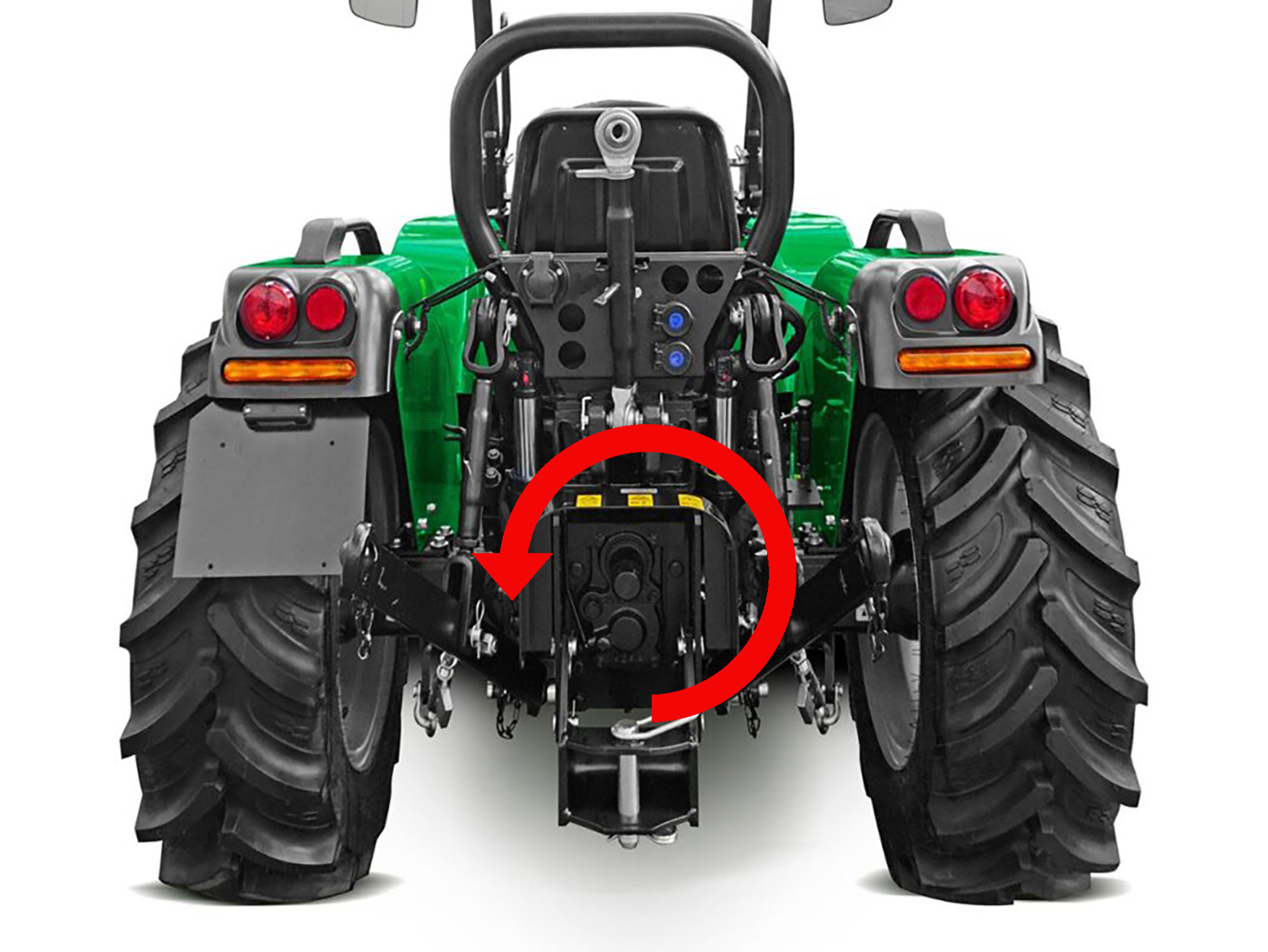

The APE-100-SX flail mower has been designed for low-powered tractors e.g old Pasquali or Valpadana with reverse PTO, for garden and farm use. Heat forged hammers for grass, thicker vegetation and small twigs.
Cutting height can be easily changed via an adjustable roller. Fixed universal three point hitch Cat.1.
BENEFITS & FEATURES

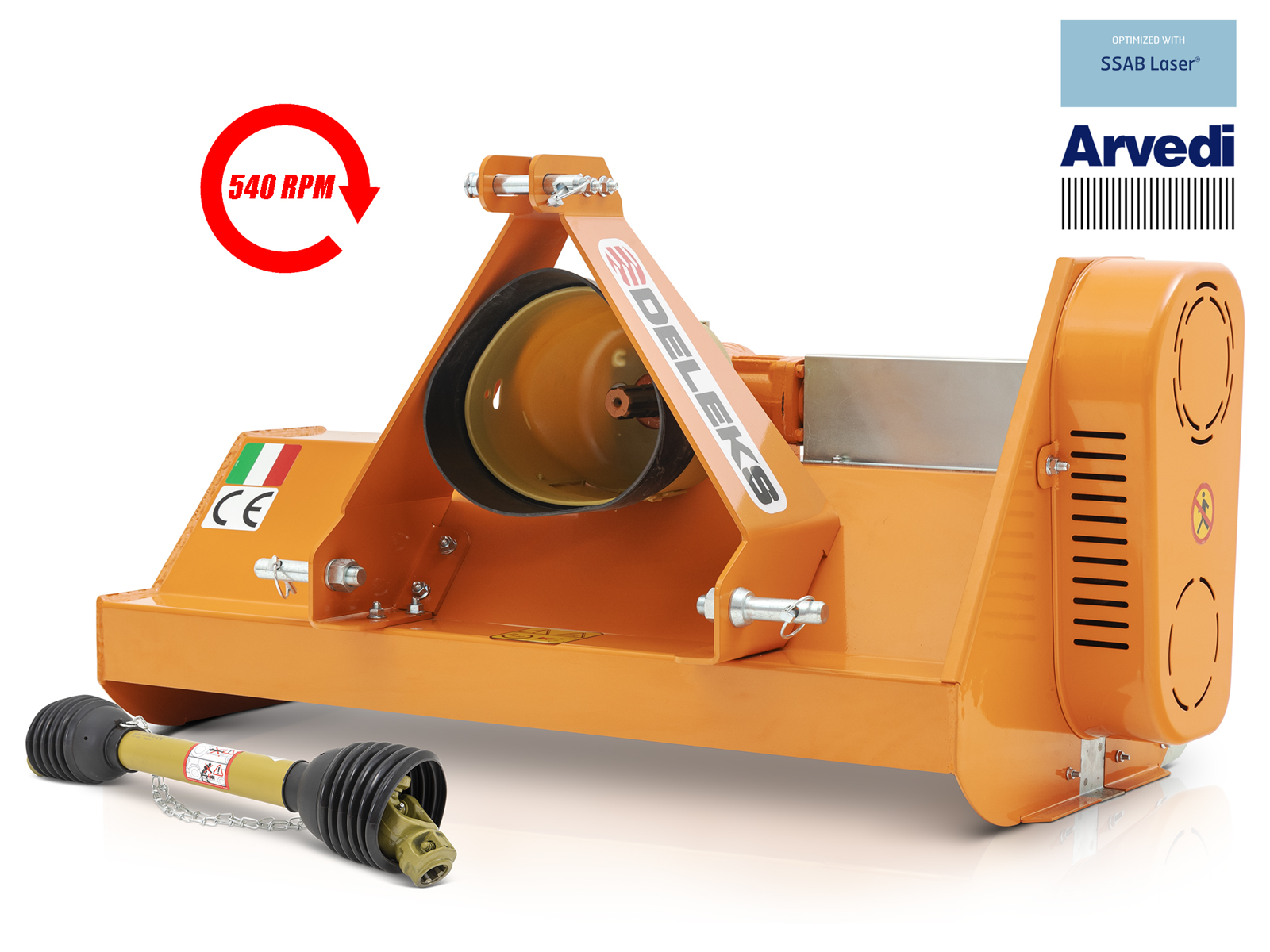

Frame entirely made with Swedish SSAB steel.

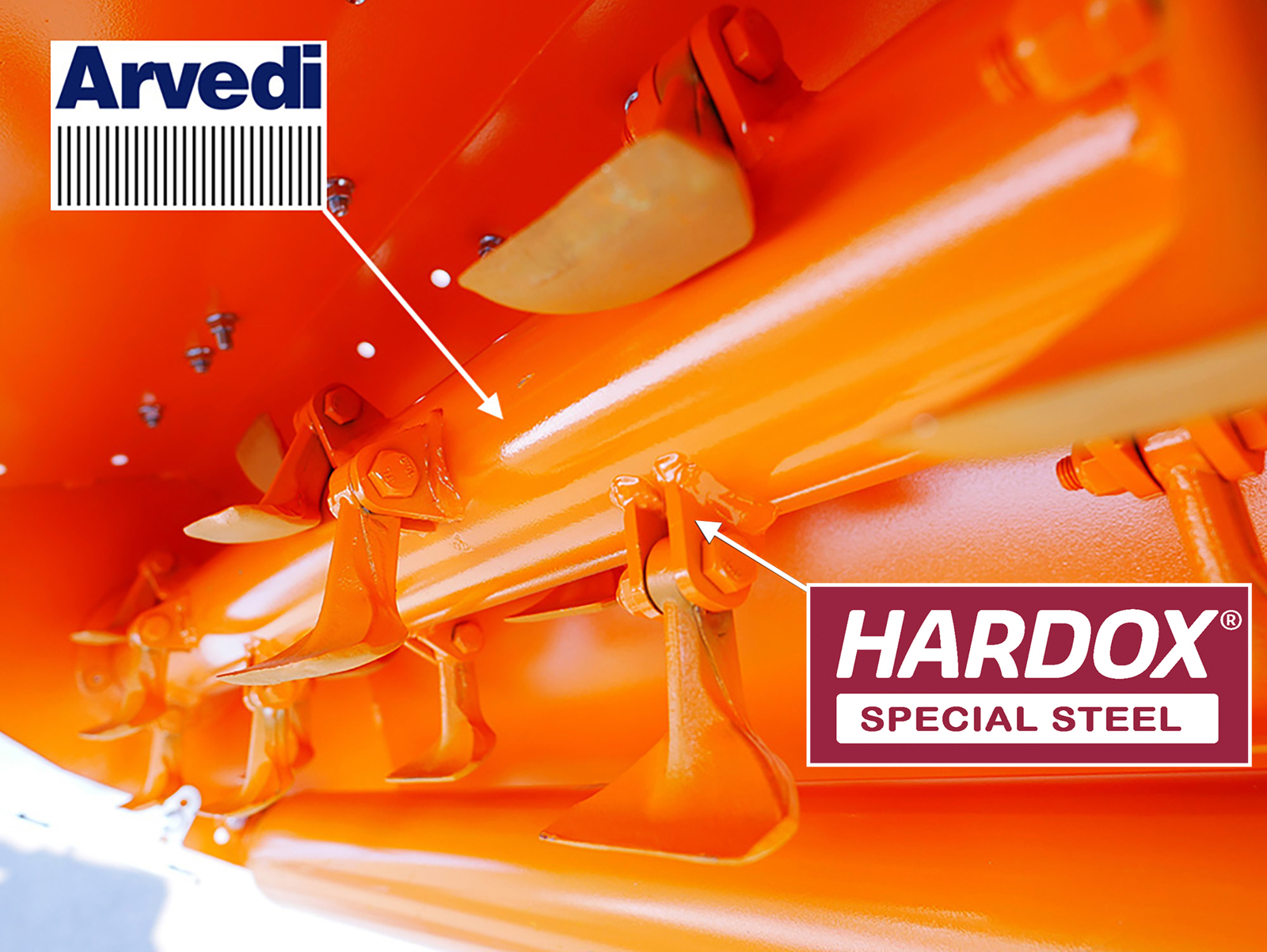

Rotor made with ARVEDI's tube, electronically balanced.
Hammers attachments HARDOX made.

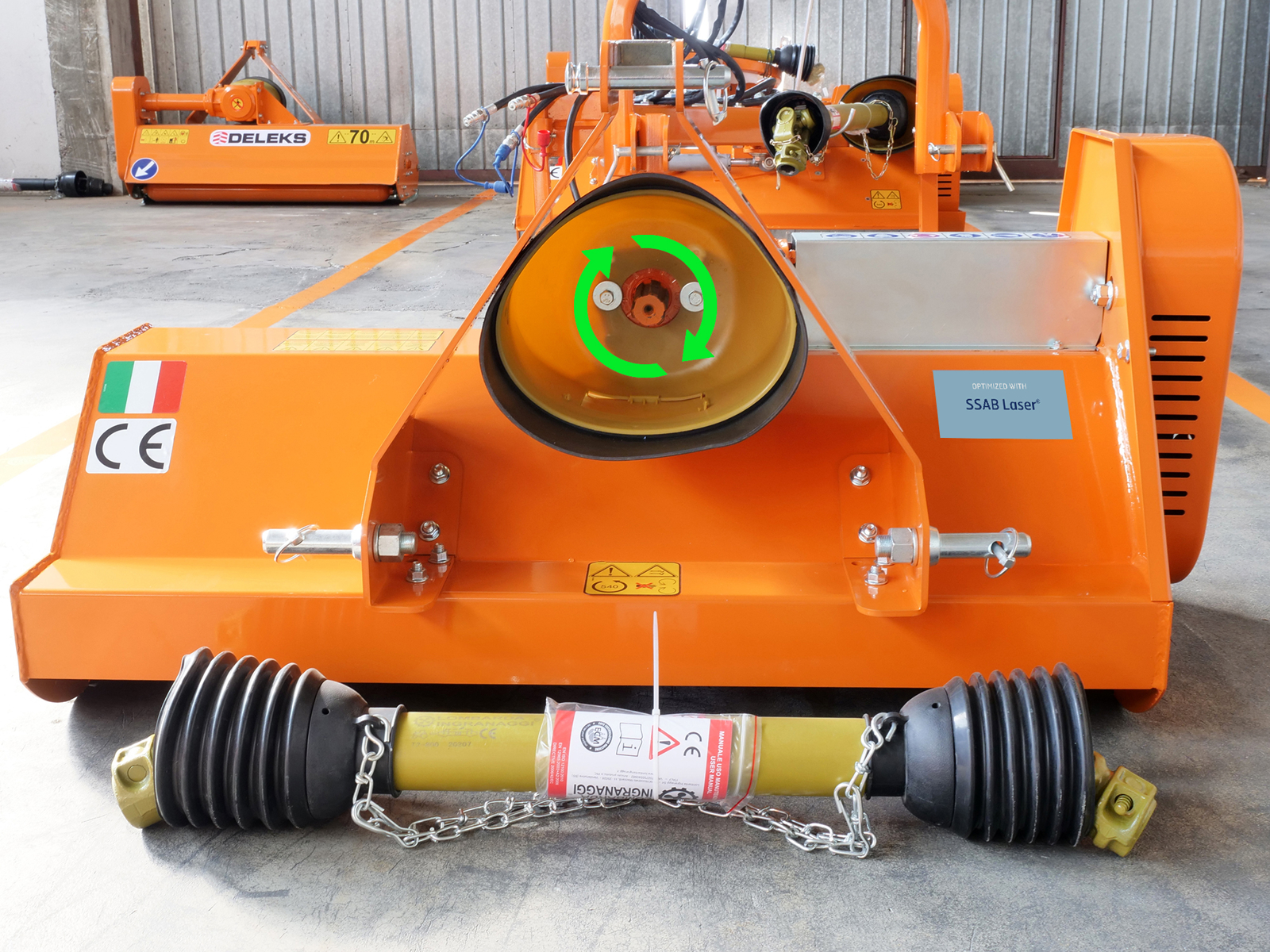

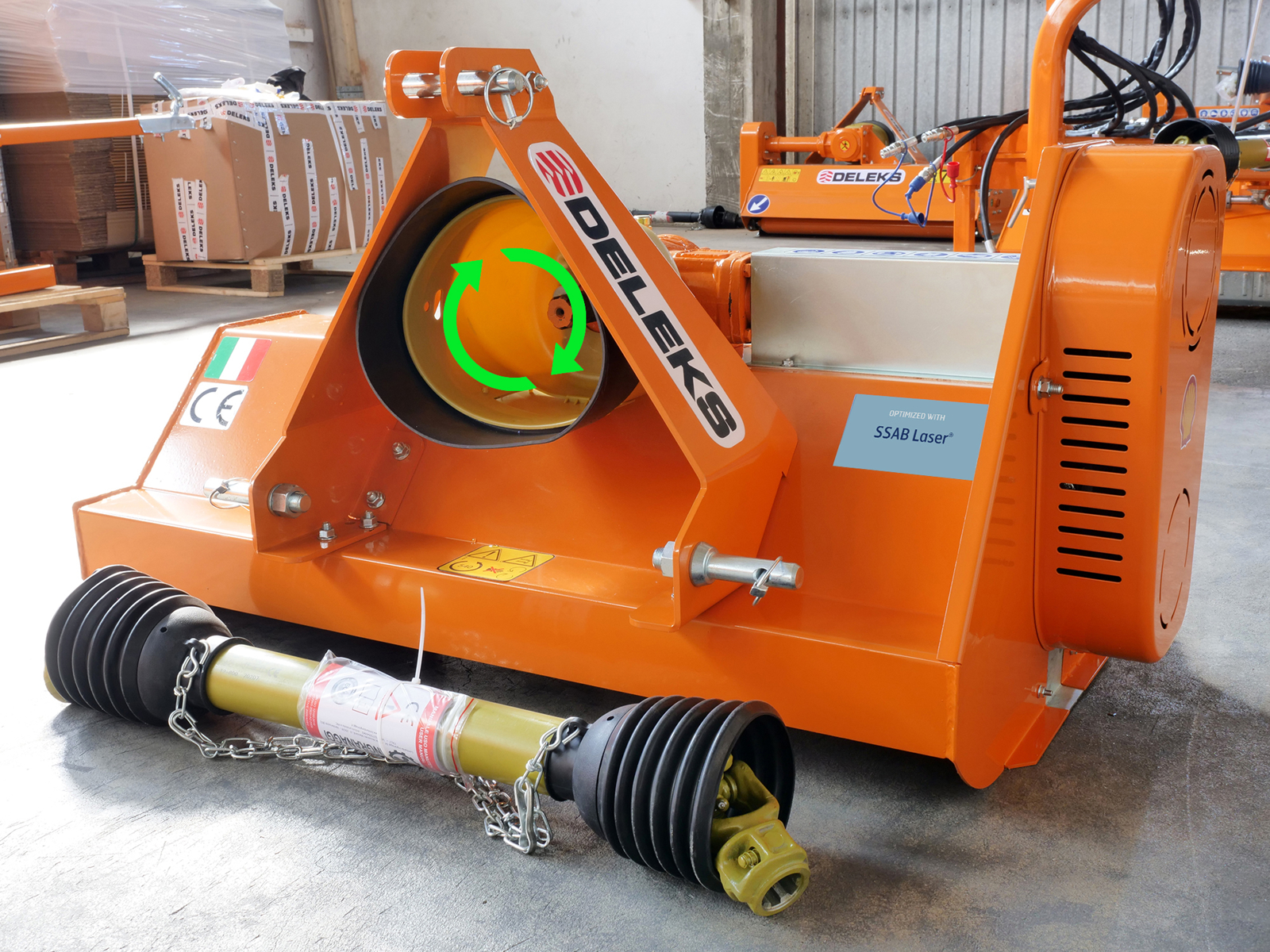

Reverse rotation gearbox P.T.O. 540 r.p.m. Lombarda Ingranaggi Srl with free-wheel (3 Years warranty)
The lightweight design allows its use with low-powered tractors, on flat ground or on verges.
330g heat forged hammers to shred vegetation up to 2,0cm thick.

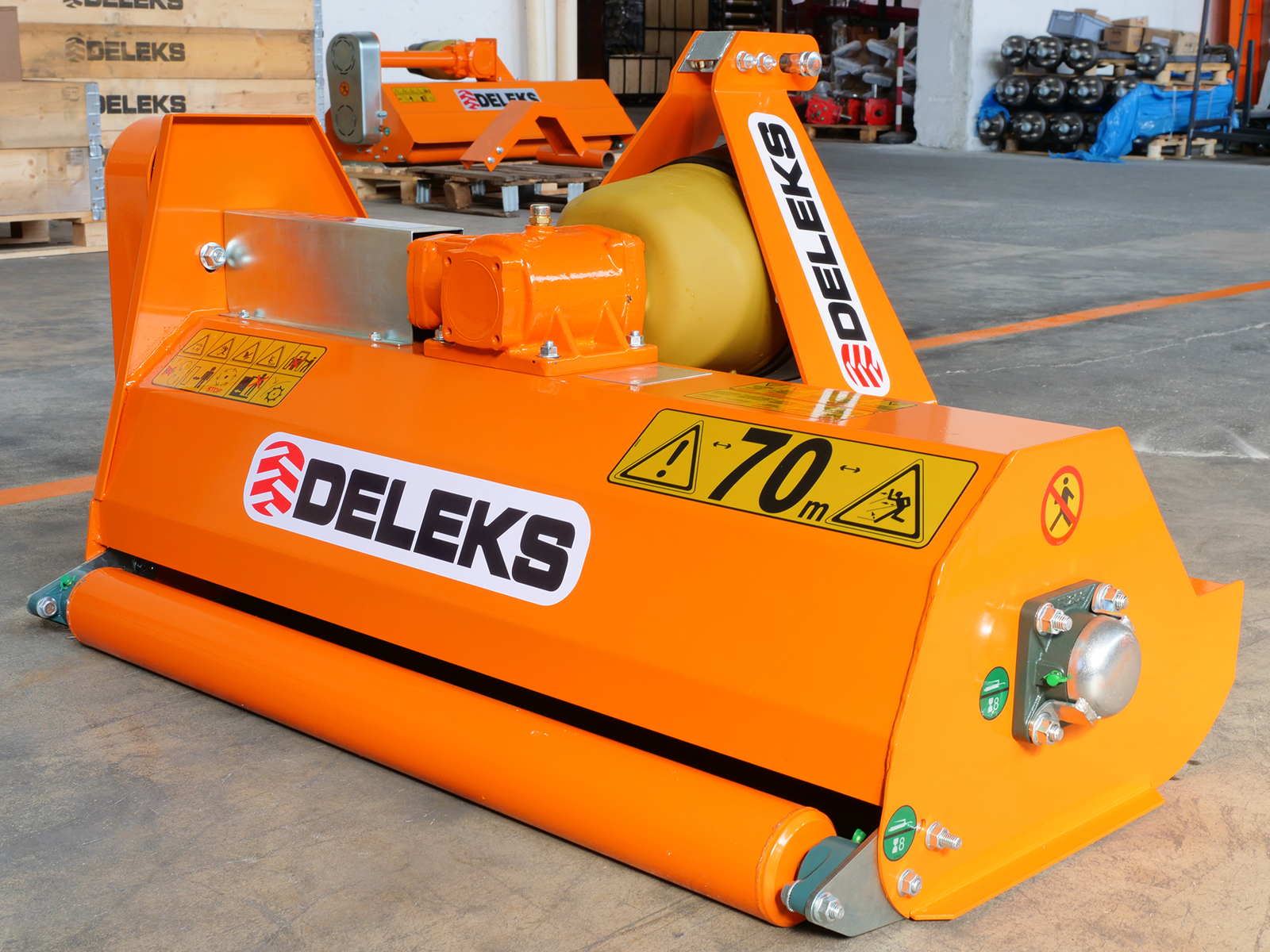

Adjustable roller unit.

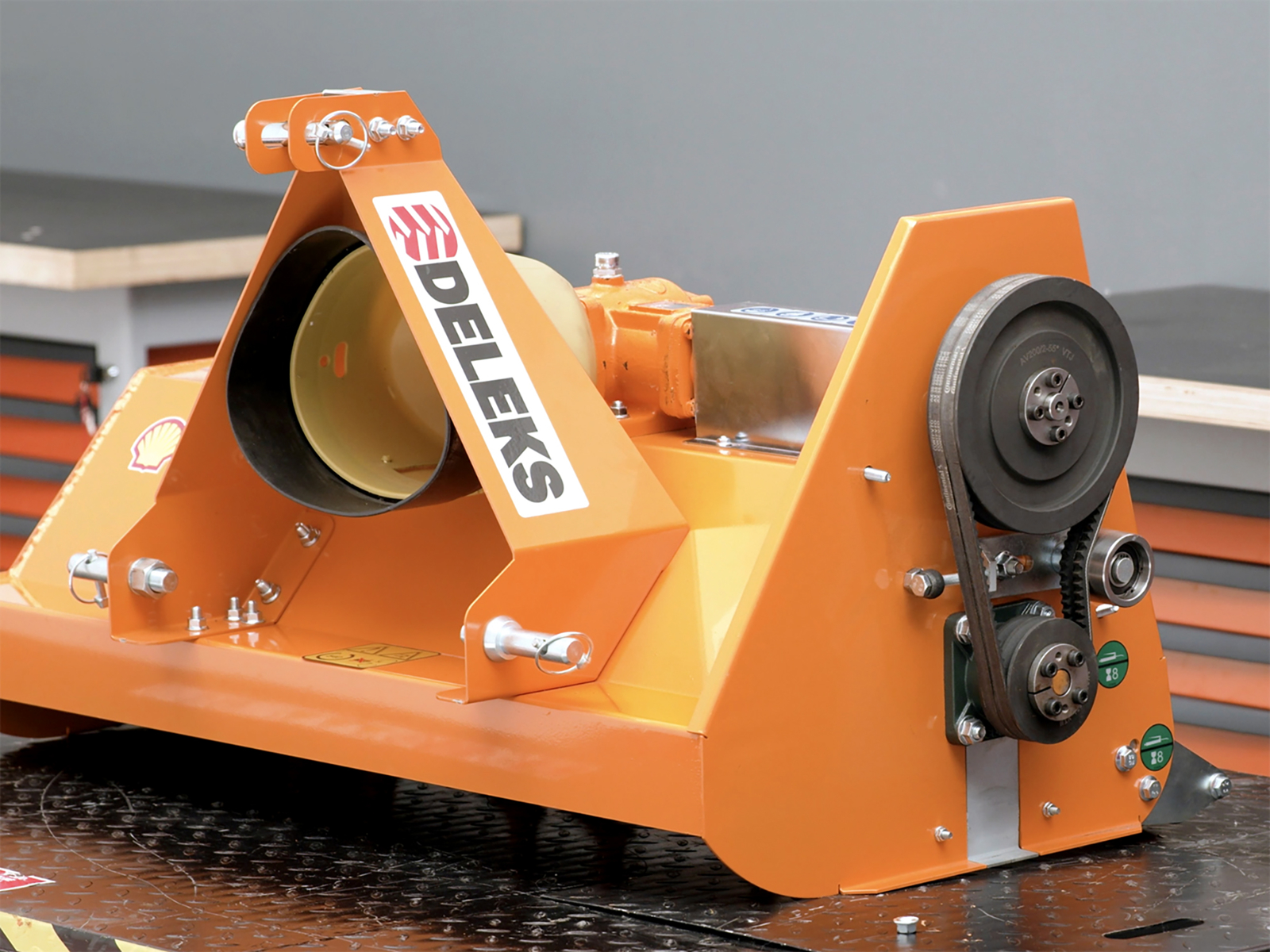

External belt tensioner.
Pto Shaft CE included.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Working width | 1000.0 mm |
| Overall width | 1150.0 mm |
| Min / Max cutting height | 20.0 - 35.0 mm |
| Weight | 105.0 kg |
| Overall height | 623.0 mm |
| Tractor Power Range | 12 - 30 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Hood height | 317.0 mm |
| Spacing between the 2 lower points | 380.0 - 580.0 mm |
| Number of Hammers | 18 |
| Maximum cutting diameter | 10.0 - 20.0 mm |
| Overall length | 640.0 mm |
| Distance between pto attachment and ground | 385.0 mm |
| Main hood thickness | 3.0 mm |
| Sides thickness | 3.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | Lombarda Ingranaggi Srl (3 years warranty) |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Left side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 3000 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: Top pulley ø | 185.0 mm |
| Transmission: Lower pulley ø | 96.0 mm |
| Transmission: V-Belts quantity | 2 |
| Transmission: V-Belts size | AX35 (889LI) |
| Rotor: diameter | 76.0 mm |
| Rotor: bearings type and size | UCF206 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |
| Hammers: Weight | 330.0 g |
| Hammer: øhole | 11.0 mm |
| Hammer: base width | 80.0 mm |
| Hammer: top width | 14.0 mm |
| Hammer: Diagonal | 75.0 mm |
| Rear roller: diameter | 85.0 mm |
| Rear roller: sheet thickness | 6.3 mm |
| Rear roller: bearings type and size | UCFL204 |
| Pto shaft | CE 2x800 mm |
| Hood length | 525.0 mm |
| Packing sizes | 130*60*70 |
