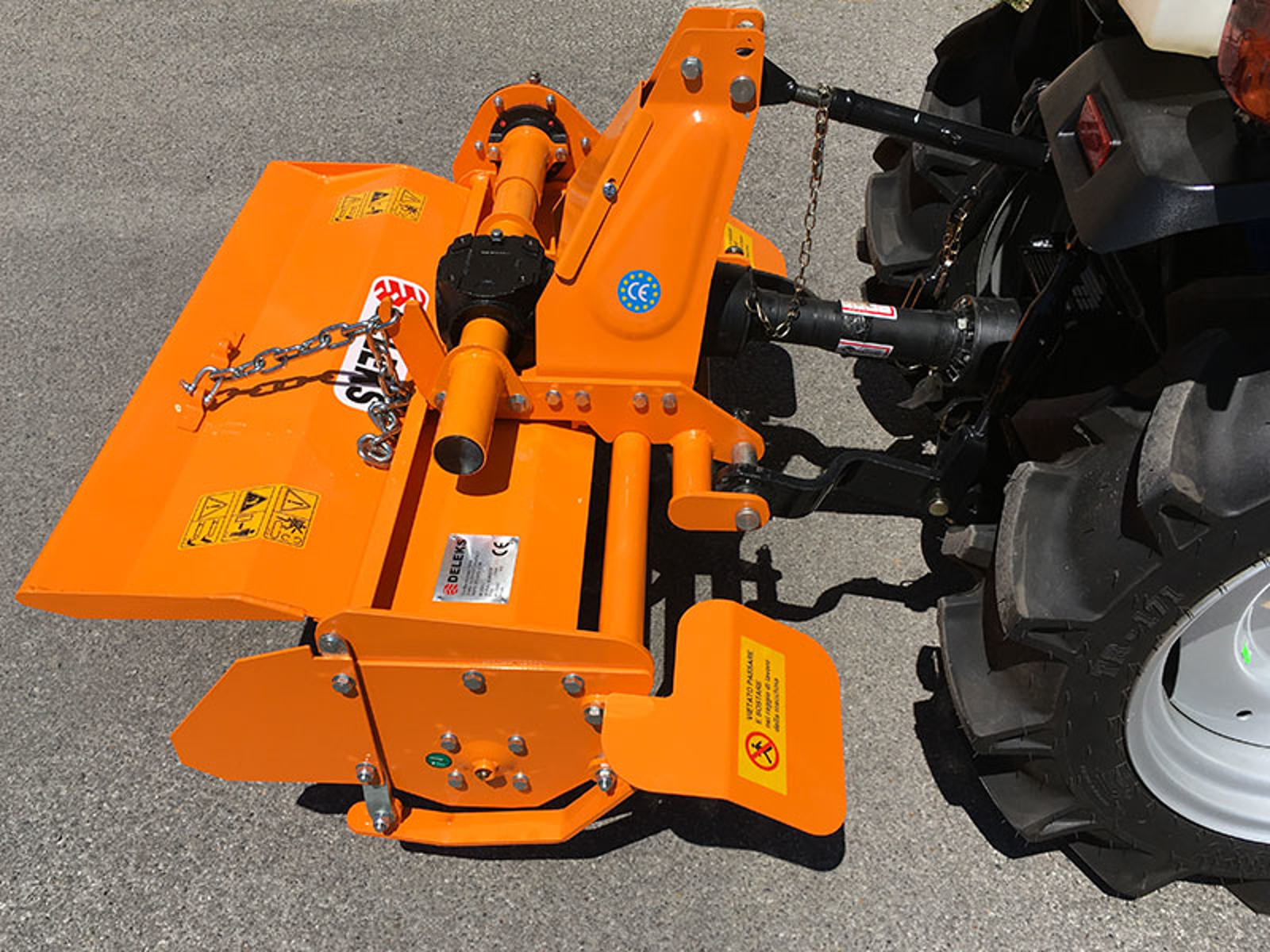

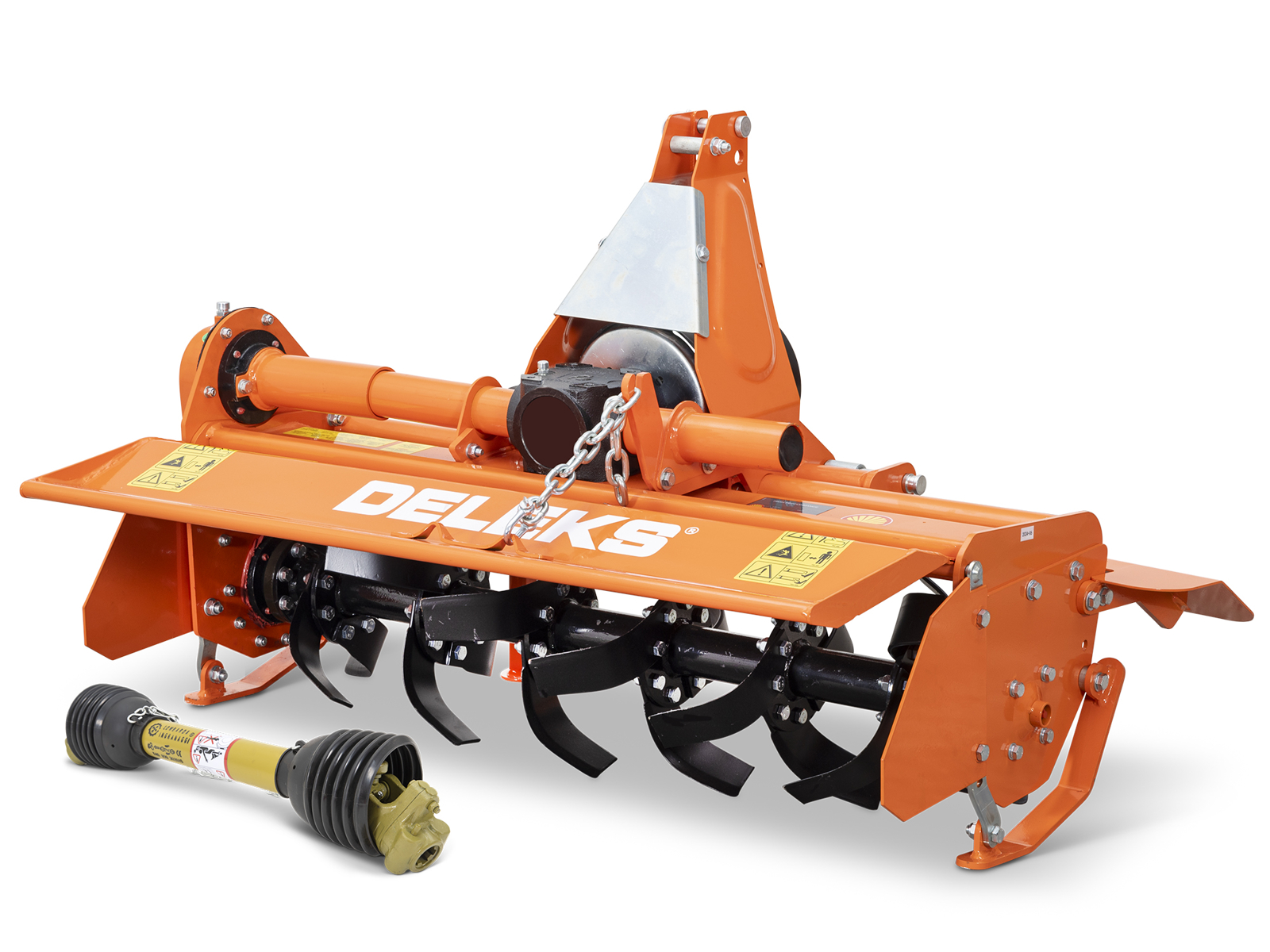

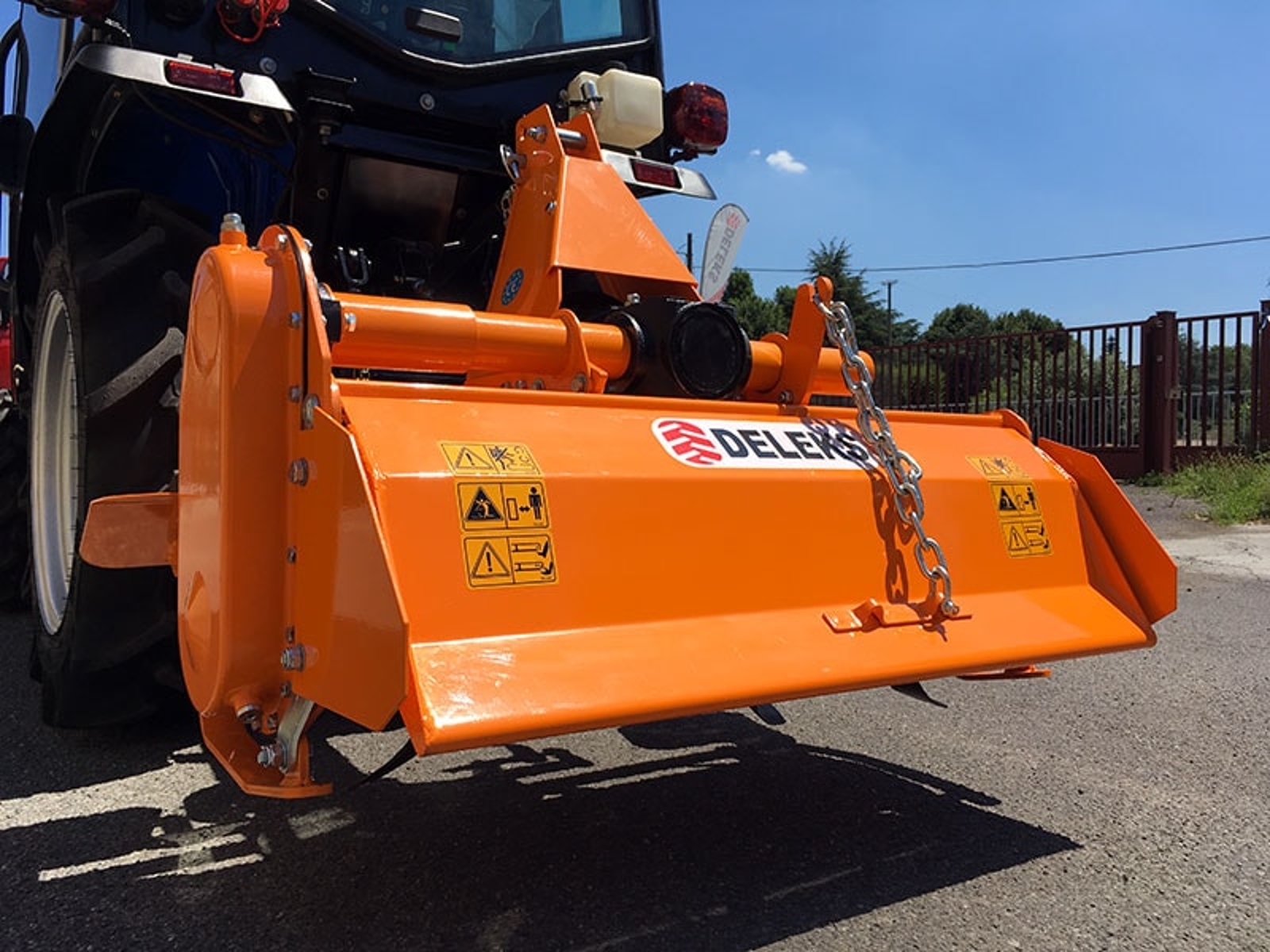

Light rotavator tiller for tractors - working width 135cm - for soil preparation DFL-135
Field test
Field test
DETAILS

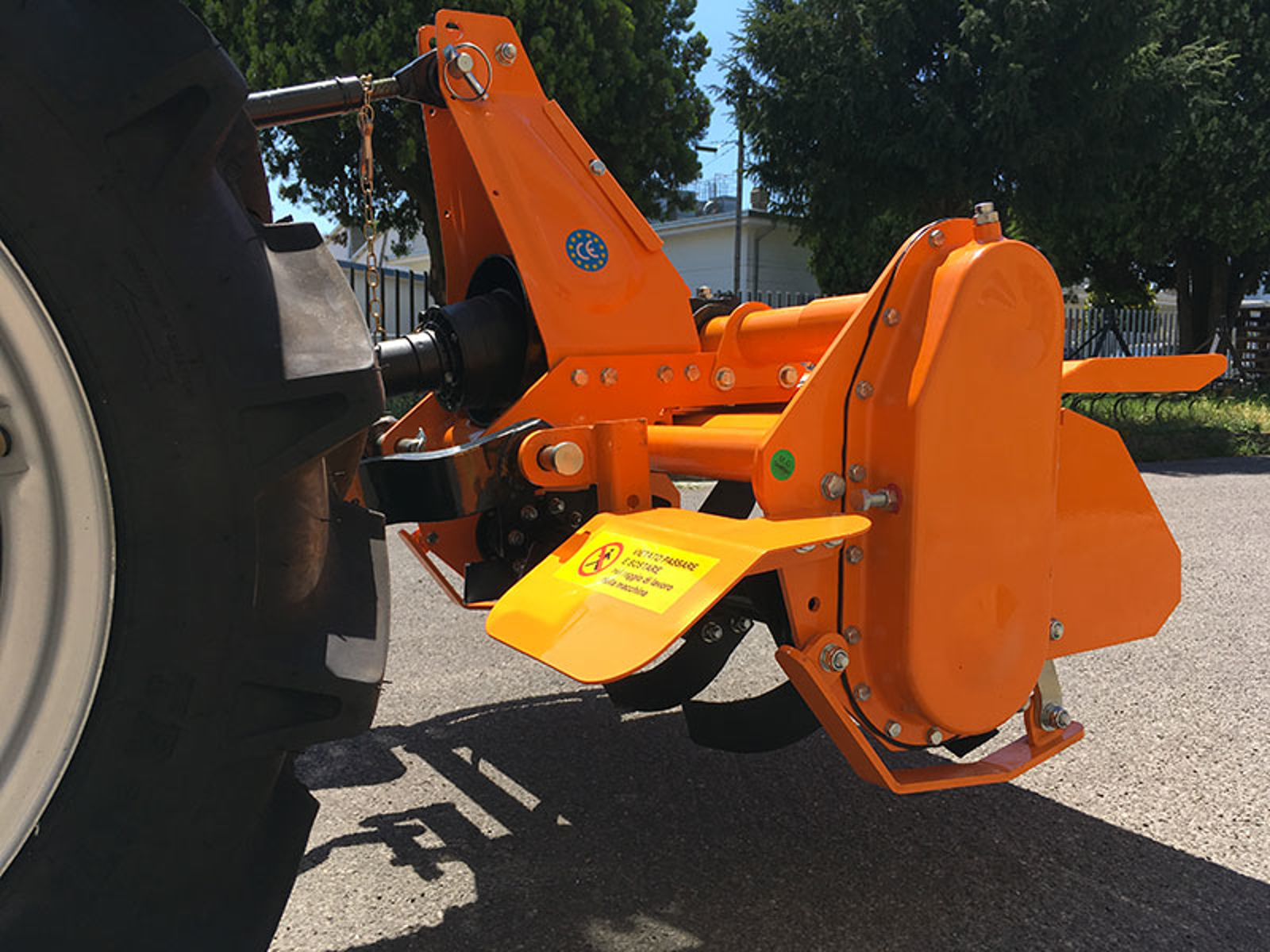

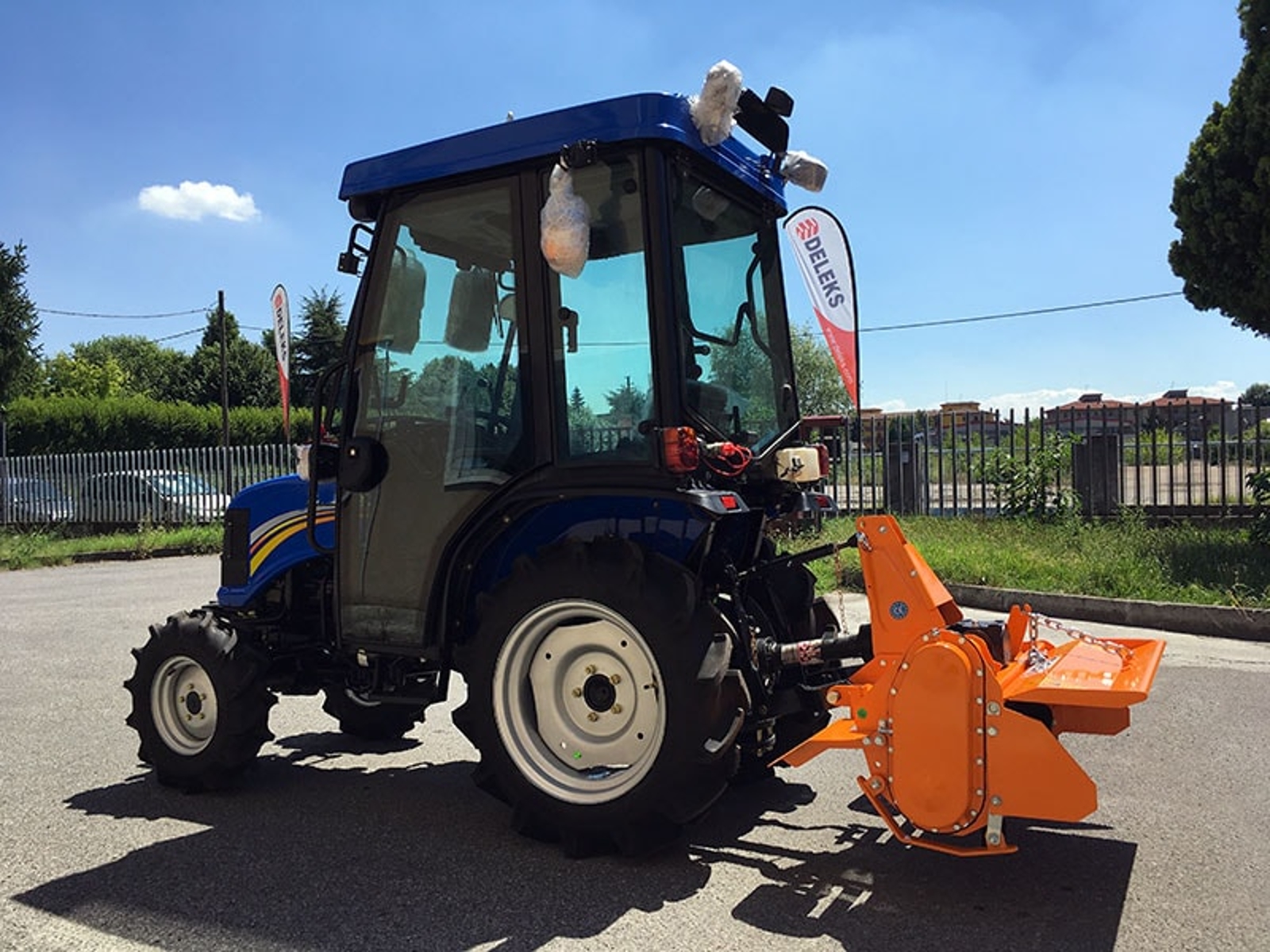

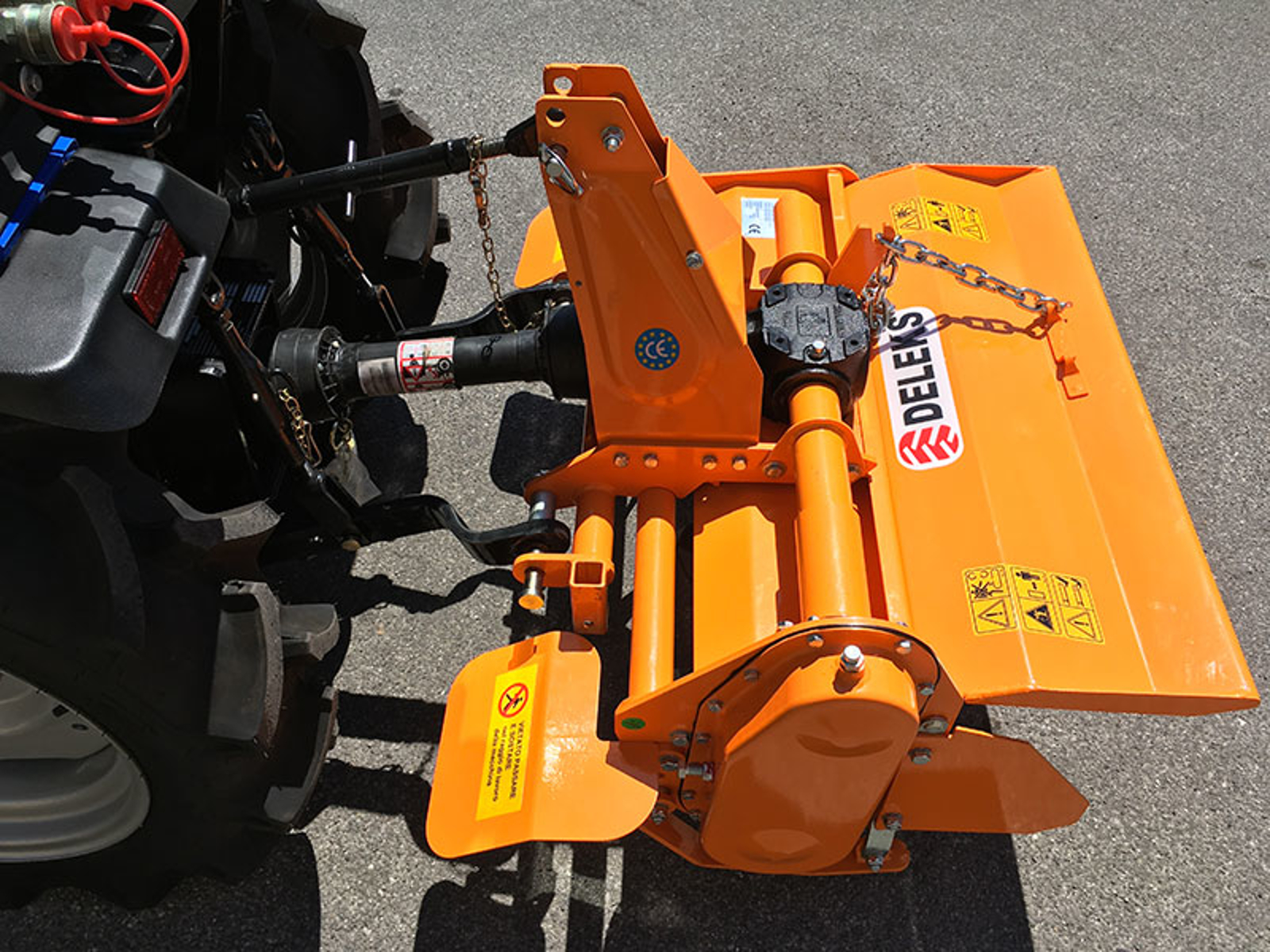

Light rotavator tiller with sideshift DELEKS® for tractors like Kubota, Iseki, New Holland, John Deere - PTO shaft included.
OVERVIEW
Light rotary tiller for tractors 18-35hp e.g Kubota, Iseki, Yanmar, Mahindra, Solis, Mitsubishi, Ferrari, Pasquali, New Holland Boomer 25-30, John Deere 2 Serie, etc. The tiller is attached to the tractor by the universal three point linkage. Not suitable for lifting quick couplings.
Designed for soil preparation/cultivation in nursery, orchards, and for gardens. Our rotavators can be used to pulverize and stir soil before planting (to prepare seed beds) or after your crop has begun growing (to kill off unwanted weeds). Single Speed Gearbox with 540 RPM PTO, Chain Side Drive. Delivered assembled (except 3 point linkage) and greased, Gearbox filled with oil.
BENEFITS & FEATURES
Light weight compact design for low powered tractors.
Pto shaft CE included.

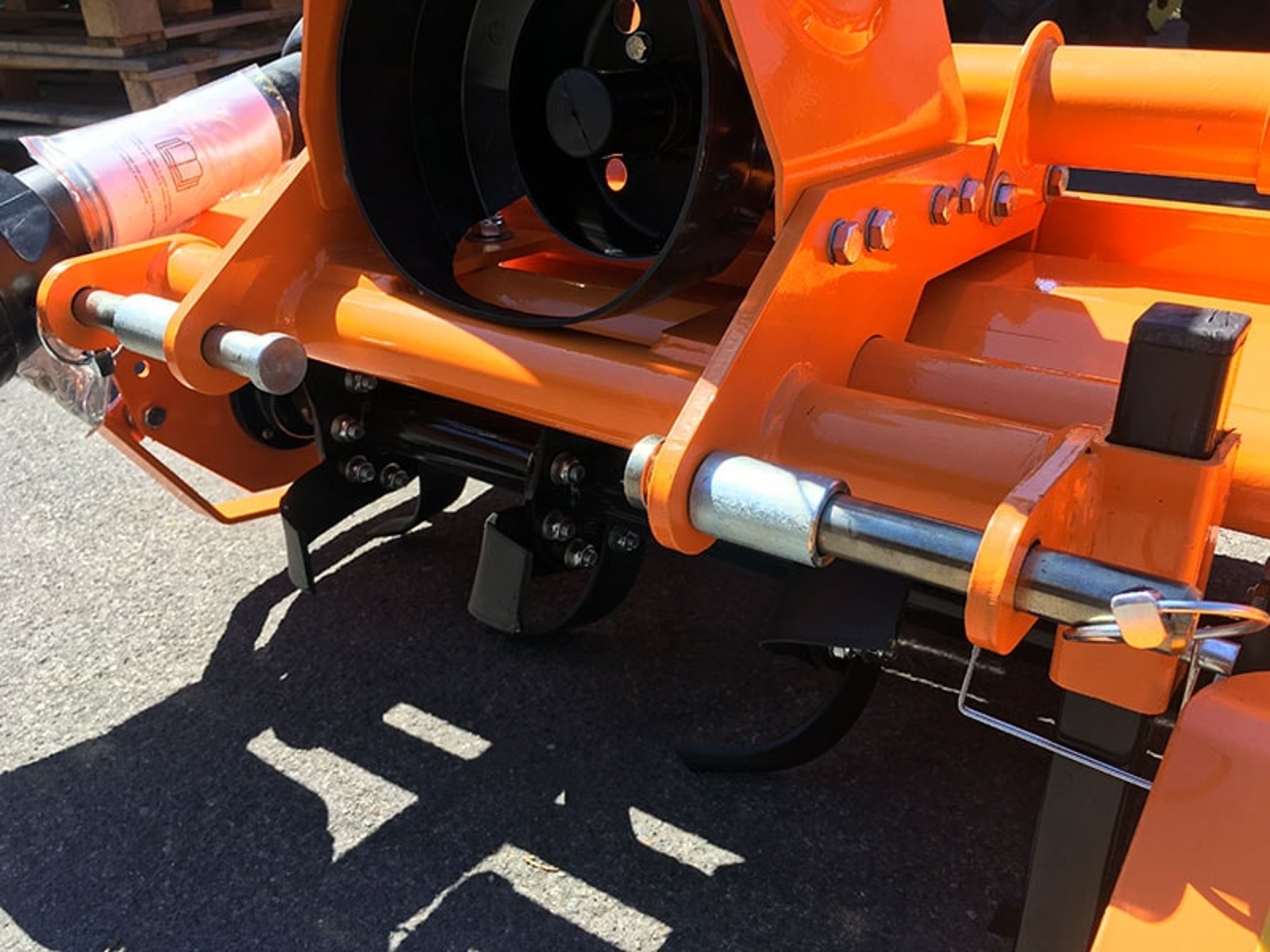

The sideshift by the three-point hitch (120.0 mm) is moved manually by hand and does not require levers to operate.
Blades are hardened for maximum strength, durability and wear life in the toughest soil conditions.
Automatic chain tensioner.
Adjustable skids to obtain the desired working depth.
Adjustable rear shield ensures best ground leveling.
CE Safety Guards.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 1480.0 mm |
| Weight | 171.0 kg |
| Overall height | 800.0 mm |
| Tractor Power Range | 18 - 35 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Position of the gearbox | 560.0 mm from left side / 790.0 mm from right side |
| Spacing between the 2 lower points | 305.0 - 520.0 mm |
| Overall length | 680.0 mm |
| Rotor: diameter | 64.0 mm |
| Rotor: sheet thickness | 6.0 mm |
| Transmission | Chain |
| Effective Working width | 1350.0 mm |
| Working Depth Range | 120.0 - 160.0 mm |
| Distance between pto attachment and base | 490.0 mm |
| Pto shaft | CE 4x800 mm |
| Rotor: diameter with blades | 370.0 mm |
| Rotor: bearings type and sizes | "GB276-6207(R) GB276-6207(L)" |
| Rotor: flanges | 7 |
| Number of Blades per flange | 4 |
| Blades: quantity | 28 |
| Blades: height/width | 180.0 / 67.0 mm |
| Blades: curve length | 230.0 mm |
| Blades: distance between holes | 45.0 mm |
| Blades: diameter of the holes | 13.0 mm |
| Blades: thickness | 6.0 mm |

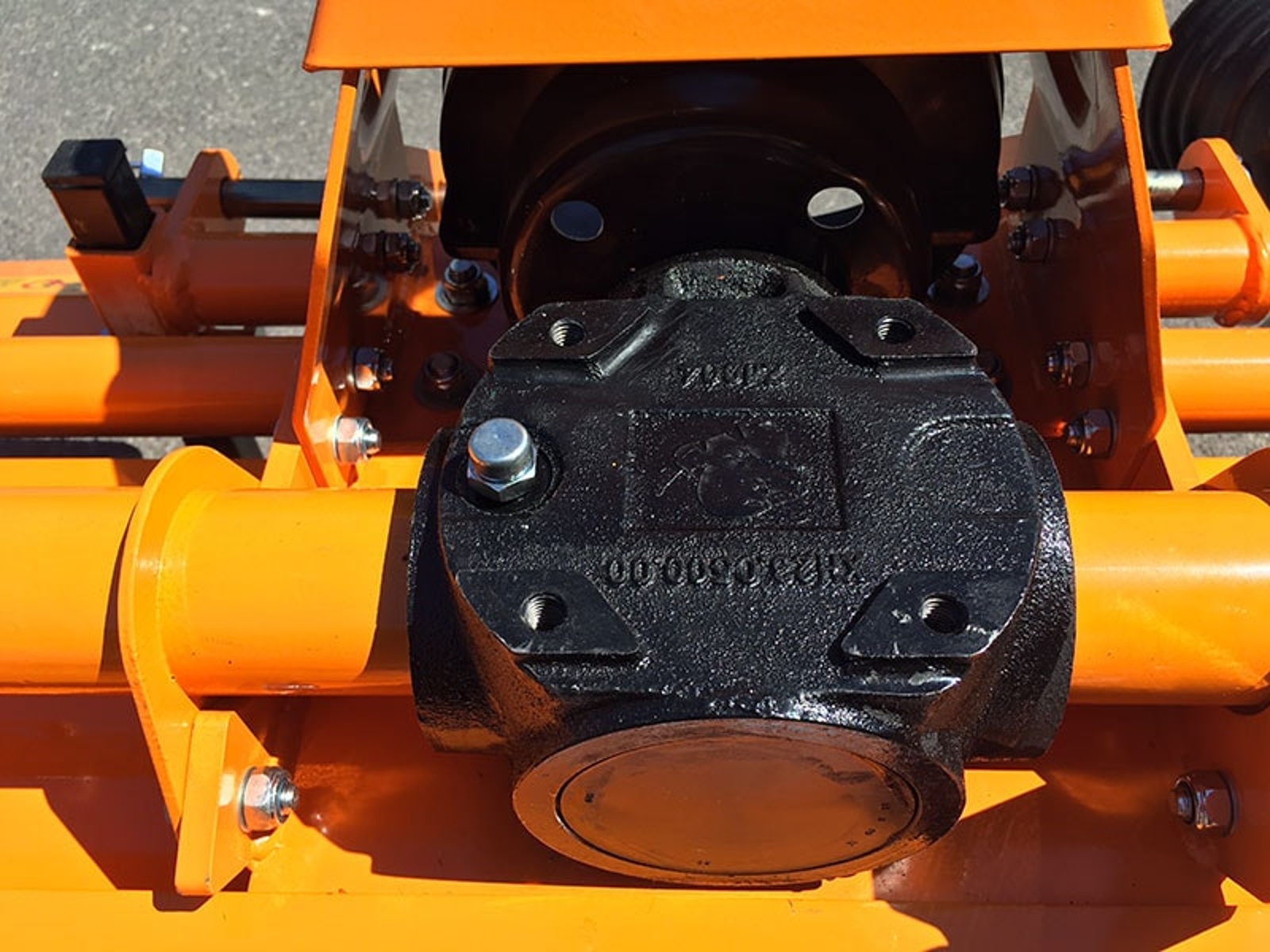

| Gearbox | Lombarda Ingranaggi 540 r/min (3 year warranty) |
| Effective Displacement | 200.0 mm |
| Rotation of gearbox | Right side (left side on request) |
| RPM Rotor speed | 280 rpm |
| Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Blades: weight | 570.0 g |
| Packing sizes | 800.0*1490.0*650.0 mm |
