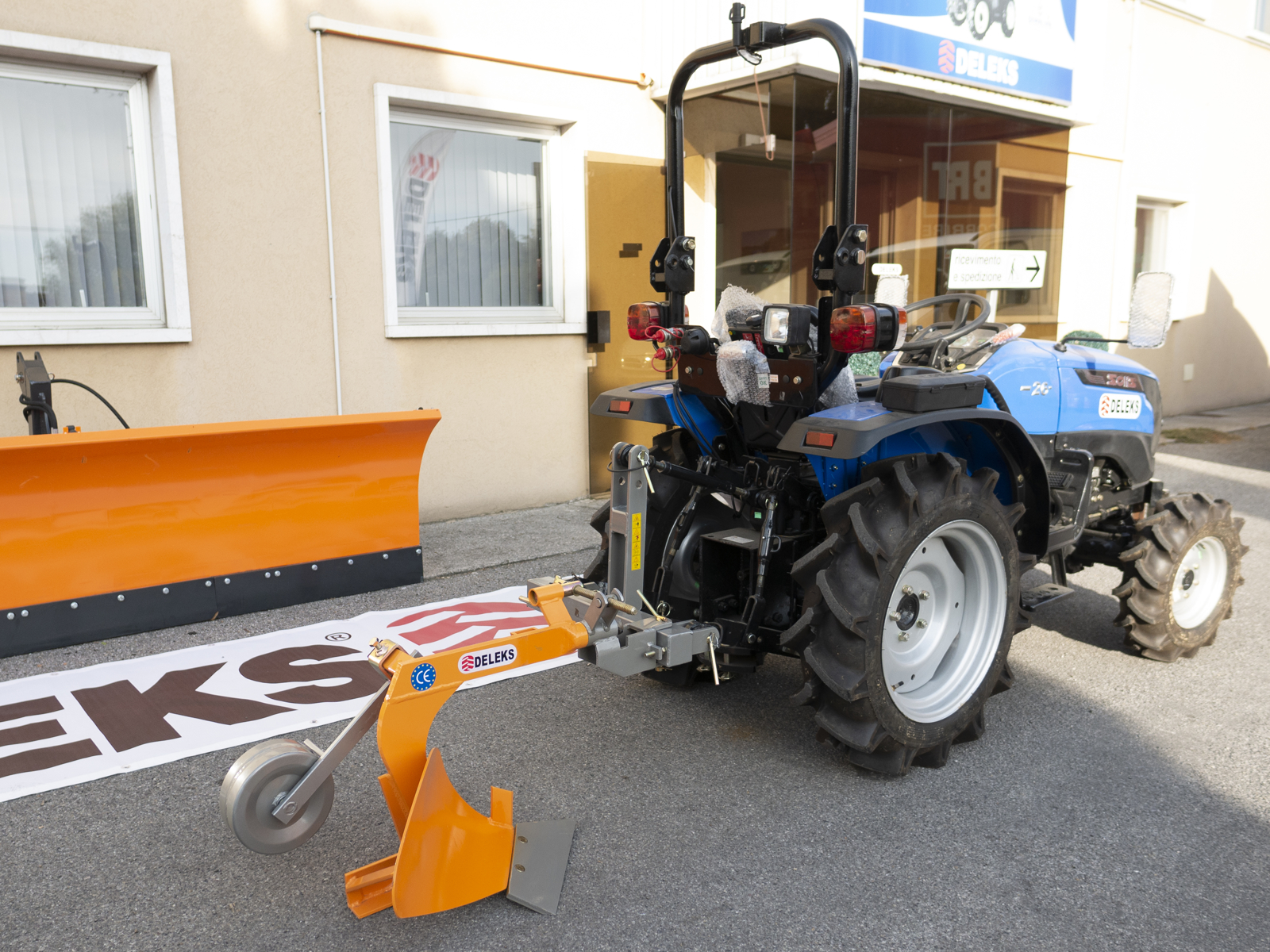

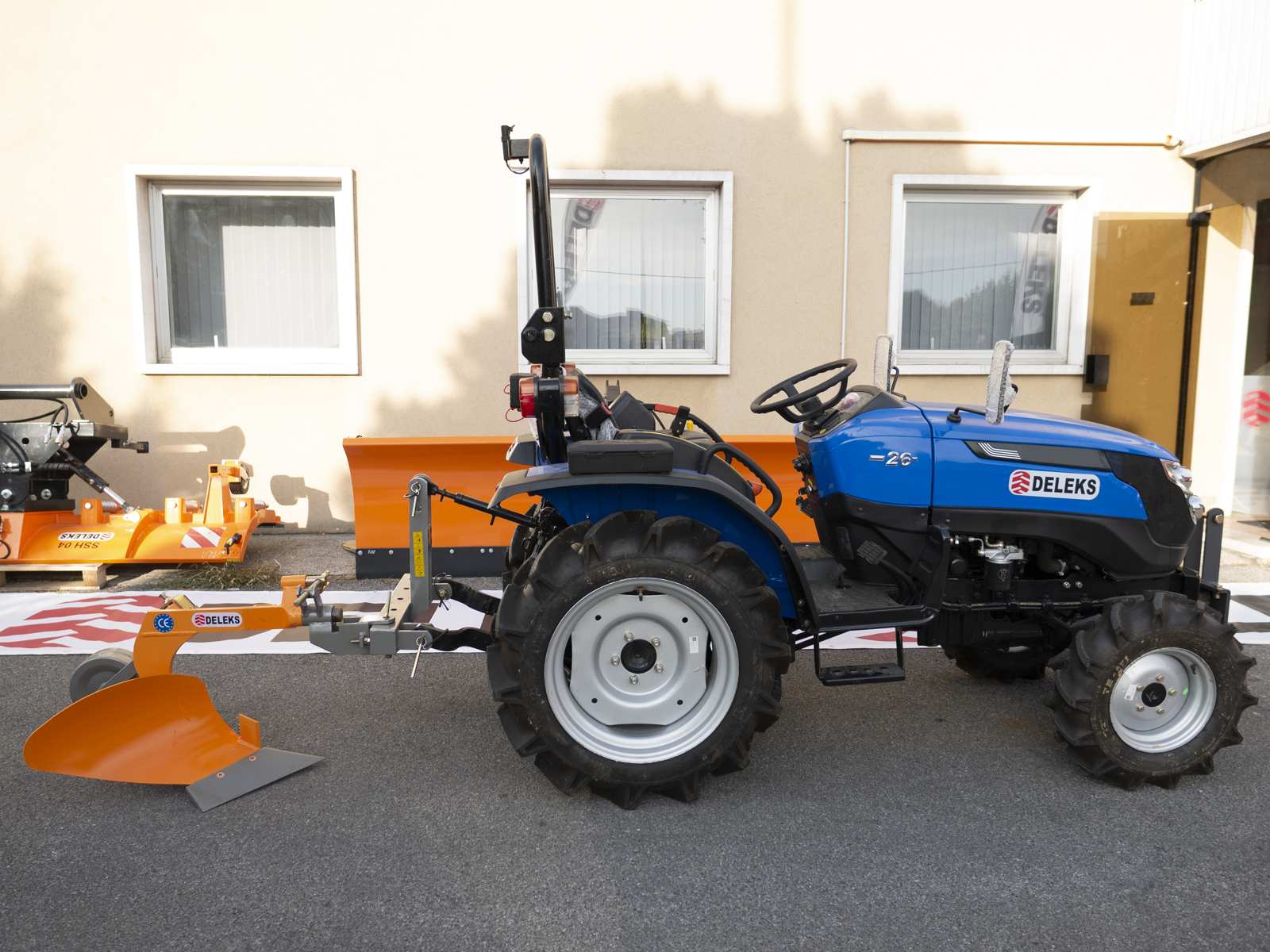

Single furrow plough with Gauge wheel for tractors like Yanmar, Iseki DP-20
Field test
DETAILS
Single Furrow Plough for 25-35HP Tractors, Japanese tractors, Compact tractors like New Holland and John Deere | DELEKS® DP-20
APPLICATION
DP-20 designed for cultivating clay or sandy soils, it fits most common compact tractor brands (no larger than 1300.0 mm): Japanese tractors: Kubota, Kioti, Iseki, Yanmar, Mahindra, and compact tractors: John Deere, McCormick, New Holland Boomer 25-30 etc. Universal 3 point linkage Cat. 1. EC Declaration of Conformity. Not suitable for crawler tractors.
BENEFITS & FEATURES
10kg heavier than the D16 and DP18 and fits 20-35HP tractors.
Additional welded frame strengthening parts on the arm to reinforce stress points.

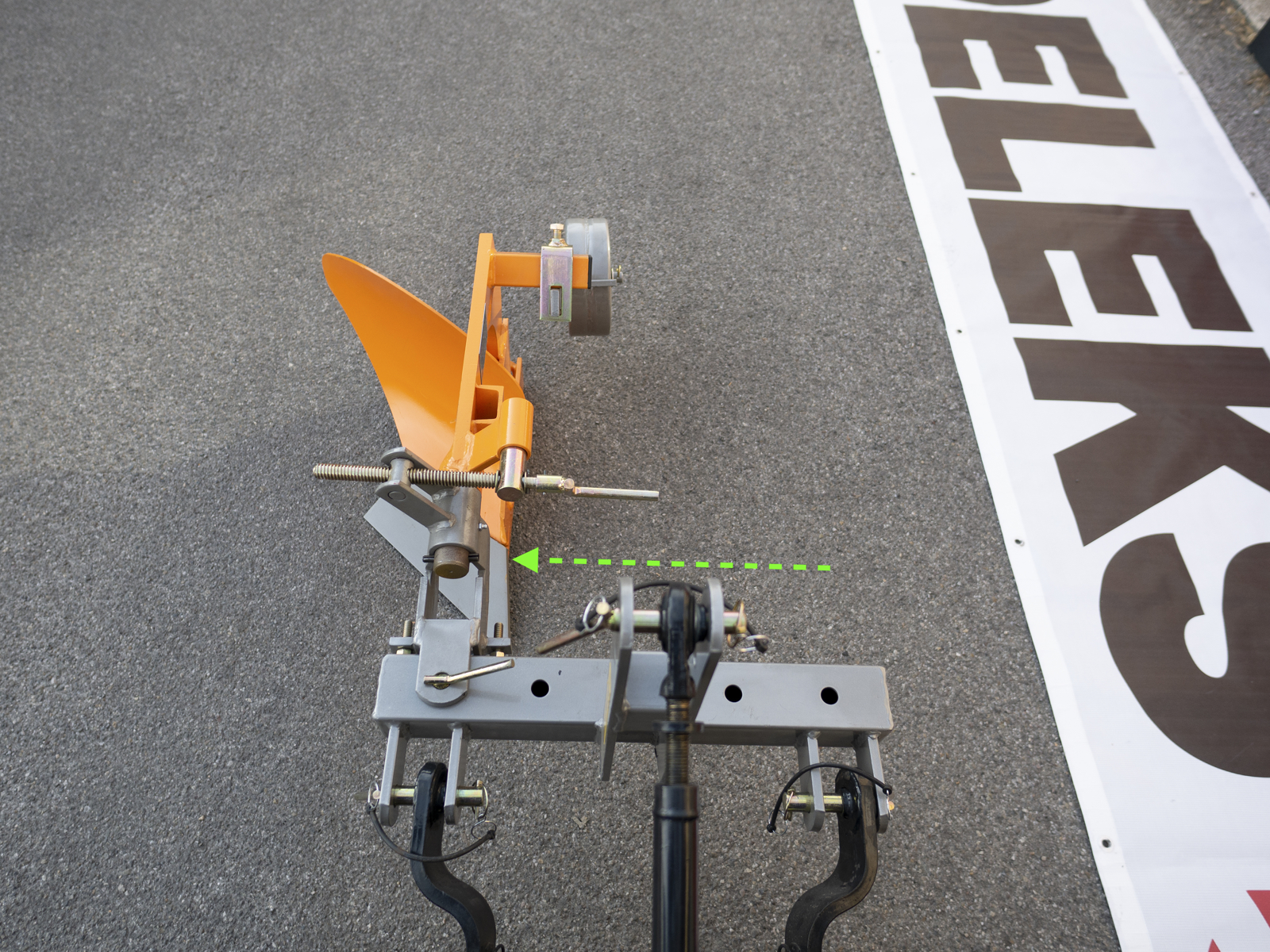

The plough's tilt and depth can be adjusted easily.

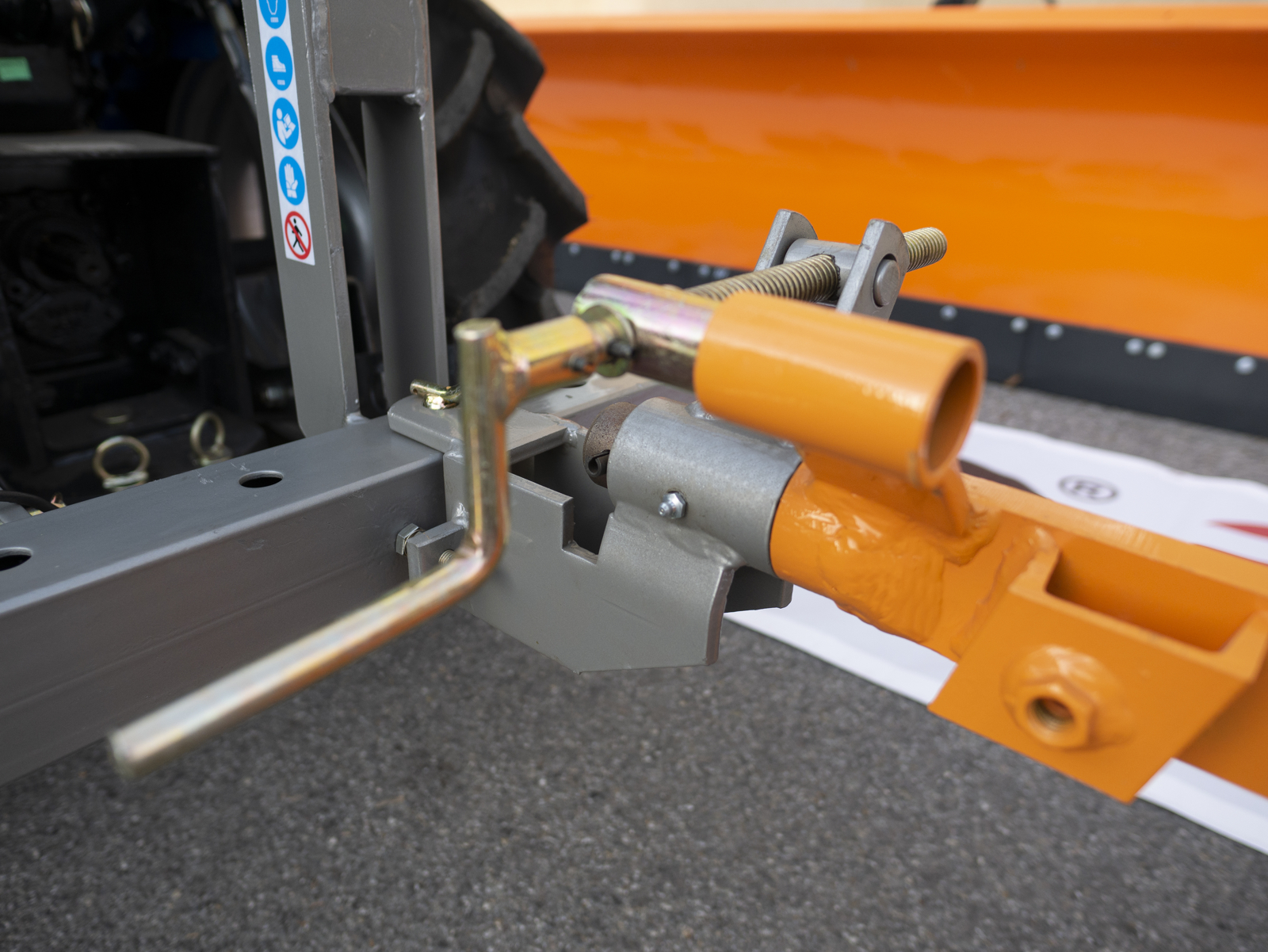

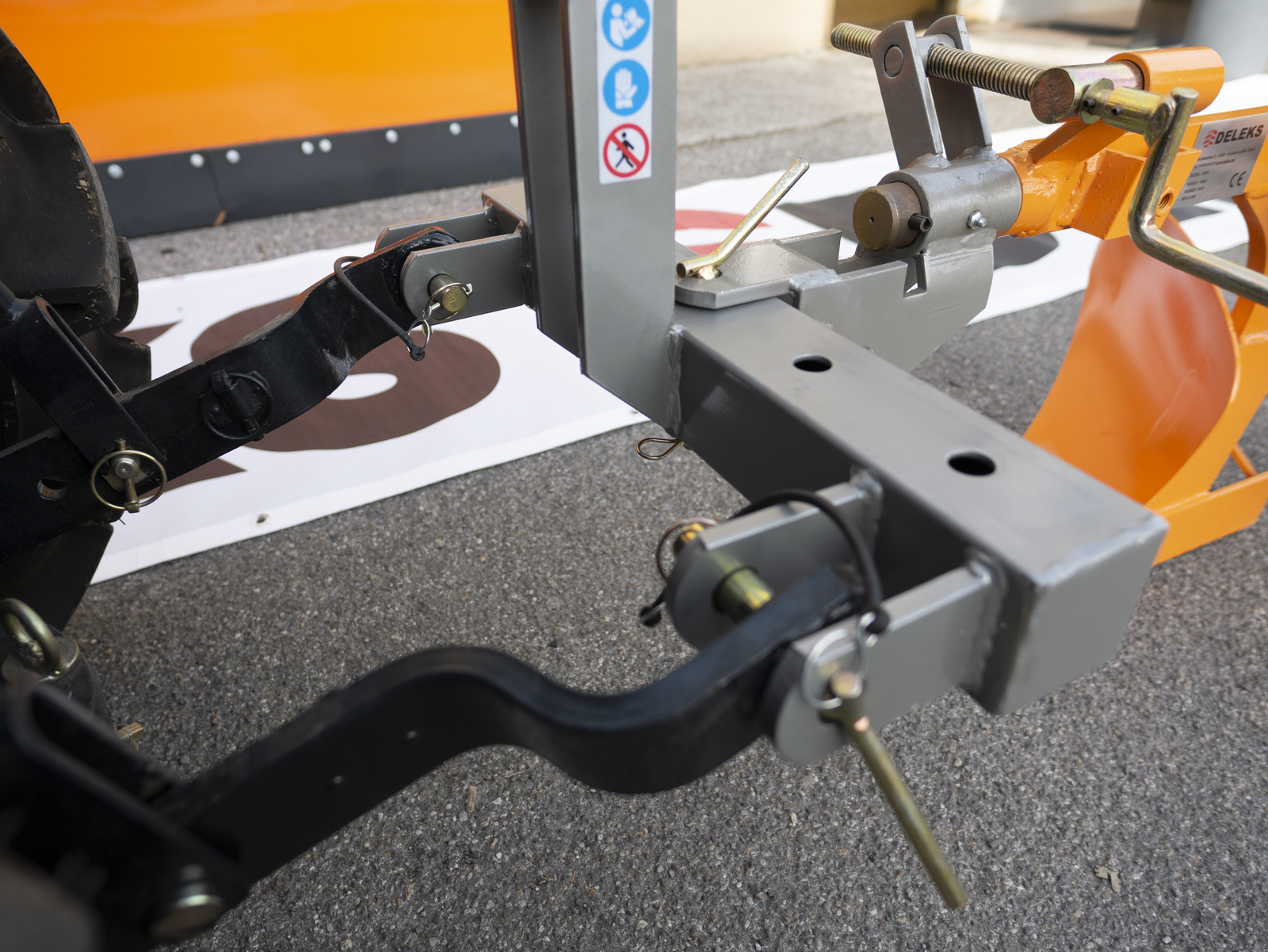

The 3 point linkage determines the position of the plough. It can be used also as multi-use bar.

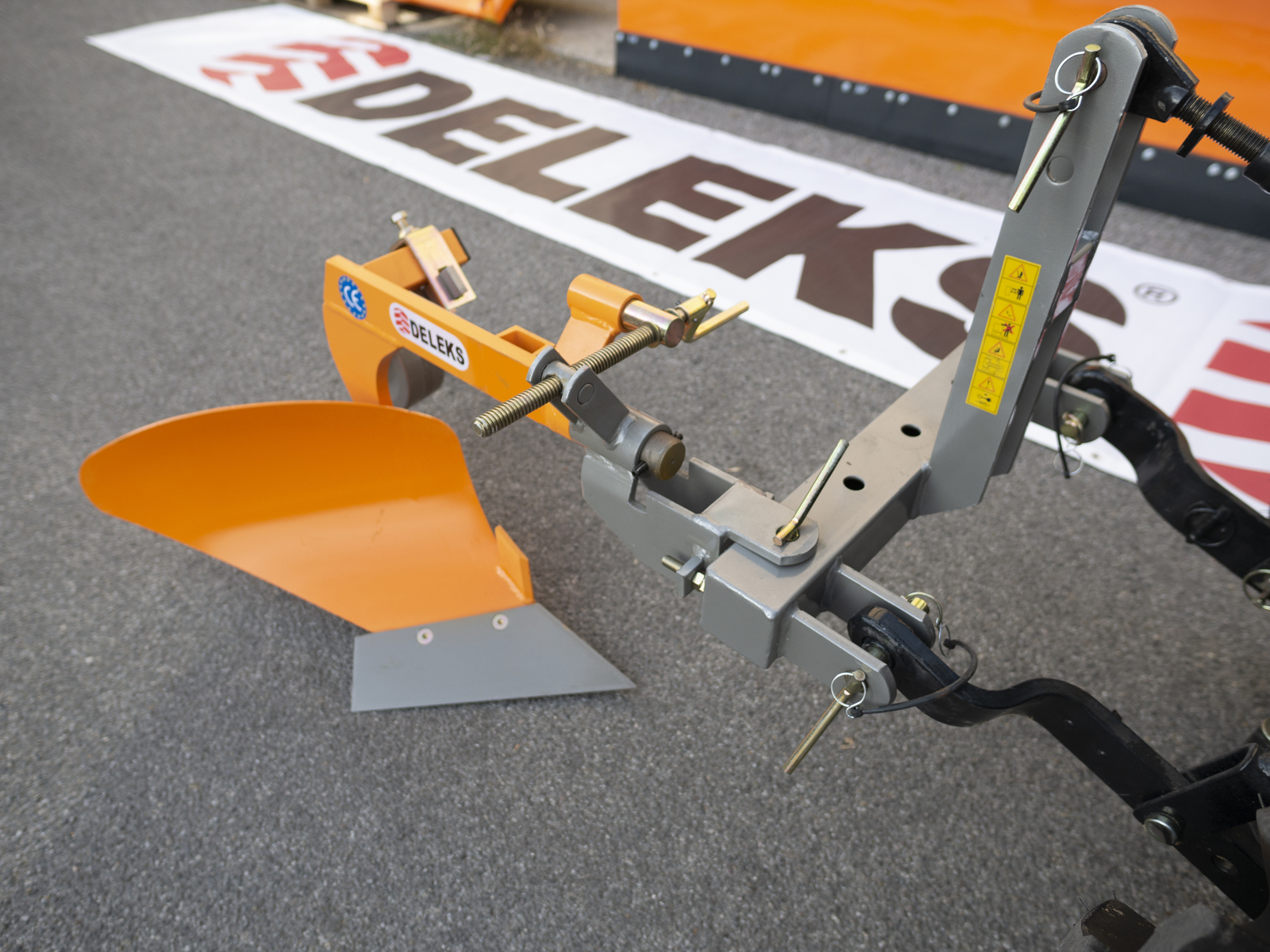

Detachable and replaceable coulter.

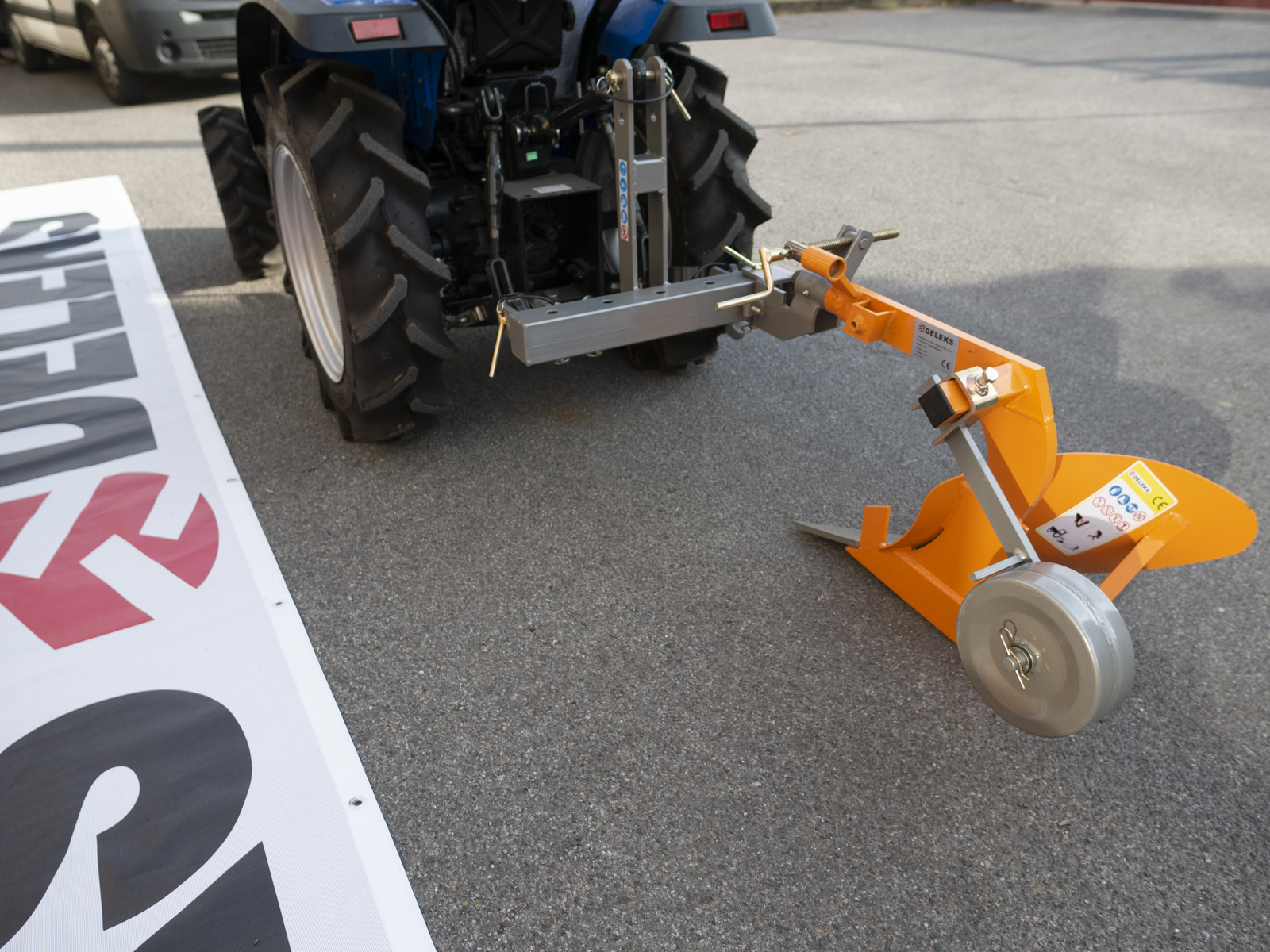

Gauge wheel that allows you to adjust depth and maximize usage.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 610.0 mm |
| Weight | 61.0 kg |
| Overall height | 910.0 mm |
| Tractor Power Range | 20 - 35 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |

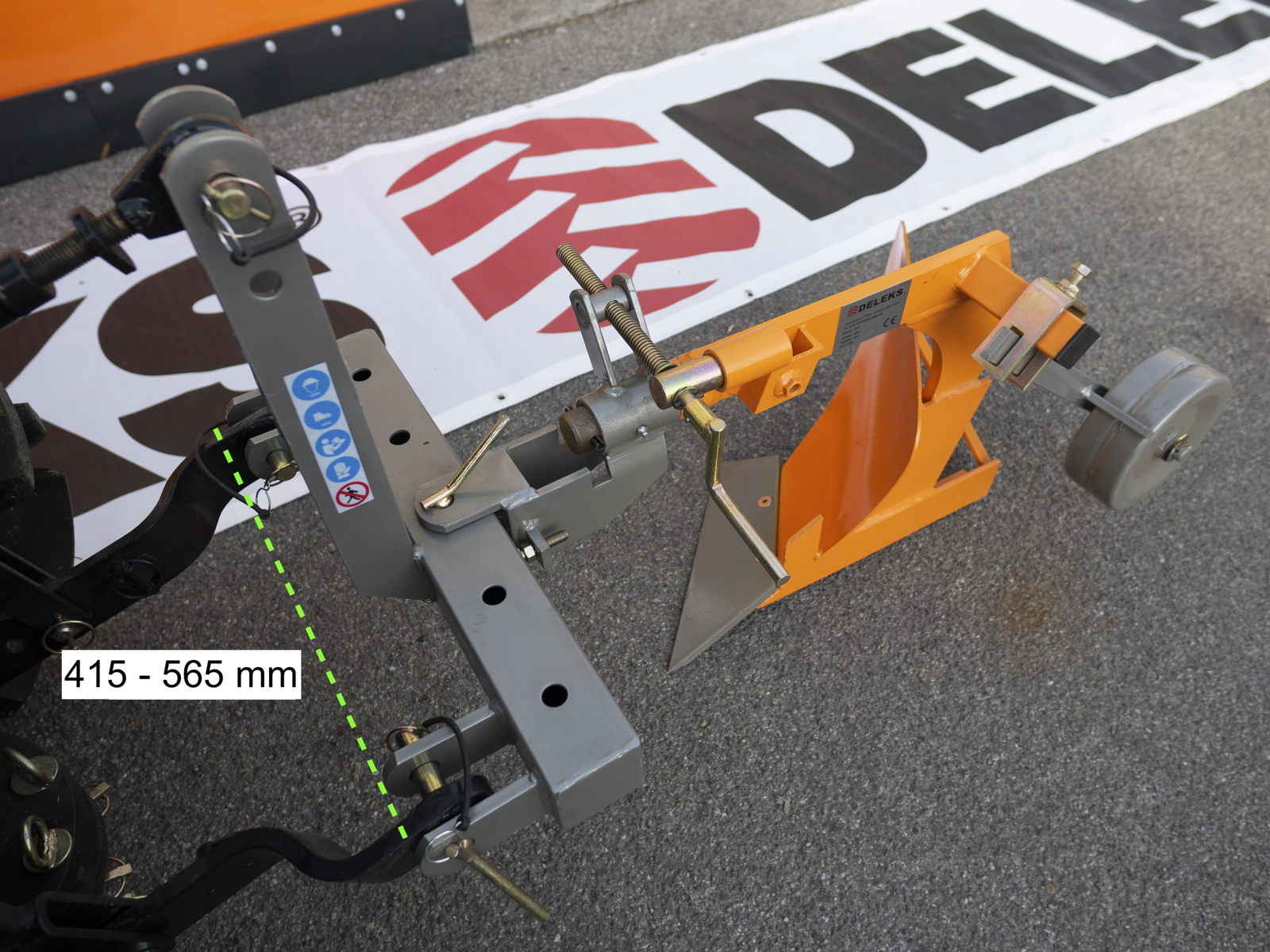

| Spacing between the 2 lower points | 415.0 - 565.0 mm |
| Overall length | 1070.0 mm |
| Number of Furrow | 1 |
| Furrow diagonal | 835.0 mm |
| Width of cut | 310.0 mm |

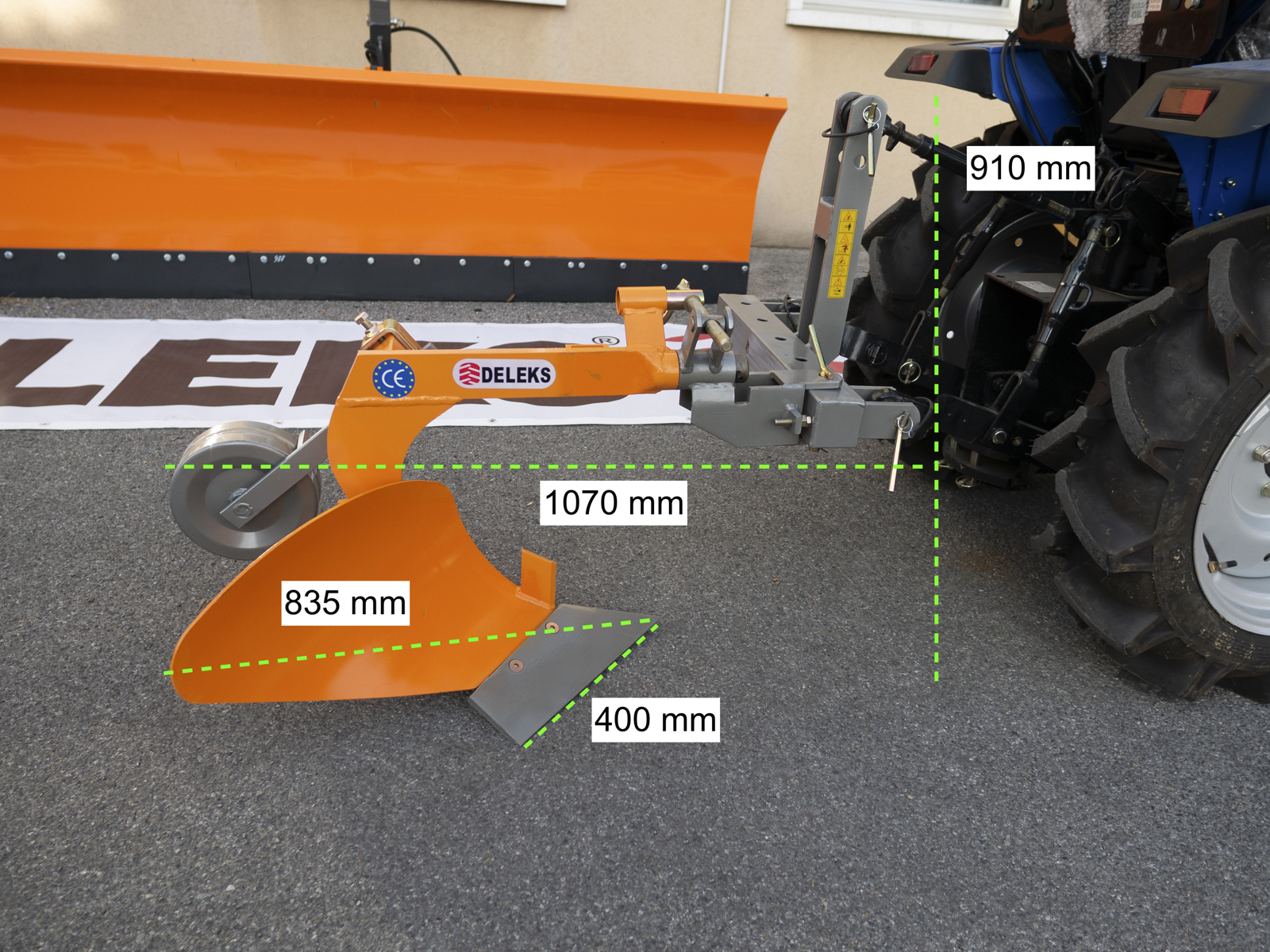

| Other sizes | See pictures |
| Effective Displacement | 460.0 mm |
| Thickness of the arm | 20.0*70.0 mm |
| Cutting Edge Lenght | 400.0 mm |
| Cutting Edge Thickness | 15.0 mm |
| 3 point Linkage tube sizes | 80.0*80.0 mm |
| Depth adjustment Wheel sizes | ø 25.0 * 10.0 mm |
| Working Depth | 160.0 - 250.0 mm |
| Packing sizes | 600.0*800.0*500.0 mm |
