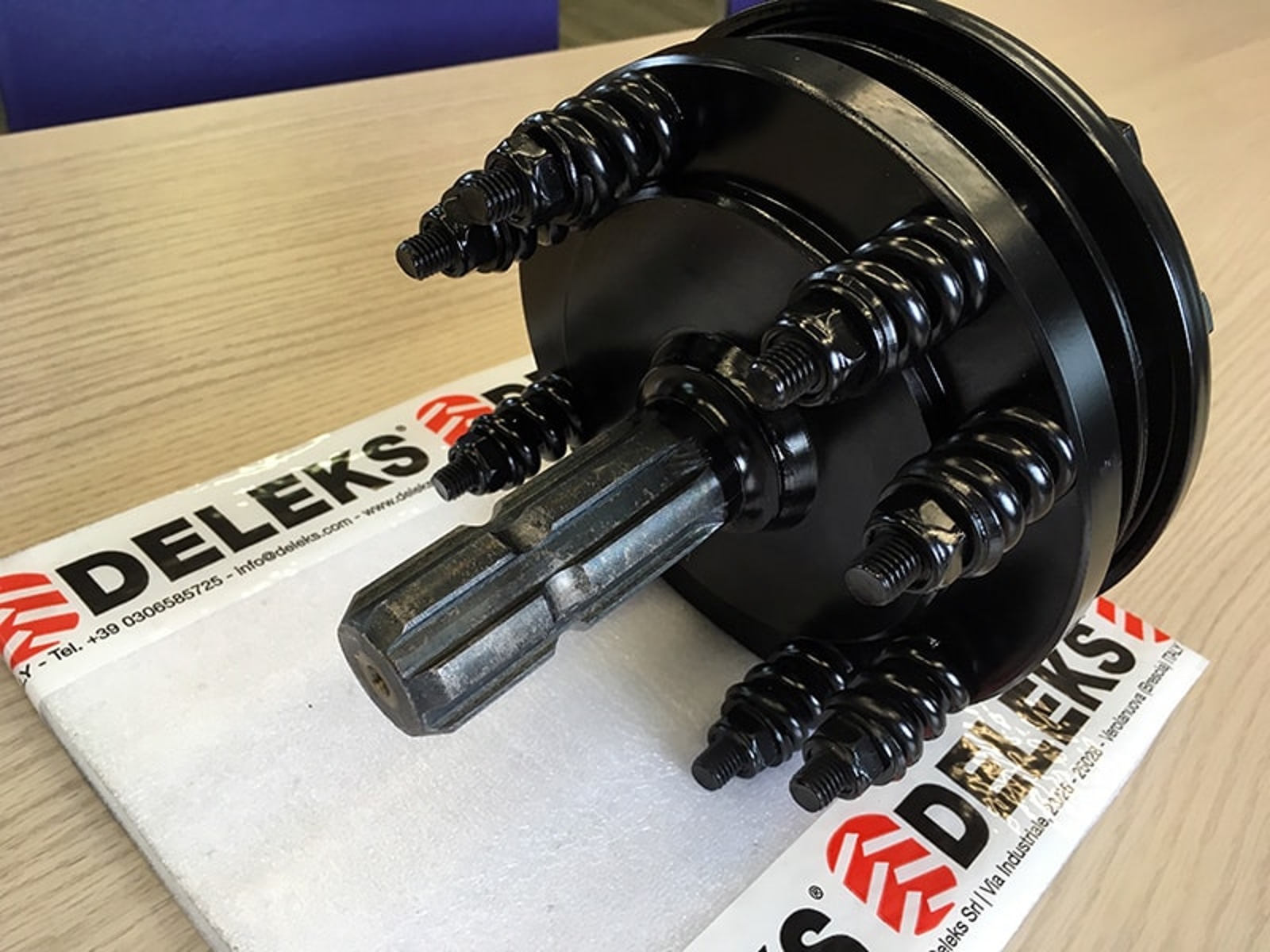

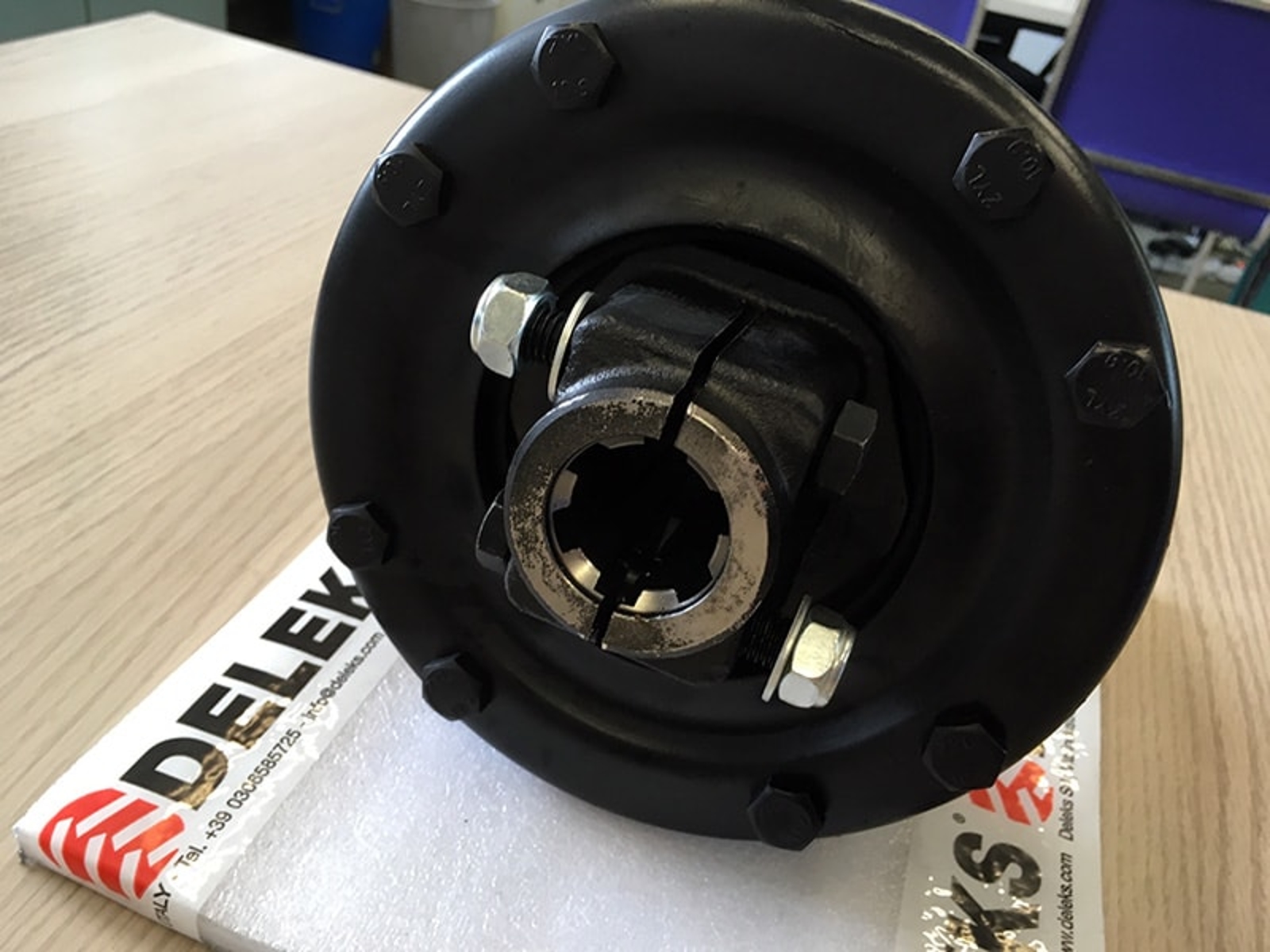

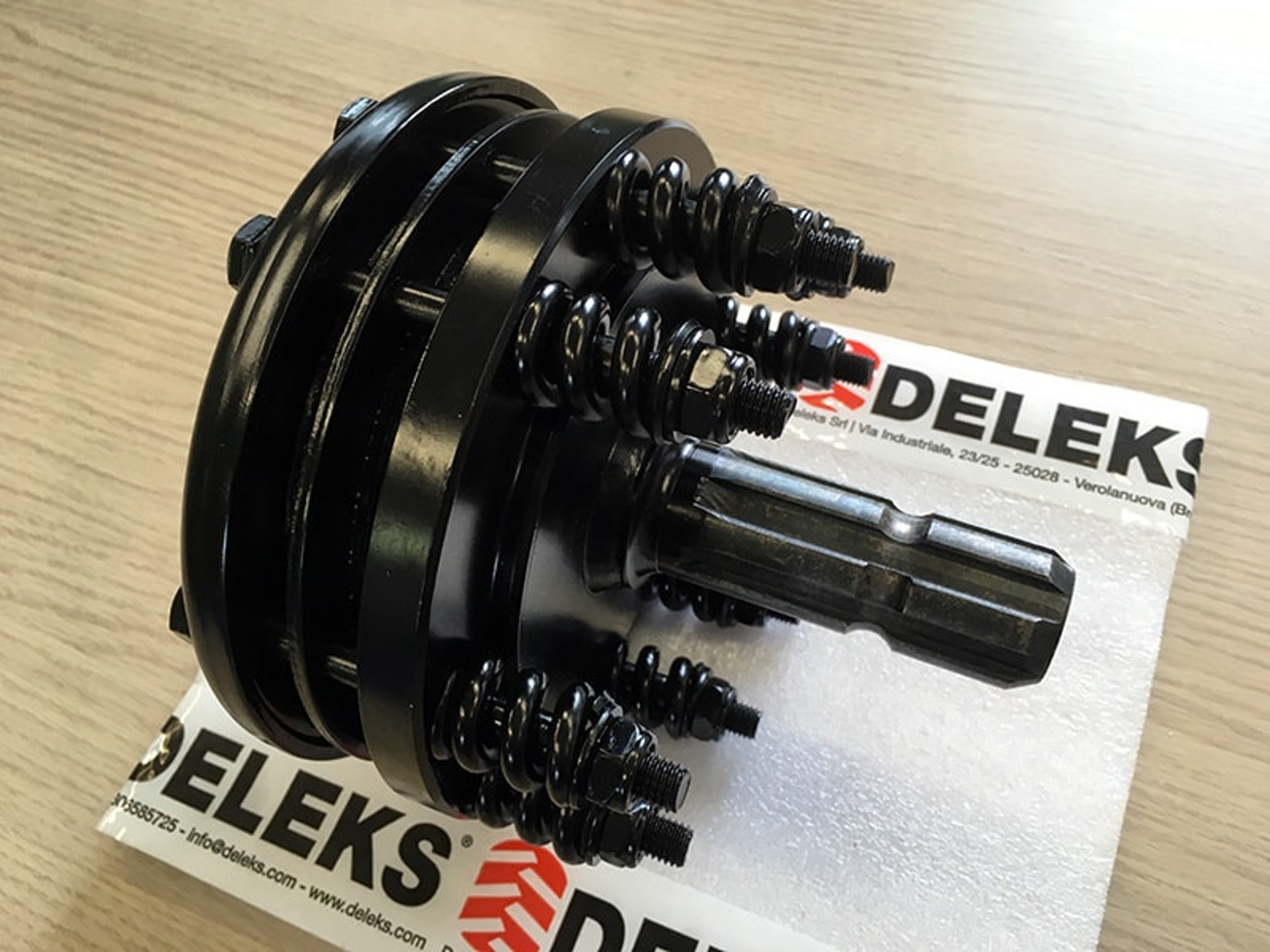

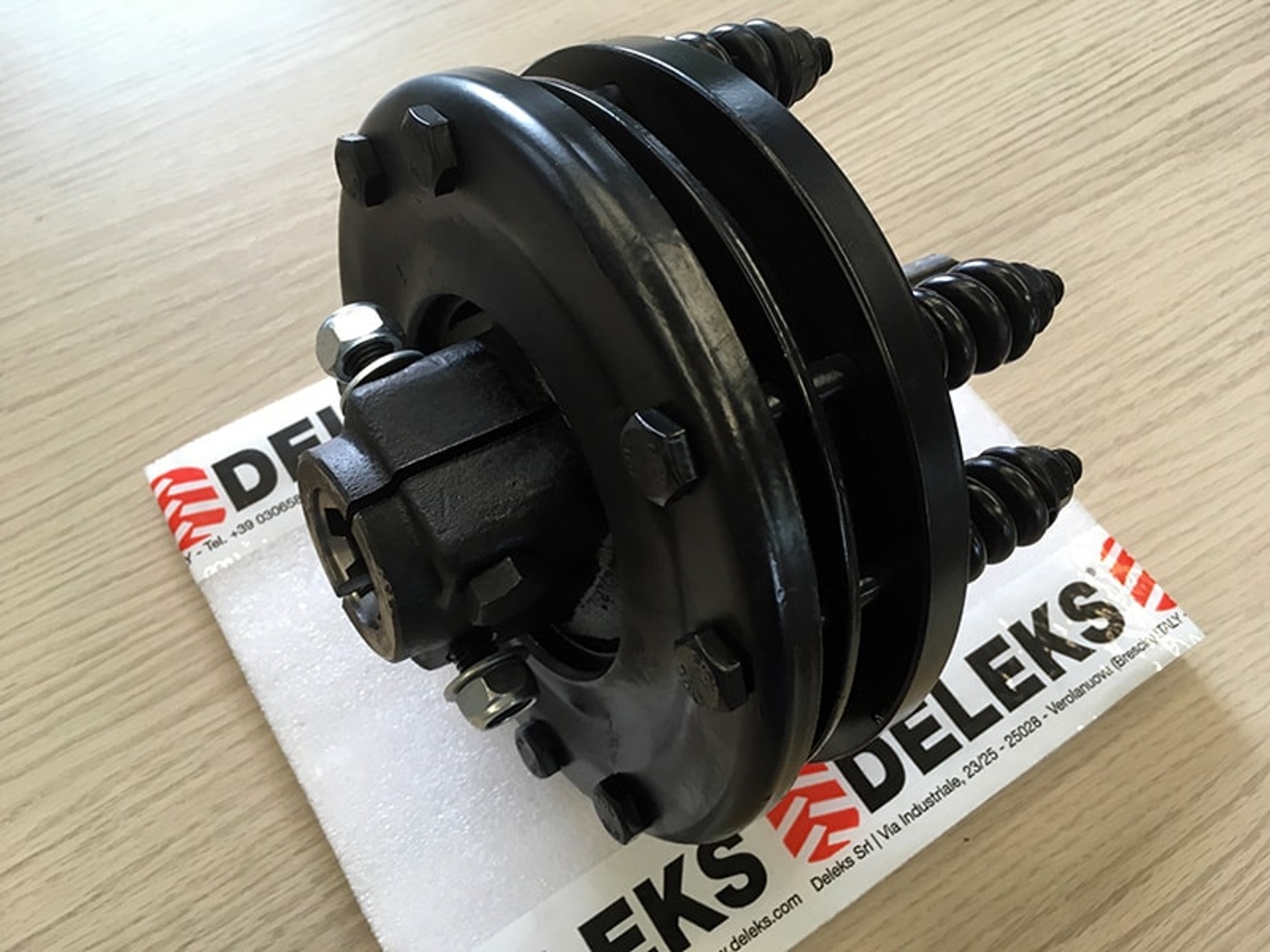

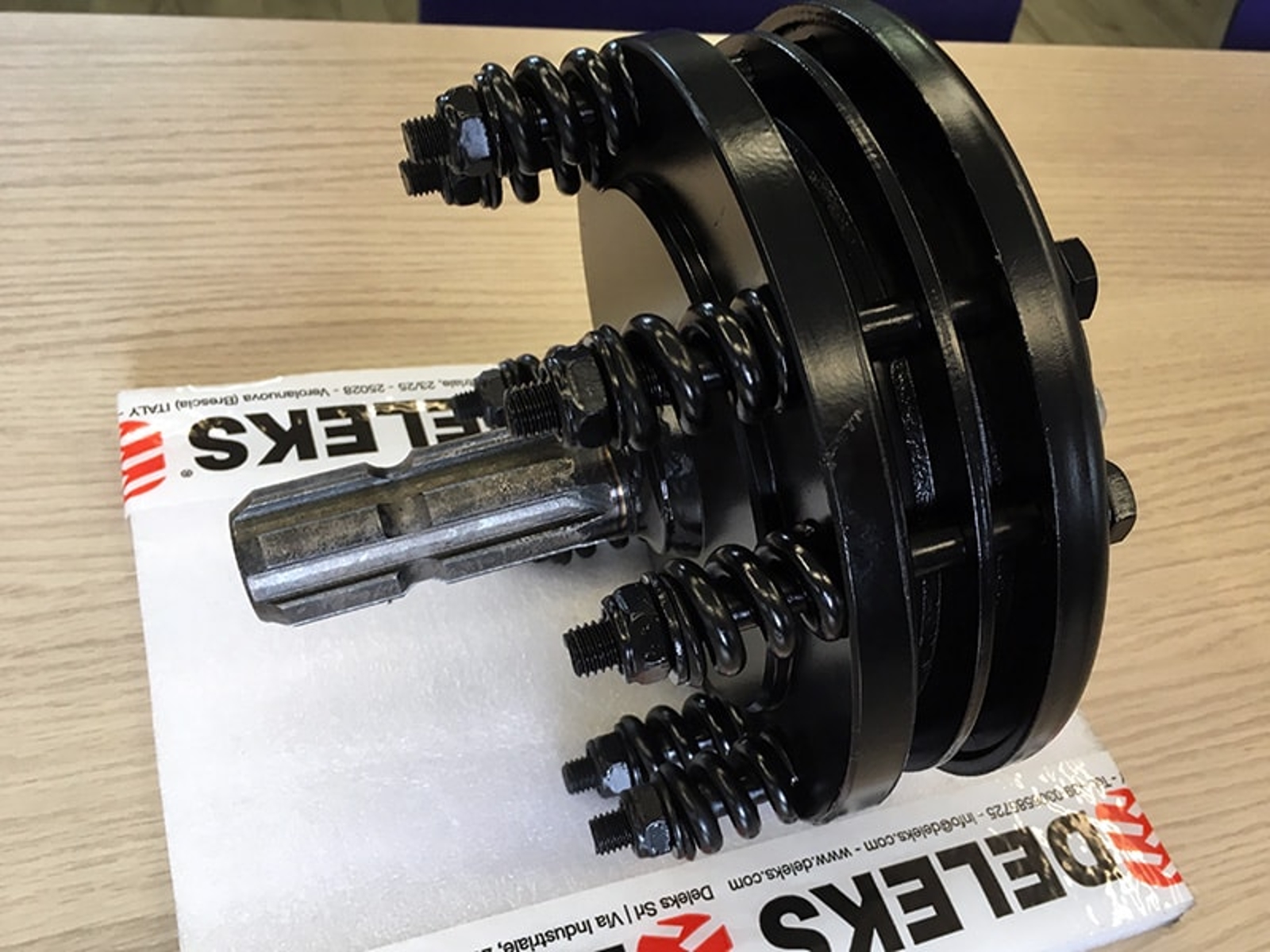

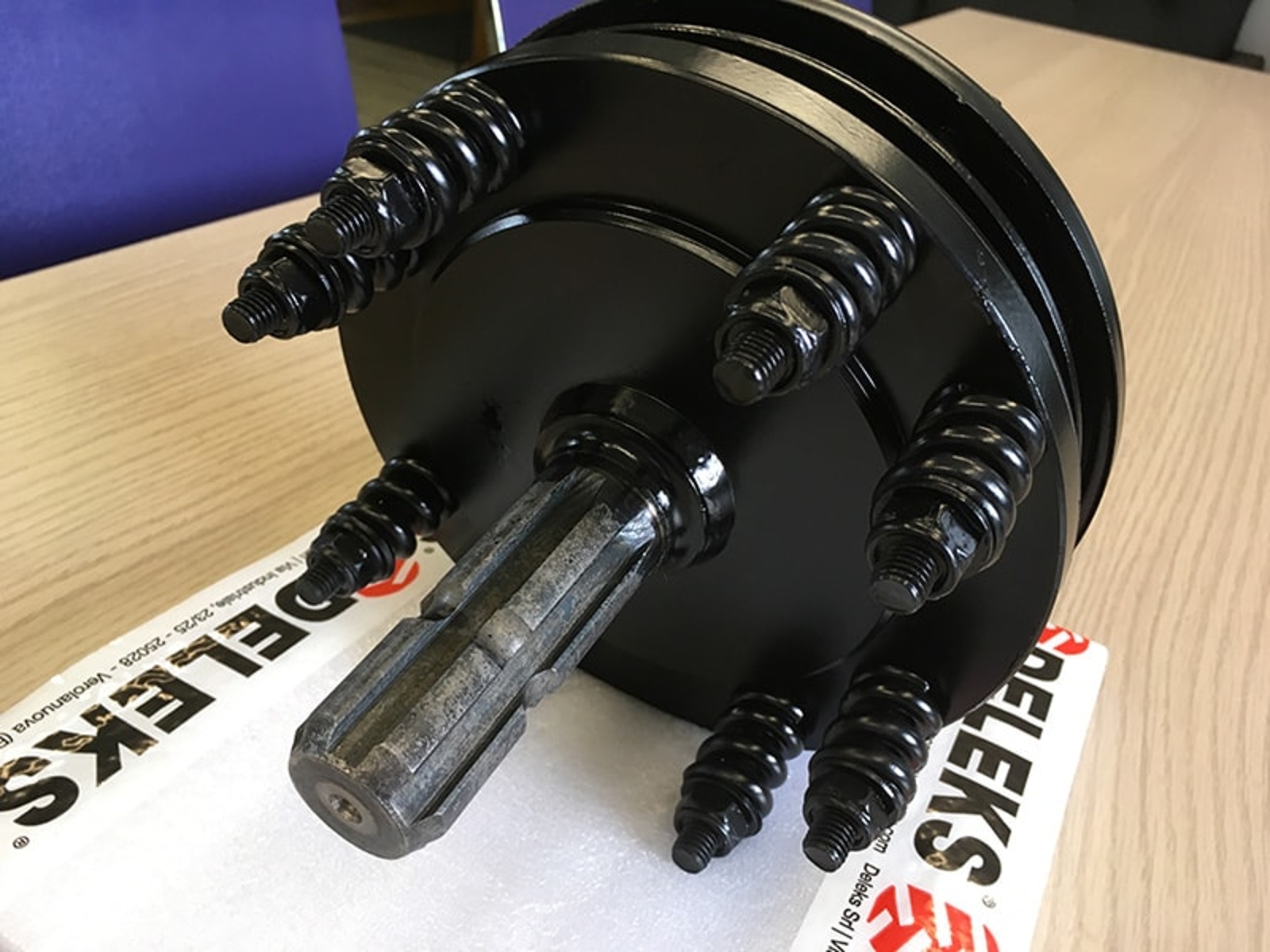

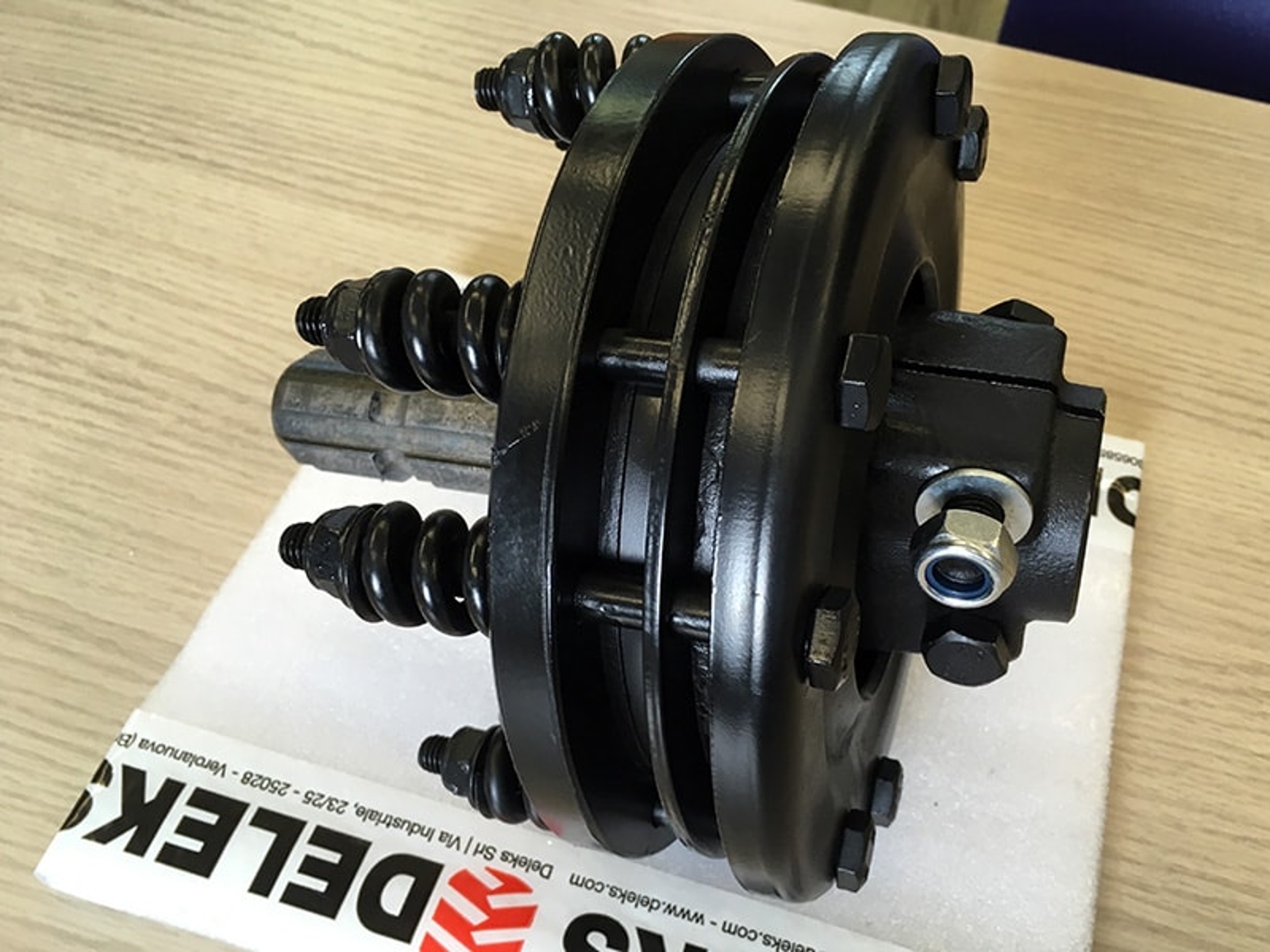

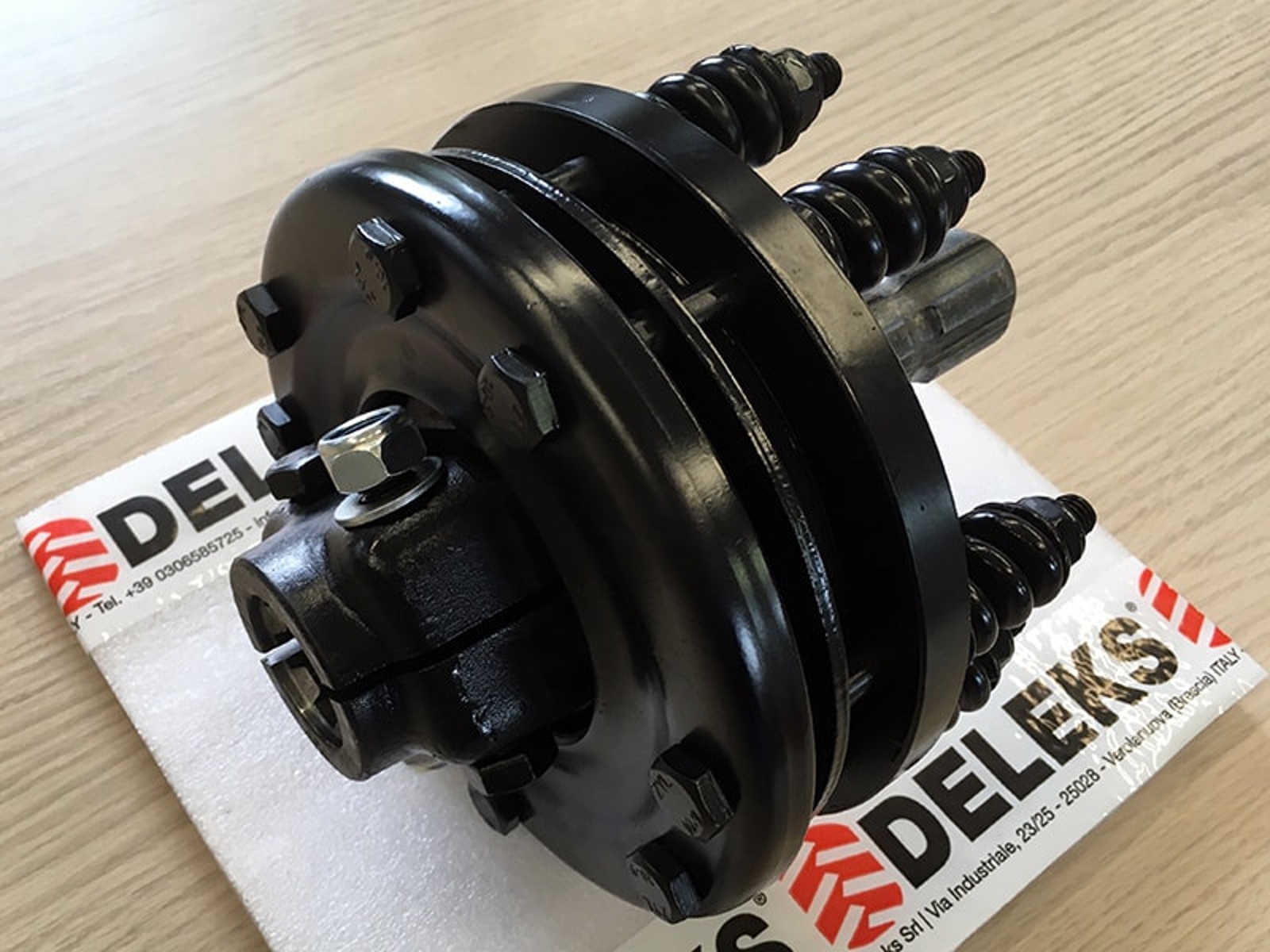

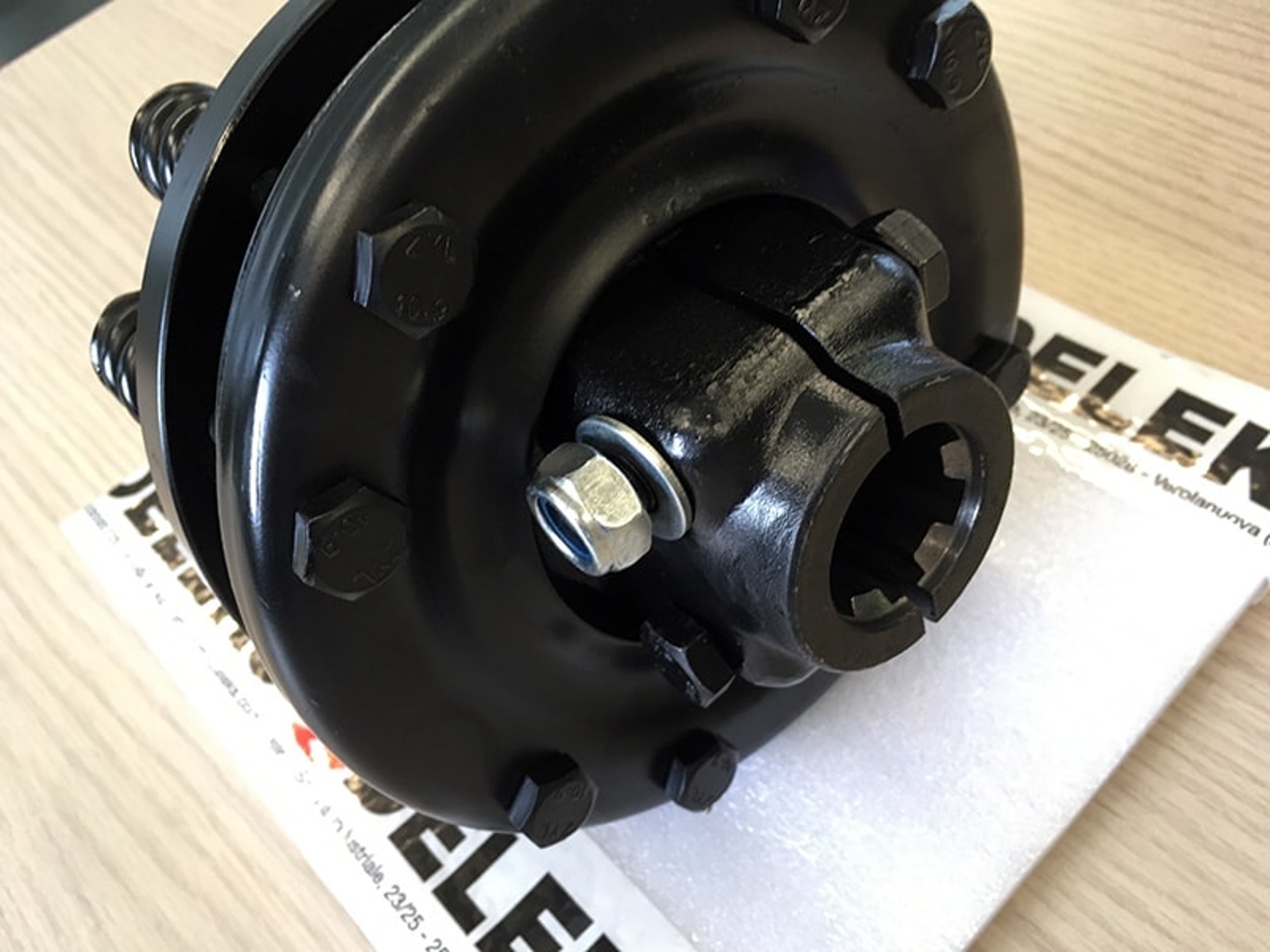

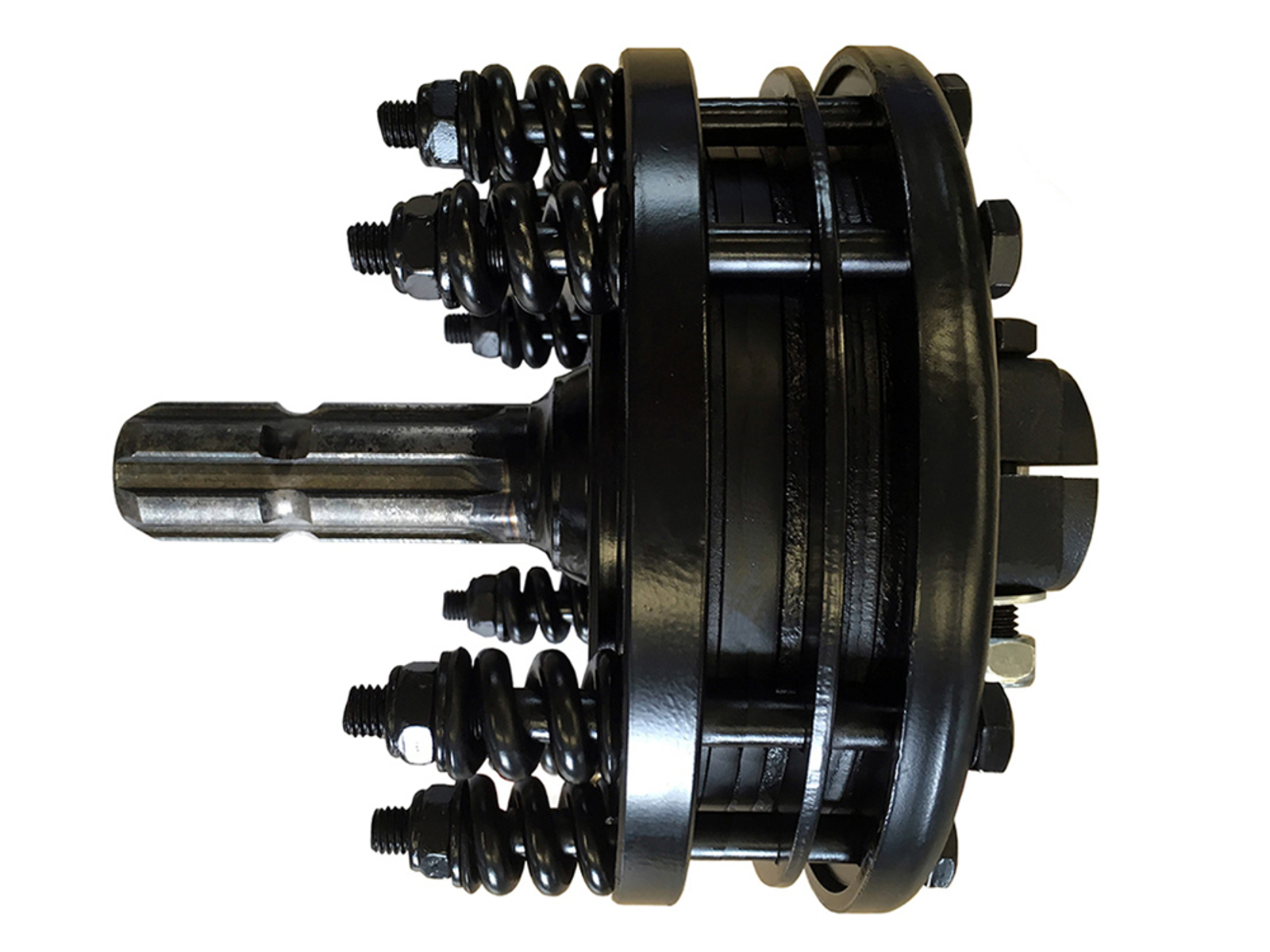

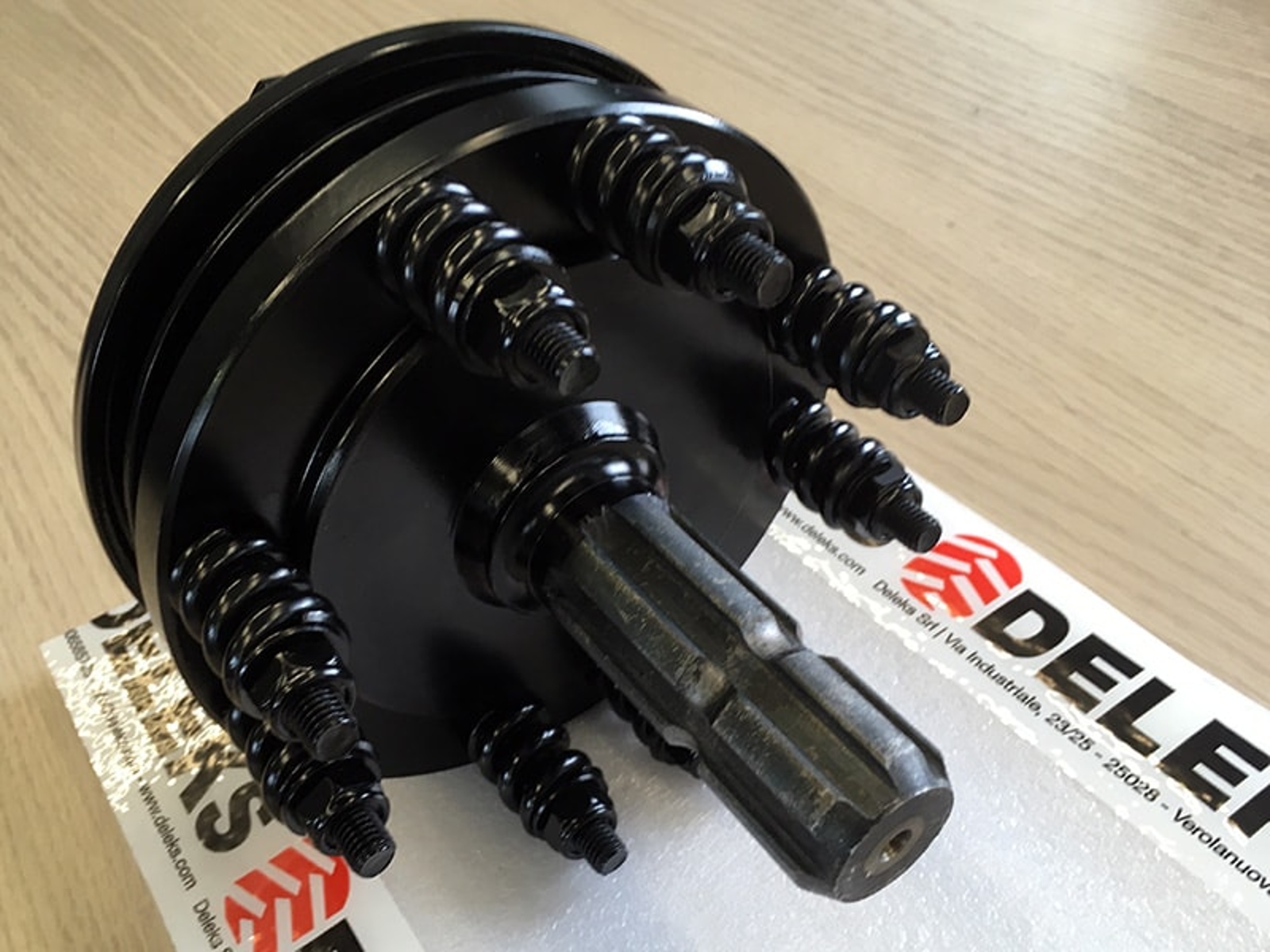

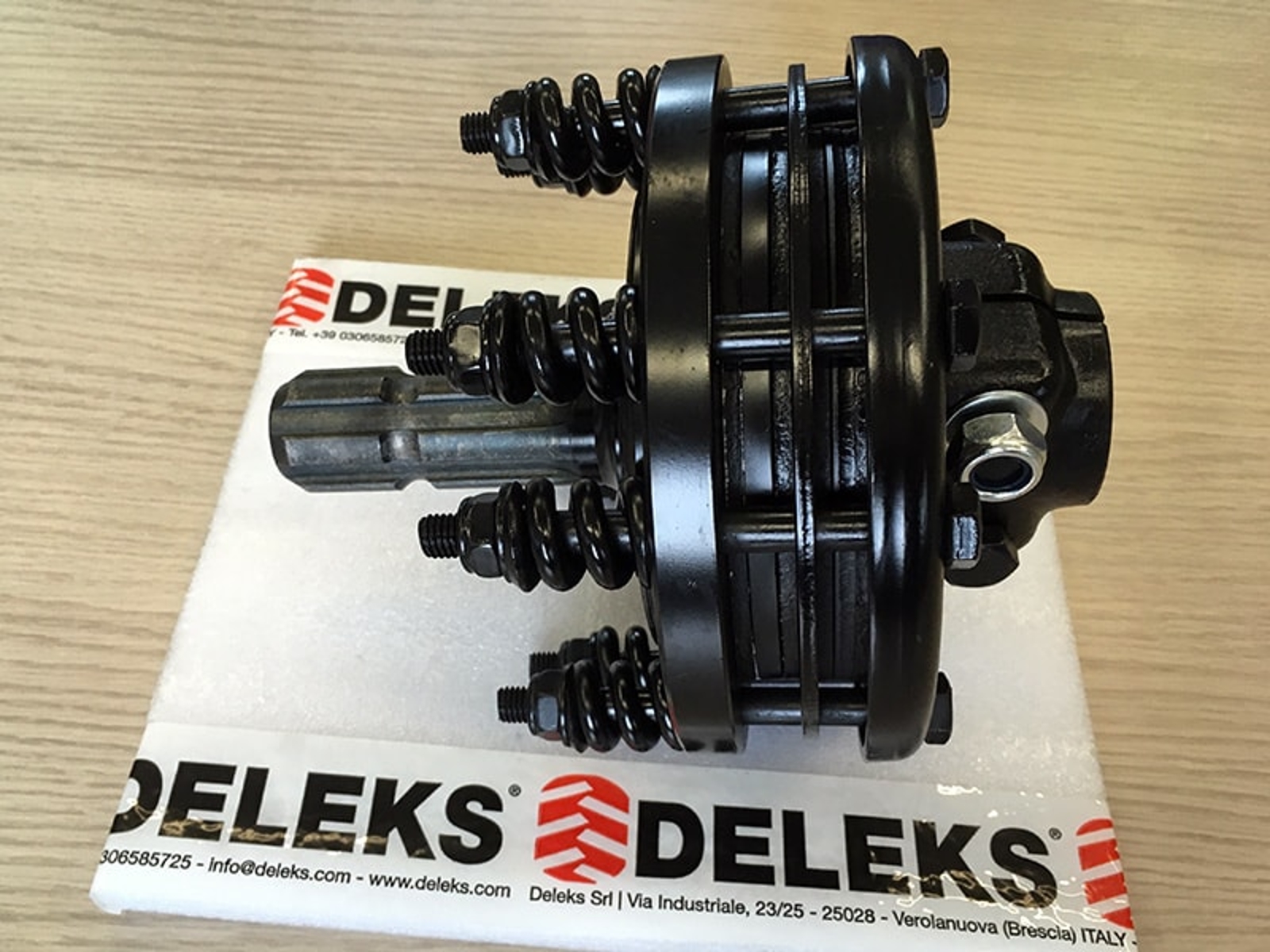

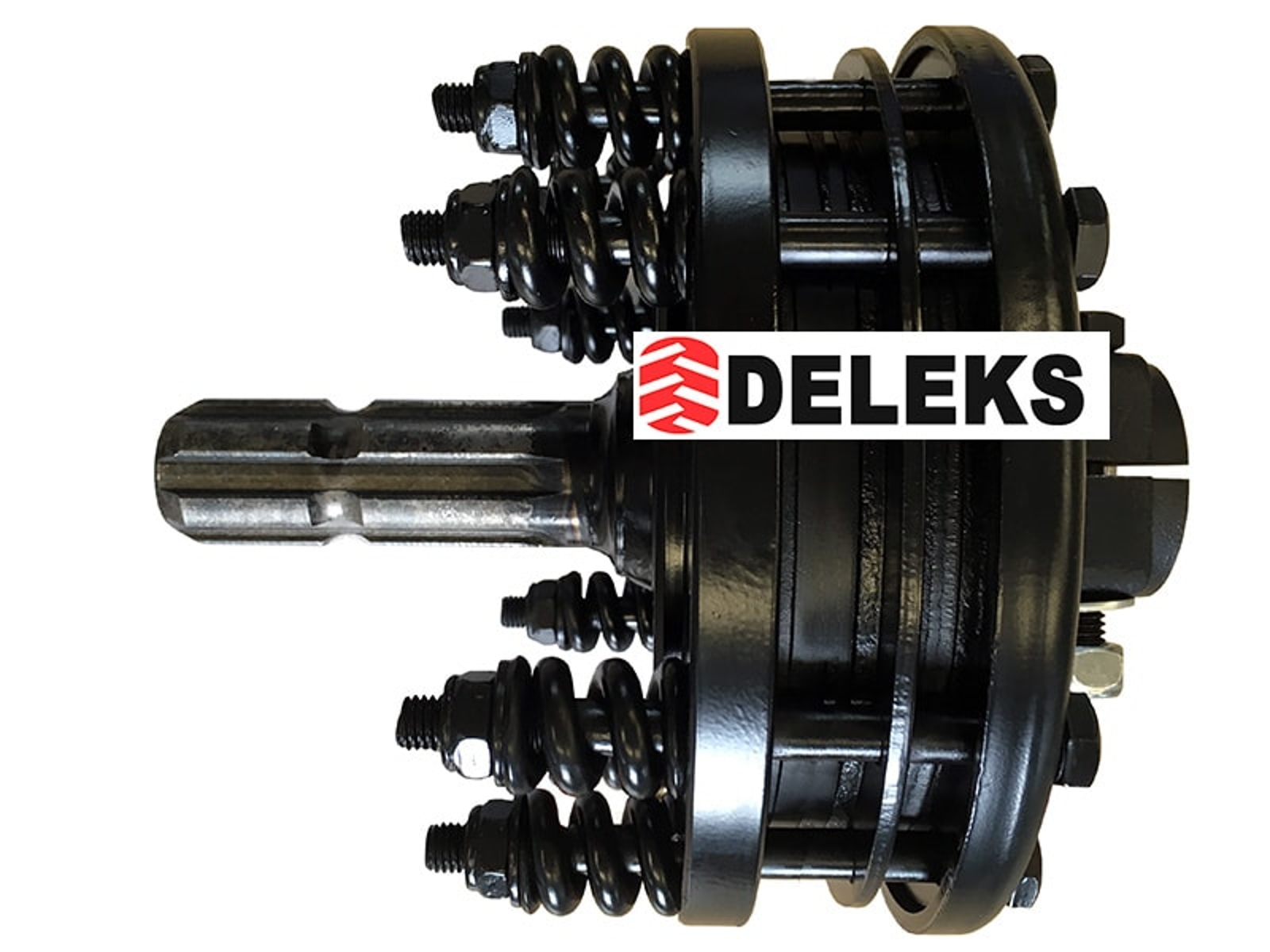

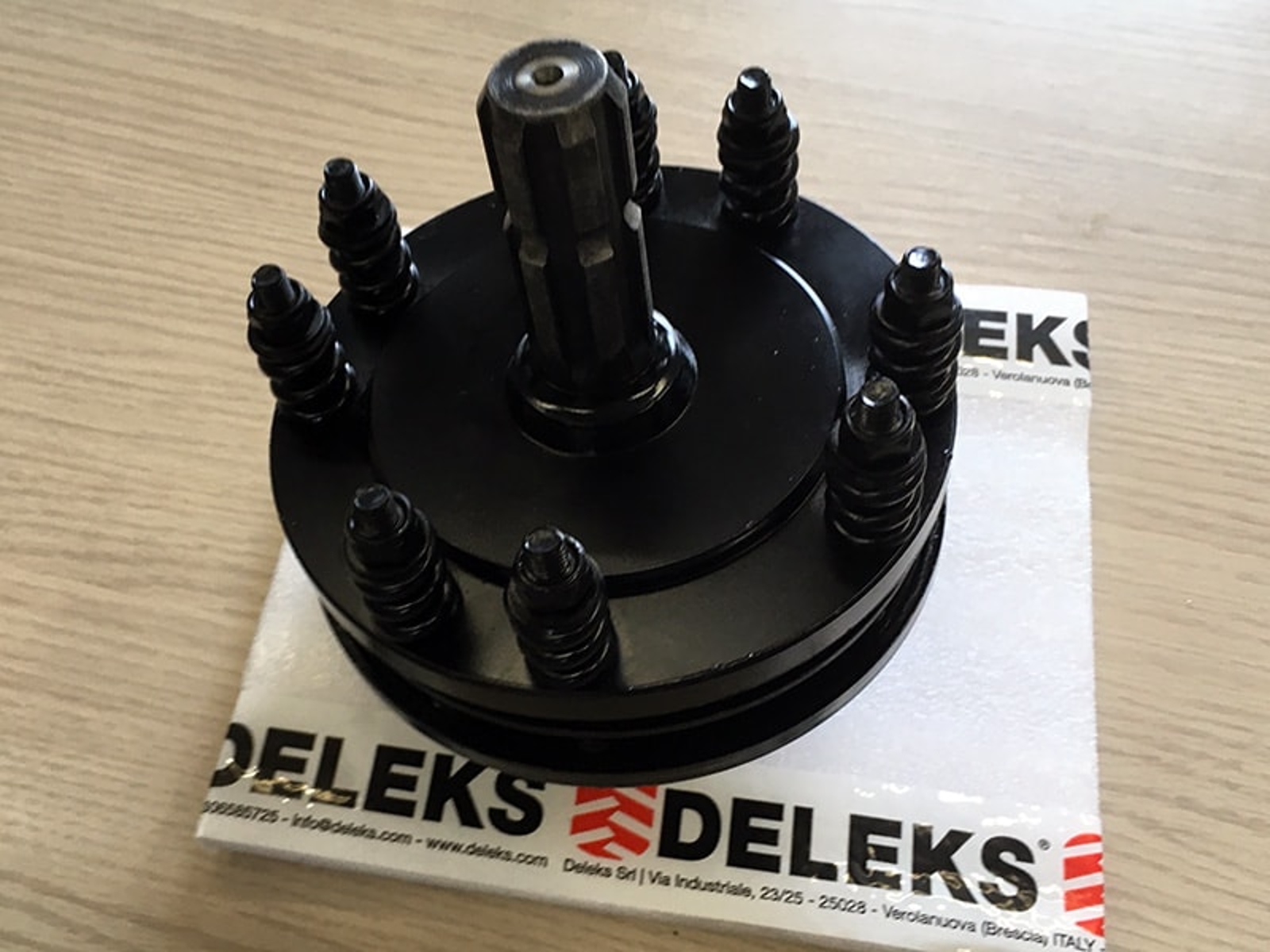

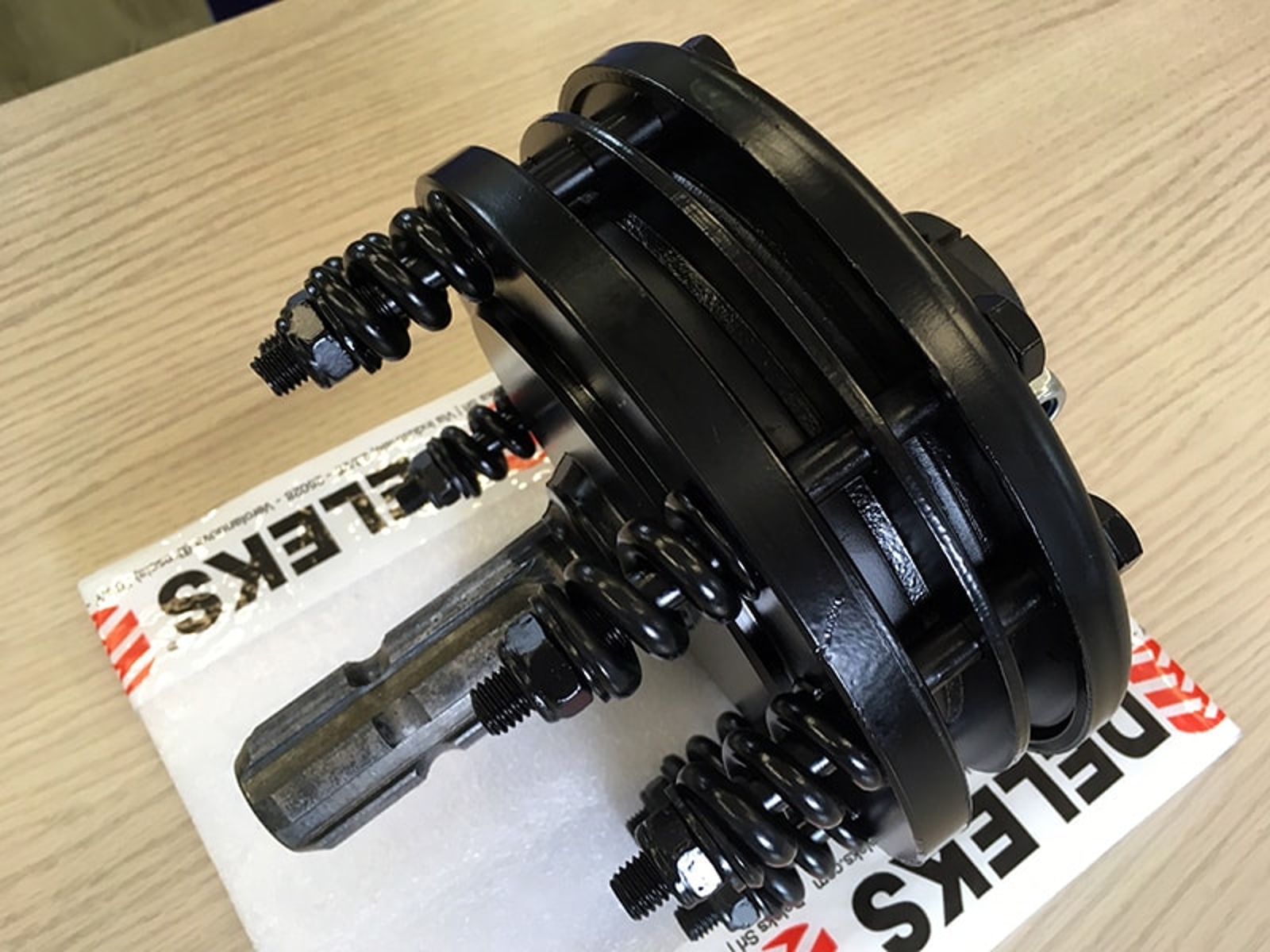

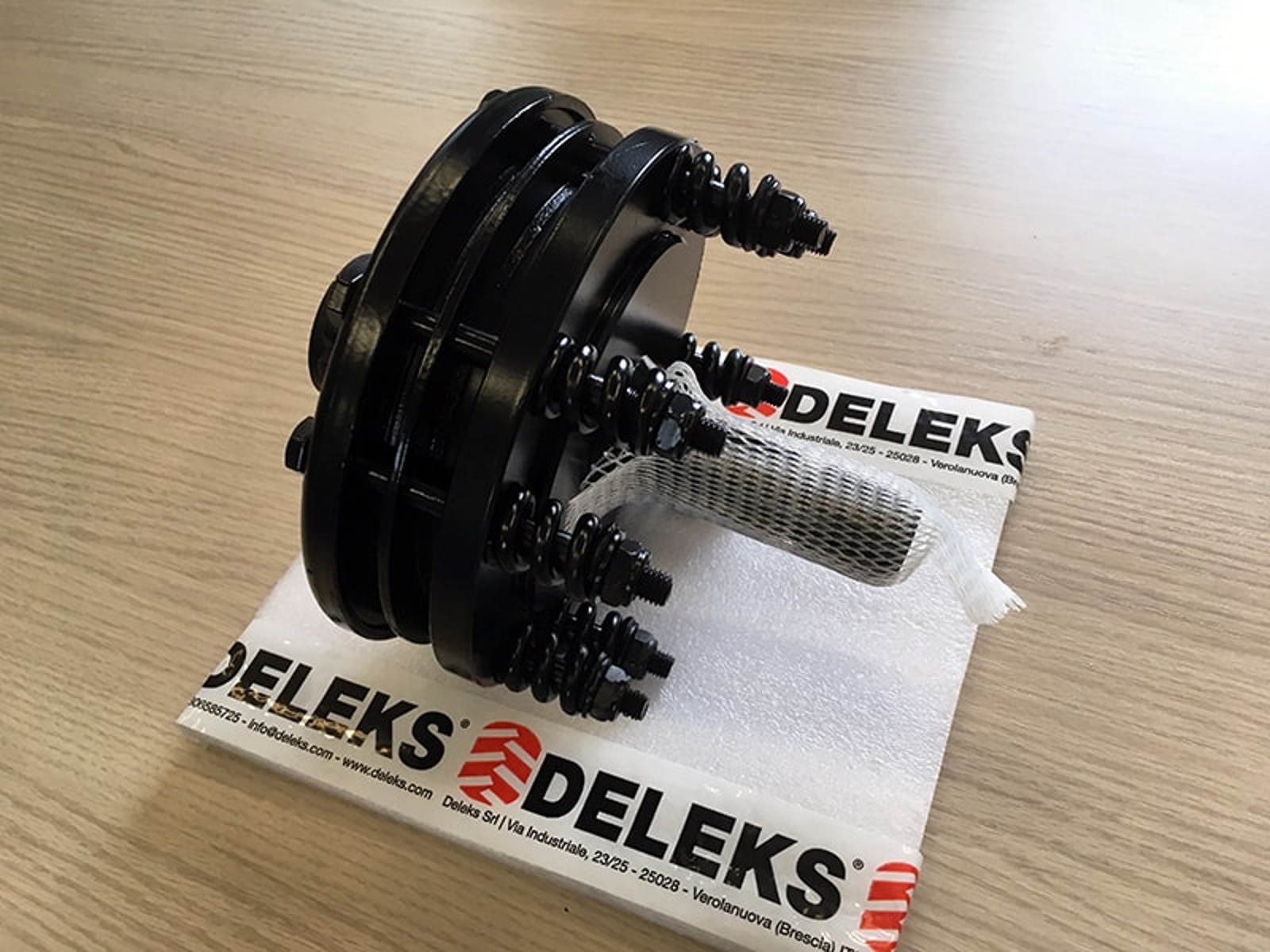

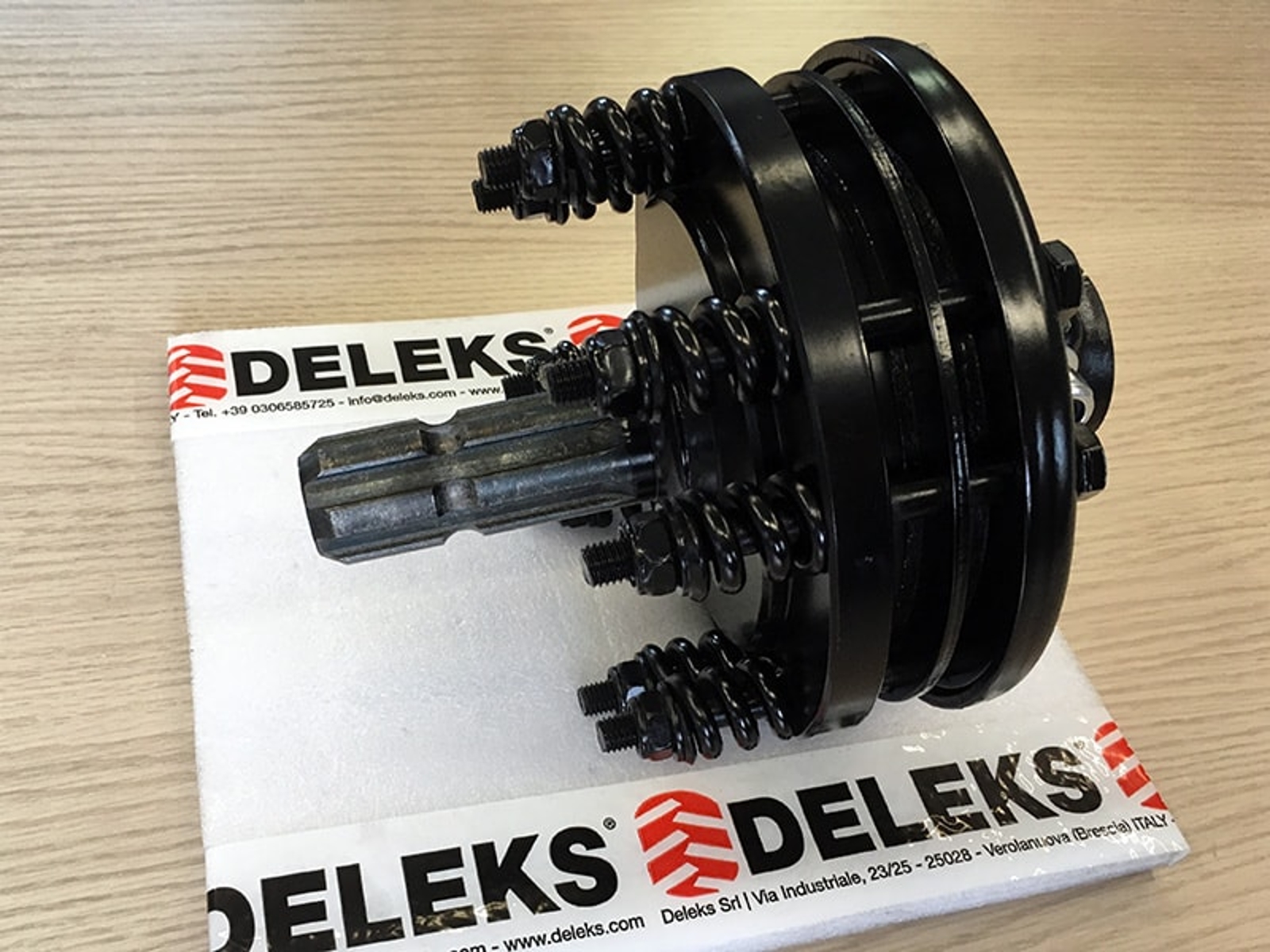

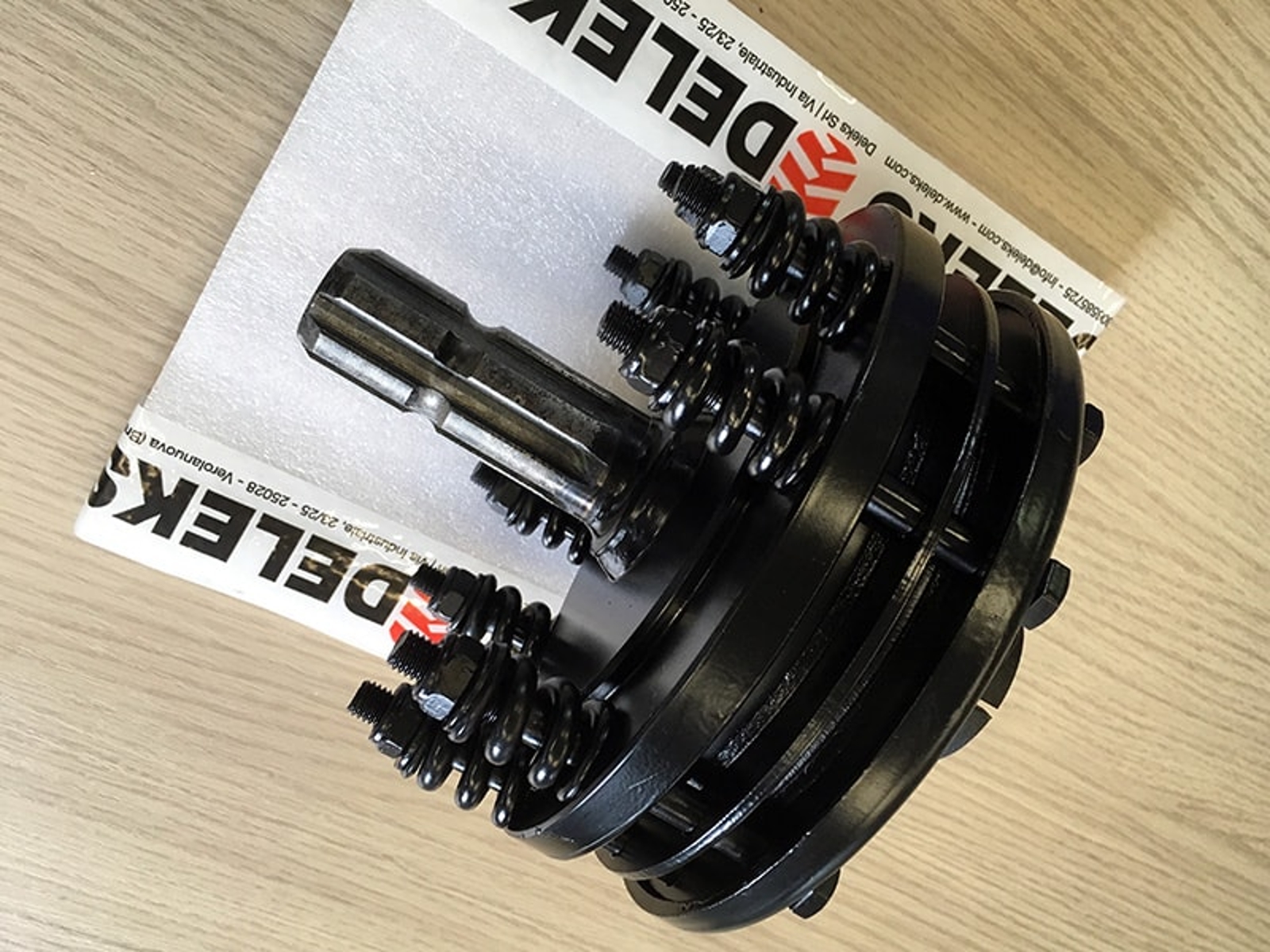

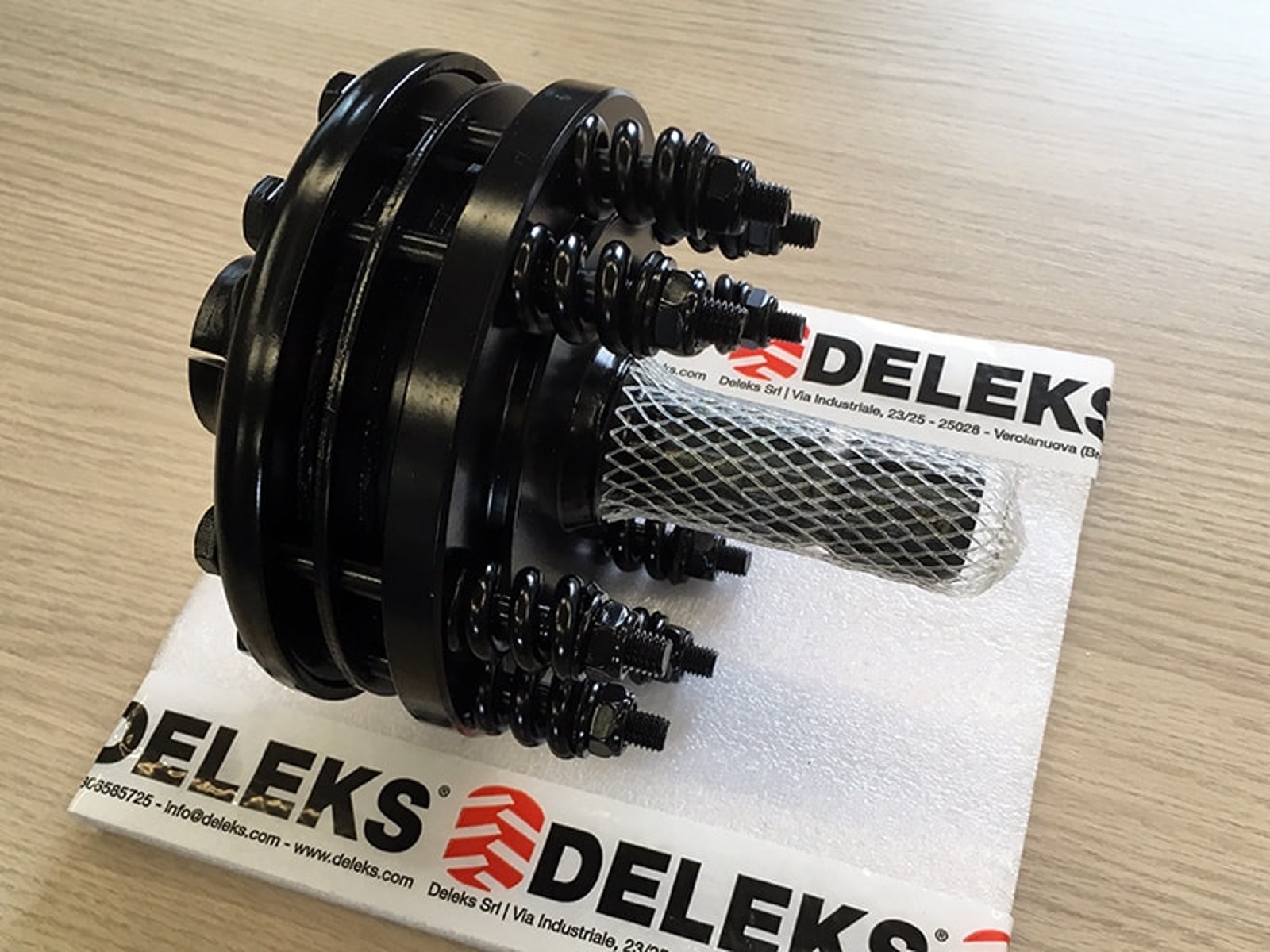

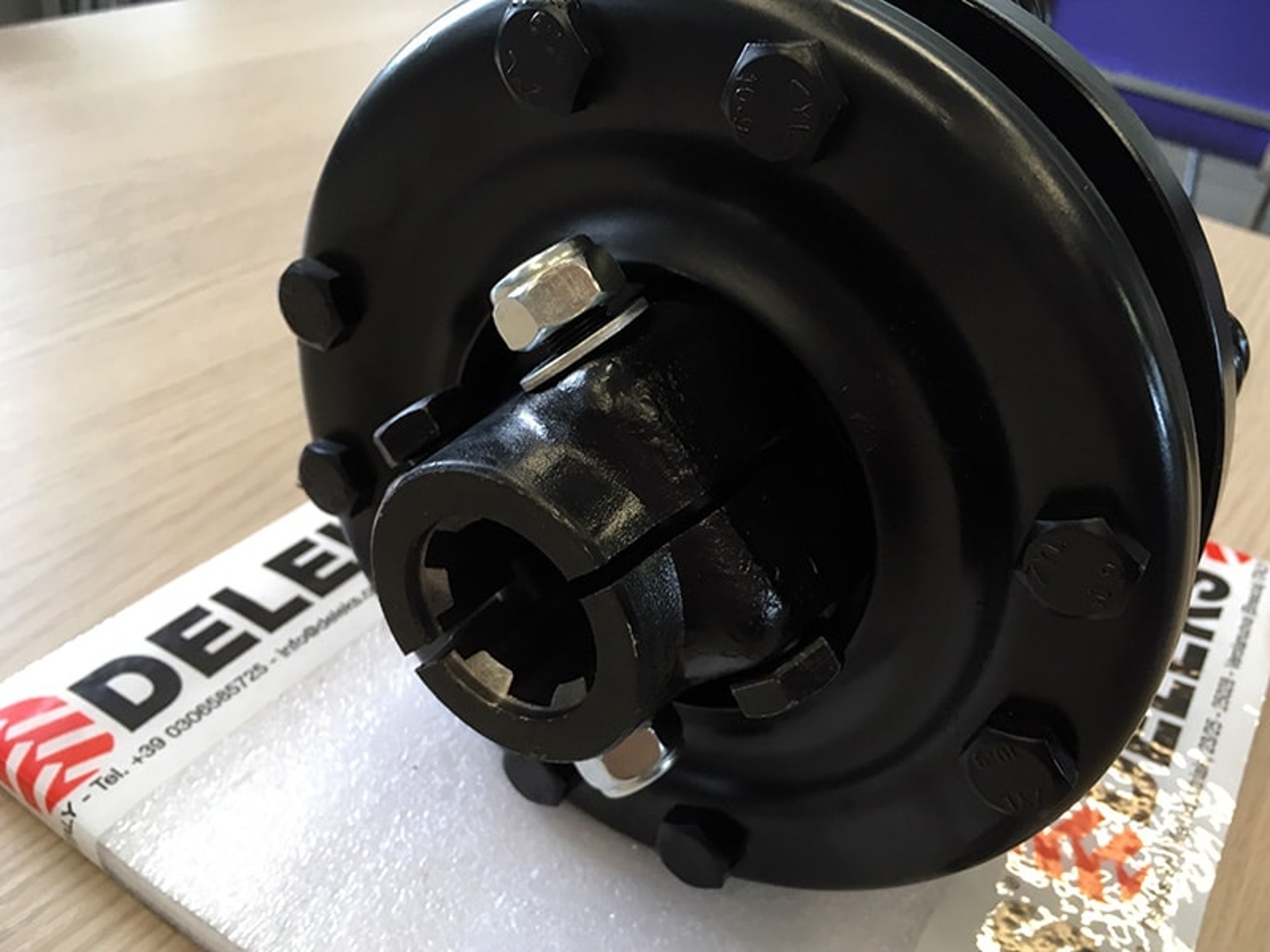

F3 PTO Friction Clutch Torque Limiter 1200 Nm x 6 Spline Male and Female
2 clutch plates
ECM Certification Body Machines (Bologna - Italy)
Fits Bondioli & Pavesi, Comer, and Walterscheid applications.
DESCRIPTION
For Use in Converting Rotary Cutters from Shear Pin Type to Slip Clutch.

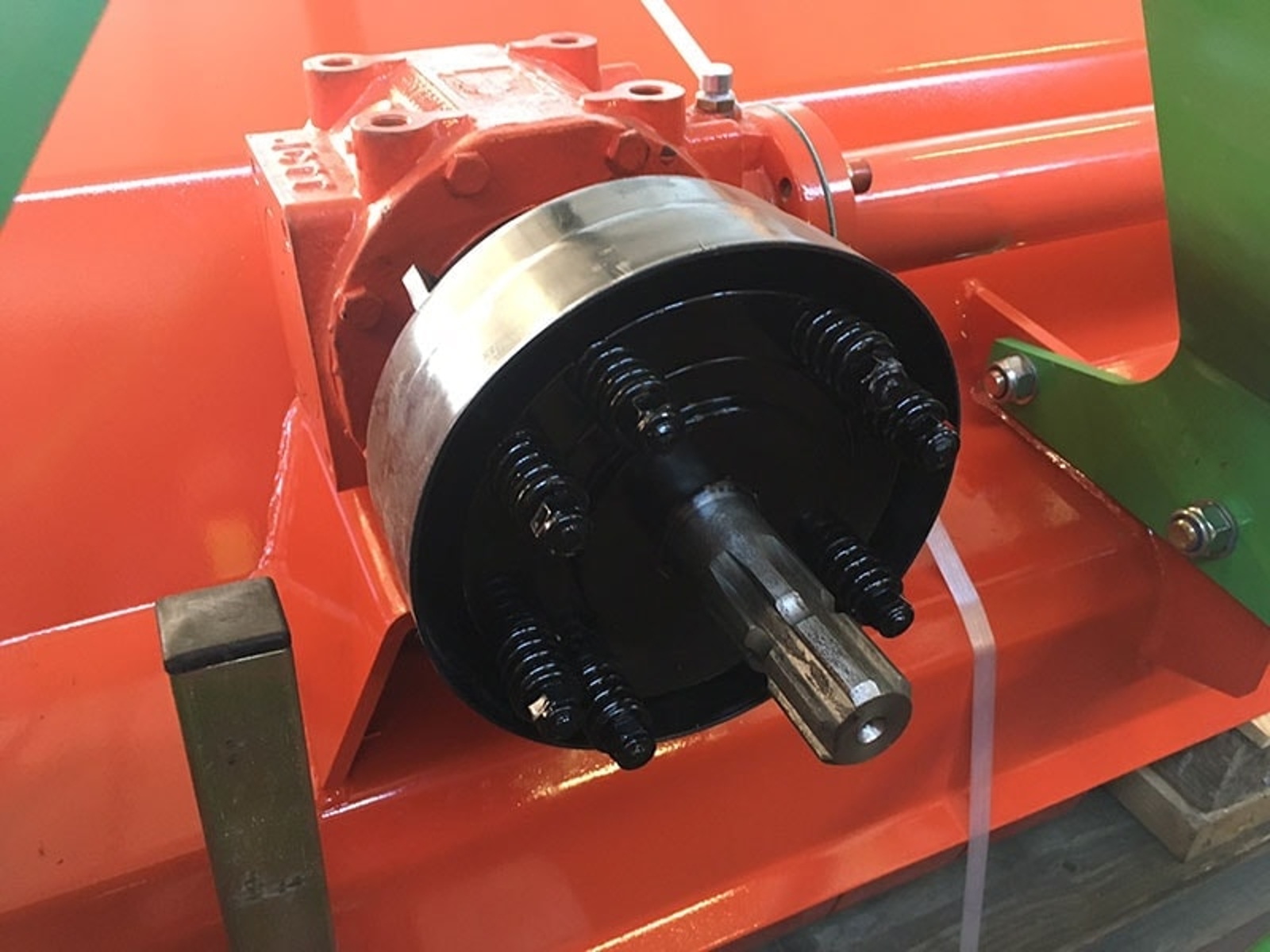

It prevents overloading when the present torque is reached. Since the torque continues to be transmitted, no interruptions of work are necessary. External springs allow torque setting to be adjusted easily. It is mounted on the implement side.
- Quick Release Both Ends
- CE Approved to meet UK safety regulations
- 2 Years warranty

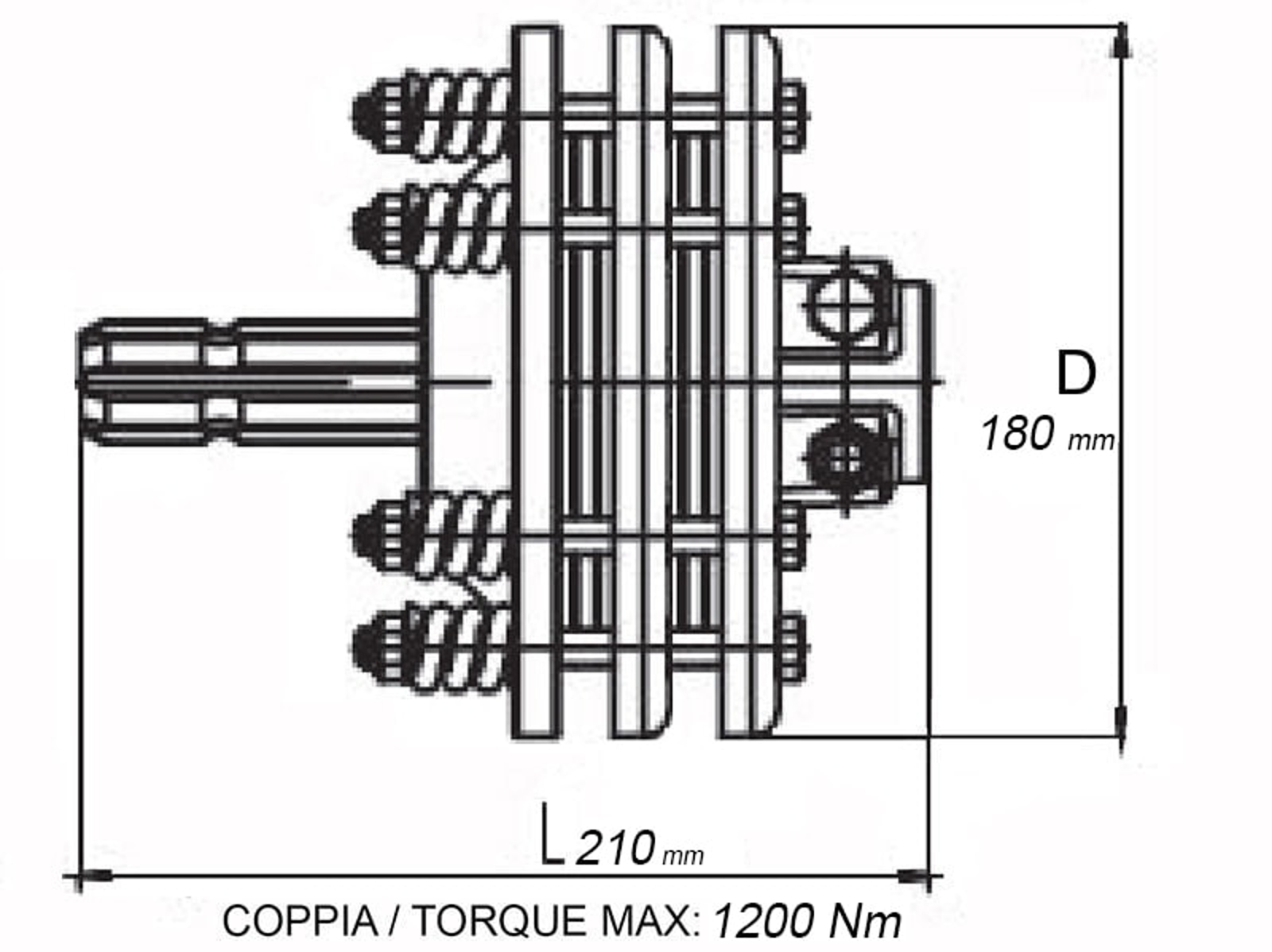

TECHNICAL SPECIFICATIONS
Female: 1-3/8" x 6 Spline
Male: 1-3/8" x 6 Spline
Weight: 10 kg
Nm: 1200
Disc ø: 140 mm
External ø: 180 mm
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 6 kg |
DETAILS
CLOSEF3 PTO Friction Clutch Torque Limiter 1200 Nm x 6 Spline Male and Female
2 clutch plates
ECM Certification Body Machines (Bologna - Italy)
Fits Bondioli & Pavesi, Comer, and Walterscheid applications.
DESCRIPTION
For Use in Converting Rotary Cutters from Shear Pin Type to Slip Clutch.
It prevents overloading when the present torque is reached. Since the torque continues to be transmitted, no interruptions of work are necessary. External springs allow torque setting to be adjusted easily. It is mounted on the implement side.
- Quick Release Both Ends
- CE Approved to meet UK safety regulations
- 2 Years warranty
TECHNICAL SPECIFICATIONS
Female: 1-3/8" x 6 Spline
Male: 1-3/8" x 6 Spline
Weight: 10 kg
Nm: 1200
Disc ø: 140 mm
External ø: 180 mm
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Weight | 6 kg |
