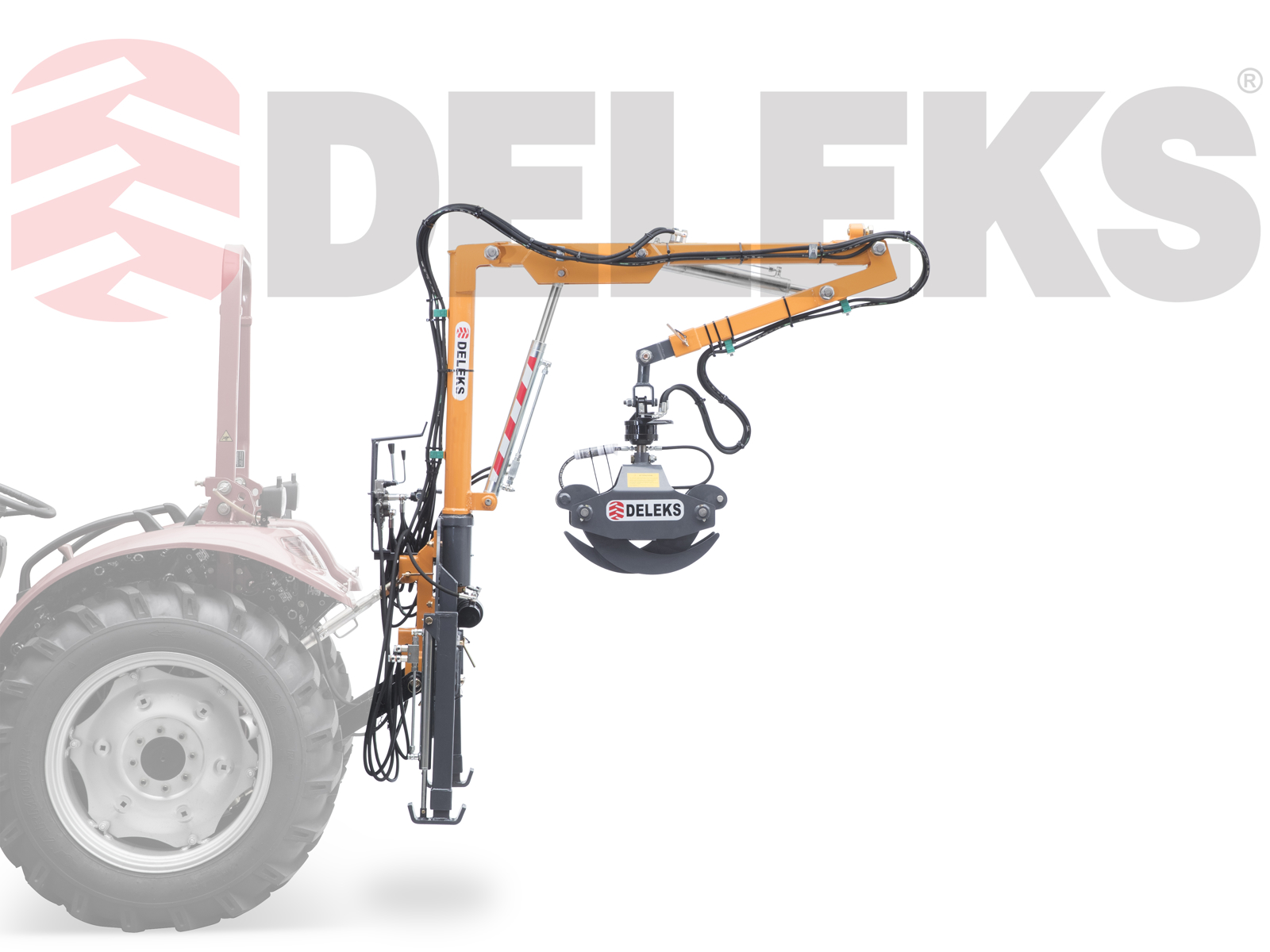

Hydraulic forestry crane with log grapple for tractor CRAB-3000

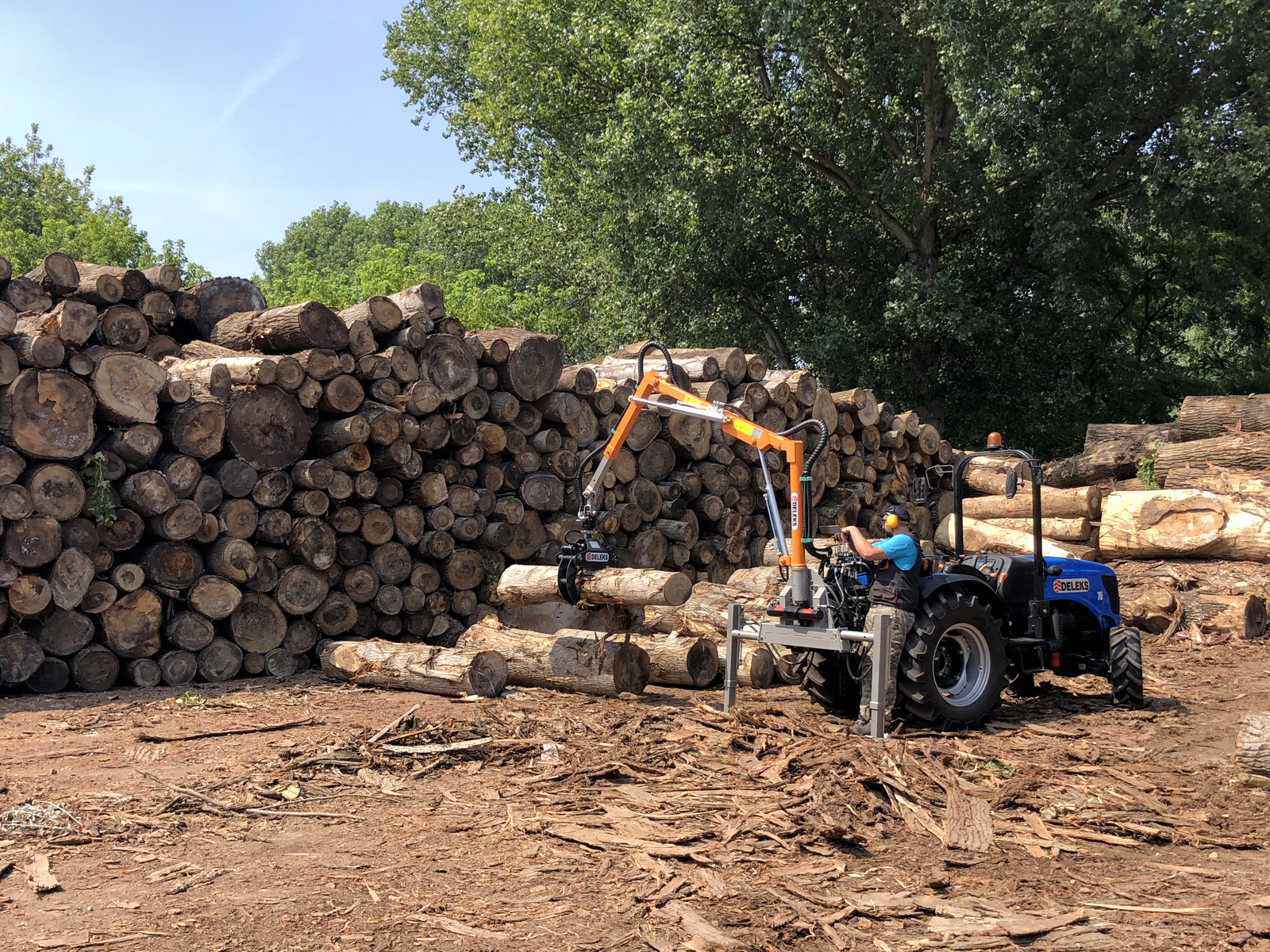

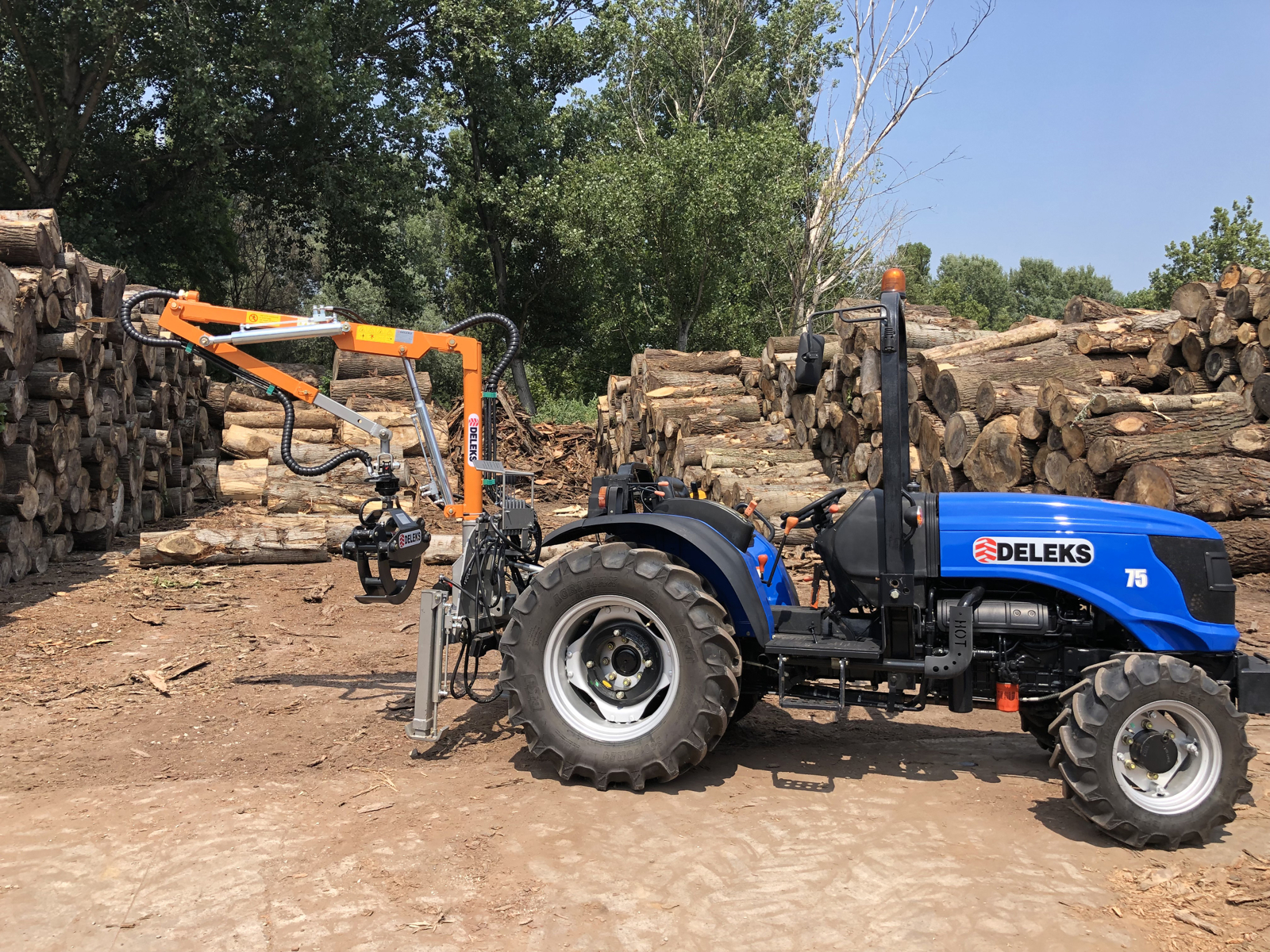

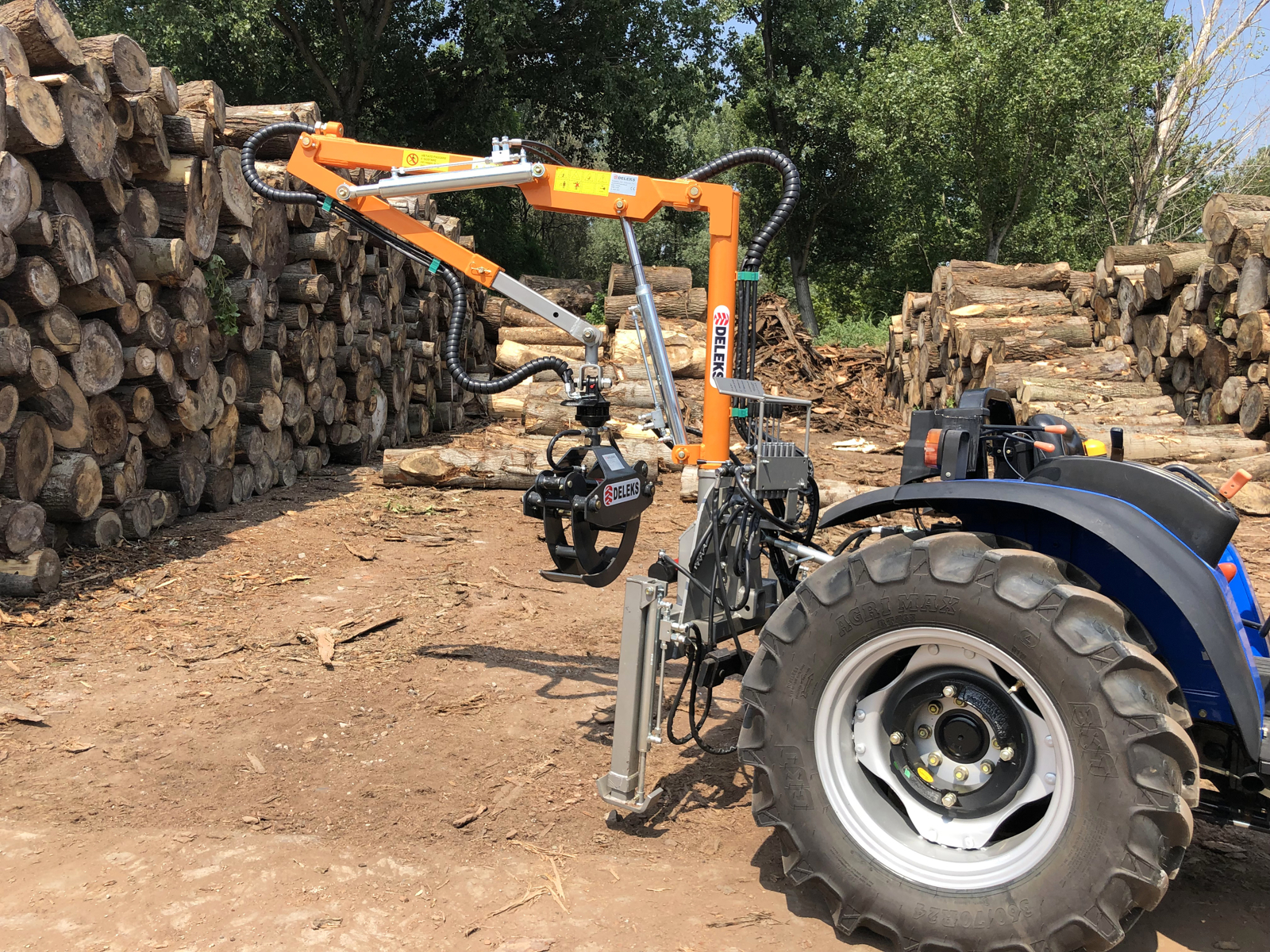

Field test
DETAILS
Tractor mounted timber crane, forestry crane - DELEKS®- Hydraulic parts MADE IN ITALY - DK10 Log Grapple with GR10 Rotor Lombarda Ingranaggi®
OVERVIEW
The CRAB-3000 Light timber crane was designed for functionality, service-friendliness, 270° rotation, quick mounting and dismounting. For timber transport, small agriculture or forestry, collection of waste and loading/unloading of logs.
For tractors min. 30 HP e.g. New Holland T4, T5, John Deere 4-5 Series, McCormick X-F Series, Landini Mistral, Deutz-Fahr, Lamborghini Ego 55, Same Solaris, Kubota M, FIAT, Ford. EC Conformity, 2 Year Warranty.
BENEFITS & FEATURES
CRAB-3000 is composed with high quality components to obtain maximum manoeuvrability. Its arm provides instantaneous and smooth movement to allow for precise lifting and placing.
Hydraulic parts MADE IN ITALY.

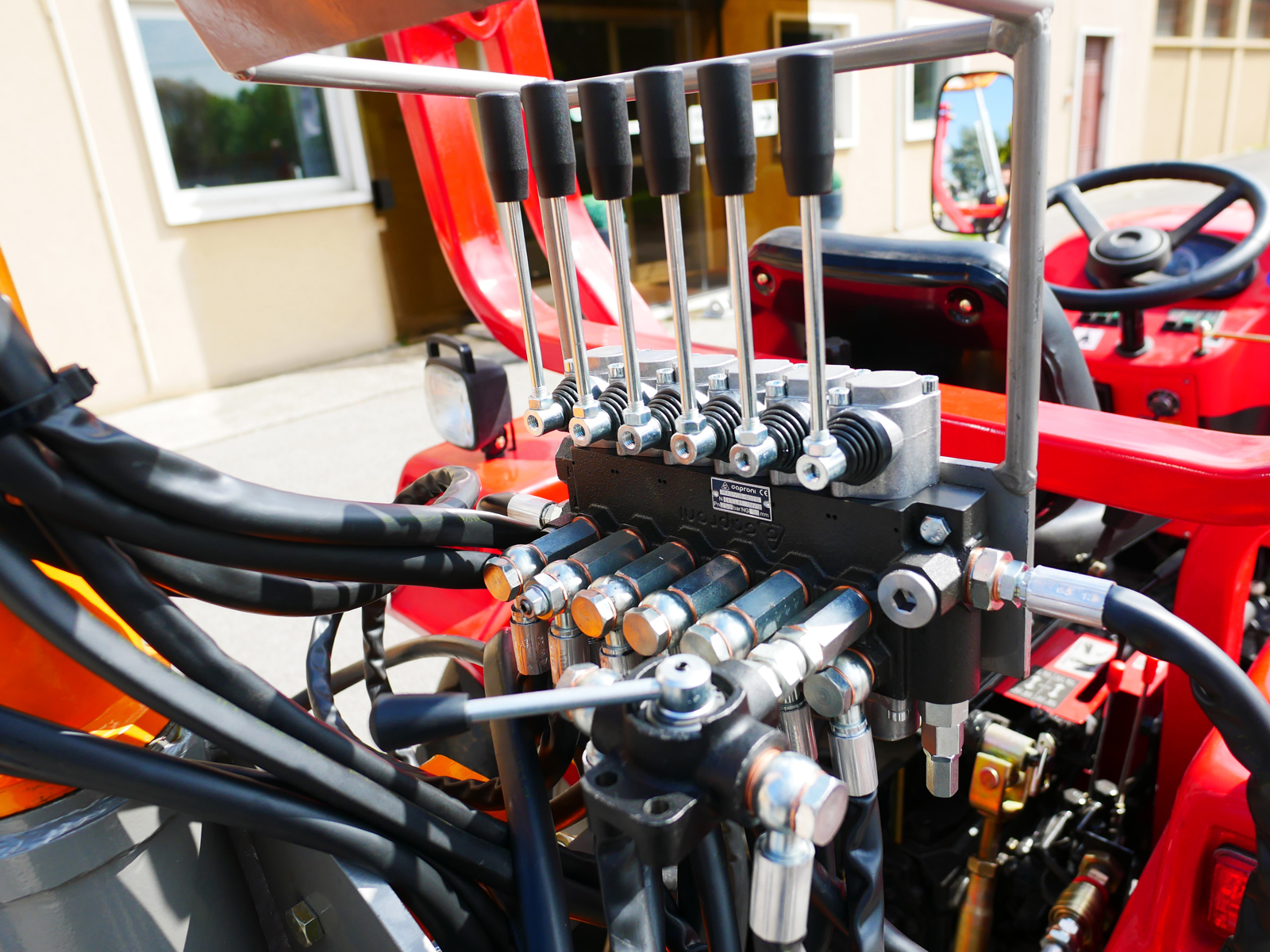

SCV levers CAPRONI.
Flow control valves and block for a simple and precise control on the clamp - (MADE IN ITALY).
Gear box for rotation by 270°.

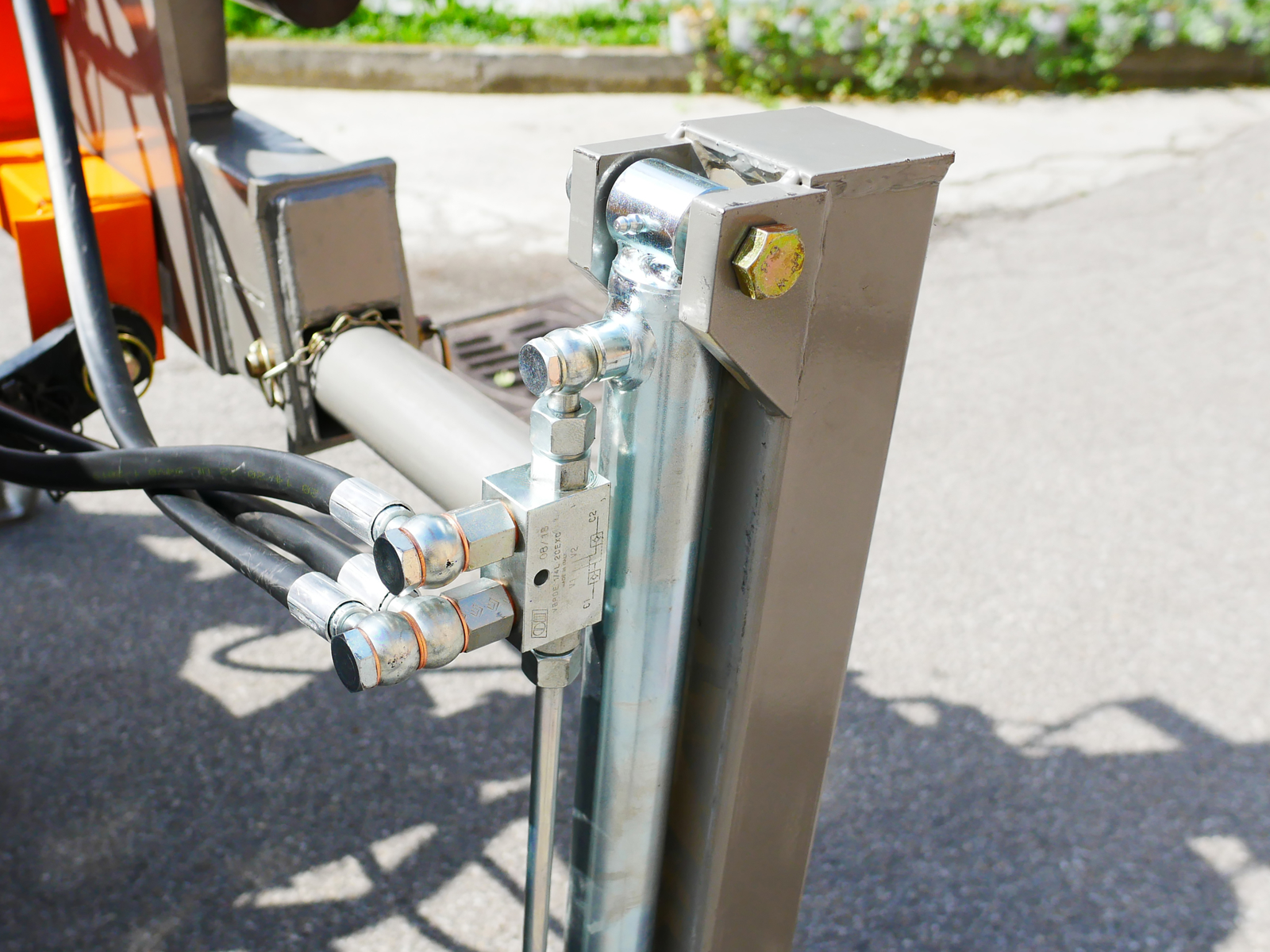

Wide stabilizers which ensure the necessary stability during operation.

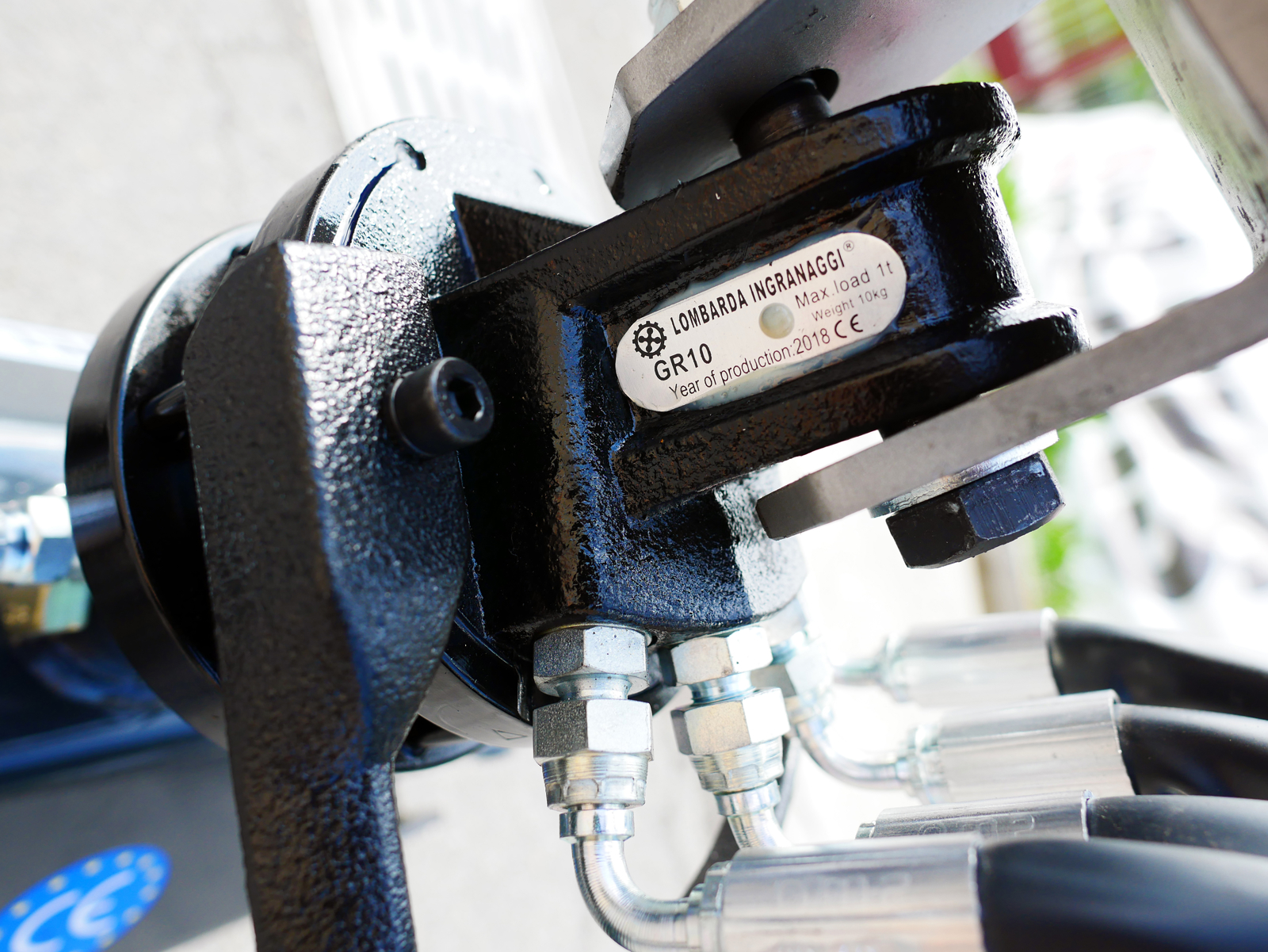

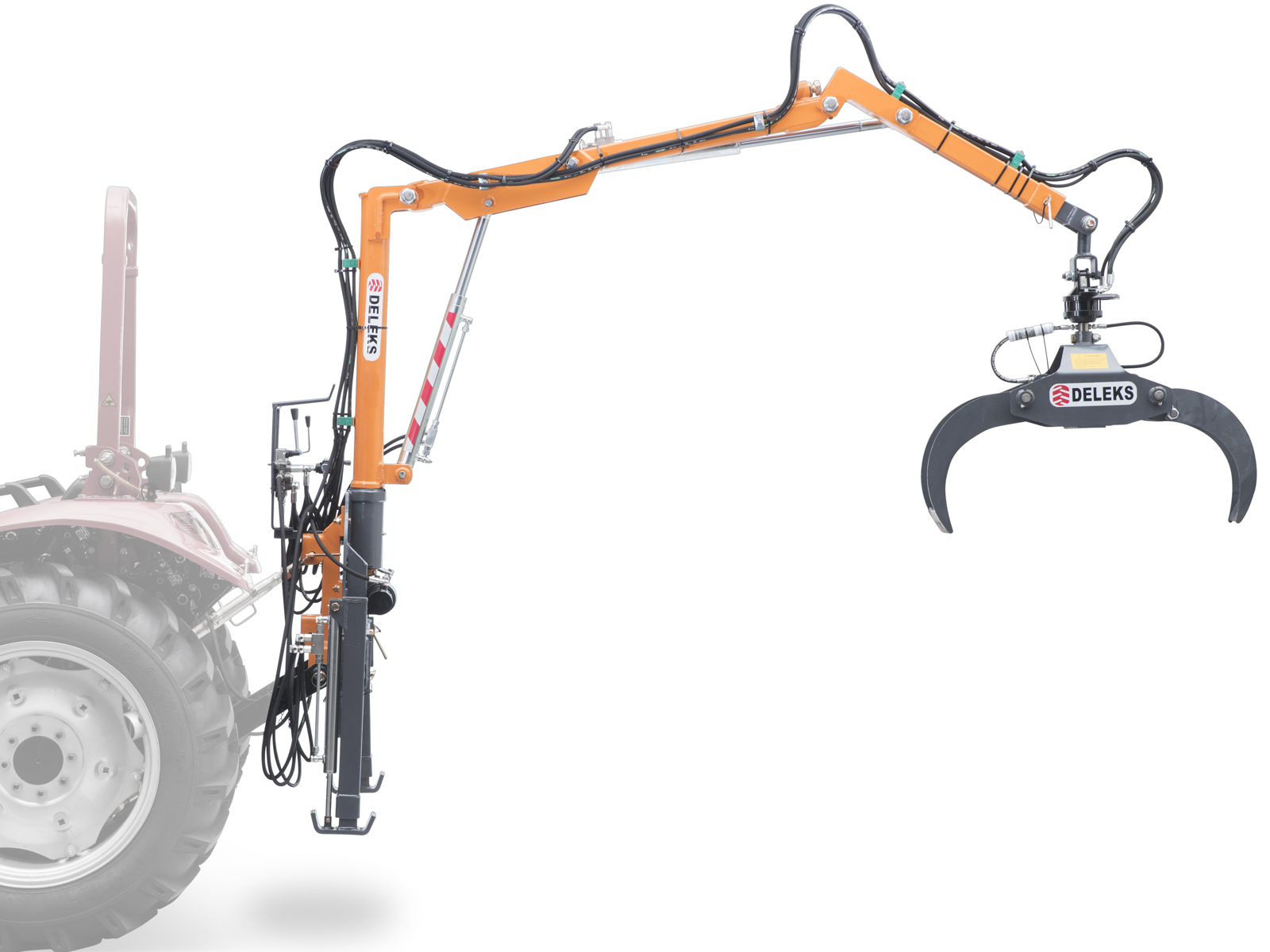

DK10 Log Grapple with GR10 Rotor Lombarda Ingranaggi® 1.0 Ton.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 390.0 kg |
| 3 point linkage | Cat. 1 (ø19.0mm - 22.0mm) |
| Load capacity | 250.0 kg |
| Spacing between the 2 lower points | 550.0-640.0 mm |
| Max height lift | 3300.0 mm |
| Min./Max. Relief Pressure | 90 - 150 bar |
| Min./Max. Flow | 30 - 40 l/min |

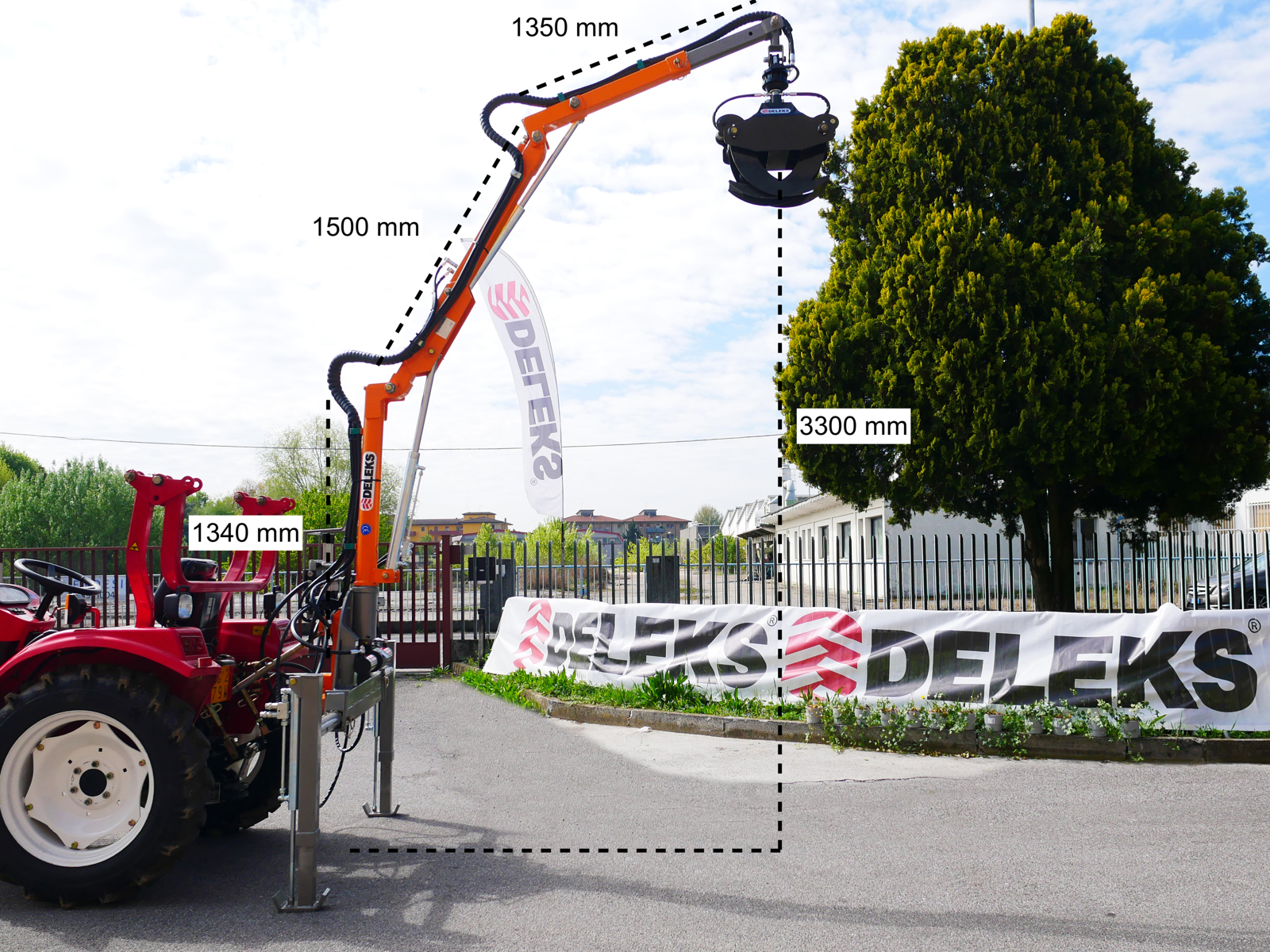

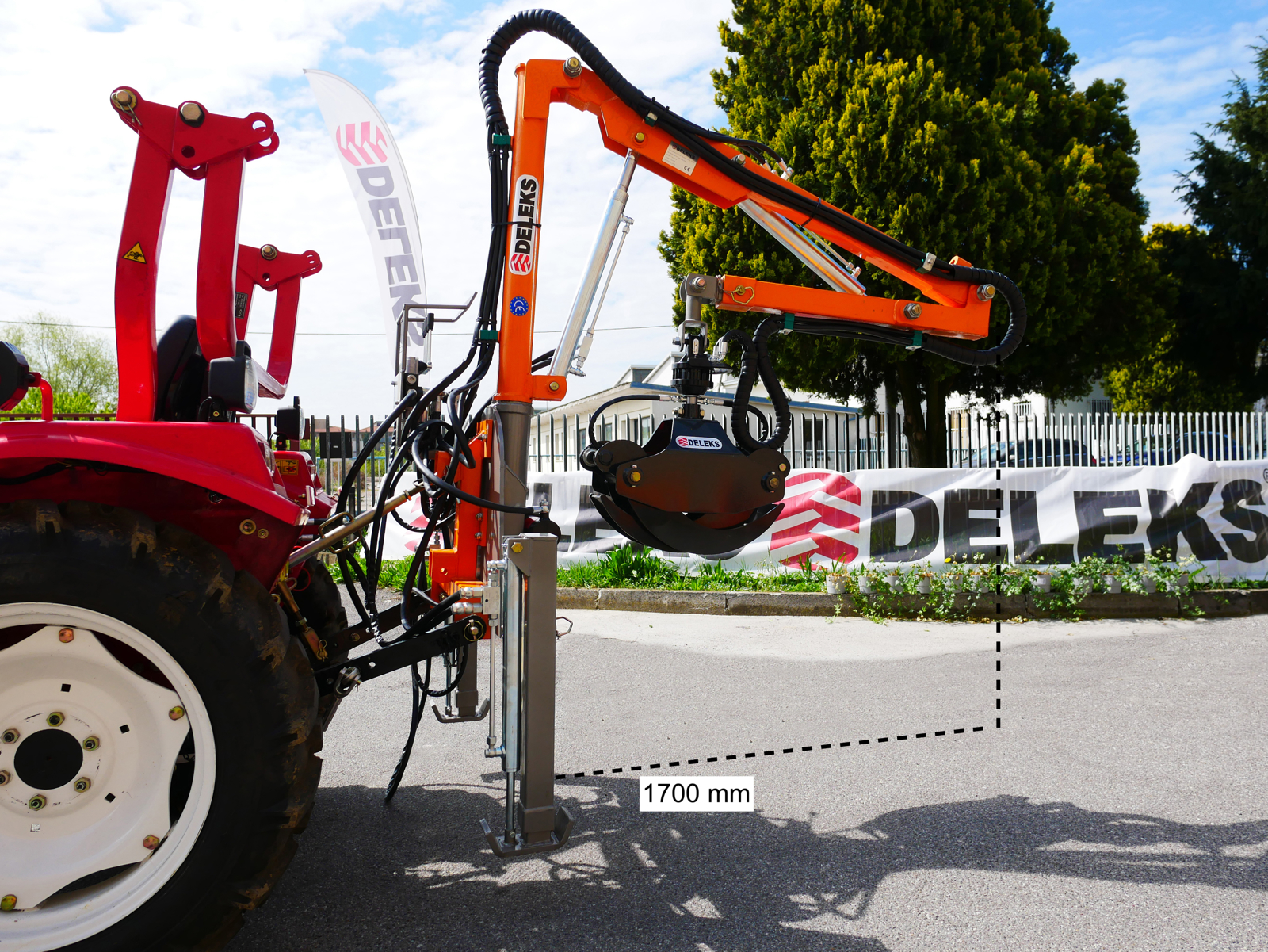

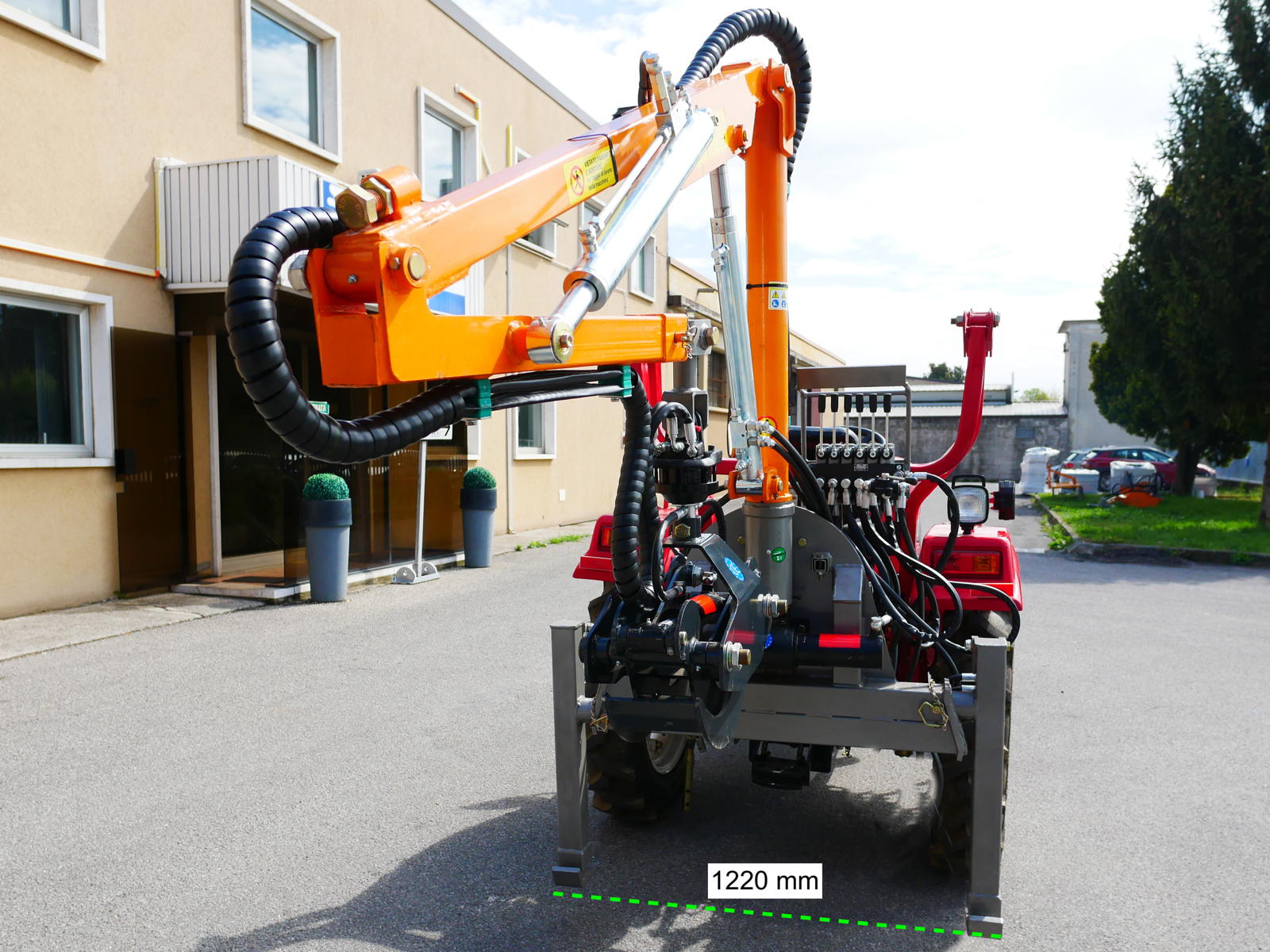

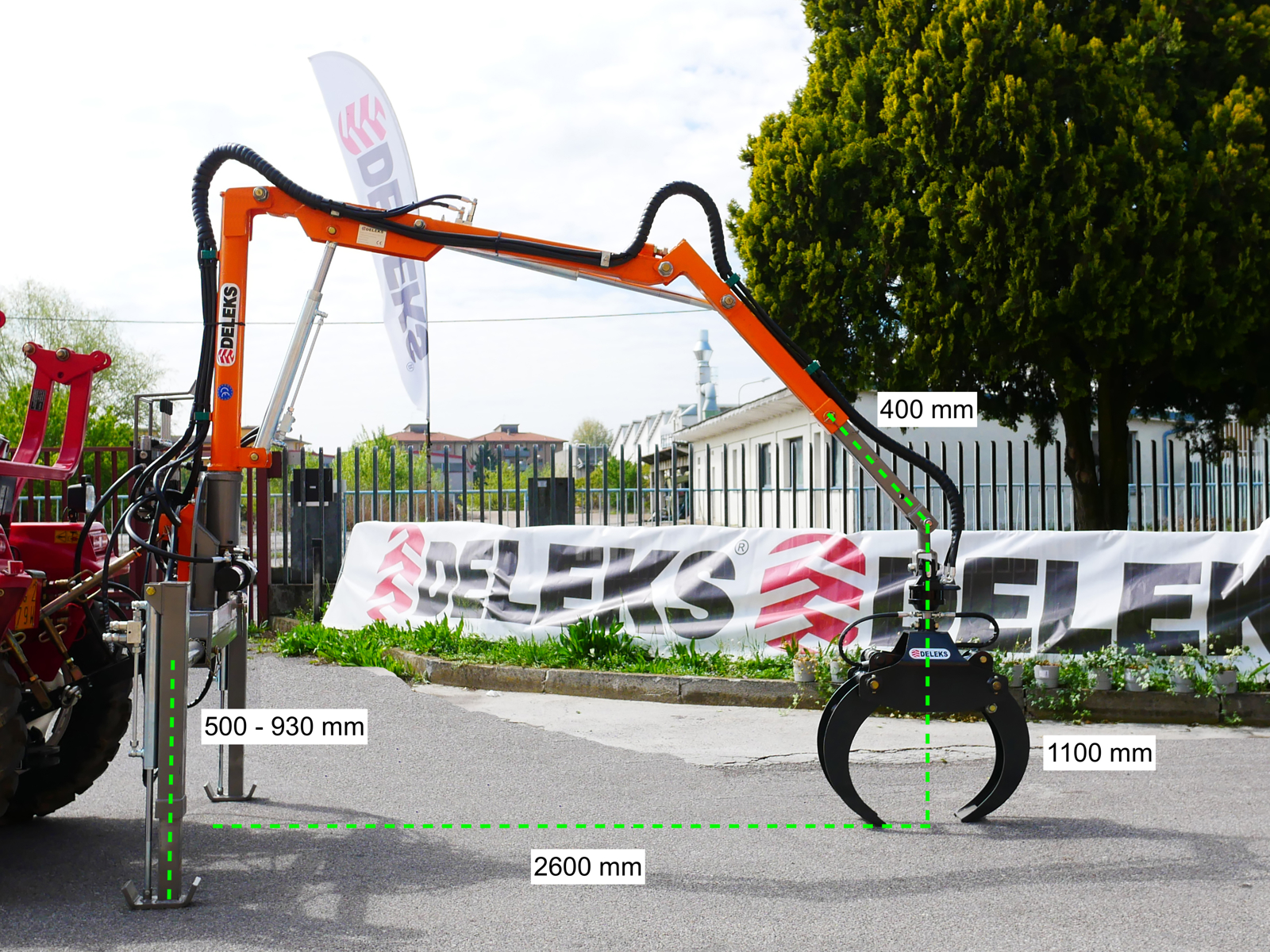

| Other sizes | See pictures |
| Hydraulic Hoses | WP-400 bar |
| Telescopic boom length | |
| Lungimea brațului telescopic | 3000.0 mm |
| Slewing Angle | 270° |
| Reach (D) | 2700.0 mm |
| Distance between stabilizers (legs) | 1200.0 / 2400.0 mm |
| HP min | 30 Hp |
| Standard controls | CAPRONI |
| Arm Cylinders | Rebos (Mantova - Italy) |
| Arms cylinders diameter | 60/40.0 and 70/40.0 mm |
| Control Valves | 4 - Made in Italy |
| Independent Stabilizers | 2 |

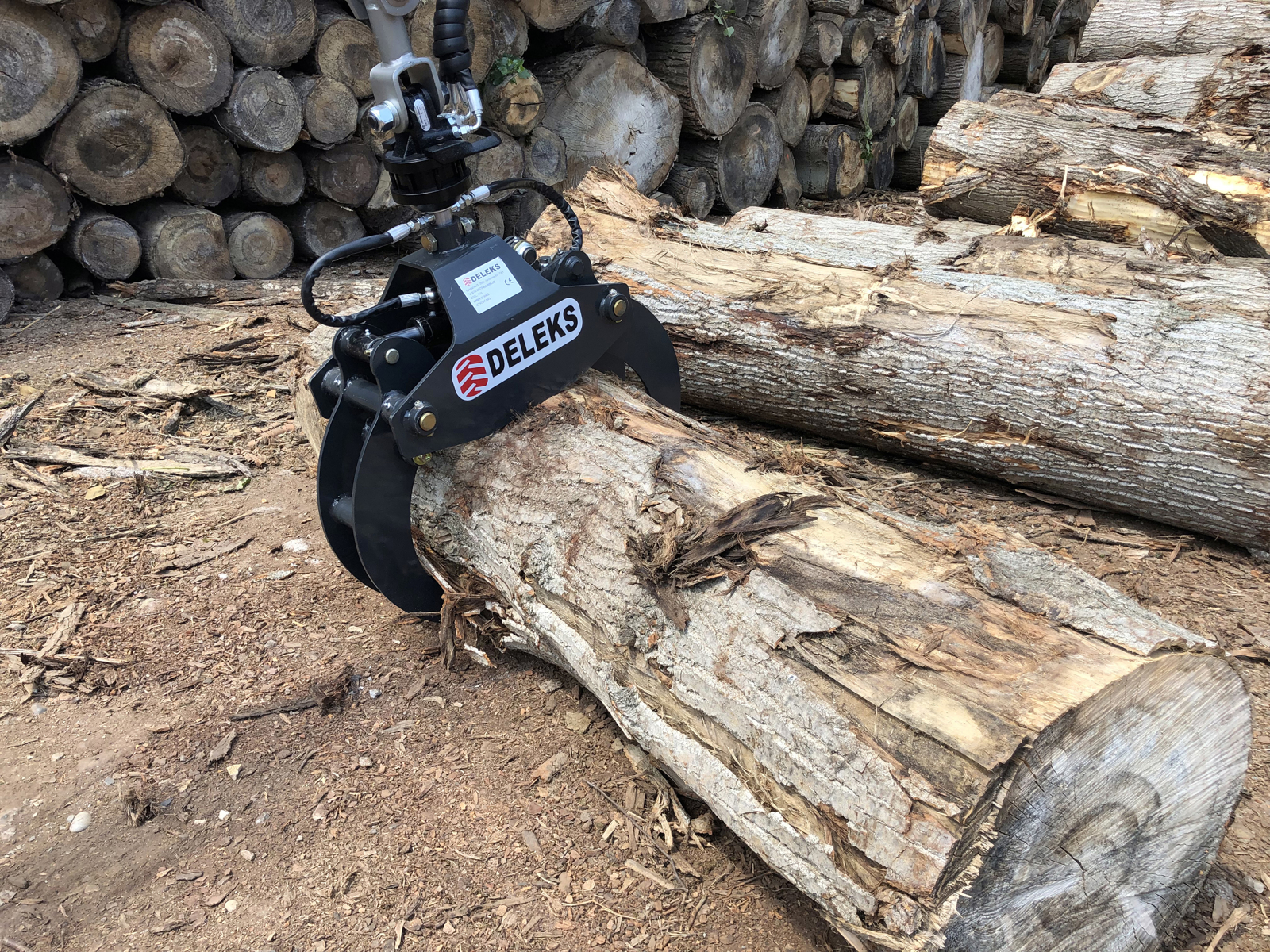

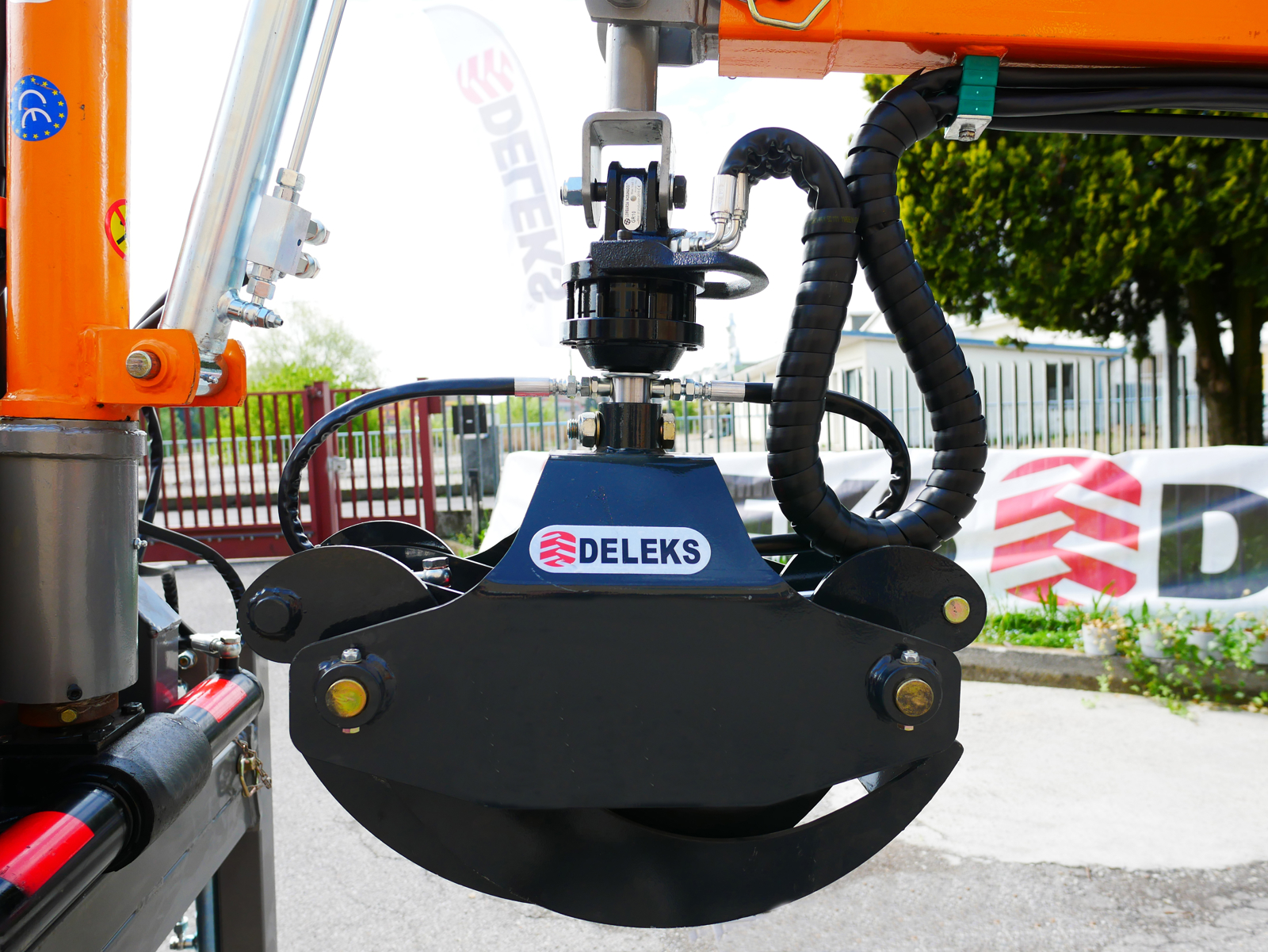

| Grapple | DK-10 |
| Grapple: Max Opening | 1015.0 mm |
| Grapple: Endless rotation | 360° |
| Grapple: Height when open | 885.0 mm |
| Grapple: Width when closed | 720.0 mm |
| Rotator | Lombarda Ingranaggi GR-10 |
| Grapple: Weight with rotator | 63.0 kg |
| Packing sizes | 1200.0*1500.0*1750.0 mm |
