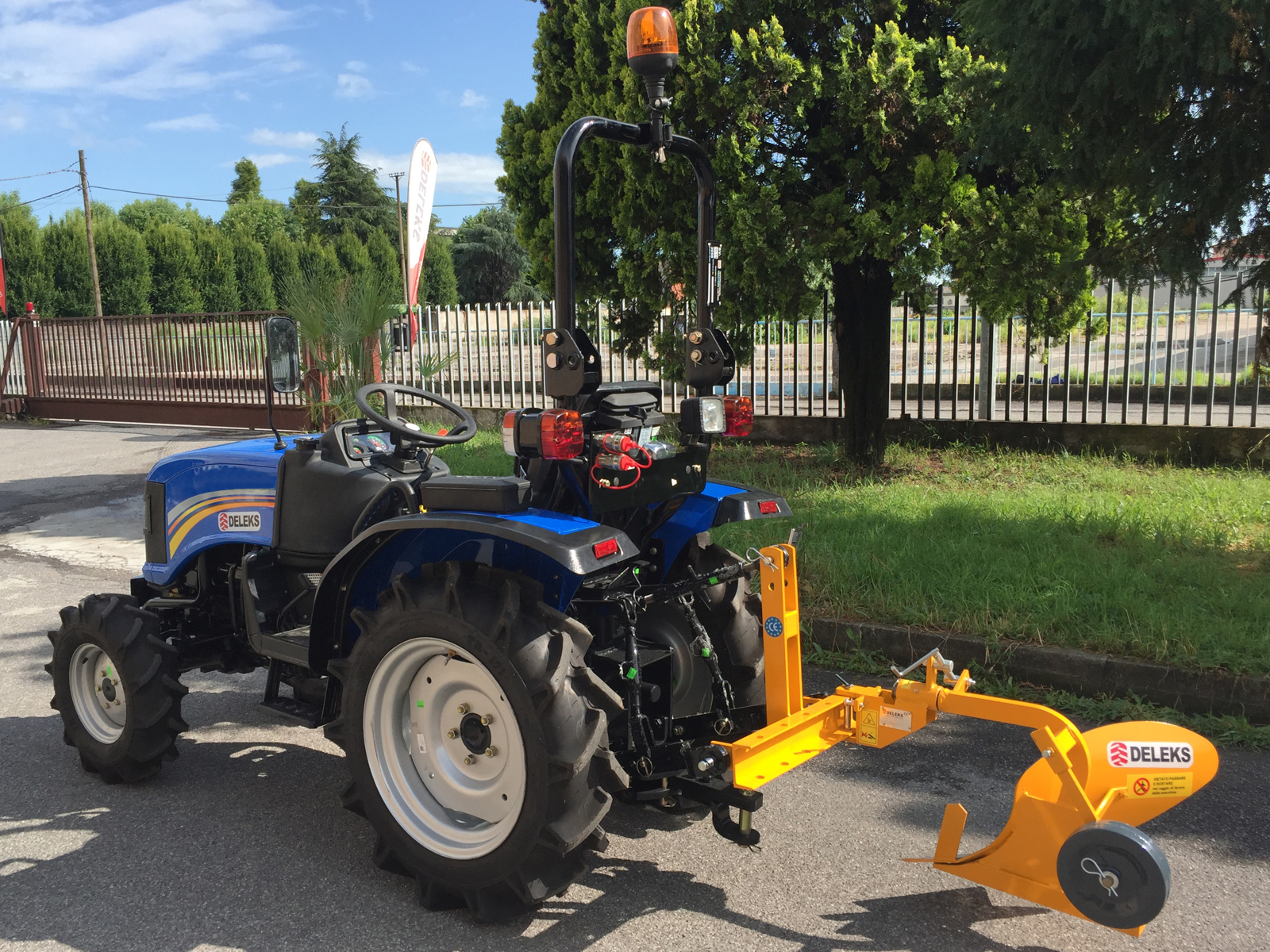

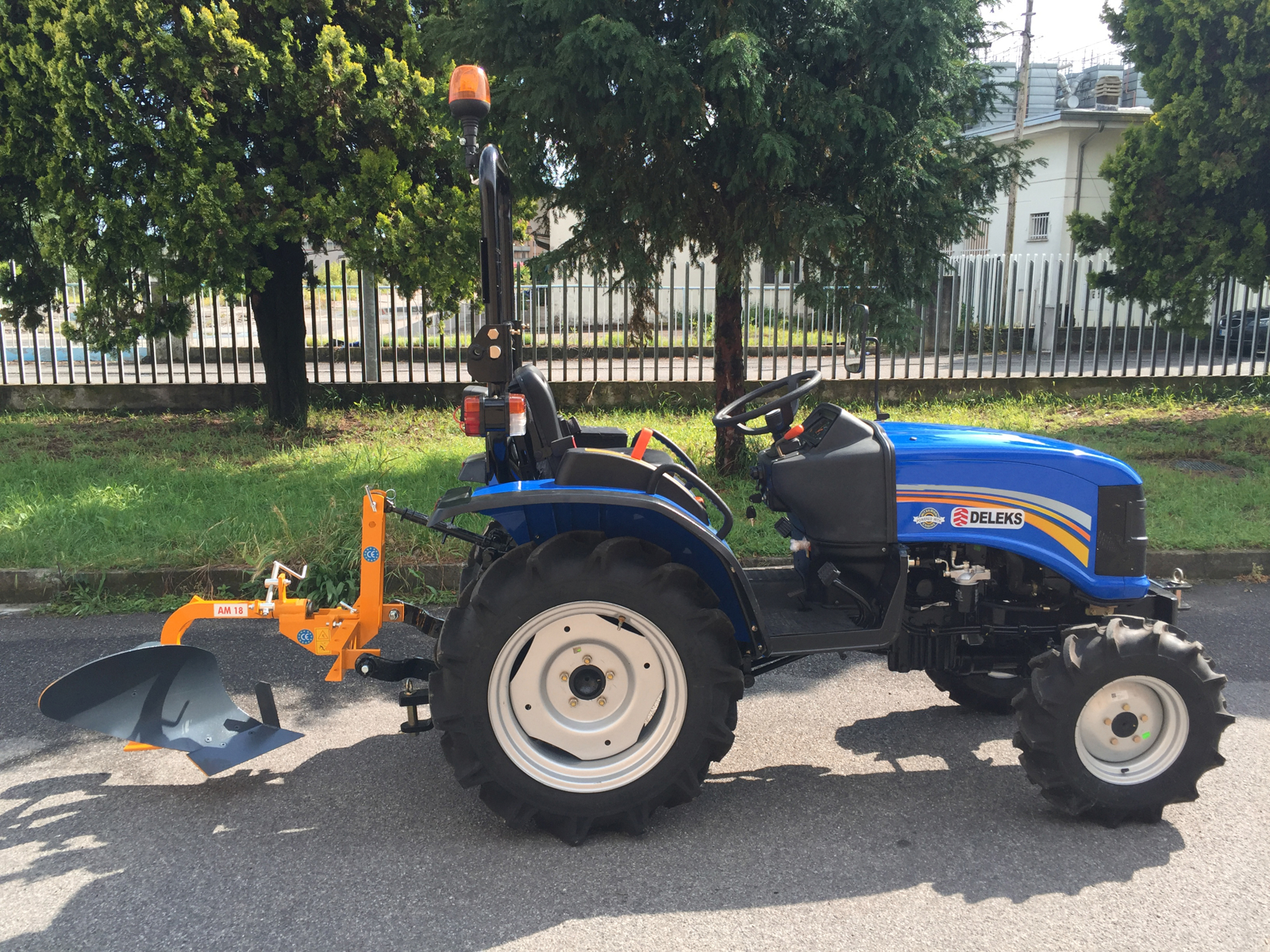

Single plough for tractors as Iseki, Kubota DP-18
DELEKS® DP-18: Unpacking by Alberto
DELEKS® DP-18: Field test
DETAILS

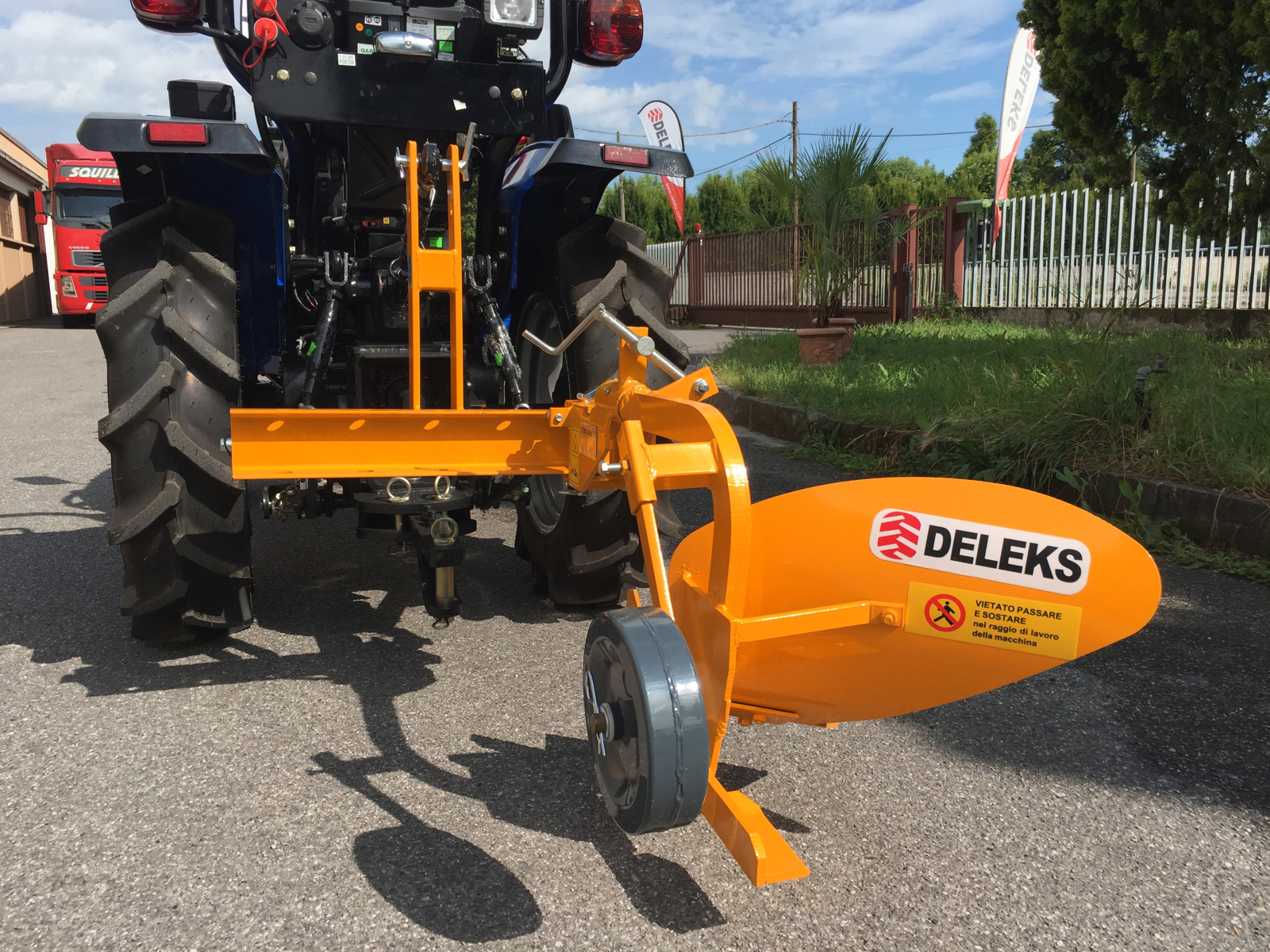

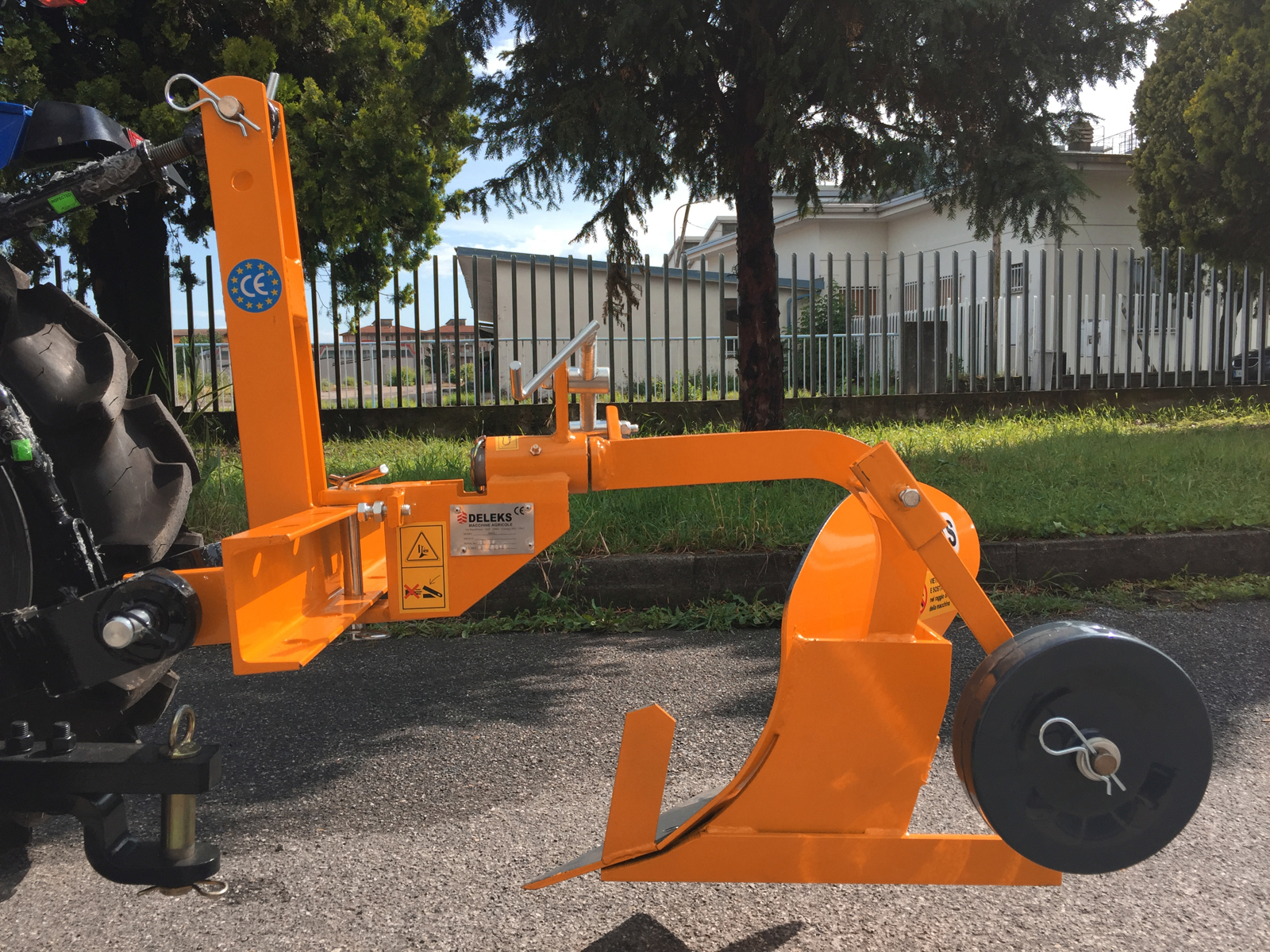

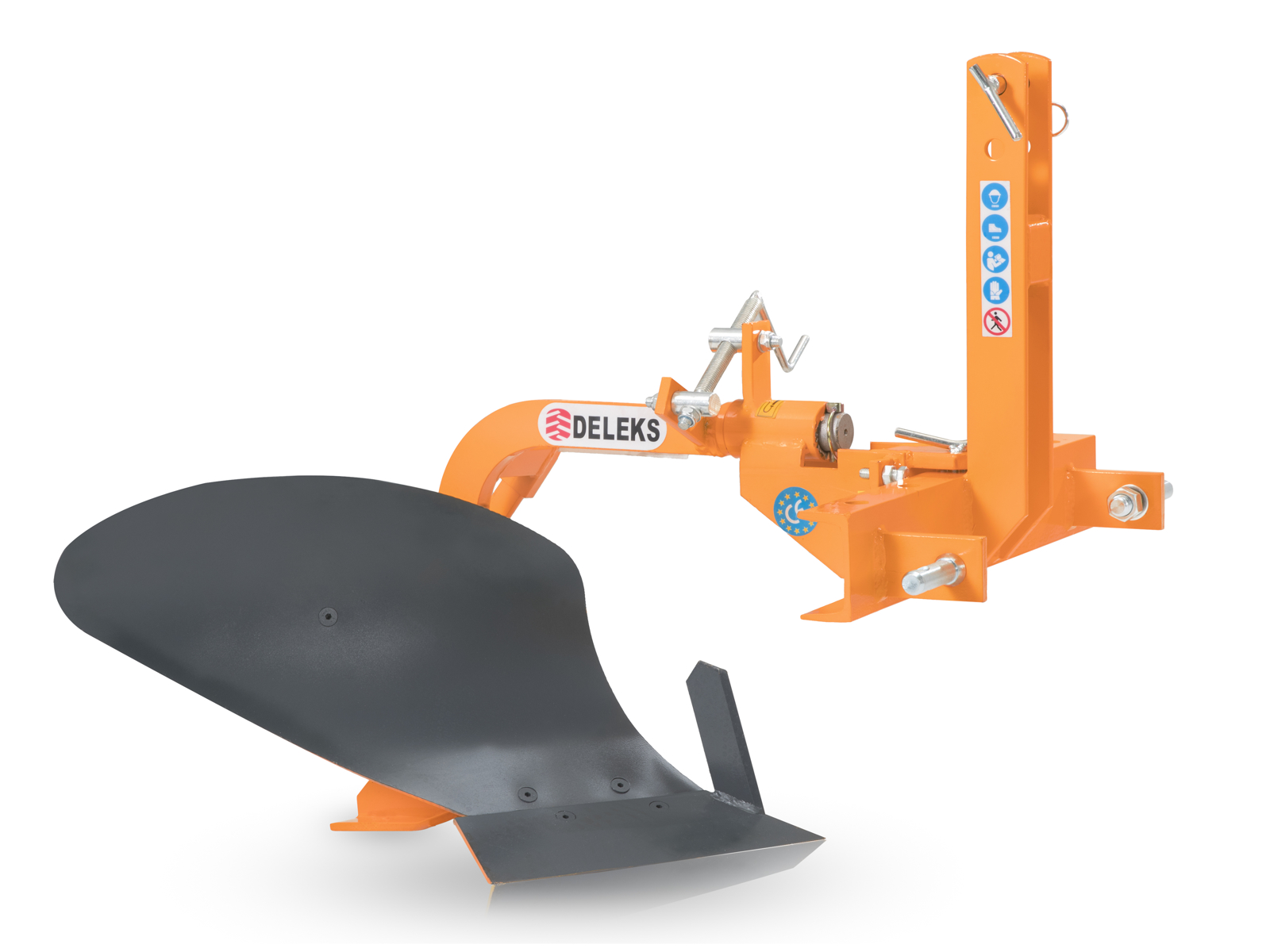

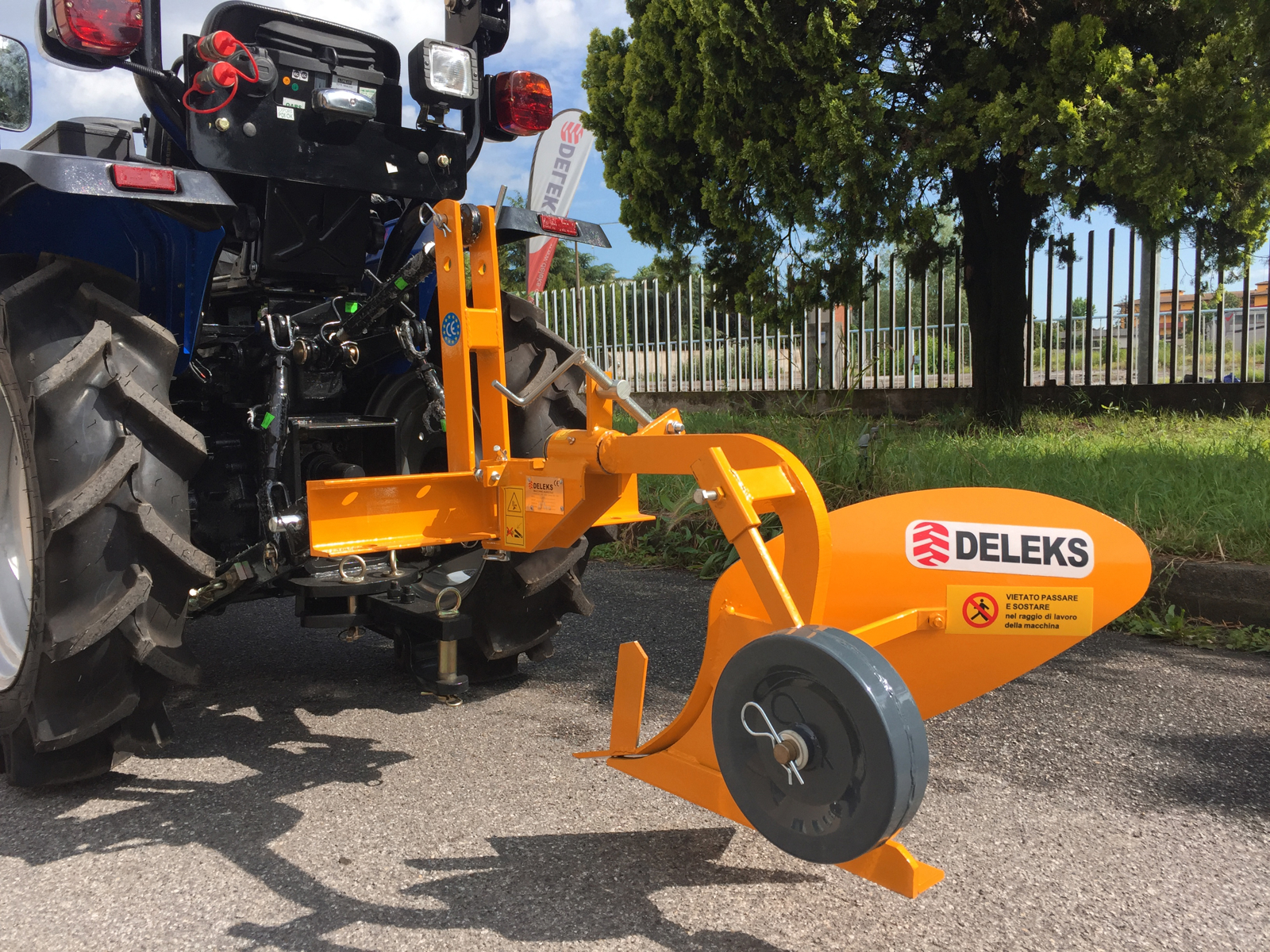

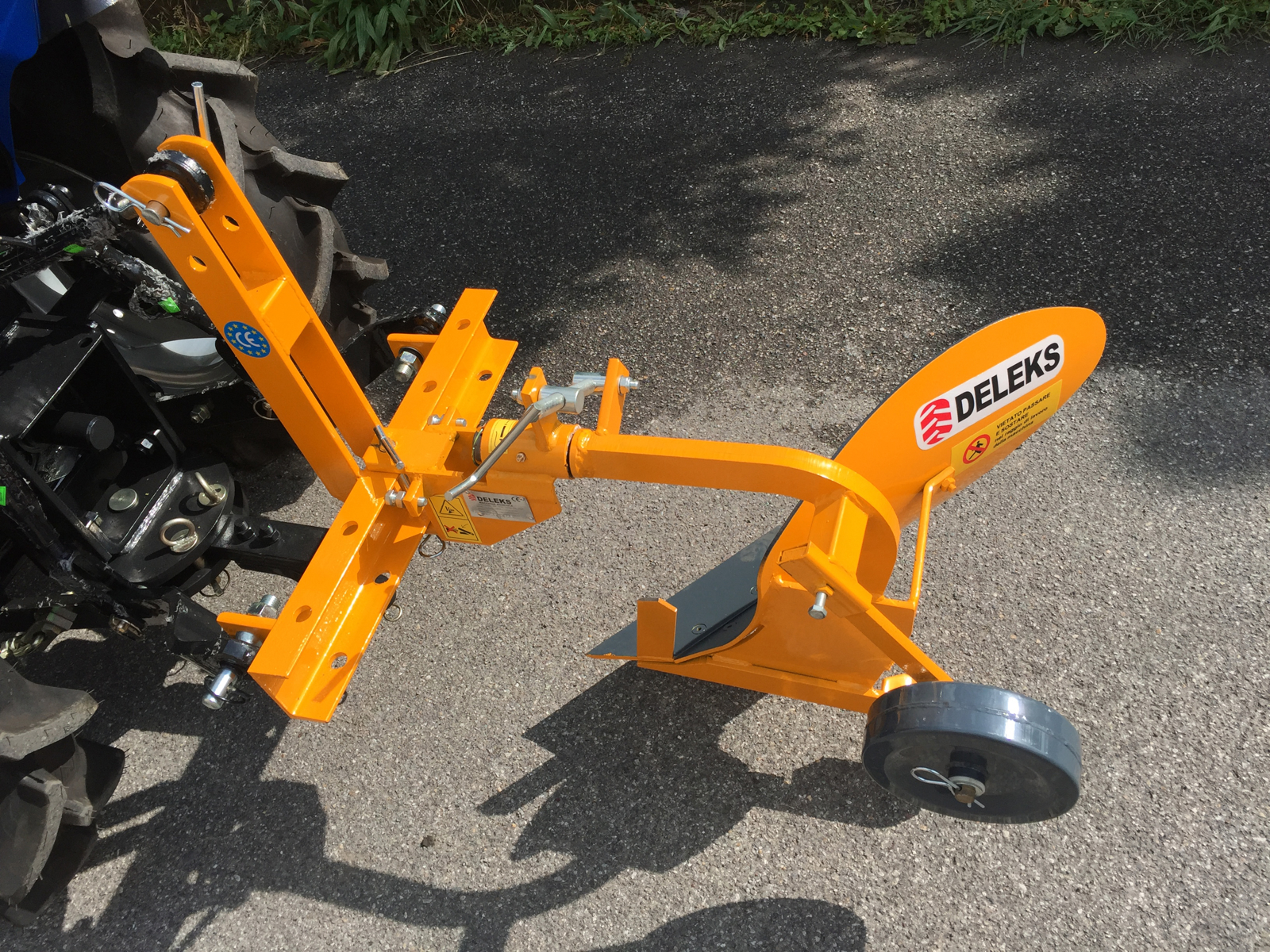

Single Furrow Plough for 12-30 HP for Japanese Tractors or compact John Deere | DELEKS® DP-18
APPLICATION

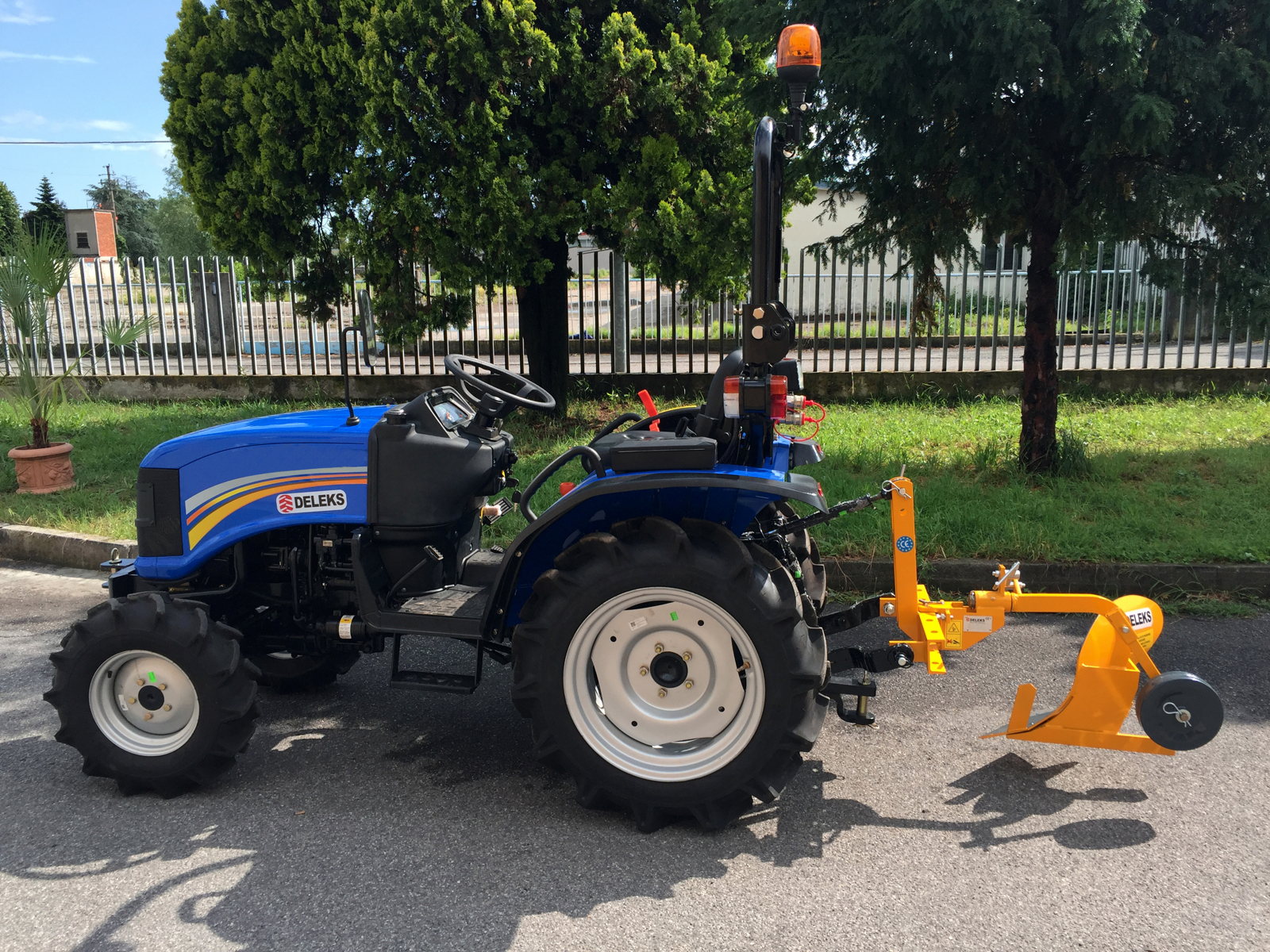

DP-18 designed for cultivating clay or sandy soils, it fits most common compact tractor brands (no larger than 1250.0 mm): Japanese tractors Kubota, Kioti, Iseki, Pasquali, Yanmar, Solis, Mahindra, and narrow tractors like New Holland Boomer 25, John Deere, Pasquali, Ferrari etc. Universal 3 point linkage Cat. 1. EC Declaration of Conformity.
BENEFITS & FEATURES
Short arm with additional welded frame strengthening parts to reinforce stress points.
The DP18 arm is wider (25.0 mm) than the DP16.

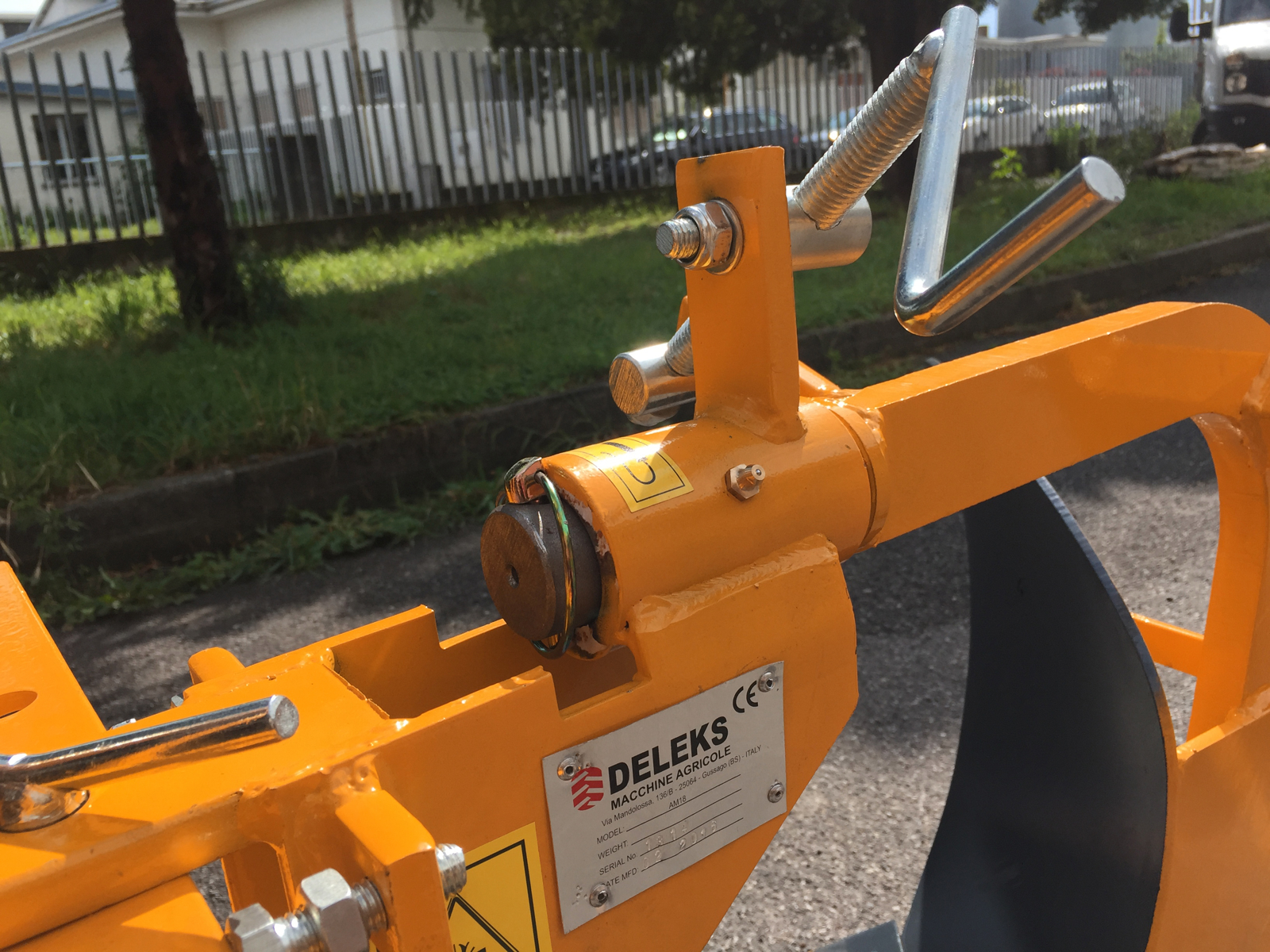

The plough's tilt and depth can be adjusted easily.
Its small dimensions allow the plough to be used on low-power tractors.

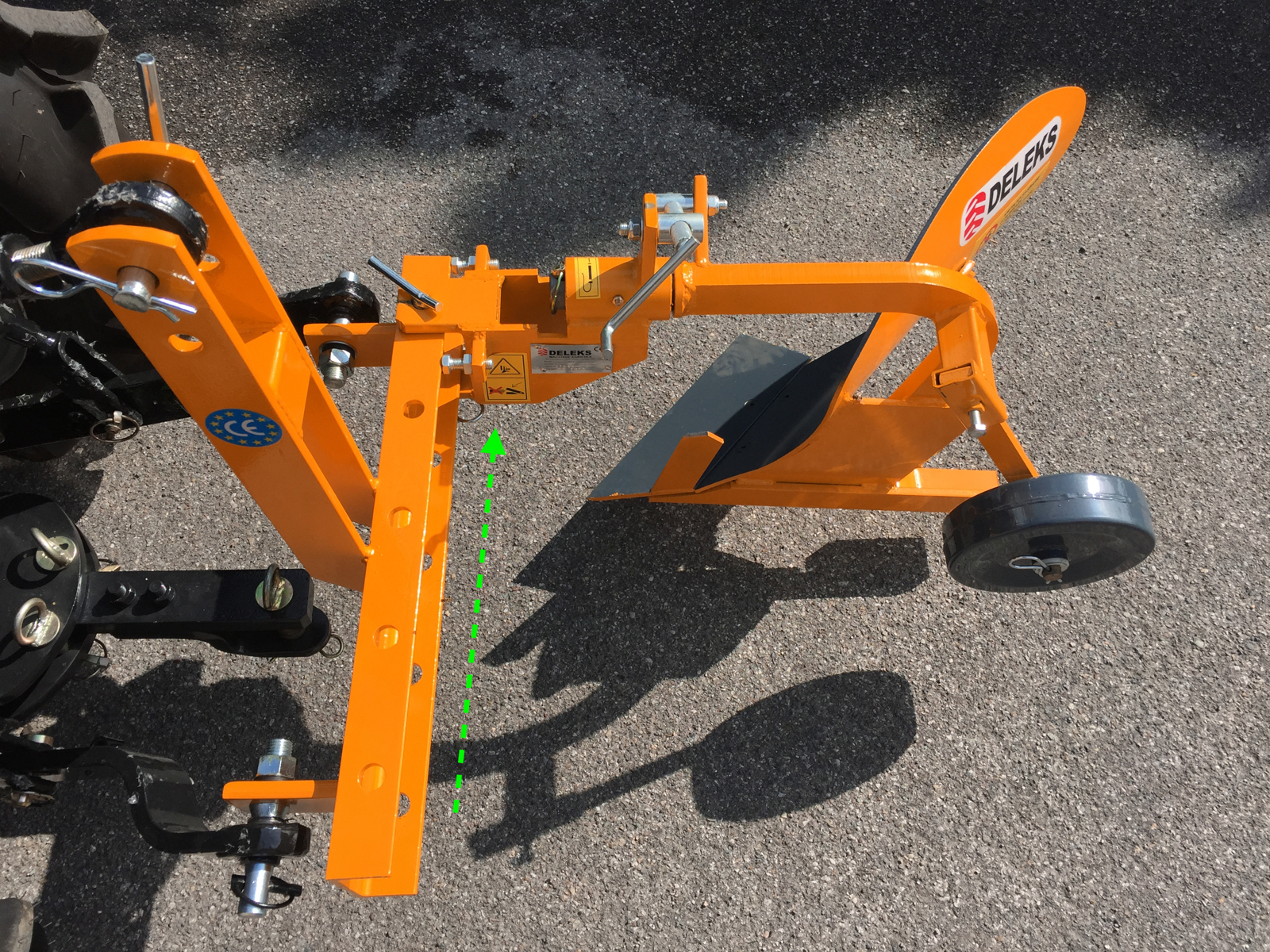

The 3 point linkage determines the position of the plough. It can be used also as multi-use bar.
Detachable and replaceable coulter.
Gauge wheel that allows you to adjust depth and maximize usage.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Overall width | 640.0 mm |
| Weight | 50.0 kg |
| Overall height | 800.0 mm |
| Tractor Power Range | 12 - 30 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Spacing between the 2 lower points | 360.0 - 580.0 mm |
| Overall length | 950.0 mm |
| Number of Furrow | 1 |
| Furrow diagonal | 800.0 mm |
| Width of cut | 295.0 mm |

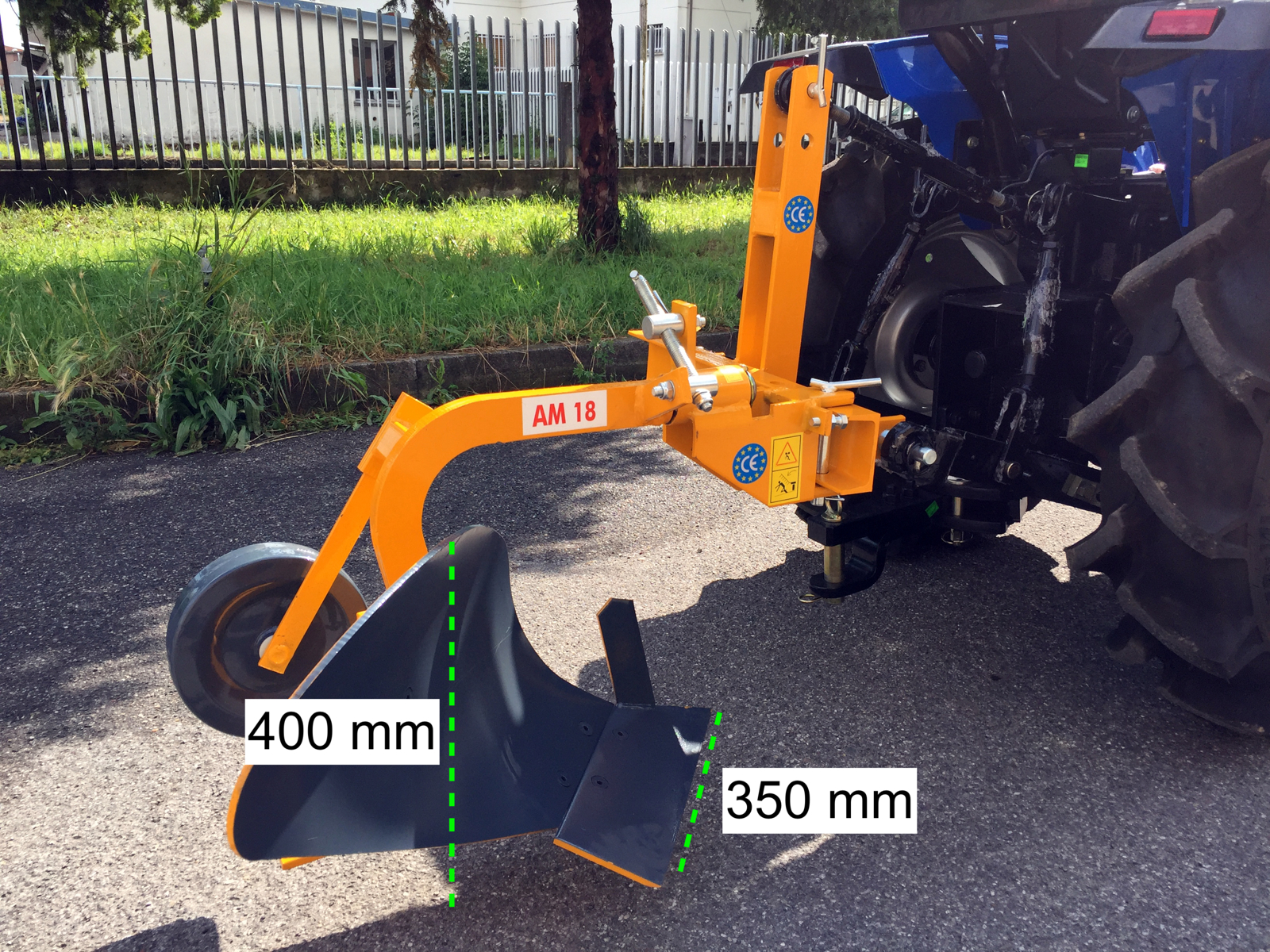

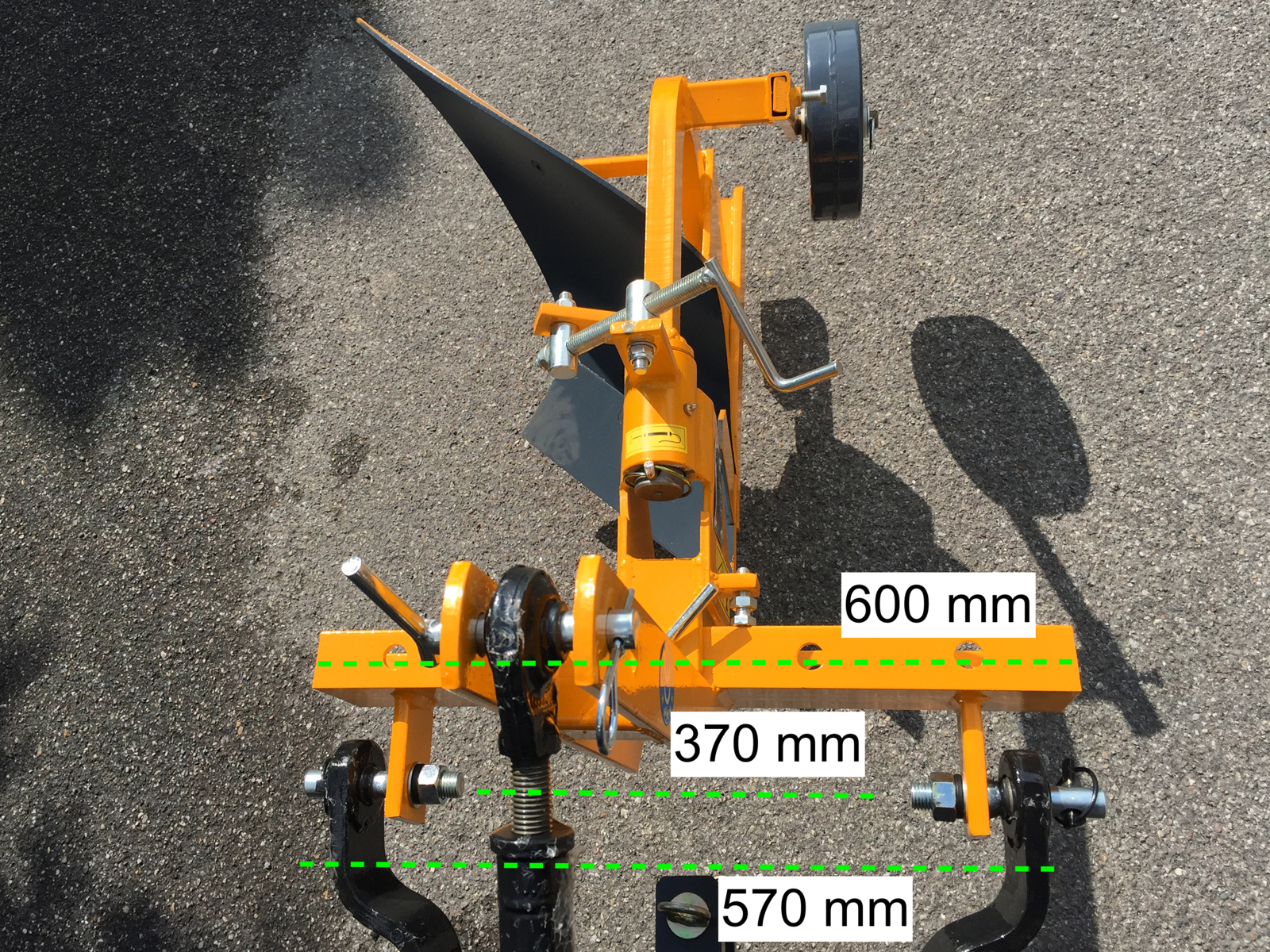

| Other sizes | See pictures |
| Effective Displacement | 460.0 mm |
| Thickness of the arm | 25.0*50.0 mm |
| Cutting Edge Lenght | 345.0 mm |
| Cutting Edge Thickness | 10.0 mm |
| 3 point Linkage tube sizes | 100.0*80.0 mm |
| Depth adjustment Wheel sizes | ø 22.0*6.0 mm |
| Working Depth | 160.0 - 220.0 mm |
| Packing sizes | 600.0*800.0*500.0 mm |
