Adjustable sideshift Mower for tractors, Shredder, Mulcher
DETAILS

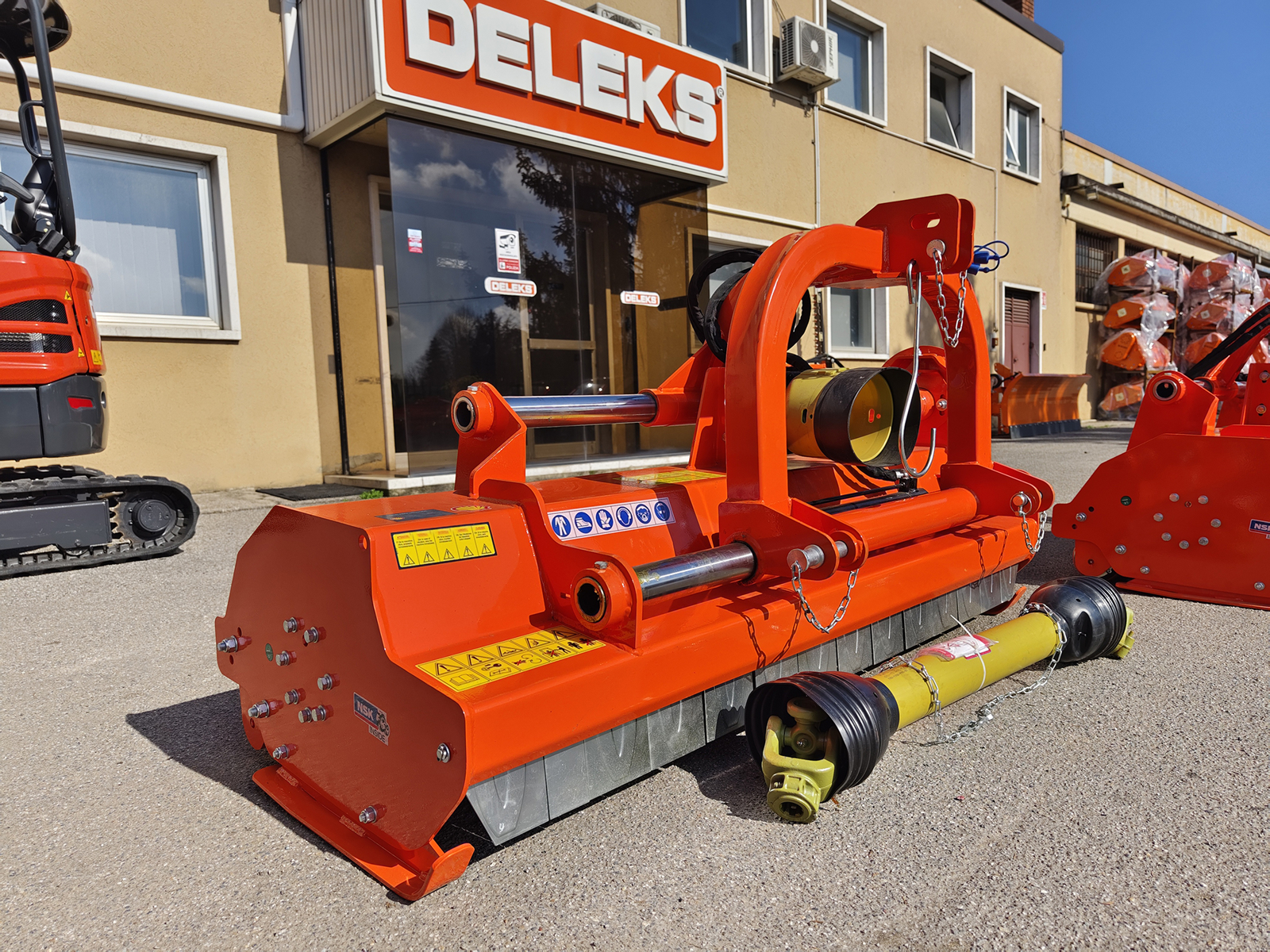

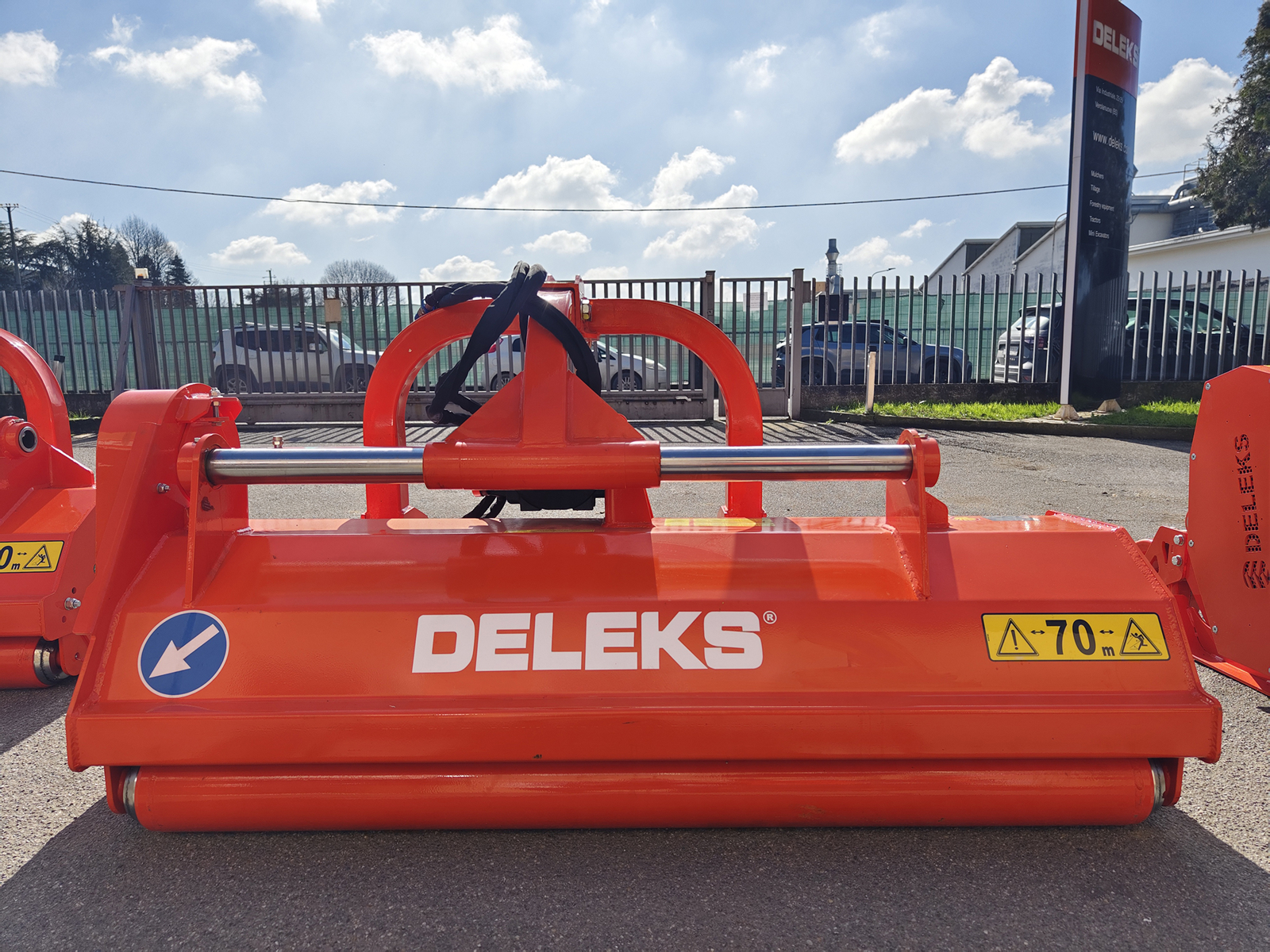

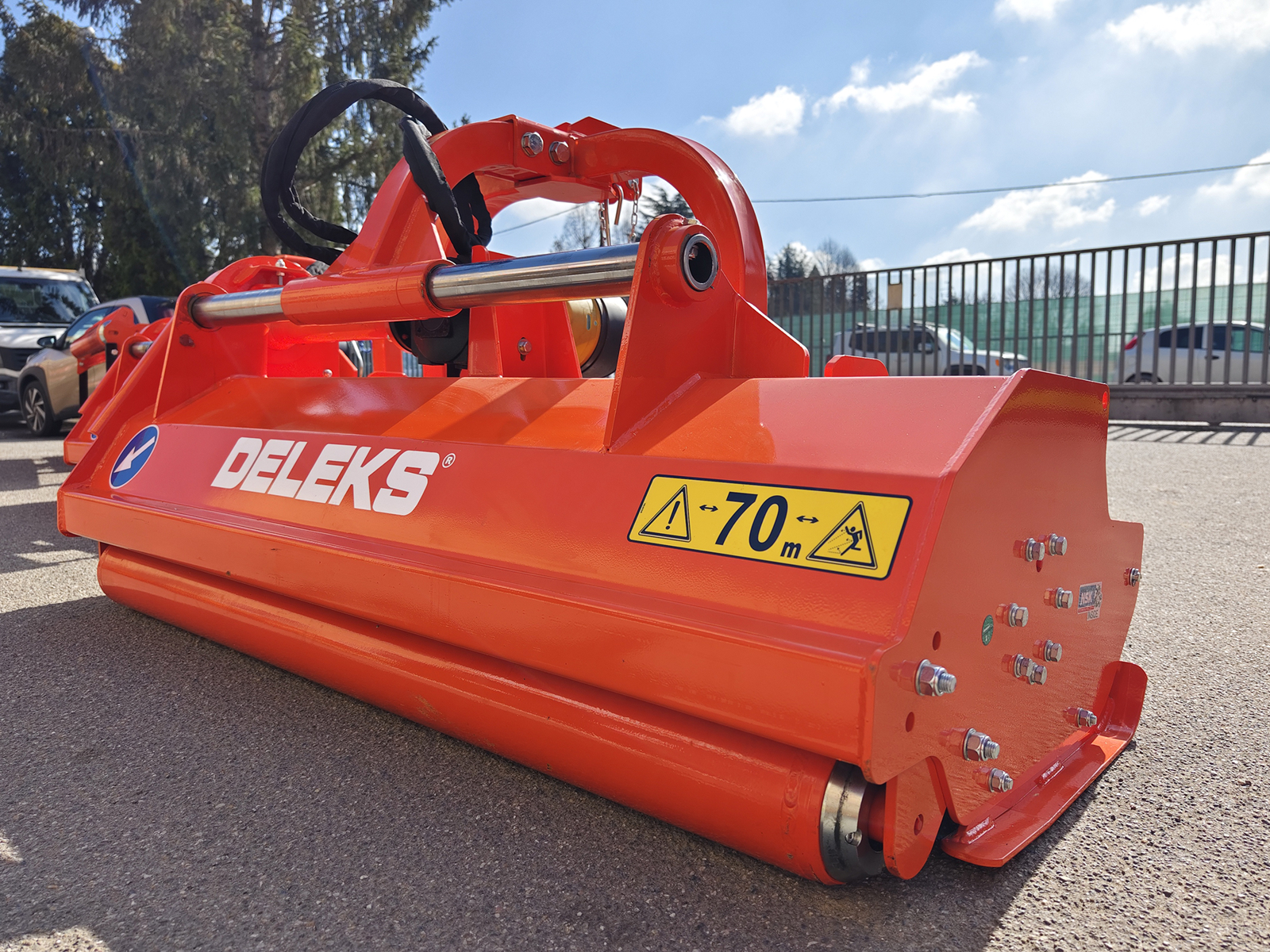

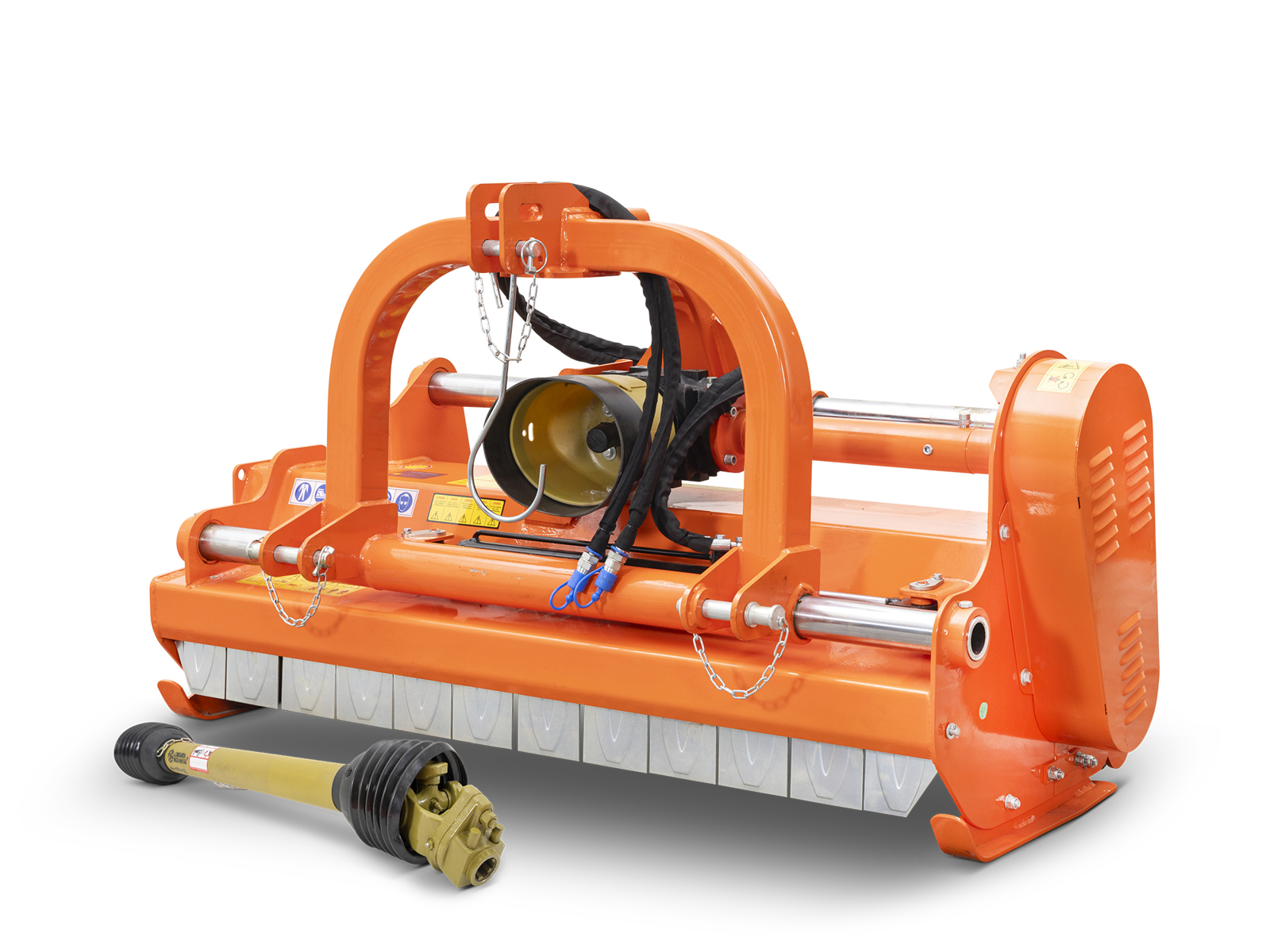

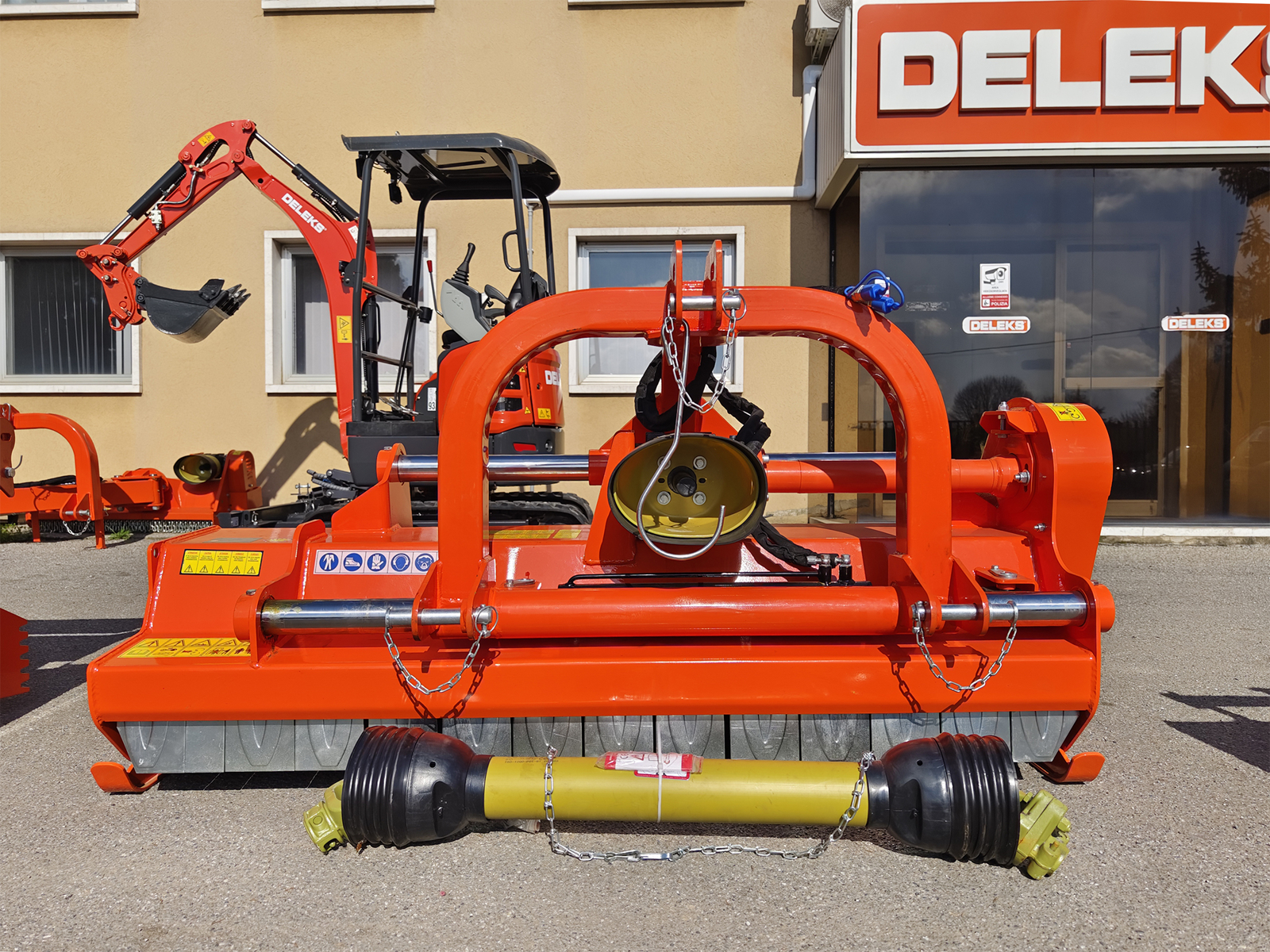

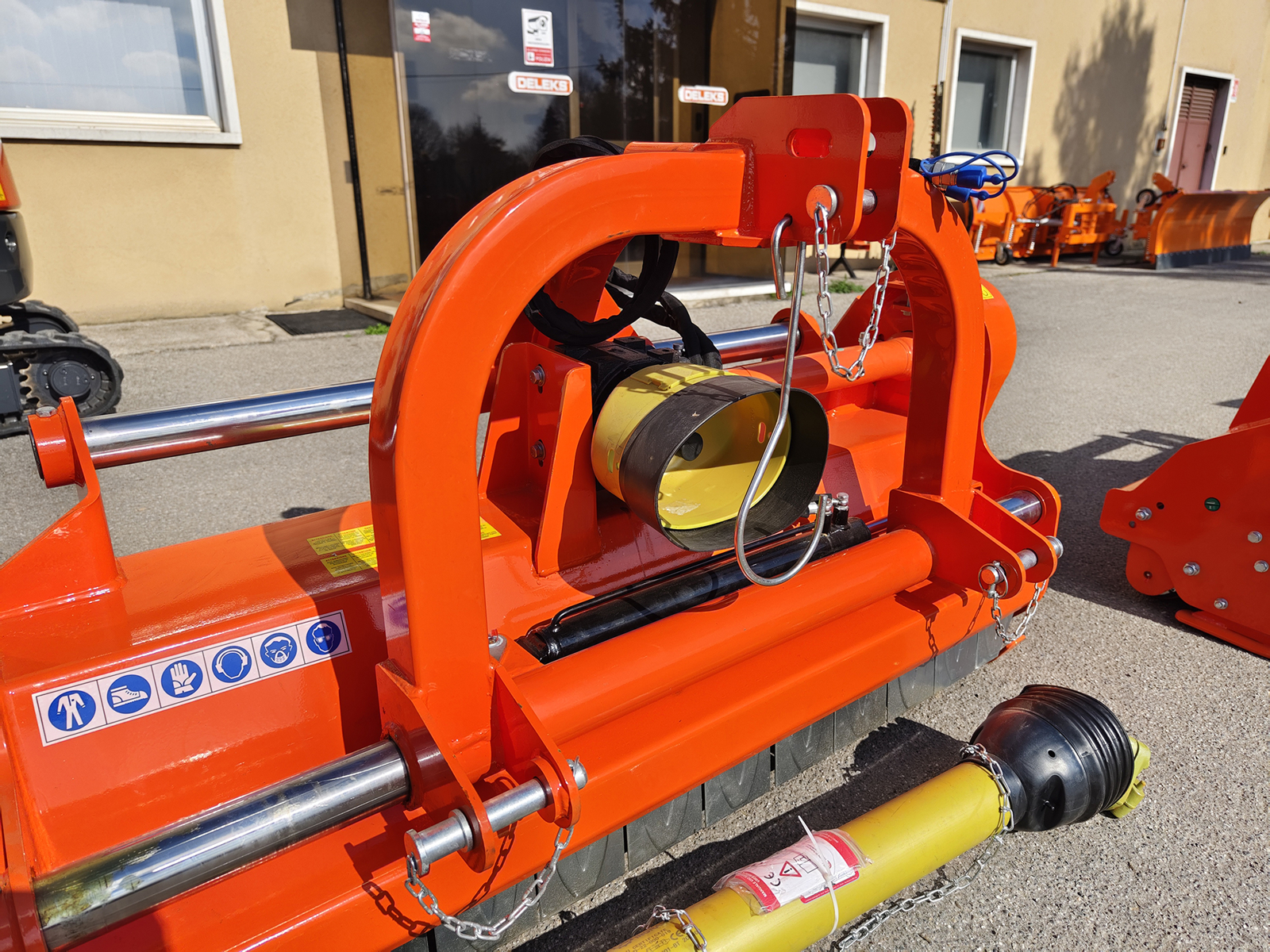

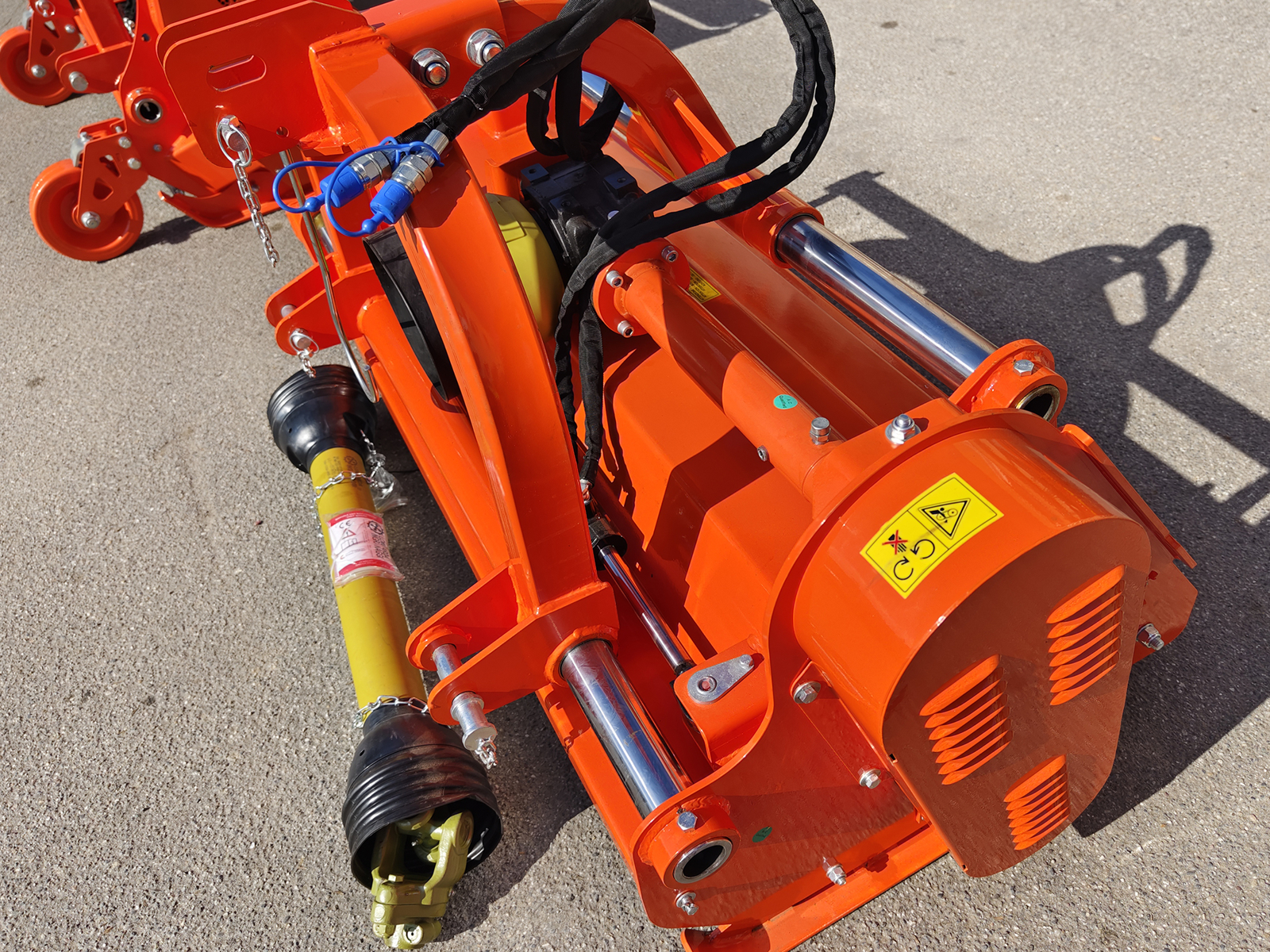

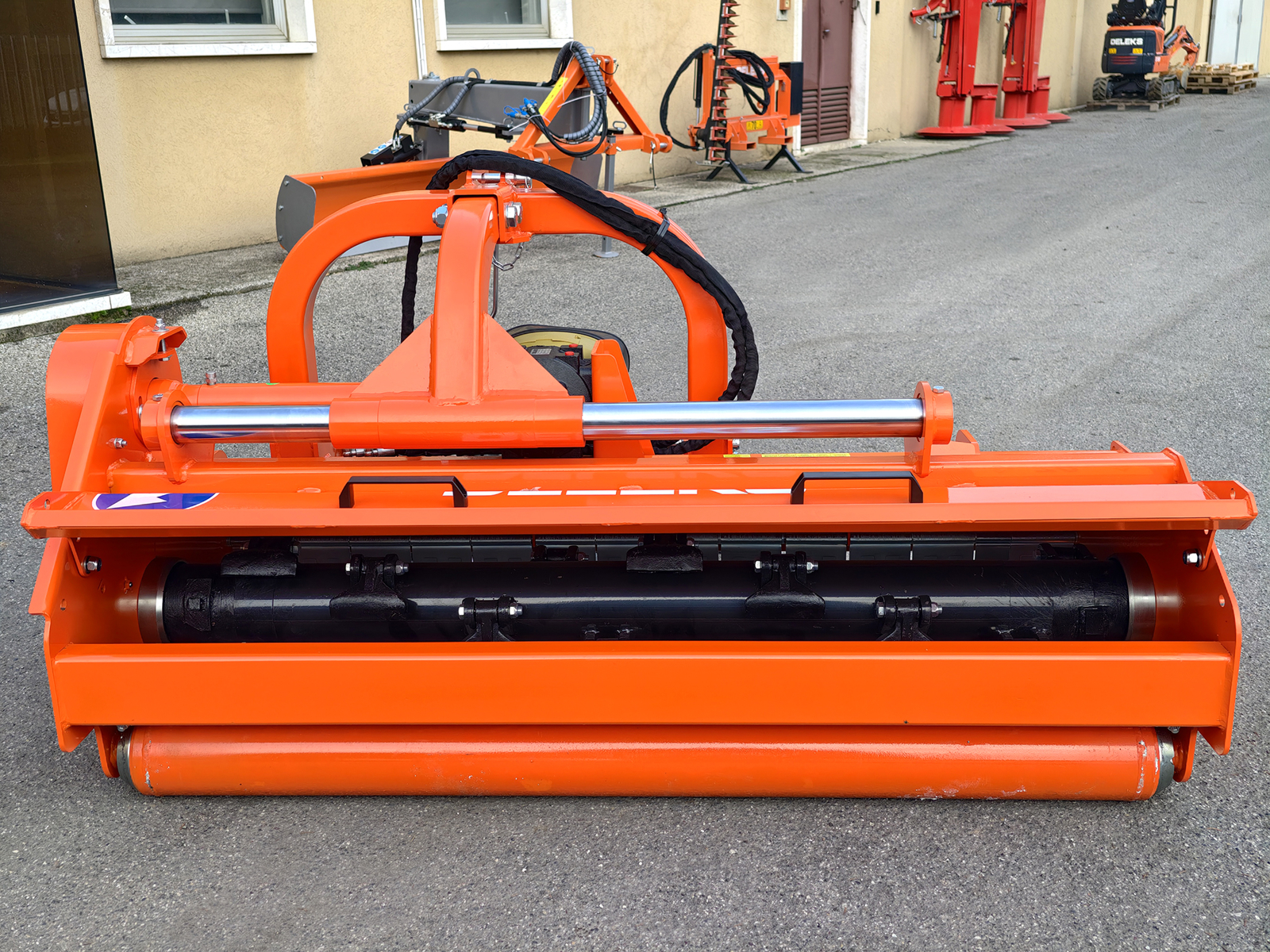

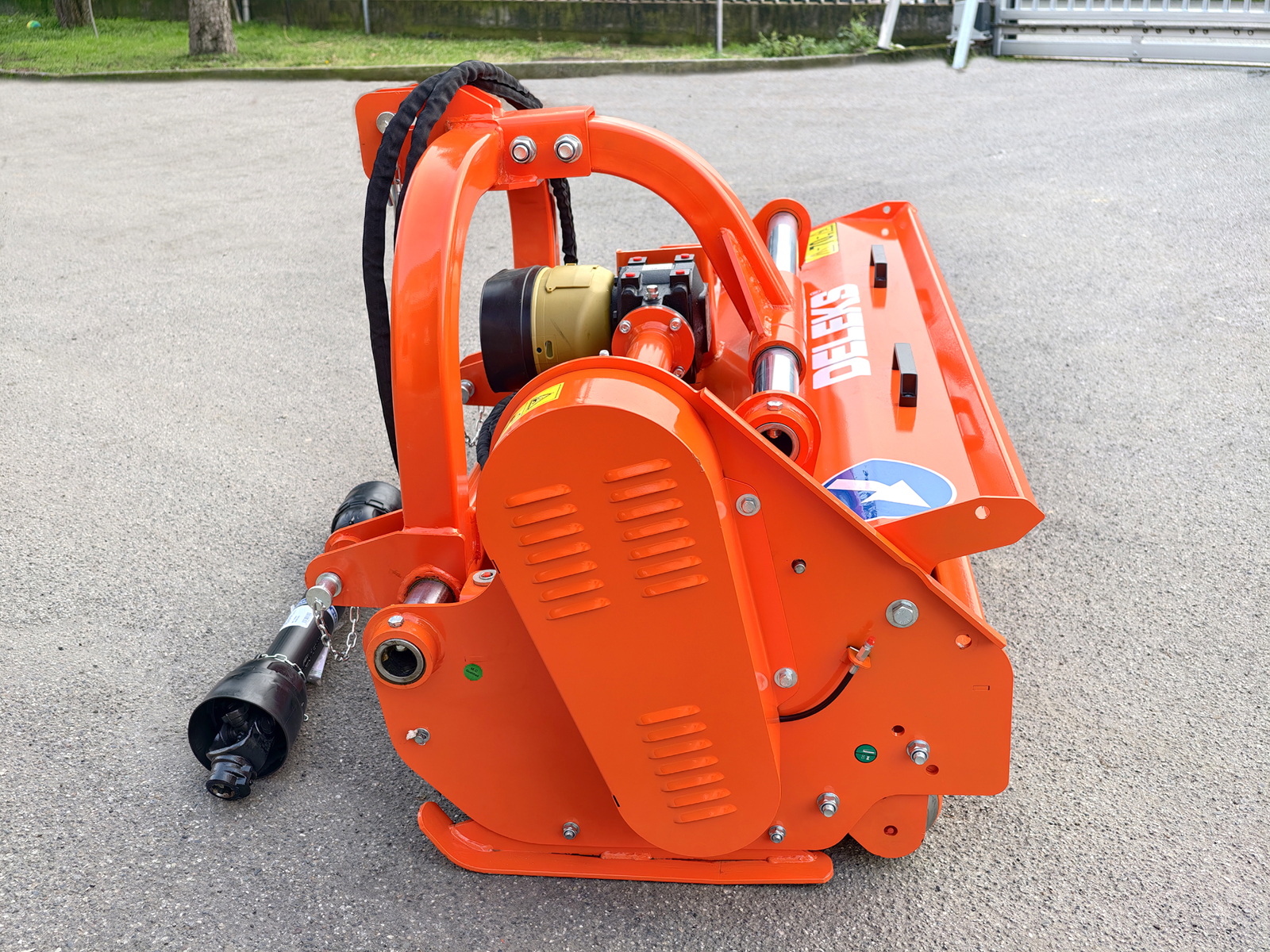

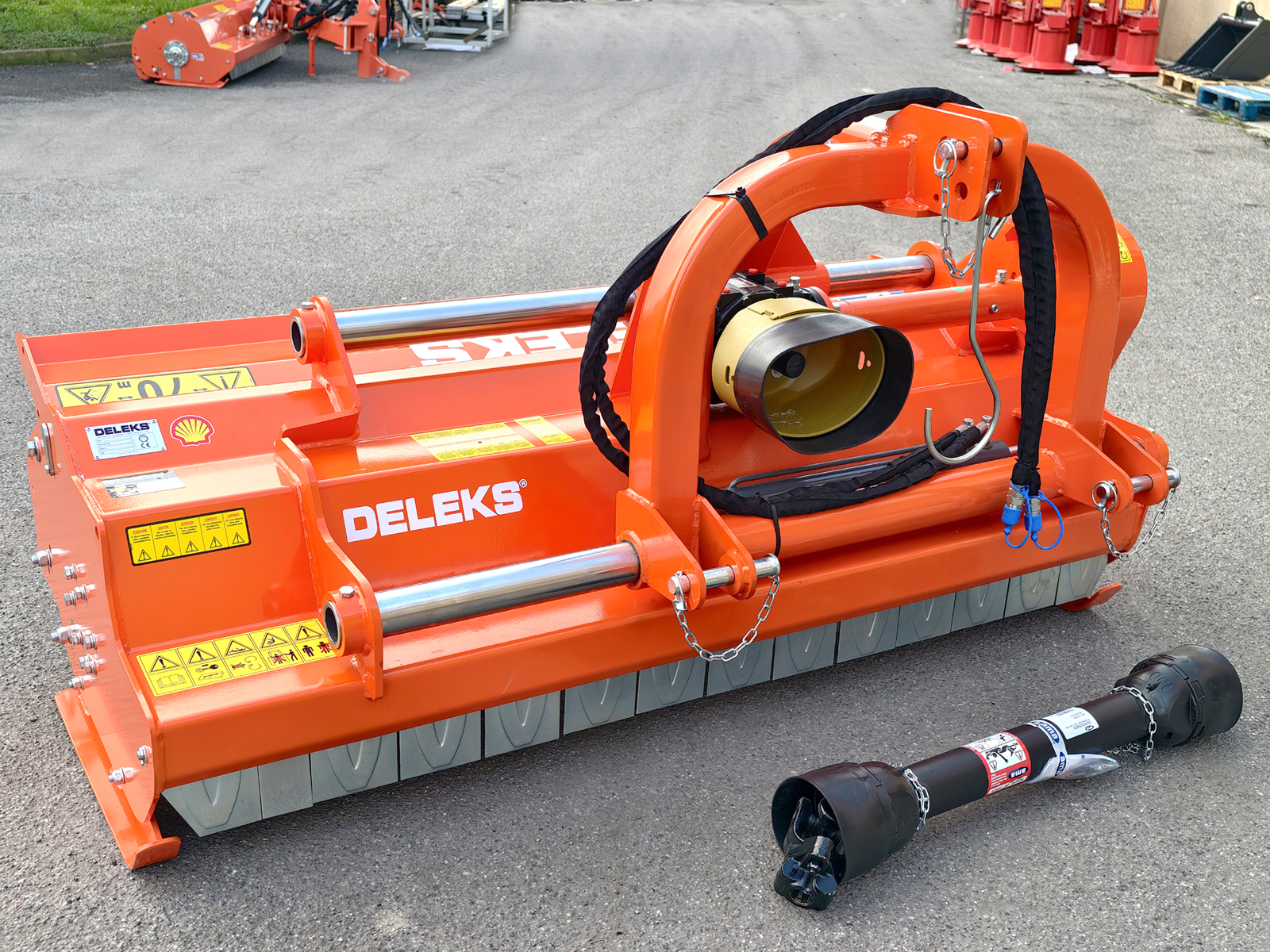

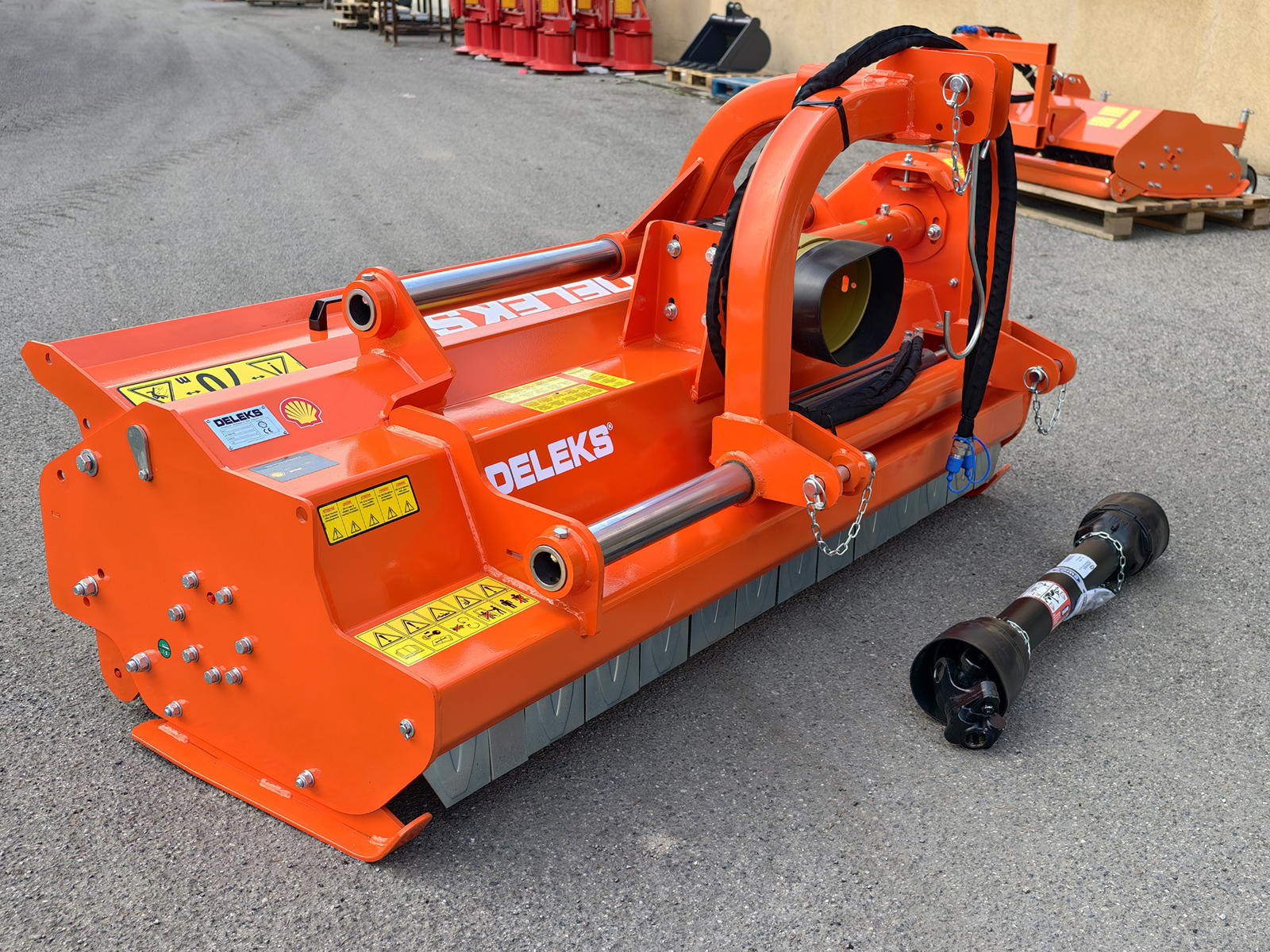

DELEKS® CERVO-180 adjustable sideshift Flail Mower For 60-100HP Tractors Shredder, 505kg, Mulcher - Pto shaft CE included.
OVERVIEW
Designed for working on fields, gardens, meadows, paddocks, unkempt ground, light rushes ect. Hydraulic side shift to offset machine. It is durable and sturdy enough to handle vegetation up to 4-5cm in thickness.
This mower is attached to the tractor using reinforced steel universal three point linkage and fits most 60-100hp tractors.
BENEFITS & FEATURES

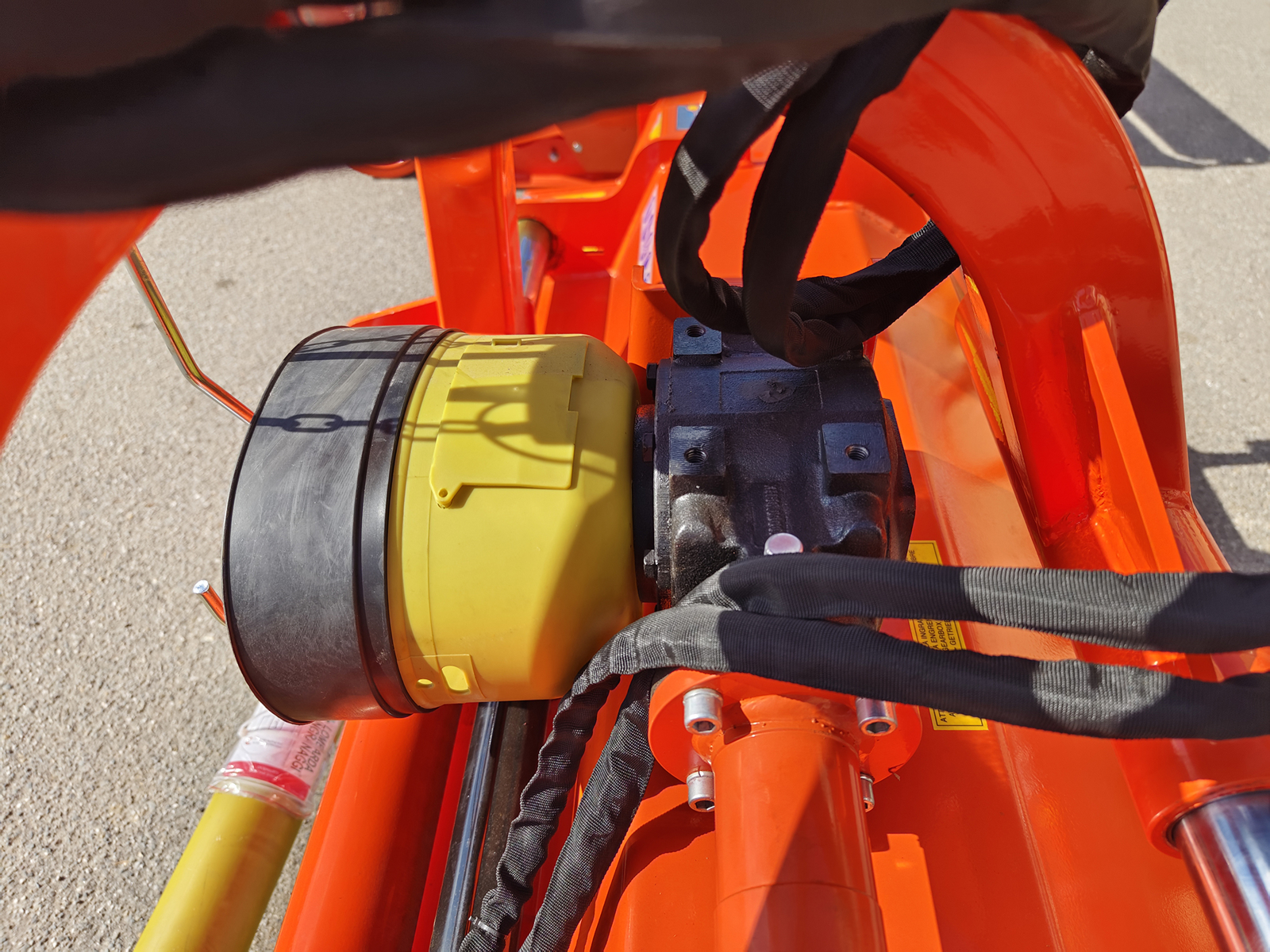

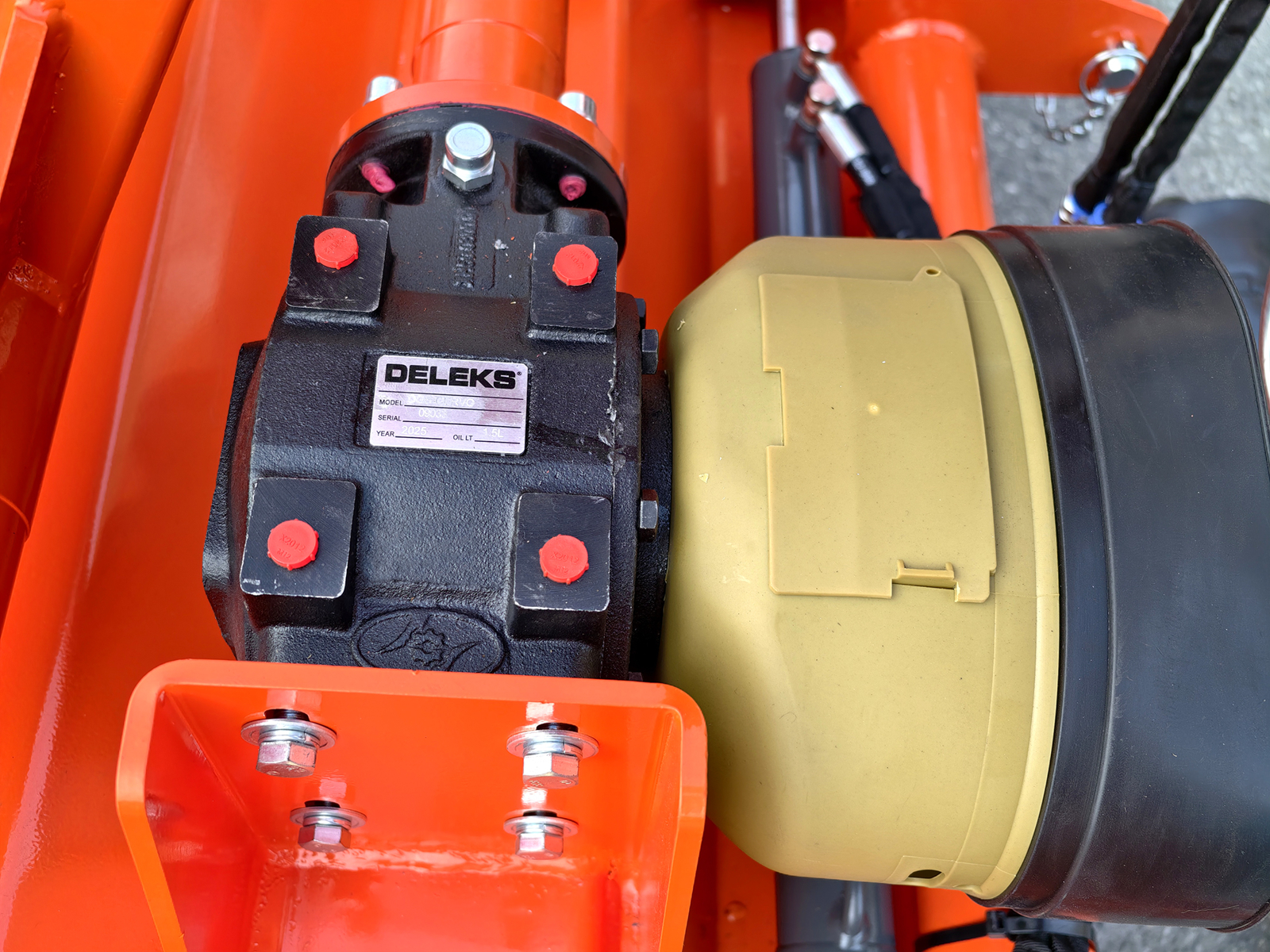

Gearbox 540 r/min with 3 year warranty.
Double case.

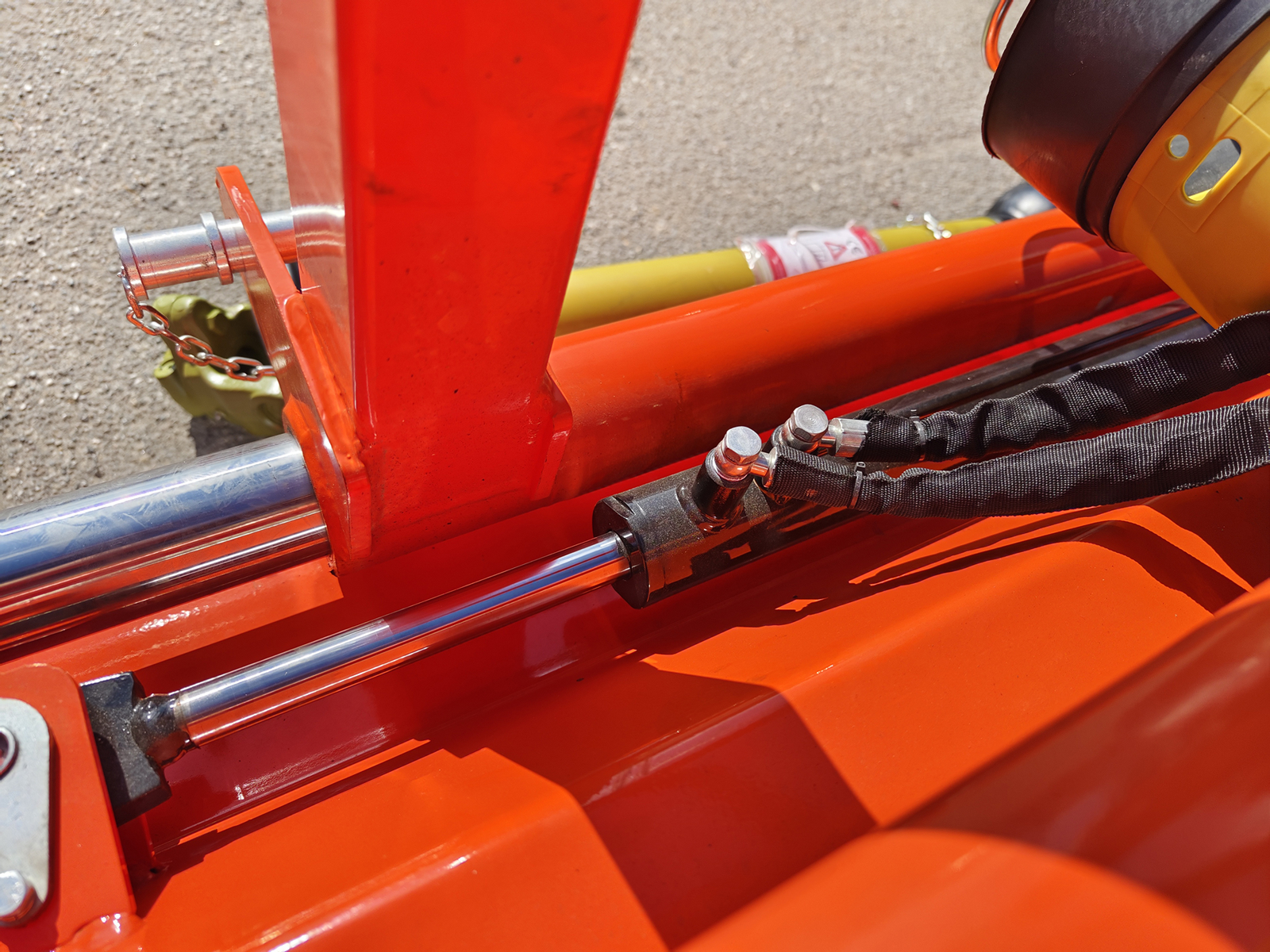

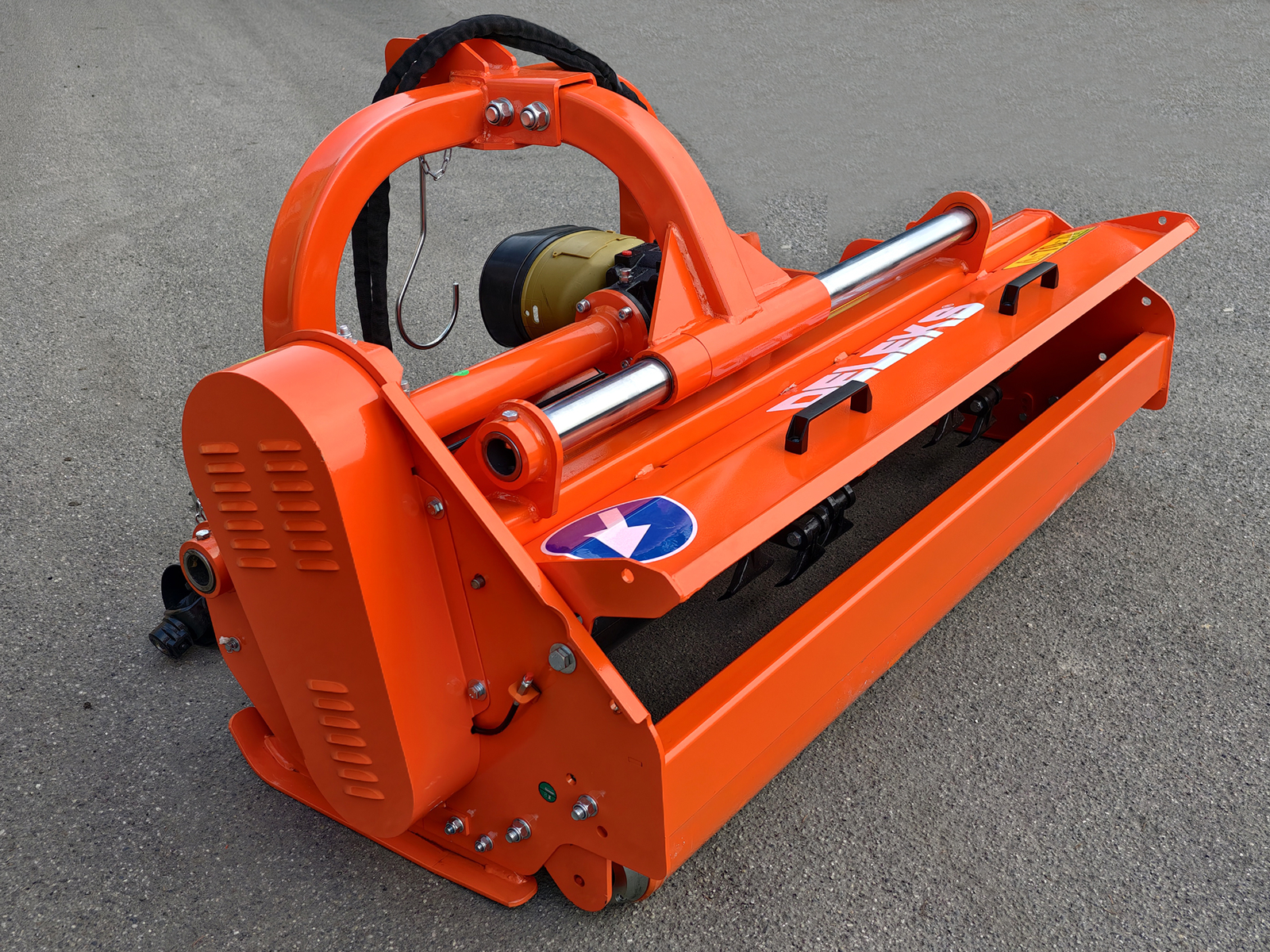

Hydraulic side shift.
4 high resistance toothed belts, and external belt tensioner.

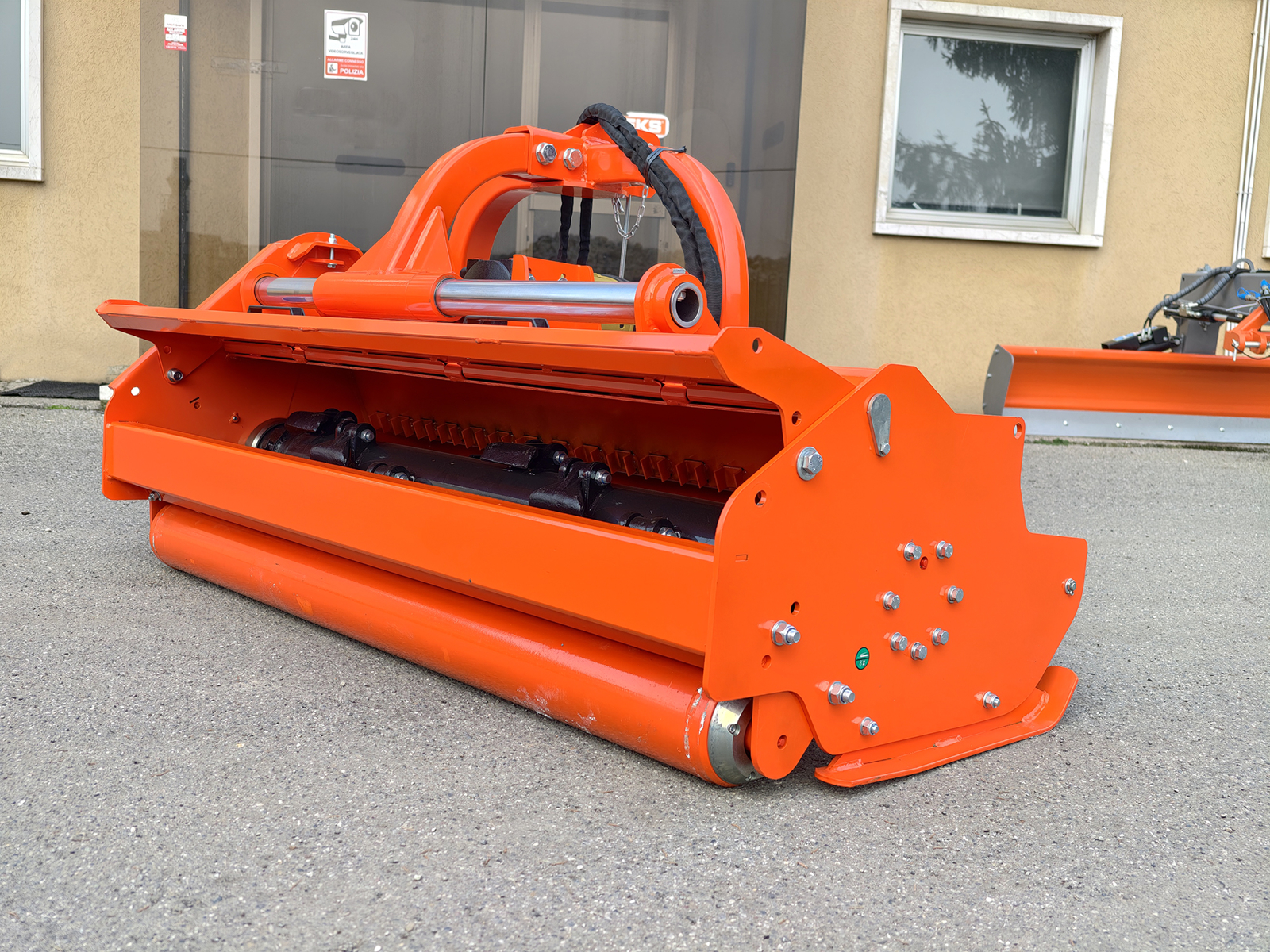

152.0 mm adjustable roller unit and skids.

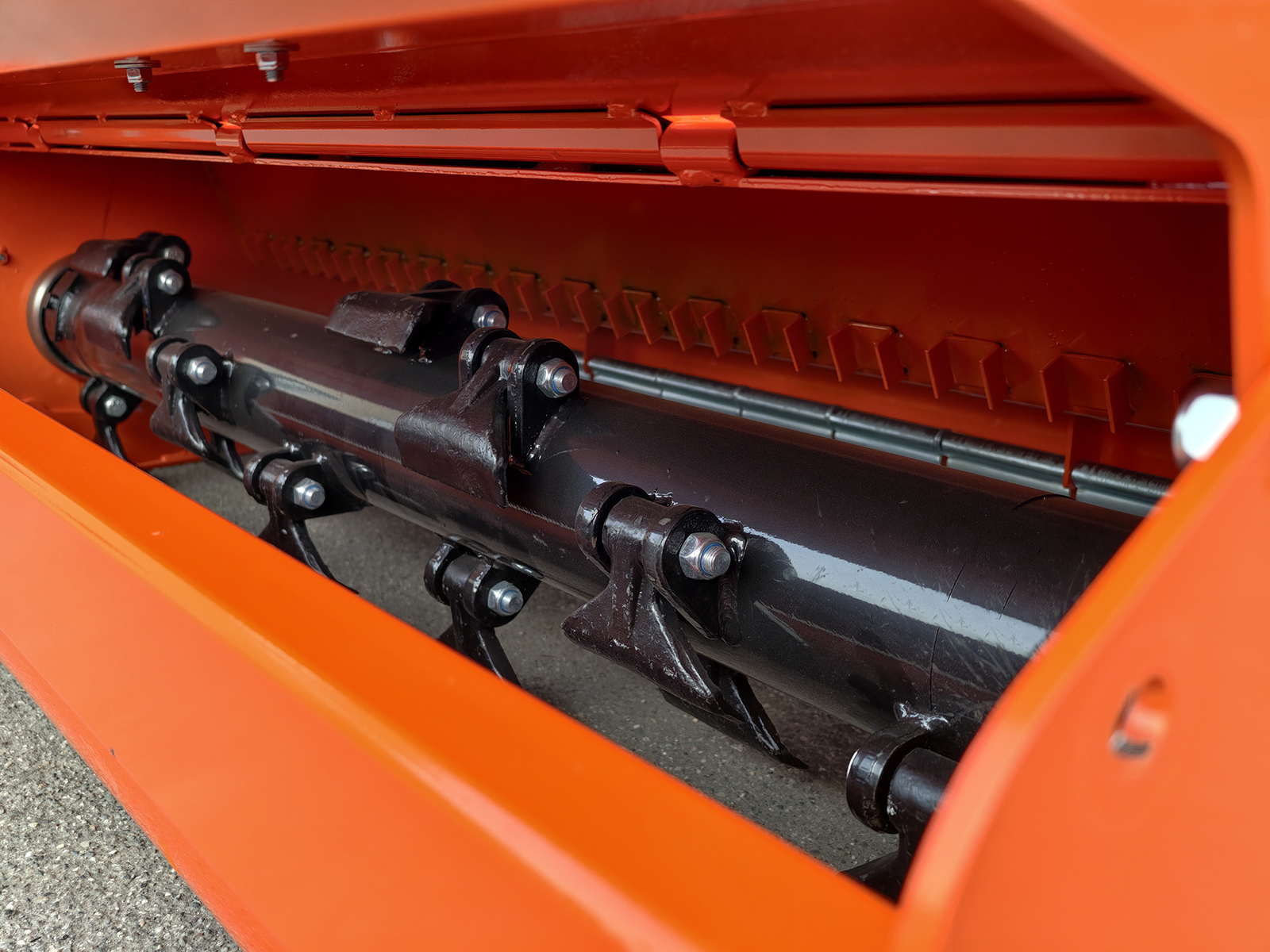

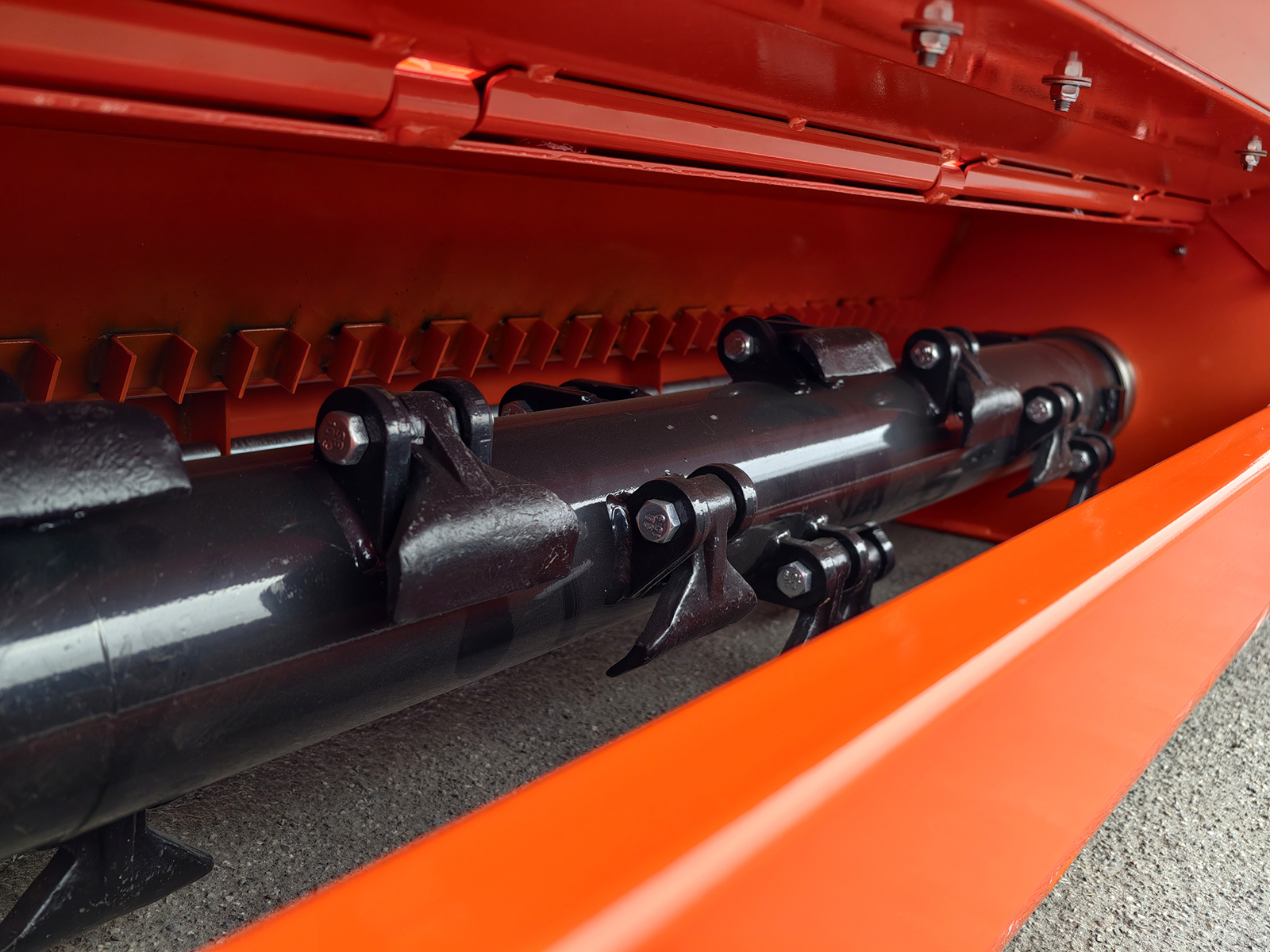

Electronically balanced rotor.

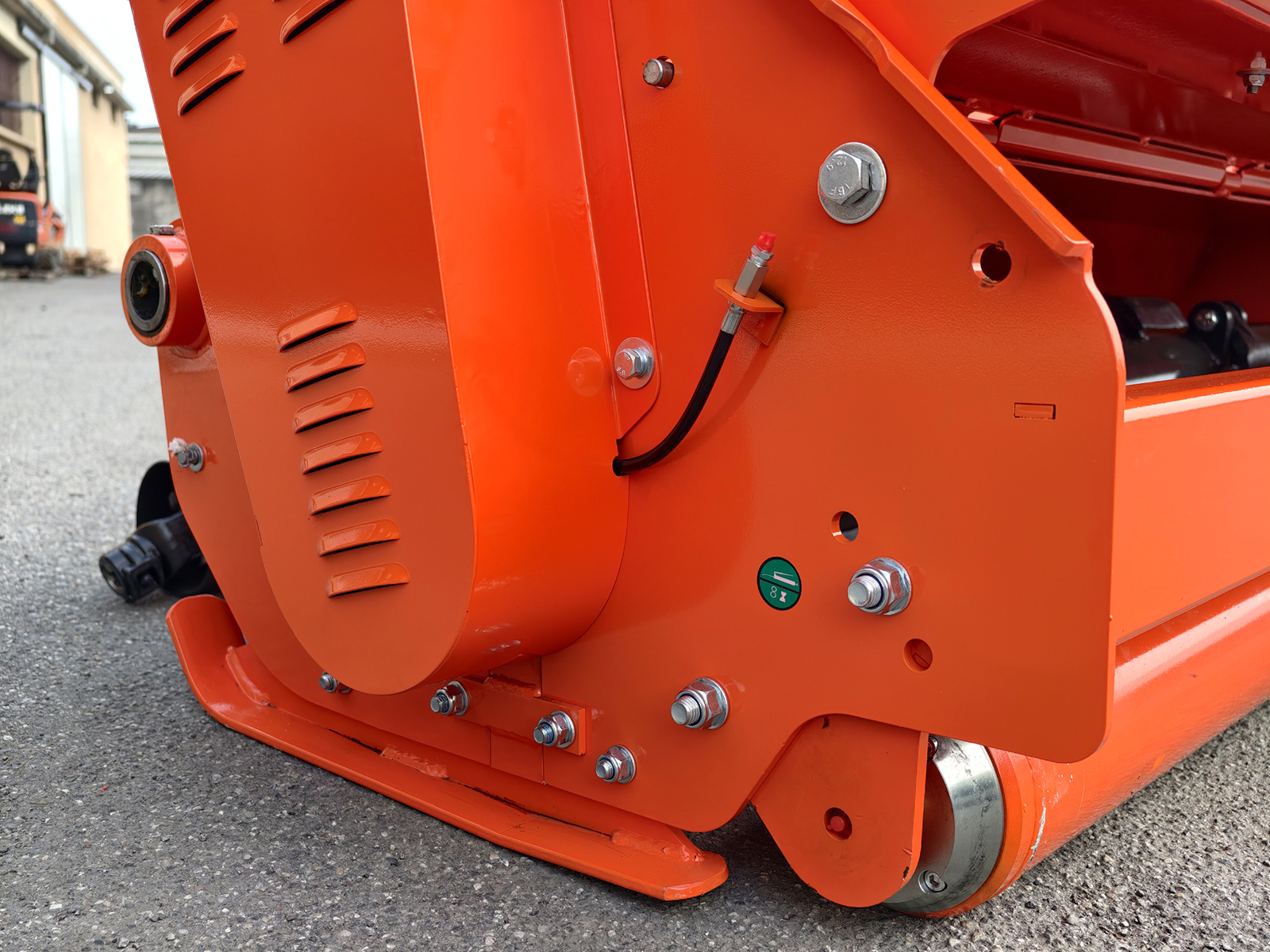

Adjustable roller unit and side skids.

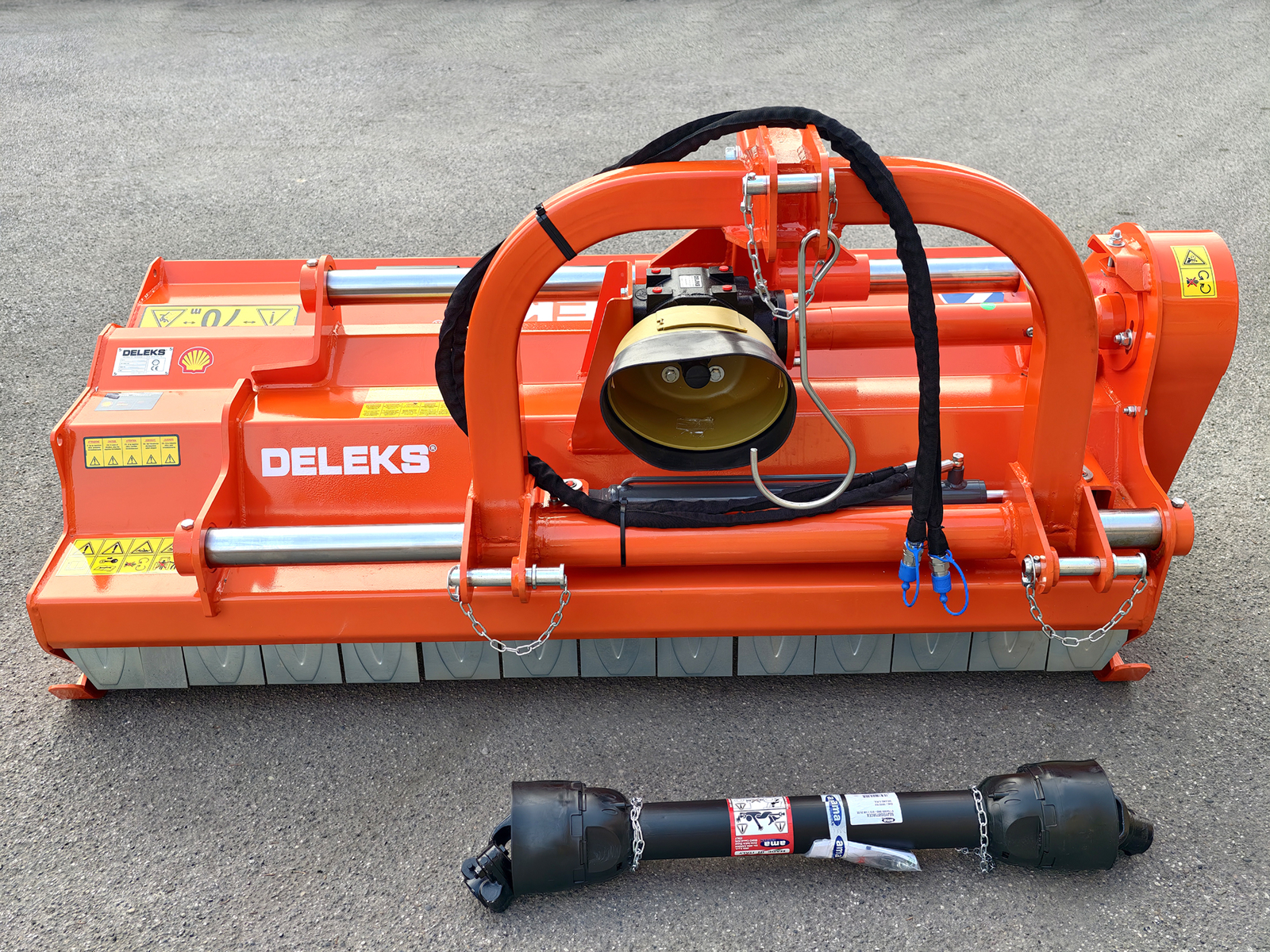

Pto shaft CE included.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|

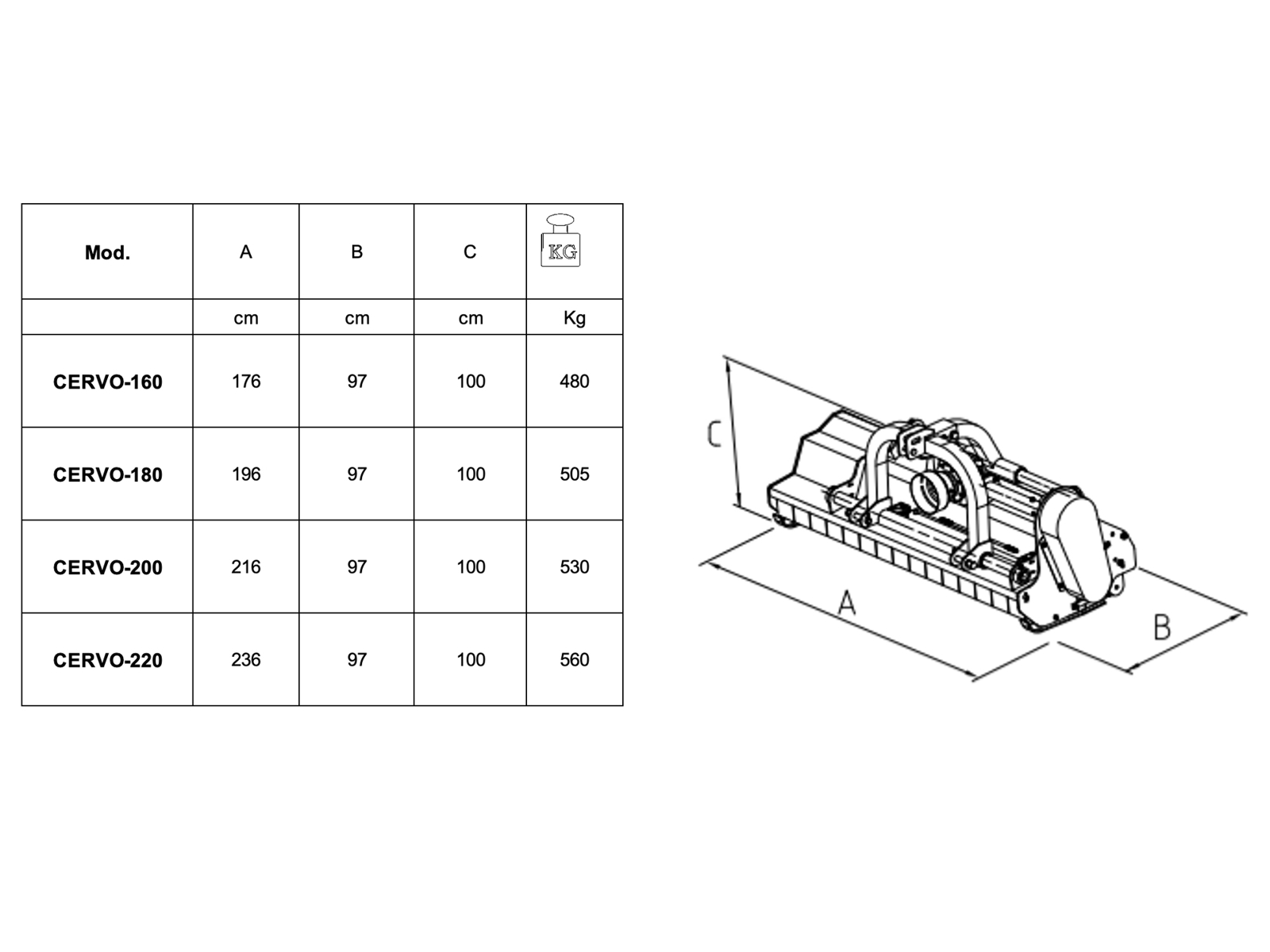

| Working width | 1800.0 mm |
| Overall width | 1950.0 mm |
| Min / Max cutting height | 5.0 - 55.0 mm |
| Weight | 505.0 kg |
| Overall height | 1050.0 mm |
| Tractor Power Range | 60 - 100 Hp |
| 3 point linkage | Cat. 2 (ø 25.0-28.0mm) |
| Position of the gearbox | 800.0 mm from left side / 1000.0 mm from right side |
| Hood height | 500.0 mm |

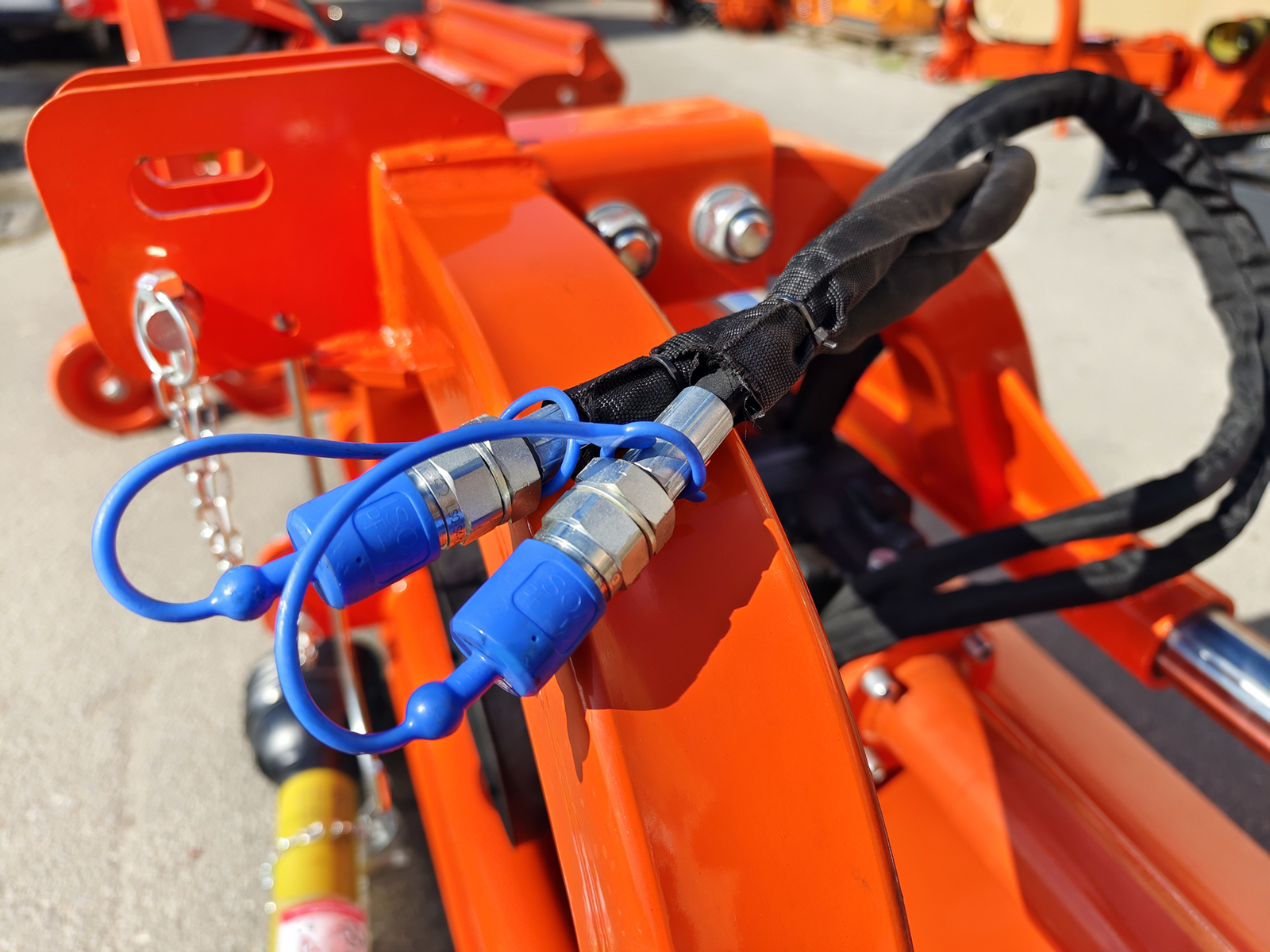

| Hydraulic Pipes (2) | 2500.0 mm / connections 1.2" AGRI, WP-400 bar |
| Spacing between the 2 lower points | 740.0 - 890.0 mm |
| Number of Hammers | 16 |
| Maximum cutting diameter | 40.0 - 50.0 mm |
| Overall length | 1030.0 mm |
| Distance between pto attachment and ground | 550.0 mm |
| Main hood thickness | 5.0 mm |
| Sides thickness | 8.0 mm |
| Side plates thickness | 6.0 mm |
| Transmission: Drive method | V-Belts |
| Transmission: Gearbox | JCCT - 3 years warranty |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: RPM Rotor speed | 2140 rpm |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Transmission: V-Belts quantity | 4 |
| Transmission: V-Belts size | 17x1270 |
| Rotor: diameter | 152.0 mm |
| Rotor: bearings type and size | 40x90 |
| Rotor: balancing | Electronic |
| Rotor: sheet thickness | 8.0 mm |

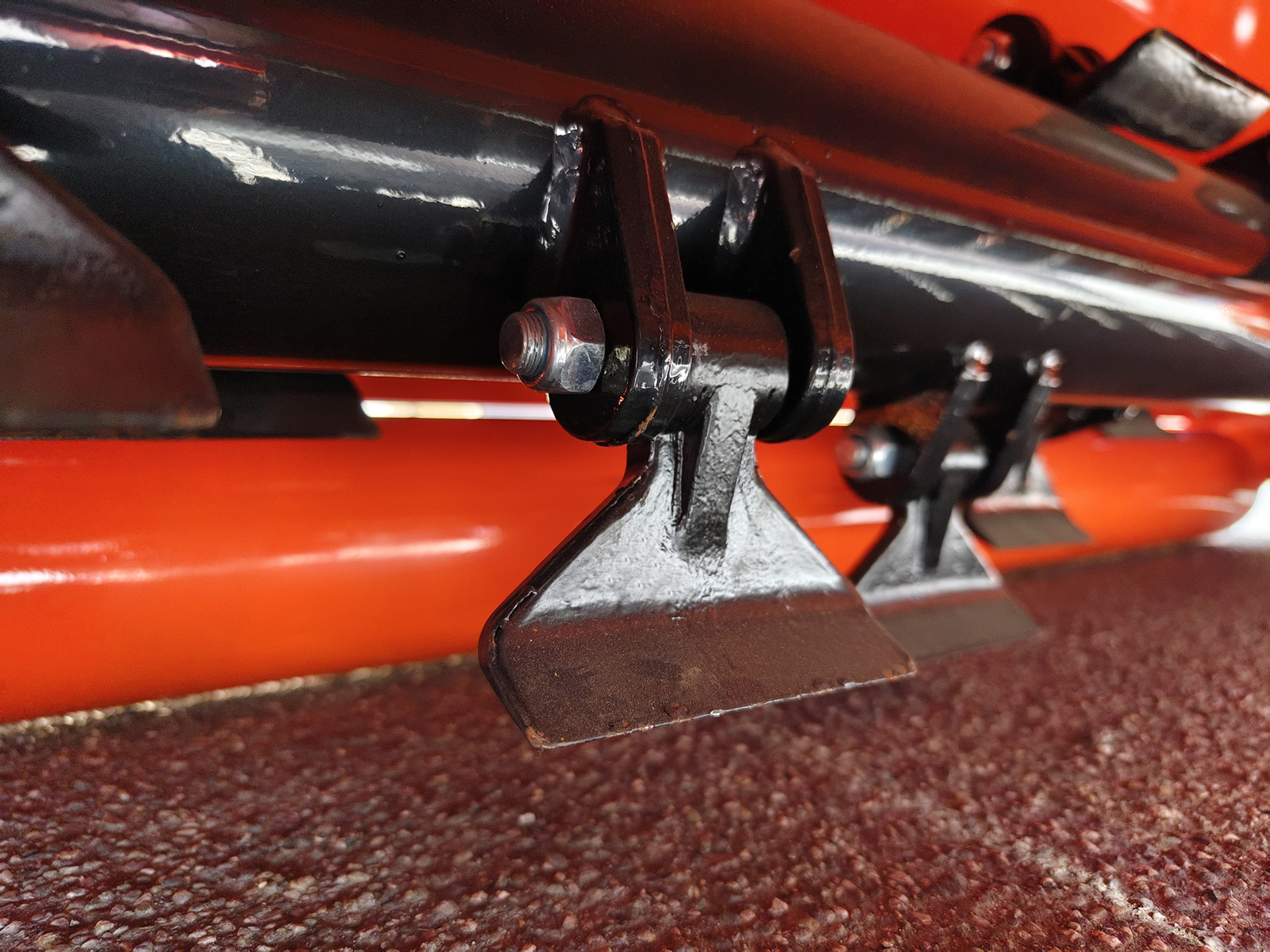

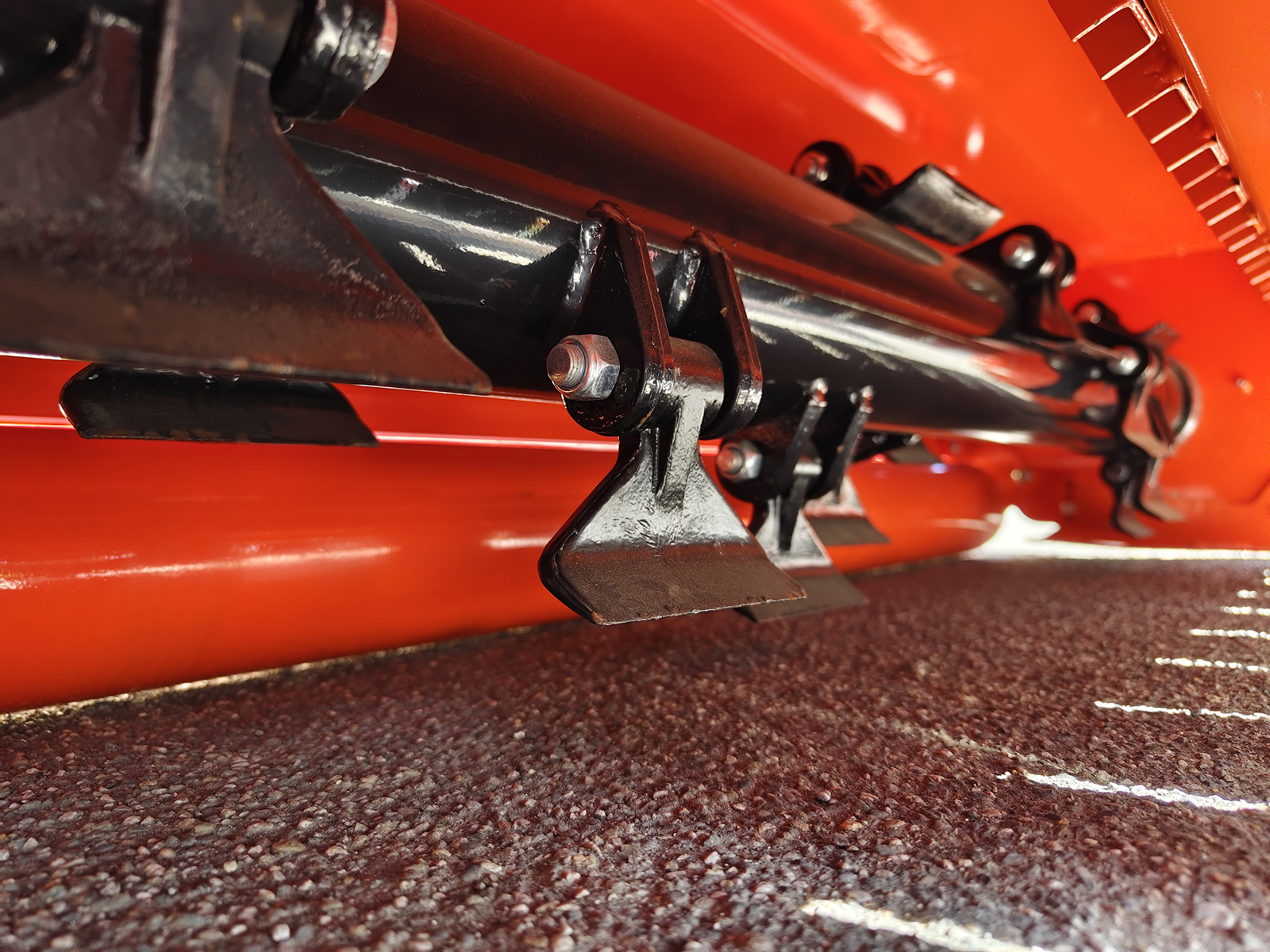

| Hammers: Weight | 1100.0 g |
| Hammer: øhole | 16.0 mm |
| Hammer: base width | 140.0 mm |
| Hammer: top width | 40.0 mm |
| Hammer: Diagonal | 97.0 mm |
| Rear roller: diameter | 152.0 mm |
| Rear roller: sheet thickness | 6.0 mm |
| Rear roller: bearings type and size | 90x40 mm - GB276-6308 |
| Pto shaft | CE 6x1000 mm + shear bolt |
| Hood length | 1000.0 mm |
| Effective Displacement | 400.0 mm (Hydraulic) |
| Packing sizes | 1950.0*1050.0*1050.0 mm |
