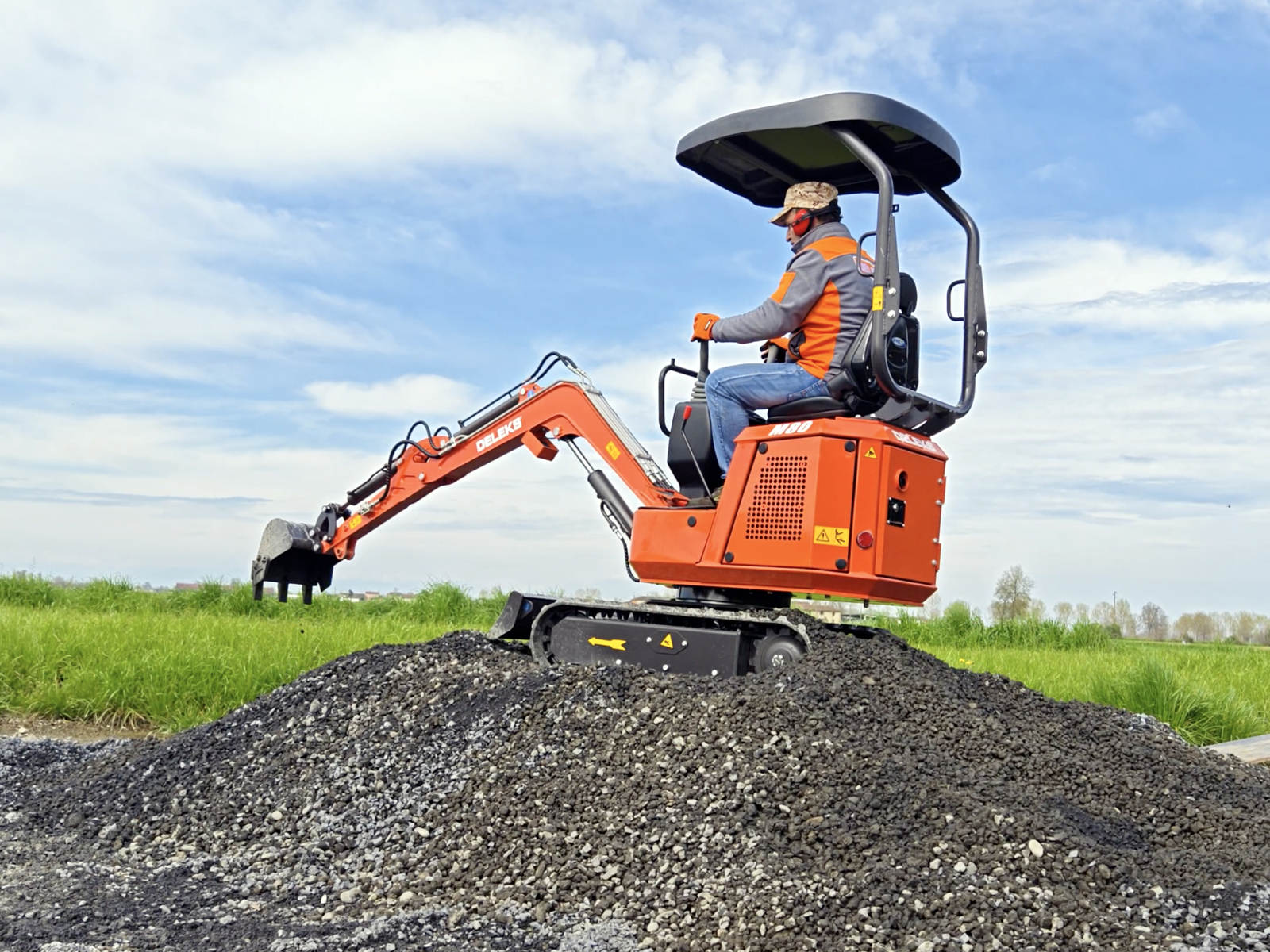

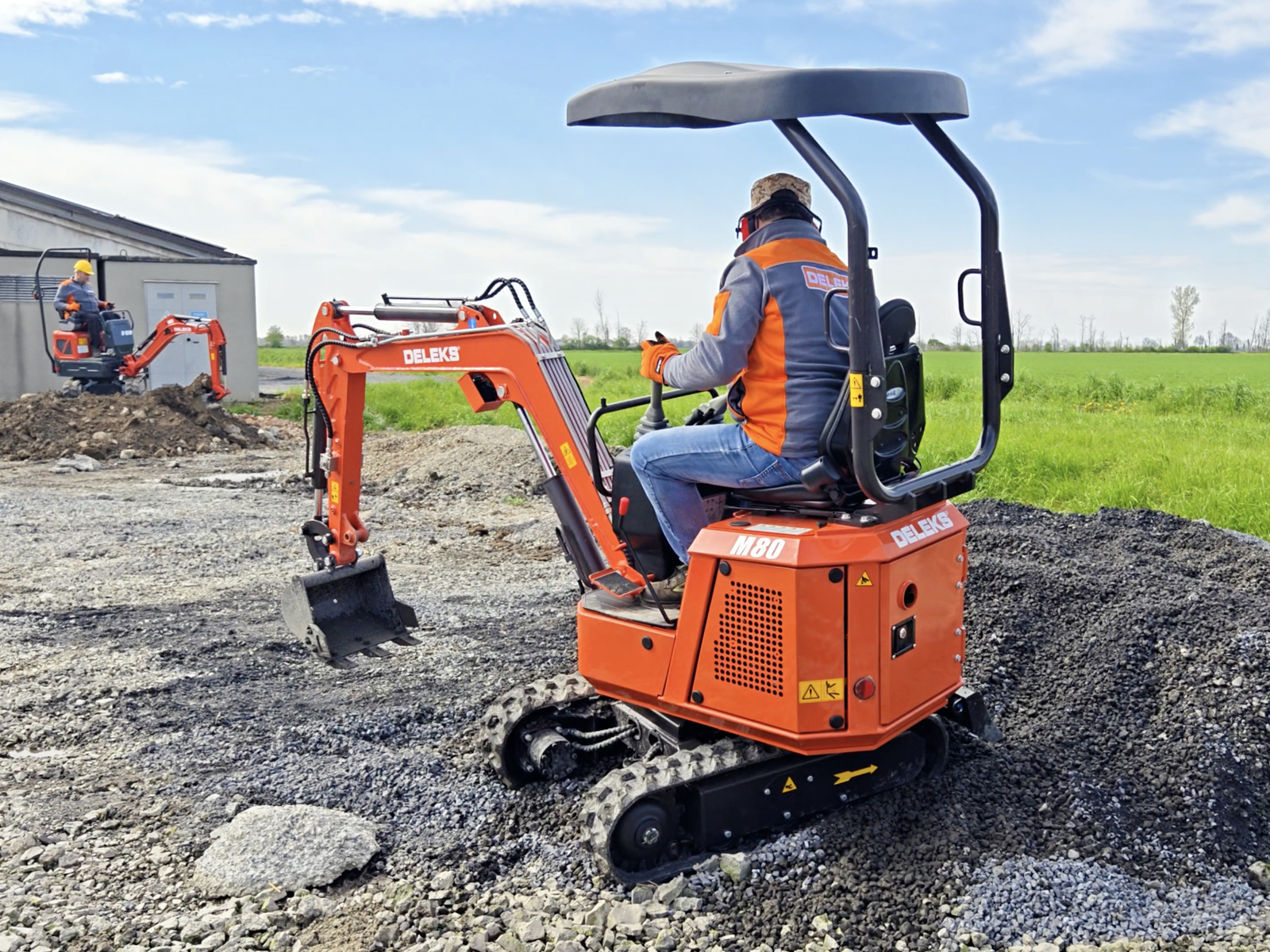

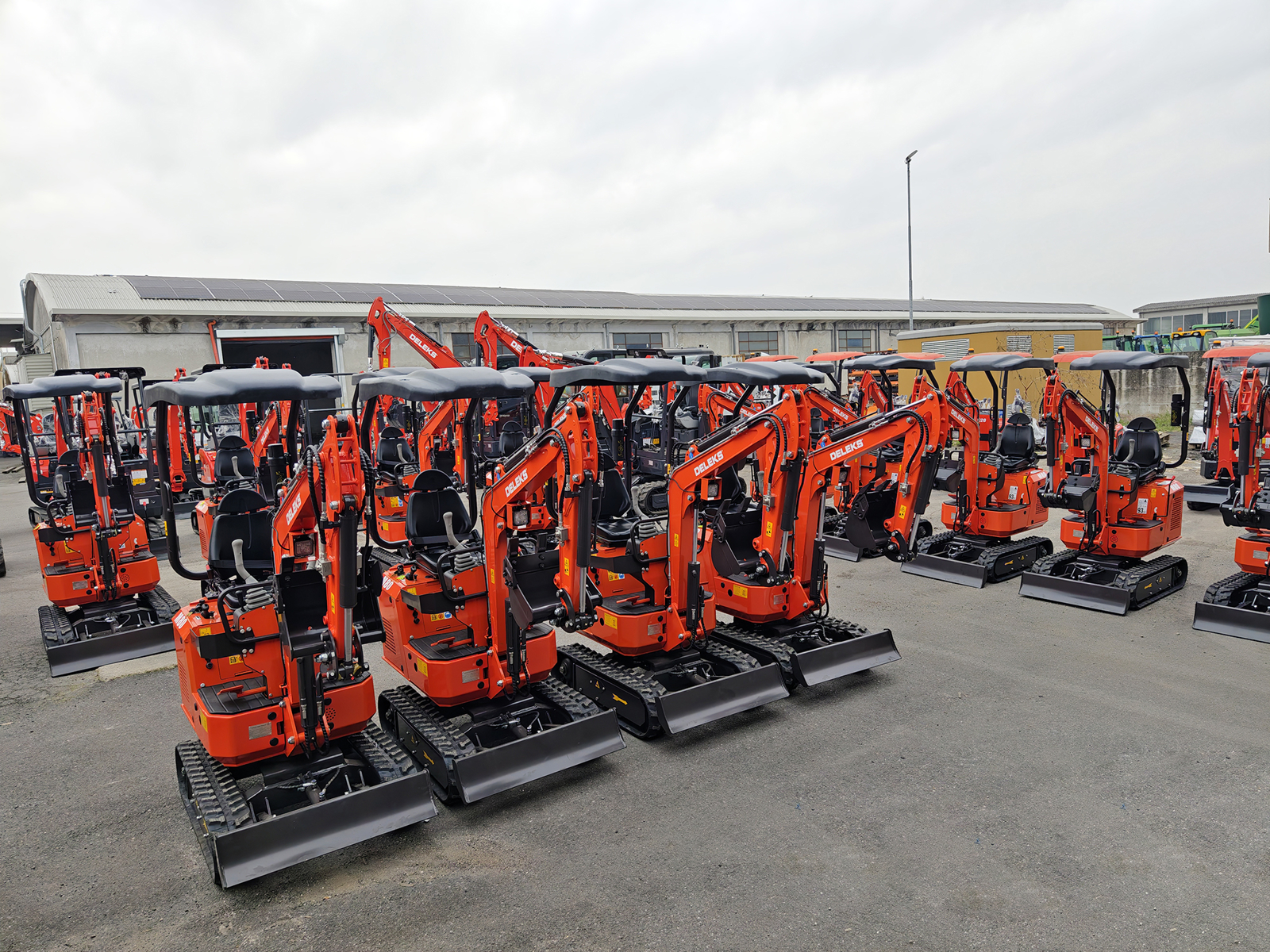

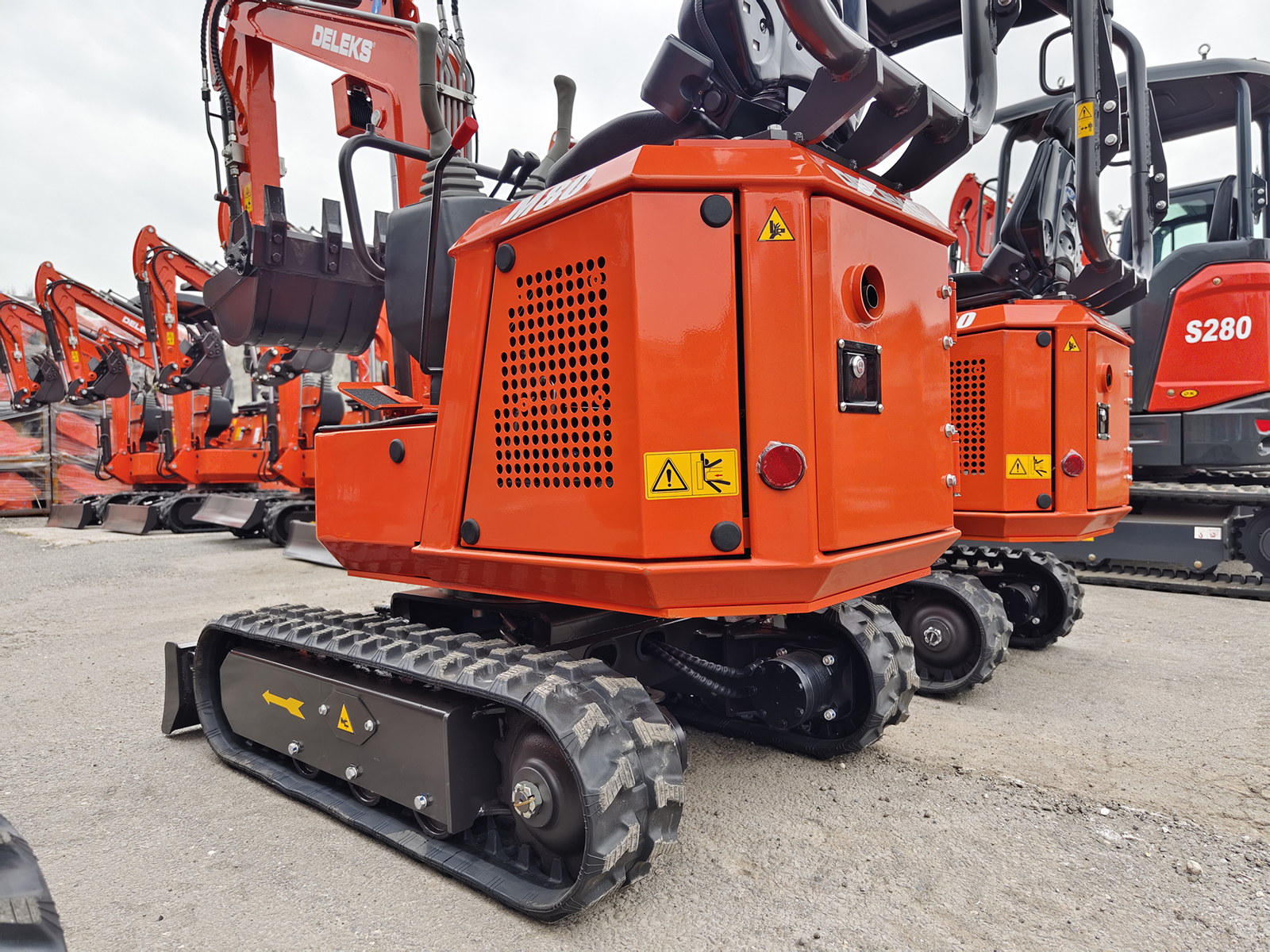

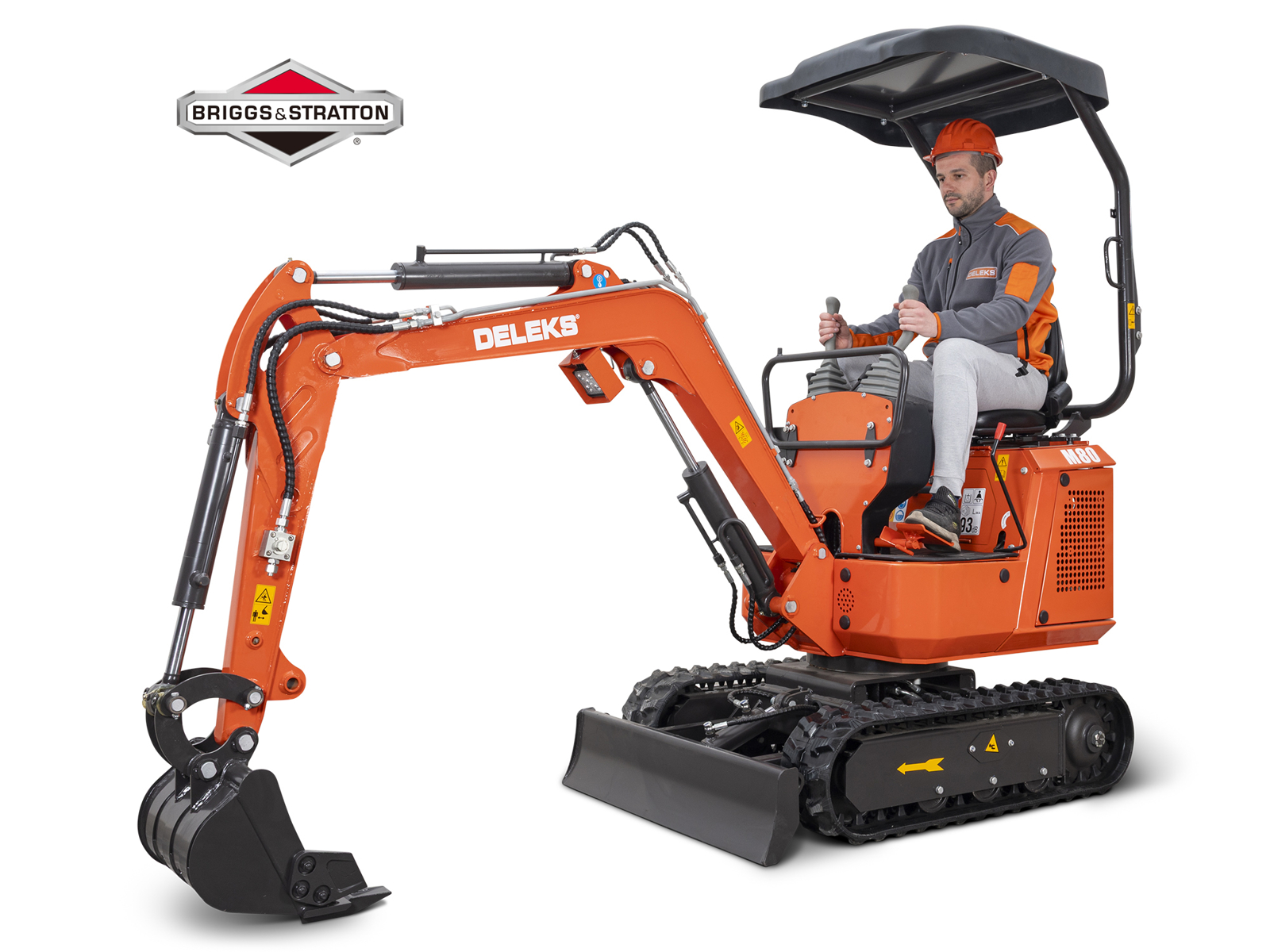

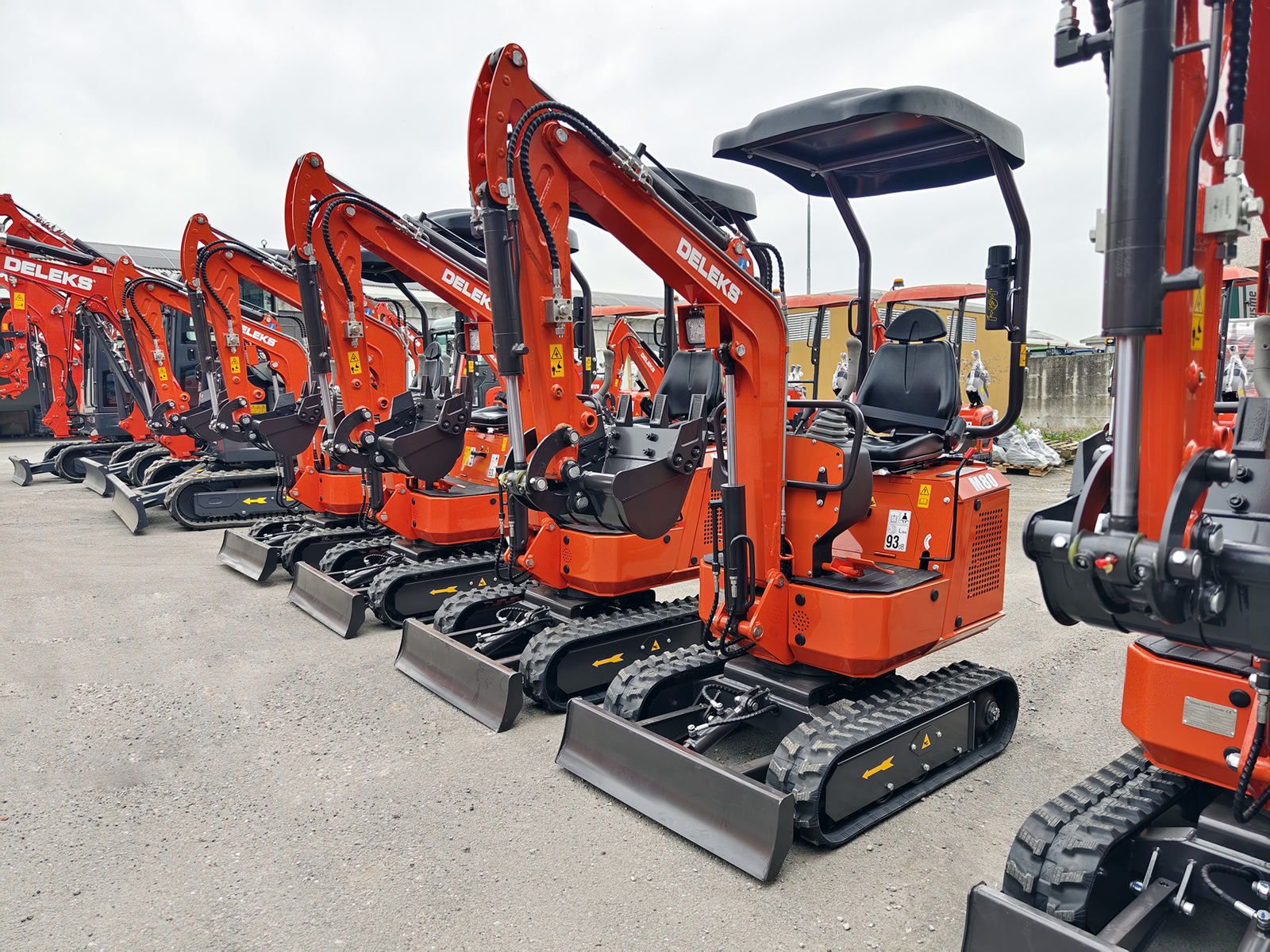

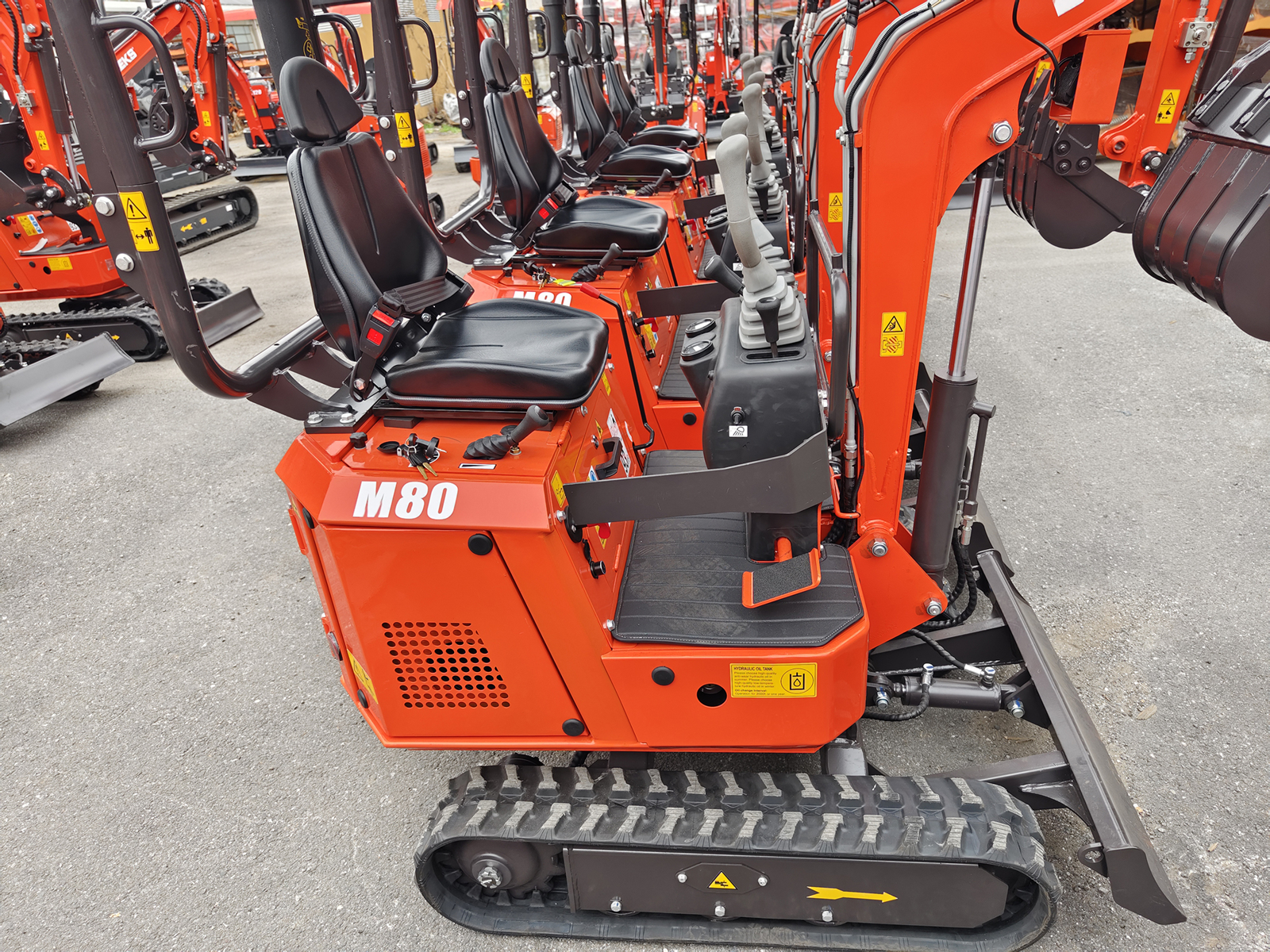

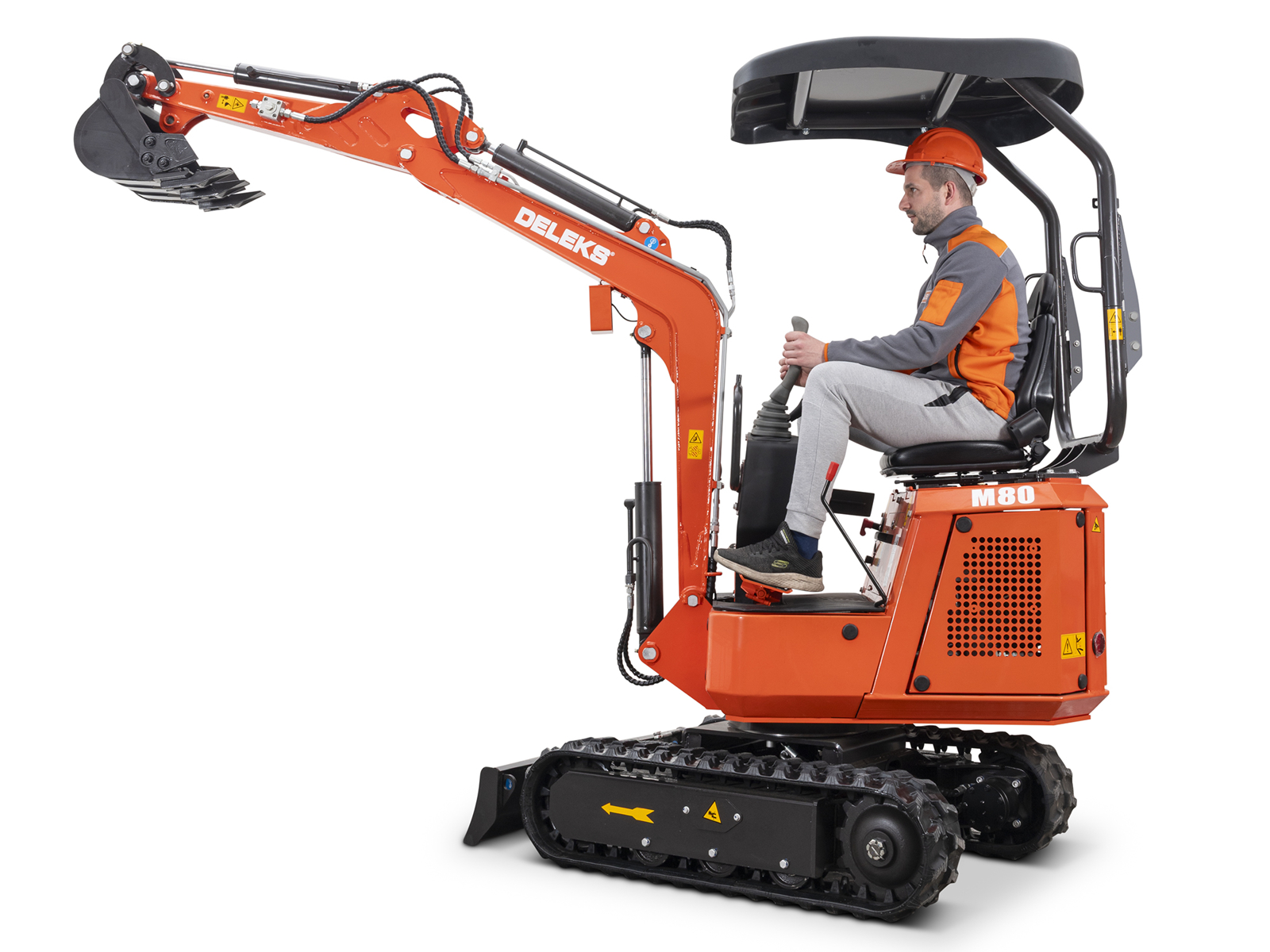

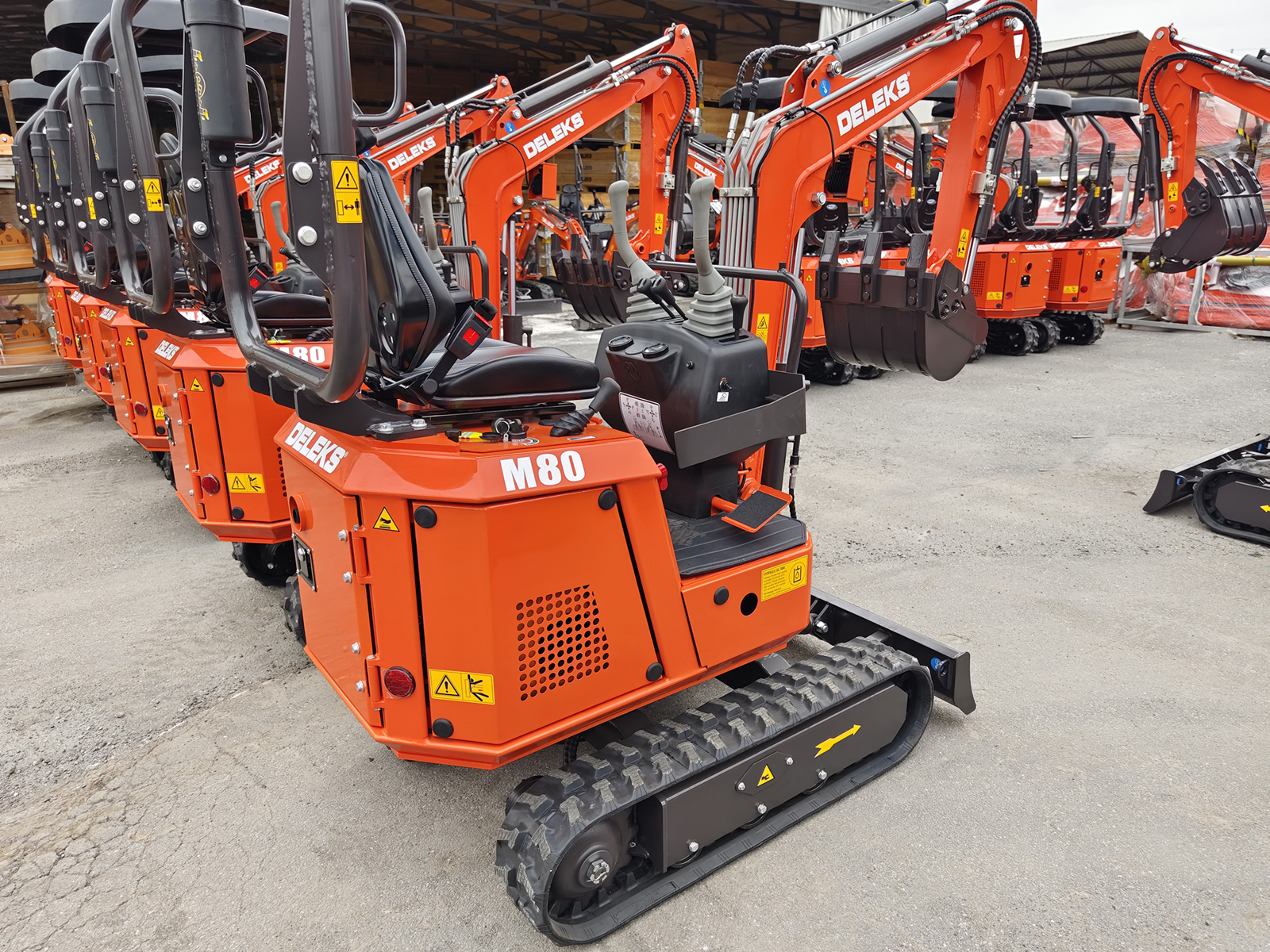

M80 Mini excavator 0.85 ton, Briggs&Stratton engine

Mini excavator DELEKS^® M80 with Briggs&Stratton engine, rubber tracks. Certification made by italian agencies.

OVERVIEW

Application: AGRICULTURE - CIVIL ENGINEERING - CONSTRUCTION - LANDSCAPING

The M80 mini excavator is a compact machine, capable of high performance in the most restricted areas, including within buildings and in rear gardens.

Our micro excavators are popular with everyone from rental companies to landscapers, redevelopers, grounds care operators and DIY enthusiasts.

The M80 micro excavator is small enough to be trailered between sites and has a whole host of attachments for even more versatility.

STANDARD EQUIPMENT

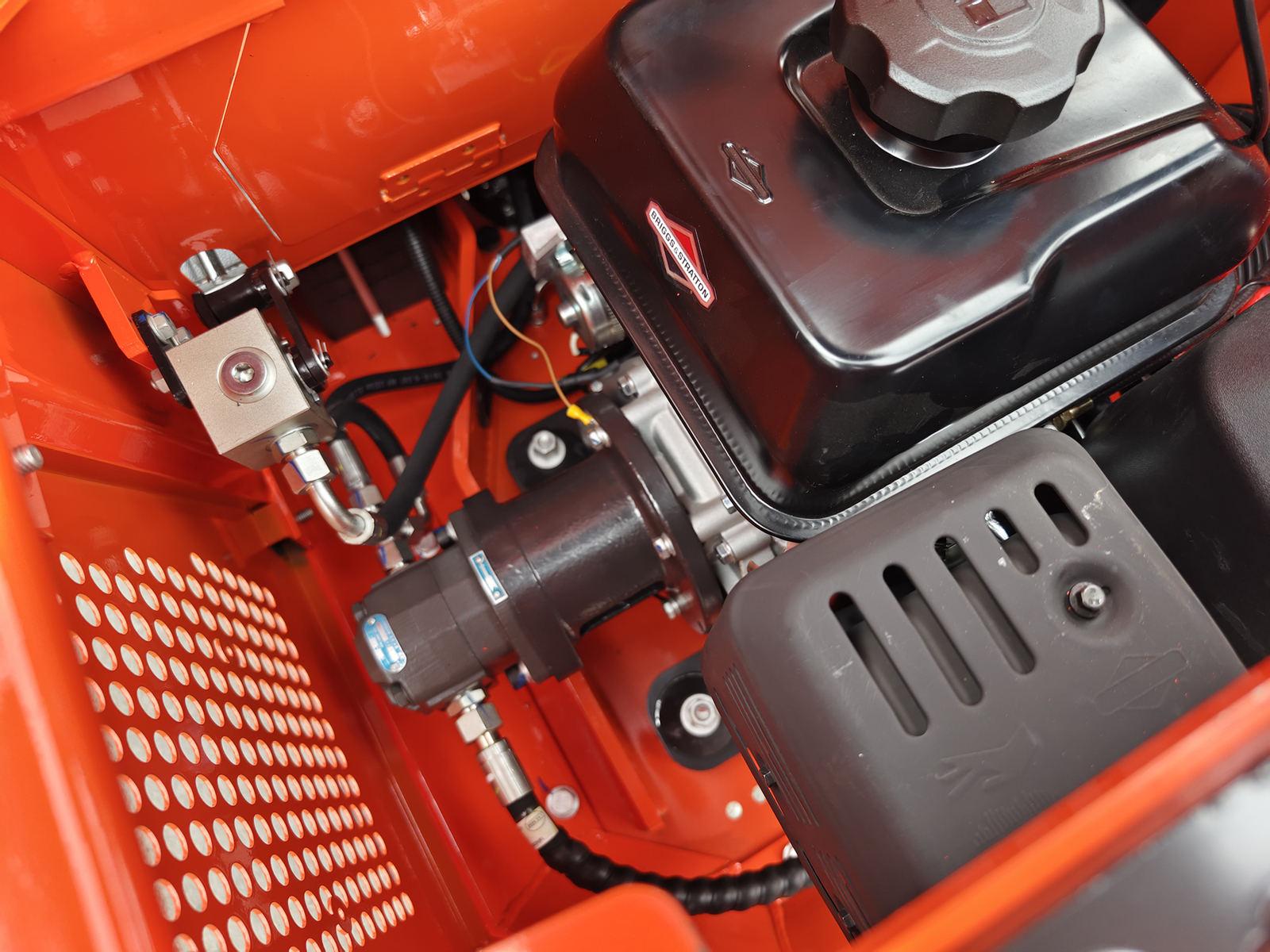

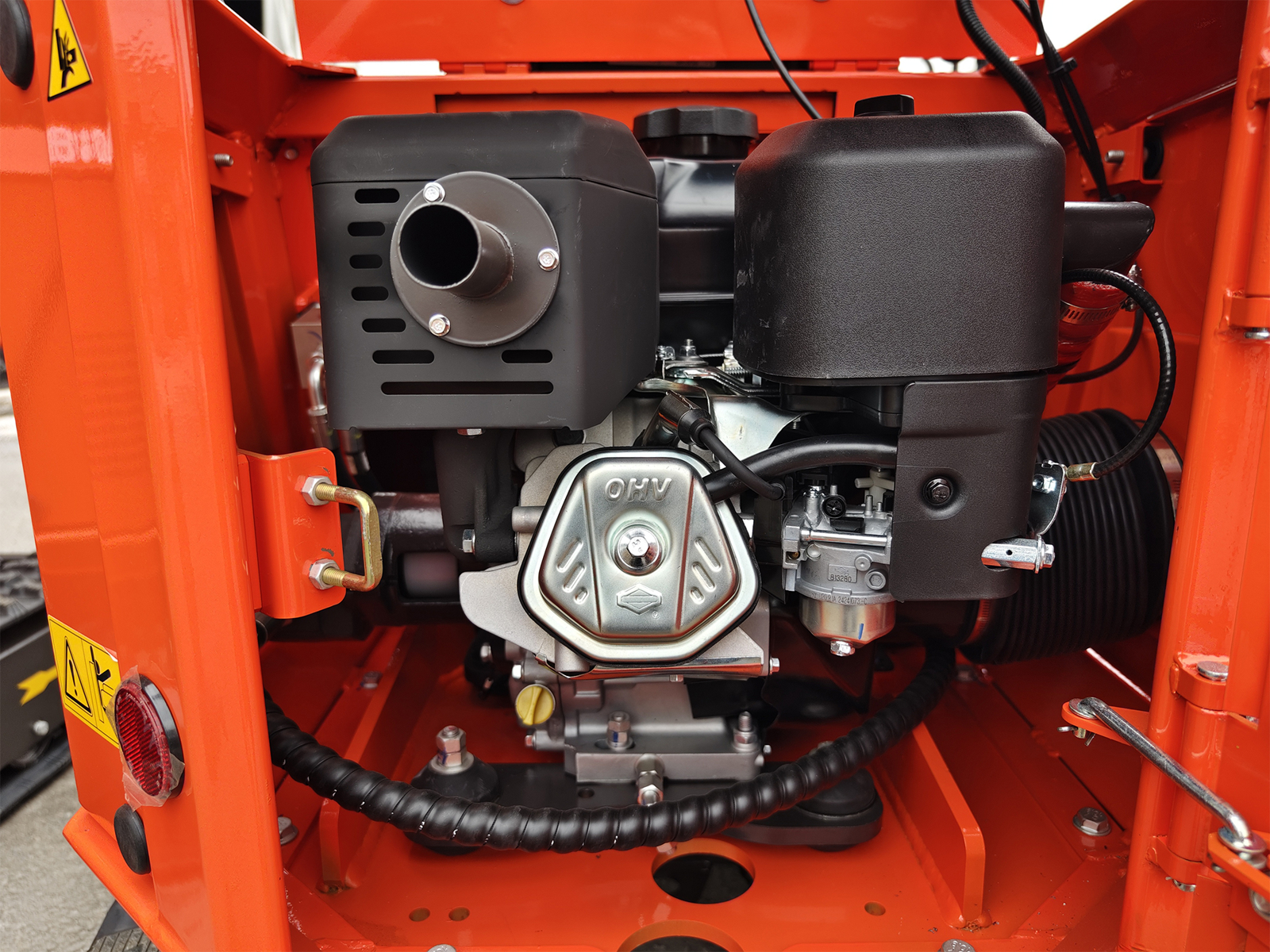

13.5 Hp  Brigs&Stratton gasoline engine (established network of service centres located throughout each country)

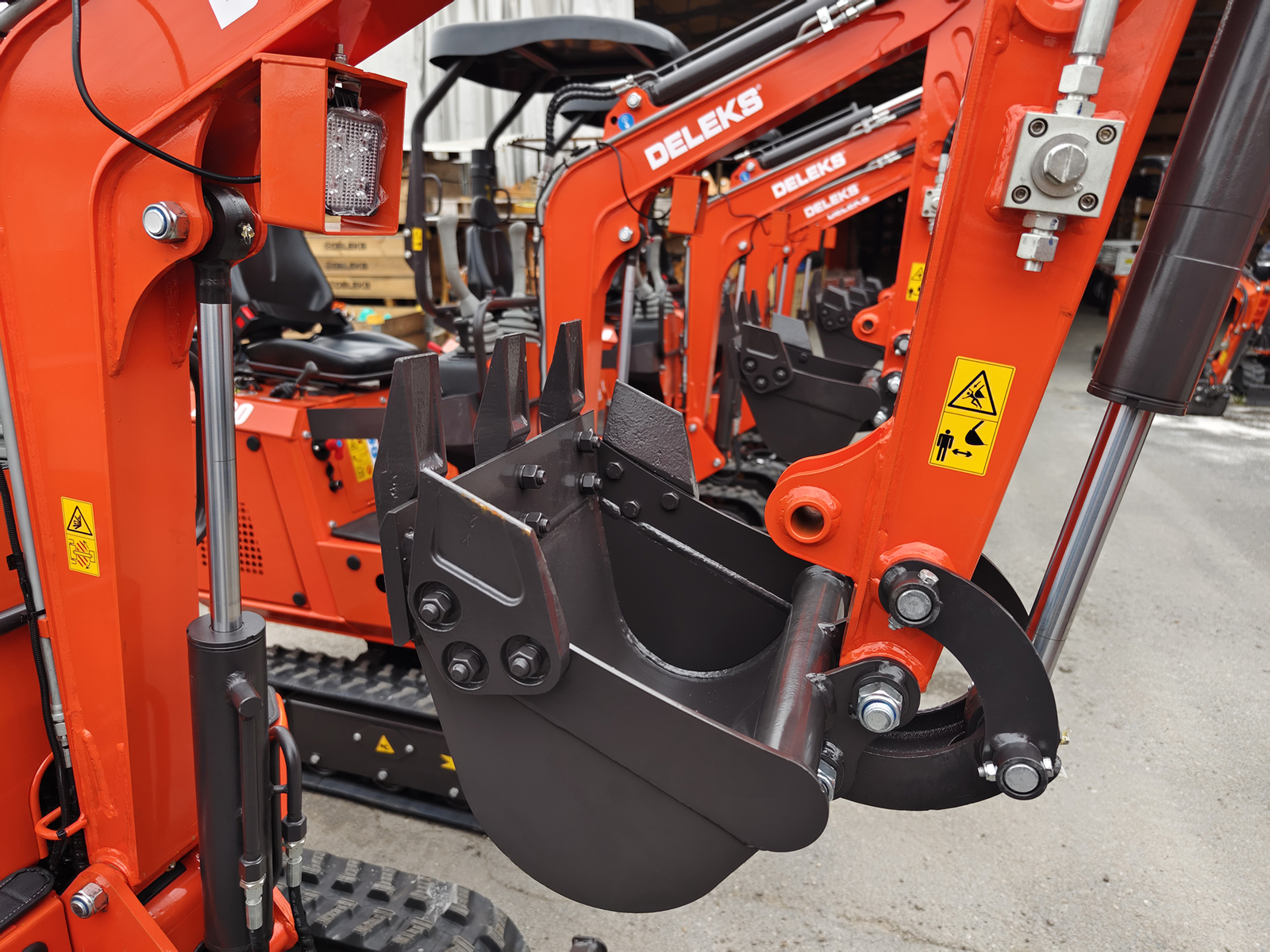

40cm standard bucket

Hydraulic service port pipes to operate with the auger

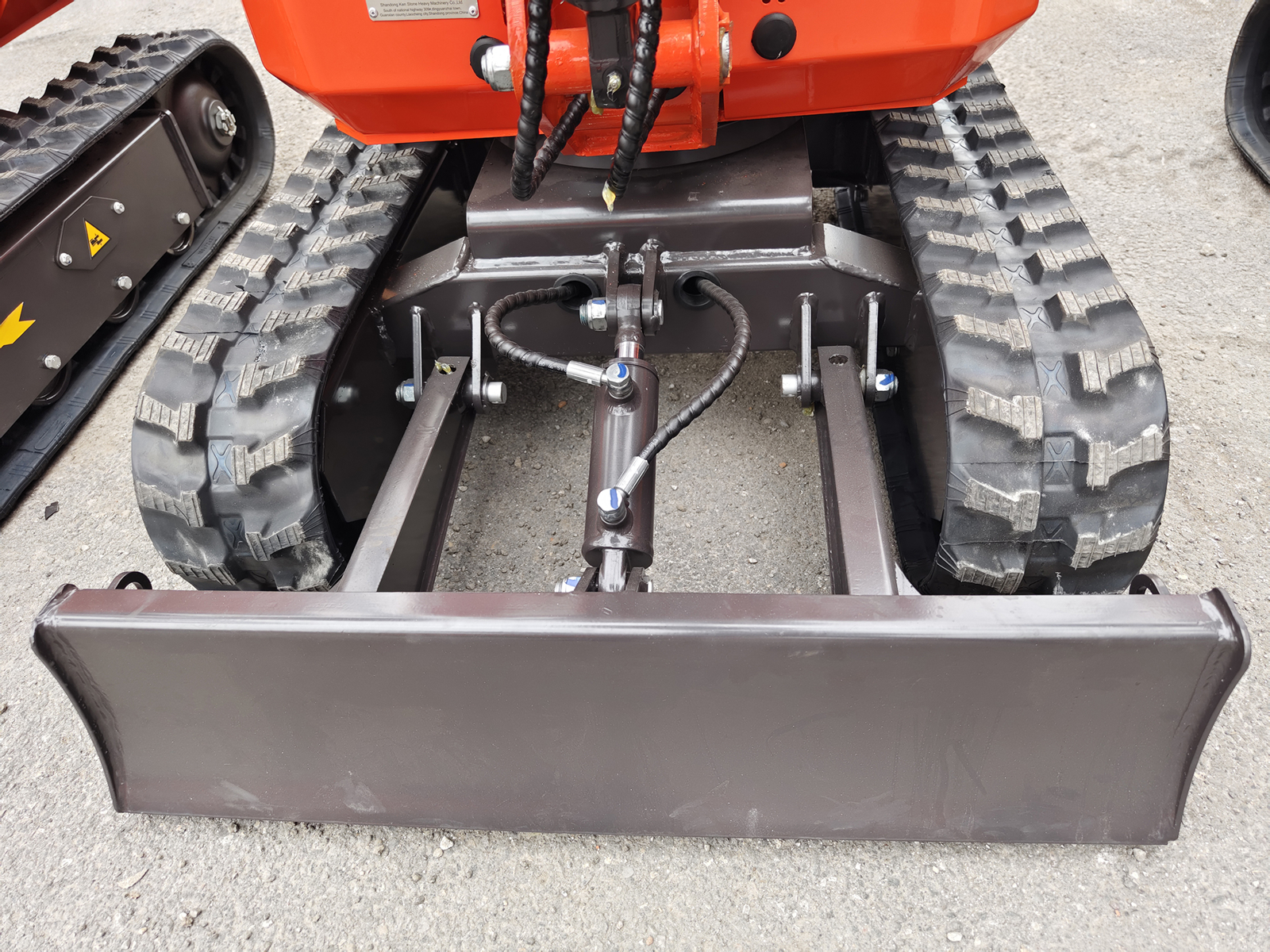

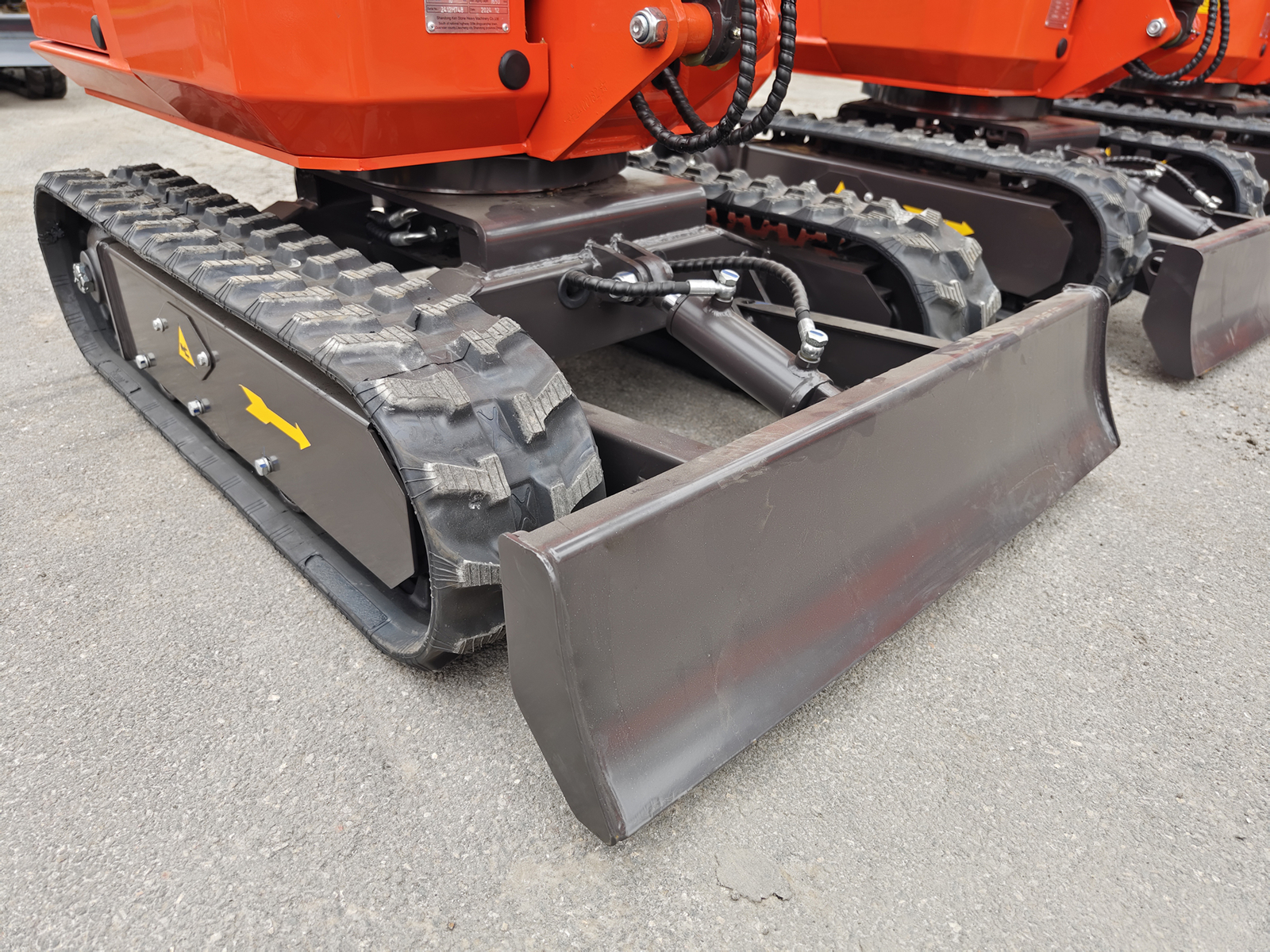

Hydraulic dozer blade lowering

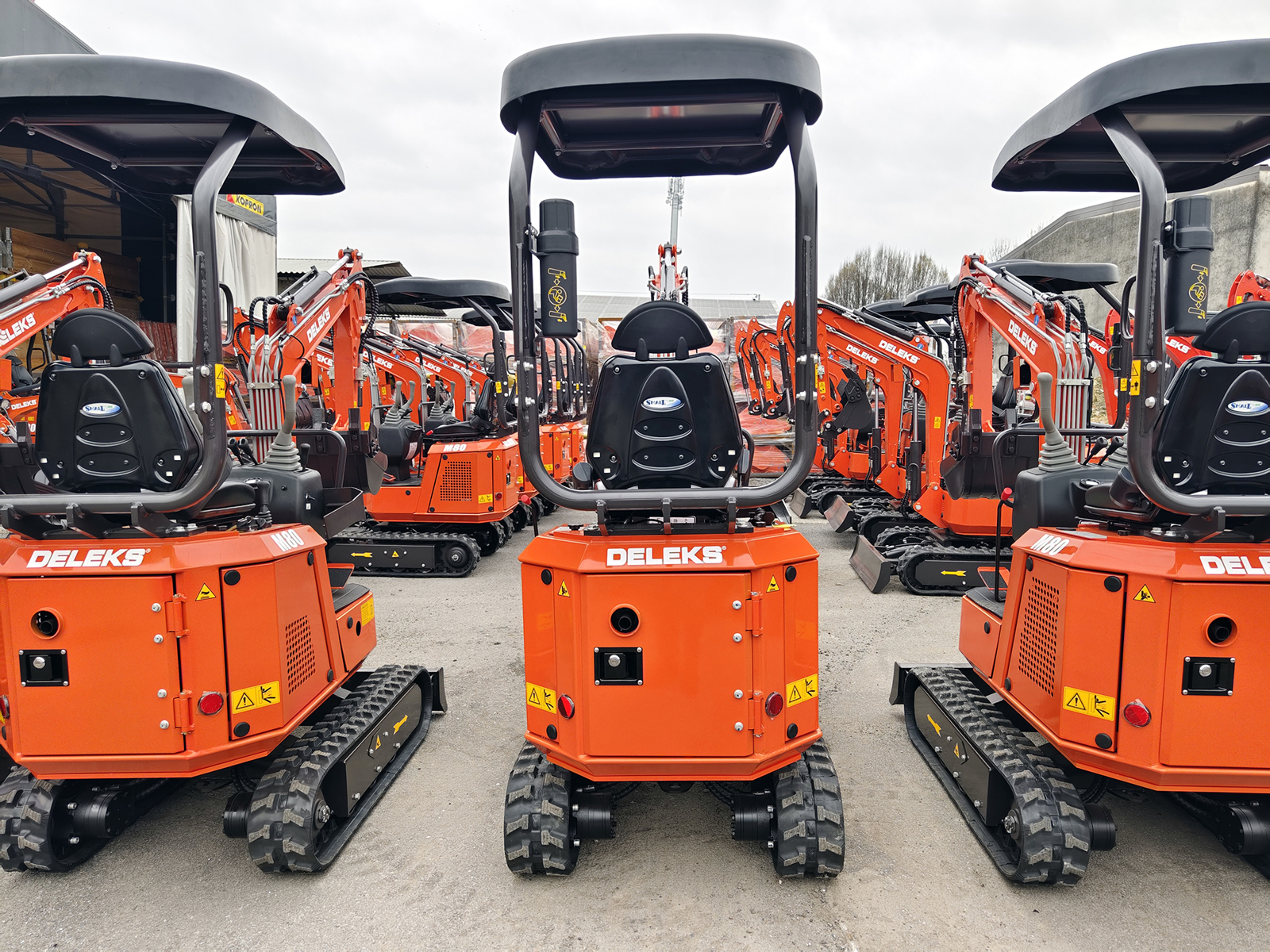

Canopy

Filters

PERFORMANCE

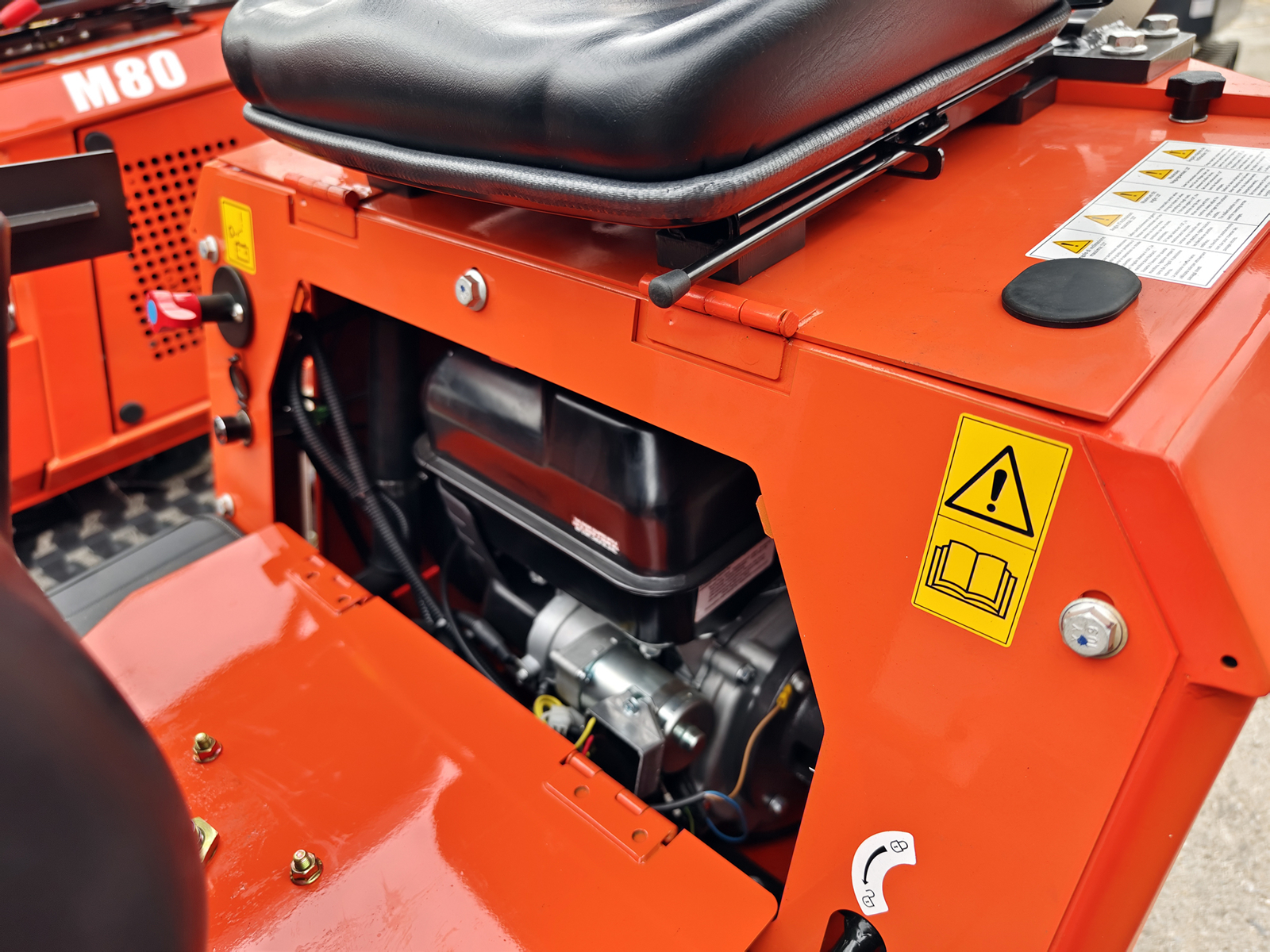

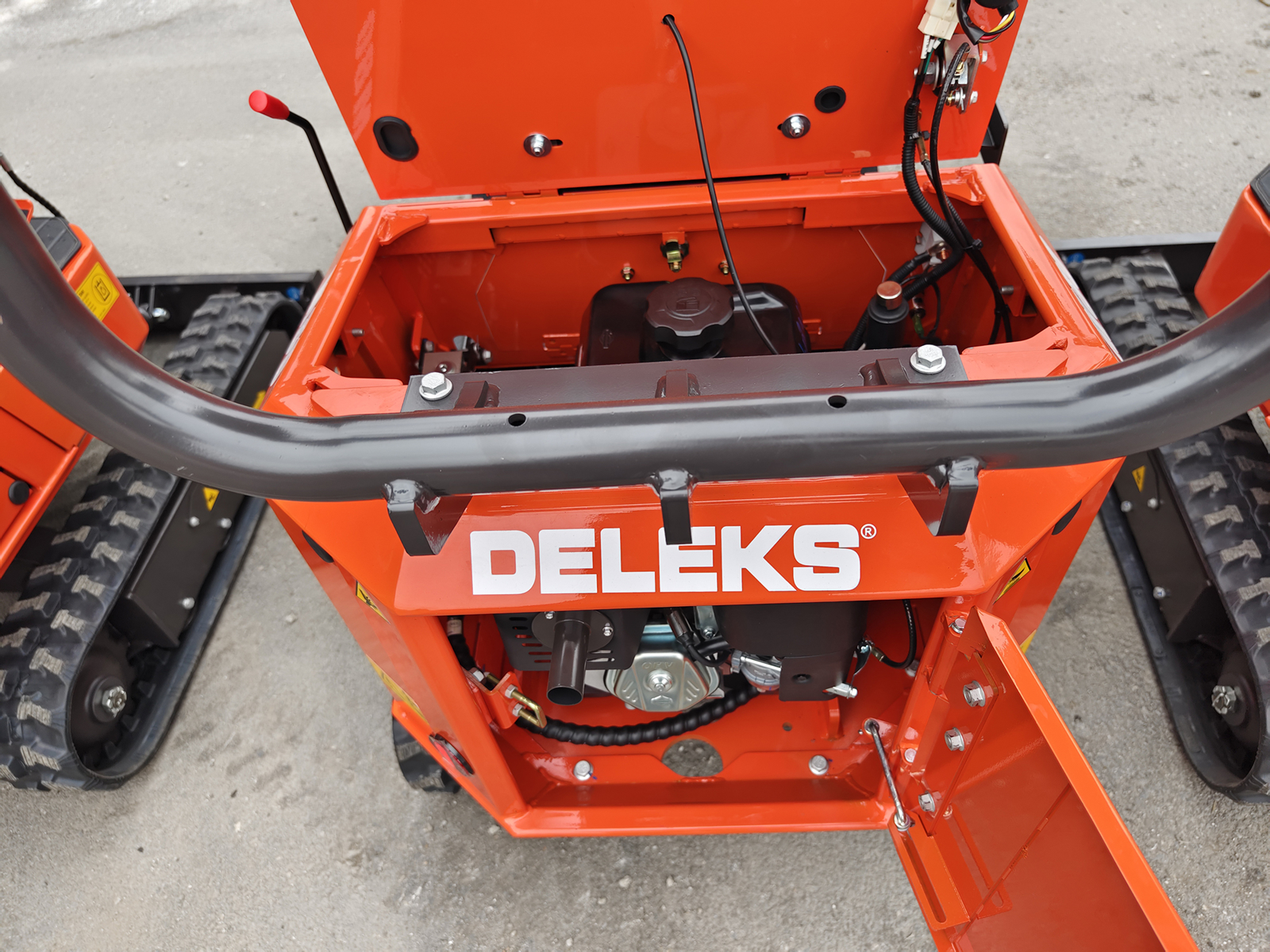

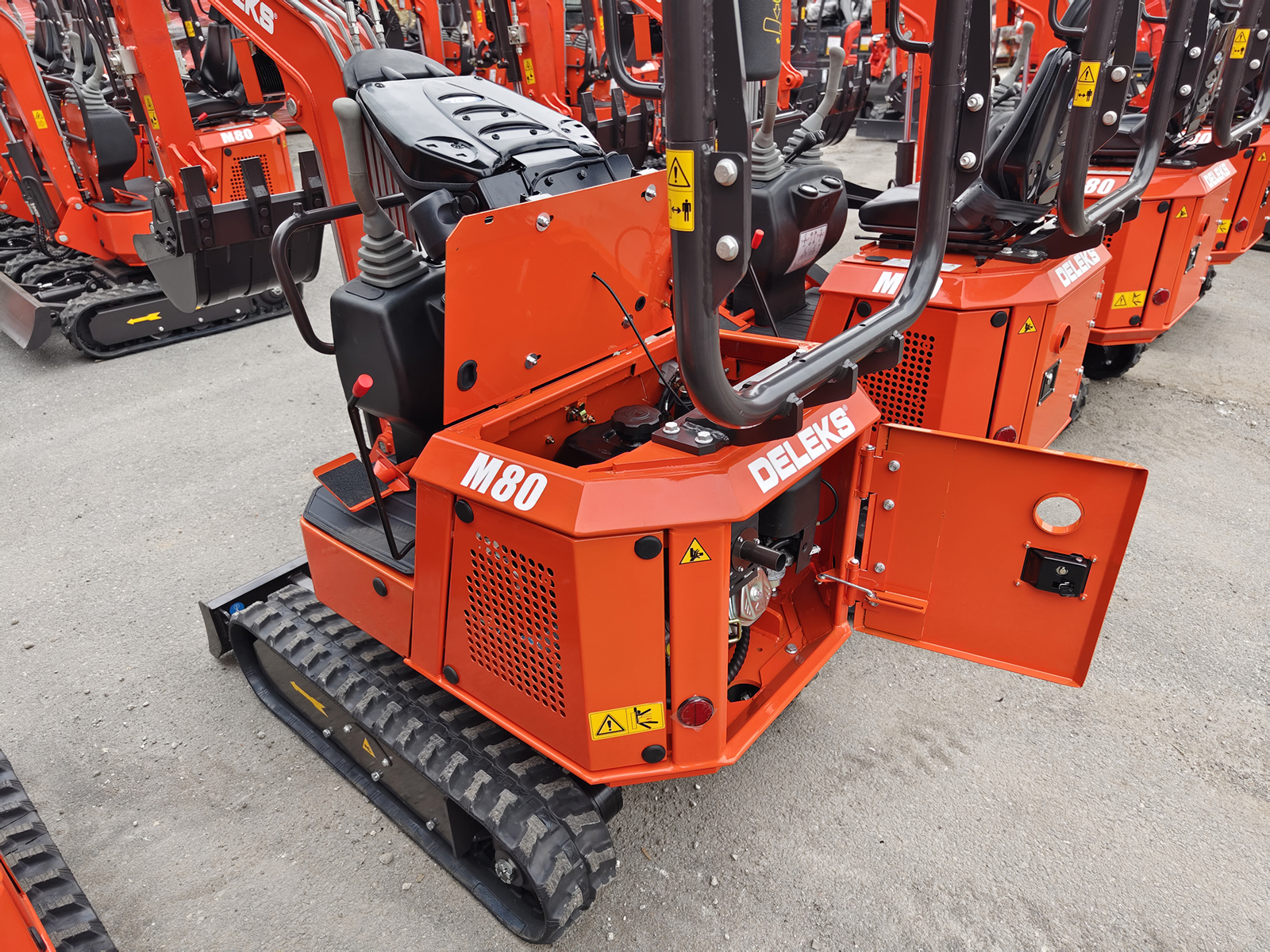

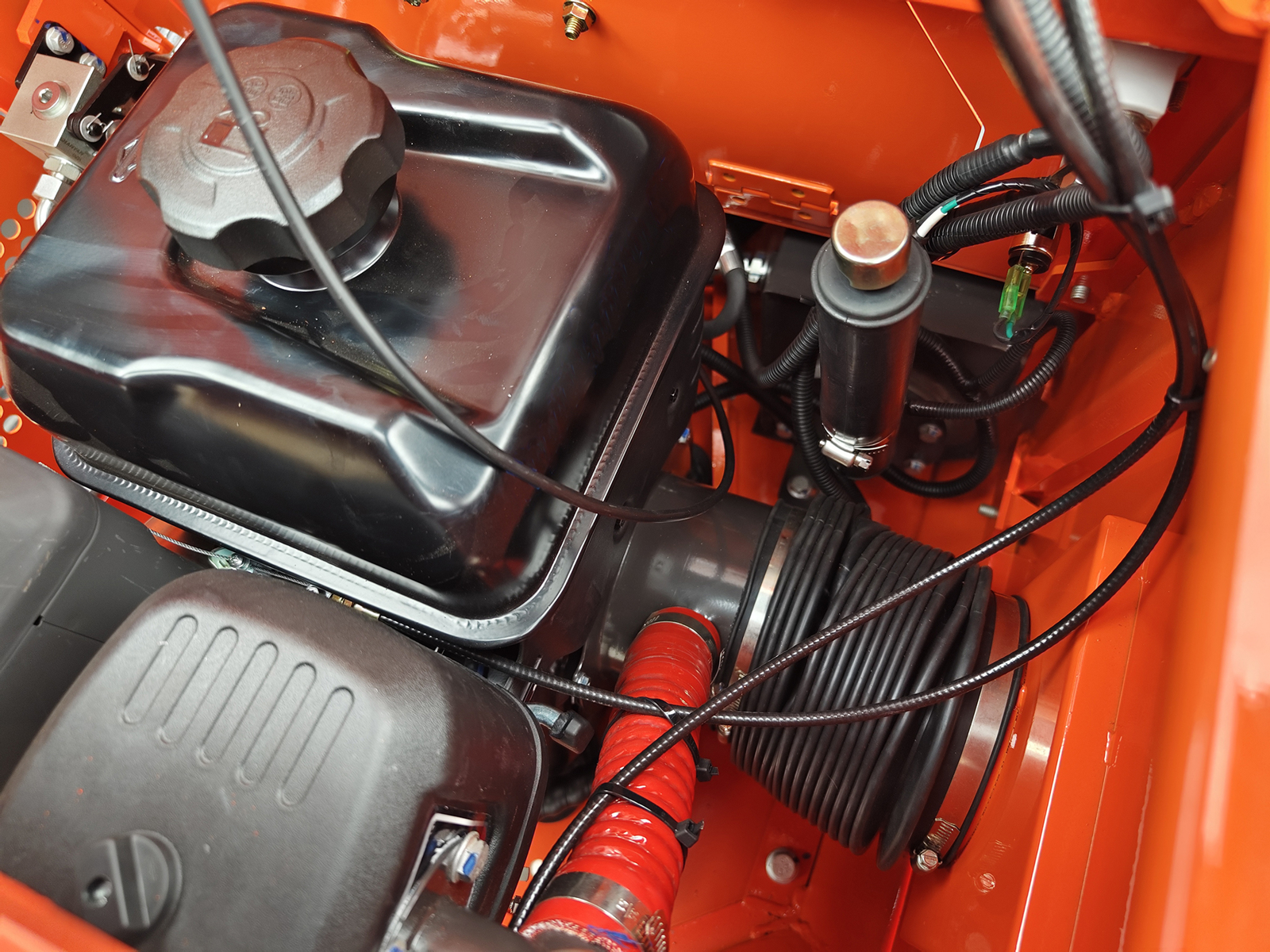

M80 mini excavator is an incredibly adaptable machine. Parts that require routine maintenance and inspection such as the air cleaner, water separator, fuel filter, alternator and starter motor are easy to access. Simply lift the operator’s seat.

Due to the fact that the DELEKS® M80 is lightweight with low ground bearing pressure, it’s ideal for things like leveling ground (without compacting), before turfing.

Hydraulic System: Flow rate: 19 l/min, Pressure: 160 bar.

Max. speed: 1.5 km/h

Rotating speed: 11 rpm

Fuel tank capacity: 6.5 L

Hydraulic oil tank capacity: 11.7 L

PRODUCTIVITY AND SERVICEABILITY

The M80 is designed to maximize productivity and save man-hours. That’s why we’ve ensured that daily service checks are quick and easy to carry out.

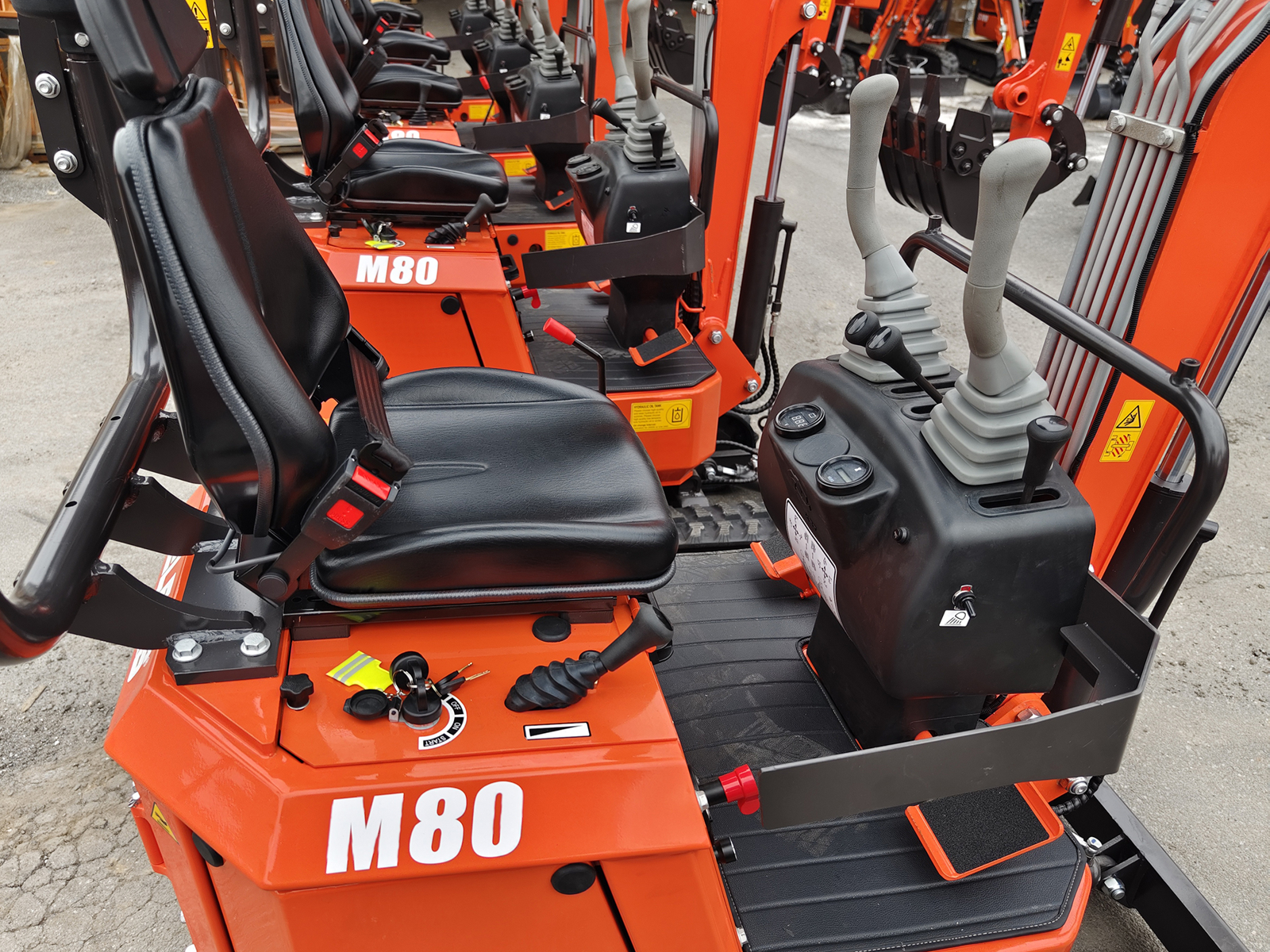

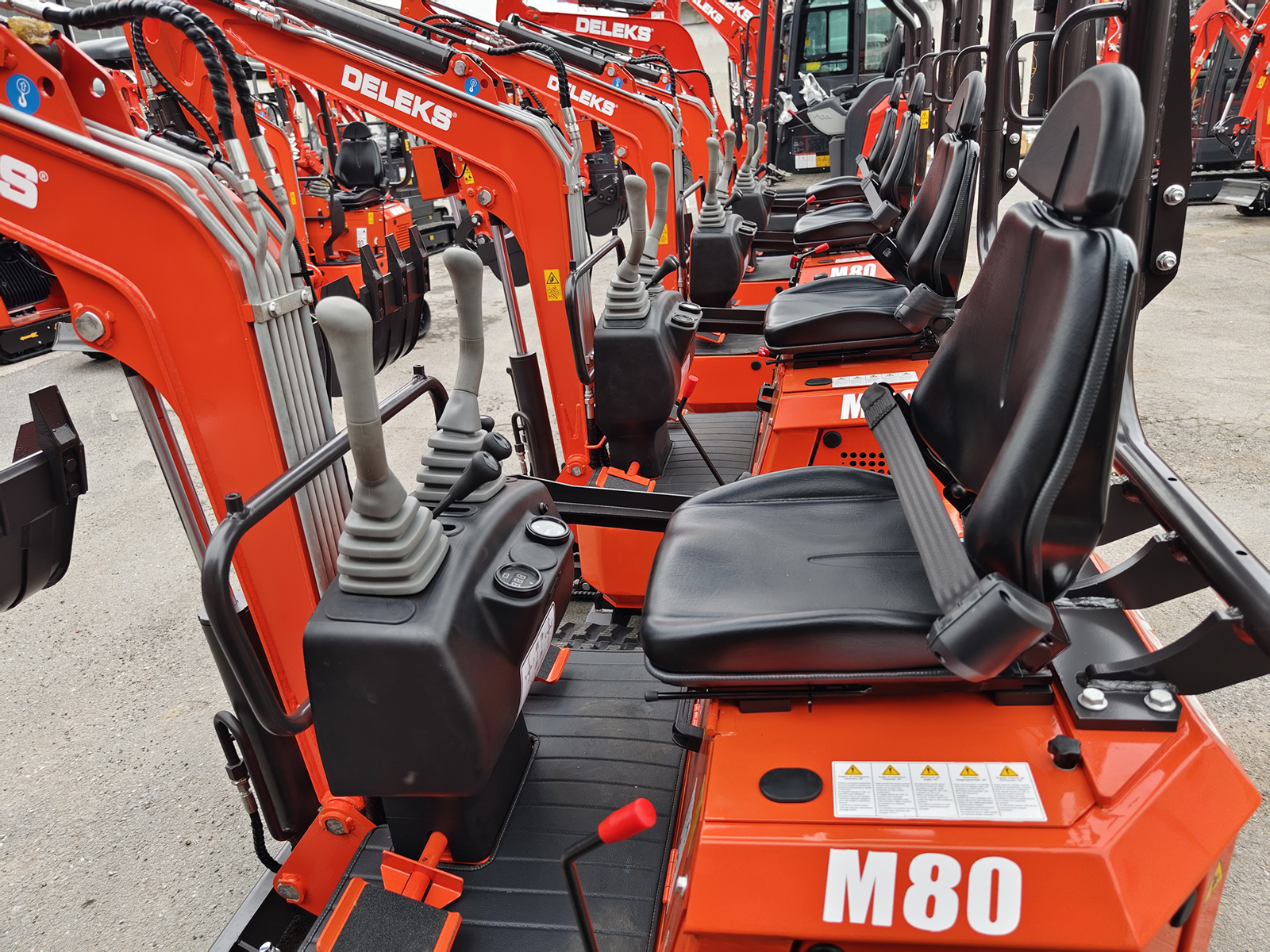

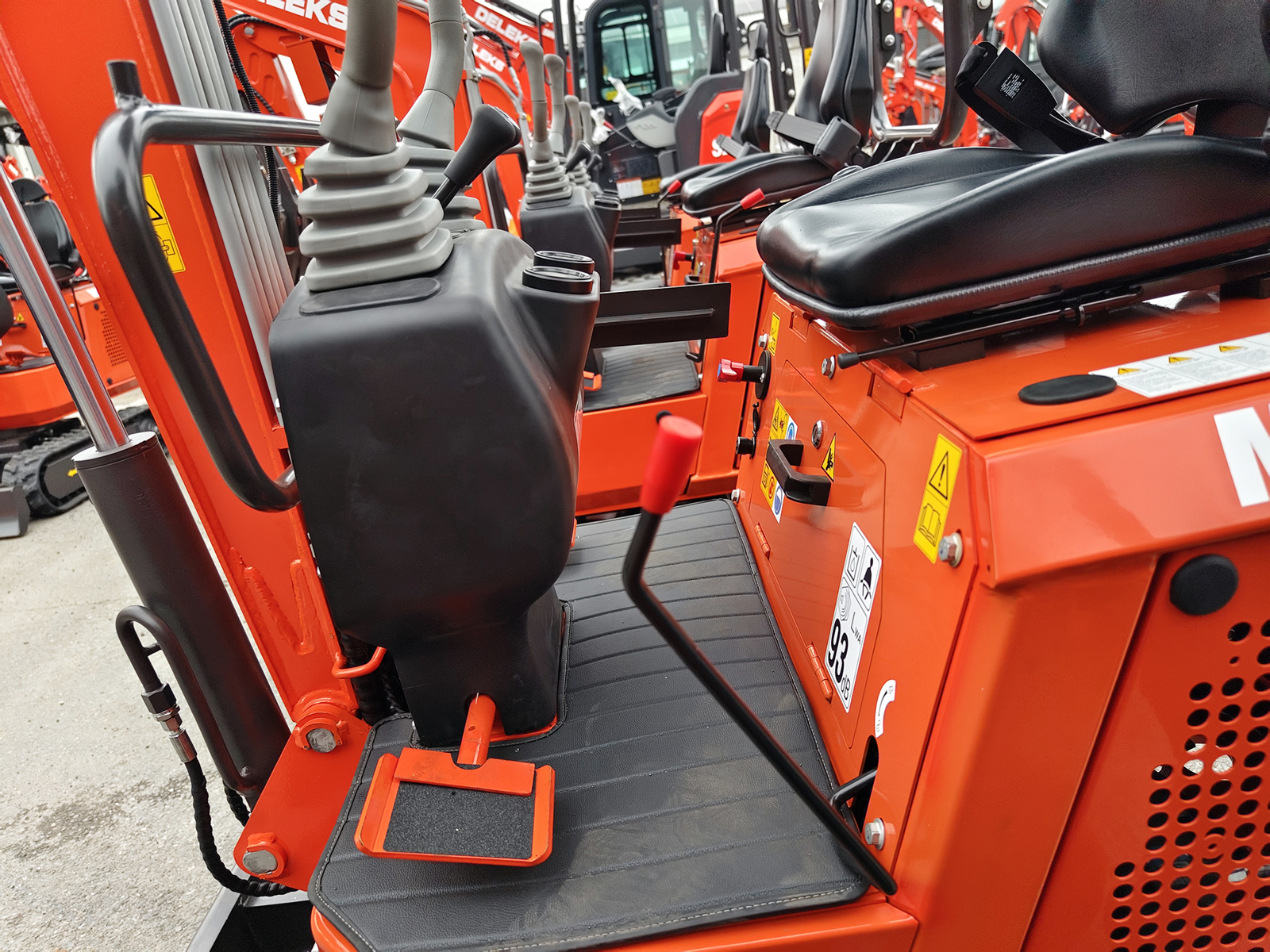

To make sure M80 class-leading performance is accessible by the widest audience, we’ve made it extremely comfortable and easy to use. We’ve built in exceptional leg room and there are no change-over switches to confuse the user. All functions operate independently of each other, which means professionals and novices alike can get to grips with this micro excavator quickly and easily.

Extremely compact

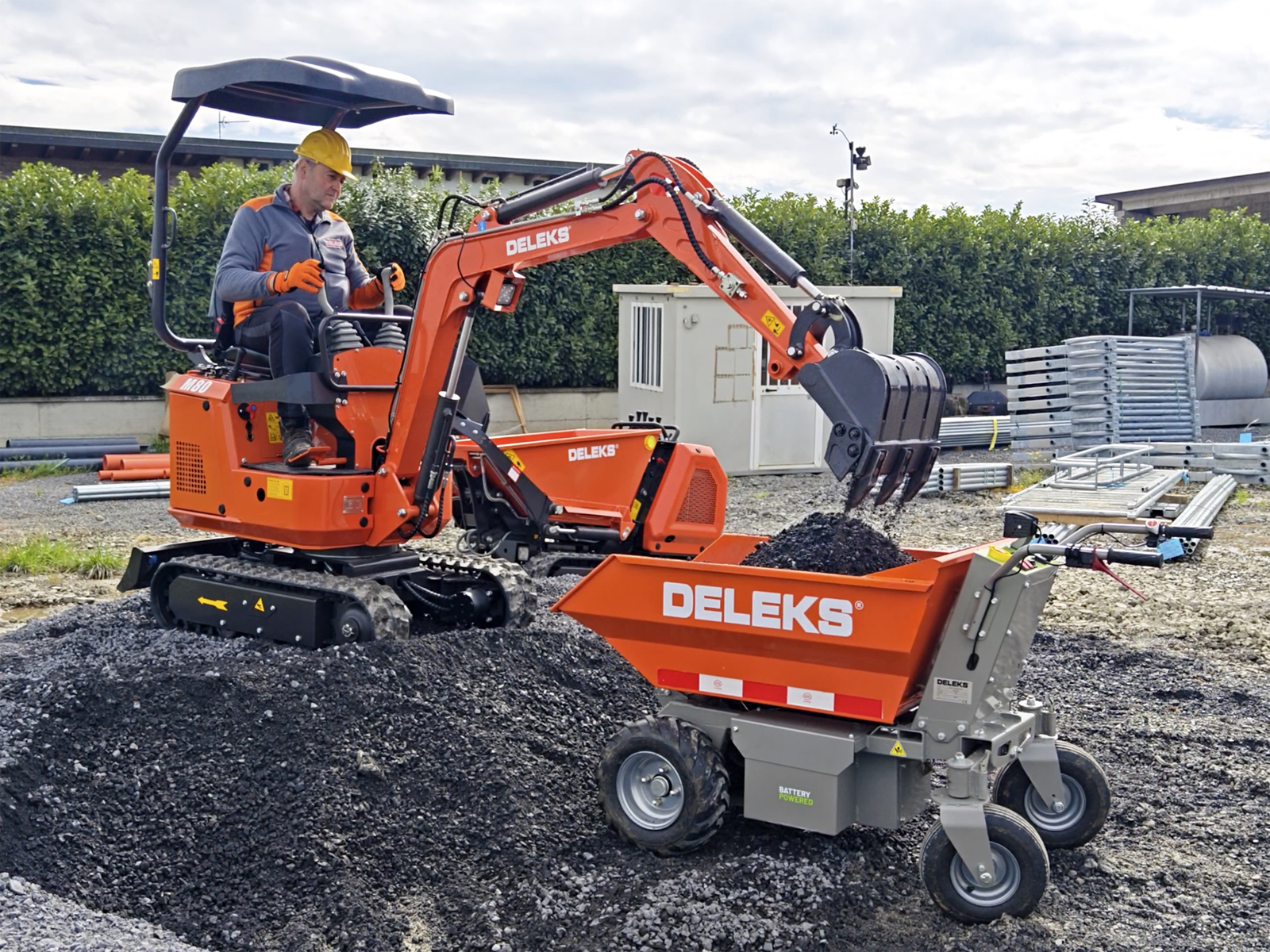

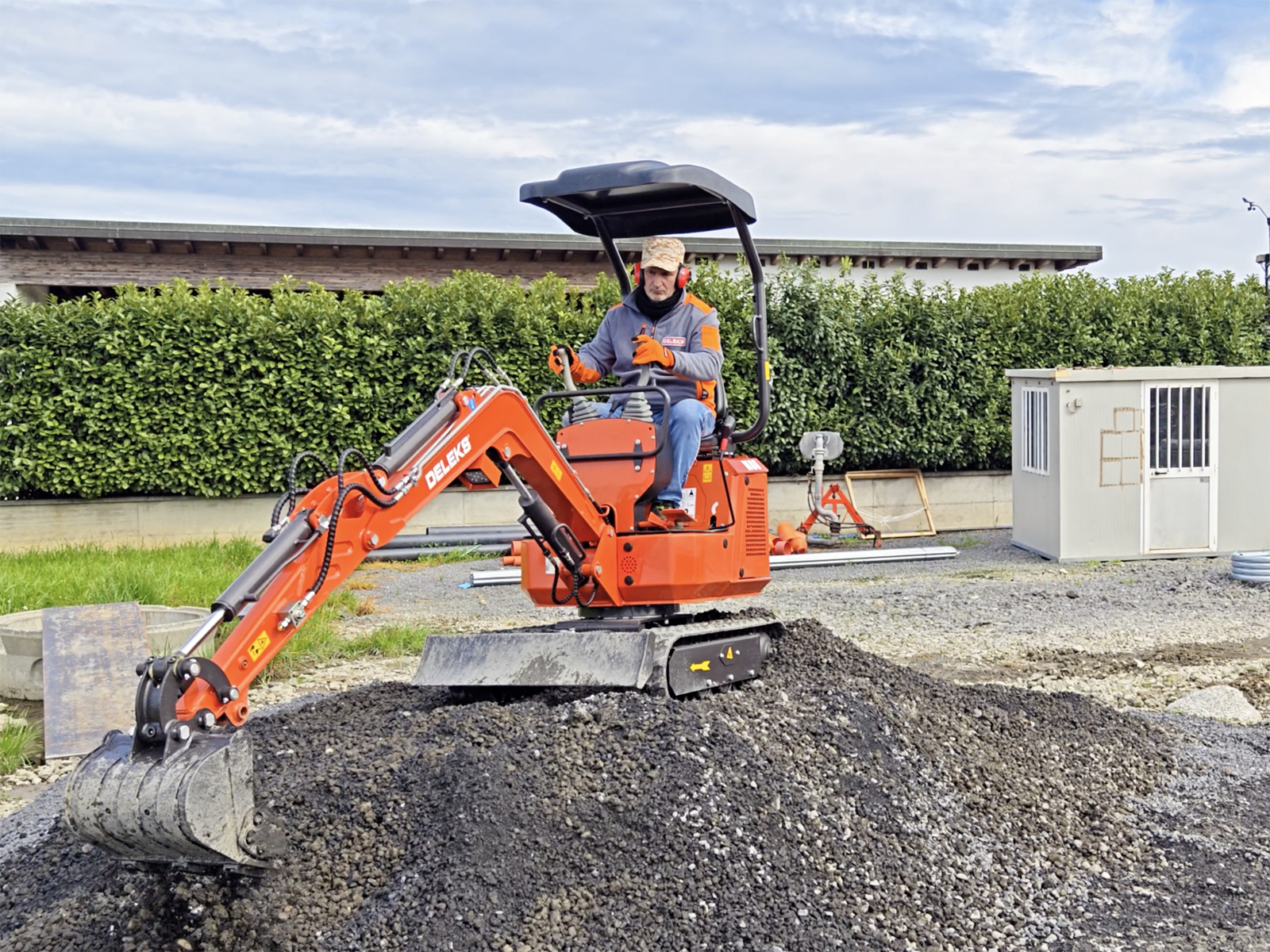

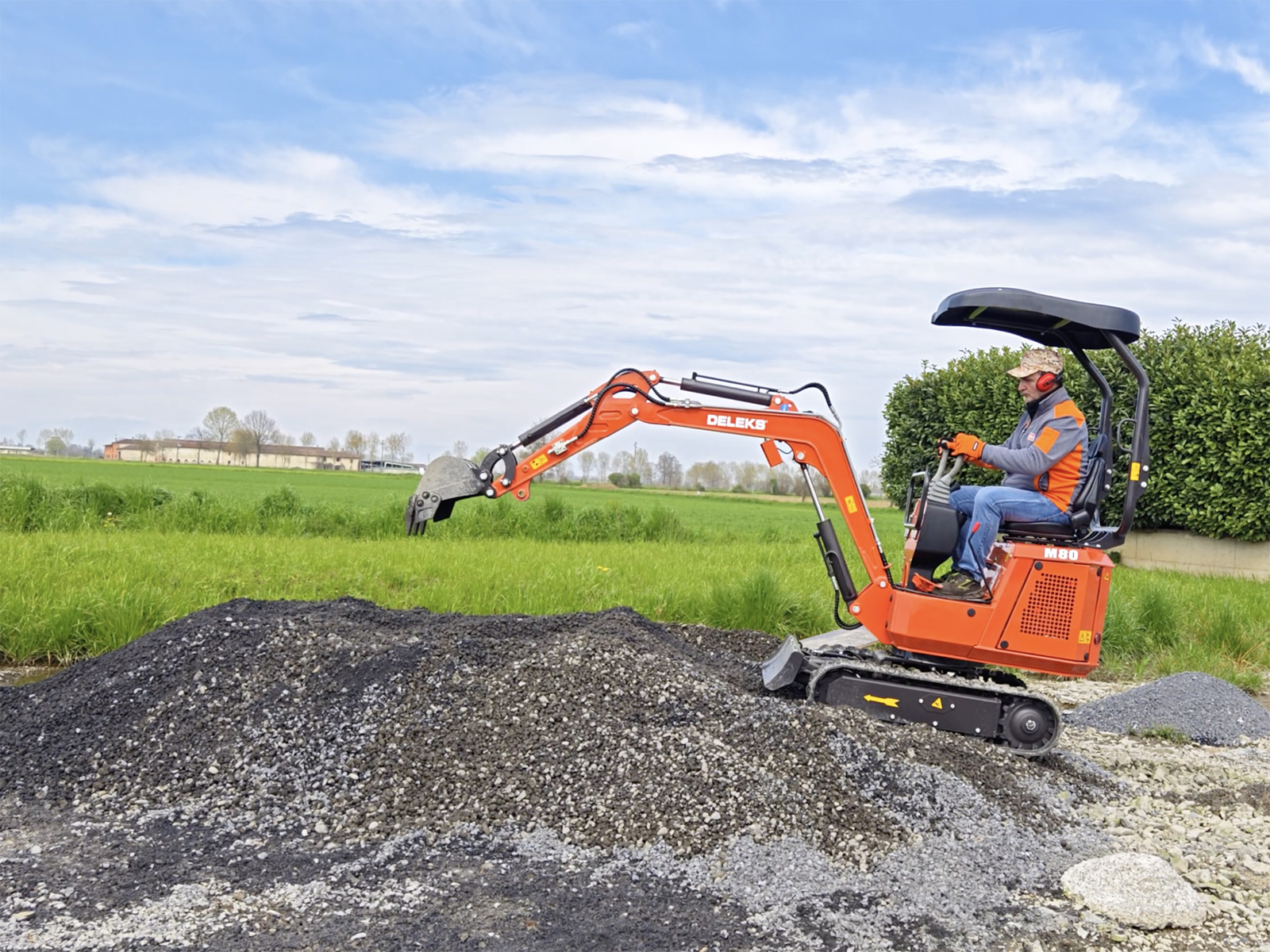

The new M80 micro-excavator has exactly the right power and digging force for operating in tight spaces: ideal inside buildings, for small demolition work, to set plants or install an irrigation system in a garden, and, in general, on any job site where a bigger machine can’t work or even be transported to.

Superior hydraulic system

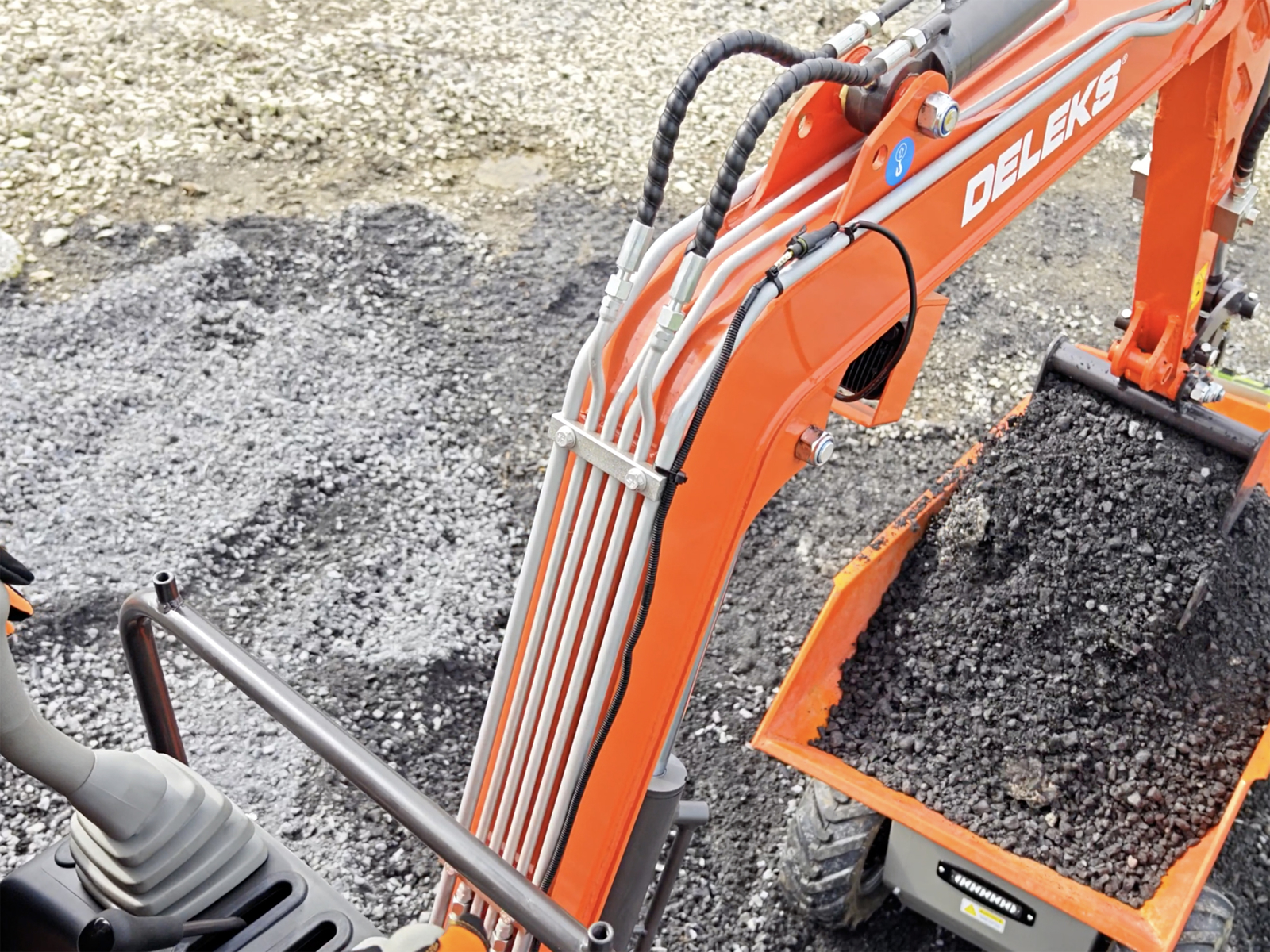

Thanks to its cutting edge hydraulic system, all movements are smooth and shock-free for maximum precision, in any application. It makes any job much easier and quicker to finish.

The robust hydraulic dozer blade, and intuitive, simple operation complement the performance of this mini excavator ideally.

DELEKS^® original parts are designed to work in perfect harmony with the machine, in order to guarantee optimal performance and productivity.

CERTIFICATIONS

Certificate of Conformity to the requirements established in the standards harmonized for Machinery Directive 2006/42/EC:

EN 474-1:2006 + A4:2013 + AC:2014

EN 474-5:2006 + A3:2013

Certificate of conformity (Sound power level):

Directive 2000/14/EC

Directive 2005/88/EC

Measured sound power level: 90 dBA

Guaranteed sound power level: 91 dBA

Technical File

Edited by Macchinesicure S.r.l

Mechanical & Oleodynamic Engineering - Cesena (FC)

Documentation supplied with this article:

Invoice

CE Conformity

User Manual

Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
