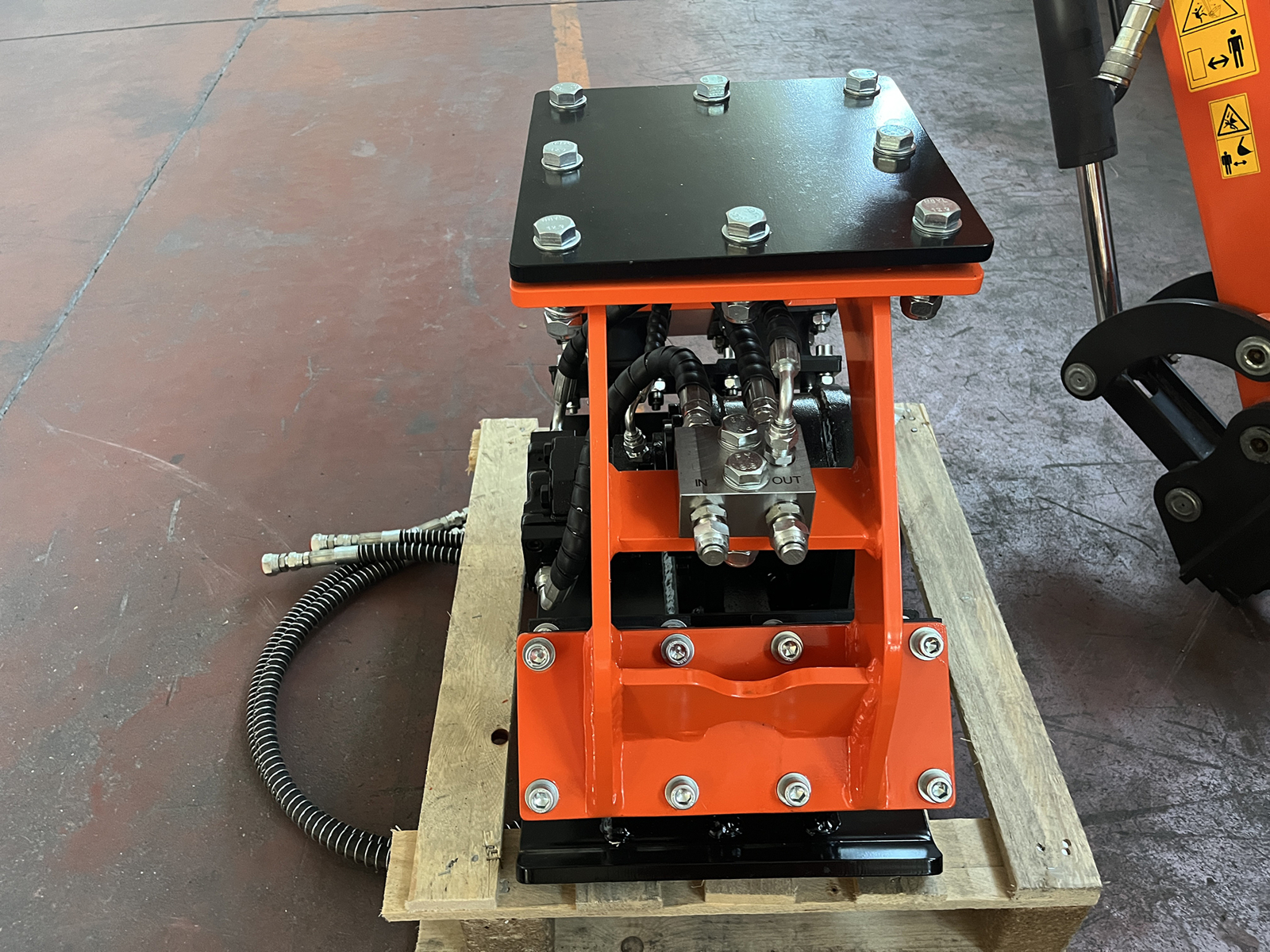

Hydraulic Plate Compactor for mini excavator
DETAILS

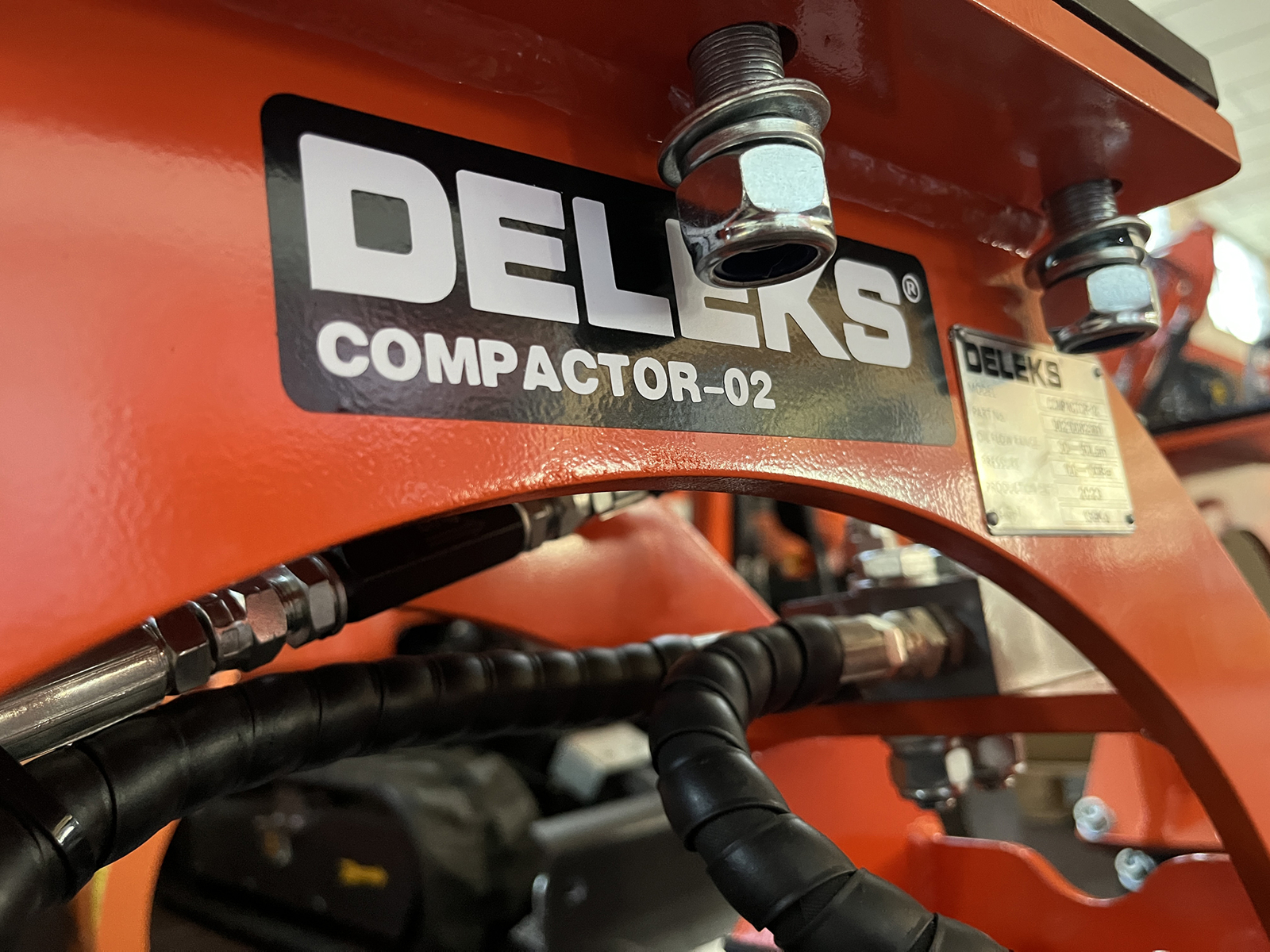

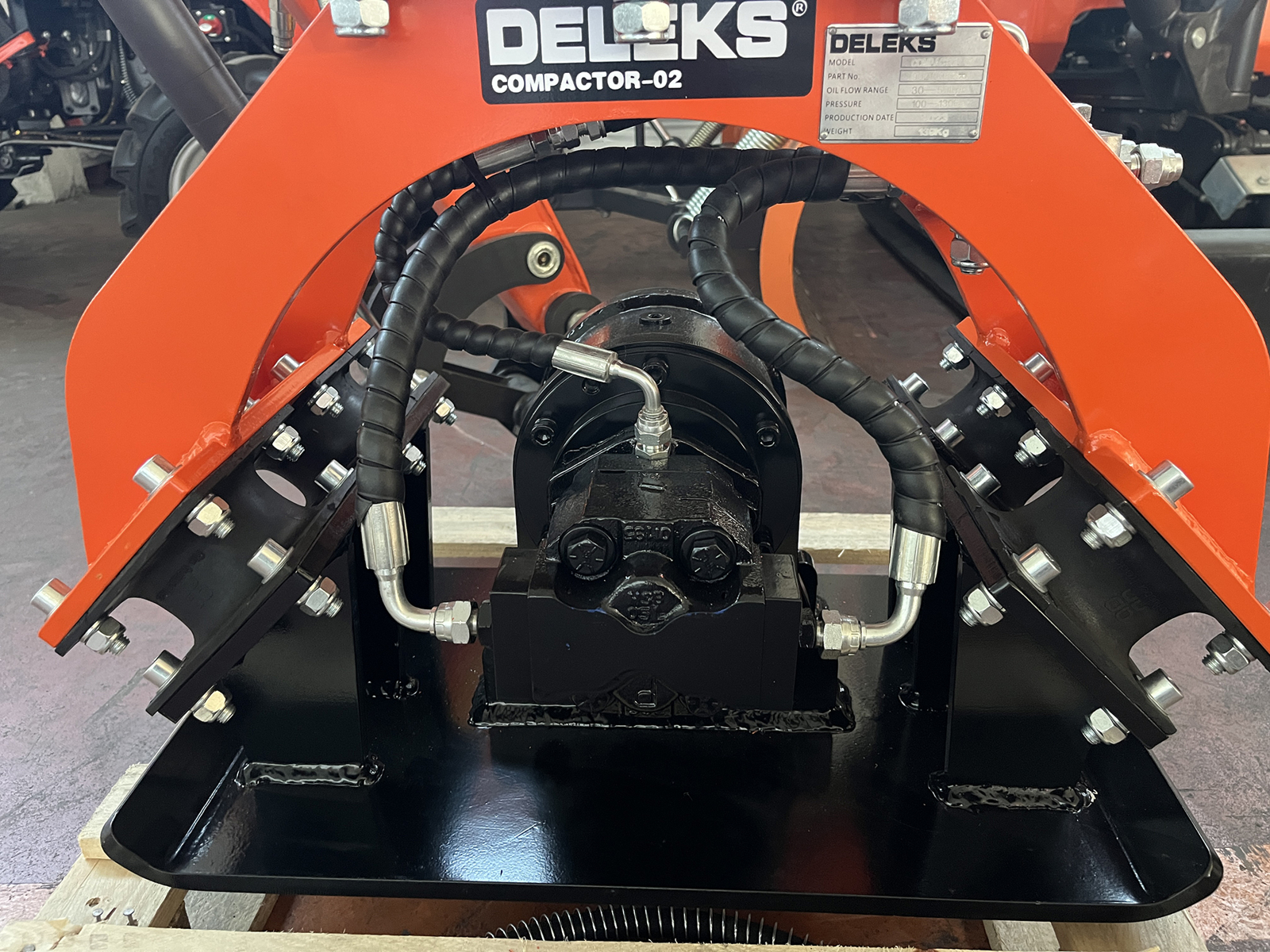

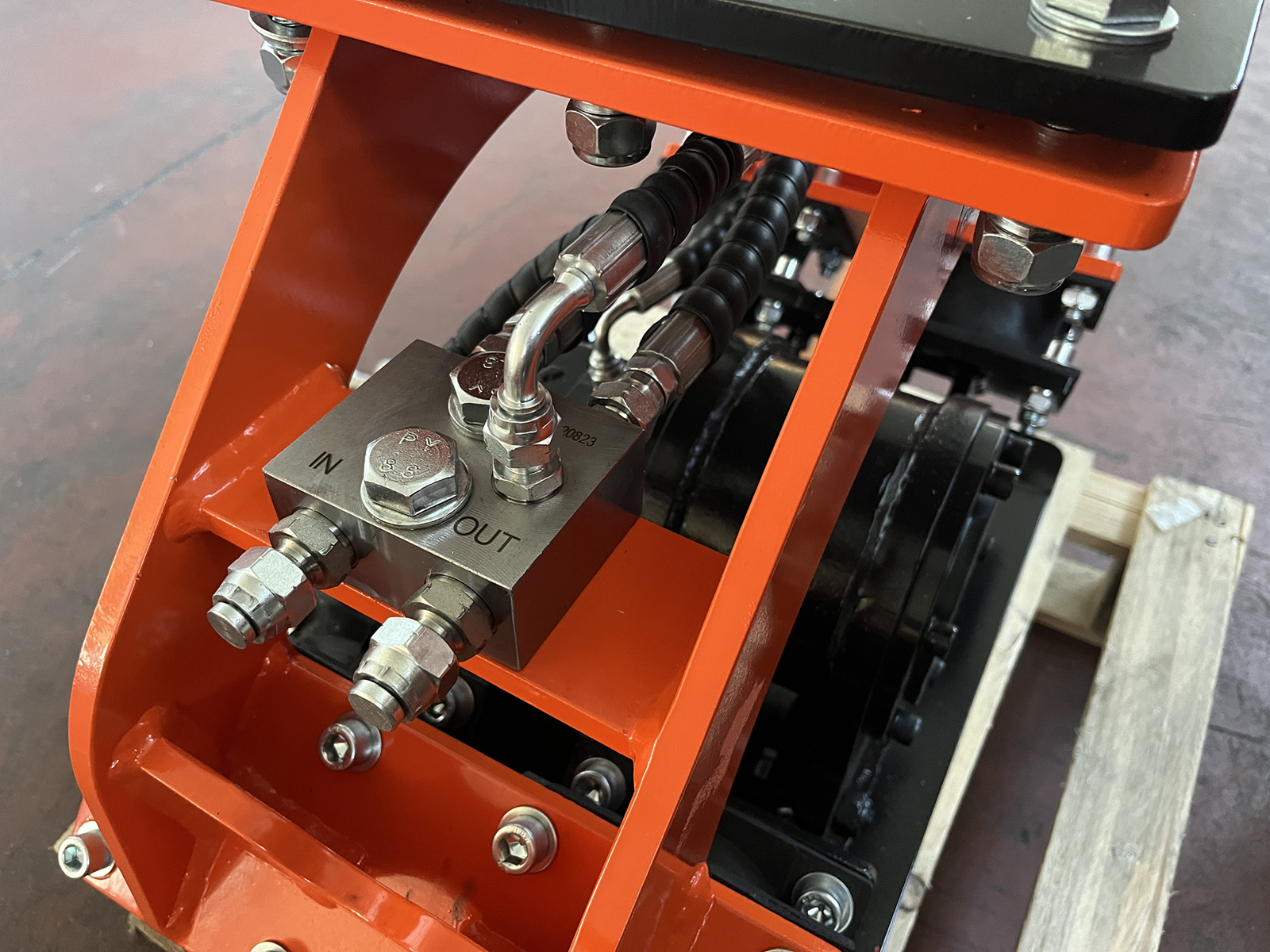

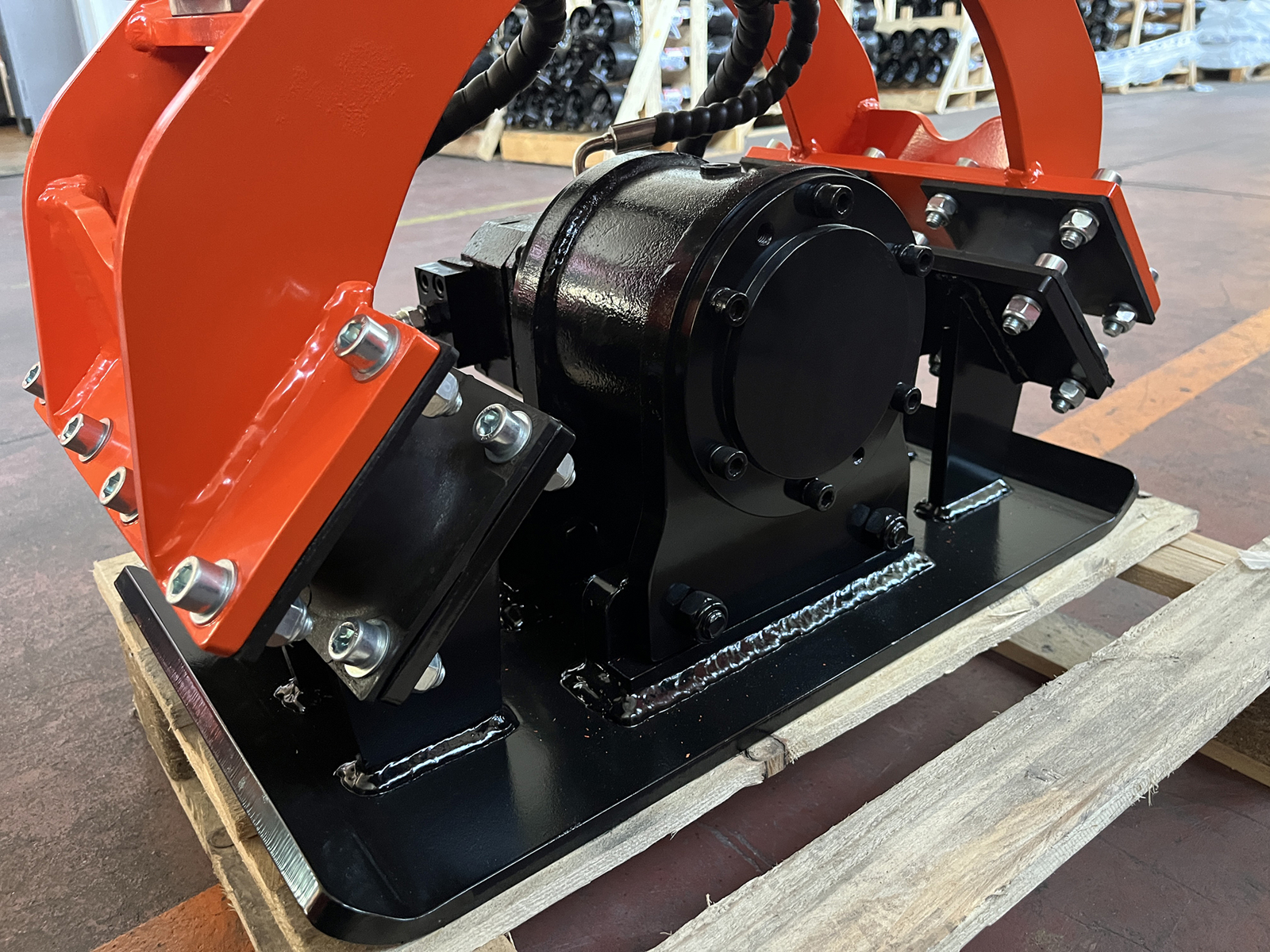

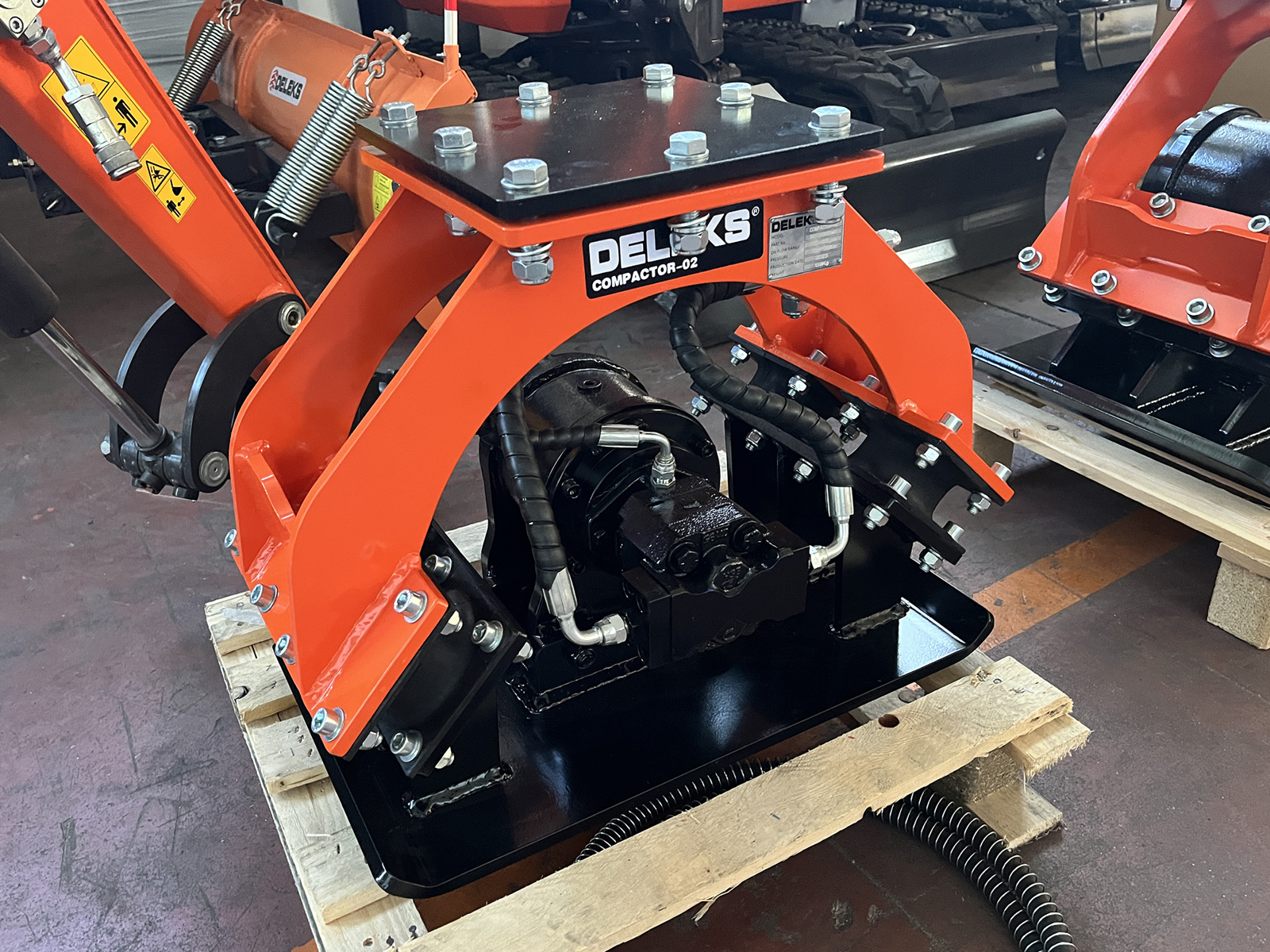

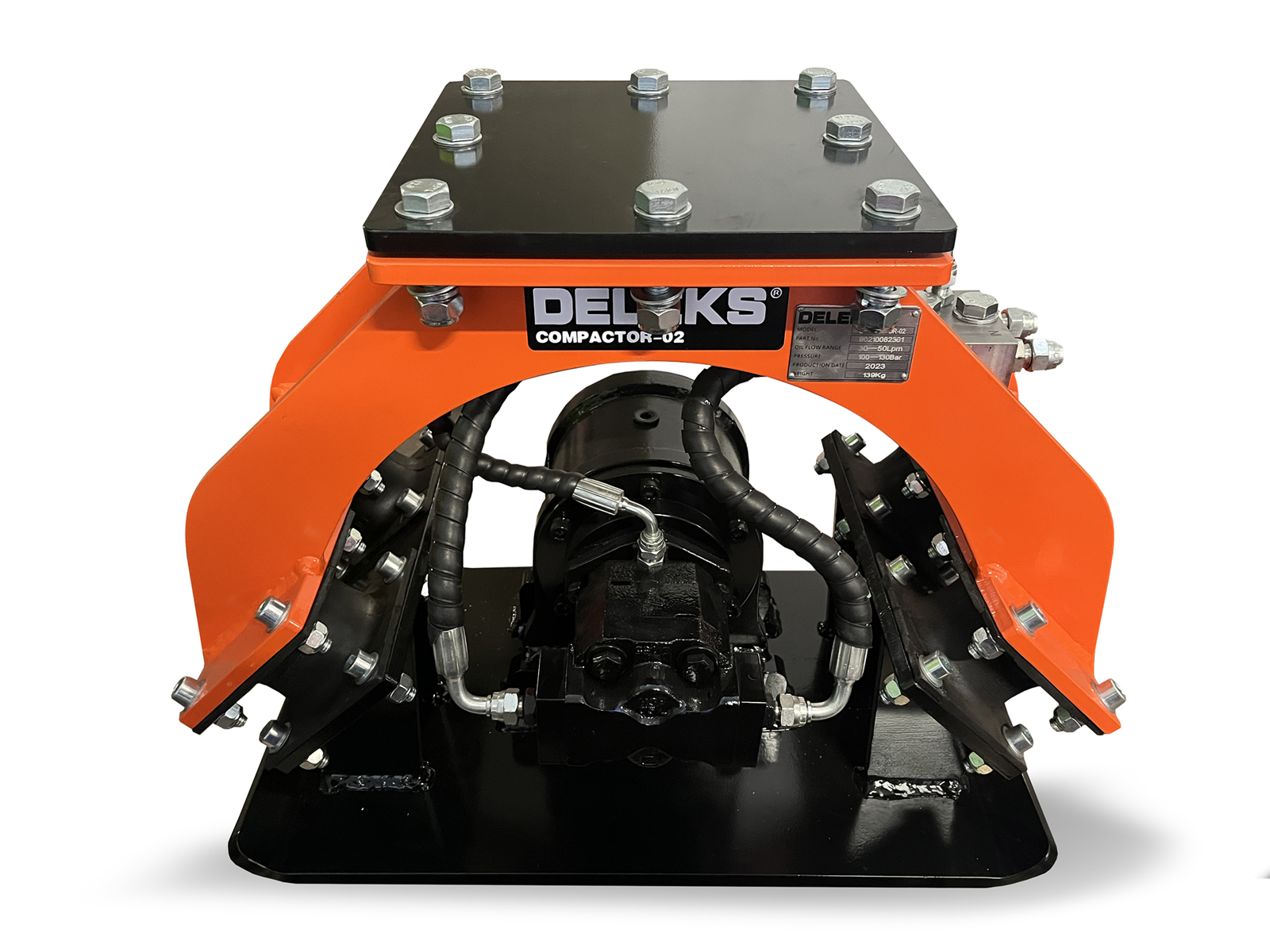

DELEKS® COMPACTOR-02 vibrating plate compactor. It is very easy to instal and easy to use, and it’s suitable for both a skidsteer or a mini excavator, from 1.0 t to 2.5 t.
The Deleks® vibrating plate compactor is ideal for compacting any type of surface such as trenches, soils, embankments, slopes, dams, where ordinary machines cannot be used, guaranteeing a compact and homogeneous bottom.

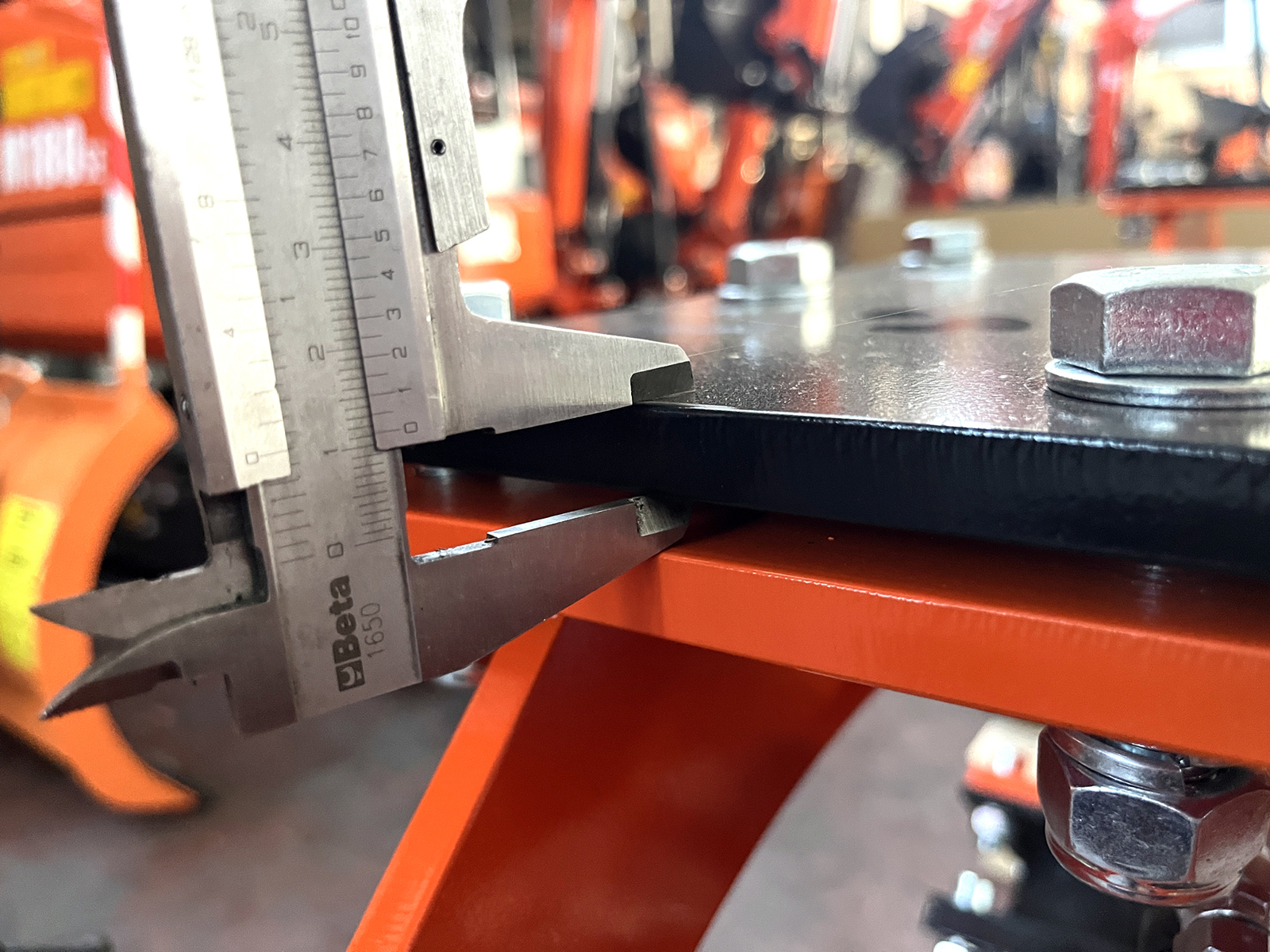

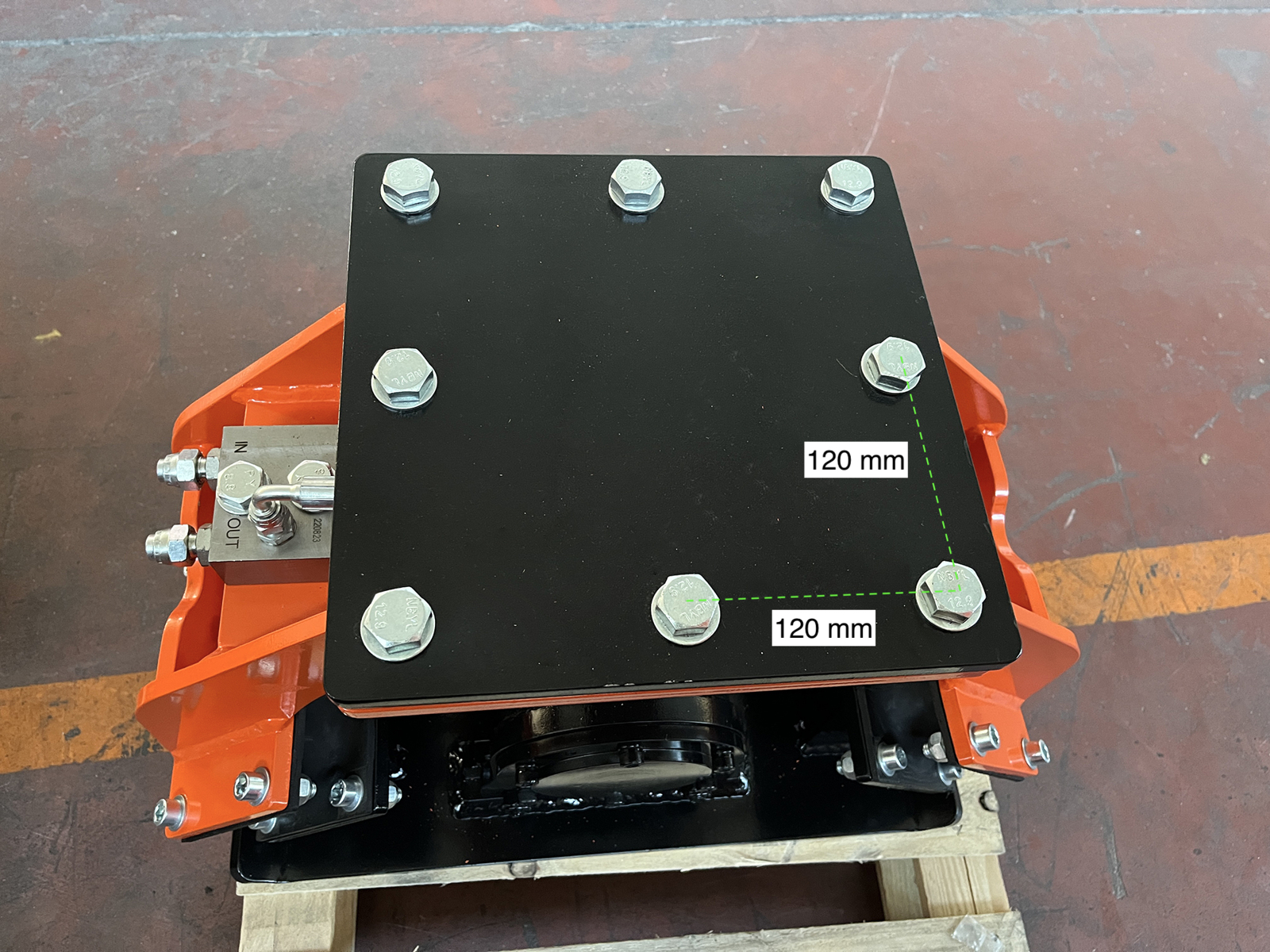

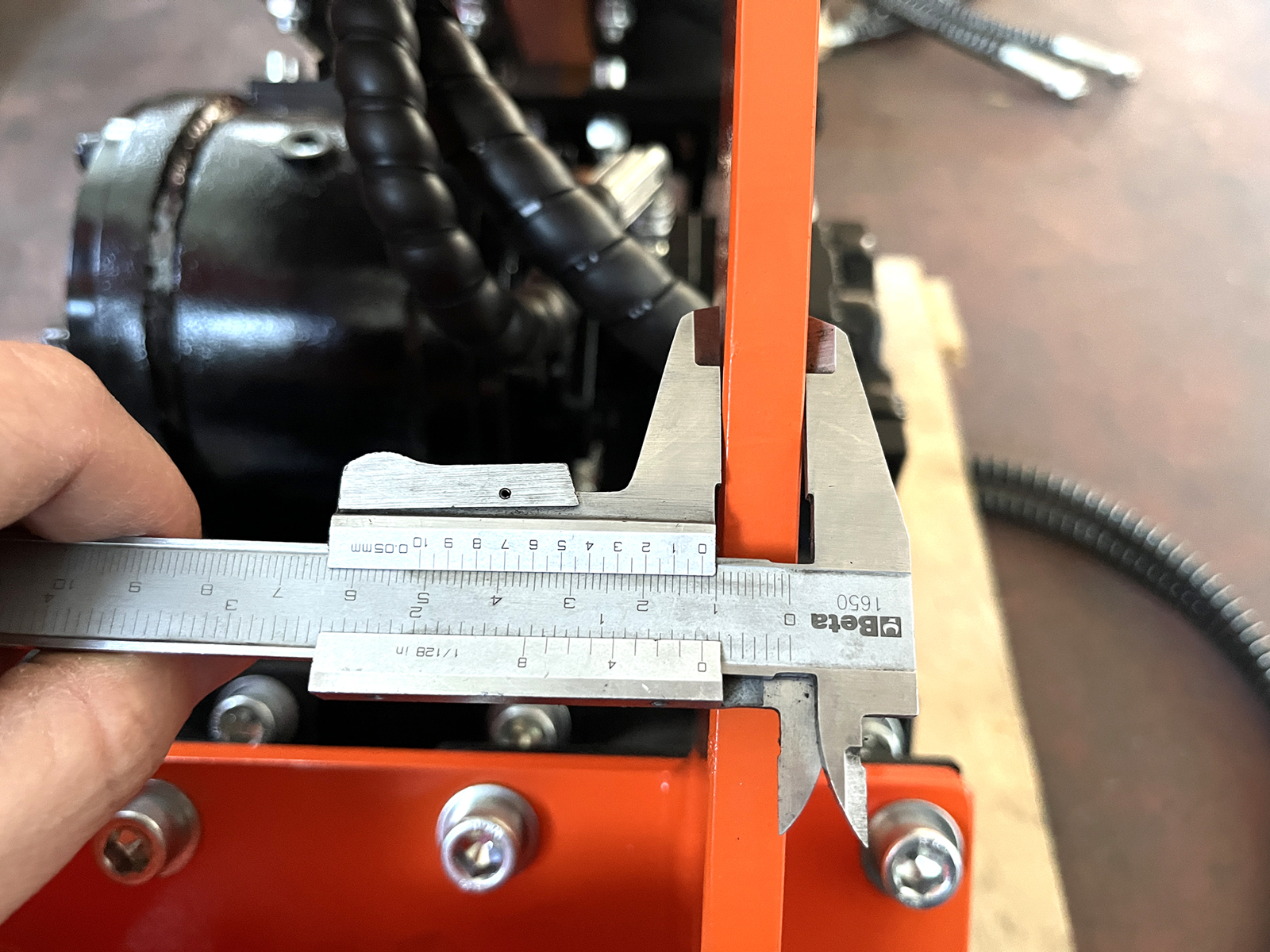

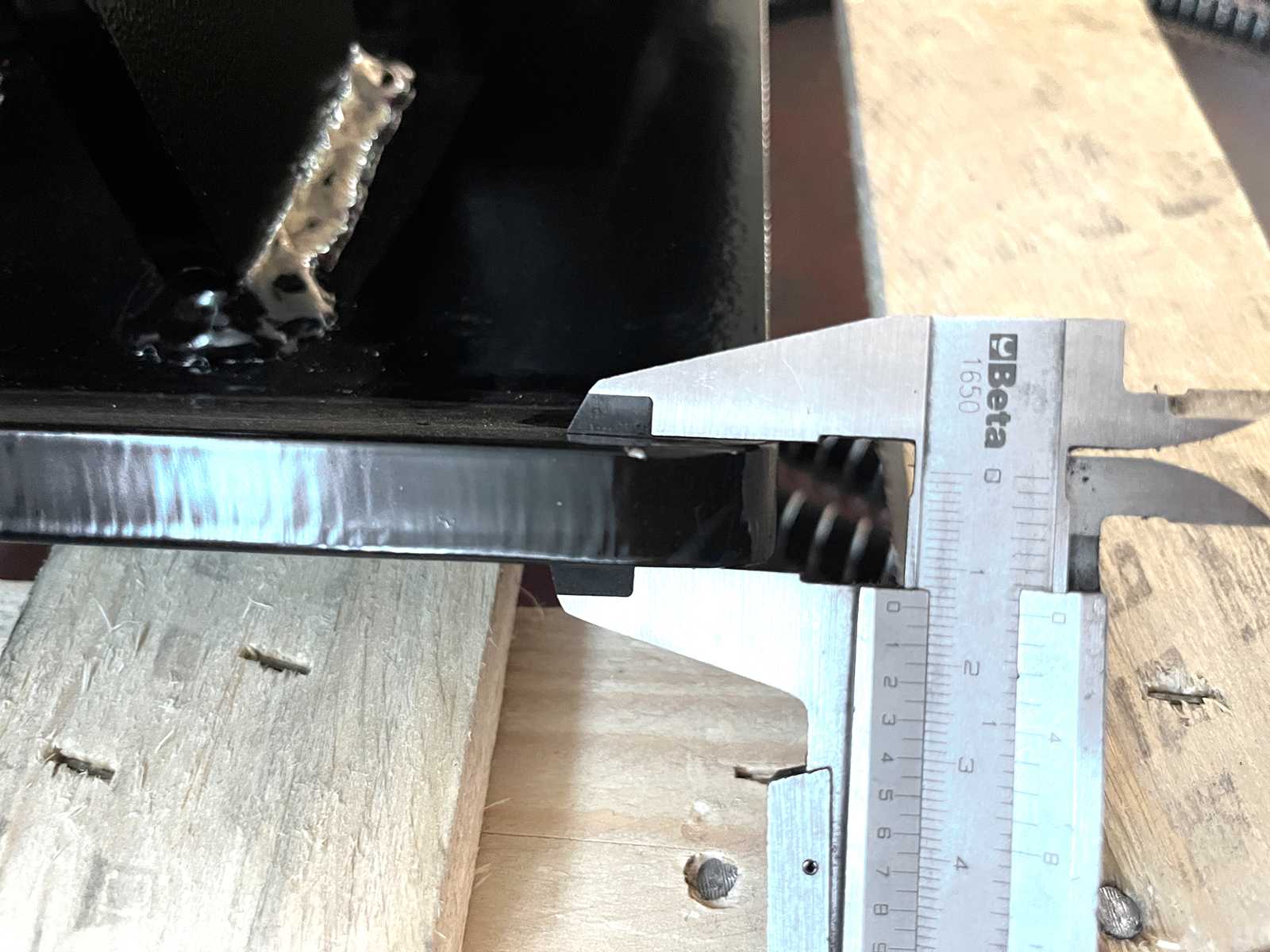

Measures: see pictures.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 180.0 kg |
| Min./Max. Flow | 30 - 60 l/min |
| Compact Excavators Range | 1.5 - 3.0 t |
| Working pressure | 100 - 130 bar |
| Impact rate | 2000 bpm |
| Impact energy class | 3 ton |
| Packing sizes | 800*600*800 mm |
