DETAILS

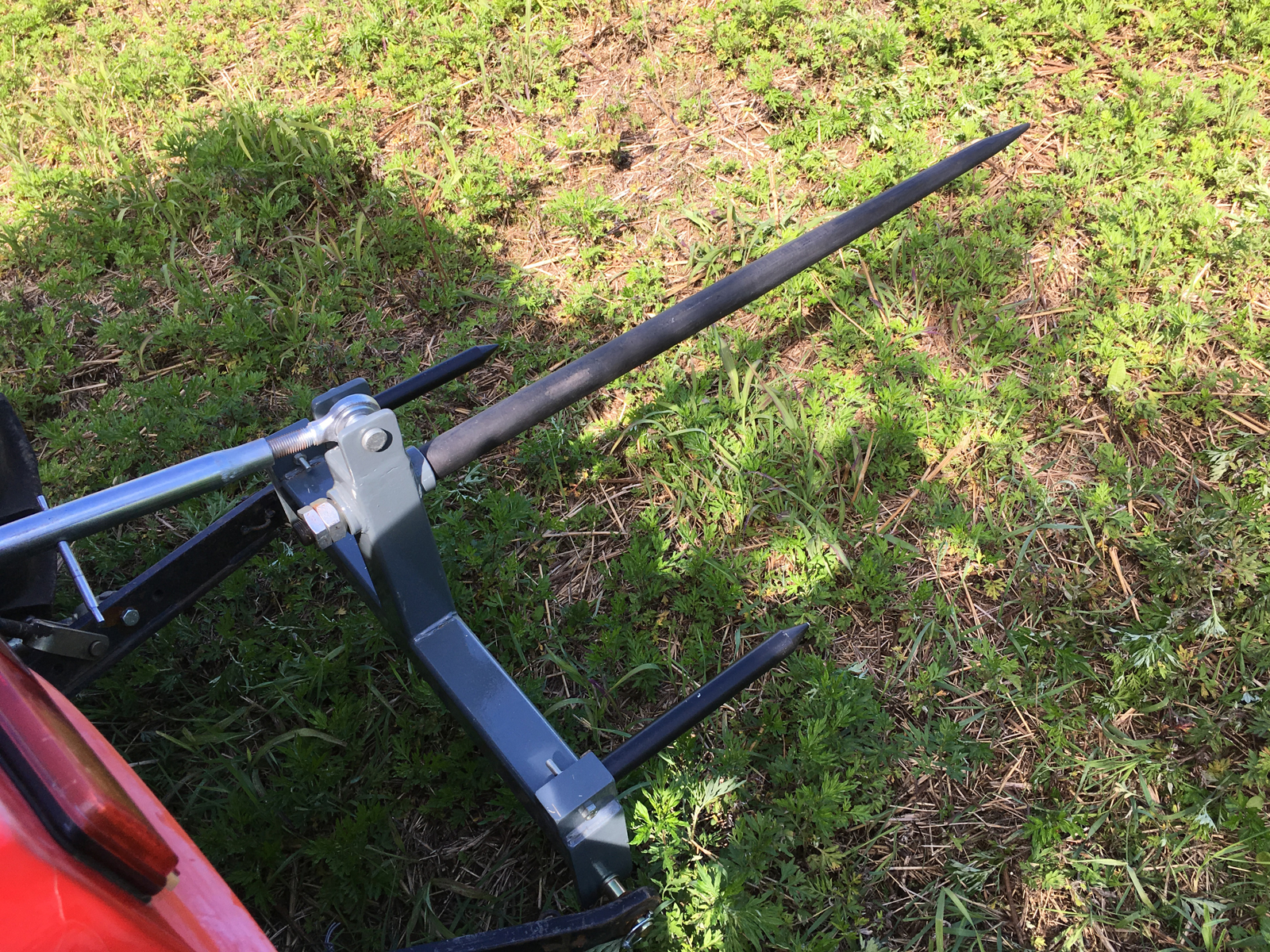

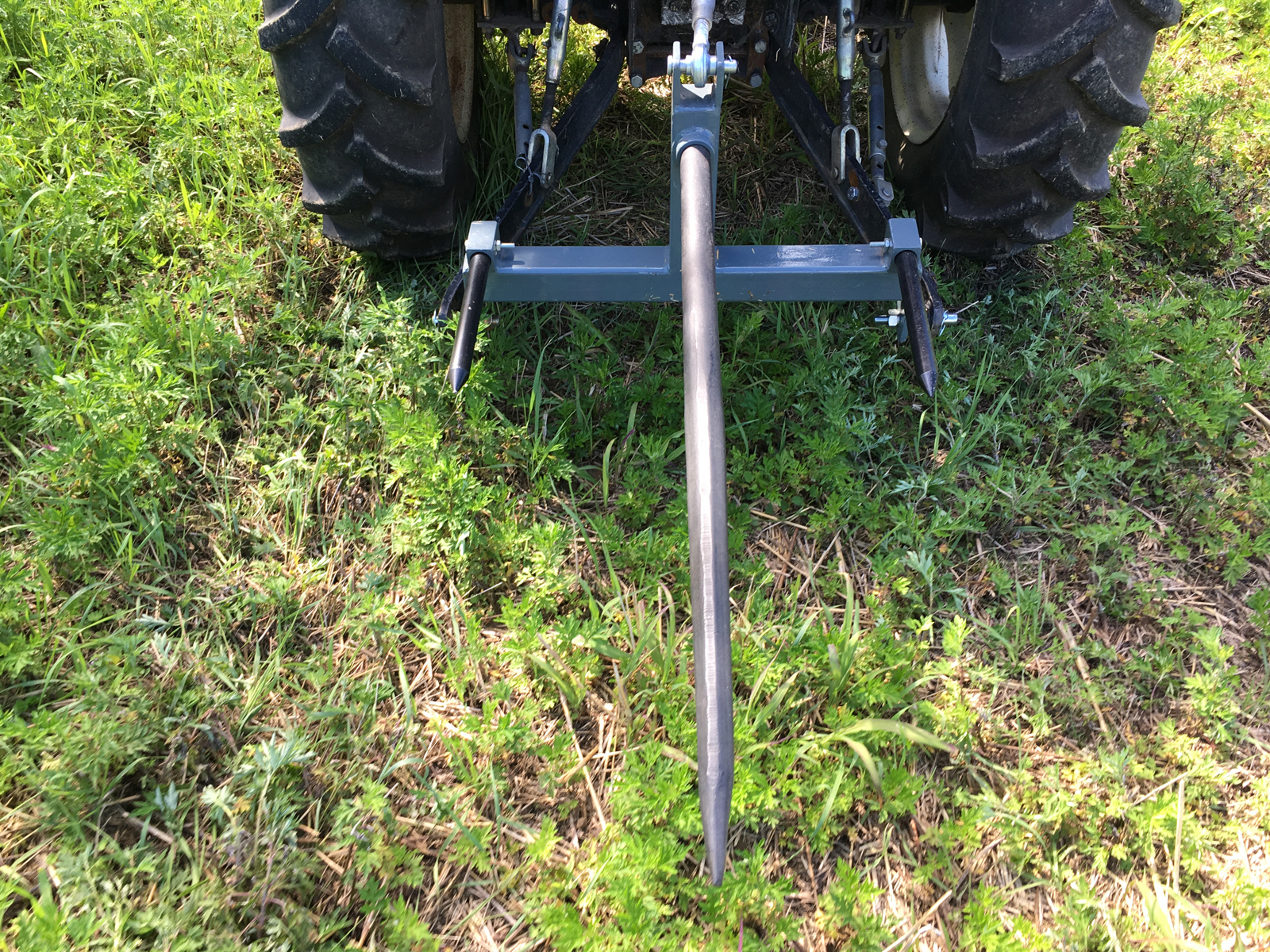

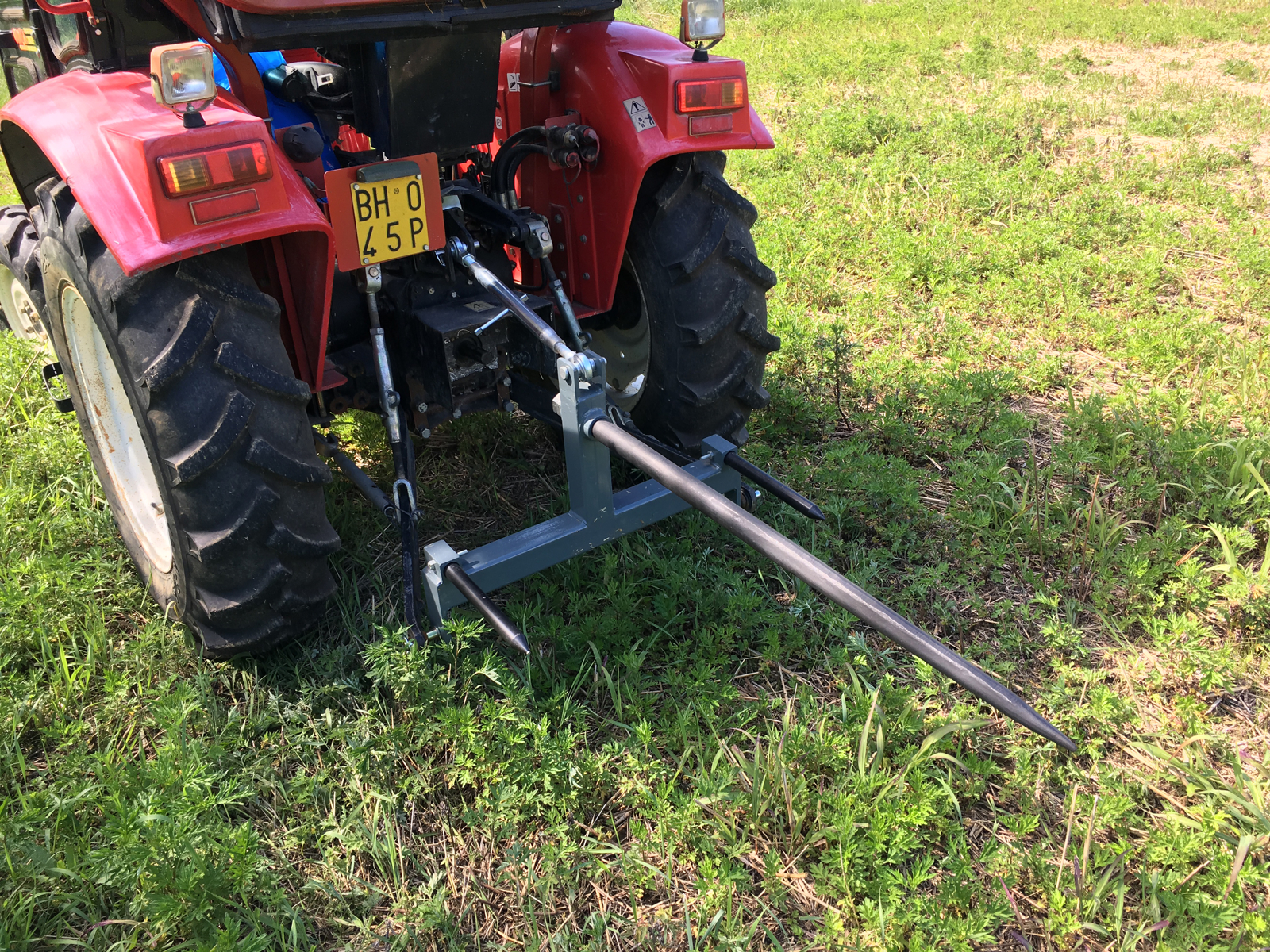

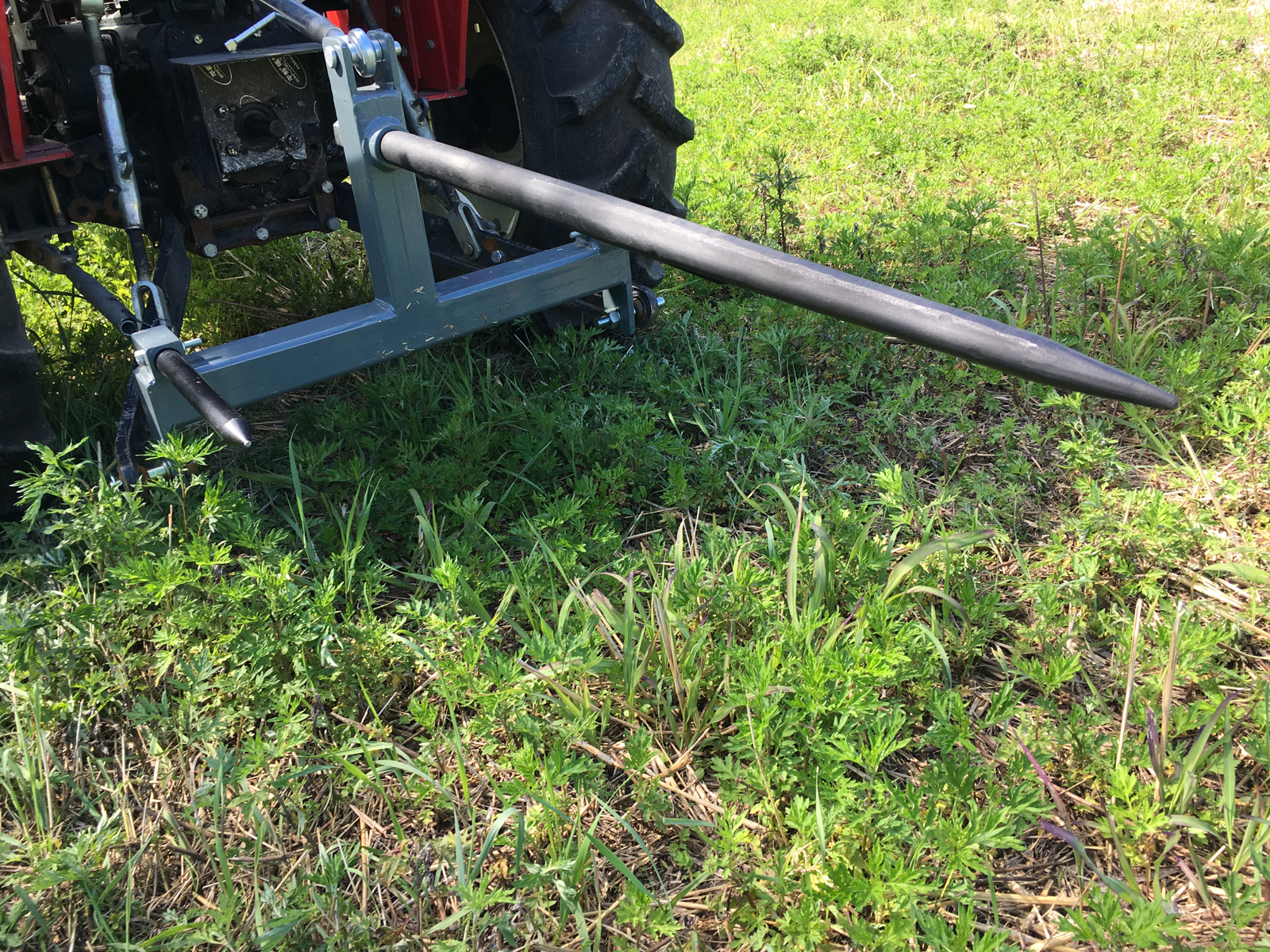

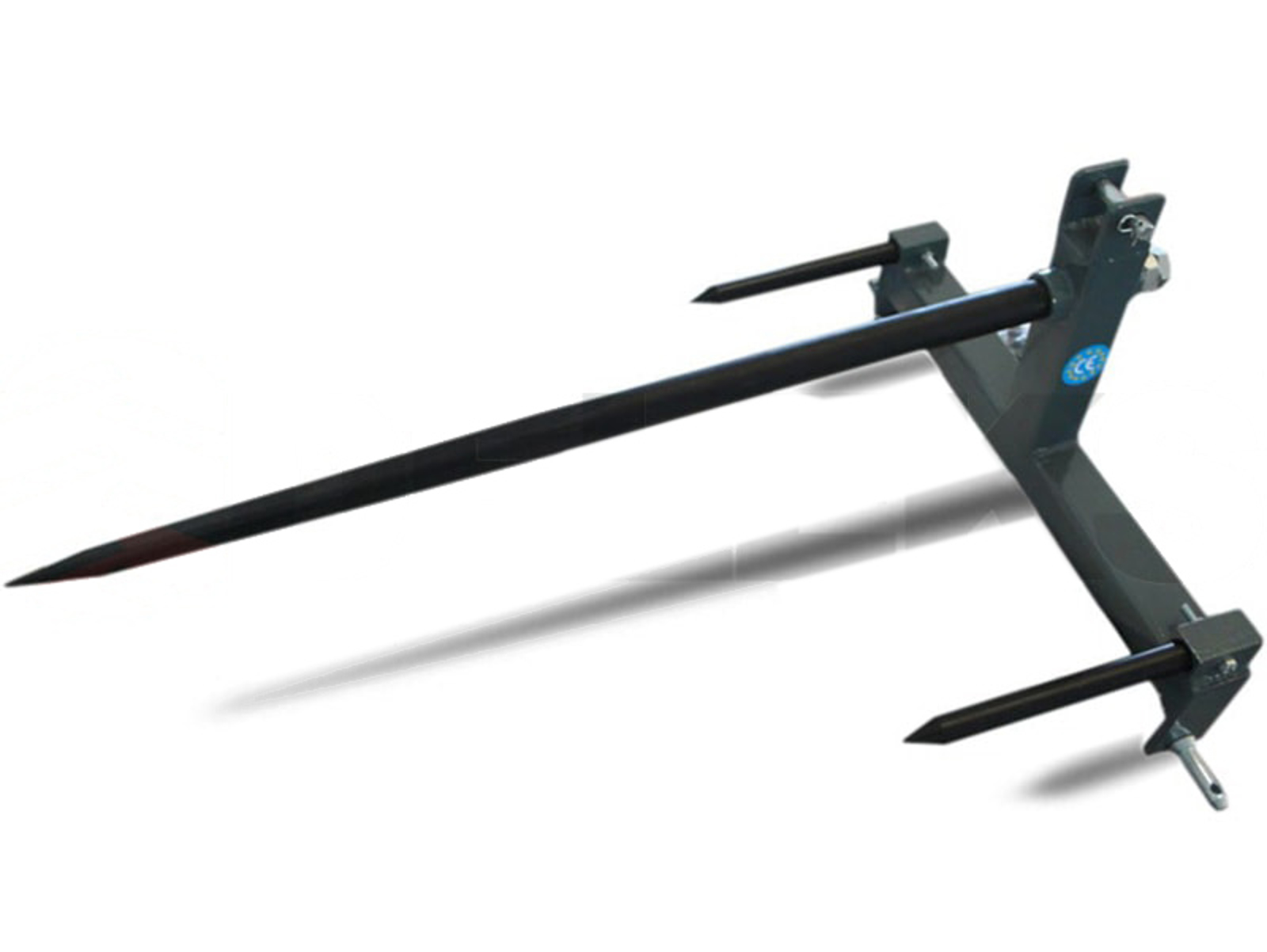

Hay bale forks DELEKS® for tractors like Kubota - Load capacity 700kg.
OVERVIEW
The DK-3 bale fork spears are extremely heavy duty, manufactured from high tensile solid steel for easy lifting and inserting into a hay bale. Ideal for Japanese tractors Kubota, Kioti, Iseki, Pasquali, Yanmar, Solis, Mahindra, and narrow tractors like New Holland Boomer 25, John Deere, Pasquali, Ferrari etc. Universal 3 point linkage Cat. 1. EC Declaration of Conformity, 2 Year warranty.
SPECIFICATION
This Hay bale mover is designed for hard centre bales.
One 49 inch hay bale spears.
Bale spear diameter is 1-3/4 inch.
2 Short stabilizer spears length is 15 inch.
Diameter of small stabilizer spear 1-1/4 inch.
Weight limit is 1550 lb.
For Tractor 3-Pt. Hitch Only.
This 3 point hay bale mover includes as follows:
One High Tensile 49 inch Long Replaceable Square Tapered Spear.
Two Replaceable Stabilizer Spikes.
Two Cat-1 Lift Arm Pins.
One Hitch Top Link Pin.
CHARACTERISTICS

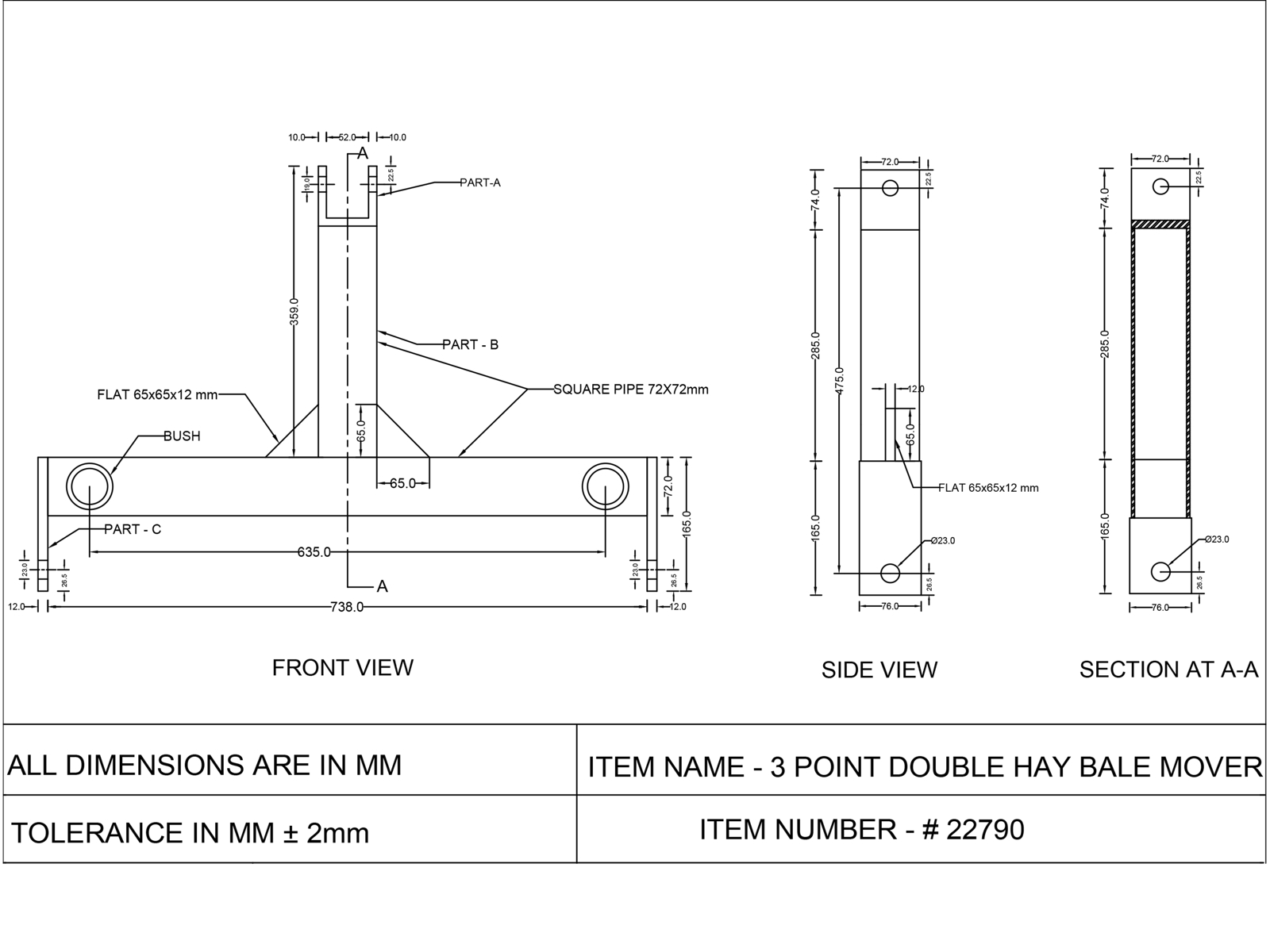

| Characteristic | Units metric |
|---|---|
| Overall width | 840.0 mm |
| Weight | 34.0 kg |
| Overall height | 540.0 mm |
| Tractor Power Range | 12 - 60 Hp |
| 3 point linkage | Cat. 1 (ø 19.0-22.0mm) |
| Load capacity | 700.0 kg |
| 3 point linkage Thickness | 10.0 mm |
| Spacing between the 2 lower points | 640.0 / 860.0 mm |
| Usable Fork Tine Length | 350.0 / 1200.0 mm |
| Fork Tine Length | 385.0 / 1250.0 mm |
| Fork Tine Weight | 12.2 / 2.1 kg |
| Fork Tine Spacing (min-max) | 650.0 mm |
| Positions of the forks | Fixed |
| Distance between the 2 lower points and ground | 20.0 mm |
| Overall Length (open and closed) | 1250.0 mm (open) |
| Fork Tine Diameter | 32.0 / 45.0 mm |
| Packing sizes | 1250*20*20 + 85*40*10 mm |
