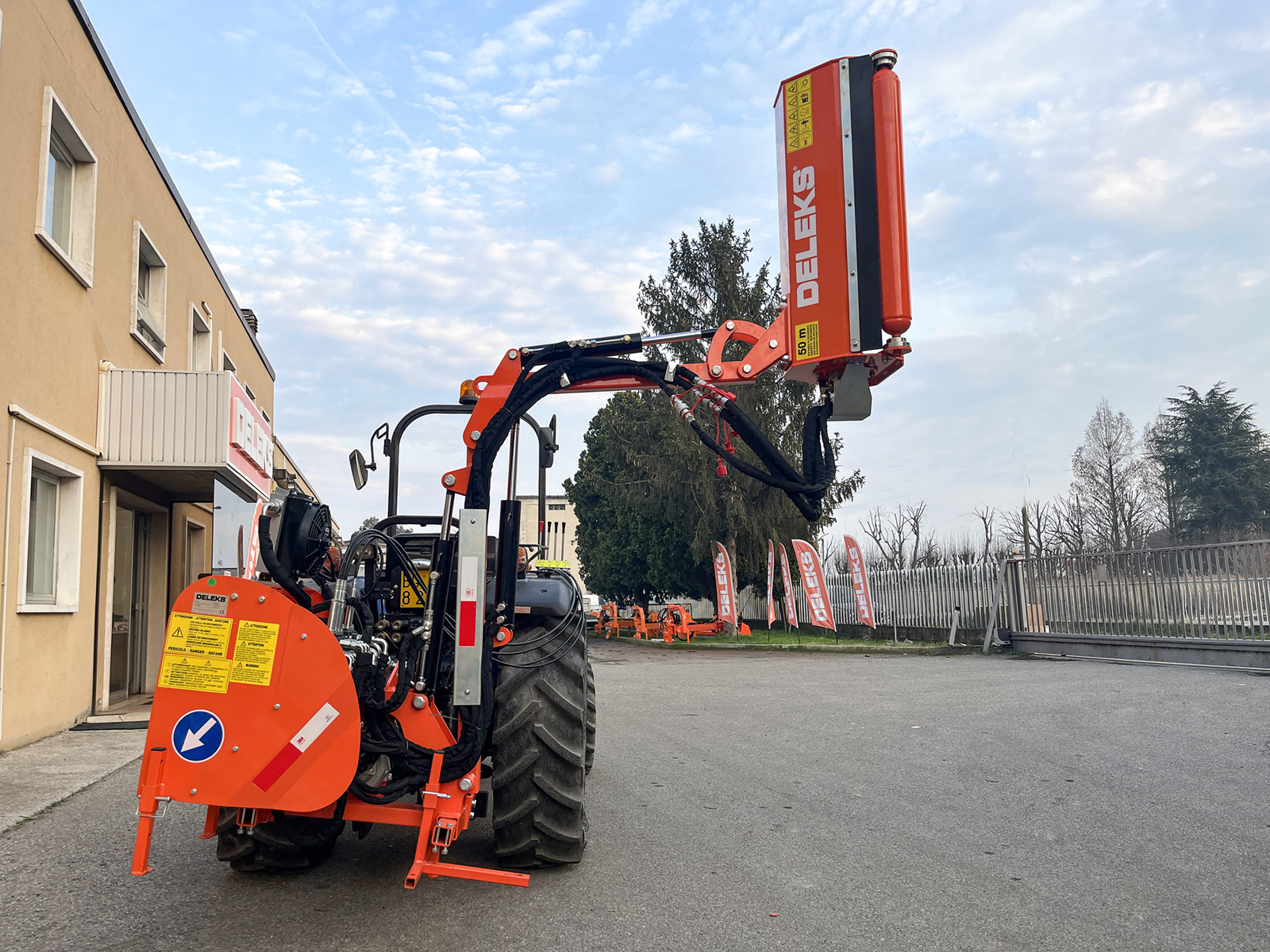

Tractor-mounted hydraulic hedge cutter hedge trimmer with brush cutter or cutterbar
DETAILS

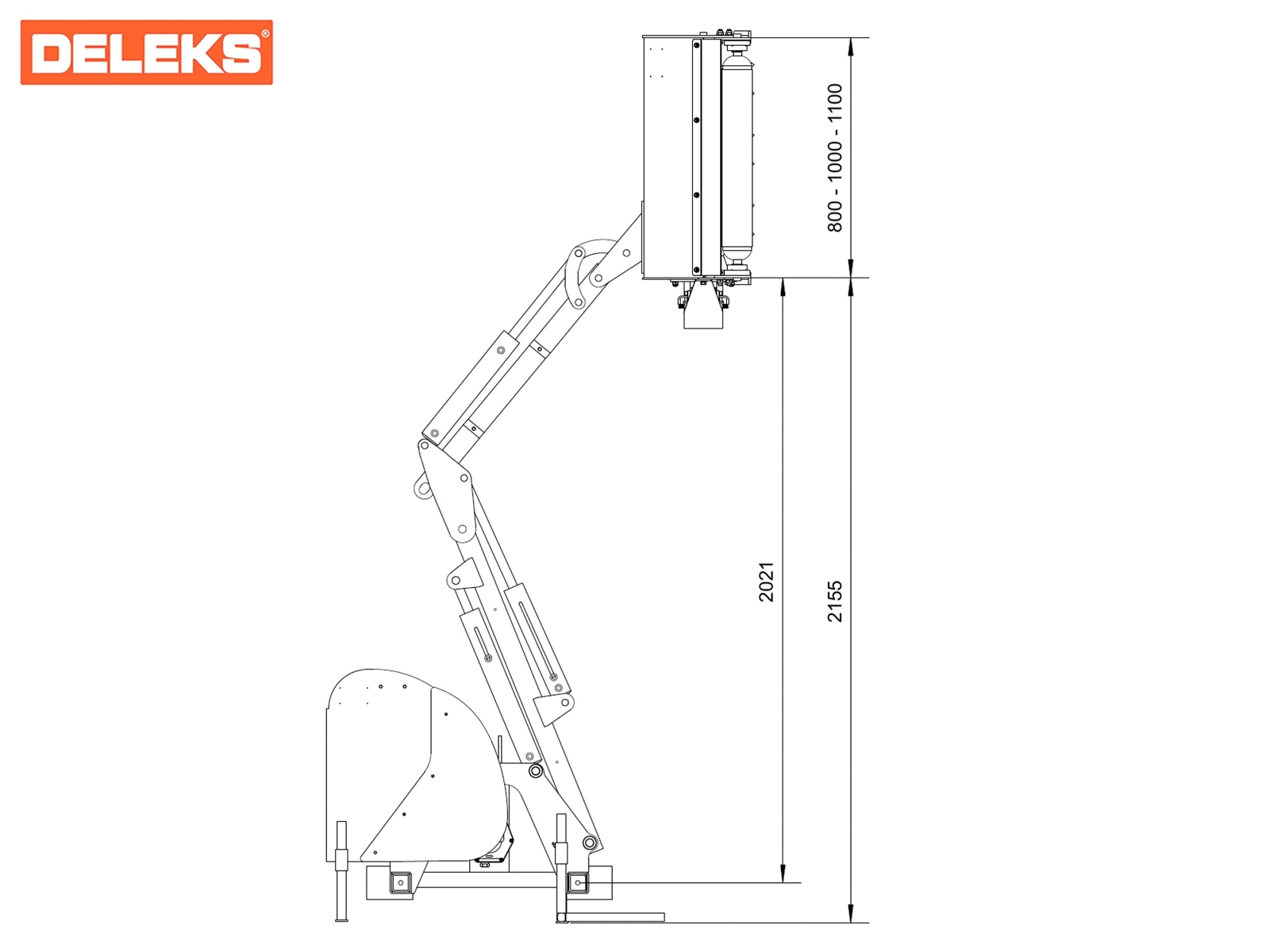

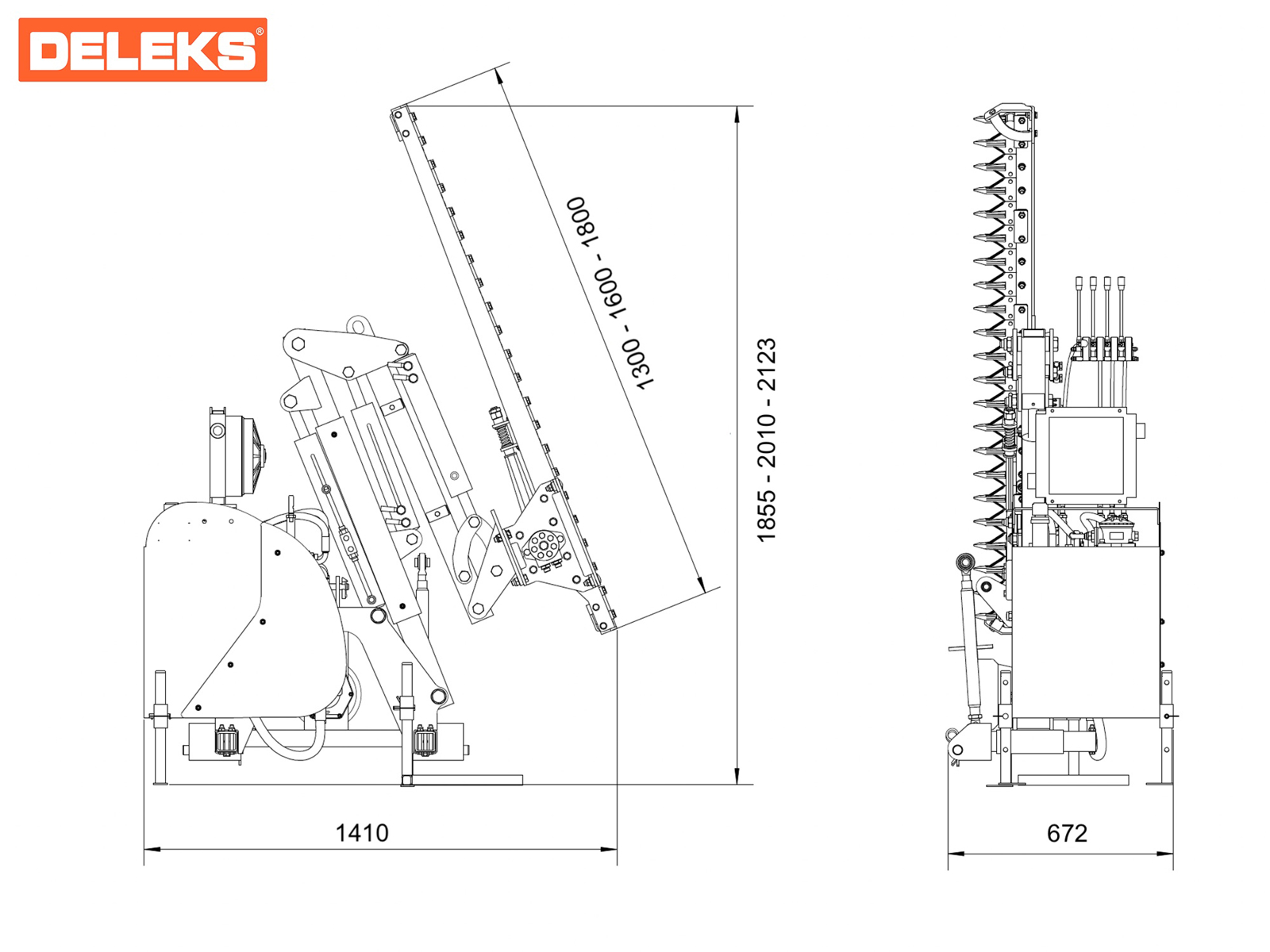

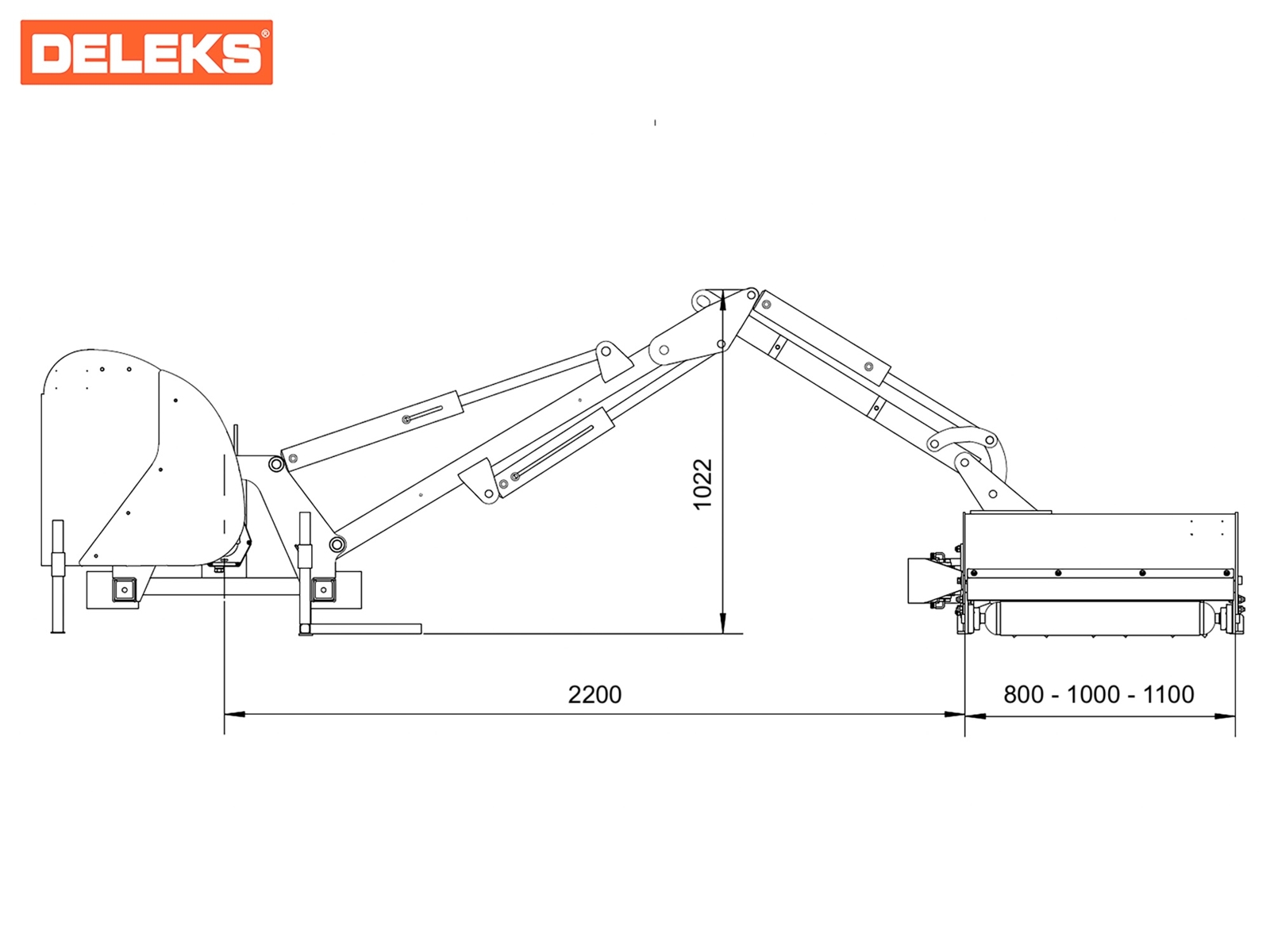

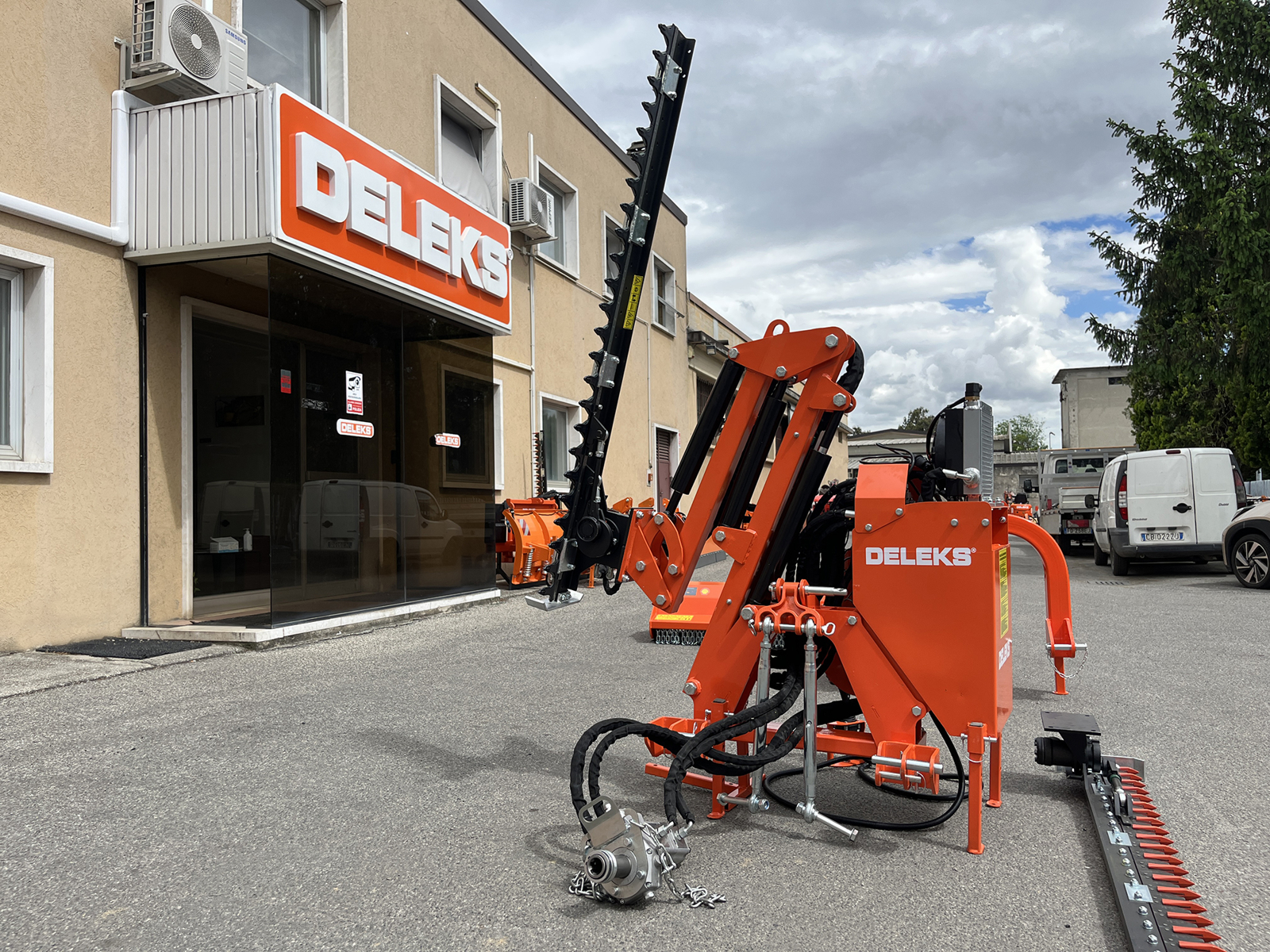

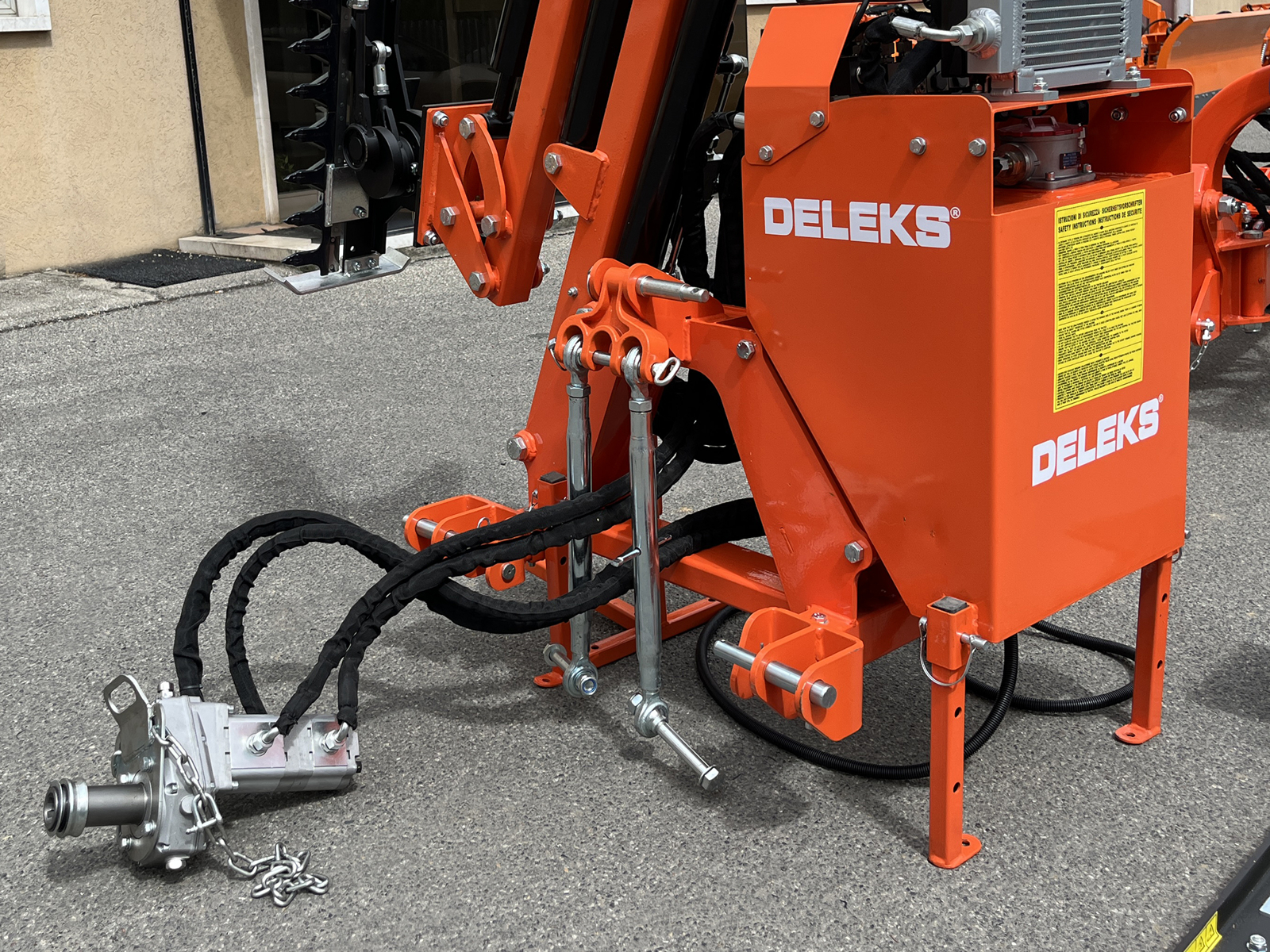

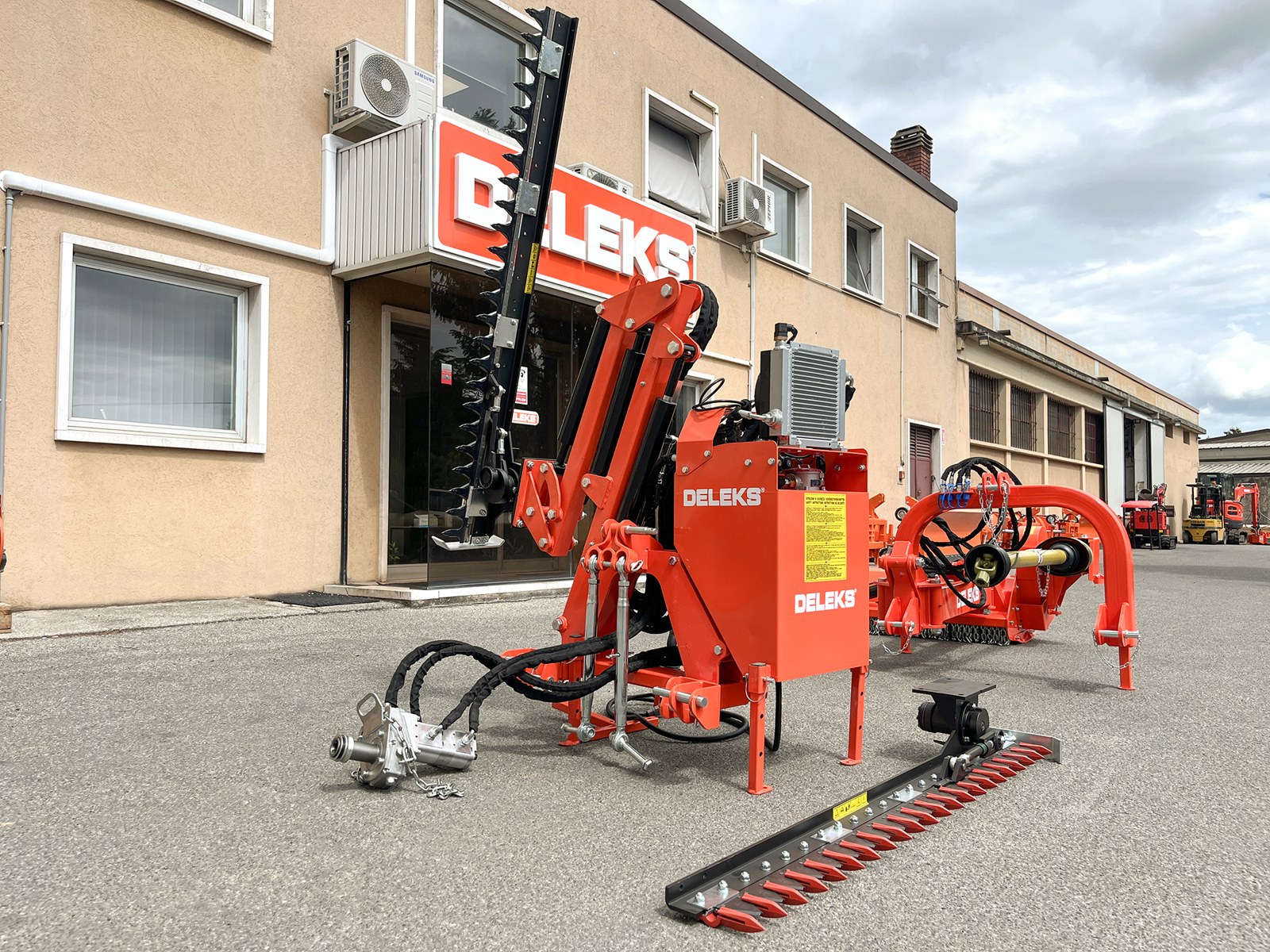

Hedgecutter for tractor, multiple hedge and grass verge rear arm cutter - DELEKS® MERLO, own hydraulic system, runs completely off the PTO - Pto pump included - Joystick - can mount a cutting head with 80-100-110cm working width, or a 130-160 or 180cm hedge trimmer bar.
* Machine body only, flailhead and fingerbar are optionals.
OVERVIEW

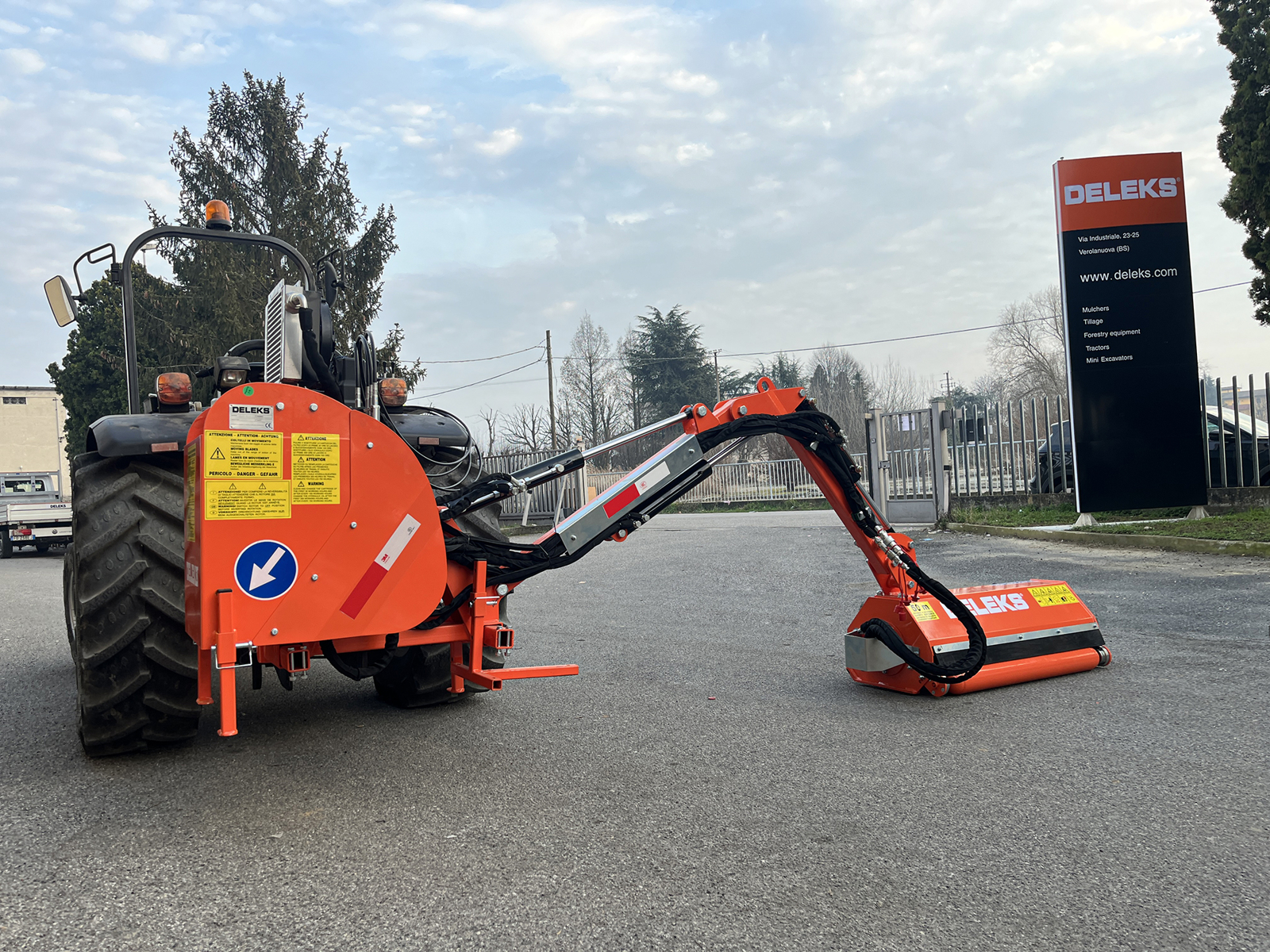

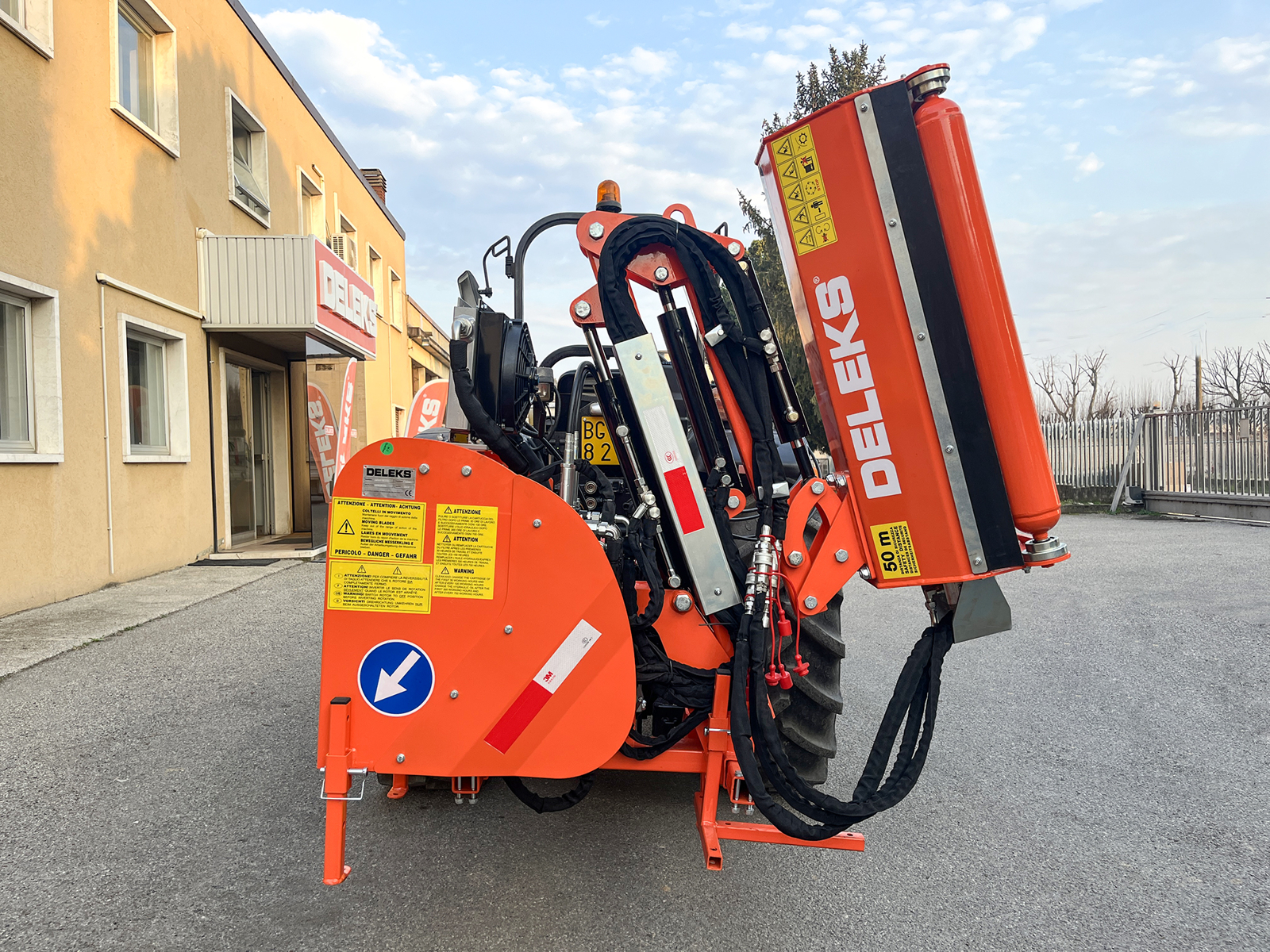

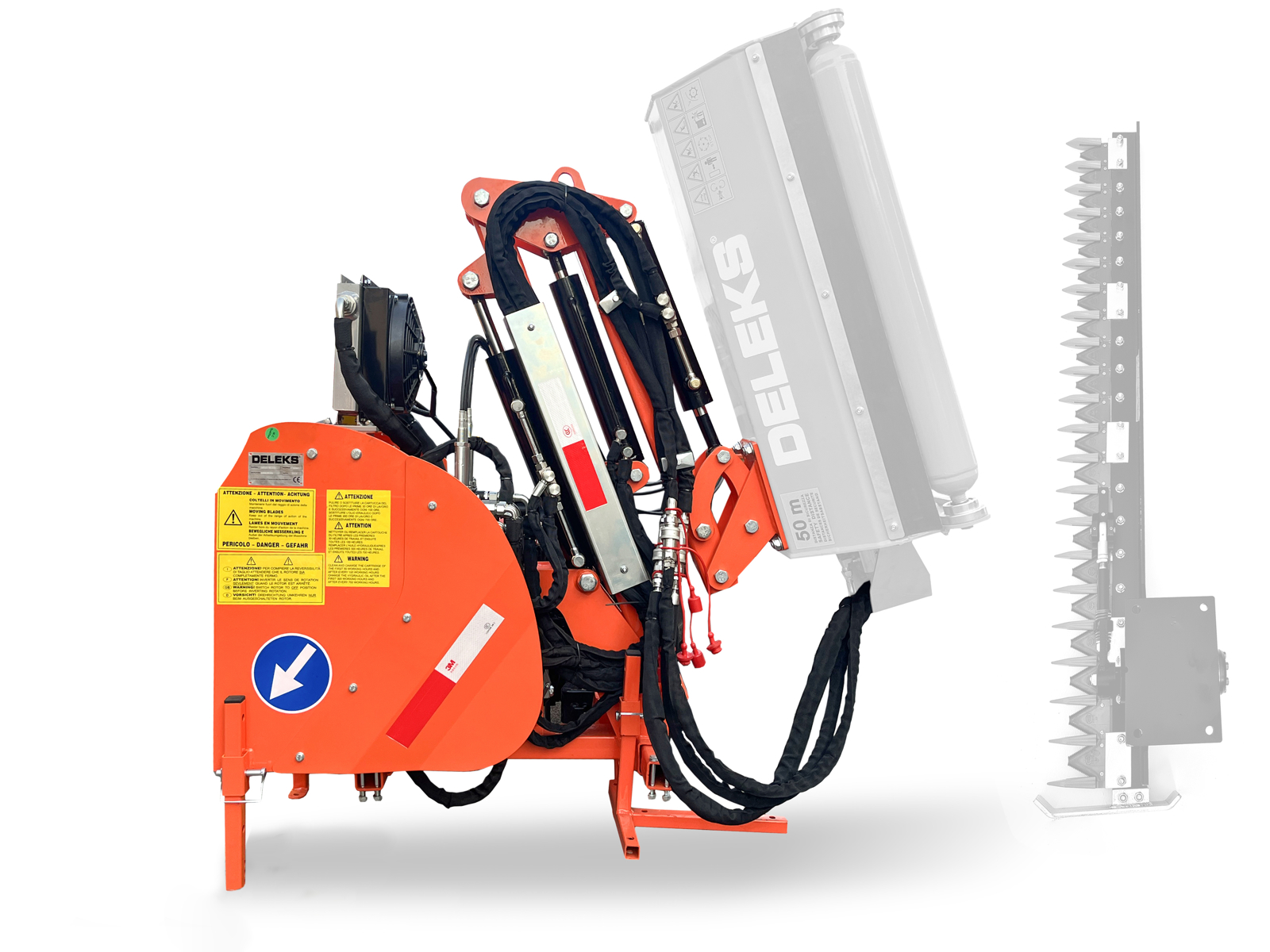

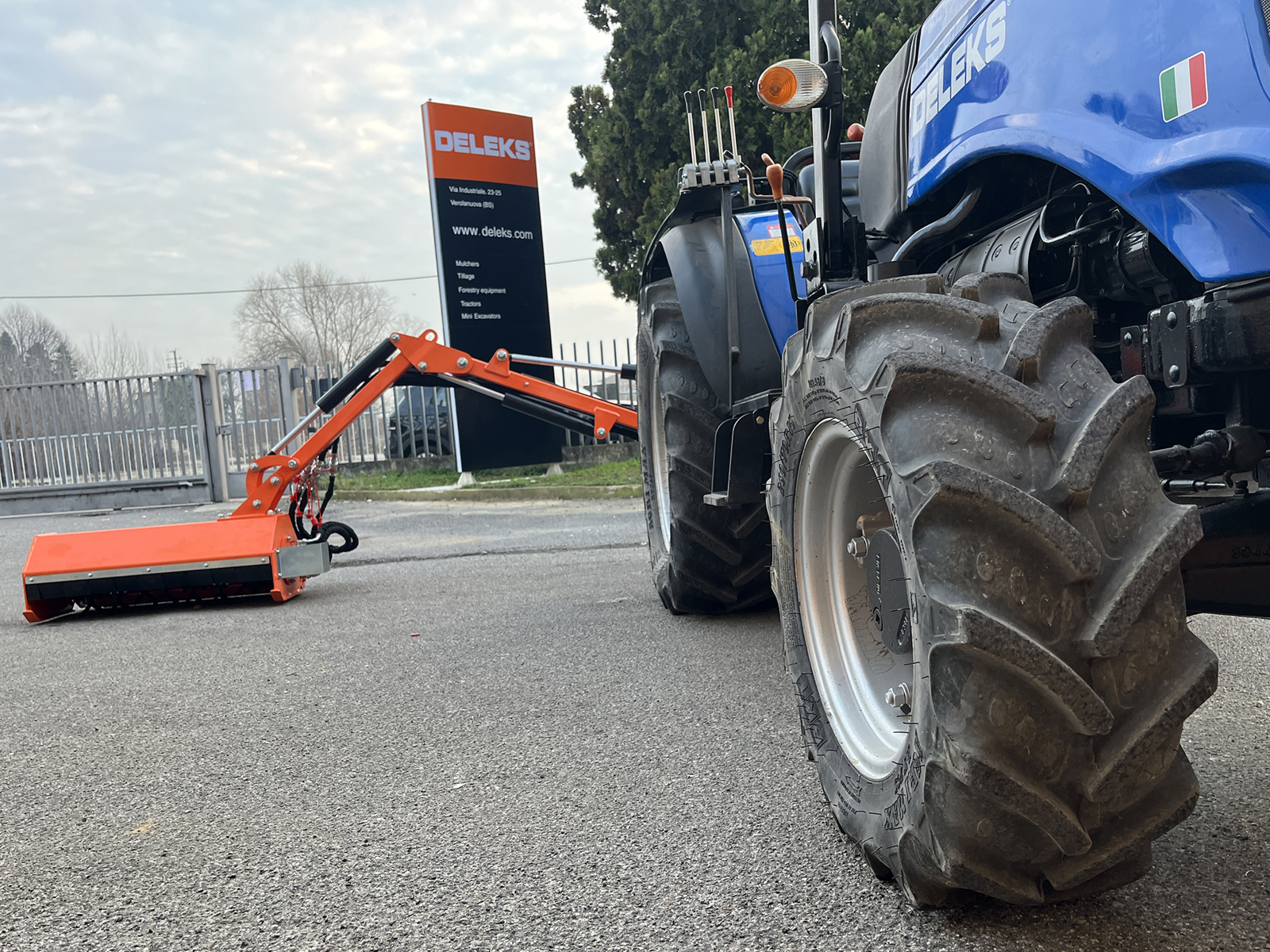

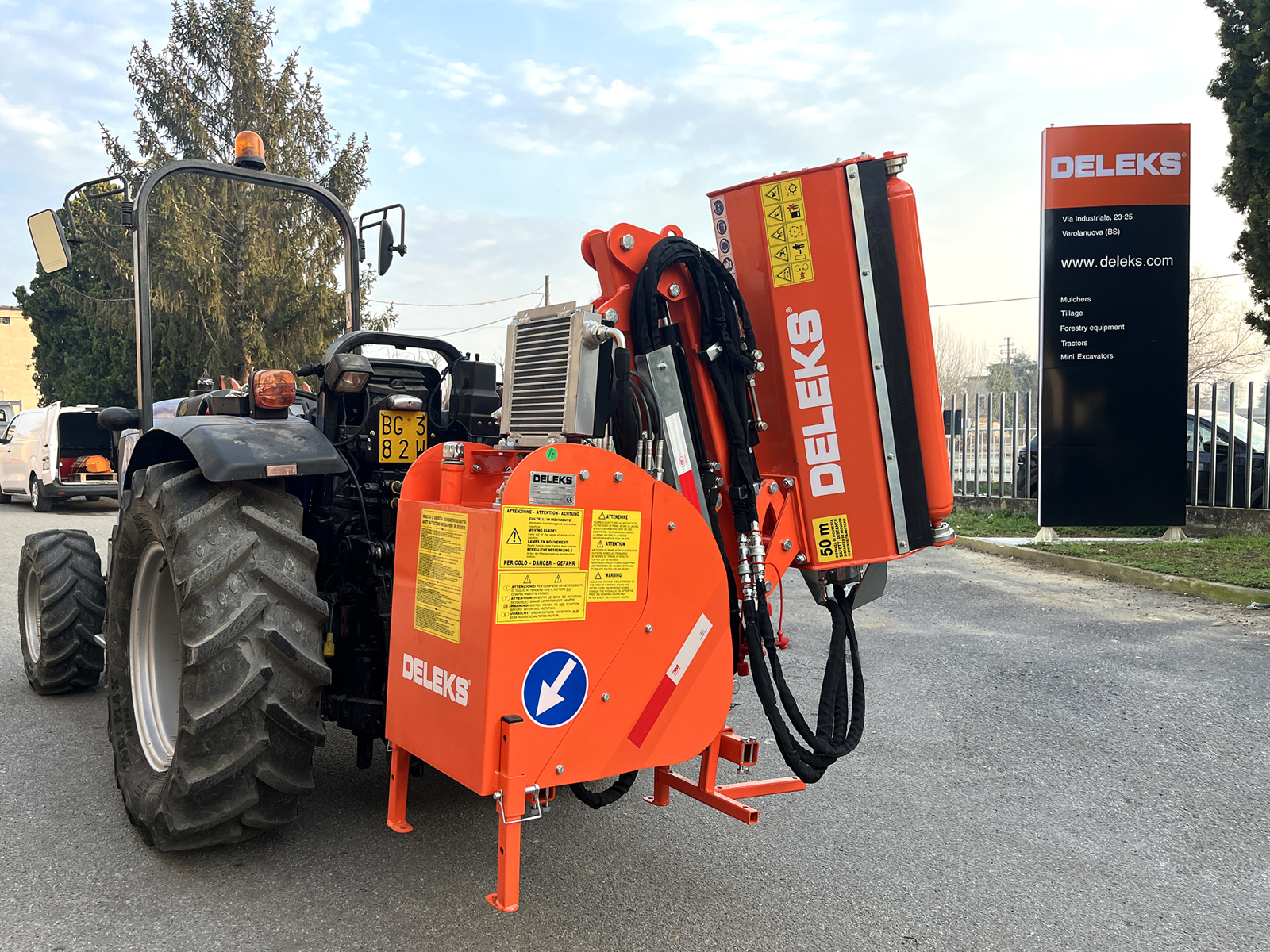

DELEKS® MERLO is a multifunctional brush cutter arm:

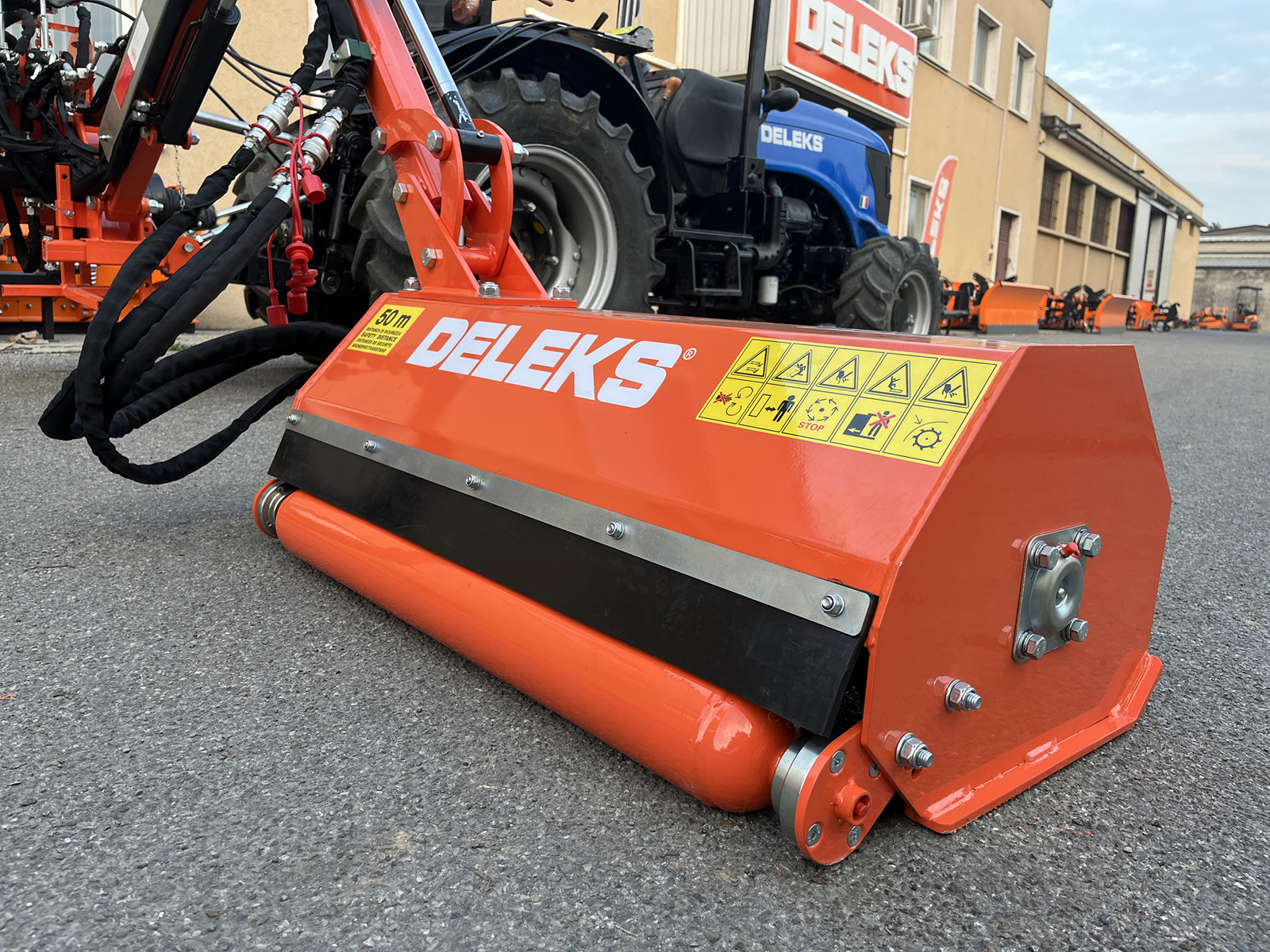

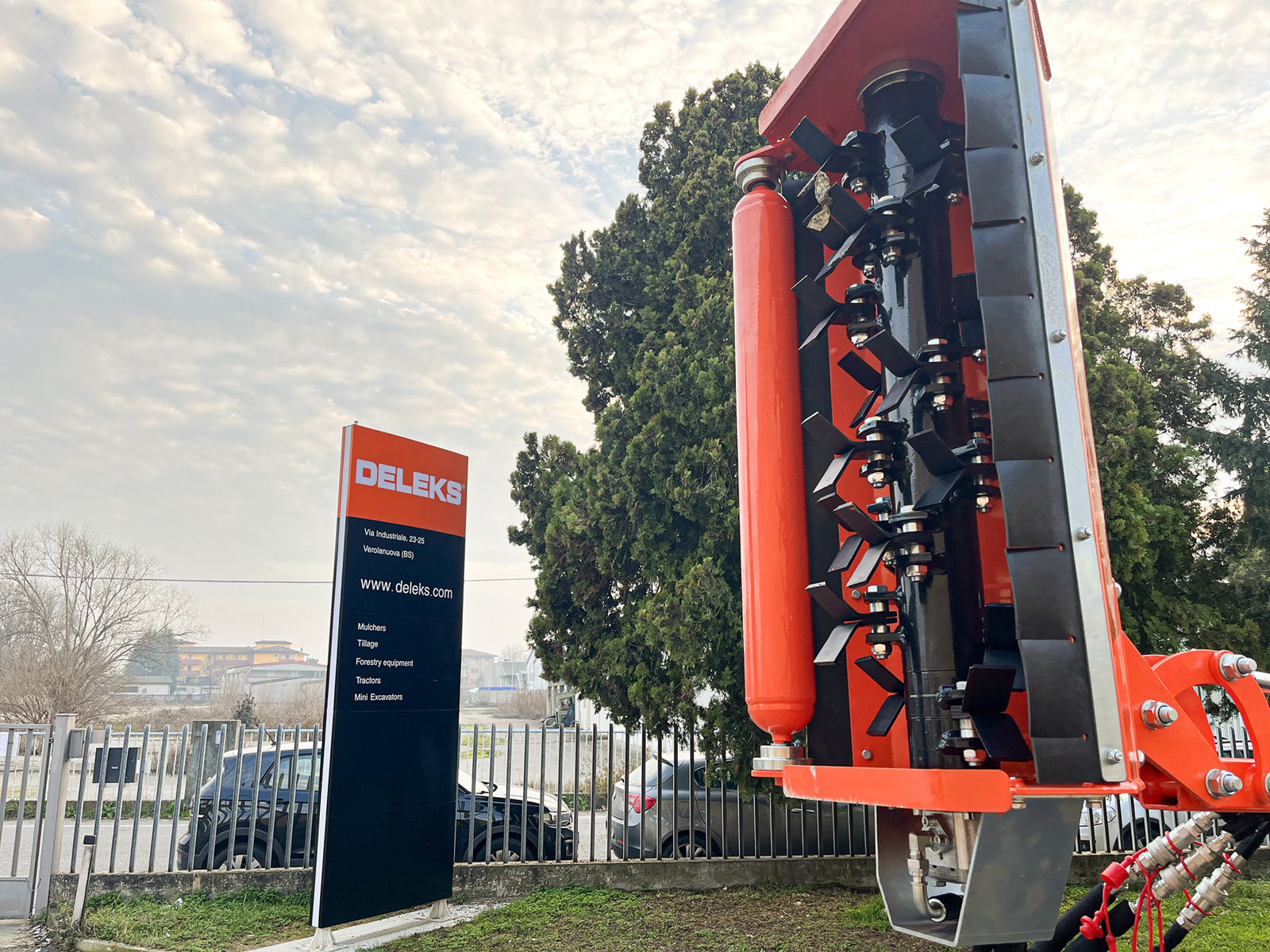

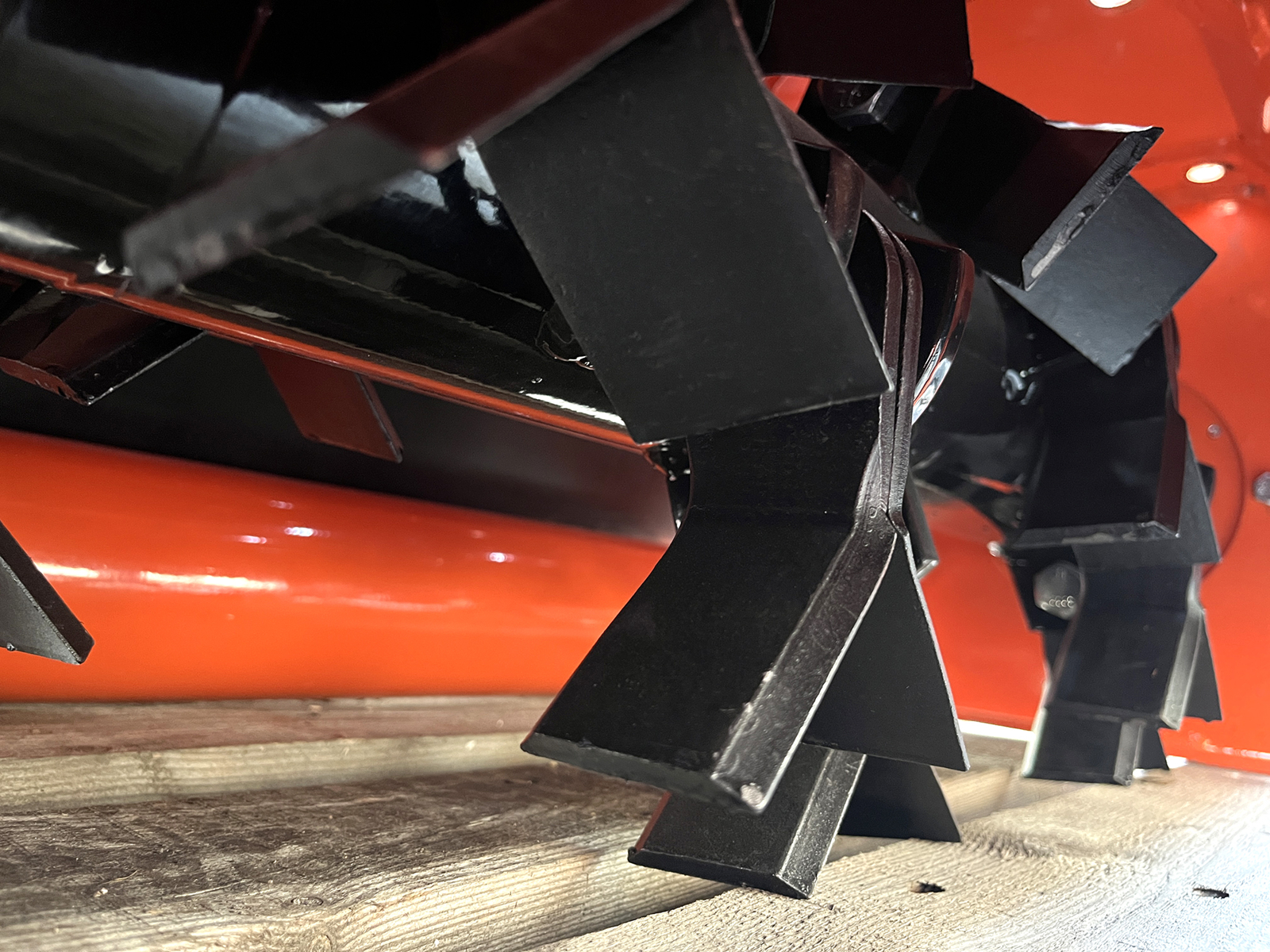

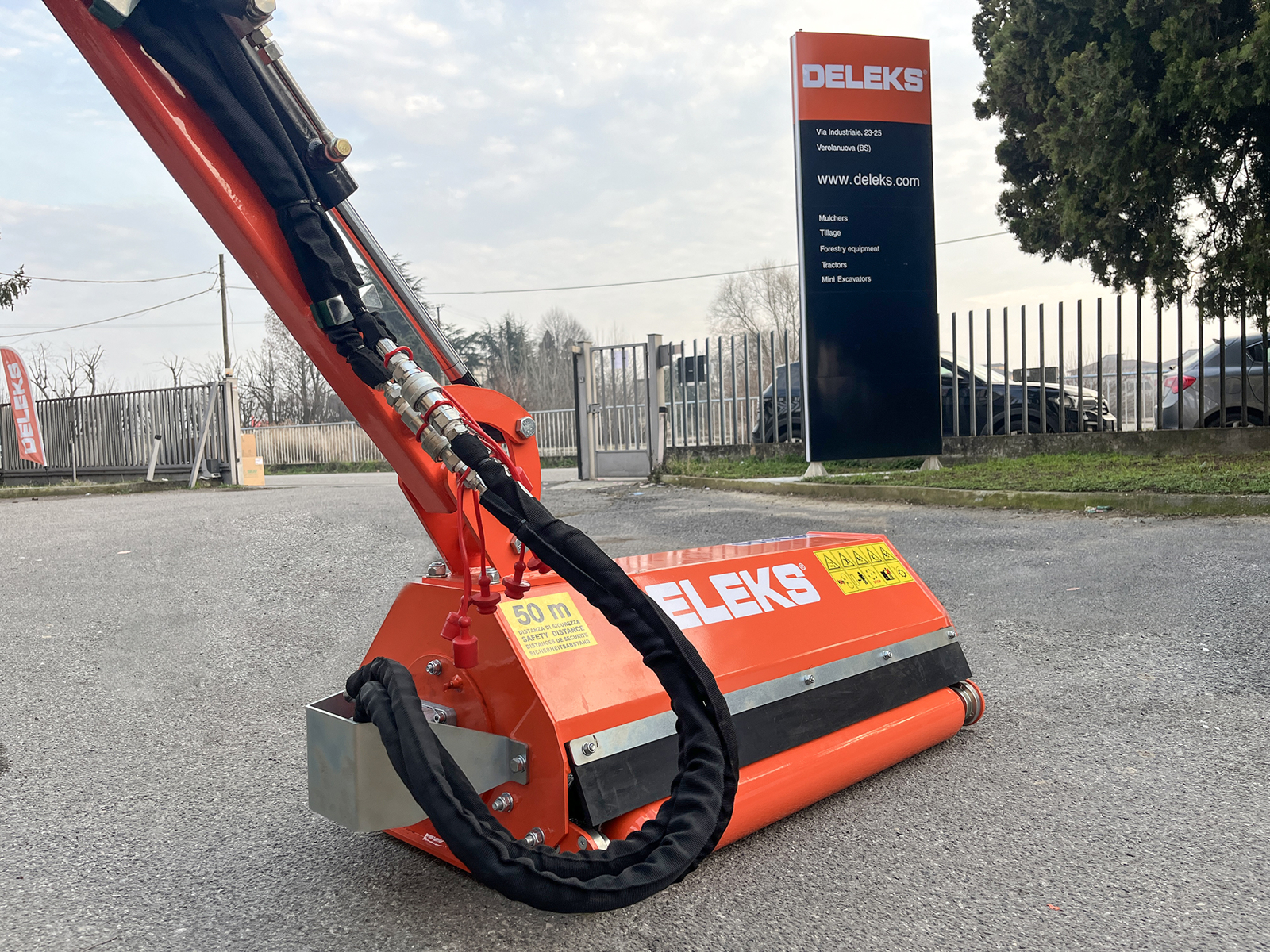

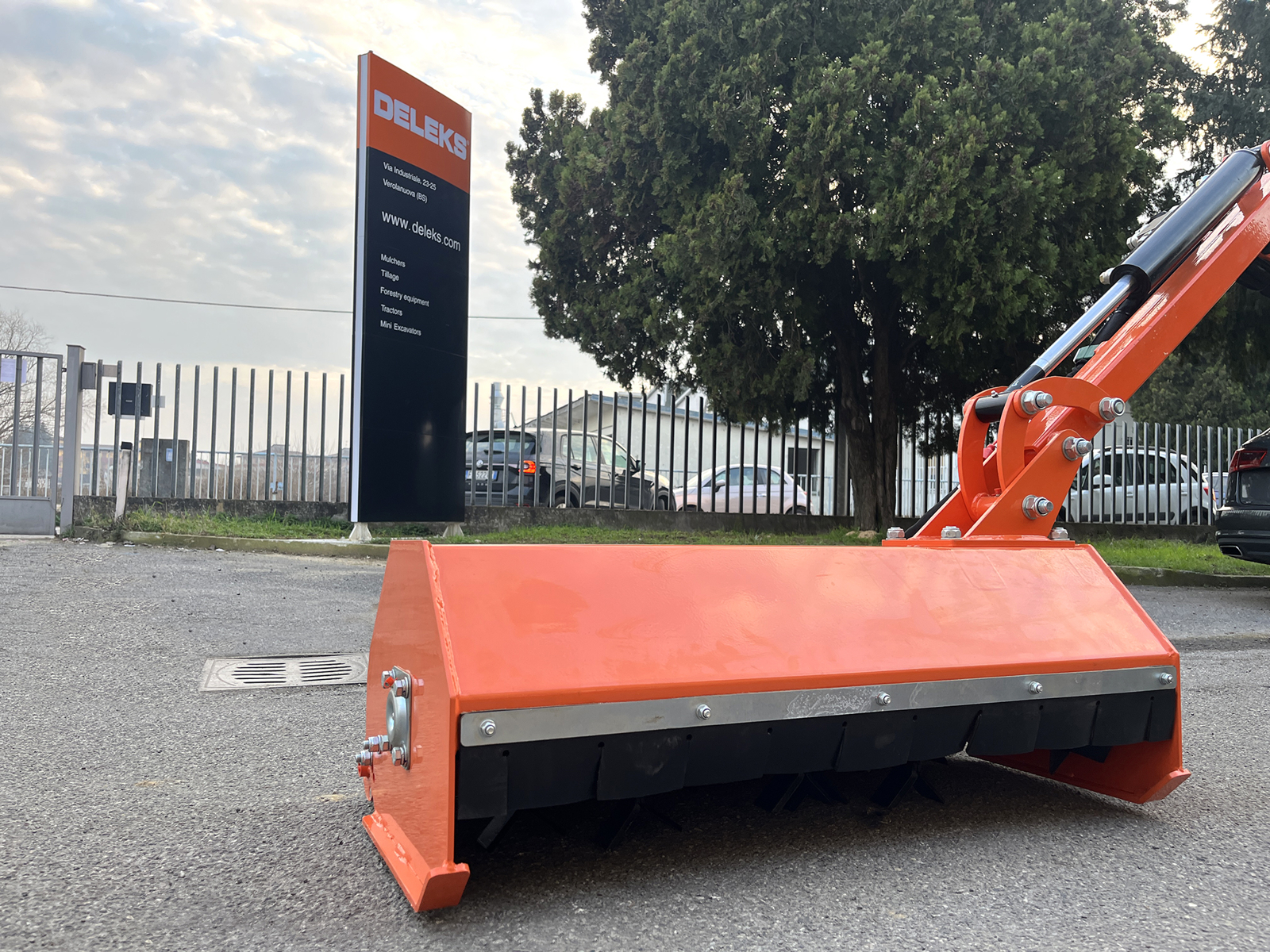

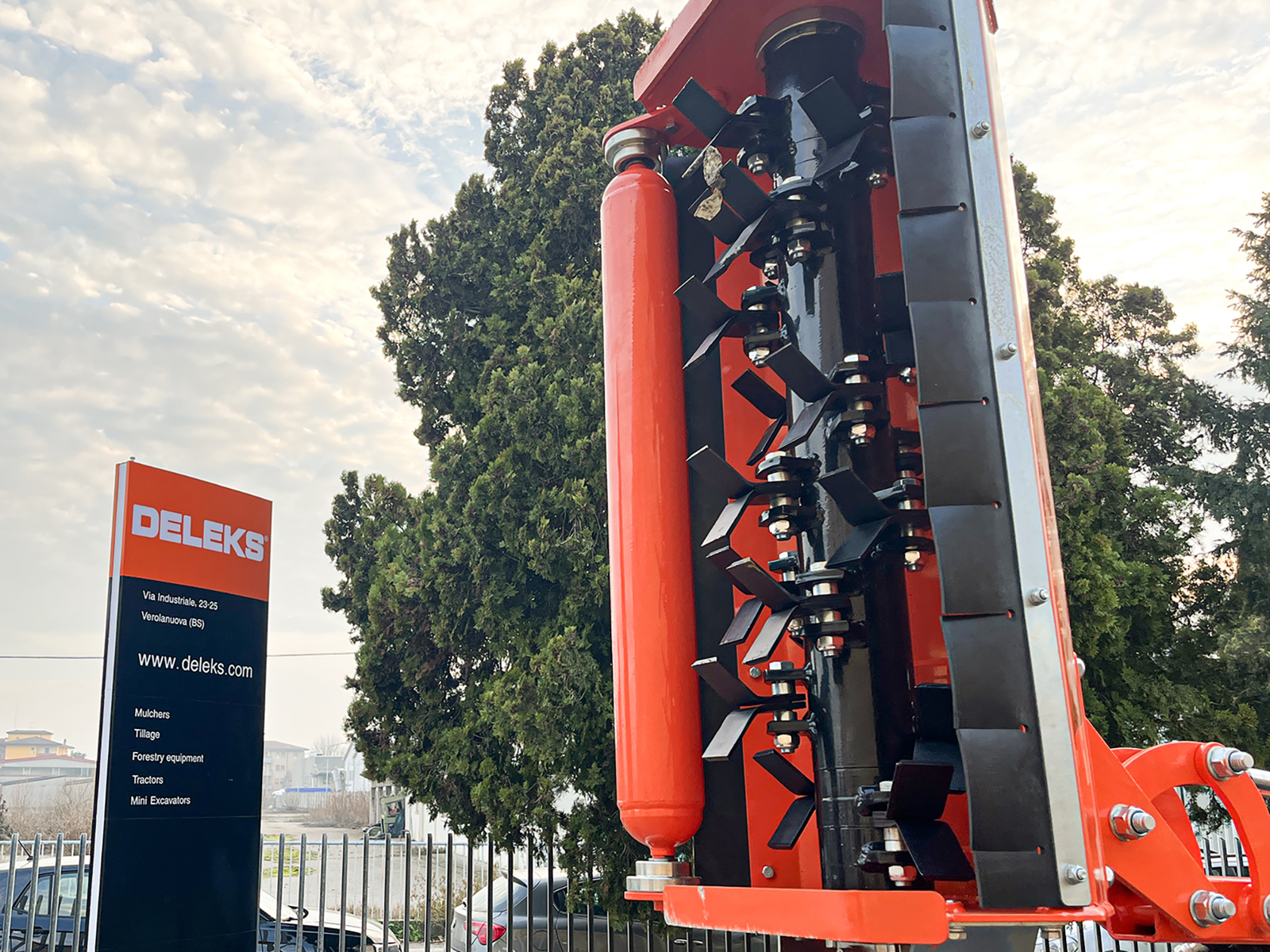

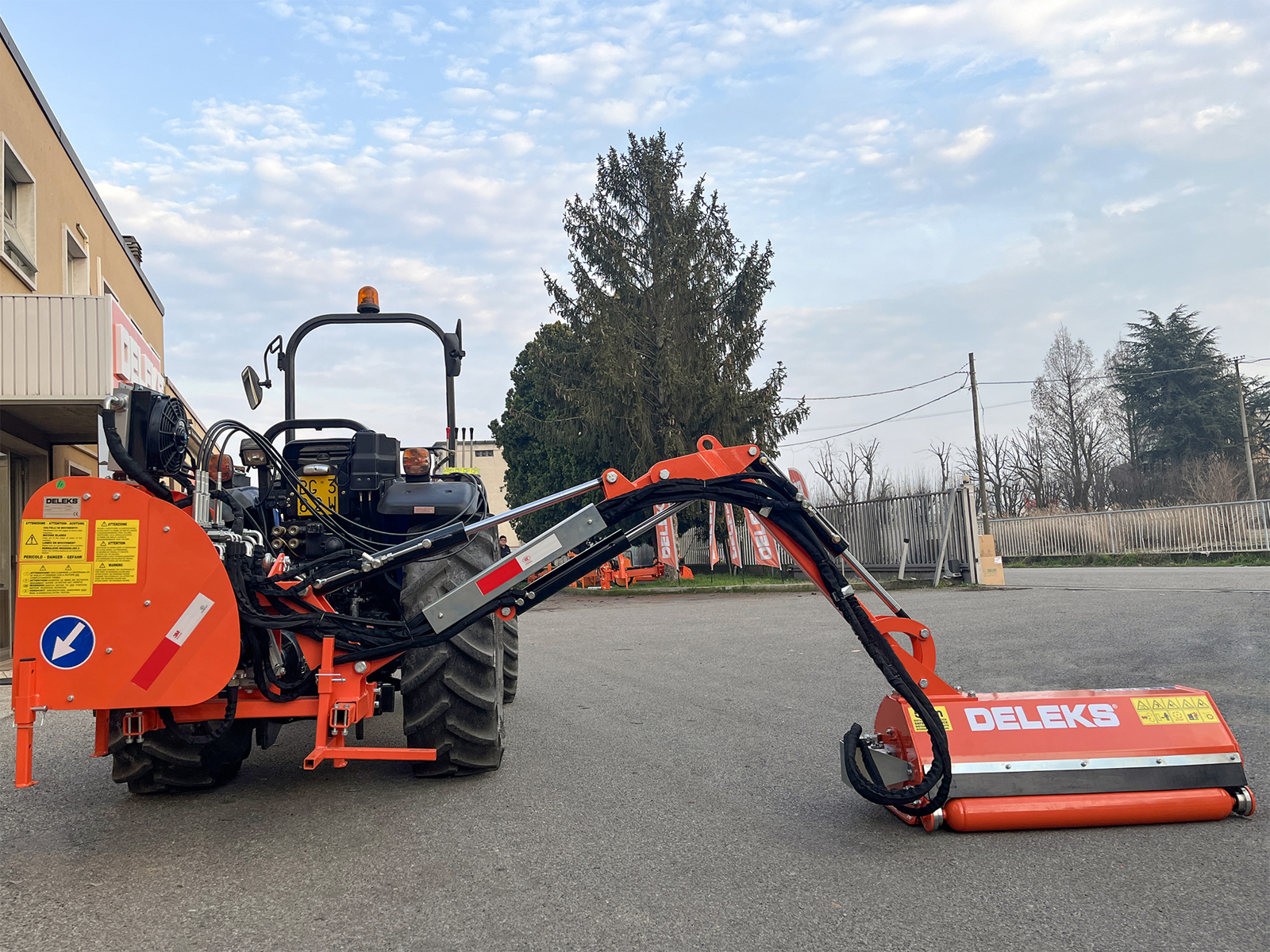

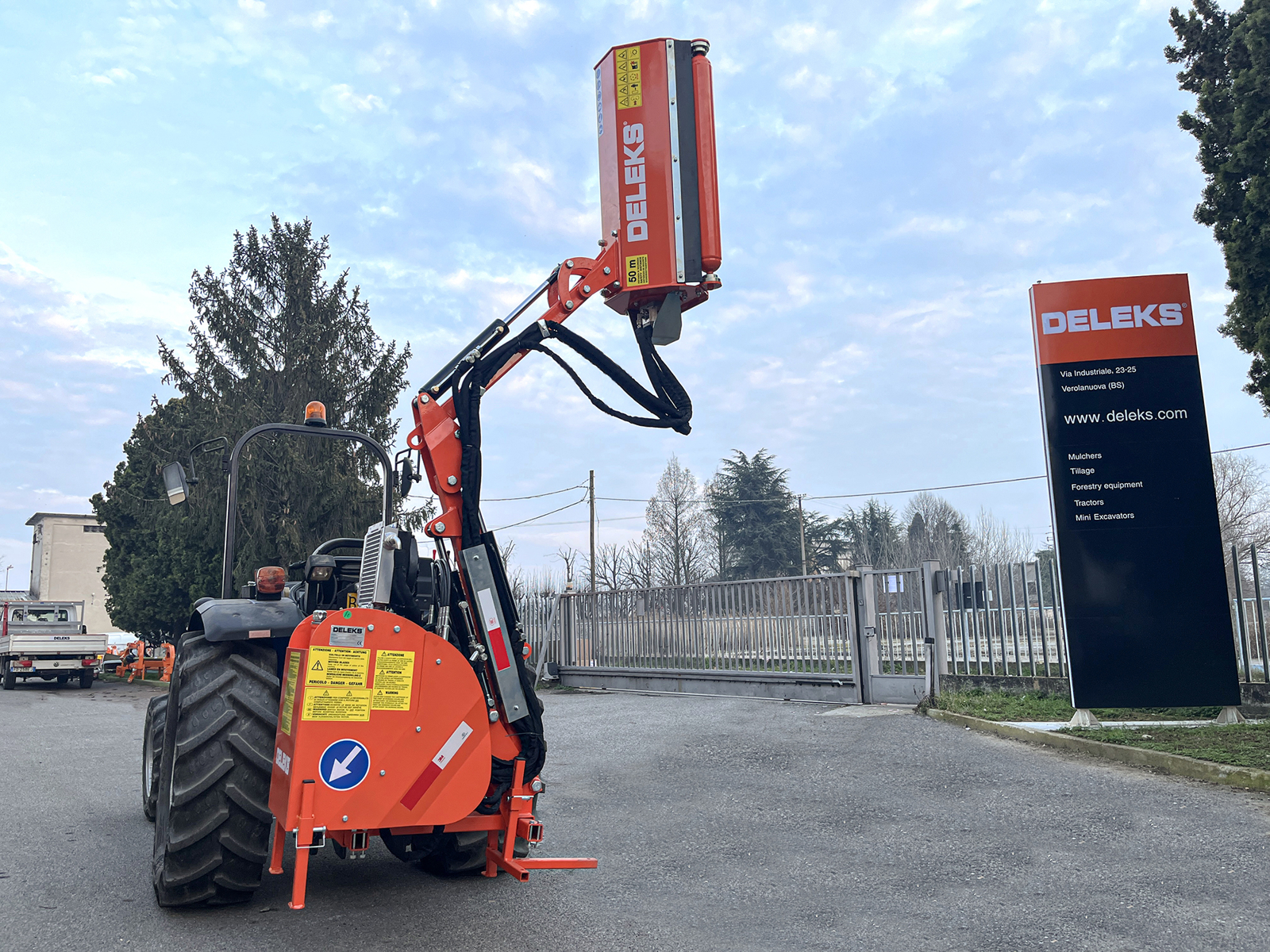

- With an 80-100-110cm ARK cutting head applied, it is ideal for removing excess vegetation from the traffic island, ditches, embankments, from the roadside, service passages, under trees and for cleaning the land adjacent to homes, parks and recreational areas.

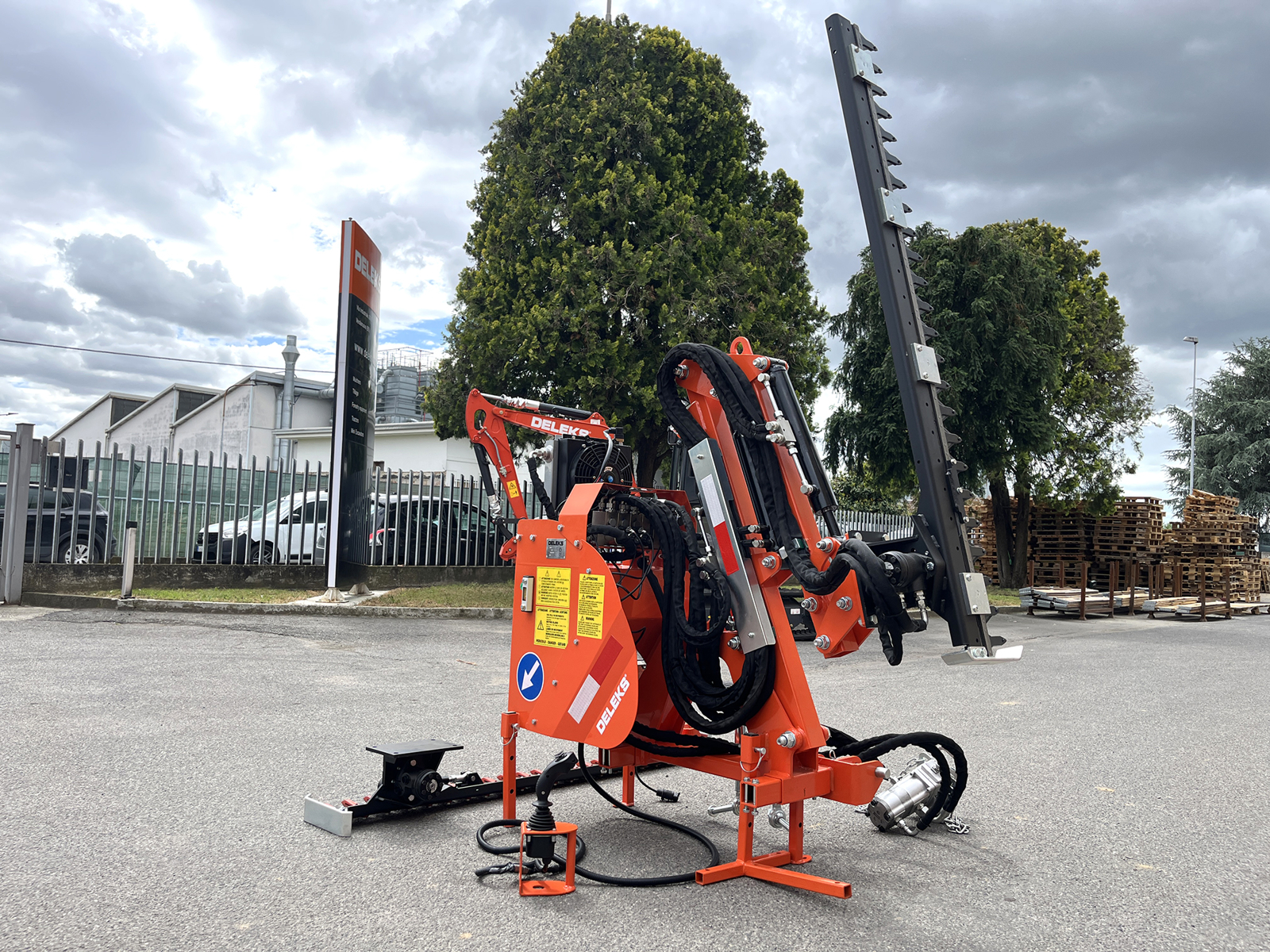

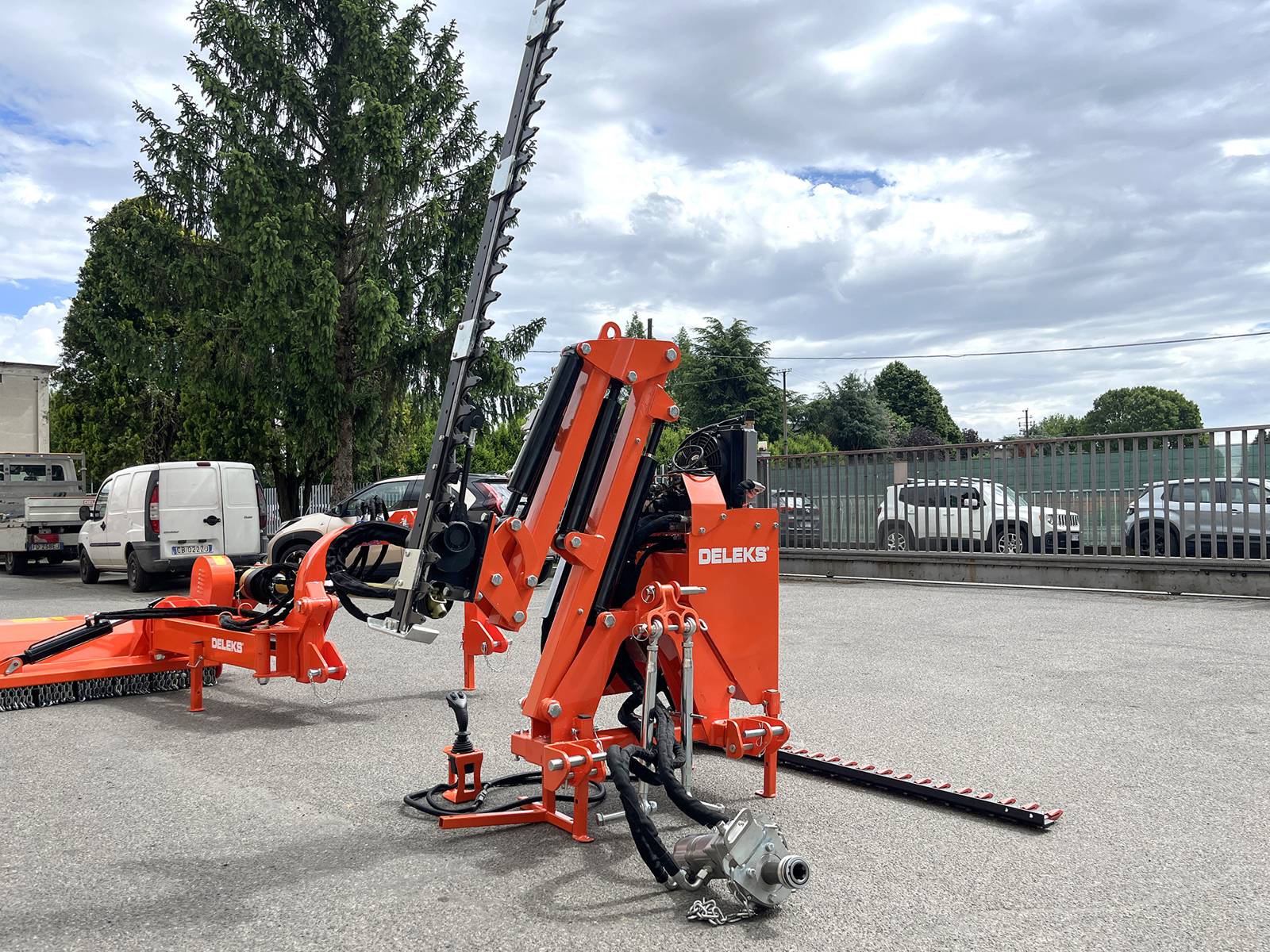

- With an HRS 130-160-180cm hedge trimmer bar attached, it is ideal for hedges and tree branches up to 2-3cm in diameter.
- With the HRD 130-160-180cm double hedge trimmer bar applied, it is ideal for grass, and precise work on hedges and trees with fine branches (max 1cm in diameter).
The hedge cutter can be used with all 20-60HP compact tractors e.g Kubota, John Deere 2-3, Ford, McCormick, Iseki, Yanmar, Lamborghini, Goldoni.
Minimum weight of the tractor: 1500 kg.
Machine weight without cutting accessory: 300 kg
Hydraulic oil weight: approximately 60kg.
BENEFITS AND FEATURES

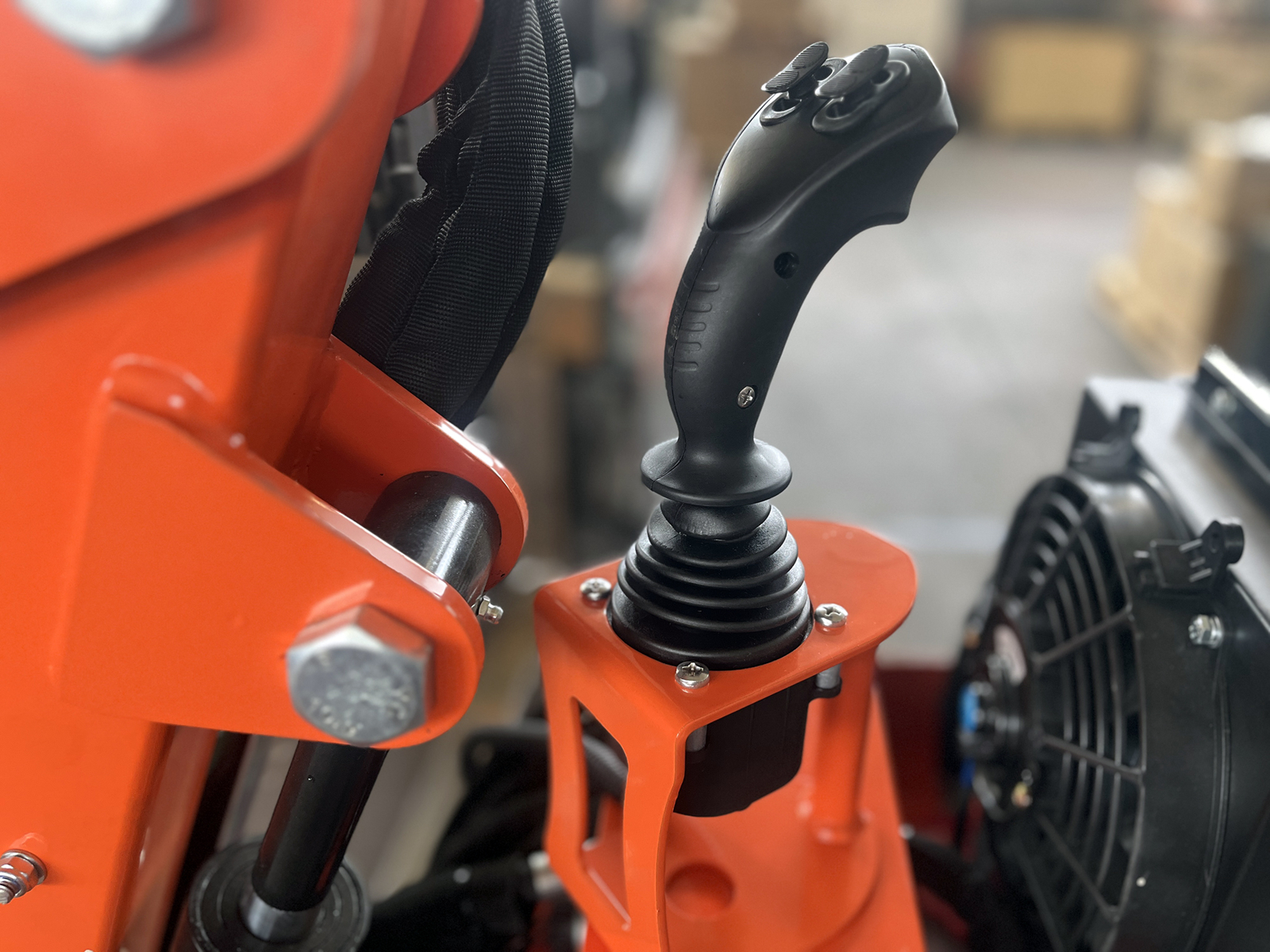

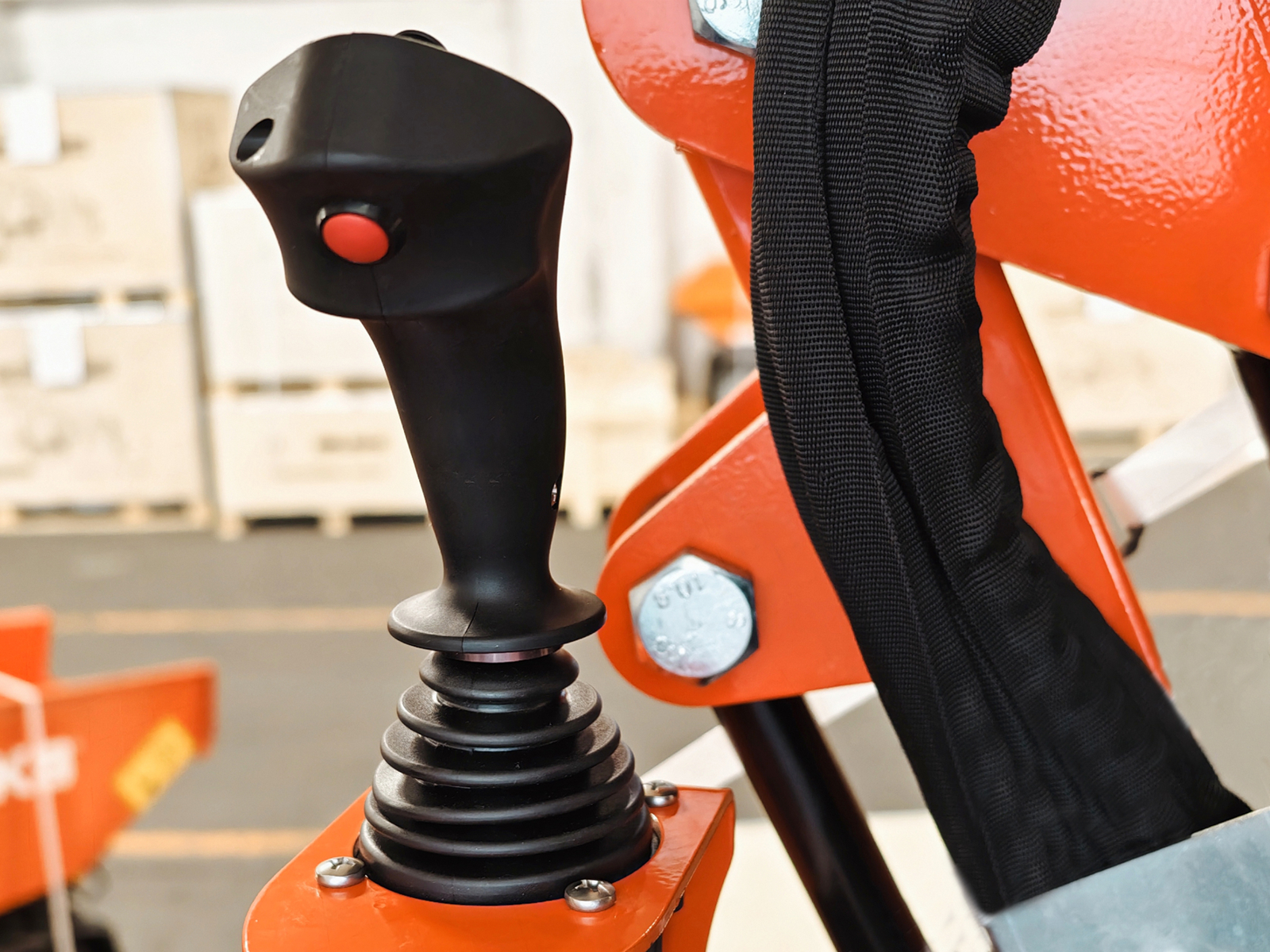

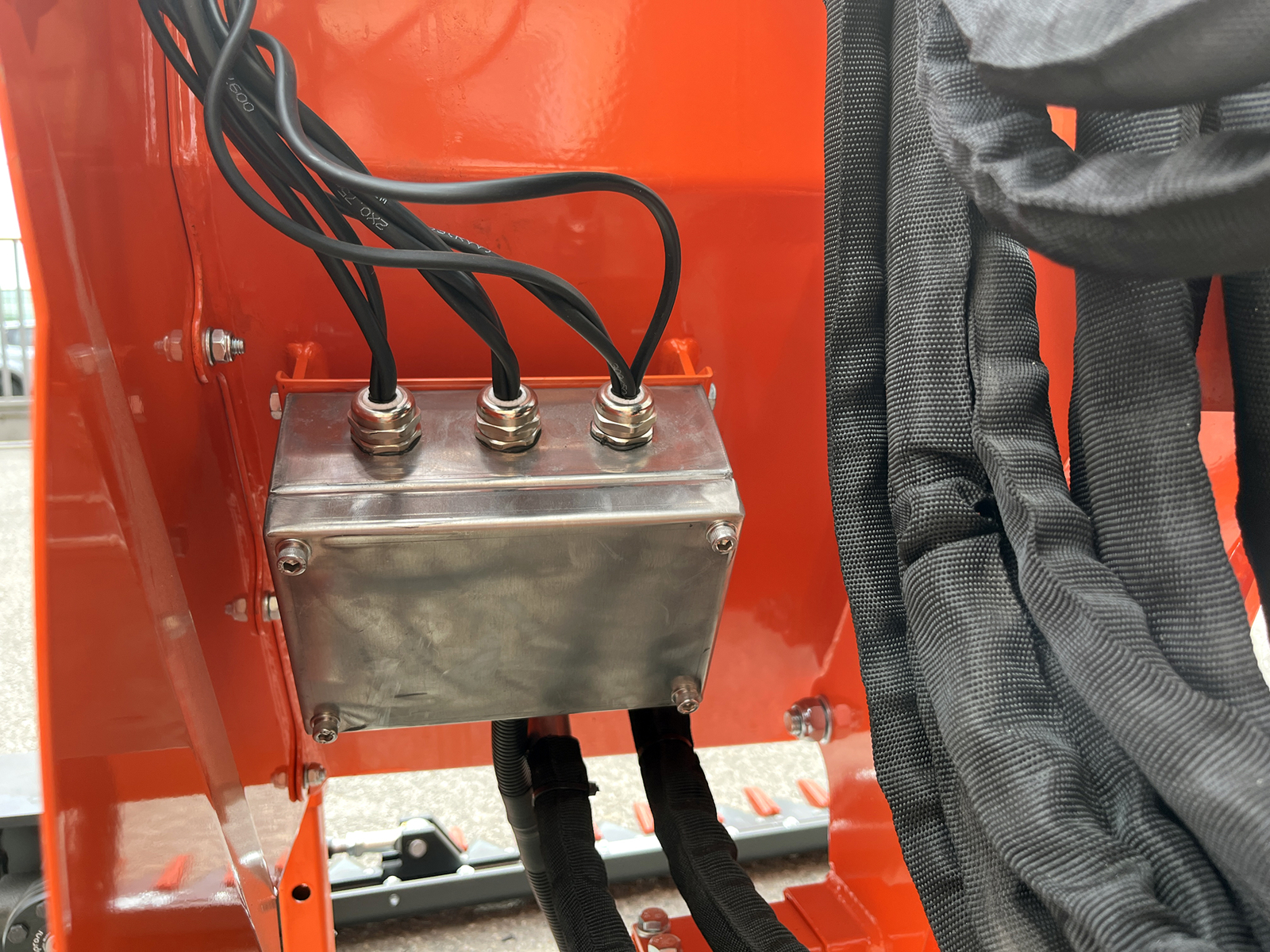

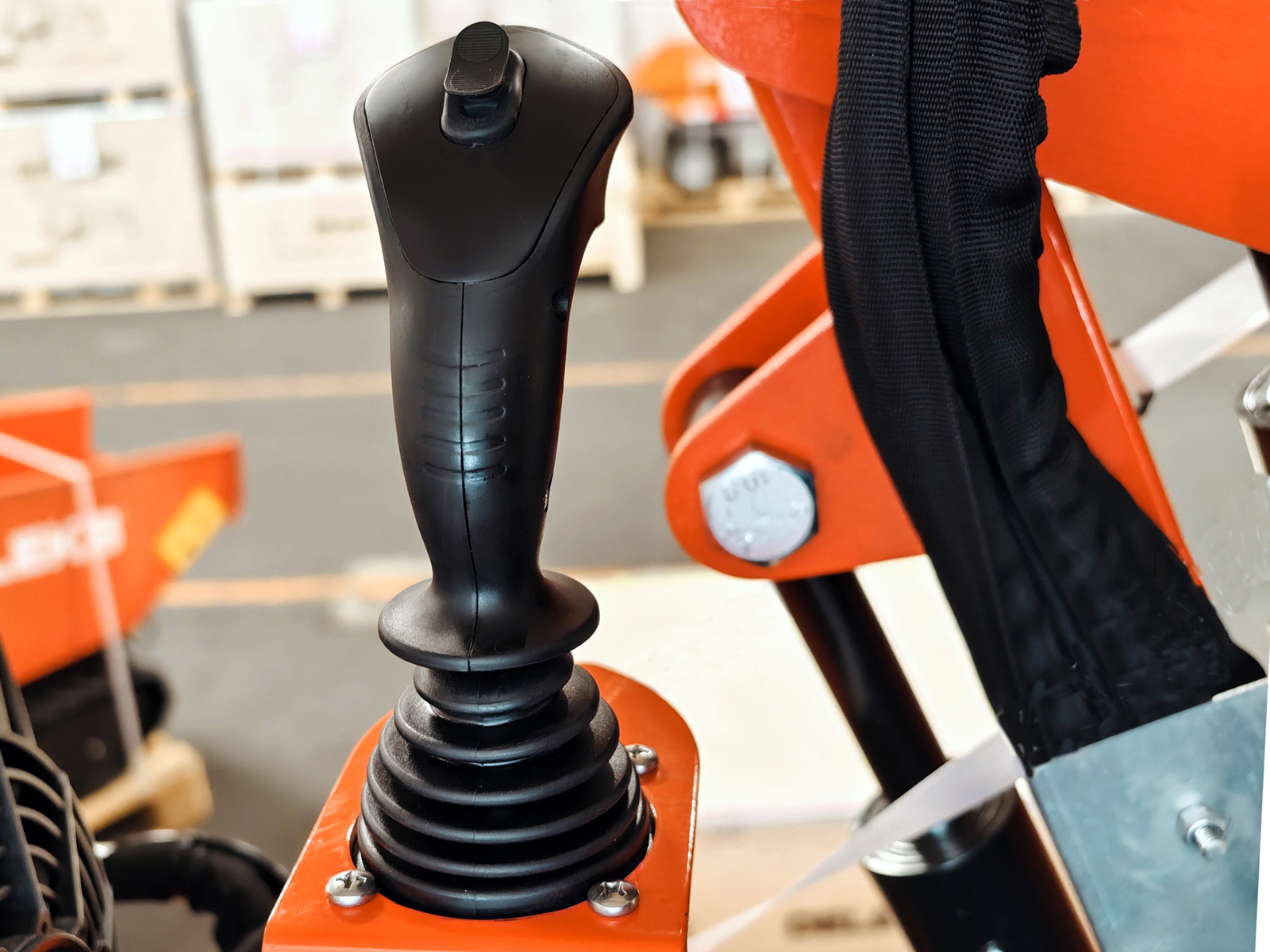

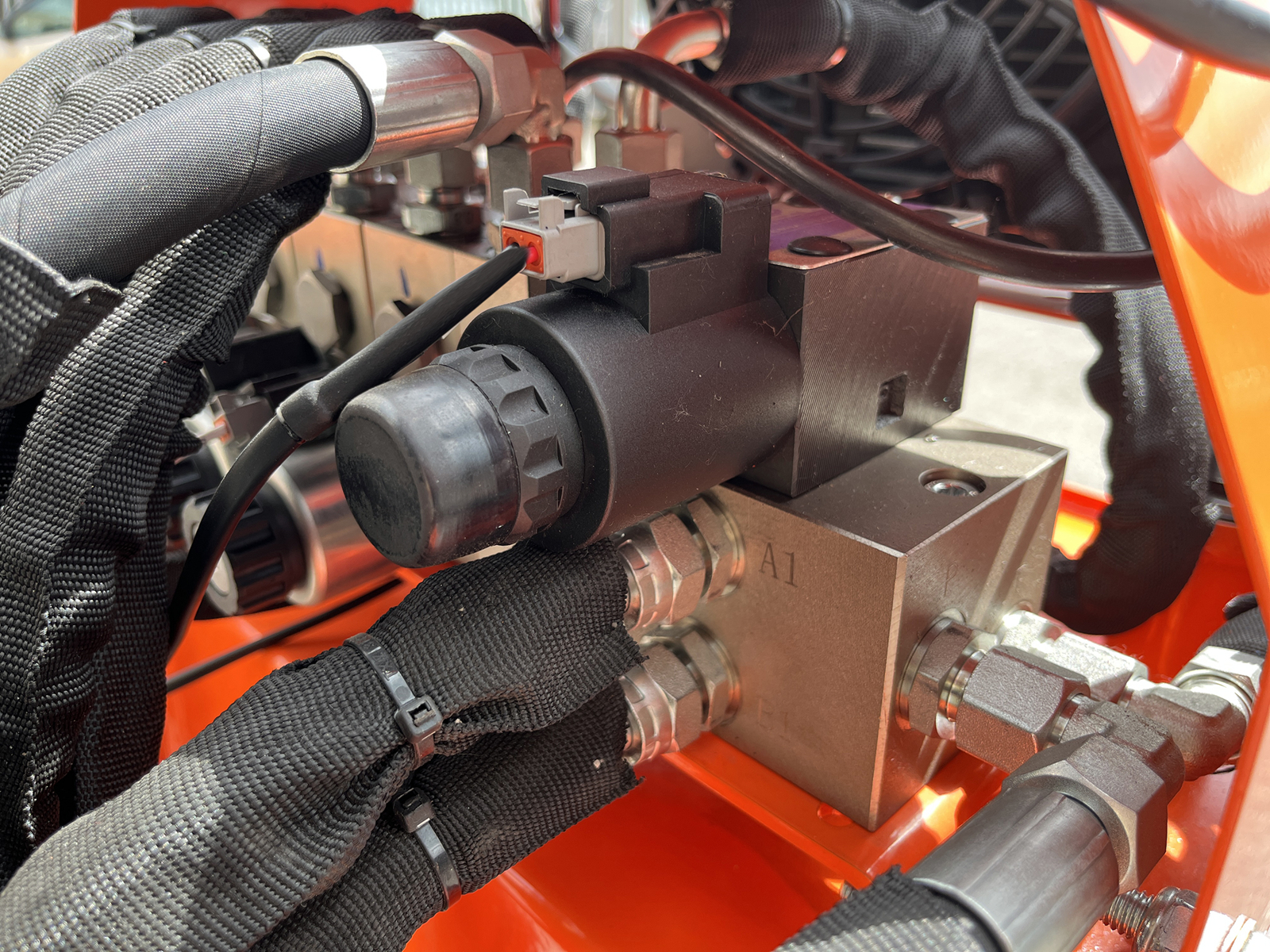

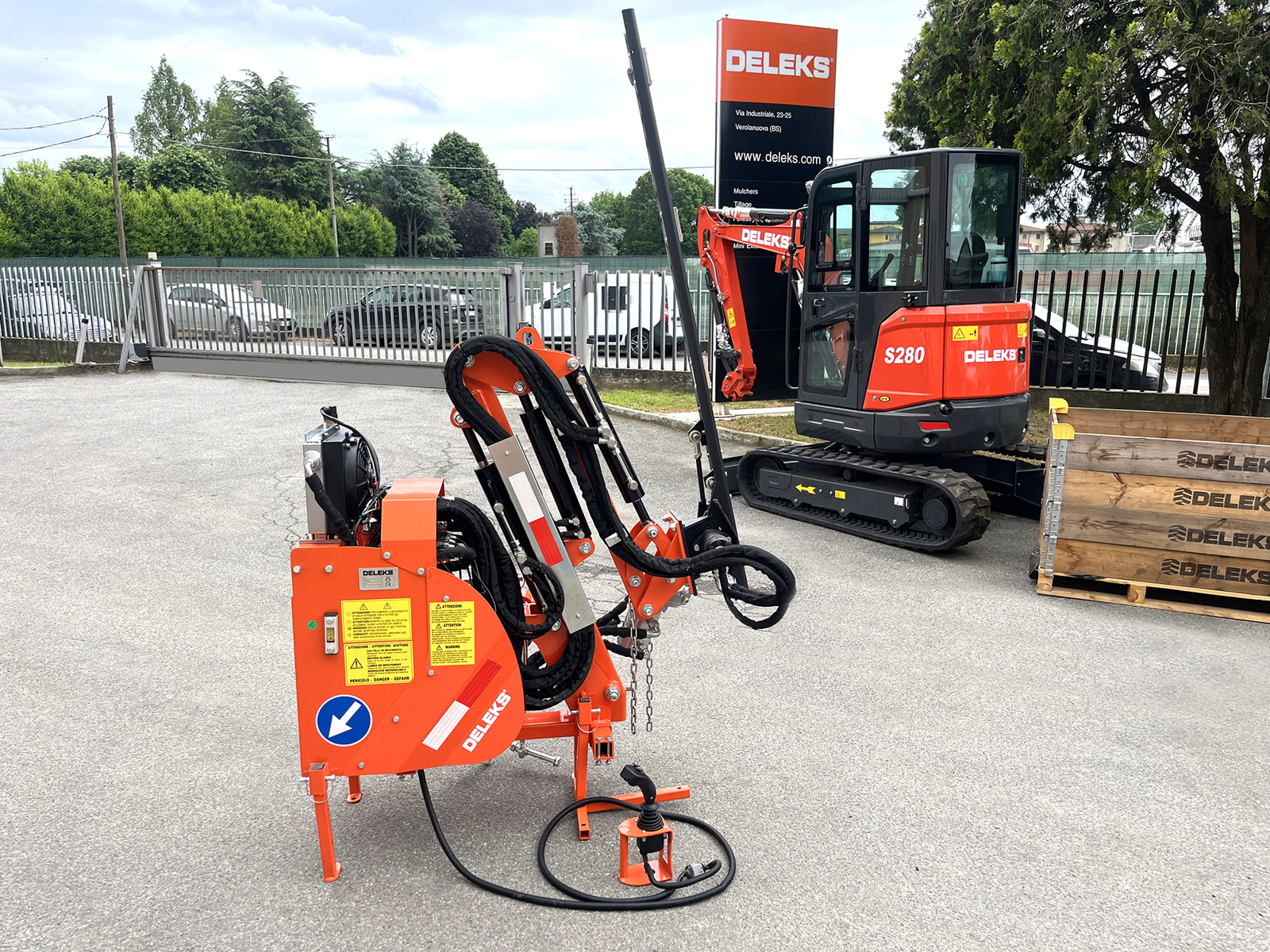

Electro-hydraulic distributor with Joystick.

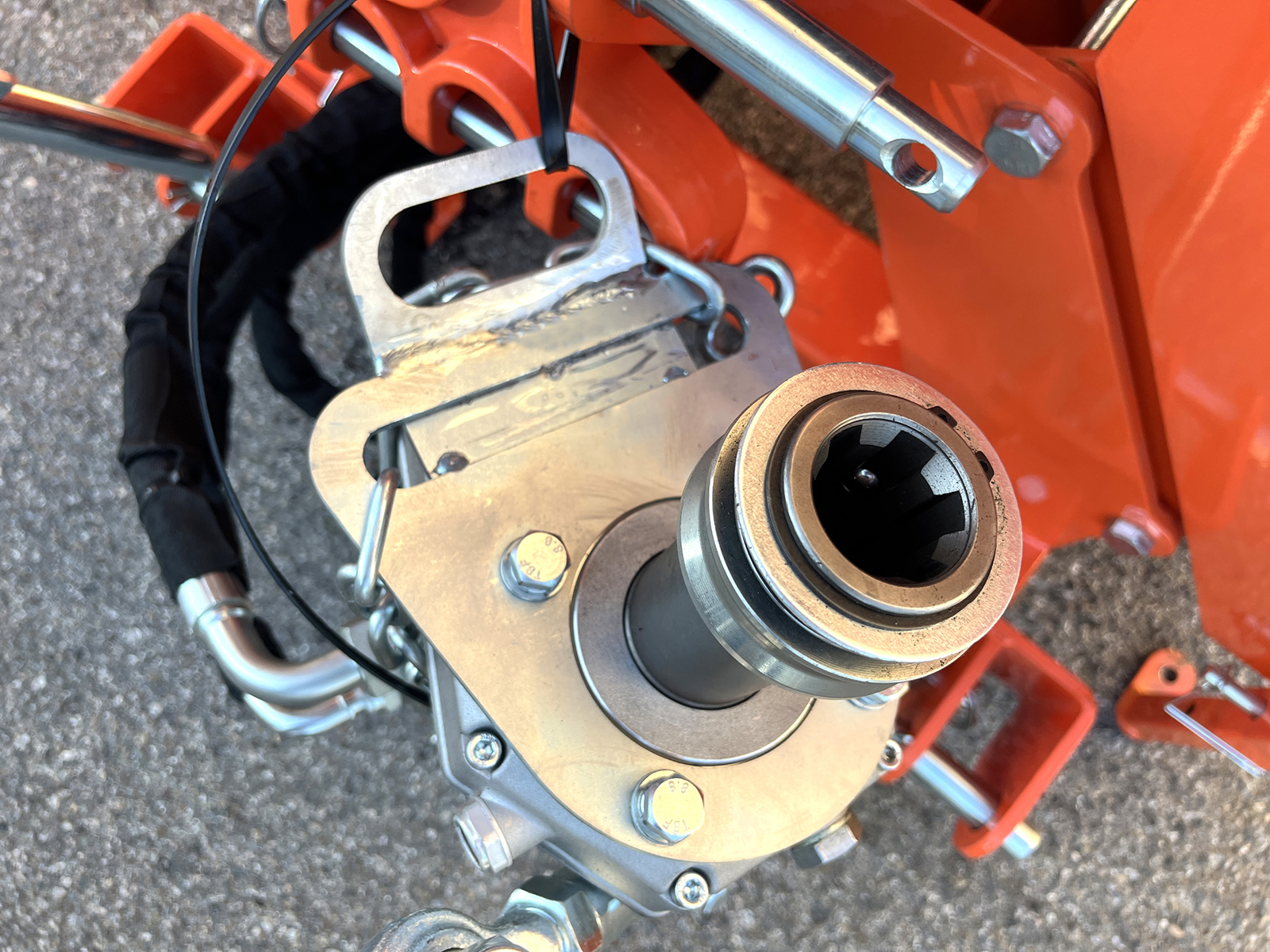

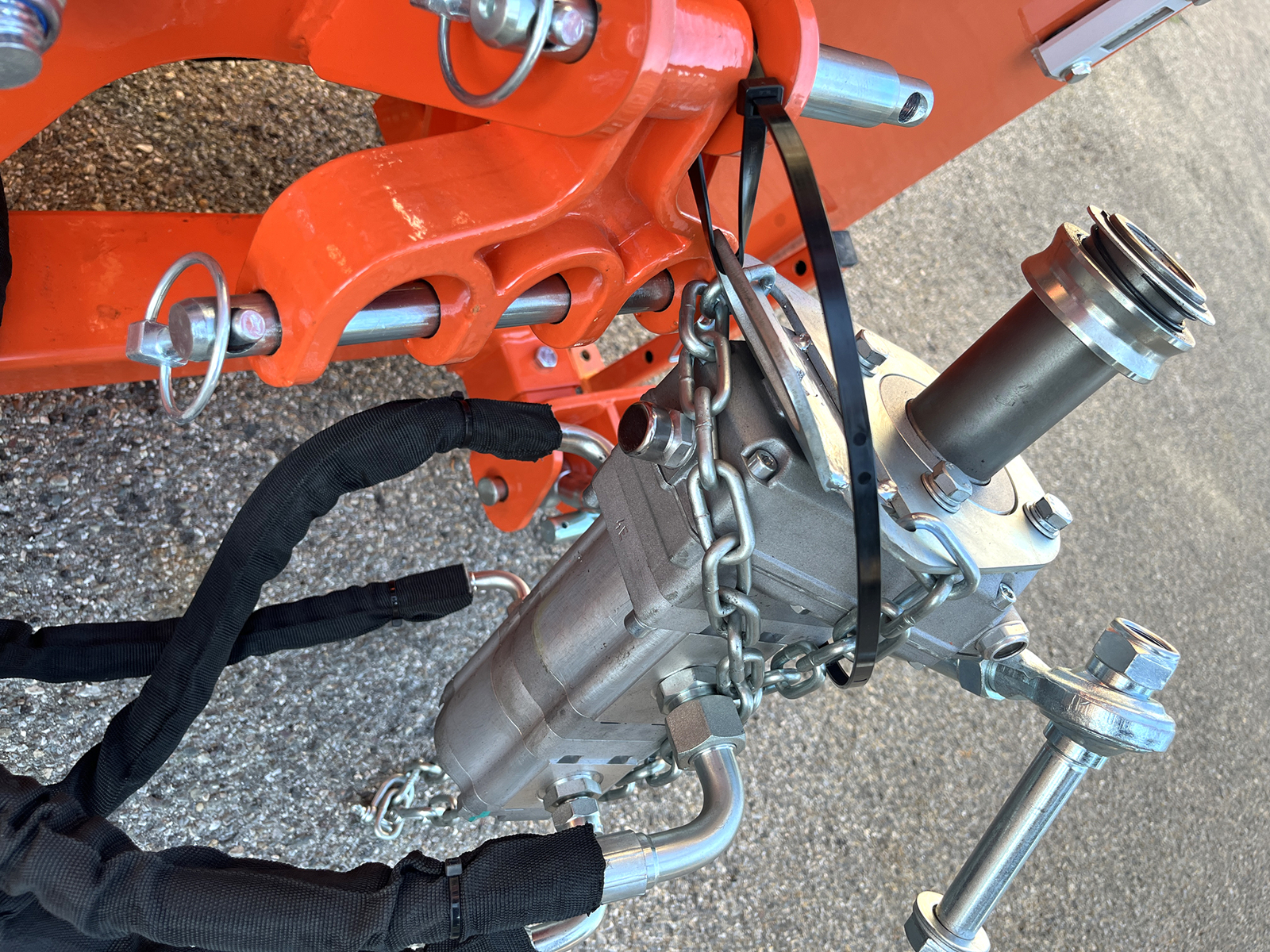

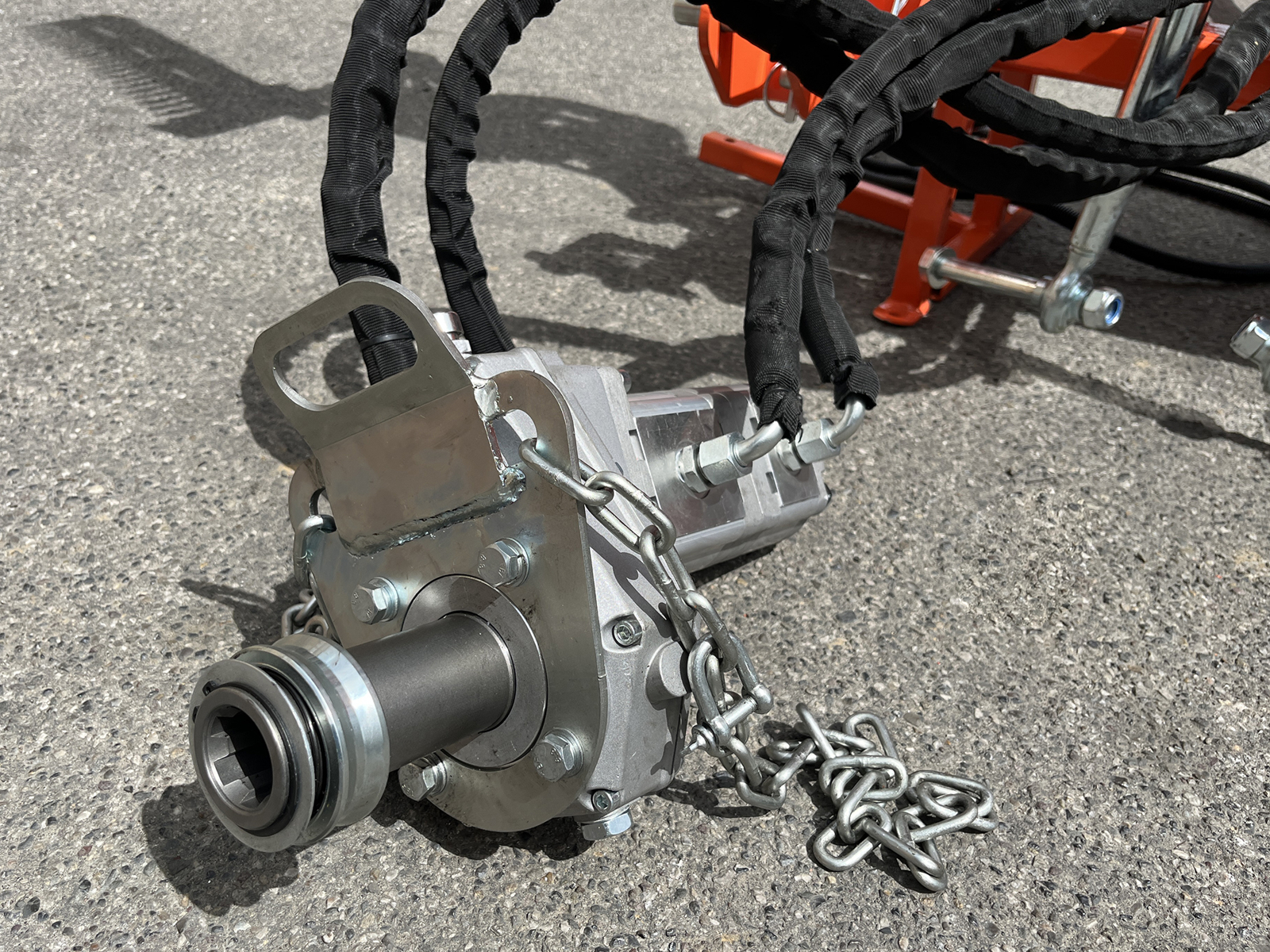

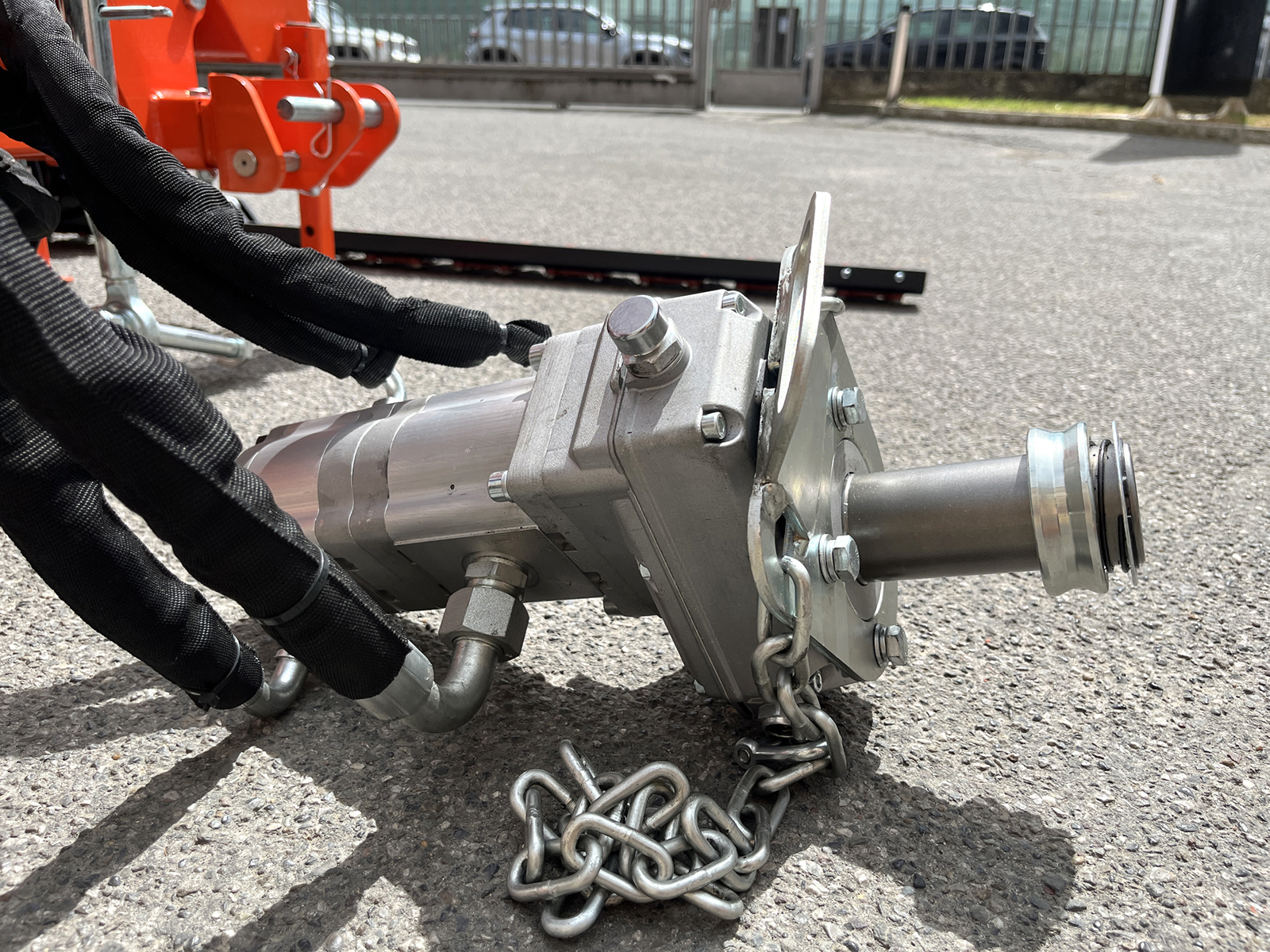

Double hydraulic pump: allows to move together the arm and the mower.

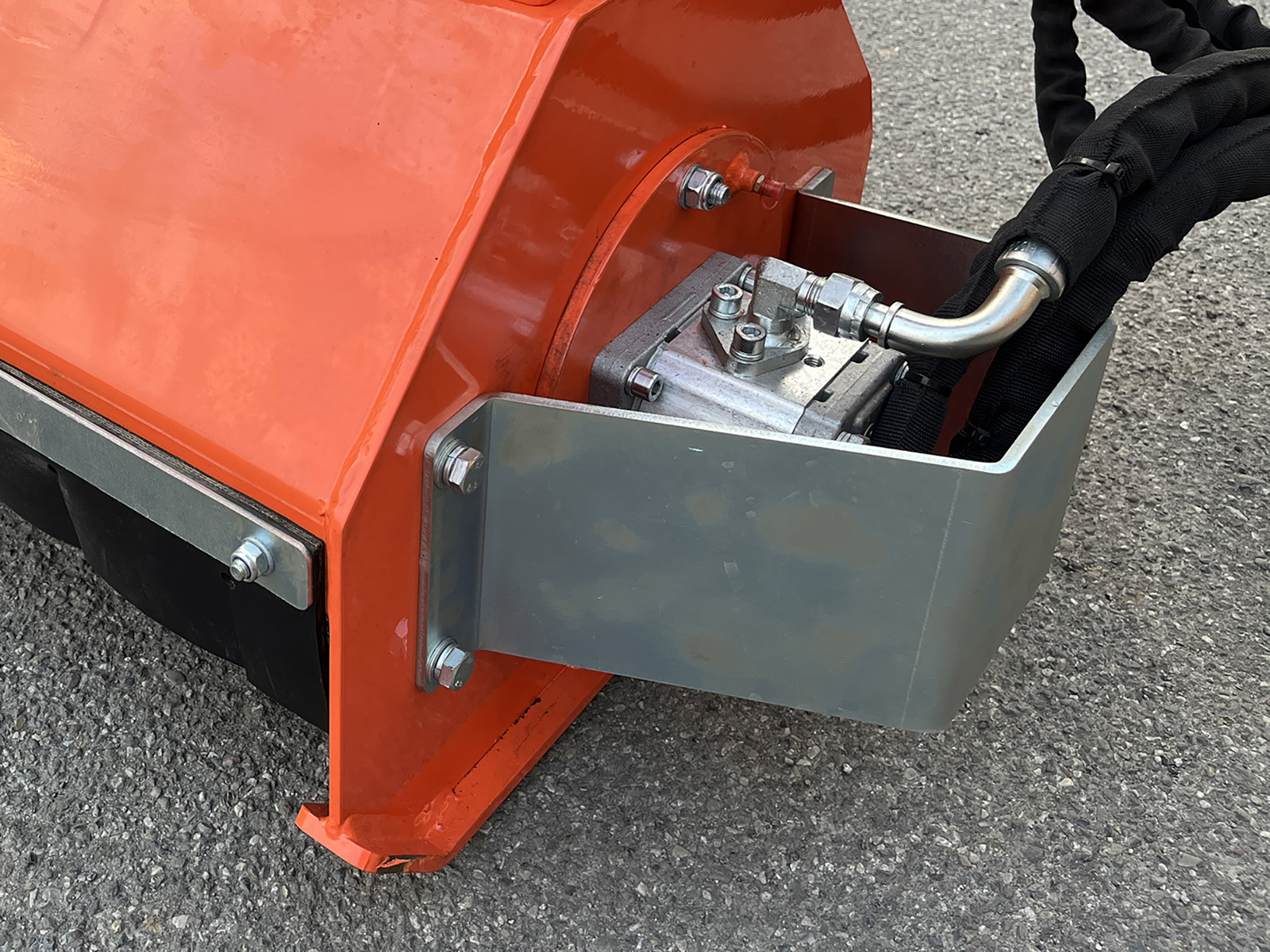

Hydraulic motor (mower): Casappa (Made in Italy).

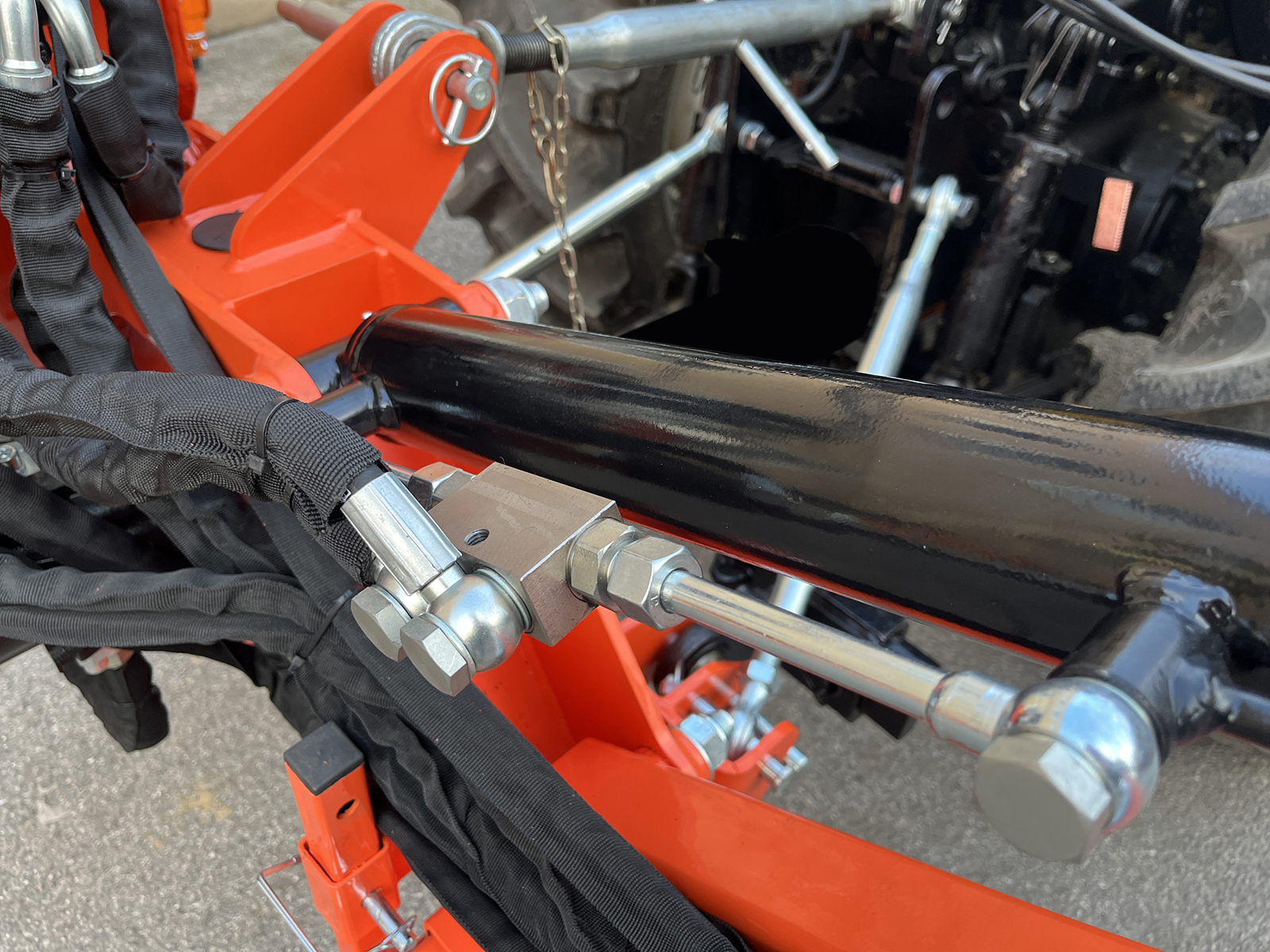

100% hydraulically operated arm to accommodate for any kind of gradient of terrain. If the tractor is on slope the arm will steady itself to reduce downtime.

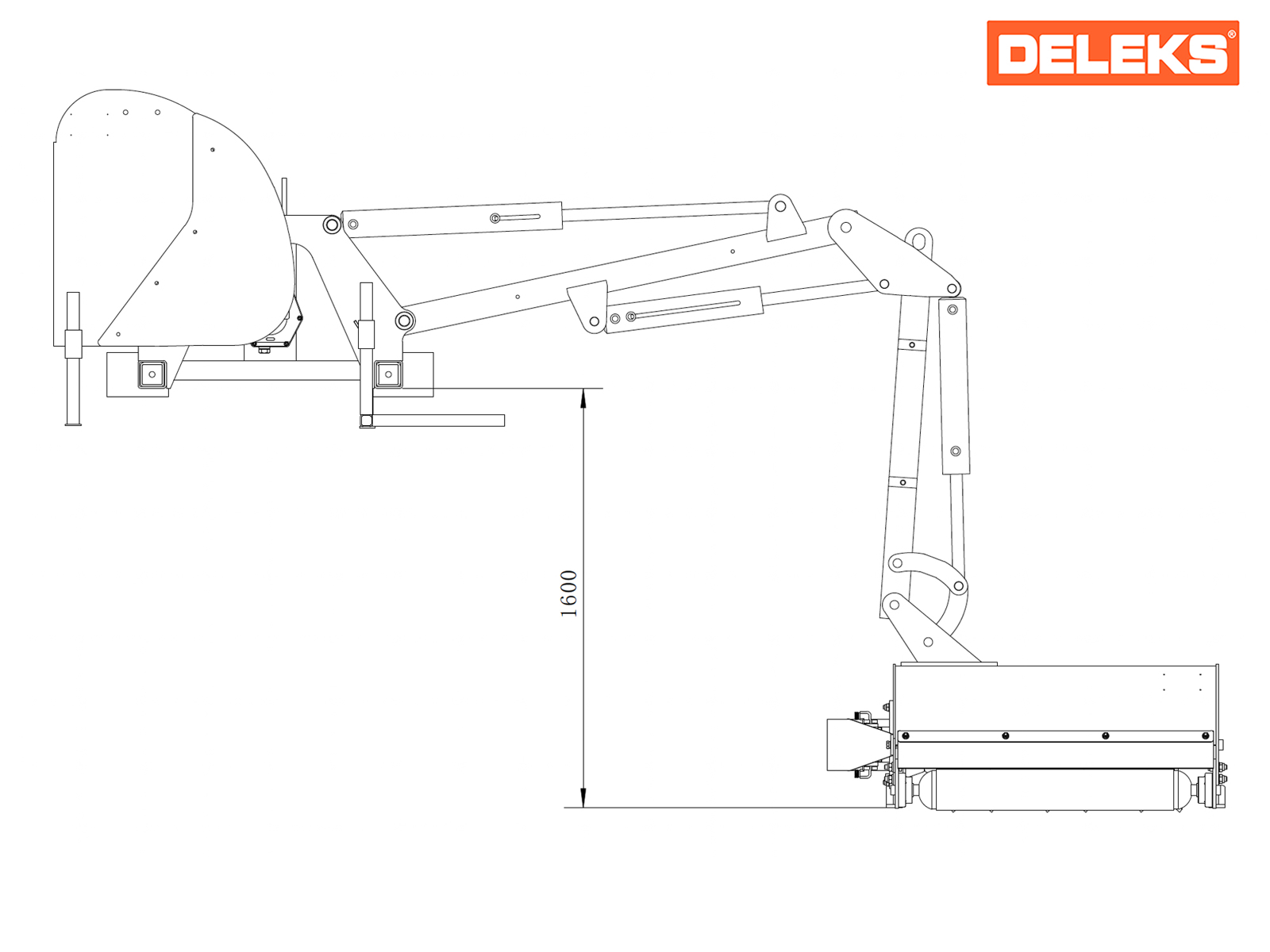

When the arm is extended it remains low to go under the plants.
The lightweight design allows its use on flat ground or on verges.

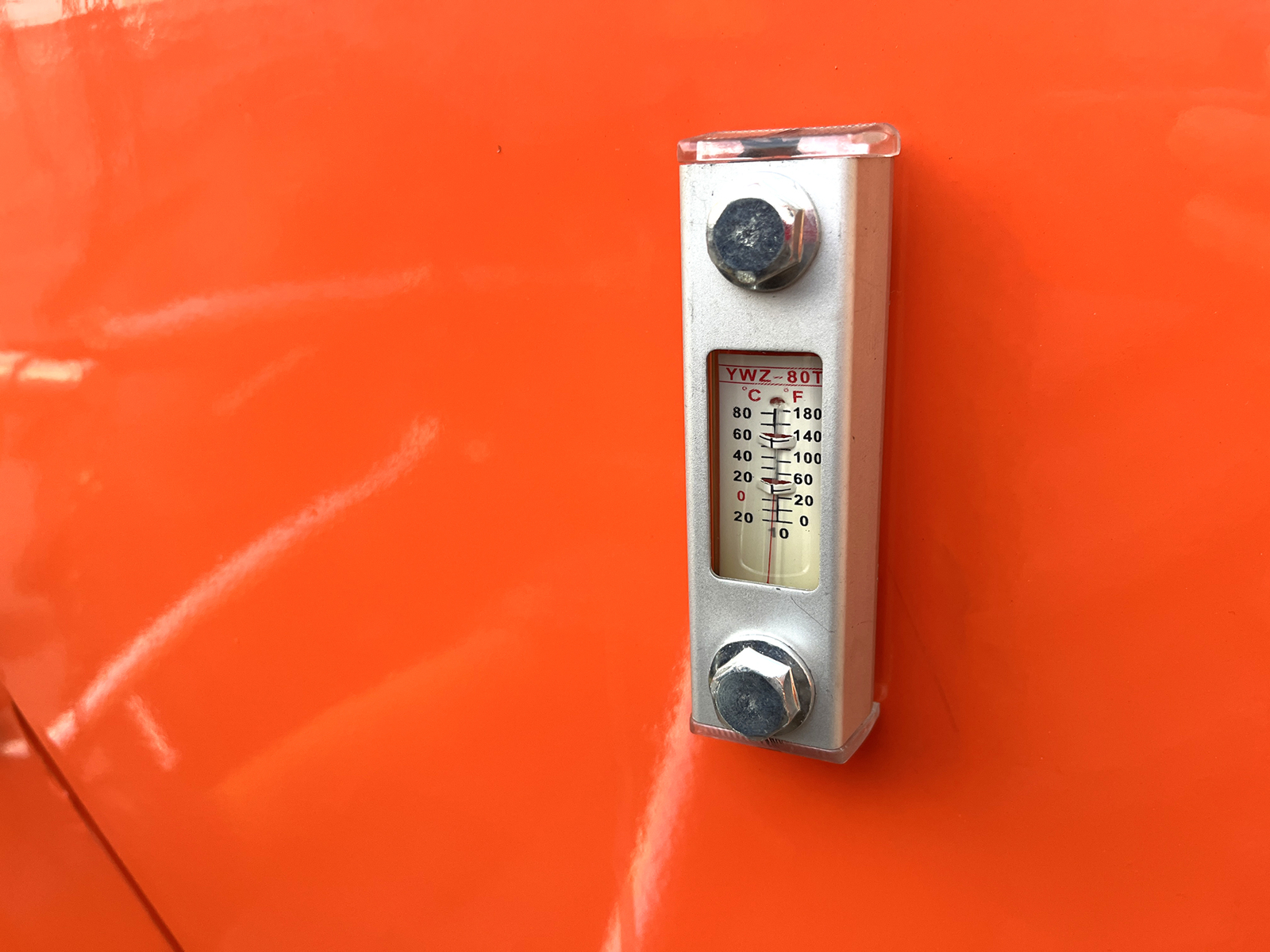

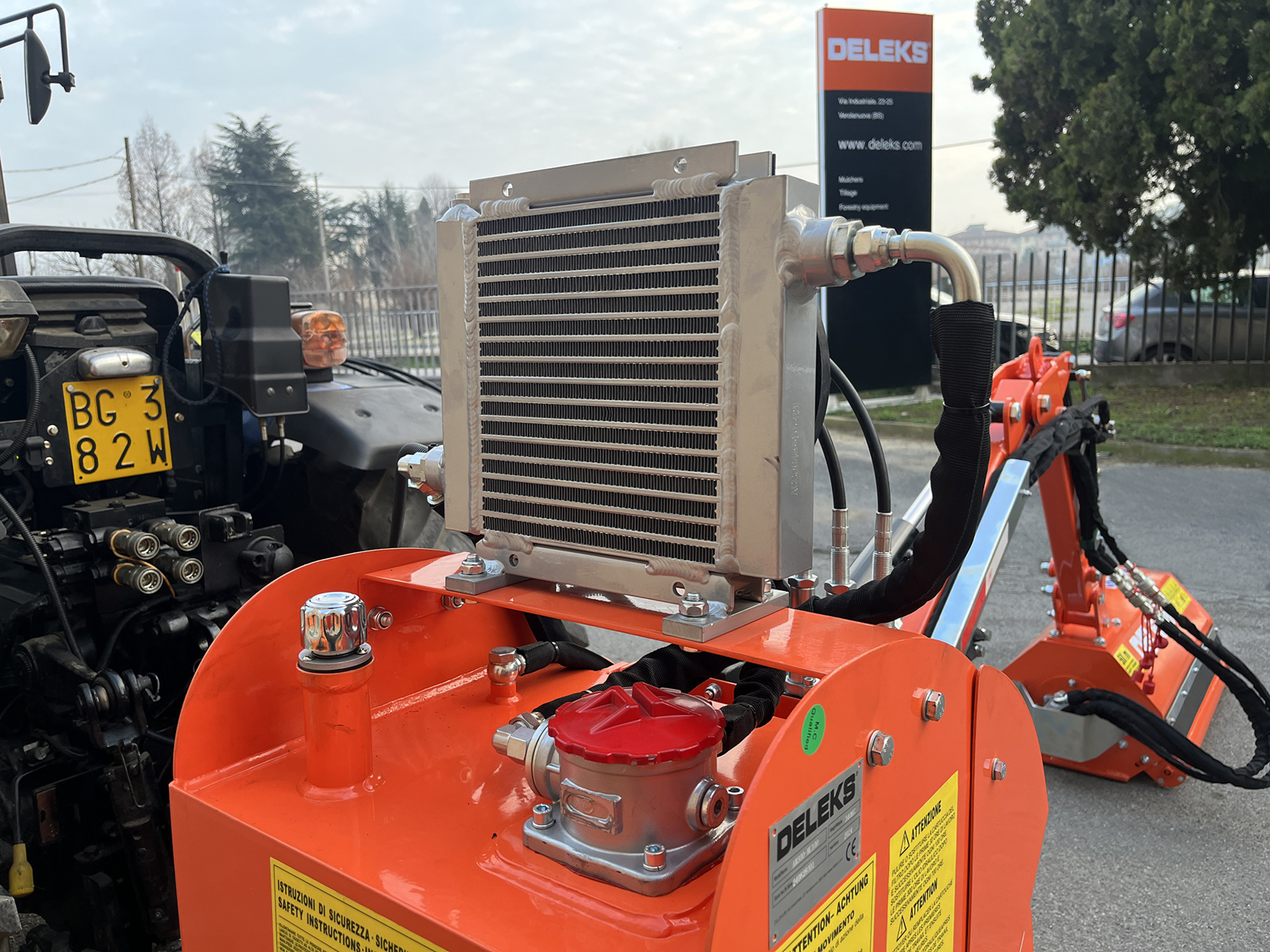

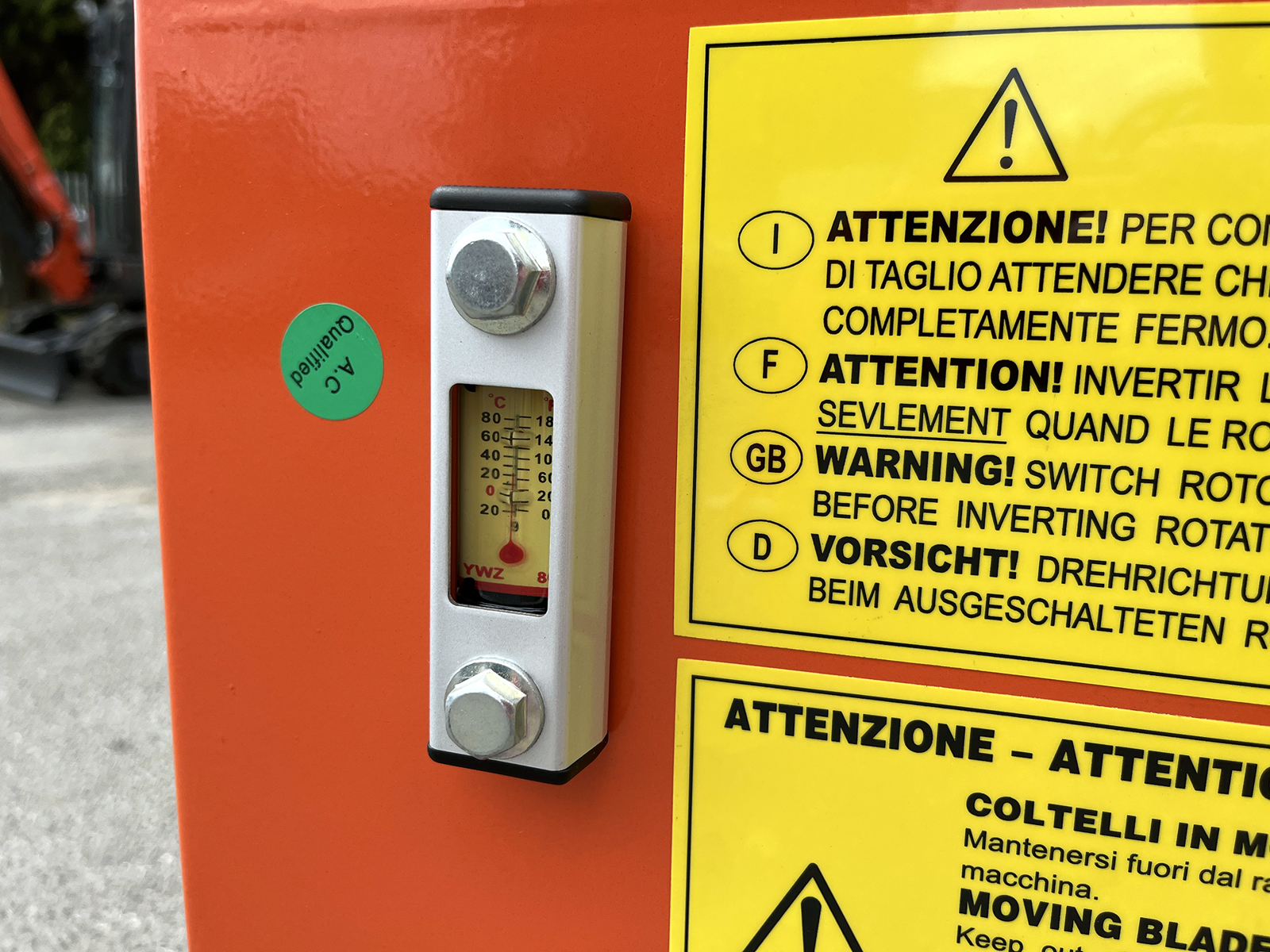

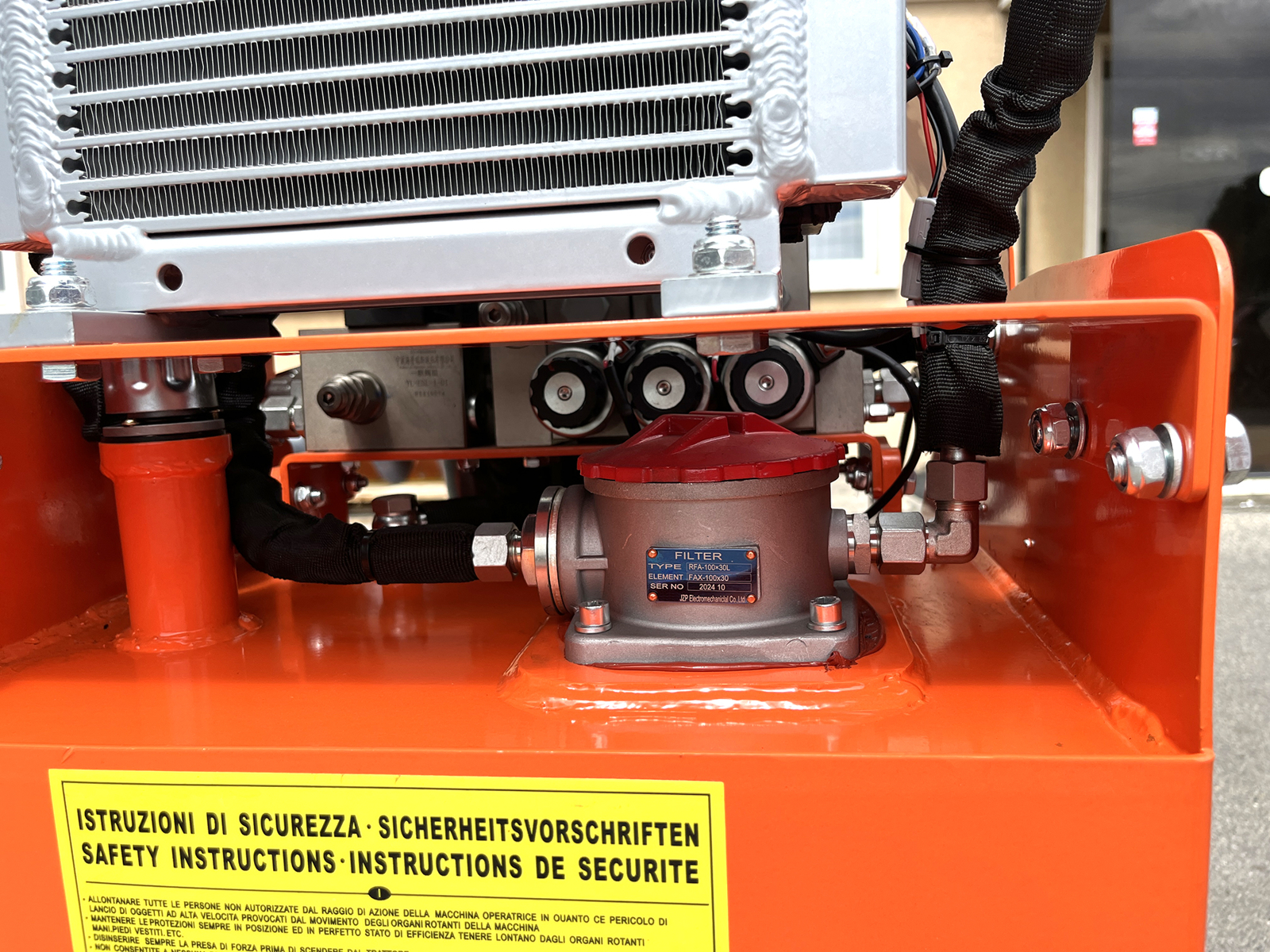

60 liters oil tank (already supplied level: Shell Tellus 46 S2 MX 46).

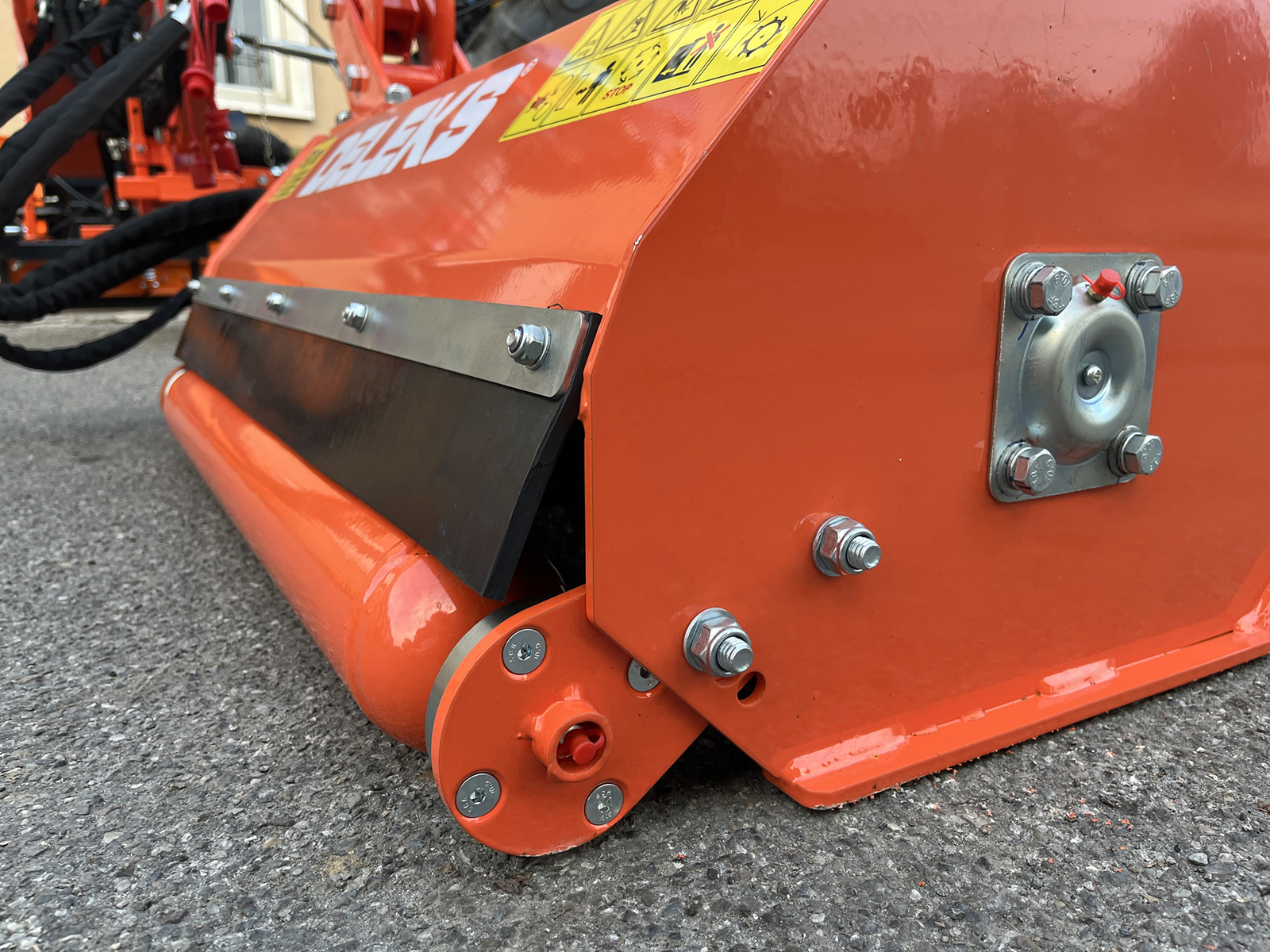

Adjustable roller unit.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual

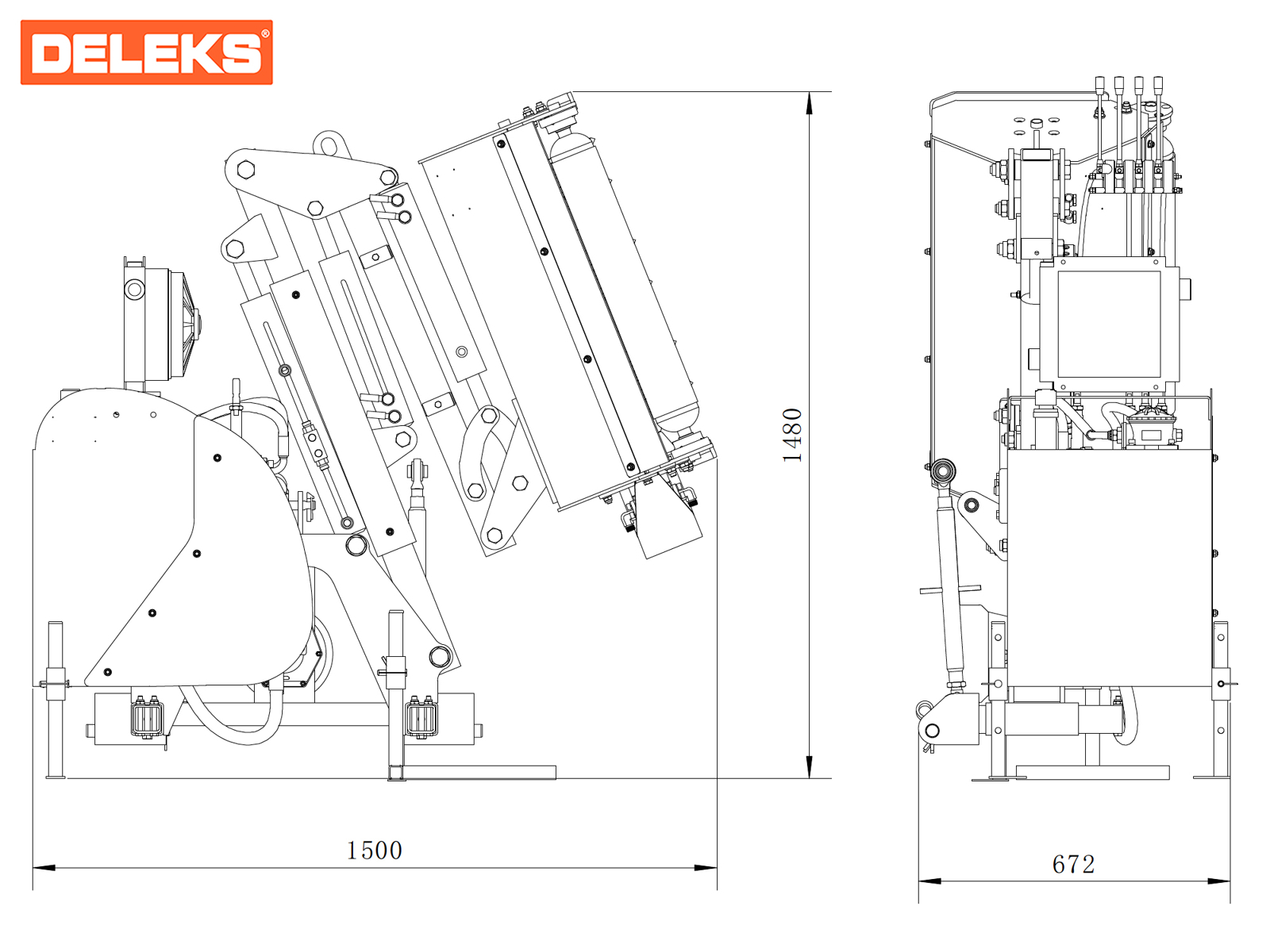

CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 300.0 kg |
| Tractor Power Range | 25-60 Hp |

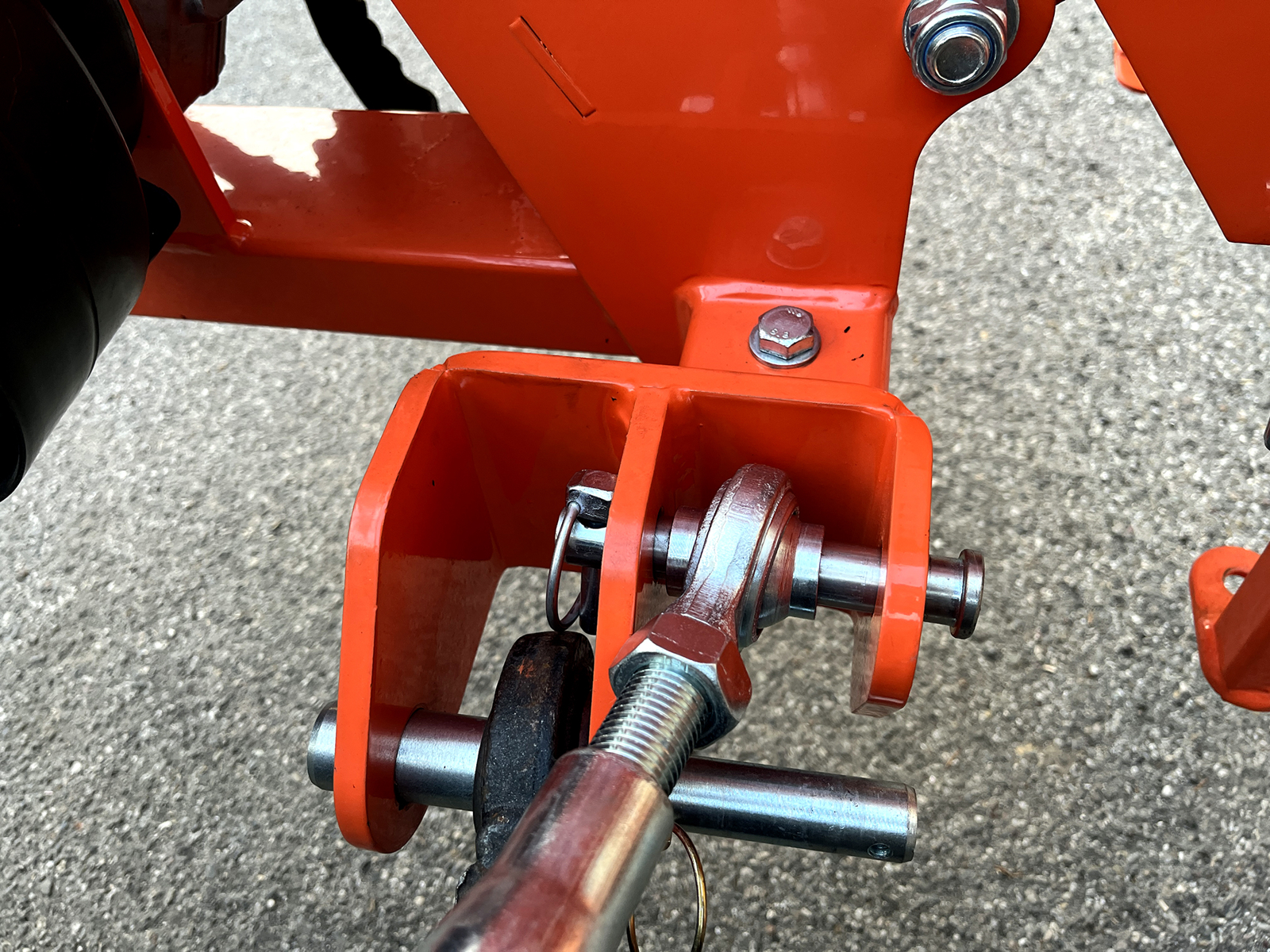

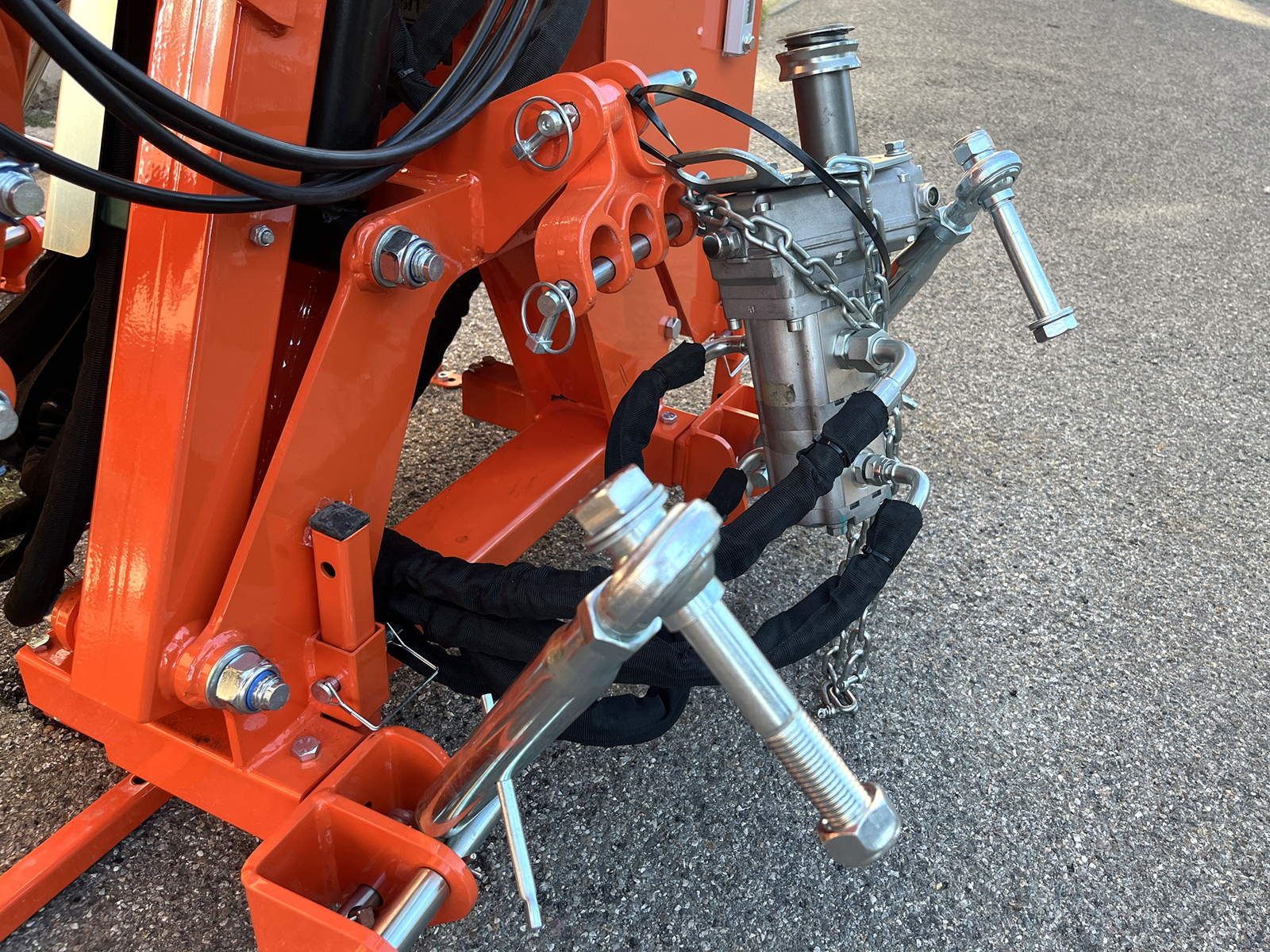

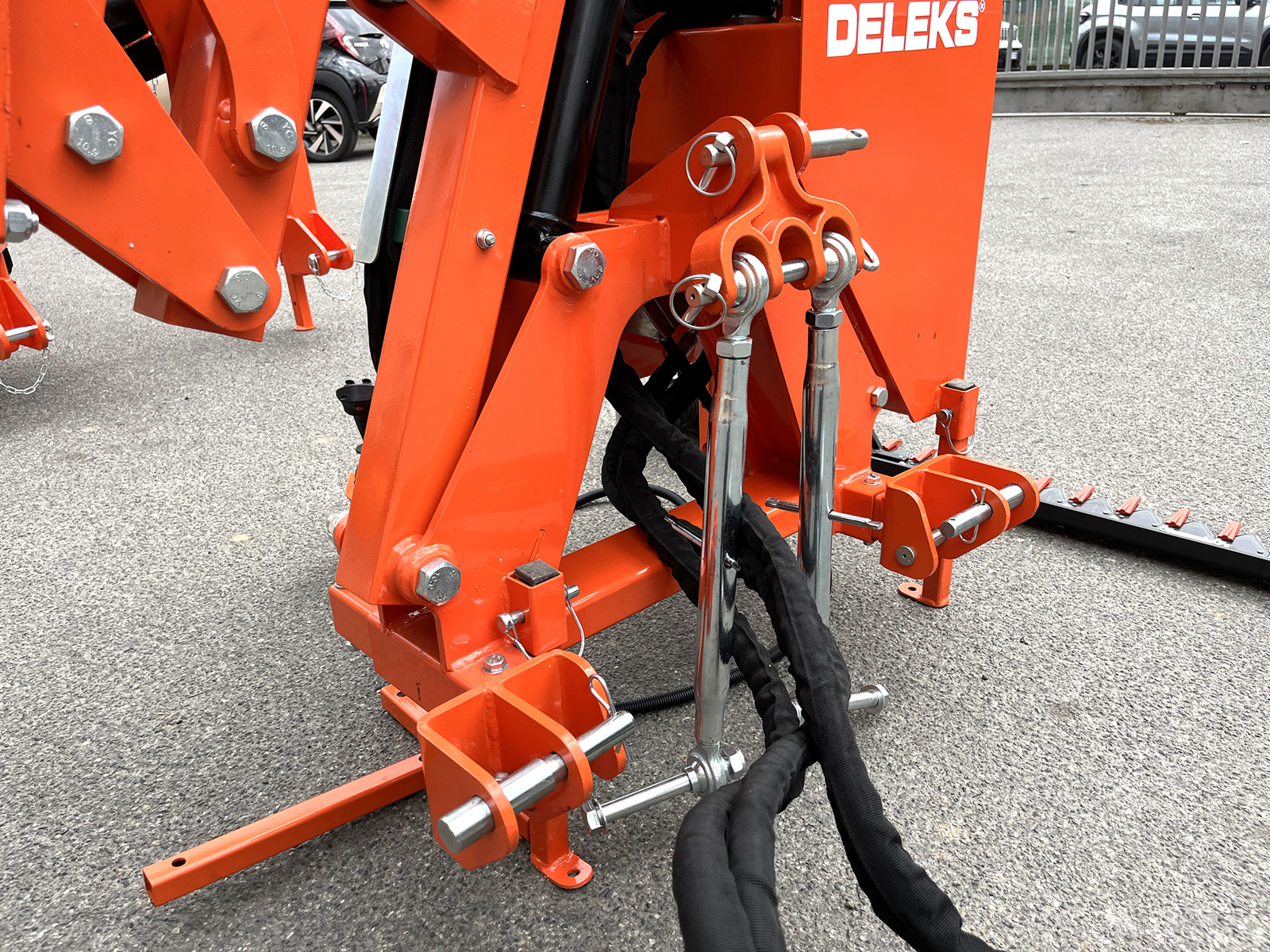

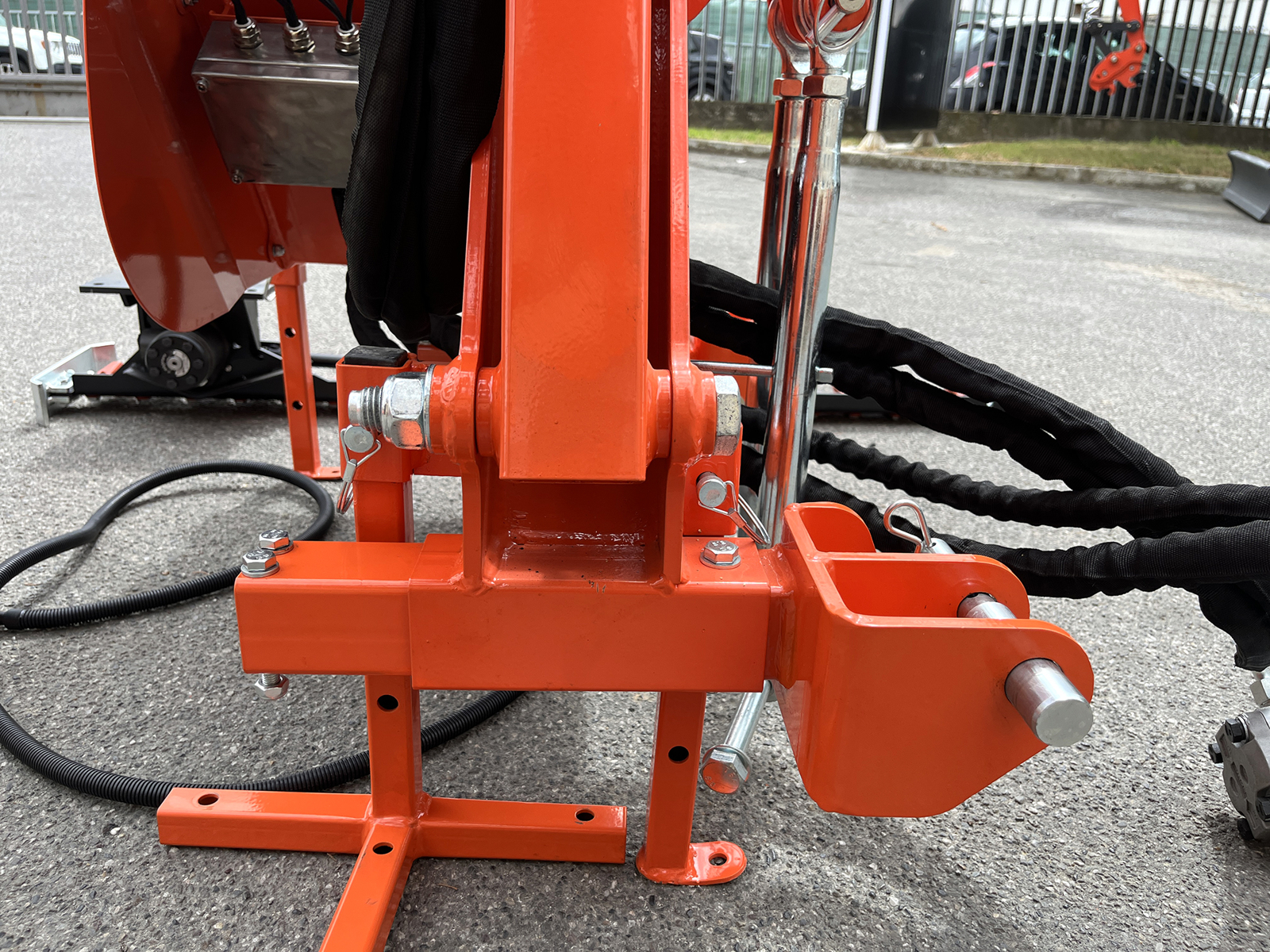

| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Spacing between the 2 lower points | 390.0 - 780.0 mm |
| Transmission: Drive method | Hydraulic |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Hydraulic Hoses | WP 400 Bar |
| Transmission: Oil in the tank | 60.0 L |
| Packing sizes | 1600.0*800.0*1700.0 mm |
DETAILS
CLOSEHedgecutter for tractor, multiple hedge and grass verge rear arm cutter - DELEKS® MERLO, own hydraulic system, runs completely off the PTO - Pto pump included - Joystick - can mount a cutting head with 80-100-110cm working width, or a 130-160 or 180cm hedge trimmer bar.
* Machine body only, flailhead and fingerbar are optionals.
OVERVIEW
DELEKS® MERLO is a multifunctional brush cutter arm:
- With an 80-100-110cm ARK cutting head applied, it is ideal for removing excess vegetation from the traffic island, ditches, embankments, from the roadside, service passages, under trees and for cleaning the land adjacent to homes, parks and recreational areas.
- With an HRS 130-160-180cm hedge trimmer bar attached, it is ideal for hedges and tree branches up to 2-3cm in diameter.
- With the HRD 130-160-180cm double hedge trimmer bar applied, it is ideal for grass, and precise work on hedges and trees with fine branches (max 1cm in diameter).
The hedge cutter can be used with all 20-60HP compact tractors e.g Kubota, John Deere 2-3, Ford, McCormick, Iseki, Yanmar, Lamborghini, Goldoni.
Minimum weight of the tractor: 1500 kg.
Machine weight without cutting accessory: 300 kg
Hydraulic oil weight: approximately 60kg.
BENEFITS AND FEATURES
Electro-hydraulic distributor with Joystick.
Double hydraulic pump: allows to move together the arm and the mower.
Hydraulic motor (mower): Casappa (Made in Italy).
100% hydraulically operated arm to accommodate for any kind of gradient of terrain. If the tractor is on slope the arm will steady itself to reduce downtime.
When the arm is extended it remains low to go under the plants.
The lightweight design allows its use on flat ground or on verges.
60 liters oil tank (already supplied level: Shell Tellus 46 S2 MX 46).
Adjustable roller unit.
Documentation supplied with this article:
Invoice or Receipt
CE Conformity
Maintenance Manual
CHARACTERISTICS
CLOSE| Characteristic | Units metric |
|---|---|
| Weight | 300.0 kg |
| Tractor Power Range | 25-60 Hp |
| 3 point linkage | Cat. 1-2 (ø 19.0-22.0mm / 25.0-28.0mm) |
| Spacing between the 2 lower points | 390.0 - 780.0 mm |
| Transmission: Drive method | Hydraulic |
| Transmission: PTO | 540 r/min |
| Transmission: Rotation of gearbox | Right side |
| Transmission: Free wheel | √ |
| Transmission: Oil in the gearbox | Yes / SAE 120 - ISO 72925 |
| Hydraulic Hoses | WP 400 Bar |
| Transmission: Oil in the tank | 60.0 L |
| Packing sizes | 1600.0*800.0*1700.0 mm |
Technical charts
CLOSE| Shell Tellus S2 MX 46: Specifications | Download PDF |
