Snowblade with plate for tractor, LN-250-A
Field test
DETAILS
Product conditions:

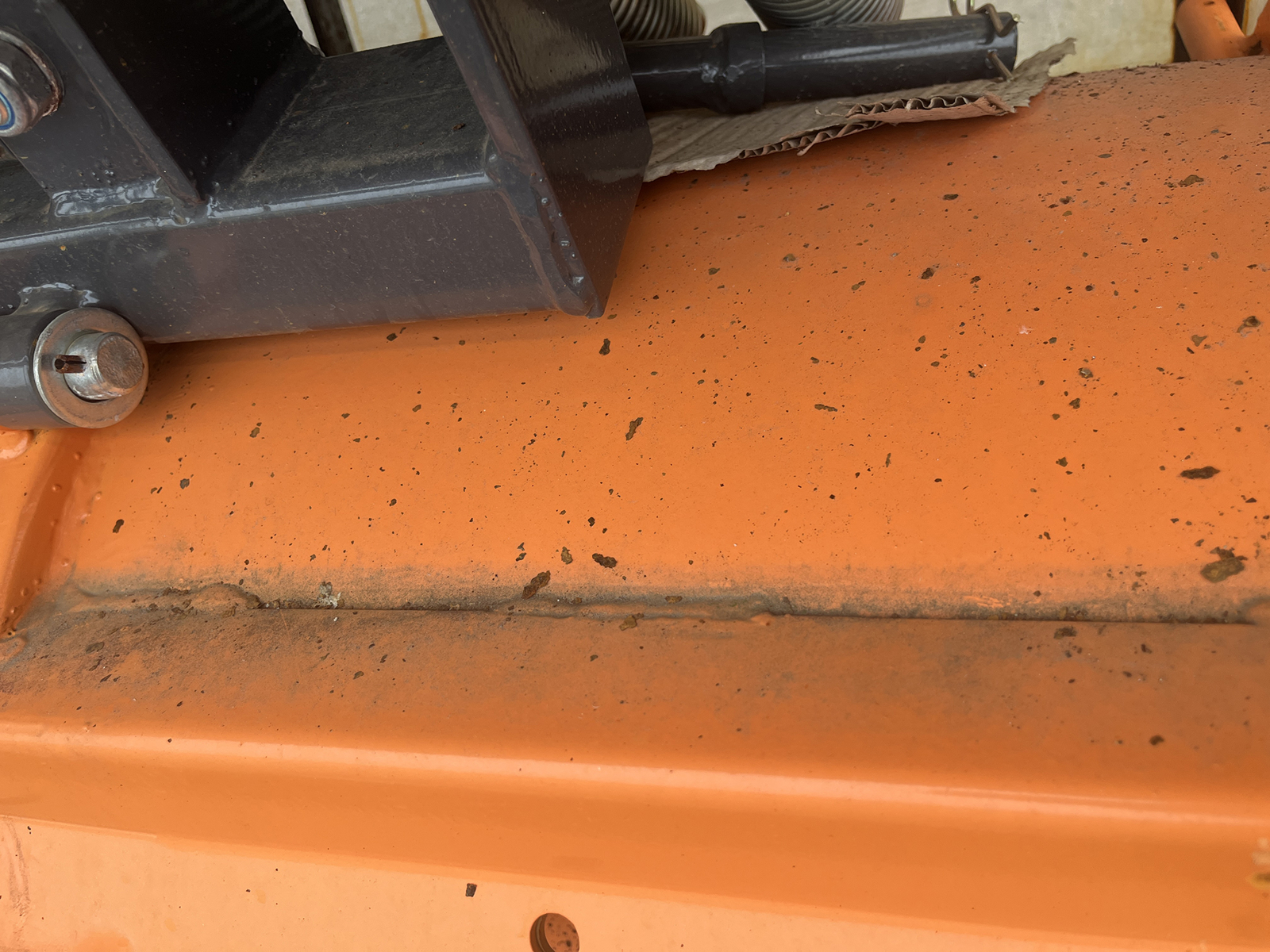

Product in good condition, refurbished by the manufacturer, shows signs of use.

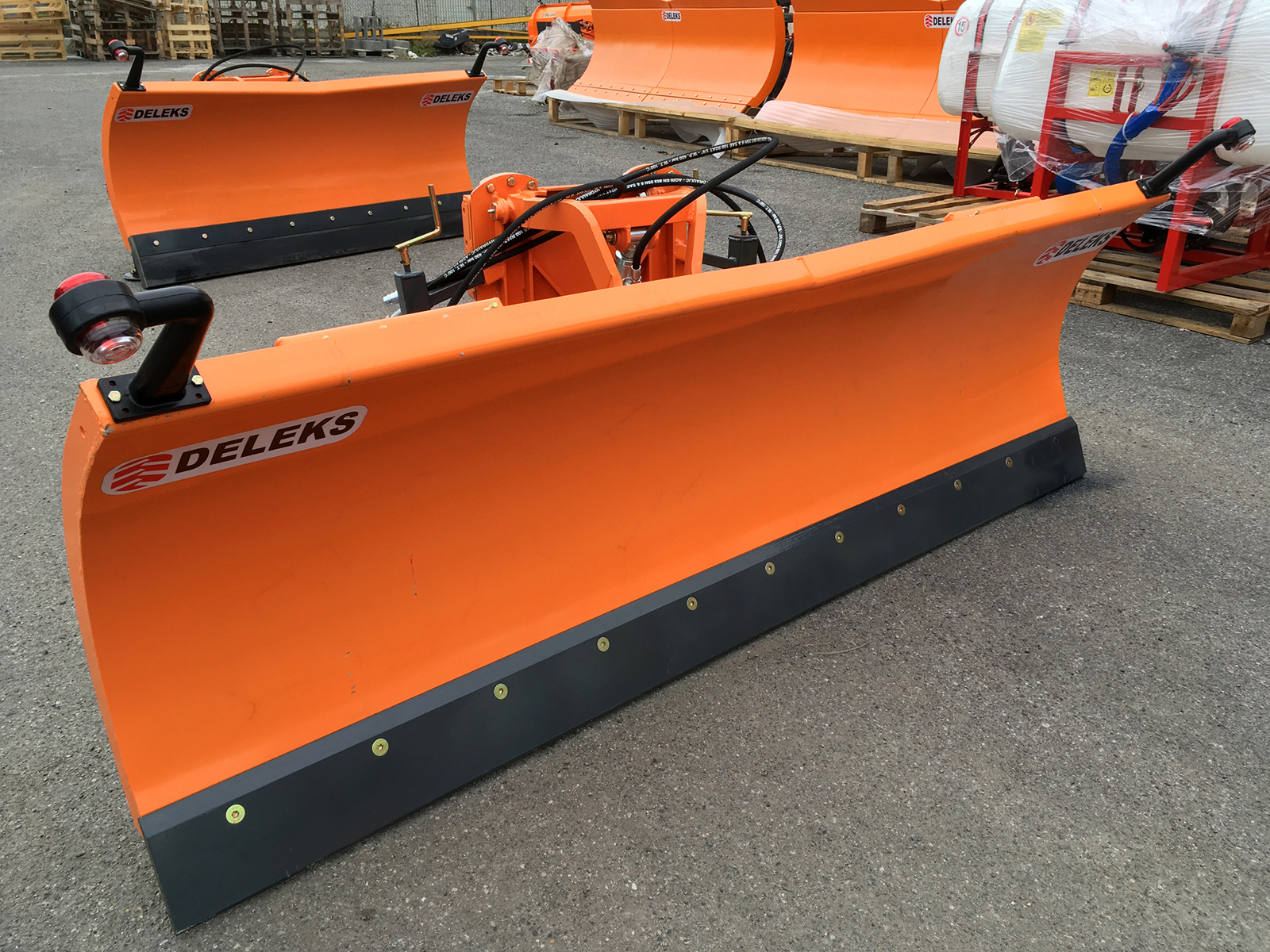

Frontal snow plow DELEKS® 250cm, with mounting plate for tractors John Deere, New Holland.. Homologated for road use.
DESCRIPTION

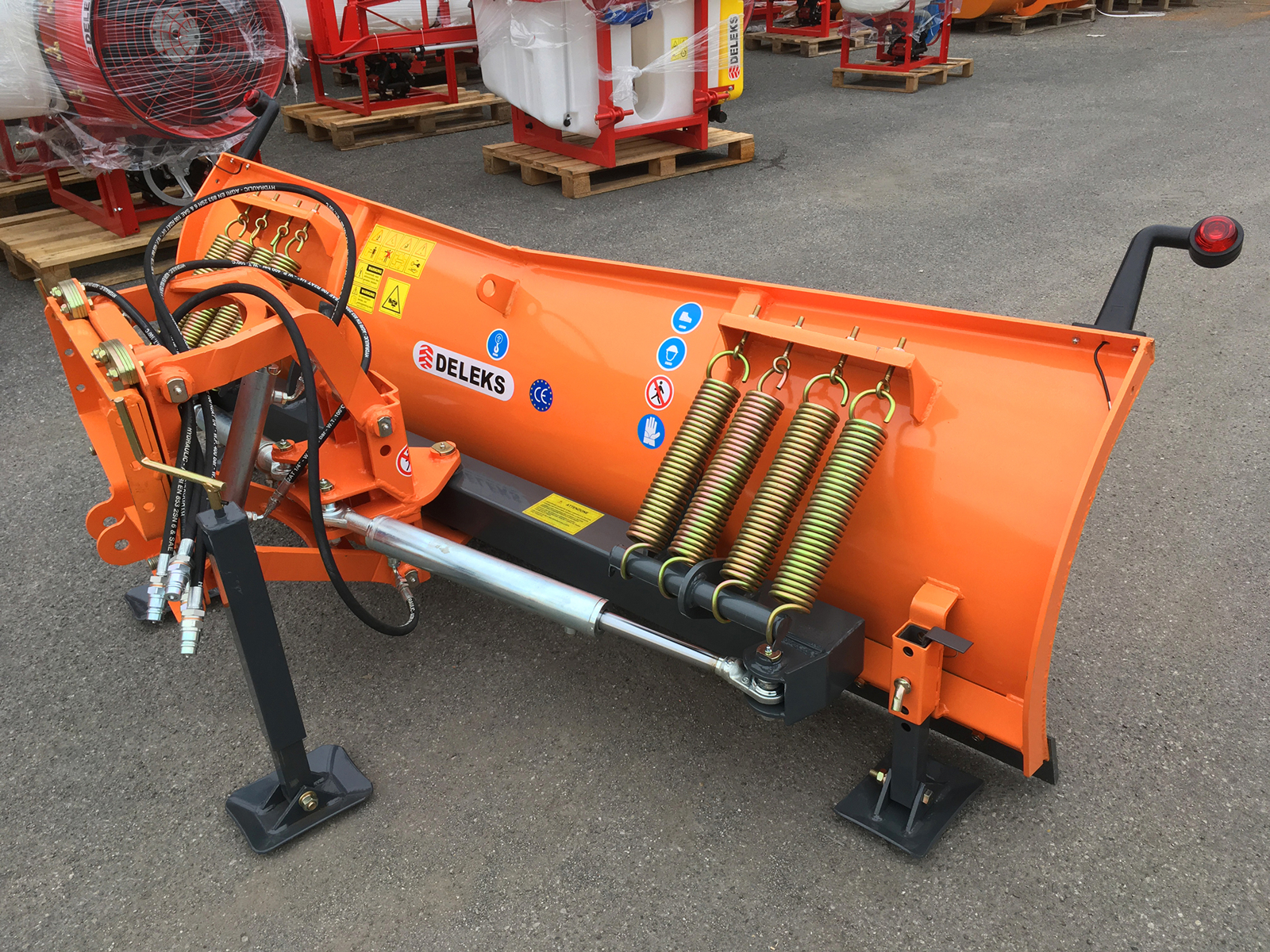

LN-250-A Frontal use Snow Plow with universal plate, with hydraulic lifting and angling. It attaches to the tractor via a quick coupling robust plate. 4 hydraulic pipes of 1.5m for front connection. On request we supply four hydraulic pipes to add an additional 4,0m of length. Our quick attachment system means pipes can be connected to the four hydraulic outlets of the tractor in seconds. The blade itself is sharp, replaceable steel edge (on request also available with Rubber edge), Couple of marker lights.
Compatible with all compact tractors from 60 to 80hp (no open field), e.g. John Deere, Ford, New Holland, Massey Ferguson, McCormick, Carraro or 4x4's e.g. Nissan, Seat, Renualt, and vans such as Caron, Bonetti, Bremach etc. Conforms to the EC Machinery Directive. 2 Year Warranty.
BENEFITS AND FEATURES

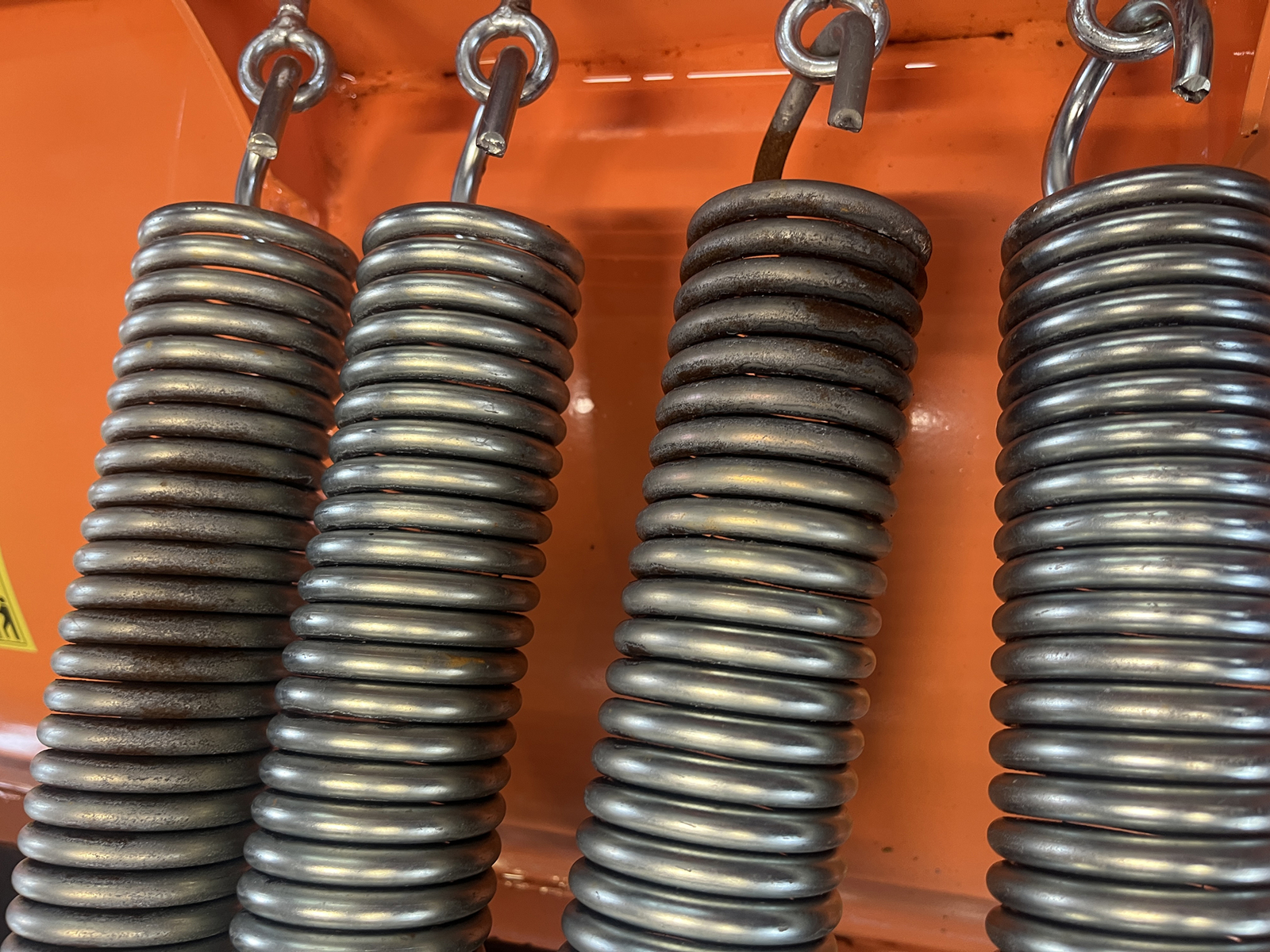

Shockproof system with 8 shock absorbing springs to operate in maximum safety.
3 Hydraulic cylinders: left / right / up / down, Made in Italy.

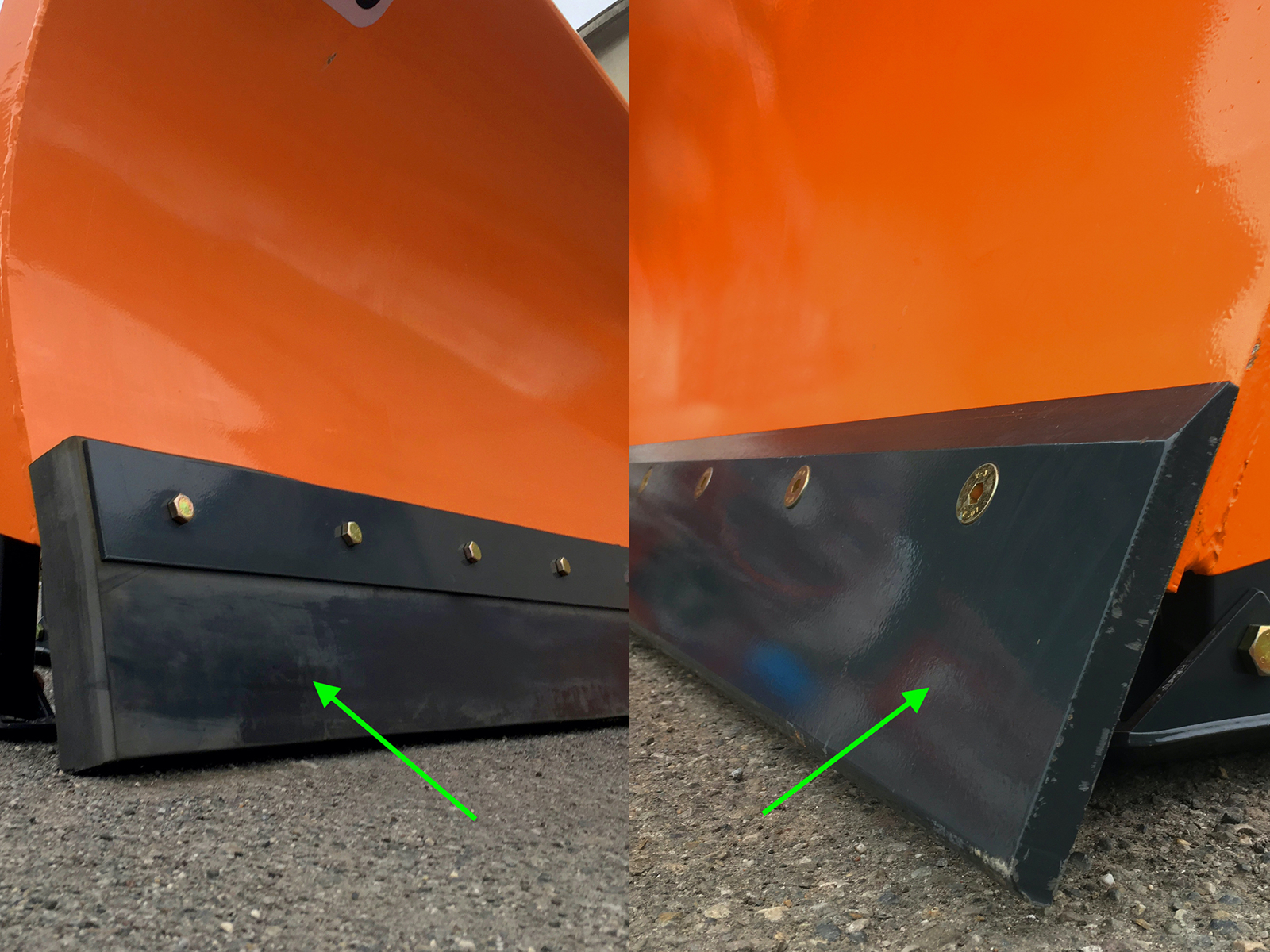

Side skid shoes reduce the abrasive action on the cutting edge of the blade thereby prolonging the life of the blade.
Support legs with crank, make it extremely easy to assemble and disassemble at the end of the season.
The plate fitting is removable and replaceable with a 3-point hitch, EURO or Skid steer loaders.
Homologated for road use.
The LN-A doubles as a grader blade and can be used for dirt work, road maintenance, ditching, landscaping, snow removal, cleaning livestock pens, gravel, sand year round.
Not limited to plowing snow.
Note: the destination must be accessible to a truck (24Ton). The customer must be equipped with a forklift to unload the pallet.
CHARACTERISTICS
| Characteristic | Units metric |
|---|---|
| Weight | 329.0 kg |
| Overall height | 700.0 mm |
| Tractor Power Range | 60 - 80 Hp |
| Overall Length | 830.0 mm |
| Min./Max. Relief Pressure | 110 - 150 bar |
| Min./Max. Flow | 18 - 22 l/min |
| Interface | Universal Plate |
| Universal plate sizes | 500.0*360.0 mm |
| Angling (left/right) | 27° |
| Float | +/- 4° |
| Blade Height | 700.0 mm |
| Side edge thickness | 8.0 mm |
| Shock absorbers | 8 |
| Distance between plate and base | 270.0 mm |
| Cutting Edge | Steel or Rubber |
| Cutting Edge Height | 150.0 mm |
| Cutting Edge Thickness | 16.0 mm |
| Trip Edge Quantity | 1 |
| Distance betweens the bolts of the Trip Edge | 200.0 mm |
| Lights | √ |
| Removable Skid Shoes | √ |
| Working width (angled) | 2231.0 mm |
| Hydraulic Hoses | 4 x 1500.0 mm / connections 1.2" AGRI, WP 400 bar |
| Overall width | 2505.0 mm |
| Main frame thickness | 5.0 mm |
| Hydraulic cylinder/s ø | 50.0/25.0 + 60.0/30.0 mm |
| Packing sizes | 2505.0*800.0*900.0 mm |
